Select the “Climate concierge”
switch.

Turn the “AUTO” switch on.



Automatic air conditioning system
(



Operation of the air conditioning system is
performed automatically according to the
temperature setting for the driver’s
side/front passenger’s side.



Seat heaters (



P.422)

Operation of the seat heaters is performed
automatically according to the tempera-
ture setting for the driver’s side/front pas-
senger’s side.
Operation will automatically change
between the seat heaters and seat ventila-

tors according to the temperature setting
of the air conditioning system, outside tem-
perature, etc.



Seat ventilators (



P.422)

Operation of the seat ventilators is per-
formed automatically according to the
temperature setting for the driver’s
side/front passenger’s side.
Operation will automatically change
between the seat heaters and seat ventila-
tors according to the temperature setting
of the air conditioning system, outside tem-
perature, etc.



Heated steering wheel (

P.422)

Operation of the heated steering wheel is
performed automatically according to the
temperature setting of the air conditioning
system, outside temperature, etc.

: If equipped

■

Passenger detection functions

●

When a passenger is detected in the

front passenger seat, the seat heater and

ventilator will operate automatically.

●

When the seat heater/seat ventilator

switch is set to AUTO, the passenger

detection function will not operate.

■

Rear seat heater operation (vehicles

with rear seat heaters)

The rear seat heaters are not controlled by

the Lexus Climate Concierge.

Lexus Climate Concierge

The climate control seats are auto-
matically controlled according to
the set temperature of the air con-
ditioning system, outside tempera-
ture, cabin temperature, etc. Lexus
Climate Concierge allows a com-
fortable condition to be maintained
without adjusting each system.

Turning on Lexus Climate Con-
cierge

Automatically controllable func-
tions

412

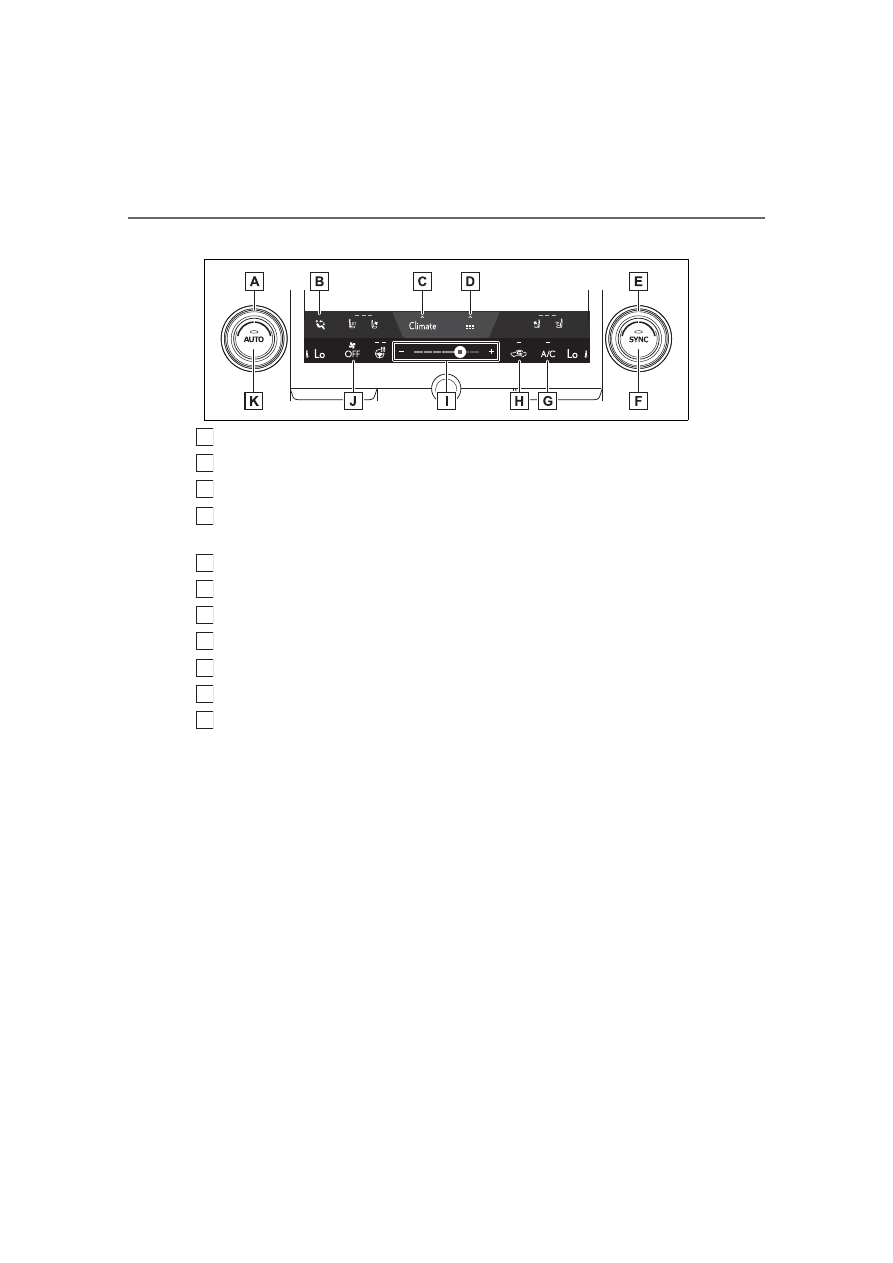

5-2. Using the air conditioning system and defogger



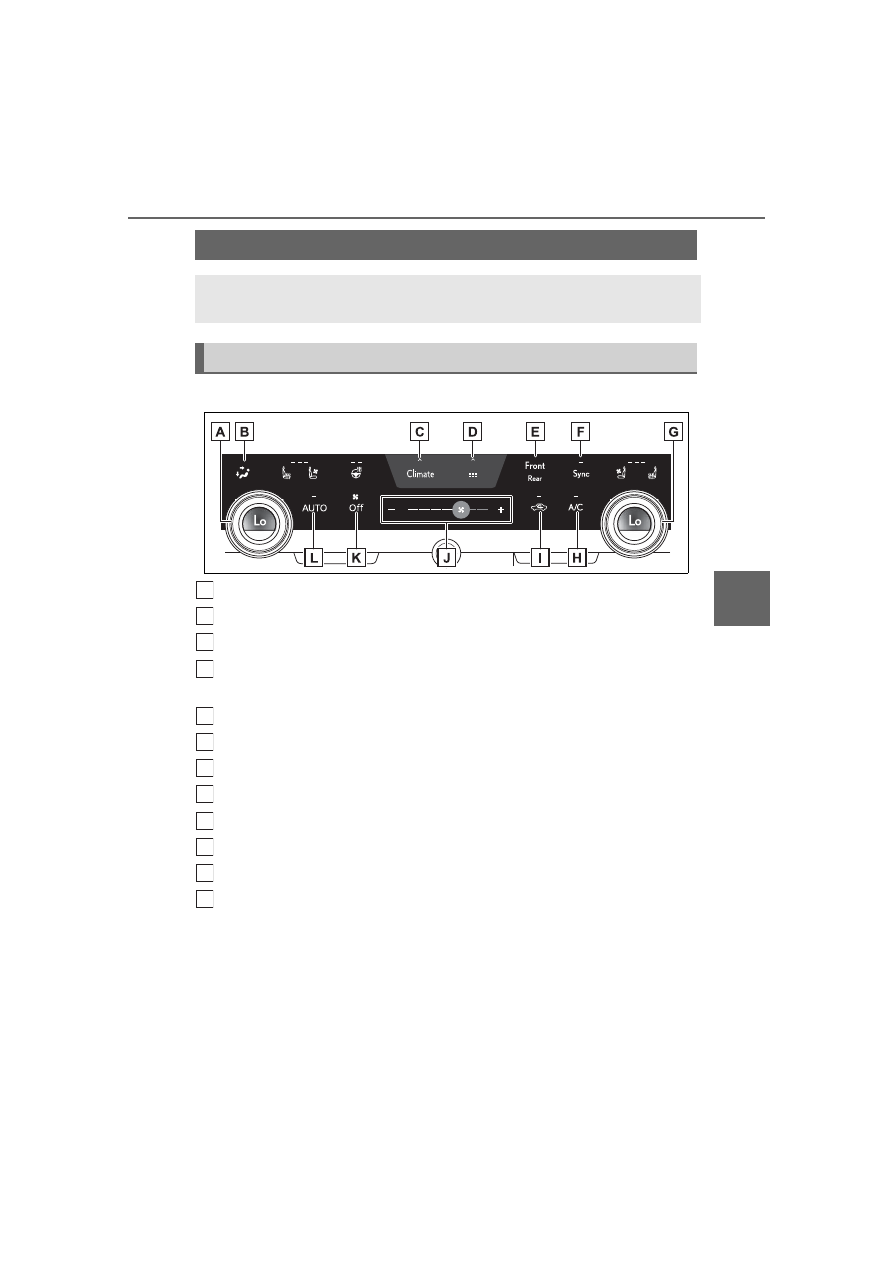

9.8-inch center display model

Left-hand side temperature control switch
Airflow mode control switch
Option screen switch
Shortcut screen switch

Select to display shortcut icons for various functions.

Right-hand side temperature control switch
“SYNC” switch
“A/C” switch
Outside/recirculated air mode switch
Fan speed control switch
“OFF” switch
“AUTO” switch

■

Adjusting the temperature

Turn temperature control dial clock-
wise to increases the temperature and
turn the dial counterclockwise to
decreases the temperature.
When the indicator on the “Sync”
switch is illuminated, the temperature
setting for the front passenger’s side
and the rear seats side will match the
setting for the driver’s side.
When the indicator on the “Sync”
switch is off, turning the “Sync” switch
on will illuminate the “Sync” switch indi-
cator and the temperature setting for

the front passenger’s side and the rear
seats side will become the same as that
for the driver’s side.

When the front passenger’s side tempera-
ture adjustment switch is operated, the
indicator on the “Sync” switch will turn off
and the temperature setting for the front
passenger’s side will be able to be
adjusted.
When the rear seats side temperature
adjustment switch is operated, the indica-
tor on the “Sync” switch will turn off and the
temperature setting for the rear seats side
will be able to be adjusted.
If the “A/C” indicator is turned off, the sys-

A
B
C
D

E
F

413

5-2. Using the air conditioning system and defogger

Interio

r fe

atures

tem will blow ambient temperature air or
heated air.
When the front passenger’s side and the
rear seats side temperature adjustment
switch is operated, adjust the temperature
for the driver, front passenger and rear
seats separately. (“3-ZONE” mode)

■

Setting the fan speed

To increase the fan speed, select the
“+” fan speed adjustment switch or
slide the icon of the fan speed adjust-
ment switch right. To decrease the fan
speed, select the “-” fan speed adjust-
ment switch or slide the icon of the fan
speed adjustment switch left.

Select the “Off” switch to turn the fan off.
The fan can also be stopped by touching
and holding the “-” fan speed adjustment
switch or sliding the icon of the fan speed
adjustment switch to the leftmost position
and holding it.

■

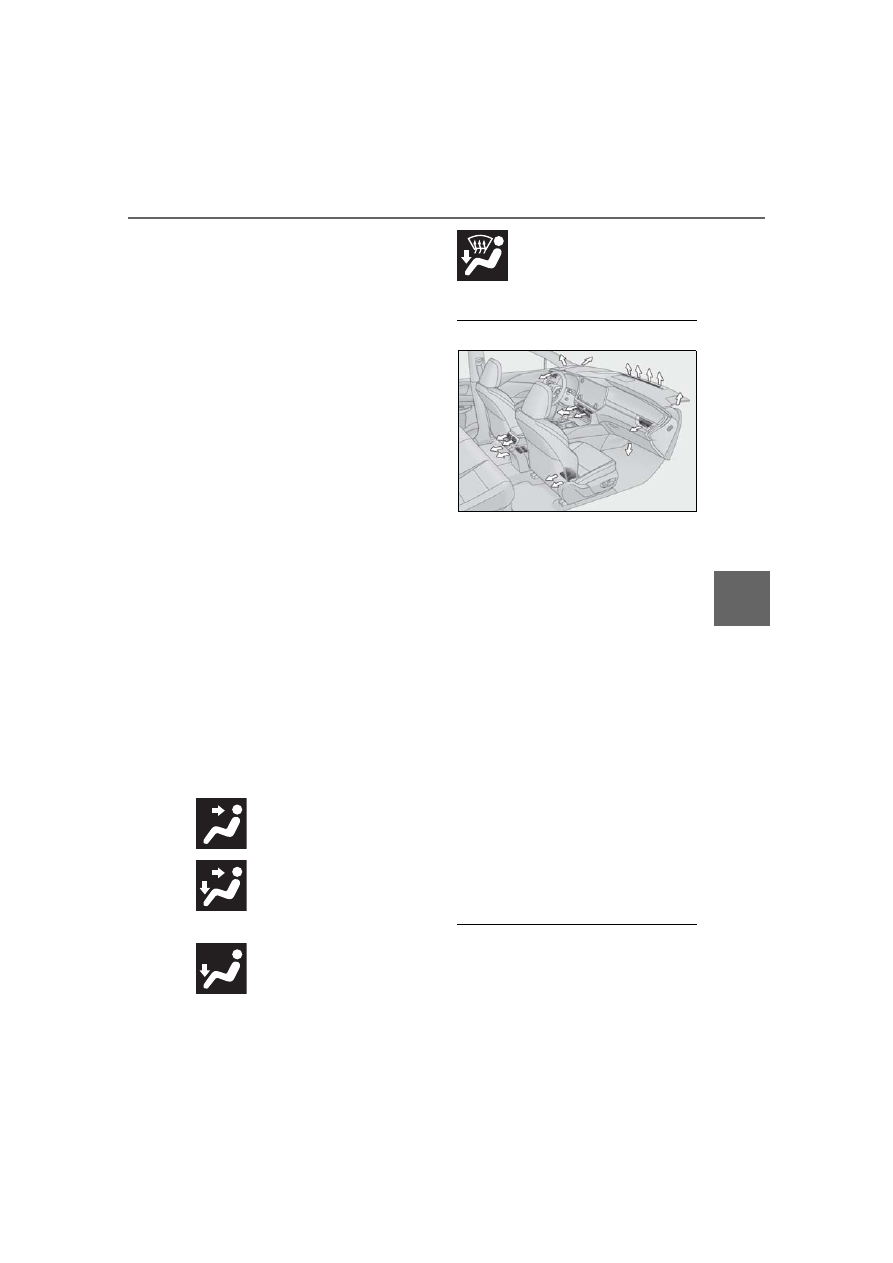

Changing the air flow mode

Select the airflow mode control switch.

The airflow mode changes each time the
switch is selected.
The air outlets and air volume changes
according to the selected air flow mode.

: Air flows to the upper body

and feet

: Air flows to the feet

: Air flows to the feet and the

windshield defogger operates

■

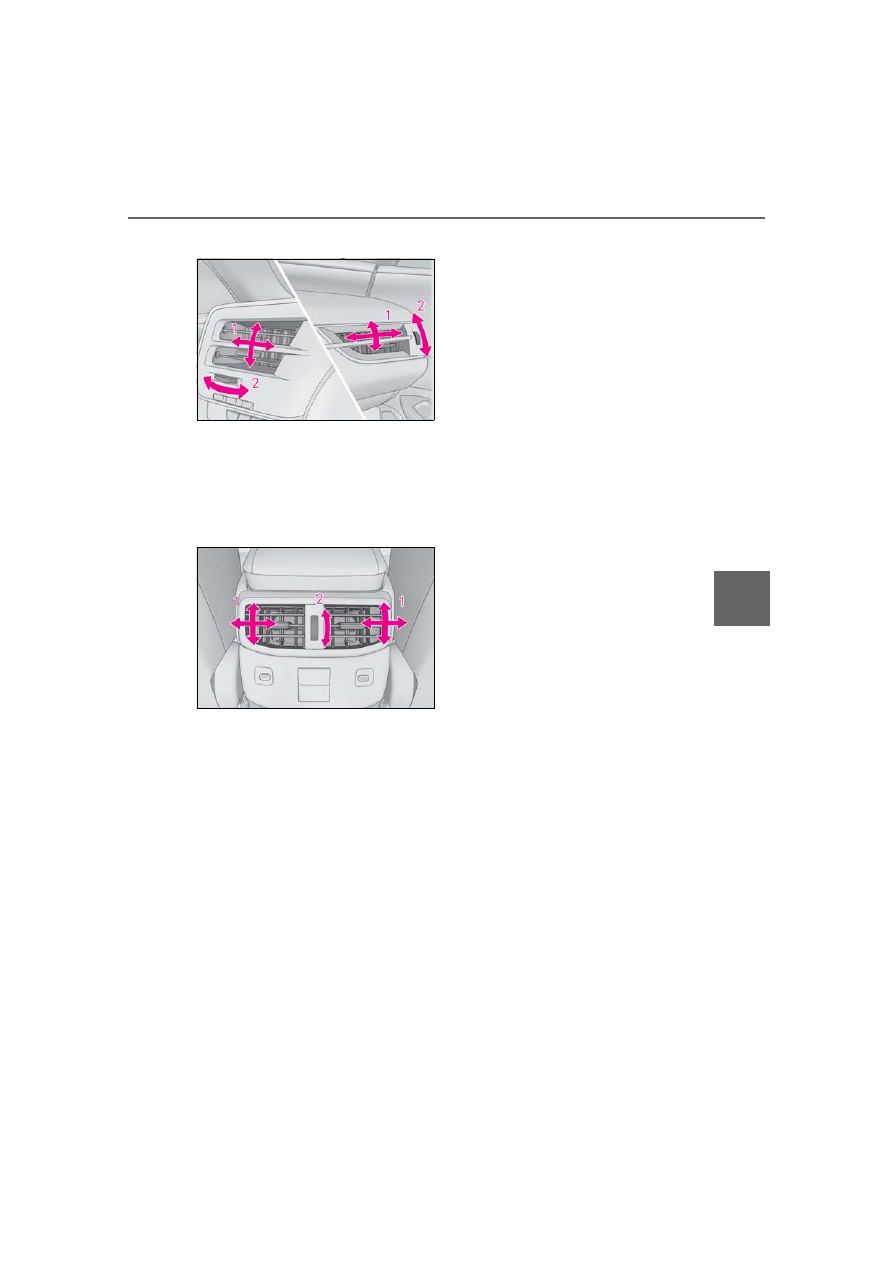

Location of air outlets

■

Switching between outside air and
recirculated air modes

Temporarily changing the air mode to
recirculated air mode is recommended
to prevent dirty air from entering the
vehicle, such as when in a tunnel or
heavy traffic, and to help cool the inte-
rior when the outside air temperature
is high.
Select the outside/recirculated air
mode switch.

The air mode changes between outside air
mode and recirculated air mode each time
the switch is selected. When recirculated
air mode is selected, the indicator will illu-
minate.
The air mode may change automatically
depending on the temperature setting,
temperature inside the vehicle, etc.

■

When the outside temperature exceeds

75°F (24°C) and the air conditioning

system is on

●

In order to reduce the air conditioning

power consumption, the air conditioning

system may switch to recirculated air

mode automatically. This may also

414

5-2. Using the air conditioning system and defogger

reduce fuel consumption.

●

Recirculated air mode is selected as a

default mode when the power switch is

turned to ON.

●

It is possible to switch to outside air mode

at any time by pressing the outside/recir-

culated air mode switch.

■

Front seat concentrated airflow
mode (S-Flow)

This function automatically controls the
airflow of the air conditioning system to
prioritize airflow to the front seats. Fuel
economy can be enhanced by reduc-
ing unnecessary cooling
Front seat concentrated airflow mode
operates in the following situations.



No passengers are detected in the
rear seats



The windshield defogger is not
operating

The S-Flow switch is

(ON) on

the option screen.
In front seat concentrated airflow mode,
directing airflow to the front seats only and
to all seats can be switched via switch
operation. When the mode has been
switched manually, automatic airflow con-
trol stops operating.

Select the option screen switch.
(



Select the “S-Flow” switch.



Indicator illuminated: Airflow to the
front seats only



Indicator off: Airflow to all the seats

■

Operation of automatic airflow control

●

In order to maintain a comfortable inte-

rior, airflow may be directed to seats

without passengers immediately after the

hybrid system is started and at other

times depending on the outside tempera-

ture.

●

After the hybrid system is started, if pas-

sengers move around inside or enter/exit

the vehicle, the system cannot accurately

detect the presence of passengers and

automatic airflow control will not oper-

ate.

■

Operation of manual airflow control

Even if the function is manually switched to

directing airflow to only the front seats,

when a rear seat is occupied, it may auto-

matically direct airflow to all seats.

■

To return to automatic airflow control

With the indicator off, turn the power

switch off.

After 60 minutes or more elapse, turn

the power switch to ON.

■

Eco air conditioning mode

The air conditioning is controlled with
low fuel consumption prioritized such
as reducing fan speed, etc.

Select the option screen switch.
(

Select the “Eco heat/cool” switch.



In Eco drive mode, the air condition-
ing system is controlled as follows to
prioritize fuel efficiency. To improve
air conditioning performance, turn
off Eco air conditioning mode.

• Engine speed and compressor opera-

tion controlled to restrict heating/cool-
ing capacity.

• Fan speed restricted when automatic

mode is selected.



When the driving mode is set to Eco
driving mode, the Eco air condition-
ing mode will be turned on automat-
ically. Even in this case, the Eco air
conditioning mode can be turned

415

5-2. Using the air conditioning system and defogger

Interio

r fe

atures

off by selecting the “Eco heat/cool”.

■

Warming the interior quickly (Max
heat)

When “MAX heat” is turned on, in
order to warm the interior quickly, the
settings ofthe air conditioning system
will be changed immediately.

Select the shortcut screen switch.
(



Select the “MAX heat” switch.



The temperature setting of the air
conditioning system will be set to
“Hi” and the “AUTO” switch will be
turned on.



Seat heaters will be set to Hi.



Heated steering wheel will be set to
Hi. (vehicles with heated steering
wheel)



In the following situations, the front
passenger’s side seat heater/seat
ventilator will be set to “AUTO”.

• When “Climate concierge” is on
• When the system determines that a pas-

senger is in the front passenger seat



When the indicator on the “Sync”
switch is illuminated, the tempera-
ture setting for the front passenger’s
side and the rear seats side will also
be set to “Hi”.

■

Cooling the interior quickly (Max
cool)

When “MAX cool” is turned on, in
order to cool the interior quickly, the
settings ofthe air conditioning system
will be changed immediately.

Select the shortcut screen switch.
(

Select the “MAX cool” switch.



The temperature setting of the air
conditioning system will be set to
“Lo” and the “AUTO” switch will be
turned on.



Seat ventilators will be set to Hi.
(vehicles with seat ventilators)



In the following situation, the heated
steering wheel will be set to
“AUTO”. (vehicles with heated
steering wheel)

• When “Climate concierge” is on



In the following situations, the front
passenger’s side seat heater/seat
ventilator will be set to “AUTO”.

• When “Climate concierge” is on
• When the system determines that a pas-

senger is in the front passenger seat



When the indicator on the “Sync”
switch is illuminated, the tempera-
ture setting for the front passenger’s
side and the the rear seats side will
also be set to “Lo”.

■

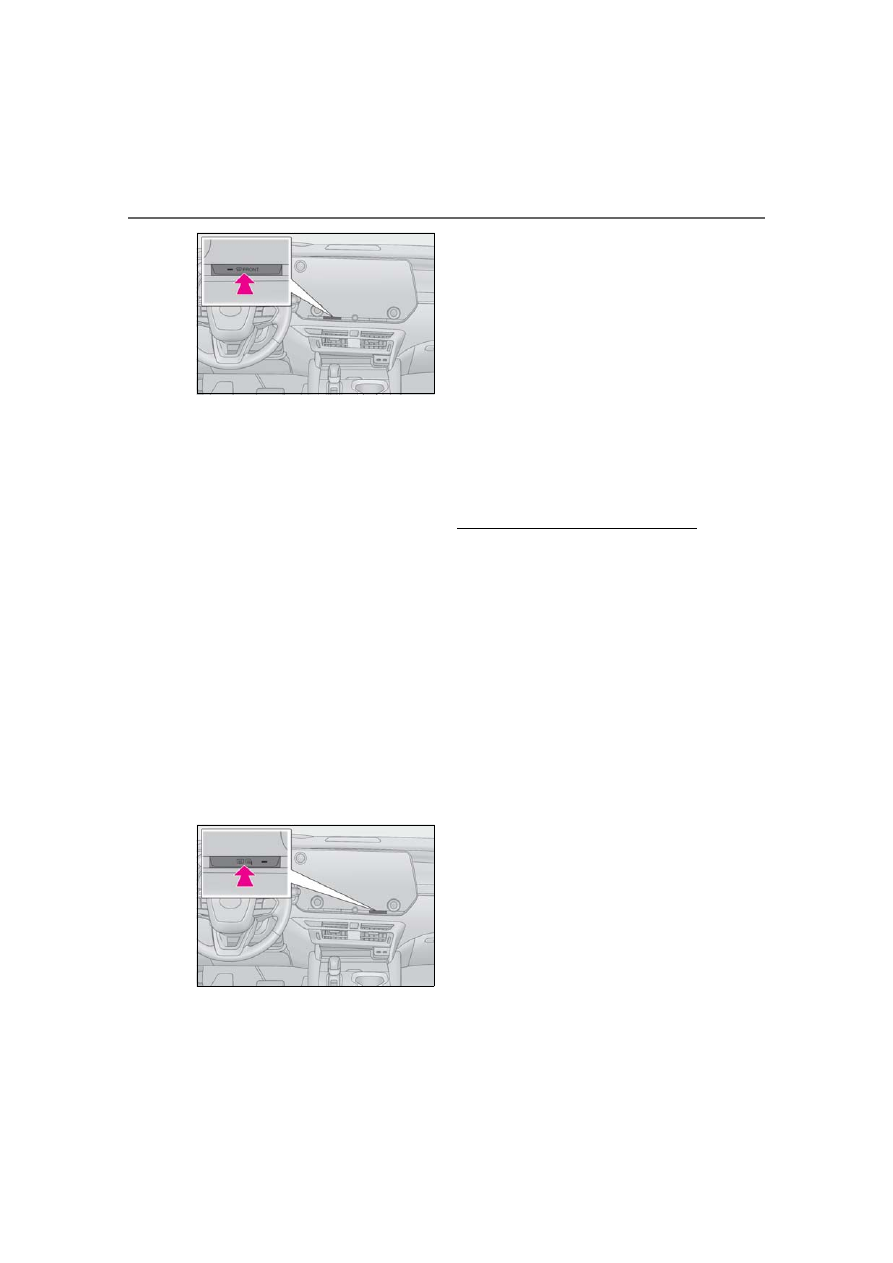

Defogging the windshield

Defoggers are used to defog the wind-
shield and front side windows.
Press the windshield defogger switch.

416

5-2. Using the air conditioning system and defogger

The dehumidification function will operate
and the air flow will increase.
Set the outside/recirculated air mode but-
ton to outside air mode if the recirculated
air mode is used. (It may switch automati-
cally.)
To defog the windshield and the side win-
dows early, turn the air flow and tempera-
ture up.
To return to the previous mode, press the
windshield defogger switch again when the
windshield is defogged.

■

Defogging the rear window and
outside rear view mirrors

Defoggers are used to defog the rear
window, and to remove raindrops, dew
and frost from the outside rear view
mirrors.
Press the rear window and outside rear
view mirror defoggers switch.

The rear window defogger and outside
rear view mirror defoggers will operate
and defog the rear window and outside

rear view mirrors.
The defoggers will automatically turn off
after a period of time.

■

Windshield wiper de-icer (if
equipped)

Use the windshield wiper de-icer to
help prevent the windshield wiper
blades from freezing to the windshield.

Select the option screen switch.
(

Select the “Deicer” switch.

The windshield wiper de-icer will automati-
cally turn off after a period of time.

■

When driving on dusty roads

Close all windows. If dust thrown up by the

vehicle is still drawn into the vehicle after

closing the windows, it is recommended

that the air intake mode be set to outside air

mode and the fan speed to any setting

except off.

■

When the outside temperature is low

The dehumidification function may not

operate even when “A/C” is selected.

■

Ventilation and air conditioning odors

●

To let fresh air in, set the air conditioning

system to the outside air mode.

●

During use, various odors from inside and

outside the vehicle may enter into and

accumulate in the air conditioning sys-

tem. This may then cause odor to be

emitted from the vents.

●

To reduce potential odors from occur-

ring:

• It is recommended that the air condition-

ing system be set to outside air mode

prior to turning the vehicle off.

• The start timing of the blower may be

delayed for a short period of time imme-

diately after the air conditioning system is

started in automatic mode.

●

When parking, the system automatically

switches to outside air mode to encour-

age better air circulation throughout the

417

5-2. Using the air conditioning system and defogger

Interio

r fe

atures

vehicle, helping to reduce odors that

occur when starting the vehicle.

■

“MAX heat”

●

The “MAX heat” switch cannot be used

to turn the setting off.

●

After the “MAX heat” switch has been

operated, the temperature setting can be

adjusted using the temperature control

switches of the air conditioning system.

●

When “Climate concierge” is on, if the

“AUTO” switch is turned on, the seat
heaters and seat ventilators

of the front

seats, and the heated steering wheel

will

be operated automatically according to

the temperature setting.

●

Each function can also be adjusted to the

desired setting.

: If equipped

■

“MAX cool”

●

The “MAX cool” switch cannot be used

to turn the setting off.

●

After the “MAX cool” switch has been

operated, the temperature setting can be

adjusted using the temperature control

switches of the air conditioning system.

●

When “Climate concierge” is on, if the

“AUTO” switch is turned on, the seat
heaters and seat ventilators

of the front

seats, and the heated steering wheel

will

be operated automatically according to

the temperature setting.

●

Each function can also be adjusted to the

desired setting.

: If equipped

■

Fogging up of the windows

The windows will easily fog up when the

humidity in the vehicle is high. Selecting

“A/C” on will dehumidify the air from the

outlets and defog the windshield effectively.

●

If you turn “A/C” off, the windows may fog

up more easily.

●

The windows may fog up if the recircu-

lated air mode is used.

■

Air conditioning system refrigerant

●

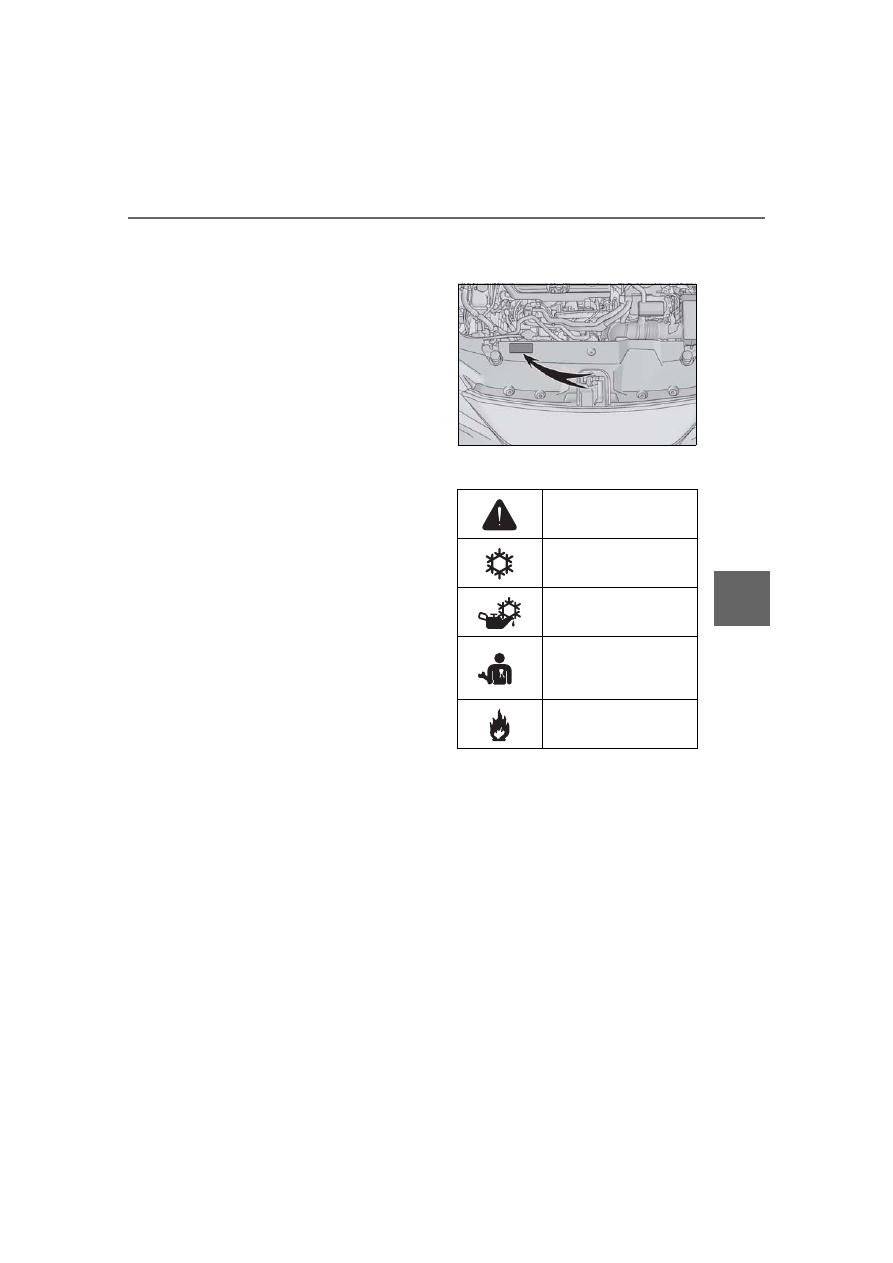

A label regarding the refrigerant of the

air conditioning system is attached to the

hood at the location shown in the follow-

ing illustration.

●

The meaning of each symbol on the label

are as follows:

■

Using the voice control system

Air conditioning system can be operated

using voice controls. For details, refer to the

“MULTIMEDIA OWNER’S MANUAL”.

■

Air conditioning filter



P.496

■

Customization

Functions that are linked to automatic mode

(when the “AUTO” switch is on) can be set

through “Vehicle customize” on the center

display. Exhaust gas sensor sensitivity set-

tings can also be changed. (if equipped)

(

Caution

Air conditioning system

Air conditioning system
lubricant type

Requires registered tech-
nician to service air condi-
tioning system

Flammable refrigerant

418

5-2. Using the air conditioning system and defogger

■

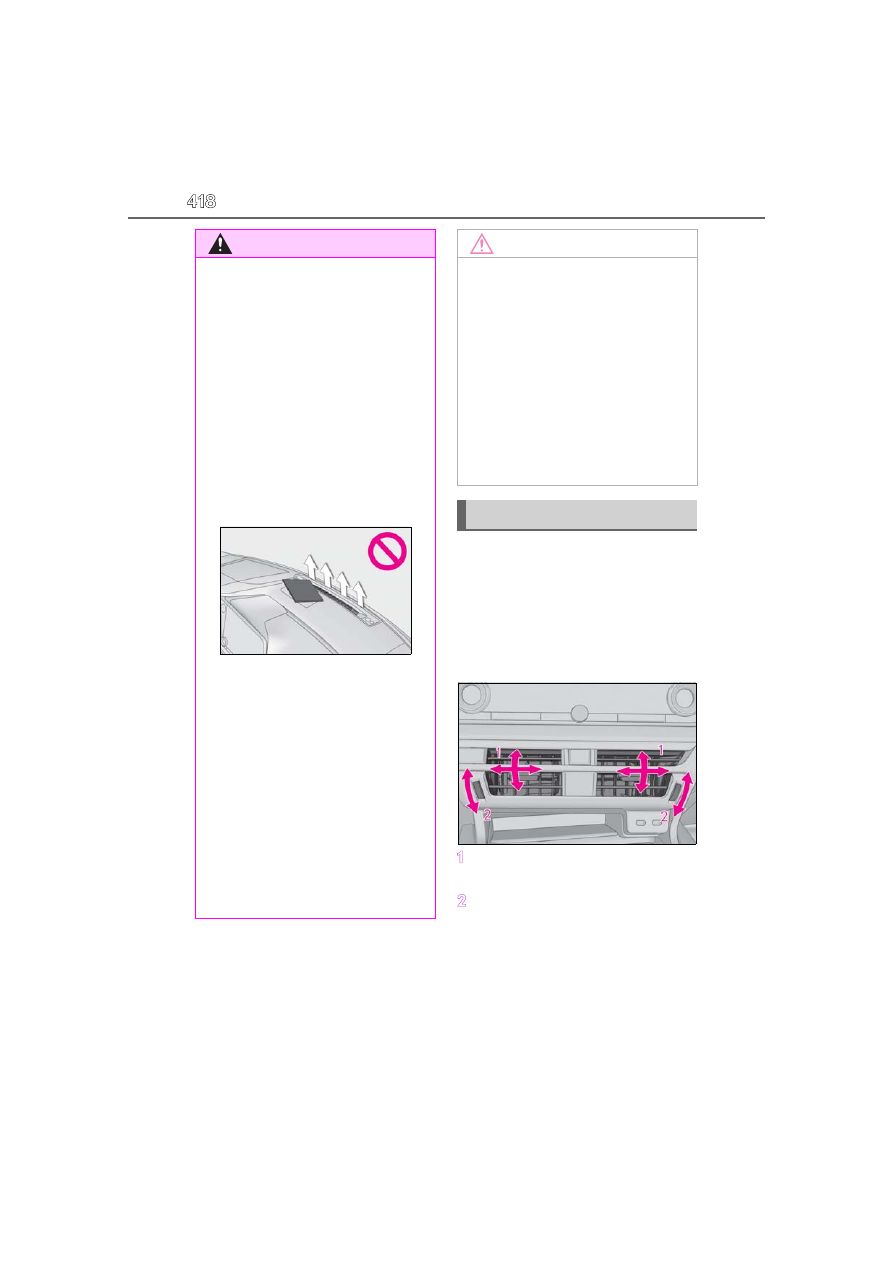

Adjusting the position of and open-
ing and closing the air outlets

To adjust the position of and opening
and closing the air outlets, perform the
following operations:



Front center

Direct air flow to the left or right, up
or down

Turn the knob to open or close the
vent

WARNING

■

To prevent the windshield defogger

from operating improperly

●

Do not use the windshield defogger in

extremely humid areas when the air

conditioning system is set to a low tem-

perature. The difference between the

temperature of the outside air and that

of the windshield can cause the outer

surface of the windshield to fog up,

blocking your vision.

●

Do not place anything on the instru-

ment panel which may cover the air

outlets. Otherwise, air flow may be

obstructed, preventing the windshield

defoggers from defogging.

■

When the outside rear view mirror

defoggers are operating

Do not touch the surface of the outside

rear view mirrors when the rear windowd

efogger and outside rear view mirror

defoggers are operating, as the surface

of the mirrors will become extremely hot

and may cause burns.

■

To prevent the windshield from fog-

ging up

Do not touch the lower part of the wind-

shield or parts along the front pillars

when the windshield wiper de-icer is on,

as they will be hot and may cause burns.

NOTICE

■

To prevent 12-volt battery discharge

Do not leave the air conditioning system

on longer than necessary when the

hybrid system is off.

■

When repairing/replacing parts of

the air conditioning system

Have repair/replacement performed by

your Lexus dealer.

When a part of the air conditioning sys-

tem, such as the evaporator, is to be

replaced, it must be replaced with a new

one.

Air outlet layout and operations

421

5-2. Using the air conditioning system and defogger

rio

r fe

atu

■

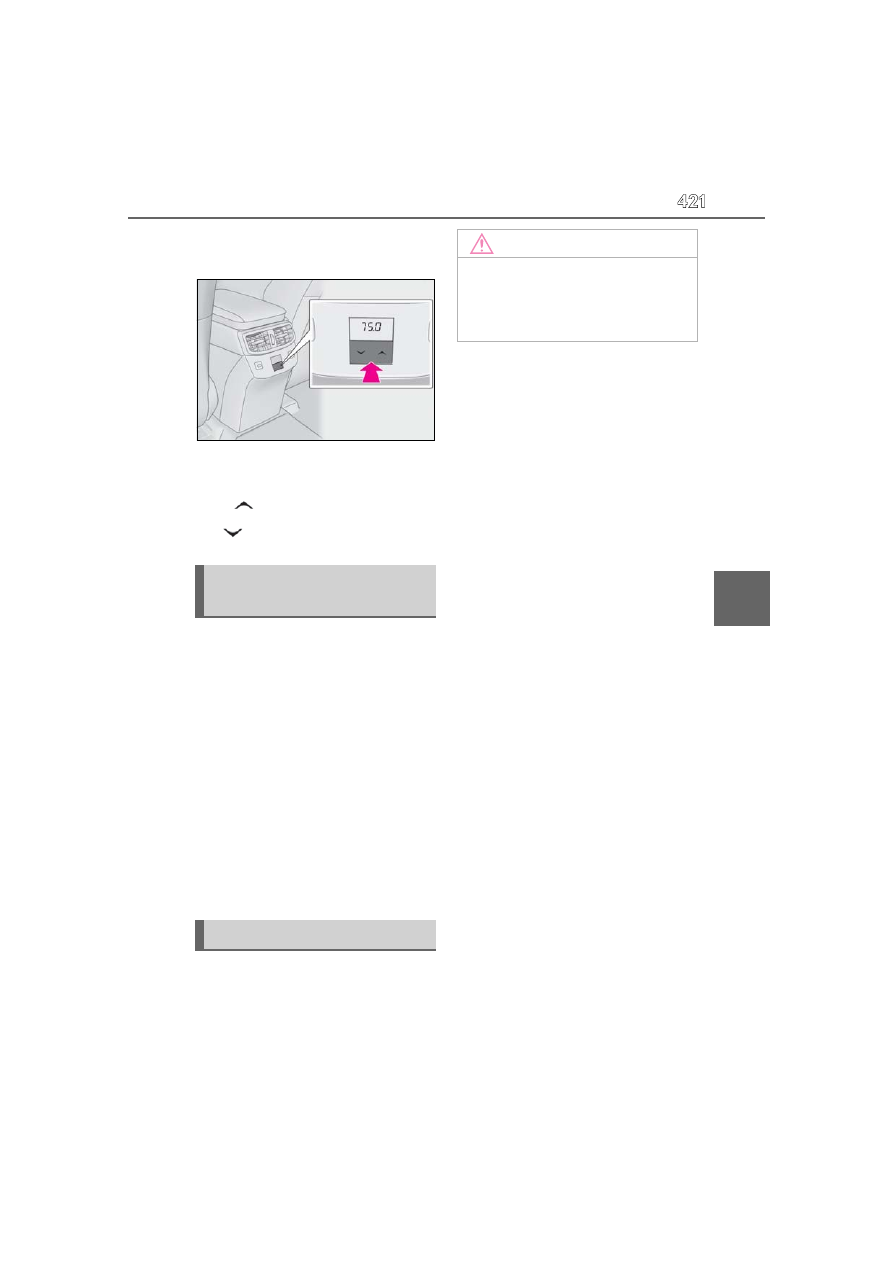

Rear air conditioning system con-
trol panel

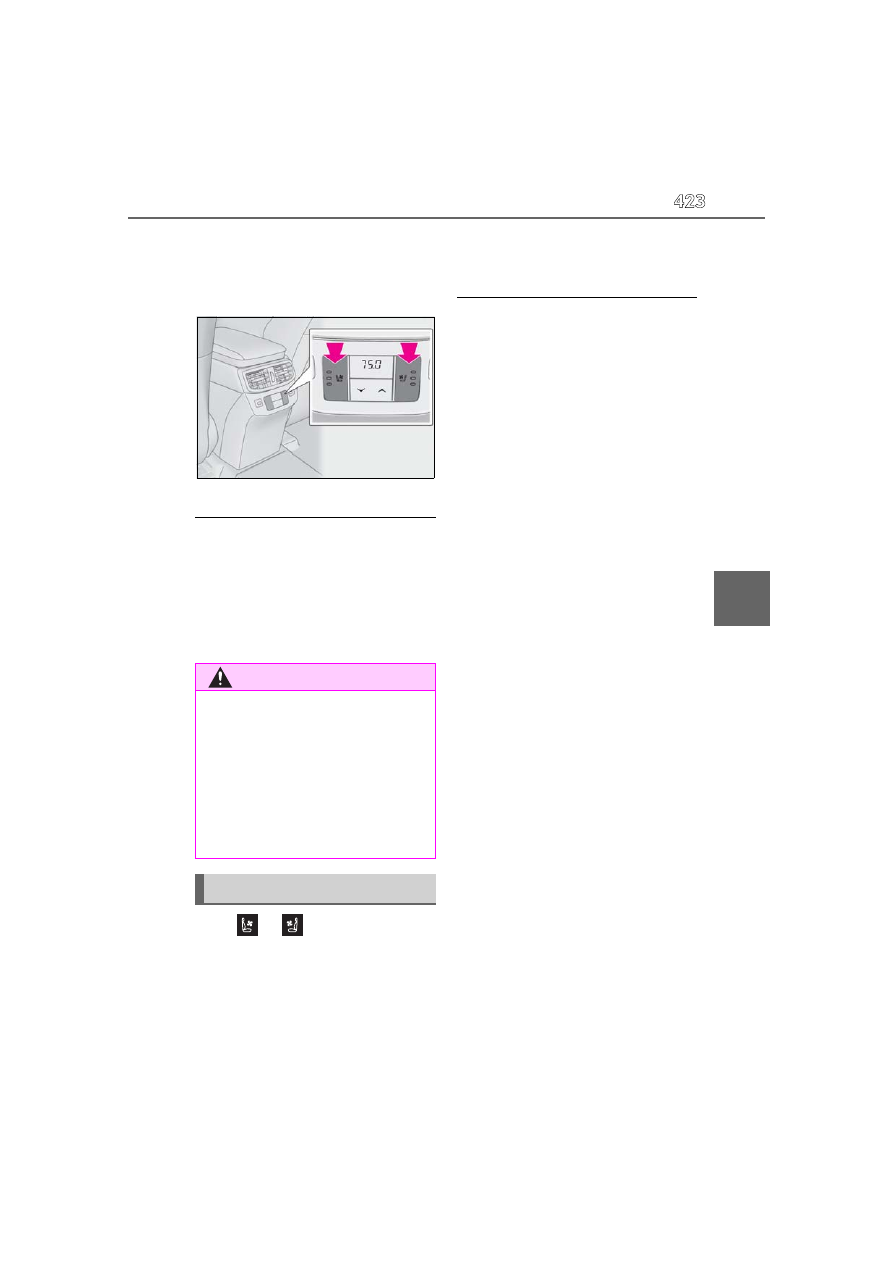

Adjust the rear seats temperature set-
ting

Press

to increase the temperature

and

to decrease the temperature.

The temperature setting of the rear
seats can be adjusted using the follow-
ing methods:



When the “Sync” indicator is on:
Adjust the driver’s seat temperature.

Adjust the temperature setting of each
rear seat using the center display or rear
air conditioning system control panel.



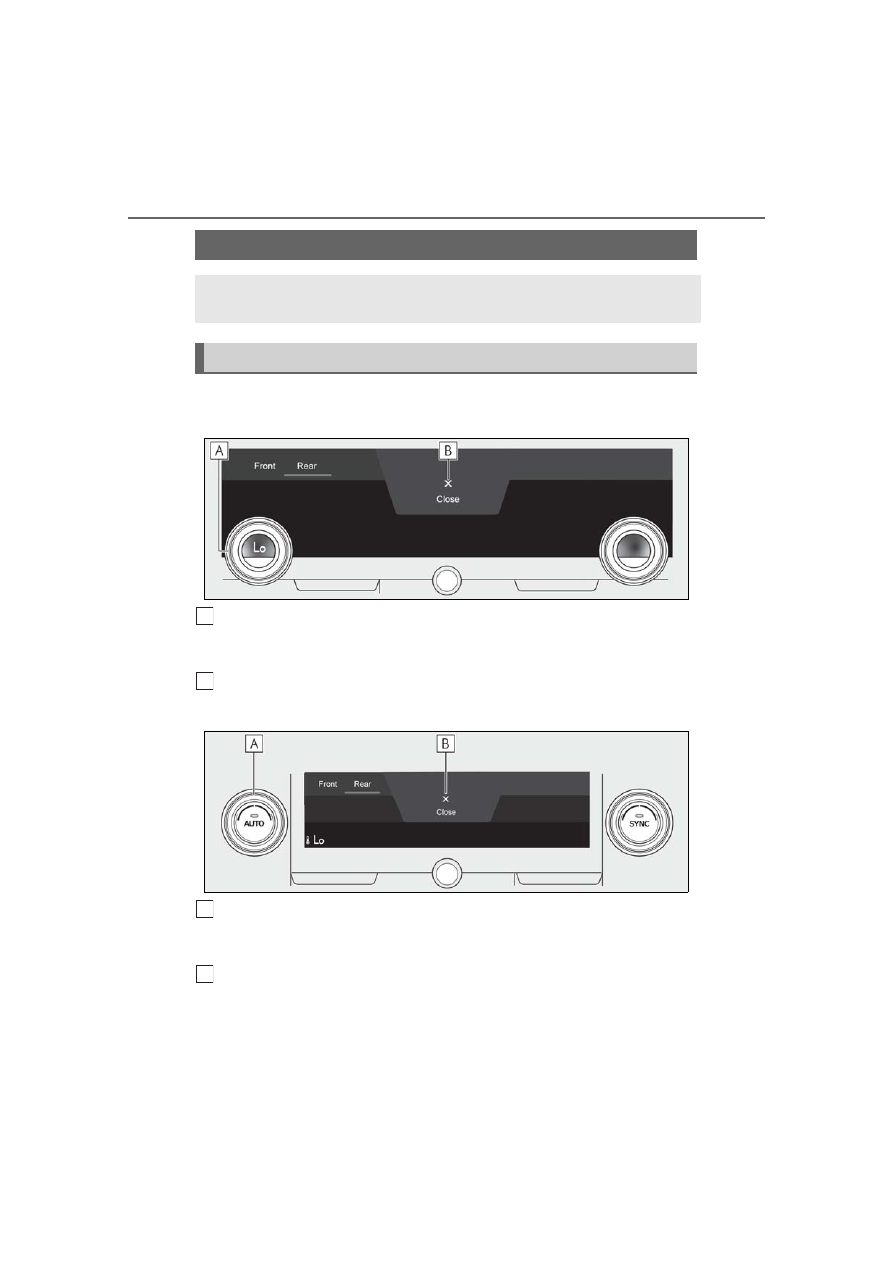

Adjust the temperature setting of
rear seats using the center display
(rear air conditioning control
screen) or rear air conditioning sys-
tem control panel.



P.418

Adjusting the temperature set-
ting of the rear seats

Air outlets

NOTICE

■

To prevent 12-volt battery discharge

Do not leave the air conditioning system

on longer than necessary when the

hybrid system is off.

422

5-2. Using the air conditioning system and defogger

: If equipped

Select

on the center display.

Each time the switch is selected, the opera-
tion condition changes as follows.
AUTO



Hi (2 segments lit)



Lo (1 seg-

ment lit)



Off

The level indicator (red) lights up during
operation. “AUTO” indicator lights up
during automatic operation.

■

Operation condition

The power switch is in ON.

■

Customization

The temperature setting of the heated

steering wheel can be set through “Vehicle

customize” on the center display.

(

■

Front seats

Select

on the center display.

Each time the switch is selected, the opera-
tion condition changes as follows.
AUTO



Hi (3 segments lit)



Mid (2 seg-

ments lit)



Lo (1 segment lit)



Off



Vehicles without seat ventilators

The level indicator (red) lights up
during operation. “AUTO” indicator
lights up during automatic operation.



Vehicles with seat ventilators

The level indicator (yellow) lights up
during operation.

■

Rear seats

Press the switch.

Each time the switch is selected, the opera-
tion condition changes as follows.

Heated steering wheel

/seat

heaters/seat ventilators



Heated steering wheel

Warms up the grip of the steering
wheel



Seat heaters

Warm up the seat upholstery



Seat ventilators

Maintain good ventilation using a fan
built into the seat

WARNING

■

To prevent minor burn injuries

Care should be taken if anyone in the fol-

lowing categories comes in contact with

the steering wheel or seats when the

heater is on:

●

Babies, small children, the elderly, the

sick and the physically challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alcohol or

drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

NOTICE

■

To prevent damage to the seat heat-

ers

Do not put heavy objects that have an

uneven surface on the seat and do not

stick sharp objects (needles, nails, etc.)

into the seat.

■

To prevent 12-volt battery discharge

Do not use the functions when the hybrid

system is off.

Heated steering wheel

Seat heaters

423

5-2. Using the air conditioning system and defogger

rio

r fe

atu

Hi (3 segments lit)



Mid (2 segments

lit)



Lo (1 segment lit)



Off

The level indicators (yellow) light up during
operation.

: If equipped

■

Operation condition

The power switch is in ON.

■

Customization

The temperature setting of the seat heaters

of the front seats can be set through “Vehi-

cle customize” on the center display.

(



Select

on the center dis-

play.

Each time the switch is pressed, the opera-
tion condition changes as follows.
AUTO



Hi (3 segments lit)



Mid (2 seg-

ments lit)



Lo (1 segment lit)



Off

The level indicator (blue) lights up during
operation. “AUTO” indicator lights up
during automatic operation.

■

Operation condition

The power switch is in ON.

■

Air conditioning system-linked control

mode

When a seat ventilator is set to Hi, the fan

speed of the seat ventilator may increase

according to the fan speed of the air condi-

tioning system.

■

Customization

The temperature setting of the seat ventila-

tors of the front seats can be set through

“Vehicle customize” on the center display.

(

WARNING

■

To prevent overheating and minor

burn injuries

Observe the following precautions when

using the seat heaters.

●

Do not cover the seat with a blanket or

cushion when using the seat heater.

●

Do not use seat heater more than nec-

essary.

Seat ventilators (front seats)

424

5-3. Using the interior lights

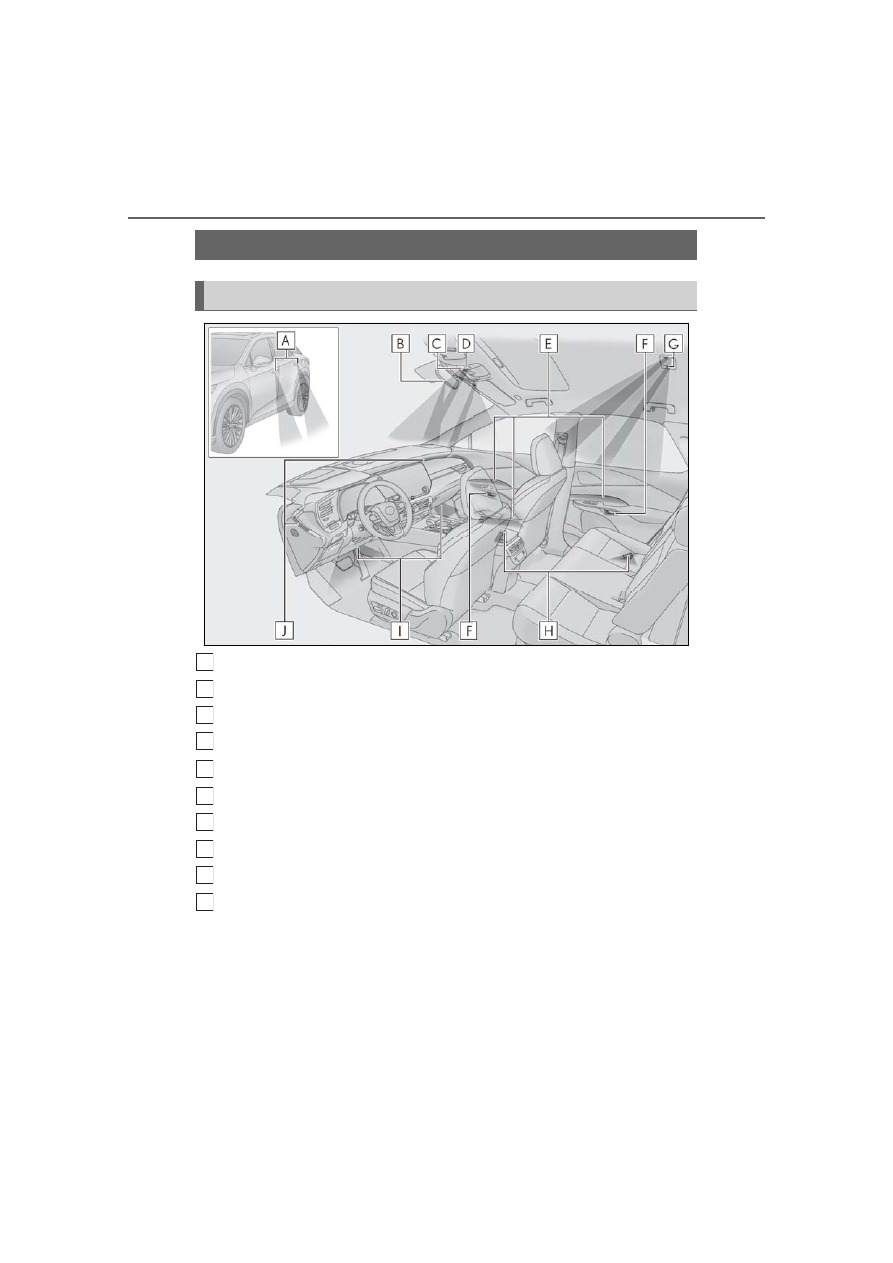

5-3.Using the interior lights

Outer foot lights
Shift lever light
Interior lights (



P.425)

Front personal lights (



P.425)

Door trim ornament lights

*1, 2

Inside door handle lights

Rear personal lights (



P.425)

Door courtesy lights
Footwell lights

Instrument panel ornament lights

: The illumination color can also be changed.

Refer to the “MULTIMEDIA OWNER’S MANUAL” to change the settings.

: If equipped

Interior lights list

Location of the interior lights

A
B
C
D

E
F

425

5-3. Using the interior lights

Interio

r fe

atures

■

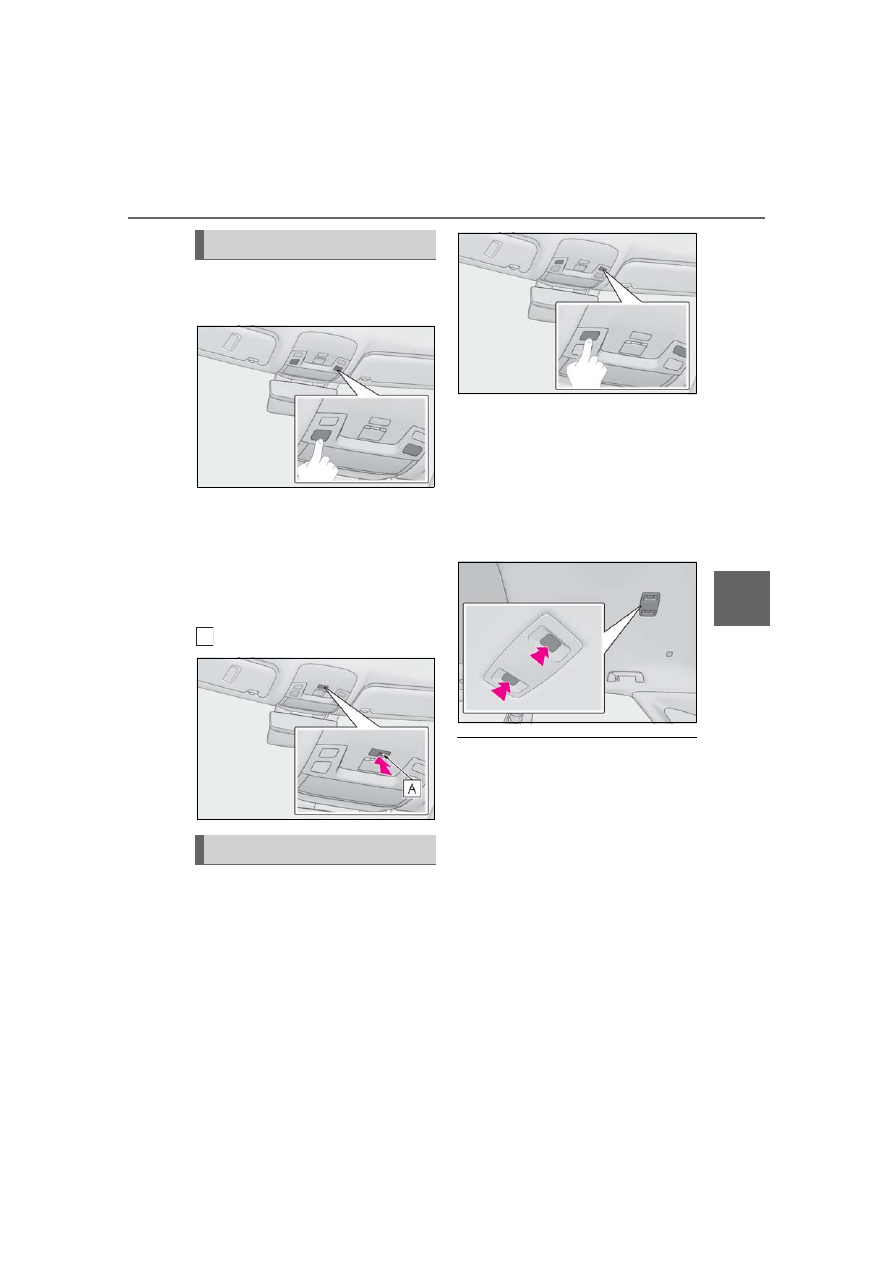

Turning the interior lights on/off

Touch the light

■

Turning the door position on

Press the door-linked interior light
switch

The lights are turned on and off according
to whether the doors are opened/closed.
When the door position is on, the indicator

illuminates.

■

Turning the front personal lights
on/off

Touch the light

■

Turning the rear personal lights
on/off

Touch the light

The rear interior lights turn on/off together
the front interior lights.
When a door is opened while the door
position is on, the lights turn on.

■

Illuminated entry system

The lights automatically turn on/off accord-

ing to the power switch mode, the presence

of the electronic key, whether the doors are

locked/unlocked, and whether the doors

are opened/closed. Also, the brightness of

the lights is automatically adjusted linked

with the shift operation.

■

To prevent the 12-volt battery from

being discharged

If the interior lights remain on when the

power switch is turned off, the lights will go

off automatically after 20 minutes.

■

When interior light or personal lights do

not respond as normal

In the following cases, the interior lights and

personal lights may not respond as normal.

Operating the interior lights

Operating the personal lights

426

5-3. Using the interior lights

●

When water, dirt, etc., have adhered to

the lens surface

●

When operated with a wet hand

●

When wearing gloves, etc.

■

The interior lights may turn on automati-

cally when

If any of the SRS airbags deploy (inflate) or

in the event of a strong rear impact, the inte-

rior lights will turn on automatically.
The interior lights will turn off automatically

after approximately 20 minutes.
The interior lights can be turned off manu-

ally. However, in order to help prevent fur-

ther collisions, it is recommended that they

be left on until safety can be ensured.
(The interior lights may not turn on auto-

matically depending on the force of the

impact and conditions of the collision.)

■

Using the voice control system

: If equipped

The following operations can be performed

using the voice control system.

●

Turning interior light on/off

●

Changing color of each lights

For details, refer to the “MULTIMEDIA

OWNER’S MANUAL”.

: If equipped

■

Customization

Some functions can be customized.

(



NOTICE

■

Removing light lenses

Never remove the lens for the interior

light and personal lights. Otherwise, the

lights will be damaged. If the lens need to

remove, contact your Lexus dealer.

■

To prevent 12-volt battery discharge

Do not leave the lights on longer than

necessary when the hybrid system is off.

427

5-4. Using the storage features

rio

r fe

atu

5-4.Using the storage features

Glove box (



P.428)

Auxiliary boxes (if equipped) (



P.430)

Bottle holders (

P.429)

Door pockets
Cup holders (

Console box (

Coin box (



P.430)

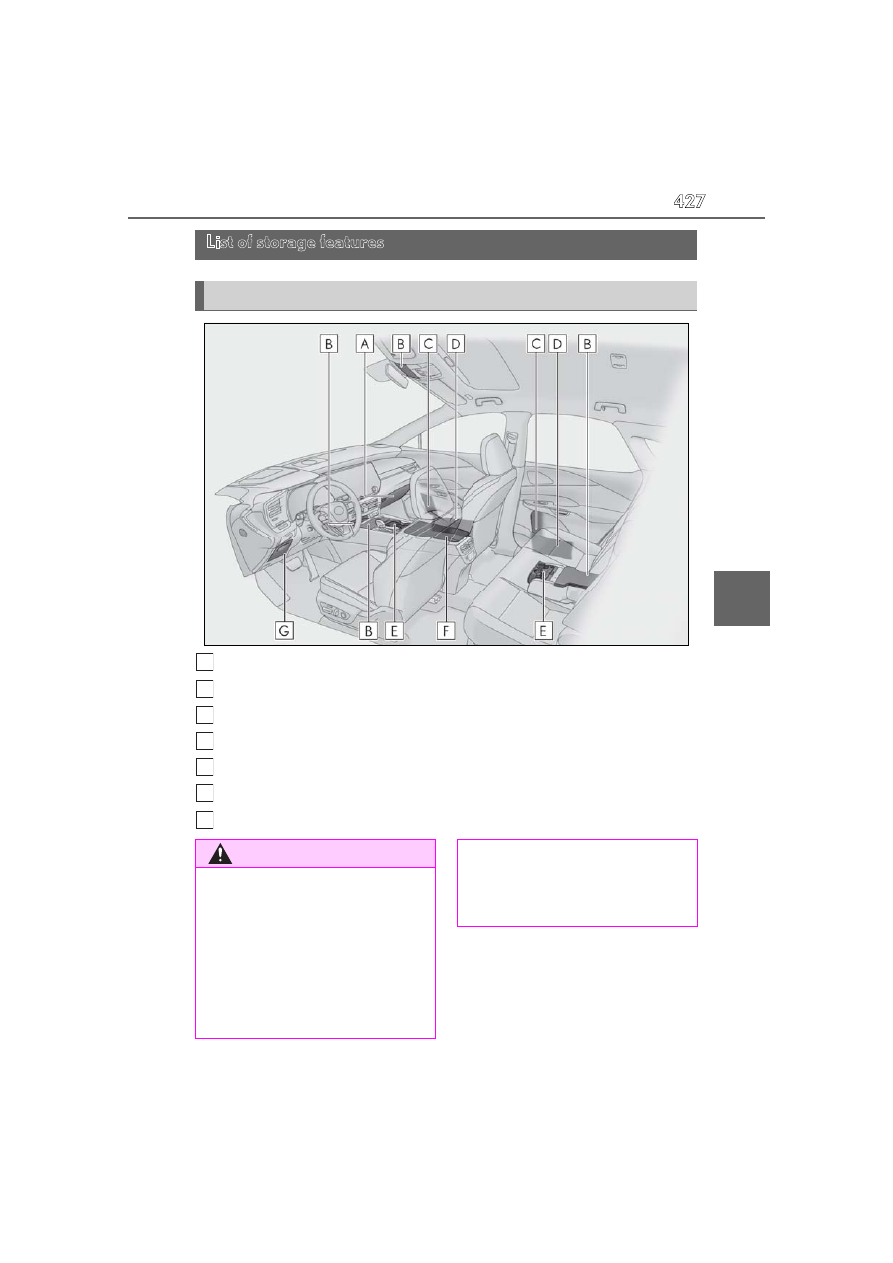

List of storage features

Location of the storage features

A
B
C
D

E
F

WARNING

■

Items that should not be left in the

storage spaces

Do not leave glasses, lighters or spray

cans in the storage spaces, as this may

cause the following when cabin tempera-

ture becomes high:

●

Glasses may be deformed by heat or

cracked if they come into contact with

other stored items.

●

Lighters or spray cans may explode. If

they come into contact with other

stored items, the lighter may catch fire

or the spray can may release gas,

causing a fire hazard.

428

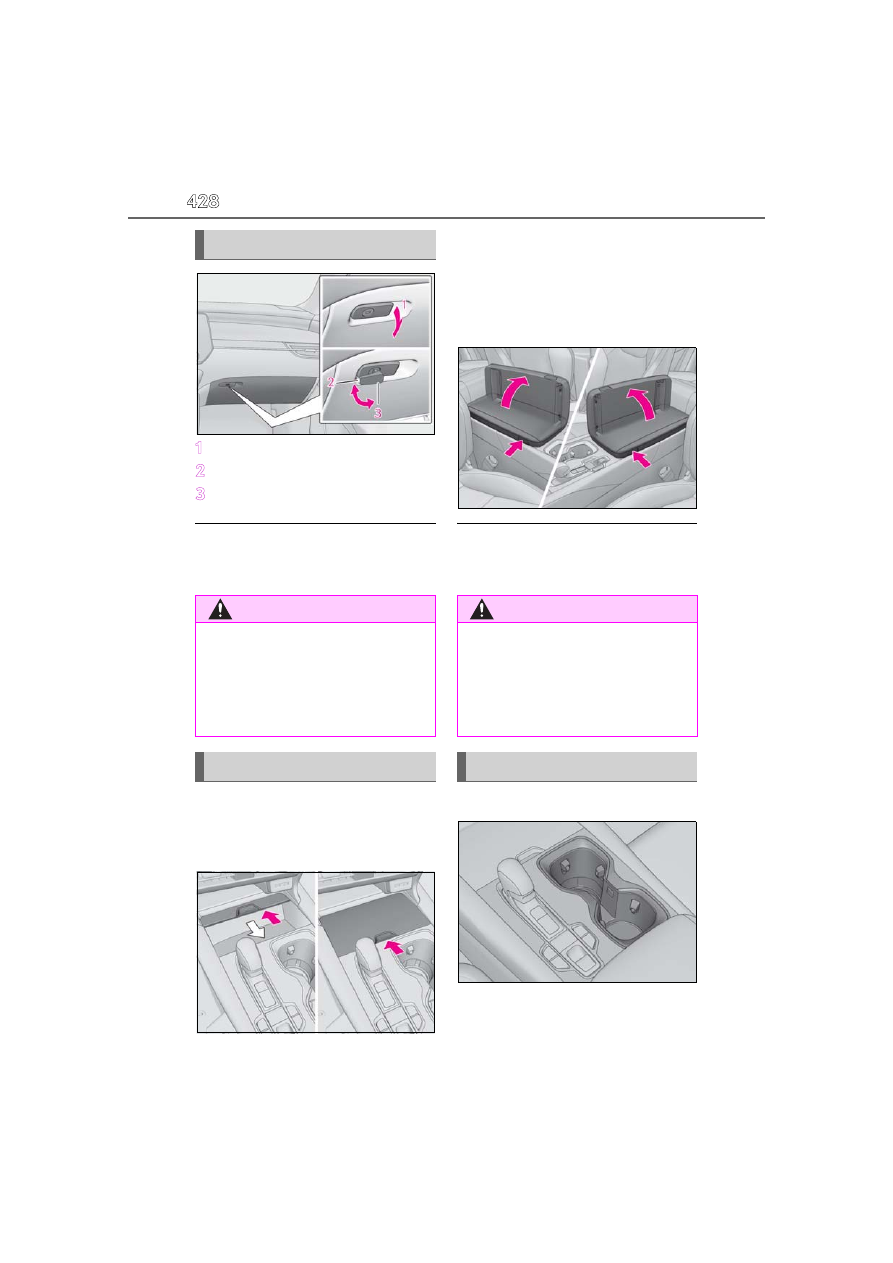

5-4. Using the storage features

Open (pull the lever)

Lock with the mechanical key

Unlock with the mechanical key

■

Glove box light

The glove box light turns on when the tail

lights are on.



Type A

Push the lid.

To close, press in and release the lid.



Type B

Press the button, lift up and open the
lid.

The console box can be opened from
either side.

■

Console box light

The console box light turns on when the tail

lights are on.



Front



Rear

Pull down the armrest and then press

Glove box

WARNING

■

Caution while driving

Keep the glove box closed.

In the event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by the open

glove box or the items stored inside.

Console box

WARNING

■

Caution while driving

Keep the console box closed.

In the event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by the open

console box or the items stored inside.

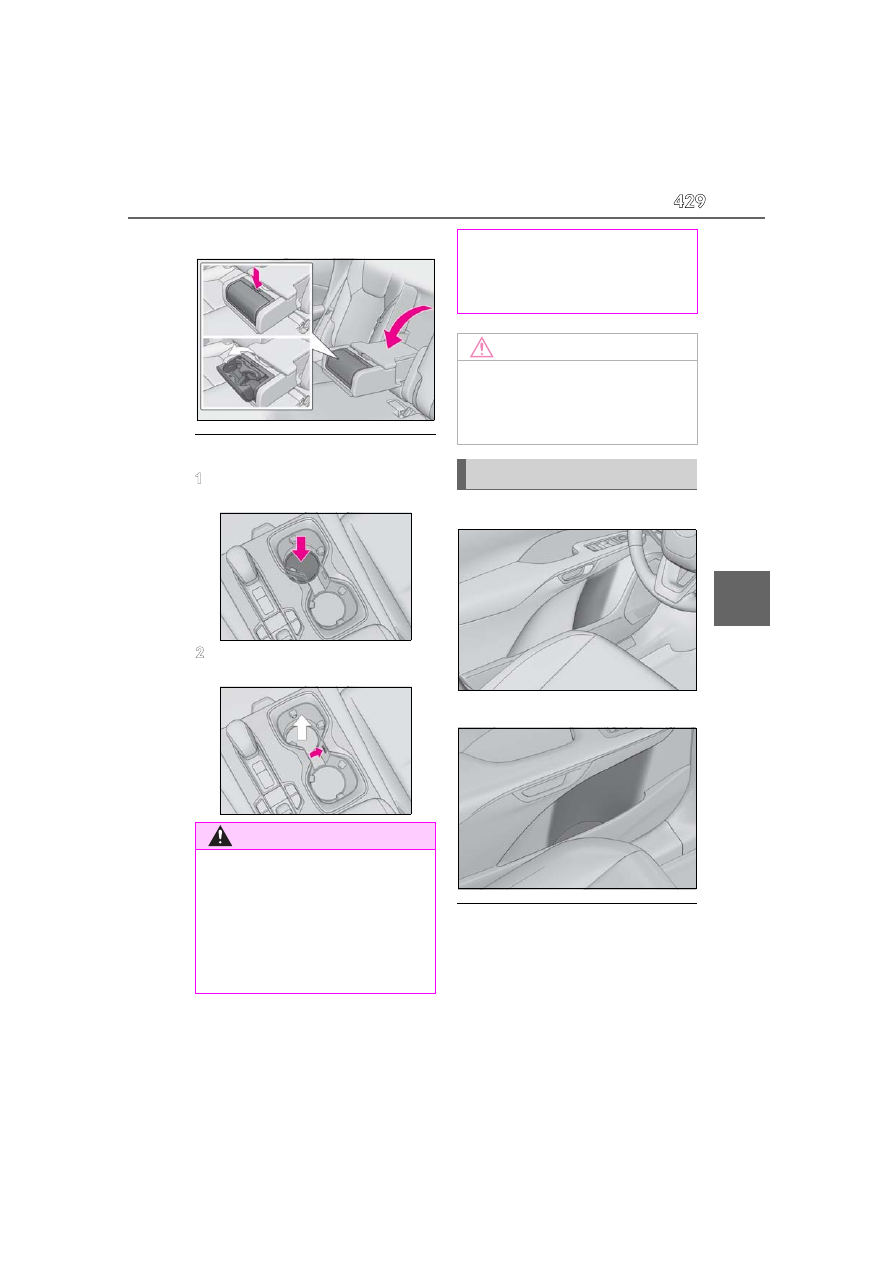

Cup holders

429

5-4. Using the storage features

rio

r fe

atu

down the button.

■

The depth of the front cup holder can be

changed.

To store a water bottle, push down the

bottom of the cup holder.

To return the bottom to its original posi-

tion, press the button.



Front



Rear

■

Bottle holders

●

When storing a bottle, close the cap.

●

The bottle may not be stored depending

on its size or shape.

WARNING

■

Items unsuitable for the cup holder

Do not place anything other than cups,

aluminum cans, or water bottles in the

cup holders. Other items may be thrown

out of the holders in the event of an acci-

dent or sudden braking, possibly causing

injury. If possible, cover hot drinks to pre-

vent burns.

■

When not in use (rear cup holder)

Keep the cup holders closed.

Injuries may result in the event of an acci-

dent or sudden braking.

NOTICE

■

To prevent damage to the rear cup

holder

Stow the rear cup holders before stowing

the rear armrest.

Bottle holders

430

5-4. Using the storage features

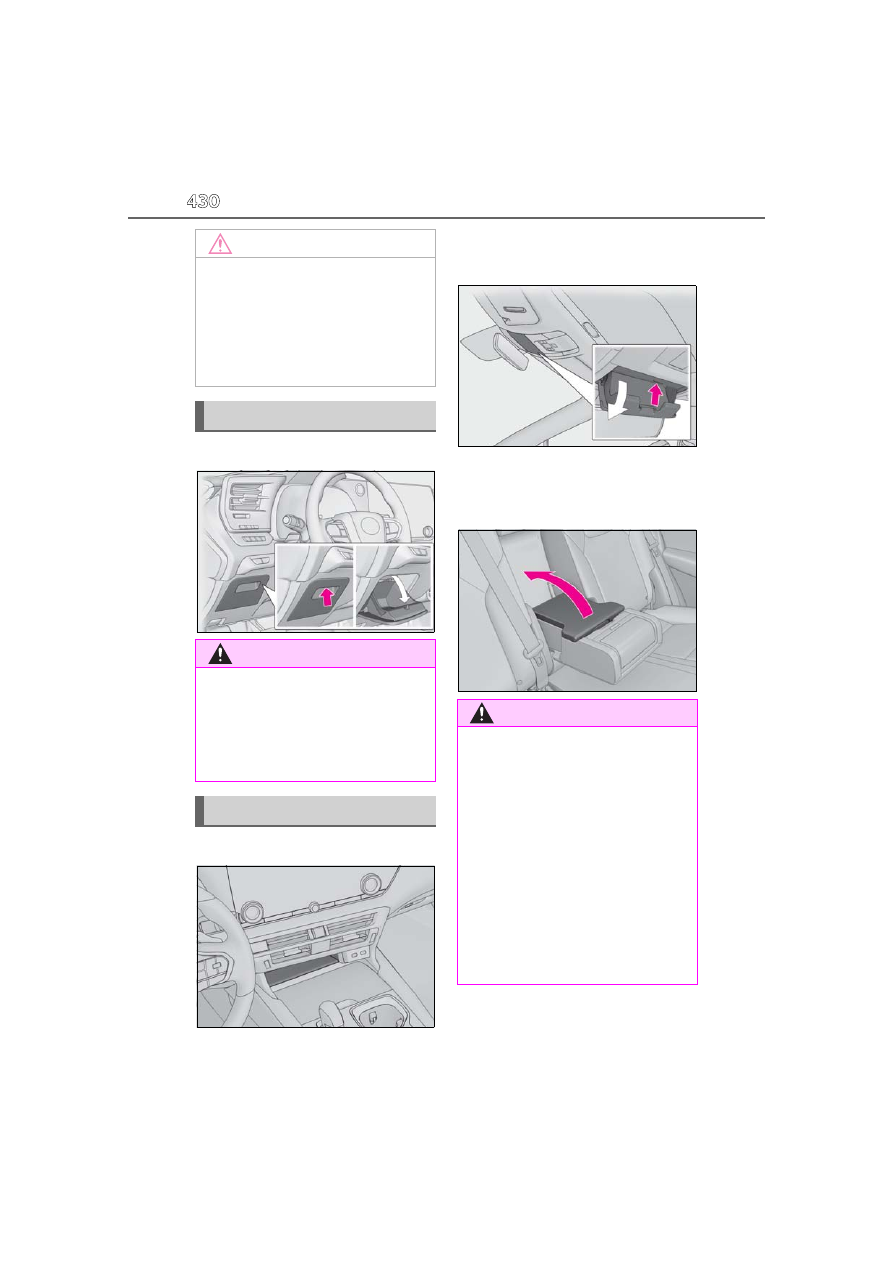

Press in the button.



Instrument panel



Overhead

Press in the lid.



Rear seat (if equipped)

Pull up the lever to release the lock,
and lift the lid.

NOTICE

■

Items unsuitable for the bottle hold-

ers

Do not place open bottle, glass or paper

cups containing liquid in the bottle hold-

ers. Otherwise, contained liquid may be

spilled. Glass cups may break if used in

the bottle holders.

Coin box

WARNING

■

Caution while driving

Keep the coin box closed.

In the event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by the open

coin box or the items stored inside.

Auxiliary boxes

WARNING

■

Items unsuitable for storing (Instru-

ment panel)

Do not store items in the box that can

easily shift or roll out.

In the event of sudden braking, etc.,

stowed items may fly out, possibly lead-

ing to an accident.

■

Items unsuitable for storing (over-

head)

Do not store items heavier than 0.44 lb.

(200 g).

Doing so may cause the auxiliary box to

open and the items inside may fall out,

resulting in an accident.

431

5-4. Using the storage features

rio

r fe

atu

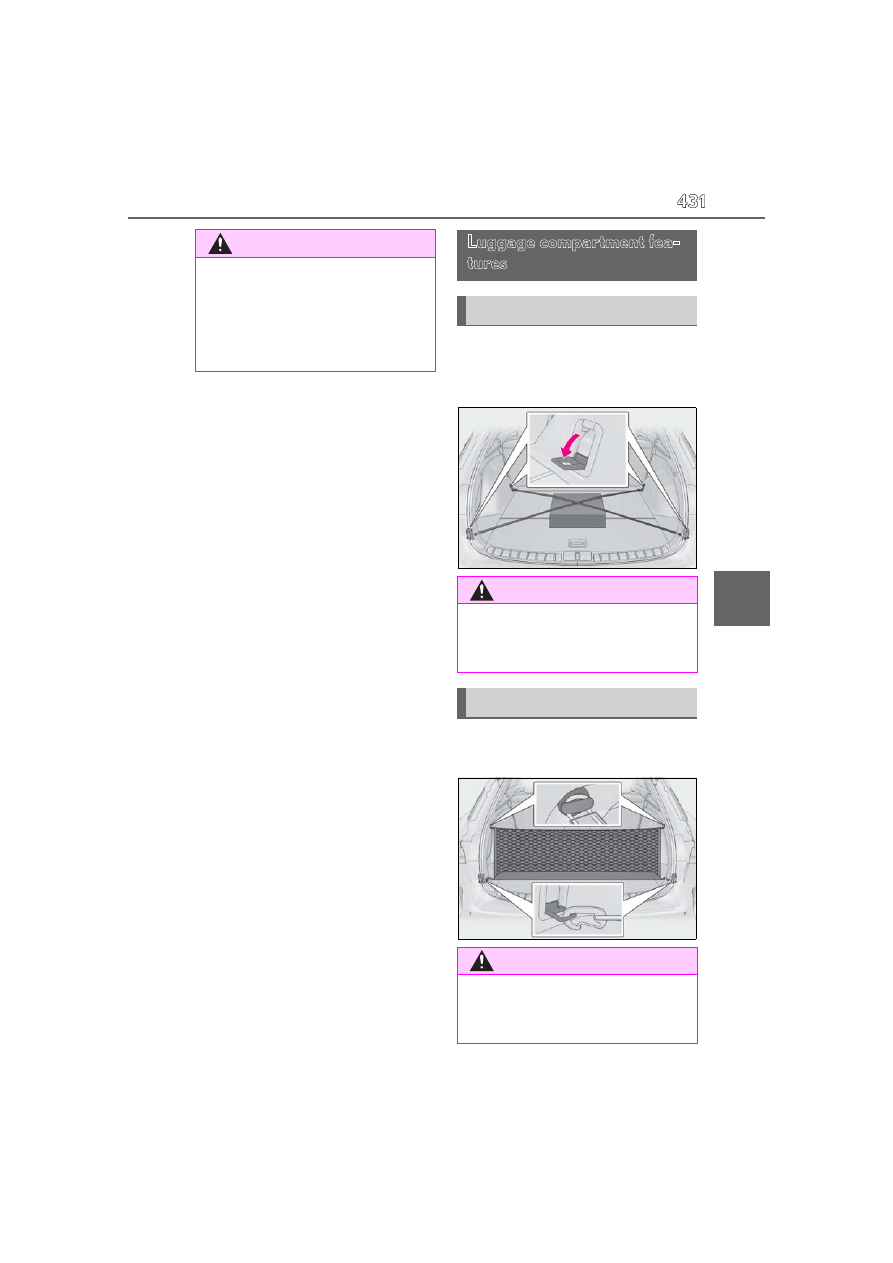

Pull down the hook to use.

The cargo hooks are provided for securing
loose items.

To hang the cargo net, use the cargo
net hooks and rear cargo hooks.

WARNING

■

Caution while driving

Keep the auxiliary boxes closed.

In the event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by the open

auxiliary boxes or the items stored inside.

Luggage compartment fea-
tures

Cargo hooks

WARNING

■

When cargo hooks are not in use

To avoid injury, always return the hooks

to their stowed positions when not in use.

Cargo net hooks

WARNING

■

When the cargo net is not in use

To avoid injury, always return the hooks

to their stowed positions when not in use.

432

5-4. Using the storage features

To use the grocery bag hook, push it in.

■

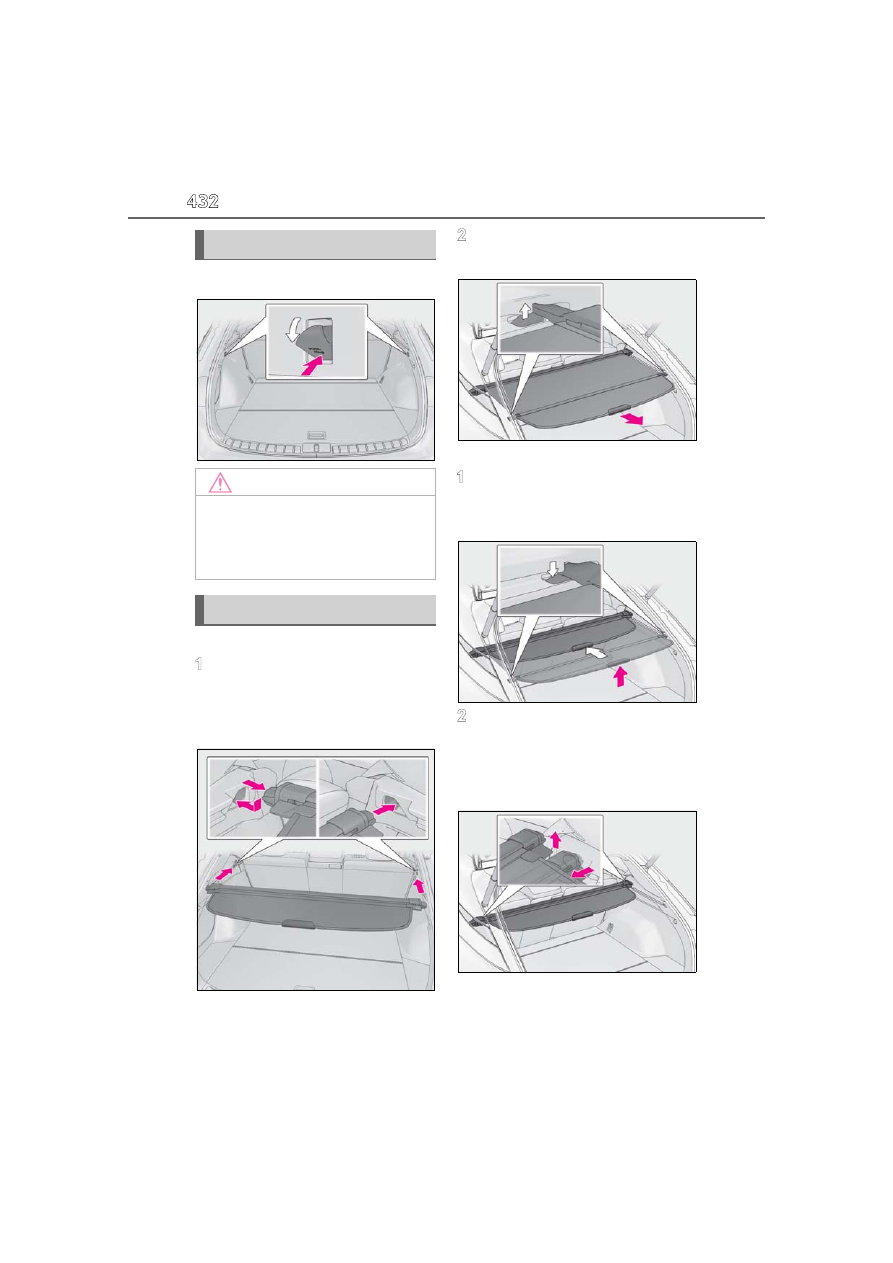

Installing the luggage cover

Insert either end of the luggage
cover into the recess, then com-
press the other end of the luggage
cover and insert it into the recess.

Pull out the luggage cover and
hook it onto the anchors.

■

Removing the luggage cover

Lift the rear portion of the cover to
release the left and right anchors
and allow the cover to retract.

Compress the end of the luggage
cover and lift the luggage cover up.

After removing the luggage cover, place it

somewhere other than the passenger

compartment.

Grocery bag hooks

NOTICE

■

To prevent damage to the grocery

bag hooks

Do not hang any object heavier than 8.8

lb. (4 kg) on the grocery bag hooks.

Luggage cover

433

5-4. Using the storage features

rio

r fe

atu

■

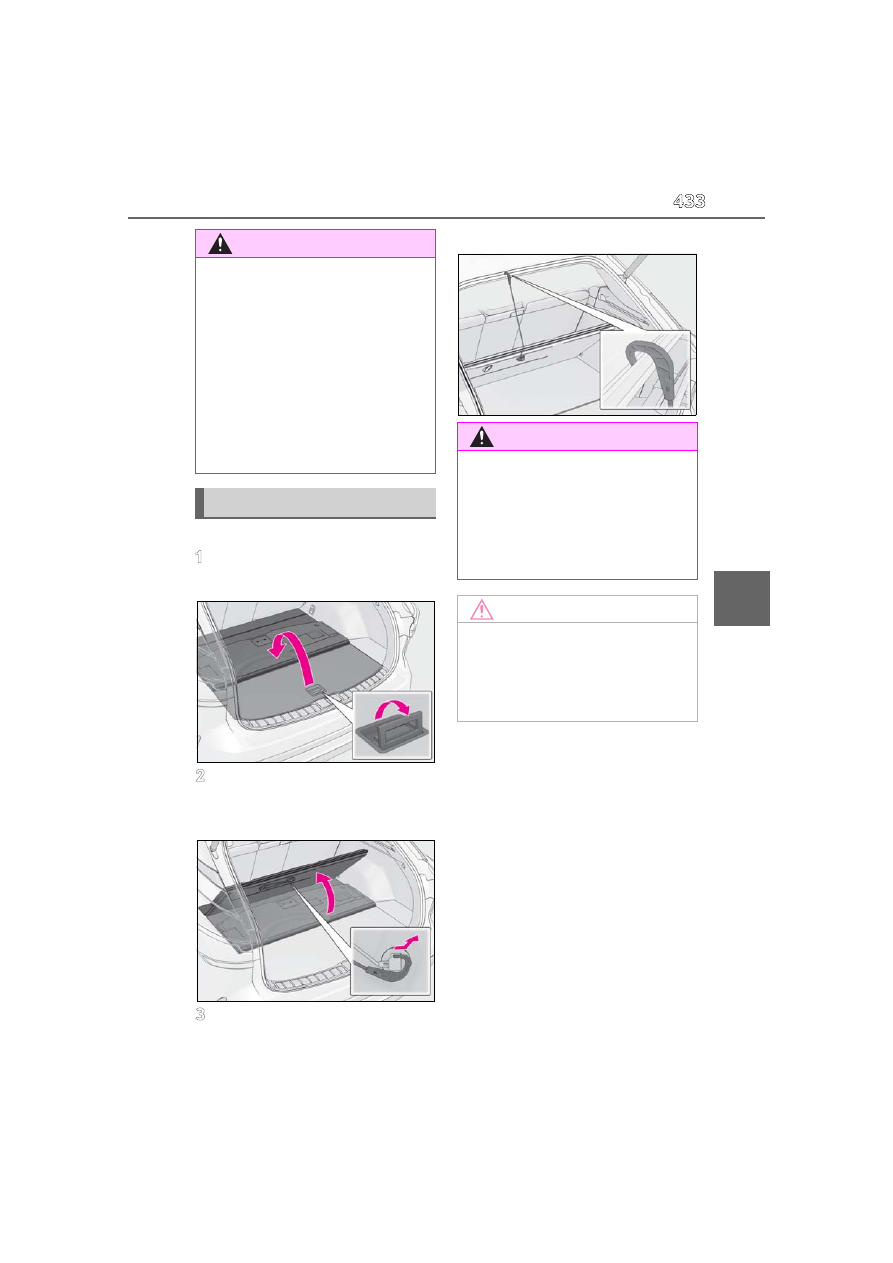

Opening the deck board

Pull the lever up and fold the flap of
the deck board.

Lift the deck board and disengage
the hook on the underside of the
deck board.

Attach the hook to the upper edge
of the back door opening as shown.

When closing, reverse the stepslisted.

WARNING

■

Luggage cover

●

Do not place anything on the luggage

cover. In the event of sudden braking

or turning, the item may go flying and

strike an occupant. This could lead to

an unexpected accident, resulting in

death or serious injury.

●

Do not allow children to climb on the

luggage cover. Climbing on the lug-

gage cover could result in damage to

the luggage cover, possibly causing

death or serious injury to the child.

Deck board

WARNING

■

If the deck board is folded or

removed

Return it to its original position before

driving. In the event of sudden braking,

an accident may occur due to an occu-

pant being struck by the deck board or

the items stored in the deck under tray.

NOTICE

■

When closing the back door

Do not leave the deck board hook

hooked on the edge of the back door

opening. The deck board hook may get

damaged.

434

5-5. Using the other interior features

5-5.Using the other interior features

The USB charging ports are used to
supply 3.0 A of electricity at 5 V to
external devices.
The USB charging ports are for
charging only. They are not designed
for data transfer or other purposes.
Depending on the external device, it
may not charge properly. Refer to the
manual included with the device
before using a USB charging port.

■

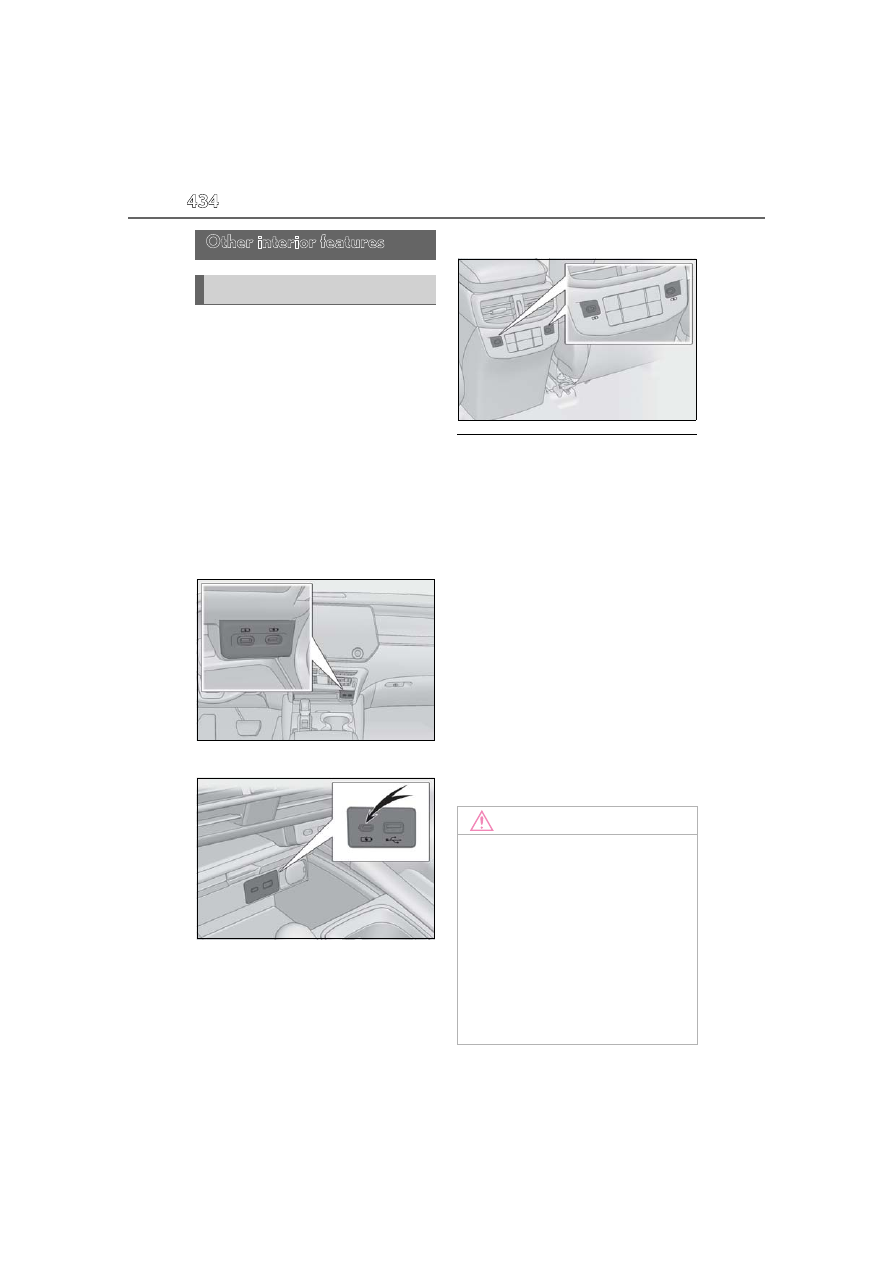

Using the USB charging ports



On the instrument panel



Inside the console box



On the rear console

■

The USB charging ports can be used

when

The power switch is in ACC or ON.

■

Situations in which the USB charging

ports may not operate correctly

●

If a device which consumes more than

3.0 A at 5 V is connected

●

If a device designed to communicate with

a personal computer, such as a USB

memory device, is connected

●

If the connected external device is turned

off (depending on device)

●

If the temperature inside the vehicle is

high, such as after the vehicle has been

parked in the sun

■

About connected external devices

Depending on the connected external

device, charging may occasionally be sus-

pended and then start again. This is not a

malfunction.

Other interior features

USB charging ports

NOTICE

■

To prevent damage to the USB

charging ports

●

Do not insert foreign objects into the

ports.

●

Do not spill water or other liquids into

the ports.

●

Do not apply excessive force to or

impact the USB charging ports.

●

Do not disassemble or modify the USB

charging ports.

435

5-5. Using the other interior features

rio

r fe

atu

A portable device, such as a smart-
phone or mobile battery, can be
charged by just placing it on the
charging area, provided the device is
compatible with the Qi wireless
charging standard created by the
Wireless Power Consortium.
The wireless charger cannot be used
with a portable device that is larger
than the charging area. Additionally,
depending on the portable device, the
wireless charger may not operate
properly. Refer to the operation man-
ual of the portable device.

■

The “Qi” symbol

The “Qi” symbol is a trademark of the
Wireless Power Consortium.

■

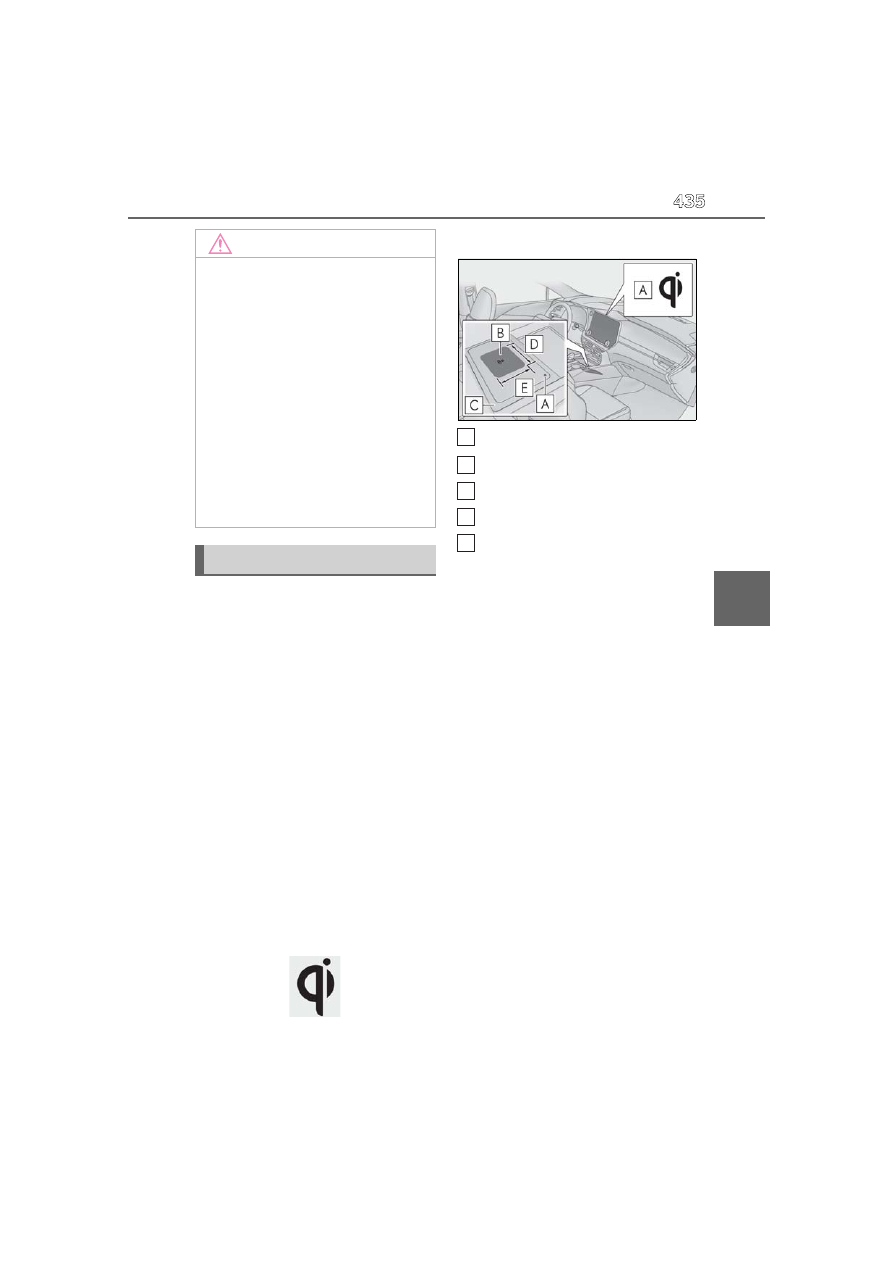

Name for all parts

Operation indicator light

Charge area

Charging tray
Approximately 2.8 in. (7 cm)
Approximately 2.4 in. (6 cm)

: Compatible portable devices and the

wireless charger contain charging coils.
The charging coil in the wireless charger
can be moved within the charge area
near the center of the charging tray.

When the charging coil inside a portable

device is detected within the charging
area, the charging coil in the wireless
charger will move near the other coil
and charging will begin. If the charging
coil inside the portable device is moved
out of the charging area, charging will be
stopped automatically.

Additionally, if 2 or more portable devices

are placed on the charging tray at the
same time, each charging coil may not
be detected correctly and charging may
not be possible.

■

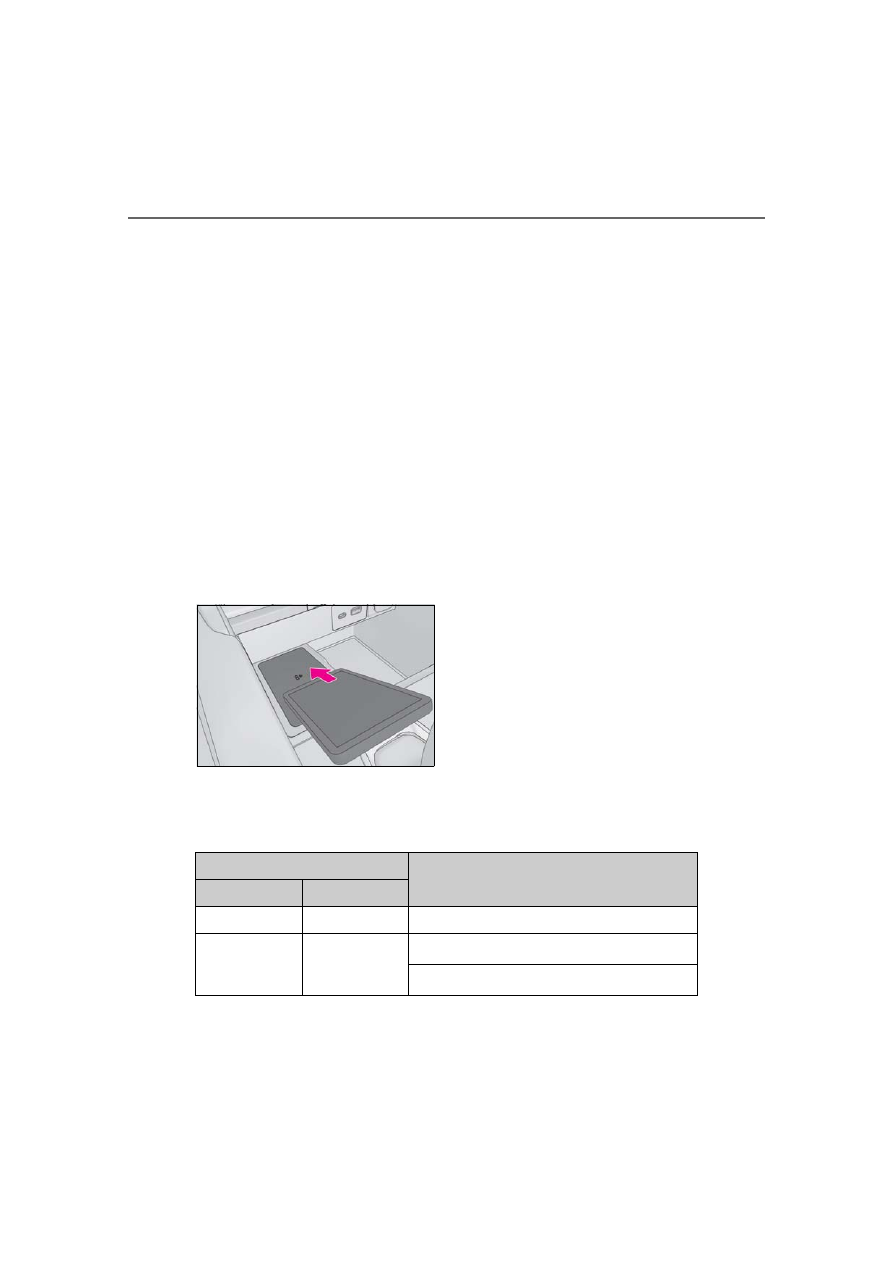

Using the wireless charger

Place the portable device on thewire-
less charger.

Place the charging side of the portable
device down with the center of the device
in the center of the charge area.

NOTICE

■

To prevent damage to external

devices

●

Do not leave external devices in the

vehicle. The temperature inside the

vehicle may become high, resulting in

damage to an external device.

●

Do not push down on or apply unnec-

essary force to an external device or

the cable of an external device while it

is connected.

■

To prevent 12-volt battery discharge

Do not use the USB charging ports for a

long period of time with the hybrid sys-

tem stopped.

Wireless charger (if equipped)

A
B
C
D

436

5-5. Using the other interior features

Depending on the portable device, the
charging coil may not be located in the
center of the device. In this case, place the
portable device so that its charging coil is
in the center of the wireless charger.
When charging, the operation indicator-
light (orange) on the wireless charger
comes on.
If charging is not occurring, try placing the
portable device as close to the center of
the charging area as possible.
If charging is not performed, the operation
indicator light will slowly illuminate in green
and orange alternatively and a sound of
charging coil operation may be heard
repeatedly.
When charging is complete, the operation
indicator light (green) on the wireless char-
ger comes on.

■

Recharging function



If a certain amount of time has

elapsed since charging completed
and the portable device has not
been moved, the wireless charger
will restart charging.



If a portable device is moved signifi-
cantly within the charging area, the
charging coil may disconnect and
charging may temporarily be
stopped. However, if a charging coil
is detected within the charging area,
the charging coil inside the wireless
charger will move near the other
coil and charging will resume.

■

Rapid charging function

The following portable devices support
rapid charging.



Portable devices compliant with
WPC Ver1.2.4 and compatible with
rapid charging



iPhone’s with an iOS version that
supports 7.5 W charging (iPhone 8
and later models)

When a portable device that supports
rapid charging is charged, charging
automatically switches to the rapid
charging function.

■

Operation indicator light status

Operation indicator light

Conditions

Charging tray

Center display

Turning off

Disappear

When the Wireless charger power supply is off

Green (comes

on)

Gray

On Standby (charging possible state)

When charging is complete

437

5-5. Using the other interior features

Interio

r fe

atures

: Charging power will not be output during standby. A metallic object will not be heated, if

it is placed on the wireless charger in this state.

: Depending on the portable device, there are cases where the operation indicator light

will continue being lit up orange even after the charging is complete.

■

When the wireless charger does not operate properly

When the wireless charger does not operate properly, handle the probable cause
based on the following tables.

Orange (comes

on)

Blue

When placing the portable device on the charging
area (detecting the portable device)

Charging

Operation indicator light

Suspected causes/Handling method

Charging tray

Center display

Green (Flashing
repeatedly once

every second)

Disappear

Wireless charger and multimedia system communi-
cation failure



If the hybrid system is operating, stop and then
restart the hybrid system.

If the power switch is in ACC, start the hybrid sys-
tem. (

P.208)

Orange (Flashing

repeatedly once

every second)

Gray

Vehicle to wireless charger communication failure



If the hybrid system is operating, stop and then
restart the hybrid system.

If the power switch is in ACC, start the hybrid sys-
tem. (

P.208)

Green (comes

on)

Blue

AM radio stations are being automatically selected



Wait until the system has completed the auto-
matic selection of AM radio stations. In the
case that automatic selection cannot be com-
pleted, stop automatic selection.

The smart access system with pushbutton start is
detecting the key.



Wait until the system has completed the auto-
matic selection of AM radio stations. In the
case that automatic selection cannot be com-
pleted, stop automatic selection.

Operation indicator light

Conditions

Charging tray

Center display

438

5-5. Using the other interior features

■

The wireless charger can be operated

when

The power switch is in ACC or ON.

■

Portable devices that can be charged

●

Portable devices compatible with the Qi

wireless charging standard can be

charged by the wireless charger. How-

ever, compatibility with all devices which

meet the Qi wireless charging standard is

not guaranteed.

●

The wireless charger is designed to sup-

ply low power electricity (5 W or less) to

a cellular phone, smartphone, or other

portable device.

However, portable devices, such as the fol-

lowing, can be charged with more than 5

• 7.5 W charging compatible iPhones can

be charged at 7.5 W or less.

• Portable devices compliant with EPP out-

put as defined by WPC standard

Ver1.2.4. can be charged at 10 W or less.

■

Using the smart access system with

push-button start

During charging, when the smart access

system with push-button start searches for

an electronic key, charging may be tempo-

rarily suspended.

■

If a cover or accessory is attached to the

portable device

Do not charge a portable device if a cover

or accessory which is not Qi compatible is

attached. Depending on the type of cover

Orange (Repeat-

edly flashes 3

times continu-

ously)

Gray

Foreign substance detection:
A metallic foreign substance is in the charge area,
and so the abnormal heating prevention function of
the metallic foreign object operated



Remove the foreign substance from the charge
area.

Portable device misaligned:
The charging coil in the portable device moved out-
side of the charge area, and so the abnormal heat-
ing prevention function operated



Remove the portable device from the wireless
charger, check that the operation indicator
light on the wireless charger changes back to
green, and then place the portable device so
that it is near the center of the wireless charger.
Also, if a case or cover is installed to the porta-
ble device, remove it.

Orange (Repeat-

edly flashes 4

times continu-

ously)

Gray

Safety shutdown resulting when the temperature
within the wireless charger exceeded the set value



Stop charging, remove the portable device
from the wireless charger, wait for the tem-
perature to drop, and then start charging
again.

Operation indicator light

Suspected causes/Handling method

Charging tray

Center display

439

5-5. Using the other interior features

Interio

r fe

atures

(including the certain genuine manufacture

parts) and/or accessory attached, it may not

be possible to charge the portable device. If

the portable device is placed on the

charging area and does not charge, remove

the cover and/or accessories.

■

While charging, noise enters the AM

radio

●

During charging, if noise occurs when lis-

tening to the AM radio, the charging fre-

quency is automatically changed to

reduce the noise.

●

Rapid charging may not be performedas

AM radio reception is prioritized.

●

When automatically seeking AM radio

stations, charging will be suspended to

prevent charging noise from being

detected as a radio station. Charging will

resume automatically when seek tuning is

stopped.

■

Charging precautions

While charging, the wireless charger and

the portable device will become warm. This

is not a malfunction. If a portable device

becomes warm while charging and

charging stops due to the protection func-

tion of the portable device, wait until the

portable device cools down and charge it

again.
Also, to decrease the temperature inside

the wireless charger, a fan may operate.

This does not indicate a malfunction.

■

Sound generated during operation

Operation sounds may be heard when the

power switch is pressed to change to ACC

or ON, or when a portable device is being

detected. This does not indicate a malfunc-

tion.

■

Cleaning the wireless charger
