The system is enabled each time the
engine switch is turned to ON.



When the system is disabled, the
PCS warning light will illuminate
and a message will be displayed on
the multi-information display.



The pre-collision setting can be
changed on the customize settings.
(



Vehicles with active steering func-
tion: When the pre-collision warn-
ing timing is changed, the
emergency steering assist timing
will also be changed. When “Later”
is selected, the emergency steering
assist (excluding the active steering
function) will not operate in most
cases.

Changing the pre-collision set-
ting

248

4-5. Using the driving support systems



Vehicles with a driver monitor cam-
era: When the system determines
that the driver is not facing forward,
the pre-collision warning and emer-
gency steering assist will operate at
the “Earlier” timing, regardless of
the user setting.



When the dynamic radar cruise
control is operating, the pre-colli-
sion warning will operate at the
“Earlier” timing, regardless of the
user setting.



Vehicles with Traffic Jam Assist:
When the Traffic Jam Assist is oper-
ating, the pre-collision warning will
operate at the “Earlier” timing,
regardless of the user setting.



When driving on a road with clear
lane lines with the dynamic radar
cruise control operating, lane lines
and preceding and surrounding
vehicles are detected using the front
camera and radar sensor, and the
steering wheel is operated to main-
tain the vehicle’s lane position.

Use the this function only on highways and
expressways.
If the dynamic radar cruise control is not
operating, the function will not operate.
In situations where the lane lines are diffi-
cult to see or are not visible, such as when
in a traffic jam, support will be provided
using the path of preceding and surround-
ing vehicles.
If the system determines that the steering
wheel has not been operated for a certain
amount of time or the steering wheel is not
being firmly gripped, the driver will be
alerted and this function will be temporarily
canceled.
If the steering wheel is firmly gripped, the
function will begin operating again.

LTA (Lane Tracing Assist)

LTA functions

249

4-5. Using the driving support systems

Driving



When the function is operating, if
the vehicle is likely to depart from its
lane, the driver will be alerted via a
display and buzzer.

When the buzzer sounds, check the area
around the vehicle and carefully operate
the steering wheel to move the vehicle
back to the center of the lane.

■

Operating conditions of function

This function is operable when all of the fol-

lowing conditions are met:

●

The LTA system detects lane lines or the

path of preceding or surrounding vehi-

WARNING

■

Before using the LTA system

●

Do not overly rely on the LTA system.

The LTA system is not a system which

provides automated assistance in driv-

ing and it is not a system which reduces

the amount of attention necessary for

safe driving. The driver is solely

responsible for paying attention to

their surroundings and operating the

steering wheel as necessary to ensure

safety. Also, the driver is responsible

for taking adequate breaks when

fatigued, such as when driving for a

long time.

●

Failure to perform appropriate driving

operations and pay careful attention

may lead to an accident.

●

When not using the LTA system, turn it

off using the LTA switch.

250

4-5. Using the driving support systems

cles.

●

The dynamic radar cruise control is oper-

ating.

●

The lane width is approximately 10 to 13

ft. (3 to 4 m).

●

The turn signal lever is not being oper-

ated.

●

The vehicle is not being driven around a

sharp curve.

●

The vehicle is not accelerating or decel-

erating more than a certain amount.

●

The steering wheel is not being turned

with a large force.

●

The hands off steering wheel warning

(

P.250) is not operating.

●

The vehicle is being driven in the center

of a lane.

■

Temporary cancelation of functions

●

When the operating conditions are no

longer met, a function may be temporar-

ily canceled. However, when the opera-

tion conditions are met again, operation

of the function will automatically be

restored. (

P.249)

●

If the operating conditions of a function

are no longer met while the function is

operating, a buzzer may sound to indi-

cate that the function has been temporar-

ily canceled.

●

The steering assist operation of the func-

tion can be overridden by the steering

wheel operation of the driver.

■

Lane departure warning function when

the LTA is operating

●

Even if the LDA warning method is

changed to vibration of the steering

wheel, if the vehicle deviates from the

lane while the LTA is operating, the warn-

ing buzzer will sound to alert the driver.

●

If steering wheel operation equivalent to

that necessary for a lane change is

detected, the system will determine the

vehicle is not deviating from the lane and

the warning will not operate.

■

Hands off steering wheel warning oper-

ation

●

When the system determines the driver is

not holding the steering wheel, a mes-

sage urging the driver to grip the steering

wheel and the icon shown in the illustra-

tion will be displayed on the multi-infor-

mation display to warn the driver. If the

system detects that the steering wheel is

held, the warning will be canceled. When

using the system, make sure to grip the

steering wheel firmly, regardless of

whether the warning is operating or not.

●

If no operations are detected for a certain

amount of time, the warning will operate

and the function will be temporarily can-

celed. This warning may also operate if

the driver only operates steering wheel a

small amount continuously.

■

Situations in which the hands off steer-

ing wheel warning may not operate

properly

●

Depending on the condition of the vehi-

cle,handle control condition and road

surface, the warning function may not

operate.

●

Vehicles with LCA: In the following situa-

tions, the system may not be able to

detect when the driver’s hands are off the

steering wheel.

• When a steering wheel cover is installed

• When the driver is wearing gloves

• When foreign matter is attached to the

steering wheel

• When the driver is gripping the wood

trim, seam of the leather, spokes, or other

part of the steering wheel that does not

have sensors

●

Vehicles with LCA: In the following situa-

tions, the hands off steering wheel warn-

ing may not operate and the LTA function

may continue operating even though the

driver’s hands are off the steering wheel:

• When something other than a hand is

contacting the steering wheel

• When a wide object or arms are held

251

4-5. Using the driving support systems

Driving

across the steering wheel

The LTA will change between
ON/OFF each time the LTA switch is
pressed.

When the LTA is ON, the LTA indicator will
illuminate.



Vehicles without a head-updisplay



Vehicles with a head-up display

Enabling/disabling the system

WARNING

■

Situations in which the functions may

not operate properly

In the following situations, the functions

may not operate properly and the vehicle

may depart from its lane. Do not overly

rely on these functions. The driver is

solely responsible for paying attention to

their surroundings and operating the

steering wheel as necessary to ensure

safety.

●

When a preceding or surrounding

vehicle changes lanes (Your vehicle

may follow the preceding or surround-

ing vehicle and also change lanes)

●

When a preceding or surrounding

vehicle is swaying (Your vehicle may

sway accordingly and depart from the

lane)

●

When a preceding or surrounding

vehicle departs from a lane (Your vehi-

cle may follow the preceding or sur-

rounding vehicle and also depart from

the lane)

●

When a preceding or surrounding

vehicle is being driven extremely close

to the left/right lane line (Your vehicle

may follow the preceding or surround-

ing vehicle accordingly and depart

from the lane)

●

When there are moving objects or

structures in the surrounding area

(Depending on the position of the

moving object or structure relative to

your vehicle, your vehicle may sway)

●

When the vehicle is struck by a cross-

wind or the turbulence of other nearby

vehicles

●

Situations in which the sensors may not

operate properly:



●

Situations in which the lane may not be

detected:

●

When it is necessary to disable the sys-

tem:



253

4-5. Using the driving support systems

Driving

: If equipped

This function is linked to the LTA and
provides assistance in performing lane
changes through steering wheel oper-
ations.

Use the this function only on highways and
expressways.
The steering assist operation can be over-
ridden by the steering wheel operation of
the driver.
The lane change assist function is not
designed to operate when changing lanes
at a junction.

■

Operating conditions of function

This function is operable when all of the fol-

lowing conditions are met:

●

The LTA is operating.

●

The lane change assist function is

enabled by a customize setting.

●

The vehicle speed is between approxi-

mately 55 and 85 mph (90 and 140

km/h).

●

The system detects a broken white line on

the side which the lane change is to be

performed.

●

A vehicle is not detected in the lane

toward which the turn signal is operated.

●

The steering wheel is not being turned

with a large force.

●

The hands off steering wheel warning

(



P.250) is not operating.

■

Cancelation of functions

In the following situations, operation of the

LCA may be canceled with the display and

buzzer:

LCA (Lane Change Assist)

LCA functions

WARNING

■

Before using the LCA system

●

Do not overly rely on the LCA system.

The LCA system is not a system which
provides automated assistance in driving
and it is not a system which reduces the
need for checking an adjacent lane for
other vehicles, approaching vehicles, etc.
when changing lanes. The driver is solely
responsible for paying attention to their
surroundings and operating the steering
wheel as necessary to ensure safety.
Also, do not use the LCA to change
lanes into which a lane change should
not be performed (oncoming lanes, road
shoulders, etc.).

●

Failure to perform appropriate driving

operations and pay careful attention

may lead to an accident.

254

4-5. Using the driving support systems

●

When the operating conditions

(

P.253) are no longer met

●

When the system can no longer detect

lane lines

●

When the turn signal lever is operated to

the second position (



P.254)

●

When the turn signal lever is operated in

the opposite direction of the lane change

●

When the system detects operation of

the steering wheel, brake pedal or accel-

erator pedal by the driver.

If the system detects that a vehicle is quickly

approaching in the lane toward which the

turn signal is operated a buzzer will sound

and a message will be displayed to alert the

driver. At the same time the steering wheel

may be slightly operated to help keep the

vehicle away from the approaching vehicle.

■

Hands off steering wheel warning oper-

ation

When the system determines the driver is

not holding the steering wheel, a message

urging the driver to grip the steering wheel

and the icon shown in the illustration will be

displayed on the multi-information display

to warn the driver. If the system detects that

the steering wheel is held, the warning will

be canceled. When using the system, make

sure to grip the steering wheel firmly,

regardless of whether the warning is oper-

ating or not.

■

Situations in which the hands off steer-

ing wheel warning may not operate

properly

●

Depending on the condition of the vehi-

cle, handle control condition and road

surface, the warning function may not

operate.

●

In the following situations, the system may

not be able to detect when the driver’s

hands are off the steering wheel.

• When a steering wheel cover is installed

• When the driver is wearing gloves

• When foreign matter is attached to the

steering wheel

• When the driver is gripping the wood

trim, seam of the leather, spokes, or other

part of the steering wheel that does not

have sensors

●

In the following situations, the hands off

steering wheel warning may not operate

and the LCA function may continue

operating even though the driver’s hands

are off the steering wheel:

• When something other than a hand is

contacting the steering wheel

• When a wide object or arms are held

across the steering wheel

If the turn signal lever is held in the first
position, the lane change direction will
be displayed and the function will oper-
ate.

To change lanes by holding the turn signal
lever in the first position without using the
LCA, turn the customize setting of the
LCA off.

Operating the LCA

255

4-5. Using the driving support systems

Driving

First position: LCA is operational

Second position: LCA is not opera-
tional

LCA can be enabled/disabled through
a customize setting. (



The operating state of the LCA system is indicated.

WARNING

■

Situations in which the LCA should

not be used

●

When driving on a one lane road

●

When there is no broken white line

between the current lane and the lane

to be changed to

Enabling/disabling the system

Displays and system operation

LCA display

Steering icon

Condition

Blue arrow and white line

Green

LCA is operating

Grey

Approaching vehicle detected while LCA is
operating

Not displayed

Grey

Lane line no longer detected while LCA is
operating

256

4-5. Using the driving support systems

The LDA system warns the driver if the
vehicle may deviate from the current
lane or course

, and also can slightly

operate the steering wheel to help
avoid deviation from the lane or
course

The front camera is used to detect lane
lines or a course

: Boundary between the asphalt and

grass, soil, etc., or structures, such as a
curb, guardrail, etc.

■

Lane departure alert function

When the system determines that the
vehicle might depart from its lane or
course

, a warning is displayed on a

display, and either a warning buzzer
will sound or the steering wheel will
vibrate to alert the driver.

Check the area around your vehicle and
carefully operate the steering wheel to
move the vehicle back to the center of the
lane or course*.
If the system determines that the vehicle
may collide with a vehicle in an adjacent
lane, the lane departure alert will operate
even if the turn signals are operating.

: Boundary between the asphalt and

grass, soil, etc., or structures, such as a
curb, guardrail, etc.

■

Lane departure prevention func-
tion

If the system determines that the vehi-
cle is likely to depart from its lane or
course

, it provides assistance through

steering wheel operations to help
avoid deviation from the lane or
course

If the system determines that the steering
wheel has not been operated for a certain
amount of time or the steering wheel is not
being firmly gripped, a warning message
may be displayed and a warning buzzer
may sound to alert the driver.
If the system determines that the vehicle
may collide with a vehicle in an adjacent
lane, the lane departure prevention func-
tion will operate even if the turn signals are
operating.

: Boundary between the asphalt and

grass, soil, etc., or structures, such as a
curb, guardrail, etc.

LDA (Lane Departure Alert)

Basic functions

257

4-5. Using the driving support systems

Driving

■

Break suggestion function

If the vehicle is swaying, a message will
be displayed and a buzzer will sound to
urge the driver to take a break.

■

Operating conditions of each function

●

Lane departure alert/prevention function

This function is operable when all of the fol-

lowing conditions are met:

• The vehicle speed is approximately 30

mph (50 km/h) or more.

Operation may be possible when the vehi-
cle speed is approximately 25 mph (40
km/h) or more if vehicles, motorcycles,
bicycles, or pedestrians are detected near
the lane.
• The system recognizes a lane or course

(When recognized on only one side, the

system will operate only for the recog-

nized side.)

• The lane width is approximately 9.8 ft. (3

m) or more.

• The turn signal lever is not being oper-

ated.

(Except when a vehicle is detected in the
direction that the turn signal lever is oper-
ated.)
• The vehicle is not being driven around a

sharp curve.

• The vehicle is not accelerating or decel-

erating more than a certain amount.

• The steering wheel is not being turned

sufficiently to perform a lane change.

WARNING

■

Before using the LDA system

●

Do not overly rely on the LDA system.

The LDA system is a system which pro-

vides automated assistance in driving.

However, as it is not a system which

reduces the amount of attention nec-

essary for safe driving. The driver is

solely responsible for paying attention

to their surroundings and operating

the steering wheel as necessary to

ensure safety. Also, the driver is

responsible for taking adequate

breaks when fatigued, such as when

driving for a long time.

●

Failure to perform appropriate driving

operations and pay careful attention

may lead to an accident.

258

4-5. Using the driving support systems

• When the VSC or TRAC system is not

turned off.

: Boundary between the asphalt and

grass, soil, etc., or structures, such as a
curb, guardrail, etc.

■

Temporary cancellation of functions

When the operating conditions are no lon-

ger met, a function may be temporarily can-

celed. However, when the operation

conditions are met again, operation of the

function will automatically be restored.

(



P.257)

■

Operation of the lane departure alert

function/lane departure prevention

function

●

Depending on the vehicle speed, road

conditions, lane departure angle, etc.,

operation of the lane departure preven-

tion function may not be felt or the func-

tion may not operate.

●

Depending on the conditions, the warn-

ing buzzer may operate even if vibration

is selected through a customize setting.

●

If a course

is not clear or straight, the

lane departure alert function or lane

departure prevention function may not

operate.

●

The lane departure alert function or lane

departure prevention function may not

operate if the system judges that the vehi-

cle is intentionally being steered to avoid

a pedestrian or parked vehicle.

●

It may not be possible for the system to

judge if there is danger of a collision with

a vehicle in an adjacent lane.

●

Vehicles with a driver monitor camera:

Depending on the driver condition, the

lane departure alert function or lane

departure prevention function changes

the timing of operation.

●

The steering assist operation of the lane

departure prevention function can be

overridden by the steering wheel opera-

tion of the driver.

: Boundary between the asphalt and

grass, soil, etc., or structures, such as a
curb, guardrail, etc.

■

Hands off steering wheel warning oper-

ation

In the following situations, a message urging

the driver to operate the steering wheel and

an icon will be displayed and a buzzer will

sound to warn the driver. When using the

system, make sure to grip the steering

wheel firmly, regardless of whether the

warning is operating or not.

●

When the system determines that the

driver is not securely holding the steering

wheel, or the steering wheel is not being

operated when the steering assist opera-

tion of the lane departure prevention

function is operating

Except for Puerto Rico: The length of time
that the warning buzzer operates will
become longer as the frequency of the
steering assist operating increases. If the
system judges that the steering wheel has
been operated, the warning buzzer will
stop.
For Puerto Rico: The length of time that the
warning buzzer operates will become lon-
ger as the frequency of the steering assist
operating increases. Even if the system
judges that the steering wheel has been
operated, the warning buzzer will sound
for a certain amount of time.

■

Break suggestion function

This function is operable when all of the fol-

lowing conditions are met:

●

The vehicle speed is approximately 40
mph (65 km/h) or more.

●

The vehicle speed is approximately 32
mph (50 km/h) or more.

●

The lane width is approximately 9.8 ft. (3

m) or more.

259

4-5. Using the driving support systems

Driving

Depending on the condition of the vehicle

and road surface, the break suggestion

function may not operate.

Vehicles without a head-up display: Press
the

meter control switch to turn off the

message.

Vehicles with a head-up display: Press the

steering switch to turn off the mes-

sage.

Unless

is pressed, the message

of the break suggestion function will remain
displayed.

: For Puerto Rico

: Except for Puerto Rico

: The countries and areas for each region

listed in the table are current as of
October 2022. However, depending
on when the vehicle was sold, the coun-
tries and areas of each region may be
different. Contact your Lexus dealer for
details.



The LDA system can be

enabled/disabled through a custom-
ize setting. (





The settings of the LDA can be
changed on the customize settings.
(

The operating state of the lane departure alert function and steering assist opera-
tion of the lane departure prevention function are indicated.

Changing LDA settings

WARNING

■

Situations in which the system may

not operate properly

In the following situations, the system

may not operate properly and the vehicle

may depart from its lane. Do not overly

rely on these functions. The driver is

solely responsible for paying attention to

their surroundings and operating the

steering wheel as necessary to ensure

safety.

●

When the boundary between the

asphalt and grass, soil, etc., or struc-

tures, such as a curb, guardrail, etc. is

not clear or straight

●

When the vehicle is struck by a cross-

wind or the turbulence of other nearby

vehicles

●

Situations in which the lane may not be

detected:

●

Situations in which the sensors may not

operate properly:



●

Situations in which some or all of the

functions of the system cannot oper-

ate:



●

When it is necessary to disable the sys-

tem:



Displays and system operation

260

4-5. Using the driving support systems



Except for Puerto Rico



For Puerto Rico

Indicator

Lane display Steering icon

Situation

Not illumi-

nated

Not illumi-

nated

Not illumi-

nated

System disabled

White

Grey

Not illumi-

nated

Lane lines are not detected by the system

White

Not illumi-

nated

Lane lines are detected by the system

Orange

Flashing

Orange

Flashing

Not illumi-

nated

Lane departure alert function is operating
for the side which the lane display is flashing

Green

Lane departure prevention function is oper-
ating for the side which the lane display is
illuminated

Orange

Flashing

Orange

Flashing

Green

Lane departure alert function/lane depar-
ture prevention function is operating for the
side which the lane display is flashing

Indicator

Lane display Steering icon

Situation

Orange

Illuminated

Not illumi-

nated

Not illumi-

nated

System disabled

Not illumi-

nated

Grey

Not illumi-

nated

Lane lines are not detected by the system

Not illumi-

nated

White

Not illumi-

nated

Lane lines are detected by the system

262

4-5. Using the driving support systems

According to the driving conditions, the operation and detectable objects of the
proactive driving assist will change as follows.

PDA (Proactive driving
assist)

When a detectable object
(

P.262) is detected, the proac-

tive driving assist operates the
brakes and steering wheel to help
prevent the vehicle from approach-
ing too close to the object.

WARNING

■

For safe use

Driving safely is solely the responsibility

of the driver.

●

The proactive driving assist is designed

to provide some assistance for regular

braking and steering operations, as

well as helping to prevent the vehicle

from approaching too close to a

detectable object. However, the scope

of this assistance is limited.

The driver should perform brake and

steering operations as necessary. Read

the following items carefully. Do not

overly rely on the proactive driving assist

and always drive carefully. (



P.264)

●

The proactive driving assist is not a sys-

tem which reduces the amount of

attention necessary for safe driving.

Even if the system is operating cor-

rectly, the surrounding conditions as

recognized by the driver and detected

by the system may differ. It is necessary

for the driver to pay attention, assess

risks, and ensure safety. Over-reliance

on this system to drive the vehicle

safely may lead to an accident result-

ing in death or serious injury.

●

Proactive driving assist is not a system

which allows for inattentive driving and

is not a system which assists in poor

visibility conditions. The driver is solely

responsible for paying attention to

their surroundings and driving safely.

■

When turning proactive driving assist

off

●

Situations in which the sensors may not

operate properly:



●

When it is necessary to disable the sys-

tem:



System operating conditions and detectable objects

263

4-5. Using the driving support systems

Driving

■

Vehicle speeds at which the system can

operate

●

Detectable object crossing the road

assistance

Approximately 20 to 35 mph (30 to 60

km/h)

●

Detectable object on the side of the road

assistance

Approximately 20 to 35 mph (30 to 60
km/h)

●

Preceding vehicle deceleration assis-

Function

Conditions

Operation

Detectable objects

Obstacle Antici-
pation Assist

A detectable object is
detected crossing the
road

Assistance with some
brake operations is pro-
vided in order to reduce
the possibility of a colli-
sion.



Pedestrians



Bicyclists

A detectable object is
detected on the side
of the road

Assistance with some
brake and steering wheel
operations are provided
according to the sur-
rounding conditions to
help prevent the vehicle
from approaching too
close to a detected
object.
Assistance with steering
wheel operations is pro-
vided within a range that
the vehicle will not devi-
ate from its current lane.



Pedestrians



Bicyclists



Parked vehicles

Deceleration
Assist

A preceding vehicle
or an adjacent vehicle
cutting in front of the
vehicle is detected

The vehicle is gently
decelerated so that the
vehicle-to-vehicle dis-
tance will not be exces-
sively short.



Preceding vehicles



Motorcycles

A curve is detected
ahead of the vehicle

The vehicle is gently
decelerated if the vehicle
speed is determined to
be too high for the curve
ahead.

None

Steering Assist

Lane is detected

The system anticipates
the driver’s operation
and supports the opera-
tion of the steering
wheel.

None

264

4-5. Using the driving support systems

tance

Approximately 15 mph (20 km/h) or more

●

Curve deceleration assistance

Approximately 15 mph (20 km/h) or more

●

Steering assist within a lane

Approximately 5 to 80 mph (10 to 140
km/h)

■

System operation will be canceled when

●

In the following situations, system opera-

tion will be canceled:

• When the dynamic radar cruise control

or cruise control is operating

• When the PCS is off

• Situations in which some or all of the

functions of the system cannot operate:

• When the P, R or N shift position is

selected

●

In the following situations, the brake

operation assist will be canceled:

• Approximately 9 mph (15 km/h) or less

• When a certain vehicle speed has been

reached, as judged by the system,

according to the surrounding conditions

●

In the following situations, system opera-

tion may be canceled:

• When the brake control or output restric-

tion control of a driving support system

operates

(For example: PCS, drive-start control)
• When the system determines that a

detected object has moved away from

the vehicle

• When lane lines can no longer be

detected

• When the brake pedal has been

depressed

• When the accelerator pedal has been

depressed

• When the steering wheel has been oper-

ated with more than a certain amount of

force

• When the turn signal lever is operated to

the left/right turn position

WARNING

■

Situations in which the system may

not operate properly

●

Situations in which the lane may not be

detected:

●

When a detectable object stops

immediately before entering the path

of the vehicle

●

When passing extremely close to a

detectable object behind a guardrail,

fence, etc.

●

When changing lanes while overtaking

a detectable object

●

When passing a detectable object that

is changing lanes or turning left/right

●

When there are objects (guardrails,

power poles, trees, walls, fences, poles,

traffic cones, mailboxes, etc.) in the

surrounding area

●

When there are patterns or a painting

ahead of the vehicle that may be mis-

taken for a detectable object

●

When passing through a place with a

low structure above the road (tunnel

with a low ceiling, traffic sign, sign-

board, etc.)

●

When driving on snowy, icy, or rutted

roads

●

When a detectable object is

approaching your vehicle

●

When your vehicle or a detectable

object is wandering

●

When the movement of a detectable

object changes (change in direction,

sudden acceleration or deceleration,

etc.)

●

When suddenly approaching a detect-

able object

●

When a preceding vehicle or motor-

cycle is not directly in front of your

vehicle

265

4-5. Using the driving support systems

Driving



The proactive driving assist can be
enabled/disabled through a custom-
ize setting. (





The following settings of the proac-
tive driving assist can be changed
through customize settings.
(

WARNING

●

When there is a structure above a

detectable object

●

When part of a detectable object is

hidden by another object (large lug-

gage, umbrella, guardrail, etc.)

●

When multiple detectable objects are

overlapping

●

When a bright light, such as the sun or

headlights of another vehicle, is

reflecting off of the detectable object

●

When the detectable object is white

and looks extremely bright

●

When the color or brightness of the

detectable object causes it to blend in

with its surroundings

●

When a detectable object cuts in front

of or emerges from beside a vehicle

●

When approaching a vehicle ahead

which is perpendicular or at an angle

to the vehicle, or is facing the vehicle

●

If a parked vehicle is perpendicular or

at an angle to the vehicle

●

When a bicycle is a child sized bicycle,

is carrying a large load, is carrying an

extra passenger, or has an unusual

shape (bicycles equipped with a child

seat, tandem bicycles, etc.)

●

When a pedestrian or bicyclist is

shorter than approximately 3.2 ft. (1 m)

or taller than approximately 6.5 ft. (2

●

When the silhouette of a pedestrian or

bicyclist is unclear (such as when they

are wearing a raincoat, long skirt, etc.)

●

When a pedestrian or bicyclist is

bending forward or squatting

●

When a pedestrian or bicyclist is mov-

ing at high speed

●

When a pedestrian is pushing a

stroller, wheelchair, bicycle or other

vehicle

●

When a detectable object blends in

with the surrounding area, such as

when it is dim (at dawn or dusk) or

dark (at night, in a tunnel, etc.)

●

When the lane width is 13.1 ft. (4 m) or

●

When the lane width is 8.2 ft. (2.5 m)

m or less

●

When the vehicle has not been driven

for a certain amount of time after the

engine was started

●

While turning left or right or a few sec-

onds after turning left or right

●

While changing lanes or a few seconds

after changing lanes

●

When entering a curve, driving around

a curve and a few seconds after driving

around a curve

Changing proactive driving
assist settings

266

4-5. Using the driving support systems

Depending on the situation, the following indicators or icons will be displayed.
Some icons cannot be displayed unless the display is changed to the driving safety
support function information screen.

■

Hands off steering wheel warning oper-

ation

In the following situations, a message urging

the driver to grip the steering wheel and the

icon shown in the illustration will be dis-

played on the display to warn the driver. If

the system detects that the steering wheel is

held, the warning will be canceled. When

using the system, make sure to grip the

steering wheel firmly, regardless of whether

the warning is operating or not.

●

When assistance to a detectable object

System operation display

Icon

Meaning



White: Monitoring for detectable objects



Green: Detectable object crossing the road or detectable object on
the side of the road assistance operating

A pedestrian has been detected as crossing the road or on the side of
the road and brake or steering assistance is operating

A vehicle has been detected on the side of the road and brake or steer-
ing operation assistance is being performed



Steering operation assistance is being performed to prevent the
vehicle from approaching too close to a detectable object on the
side of the road



When the steering assist is operating

Preceding vehicle deceleration assistance is being performed

Warning to maintain appropriate vehicle-to-vehicle distance

Curve deceleration assistance is being performed

267

4-5. Using the driving support systems

Driving

crossing the road or assistance to a

detectable object on the side of the road

is performed and the system determines

the driver is not holding the steering

wheel

If no operations are detected for a certain
amount of time, a buzzer will sound, the
warning will operate. This warning may
also operate if the driver only operates
steering wheel a small amount continu-
ously.

■

Warning operation after preceding

vehicle deceleration assistance has

ended

After preceding vehicle deceleration assis-

tance has ended, if the driver does not

operate the brake pedal or accelerator

pedal and the vehicle approaches the pre-

ceding vehicle, the display will flash and a

buzzer will sound to urge the driver to

decelerate. If the system determines that

the driver is operating the brake pedal or

accelerator pedal, the warning will be can-

celed.

: If equipped



When the system detects a vehicle
approaching from the left or right in
front of your vehicle when
approaching an intersection, a noti-
fication will be displayed.

• Head-up display



When the system determines that
your vehicle may be about to enter
an intersection even though a vehi-
cle is approaching from the left or
right in front of your vehicle, a
buzzer will sound and a message
will be displayed to urge you to
depress the brake pedal.

• Multi-information display

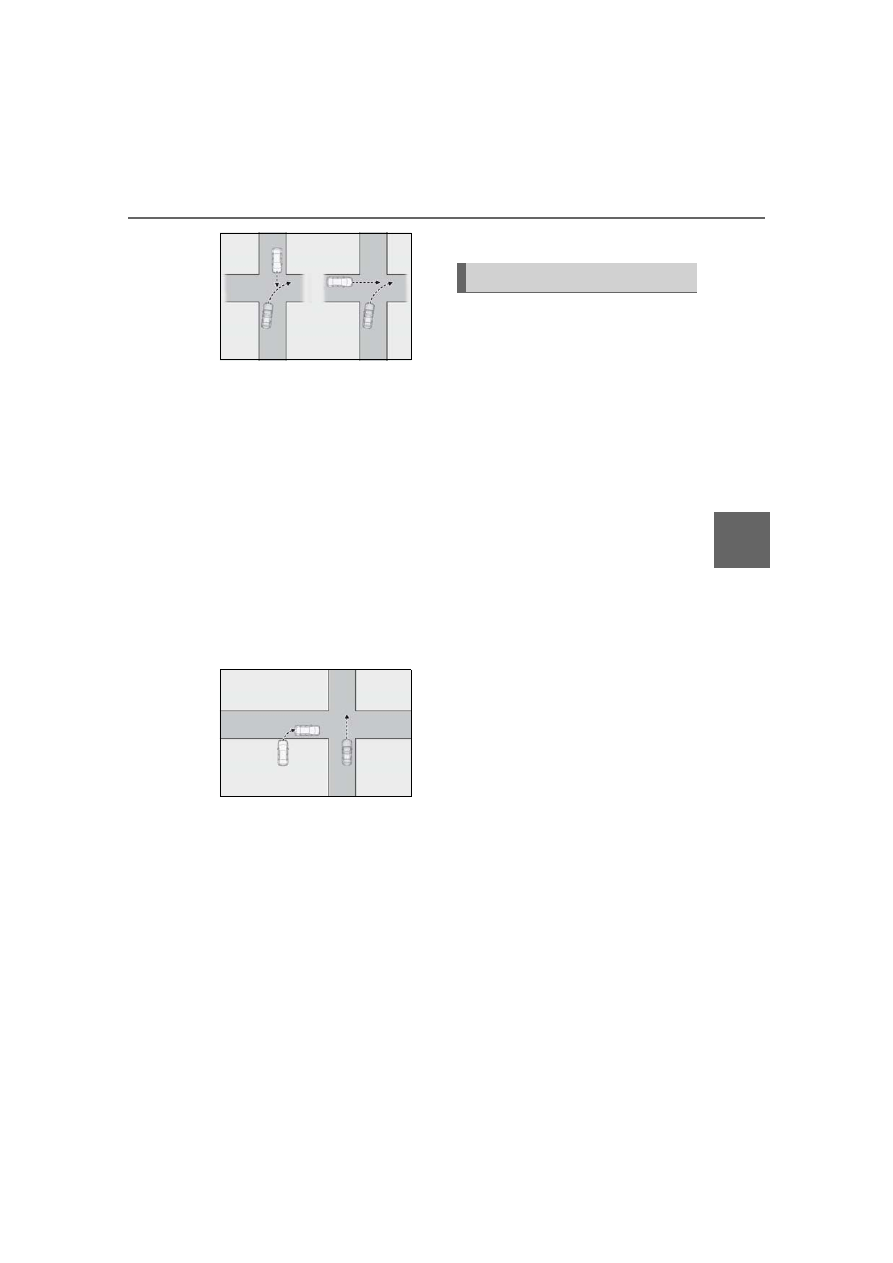

FCTA (Front Cross Traffic
Alert)

When approaching an intersec-
tion, etc., at a low speed, vehicles
approaching from the left and right
of the front of the vehicle can be
detected and the driver informed of
these vehicles.

FCTA system control

268

4-5. Using the driving support systems

■

FCTA system operating conditions

The system will operate when all of the fol-

lowing conditions are met:

●

A shift position other than P or R is

selected

●

The vehicle speed is approximately 10

mph (15 km/h) or less

●

A vehicle is approaching from the left or

right in front of your vehicle at a speed

between approximately 7 to 37 mph (10

to 60 km/h)

●

There are no vehicles in front of your

vehicle

●

The accelerator pedal is not being

strongly depressed

●

The brake pedal is not being strongly

depressed

■

Situations in which the system may

operate even though no vehicles are

approaching

In certain situations, such as the following,

the system may operate even though no

vehicles are approaching:

●

When approaching objects on the road-

side, such as guardrails, traffic signs, util-

ity poles, street lights, trees, tall grass,

walls, etc.

●

When passing an object on the side of the

road, such as a parked vehicle

●

When a vehicle or pedestrian is

approaching from the left or right in front

of your vehicle in the distance

●

When a vehicle or pedestrian is moving

within a parking spot, etc., next to the lane

your vehicle is in

●

When a pedestrian or bicyclist is

approaching on a sidewalk

●

When a vehicle or pedestrian is moving

away from your vehicle

●

When an approaching vehicle is deceler-

ating or stops

●

When an approaching vehicle makes a

left/right turn immediately in front of your

vehicle

●

When a pedestrian is approaching your

vehicle

●

When an oncoming vehicle makes a

right/left turn

●

When your vehicle enters an intersection

before a vehicle approaching from the

left or right in front of your vehicle

●

When stopped at traffic light and a vehi-

cle approaches from the left or right in

front of your vehicle

●

When making a left/right turn in front of

an approaching vehicle

WARNING

■

For safe use

Driving safely is solely the responsibility

of the driver. Pay careful attention to the

surrounding conditions in order to

ensure safe driving.

The FCTA system is a supplementary

system that informs the driver of vehicles

approaching from the left and right of the

front of the vehicle.

Over-reliance on this system may lead to

an accident resulting in death or serious

injury.

The details of the warning display may

differ from the actual traffic conditions.

Although the warning display will stop

being displayed after a certain amount of

time, this does not necessarily indicate

that there are no longer any vehicles or

pedestrians around your vehicle.

269

4-5. Using the driving support systems

Driving

●

When an oncoming vehicle approaches

and passes

●

When being overtaken by another vehi-

cle

●

When driving next to another vehicle or a

pedestrian

●

When a vehicle or pedestrian

approaches the side of your vehicle

■

Situations in which the system may not

operate properly

In situations such as the following, a vehicle

may not be detected by a front side radar

sensor and the system may not operate

properly:

●

If an approaching vehicle moves sud-

denly (sudden steering, acceleration,

deceleration, etc.)

●

If a vehicle is approaching from the left or

right of the front of your vehicle diago-

nally

●

When a vehicle is approaching from the

left or right in front of your vehicle in the

distance

●

When there is an object between your

vehicle and an approaching vehicle

●

When several vehicles are approaching

with little space between them

●

Situations in which the sensors may not

operate properly:



●

Situations in which some or all of the

functions of the system cannot operate:





The FCTA can be enabled/disabled
through a customize setting.
(



The following settings of the FCTA
can be changed through customize
settings. (



Changing FCTA settings

270

4-5. Using the driving support systems

: If equipped



When the front camera detects a
sign or information of a sign is avail-
able from the navigation system, the
sign will be displayed on the display.



Multiple signs can be displayed.

Depending on the specifications of the
vehicle, the number of displayed signs may
be limited.

■

Operating conditions of sign display

Signs will be displayed when the following

conditions are met:

●

The system has detected a sign

In the following situations, a displayed sign

may stop being displayed:

●

When a new sign has not been detected

for a certain distance

●

When the system determines that the

road being driven on has changed, such

as after a left or right turn

■

Situations in which the display function

may not operate properly

In the following situations, the RSA system

may not operate properly and may not

detect signs or may display the incorrect

sign. However, this does not indicate a mal-

function.

●

When a sign is dirty, faded, tilted or bent

●

When the contrast of an electronic sign is

low

●

When all or part of a sign is hidden by a

tree, utility pole, etc.

●

When a sign is detected by the front cam-

era for a short amount of time

●

When the driving state (turning, chang-

ing lanes, etc.) is judged incorrectly

●

When a sign is immediately after a free-

way junction or in an adjacent lane just

before merging

●

When stickers are attached to the rear of

a preceding vehicle

●

When a sign similar to a system compati-

ble sign is detected as a system compati-

ble sign

●

When a speed limit sign for a frontage

road is within detection range of the front

camera

●

When driving around a roundabout

●

When a sign intended for trucks, etc. is

detected

RSA (Road Sign Assist)

The RSA system detects specific
road signs using the front camera
and/or navigation system (when
speed limit information is available)
and warns the driver via displays
and buzzers.

WARNING

■

For safe use

●

Driving safely is solely the responsibil-

ity of the driver. Pay careful attention to

the surrounding conditions in order to

ensure safe driving.

●

Do not rely solely upon the RSA. The

RSA assists the driver by providing

road sign information, but it is not a

replacement for the driver’s own vision

and awareness. Driving safely is solely

the responsibility of the driver. Pay

careful attention to the surrounding

conditions in order to ensure safe driv-

ing.

■

Situations in which the RSA should

not be used

●

When it is necessary to disable the sys-

tem:

■

Situations in which the system may

not operate properly

●

Situations in which the sensors may not

operate properly:

Display Function

271

4-5. Using the driving support systems

Driving

●

When the navigation system map data is

out of date

●

When the navigation system cannot be

used

In this case, the speed limit signs displayed

on the multi-information display and navi-

gation system display may differ.

In the following situations, the RSA sys-
tem will output a warning to notify the
driver.



If the vehicle speed exceeds the
speed warning threshold of the
speed limit sign displayed on the
display, the sign display will be
emphasized and a buzzer will
sound.



When the RSA system detects a do
not enter sign and determines that
the vehicle has entered a no-entry
area, the do not enter sign displayed
on the display will flash and a buzzer
will sound.

■

Operating conditions of the notification

functions

●

Excess speed notification function

This function will operate when the follow-

ing condition is met:

• A speed limit road sign is recognized by

the system.

●

No entry notification function

This function will operate when all of the

following conditions are met:

• More than one no entry road signs are

recognized by the system simultaneously.

• The vehicle is passing between no entry

road signs recognized by the system.



The following types of road signs
can be displayed.

However, non-standard or recently intro-
duced traffic signs may not be displayed.

The following settings of the RSA can
be changed through customize set-
tings. (



Notification function

Types of road signs supported

Speed limit

Do Not Enter

No U-turn

No Turn On Red

Stop

Yield

Warning

Changing RSA settings

272

4-5. Using the driving support systems

Dynamic radar cruise con-
trol

This dynamic radar cruise control
detects the presence of vehicles
ahead, determines the current
vehicle-to-vehicle distance, and
operates to maintain a suitable dis-
tance from the vehicle ahead. The
desired vehicle-to-vehicle distance
can be set by operating the vehi-
cle-to-vehicle distance switch.

Use the dynamic radar cruise con-
trol only on highways and express-
ways.

WARNING

■

For safe use

●

Driving safely is solely the responsibil-

ity of the driver. Do not overly rely on

this system, and pay careful attention

to the surrounding conditions in order

to ensure safe driving.

●

The dynamic radar cruise control pro-

vides driving assistance to reduce the

driver’s burden. However, there are

limitations to the assistance provided.

Read the following items carefully. Do

not overly rely on this system and always

drive carefully.
• Conditions under which the system

may not operate correctly:

P.279

●

Set the speed appropriately according

to the speed limit, traffic flow, road

conditions, weather conditions, etc.

The driver is responsible for confirm-

ing the set speed.

●

Even if the system is operating cor-

rectly, the condition of a preceding

vehicle as recognized by the driver

and detected by the system may differ.

Therefore, it is necessary for the driver

to pay attention, assess risks, and

ensure safety. Over-reliance on this

system to drive the vehicle safely may

lead to an accident resulting in death

or serious injury.

■

Precautions for the driving assist sys-

tems

Observe the following precautions, as

there are limitations to the assistance

provided by the system. Over-reliance

on this system may lead to an accident

resulting in death or serious injury.

●

Details of support provided for the

driver’s vision

The dynamic radar cruise control is only

intended to help the driver in determin-

ing the distance between the driver’s own

vehicle and a designated preceding vehi-

cle. It is not a system which allows for

careless or inattentive driving, and is not

a system which assists in poor visibility

conditions.
The driver must pay attention to their sur-

roundings,even when the vehicle stops.

●

Details of support provided for the

driver’s judgement

The dynamic radar cruise control deter-

mines whether the distance between the

driver’s own vehicle and a designated

preceding vehicle is within a set range. It

is not capable of making any other type

of judgement. Therefore, it is absolutely

necessary for the driver to remain vigi-

lant and to determine whether or not

there is a possibility of danger.

273

4-5. Using the driving support systems

Driving

WARNING

●

Details of support provided for the

driver’s operation

The dynamic radar cruise control does

not include functions which will prevent

or avoid collisions with vehicles ahead of

your vehicle. Therefore, if there is ever

any possibility of danger, the driver must

take immediate and direct control of the

vehicle and act appropriately in order to

ensure safety.

■

Situations in which the dynamic radar

cruise control should not be used

Do not use the dynamic radar cruise

control in the following situations. As the

system will not be able to provide appro-

priate control, using it may lead to an

accident resulting in death or serious

injury.

●

Roads where there are pedestrians,

cyclists, etc.

●

When driving on a highway or

expressway entrance or exit

●

When the approach warning sounds

frequently

●

Situations in which the sensors may not

operate properly:

P.279

●

Situations in which the lane may not be

detected:
