4-5. Using the driving support systems

Driving

■

When the accelerator pedal is depressed excessively

■

When the vehicle moves in the unintended direction due to the wrong shift
position

■

Types of sensors



P.357

■

The system will operate when

The function will operate when the driving

assist infomation indicator is not illuminated

WARNING

■

To ensure the system can operate

properly



P.358

■

If the system operates unnecessarily,

such as at a railroad crossing



P.379

■

Notes when washing the vehicle



P.358

382

4-5. Using the driving support systems

(



P.109, 550) and all of the following con-

ditions are met:

●

Hybrid system output restriction control

• PKSB (Parking Support Brake) system is

enabled.

• The vehicle speed is approximately 15

km/h (9 mph) or less.

• There is a static object in the traveling

direction of the vehicle and approxi-

mately 2 to 4 m (6 to 13 ft.) away.

• The PKSB (Parking Support Brake)

determines that a stronger-than-normal

brake operation is necessary to avoid a

collision.

●

Brake control

• Hybrid system output restriction control

is operating.

• The PKSB (Parking Support Brake)

determines that an immediate brake

operation is necessary to avoid a colli-

sion.

■

The system will stop operating when

The function will stop operating if any of the

following conditions are met:

●

Hybrid system output restriction control

• PKSB (Parking Support Brake) system is

disabled.

• The system determines that the collision

has become avoidable with normal brake

operation.

• The static object is no longer approxi-

mately 2 to 4 m (6 to 13 ft.) away from the

vehicle or in the traveling direction of the

vehicle.

●

Brake control

• PKSB (Parking Support Brake) system is

disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

• The static object is no longer approxi-

mately 2 to 4 m (6 to 13 ft.) away from the

vehicle or in the traveling direction of the

vehicle.

■

Situations in which the system may not

operate properly



P.359

■

Situations in which the system may

operate even if there is no possibility of a

collision



P.360

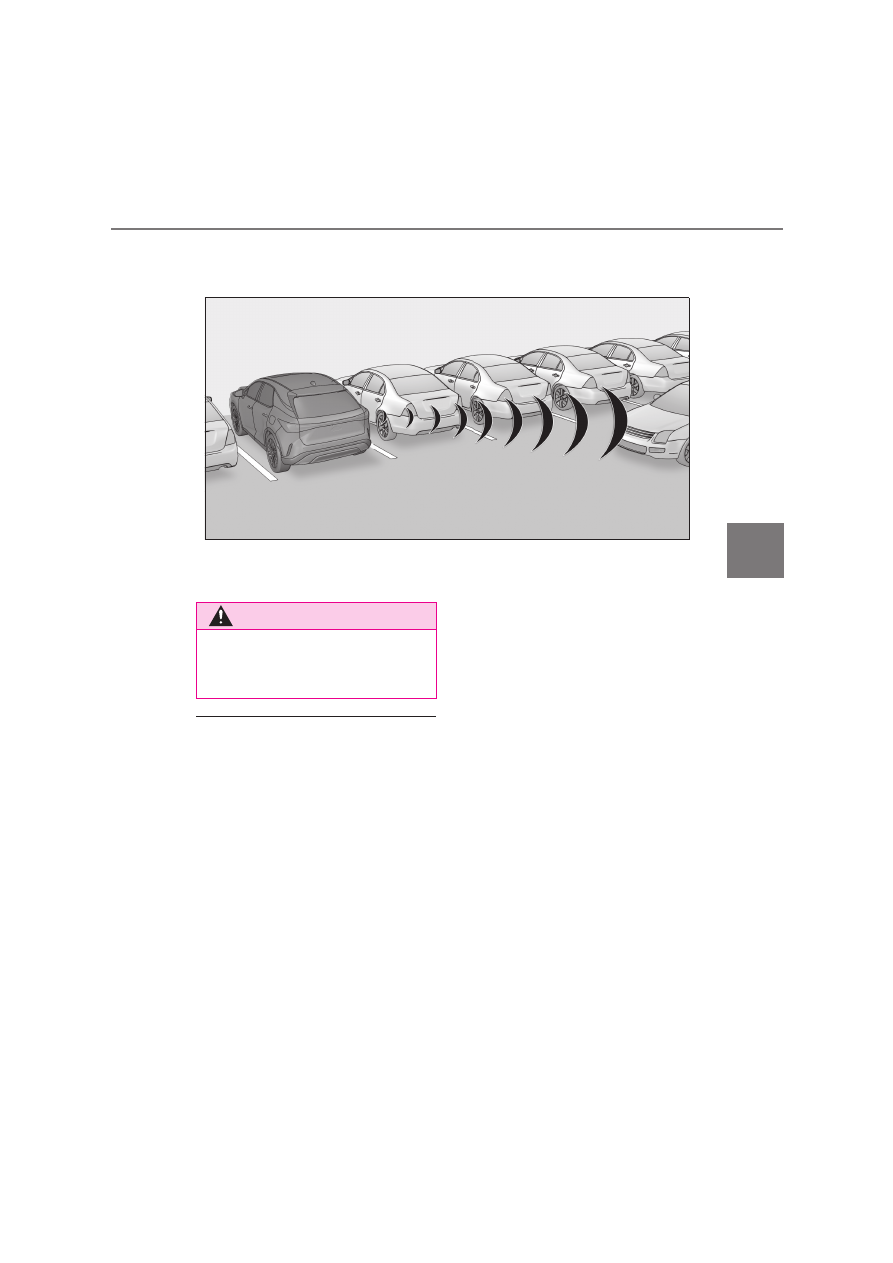

If a rear radar sensor detects a vehicle approaching from the right or left at the rear
of the vehicle and the system determines that the possibility of a collision is high,
this function will perform brake control to reduce the likelihood of an impact with
the approaching vehicle.
This function will operate in situations such as the following if a vehicle is detected
in the traveling direction of the vehicle.

Moving Vehicles Rear of the Vehicle (if equipped)

383

4-5. Using the driving support systems

Driving

■

When reversing, a vehicle is approaching and the brake pedal is not
depressed, or is depressed late

■

Types of sensors



P.344

■

The system will operate when

The function will operate when the driving

assist infomation indicator is not illuminated

(



P.109, 550) and all of the following con-

ditions are met:

●

Hybrid system output restriction control

• PKSB (Parking Support Brake) system is

enabled.

• The vehicle speed is approximately 15

km/h (9 mph) or less.

• Vehicles which are approaching from the

right or left at the rear of the vehicle at a

traveling speed of approximately 8 km/h

(5 mph) or more.

• The shift position is in R.

• The PKSB (Parking Support Brake)

determines that a stronger than normal

brake operation is necessary to avoid a

collision.

●

Brake control

• Hybrid system output restriction control

is operating.

• The PKSB (Parking Support Brake)

determines that an emergency brake

operation is necessary to avoid a collision

with an approaching vehicle.

■

The system will stop operating when

The function will stop operating if any of the

following conditions are met:

●

Hybrid system output restriction control

• PKSB (Parking Support Brake) system is

disabled.

• The collision becomes avoidable with

normal brake operation.

• A vehicle is no longer approaching from

the right or left at the rear of the vehicle.

●

Brake control

• PKSB (Parking Support Brake) system is

disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

■

Situations in which the system may not

operate properly



P.369

WARNING

■

To ensure the system can operate

properly



P.344

385

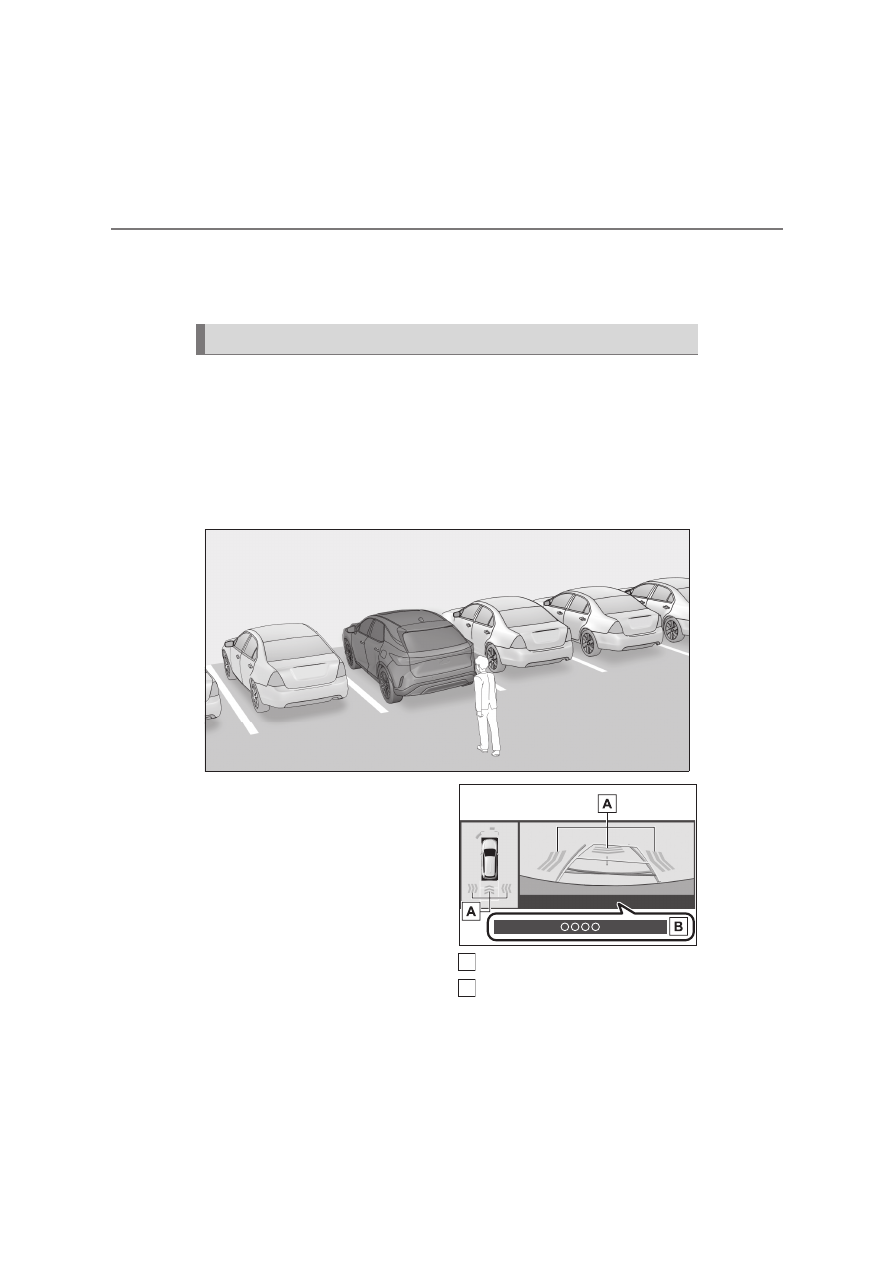

4-5. Using the driving support systems

Driving

■

The system will operate when

The function will operate when the driving

assist infomation indicator is not illuminated

(



P.109, P.550) and all of the following

conditions are met:

●

Hybrid system output restriction control

• PKSB (Parking Support Brake) system is

enabled.

• The vehicle speed is 15 km/h (9 mph) or

less.

• The shift position is in R.

• A pedestrian is behind the vehicle.

• The system determines that a slightly

stronger brake operation than usual is

needed to avoid a collision.

●

Brake control

• Hybrid system output restriction control

is operating.

• The PKSB (Parking Support Brake)

determines that an emergency brake

operation is necessary to avoid a collision

with a pedestrians.

■

The system will stop operating when

The function will stop operating if any of the

following conditions are met:

●

Hybrid system output restriction control

• PKSB (Parking Support Brake) system is

disabled.

• The collision becomes avoidable with

normal brake operation.

• The pedestrian is no longer detected

behind your vehicle.

●

Brake control

• PKSB (Parking Support Brake) system is

disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

■

Re-enabling the system



P.379

■

Situations in which the system may not

operate properly



P.373

■

Situations in which the system may

operate unexpectedly



P.374

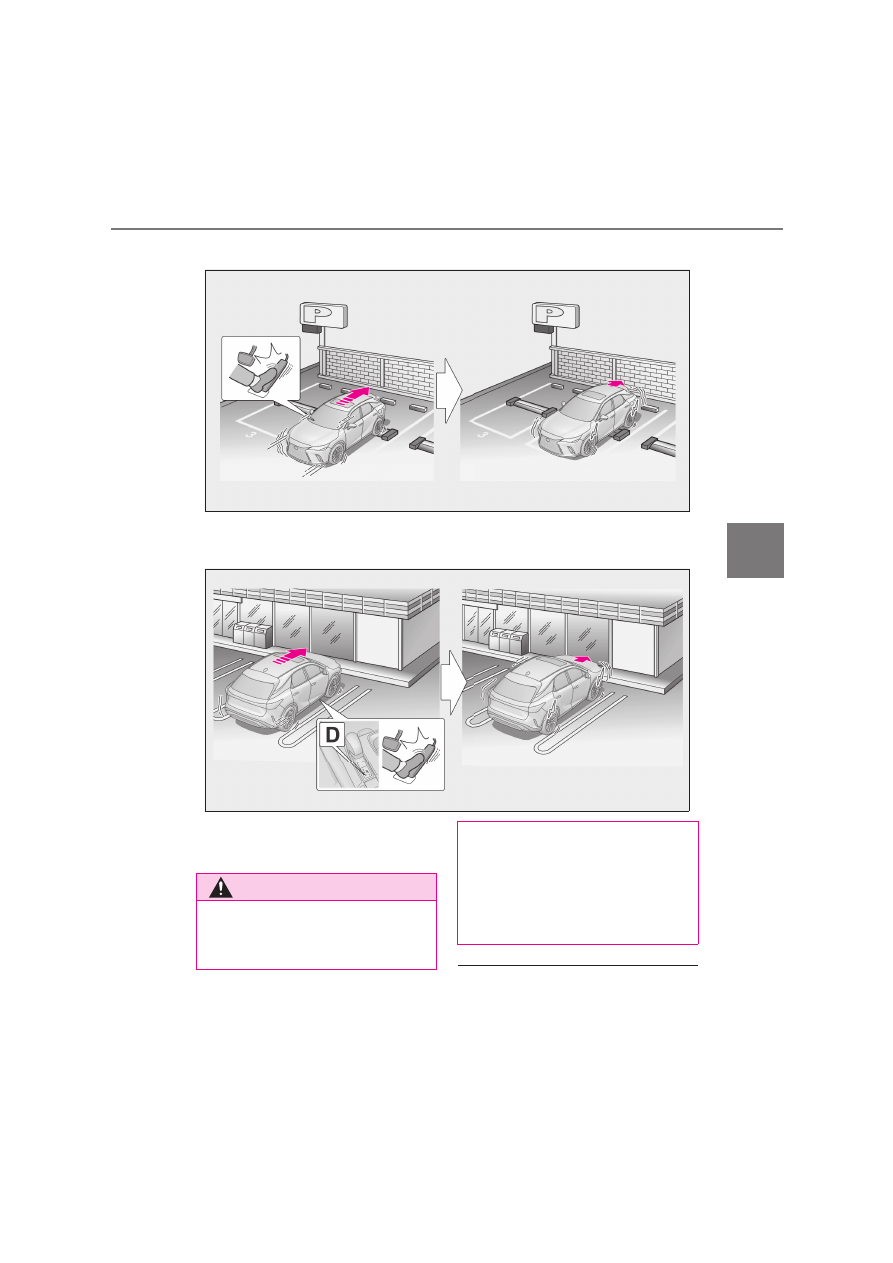

While parking, if a sensor detects a surrounding stationary object, such as a
wall,with which a collision is likely, the system will operate to help avoid a collision
orreduce the impact of the collision.
The system will operate in the following situations when a stationary object isde-
tected in the surrounding area.

WARNING

■

If the system operates unnecessarily

Depress the brake pedal immediately

after the system operates. (Operation of

the function is canceled by depressing

the brake pedal.)

■

Correct use of the system



P.372

Static Objects Around the vehicle (vehicles with Advanced Park)

386

4-5. Using the driving support systems

■

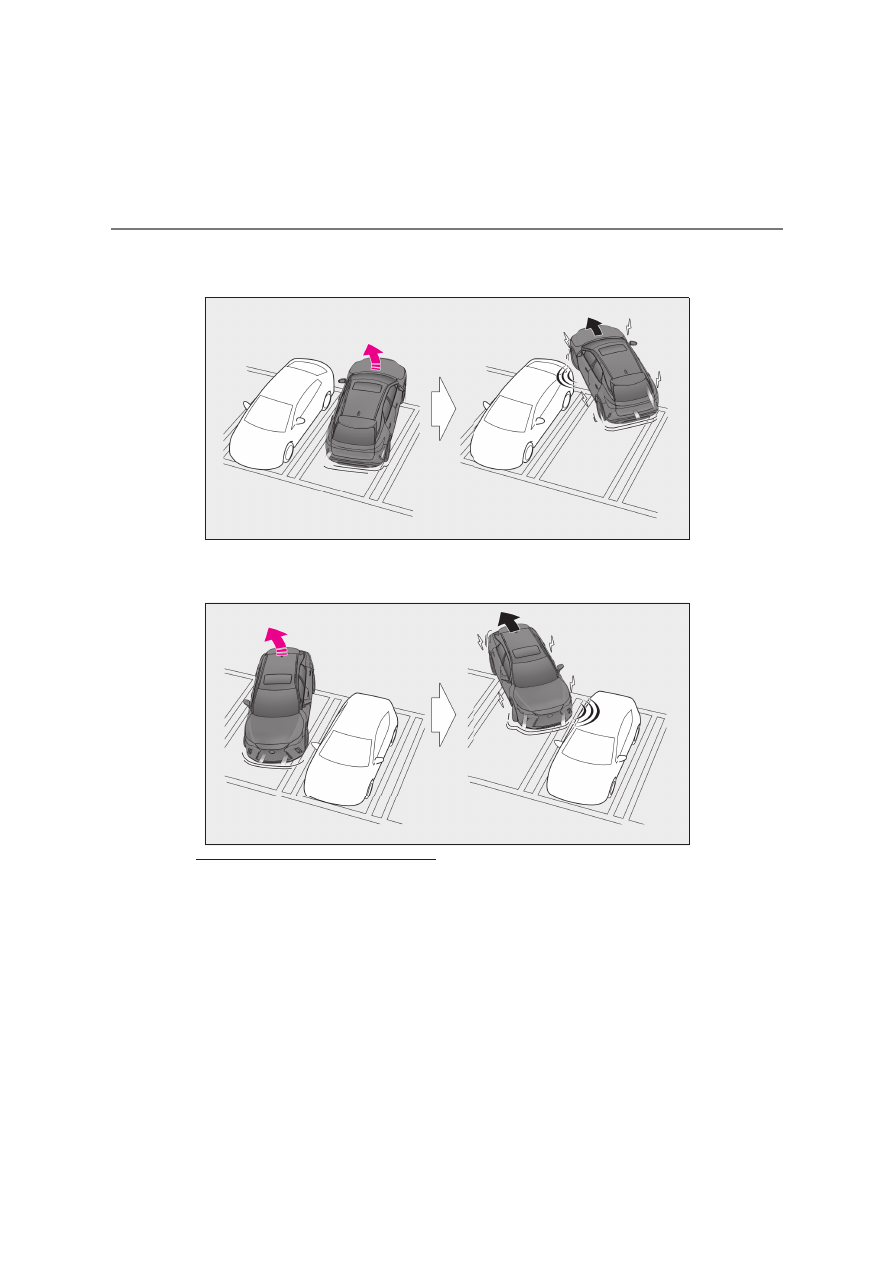

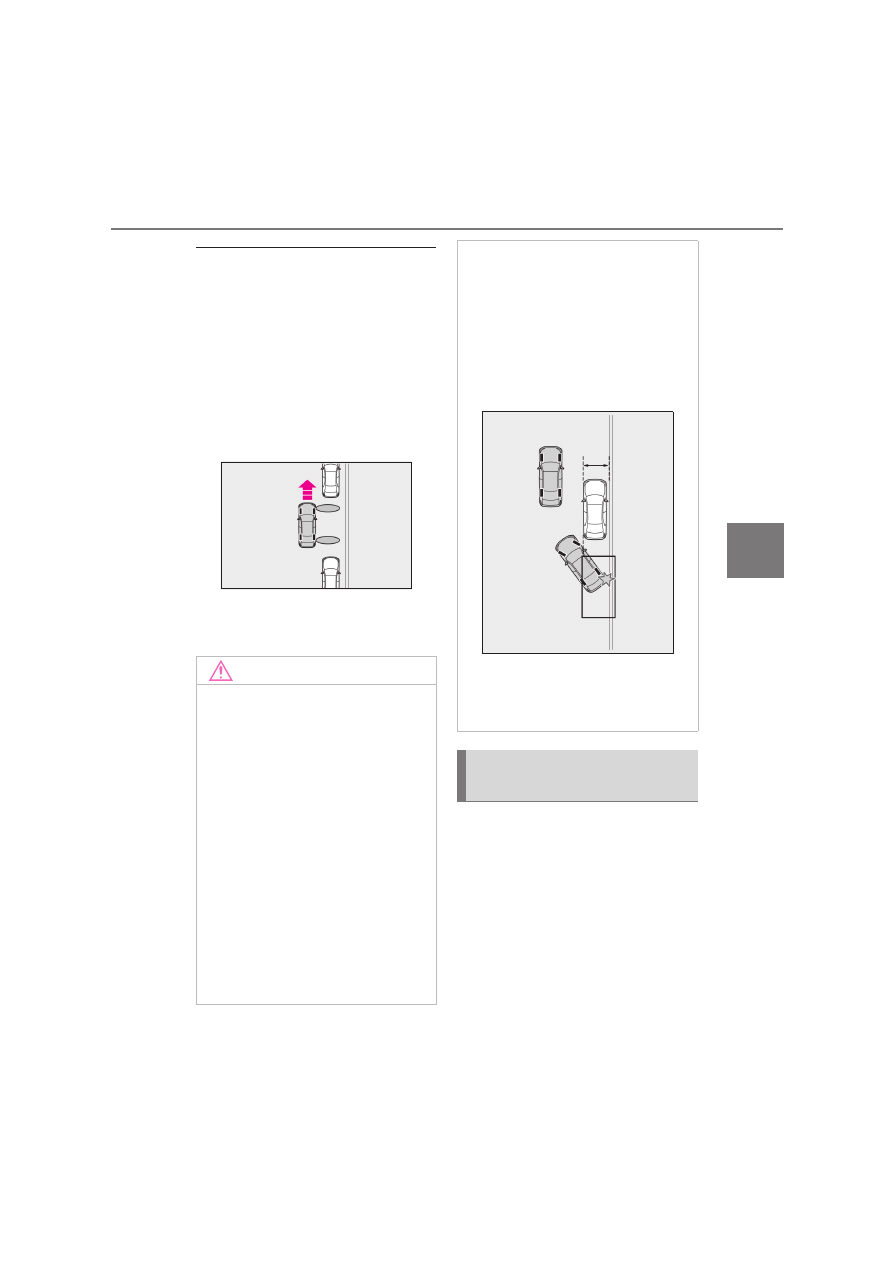

When moving forward and a collision with a stationary object on the inner
side of a turn is likely

■

When reversing and a collision with a stationary object on the outer side of a
turn is likely

■

Operating conditions

This function is operable when any of the

following conditions are met in addition to

the operating conditions for stationary

objects in around the vehicle.

●

After the hybrid system has been started,

the vehicle has moved approximately 7 m

(23.0 ft.) or less

●

The R shift position is selected

●

After the shift position has been shifted

from R to D, the vehicle has moved

approximately 7 m (23.0 ft.) or less

■

The system will stop operating when



P.382

■

Objects which the sensor may not be

properly detected



P.359

387

4-5. Using the driving support systems

Driving

■

Lexus parking assist-sensor buzzer

Regardless of whether the Lexus parking

assist-sensor buzzer is enabled or not

(



P.358), if the PKSB (Parking Support

Brake) system is enabled (



P.376), the

front or rear sensors detect an object and

brake control is performed, the Lexus park-

ing assist-sensor buzzer will sound to notify

the driver of the approximate distance to

the object.

■

Situations in which the system may not

operate properly



P.359

■

Object warning function (vehicles with

Advanced Park)



P.364

■

Situations in which the system may

operate even though there is no possi-

bility of a collision

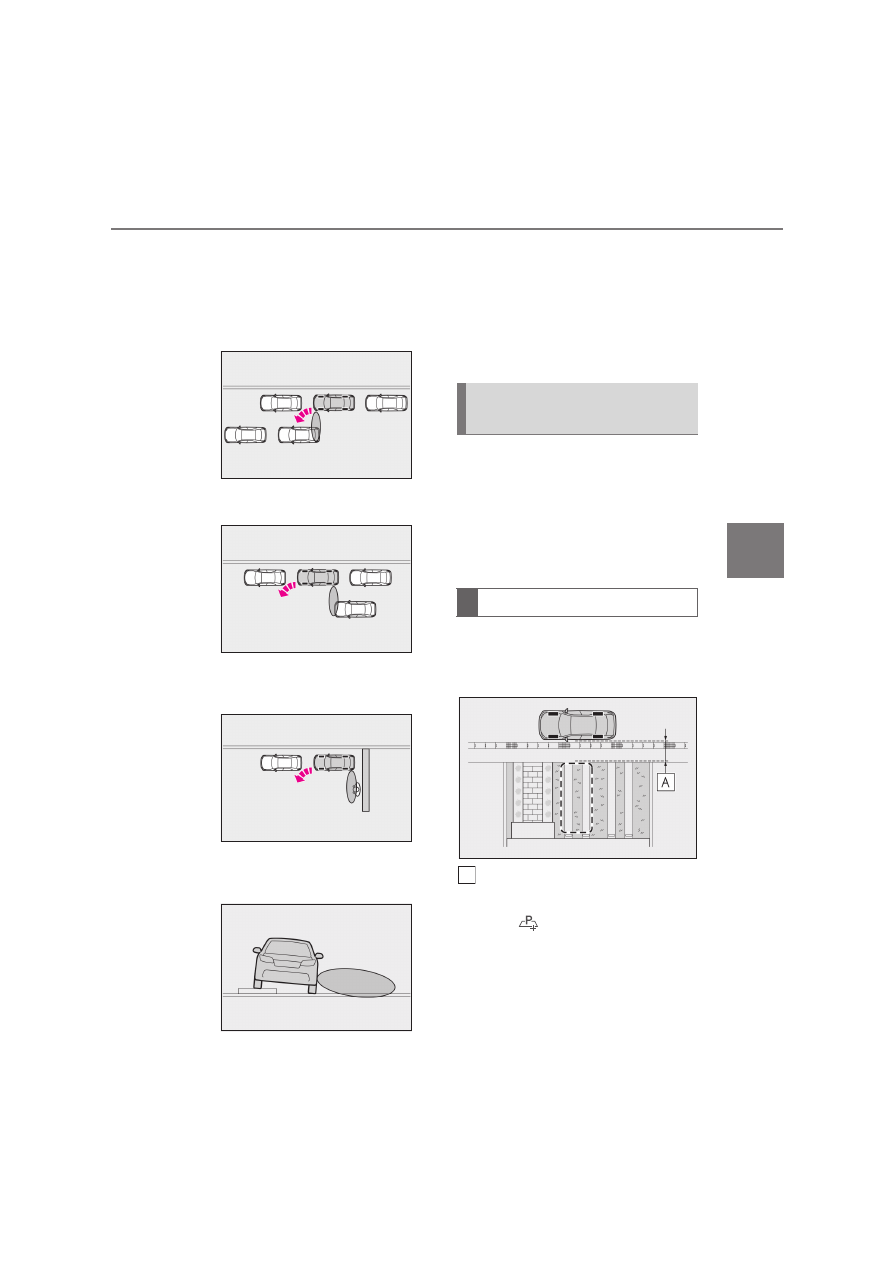

In addition to the situations in which station-

ary objects around the vehicle (



P.360)

may not be detected, objects may not be

detected by the sensors when your vehicle

is moving sideways, such as when parallel

parking.

■

Detection of objects along the sides of

the vehicle



P.365

: If equipped

The Advanced Park is a system which
assists in a safe and smooth parking or
exiting from a parking space by dis-
playing the blind spots around the vehi-
cle and the target parking spot through
a bird’s eye view, delivering operation
guidance through displays and buzzer
operation, and changing the shift posi-
tion, operating the steering wheel,
accelerator pedal, and brake pedal.
Additionally, the panoramic view moni-
tor

can display the area in front,

behind, and from above the vehicle,
helping confirm the condition of the
area around the vehicle.
The turn signal lights will blink automat-
ically when the parking assistance
starts until the vehicle reaches the tar-
get parking spot, to notify people
around the vehicle that parking is being
performed.

Depending on the condition of the road
surface or the vehicle, the distance
between the vehicle and a parking space,
etc., it may not be possible to assist in park-
ing in the target space.

: For details on the panoramic view moni-

tor refer to the “MULTIMEDIA
OWNER’S MANUAL”.

Lexus Teammate Advanced
Park

Function description

388

4-5. Using the driving support systems

■

Remote control function (if
equipped)

Remote control function is a system
which assists in parking or exiting from
a parking space selected on the center
display by allowing changing the shift
position, operating the steering wheel,
accelerator pedal, and brake pedal
from outside of the vehicle via a
smartphone.
The turn signal lights will blink automat-
ically when the parking assistance,
except that for moving the vehicle for-
ward and backward, starts until the
vehicle reaches the target parking
spot, to notify people around the vehi-
cle that parking is being performed.
Preparation before using:



P.416

■

Perpendicular parking (for-
ward/reverse) function

Assistance is provided from the posi-
tion the vehicle is stopped near the tar-
get parking space until the vehicle is in
the parking space. (



P.398)

■

Perpendicular exiting (for-
ward/reverse) function

Assistance is provided from the parked
position until the vehicle is in a position
where you can easily exit from the
parking space. (



P.401)

■

Parallel parking function

Assistance is provided from the posi-
tion the vehicle is stopped near the tar-
get parking space until the vehicle is in

the parking space. (



P.402)

■

Parallel exiting function

Assistance is provided from the parked
position until the vehicle is in a position
where you can easily exit from the
parking space. (



P.405)

■

Memory function

Assistance is provided until the vehicle
is guided into a previously registered
parking space. (



P.407)

■

Remote control function (if
equipped)

By operating a smartphone, assistance
in entering or exiting a nearby target
parking space, confirmed on the
screen of the smartphone, is provided
from outside of the vehicle. (



P.412)

Functions

WARNING

■

Cautions regarding the use of the sys-

tem

The recognition and control capabilities

for this system are limited. The driver

should always drive safety by always

being responsible without over relying

on the system and have a understanding

of the surrounding situations.

●

As with a normal vehicle, take care to

observe your surroundings while the

vehicle is moving.

●

Always pay attention to the vehicle’s

surroundings while the system is oper-

ating and depress the brake pedal as

necessary to slow or stop the vehicle.

●

When parking, make sure that the

vehicle can be parked in the target

parking space before beginning oper-

ation.

389

4-5. Using the driving support systems

Driving

WARNING

●

Depending on the condition of the

road surface or the vehicle, the dis-

tance between the vehicle and a park-

ing space, etc., it may not be possible

to detect a parking space or the sys-

tem may not be able to provide assis-

tance to the point the vehicle is fully

parked.

●

This system will guide the vehicle to

appropriate positions for changing the

direction of travel, however, if you feel

that the vehicle is approaching too

close to an adjacent parked vehicle at

any time, depress the brake pedal and

shift the shift position. However, if this

is performed, the number of times the

vehicle changes direction may

increase, and the vehicle may be

parked at an angle.

●

As following objects may not be

detected, make sure to check the

safety of the area around your vehicle

and depress the brake pedal to stop

the vehicle if it may collide with an

object.

• Wires, fences, ropes, etc.

• Cotton, snow and other materials that

absorb sound waves

• Sharply-angled objects

• Low objects (curb stones, parking

blocks, etc.)

• Tall objects with upper sections pro-

jecting outwards in the direction of

your vehicle

●

Even if there is an object in the target

parking space, it may not be detected

and assistance may be performed.

●

While the system is operating, if it is

likely that your vehicle will collide with

a nearby vehicle, parking block, object,

or person, depress the brake pedal to

stop the vehicle and press the

Advanced Park main switch to disable

the system.

●

Never use only the center display to

view the area behind the vehicle. The

image displayed may differ than the

actual situation. Using only the screen

when backing up may lead to an acci-

dent, such as a collision with another

vehicle. When backing up, make sure

to look directly or use the mirrors to

check the safety of the area around

your vehicle, especially behind the

vehicle.

●

When the ambient temperature is

extremely low, the screen may appear

dark or the displayed image may

become unclear. Also, as moving

objects may appear distorted or may

not be able to be seen on the screen,

make sure to directly check the safety

of the area around your vehicle.

●

In the following situations, while the

vehicle is stopped and held by

Advanced Park, it may be canceled

and the vehicle may start moving.

Immediately depress the brake pedal.

Failure to do so may lead to an acci-

dent.

• When the driver’s door is opened

• When operations instructed by the

system are not performed within a cer-

tain amount of time

• When the brake pedal is depressed

and the vehicle is stopped for a certain

amount of time

• When the system malfunctions

390

4-5. Using the driving support systems

WARNING

●

As the steering wheel will turn while

this system is operating, pay attention

to the following.

• Be careful so that a necktie, scarf, or

arm does not get caught. Keep your

upper body away from the steering

wheel. Also, keep children away from

the steering wheel.

• Long fingernails may be caught and

when the steering wheel is rotating,

leading to injury.

• In an emergency, depress the brake

pedal to stop the vehicle, and then

press the Advanced Park main switch

to disable the system.

●

Do not allow anyone to put their hands

outside of a window while this system is

operating.

■

To ensure correct operation of the

Advanced Park

Observe the following precautions. Fail-

ing to do so may result in the vehicle

being unable to be driven safely and pos-

sibly cause an accident.

●

Do not use this system in situations

such as the following:

• When in areas other than common

parking spaces

• When the surface of the parking space

is sand or gravel and is not clearly

defined with parking space lines

• When the parking space is not level,

such as when on a slope or has differ-

ences in height

• Mechanical parking system

• Parking lot with a device which raises

to contact the bottom of the vehicle

• When the road surface is frozen, slick,

or covered with snow

• When it is extremely hot and the

asphalt is melting

• When there are objects around the

vehicle

• When there is an object between your

vehicle and the target parking spot or

within the target parking spot (within

the displayed blue box)

• When there is a gutter between your

vehicle and the target parking space

or within the target parking spot

(within the displayed blue box)

• When there is a hole or gutter in the

exit direction

• When in high pedestrian or vehicle

traffic areas

• When the parking space is in a loca-

tion that is difficult to park in (too nar-

row for your vehicle, etc.)

• When images are unclear due to dirt

or snow attached to the camera lens,

light being shined into the camera or

shadows

• When tire chains or a compact spare

tire is installed to the vehicle

• When the doors or back door are not

completely closed

• When an arm is held outside of a win-

dow

• In inclement weather such as heavy

rain or snow

391

4-5. Using the driving support systems

Driving

WARNING

●

Make sure to use only standard sized

tires, such as those that were installed

to the vehicle when it was shipped

from the factory. Otherwise,

Advanced Park may not operate prop-

erly. Also, when the tires have been

replaced, the displayed position of the

lines or box displayed on the screen

may become incorrect. When replac-

ing the tires, contact any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

●

In situations such as the following, it

may not be possible for the system to

provide assistance to a registered

parking spot:

• When the tires are extremely worn or

the tire inflation pressure is low

• When carrying a heavy load

• When the vehicle is tilted due to the

carried load

• When a heater is installed in the sur-

face of the parking space (road sur-

face freeze prevention heater)

• When the wheels are misaligned, such

after a wheel has been subjected to a

strong impact

• When a pedestrian or passing vehicle

is detected during assistance

• When something is incorrectly

detected as a parking line (light, reflec-

tions from a building, difference in

height on the parking surface, a gutter,

painted road lines, redrawn lines, etc.)

If the vehicle deviates greatly from the set

parking space in any situation other than

the above, have the vehicle inspected by

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

■

When using Remote control function

●

Remote control function is a function

of the Advanced Park system. When

using Remote control function on pub-

lic roads, be sure to follow all local

road traffic laws and regulations.

●

Remote control function can only be

used after agreeing to the disclaimer

of the smartphone application.

●

Remote control function can only per-

form some driving operations. It

should only be operated by a driver

with a valid driving license. While using

application, carry electronic key.

While operating, do not stare at the

application screen, and pay attention

to the vehicle’s surroundings. In an

emergency, cancel the Remote control

function operation and stop the vehi-

cle.

●

As with a normal vehicle, take care to

observe the area around the vehicle

while the vehicle is moving.

●

Always pay attention to the vehicle’s

surroundings while the system is oper-

ating.

●

Remote control function is a system

which assists in remote parking or exit-

ing operations using a smartphone.

When using Remote control function,

the driver must carry the electronic

key and smartphone and confirm the

safety of the area around the vehicle.

●

While using Remote control function,

the vehicle can be stopped by stop

continuously operating the

smartphone (stopping movement of

your finger, removing your finger from

the screen, etc.). The vehicle can also

be stopped by touching the cancel

button on the smartphone application,

unlocking the doors using the elec-

tronic key, or opening a door.

392

4-5. Using the driving support systems

WARNING

●

If it seems like your vehicle may con-

tact an obstruction, etc., stop operat-

ing the smartphone and cancel

Remote control function if necessary.

●

System operation will only be per-

formed at a fixed speed and the vehi-

cle cannot be accelerated or

decelerated even if the speed of con-

tinuous operation of the smartphone is

increased or decreased.

●

Never drive the vehicle while staring at

the smartphone screen.

●

When driving, make sure to directly

check the safety of the area around

your vehicle.

●

Do not use Remote control function

when passengers or pets are in the

vehicle.

●

In an emergency, the system can be

canceled by operating a switch on the

electronic key or by opening a door.

●

To use Remote control function, it is

necessary to have a smartphone with

the latest version of the Remote Park

app. The following operating systems

are supported:

• Android

™

• Apple

iOS

●

When registering the vehicle to the

Remote Park smartphone app, discon-

nect any other apps which are con-

nected to the vehicle.

●

To enable Remote control function,

make sure to disable the Apple

CarPlay connection.

●

When parking, make sure that the

vehicle can be parked in the target

parking space before beginning oper-

ation.

●

Only use Remote control function on

level road surfaces which are not slick.

Do not use Remote control function

for parking spaces on a downward or

upward slope.

●

While Remote control function is

operating, if a malfunction or system

limitation is detected, the following will

occur automatically:

• Remote control function will be

canceled

• The vehicle will stop

• The shift position will shift to P and the

parking brake will be engaged

• The power switch will turn off (for

some malfunctions, the power switch

will not turn off or cannot be turned off.

Enter the vehicle and take corrective

action according to the message dis-

played on the smartphone.)

• The doors will remain locked

●

When starting Remote control func-

tion, unlock the doors with wireless

remote control by electronic key.

●

When Remote control function is

operating, the driver should remain

within approximately 3 m (9.8 ft.) of

the vehicle. If the driver becomes more

than approximately 3 m (9.8 ft.) away,

Remote control function will be sus-

pended and a message will be dis-

played on the smartphone. Remote

control function operation can be

resumed by approaching the vehicle.

●

The headlights will be turned on if the

surrounding area is dark.

●

If system operation is canceled due to

a malfunction, the emergency flashers

will flash. The emergency flashers will

turn off if any of the following condi-

tions are met:

• A door is opened

393

4-5. Using the driving support systems

Driving

WARNING

• 3 minutes have elapsed since the

emergency flashers began flashing

●

Remote control function can only be

started when the following conditions

are met:

• When the hybrid system is starting,

after assist mode is selected

• When the power switch is off

• When the remote air conditioning is

operating

●

After unlocking the doors using the

wireless remote control, if the doors

are locked using the smart entry func-

tion, the lock operation may be

delayed.

NOTICE

■

Precautions for use Advanced Park

If the 12-volt battery was discharged or

has been removed and installed, fold and

extend the outside rear view mirrors.

■

When using Remote control function

●

Check the battery charge level of the

smartphone before using Remote con-

trol function. If the battery of the

smartphone dies while operating

Remote control function, assist will be

suspended. Also, if the battery charge

level of the smartphone is 20% or less

when attempting to start Remote con-

trol function, Remote control function

will not be started.

●

Turn on the Bluetooth communication

function of the smartphone before

using Remote control function.

Remote control function cannot be

used if the Bluetooth function is off.

●

Do not turn off the Bluetooth function

of the smartphone or disconnect from

the multi-media system while using

Remote control function. If the vehicle

cannot be connected to via Bluetooth,

Remote control function cannot be

used.

●

While using Remote control function, if

a call is received, etc., and another app

is opened, Remote control function will

be suspended. Assist can be resumed

if the Remote Park app is reopened

within 3 minutes. If 3 minutes or more

elapse, assist will be canceled.

●

While using Remote control function, if

the home button or power button of

the smartphone is pressed and the

screen is locked, Remote control func-

tion will be suspended. Assist can be

resumed if the Remote Park app is reo-

pened within 3 minutes. If 3 minutes or

more elapse, assist will be canceled.

●

Do not force close the Remote Park

app while Remote Park is being used. If

the app is force closed, assist will be

canceled.

●

When the ambient temperature is low,

it may take time for the system to start,

due to 12-volt battery charging.

●

If the 12-volt battery voltage drops,

assistance will be canceled.

●

When using Remote control function

on a slope, the vehicle speed will be

slower and the distance that the vehi-

cle will approach objects will become

longer than when on a level road sur-

face.

●

If a system temporary failure occurs,

after the vehicle is stopped by the elec-

tronic parking brake or the shift posi-

tion being shifted to P, the power

switch may turn off and the system may

be canceled. In this case, have the

vehicle inspected by any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

394

4-5. Using the driving support systems

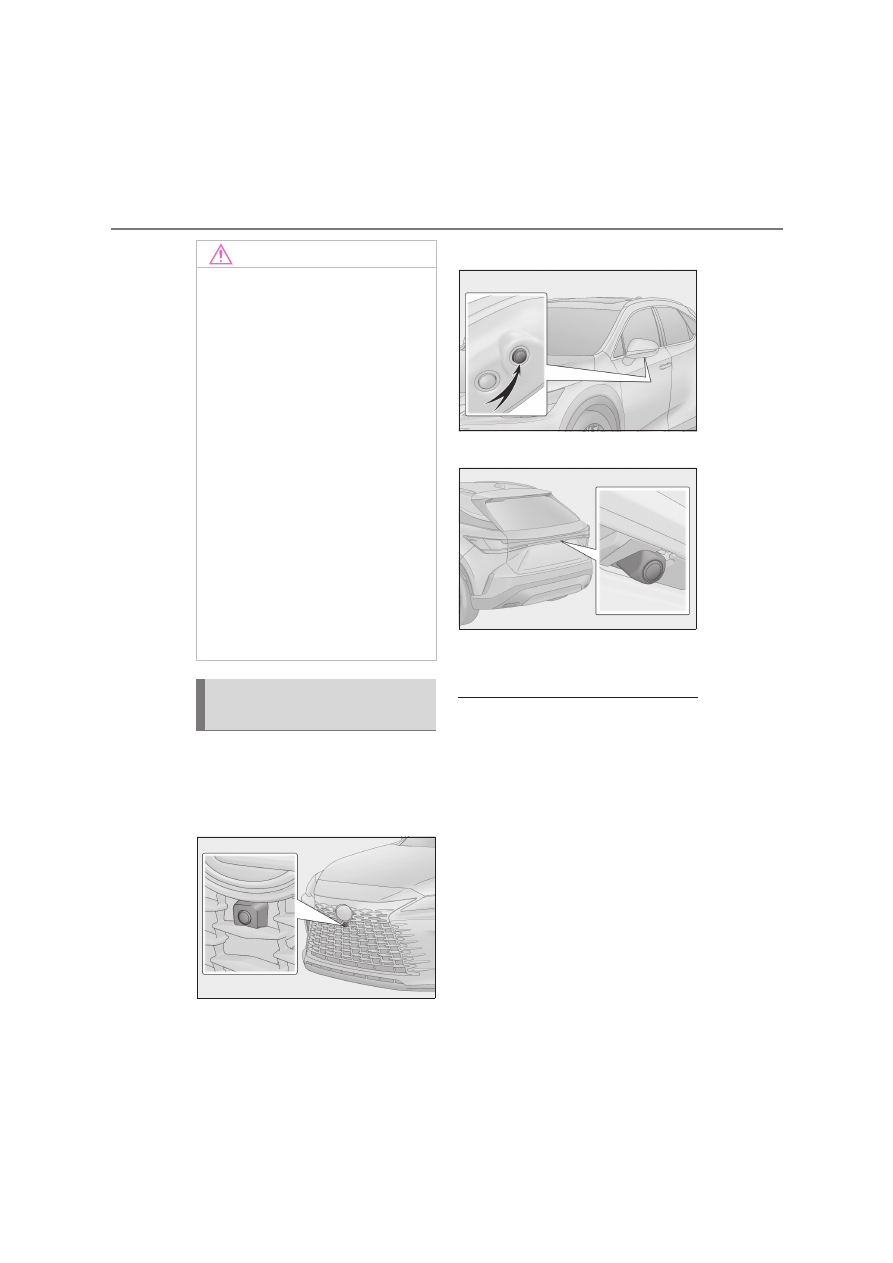

Cameras and sensors are used to
detect parked vehicles, making it eas-
ier to identify parking spaces.



Front camera



Side cameras



Rear camera



Sensors



P.357

■

Camera images

As special cameras are used, the colors in

displayed images may differ from the actual

color.

■

Precautions for use

For details on the following, refer to “Pano-

ramic view monitor (Vehicles equipped with

Lexus Teammate Advanced Park)” of

“Peripheral monitoring system” in the

“MULTIMEDIA OWNER’S MANUAL”.

●

Displayable range of the screens

●

Cameras

●

Differences between displayed images

and the actual road

●

Differences between displayed images

and the actual objects

NOTICE

●

If a system malfunction occurs, assis-

tance may be temporarily suspended.

If the system returns to normal, opera-

tion can be resumed. Follow the con-

tent on the smartphone screen to

resume operation.

●

Remote control function cannot be

started if the hybrid system has been

started using an aftermarket remote

starter.

●

After Remote control function com-

pletes, the parking brake will be

engaged as per regulations. As the

parking brake may freeze and not be

able to be released, avoid using

Remote control function in extremely

cold areas. Also, if the parking brake

freezes, it may make a noise when it is

released. However, this does not indi-

cate a malfunction.

●

Do not use Remote control function

when the electronic key battery is

depleted.

Types of cameras and sensors
used for the Advanced Park

395

4-5. Using the driving support systems

Driving

■

Detection range of the cameras and

sensors

●

If a parked vehicle is behind the target

parking space and the distance between

it and the vehicle becomes far, it may no

longer be able to be detected. Depend-

ing on shape or condition of a parked

vehicle, the detection range may become

short or the vehicle may not be detected.

●

Objects other than parked vehicles, such

as columns, walls, etc., may not be

detected. Also, if they are detected, they

may cause the target parking space to be

misaligned.

■

Situations in which parking space lines

may not be recognized properly

●

In situations such as the following, park-

ing space lines on the road surface may

not be detected:

• When the parking space does not use

lines (parking space boundaries are

marked with rope, blocks, etc.)

• When the parking space lines are faded

or dirty, making them unclear

• When the road surface is bright, such as

concrete, and the contrast between it and

the white parking space lines is small

• When the parking space lines are any

color other than yellow or white

• When the area surrounding the parking

space is dark, such as at night, in an

underground parking lot, parking garage,

etc.

• When it is raining or has rained and the

road surface is wet and reflective or there

are puddles

• When the sun is shining directly into a

camera, such as in the early morning or

evening

• When the parking space is covered with

snow or de-icing agent

• When there marks from repairs or other

marks on the road surface, or there is a

traffic bollard, or other object on the road

surface

• When the color or brightness of the road

surface is uneven

• When a camera has been splashed by

hot or cold water and the lens has fogged

• When the appearance of the parking

space is affected by the shadow of the

vehicle or trees

• When a camera lens is dirty or covered

with water droplets

●

In situations such as the following, the tar-

get parking space may not be recognized

correctly:

• When there marks from repairs or other

marks on the road surface, or there is a

parking block, traffic bollard, or other

object on the road surface

• When it is raining or has rained and the

road surface is wet and reflective or there

are puddles

• When the area around the vehicle is dark

or backlit

• When the color or brightness of the road

surface is uneven

• When the parking space is on a slope

• When there are diagonal lines (access

aisle) near the parking space

• When the appearance of the parking

space is affected by the shadow of a

parked vehicle (such as shadows from the

grille, side step, etc.)

• When accessories which obstruct the

view of the camera are installed

• When the parking space lines are faded

or dirty, making them unclear

• When the appearance of the parking

space is affected by the shadow of the

vehicle or trees

■

Sensor detection information



P.359

■

Objects which the sensor may not be

properly detected



P.359

■

Situations in which the sensor may not

operate properly



P.359

■

Situations in which parking assistance

may not operate even if there is no pos-

sibility of a collision



P.360

396

4-5. Using the driving support systems

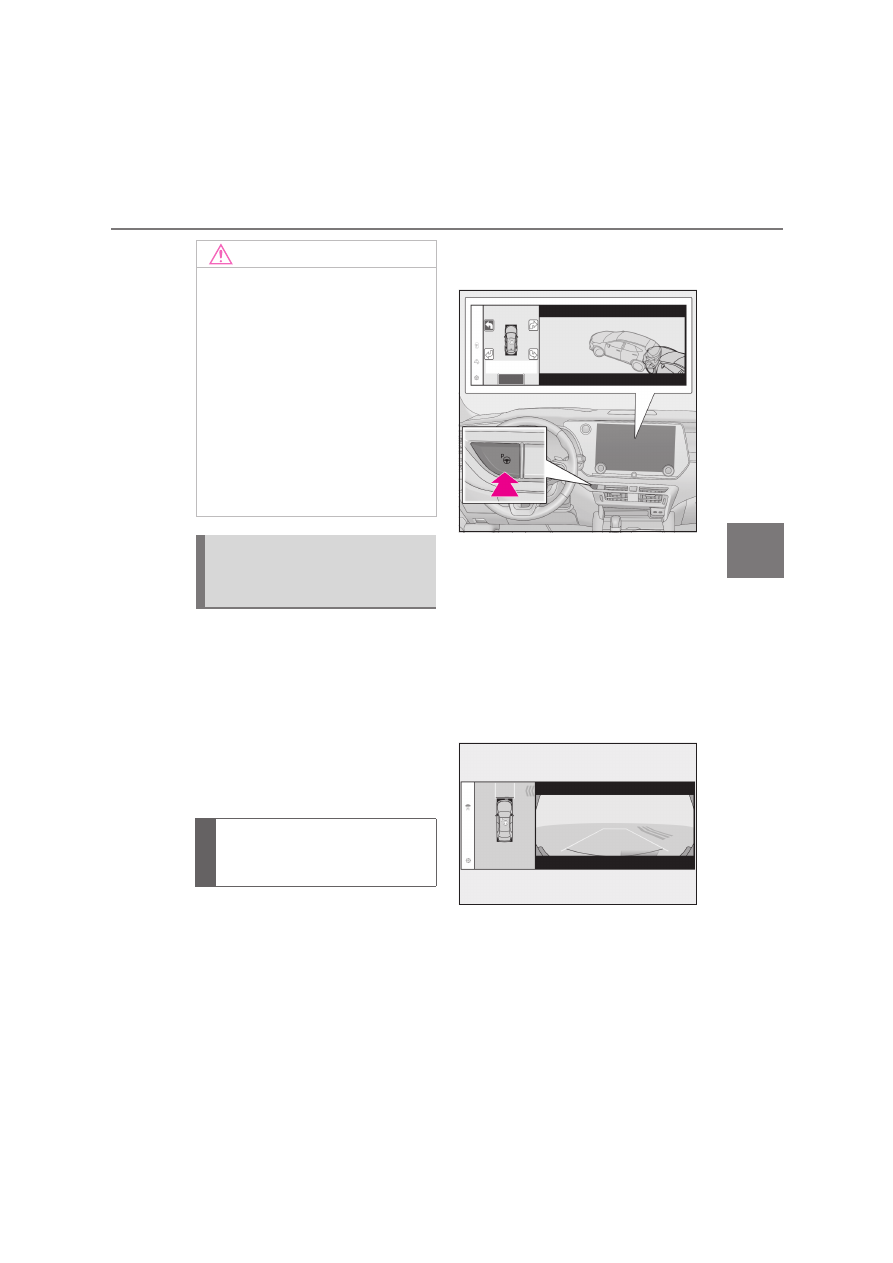

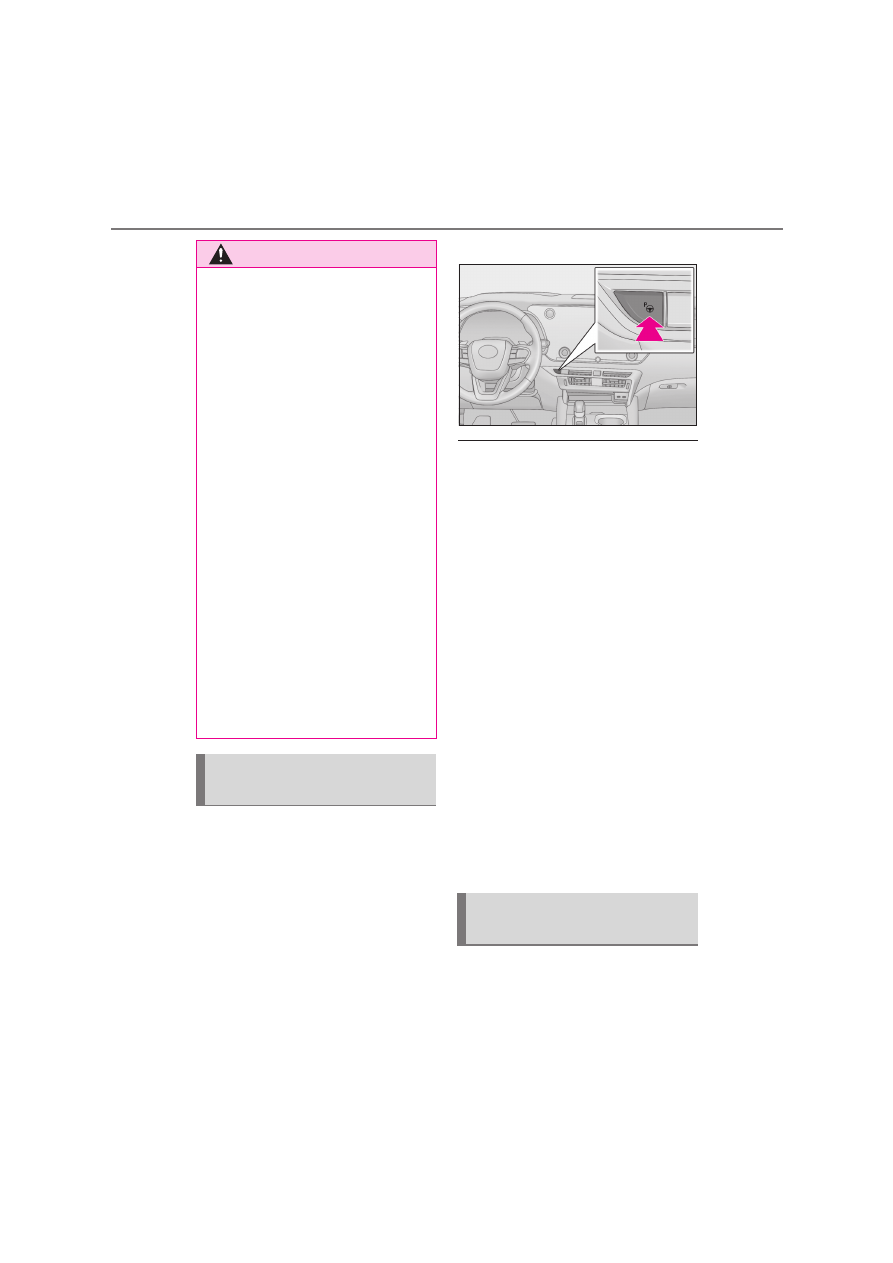

Press the Advanced Park main
switch.

If the switch is pressed while assistance is

being performed, the assistance will be

canceled.

■

Operating conditions of the Advanced

Park

Assistance will begin when all of the follow-

ing conditions are met:

●

The brake pedal is depressed

●

The vehicle is stopped

●

The driver’s seat belt is fastened

●

The steering wheel is not being operated

●

The accelerator pedal is not depressed

●

All of the doors and the back door are

closed

●

The outside rear view mirrors are not

folded

●

The parking brake is not engaged

●

The dynamic radar cruise control are not

operating

●

ABS, VSC, TRC, PCS and PKSB are not

operating

●

The vehicle is not on a steep slope

●

The VSC and TRC are not turned off

If assistance cannot be started, check the

message displayed on the center display.

(



P.421)

Guidance screens are displayed on the
center display.

WARNING

■

Precautions for the cameras and sen-

sors

●

Due to the characteristics of the cam-

era lens, the position of and distance to

people and objects displayed on the

screen may differ from the actual situa-

tion. For details, refer to the “MULTI-

MEDIA OWNER’S MANUAL”.

●

Make sure to observe the precautions

for using the Lexus parking assist-sen-

sor, otherwise a sensor may not oper-

ate correctly, possibly leading to an

accident. (



P.358)

●

In situations such as the following, the

sensors may not operate correctly,

possibly leading to an accident. Pro-

ceed carefully.

• When there is a parked vehicle next to

the target parking space, if the dis-

played target parking space is far from

the actual target parking space, a sen-

sor may be misaligned. Have the vehi-

cle inspected by any authorized Lexus

retailer or Lexus authorized repairer,

or any reliable repairer.

• Do not install any accessories near the

detection area of the sensors.

Turning the Advanced Park sys-
tem on/off

Advanced Park guidance
screens

397

4-5. Using the driving support systems

Driving



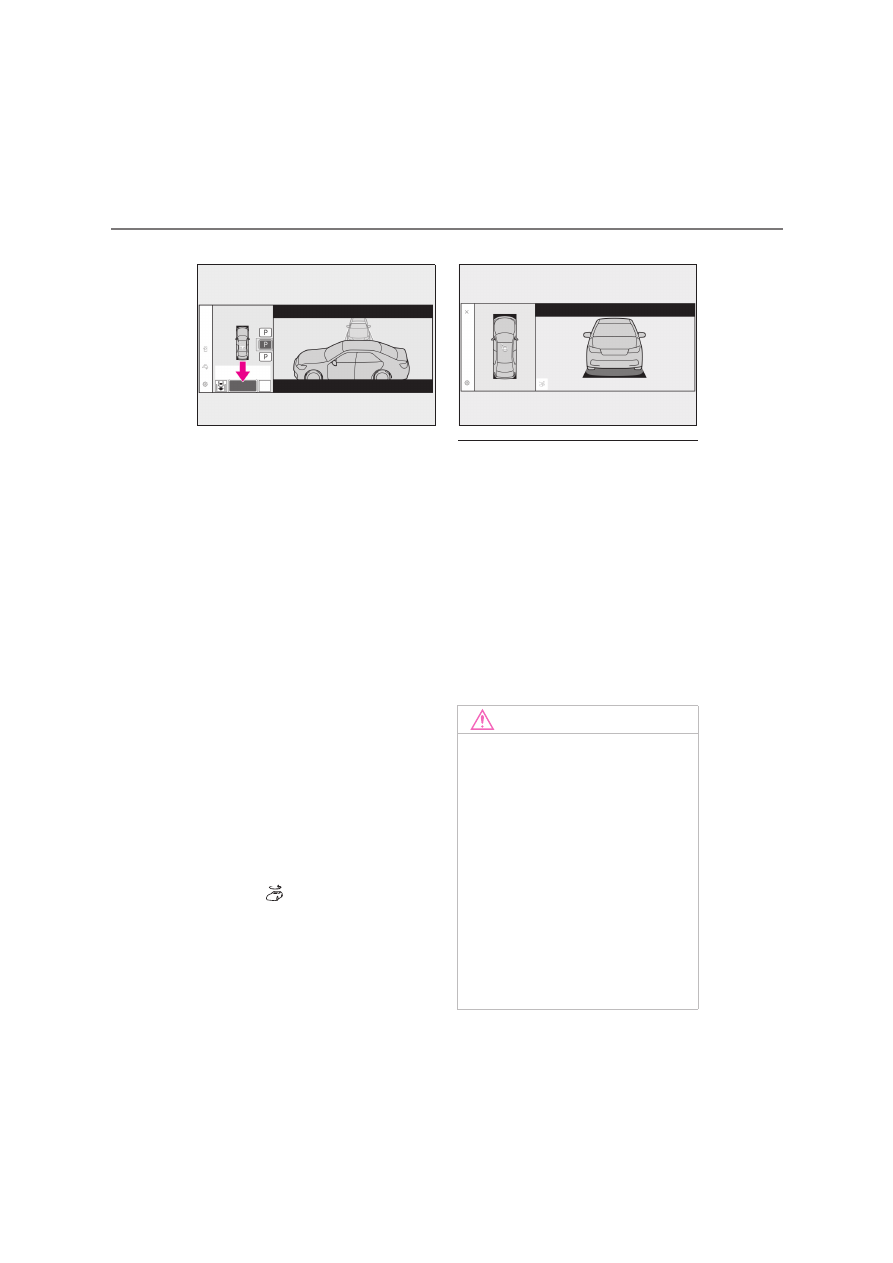

Guidance screen (When assistance
starts)

Target parking space box (blue)
Advice display
Parking type change button

If multiple buttons are displayed, depend-
ing on the condition of the button its func-
tion differs as follows.

: Change the target to another

parking space.

: Select the current target park-

ing space.

: Select to change to the parallel park-

ing function

: Change the perpendicular parking

(forward/reverse) function

“MODE” button

Select to change between the memory
function and the perpendicular parking
(forward/reverse) function and parallel
parking function. (



P.407)

“Start” button

Select to start parking assistance.

Perpendicular parking direction
change button

Select to change between the parking (for-
ward) function and parking (reverse) func-
tion.

: Change the perpendicular parking

(forward) function

: Change the perpendicular parking

(reverse) function

Customize setting button

Select to display the Advanced Park set-
ting screen. (



P.419)

Registration button

Select to begin registering a parking
space.

Remote control function start but-
ton*

Select to start parking assistance operation
on the smartphone display.

: If equipped



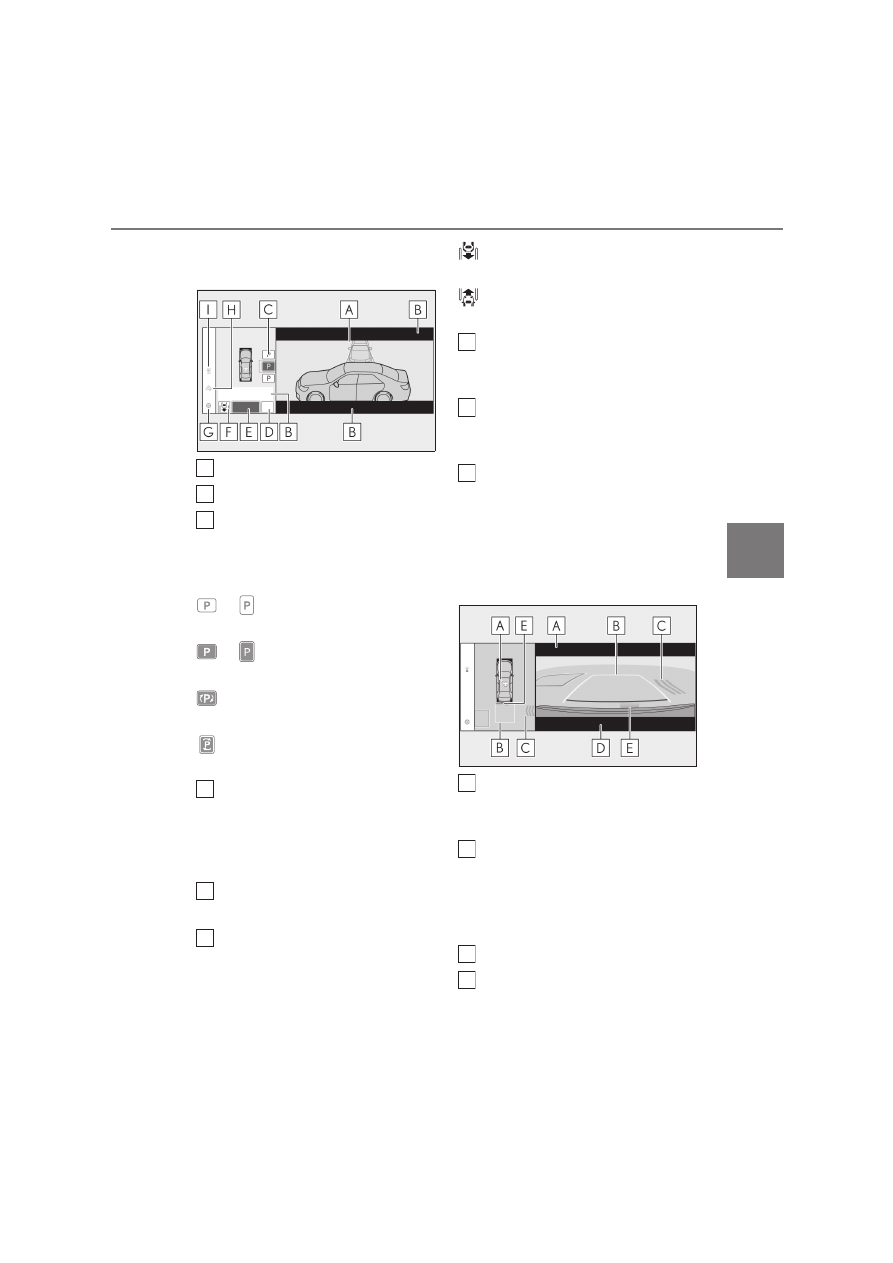

Guidance screen (When reversing)

Operation icon

Displayed when the Advanced Park is
operating.

Guide lines (yellow and red)

Display points from the center of the edge
of the front or rear bumper to the target
stopping position (yellow)

and approxi-

mately 0.3 m (1 ft.) (red) from the vehicle.

Moving object warning icon
Emergency support brake control
operation display

“Brake” is displayed.

A
B
C

C
D

398

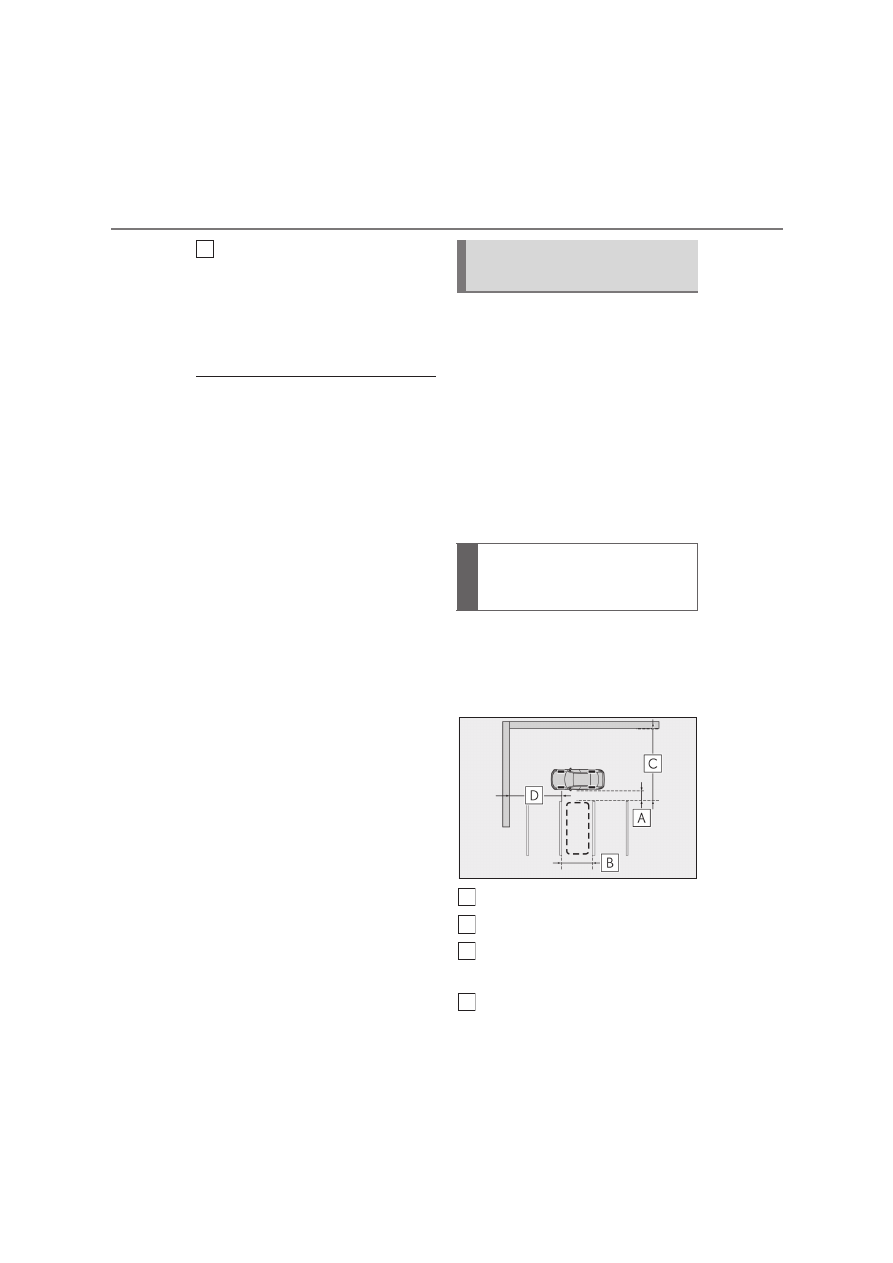

4-5. Using the driving support systems

Lexus parking assist-sensor display



P.357

: The yellow lateral line is not displayed

when the target stopping position is
approximately 2.5 m (8.2 ft.) or more
away from the vehicle.

■

Lexus parking assist-sensor pop-up dis-

play

Regardless of whether the Lexus parking

assist-sensor is off or on (



P.358), if an

object is detected by the Lexus parking

assist-sensor when the Advanced Park is

operating, the Lexus parking assist-sensor

pop-up display will automatically be dis-

played over the guidance display.

■

Brake control operation when

Advanced Park is operating

While the Advanced Park is operating, if the

system determines that the possibility of

collision with detected moving or stationary

object is high, the hybrid system output

restriction control and brake control will

operate.
If brake control operates, Advanced Park

operation will be suspended and a message

will be displayed on the multi-information

display.

■

Buzzer

Depending on surrounding sounds or

sounds from other systems, it may be diffi-

cult to hear the buzzer of this system.

■

If a black screen is displayed on the

center display when the Advanced Park

is operating

The system is being affected by radio waves

or may be malfunctioning. If a radio antenna

is installed near a camera, move it to a loca-

tion as far from the cameras as possible. If a

radio antenna is not installed near a camera,

and the screen does not return to normal

after turning the power switch off and then

starting the hybrid system again, have the

vehicle inspected by any authorized Lexus

retailer or Lexus authorized repairer, or any

reliable repairer.

The perpendicular parking (for-
ward/reverse) function can be used if
the target parking space can be
detected when the vehicle is stopped
close and perpendicular to the center
of the parking space. Also, depending
on the condition of the parking space,
etc., if it is necessary to change the
direction of travel of the vehicle, the
shift position can be shifted by assis-
tance control.

Stop the vehicle at a position close
and perpendicular to the center of
the target parking space.



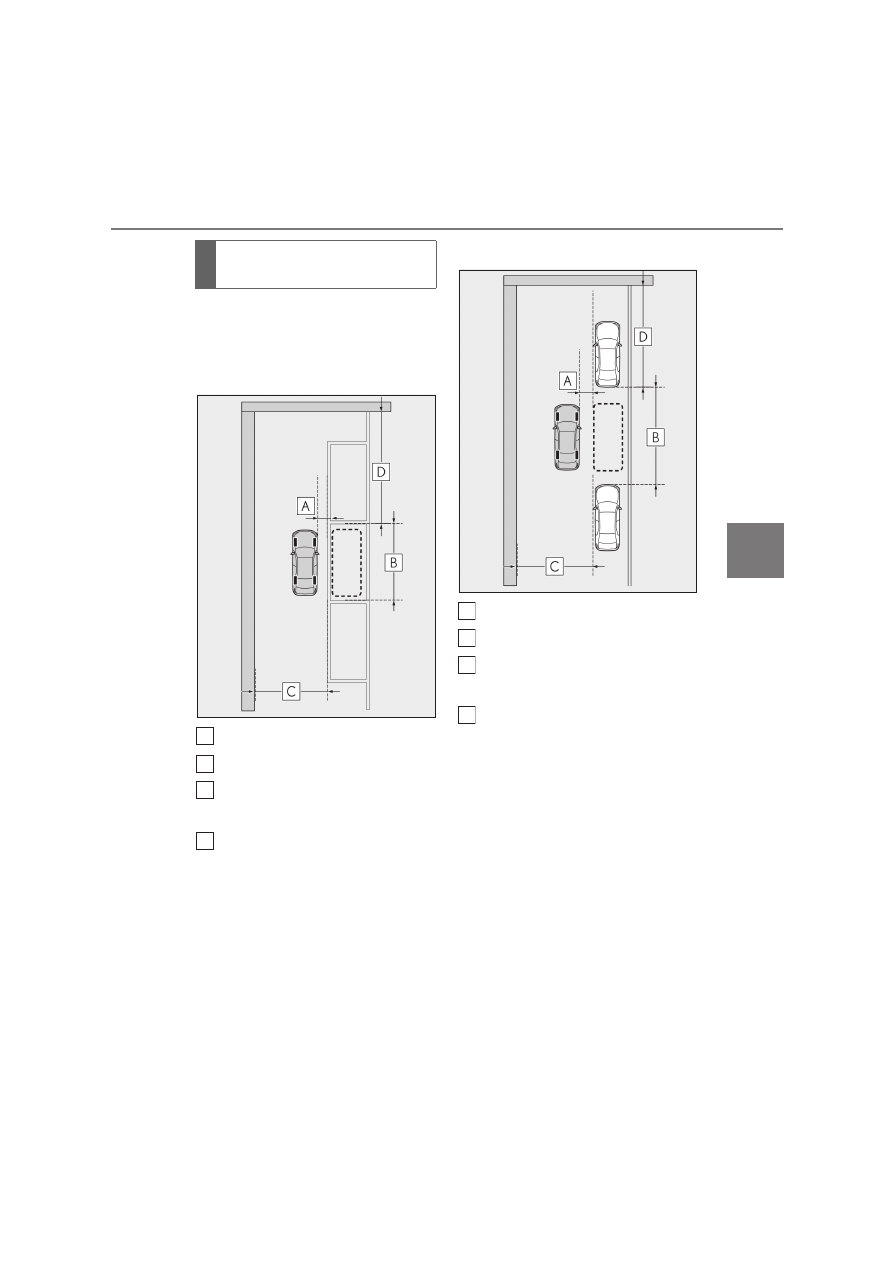

If there are parking space lines

Approximately 1 m (3.3 ft.)

Approximately 2.5 m (8.2 ft.)

Approximately 6 m (19.7 ft.) or
more

Approximately 5.5 m (18.0 ft.) or

Perpendicular parking (for-
ward/reverse) function

Parking using the perpendicular
parking (forward/reverse) func-
tion

A
B
C

399

4-5. Using the driving support systems

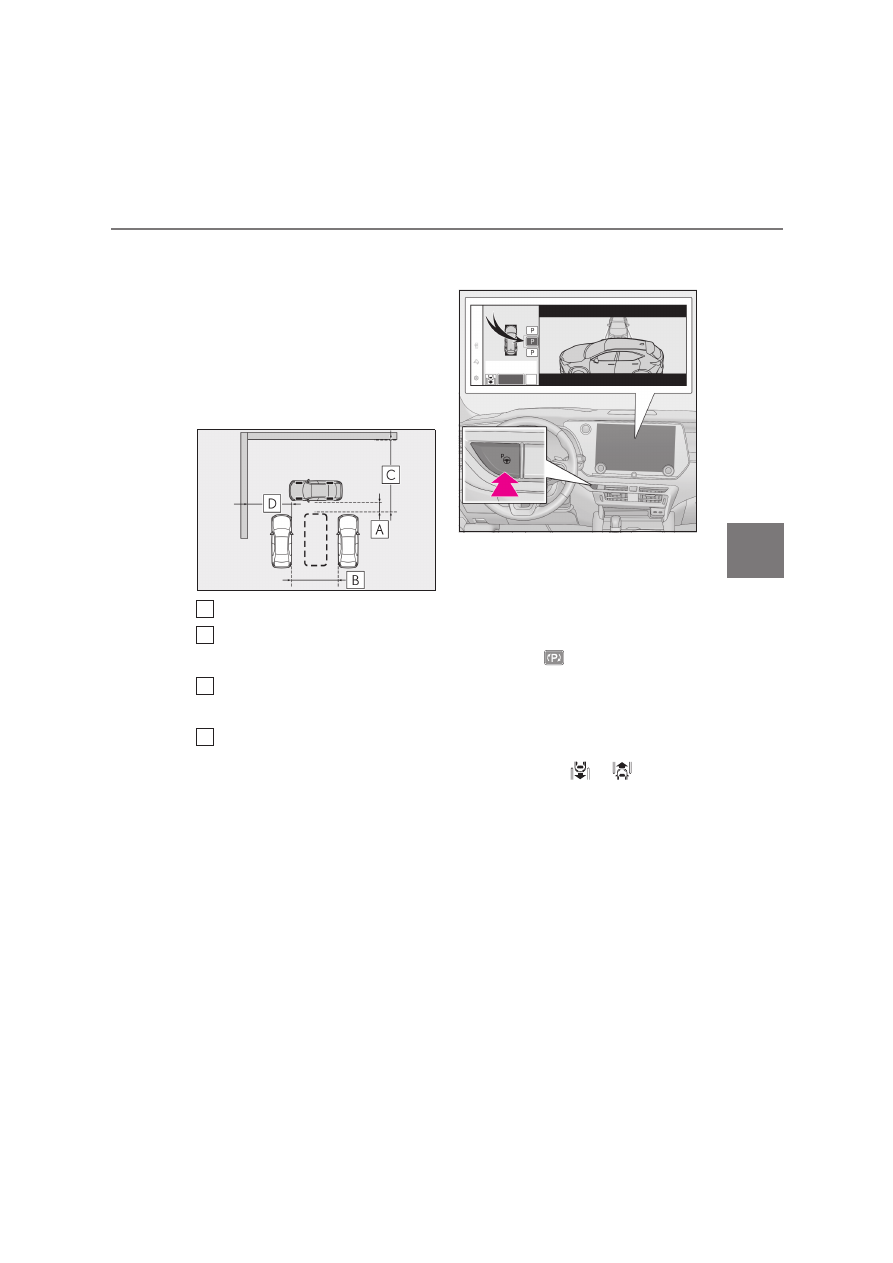

Driving

The system can operate even if there is a

parking space line on only one side of the

target parking space.

: This is a reference measurement for

detection of a parking space. Depending
on the surrounding environment, detec-
tion may not be possible.



If there is an adjacent parked vehicle

Approximately 1 m (3.3 ft.)

Approximately 3 m (9.8 ft.) or
more

Approximately 6 m (19.7 ft.) or
more

Approximately 5.5 m (18.0 ft.) or
more

The system can operate even if there is a

vehicle on only one side of the target park-

ing space.

: This is a reference measurement for

detection of a parking space. Depending
on the surrounding environment, detec-
tion may not be possible.

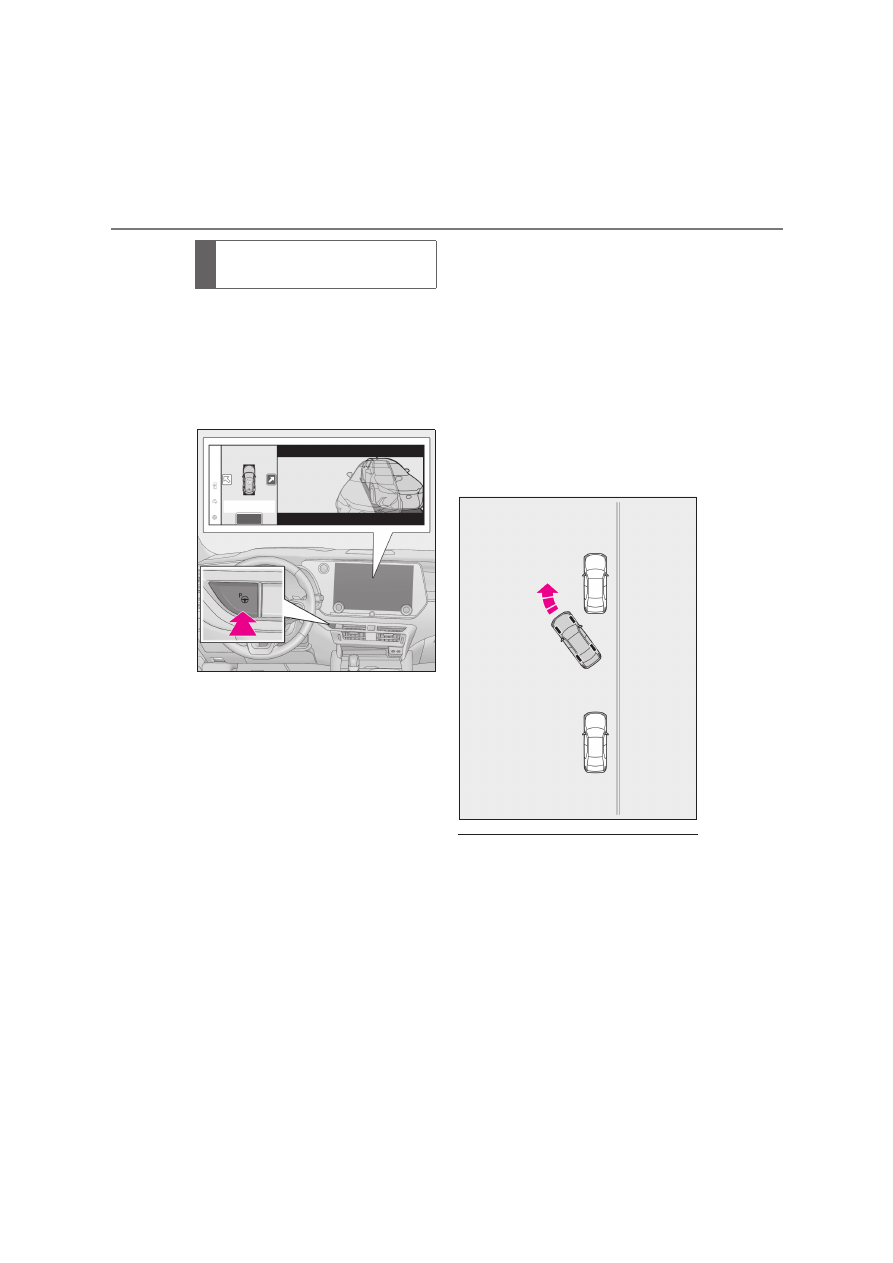

Press the Advanced Park main
switch and check that a possible

parking space is displayed on the
center display.



If a space which your vehicle can be
parked is detected, a target parking
space box will be displayed.



If it is possible to parallel park in the
space, select the parking space, and
then select

to change to the

parallel parking function.



If it is possible to change the direc-
tion which a parking space is
entered, select the parking space,
and then select

change

the direction.



Depending on the surrounding
environment, it may not be possible
to use this function. According to
the information displayed on the
center display, use the function on
another parking space.

Select “Start” button.

A buzzer will sound, an operation message

will be displayed on the multi-information

A
B

400

4-5. Using the driving support systems

display, and assistance will begin operating.



When the brake pedal is released,
“Moving Forward…”, “Backing Up…”
will be displayed and the vehicle will
begin moving forward/reverse.



To cancel assistance, press the
Advanced Park main switch.

If assistance is canceled, “Advanced Park

Cancel” will be displayed.
If you feel that the vehicle is approaching

close to a surrounding vehicle, object, per-

son, or gutter: P.400

Perform operations as indicated by
the advice displays until the vehicle
stops in the target parking space.

When the vehicle stops, “Advanced Park

Finished” will be displayed and parking

assistance will end.
If the seat belt is unfastened or door

opened before shifting the shift position to

P, a buzzer sounds, and a message is dis-

played on the center display. Also, if the

driver’s seat is unfastened and brake pedal

released, the horn will sound. Shift the shift

position to P and end the assistance.

If you select

on the center display, the

vehicle displayed on the parking assist

completion screen will rotate.

■

If you feel that the vehicle is approach-

ing close to a surrounding vehicle,

object, person, or gutter

Depress the brake pedal to stop the vehicle

and then shift the shift position to change

the direction of travel of the vehicle. At this

time, assist will be suspended. However, if

the “Start” button is selected, assist will

resume and the vehicle will move in the

direction corresponding to the selected

shift position.

■

When the brakes have been operated

When the brakes have been operated,

brake operation sound may be heard. This

does not indicate a malfunction.

NOTICE

■

When using the perpendicular park-

ing (forward/reverse) function

●

Make sure that there are no obstruc-

tions within the yellow guide lines and

between the vehicle and target park-

ing spot. If there are any obstructions

between the vehicle and the target

parking space, or between the yellow

guide lines, cancel the function.

●

As the target parking space will not be

able to be set correctly if the surface of

the parking space is on a slope or has

differences in height, the vehicle may

stray from the target parking space or

be slanted. Therefore, do not use the

function for this kind of parking spot.

401

4-5. Using the driving support systems

Driving

When exiting from a perpendicular
parking space, if the system deter-
mines that exit is possible the perpen-
dicular exiting (forward/reverse)
function can be used. Also, depending
on the surrounding environment, if it is
necessary to change the direction of
travel of the vehicle, the shift position
can be shifted by assistance control.

With the brake pedal depressed
and P shift position selected, press
the Advanced Park main switch
and check that the exit direction

selection screen is displayed on the
center display.

Select an arrow on the center dis-
play to select the direction you wish
to exit.

If the turn signal lever is operated, only exit

to the left or right can be selected.

Depress the brake pedal and select
“Start” button.

A buzzer will sound, an operation message

will be displayed on the multi-information

display, and assistance will begin operating.

To cancel assistance, press the Advanced

Park main switch.
If assistance is canceled, “Advanced Park

Cancel” will be displayed.
If you feel that the vehicle is approaching

close to a surrounding vehicle, object, per-

son, or gutter:



P.400

NOTICE

●

When parking in a narrow parking

space, the vehicle may closely

approach an adjacent parked vehicle.

If a collision seems likely, depress the

brake pedal to stop the vehicle.

●

If a detected parked vehicle is narrow

or parked extremely close to the curb,

the position at which assistance will

park the vehicle will also be close to

the curb. If it seems likely the vehicle

will collide with something or drive off

of the road, depress the brake pedal to

stop the vehicle, and then press the

Advance Park main switch to disable

the system.

Advanced Park perpendicular
exiting (forward/reverse) func-
tion

Leaving a parking space using the
perpendicular exiting (for-
ward/reverse) function

402

4-5. Using the driving support systems

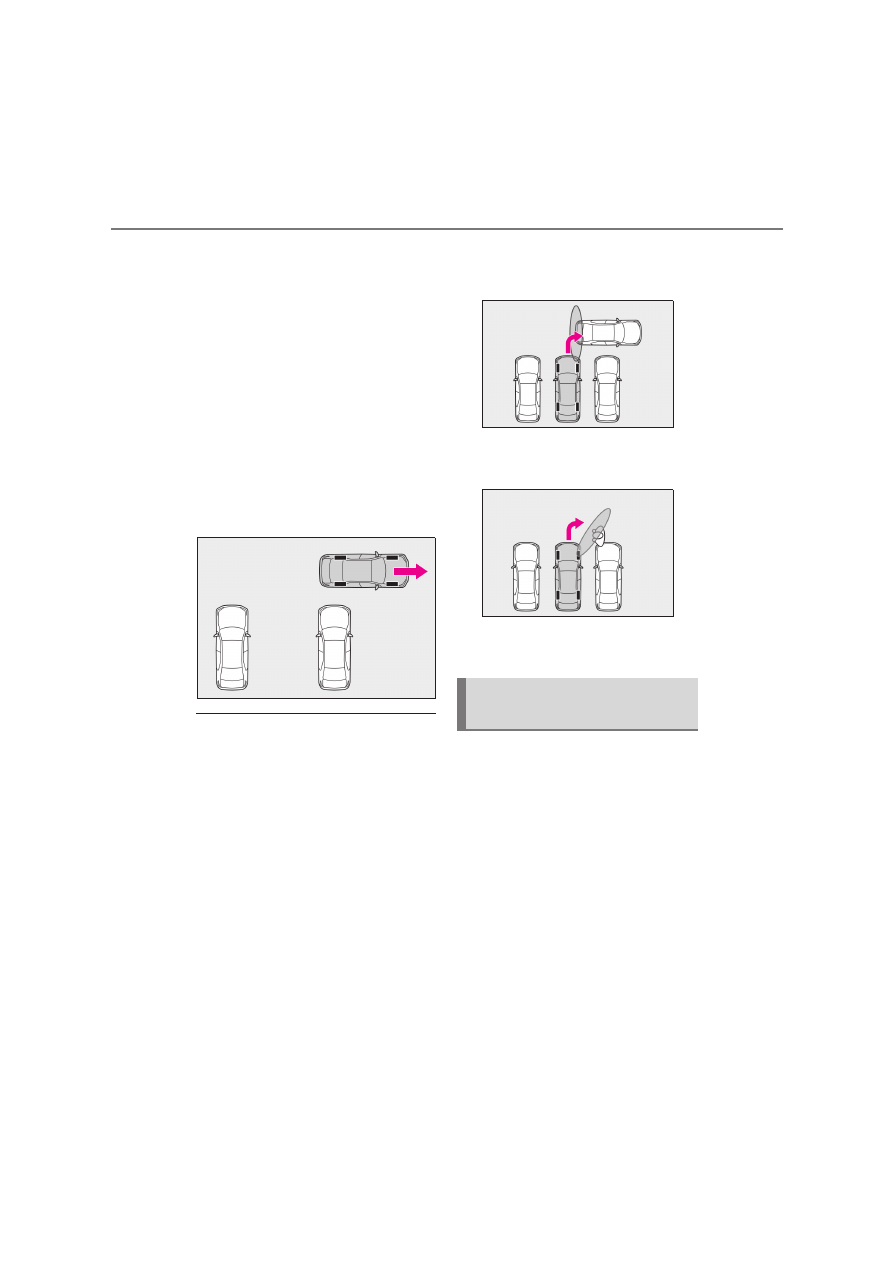

Perform operations as indicated by
the advice displays until the vehicle
is in a position where exit is possi-
ble.

When the vehicle reaches a position where

exit is possible, “You can exit by moving the

steering wheel” will be displayed. If the

steering wheel is operated, “Advanced

Park Finished” will be displayed and assis-

tance will end.
As assistance will end while the vehicle is

moving, grip the steering wheel and drive

forward.

If the steering wheel is not operated, the

vehicle will stop at the exit position. Assis-

tance can be ended by depressing the

accelerator pedal or brake pedal.

■

If you feel that the vehicle is approach-

ing close to a surrounding vehicle,

object, person, or gutter



P.401

■

Perpendicular exiting (for-

ward/reverse) function

Do not use exiting (forward/reverse) func-

tion in any situation other than when exiting

a parallel parking spot. If assistance is

started unintentionally, depress the brake

pedal and stop the vehicle, then press the

Advanced Park main switch to cancel assis-

tance.

■

Situations in which the perpendicular

exiting (forward/reverse) function will

not operate

In situations such as the following, the per-

pendicular exiting (forward/reverse) func-

tion will not operate:

●

When a vehicle which is waiting to park is

in the exit direction

●

When a wall, column, or person is

detected as near a front or rear center or

corner sensor

■

When the brakes have been operated



P.400

The parallel parking function can be
used if the target parking space can be
detected when the vehicle is stopped
close and aligned with the center of the
parking space. Also, depending on the
condition of the parking space, etc., if it
is necessary to change the direction of
travel of the vehicle, the shift position
can be shifted by assistance control.

Advanced Park parallel parking
function

403

4-5. Using the driving support systems

Driving

Stop the vehicle with it aligned near
the center of the target parking
space.



If there are parking space lines

Approximately 1 m (3.3 ft.)

Approximately 6 m (19.7 ft.)

Approximately 4.5 m (14.8 ft.) or
more

Approximately 8 m (26.2 ft.) or
more

: This is a reference measurement for

detection of a parking space. Depending
on the surrounding environment, detec-
tion may not be possible.



If there is an adjacent parked vehicle

Approximately 1 m (3.3 ft.)

Approximately 7 m (23.0 ft.)

Approximately 4.5 m (14.8 ft.) or
more

Approximately 8 m (26.2 ft.) or
more

: This is a reference measurement for

detection of a parking space. Depending
on the surrounding environment, detec-
tion may not be possible.

Press the Advanced Park main
switch and check that a possible

Parking using the parallel parking
function

A
B
C

404

4-5. Using the driving support systems

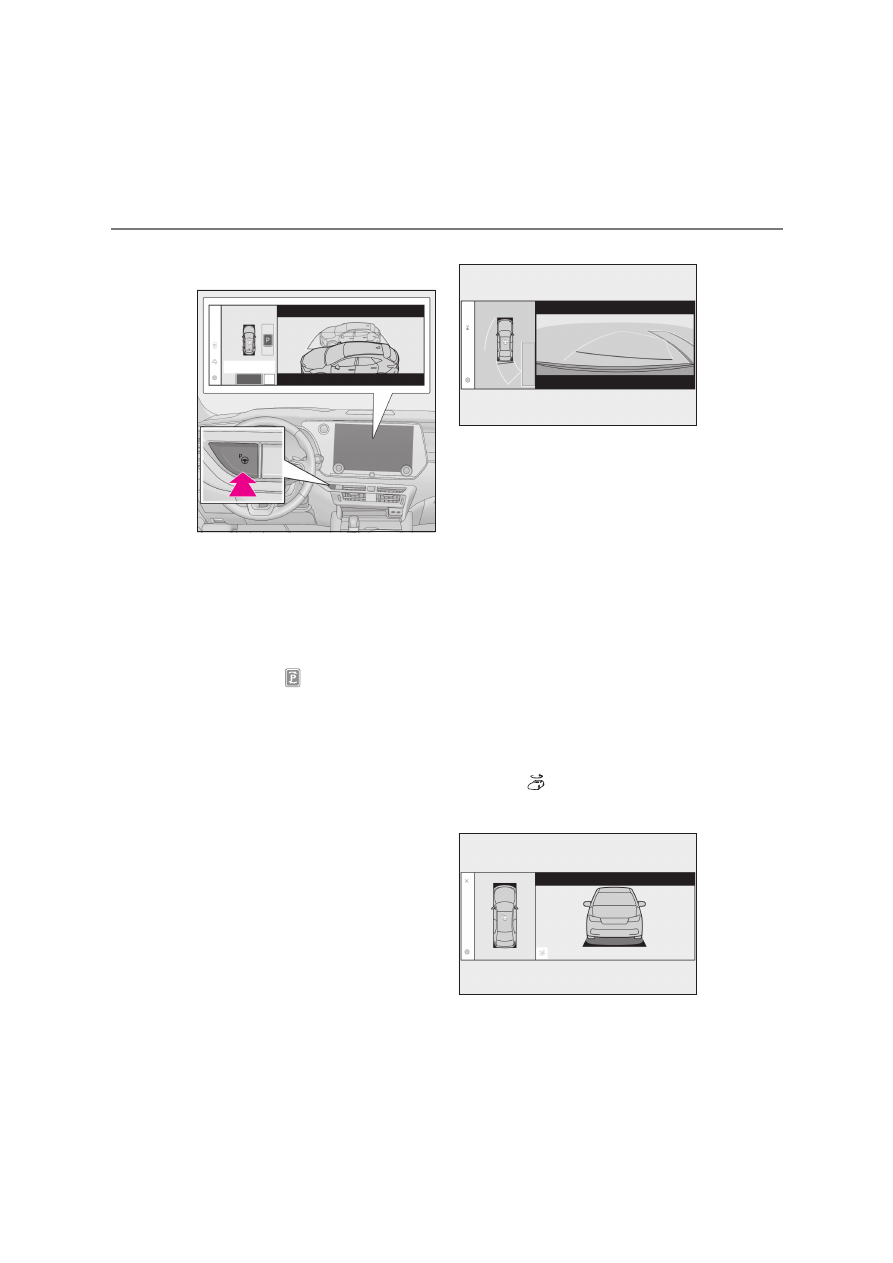

parking space is displayed on the
center display.



If a space which your vehicle can be
parked is detected, a target parking
space box will be displayed.



If it is possible to perpendicular
parking (forward/reverse) in the
space, select the parking space, and
then select

to change to the

perpendicular parking (for-
ward/reverse) function.



Depending on the surrounding
environment, it may not be possible
to use this function. According to
the information displayed on the
center display, use the function on
another parking space.

Select “Start” button.

A buzzer will sound, an operation message

will be displayed on the multi-information

display, and assistance will begin operating.



When the brake pedal is released,
“Moving Forward…” will be dis-
played and the vehicle will begin
moving forward.



To cancel assistance, press the
Advanced Park main switch.

If assistance is canceled, “Advanced Park

Cancel” will be displayed.
If you feel that the vehicle is approaching

close to a surrounding vehicle, object, per-

son, or gutter:



P.401

Perform operations as indicated by
the advice displays until the vehicle
stops in the target parking space.

When the vehicle stops, “Advanced Park

Finished” will be displayed and parking

assistance will end.

If you select

on the center display, the

vehicle displayed on the parking assist

completion screen will rotate.

405

4-5. Using the driving support systems

Driving

■

If you feel that the vehicle is approach-

ing close to a surrounding vehicle,

object, person, or gutter



P.401

■

“No available parking space” is dis-

played

Even if the vehicle is stopped parallel to a

parking space, an adjacent parked vehicle

may not be detected. In this case, if the vehi-

cle is moved to a position that a parked

vehicle can be detected, assistance can be

started.

■

When the brakes have been operated



P.400

When exiting from a parallel parking
space, if the system determines that
exit is possible the parallel exiting func-
tion can be used. Also, depending on
the surrounding environment, if it is
necessary to change the direction of
travel of the vehicle, the shift position
can be shifted by assistance control.

NOTICE

■

When using the parallel parking func-

tion

●

Make sure that there are no obstruc-

tions within the yellow guide lines and

between the vehicle and target park-

ing spot. If any obstructions are

detected within the yellow guide lines

or between the vehicle and the target

parking space, the parallel parking

function will be cancelled or sus-

pended.

●

As the target parking space will not be

able to be set correctly if the surface of

the parking space is on a slope or has

differences in height, the vehicle may

stray from the target parking space or

be slanted. Therefore, do not use the

parallel parking function for this kind of

parking spot.

●

If an adjacent parked vehicle is narrow

or parked extremely close to the curb,

the position at which assistance will

park the vehicle will also be close to

the curb. If it seems likely the vehicle

will collide with the curb or drive off of

the road, depress the brake pedal to

stop the vehicle, and then press the

Advanced Park main switch to disable

the system.

●

If there is a wall or other barrier on the

inner side of the parking space, the

vehicle may stop at a position slightly

outside of the set target parking space.

Advanced Park parallel exiting
function

406

4-5. Using the driving support systems

With the brake pedal depressed
and P shift position selected, press
the Advanced Park main switch
and check that the exit direction
selection screen is displayed on the
center display.

Select an arrow on the center dis-
play to select the direction you wish
to exit.

If the turn signal lever is operated, only exit

to the left or right can be selected.

Depress the brake pedal and select
“Start” button.

A buzzer will sound, an operation message

will be displayed on the multi-information

display, and assistance will begin operating.

To cancel assistance, press the Advanced

Park main switch.
If assistance is canceled, “Advanced Park

Cancel” will be displayed.
If you feel that the vehicle is approaching

close to a surrounding vehicle, object, per-

son, or gutter:



P.401

Perform operations as indicated by
the advice displays until the vehicle

is in a position where exit is possi-
ble.

When the vehicle reaches a position where

exit is possible, “You can exit by moving the

steering wheel” will be displayed. If the

steering wheel is operated, “Advanced

Park Finished” will be displayed and assis-

tance will end.
As assistance will end while the vehicle is

moving, grip the steering wheel and drive

forward.

If the steering wheel is not operated, the

vehicle will stop at the exit position. Assis-

tance can be ended by depressing the

accelerator pedal or brake pedal.

■

If you feel that the vehicle is approach-

ing close to a surrounding vehicle,

object, person, or gutter



P.401

■

Parallel exiting function

Do not use parallel exiting function in any

situation other than when exiting a parallel

parking spot. If assistance is started unin-

tentionally, depress the brake pedal and

stop the vehicle, then press the Advanced

Park main switch to cancel assistance.

Leaving a parking space using the
parallel exiting function

407

4-5. Using the driving support systems

Driving

■

Situations in which the parallel exiting

function will not operate

In situations such as the following, the paral-

lel exiting function will not operate:

●

When vehicles waiting at a traffic signal in

the exit direction

●

When a vehicle is stopped in the area

behind where the vehicle will exit

●

When a wall, column, or person is

detected as near a front or rear side sen-

sor

●

When the vehicle has been parked on a

curb and a side sensor detects the road

surface

●

When a vehicle is not parked in front of

the vehicle

●

When there is excessive space between

the front of the vehicle and a parked vehi-

cle

■

When the brakes have been operated



P.400

The memory function can be used to
park in a previously registered parking
space, even if there are no parking
space lines or adjacent parked vehi-
cles.

Up to 3 parking spaces can be registered.

Stop the vehicle with it aligned near
the center of the target parking
space.

Approximately 1 m (3.3 ft.)

Press the main switch and then
select .

If the Advanced Park main switch is

pressed at a parking space without parking

lines or any adjacent parked vehicles, “No

available parking space” may be displayed.

Advanced Park memory func-
tion

Registering a parking space

408

4-5. Using the driving support systems

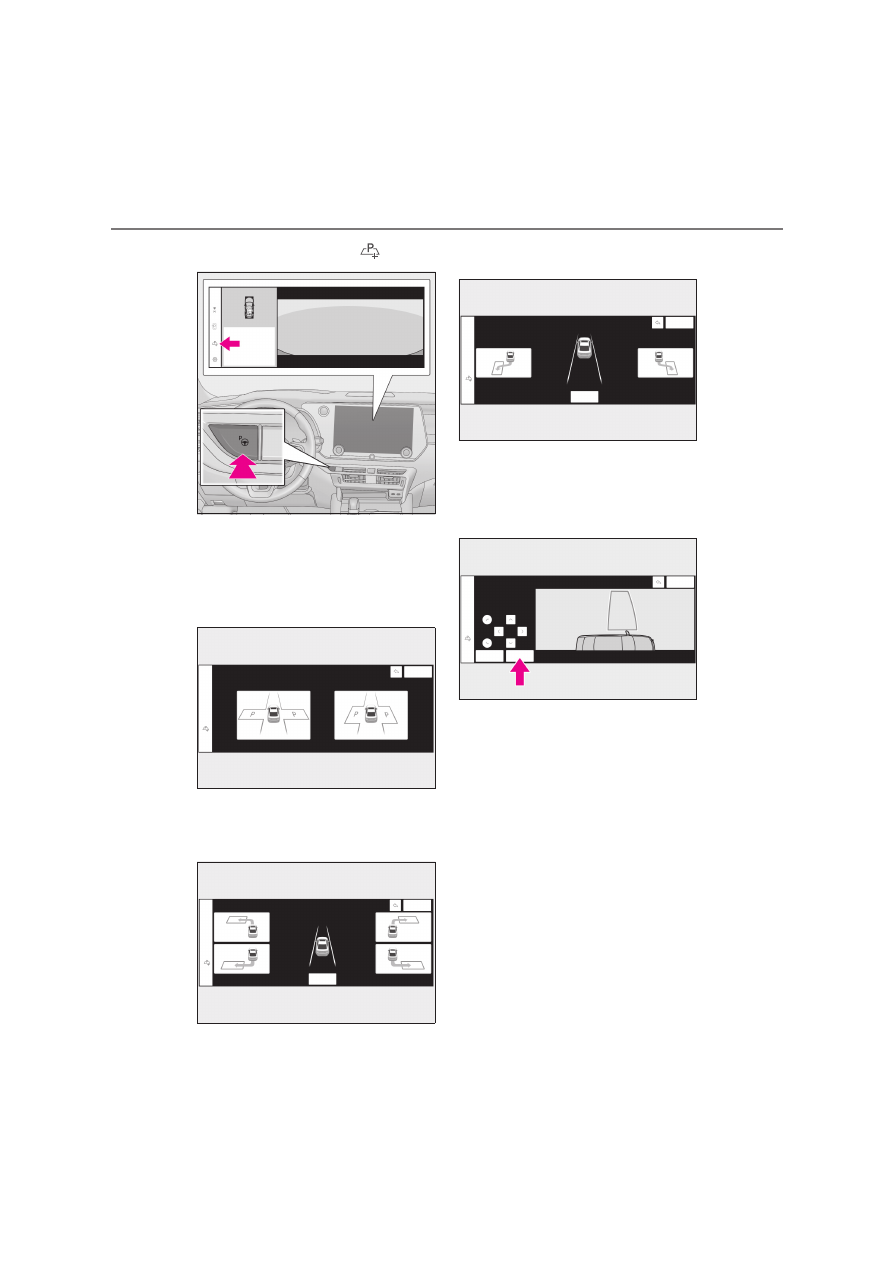

Continuously select and hold

Select perpendicular parking (for-
ward/reverse) function or parallel
parking function.

Only parking spaces for which assist can

be performed are displayed.

Select the parking direction.

When perpendicular parking (for-

ward/reverse) was selected in step

When parallel parking was selected in step

Using the arrow buttons, adjust the
position of the parking space to be
registered, and then select “OK”
button.

Select “Start” button.

A buzzer will sound, an operation message

will be displayed on the multi-information

display, and assistance will begin operating.

When the brake pedal is released, “Moving

Forward…” will be displayed and the vehi-

cle will begin moving forward.
If you feel that the vehicle is approaching

close to a surrounding vehicle, object, per-

409

4-5. Using the driving support systems

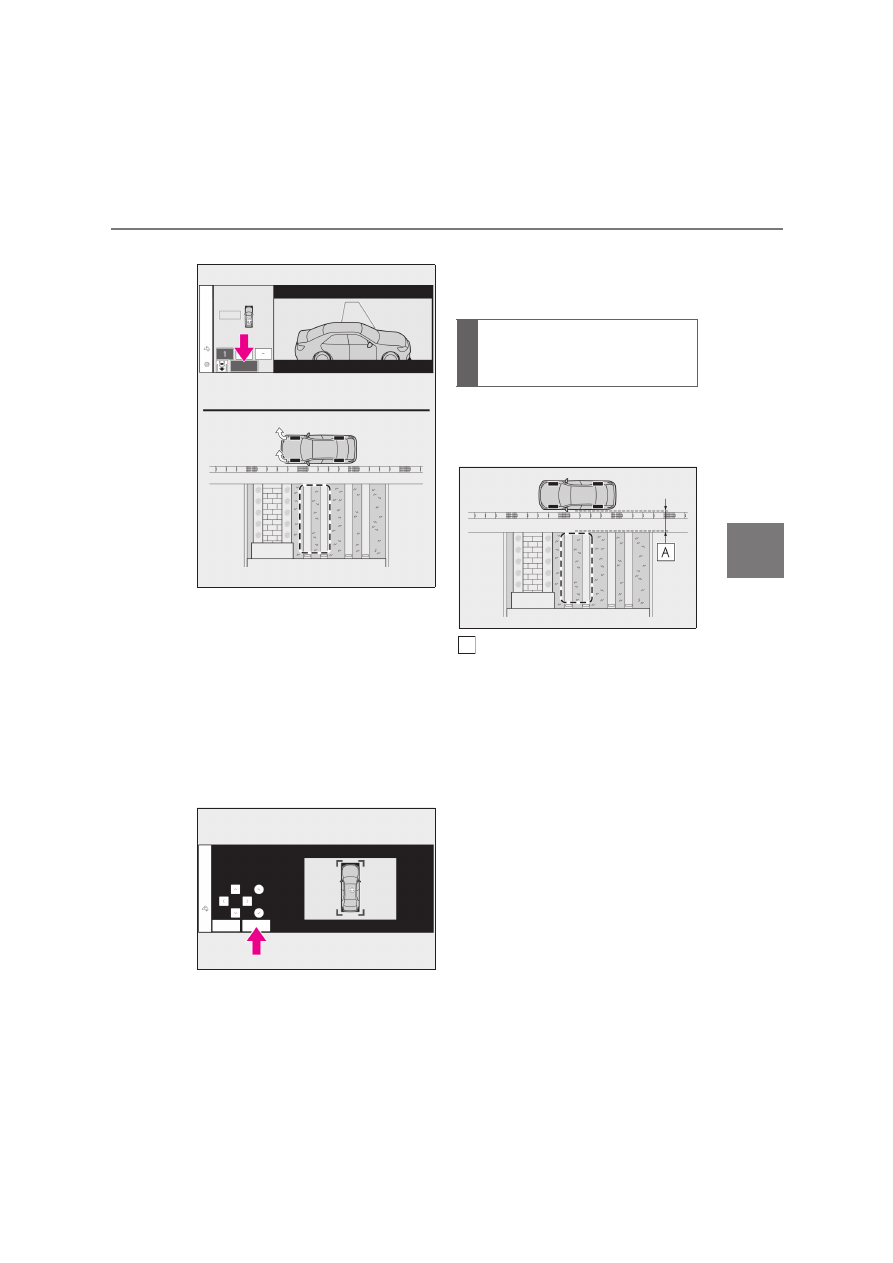

Driving

son, or gutter:



P.401

Perform operations as indicated by
the advice displays until the vehicle
stops in the target parking space.

Check the position that the vehicle
has stopped. If necessary, adjust the
position of the parking spot to be
registered using the arrow buttons,
and then select “Reg.” button.

“Registration Completed” will be displayed

on the center display.



The amount that the position of the
parking spot to be registered can be
adjusted is limited.

Stop the vehicle with it aligned near
the center of the target parking
space.

Approximately 1 m (3.3 ft.)

Press the Advanced Park main
switch and check that a possible
parking space is displayed on the
center display.

If the “MODE” button is displayed, the but-

ton can be touched to change between the

memory function, perpendicular parking

(forward/reverse) function and parallel

When parking in a parking space
registered to the memory func-
tion

410

4-5. Using the driving support systems

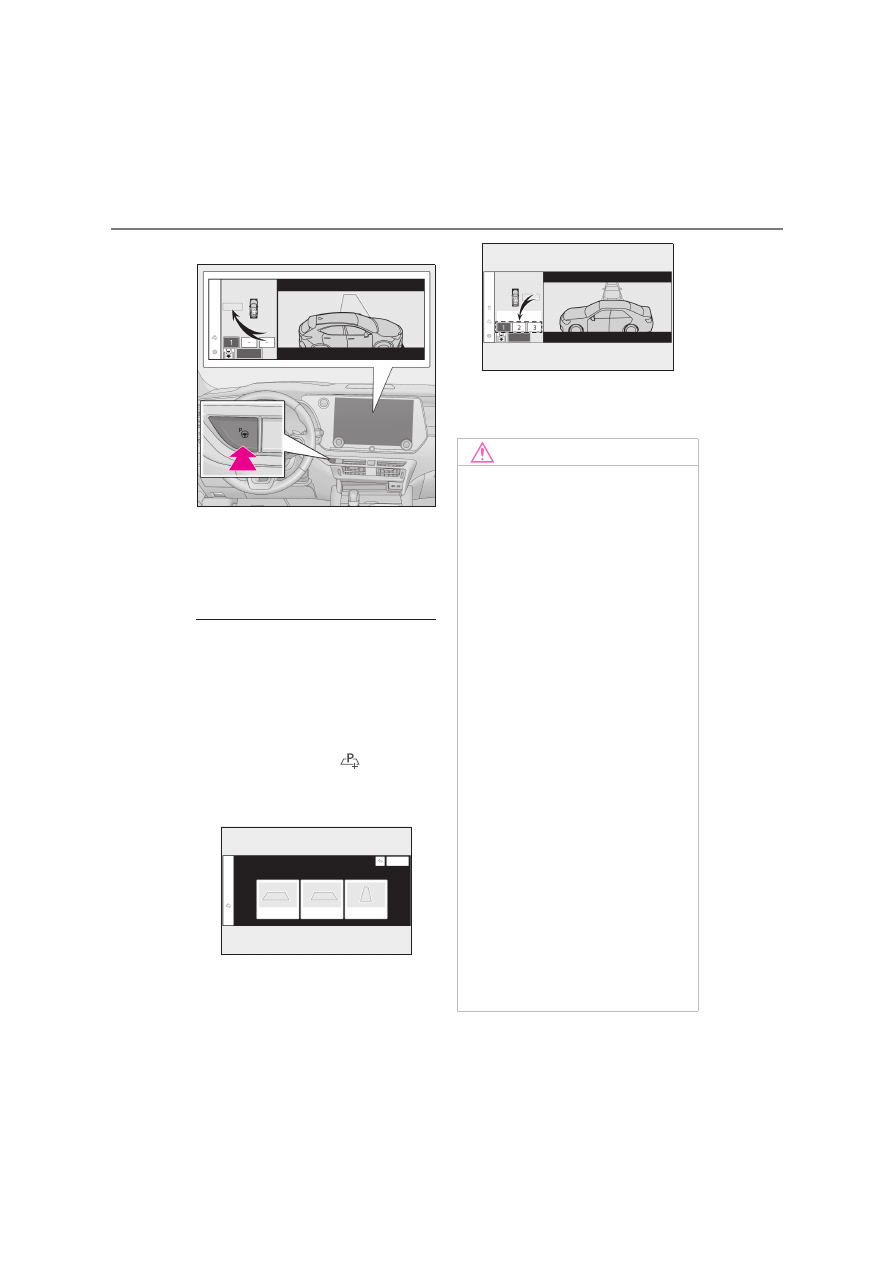

parking function.

Select the desired parking space,
and then select “Start” button.

Perform the procedure for the perpendic-

ular parking (forward/reverse) function

from step 3. (



P.401)

■

If you feel that the vehicle is approach-

ing close to a surrounding vehicle,

object, person, or gutter



P.401

■

When overwriting a registered parking

space

If the maximum number of parking spaces
have been registered and

is selected, a

registered parking space can be selected

and then overwritten with a new parking

space.

■

When multiple parking spaces are reg-

istered

Select the desired parking space, and then

select “Start” button.

■

When the brakes have been operated



P.400

NOTICE

■

When using the memory function

(



P.400, P.405)

●

The memory function is a function

which provides assistance in parking in

a previously registered parking space.

If the condition of the road surface,

vehicle, or surrounding area differs

from when registration was per-

formed, the parking space may not be

able to be detected correctly or assis-

tance may not be provided to the point

that the vehicle is fully parked.

●

Do not register a parking space in situ-

ations such as the following, as the set

parking space may not be able to be

registered or assistance may not be

possible later.

• When a camera lens is dirty or cov-

ered with water droplets

• When it is raining or snowing

• When the surrounding area is dark (at

night, etc.)

●

In situations such as the following, it

may not be possible to register a park-

ing space.

• When there is insufficient space

between the road and parking space

• When the road surface around the

parking space does not have any dif-

ferences the system can recognize

411

4-5. Using the driving support systems

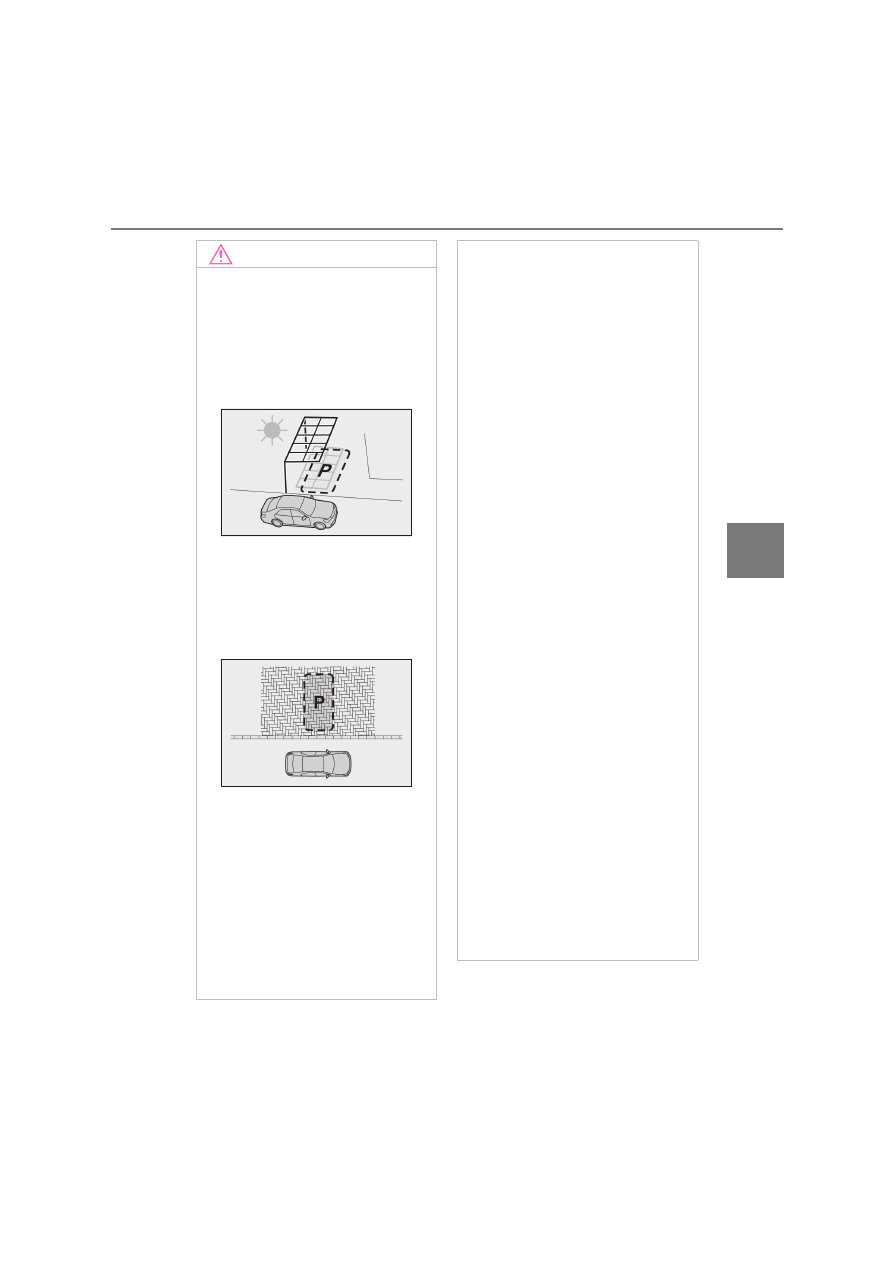

Driving

NOTICE

●

If a parking space has been registered

in situations such as the following,

assistance may not be able to be

started later or assistance to the regis-

tered position may not be possible.

• When shadows are cast on the parking

space (there is a carport over the

parking space, etc.)

• When there are leaves, garbage, or

other objects which will likely move, in

the parking space

• When the road surface around the

parking space has the same repeating

pattern (brick, etc.)

●

In situations such as the following, it

may not be possible for the system to

provide assistance to a registered

parking spot:

• When the appearance of the parking

space is affected by the shadow of the

vehicle or trees

• When an object is detected in the reg-

istered parking space

• When a pedestrian or passing vehicle

is detected during assistance

• When the position the vehicle is

stopped when assistance is started dif-

fers from the position when registra-

tion was performed

• When the registered parking space

cannot be reached due to the exist-

ence of parking blocks, etc.

• When the road surface around the

parking space has changed (road sur-

face has degraded or been resur-

faced)

• When the sunlight conditions differ

from when registration was performed

(due to weather or time of day)

• When the sun is shining directly into a

camera, such as in the early morning

or evening

• When the color or brightness of the

road surface is uneven

• When a light is temporarily shined on

the parking space (lights of another

vehicle, security light, etc.)

• When the road surface around the

parking space has the same repeating

pattern

• When there is a low protrusion on the

road surface near the parking space

• When the parking space is on a slope

• When a camera has been splashed by

hot or cold water and the lens has

fogged up

• When a camera lens is dirty or cov-

ered with water droplets

• When accessories which obstruct the

view of the camera are installed

If assistance is ended during registration,
perform registration again.

412

4-5. Using the driving support systems

A smartphone can be used to remotely
operate the parking functions and exit
functions. Also, assistance can be pro-
vided to remotely move the vehicle for-
ward or backward into a garage, etc.

A smartphone can be used to remotely
operate the parking function if the tar-
get parking space can be detected
when the vehicle is stopped close and
perpendicular to the center of the
parking space. Also, depending on the
condition of the parking space, etc., if it
is necessary to change the direction of

travel of the vehicle, the shift position
can be shifted by assistance control.

Stop the vehicle with it aligned near
the center of the target parking
space. (



P.398, P.403)

Press the Advanced Park main
switch and check that a possible
parking space is displayed on the
center display. (



P.398, P.403)

Select

and then select “Perpen-

dicular/parallel”.

Select “OK” button.

Exit the vehicle while carrying the
electronic key and smartphone,
and then start the Remote Park app
on the smartphone.

The detection area of the electronic key is

within approximately 3 m (9.8 ft.) around

the vehicle.
If there is an obstruction in the path of the

vehicle, move it before parking the vehicle.

A corn can also be moved after exit the

vehicle.

From outside of the vehicle, confirm
the parking space on the screen of
the smartphone and then select the
start button.

Start operation of Remote control function

while standing approximately 50 cm (1.6

ft.) or more from the vehicle and out of the

path of the vehicle.

Checking the safety of the area
around the vehicle, trace the oper-
ation area on the screen of the
smartphone.

While continuously tracing the operation

area, the vehicle will move and parking

assistance will be performed.
If operation of the screen of the

NOTICE

●

When registering a parking space to

the memory function, if the road sur-

face cannot be detected “No available

parking space to register” will be dis-

played.

●

When using the memory function,

make sure to stop immediately in front

of the stop position. Otherwise the

parking space may not be able to be

detected correctly or assistance may

not be provided to the point that the

vehicle is fully parked.

●

Do not use the memory function if a

camera has been subjected to a strong

impact or images of the panoramic

view monitor are misaligned.

●

If a camera has been replaced, as the

installation angle of the camera will

have changed, it will be necessary to

reregister parking spaces of the mem-

ory function.

Remote control function

Parking using Remote control
function

Lexus RX (2023 year). Manual in english - page 12
