1-2. LEXUS Enform

1

For safety and security

Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is avail-
able for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for fur-
ther subscription details.



The United States
1-800-25-LEXUS
(1-800-255-3987)



Canada
1-800-26-LEXUS
(1-800-265-3987)



Puerto Rico
1-877-539-8777

■

Safety Connect Services Information

●

Phone calls using the vehicles Blue-
tooth

®

 technology will not be possible

during Safety Connect.

●

Safety Connect is available beginning Fall

2009 on select Lexus models (in the

contiguous United States only). Contact

with the Safety Connect response center

is dependent upon the telematics device

being in operative condition, cellular con-

nection availability, and GPS satellite sig-

nal reception, which can limit the ability to

reach the response center or receive

emergency service support. Enrollment

and Telematics Subscription Service

Agreement required. A variety of sub-

scription terms is available; charges vary

by subscription term selected and loca-

tion.

●

Automatic Collision Notification, Emer-

gency Assistance and Stolen Vehicle

Location will function in the United

States, including Hawaii and Alaska,

Puerto Rico and in Canada, and

Enhanced Roadside Assistance will func-

tion in the United States, Puerto Rico and

in Canada.

●

Automatic Collision Notification, Emer-

gency Assistance, Stolen Vehicle and

Enhanced Road Assistance will not func-

tion in the United States Virgin Islands.

For vehicles first sold in the USVI, no

Safety Connect services will function in

and outside the United States Virgin

Islands.

●

Safety Connect services are not subject

to section 255 of the Telecommunica-

tions Act and the device is not TTY com-

patible.

■

Languages

The Safety Connect response center will

offer support in multiple languages. The

Safety Connect system will offer voice

prompts in English, Spanish, and French.

Please indicate your language of choice

when enrolling.

■

When contacting the response center

You may be unable to contact the response

center if the network is busy.

When the engine switch is turned to
IGNITION ON mode, the red indica-
tor light comes on for 2 seconds then
turns off. Afterward, the green indica-
tor light comes on, indicating that the
service is active.
The following indicator light patterns
indicate specific system usage condi-
tions:



Green indicator light on = Active
service



Green indicator light flashing =
Safety Connect call in process



Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)



No indicator light (off) = Safety

Safety Connect LED light Indi-
cators

54

1-2. LEXUS Enform

Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle
occupants to assess the level of emer-
gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-
tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS
(1-800-255-3987) in the United
States, 1-877-539-8777 in Puerto
Rico or 1-800-265-3987 in Canada,
and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

■

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-
ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.

Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio trans-
mitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-

Safety Connect services

Safety information for Safety
Connect

55

1-2. LEXUS Enform

1

For safety and security

nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.



ANSI (American National Stan-
dards Institute) C95.1 [1992]



NCRP (National Council on Radia-
tion Protection and Measurement)
Report 86 [1986]



ICNIRP (International Commission
on Non-Ionizing Radiation Protec-
tion) [1996]

Those standards were based on com-
prehensive and periodic evaluations of
the relevant scientific literature. Over
120 scientists, engineers, and physi-
cians from universities, and govern-
ment health agencies and industries
reviewed the available body of
research to develop the ANSI Stan-
dard (C95.1).
The design of Safety Connect com-
plies with the FCC guidelines in addi-
tion to those standards.

56

1-3. Theft deterrent system

1-3.Theft deterrent system

The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.

■

System maintenance

The vehicle has a maintenance-free type

engine immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the grip portion of the key is in contact

with a metallic object

●

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

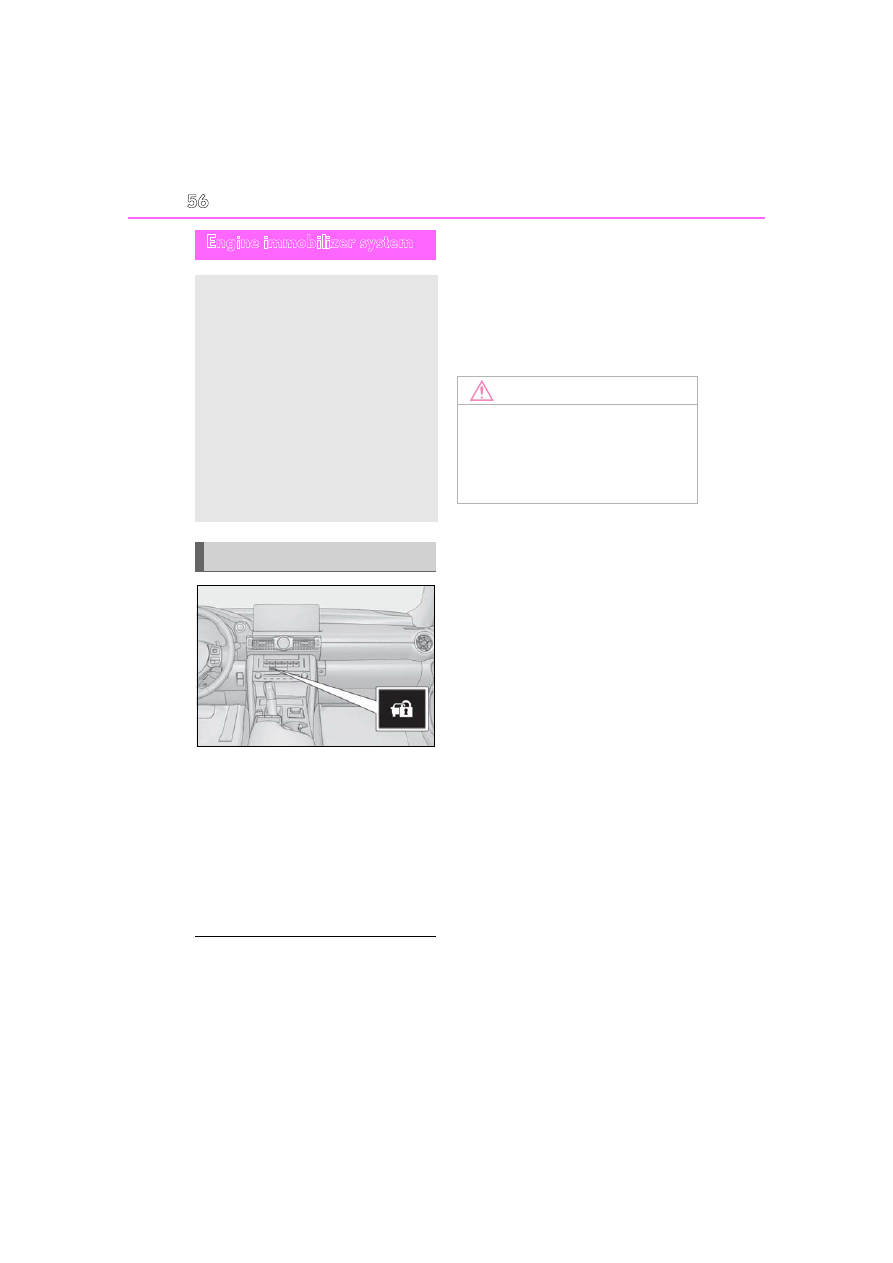

Engine immobilizer system

The vehicle’s keys have built-in tran-
sponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.

Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.

Operating the system

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

57

1-3. Theft deterrent system

1

For safety and security

■

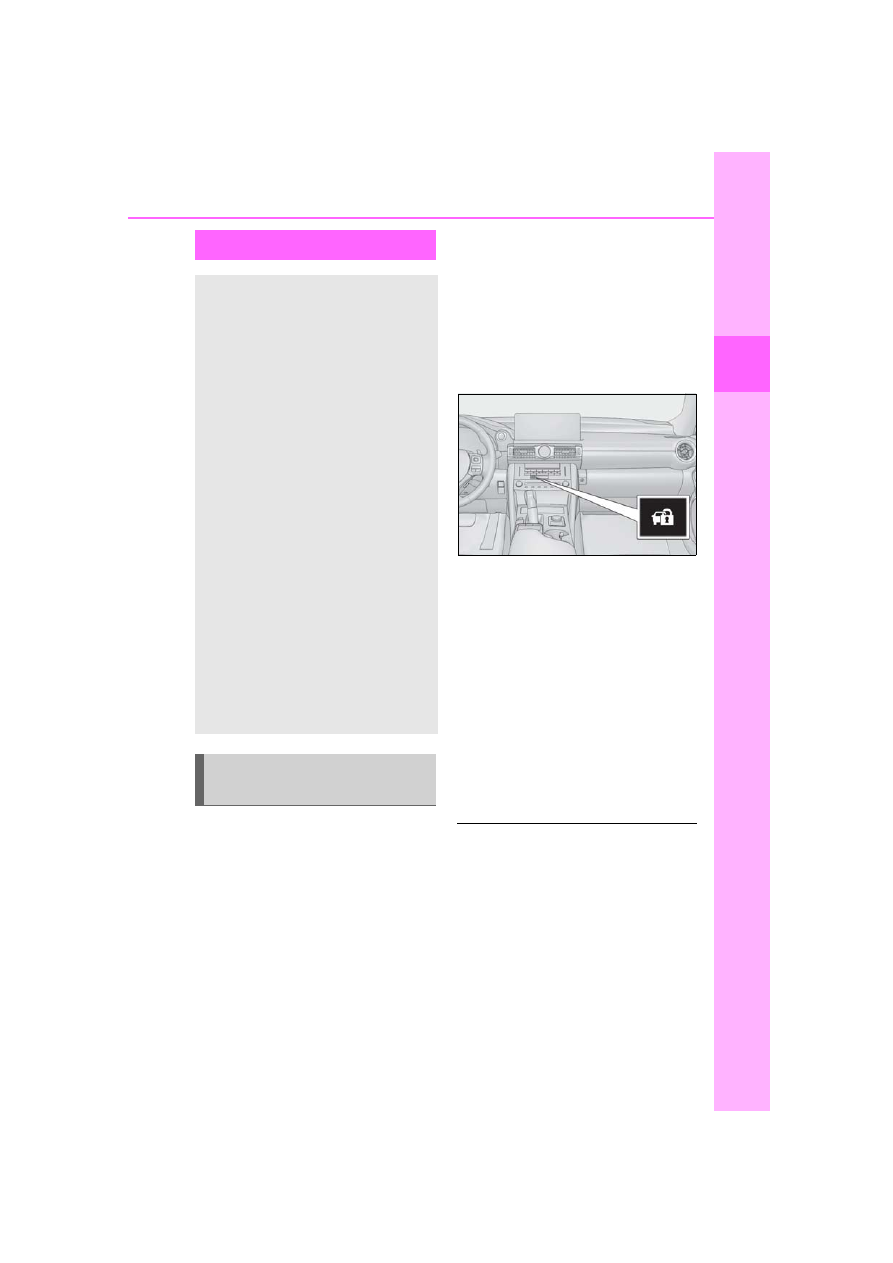

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:



Nobody is in the vehicle.



The windows and moon roof (if
equipped) are closed before the
alarm is set.



No valuables or other personal

items are left in the vehicle.

■

Setting

Close the doors, trunk and hood, and
lock both side doors. The system will
be set automatically after 30 seconds.

The indicator light changes from being on
to flashing when the system is set.

■

Canceling or stopping

Do one of the following to deactivate
or stop the alarms:



Unlock the doors.



Open the trunk using the entry
function or wireless remote control.



Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

■

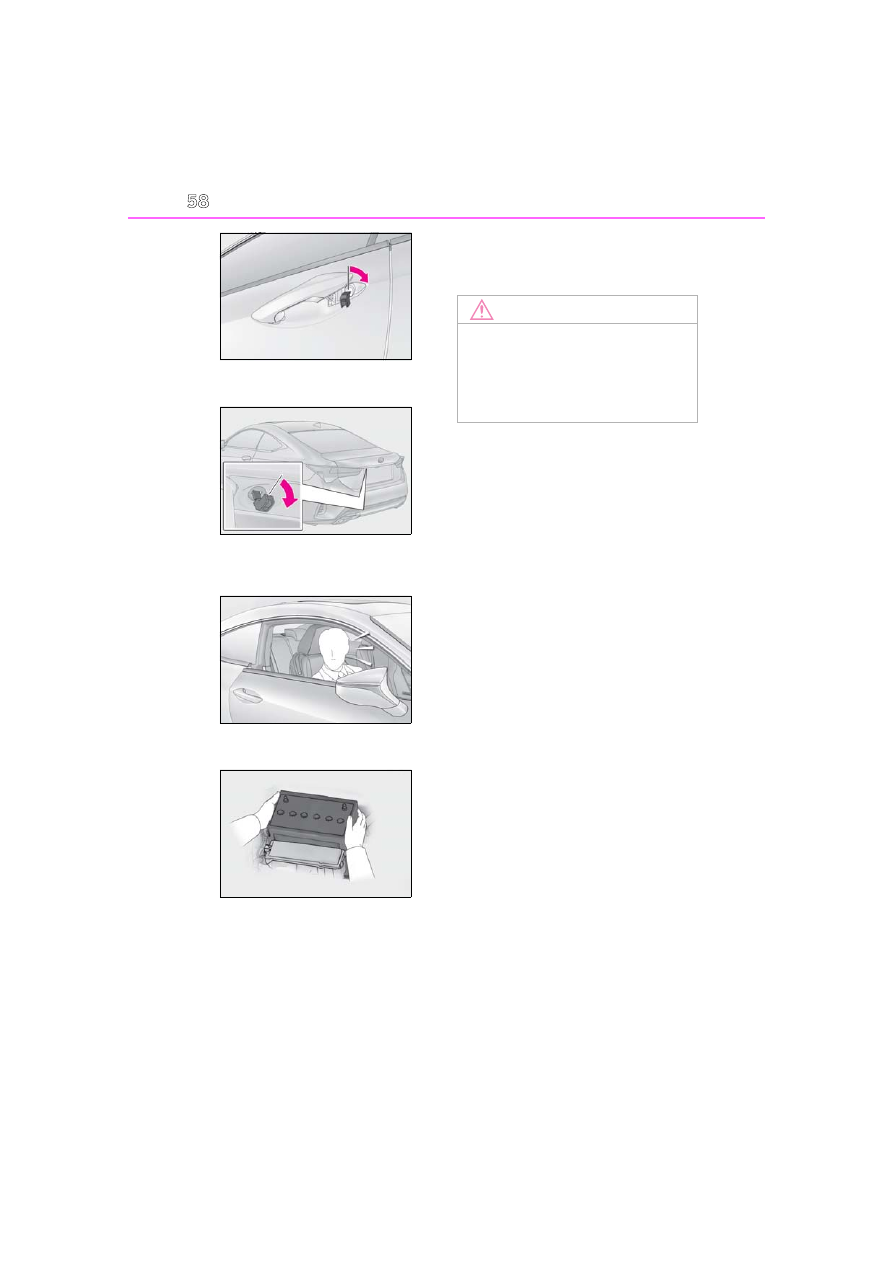

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

●

For Canada: The doors are unlocked

using the mechanical key.

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:



Except for Canada: A locked
door is unlocked or opened in any
way other than using the entry
function, wireless remote control
or mechanical key. (The doors will
lock again automatically.)



For Canada: A locked door is
unlocked or opened in any way
other than using the entry func-
tion or wireless remote control.
(The doors will lock again auto-
matically.)



The trunk is opened in any way
other than using the entry func-
tion or wireless remote control.



The hood is opened.

Setting/canceling/stopping the
alarm system

58

1-3. Theft deterrent system

●

The trunk is opened using the mechanical

key.

●

A person inside the vehicle opens a door,

the trunk or hood, or unlocks the vehicle

using an inside lock button.

●

The battery is recharged or replaced

when the vehicle is locked. (



P.332)

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

●

When recharging or replacing the bat-

tery

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

59

1-3. Theft deterrent system

1

For safety and security

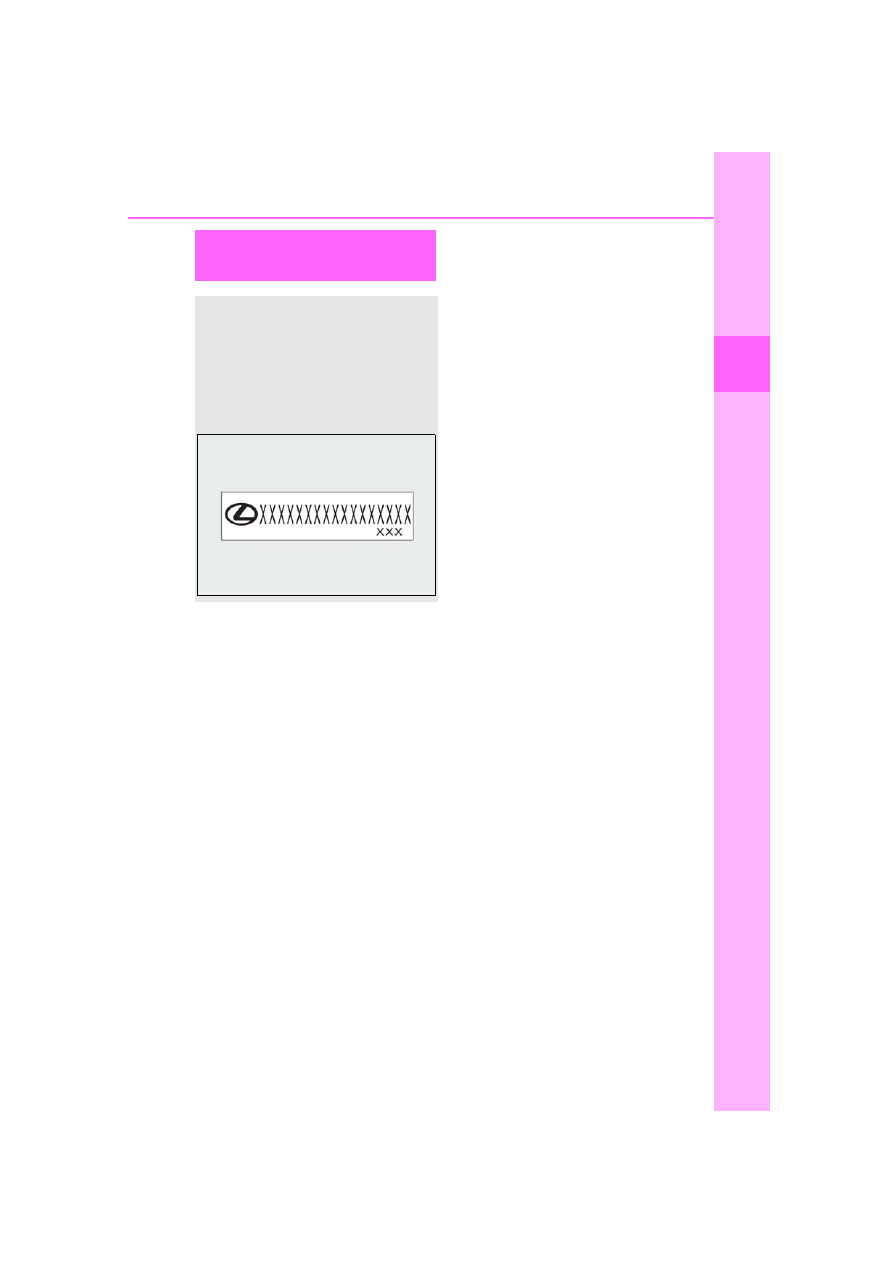

Theft prevention labels
(U.S.A.)

These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.

60

1-3. Theft deterrent system

61

2

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Vehicle status information

and indicators

.

2-1. Instrument cluster

Warning lights and indicators

...........................................................

62

Gauges and meters ....................

66

Multi-information display............

71

Fuel consumption information

...........................................................

78

62

2-1. Instrument cluster

2-1.Instrument cluster

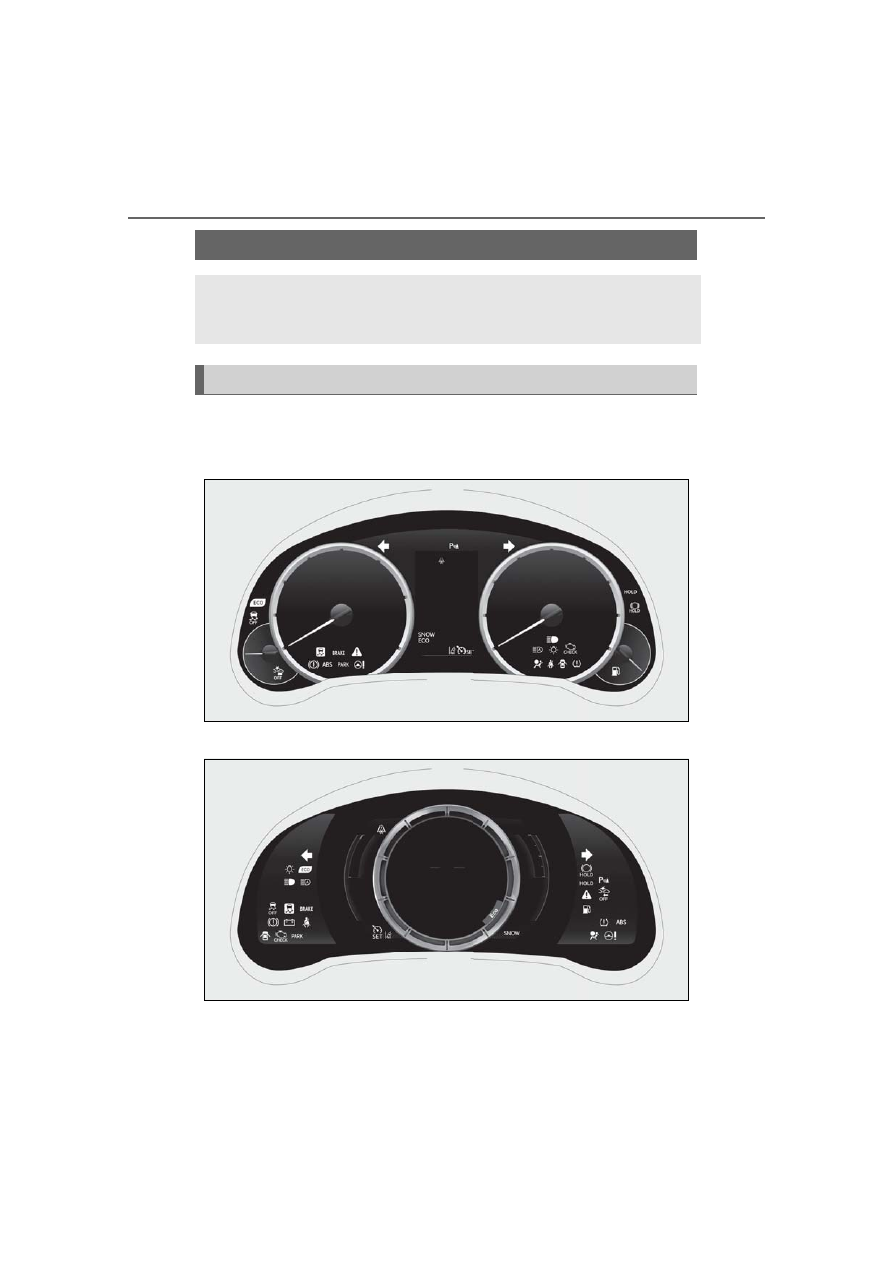

For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.



Except F SPORT models



F SPORT models

The units used on the meters and some indicators may differ depending on the target
region.

Warning lights and indicators

The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.

Warning lights and indicators displayed on the instrument cluster

63

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

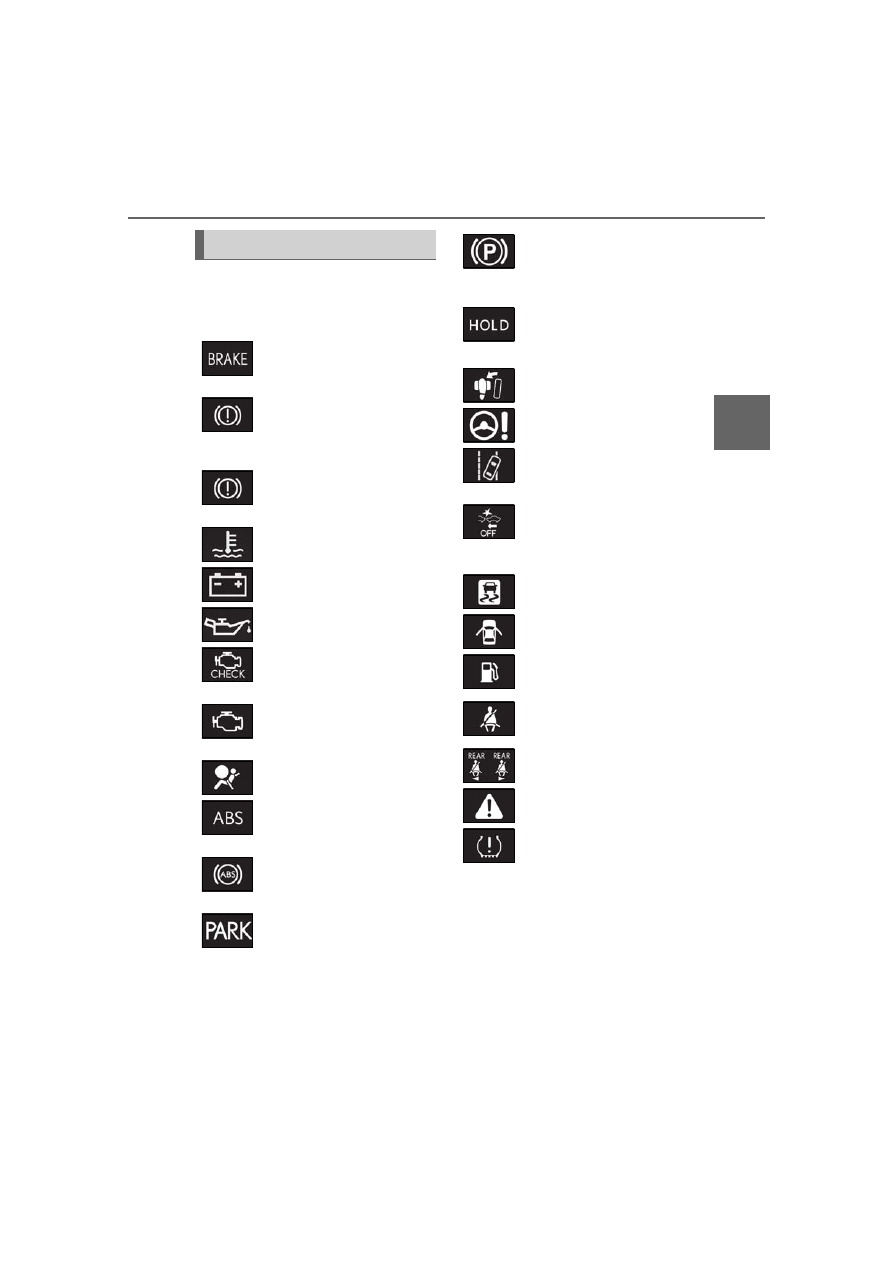

Warning lights inform the driver of mal-
functions in the indicated vehicle sys-
tems.

*1

: These lights turn on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

Warning lights

(U.S.A.)

Brake system warning light

*1



(



P.305)

(red)

(Canada)

Brake system warning light

*1



(



P.305)

(yellow)

Brake system warning light

*1



(



P.305)

High coolant temperature
warning light

*2

 (



P.305)

Charging system warning
light

*3

 (



P.306)

Low engine oil pressure warn-
ing light

*2

 (



P.306)

(U.S.A.)

Malfunction indicator lamp

*1



(



P.306)

(Canada)

Malfunction indicator lamp

*1



(



P.306)

SRS warning light

*1

 (



P.306)

(U.S.A.)

ABS warning light

*1

 (



P.307)

(Canada)

ABS warning light

*1

 (



P.307)

(flashes)

(U.S.A.)

Parking brake warning light
(



P.310)

(flashes)

(Canada)

Parking brake warning light
(



P.310)

(flashes)

Brake hold operated indicator

*1



(



P.305)

Inappropriate pedal operation
warning light

*2

 (



P.307)

Electric power steering system
warning light

*1

 (



P.307)

(orange)

LTA indicator

*2

 (



P.307)

(flashes or

illuminates)

PCS warning light

*1

 (



P.308)

Slip indicator

*1

 (



P.308)

Open door warning light
(



P.308)

Low fuel level warning light
(



P.308)

Driver’s and front passenger’s
seat belt reminder light
(



P.309)

Rear passenger’s seat belt
reminder lights

*4

 (



P.309)

Master warning light

*1



(



P.309)

Tire pressure warning light

*1



(



P.310)

64

2-1. Instrument cluster

*2

: This light illuminates on the multi-infor-

mation display.

*3

: Except F SPORT models: This light illu-

minates on the multi-information dis-
play.
F SPORT models: This light illuminates
on the meter.

*4

: This light illuminates on the center

panel.

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the engine, this could

mean that these systems are not available

to help protect you in an accident, which

could result in death or serious injury.

Have the vehicle inspected by your

Lexus dealer immediately if this occurs.

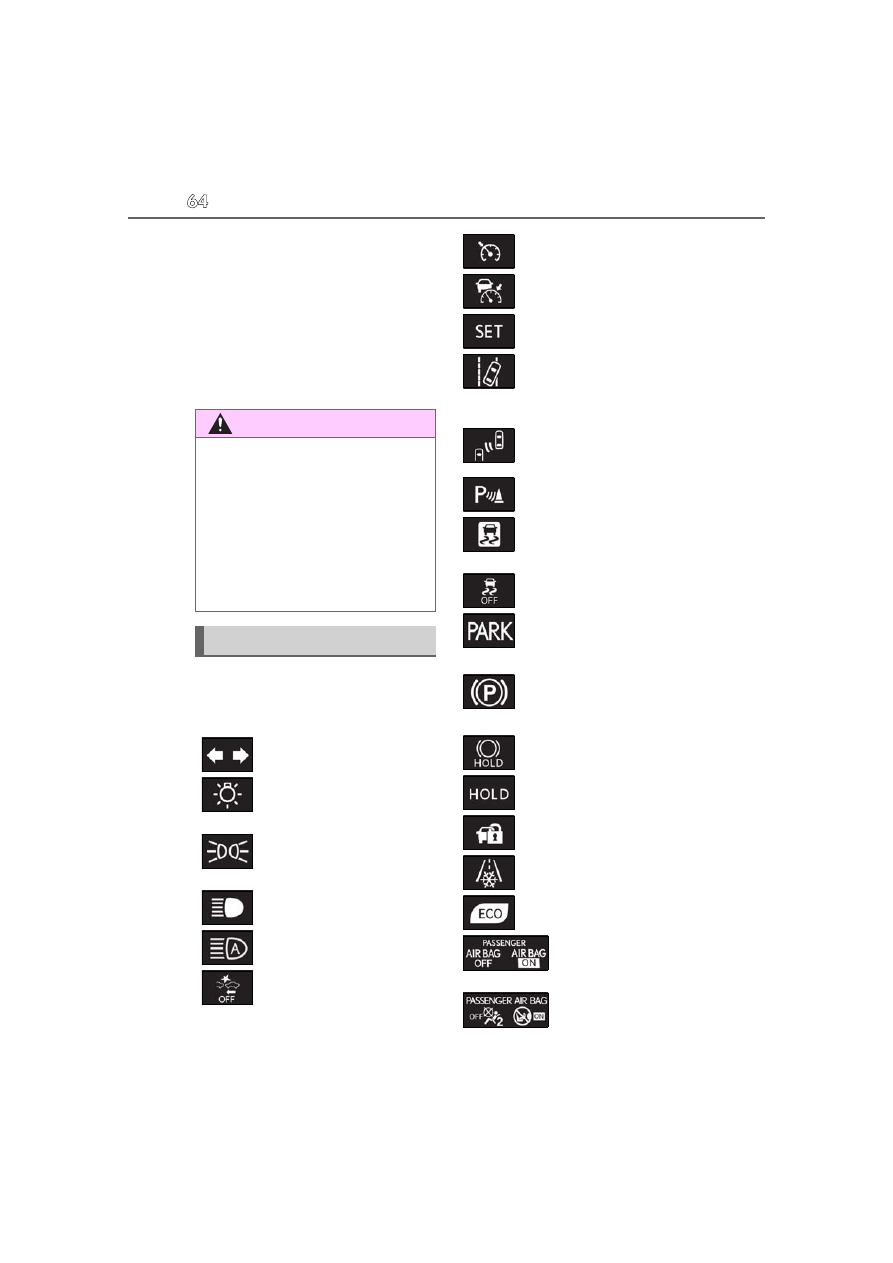

Indicators

Turn signal indicator (



P.134)

(U.S.A.)

Headlight indicator (



P.141)

(Canada)

Tail light indicator (



P.141)

Headlight high beam indicator
(



P.142)

Automatic High Beam indica-
tor

*1

 (



P.143)

PCS warning light

*1, 2

 (



P.164)

Cruise control indicator
(



P.189)

Dynamic radar cruise control
indicator (



P.182)

Cruise control “SET” indicator
(



P.182)

*3

LTA indicator (



P.161, 176)

BSM (Blind Spot Monitor) out-
side rear view mirror indica-
tors

*4, 5

 (



P.199)

Intuitive parking assist indicator
(if equipped) (



P.193)

(flashes)

Slip indicator

*1

 (



P.209)

VSC OFF indicator

*1, 2



(



P.210)

(U.S.A.)

Parking brake indicator
(



P.135)

(Canada)

Parking brake indicator
(



P.135)

Brake hold standby indicator

*1



(



P.138)

Brake hold operated indicator

*1



(



P.138)

Security indicator

*6

 (



P.56,

57)
Low outside temperature indi-
cator

*7

 (



P.66)

Eco Driving Indicator Light

*1



(



P.74)

(U.S.A.)

“AIR BAG ON/OFF”
indicator

*1, 6

 (



P.36)

(Canada)

“AIR BAG ON/OFF”
indicator

*1, 6

 (



P.36)

65

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators



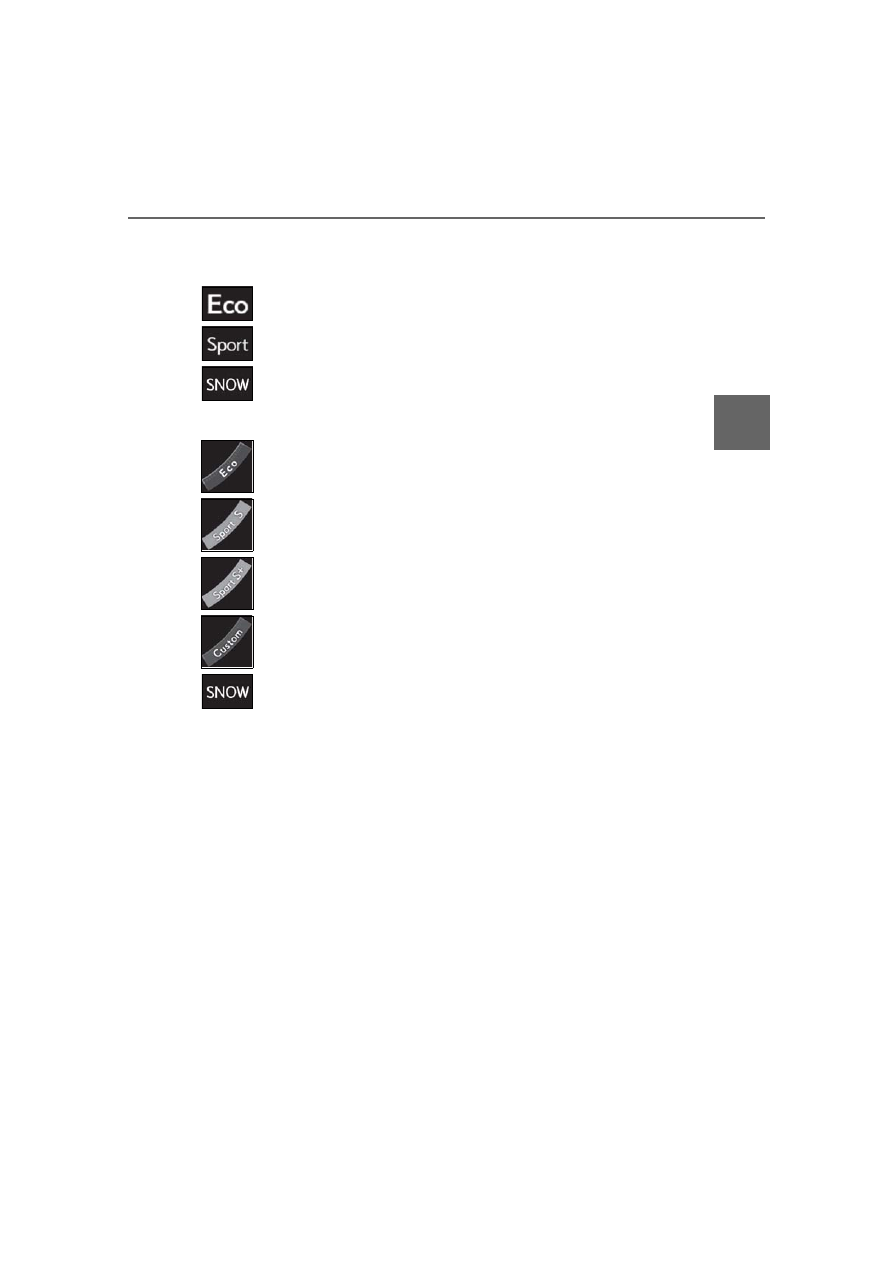

Drive mode indicators



Except F SPORT models



F SPORT models

*1

: These lights turn on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

*2

: The light comes on when the system is

turned off.

*3

: Depending on the operating condition,

the color and illuminating/flashing state
of the light change.

*4

: In order to confirm operation, the BSM

outside rear view mirror indicators illu-
minate in the following situations:

• When the engine switch is turned to

IGNITION ON mode while the
BSM main switch is turned on.

• When the BSM main switch is

turned on while the engine switch is
in IGNITION ON mode.

If the system is functioning correctly, the
BSM outside rear view mirror indicators
will turn off after a few seconds. If the BSM
outside rear view mirror indicators do not
illuminate or do not turn off, there may be a
malfunction in the system. If this occurs,
have the vehicle inspected by your Lexus
dealer.

*5

: This light illuminates on the outside rear

view mirrors.

*6

: This light illuminates on the center

panel.

*7

: When the outside temperature is

approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

Eco drive mode indicator
(



P.206)

Sport mode indicator
(



P.206)

Snow mode indicator (



P.132)

Eco drive mode indicator
(



P.206)

Sport S mode indicator
(



P.206)

Sport S+ mode indicator
(



P.206)

Custom mode indicator
(



P.206)

Snow mode indicator (



P.132)

66

2-1. Instrument cluster

■

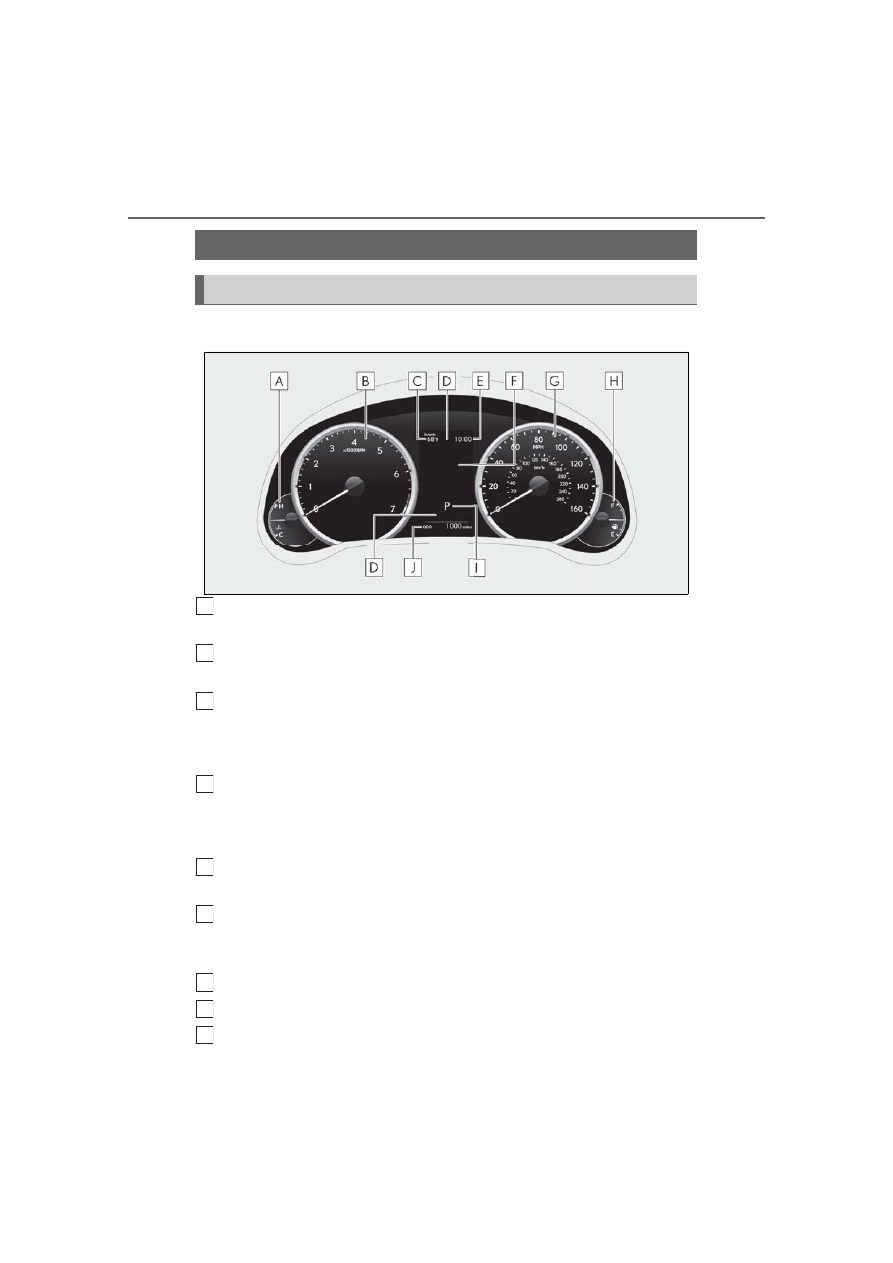

Locations of gauges and meters (except F SPORT models)

Engine coolant temperature gauge

Displays the engine coolant temperature

Tachometer

Displays the engine speed in revolutions per minute

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Background color of drive mode

Background color changes according to the drive mode. (



P.206)

• Sport  mode:  Red
• Eco  mode:  Blue

Clock

Time displayed is linked to the analog clock on the instrument panel. (



P.238)

Multi-information display

Presents the driver with a variety of vehicle data (



P.71)

Displays warning messages in case of a malfunction (



P.313)

Speedometer
Fuel gauge
Shift position/shift range/gear position (



P.130, 132)

Gauges and meters

Meter display

A

B

C

D

E

F

G

H

I

67

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Odometer and trip meter display (



P.70)

■

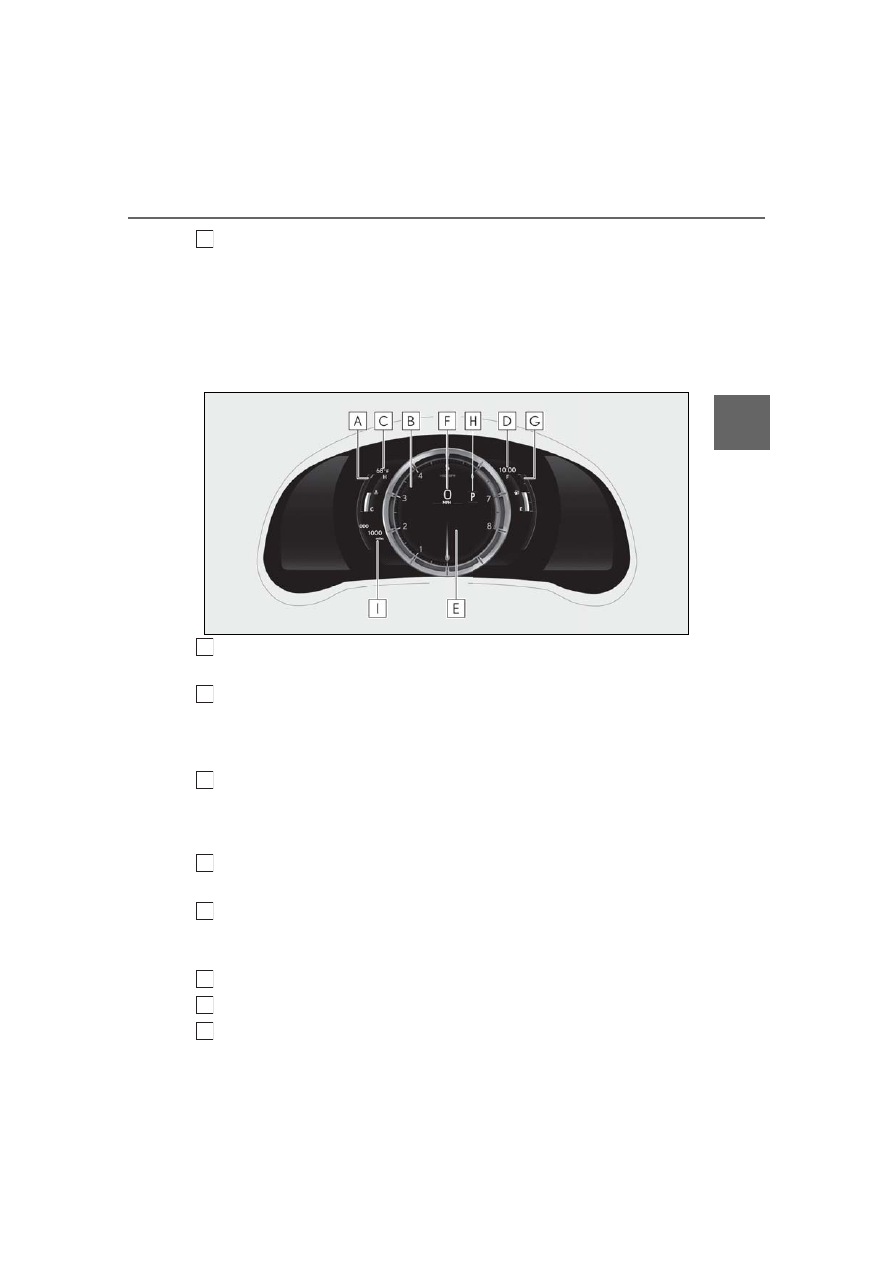

Locations of gauges and meters (F SPORT models)

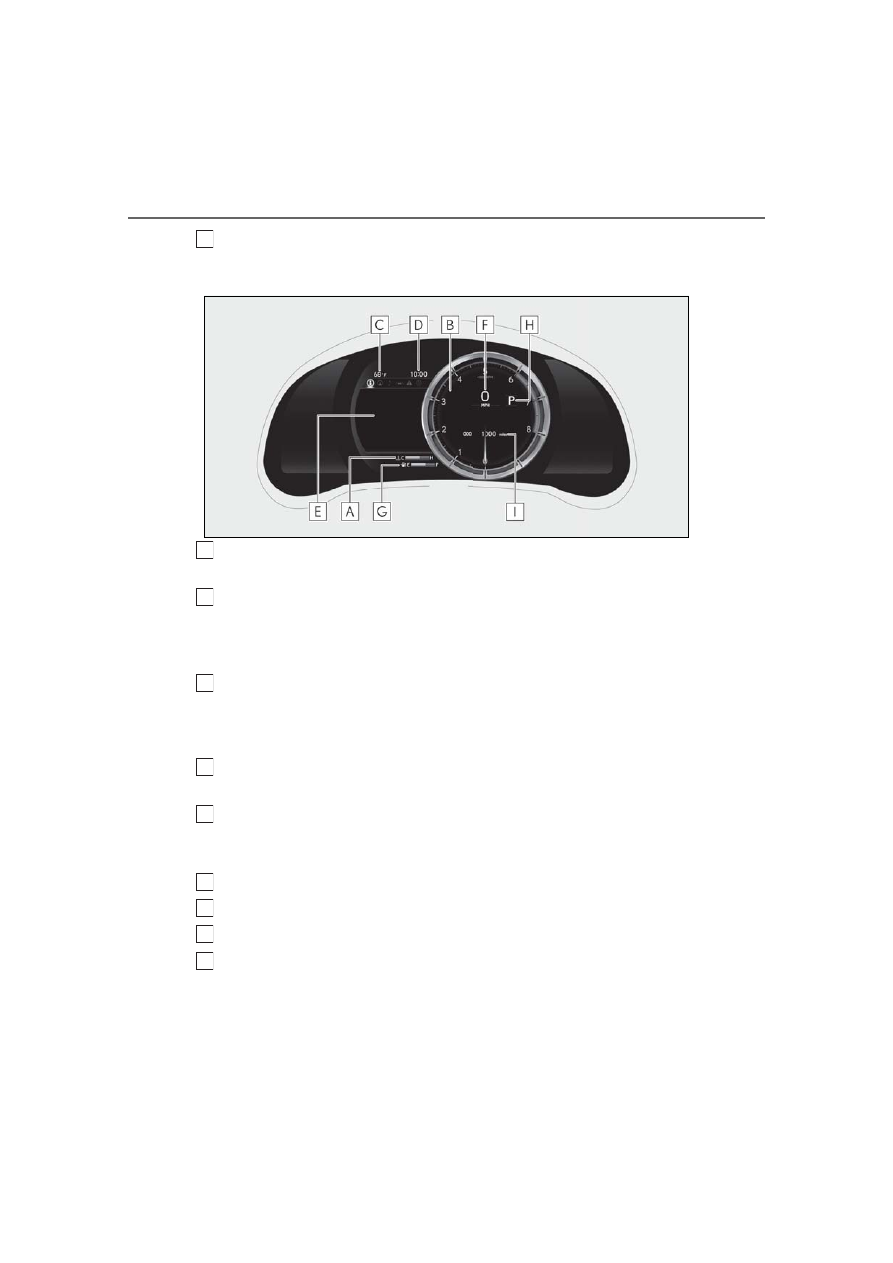

When the main meter is moved to the right, some of the meter displays and the
gauge layout will change.

The units used on the meters may differ depending on the target region.



Main meter in center position

Engine coolant temperature gauge

Displays the engine coolant temperature

Tachometer

Displays the engine speed in revolutions per minute
When Sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Clock

Time displayed is linked to the analog clock on the instrument panel. (



P.238)

Multi-information display

Presents the driver with a variety of vehicle data (



P.71)

Displays warning messages in case of a malfunction (



P.313)

Speedometer
Fuel gauge
Shift position/shift range/gear position (



P.130, 132)

J

A

B

C

D

E

F

G

H

68

2-1. Instrument cluster

Odometer and trip meter display (



P.70)



Main meter moved to the right

Engine coolant temperature gauge

Displays the engine coolant temperature

Tachometer

Displays the engine speed in revolutions per minute
When Sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Clock

Time displayed is linked to the analog clock on the instrument panel. (



P.238)

Multi-information display

Presents the driver with a variety of vehicle data (



P.71)

Displays warning messages in case of a malfunction (



P.313)

Speedometer
Fuel gauge
Shift position/shift range/gear position (



P.130, 132)

Odometer and trip meter display (



P.70)

■

Rev indicator (F SPORT models)

When the engine speed reaches a set
speed, a ring-shaped indicator will be

displayed on the tachometer.

I

A

B

C

D

E

F

G

H

I

69

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

The desired engine speed at which the Rev
indicator will begin to be displayed can be
set on

 of the multi-information display.

(



P.76)

■

Rev peak (F SPORT models)

The engine speed reaches or exceeds
5000 rpm, an afterimage of the
tachometer will be displayed at the
highest engine speed for approxi-
mately 0.5 seconds.

Moves between center and right-side
positions.

■

The meters and display illuminate when

The engine switch is in IGNITION ON

mode.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “_ _”or “E” is displayed, the system

may be malfunctioning.

Take your vehicle to your Lexus dealer.

■

Pop-up display

●

In some situations, such as when a switch

operation is performed, a pop-up display

will be temporarily displayed on the

multi-information display or the odome-

ter/trip meter screen (F SPORT models).

●

Some pop-up displays can be set on/off.

(



P.76)

■

Customization

The meter display can be customized on

the multi-information display. (



P.363)

Changing the main meter loca-
tion (F SPORT models)

70

2-1. Instrument cluster

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

■

Pop-up display

In some situations a pop-up display
notifying you of the distance until the
next oil change will be displayed.

Distance until the next engine oil change
will be displayed when a warning message
indicating that oil maintenance should be
performed soon or is required is displayed.

The brightness of the instrument panel
lights can be adjusted.

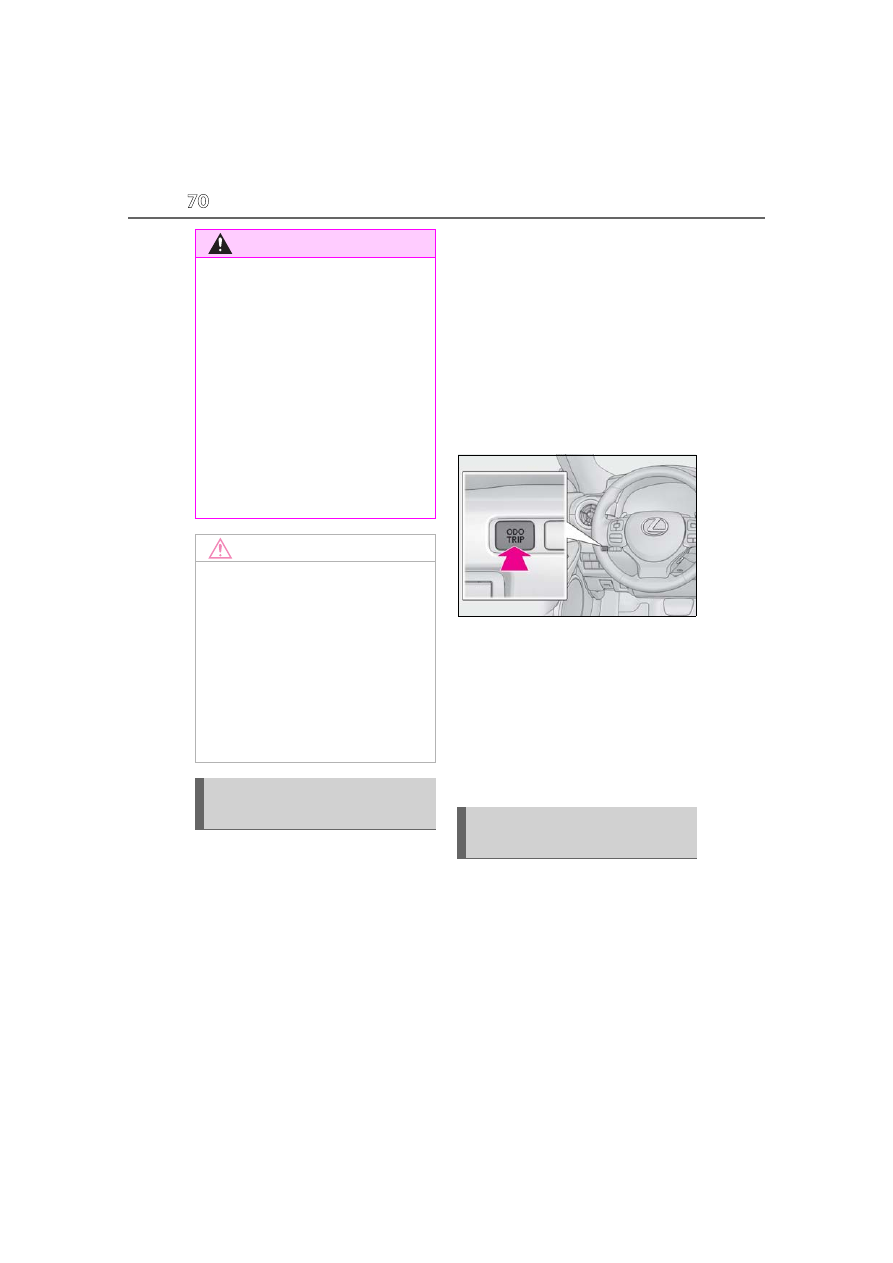

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.333)

Odometer and trip meter dis-
play

Changing the instrument panel
light brightness

71

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Darker
Brighter

■

Instrument panel brightness adjustment

The instrument panel brightness levels

when the tail lights are on and off can be

adjusted individually. However, when the

surroundings are bright (daytime, etc.),

turning on the tail lights will not change the

instrument panel brightness.
At this time, any adjustments made to the

instrument panel brightness levels will be

applied to both settings at once.



Except F SPORT models



F SPORT models (main meter in
center position)



F SPORT models (main meter
moved to the right)

A
B

Multi-information display

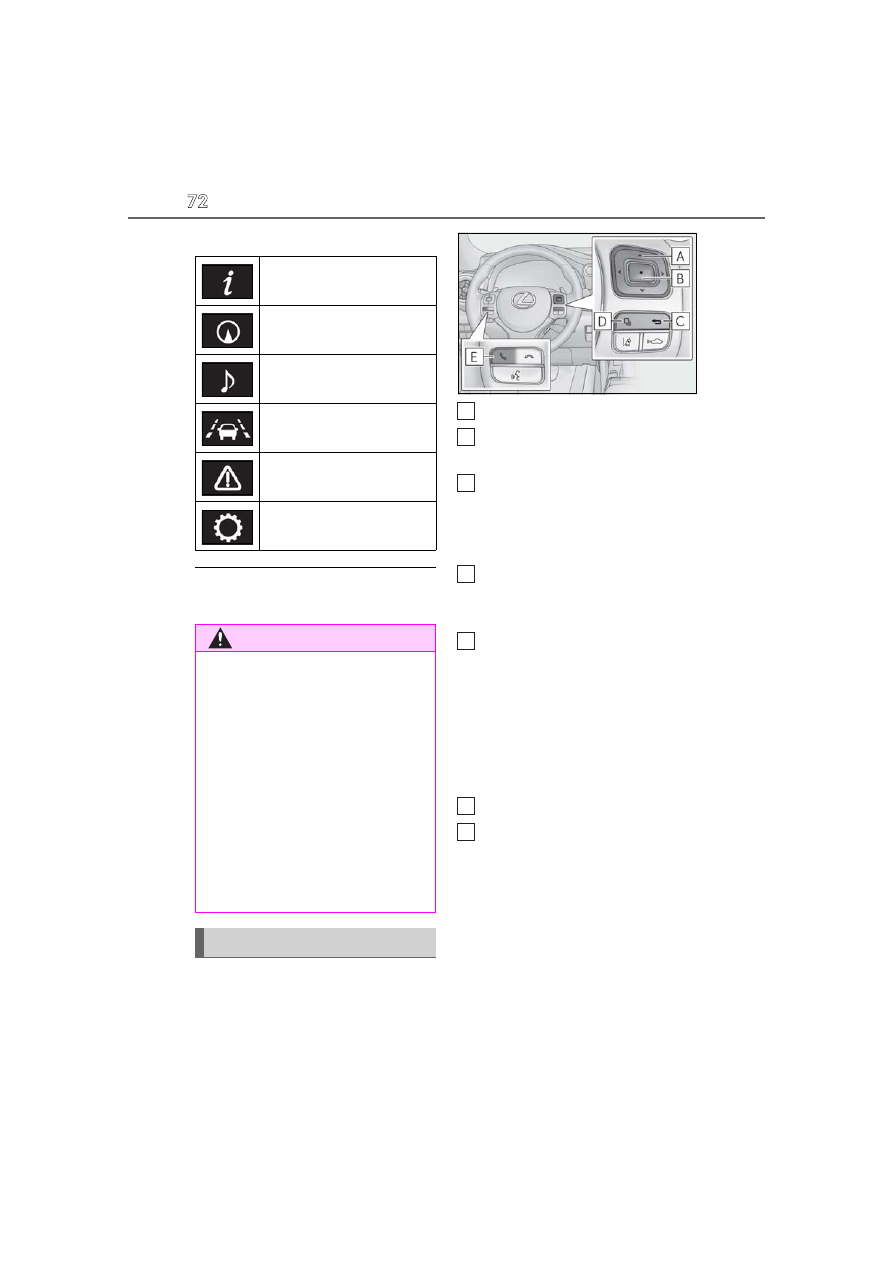

The multi-information display pres-
ents the driver with a variety of
vehicle data.

Displays and menu icons

72

2-1. Instrument cluster

■

Menu icons

■

Liquid crystal display



P.70

The multi-information display is oper-
ated using the meter control switches.

Select an item/change pages
Press: Enter/Set
Press and hold: Reset
Return to the previous screen

Pressing and holding the switch will display
the first screen of the selected menu icon.



Except F SPORT models

Press: Display the top screen
Press and hold: Register current
screen as the top screen
Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
“NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.



F SPORT models

Move the main meter
Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
“NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

■

Registering a top screen (except F
SPORT models)

The displayed top screen can be

Drive information

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving assist system informa-
tion

Warning message display

Settings display

WARNING

■

The multi-information display at low

temperatures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

Changing the meter display

A

B

C

D

E

D

E

73

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

changed to a registered screen of your
choice.
To register a screen as the top screen,
display the desired screen and press
and hold

.

■

Content displayed as drive infor-
mation

Select to display various drive data.
Up to 2 of the following items can be
selected for each drive information
screen:
Items displayed can be switched by
pressing

 or

 of the meter con-

trol switches to select

 and pressing

 or

.

F SPORT models: When the main
meter is in the center position, only one
item will be displayed at a time.
F SPORT models: Some drive informa-
tion items can only be displayed when
the main meter is in the center position
or when it is moved to the right.



Current fuel consumption

Displays instantaneous current fuel con-
sumption



Average fuel economy

• After reset: Displays average fuel con-

sumption since display reset

*1, 2

• After start: Displays average fuel con-

sumption since engine start

*2

• After refuel: Displays average fuel con-

sumption since refuel

*2, 3



Average vehicle speed

• After reset: Displays average vehicle

speed since display reset

*1

• After start: Displays average vehicle

speed since engine start



Elapsed time

• After reset: Displays elapsed time since

the display was reset

*1

• After start: Displays elapsed time since

engine start



Distance

• Driving range: Displays driving range

with remaining fuel

*3, 4

• After start: Displays drive distance since

vehicle start



Other

Blank: No item

*1

: The function can be reset by pressing

the

 of the meter control switches

for longer than 1 second when the item
to reset is displayed.
If there is more than one item that can
be reset, the item selection screen will
appear.

*2

: Use the displayed fuel consumption as a

reference.

*3

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.

*4

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

Drive information

74

2-1. Instrument cluster

■

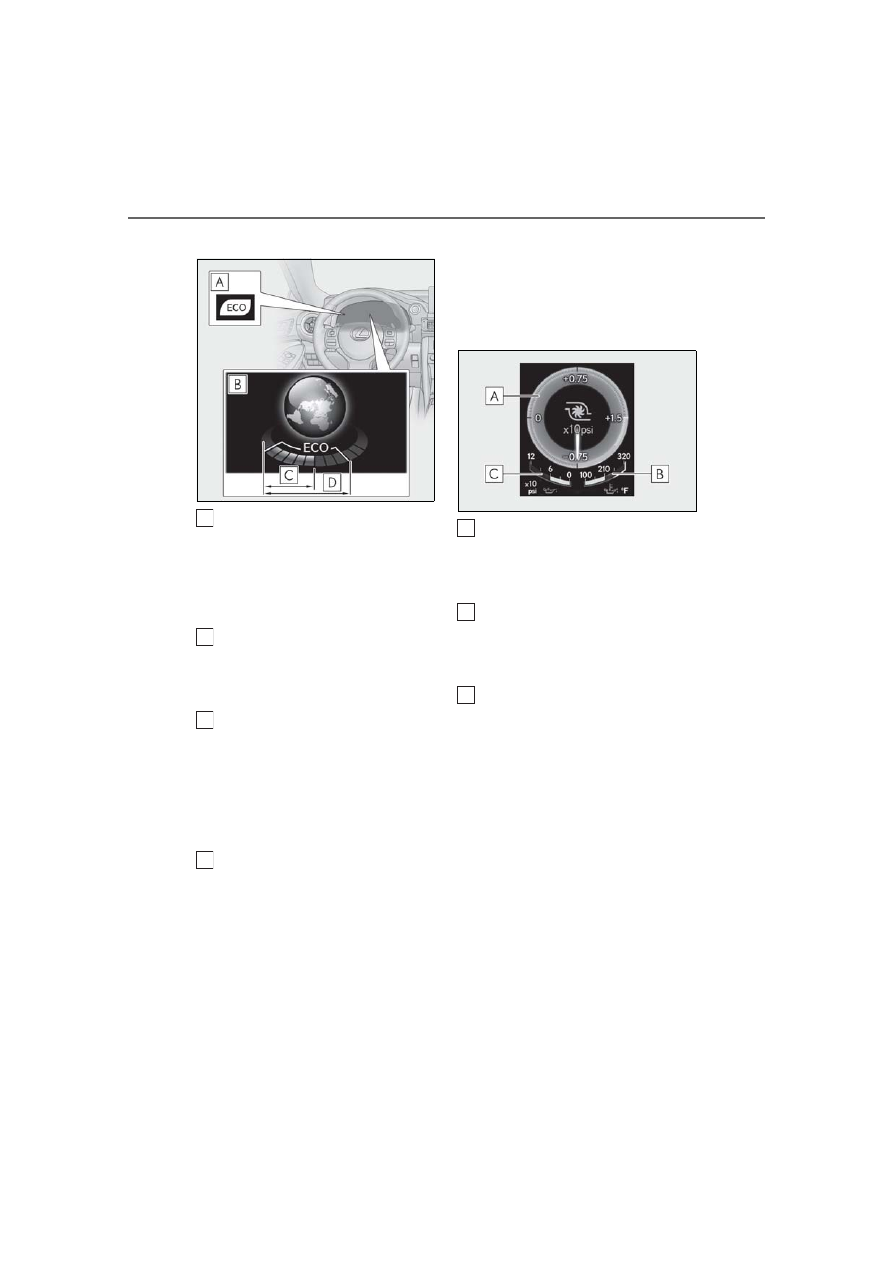

Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or when
the vehicle is stopped, the light turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.

Eco driving ratio based on acceler-
ation

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driv-
ing Indicator Zone Display will illuminate.
At this time, the Eco Driving Indicator Light
will turn off.

Zone of Eco driving

Eco Driving Indicator will not operate
under the following conditions:



The shift lever is in any position
other than D.



A paddle shift switch is operated.



Neither Normal mode nor Eco
drive mode is selected. (



P.206)



The vehicle speed is approximately
80 mph (130 km/h) or higher.

■

Boost gauge/engine oil tempera-
ture gauge/engine oil pressure
gauge (if equipped)

*

Boost gauge

Displays the boost pressure. The display
will change color if the specified pressure is
exceeded.

Engine oil temperature gauge

Displays the engine oil temperature.The
display will flash if the engine oil tempera-
ture exceeds 284 °F (140 °C).

Engine oil pressure gauge

Displays the engine oil pressure. A buzzer
will sound and warning message will be
displayed if the engine oil pressure
becomes low. (



P.305)

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.

*

: For F SPORT models, this item is not

available when the main meter is in the
center position.

■

G-force (if equipped)

*

Displays lateral G-forces on the vehi-
cle.

A

B

C

D

A

B

C

75

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

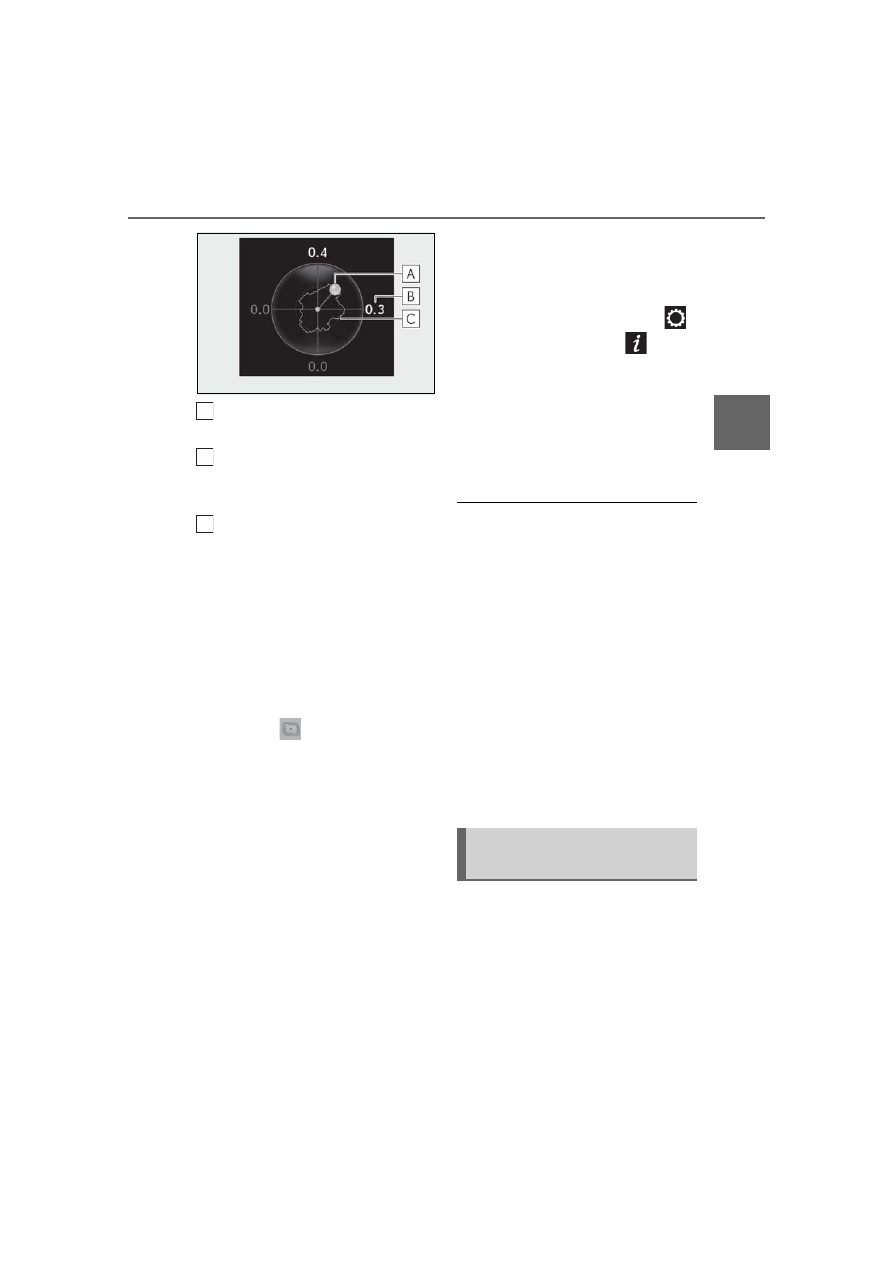

Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces

This display is intended for use as a
guideline. Depending on factors such
as the road surface condition, tem-
perature and vehicle speed, the display
may not show the actual condition of
the vehicle.



Resetting the record of maximum
G-forces

Press and hold

 to reset the record.



Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

*

: For F SPORT models, this item is not

available when the main meter is in the
center position.

■

Tire pressure



P.277

■

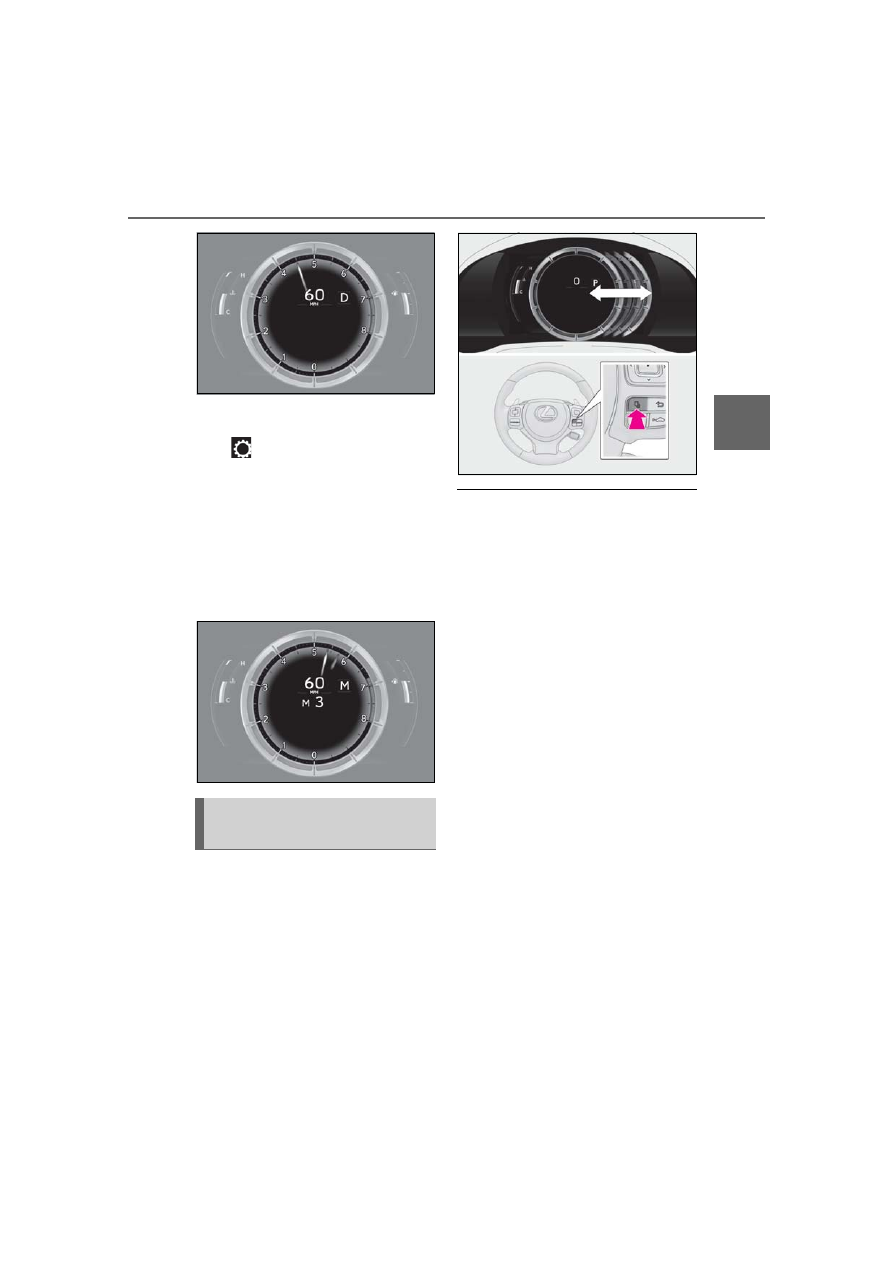

Gear positions

Displays the current gear position
when the shift lever is in D or M.

■

Units (if equipped)

*

The units of measure used can be
changed while driving.

Unlike the units setting performed on

,

the units setting performed on

 can be

changed while driving.

*

: For F SPORT models, this item is not

available when the main meter is in the
right-side position.

■

Blank (No items)

Displays no drive information contents.

■

Tire pressure

●

It may take a few minutes to display the

tire inflation pressure after the engine

switch is turned to IGNITION ON mode.

It may also take a few minutes to display

the tire inflation pressure after inflation

pressure has been adjusted.

●

“---” may be displayed if the tire position

information cannot be determined due to

unfavorable radio wave conditions.

●

Tire inflation pressure changes with tem-

perature. The displayed values may also

be different from the values measured

using a tire pressure gauge.

■

G-force display (if equipped)

The G-force values may not be zero even

when the vehicle is parked, such as when it

is parked on an incline.

Select to display the following naviga-
tion system-linked information.



Route guidance



Compass display (heading-up dis-
play)

A

B

C

Navigation system-linked dis-
play (if equipped)

76

2-1. Instrument cluster

Select to enable selection of an audio
source or track on the display using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist) (



P.171)



RSA (Road Sign Assist) (if
equipped) (



P.180)



Dynamic radar cruise control with
full-speed range (



P.182)

Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. (



P.313)

■

Meter display settings that can be
changed



Language

Select to change the language on the dis-
play.



Units

Select to change the units of measure dis-
played.



Eco Driving Indicator Light

(



P.74)

Select to enable/disable the Eco Driving
Indicator Light.



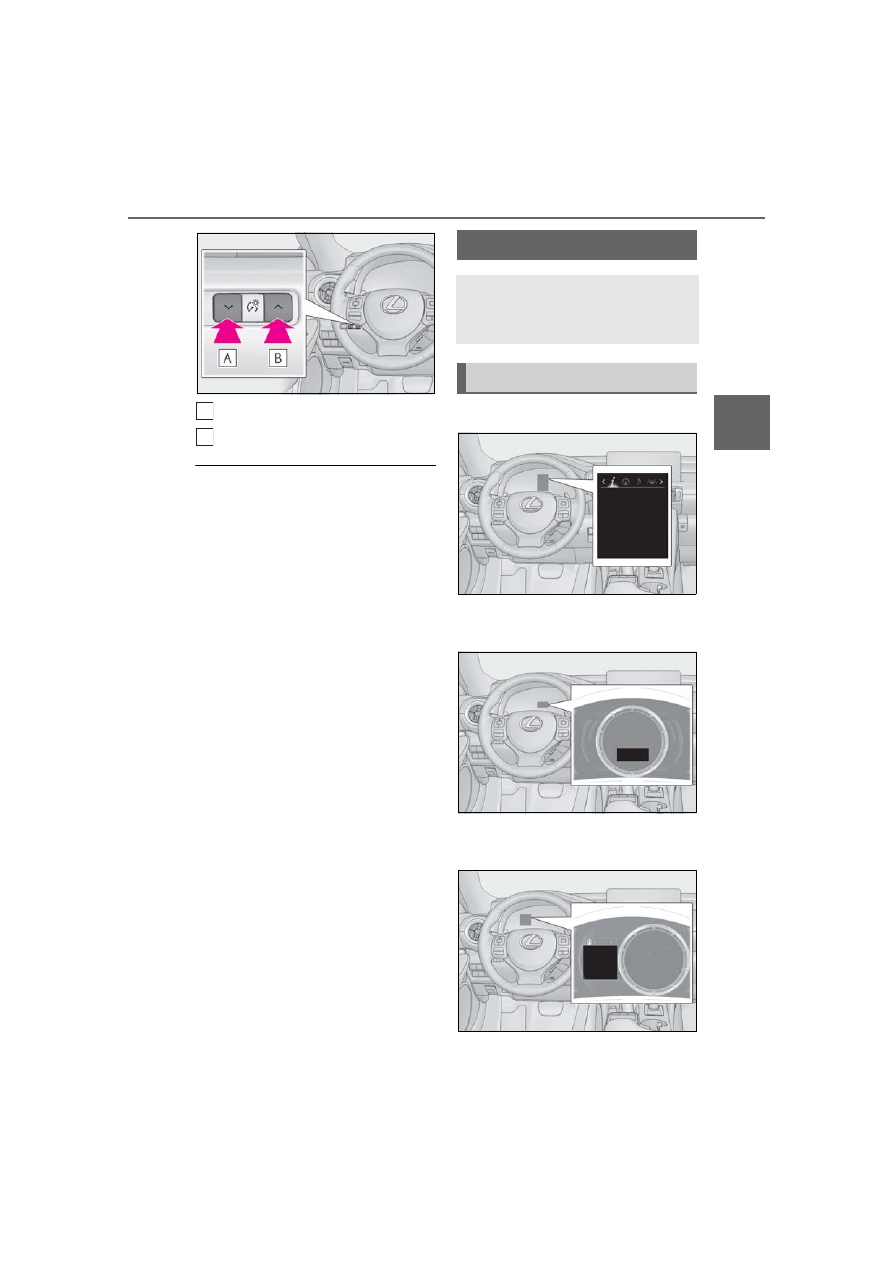

Switch settings (except F

SPORT models)

Displays a procedure to register a desired
screen to

.

You can register 1 screen as a shortcut,
which can be displayed by pressing

.



Drive information screen (



P.73)

Select to choose between 2 items that will
be displayed on each drive information
screen (“Drive info 1”, “Drive Info 2” and
“Drive Info 3”

*

) respectively.



Pop-up display (



P.69)

Select to enable/disable the pop-up dis-
play.
• Intersection guidance (if equipped)
• Incoming calls
• Audio Feedback (F SPORT)
• Volume Feedback (F SPORT)
• Brightness adjustment



Color

Select to set the color of the cursor on the
multi-information display.



Rev indicator (F SPORT models)
(



P.68)

• Select to enable/disable the Rev indica-

tor.

• Select to set the desired engine speed at

which the Rev indicator will begin to be
displayed.



Rev peak (F SPORT models)
(



P.69)

Select to enable/disable the Rev peak.



Default setting

Select to reset the meter display settings to
the default setting.

*

: Except  F  SPORT  models

Audio system-linked display

Driving assist system information

Warning message display

Settings display

77

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

■

Vehicle functions and settings that
can be changed



P.363

■

Background color of the indicator/shift

position display area (except F SPORT

models)

The background color of the indicator/shift

position display area is changed according

to the driving mode as follows (



P.206):

●

Eco drive mode: Blue

●

Sport mode: Red

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

●

Do not look continuously at the

multi-information display while driving

as you may fail to see pedestrians,

objects on the road, etc. ahead of the

vehicle.

■

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that

the engine is running while setting up the

display features.

78

2-1. Instrument cluster

Center Display
“MENU” button
Touchpad

■

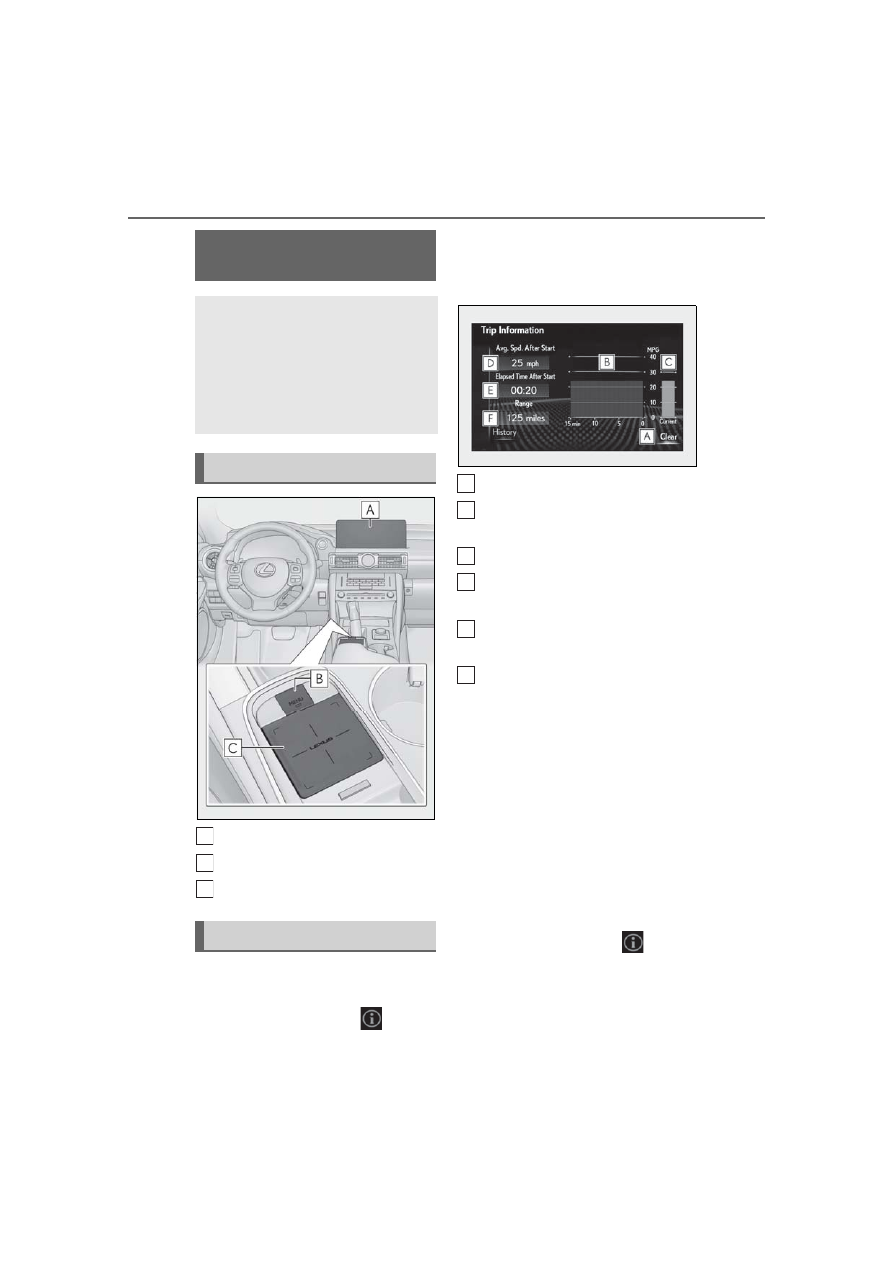

Trip information

Press the “MENU” button on the
Remote Touch, then select

 on the

menu screen, and then select “ECO”.
If a screen other than “Trip Information”
is displayed, select “Trip Information”.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range

Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the engine switch was last turned to
IGNITION ON mode. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

History

Press the “MENU” button on the
Remote Touch, then select

 on the

menu screen, and then select “ECO”.
If a screen other than “History” is dis-
played, select “History”.

Fuel consumption informa-
tion

Fuel consumption information can
be displayed on the Center Display.

Vehicles with a 10.3-inch display:
The fuel consumption information
can be displayed and operated on
the side display.

System components

Consumption

A
B
C

A
B

C
D

E

F

79

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

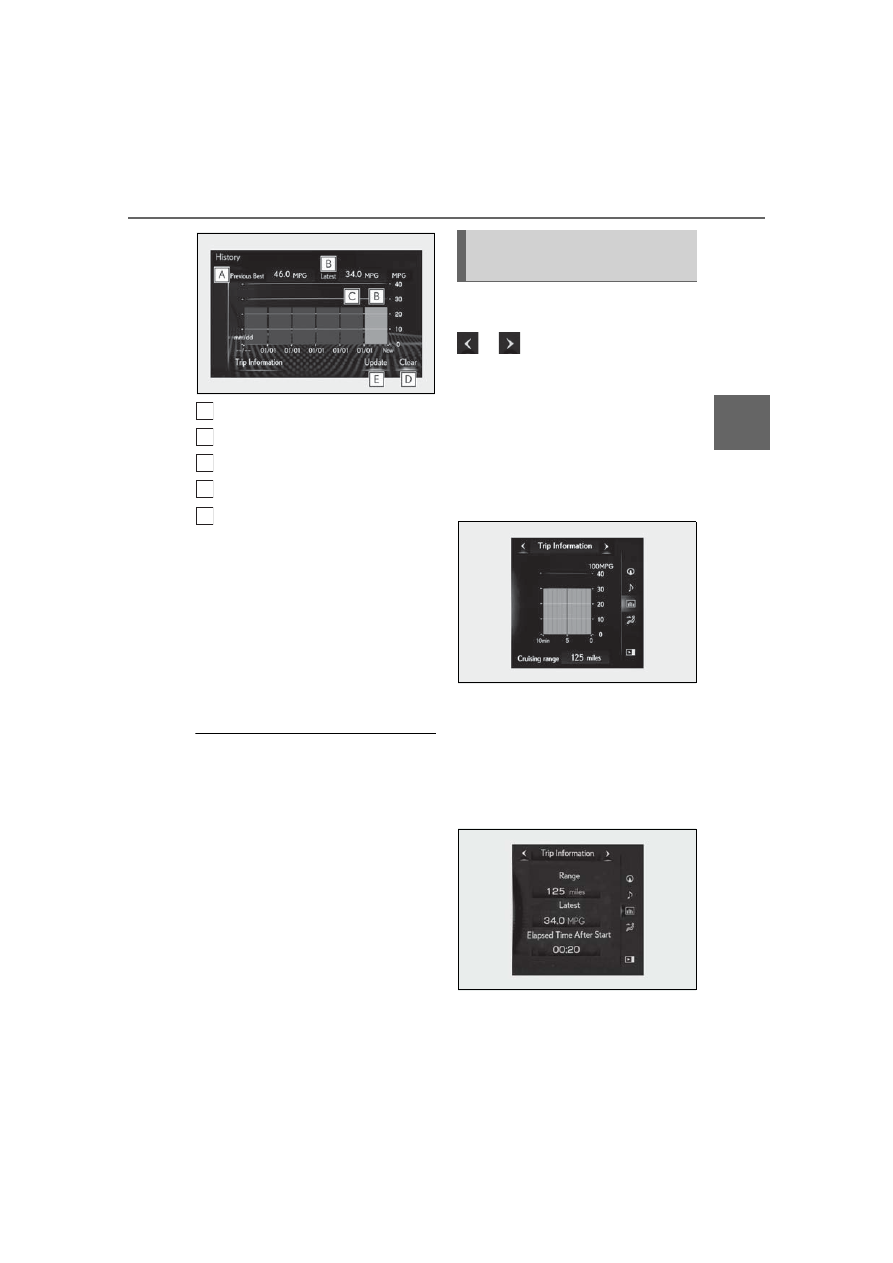

Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data

The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

Display the vehicle information on the
side display (



P.222), and then select

 or

 to display the desired

screen.
The image is an example only, and may
vary slightly from actual conditions.

■

Trip information (type A)

Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.

Use the displayed average fuel consump-
tion as a reference.

■

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.

Use the displayed average fuel consump-
tion as a reference.

A
B
C
D

E

Using the side display (vehicles
with a 10.3-inch display)

80

2-1. Instrument cluster

■

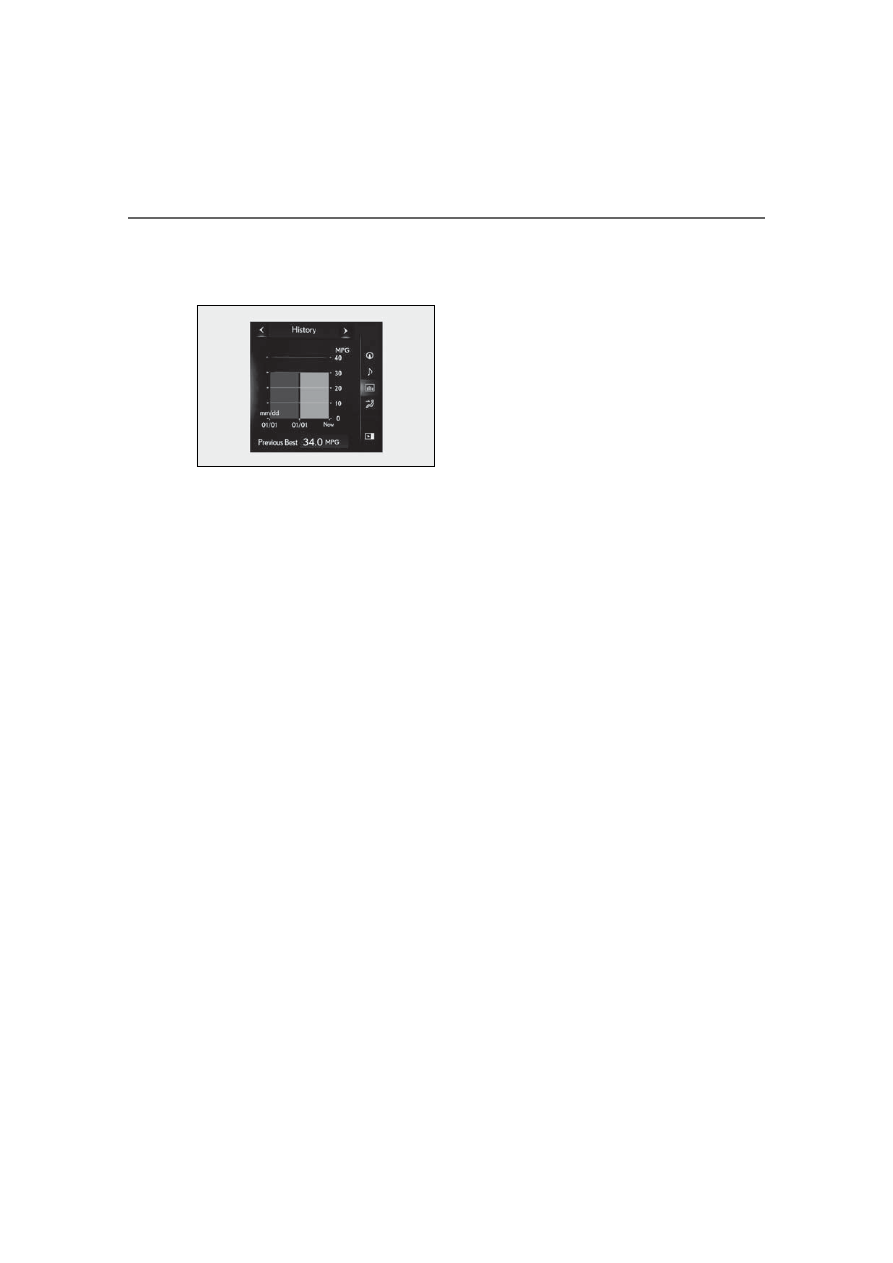

History

Displays the average fuel consumption
and highest fuel consumption.

Use the displayed average fuel consump-
tion as a reference.

81

3

3

Be

fore
 dri
ving

Before driving

.

3-1. Key information

Keys ...................................................

82

3-2. Opening, closing and locking the

doors and trunk

Doors.................................................

86

Trunk..................................................

89

Smart access system with

push-button start.......................

93

3-3. Adjusting the seats

Front seats.......................................

97

Rear seats........................................

99

Power easy access system/driving

position memory/memory recall
function........................................

100

Head restraints............................

103

3-4. Adjusting the steering wheel and

mirrors

Steering wheel.............................

106

Inside rear view mirror.............

107

Outside rear view mirrors......

108

3-5. Opening, closing the windows

and moon roof

Power windows............................

110

Moon roof ......................................

112

82

3-1. Key information

3-1.Key information

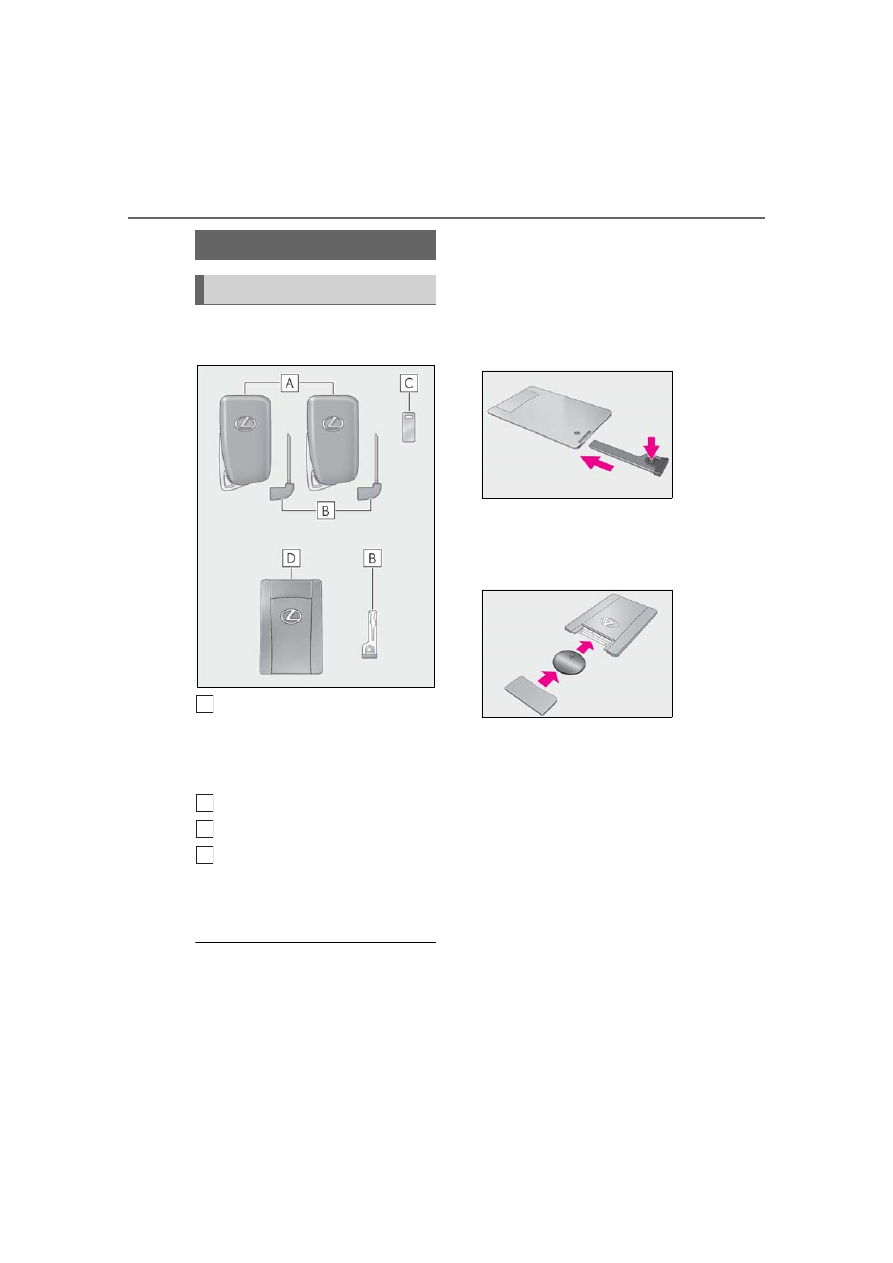

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart access system with

push-button start (



P.93)

• Operating the wireless remote control

function (



P.84)

Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)

Operating the smart access system with
push-button start (



P.93)

■

Card key (if equipped)

●

The card key is not waterproof.

●

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

●

If it is difficult to take out the mechanical

key, push down the lock release button

using a pen tip etc. If it is still difficult to

pull it out, use a coin etc.

●

To store the mechanical key in the card

key, insert it while pressing the lock

release button.

●

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

■

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag etc., ensure that

the buttons are not likely to be pressed acci-

dentally. Pressing a button may cause the

electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

(The card key battery life is about a year

and a half.)

●

If the battery becomes low, an alarm will

sound in the cabin and a message will be

shown on the multi-information display

when the engine is stopped.

Keys

The keys

A

B
C
D

83

3-1. Key information

3

Be

fore
 dri
ving

●

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

that the electronic key battery may be

depleted. Replace the battery when nec-

essary.

• The smart access system with push-but-

ton start or the wireless remote control

does not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface

does not turn on.

●

To avoid serious deterioration, do not

leave the electronic key within 3 ft. (1 m)

of the following electrical appliances that

produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Table lamps

• Induction cookers

■

Replacing the battery



P.287

■

Confirmation of the registered key

number

The number of keys already registered to

the vehicle can be confirmed. Ask your

Lexus dealer for details.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to

strong shocks or bend them.

●

Do not expose the keys to high tem-

peratures for long periods of time.

●

Do not get the keys wet or wash them

in an ultrasonic washer etc.

●

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else

to the surface of the electronic key.

●

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers.

■

Carrying the electronic key on your

person

Carry the electronic key 3.9 in. (10 cm)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 3.9 in. (10

cm) of the electronic key may interfere

with the key, causing the key to not func-

tion properly.

■

In case of a smart access system with

push-button start malfunction or

other key-related problems



P.328

■

When an electronic key is lost



P.327

■

Handling the card key (if equipped)

●

Do not apply excess force when insert-

ing the mechanical key into the card

key. Doing so may damage the card

key.

●

If the battery or card key terminals get

wet, the battery may corrode. If the key

is dropped into water, or if drinking

water etc. is spilled on the key, immedi-

ately remove the battery cover and

wipe the battery and terminals. (To

remove the battery cover, lightly grasp

and pull it.) If the battery is corroded,

have your Lexus dealer replace the

battery.

●

Do not crush the battery cover or use

a screwdriver to remove the battery

cover. Forcibly removing the battery

cover may bend or damage the key.

●

If the battery cover is frequently

removed, the battery cover may

become loose.

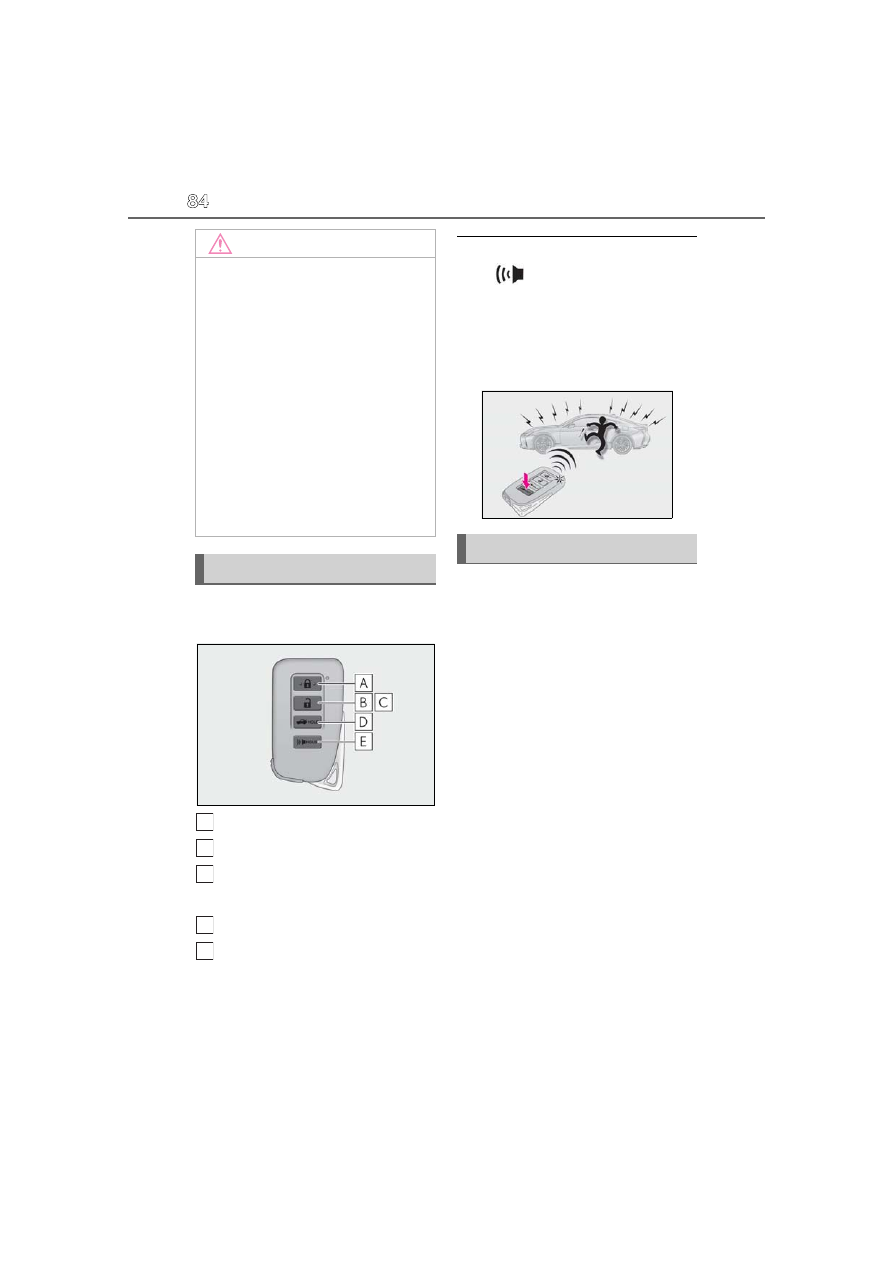

84

3-1. Key information

The electronic keys are equipped with
the following wireless remote control:

Locks the doors (



P.86)

Unlocks the doors (



P.86)

Opens the windows and moon roof
(if equipped)

*

 (



P.86)

Opens the trunk (



P.91)

Sounds the alarm

*

: This setting must be customized at your

Lexus dealer.

■

Panic mode

When

 is pressed for longer than

about one second, an alarm will sound

intermittently and the vehicle lights will flash

to deter any person from trying to break

into or damage your vehicle.
To stop the alarm, press any button on the

electronic key.

To take out the mechanical key, push
the release button and take the key out.

The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
(



P.328)

NOTICE

●

When installing the battery, make sure

to check the direction of the battery.

Installing the battery in the wrong

direction may cause the battery to

deplete rapidly.

●

The surface of the card key may be

damaged, or its coating may peel off in

the following situations:

• The card key is carried together with

hard objects, such as coins and keys.

• The card key is scraped with a sharp

object, such as the tip of a mechanical

pencil.

• The surface of the card key is wiped

with thinner or benzene.

Wireless remote control

A

B

C

D

E

Using the mechanical key
