Lexus RC300 (2023 year). Manual in english - page 8

246

5-5. Using the other interior features

●

The vehicle is on an inclined surface.

●

The vehicle is in a place where the earth’s

magnetic field is subject to interference

by artificial magnetic fields (under-

ground car park/parking lot, under a

steel tower, between buildings, roof car

park/parking lot, near an intersection,

near a large vehicle, etc.).

●

The vehicle has become magnetized.

(There is a magnet or metal object near

the inside rear view mirror.)

●

The battery has been disconnected.

●

A door is open.

■

Deviation

The direction display deviates from the
true direction determined by the
earth’s magnetic field. The amount of
deviation varies according to the geo-
graphic position of the vehicle.

If you cross over a map boundary shown in

illustration, the compass will deviate.
To obtain higher precision or perfect cali-
bration, refer to the following.

■

Deviation calibration

1

Stop the vehicle.

WARNING

■

While driving the vehicle

Do not adjust the display. Adjust the dis-

play only when the vehicle is stopped.

NOTICE

■

To avoid compass malfunctions

Do not place magnets or any metal

objects near the inside rear view mirror.

Doing this may cause the compass sen-

sor to malfunction.

■

To ensure normal operation of the

compass

●

Do not perform circling calibration of

the compass in a place where the

earth’s magnetic field is subject to

interference by artificial magnetic

fields.

●

During calibration, do not operate

electric systems (moon roof, power

windows, etc.) as they may interfere

with the calibration.

Calibrating the compass

247

5-5. Using the other interior features

5

In

te

rio

r f

ea

tu

re

s

2

Press and hold the switch for 6 sec-
onds.

A number (1 to 15) appears on the com-

pass display.

3

Press the switch and, referring to
the map above, select the number
of the zone where you are.

If the direction is displayed several seconds

after adjustment, the calibration is com-

plete.

■

Circling calibration

1

Stop the vehicle in a place where it
is safe to drive in a circle.

2

Press and hold the switch for 9 sec-
onds.

“C” appears on the compass display.

3

Drive the vehicle at 5 mph (8
km/h) or less in a circle until a
direction is displayed.

If there is not enough space to drive in a

circle, drive around the block until the

direction is displayed.

WARNING

■

When doing the circling calibration

Secure a wide space, and watch out for

people and vehicles in the neighbor-

hood. Do not violate any local traffic

rules while performing circling calibra-

tion.

248

5-5. Using the other interior features

249

6

6

Mai
nte

na

nc

e a

nd

 c

are

Maintenance and care

.

6-1. Maintenance and care

Cleaning and protecting the vehi-

cle exterior................................

250

Cleaning and protecting the vehi-

cle interior .................................

253

6-2. Maintenance

Maintenance requirements ..

256

General maintenance.............

257

Emission inspection and mainte-

nance (I/M) programs .........

260

6-3. Do-it-yourself maintenance

Do-it-yourself service precautions

.........................................................

261

Hood...............................................

263

Positioning a floor jack............

263

Engine compartment...............

265

Tires ................................................

274

Tire inflation pressure..............

282

Wheels...........................................

284

Air conditioning filter...............

285

Electronic key battery.............

287

Checking and replacing fuses

........................................................

289

Headlight aim...............................

291

Light bulbs....................................

292

250

6-1. Maintenance and care

6-1.Maintenance and care



Working from top to bottom, liber-
ally apply water to the vehicle body,
wheel wells and underside of the
vehicle to remove any dirt and dust.



Wash the vehicle body using a
sponge or soft cloth, such as a
chamois.



For hard-to-remove marks, use car
wash soap and rinse thoroughly with
water.



Wipe away any water.



Wax the vehicle when the water-
proof coating deteriorates.

If water does not bead on a clean surface,
apply wax when the vehicle body is cool.

■

Black stainless steel window moldings (F

SPORT models)

The stainless steel window moldings are

made of black oxide coated stainless steel.
When cleaning the vehicle, do not scrub the

moldings with an abrasive cleaner as their

finish may be damaged or the color may

change.

■

Self-restoring coat

The vehicle body has a self-restoring coat-

ing that is resistant to small surface

scratches caused in a car wash etc.

●

The coating lasts for 5 to 8 years from

when the vehicle is delivered from the

plant.

●

The restoration time differs depending on

the depth of the scratch and outside tem-

perature.

The restoration time may become shorter

when the coating is warmed by applying

warm water.

●

Deep scratches caused by keys, coins,

etc. cannot be restored.

●

Do not use wax that contains abrasives.

■

Automatic car washes

●

Fold the mirrors before washing the vehi-

cle. Start washing from the front of the

vehicle. Make sure to extend the mirrors

before driving.

●

Brushes used in automatic car washes

may scratch the vehicle surface, parts

(wheel, etc.) and damage the paint.

■

High pressure car washes

As water may enter the cabin, do not bring

the nozzle tip near the gaps around the

doors or perimeter of the windows, or spray

these areas continuously.

■

When using a car wash

If the door handle becomes wet while the

electronic key is within the effective range,

the door may lock and unlock repeatedly. In

that case, follow the following correction

procedures to wash the vehicle:

●

Place the key in a position 6 ft. (2 m) or

more separate from the vehicle while the

vehicle is being washed. (Take care to

ensure that the key is not stolen.)

●

Set the electronic key to battery-saving

mode to disable the smart access system

with push-button start. (



P.93)

■

Wheels and wheel ornaments

●

Remove any dirt immediately by using a

neutral detergent.

●

Wash detergent off with water immedi-

Cleaning and protecting the
vehicle exterior

Perform cleaning in a manner
appropriate to each component
and its material.

Cleaning instructions

251

6-1. Maintenance and care

6

Mai
nte

na

nc

e a

nd

 c

are

ately after use.

●

To protect the paint from damage, make

sure to observe the following precau-

tions.

• Do not use acidic, alkaline or abrasive

detergent

• Do not use hard brushes

• Do not use detergent on the wheels when

they are hot, such as after driving or park-

ing in hot weather

■

Brake caliper coating (F SPORT mod-

els)

●

When using detergent, use neutral deter-

gent. Do not use hard brushes or abra-

sive cleaners, as they will damage the

paint.

●

Do not use detergent on the brake cali-

pers when they are hot.

●

Wash detergent off immediately after

use.

■

Brake pads and calipers

Rust may form if the vehicle is parked with

wet brake pads or disc rotors, causing them

to stick. Before parking the vehicle after it is

washed, drive slowly and apply the brakes

several times to dry the parts.

■

Bumpers

Do not scrub with abrasive cleaners.

■

Side windows water-repellent coating

(if equipped)

The following precautions can extend the

effectiveness of the water-repellent coating.

●

Remove any dirt, etc. from the side win-

dows regularly.

●

Do not allow dirt and dust to accumulate

on the windows for a long period.

Clean the windows with a soft, damp

cloth as soon as possible.

●

Do not use wax or glass cleaners that

contain abrasives when cleaning the win-

dows.

●

Do not use any metallic objects to

remove condensation build up.

■

Plated portions

If dirt cannot be removed, clean the parts as

follows:

●

Use a soft cloth dampened with an

approximately 5% solution of neutral

detergent and water to clean the dirt off.

●

Wipe the surface with a dry, soft cloth to

remove any remaining moisture.

●

To remove oily deposits, use alcohol wet

wipes or a similar product.

WARNING

■

When washing the vehicle

Do not apply water to the inside of the

engine compartment. Doing so may

cause the electrical components, etc. to

catch fire.

■

When cleaning the windshield (vehi-

cles with rain-sensing windshield wip-

ers)

Set the wipers to the intermittent wind-

shield wipers. (



P.146)

If AUTO mode is selected, the wipers

may operate unexpectedly in the follow-

ing situations, and may result in hands

being caught or other serious injuries

and cause damage to the wiper blades.

●

When the upper part of the windshield

where the raindrop sensor is located is

touched by hand

●

When a wet rag or similar is held close

to the raindrop sensor

●

If something bumps against the wind-

shield

●

If you directly touch the raindrop sen-

sor body or if something bumps into

the raindrop sensor

252

6-1. Maintenance and care

WARNING

■

Precautions regarding the exhaust

pipes

As exhaust gases cause the exhaust

pipes to become quite hot, do not touch

the exhaust pipes while the engine is run-

ning or immediately after the engine is

turned off.

When washing the vehicle, be careful not

to touch the exhaust pipes until they have

cooled sufficiently, as touching hot

exhaust pipes can cause burns.

■

Precaution regarding the rear

bumper with Blind Spot Monitor (if

equipped)

If the paint of the rear bumper is chipped

or scratched, the system may malfunc-

tion. If this occurs, consult your Lexus

dealer.

NOTICE

■

To prevent paint deterioration and

corrosion on the body and compo-

nents (aluminum wheels, etc.)

●

Wash the vehicle immediately in the

following cases:

• After driving near the sea coast

• After driving on salted roads

• If coal tar or tree sap is present on the

paint surface

• If dead insects, insect droppings or

bird droppings are present on the

paint surface

• After driving in an area contaminated

with soot, oily smoke, mine dust, iron

powder or chemical substances

• If the vehicle becomes heavily soiled

with dust or mud

• If liquids such as benzene and gasoline

are spilled on the paint surface

●

If the paint is chipped or scratched,

have it repaired immediately.

●

To prevent the wheels from corroding,

remove any dirt and store in a place

with low humidity when storing the

wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use organic

substances or scrub with a hard brush.

This may damage the surfaces of the

lights.

●

Do not apply wax to the surfaces of the

lights.Wax may cause damage to the

lenses.

■

To prevent damage to the windshield

wiper arms

When lifting the wiper arms away from

the windshield, pull the driver side wiper

arm upward first, and repeat for the pas-

senger side. When returning the wipers

to their original position, do so from the

passenger side first.

■

When using an automatic car wash

(vehicles with rain-sensing windshield

wipers)

Set the wipers to the intermittent wind-

shield wipers. (



P.146)

If AUTO mode is selected, the wipers

may operate and the wiper blades may

be damaged.

■

When using a high pressure car wash

●

When washing the vehicle, do not

spray the camera or its surrounding

area directly with a high pressure

washer. Shock applied from high pres-

sure water may cause the device to not

operate normally.

●

Do not spray water directly on the

radar which is equipped behind the

emblem. Otherwise it may cause the

device to be damaged.

253

6-1. Maintenance and care

6

Mai
nte

na

nc

e a

nd

 c

are



Remove dirt and dust using a vac-
uum cleaner. Wipe dirty surfaces
with a cloth dampened with luke-
warm water.



If dirt cannot be removed, wipe it off
with a soft cloth dampened with
neutral detergent diluted to approx-
imately 1%.

Wring out any excess water from the cloth
and thoroughly wipe off remaining traces
of detergent and water.

■

Shampooing the carpets

There are several commercial foaming-type

cleaners available. Use a sponge or brush

to apply the foam. Rub in overlapping cir-

cles. Do not use water. Wipe dirty surfaces

and let them dry. Excellent results are

obtained by keeping the carpet as dry as

possible.

■

Handling the seat belts

Clean with mild soap and lukewarm water

using a cloth or sponge. Also check the

belts periodically for excessive wear, fraying

or cuts.

■

When cleaning the carpeted portions of

the glove box, console box, etc.

If a strong adhesive tape is used, there is a

possibility that the surface of the carpet

could be damaged.

NOTICE

●

Do not bring the nozzle tip close to

boots (rubber or resin manufactured

cover), connectors or the following

parts. The parts may be damaged if

they come into contact with high-pres-

sure water.

• Traction related parts

• Suspension parts

• Steering parts

• Brake parts

●

Keep the cleaning nozzle at least 11.9

in. (30 cm) away from the vehicle

body. Otherwise resin section, such as

moldings and bumpers, may be

deformed and damaged.

Also, do not continuously hold the nozzle

in the same place.

●

Do not spray the lower part of the

windshield continuously.

If water enters the air conditioning sys-

tem intake located near the lower part of

the windshield, the air conditioning sys-

tem may not operate correctly.

●

Do not wash the underside of the vehi-

cle using a high pressure car washer.

Cleaning and protecting the
vehicle interior

Perform cleaning in a manner
appropriate to each component
and its material.

Protecting the vehicle interior

254

6-1. Maintenance and care

WARNING

■

Water in the vehicle

●

Do not splash or spill liquid in the vehi-

cle.

Doing so may cause electrical compo-

nents, etc. to malfunction or catch fire.

●

Do not get any of the SRS components

or wiring in the vehicle interior wet.

(



P.28)

An electrical malfunction may cause the

airbags to deploy or not function prop-

erly, resulting in death or serious injury.

■

Cleaning the interior (especially

instrument panel)

Do not use polish wax or polish cleaner.

The instrument panel may reflect off the

windshield, obstructing the driver’s view

and leading to an accident, resulting in

death or serious injury.

NOTICE

■

Cleaning detergents

●

Do not use the following liquids, as

they may discolor the vehicle interior

or cause streaks or damage to painted

surfaces:

• Center Display: Organic substances

such as benzine or gasoline, alkaline

solutions, and alcohol

• Seats: Alkaline solutions, organic sub-

stances such as thinner or benzine,

and alcohol

• Other parts: Organic substances such

as benzine or gasoline, alkaline or

acidic solutions, dye, and bleach

●

Do not use polish wax or polish

cleaner. The instrument panel’s or

other interior part’s painted surface

may be damaged.

■

Preventing damage to leather sur-

faces

Observe the following precautions to

avoid damage to and deterioration of

leather surfaces:

●

Remove any dust or dirt from leather

surfaces immediately.

●

Do not expose the vehicle to direct

sunlight for extended periods of time.

Park the vehicle in the shade, espe-

cially during summer.

●

Do not place items made of vinyl, plas-

tic, or containing wax on the uphol-

stery, as they may stick to the leather

surface if the vehicle interior heats up

significantly.

■

Water on the floor

Do not wash the vehicle floor with water.

Vehicle systems such as the audio system

may be damaged if water comes into

contact with electrical components such

as the audio system above or under the

floor of the vehicle. Water may also

cause the body to rust.

■

When cleaning the inside of the wind-

shield

Do not allow glass cleaner to contact the

lens. Also, do not touch the lens.

(



P.157)

■

Cleaning the inside of the rear win-

dow

●

Do not use glass cleaner to clean the

rear window, as this may cause dam-

age to the rear window defogger

heater wires or antenna. Use a cloth

dampened with lukewarm water to

gently wipe the window clean. Wipe

the window in strokes running parallel

to the heater wires or antenna.

●

Be careful not to scratch or damage

the heater wires or antenna.

255

6-1. Maintenance and care

6

Mai
nte

na

nc

e a

nd

 c

are



Remove dirt and dust using a vac-
uum cleaner.



Wipe off any excess dirt and dust
with a soft cloth dampened with
diluted detergent.

Use a diluted water solution of approxi-
mately 5% neutral wool detergent.



Wring out any excess water from
the cloth and thoroughly wipe off all
remaining traces of detergent.



Wipe the surface with a dry, soft
cloth to remove any remaining
moisture.
Allow the leather to dry in a shaded
and ventilated area.

■

Caring for leather areas

Lexus recommends cleaning the interior of

the vehicle at least twice a year to maintain

the quality of the vehicle’s interior.



Remove dirt and dust using a vac-
uum cleaner.



Wipe it off with a soft cloth damp-
ened with neutral detergent diluted
to approximately 1%.



Wring out any excess water from
the cloth and thoroughly wipe off
remaining traces of detergent and
water.

Cleaning the leather areas

Cleaning the synthetic leather
areas

256

6-2. Maintenance

6-2.Maintenance

■

Repair and replacement

It is recommended that genuine Lexus parts

be used for repairs to ensure performance

of each system. If non-Lexus parts are used

in replacement or if a repair shop other than

a Lexus dealer performs repairs, confirm

the warranty coverage.

■

Allow inspection and repairs to be per-

formed by a Lexus dealer

●

Lexus technicians are well-trained spe-

cialists and are kept up to date with the

latest service information. They are well

informed about the operations of all sys-

tems on your vehicle.

●

Keep a copy of the repair order. It proves

that the maintenance that has been per-

formed is under warranty coverage. If any

problem should arise while your vehicle is

under warranty, your Lexus dealer will

promptly take care of it.

General maintenance should be per-
formed on a daily basis. This can be
done by yourself or by a Lexus dealer.

Scheduled maintenance should be
performed at specified intervals
according to the maintenance sched-
ule.

For details about maintenance items and
schedules, refer to the “Warranty and Ser-
vice Guide”, “Owner’s Manual Supple-
ment” or “Scheduled Maintenance”.

■

Resetting the message indicating main-

tenance is required

After the required maintenance is pre-

formed according to the maintenance

schedule, please reset the message.
To reset the message, follow the procedures

described below:

1

Select

 on the multi-information dis-

play. (



P.76)

2

Press the

 or

 meter control

switch on the steering wheel to select

“Vehicle Settings” then “Scheduled

Maintenance requirements

To ensure safe and economical driv-
ing, day-to-day care and regular
maintenance are essential. It is the
owner’s responsibility to perform
regular checks. Lexus recommends
the maintenance below.

WARNING

■

If your vehicle is not properly main-

tained

Improper maintenance could result in

serious damage to the vehicle and possi-

ble death or serious injury.

■

Handling of the battery

●

Engine exhaust, some of its constitu-

ents, and a wide variety of automobile

components contain or emit chemicals

known to the State of California to

cause cancer and birth defects and

other reproductive harm. Work in a

well ventilated area.

●

Oils, fuels and fluids contained in vehi-

cles as well as waste produced by

component wear contain or emit

chemicals known to the State of Cali-

fornia to cause cancer and birth

defects or other reproductive harm.

Avoid exposure and wash any affected

area immediately.

●

Battery posts, terminals and related

accessories contain lead and lead

compounds which are known to cause

brain damage. Wash your hands after

handling. (



P.271)

General maintenance

Scheduled maintenance

257

6-2. Maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

Maintenance”. (To confirm setting,
press .)

3

Select “Yes” and then press

.

4

A message will be displayed on the

multi-information display when the

reset procedure has been completed.

You can perform some maintenance
procedures by yourself.
Please be aware that do-it-yourself
maintenance may affect warranty cov-
erage.

The use of Lexus repair manuals is recom-
mended.
For details about warranty coverage, refer
to the separate “Owner’s Guide”, “War-
ranty and Service Guide”, “Owner’s Man-
ual Supplement” or “Warranty Booklet”.

Do-it-yourself maintenance

General maintenance

Listed below are the general main-
tenance items that should be per-
formed at the intervals specified in
the “Warranty and Service Guide”
or “Owner’s Manual Supplement”.
It is recommended that any prob-
lem you notice should be brought to
the attention of your Lexus dealer
or qualified service shop for advice.

WARNING

■

If the engine is running

Turn the engine off and ensure that there

is adequate ventilation before perform-

ing maintenance checks.

Engine compartment

Items

Check points

Battery

Check the indicator (if
equipped) and con-
nections. (



P.271)

Brake fluid

Is the brake fluid at the
correct level?
(



P.270)

Engine/inter-
cooler coolant

Is the engine/inter-
cooler coolant at the
correct level?
(



P.268)

Engine oil

Is the engine oil at the
correct level?
(



P.266)

Exhaust system

There should not be
any fumes or strange
sounds.

258

6-2. Maintenance

Radiator, con-
denser and inter-
cooler radiator

The radiator, con-
denser and inter-
cooler radiator should
be free from foreign
objects. (



P.270)

Washer fluid

Is there sufficient
washer fluid?
(



P.273)

Vehicle interior

Items

Check points

Accelerator
pedal

• The accelerator

pedal should move
smoothly (without
uneven pedal effort
or catching).

Automatic trans-
mission “Park”
mechanism

• When  parked  on  a

slope and the shift
lever is in P, is the
vehicle securely
stopped?

Brake pedal

• Does the brake

pedal move
smoothly?

• Does the brake

pedal have appro-
priate clearance
from the floor?

• Does the brake

pedal have the cor-
rect amount of free
play?

Items

Check points

Brakes

• The vehicle should

not pull to one side
when the brakes are
applied.

• The  brakes  should

work effectively.

• The brake pedal

should not feel
spongy.

• The brake pedal

should not get too
close to the floor
when the brakes are
applied.

Head restraints

• Do  the  head

restraints move
smoothly and lock
securely?

Indicators/buzz-
ers

• Do  the  indicators

and buzzers function
properly?

Lights

• Do all the lights

come on?

Parking brake

• Does the parking

brake operate nor-
mally?

• When parked on a

slope and the park-
ing brake is on, is the
vehicle securely
stopped?

Seat belts

• Do the seat belts

operate smoothly?

• The seat belts should

not be damaged.

Items

Check points

259

6-2. Maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

Seats

• Do the seat controls

operate properly?

Steering wheel

• Does the steering

wheel rotate
smoothly?

• Does the steering

wheel have the cor-
rect amount of free
play?

• There  should  not  be

any strange sounds
coming from the
steering wheel.

Vehicle exterior

Items

Check points

Doors/trunk

• Do the doors/trunk

operate smoothly?

Engine hood

• Does  the  engine

hood lock system
work properly?

Fluid leaks

• There  should  not  be

any signs of fluid
leakage after the
vehicle has been
parked.

Items

Check points

Tires

• Is the tire inflation

pressure correct?

• The tires should not

be damaged or
excessively worn.

• Have the tires been

rotated according to
the maintenance
schedule?

• The  wheel  bolts

should not be loose.

Windshield wip-
ers

• The wiper blades

should not show any
signs of cracking,
splitting, wear, con-
tamination or defor-
mation.

• The wiper blades

should clear the
windshield without
streaking or skip-
ping.

Items

Check points

260

6-2. Maintenance

The OBD system determines that a
problem exists somewhere in the emis-
sion control system. Your vehicle may
not pass the I/M test and may need to
be repaired. Contact your Lexus
dealer to service the vehicle.



When the battery is disconnected
or discharged

Readiness codes that are set during ordi-
nary driving are erased.Also, depending
on your driving habits, the readiness codes
may not be completely set.



When the fuel tank cap is loose

The malfunction indicator lamp comes on
indicating a temporary malfunction and
your vehicle may not pass the I/M test.

The error code in the OBD system will
not be cleared unless the vehicle is
driven 40 or more times.

Contact your Lexus dealer to prepare
the vehicle for re-testing.

Emission inspection and
maintenance (I/M) pro-
grams

Some states have vehicle emission
inspection programs which include
OBD (On Board Diagnostics)
checks. The OBD system monitors
the operation of the emission con-
trol system.

If the malfunction indicator lamp
comes on

Your vehicle may not pass the
I/M test in the following situa-
tions:

When the malfunction indicator
lamp still remains on after sev-
eral driving trips

If your vehicle does not pass the
I/M test

261

6-3. Do-it-yourself maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

6-3.Do-it-yourself maintenance

Do-it-yourself service pre-
cautions

If you perform maintenance by
yourself, be sure to follow the cor-
rect procedure as given in these
sections.

Maintenance

Items

Parts and tools

Battery condition
(



P.271)

• Warm  water
• Baking soda
• Grease
• Conventional

wrench (for terminal
clamp bolts)

Brake fluid level
(



P.270)

• SAE J1703 or

FMVSS No.116 DOT
3 brake fluid

• SAE J1704 or

FMVSS No.116 DOT
4 brake fluid

• Rag  or  paper  towel
• Funnel (used only for

adding brake fluid)

Engine/inter-
cooler coolant
level(



P.268)

• “Toyota  Super  Long

Life Coolant” or a
similar high quality
ethylene gly-
col-based non-sili-
cate, non-amine,
non-nitrite and
non-borate coolant
with long-life hybrid
organic acid tech-
nology

• For the U.S.A.:“Toy-

ota Super Long Life
Coolant” is
pre-mixed with 50%
coolant and 50%
deionized water.

• For  Canada:“Toyota

Super Long Life
Coolant” is
pre-mixed with 55%
coolant and 45%
deionized water.

• Funnel  (used  only  for

adding coolant)

Engine oil level
(



P.266)

• “Toyota  Genuine

Motor Oil” or equiv-
alent

• Rag or paper towel
• Funnel  (used  only  for

adding engine oil)

Fuses (



P.289)

• Fuse  with  same

amperage rating as
original

Items

Parts and tools

262

6-3. Do-it-yourself maintenance

Light bulbs
(



P.292)

• Bulb with same num-

ber and wattage rat-
ing as original

• Phillips-head screw-

driver

• Flathead screw-

driver

• Wrench

Radiator, con-
denser and inter-
cooler radiator
(



P.270)



Tire inflation pres-
sure (



P.282)

• Tire pressure gauge
• Compressed air

source

Washer fluid
(



P.273)

• Water or washer

fluid containing anti-
freeze (for winter
use)

• Funnel (used only for

adding water or
washer fluid)

WARNING

The engine compartment contains many

mechanisms and fluids that may move

suddenly, become hot, or become elec-

trically energized. To avoid death or seri-

ous injury, observe the following

precautions.

■

When working on the engine com-

partment

●

Keep hands, clothing and tools away

from the moving fans and engine drive

belt.

●

Be careful not to touch the engine,

radiator, exhaust manifold, etc. right

after driving as they may be hot. Oil

and other fluids may also be hot.

Items

Parts and tools

●

Do not leave anything that may burn

easily, such as paper and rags, in the

engine compartment.

●

Do not smoke, cause sparks or expose

an open flame to fuel or the battery.

Fuel and battery fumes are flammable.

●

Be extremely cautious when working

on the battery. It contains poisonous

and corrosive sulfuric acid.

■

When working near the electric cool-

ing fans or radiator grille

Be sure the engine switch is off.

With the engine switch in IGNITION

ON mode, the electric cooling fans may

automatically start to run if the air condi-

tioning is on and/or the coolant tempera-

ture is high. (



P.270)

■

Safety glasses

Wear safety glasses to prevent flying or

falling material, fluid spray, etc. from get-

ting in your eyes.

NOTICE

■

If you remove the air cleaner filter

Driving with the air cleaner filter

removed may cause excessive engine

wear due to dirt in the air.

263

6-3. Do-it-yourself maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

1

Pull the hood lock release lever.

The hood will pop up slightly.

2

Pull up the auxiliary catch lever and
lift the hood.

■

If a symbol indicating the hood opens is

shown on the multi-information display



P.88

■

Front



2WD models

Hood

Opening the hood

WARNING

■

Pre-driving check

Check that the hood is fully closed and

locked.

If the hood is not locked properly, it may

open while the vehicle is in motion and

cause an accident, which may result in

death or serious injury.

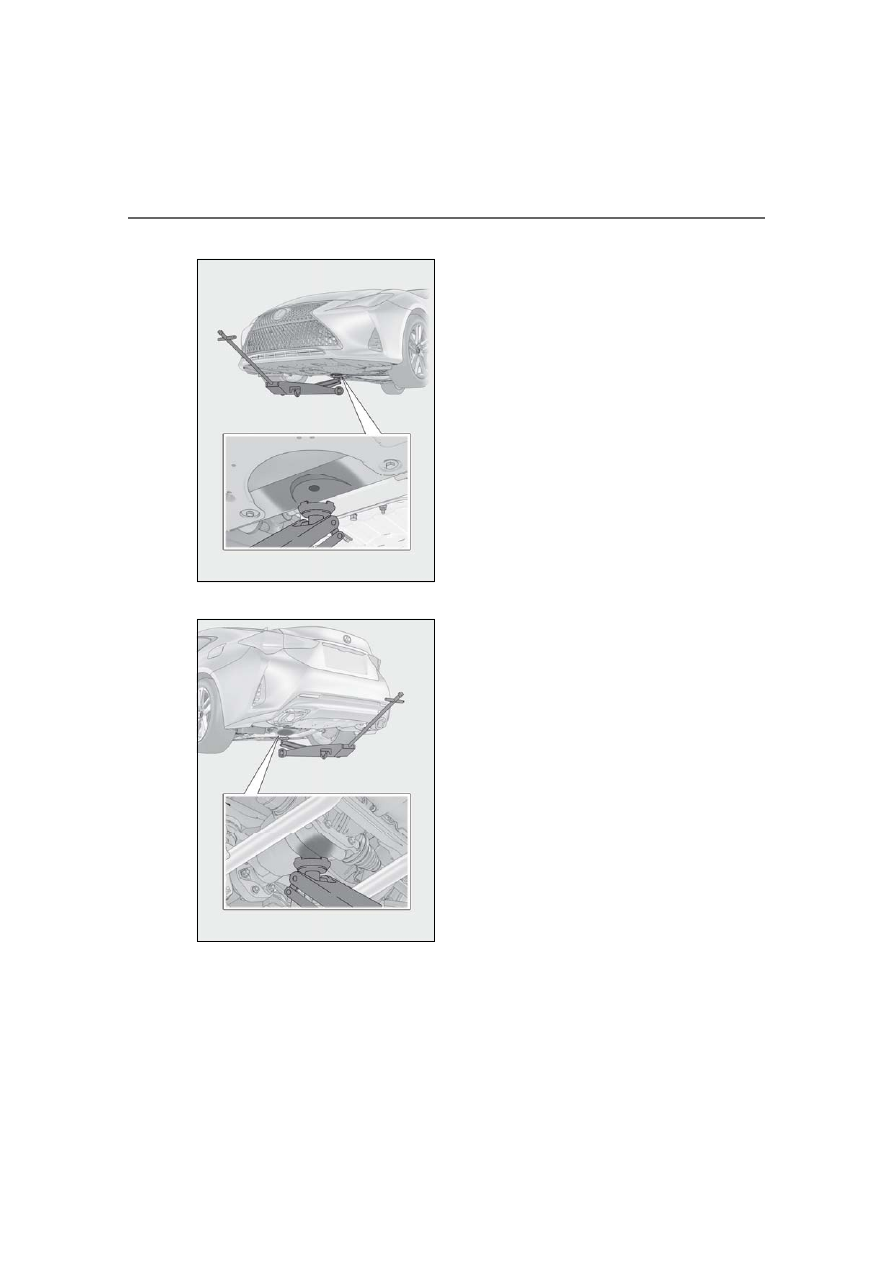

Positioning a floor jack

When using a floor jack, follow the
instructions in the manual provided
with the jack and perform the oper-
ation safely.

When raising your vehicle with a
floor jack, position the jack cor-
rectly. Improper placement may
damage your vehicle or cause
injury.

Location of the jack point

264

6-3. Do-it-yourself maintenance



AWD models

■

Rear

265

6-3. Do-it-yourself maintenance

6

Mai
nte

na

nc

e a

nd

 c

are



RC350/RC300 AWD

Fuse boxes (



P.289)

Battery (



P.271)

Engine oil level dipstick (



P.266)

Engine coolant reservoir (



P.268)

Engine oil filler cap (



P.266)

Brake fluid reservoir (



P.270)

Washer fluid tank (



P.273)

Electric cooling fans
Condenser (



P.270)

Radiator (



P.270)

Engine compartment

Components

A
B
C
D

E
F

G

H

I

J

266

6-3. Do-it-yourself maintenance



RC300

Fuse boxes (



P.289)

Battery (



P.271)

Engine oil level dipstick (



P.266)

Engine oil filler cap (



P.266)

Engine coolant reservoir (



P.268)

Brake fluid reservoir (



P.270)

Washer fluid tank (



P.273)

Electric cooling fans
Condenser (



P.270)

Intercooler radiator (



P.270)

Radiator (



P.270)

Intercooler coolant reservoir (



P.268)

With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick.

■

Checking the engine oil

1

Park the vehicle on level ground.
After warming up the engine and
turning it off, wait more than 5 min-
utes for the oil to drain back into the
bottom of the engine.

A
B
C
D

E
F

G

H

I

J

K

L

Checking and adding the engine
oil

267

6-3. Do-it-yourself maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

2

Holding a rag under the end, pull
the dipstick out.



RC350/RC300 AWD



RC300

3

Wipe the dipstick clean.

4

Reinsert the dipstick fully.

5

Holding a rag under the end, pull
the dipstick out and check the oil
level.

Low
Normal
Excessive

The shape of the dipstick may differ

depending on the type of vehicle or

engine.

6

Wipe the dipstick and reinsert it
fully.

■

Checking the oil type and prepar-
ing the item needed

Make sure to check the oil type and
prepare the items needed before add-
ing oil.



Engine oil selection



P.343



Oil quantity (Low



 Full)

1.6 qt. (1.5 L, 1.3 Imp. qt.)



Item
Clean funnel

■

Adding engine oil

If the oil level is below or near the low
level mark, add engine oil of the same
type as that already in the engine.



RC350/RC300 AWD

A
B
C

268

6-3. Do-it-yourself maintenance



RC300

1

Remove the oil filler cap by turning
it counterclockwise.

2

Add engine oil slowly, checking the
dipstick.

3

Install the oil filler cap by turning it
clockwise.

■

Engine oil consumption

A certain amount of engine oil will be con-

sumed while driving. In the following situa-

tions, oil consumption may increase, and

engine oil may need to be refilled in

between oil maintenance intervals.

●

When the engine is new, for example

directly after purchasing the vehicle or

after replacing the engine

●

If low quality oil or oil of an inappropriate

viscosity is used

●

When driving at high engine speeds or

with a heavy load, or when driving while

accelerating or decelerating frequently

●

When leaving the engine idling for a long

time, or when driving frequently through

heavy traffic

■

After changing the engine oil

The engine oil maintenance data should be

reset. Perform the following procedures:

1

Select

 on the multi-information dis-

play. (



P.76)

2

Press the

 or

 meter control

switch on the steering wheel to select

“Vehicle Settings” then “Oil Mainte-
nance”. (To confirm setting, press

.)

3

Select “Yes” and then press

.

4

A message is displayed on the

multi-information display.

The coolant level is satisfactory if it is
between the “FULL” and “LOW” lines

WARNING

■

Used engine oil

●

Used engine oil contains potentially

harmful contaminants which may

cause skin disorders such as inflamma-

tion and skin cancer, so care should be

taken to avoid prolonged and

repeated contact. To remove used

engine oil from your skin, wash thor-

oughly with soap and water.

●

Dispose of used oil and filters only in a

safe and acceptable manner. Do not

dispose of used oil and filters in house-

hold trash, in sewers or onto the

ground. Call your Lexus dealer, ser-

vice station or auto parts store for

information concerning recycling or

disposal.

●

Do not leave used engine oil within the

reach of children.

NOTICE

■

To prevent serious engine damage

Check the oil level on a regular basis.

■

When replacing the engine oil

●

Be careful not to spill engine oil on the

vehicle components.

●

Avoid overfilling, or the engine could

be damaged.

●

Check the oil level on the dipstick

every time you refill the vehicle.

●

Be sure the engine oil filler cap is prop-

erly tightened.

Checking the coolant

269

6-3. Do-it-yourself maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

on the reservoir when the engine is
cold.

■

Engine coolant reservoir



RC350/RC300 AWD



RC300

Reservoir cap
“FULL” line
“LOW” line

If the level is on or below the “LOW” line,
add coolant up to the “FULL” line.
(



P.333)

■

Intercooler coolant reservoir
(RC300)

The coolant level is satisfactory if it is
between the “F” and “L” lines on the
reservoir when the engine is cold.

Reservoir cap
“F” line
“L” line

If the level is on or below the “L” line, add
coolant up to the “F” line. (



P.333)

■

Coolant selection

Only use “Toyota Super Long Life Coolant”

or a similar high quality ethylene glycol

based non-silicate, non-amine, non-nitrite,

and non-borate coolant with long-life

hybrid organic acid technology.
U.S.A.:

“Toyota Super Long Life Coolant” is a mix-

ture of 50% coolant and 50% deionized

water. (Minimum temperature: -31°F

[-35°C])
Canada:

“Toyota Super Long Life Coolant” is a mix-

ture of 55% coolant and 45% deionized

water. (Minimum temperature: -44°F

[-42°C])
For more details about coolant, contact

your Lexus dealer.

■

If the coolant level drops within a short

time of replenishing

Visually check the radiator, hoses, engine

and intercooler coolant reservoir caps,

drain cock and water pump.
If you cannot find a leak, have your Lexus

dealer test the cap and check for leaks in

the cooling system.

A
B
C

A
B
C

270

6-3. Do-it-yourself maintenance

Check the radiator, condenser and
intercooler radiator and clear away
any foreign objects.
If any of the above parts are extremely
dirty or you are not sure of their condi-
tion, have your vehicle inspected by
your Lexus dealer.

■

Checking fluid level

The brake fluid level should be
between the “MAX” and “MIN” lines
on the tank.



RC350/RC300 AWD



RC300

■

Adding fluid

Make sure to check the fluid type and
prepare the necessary item.



Fluid type

SAE J1703 or FMVSS No.116 DOT 3
brake fluid
SAE J1704 or FMVSS No.116 DOT 4
brake fluid



Item

Clean funnel

WARNING

■

When the engine is hot

Do not remove the engine coolant reser-

voir cap, intercooler coolant reservoir

cap and coolant inlet cap. (



P.336)

The cooling system may be under pres-

sure and may spray hot coolant if the cap

is removed, causing serious injuries, such

as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor

straight antifreeze. The correct mixture

of water and antifreeze must be used to

provide proper lubrication, corrosion

protection and cooling. Be sure to read

the antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to pre-

vent it from damaging parts or paint.

Checking the radiator, con-
denser and intercooler radiator
(if equipped)

WARNING

■

When the engine is hot

Do not touch the radiator, condenser or

intercooler radiator as they may be hot

and cause serious injuries, such as burns.

Checking and adding the brake
fluid

271

6-3. Do-it-yourself maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

■

Brake fluid can absorb moisture from

the air

Excess moisture in the brake fluid can cause

a dangerous loss of braking efficiency. Use

only newly opened brake fluid.

Check the battery as follows.

■

Battery exterior

Make sure that the battery terminals
are not corroded and that there are no
loose connections, cracks, or loose
clamps.

Terminals
Hold-down clamp

■

Checking battery fluid

Check that the level is between the
“UPPER LEVEL” and “LOWER
LEVEL” lines.

“UPPER LEVEL” line
“LOWER LEVEL” line

If the fluid level is at or below the “LOWER
LEVEL” line, add distilled water.

■

Adding distilled water

1

Remove the vent plug.

WARNING

■

When filling the reservoir

Take care as brake fluid can harm your

hands and eyes and damage painted sur-

faces.If fluid gets on your hands or in your

eyes, flush the affected area with clean

water immediately.

If you still experience discomfort, see a

doctor.

NOTICE

■

If the fluid level is low or high

It is normal for the brake fluid level to go

down slightly as the brake pads wear out

or when the fluid level in the accumulator

is high.

If the reservoir needs frequent refilling,

there may be a serious problem.

Battery

A
B

A
B

272

6-3. Do-it-yourself maintenance

2

Add distilled water.

Low
O.K.

If the “UPPER LEVEL” line cannot be seen,

check the fluid level by looking directly at

the cell.

3

Put the vent plug back on and close
it securely.

■

Before recharging

When recharging, the battery produces

hydrogen gas which is flammable and

explosive. Therefore, observe the following

before recharging:

●

If recharging with the battery installed on

the vehicle, be sure to disconnect the

ground cable.

●

Make sure the power switch on the char-

ger is off when connecting and discon-

necting the charger cables to the battery.

■

After recharging/reconnecting the bat-

tery

The engine may not start. Follow the proce-

dure below to initialize the system.

1

Shift the shift lever to P.

2

Open and close either door.

3

Restart the engine.

●

Unlocking the doors using the smart

access system with push-button start may

not be possible immediately after recon-

necting the battery. If this happens, use

the wireless remote control or the

mechanical key to lock/unlock the doors.

●

Start the engine with the engine switch in

ACCESSORY mode. The engine may

not start with the engine switch turned off.

However, the engine will operate nor-

mally from the second attempt.

●

The engine switch mode is recorded by

the vehicle. If the battery is disconnected

and reconnected, the vehicle will return

the engine switch mode to the status it

was in before the battery was discon-

nected. Make sure to turn off the engine

before disconnecting the battery. Take

extra care when connecting the battery if

the engine switch mode prior to the bat-

tery being disconnected is unknown.

If the system will not start even after multi-

ple attempts, contact your Lexus dealer.

A
B

WARNING

■

Chemicals in the battery

Batteries contain poisonous and corro-

sive sulfuric acid and may produce

hydrogen gas which is flammable and

explosive. To reduce the risk of death or

serious injury, take the following precau-

tions while working on or near the bat-

tery:

●

Do not cause sparks by touching the

battery terminals with tools.

●

Do not smoke or light a match near the

battery.

●

Avoid contact with eyes, skin and

clothes.

●

Never inhale or swallow electrolyte.

●

Wear protective safety glasses when

working near the battery.

●

Keep children away from the battery.

■

Where to safely charge the battery

Always charge the battery in an open

area. Do not charge the battery in a

garage or closed room where there is

insufficient ventilation.

273

6-3. Do-it-yourself maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

If any washer does not work or the
warning message appears on the

multi-information display, the washer
tank may be empty. Add washer fluid.



RC350/RC300 AWD



RC300

WARNING

■

How to recharge the battery

Only perform a slow charge (5 A or

less). The battery may explode if charged

at a quicker rate.

■

Emergency measures regarding

electrolyte

●

If electrolyte gets in your eyes

Flush your eyes with clean water for at

least 15 minutes and get immediate med-

ical attention. If possible, continue to

apply water with a sponge or cloth while

traveling to the nearest medical facility.

●

If electrolyte gets on your skin

Wash the affected area thoroughly. If you

feel pain or burning, get medical atten-

tion immediately.

●

If electrolyte gets on your clothes

It can soak through clothing on to your

skin. Immediately take off the clothing

and follow the procedure above if neces-

sary.

●

If you accidentally swallow electrolyte

Drink a large quantity of water or milk.

Get emergency medical attention imme-

diately.

NOTICE

■

When recharging the battery

Never recharge the battery while the

engine is running. Also, be sure all acces-

sories are turned off.

■

When adding distilled water

Avoid overfilling. Water spilled during

battery recharging may cause corrosion.

Adding the washer fluid

WARNING

■

When adding washer fluid

Do not add washer fluid when the engine

is hot or running as washer fluid contains

alcohol and may catch fire if spilled on

the engine, etc.

NOTICE

■

Do not use any fluid other than

washer fluid

Do not use soapy water or engine anti-

freeze instead of washer fluid.

Doing so may cause streaking on the

vehicle’s painted surfaces, as well as

damaging the pump leading to problems

of the washer fluid not spraying.

274

6-3. Do-it-yourself maintenance

Check if the treadwear indicators are
showing on the tires. Also check the
tires for uneven wear, such as excessive
wear on one side of the tread.
Check the spare tire condition and
pressure if not rotated.

New tread
Worn tread
Treadwear indicator

The location of treadwear indicators is
shown by a “TWI” or “

” mark, etc.,

molded into the sidewall of each tire.
Replace the tires if the treadwear indica-
tors are showing on a tire.

NOTICE

■

Diluting washer fluid

Dilute washer fluid with water as neces-

sary.

Refer to the freezing temperatures listed

on the label of the washer fluid bottle.

Tires

Replace or rotate tires in accor-
dance with maintenance schedules
and treadwear.

Checking tires

A
B
C

275

6-3. Do-it-yourself maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

■

When to replace your vehicle’s tires

Tires should be replaced if:

●

The treadwear indicators are showing on

a tire.

●

You have tire damage such as cuts, splits,

cracks deep enough to expose the fabric,

and bulges indicating internal damage

●

A tire goes flat repeatedly or cannot be

properly repaired due to the size or loca-

tion of a cut or other damage

If you are not sure, consult your Lexus

dealer.

■

Tire life

Any tire over 6 years old must be checked

by a qualified technician even if it has sel-

dom or never been used or damage is not

obvious.

■

Low profile tires

Generally, low profile tires will wear more

rapidly and tire grip performance will be

reduced on snowy and/or icy roads when

compared to standard tires. Be sure to use

snow tires or tire chains on snowy and/or icy

roads and drive carefully at a speed appro-

priate for road and weather conditions.

■

Maximum load of tire

Check that the maximum load of the

replacement tire is greater than 1/2 of the

Gross Axle Weight Ratings (GAWR) of

either the front axle or the rear axle, which-

ever is greater.
For the GAWR, see the Certification Label.

For the maximum load of the tire, see the

load limit at maximum cold tire inflation

pressure mentioned on the sidewall of the

tire. (



P.353)

■

Tire types

●

Summer tires

Summer tires are high-speed performance
tires best suited to highway driving under
dry conditions. Since summer tires do not
have the same traction performance as
snow tires, summer tires are inadequate for
driving on snow-covered or icy roads. For
driving on snow-covered roads or icy
roads, the use of snow tires is recom-
mended. When installing snow tires, be
sure to replace all four tires.

●

All season tires

All season tires are designed to provide
better traction in snow and to be adequate
for driving in most winter conditions as well
as for use year-round. All season tires,
however, do not have adequate traction
performance compared with snow tires in
heavy or loose snow. Also, all season tires
fall short in acceleration and handling per-
formance compared with summer tires in
highway driving.

●

Snow tires

For driving on snow-covered roads or icy
roads, we recommend using snow tires. If
you need snow tires, select tires of the
same size, construction and load capacity
as the originally installed tires. Since your
vehicle has radial tires as original equip-
ment, make sure your snow tires also have
radial construction. Do not install studded
tires without first checking local regula-
tions for possible restrictions. Snow tires
should be installed on all wheels. (



P.213)

■

If the tread on snow tires wears down

below 0.16 in. (4 mm)

The effectiveness of the tires as snow tires is

lost.

276

6-3. Do-it-yourself maintenance



Vehicles with front and rear tires of
the same size

Rotate the tires in the order shown.

To equalize tire wear and extend tire life,
Lexus recommends that tire rotation is car-
ried out at the same interval as tire inspec-
tion.
Do not fail to initialize the tire pressure
warning system after tire rotation.



Vehicles with front and rear tires of
differing sizes

Tires cannot be rotated.

■

When rotating the tires

Make sure that the engine switch is off. If the

tires are rotated while the engine switch is in

WARNING

■

When inspecting or replacing tires

Observe the following precautions to

prevent accidents.

Failure to do so may cause damage to

parts of the drivetrain as well as danger-

ous handling characteristics, which may

lead to an accident resulting in death or

serious injury.

●

Do not mix tires of different makes,

models or tread patterns.

Also, do not mix tires of remarkably

different treadwear.

●

Do not use tire sizes other than those

recommended by Lexus.

●

Do not mix differently constructed

tires (radial, bias-belted or bias-ply

tires).

●

Do not mix summer, all season and

snow tires.

●

Do not use tires that have been used

on another vehicle.

Do not use tires if you do not know

how they were used previously.

●

Do not tow if your vehicle has a com-

pact spare tire installed.

NOTICE

■

Low profile tires

Low profile tires may cause greater dam-

age than usual to the tire wheel when

sustaining impact from the road surface.

Therefore, pay attention to the following:

●

Be sure to use proper tire inflation

pressure. If tires are under-inflated,

they may be damaged more severely.

●

Avoid potholes, uneven pavement,

curbs and other road hazards. Failure

to do so may lead to severe tire and

wheel damage.

■

If tire inflation pressure of each tire

becomes low while driving

Do not continue driving, or your tires

and/or wheels may be ruined.

■

Driving on rough roads

Take particular care when driving on

roads with loose surfaces or potholes.

These conditions may cause losses in tire

inflation pressure, reducing the cushion-

ing ability of the tires. In addition, driving

on rough roads may cause damage to

the tires themselves, as well as the vehi-

cle’s wheels and body.

Tire rotation

277

6-3. Do-it-yourself maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

IGNITION ON mode, the tire position

information will not be updated.

If this accidentally occurs, either turn the

engine switch to off and then to IGNITION

ON mode, or initialize the system after

checking that the tire pressure is properly

adjusted.

Your vehicle is equipped with a tire
pressure warning system that uses tire
pressure warning valves and transmit-
ters to detect low tire inflation pressure
before serious problems arise.



The tire pressure detected by the
tire pressure warning system can be
displayed on the multi-information
display. (



P.71)

The illustration used is intended as an
example, and may differ from the image
that is actually displayed on the multi-infor-
mation display.



If the tire pressure drops below a
predetermined level, the driver is
warned by a screen display and a
warning light. (



P.310)

■

Routine tire inflation pressure checks

The tire pressure warning system does not

replace routine tire inflation pressure

checks. Make sure to check tire inflation

pressure as part of your routine of daily

vehicle checks.

■

Tire inflation pressure

●

It may take a few minutes to display the

tire inflation pressure after the engine

switch is turned to IGNITION ON mode.

It may also take a few minutes to display

the tire inflation pressure after inflation

pressure has been adjusted.

●

Tire inflation pressure changes with tem-

perature. The displayed values may also

be different from the values measured

using a tire pressure gauge.

■

Situations in which the tire pressure

warning system may not operate prop-

erly

●

In the following cases, the tire pressure

warning system may not operate prop-

erly.

• If non-genuine Lexus wheels are used.

• A tire has been replaced with a tire that is

not an OE (Original Equipment) tire.

• A tire has been replaced with a tire that is

not of the specified size.

• Tire chains, etc. are equipped.

• An auxiliary-supported run-flat tire is

equipped.

• If a window tint that affects the radio wave

signals is installed.

• If there is a lot of snow or ice on the vehi-

cle, particularly around the wheels or

wheel housings.

• If the tire inflation pressure is extremely

higher than the specified level.

• If tires not equipped with tire pressure

Tire pressure warning system
