Lexus LX600 (2023 year). Manual in english

410

5-5. Using the storage features



Rear (if equipped)

Push the button to release the lock,
and then lift the lid to open the console
box.

The console box can be opened from
either side.

■

Tray in the console box (front)

The tray in the console box can be moved

left or right, or can be removed.

■

Console box insert (front)

The insert in the console box can be

removed.
Remove the insert.

Press the lid.

WARNING

■

Caution while driving

Keep the console box closed.
Injuries may result in the event of an acci-

dent or sudden braking.

■

When opening and closing the con-

sole box

Take care to prevent your fingers etc.

from being caught.

Overhead console

WARNING

■

Items unsuitable for storing

Do not store items heavier than 0.4 lb.

(0.2 kg).
Doing so may cause the overhead con-

sole to open and the items inside may fall

out, resulting in an accident.

■

Caution while driving

Keep the overhead console closed.
Injuries may result in the event of an acci-

dent or sudden braking.

411

5-5. Using the storage features

rio

r f



Front



Rear (type A) (if equipped)

To open, pull down the armrest and
press in and release the rear cup
holder on the armrest.



Rear (type B) (if equipped)

Press the button and open the lid.



Front doors

Cup holders

WARNING

■

Items unsuitable for the cup holders

Do not place anything other than cups or

beverage cans in the cup holders. Even

when the lid is closed, items must not be

stored in the cup holders.
Other items may be thrown out of the

holders in the event of an accident or

sudden braking and cause injury. If possi-

ble, cover hot drinks to prevent burns.

■

When not in use

Keep the cup holders are closed. Injuries

may result in the event of an accident or

sudden braking.

NOTICE

■

To prevent damage to the cup hold-

ers (vehicles with rear armrest)

Stow the cup holders before stowing the

rear armrest.

Bottle holders

412

5-5. Using the storage features



Rear doors



Rear side trims

■

Bottle holders

●

When storing a bottle, close the cap.

●

The bottle may not be stored depending

on its size or shape.



Instrument panel

Press the button



Front



Rear (if equipped)

Press the button to open the lid.

NOTICE

■

Items that should be not stowed in the

bottle holders

Do not place open bottles or glass and

paper cups containing liquid in the bottle

holders. The contents may spill and

glasses may break.

Card holder

Auxiliary boxes

413

5-5. Using the storage features

rio

r f



Rear side trims (if equipped)



Front (if equipped)



Rear (if equipped)

WARNING

■

Caution while driving

Do not leave the auxiliary box open while

driving.
Items stored in it may fall out and cause

death or serious injury in case of an acci-

dent or sudden stop.

Open tray (if equipped)

WARNING

■

Items unsuitable for the open tray

Observe the following precautions when

putting items in the open tray. Failure to

do so may cause items to be thrown out

of the tray in the event of sudden braking

or steering. In these cases, the items may

interfere with pedal operation or cause

driver distraction, resulting in an acci-

dent.

●

Do not store items in the tray that can

easily shift or roll out.

●

Do not stack items in the tray higher

than the tray’s edge.

●

Do not put items in the tray that may

protrude over the tray’s edge.

414

5-5. Using the storage features

Raise the hook to use.

The cargo hooks are provided for securing
loose items.



4-passenger or 5-passenger mod-
els



7-passenger models

Open the deck board.

Luggage compartment fea-
tures

WARNING

■

Caution while driving

Keep the deck board closed.
In the event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by an open

deck board or the items stored inside.

Cargo hooks

WARNING

■

When cargo hooks are not in use

To avoid injury, always return the hooks

to their stowed positions when not in use.

Grocery bag hooks

NOTICE

■

To prevent damage to the grocery

bag hooks

Do not hang any object heavier than 6.6

lb. (3 kg) on the grocery bag hooks.

Storage compartment (4-pas-
senger or 5-passenger models)

417

5-5. Using the storage features

rio

r f

■

Pulling out the luggage cover

Pull out the luggage cover and secure
it to the hook brackets.

■

Retracting the luggage cover

Detach the both ends of the luggage
cover from the holder and retract it.

■

Removing the luggage cover

Lexus does not recommend that the lug-

gage cover is removed by yourself. If it is

necessary to remove the luggage cover,

contact your Lexus dealer.

WARNING

■

Luggage cover

●

Do not allow children to climb on the

luggage cover. Climbing on the lug-

gage cover could result in damage to

the luggage cover, possibly causing

death or serious injury to the child.

●

Do not put your fingers or arms

between the luggage cover and its

surrounding part. Fingers or arms may

become jammed, resulting in serious

injury.

Luggage cover (4-passenger
models)

WARNING

■

Luggage cover

●

Do not allow children to climb on the

luggage cover. Climbing on the lug-

gage cover could result in damage to

the luggage cover, possibly causing

death or serious injury to the child.

●

Do not put your fingers or arms

between the luggage cover and its

surrounding part. Fingers or arms may

become jammed, resulting in serious

injury.

NOTICE

■

To prevent damage to the luggage

cover

Do not place an object between the seat-
back and luggage cover

418

5-6. Using the other interior features

5-6.Using the other interior features

While the engine is running, the cool
box, which is cooled by the air condi-
tioning, can be used.

While pressing the button, lift up
and open the lid.

The cool box can be opened from right, left

or back side of the cool box.

Turns the cool box on/off

When on, the indicator light

comes on.

If the front air conditioning system is not in

use, the front air conditioning system is

automatically turned on when the cool box

is turned on.

■

While the cool box is on

• The front air conditioning system cannot

be turned off.

• To adjust the temperature of the cool

box, the cool box may stop operating

temporarily.

■

When the outside temperature is 32°F

(0°C) or below

The cool box may not operate.

■

Tray in the cool box

The tray in the cool box can be moved left

or right, or can be removed.

■

Items unsuitable for the cool box

●

Drinks in unsealed containers

●

Fragile items, perishables or anything

with strong odor

●

Owner’s manual, electronic devices,

CDs, etc.

■

When cleaning the inside of the cool

box

Wipe dirt off with a cloth dampened with

water. Directly applying water may cause a

malfunction.

Other interior features

Cool box (if equipped)

WARNING

■

Caution while driving

Keep the cool box closed while driving.
Injuries may result in the event of sudden

braking, sudden swerving or an accident.

■

When opening and closing the cool

box

Take care to prevent your fingers etc.

from being caught.

419

5-6. Using the other interior features

rio

r f

To set the visor in the forward posi-
tion, flip it down.

To set the visor in the side position,
flip down, unhook, and swing it to
the side.

To use the side extender, place the
visor in the side position, then slide
it backward.

Slide the cover to open.

The light turns on when the cover is
opened.

■

Automatic light off to prevent battery

discharge

If the vanity lights remain on when the

engine switch is turned to OFF, the lights

will go off automatically after 20 minutes.

■

12 V DC

Please use a power supply for elec-
tronic goods that use less than 12
VDC/10 A (power consumption of
120 W).
When using electronic goods, make
sure that the power consumption of all
the connected power outlets is less
than 120 W.



Front

Open the lid.



Rear side of the console (if
equipped)

Open the lid.

NOTICE

■

To prevent battery discharge

Do not leave the cool box on longer than

necessary when the engine is not run-

ning.

Sun visors

Vanity mirrors

NOTICE

■

To prevent battery discharge

Do not leave the vanity lights on for

extended periods while the engine is off.

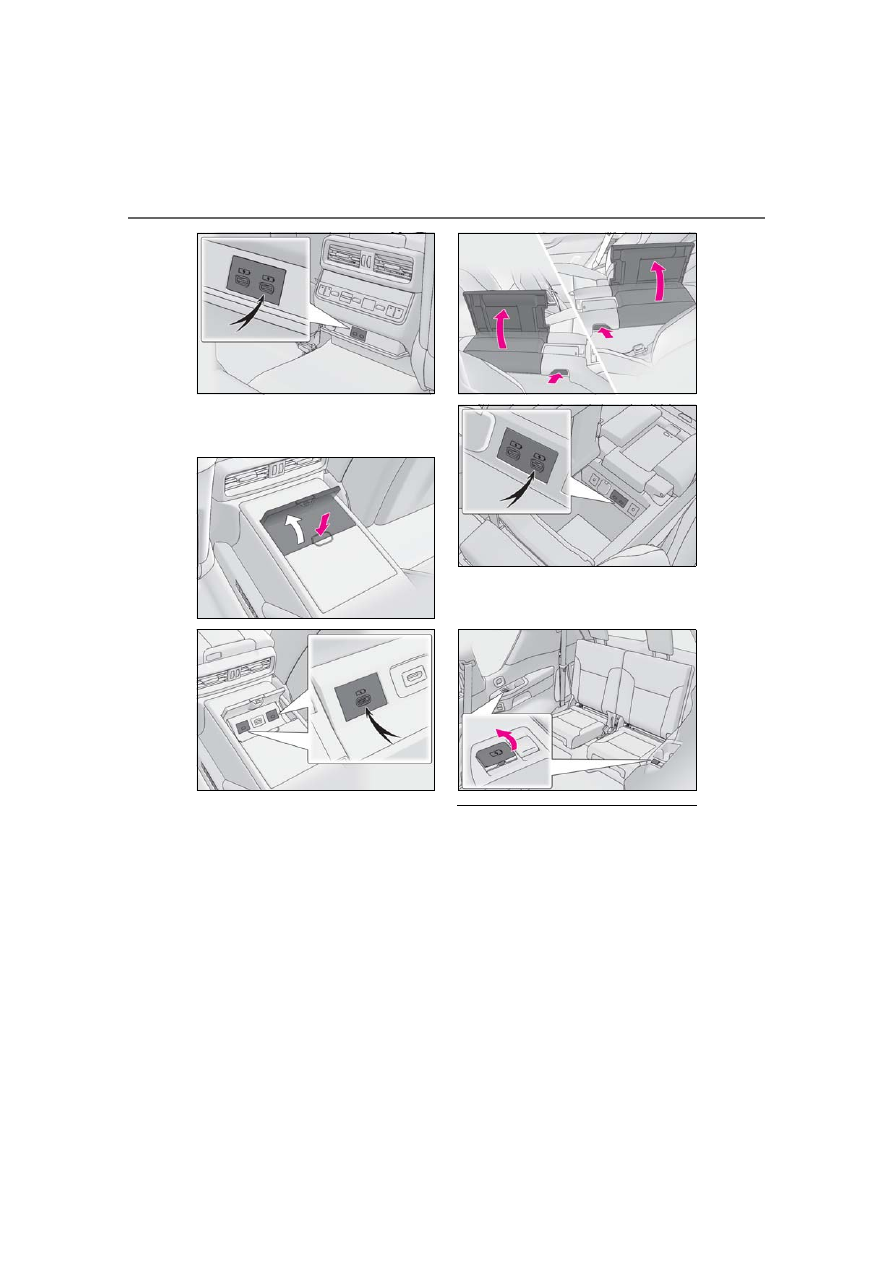

Power outlet

420

5-6. Using the other interior features

Open the lid.



Inside of the rear console box (if
equipped)

Push the button to release the lock,
and then lift the lid to open the console
box.

The console box can be opened from
either side.

Open the lid.

■

120 V AC

Accessories that use less than 100 W.
Open the lid.

■

The power outlet can be used when



12 V DC

The engine switch is in ACC or ON.



120 V AC

The engine switch is in ON.

■

When turning the engine switch off

Disconnect electrical devices with charging

functions, such as mobile battery packs.

If such devices are left connected, the

engine switch may not be turned off nor-

mally.

421

5-6. Using the other interior features

rio

r f

The USB Type-C charging ports are
used to supply 3 A of electricity at 5 V
to external devices.
The USB Type-C charging ports are
for charging only. They are not
designed for data transfer or other
purposes.
Depending on the external device, it
may not charge properly. Refer to the
manual included with the device
before using a USB charging port.

■

Using the USB Type-C charging
ports



Front



Rear side of the console (if
equipped)

Open the lid.

WARNING

■

Rear side of the console

Do not put anything on the rear side of

the console or close the lid when any-

thing is on the lid. Also, close the lid when

the power outlet is not in use.
In the event of sudden braking or sudden

swerving, an injury may occur due to an

occupant being struck by the open lid or

the items stored inside.

NOTICE

■

When power outlet is not in use

To avoid damaging the power outlet,

close the power outlet lid when the

power outlet is not in use.
Foreign objects or liquids that enter the

power outlet may cause a short circuit.

■

To prevent blown fuse (120 V AC)

Do not use a 120 V AC appliance that

requires more than 100 W. If a 120 V

AC appliance that consumes more than

100 W is used, the protection circuit will

cut the power supply.

■

To prevent battery discharge

Do not use the power outlet longer than

necessary when the engine is off.

■

Appliances that may not operate

properly (120 V AC)

The following 120 V AC appliances may

not operate properly even if their power

consumption is under 100 W:

●

Appliances with high initial peak watt-

age

●

Measuring devices that process pre-

cise data

●

Other appliances that require an

extremely stable power supply

USB Type-C charging ports (if
equipped)

422

5-6. Using the other interior features



Auxiliary box (if equipped)

Press the button to open the lid.



Inside of the rear console box (if
equipped)

Push the button to release the lock,
and then lift the lid to open the console
box.

The console box can be opened from
either side.



Rear side trims (if equipped)

Open the lid.

■

The USB Type-C charging ports can be

used when

The engine switch is in ACC or ON.

■

Situations in which the USB Type-C

charging ports may not operate cor-

rectly

●

If a device which consumes more than 3

A at 5 V is connected

●

If a device designed to communicate with

a personal computer, such as a USB

memory device, is connected

●

If the connected external device is turned

off (depending on device)

423

5-6. Using the other interior features

rio

r f

●

If the temperature inside the vehicle is

high, such as after the vehicle has been

parked in the sun

■

About connected external devices

Depending on the connected external

device, charging may occasionally be sus-

pended and then start again. This is not a

malfunction.

A portable device can be charged by
just placing Qi standard wireless
charge compatible portable devices
according to the Wireless Power Con-
sortium, such as smartphones and
mobile batteries, etc., on the charge
area.
This function cannot be used with por-
table devices that are larger than the
charging tray. Also, depending on the
portable device, it may not operate as
normal. Please read the operation
manual for portable devices to be
used.

■

The “Qi” logo

The “Qi” logo is a trademark of the
Wireless Power Consortium.

WARNING

■

Rear side of the console

Do not put anything on the rear side of

the console or close the lid when any-

thing is on the lid. Also, close the lid when

the USB Type-C charging ports is not in

use.
In the event of sudden braking or sudden

swerving, an injury may occur due to an

occupant being struck by the open lid or

the items stored inside.

NOTICE

■

To prevent damage to the USB Type-

C charging ports

●

Do not insert foreign objects into the

ports.

●

Do not spill water or other liquids into

the ports.

●

When the USB Type-C charging ports

are not in use, close the lids. If a foreign

object or liquid enters a port may

cause a short circuit.

●

Do not apply excessive force to or

impact the USB Type-C charging

ports.

●

Do not disassemble or modify the USB

Type-C charging ports.

■

To prevent damage to external

devices

●

Do not leave external devices in the

vehicle. The temperature inside the

vehicle may become high, resulting in

damage to an external device.

●

Do not push down on or apply unnec-

essary force to an external device or

the cable of an external device while it

is connected.

■

To prevent battery discharge

Do not use the USB Type-C charging

ports for a long period of time with the

engine stopped.

Wireless charger (if equipped)

424

5-6. Using the other interior features

■

Name for all parts



Front (if equipped)

Operation indicator light

Charge area

Charging tray

Approximately 2.4 in. (6 cm)

Approximately 2.8 in. (7 cm)

: Portable devices and wireless chargers

contain charging coils.
The charging coil in the wireless charger
can be moved within the charge area
near the center of the charging tray. If
the charging coil inside a portable
device is detected in the charge area,
the charging coil inside the wireless
charger will move toward it and start
charging. If the charging coil inside a
portable device moves outside of the
charge area, charging will automatically
stop.
If 2 or more portable devices are placed
on the charging tray, their charging coils
may not be properly detected and they
may not be charged.



Rear (if equipped)

Power supply switch

Operation indicator light

Charging tray

Charge area

Approximately 2.4 in. (6 cm)

Approximately 2.8 in. (7 cm)

: Portable devices and wireless chargers

A
B
C
D

E
F

425

5-6. Using the other interior features

Interio

r fe

atures

may not be properly detected and they
may not be charged.

■

Using the wireless charger



Front (if equipped)

Place the portable device on the
charging tray

Place the charging side of the portable
device down with the center of the device
in the center of the charge area.
Depending on the portable device, the
charging coil may not be located in the
center of the device. In this case, place the
portable device so that its charging coil is
in the center of the charge area.
When charging, the operation indicator
light (orange) comes on.
If charging is not occurring, try placing the
portable device as close to the center of
the charging area as possible.
When charging is complete, the operation
indicator light (green) comes on.



Rear (if equipped)

Press the power supply switch of
the wireless charger.

Switches on and off with each press of the

power supply switch.
When turned on, the operation indicator

light (green) comes on.
Even with the engine off, the on/off state of

the power supply switch is memorized.

Place the portable device on the
charging tray

Place the charging side of the portable

device down with the center of the device

in the center of the charge area.
Depending on the portable device, the

charging coil may not be located in the

center of the device. In this case, place the

portable device so that its charging coil is

in the center of the charge area.
When charging, the operation indicator

light (orange) comes on.
If charging is not occurring, try placing the

portable device as close to the center of

the charging area as possible.
When charging is complete, the operation

indicator light (green) comes on.

■

Recharging function



When charging is complete and
after a fixed time in the charge sus-
pension state, charging restarts.



When a portable device is moved
significantly in the charge area, the

426

5-6. Using the other interior features

charging coil is disconnected and
charging is stopped momentarily.
However, if there is a charging coil
in the charge area, the charging coil
inside the wireless charger will
move toward it and then charging
restarts.

■

Rapid charging function



The following portable devices sup-
port rapid charging.

• Portable devices compliant with WPC

Ver1.2.4 and compatible with rapid
charging

• iPhone’s with an iOS version that sup-

ports 7.5 W charging (iPhone 8 and
later models)



When a portable device that sup-
ports rapid charging is charged,
charging automatically switches to
the rapid charging function.

■

Lighting conditions of operation indicator light

: Only displayed on the front wireless device.

: Charging power will not be output during standby. A metallic object will not be heated,

if it is placed on the charging tray in this state.

: Depending on the portable device, there are cases where the operation indicator light

will continue being lit up orange even after the charging is complete.

■

When the wireless charger does not operate properly

When the wireless charger does not operate properly, handle the probable cause
based on the following tables.

Operation indicator light

Conditions

Charging tray side Center display side

Turning off

Disappear

When the Wireless charger power supply is

off

Green (comes on)

Gray

On Standby (charging possible state)

When charging is complete

Orange (comes on)

Blue

When placing the portable device on the

charging area (detecting the portable device)

Charging

427

5-6. Using the other interior features

Interio

r fe

atures

Operation indicator light

Suspected causes/Handling method

Charging tray side

Center Display side

Orange (Flashing

repeatedly once every

second)

Gray

Vehicle to wireless charger commu-
nication failure



If the engine is running, stop and
then restart the engine.

If the engine switch is in ACC, start
the engine. (



P.188)

Green (Flashing repeat-

edly once every second)

Disappear

Wireless charger and multimedia
system communication failure



If the engine is running, stop and
then restart the engine.

If the engine switch is in ACC, start
the engine. (



P.188)

Green (comes on)

Blue

AM radio stations are being auto-
matically selected



Wait until the system has com-
pleted the automatic selection of
AM radio stations. In the case
that automatic selection cannot
be completed, stop automatic
selection.

The smart access system with push-
button start is detecting the key.



Wait until key detection has com-
pleted.

428

5-6. Using the other interior features

: Only displayed on the front wireless device.

■

The wireless charger can be operated

when

The engine switch is in ACC or ON.

■

Usable portable devices

●

Qi standard wireless charge standard

can be used on compatible devices.

However, not all Qi standard devices and

compatibility are guaranteed.

●

Starting with mobile phones and smart-

phones, it is aimed for low power electri-

cally supplied portable devices of no

more than 5W.

●

However, charging exceeding 5 W is

supported by the following portable

devices.

• Charging at 7.5 W or less is supported

by iPhone’s that support 7.5 W charging.

• Charging at 10 W or less is supported by

portable devices compliant with EPP out-

put as defined by WPC standard

Ver1.2.4.

■

When covers and accessories are

attached to portable devices

Do not charge in situations where cover

and accessories not able to handle Qi are

attached to the portable device. Depending

on the type of cover (including for certain

genuine manufacturer parts) and acces-

sory, it may not be possible to charge.

When charging is not performed even with

the portable device placed on the charge

area, remove the cover and accessories.

■

While charging, noise enters the AM

radio

●

Rear (if equipped): Turn off the wireless

Orange (Repeatedly

flashes 3 times continu-

ously)

Gray

Foreign substance detection:
A metallic foreign substance is in the
charge area, and so the abnormal
heating prevention function of the
charging coil operated



Remove the foreign substance
from the charge area.

Portable device misaligned:



The charging coil in the portable
device moved outside of the
charge area, and so the abnormal
heating prevention function of
the charging coil operated

Orange (Repeatedly

flashes 4 times continu-

ously)

Gray

Safety shutdown resulting when the
temperature within the wireless
charger exceeded the set value



Stop charging, remove the porta-
ble device from the charging
tray, wait for the temperature to
drop, and then start charging
again.

Operation indicator light

Suspected causes/Handling method

Charging tray side

Center Display side

429

5-6. Using the other interior features

rio

r f

charger and confirm that the noise has

decreased. If the noise decreases, contin-

uously pushing the power supply switch

of the wireless charger for 2 seconds, the

frequency of the charger can be changed

and the noise can be reduced. Also, on

that occasion, the operation indicator

light will flash orange 2 times.

●

iPhone’s use a particular frequency for

rapid charging. Depending on the iOS

version, rapid charging may not be per-

formed while switching frequencies.

■

Important points of the wireless charger

●

If the electronic key cannot be detected

within the vehicle interior, charging can-

not be done. When the door is opened

and closed, charging may be temporarily

suspended.

●

When charging, the wireless charging

device and portable device will get

warmer, however this is not a malfunc-

tion.

When a portable device gets warm while

charging, charging may stop due to the

protection function on the portable

device side. In this case, when the tem-

perature of the portable device drops

significantly, charge again.

The fan may start operating to lower the

temperature inside the wireless charger,

however this is not a malfunction.

■

Operation sounds

Front (if equipped): A buzzing noise may be

heard when pressing the engine switch to

turn to ACC or ON or when detecting a

portable device. However, this is not a mal-

function.
Rear (if equipped): A buzzing noise may be

heard when pressing the power supply

switch to turn the power supply on, when

turning the engine switch to ACC or ON

while the wireless charger power supply is

on, or when detecting a portable device.

However, this is not a malfunction.

■

Trademark information

iPhone is a trademark of Apple Inc., regis-

tered in the U.S. and other countries.

WARNING

■

Caution while driving

When charging a portable device, for

safety reasons, the driver should not

operate the main part of the portable

device while driving.

■

Caution while in motion

Do not charge lightweight devices such

as wireless headphones while in motion.

These devices are very light and may be

ejected from the charging tray, which

may lead to unforeseen accidents.

■

Caution regarding interference with

electronic devices

People with implantable cardiac pace-

makers, cardiac resynchronization ther-

apy-pacemakers or implantable

cardioverters, as well as any other elec-

trical medical device, should consult their

physician about the usage of the wireless

charger.

■

To prevent malfunctions or burns

Observe the following precautions. Fail-

ure to do so may result in a equipment

failure and damage, catch fire, burns due

to overheat or electric shock.

●

Do not insert any metallic objects

between the charge area and the por-

table device while charging

●

Do not attach an aluminum sticker or

other metallic object to the charge

area

●

Do not attach an aluminum sticker or

other metallic object to the side of the

portable device (or to its case or

cover) that touches the charge area

●

Do not use the charging tray as a small

storage space

●

Do not subject to a strong force or

impact

●

Do not disassemble, modify or remove

●

Do not charge devices other than

specified portable devices

430

5-6. Using the other interior features

WARNING

●

Keep away from magnetic items

●

Do not charge devices if the charge

area is covered in dust

●

Do not cover with a cloth or similar

material

NOTICE

■

Situations in which the function may

not operate normally

Devices may not be charged normally in

the following situations.

●

The portable device is fully charged

●

The portable device is being charged

with a cable connected

●

There is foreign matter between the

charge area and portable device

●

Charging has caused the portable

device to heat up

●

The temperature around the charging

tray is 95°F (35°C) or higher, such as

in extreme heat

●

The portable device is placed with its

charging side facing up

●

The portable device is placed in an

area misaligned from the charge area

●

The portable device is larger than the

charging tray

●

A foldable and portable device is

placed outside the charge area

●

The vehicle is in an area where strong

electrical waves or noise are emitted,

such as near a television tower, power

plant, gasoline station, broadcasting

station, large display, airport, etc.

●

Any of the following objects that is

0.08 in (2 mm) or thicker is stuck or

installed between the charging side of

the portable device and the charge

area.

• Thick cases or covers

• A case or cover attached with an

uneven or tilted surface, so that the

charging side is not flat

• Thick decorations

• Accessories, such as finger rings,

straps, etc.

●

When the portable device is in contact

with, or is covered by any of the follow-

ing metallic objects:

• A card that has metal on it, such as alu-

minum foil, etc.

• A pack of cigarettes that includes alu-

minum foil

• A wallet or bag that is made of metal

• Coins

• A heating pad

• CDs, DVDs or other media

• A metal accessory

• A case or cover made of metal

●

Electric wave type wireless remote

controls are being used nearby

●

2 or more portable devices are placed

on the charging tray at the same time

If charging is abnormal or the operation

indicator light continues to flash for any

other reason, the wireless charger may

be malfunctioning. Contact your Lexus

dealer.

■

To prevent malfunctions and data

corruptions

●

When charging, bringing a credit, or

other magnetic card, or magnetic stor-

age media close to the charge area

may clear any stored data due to mag-

netic influence. Also, do not bring a

wristwatch or other precision instru-

ment close to the charge area since

doing so may cause it to malfunction.

431

5-6. Using the other interior features

rio

r f

Fold down the armrest for use.



Rear door

Pull the tab of the rear door sunshade
and hook the shade on the anchor.

To retract the rear door sunshade, unhook
the shade and retract it slowly.

NOTICE

●

Do not charge with a non-contact IC

card such as a transportation system

IC card inserted between the charging

side of a portable device and the

charge area. The IC chip may become

extremely hot and damage the porta-

ble device or IC card. Be especially

careful not to charge a portable device

inside a case or cover with a non-con-

tact IC card attached.

●

Do not leave portable devices inside

the vehicle. The inside of the vehicle

can become hot in extreme heat,

which could cause a malfunction.

■

If the smartphone OS has been

updated

If the smartphone OS has been updated

to a newer version, its charging specifi-

cations may have changed significantly.

For details, check the information on the

manufacturer’s website.

■

To prevent battery discharge

Do not use the wireless charger for a

long period of time when the engine is

stopped.

Armrest (if equipped)

NOTICE

■

To prevent damage to the armrest

Do not apply too much load on the arm-

rest.

Rear door/rear quarter sun-
shades (if equipped)

432

5-6. Using the other interior features



Rear quarter

Pull the tab of the rear quarter sun-
shade and hook the shade on the
anchor.

To retract the rear quarter sunshade,
unhook the shade and retract it slowly.

The coat hooks are provided with the
second seat assist grips.

WARNING

■

Rear door/rear quarter sunshades

●

When a sunshade is in use, do not put

fingers on the anchors or in the groove

of the sunshade. Otherwise, a finger

may get caught, possibly causing an

injury.

●

Do not use the sunshade when either

hook is detached.

The sunshade may come off, possibly
causing an injury.

NOTICE

■

To ensure the rear door/rear quarter

sunshade can operate properly

Observe the following precautions

●

Do not place anything where it may

interrupt opening/closing of the sun-

shade.

●

Do not attach anything to the sun-

shade.

●

Do not apply excessive force to the

sunshade when it is being hooked on

the anchor.

●

Do not operate the sunshade while the

rear door is opening or closing.

●

Do not store the sunshade in a tilted

position.

If stored in a tilted position, the sunshade
screen may become creased.

■

To prevent damage to the rear

door/rear quarter sunshades

Observe the following precautions to

avoid damage to the sunshades:

●

Do not hook anything other than the

sunshade on hook.

The hook may be damaged.

●

Do not pull on the screen while the

sunshade is hooked on the anchor.

The screen may be damaged.

Coat hooks

WARNING

■

Items that must not be hanged on the

hook

Do not hang coat hangers or other hard

or sharp objects on the hook. If the SRS

curtain shield airbags deploy, these items

may become projectiles, causing death

or serious injury.

433

5-6. Using the other interior features

rio

r f



Type A

An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.



Type B

An assist grip installed on the pillar can
be used when getting in or out of the
vehicle and others.

■

HomeLink

programming procedure

The programming procedures can also be

found at the following URL.

Website: www.homelink.com/lexus

For support, contact customer support at

the following.

Help Line: 1-800-355-3515

The HomeLink

wireless control sys-

tem in your vehicle has 3 buttons
which can be programmed to operate
3 different devices. Refer to the pro-
gramming methods on the following
pages to determine the method which
is appropriate for the device.

Assist grips

WARNING

■

Assist grips (type A)

Do not use the assist grip when getting in

or out of the vehicle or rising from your

seat.

NOTICE

■

To prevent damage to the assist grip

Do not hang any heavy object or put a

heavy load on the assist grip.

Garage door opener

The garage door opener can be
programmed using the
HomeLink

to operate garage

doors, gates, entry doors, door
locks, home lighting systems, secu-
rity systems, and other devices.

System components

434

5-6. Using the other interior features



Vehicles with inside rear view mir-
ror

HomeLink

indicator light

Garage door operation indicators

HomeLink

icon

Illuminates while HomeLink

is operating.

Buttons



Vehicles with Digital Rear-view
Mirror

HomeLink

logo

Appears while HomeLink

is operating.

When the menu button (



P.143) is

pressed, the logo disappears even while
the HomeLink

is operating.

Garage door operation indicators

HomeLink

indicator light

Illuminates above each button selected.

Buttons

■

Codes stored in the HomeLink

mem-

ory

●

The registered codes are not erased

even if the battery cable is disconnected.

●

If learning failed when registering a dif-
ferent code to a HomeLink

button that

already has a code registered to it, the

already registered code will not be

erased.

■

Before programming HomeLink



During programming, it is possible
that garage doors, gates, or other
devices may operate. For this rea-
son, make sure that people and
objects are clear of the garage door

WARNING

■

When programming a garage door

or other remote control device

The garage door or other device may

operate, so ensure people and objects

are out of danger to prevent potential

harm.

■

Conforming to federal safety stan-

dards

Do not use the HomeLink

compatible

transceiver with any garage door opener

or device that lacks safety stop and

reverse features as required by federal

safety standards.
This includes any garage door that can-

not detect an interfering object. A door

or device without these features

increases the risk of death or serious

injury.

■

When operating or programming
HomeLink

Never allow a child to operate or play
with the HomeLink

buttons.

Programming the HomeLink

435

5-6. Using the other interior features

Interio

r fe

atures

or other devices to prevent injury or
other potential harm.



It is recommended that a new bat-
tery be placed in the remote control
transmitter for more accurate pro-
gramming.



Garage door opener motors manu-
factured after 1995 may be
equipped with rolling code protec-
tion. If this is the case, you may need
a stepladder or other sturdy, safe
device to reach the “Learn” or
“Smart” button on the garage door
opener motor.

■

Programming HomeLink

Steps

through

must be performed

within 60 seconds, otherwise the
HomeLink

indicator light will stop

flashing and programming will not be
successfully completed.

Press and release the HomeLink

button you want to program and
check that the HomeLink

indica-

tor light flashes (orange).

Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink

buttons.

Keep the HomeLink

indicator light in

view while programming.



Vehicles with inside rear view mir-
ror



Vehicles with Digital Rear-view
Mirror

Program a device.



Vehicles with inside rear view mir-
ror

436

5-6. Using the other interior features



Vehicles with Digital Rear-view
Mirror



Programming a device other than
an entry gate (for U.S.A. owners)

Press and hold the remote control trans-
mitter button until the HomeLink

indica-

tor light changes from slowly flashing
orange to rapidly flashing green (rolling
code) or continuously lit green (fixed
code), then release the button.



Programming an entry gate (for
U.S.A. owners)/Programming a
device in the Canadian market

Press and release the remote control
transmitter button at 2 second intervals,
repeatedly, until the HomeLink

indicator

light changes from slowly flashing (orange)
to rapidly flashing (green) (rolling code) or
continuously lit (green) (fixed code).

Test the HomeLink

operation by

pressing the newly programmed
button and observing the indicator
light:



HomeLink

indicator light illumi-

nates: Programming of a fixed code
device has completed. The garage
door or other device should operate
when a HomeLink

button is

pressed and released.



HomeLink

indicator light flashes

rapidly: The garage door opener
motor or other device is equipped
with a rolling code. To complete
programming, firmly press and hold
the HomeLink

button for 2 sec-

onds then release it.



If the garage door or other device
does not operate, proceed to “Pro-
gramming a rolling code system”.

Repeat the steps above to program
another device for any of the
remaining HomeLink

buttons.

■

Programming a rolling code sys-
tem

Two or more people may be necessary
to complete rolling code program-
ming.

Locate the “Learn” or “Smart” but-
ton on the garage door opener
motor in the garage.

This button can usually be found where the

hanging antenna wire is attached to the

unit. The name and color of the button may

vary by manufacturer. Refer to the owner’s

manual supplied with the garage door

opener motor for details.

Press and release the “Learn” or
“Smart” button.

Perform

within 30 seconds after per-

437

5-6. Using the other interior features

Interio

r fe

atures

forming

Press and hold the desired
HomeLink

button (inside the

vehicle) for 2 seconds and release
it. Repeat this sequence
(press/hold/release) up to 3 times
to complete programming.
If the garage door opener motor
operates when the HomeLink

button is pressed, the garage door
opener motor recognizes the
HomeLink

signal.



Vehicles with inside rear view mir-
ror



Vehicles with Digital Rear-view
Mirror

■

Enabling 2-way communication
with a garage door (only available
for compatible devices)

When enabled, 2-way communication
allows you to check the status of the
opening and closing of a garage door
through indicators in your vehicle.
2-way communication is only available
if the garage door opener motor used
is a compatible device. (To check
device compatibility, refer to
www.homelink.com.)

Within 5 seconds after program-
ming the garage door opener has
been completed, if the garage door
opener motor is trained to
HomeLink

, both garage door

operation indicators will flash rap-
idly (green) and the light on the
garage door opener motor will
blink twice, indicating that 2-way
communication is enabled.

If the indicators do not flash, perform

and

within the first 10 presses of the

HomeLink

button after programming

has been completed.

Press a programmed HomeLink

button to operate a garage door.

438

5-6. Using the other interior features

Within 1 minute of pressing the
HomeLink

button, after the

garage door operation has
stopped, press the “Learn” or
“Smart” button on the garage door
opener motor. Within 5 seconds of
the establishment of 2-way com-
munication with the garage door
opener, both garage door opera-
tion indicators in the vehicle will
flash rapidly (green) and the light
on the garage door opener motor
will blink twice, indicating that 2-
way communication is enabled.

■

Reprogramming a single
HomeLink

button

When the following procedure is per-
formed, buttons which already have
devices registered to them can be
overwritten:

Press and hold the desired
HomeLink

button.

When the HomeLink

indicator

starts flashing orange, release the
HomeLink

button and perform

“Programming HomeLink

”

(it

takes 20 seconds for the
HomeLink

indicator to start flash-

ing).

■

Before programming

●

Install a new battery in the transmitter.

●

The battery side of the transmitter must
be pointed away from the HomeLink

buttons.

Press the appropriate HomeLink

button. The HomeLink

indicator light

should turn on.
The status of the opening and closing
of a garage door is shown by the
garage door opener indicators.



Vehicles with inside rear view mir-
ror

Opening

Closing



Vehicles with Digital Rear-view
Mirror

Opening

Closing

This function is only available if the garage
door opener motor used is a compatible
device. (To check device compatibility,
refer to www.homelink.com.)

Operating HomeLink

A
B

439

5-6. Using the other interior features

Interio

r fe

atures

The indicators can operate within
approximately 820 ft. (250 m) of the
garage door. However, if there are
obstructions between the garage door
and the vehicle, such as houses and
trees, feedback signals from the
garage door may not be received.
To recall the previous door operation
status, press and release either
HomeLink

buttons

and

(vehicles with inside rear

view mirror),

and

(vehicles with

Digital Rear-view Mirror), simultane-
ously. The last recorded status will be
displayed for 3 seconds.

Press and hold the 2 outside buttons
for 10 seconds until the HomeLink

indicator light changes from continu-
ously lit (orange) to rapidly flashing
(green).

If you sell your vehicle, be sure to erase the
programs stored in the HomeLink

mem-

ory.
