P.116

Pneumatic chambers built into the
front seat apply pressure to the occu-
pant’s body at different modes and
intensities.

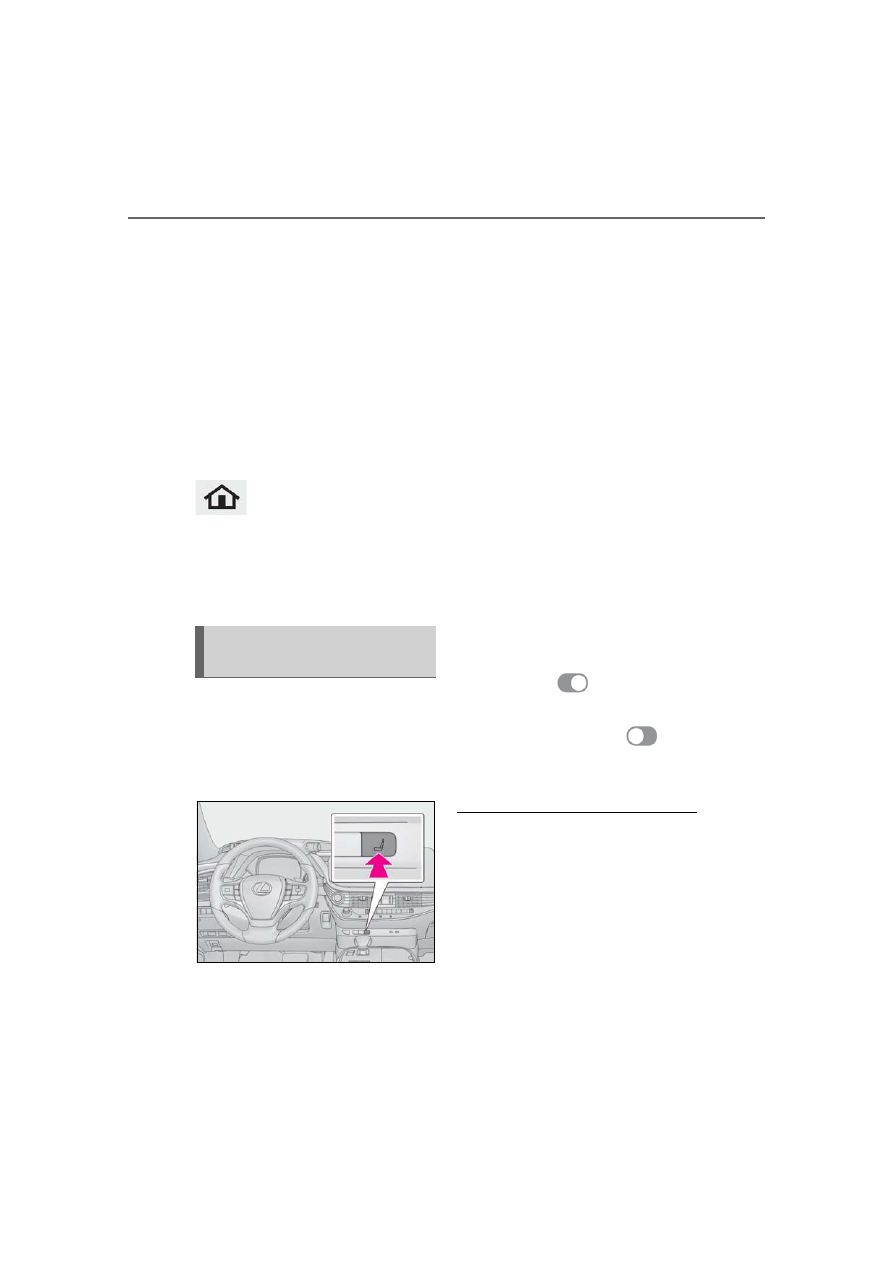

Press the seat switch.

Select “Massage”.

Select the driver’s seat or front pas-
senger’s seat.

Select the desired mode.



“Centripetal”

Applies pressure sequentially from the
front of the seat cushion to top of the seat-
back



“Centrifugal”

Applies pressure sequentially from the top
of the seatback to the front of the seat
cushion



“Upper body”

Applies pressure sequentially from the bot-
tom to the top of the seatback



“Lower body”

Applies pressure sequentially from the
front to the back of the seat cushion



“Lumbar”

Applies pressure sequentially from the bot-
tom to the top of the lumbar area of the
seatback

Select the desired intensity and
then select

(on).

The intensity can be adjusted in 5 steps.

To stop the operation, select

(off).
If a seat is not occupied, do not operate the

front seat refresh system for that seat.

■

Refresh system

●

Operating conditions

• The engine switch is in IGNITION ON

mode.

• The temperature in the cabin is not

extremely high.

• For the front passenger’s seat: The weight

of an occupant is detected on the front

passenger’s seat or the front passenger’s

seat belt is fastened.

Once weight is detected on the seat, the
seat will be judged as occupied until the
front passenger’s door is opened then

Front seat refresh system (if
equipped)

119

3-3. Adjusting the seats

fore
dri

ving

closed or the engine switch is turned off.

●

Automatic stop function

• The operation will be canceled automati-

cally after approximately 15 minutes.

• If the power easy access system begins

operating, the front seat refresh system

will stop.

: If equipped

WARNING

■

Important points while driving

Do not adjust the driver’s seat refresh

system while driving.

Using it may affect your ability to control

the vehicle, possibly leading to an acci-

dent resulting in death or serious injury.

■

Using the refresh system

●

Those who are pregnant, have recently

given birth, or suffer from ailments

requiring rest (heart disease etc.)

should consult a doctor before use.

●

Do not allow children to use the

refresh function.

●

Do not use immediately after consum-

ing a meal or alcohol, or for an

extended period of time.

●

If you feel sick while using the refresh

function, immediately discontinue use.

Power rear seat

WARNING

■

When adjusting the seat position

●

Take care when adjusting the seat

position to ensure that other passen-

gers are not injured by the moving

seat.

●

When adjusting the rear seat with an

ottoman, make sure there is sufficient

space so that a foot does not get

caught between the ottoman and front

passenger seat. (if equipped)

●

Vehicles with a rear seat entertainment

system: When the rear seat is moving

to the Entertainment Mode position,

do not allow hands near the rear dis-

play. Otherwise, a hand or finger may

be caught, possibly causing injury.

■

Seat adjustment

To reduce the risk of sliding under the lap

belt during a collision, do not recline the

seat more than necessary.

If the seat is too reclined, the lap belt may

slide past the hips and apply restraint

forces directly to the abdomen, or your

neck may contact the shoulder belt,

increasing the risk of death or serious

injury in the event of an accident.

Adjustments should not be made while

driving as the seat may unexpectedly

move and cause the driver to lose control

of the vehicle.

■

Using the ottoman (if equipped)

●

Do not sit on the ottoman.

If someone sits on the ottoman, the seat
belt cannot be fitted properly, and they
may be thrown from the seat, resulting in
death or serious injury in the event of an
accident or sudden braking.

120

3-3. Adjusting the seats

■

Automatic operation

The seat can be moved to preset posi-
tions.

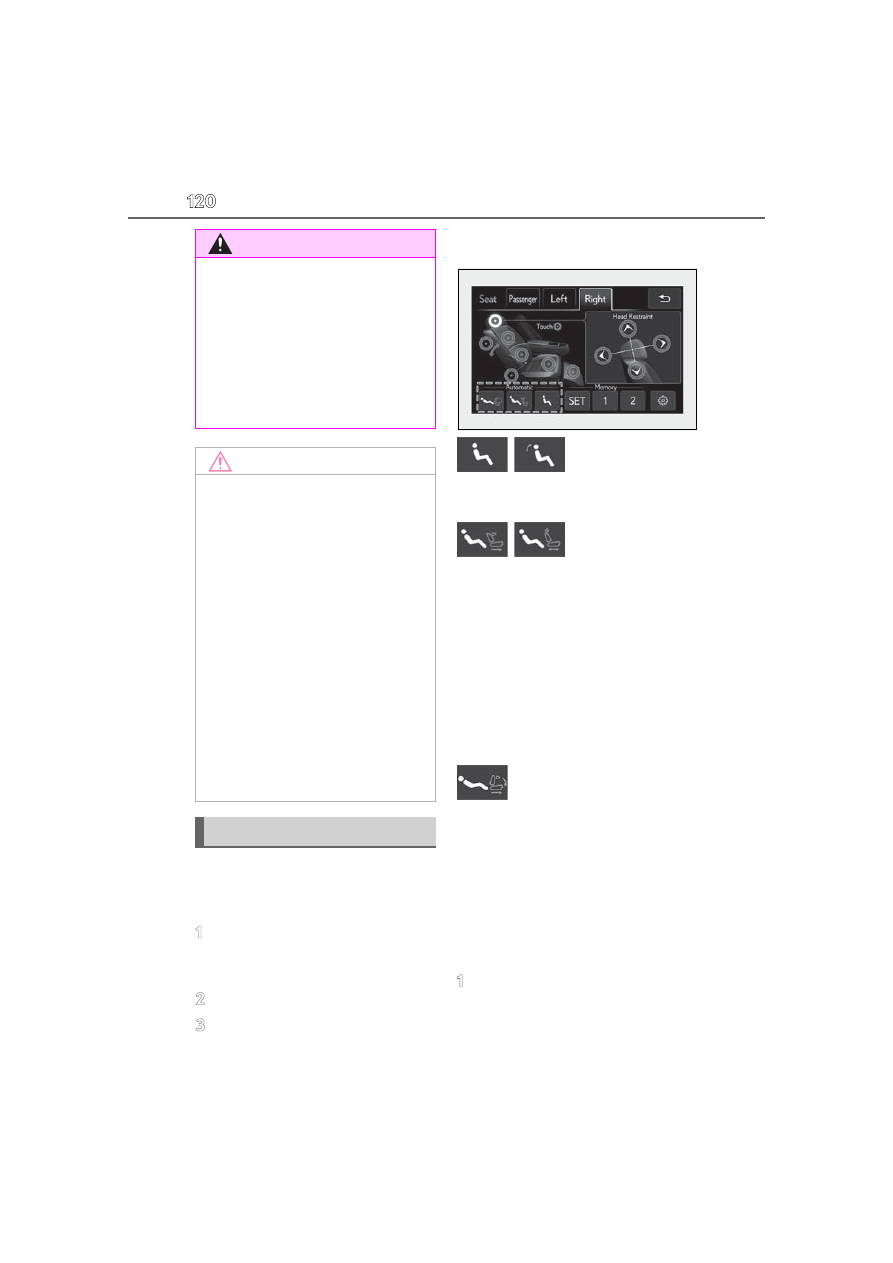

Display the home screen on the
Rear Multi Operation Panel
(



Touch “Left” or “Right”.

Touch the desired preset button.

When the operating conditions are not

met, the preset buttons will be grayed out.

: Moves the rear seat

to the upright position (Business
Mode)

: Moves the rear seat

with an ottoman to a slightly reclined
position (Entertainment Mode) (if
equipped)

Vehicles without a rear seat entertainment
system: Moves the front passenger’s seat
forward.
Vehicles with a rear seat entertainment
system: Moves the front passenger’s seat
and rear display to allow the rear display to
be comfortably viewed.

: Moves the rear seat with an

ottoman to a deeply reclined position
(Relaxation Mode) (if equipped)

Moves the front passenger’s seat forward
and folds the seatback and head restraint
forward.
To stop the front passenger seat while it is
moving, touch “STOP”.

■

Manual operation

Display the home screen on the
Rear Multi Operation Panel
(

WARNING

●

When getting in or out of the vehicle,

retract the ottoman. If the ottoman is

not retracted, it may cause a fall, result-

ing in injury.

●

Do not operate the ottoman when the

vehicle is moving.

●

Do not allow anyone to put their hands

or feet under the rear seat when stow-

ing the ottoman.

NOTICE

■

To prevent an ottoman malfunction (if

equipped)

●

Do not place any objects in the rear

seat footwell that could prevent the

operation of the ottoman.

●

Do not place heavy luggage on the

ottoman.

●

Do not place any objects under the

ottoman while it is raised for use. These

objects may interfere with the ottoman

being folded, causing damage to the

ottoman or the objects themselves.

■

To prevent a rear display malfunction

(if equipped)

Do not attempt to move the rear display

by hand, as doing so may damage the

rear display.

Adjustment procedure

121

3-3. Adjusting the seats

fore
dri
ving

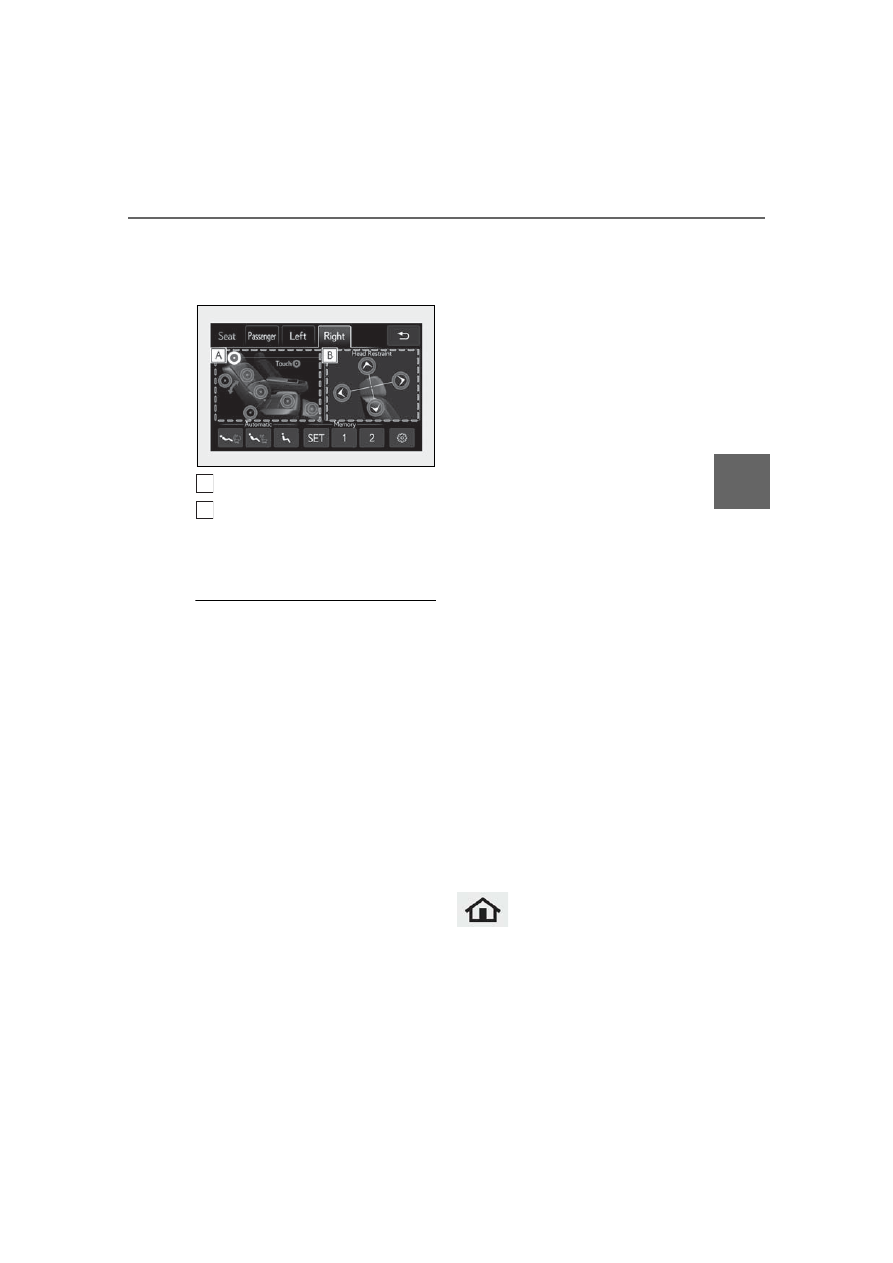

Touch “Left” or “Right”.

Touch the button for the desired
adjustment.

Select the part you wish to adjust.
Adjust the position of the selected
part.

The part will move while a button is
touched.

■

Adjustment of the rear seat

●

When a rear seat is close to a front seat,

the operation of the rear seat may be

restricted.

●

If the rear armrest is stowed while the

seat position is being adjusted, the opera-

tion will stop.

■

Operating conditions of Business Mode

When the rear seat belt is not fastened and

weight is not detected on the rear seat,

Business Mode cannot be selected.
Once weight is detected on the seat, the
seat will be judged as occupied until a rear
door is opened then closed or the engine
switch is turned off and the doors are
locked.

■

The rear seat with an ottoman cannot be

moved to Entertainment Mode/Relax-

ation Mode when (if equipped)

In the following situations, Entertainment

Mode or Relaxation Mode cannot be

selected:

●

The engine switch is in ACCESSORY

mode or off.

●

The rear seat belt is not fastened and

weight is not detected on the rear seat.

Once weight is detected on the seat, the
seat will be judged as occupied until a rear
door is opened then closed or the engine
switch is turned off and the doors are
locked.

●

The weight of an occupant or heavy

object, etc. is detected on the front pas-

senger’s seat.

Once weight is detected on the seat, the
seat will be judged as occupied until the
front passenger’s door is opened then
closed or the engine switch is turned off.

●

The front passenger’s seat belt is fas-

tened.

●

The front passenger’s door is open.

■

When the front passenger’s seat is

folded forward



P.116

■

Automatic angle adjustment of the rear

displays (if equipped)

When a seat is adjusted, the angle of the

rear display will be adjusted automatically

to maintain an optimal viewing angle for the

rear display from the rear seat.

■

Operation after the engine switch is

turned off

After a certain time elapses after the engine

switch is turned off, the following parts of

the rear seats will move to their neutral

positions.

●

Shoulder bolster

●

Lumbar/pelvic support

■

Canceling an operation

To cancel an operation, press and hold the

button of the Rear Multi Opera-

tion Panel or press it 3 times in quick suc-

cession.

■

Pre-collision seatbacks for the passen-

ger seats



P.208, 220

A
B

122

3-3. Adjusting the seats

■

Customization

Some functions can be customized.

(



Press the seat switch.

Select “Arrangement”.

Select the rear seat.

Select “Return”.

The rear seat will move to the upright posi-

tion.
If the “Cancel” is selected while the seat

position is being adjusted, the operation

will stop.

■

Operation of the rear seats from the

front seats

In the following situations, the rear seats

cannot be operated from the front seats.

●

When the armrest is stowed and weight

of an occupant, heavy object, etc. is

detected on a rear seat

Once weight is detected on the seat, the
seat will be judged as occupied until a rear
door is opened then closed or the engine
switch is turned off and the doors are
locked.

●

When the armrest is stowed and a rear

seat belt is fastened.

The rear seat relaxation system utilizes
pneumatic chambers and dedicated
heaters, and applies pressure to the
occupant’s body at different modes
and intensities.

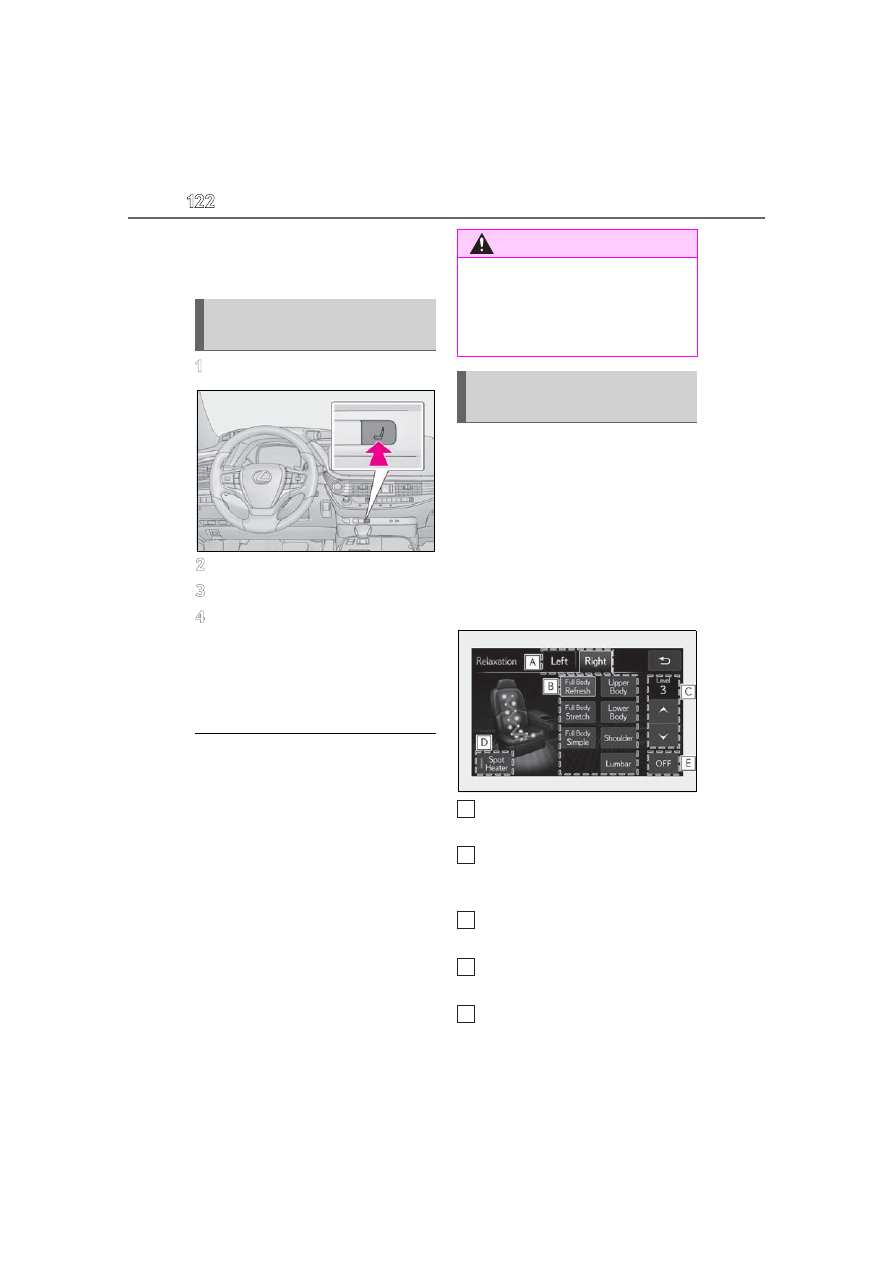

To display the rear seat relaxation sys-
tem screen, display the home screen
on the Rear Multi Operation Panel
(

P.314) and then touch “Relaxation”.

Touch to select the desired rear
seat.
Touch to select the desired mode.

When a button is touched, operation will
begin.

Touch to adjust the intensity.

The intensity can be adjusted in 5 steps.

Touch to turn the spot heaters
on/off.
Touch to stop the operation.

Returning the rear seat from the
front seats

WARNING

■

When returning the rear seats to the

neutral position

To avoid injuring the rear passengers,

wait until they have gotten out of the

vehicle before operating the switch.

Rear seat relaxation system (if
equipped)

123

3-3. Adjusting the seats

fore
dri

ving

If a seat is not occupied, do not operate the
rear seat relaxation system for that seat.

■

Relaxation system

●

Operating conditions

• The engine switch is in IGNITION ON

mode.

• The temperature in the cabin is not

extremely high.

• The weight of an occupant is detected on

the rear seat or the rear seat belt is fas-

tened.

Once weight is detected on the seat, the
seat will be judged as occupied until a rear
door is opened then closed or the engine
switch is turned off and the doors are
locked.

●

Automatic stop function

• The operation will be canceled automati-

cally after approximately 15 minutes.

• If the door for a seat that the relaxation

system is currently being used is opened,

the relaxation system will stop operating.

The following functions will cause the
rear seats to move automatically.

■

Seat return function linked to the
door opening operation

The rear seat will return to the upright
position automatically when the rear
door is opened for easier entry and exit
of the vehicle.
For the rear seat with an ottoman (if
equipped): When the rear door on the
side with the rear seat with an ottoman
is opened, the seatback of the rear seat
with an ottoman will move to a more
upright position. The seatback will
move to the upright position after the
door is closed and the system deter-
mines that the rear passenger has
exited.
However, if the armrest is stowed, the
rear seat will not move.

■

Shift-linked rear seat reclining
function

When the shift position is shifted from
P, to enhance rear visibility for the
driver, the rear seats will recline slightly.
However, the shift-linked rear seat
reclining function will not operate in
the following situations:



The weight of an occupant or heavy
object, etc. is detected on a rear
seat.

Once weight is detected on the seat, the
seat will be judged as occupied until a rear
door is opened then closed or the engine
switch is turned off and the doors are
locked.



A rear seat belt is fastened.



A rear door is open.



The armrest is stowed.

WARNING

■

Using the relaxation system

●

Those who are pregnant, have recently

given birth, or suffer from ailments

requiring rest (heart disease etc.)

should consult a doctor before use.

●

Do not allow children to use the relax-

ation function.

●

Do not use immediately after consum-

ing a meal or alcohol, or for an

extended period of time.

●

If you feel sick while using the relax-

ation function, immediately discon-

tinue use.

Automatic Seat Operation

124

3-3. Adjusting the seats

When a front seat is close to a rear
seat, the rear seats may not operate or
the range of movement may be
restricted.

■

Changing automatic seat opera-
tion settings

The settings can be changed on the
Rear Multi Operation Panel. (



P.314)

Display the home screen on the
Rear Multi Operation Panel
(



Touch “Left” or “Right”.

Touch .

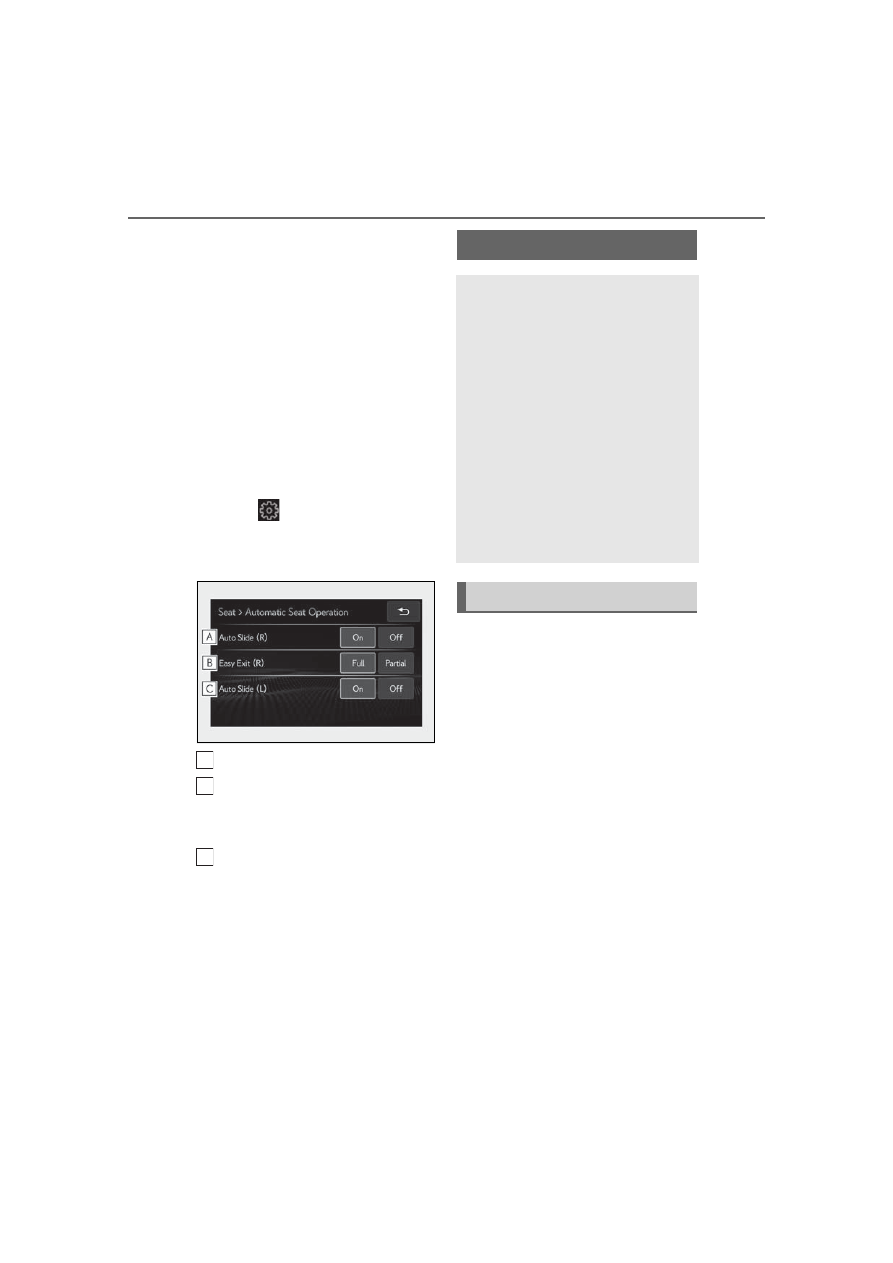

Touch a button to change the set-
ting.

Rear right seat automatic operation
Rear right seatback movement
amount when door-linked rear seat
return function operates

Rear left seat automatic operation

: Vehicles with a rear seat with an ottoman

The seat and steering wheel are auto-
matically adjusted to allow the driver to
enter and exit the vehicle easily.



Driver’s seat

When all of the following have been
performed, the seat and steering
wheel are automatically adjusted to a
position that allows driver to enter and
exit the vehicle easily.
• The shift position has been shifted to

• The engine switch has been turned

off.

• The driver’s seat belt has been

unfastened.

When the driver’s seat adjustment
switches are in front passenger mode
(

P.114), the seat and steering wheel will

not move.

A
B

Driving position memory

This feature automatically adjusts
the positions of the front seats,
steering wheel, outside rear view
mirrors and head-up display (if
equipped) to make entering and
exiting the vehicle easier or to suit
your preferences.

Up to 3 different driving positions
can be recorded.

Each electronic key (including a
card key) can be registered to
recall your preferred driving posi-
tion.

Power easy access system

125

3-3. Adjusting the seats

fore
dri
ving

On vehicles with adjustable seat cush-
ion side bolsters, when the driver’s
door is opened with the engine switch
off, the seat cushion side bolsters will
lower if they are in the default position.
When any of the following has been
performed, the seat and steering
wheel automatically return to their
original positions.
• The engine switch has been turned

to ACCESSORY mode or IGNI-
TION ON mode.

• The driver’s seat belt has been fas-

tened.



Front passenger’s seat

If all of the following have been per-
formed while the vehicle is stopped,
the lumbar support, pelvic support,
shoulder bolster (if equipped), seat-
back side bolster (if equipped), and hip
support (if equipped) will be moved to
their default position. On vehicles with
adjustable seat cushion side bolsters,
the seat cushion side bolsters will
lower.
• The passenger’s seat belt has been

unfastened.

• The front passenger’s door is

opened.

■

Operation of the power easy access sys-

tem

●

When exiting the vehicle, the power easy

access system may not operate if the seat

is already in the rearmost or uppermost

position or close to the rear seat.

●

If the seat position is adjusted during

power easy access system operation, the

automatic operation will stop. (The seat

will change to manual operation.)

●

If the seat position is adjusted during or

after the power easy access system oper-

ation when the driver is exiting the vehi-

cle, the power easy access system will not

operate when entering the vehicle.

■

Seat cushion side bolster adjustment (if

equipped)

If the seat cushion side bolsters have been

lowered, when the front door is closed, the

seat cushion side bolsters will move to their

default position.
If the seat is adjusted while the seat cushion

side bolsters are moving to the default posi-

tion, their movement will be temporarily

suspended. (The seat cushion side bolsters

will move to the default position after a cer-

tain amount of time.)

■

Customization

Some functions can be customized.

(

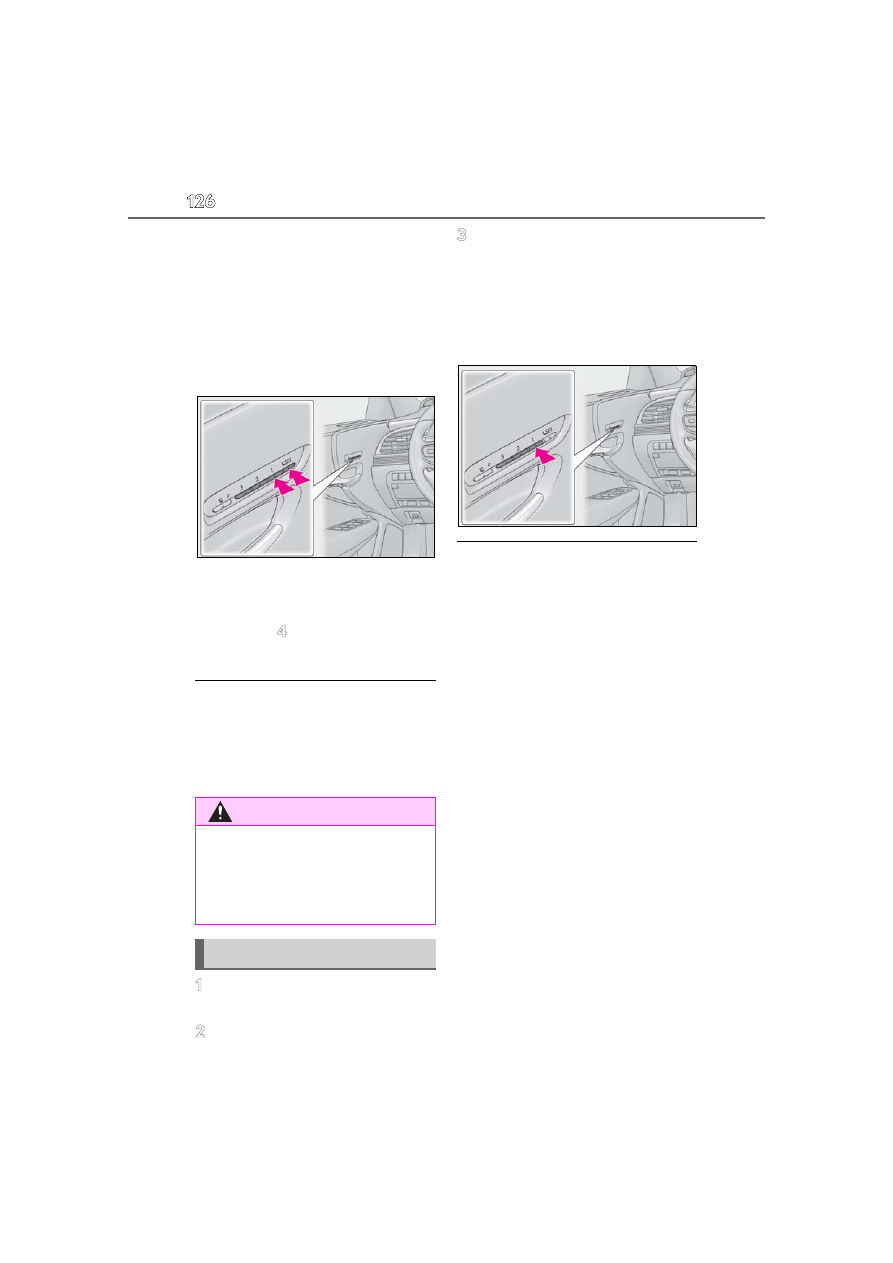

Turn the engine switch to IGNI-
TION ON mode.

Check that the shift position is in P.

Adjust the driver’s seat, steering
wheel, outside rear view mirrors
and head-up display (if equipped)
to the desired positions.

While pressing the “SET” button, or
within 3 seconds after the “SET”

Recording a driving position into
memory

126

3-3. Adjusting the seats

button is pressed, press button “1”,
“2” or “3” until the buzzer sounds.

If the selected button has already been

preset, the previously recorded position

will be overwritten.
When the driver’s seat adjustment

switches are in front passenger mode

(



P.114), the position of the driver’s seat

cannot be registered.

To record the position of the front pas-
senger’s seat, adjust the front passen-
ger’s seat to the desired position and
perform step

using the buttons on

the front passenger’s side.

■

In order to correctly use the driving

position memory function

If a seat position is already in the furthest

possible position and the seat is operated in

the same direction, the recorded position

may be slightly different when it is recalled.

Turn the engine switch to IGNI-
TION ON mode.

Check that the shift position is in P.

Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.

When the driver’s seat adjustment

switches are in front passenger mode

(

P.114), a driving position cannot be

recalled.

■

To stop the position recall operation

part-way through

Perform any of the following operations:

●

Press the “SET” button.

●

Press button “1”, “2” or “3”.

●

Press the mode change button.

●

Operate any of the seat adjustment

switches (only cancels seat position

recall).

●

Operate the tilt and telescopic steering

control switch (only cancels steering

wheel position recall).

■

Recalling a driving position

If a driving position is recalled, the move-

ment of the front seat may be stopped part-

way if the seat moves close to the rear seat.
If a rear passenger is determined to be in

the vehicle, the rearward movement of the

front seat may be stopped partway to

ensure sufficient space for the rear passen-

ger.

■

Recalling the front passenger’s seat

position (vehicles with a rear seat with

an ottoman)

If the ottoman of the rear seat is extended,

the front passenger’s seat position cannot

be recalled.

WARNING

■

Seat adjustment caution

Take care during seat adjustment so that

the seat does not strike the rear passen-

ger or squeeze your body against the

steering wheel.

Recalling a driving position

127

3-3. Adjusting the seats

fore
dri
ving

■

Operating the driving position memory

after turning the engine switch off

Driver’s seat:

Recorded seat positions can be activated

up to 180 seconds after the driver’s door is

opened and another 60 seconds after it is

closed again.
Front passenger’s seat:

Recorded seat positions can be recalled up

to 180 seconds after the front passenger’s

door is opened.

■

When the recorded seat position can-

not be recalled

The seat position may not be recalled in

some situations when the seat position is

recorded in a certain range. For details,

contact your Lexus dealer.

■

Registering procedure

Record your driving position to button
“1”, “2” or “3” before performing the
following:
Carry only the key you want to register,
and then close the driver’s door.
If 2 or more keys are in the vehicle, the
driving position cannot be recorded
properly.

Turn the engine switch to IGNI-
TION ON mode.

Check that the shift position is in P.

Recall the driving position that you
want to record.

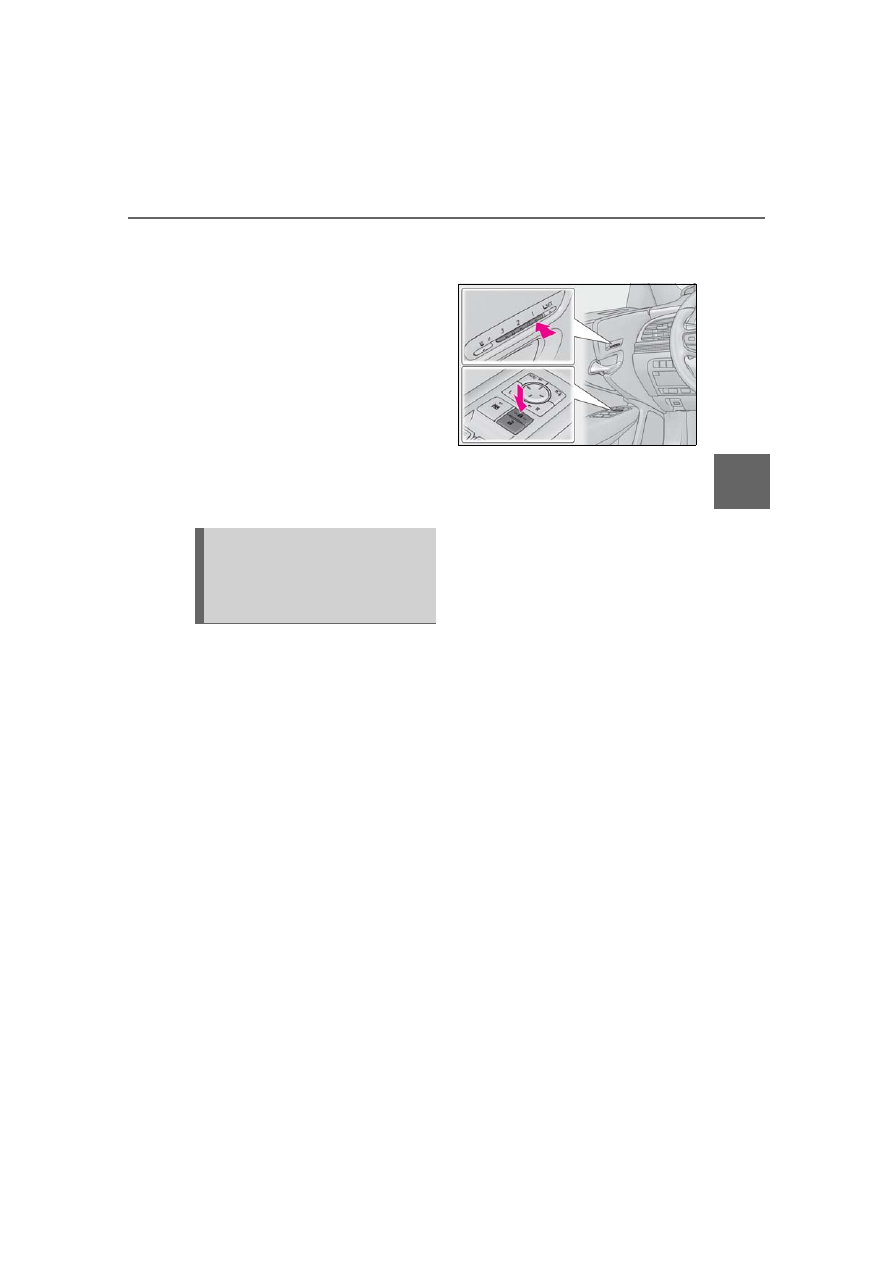

While pressing the recalled button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds.

If the button could not be registered, the

buzzer sounds continuously for approxi-

mately 3 seconds.

■

Cancelation procedure

Carry only the key you want to cancel
and then close the driver’s door.
If 2 or more keys are in the vehicle, the
driving position cannot be canceled
properly.

Turn the engine switch to IGNI-
TION ON mode.

Check that the shift position is in P.

While pressing the “SET” button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds twice.

If the button could not be canceled, the

buzzer sounds continuously for approxi-

mately 3 seconds.

■

Recall procedure

Make sure that the doors are
locked before recalling the driving
position. Carry the electronic key
that has been registered to the driv-
ing position, and then unlock and
open the driver’s door using the
smart access system with push-but-
ton start or wireless remote control.

The driving position will move to the

recorded position (not including the steer-

ing wheel and head-up display [if

equipped]). However, the seat will move to

Registering/canceling/recall a
driving position to an electronic
key (including a card key) (mem-
ory recall function)

128

3-3. Adjusting the seats

a position slightly behind the recorded

position in order to make entering the vehi-

cle easier.
If the driving position is in a position that

has already been recorded, the seat and

outside rear view mirrors will not move.

Turn the engine switch to ACCES-
SORY mode or IGNITION ON
mode, or fasten a seat belt.

The seat, steering wheel and head-up dis-

play (if equipped) will move to the

recorded position.

■

Recalling the driving position using the

memory recall function

●

Different driving positions can be regis-

tered for each electronic key. Therefore,

the driving position that is recalled may

be different depending on the key being

carried.

●

If a door other than the driver’s door is

unlocked with the smart access system

with push-button start, the driving posi-

tion cannot be recalled. In this case, press

the driving position button which has

been set.

■

Customization

Some functions can be customized.

(



: If equipped

Turn the engine switch to IGNI-
TION ON mode.

Display the home screen on the
Rear Multi Operation Panel
(

Touch “Left” or “Right”.

Adjust the rear seat to the desired
position and then touch “SET”.

Touch “1” or “2”.

If the preset is being used, the previously

recorded seat position will be overwritten.

■

In order to correctly use the position

memory function

If a seat position is already in the furthest

possible position and the seat is operated in

the same direction, the recorded position

may be slightly different when it is recalled.

Turn the engine switch to IGNI-
TION ON mode.

Rear seat position memory

The rear seat position can be mem-
orized and recalled with the touch
of a button.

Recording a position into mem-
ory

WARNING

■

Seat adjustment caution

Take care during seat adjustment so that

the rear passengers do not strike the

front seats.

Recalling the memorized posi-
tion

129

3-3. Adjusting the seats

fore
dri

ving

Display the home screen on the
Rear Multi Operation Panel
(



Touch “Left” or “Right”.

Touch “1” or “2”.

When the operating conditions are not

met, the buttons will be grayed out.
To stop the operation touch “STOP”.
If the seat is adjusted while a memorized

position is being recalled, the automatic

operation will stop. (The seat will change to

manual operation.)

■

Operating condition

The weight of an occupant is detected on

the rear seat or the rear seat belt is fas-

tened.
Once weight is detected on the seat, the
seat will be judged as occupied until the
rear door is opened then closed or the
engine switch is turned off.

■

Recalling a rear seat position

If a memorized rear seat position is recalled,

the seat may stop part-way to ensure suffi-

cient space for the rear passenger.

■

Recalling the ottoman position (if

equipped)

When a seat position is recalled, the otto-

man will not raise or extend. The ottoman

position can only be recalled if the memo-

rized position is lower and shorter than the

current position.

Head restraints

Head restraints are provided for all
seats.

Vehicles with power rear seat: The
head restraint for the rear center
seat is integrated into the seatback
and cannot be adjusted.

WARNING

■

Head restraint precautions

Observe the following precautions

regarding the head restraints. Failure to

do so may result in death or serious

injury.

●

Use the head restraints designed for

each respective seat.

●

Adjust the head restraints to the cor-

rect position at all times.

●

Manual type: After adjusting the head

restraints, push down on them and

make sure they are locked in position.

●

Do not drive with the head restraints

removed.

130

3-3. Adjusting the seats

■

Front seats



Center Display

Press the seat switch.

Select “Adjustments”.

Select the driver’s seat or front pas-
senger’s seat.

Select “Headrest” then the desired
adjustment

button , ,

to adjust the head restraint.

Up
Backward
Down
Forward

The head restraint moves while the adjust-

ment button is selected.



Seat adjustment switches (on some
models)

Down

■

Rear seats

Display the home screen on the
Rear Multi Operation Panel
(

Touch “Left” or “Right”.

Touch then the desired adjust-
ment

button , , ,

adjust the head restraint.

Up
Backward
Down
Forward

The head restraint moves while the adjust-

ment button is touched.

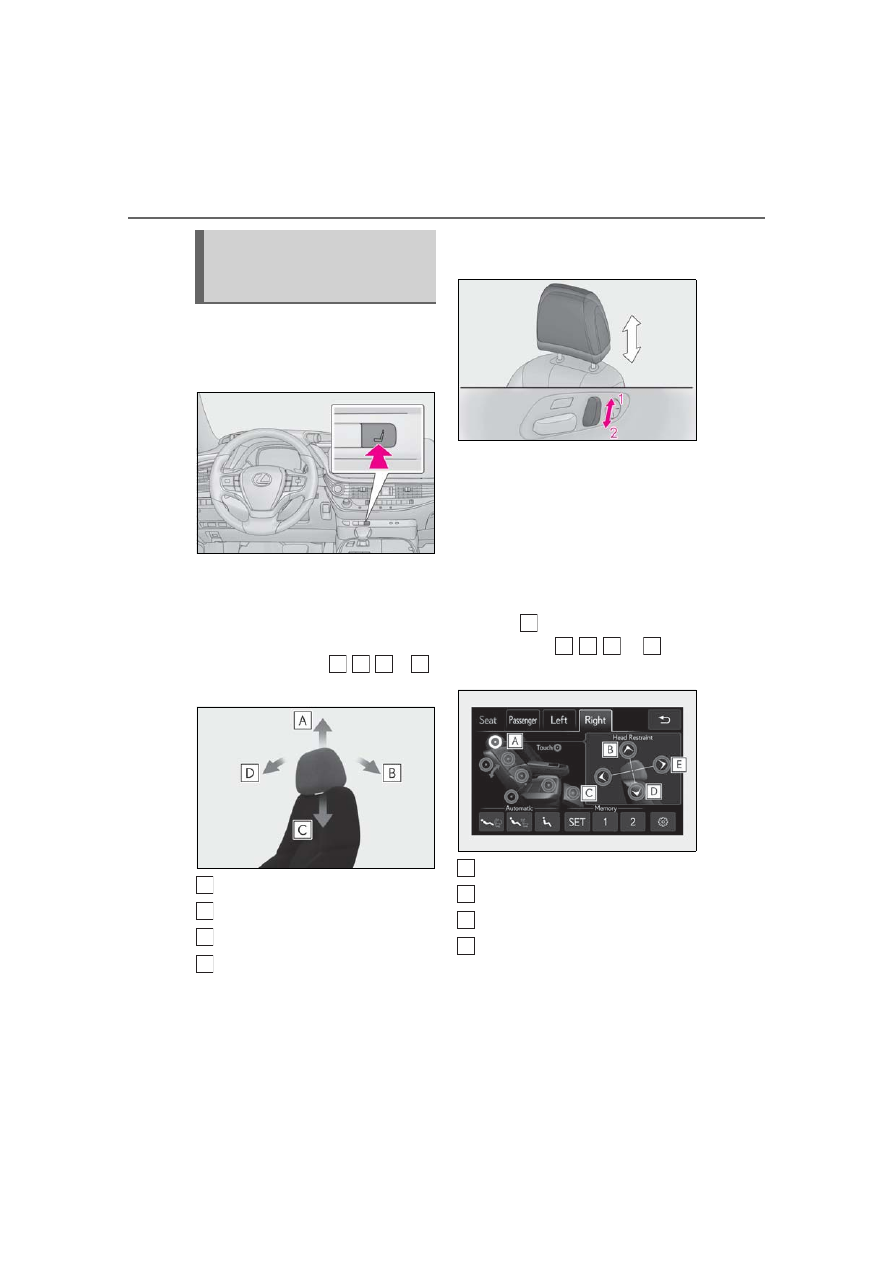

Adjusting a head restraint verti-
cally and horizontally (power
head restraints)

A B C

A
B
C
D

B C D

B
C
D

131

3-3. Adjusting the seats

fore
dri
ving

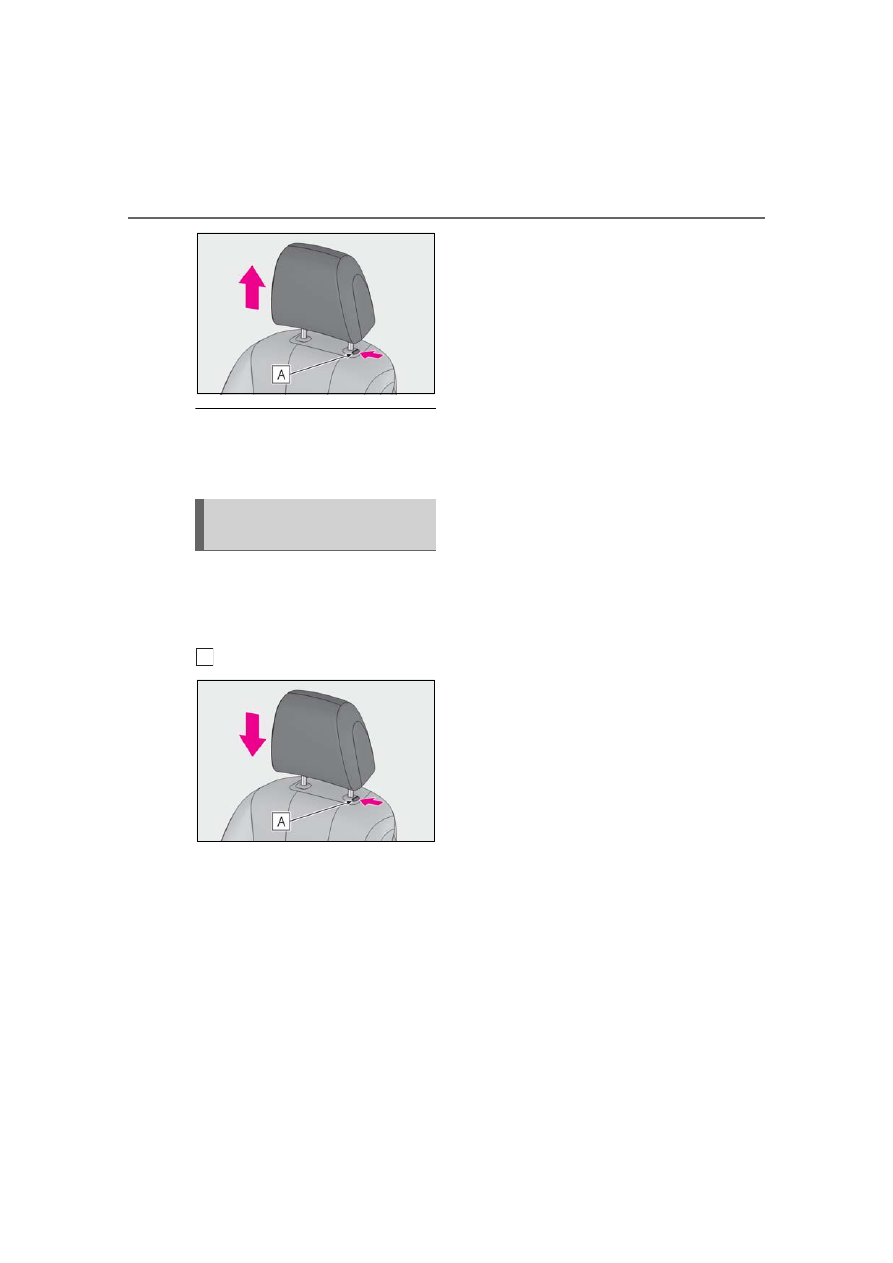

Pull the head restraints up.

Down

Push the head restraint down while press-
ing the lock release button

■

Front seat head restraints (power head

restraints)

Depending on the position of the front seat,

the front head restraint may not be able to

be adjusted upward if it is close to the ceil-

ing.

■

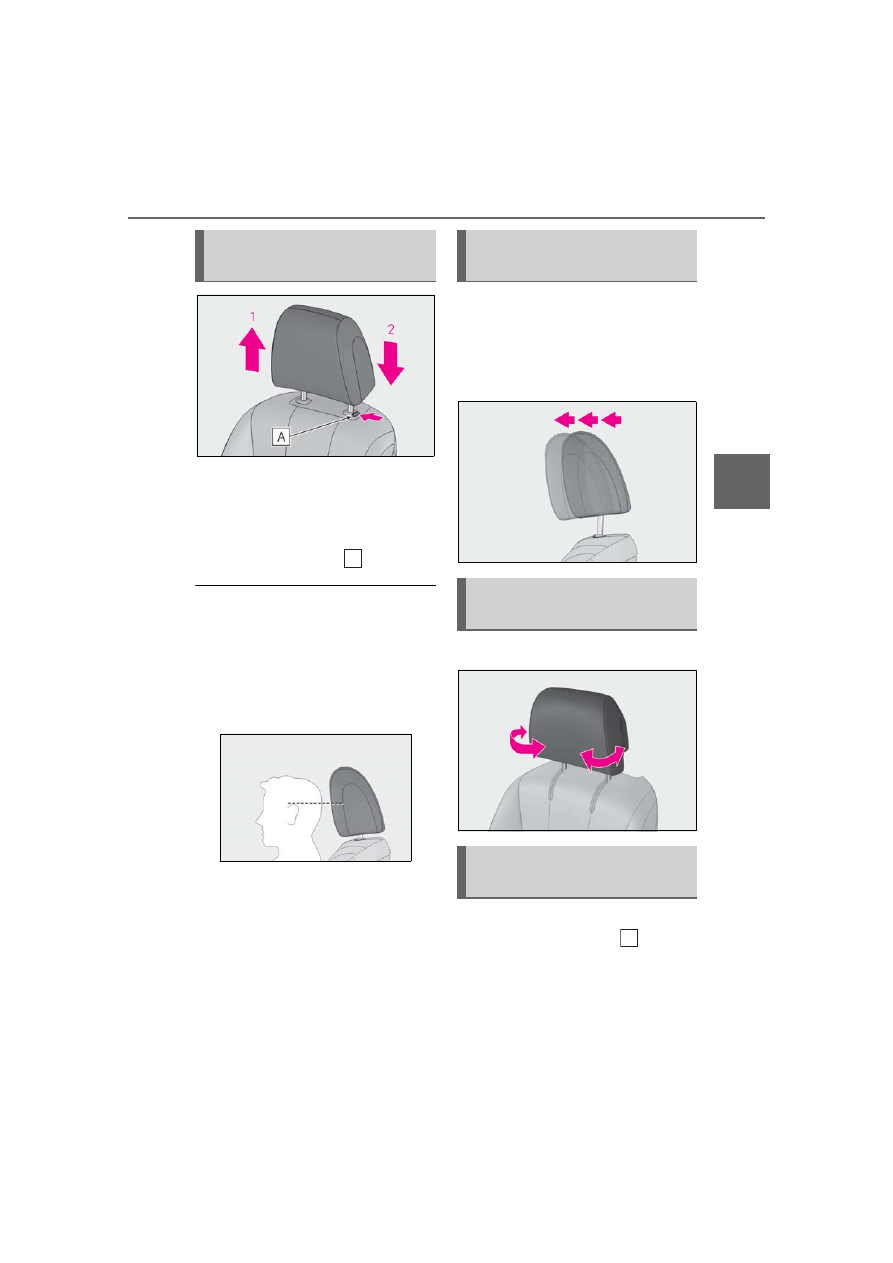

Adjusting the height of the head

restraints

Make sure that the head restraints are

adjusted so that the center of the head

restraint is closest to the top of your ears.

■

Adjusting the rear seat head restraints

(manual head restraints)

Always raise the head restraint one level

from the stowed position when using.

The position of the head restraint can
be adjusted forward in 4 stages.

If the head restraint is pulled forward from
the foremost position, it will return to the
rearmost position.

Push the sides of the head restraint.

Pull the head restraint up while press-
ing the lock release button .

Adjusting a head restraint verti-
cally (manual head restraints)

Adjusting a head restraint hori-
zontally (manual head restraints)

Adjusting the side supports (if
equipped)

Removing the head restraints
(manual head restraints)

133

3-4. Adjusting the steering wheel and mirrors

fore
dri

ving

3-4.Adjusting the steering wheel and mirrors

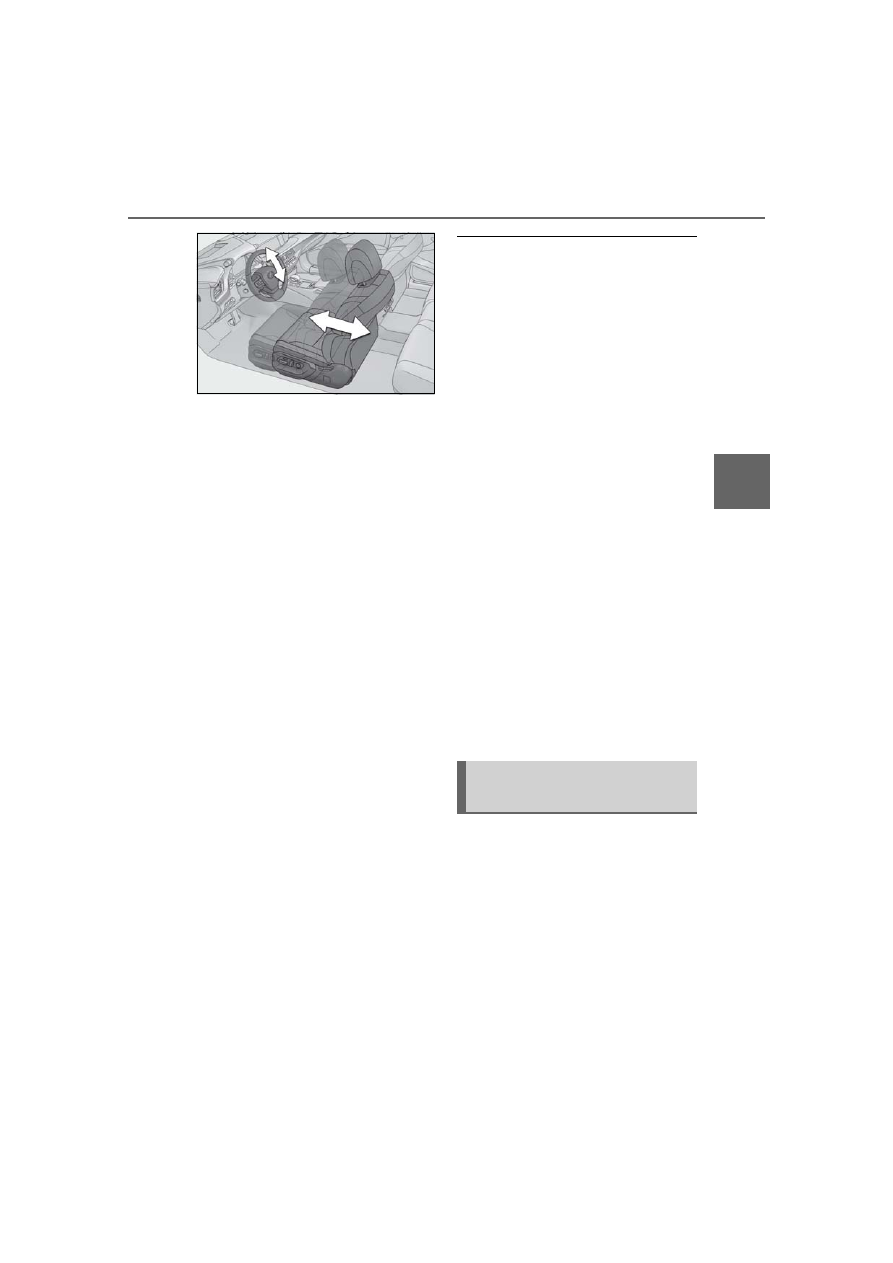

Operating the switch moves the steer-
ing wheel in the following directions:

Down

Toward the driver

Away from the driver

■

The steering wheel can be adjusted

when

The engine switch is in ACCESSORY or
IGNITION ON mode

: If the driver’s seat belt is fastened, the

steering wheel can be adjusted regard-
less of engine switch mode.

■

Automatic adjustment of the steering

position

A desired steering position can be entered

to memory and recalled automatically by

the driving position memory system.

(



P.124)

■

Power easy access system

The steering wheel and driver’s seat move

in accordance with engine switch mode and

the driver’s seat belt condition. (



P.124)

■

Customization

Some functions can be customized.

(



Press on or close to the

mark.

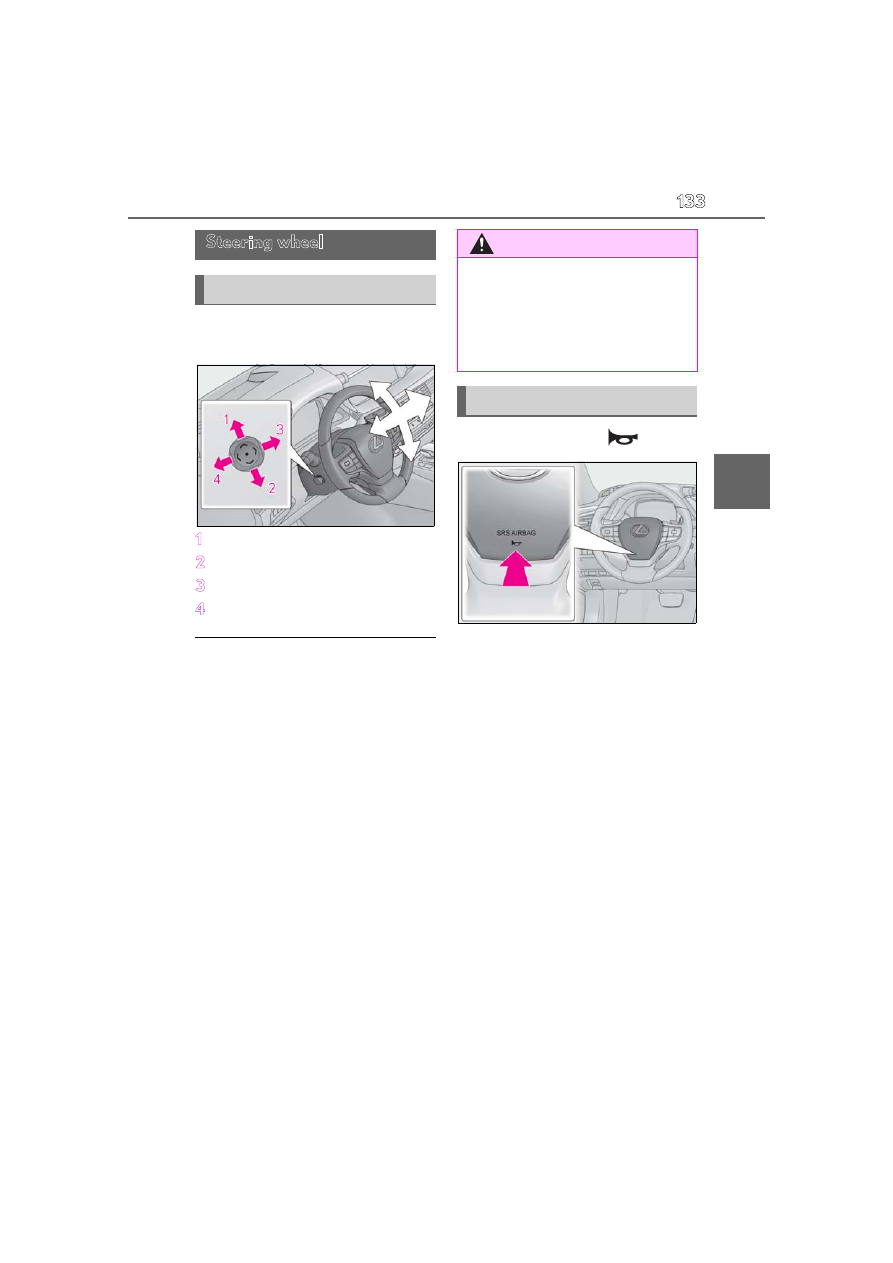

Steering wheel

Adjustment procedure

WARNING

■

Caution while driving

Do not adjust the steering wheel while

driving.

Doing so may cause the driver to mis-

handle the vehicle and cause an acci-

dent, resulting in death or serious injury.

Sounding the horn

134

3-4. Adjusting the steering wheel and mirrors

: If equipped

The height of the rear view mirror can
be adjusted to suit your driving pos-
ture.
Adjust the height of the rear view mir-
ror by moving it up and down.

Responding to the level of brightness
of the headlights of vehicles behind, the
reflected light is automatically
reduced.
Turn the automatic anti-glare function

mode on/off

When the automatic anti-glare function is
in ON mode, the indicator

illuminates.

The function will set to ON mode each
time the engine switch is turned to IGNI-
TION ON mode.
Pressing the button turns the function to
OFF mode. (The indicator

also turns

off.)

■

To prevent sensor error

To ensure that the sensors operate properly,

do not touch or cover them.

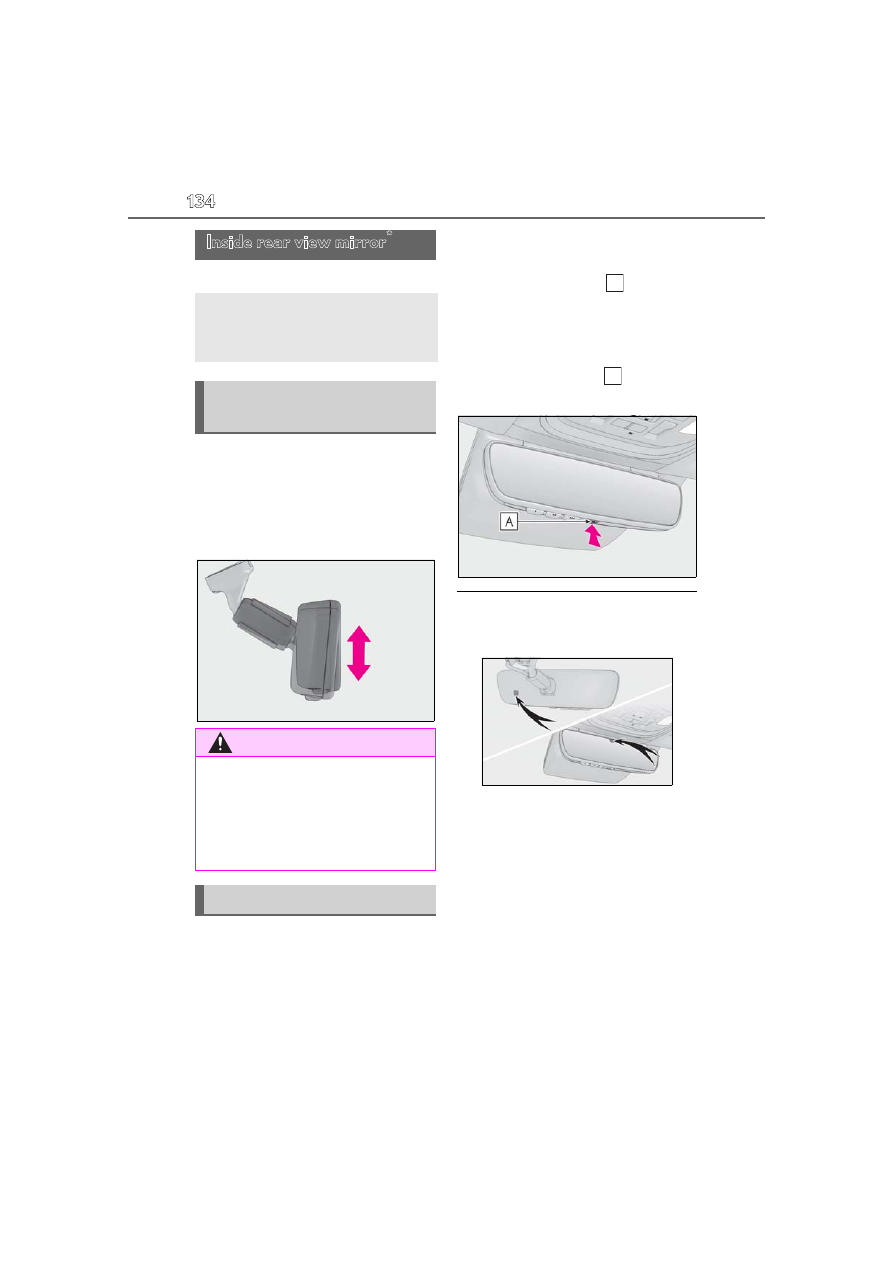

Inside rear view mirror

The rear view mirror’s position can
be adjusted to enable sufficient
confirmation of the rear view.

Adjusting the height of rear view
mirror

WARNING

■

Caution while driving

Do not adjust the position of the mirror

while driving.

Doing so may lead to mishandling of the

vehicle and cause an accident, resulting

in death or serious injury.

Anti-glare function

135

3-4. Adjusting the steering wheel and mirrors

fore
dri

ving

: If equipped

Camera indicator

Indicates that the camera is operating nor-
mally.

Icon display area

Displays icons, adjusting gauge, etc.
(

P.137)

Select button

Press to change the setting of the item you
want to adjust.

Menu button

Press to display the icon display area and
select the item you want to adjust.

Lever

Operate to change between digital mirror
mode and optical mirror mode.

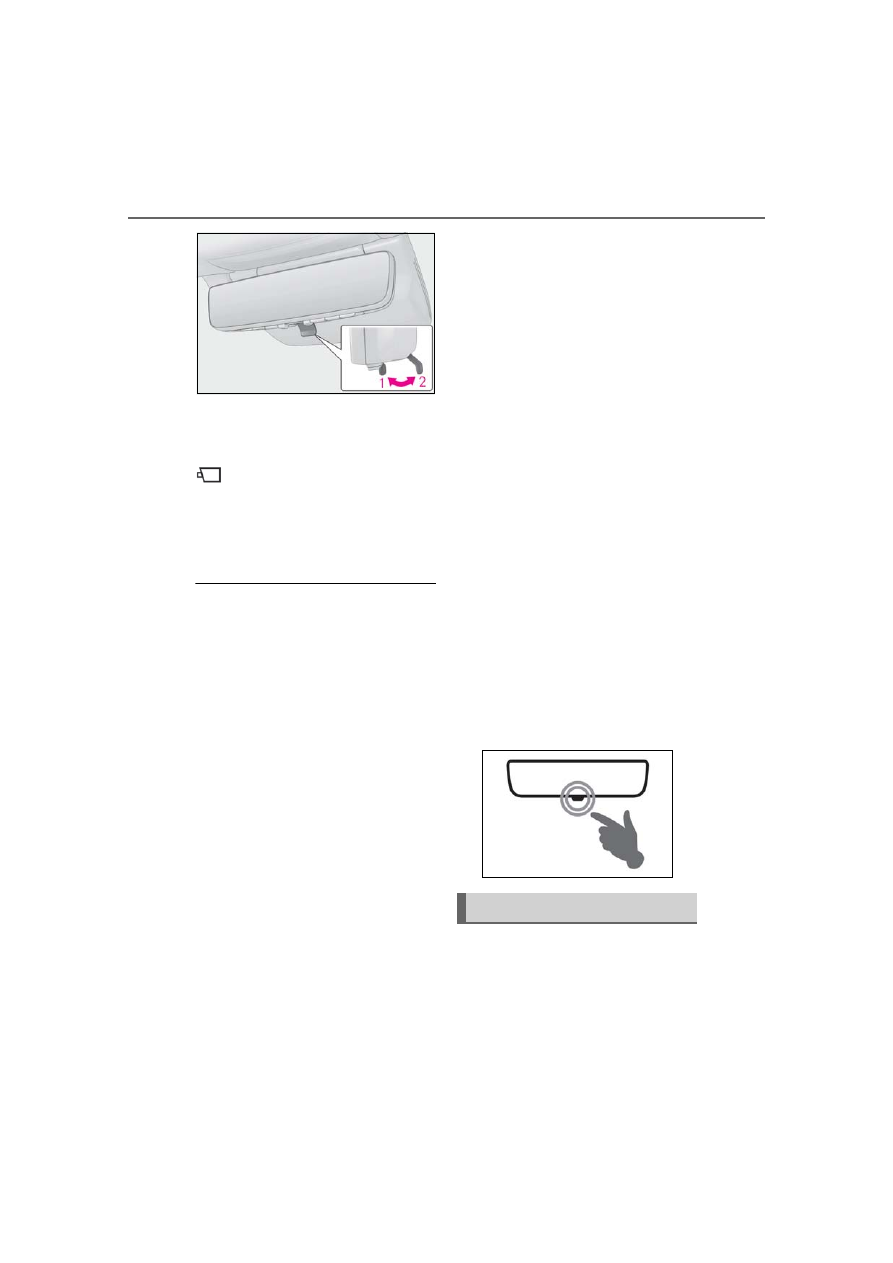

Operate the lever to change between
digital mirror mode and optical mirror
mode.

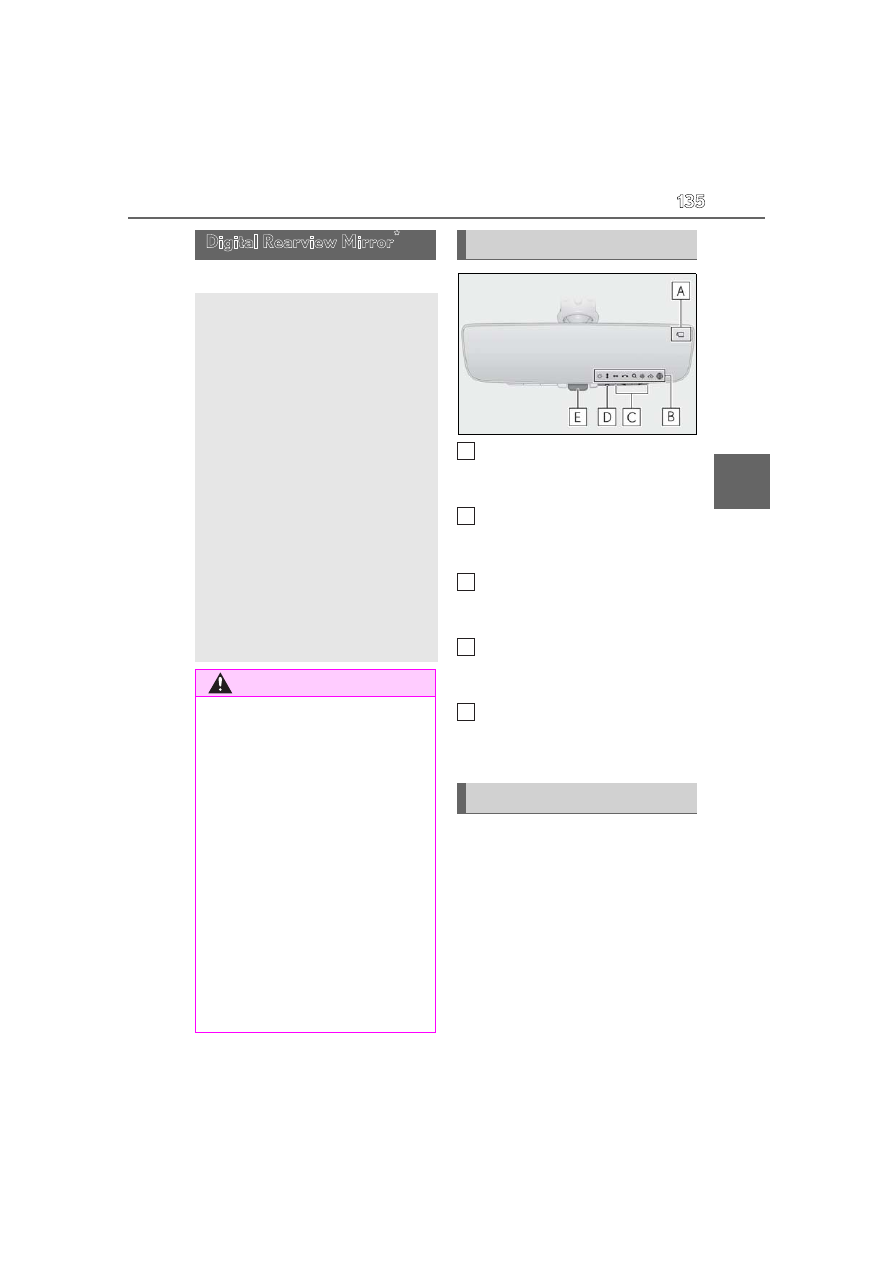

Digital Rearview Mirror

The Digital Rearview Mirror is a
system that uses the camera on the
rear of the vehicle and displays its
image on the display of the Digital
Rearview Mirror.

The Digital Rearview Mirror can be
changed between optical mirror
mode and digital mirror mode by
operating the lever.

The Digital Rearview Mirror allows
the driver to see the rear view
despite obstructions, such as the
head restraints, luggage or rear
sunshade ensuring rear visibility.
Also, the rear seats are not dis-
played and privacy of the passen-
gers is enhanced.

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

■

Before using the Digital Rearview

Mirror

●

Make sure to adjust the mirror before

driving. (

P.136)

• Change to optical mirror mode and

adjust the position of the Digital Rear-

view Mirror so that the area behind

your vehicle can be viewed properly.

• Change to digital mirror mode and

adjust the display settings.

●

As the range of the image displayed by

the Digital Rearview Mirror is different

from that of the optical mirror, make

sure to check this difference before

driving.

System components

Changing modes

136

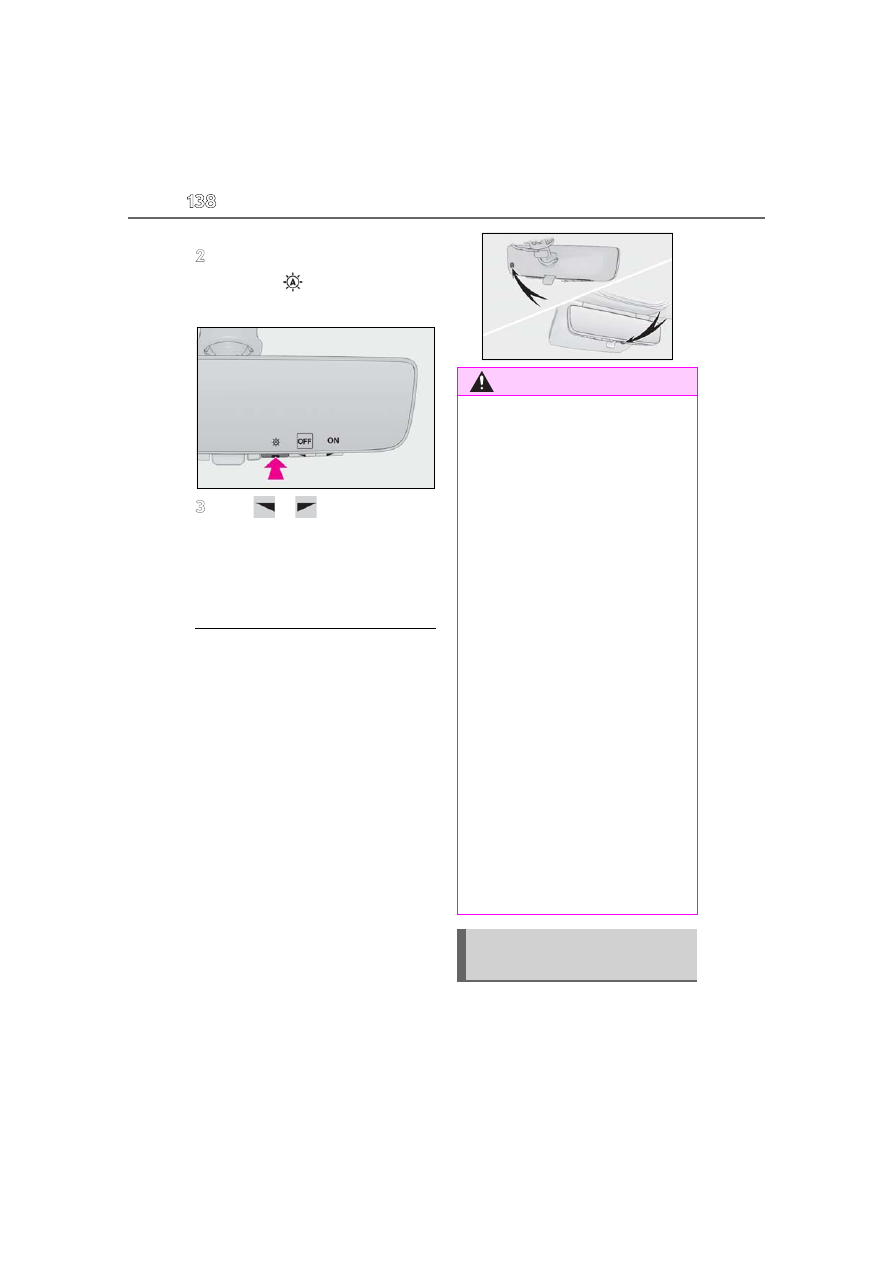

3-4. Adjusting the steering wheel and mirrors

Digital mirror mode

Displays an image of the area behind the
vehicle.

will illuminate in this mode.

Optical mirror mode

Turns off the display of the Digital Rearview
Mirror allows it to be used as an optical
mirror.

■

Digital mirror mode operating condi-

tion

The engine switch is turned to IGNITION

ON mode.
When the engine switch is changed from

IGNITION ON mode to off or ACCES-

SORY mode, the image will disappear after

several seconds.

■

When using the Digital Rearview Mir-

ror in digital mirror mode

●

If it is difficult to see the displayed image

due to light reflected off the Digital Rear-

view Mirror, the camera being dirty, or if

lights of a vehicle behind your vehicle or

the displayed image are bothering you,

change to optical mirror mode.

●

When the trunk is open, the Digital Rear-

view Mirror image may not display prop-

erly. Before driving, make sure the trunk

is closed.

●

If the display is difficult to see due to

reflected light, close the sunshade for the

moon roof or the electronic sunshade for

the panoramic moon roof.

●

Any of the following conditions may

occur when driving in the dark, such as at

night. None of them indicates that a mal-

function has occurred.

• Colors of objects in the displayed image

may differ from their actual color.

• Depending on the height of the lights of

the vehicle behind, the area around the

vehicle may appear white and blurry.

• Automatic image adjustment for brighter

surrounding image may cause flickering.

If it is difficult to see the displayed image or
flickering bothers you, change to optical
mirror mode.

●

The Digital Rearview Mirror may

become hot while it is in digital mirror

mode.

This is not a malfunction.

●

Depending on your physical condition or

age, it may take longer than usual to focus

on the displayed image. In this case,

change to optical mirror mode.

●

Do not let passengers stare at the dis-

played image when the vehicle is being

driven, as doing so may cause motion

sickness.

■

When the system malfunctions

If the symbol shown in the illustration is dis-

played when using the Digital Rearview

Mirror in digital mirror mode, the system

may be malfunctioning. The symbol will dis-

appear in a few seconds. Operate the lever,

change to optical mirror mode and have the

vehicle inspected by your Lexus dealer.

■

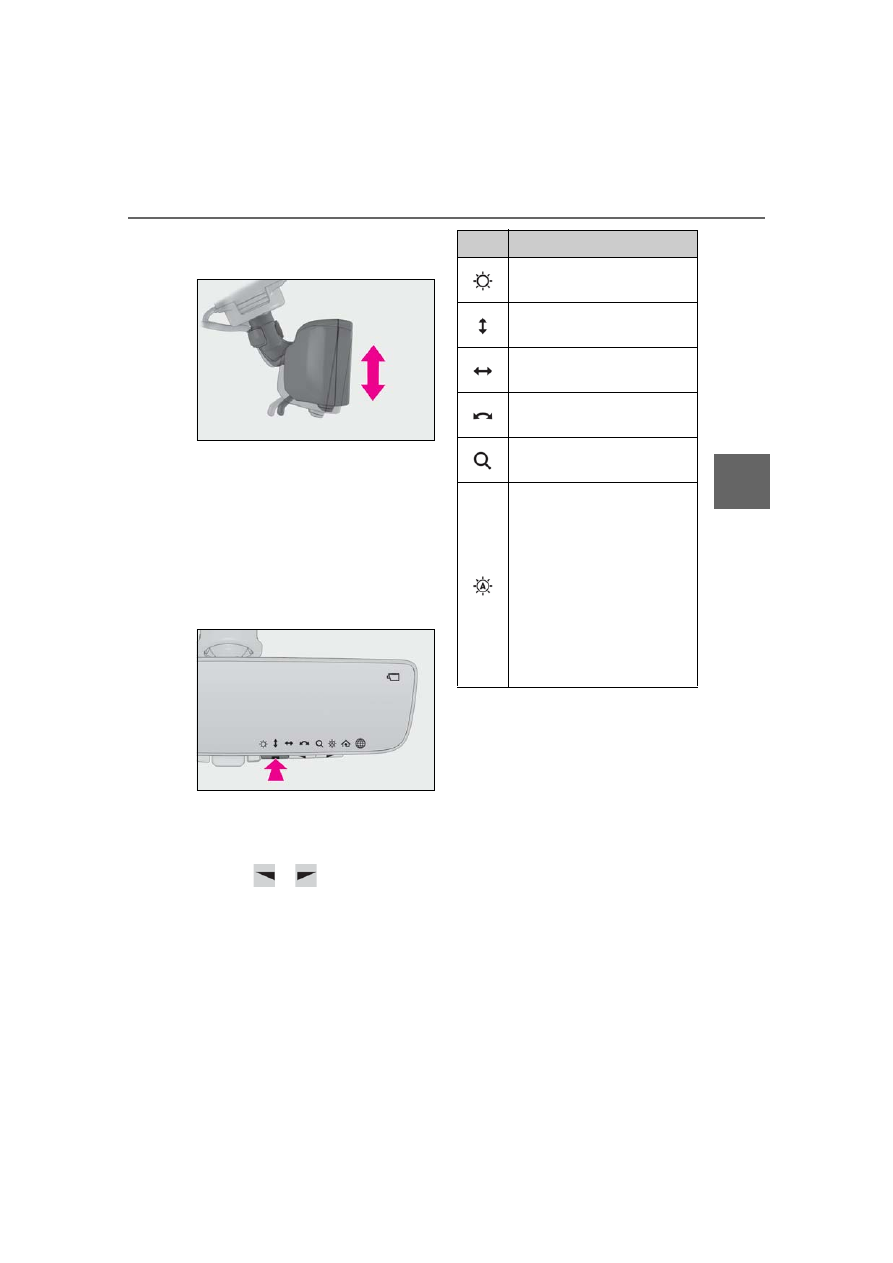

Adjusting the mirror height

The height of the rear view mirror can
be adjusted to suit your driving pos-
ture.
Change to optical mirror mode, adjust-

Adjusting the mirror

137

3-4. Adjusting the steering wheel and mirrors

fore
dri
ving

ing the height of the rear view mirror by
moving it up and down.

■

Display settings (digital mirror
mode)

Settings of the display in the digital mir-
ror mode, on/off operation of the auto-
matic anti-glare function, etc. can be
changed.

Press the menu button.

The icons will be displayed.

Press the menu button repeatedly
and select the item you want to
adjust.

Press

to change the set-

ting.

The icons will disappear if a button is not

operated for approximately 5 seconds or

more.

: This is a function for the optical mirror

mode, however, the setting can also be
changed while using the digital mirror
mode.

■

Enabling/disabling the automatic
anti-glare function (optical mirror
mode)

The automatic anti-glare function in the
optical mirror mode can be
enabled/disabled. The setting can be
changed in both the digital mirror
mode and the optical mirror mode.



When using the digital mirror mode

P.137



When using the optical mirror mode

Press the menu button.

Icons

Settings

Select to adjust the brightness of
the display.

Select to adjust the area dis-
played up/down.

Select to adjust the area dis-
played to the left/right.

Select to adjust the angle of the
displayed image.

Select to zoom in/out the dis-
played image.

Select to enable/disable the
automatic anti-glare function.

Responding to the brightness of
the headlights of vehicles
behind, the reflected light is
automatically adjusted.
The automatic anti-glare func-
tion is enabled each time the
engine switch is changed to
IGNITION ON mode.

138

3-4. Adjusting the steering wheel and mirrors

The icons will be displayed.

Press the menu button repeatedly
and select

The setting display will be displayed.

Press

to enable

(“ON”)/disable (“OFF”) the auto-
matic anti-glare function.

The icons will disappear if a button is not

operated for approximately 5 seconds or

more.

■

Adjusting the display (digital mirror

mode)

●

If the displayed image is adjusted, it may

appear distorted. This is not a malfunc-

tion.

●

If the brightness of the Digital Rearview

Mirror is set too high, it may cause eye

strain. Adjust the Digital Rearview Mirror

to an appropriate brightness. If your eyes

become tired, change to optical mirror

mode.

●

The brightness of the Digital Rearview

Mirror will change automatically accord-

ing to the brightness of the area in front of

your vehicle.

■

To prevent the light sensors from mal-

functioning

To prevent the light sensors from malfunc-

tioning, do not touch or cover them.

■

Cleaning the mirror surface

If the mirror surface is dirty, the image

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

■

While driving

●

Do not adjust the position of the Digital

Rearview Mirror or adjust the display

settings while driving.

Stop the vehicle and operate the Digi-

tal Rearview Mirror control switches.

Failure to do so may cause a steering

wheel operation error, resulting in an

unexpected accident.

●

Always pay attention to the vehicle’s

surroundings.

The size of the vehicles and other objects

may look different when in digital mirror

mode and optical mirror mode.

When backing up, make sure to directly

check the safety of the area around your

vehicle, especially behind the vehicle.

Additionally, if a vehicle approaches from

the rear in the dark, such as at night, the

surrounding area may appear dim.

■

To prevent causes of fire

If the driver continues using the Digital

Rearview Mirror while smoke or odor

comes from the mirror, it may result in

fire. Stop using the system immediately

and contact your Lexus dealer.

Cleaning the Digital Rearview
Mirror

139

3-4. Adjusting the steering wheel and mirrors

fore
dri

ving

on the display may be difficult to see.
Clean the mirror surface gently using a
soft dry cloth.

■

Cleaning the camera

If the camera lens is dirty or covered
with foreign matter, such as water
droplets, snow, mud, etc., the displayed
image may not be clear. In this case,
rinse the camera lens with a large
quantity of water and then wipe it clean
with a soft cloth dampened with water.
Dirt on the camera lens can be cleaned
by operating the dedicated camera
cleaning washer. (

P.191)

■

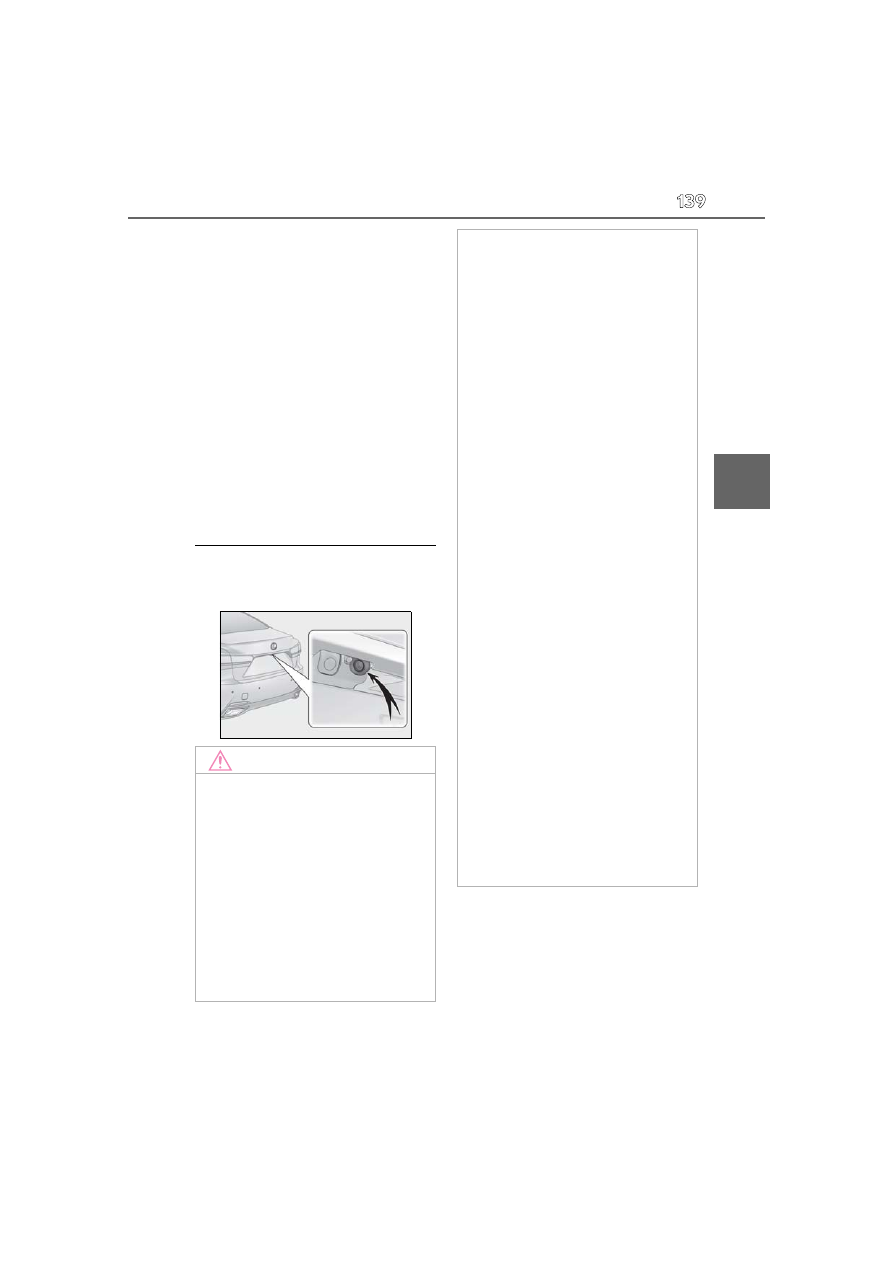

The camera

The camera for the Digital Rearview Mirror

is located as shown.

NOTICE

■

To prevent the Digital Rearview Mir-

ror from malfunctioning

●

Do not use detergents, such as thinner,

benzine, and alcohol to clean the mir-

ror. They may discolor, deteriorate or

damage the mirror surface.

●

Do not smoke, use matches, use ciga-

rette lighters or allow open flames

near the mirror. It may damage the

mirror or cause a fire.

●

Do not remove, disassemble or modify

the mirror.

■

To prevent the camera from malfunc-

tioning

●

Observe the following precautions,

otherwise the Digital Rearview Mirror

may not operate properly.

• Do not strike or hit the camera or sub-

ject it to a strong impact, as the camera

installation position and angle may be

changed.

• Do not remove, disassemble or modify

the camera.

• When washing the camera, rinse it

with a large quantity of water and then

wipe it clean with a soft cloth damp-

ened with water.

Do not strongly rub the camera lens,

as it may be scratched and will not be

able to transmit a clear image.

• Do not allow organic solvent, car wax,

window cleaner or glass coat to

adhere to the camera cover. If this hap-

pens, wipe it off as soon as possible.

• Do not apply hot water to the camera

in cold weather, as the sudden change

of temperature may cause the camera

to not operate properly.

• When using a high pressure washer to

wash the vehicle, do not directly spray

the camera and its surrounding area,

as doing so may cause the camera to

not operate properly.

●

Do not subject the camera to a strong

impact as this could cause a malfunc-

tion.

If this happens, have the vehicle

inspected by your Lexus dealer as

soon as possible.

140

3-4. Adjusting the steering wheel and mirrors

If you notice any of the following symptoms, refer to the following table for the likely
cause and the solution.
If the symptom is not resolved by the solution, have the vehicle inspected by your
Lexus dealer.

If you notice any symptoms

Symptom

Likely cause

Solution

The image is difficult to
see.

The mirror surface is dirty.

Clean the mirror surface
gently, using a soft dry cloth.

Sunlight or headlights are shining
directly into the Digital Rearview
Mirror.

Change to optical mirror
mode.
(If the light is coming through
the moon roof or panoramic
moon roof, close the sun-
shade.)

• The vehicle is in a dark area.
• The vehicle is near a TV tower,

broadcasting station, electric
power plant, or other location
where strong radio waves or
electrical noise may be pres-
ent.

• The temperature around the

camera is extremely high/low.

• The ambient temperature is

extremely low.

• It is raining or humid.
• Sunlight or headlights are shin-

ing directly into the camera
lens.

• The vehicle is under fluores-

cent lights, sodium lights, mer-
cury lights, etc.

• Exhaust gas is obstructing the

camera.

Change to optical mirror
mode.
(Change back to digital mir-
ror mode when the condi-
tions have improved.)

141

3-4. Adjusting the steering wheel and mirrors

fore
dri
ving

The image is difficult to
see.

Foreign matters (such as water
droplets, snow, mud, etc.) is on
the camera lens.



Operate the dedicated
camera cleaning washer
and clean the camera lens.
(

P.191)



Change to optical mirror
mode.



Rinse the camera with a
large quantity of water,
wipe it clean with a soft
cloth dampened with water,
and then change back to
digital mirror mode.

The image is out of
alignment.

The trunk is not fully closed.

Fully close the trunk.

The camera or its surrounding
area has received a strong
impact.

Change to optical mirror
mode and have the vehicle
inspected by your Lexus
dealer.

The display is dim and

is displayed.

The system may be malfunction-
ing.

Change to optical mirror
mode and have the vehicle
inspected by your Lexus
dealer.

goes off.

Symptom

Likely cause

Solution

143

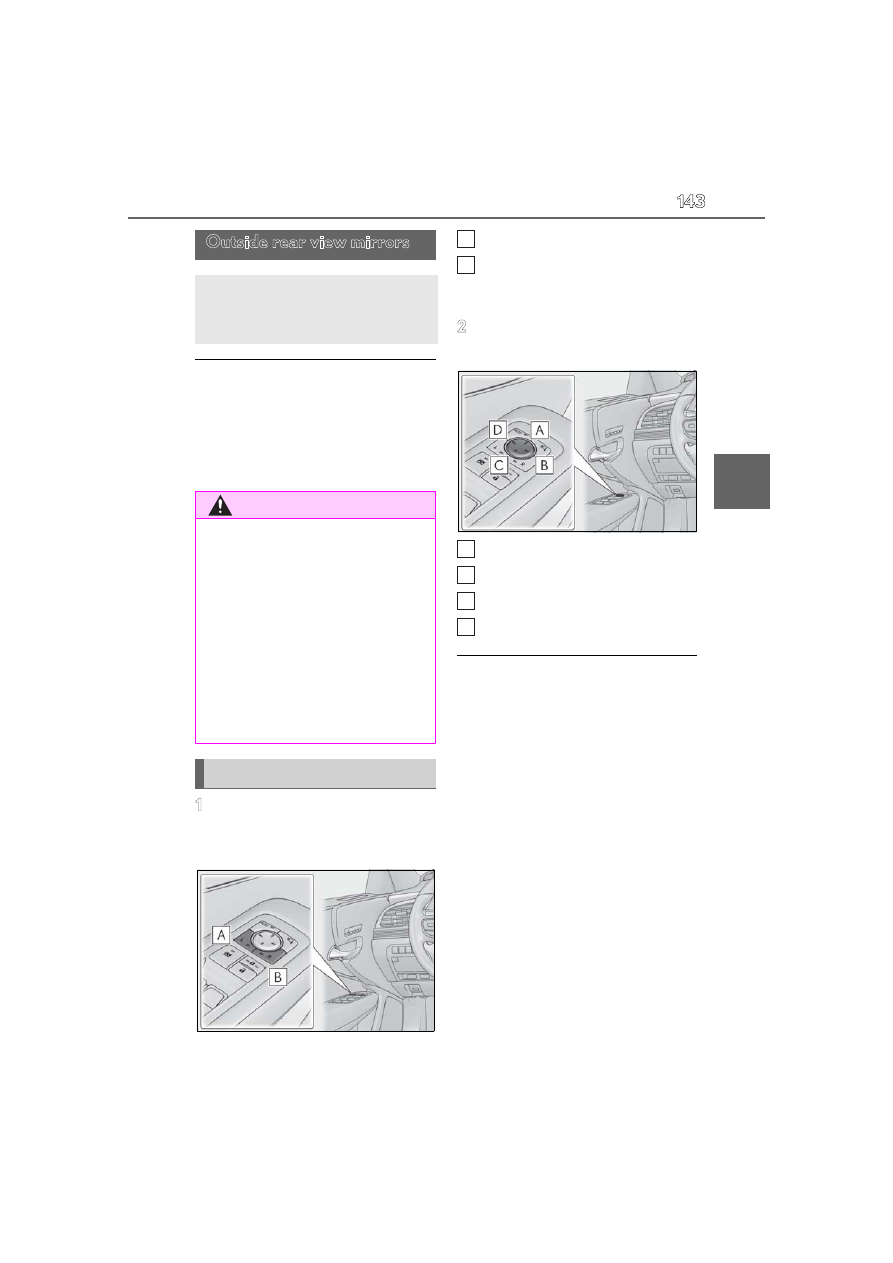

3-4. Adjusting the steering wheel and mirrors

fore
dri

ving

■

When using the outside rear view mir-

rors in a cold weather

When it is cold and the outside rear view

mirrors are frozen, it may not be possible to

fold/extend them or adjust the mirror sur-

face. Remove the ice, snow, etc. covering

the outside rear view mirrors.

To select a mirror to adjust, press
the switch.

The indicator comes on.

Left
Right

Pressing the same switch again will put the

switch in neutral.

To adjust the mirror, press the
switch.

Up
Right
Down
Left

■

Mirror angle can be adjusted when

The engine switch is in ACCESSORY or

IGNITION ON mode.

■

Defogging the mirrors

The outside rear view mirrors can be

cleared using the mirror defoggers. Turn on

the rear window defogger to turn on the

outside rear view mirror defoggers.

(

P.319)

■

Auto anti-glare function

When the anti-glare inside rear view mirror

is set to automatic mode, the outside rear

view mirrors will activate in conjunction with

the anti-glare inside rear view mirror to

reduce reflected light. (

P.134, 137)

■

Automatic adjustment of the mirror

angle

A desired mirror face angle can be entered

to memory and recalled automatically by

the driving position memory. (

P.124)

Outside rear view mirrors

The rear view mirror’s position can
be adjusted to enable sufficient
confirmation of the rear view.

WARNING

■

Important points while driving

Observe the following precautions while

driving.

Failure to do so may result in loss of con-

trol of the vehicle and cause an accident,

resulting in death or serious injury.

●

Do not adjust the mirrors while driving.

●

Do not drive with the mirrors folded.

●

Both the driver and passenger side

mirrors must be extended and prop-

erly adjusted before driving.

Adjustment procedure

144

3-4. Adjusting the steering wheel and mirrors

■

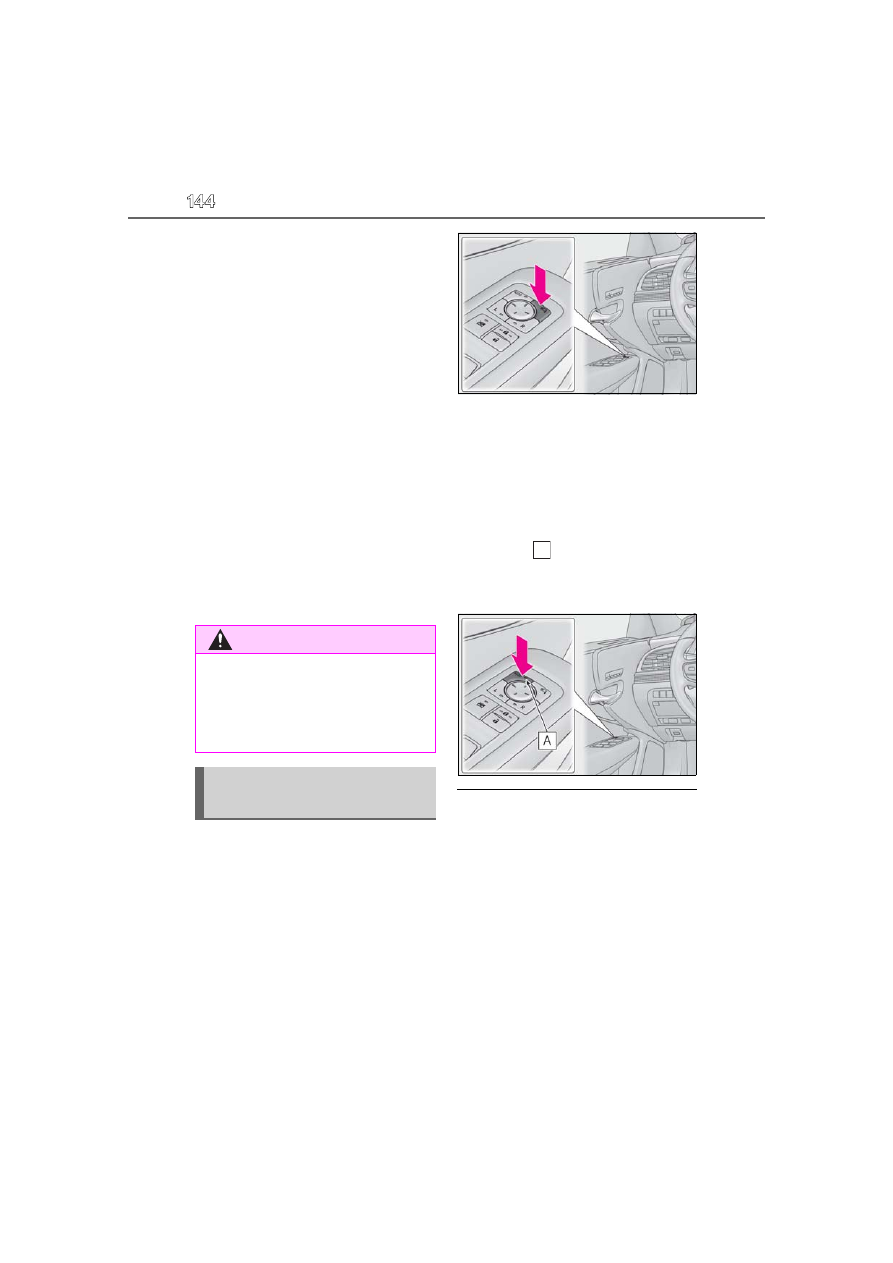

Linked mirror function when reversing

When either “L” or “R” of the mirror select

switch is selected, the outside rear view mir-

rors will automatically angle downwards

when the vehicle is reversing in order to

give a better view of the ground.
To disable this function, select neither “L”

nor “R”.
To set the mirror angle used when the vehi-

cle is reversing, adjust the mirror angle at a

desired position with the shift position in R.
The adjusted angle will be memorized and

the mirror will automatically tilt to the mem-

orized angle whenever the shift position is

shifted to R from next time.
The memorized downward tilt position of

the mirror is linked to the normal position

(angle adjusted with the shift position in

other than R). Therefore, if the normal posi-

tion is changed after adjustment, the tilt

position will also change.
When the normal position is changed, read-

just the angle in reversing.

■

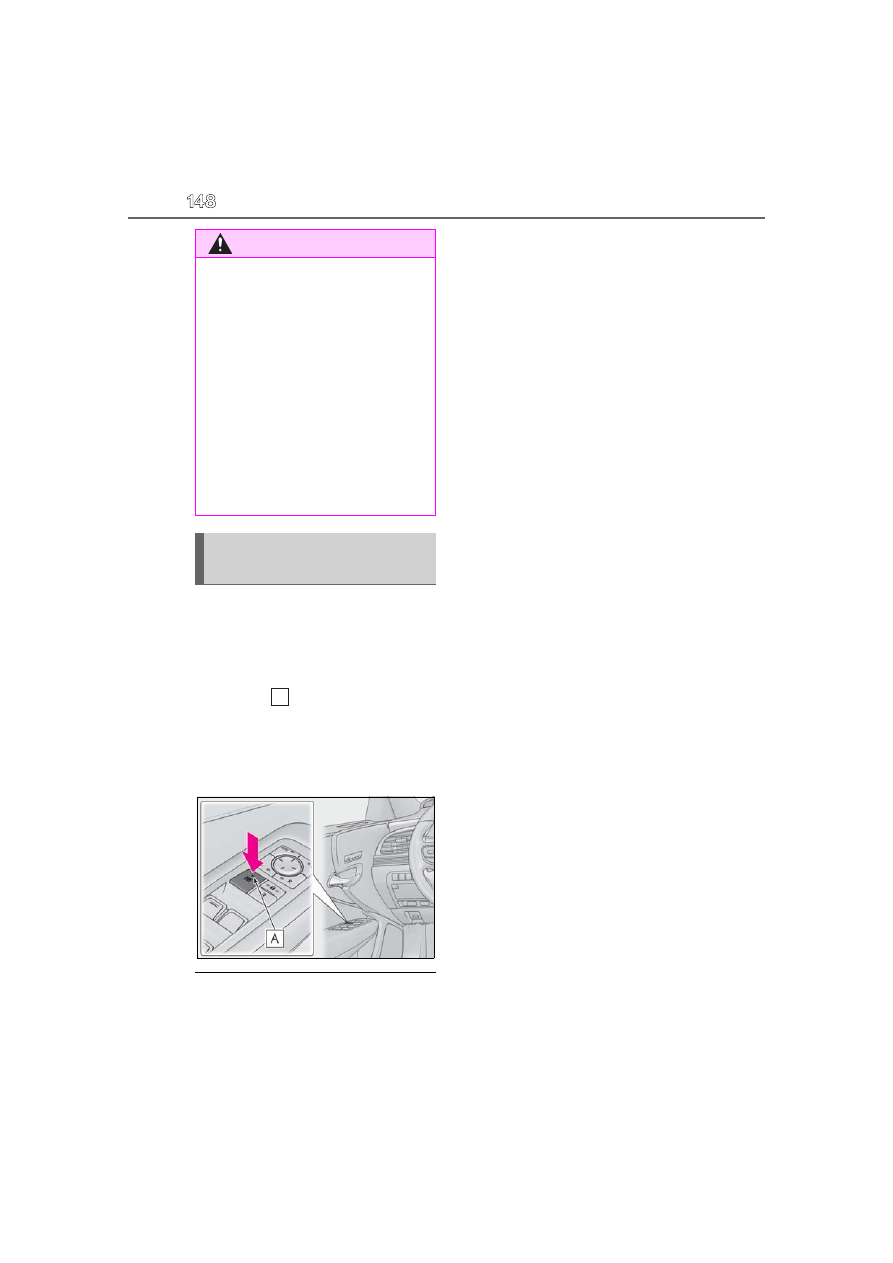

Using the switch

Press the switch to fold the mirrors.

Press it again to extend them to the original
position.

■

Setting automatic mode

Automatic mode allows the folding or
extending of the mirrors to be linked to
locking/unlocking of the doors.
Press the “AUTO” switch to set auto-
matic mode.

The indicator

will come on.

Pressing the switch once more will return
to manual mode.

■

When disconnecting and reconnecting

battery terminals

The automatic folding/extending mirror

function will return to off as default. To turn

the function on, press the switch again to

select on.

■

Customization

Some functions can be customized.

(

WARNING

■

When the mirror defoggers are oper-

ating

Do not touch the rear view mirror sur-

faces, as they can become very hot and

burn you.

Folding and extending the mir-
rors

146

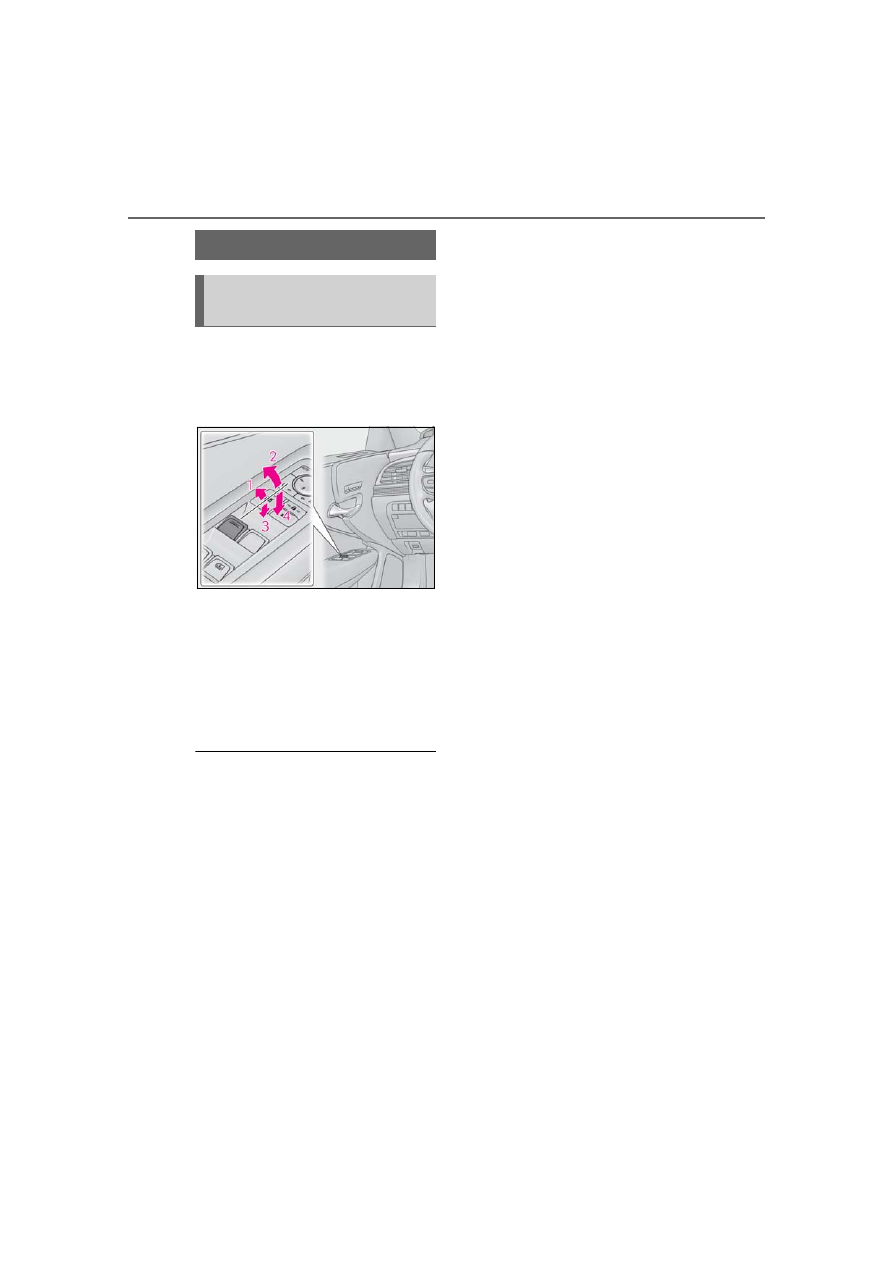

3-5. Opening, closing the windows and moon roof

3-5.Opening, closing the windows and moon roof

The power windows can be opened
and closed using the switches.
Operating the switch moves the win-
dows as follows:

Closing

One-touch closing

Opening

One-touch opening

: To stop the window partway, operate the

switch in the opposite direction.

■

The power windows can be operated

when

The engine switch is in IGNITION ON

mode.

■

When the driver’s power window switch

is used to open a rear power window

(vehicles with rear door sunshades)

If a rear door sunshade is extended or being

extended when the driver’s power window

switch is pushed, only the rear door sun-

shade will be retracted. To open the rear

power window from the driver’s seat, push

the driver’s power window switch again.

■

Operating the power windows after

turning the engine off

The power windows can be operated for

approximately 45 seconds even after the

engine switch is turned to ACCESSORY

mode or turned off. They cannot, however,

be operated once either front door is

opened.

■

Jam protection function

If an object becomes jammed between the

window and the window frame while the

window is closing, window movement is

stopped and the window is opened slightly.

■

Catch protection function

If an object becomes caught between the

door and window while the window is open-

ing, window movement is stopped.

■

When the side window cannot be

opened or closed

When the jam protection function or catch

protection function operates unusually and

the side window cannot be opened or

closed, perform the following operations

with the power window switch of that door.

●

Stop the vehicle. With the engine switch

in IGNITION ON mode, within 4 sec-

onds of the jam protection function or

catch protection function activating, con-

tinuously operate the power window

switch in the one-touch closing direction

or one-touch opening direction so that

the side window can be opened and

closed.

●

If the side window cannot be opened and

closed even when performing the above

operations, perform the following proce-

dure for function initialization.

Turn the engine switch to IGNITION

ON mode.

Pull and hold the power window switch

in the one-touch closing direction and

completely close the side window.

Release the power window switch for a

moment, resume pulling the switch in

the one-touch closing direction, and

hold it there for approximately 6 sec-

onds or more.

Press and hold the power window

switch in the one-touch opening direc-

tion. After the side window is com-

pletely opened, continue holding the

switch for an additional 1 second or

more.

Power windows

Opening and closing the power
windows

147

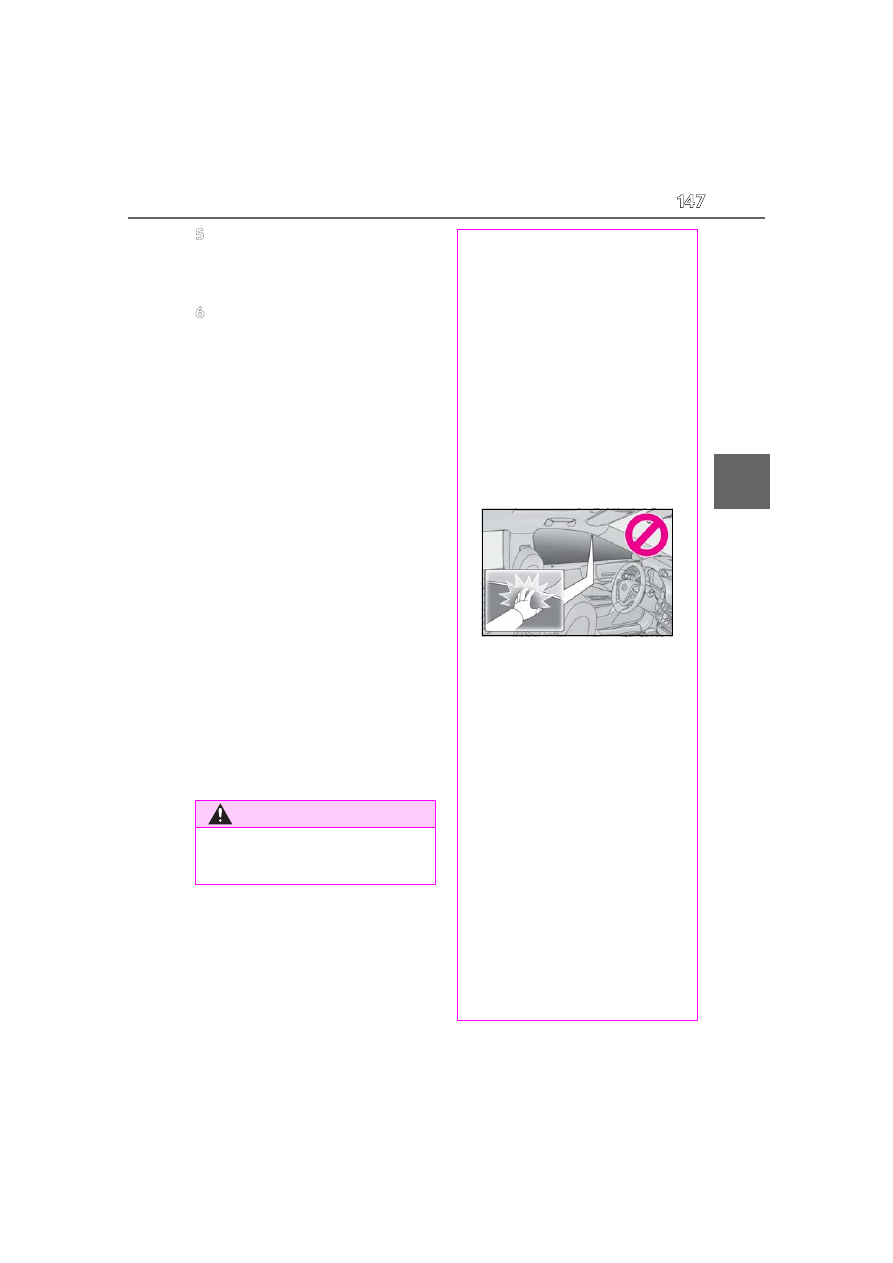

3-5. Opening, closing the windows and moon roof

fore
dri

ving

Release the power window switch for a

moment, resume pushing the switch in

the one-touch opening direction, and

hold it there for approximately 4 sec-

onds or more.

Pull and hold the power window switch

in the one-touch closing direction

again. After the side window is com-

pletely closed, continue holding the

switch for a further 1 second or more.

If you release the switch while the window is

moving, start again from the beginning.

If the window reverses and cannot be fully

closed or opened, have the vehicle

inspected by your Lexus dealer.

■

Door lock linked window operation

●

The power windows can be opened and
closed using the mechanical key.

(

P.437)

●

The power windows can be opened using
the wireless remote control.

(



P.96)

: These settings must be customized at

your Lexus dealer.

■

Power windows open warning buzzer

A buzzer sounds and a message is shown

on the multi-information display in the

instrument cluster when the engine switch

is turned off and the driver’s door is opened

with the power windows open.

■

Customization

Some functions can be customized.

(


