P.48)

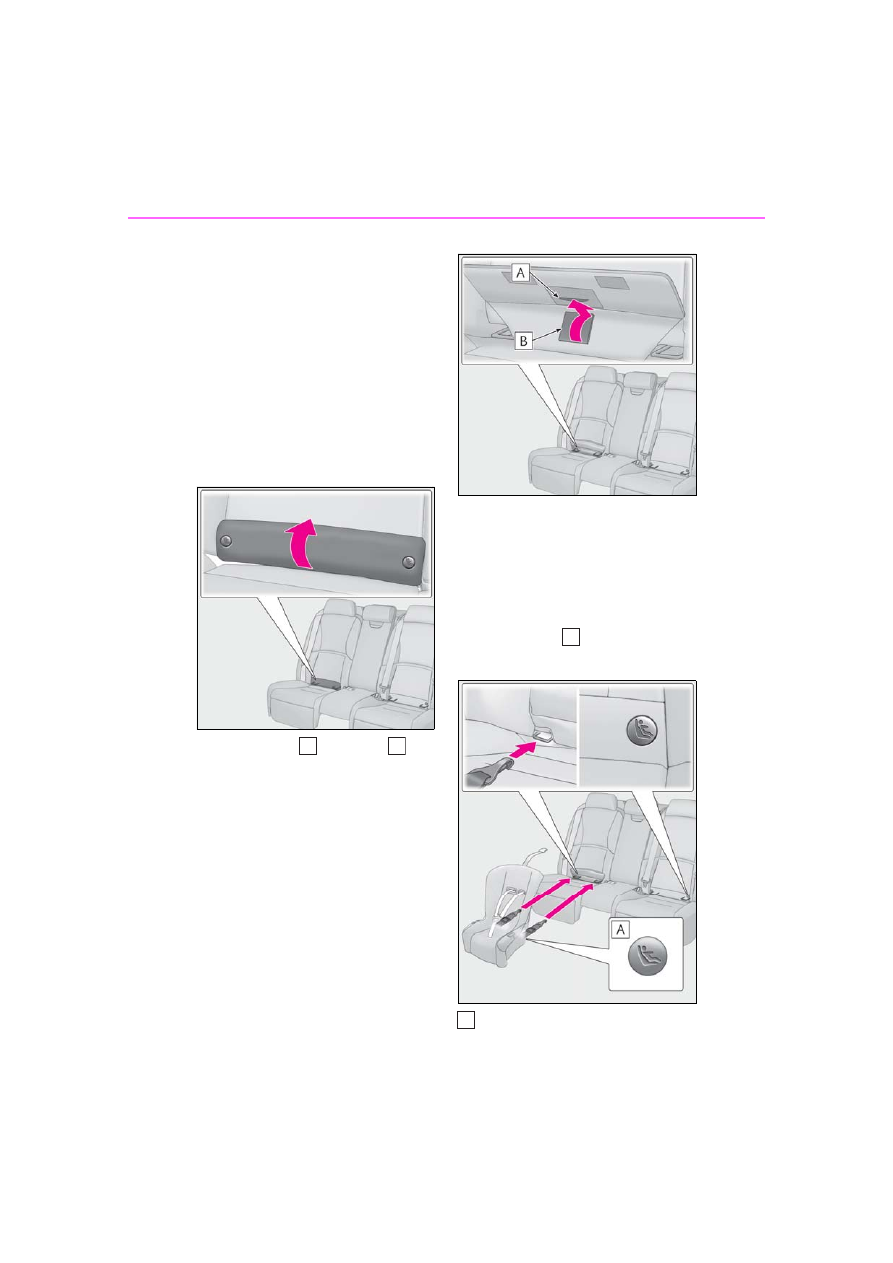

Open the cover.

Insert the tab into the slit of
the cover.

The cover will be held open.



With flexible lower attachments

Latch the hooks of the lower
attachments onto the LATCH
anchors.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.

Canada only

1-2. Child safety

For
safety

and
security



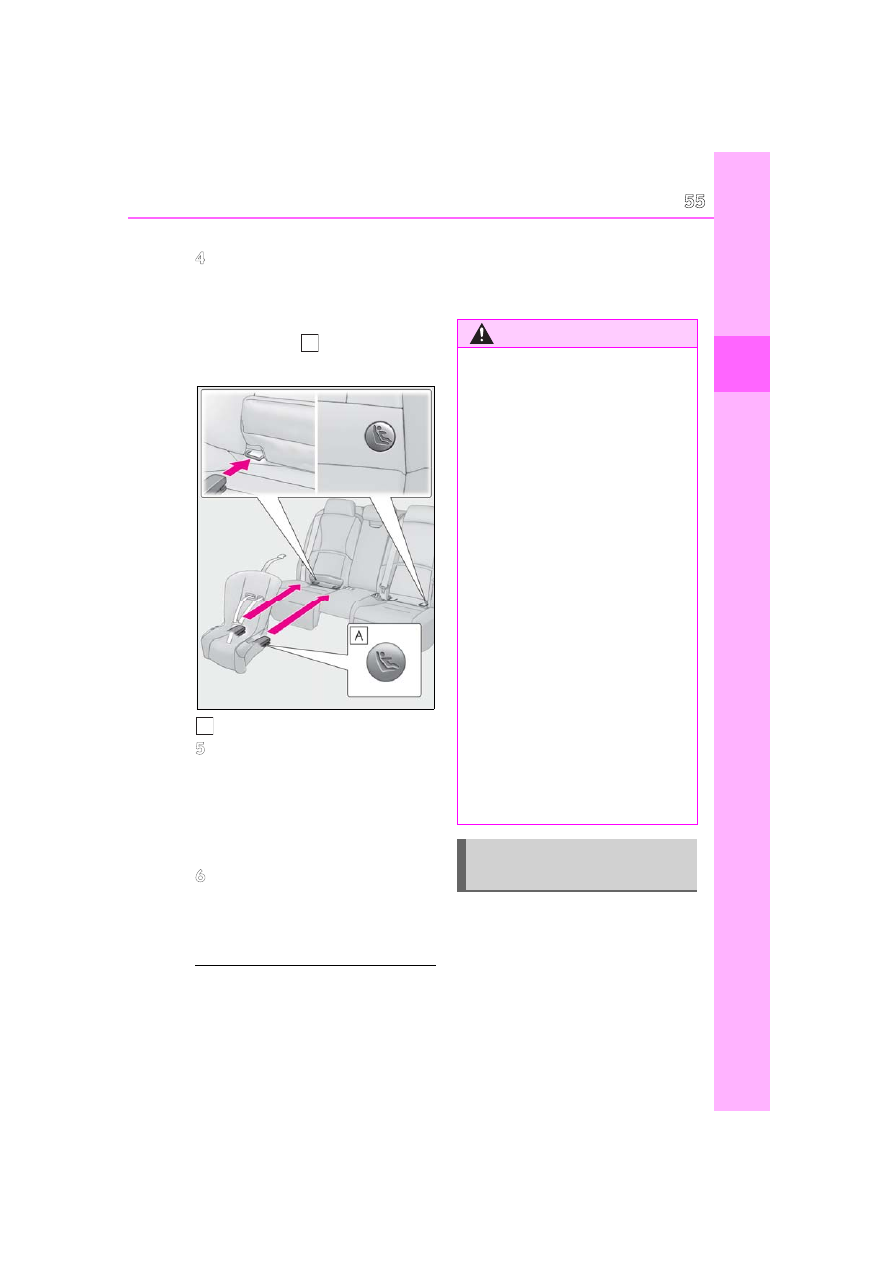

With rigid lower attachments

Latch the buckles onto the LATCH
anchors.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.

Canada only

If the child restraint has a top tether
strap, follow the child restraint man-
ufacturer’s operation manual
regarding the installation, using the
top tether strap to latch onto the
top tether strap anchor. (



P.55)

After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
(



P.53)

■

Laws and regulations pertaining to

anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming to

FMVSS213 or CMVSS213 specifications

can be used.

This vehicle is designed to conform to SAE

J1819.

■

Anchor brackets (for top tether
strap)

Anchor brackets are provided for each
rear seat.
Use anchor brackets when fixing the
top tether strap.

WARNING

■

When installing a child restraint sys-

tem

Observe the following precautions.

Failure to do so may result in death or

serious injury.

●

When using the LATCH anchors, be

sure that there are no foreign objects

around the anchors and that the seat

belt is not caught behind the child

restraint system.

●

Follow all installation instructions pro-

vided by the child restraint system

manufacturer.

●

When securing some types of child

restraint systems in rear seats, it may

not be possible to properly use the

seat belts in positions next to the child

restraint without interfering with it or

affecting seat belt effectiveness. Be

sure your seat belt fits snugly across

your shoulder and low on your hips. If it

does not, or if it interferes with the

child restraint, move to a different posi-

tion. Failure to do so may result in

death or serious injury.

●

If the seat is adjusted, reconfirm the

security of the child restraint system.

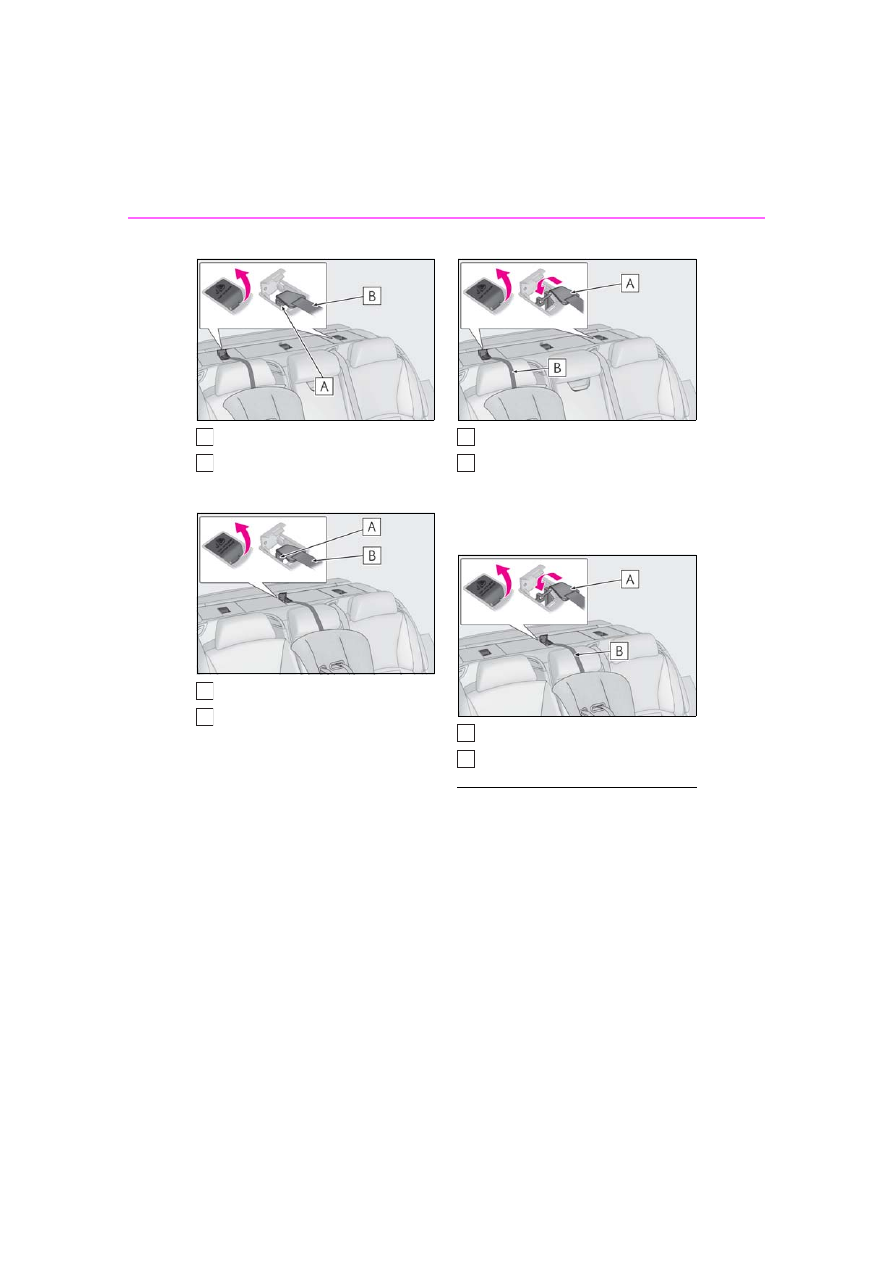

Using an anchor bracket (for top
tether strap)

1-2. Child safety



Outboard rear seats

Anchor brackets
Top tether strap



Rear center seat

Anchor bracket
Top tether strap

■

Fixing the top tether strap to the
anchor bracket

Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint sys-
tem.
Open the anchor bracket cover, latch
the hook onto the anchor bracket and
tighten the top tether strap.

Make sure the top tether strap is securely
latched. (

P.53)



Outboard rear seats

Hook
Top tether strap

Adjust the head restraint to the lowest
position.



Rear center seat

Hook
Top tether strap

■

Laws and regulations pertaining to

anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming to

FMVSS213 or CMVSS213 specifications

can be used.

This vehicle is designed to conform to SAE

J1819.

A
B

1-2. Child safety

For
safety

and
security

WARNING

■

When installing a child restraint sys-

tem

Observe the following precautions.

Failure to do so may result in death or

serious injury.

●

Firmly attach the top tether strap and

make sure that the belt is not twisted.

●

Do not attach the top tether strap to

anything other than the anchor

bracket.

●

Follow all installation instructions pro-

vided by the child restraint system

manufacturer.

●

Be sure to have the top tether strap

pass over the top of the head restraint.

If the belt passes below the head

restraint, it is possible that the child

restraint system may not be securely

fixed.

●

If the seat is adjusted, reconfirm the

security of the child restraint system.

NOTICE

■

Anchor brackets (for top tether

strap)

When not in use, make certain to close

the lid. If it remains open, the lid may be

damaged.

1-3. Connected Services

1-3.Connected Services

: If equipped

“SOS” button
LED light indicators
Microphone

Subscribers have the following Safety
Connect services available:



Automatic Collision Notification

Helps drivers receive necessary response
from emergency service providers.
(

: U.S. Patent No. 7,508,298 B2



Stolen Vehicle Location

Helps drivers in the event of vehicle theft.
(



Emergency Assistance Button
(“SOS”)

Connects drivers to response-center sup-
port. (





Enhanced Roadside Assistance

Provides drivers various on-road assis-
tance. (

After you have signed the Telematics
Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is avail-
able for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for fur-
ther subscription details.



The United States

1-800-25-LEXUS (1-800-255-3987)

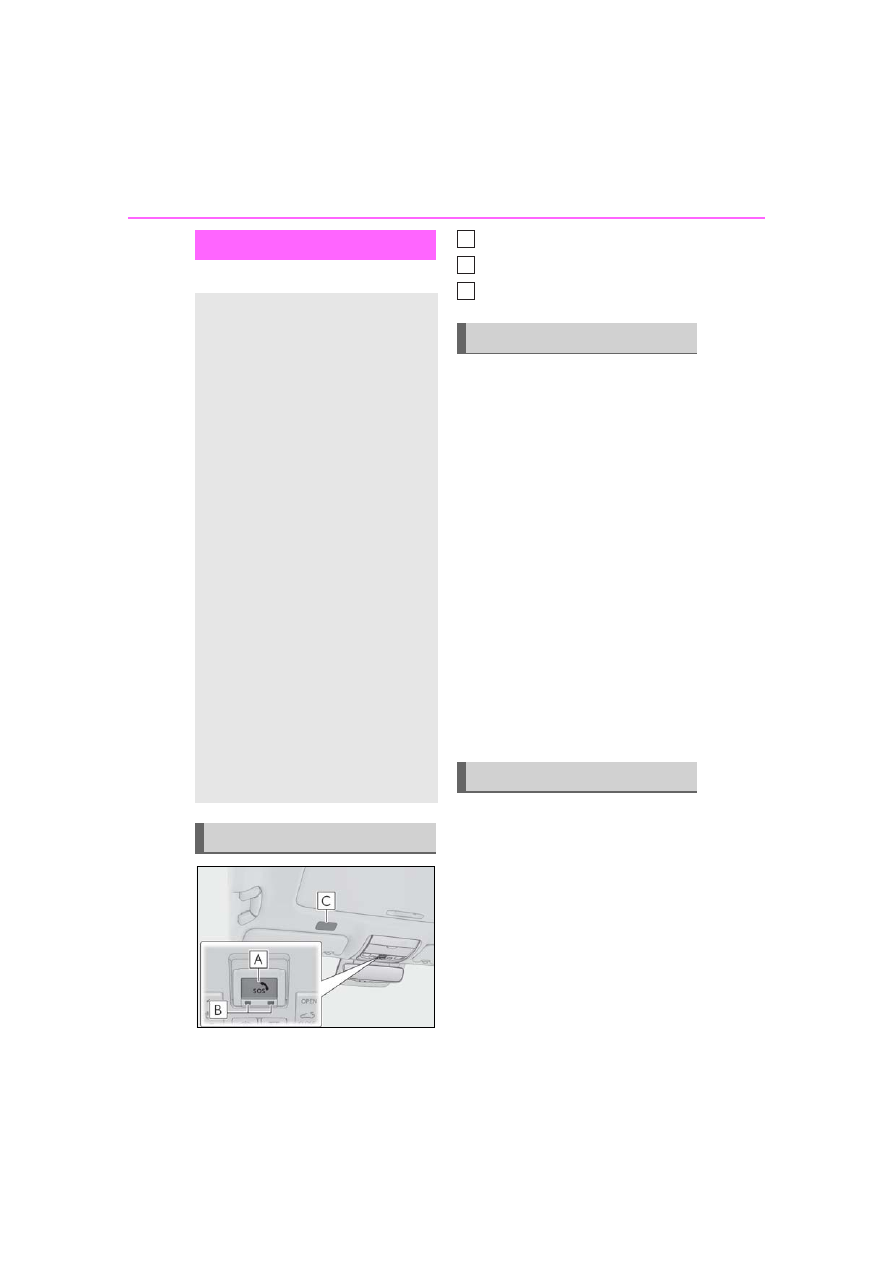

Safety Connect

Safety Connect is a subscrip-
tion-based telematics service that
uses Global Positioning System
(GPS) data and embedded cellular
technology to provide safety and
security features to subscribers.
Safety Connect is supported by
Lexus’ designated response center,
which operates 24 hours per day, 7
days per week.

Safety Connect service is available
by subscription on select, telemat-
ics hardware-equipped vehicles.

By using the Safety Connect ser-
vice, you are agreeing to be bound
by the Telematics Subscription Ser-
vice Agreement and its Terms and
Conditions, as in effect and
amended from time to time, a cur-
rent copy of which is available at
Lexus.com. All use of the Safety
Connect service is subject to such
then-applicable Terms and Condi-
tions.

System components

Services

Subscription

A
B
C

1-3. Connected Services

For safety and security



Canada

1-800-26-LEXUS (1-800-265-3987)



Puerto Rico

1-877-539-8777

■

Safety Connect Services Information

●

Phone calls using the vehicles Blue-
tooth

technology will not be possible

during Safety Connect.

●

Safety Connect is available beginning Fall

2009 on select Lexus models (in the

contiguous United States only). Contact

with the Safety Connect response center

is dependent upon the telematics device

being in operative condition, cellular con-

nection availability, and GPS satellite sig-

nal reception, which can limit the ability to

reach the response center or receive

emergency service support. Enrollment

and Telematics Subscription Service

Agreement required. A variety of sub-

scription terms is available; charges vary

by subscription term selected and loca-

tion.

●

Automatic Collision Notification, Emer-

gency Assistance and Stolen Vehicle

Location will function in the United

States, including Hawaii and Alaska,

Puerto Rico and in Canada, and

Enhanced Roadside Assistance will func-

tion in the United States, Puerto Rico and

in Canada.

●

Automatic Collision Notification, Emer-

gency Assistance, Stolen Vehicle and

Enhanced Road Assistance will not func-

tion in the United States Virgin Islands.

For vehicles first sold in the USVI, no

Safety Connect services will function in

and outside the United States Virgin

Islands.

●

Safety Connect services are not subject

to section 255 of the Telecommunica-

tions Act and the device is not TTY com-

patible.

■

Languages

The Safety Connect response center will

offer support in multiple languages. The

Safety Connect system will offer voice

prompts in English, Spanish, and French.

Please indicate your language of choice

when enrolling.

■

When contacting the response center

You may be unable to contact the response

center if the network is busy.

When the engine switch is turned to
IGNITION ON mode, the red indica-
tor light comes on for 2 seconds then
turns off. Afterward, the green indica-
tor light comes on, indicating that the
service is active.
The following indicator light patterns
indicate specific system usage condi-
tions:



Green indicator light on = Active
service



Green indicator light flashing =
Safety Connect call in process



Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)



No indicator light (off) = Safety
Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle
occupants to assess the level of emer-

Safety Connect LED light Indi-
cators

Safety Connect services

1-3. Connected Services

gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-
tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS
(1-800-255-3987) in the United
States, 1-877-539-8777 in Puerto
Rico or 1-800-265-3987 in Canada,
and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

■

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-
ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.

Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio trans-
mitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-
nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.



ANSI (American National Stan-
dards Institute) C95.1 [1992]



NCRP (National Council on Radia-
tion Protection and Measurement)
Report 86 [1986]

Safety information for Safety
Connect

1-4. Theft deterrent system

1-4.Theft deterrent system

The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.

■

System maintenance

The vehicle has a maintenance-free type

engine immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the grip portion of the key is in contact

with a metallic object

●

If the key is in close proximity to or touch-

ing a key to the security system (key with

a built-in transponder chip) of another

vehicle

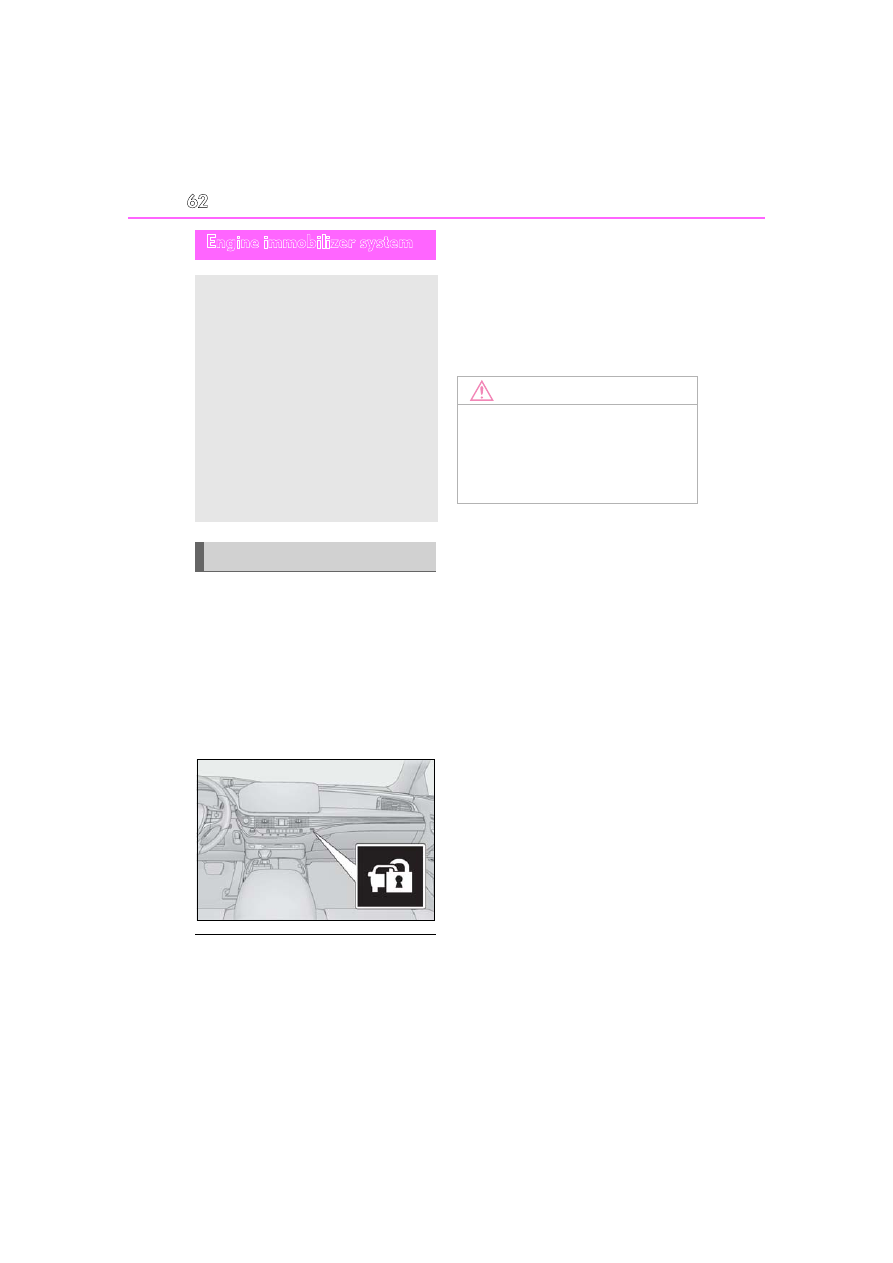

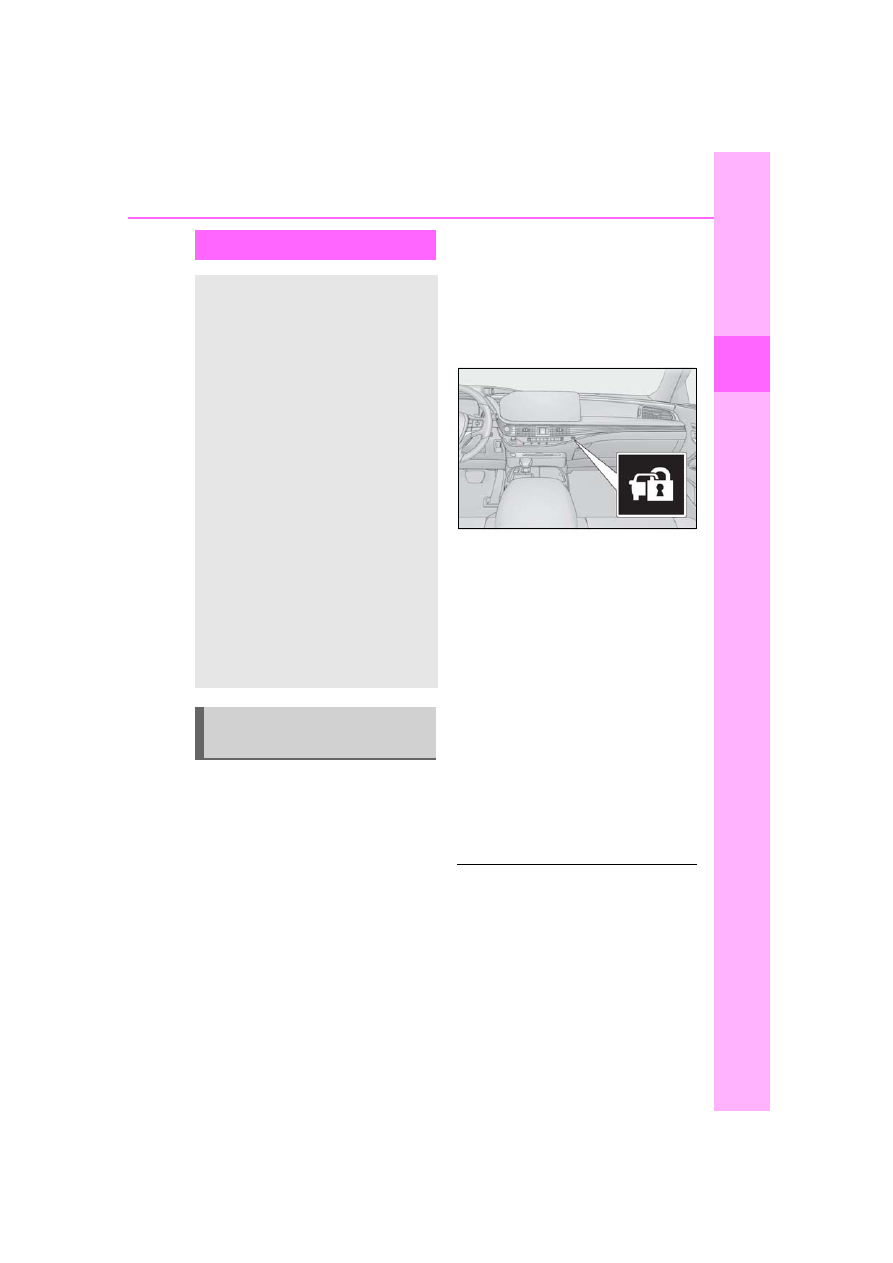

Engine immobilizer system

The vehicle’s keys have built-in tran-
sponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.

Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.

Operating the system

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

1-4. Theft deterrent system

For safety and security

■

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:



Nobody is in the vehicle.



The windows, moon roof (if
equipped) and panoramic moon
roof (if equipped) are closed before
the alarm is set.



No valuables or other personal
items are left in the vehicle.

■

Setting

Close the doors, trunk and hood, and
lock all the doors. The system will be
set automatically after 30 seconds.

The indicator light changes from being on
to flashing when the system is set.

■

Deactivating or stopping

Do one of the following to deactivate
or stop the alarms:



Except for Canada: Unlock the
doors.



Except for Canada: Open the trunk.



For Canada: Unlock the doors or
open the trunk using the entry func-
tion or wireless remote control.



Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

■

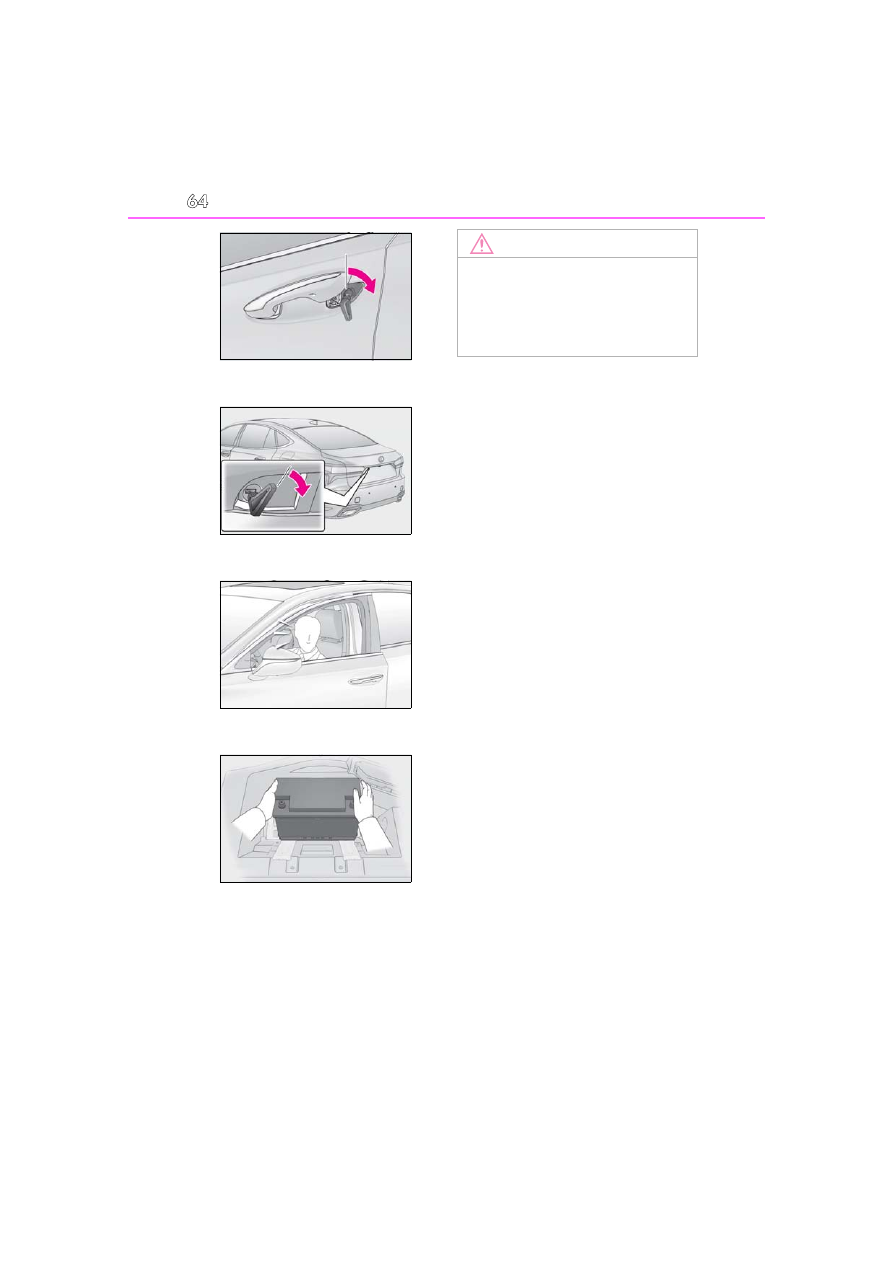

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

●

For Canada: The doors are unlocked

using the mechanical key.

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:



Except for Canada: A locked
door or trunk is unlocked or
opened in any way other than
using the entry function, wireless
remote control or mechanical
key. (The doors will lock again
automatically.)



For Canada: A locked door or
trunk is unlocked or opened in
any way other than using the
entry function or wireless remote
control. (The doors will lock again
automatically.)



The hood is opened.

Setting/deactivating/stopping
the alarm system

1-4. Theft deterrent system

●

For Canada: The trunk is opened using

the mechanical key.

●

A person inside the vehicle opens a door,

the trunk or hood, or unlocks the vehicle.

●

The battery is recharged or replaced

when the vehicle is locked. (



P.442)

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Vehicle status information

and indicators

2-1. Instrument cluster

Warning lights and indicators

...........................................................

Gauges and meters (except F

SPORT models) ..........................

Gauges and meters (F SPORT

models)..........................................

Multi-information display..........

Head-up display ...........................

Fuel consumption information

...........................................................

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

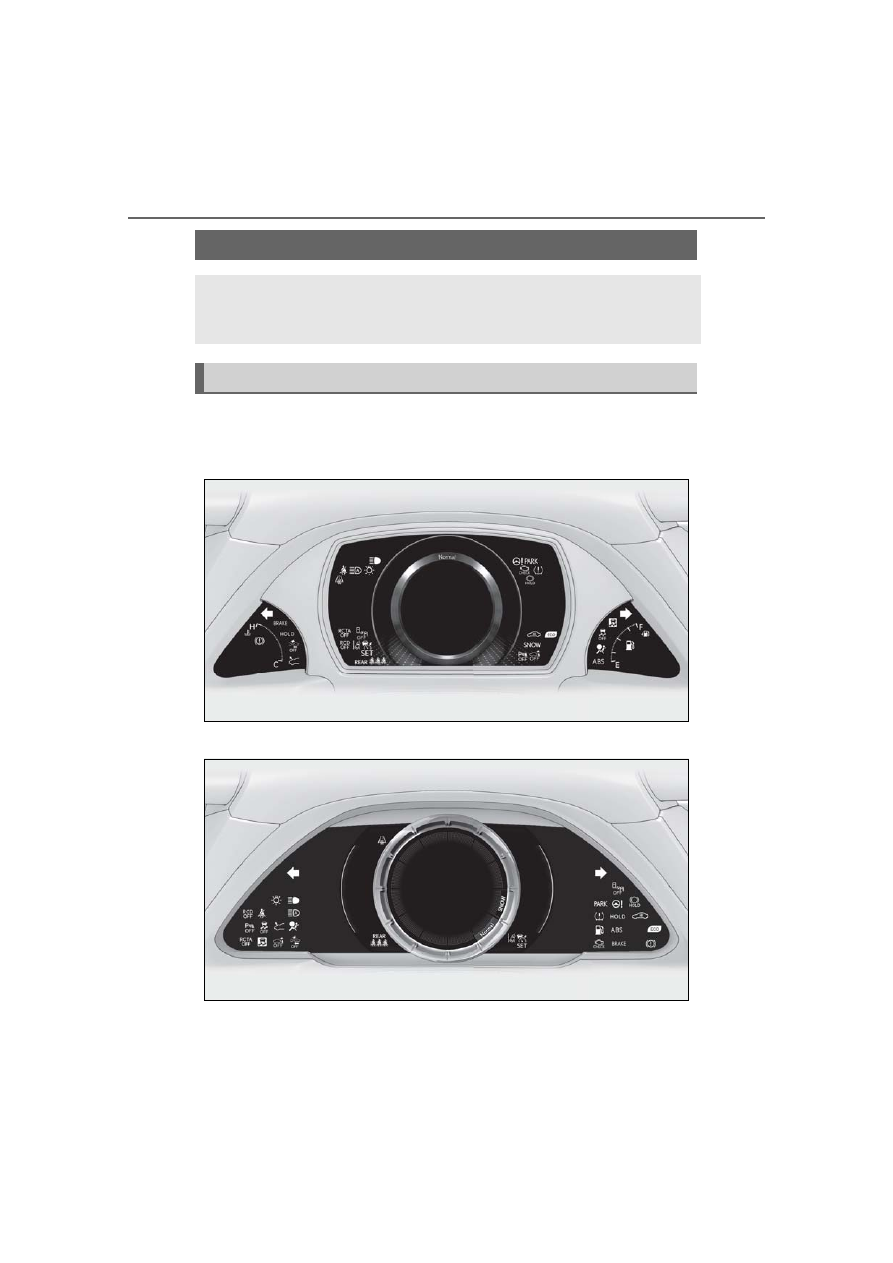

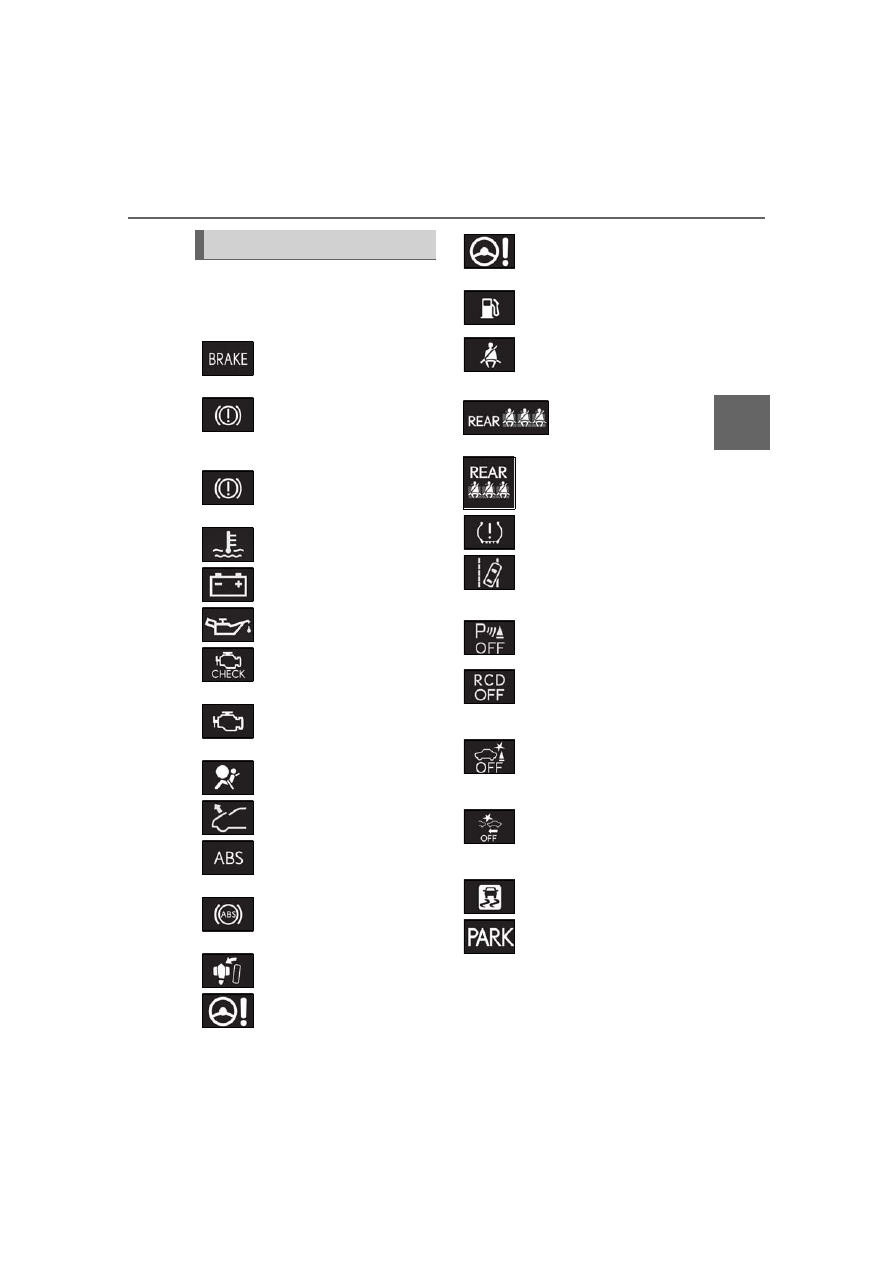

Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.

Warning lights

(U.S.A.)

Brake system warning light

(



(red)

(Canada)

Brake system warning light

(



(yellow)

Brake system warning light

(



High coolant temperature
warning light

(

Charging system warning
light

(



Low engine oil pressure warn-
ing light

(

(U.S.A.)

Malfunction indicator lamp

(



(Canada)

Malfunction indicator lamp

(



SRS warning light

(



Pop Up Hood warning light

(



(U.S.A.)

ABS warning light

(



(Canada)

ABS warning light

(



Inappropriate pedal operation
warning light

(

(red)

Electric power steering system
warning light

(

(yellow)

Electric power steering system
warning light

(



Low fuel level warning light
(

Driver’s and front passenger’s
seat belt reminder light
(

Rear passengers’ seat
belt reminder lights
(except F SPORT mod-
els) (

Rear passengers’ seat belt
reminder lights (F SPORT mod-
els) (



Tire pressure warning light

(

(orange)

LTA indicator (

Intuitive parking assist OFF
indicator

(if equipped)

(

P.426)

(flashes or

illuminates)

RCD OFF indicator (if
equipped) (

P.426)

(flashes or

illuminates)

PKSB OFF indicator

(if

equipped) (

P.426)

(flashes or

illuminates)

PCS warning light

(



Slip indicator

(



(flashes)

(U.S.A.)

Parking brake indicator
(

2-1. Instrument cluster

: These lights come on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

: This light illuminates on the multi-infor-

mation display.

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

(flashes)

(Canada)

Parking brake indicator
(



(flashes)

Brake hold operated indicator

(



P.428)

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the engine, this could

mean that these systems are not available

to help protect you in an accident, which

could result in death or serious injury.

Have the vehicle inspected by your

Lexus dealer immediately if this occurs.

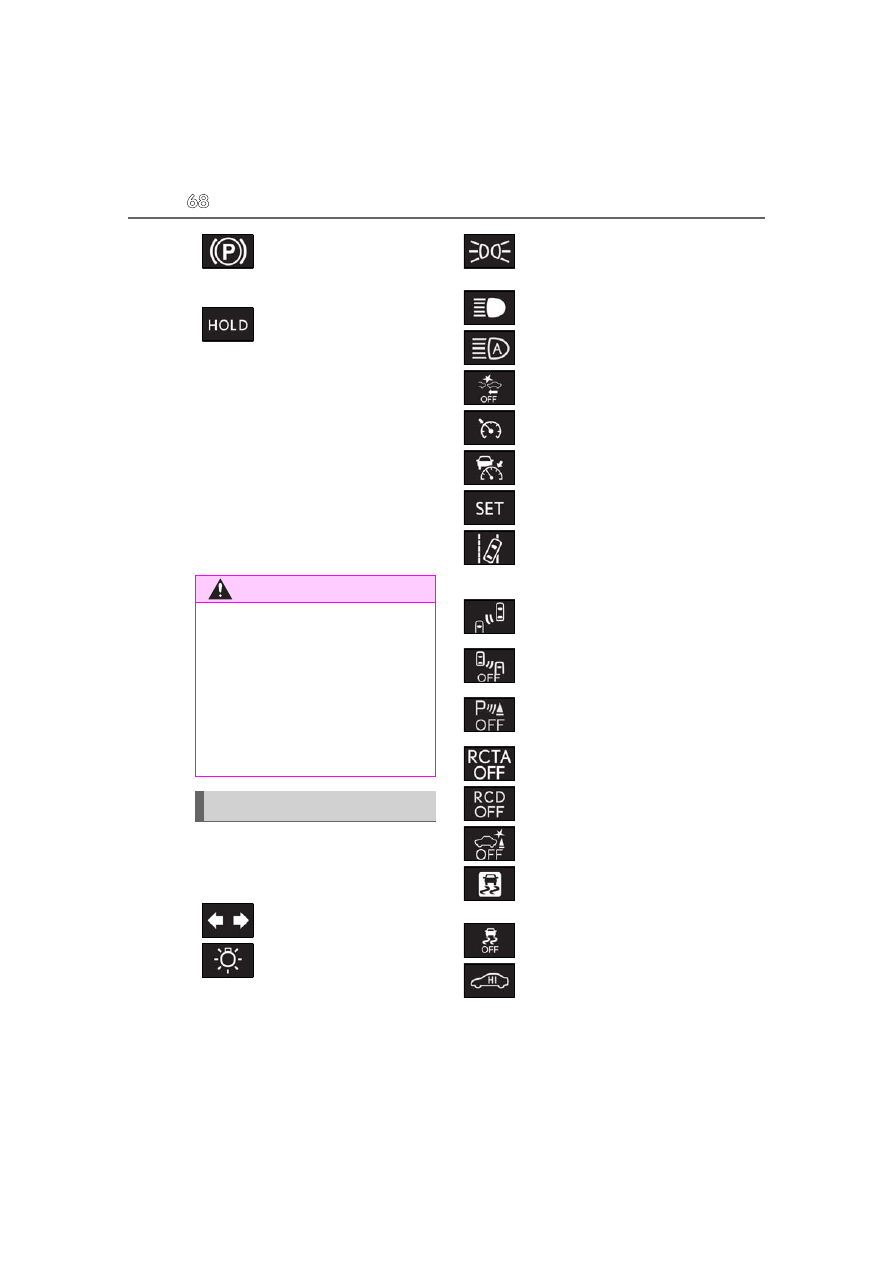

Indicators

Turn signal indicator (

P.179)

(U.S.A.)

Headlight indicator (



P.185)

(Canada)

Tail light indicator (

P.185)

Headlight high beam indicator
(

P.187)

AHB indicator (



P.188)

PCS warning light

*1, 2

(



P.211,

223)
Cruise control indicator
(

P.259)

Dynamic radar cruise control
indicator (

P.259)

Cruise control “SET” indicator
(

LTA indicator (

252)

BSM outside rear view mirror
indicators

*1, 4

(if equipped)

(

P.269, 281)

BSM OFF indicator

*1, 2

(if

equipped) (

P.269)

Intuitive parking assist OFF
indicator

*1, 2

(if equipped)

(

P.276)

RCTA OFF indicator

*1, 2

(if

equipped) (

P.281)

RCD OFF indicator

(if

equipped) (

P.286)

PKSB OFF indicator

*1, 2

(if

equipped) (

P.290)

(flashes)

Slip indicator

(



P.306)

VSC OFF indicator

*1, 2

(

P.307)

High mode indicator (if
equipped) (

P.303)

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators



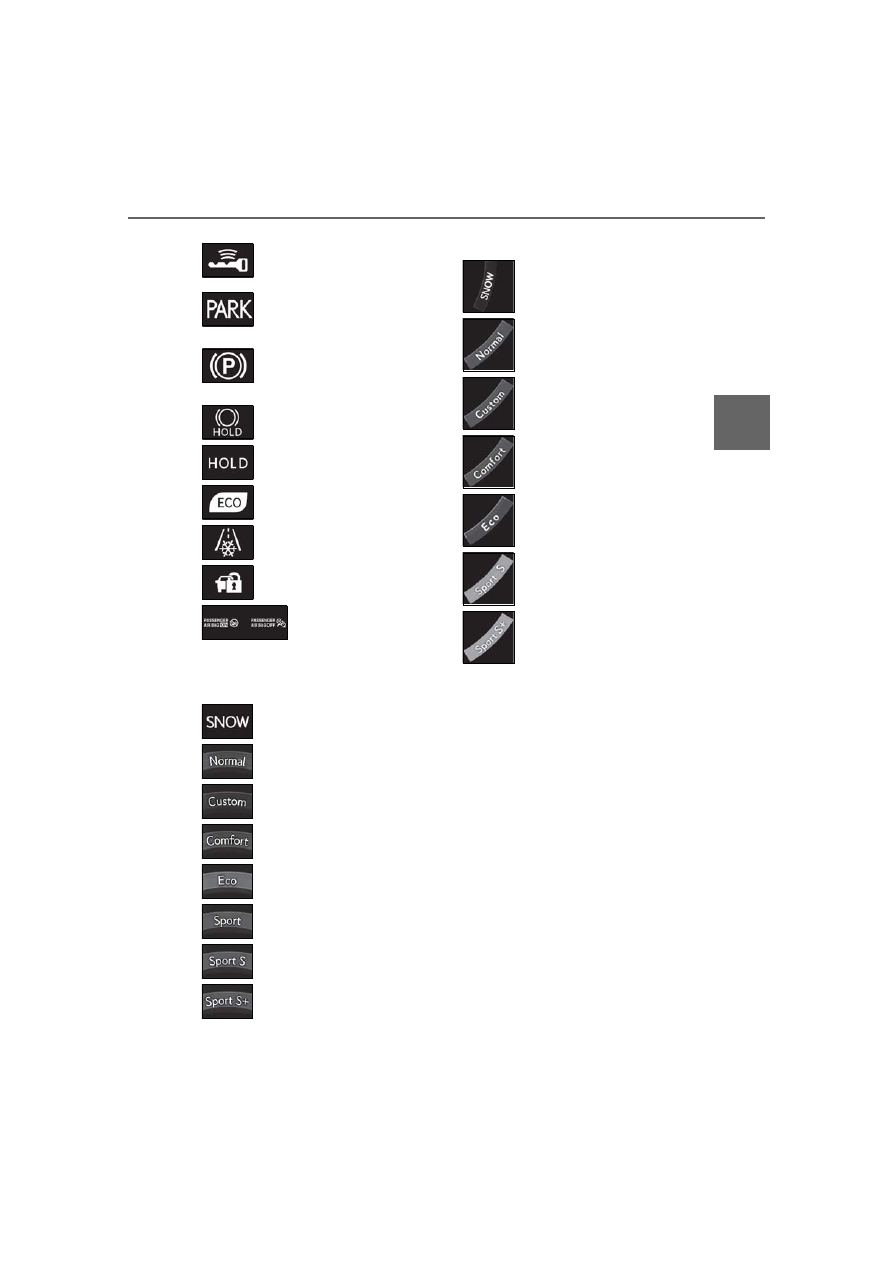

Drive mode indicators



Except F SPORT models



F SPORT models

: These lights come on when the engine

: This light comes on when the system is

turned off.

: Depending on the operating condition,

the color and illuminating/flashing state
of the light change.

: This light illuminates on the outside rear

view mirrors.

: This light illuminates on the multi-infor-

mation display.

: When the outside temperature is

Smart access system with
push-button start indicator

(



P.169)

(U.S.A.)

Parking brake indicator
(



P.180)

(Canada)

Parking brake indicator
(



P.180)

Brake hold standby indicator

(



P.183)

Brake hold operated indicator

(



P.183)

Eco Driving Indicator Light

(



P.81)

Low outside temperature indi-
cator

(

P.71, 74)

Security indicator

(

P.62,

63)

“AIR BAG ON/OFF”
indicator

*1, 7

(

P.40)

Snow mode indicator (

P.176)

Normal mode indicator
(

Custom mode indicator (if
equipped) (



Comfort mode indicator (if
equipped) (



Eco drive mode indicator
(

Sport mode indicator (if
equipped) (



Sport S mode indicator (if
equipped) (



Sport S+ mode indicator (if
equipped) (



Snow mode indicator (



P.176)

Normal mode indicator
(



Custom mode indicator
(



Comfort mode indicator
(



Eco drive mode indicator
(



Sport S mode indicator
(



Sport S+ mode indicator
(



2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

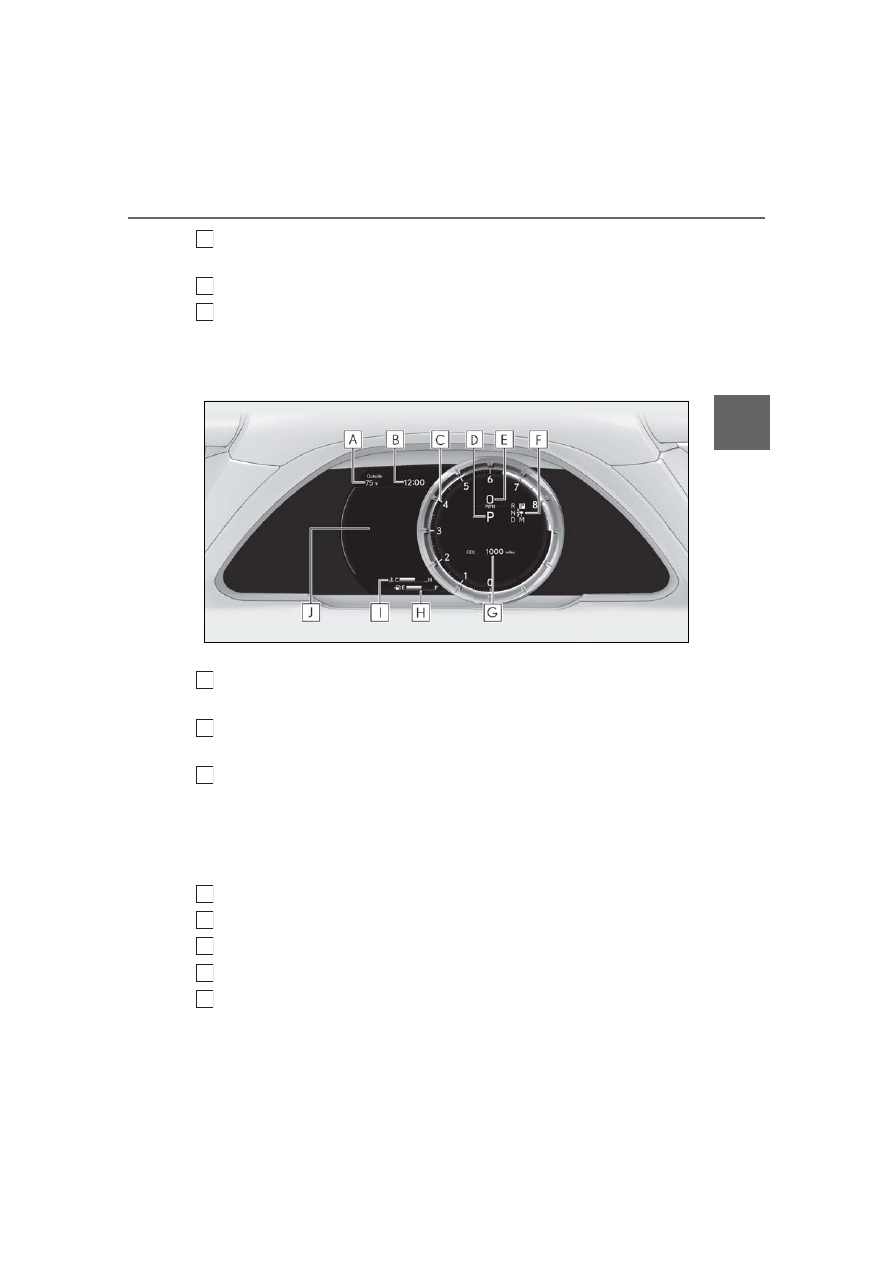

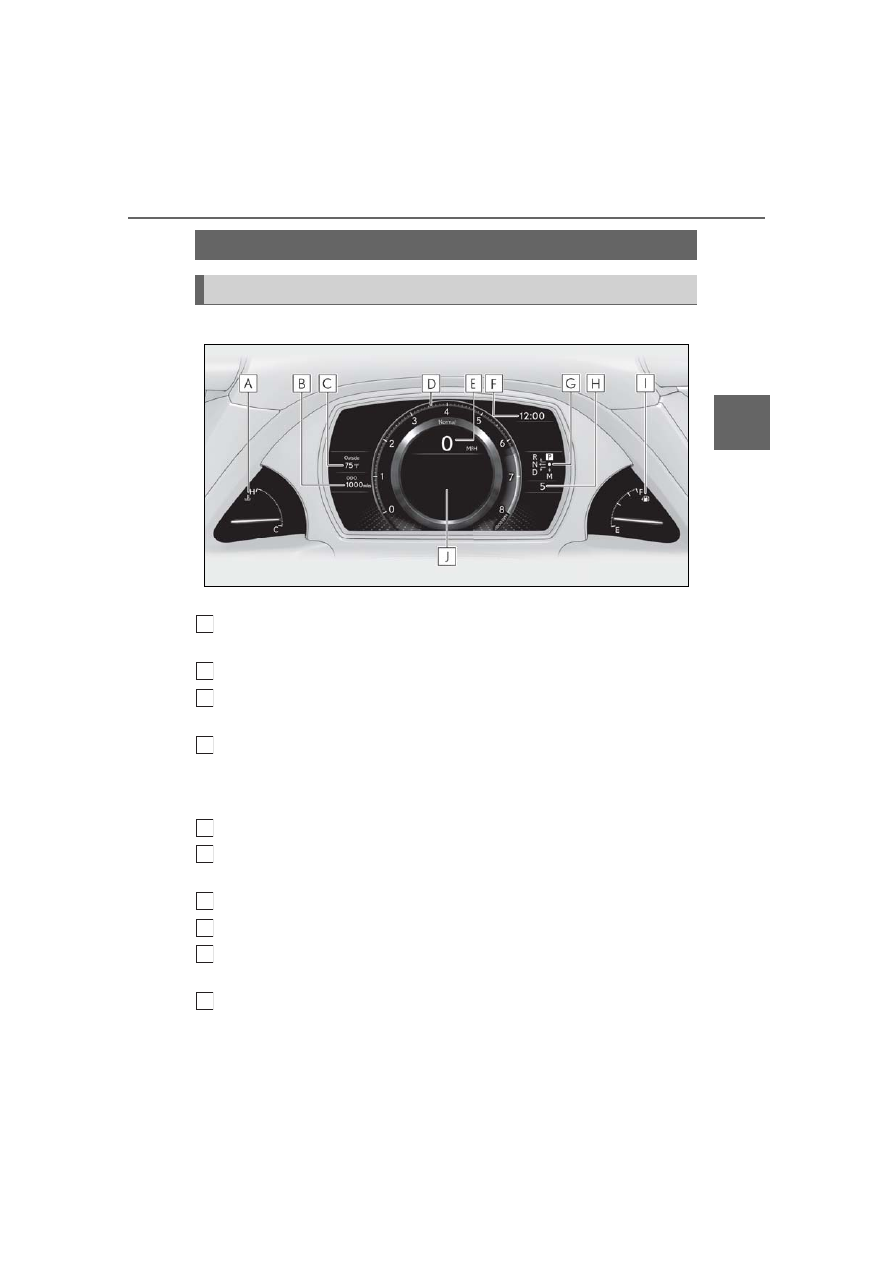

Locations of gauges and meters

The units of measure may differ depending on the intended destination of the vehicle.

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.72)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

Tachometer

Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Speedometer
Clock

Time displayed is linked to the analog clock on the center panel. (



P.347)

Shift position indicator (

P.174)

Shift range/gear position (



P.173)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Multi-information display

Presents the driver with a variety of vehicle data (



Gauges and meters (except F SPORT models)

Meter display

B
C

E
F

2-1. Instrument cluster

Displays warning messages if a malfunction occurs (



■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

Liquid crystal display

P.79

■

Customization

The gauges and meters can be customized
on

of the multi-information display.

(



■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

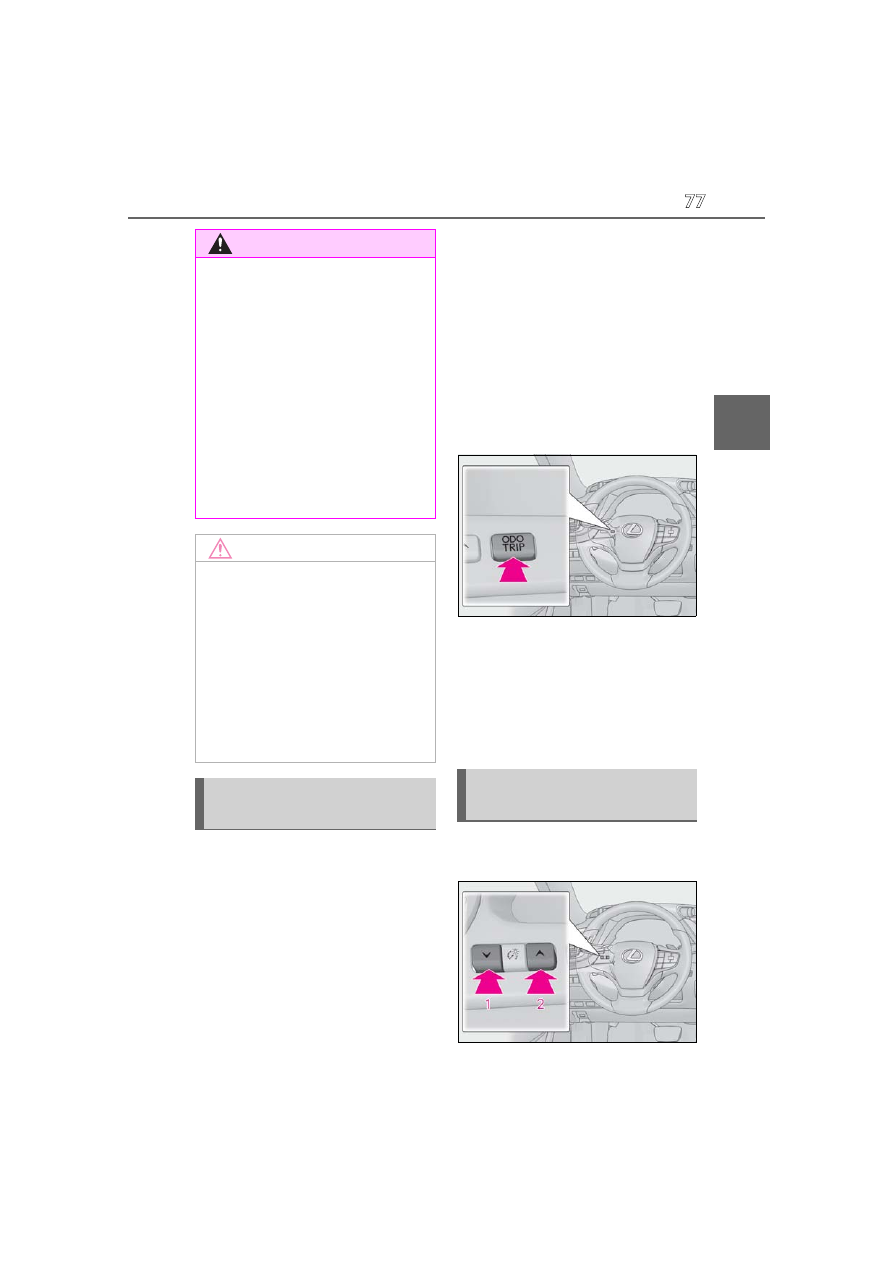

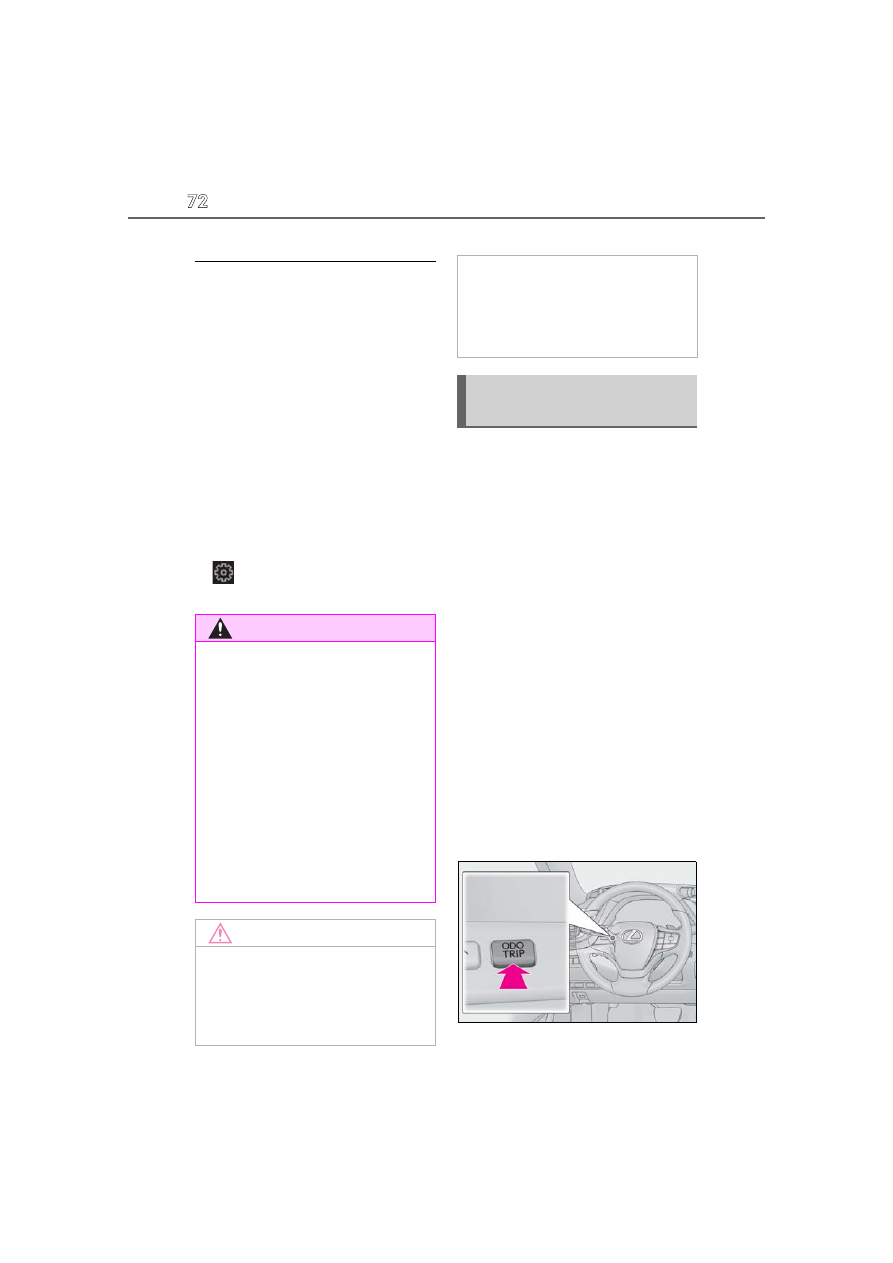

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (

P.445)

Odometer and trip meter dis-
play

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Pop-up display

Distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

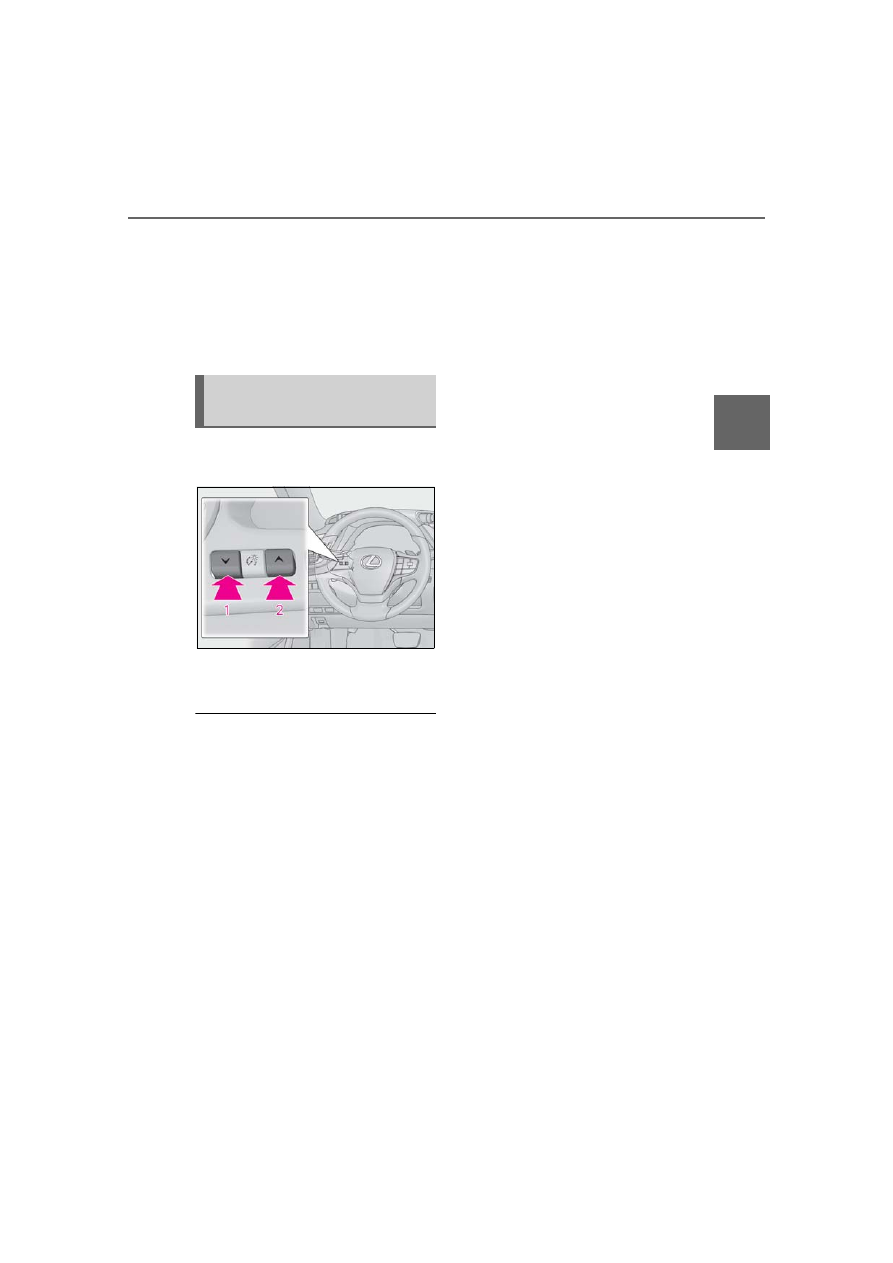

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

■

Brightness of the meters (day mode and

night mode)

The brightness of the meters changes

between day mode and night mode.

●

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

●

Night mode: When the tail lights are on

and the surrounding area is dark

Changing the instrument panel
light brightness

2-1. Instrument cluster

■

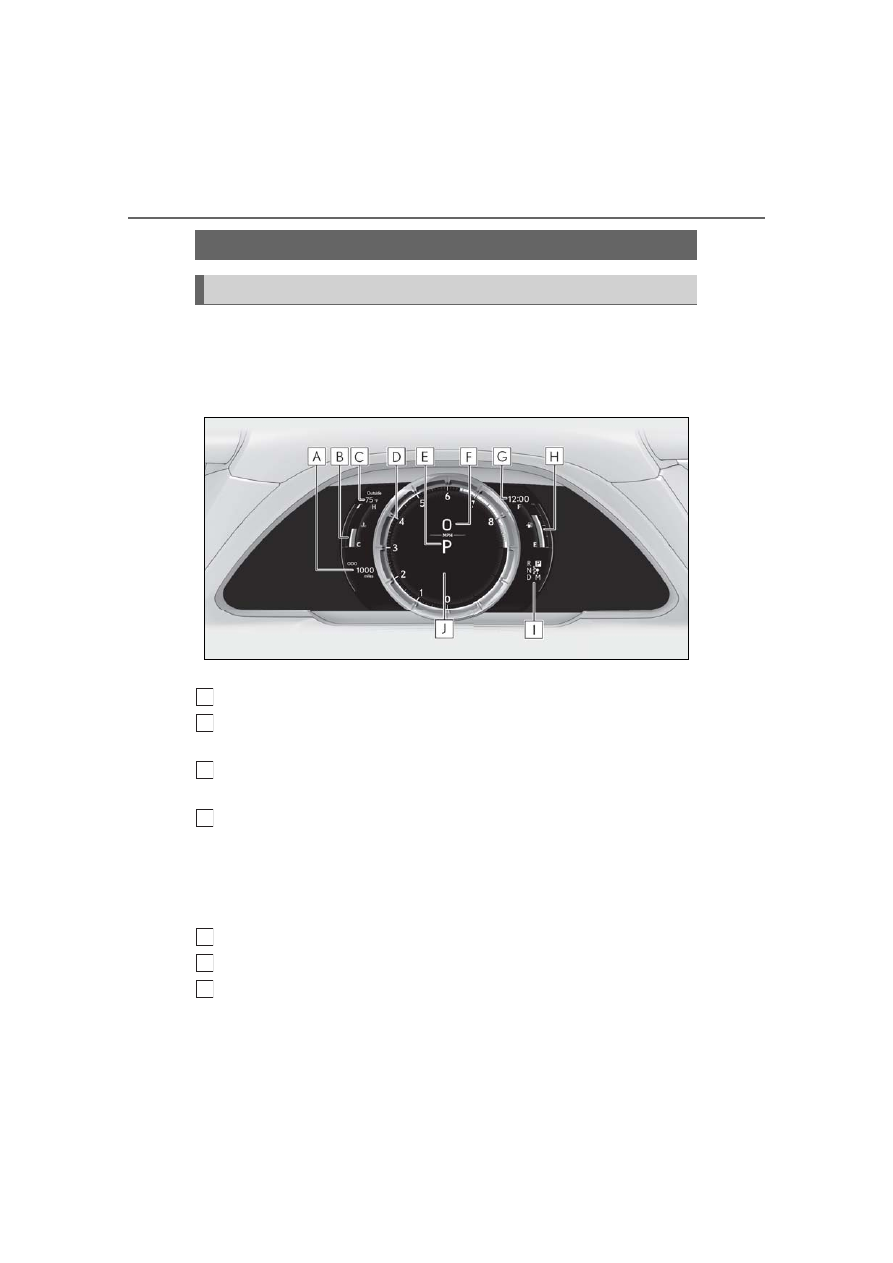

Locations of gauges and meters

When the main meter is moved to the right, some of the meter displays and the
gauge layout will change. (





Main meter in center position

The units of measure may differ depending on the intended destination of the vehicle.

Odometer and trip meter display (



P.77)

Engine coolant temperature gauge

Displays the engine coolant temperature

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

Tachometer



• Rev peak (



Shift position/shift range/gear position (



P.173)

Speedometer
Clock

Time displayed is linked to the analog clock on the center panel. (



P.347)

Gauges and meters (F SPORT models)

Meter display

A
B

E
F

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Fuel gauge

Displays the quantity of fuel remaining in the tank

Shift position indicator (

P.174)

Multi-information display

Presents the driver with a variety of vehicle data (



Displays warning messages if a malfunction occurs (





Main meter moved to the right

The units of measure may differ depending on the intended destination of the vehicle.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

Clock

Time displayed is linked to the analog clock on the center panel. (



P.347)

Tachometer



• Rev peak (



Shift position/shift range/gear position (



P.173)

Speedometer
Shift position indicator (

P.174)

Odometer and trip meter display (



P.77)

Fuel gauge

Displays the quantity of fuel remaining in the tank

E
F

2-1. Instrument cluster

Engine coolant temperature gauge

Displays the engine coolant temperature

Multi-information display

Presents the driver with a variety of vehicle data (



Displays warning messages if a malfunction occurs (



■

Rev indicator

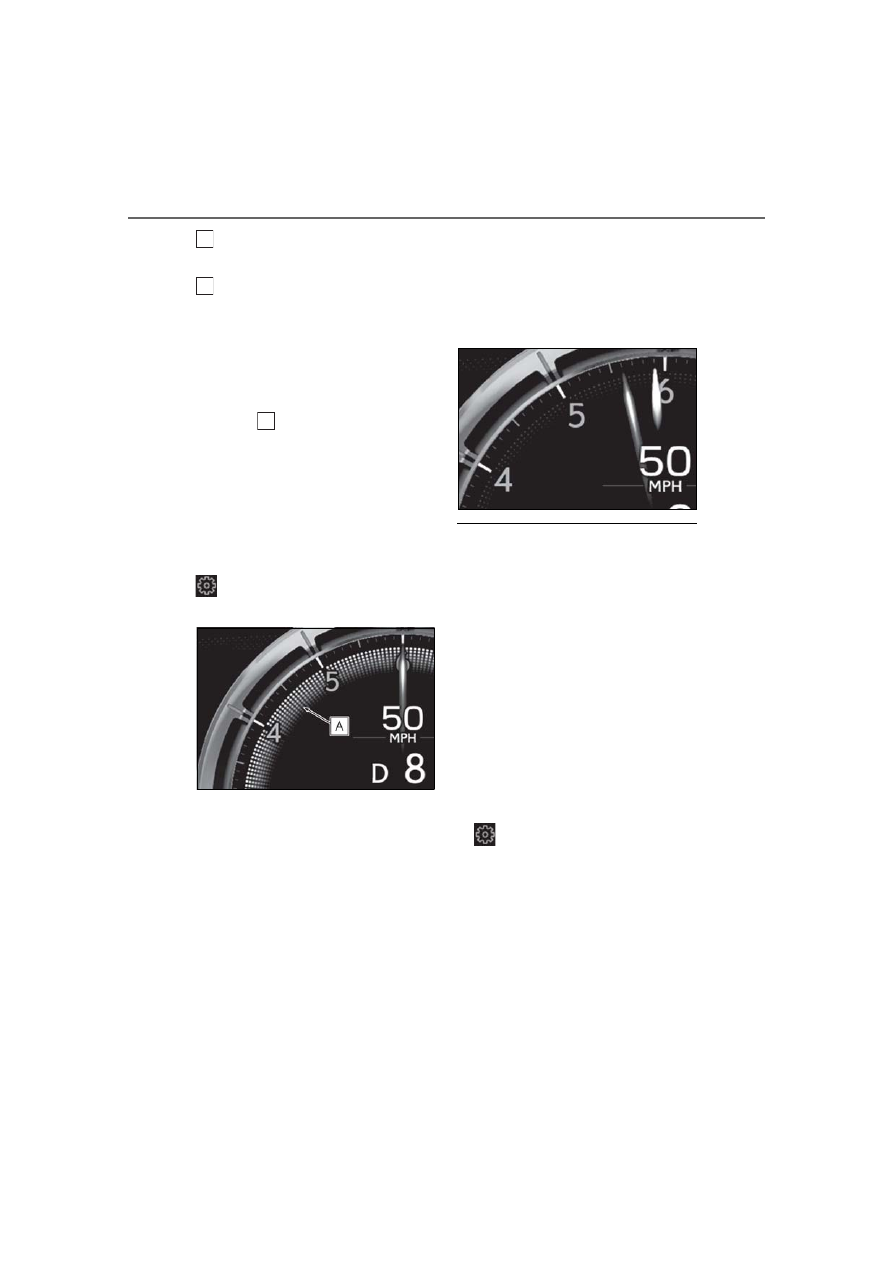

When the engine speed reaches a set
speed or the red zone, a ring-shaped
indicator ( ) will be displayed on the
tachometer.

The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the rev indica-
tor will begin to be displayed can be set on

of the multi-information display.

(



■

Rev peak

When the engine speed reaches or
exceeds 5000 rpm, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

Liquid crystal display



P.79

■

Customization

The gauges and meters can be customized
on

of the multi-information display.

(

2-1. Instrument cluster

Vehi

cle

status

inform

ati

indic
ators

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

■

Pop-up display

The distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

The brightness of the instrument panel
lights can be adjusted.

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.445)

Odometer and trip meter dis-
play

Changing the instrument panel
light brightness

2-1. Instrument cluster

Darker

Brighter

■

Brightness of the meters (day mode and

night mode)

The brightness of the meters changes

between day mode and night mode.

●

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

●

Night mode: When the tail lights are on

and the surrounding area is dark

The display can be switched between
the center and side positions.

■

Display (except F SPORT models)

By selecting menu icons on the
multi-information display, a variety of
driving-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

■

Display (F SPORT models)



Main meter in center position

The multi-information display presents
the driver with a variety of driv-
ing-related information.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

Changing the main meter loca-
tion

Multi-information display

Display and menu icons

2-1. Instrument cluster

Vehi

cle

status

inform

ati

indic
ators



Main meter moved to the right

■

Menu icons

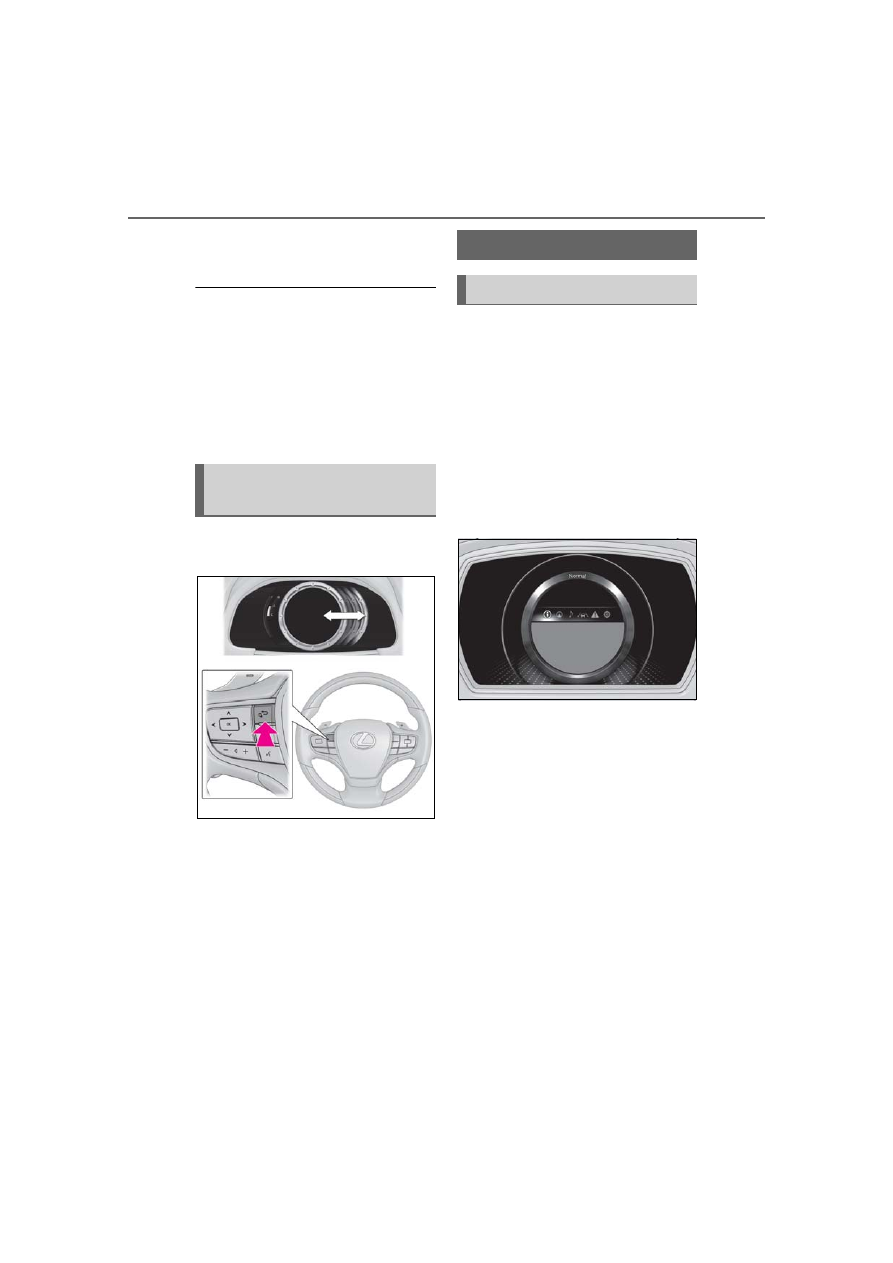

The menu icons will be displayed by
pressing

of the meter con-

trol switch.

F SPORT models: The menu icons can be
displayed when the main meter is moved to
the right.

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

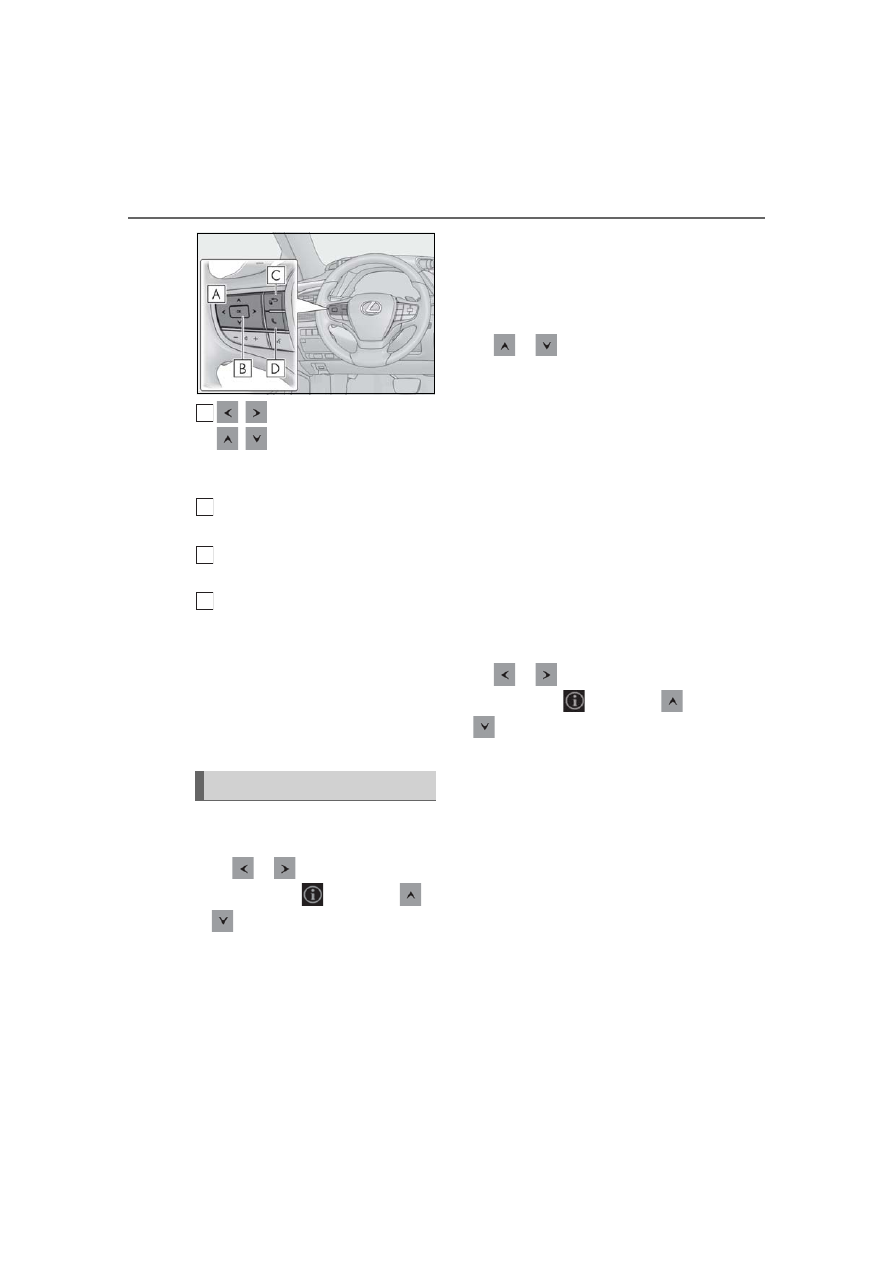

The multi-information display is oper-
ated using the meter control switches.

Driving information display
(

P.80)

Navigation system-linked dis-
play (if equipped) (



Audio system-linked display
(



Driving support system infor-
mation display (

Warning message display
(



Settings display (



WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

●

Do not look continuously at the

multi-information display while driving

as you may fail to see pedestrians,

objects on the road, etc. ahead of the

vehicle.

■

The information display at low tem-

peratures

P.72, 77

Changing the meter display

2-1. Instrument cluster

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen and
move the cursor up/down
Press: Enter/Set
Press and hold: Reset

Move the main meter

and return

to the previous screen
Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “MULTIMEDIA OWNER’S MAN-
UAL”.

: F SPORT models

■

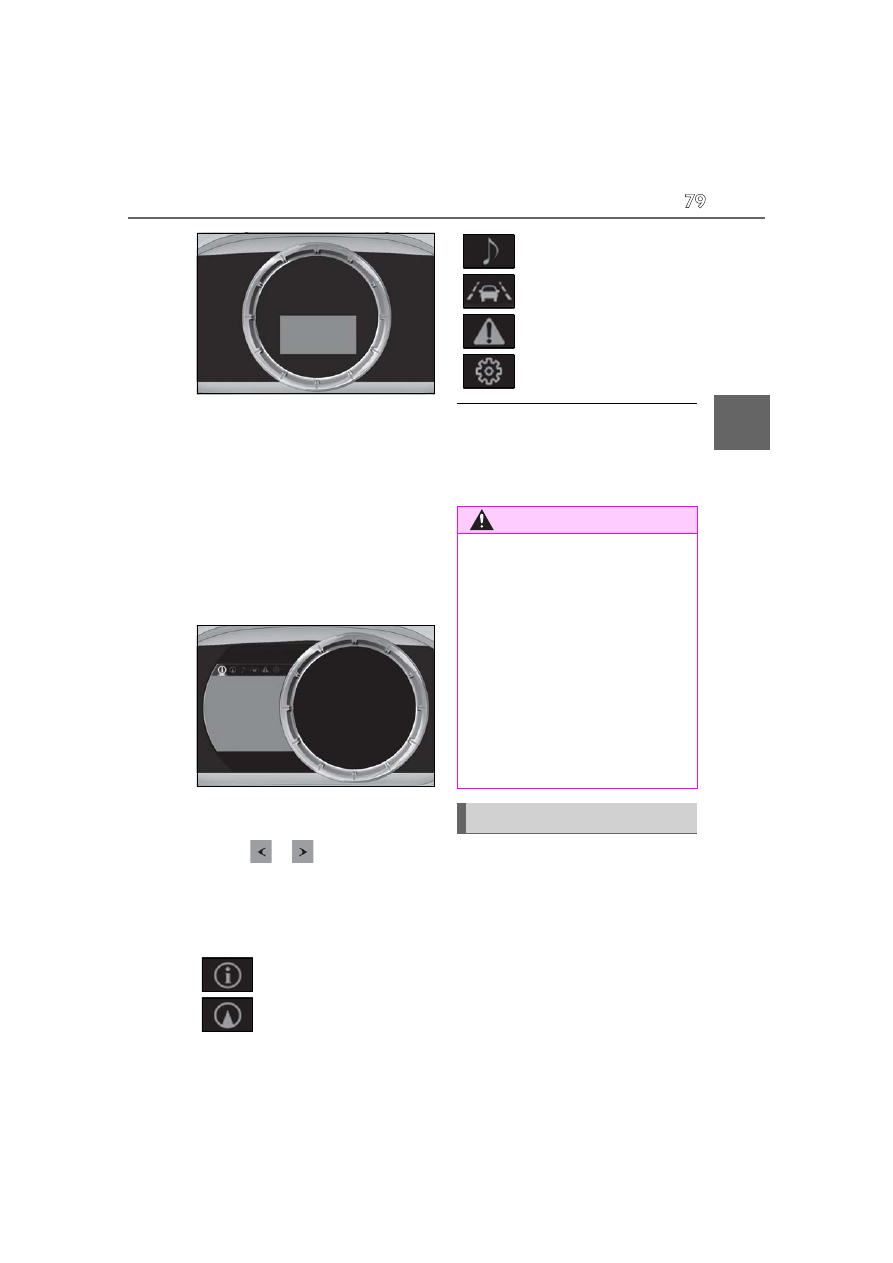

Display items (except F SPORT
models)

Press

of the meter control

switch and select

. Then press

to display the following items:



Drive information 1



Drive information 2



Eco Driving Indicator



Boost gauge



Tire pressure (



P.389)



Display off

■

Display items (F SPORT models)



Main meter in center position

Press

of the meter control

switch to display the following items:



Drive information 1



Drive information 2



Tire pressure (



P.389)



Gear positions



Units



Display off



Driving support system information

(

: Can be selected when a driving support

system is enabled. (

P.234, 247, 259)



Main meter moved to the right

Press

of the meter control

switch and select

. Then press

to display the following items:



Drive information 1



Drive information 2



Eco Driving Indicator



Boost gauge



G-force



Gear Position



Tire pressure (



P.389)



Display off

■

Drive information 1/Drive infor-
mation 2

Displays drive information such as the
following:

Content of driving information

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Use the displayed values as a reference
only.



Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)



Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)

Displayed items (listed below) can be
changed on

. (



Current fuel consumption

Bar type: Displays instantaneous current
fuel consumption



Average fuel economy

After reset: Displays average fuel con-
sumption since the display was reset

After start: Displays average fuel con-
sumption since engine start
After refuel: Displays average fuel con-
sumption since refuel



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since engine start



Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since
engine start



Distance

Driving range: Displays driving range with
remaining fuel

*2, 3

After start: Displays the distance driven
since engine start



Other

Blank: No item

: To reset, display the desired item and

press and hold

of the meter control

switch.

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.

■

Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or when
the vehicle is stopped, the light turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.

2-1. Instrument cluster

Eco driving ratio based on acceler-
ation

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driv-
ing Indicator Zone Display will illuminate.
At this time, the Eco Driving Indicator Light
will turn off.

Zone of Eco driving

■

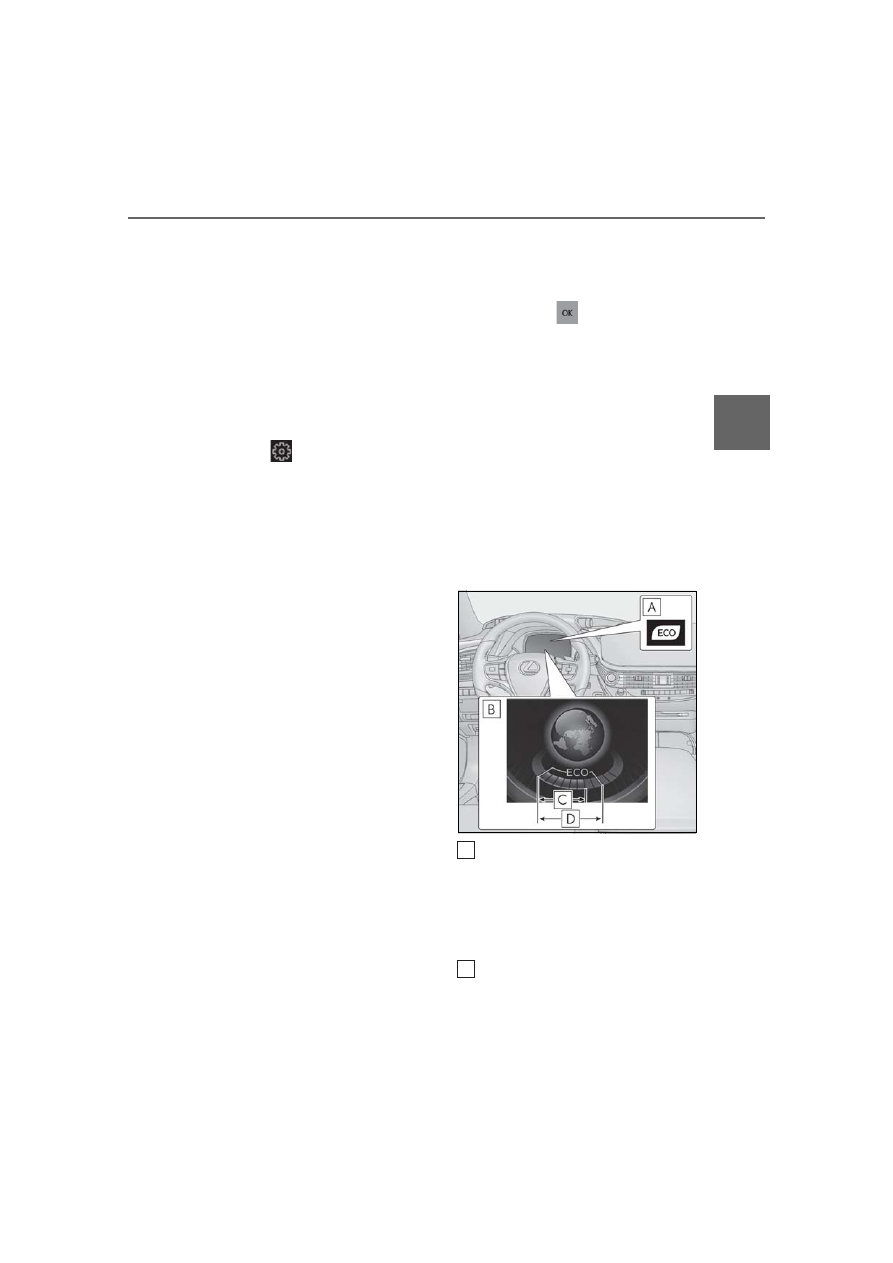

Boost gauge

Displays the boost pressure. The dis-
play will change color if the specified
pressure is exceeded.

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.

■

G-force (F SPORT models)

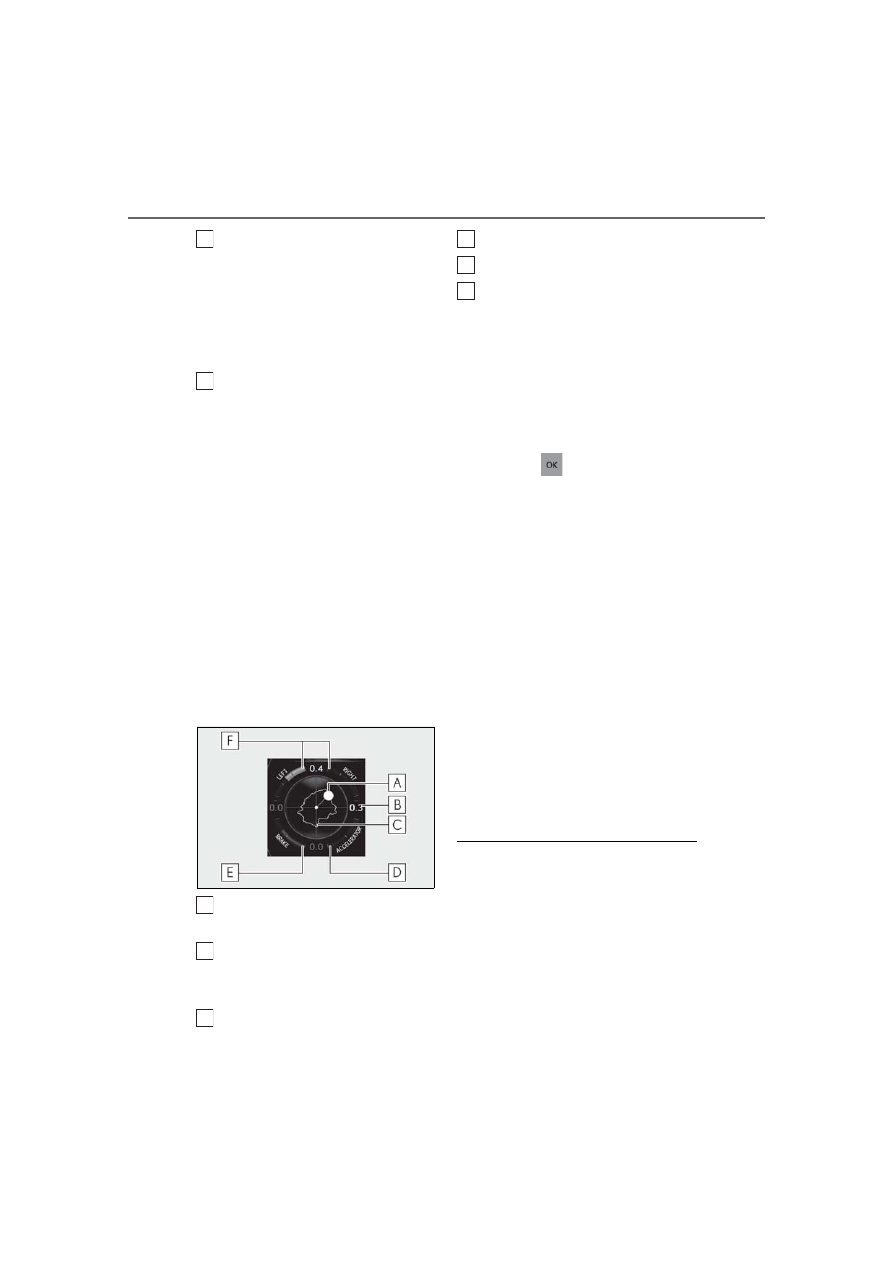

Displays lateral G-forces on the vehi-
cle. Also displays, around the periph-
ery of the G-force display, the left and
right steering amount, accelerator
pedal input, and brake fluid pressure.

Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces

Accelerator pedal input
Brake fluid pressure
Steering amount



Resetting the record of maximum
G-forces

Press and hold

of the meter control

switch to reset the record.



Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

■

Gear Position (F SPORT models)

Displays the current shift range or gear
position when the shift position is in D
or M.

■

Units (F SPORT models)

The units of measure used can be
changed while driving.

Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information display
can be changed while driving.

■

Eco Driving Indicator

Eco Driving Indicator will not operate

under the following conditions:

●

The shift position is in any position other

than D.

●

A paddle shift switch is operated.

●

The driving mode is set to sport mode.

●

The driving mode is set to custom mode

and the powertrain control is set to power

(



E
F

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

●

Snow mode is selected.

●

The vehicle speed is approximately 80

mph (130 km/h) or higher.

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display (heading-up dis-
play)

■

Route guidance to destination display

When the route guidance to destination

display is enabled on the head-up display, it

will not be displayed on the multi-informa-

tion display. (

P.87)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist) (

P.234,

247)



Dynamic radar cruise control with
full-speed range (



P.259)



RSA (Road Sign Assist) (if
equipped) (



P.256)

■

Meter display settings that can be
changed



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Speedometer display (except F
SPORT models)

Select to set the display of the speedome-
ter to digital/analog/both digital and ana-
log.



Drive information 1/Drive informa-
tion 2

Select to select up to 2 items (



P.80) that

will be displayed on each Drive information
screen (Drive information 1 screen and
Drive information 2 screen) respectively.



Clock

Select to switch between 12-hour display
and 24-hour display.



Pop-up display

Select to enable/disable pop-up displays
for each relevant system.



Rev indicator (F SPORT models)

• Select to enable/disable the rev indica-

tor.

• Select to set the engine speed at which

the rev indicator (amber) will begin to be
displayed.



Rev peak (F SPORT models)

Select to enable/disable the rev peak.



Eco Driving Indicator Light

Select to enable/disable the Eco Driving
Indicator Light.

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving support system informa-
tion display

Settings display

2-1. Instrument cluster



Default setting

Select to reset the meter display settings to
the default setting.

■

Vehicle functions and settings that
can be changed



P.470

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

■

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight

switch in

after the engine switch

has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.
To turn the headlights off, select “Yes”.

If a front door is opened after the engine
switch is turned off, this suggestion mes-
sage will not be displayed.

■

Customization

Some functions can be customized.

(

P.470)

WARNING

■

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge, ensure that

the engine is running while setting up the

display features.

Suggestion function

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

: If equipped

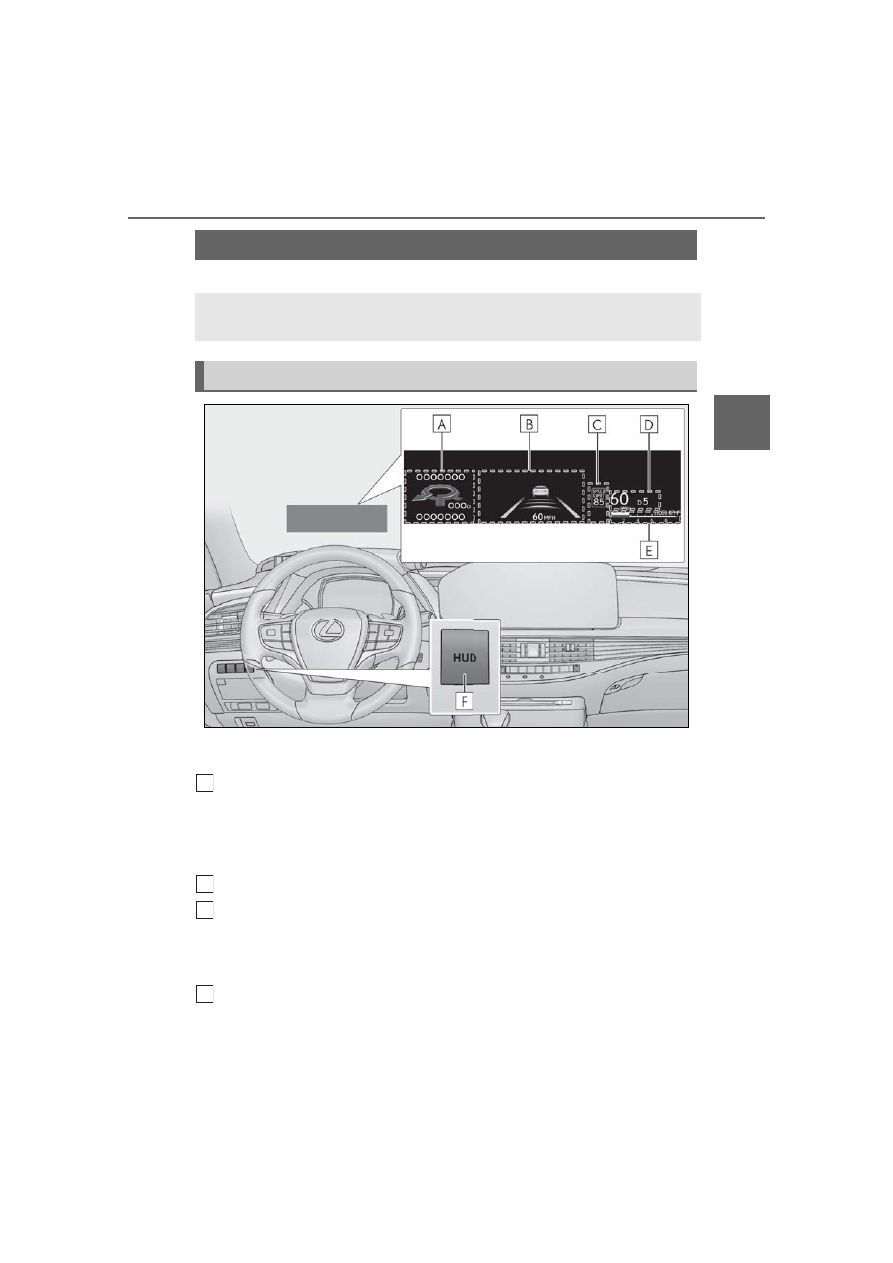

Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.

Navigation system-linked display area (if equipped)

Displays the following items which are linked to the navigation system:
• Route guidance to destination
• Street name
• Compass (heading-up display)

Driving support system display area (
