7-2. Steps to take in an emergency

Press the parking brake switch to
check that the parking brake is set.
(



P.197)

Parking brake indicator will come on.

Shift the shift lever to P.

Turn the power switch to ACCES-
SORY mode.

Press and hold the power switch for
about 15 seconds while depressing
the brake pedal firmly.

Even if the hybrid system can be
started using the above steps, the sys-
tem may be malfunctioning. Have the
vehicle inspected by any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

If you lose your keys

New genuine mechanical keys can
be made by any authorized Lexus
retailer or Lexus authorized
repairer, or any reliable repairer
using another mechanical key and
the key number stamped on your
key number plate. Keep the plate in
a safe place such as your wallet, not
in the vehicle.

NOTICE

■

When an electronic key is lost

If the electronic key remains lost, the risk

of vehicle theft increases significantly.

Visit any authorized Lexus retailer or

Lexus authorized repairer, or any reli-

able repairer immediately with all

remaining electronic keys that were pro-

vided with your vehicle.

439

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

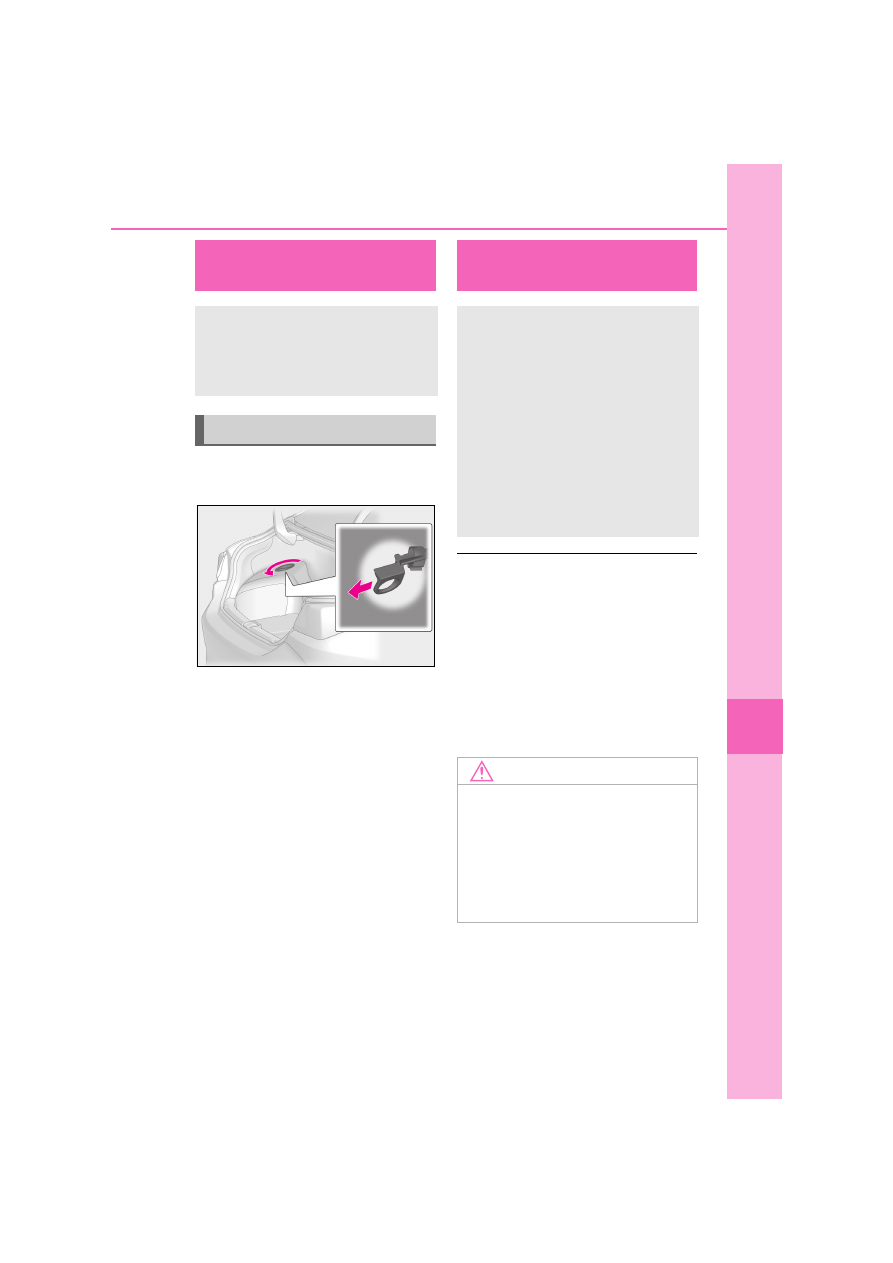

Remove the cover inside the trunk and
pull the lever.

■

When the electronic key does not work

properly

●

Make sure that the smart entry & start

system has not been deactivated in the

customization setting. If it is off, turn the

function on. (Customizable features:

P.465)

●

Check if battery-saving mode is set. If it is

set, cancel the function. (



P.141)

●

The electronic key function may have

stopped. (



P.142)

If the fuel filler door cannot
be opened

If the fuel filler door opener switch
cannot be operated, the following
procedure can be used to open the
fuel filler door.

Opening the fuel filler door

If the electronic key does not
operate properly

If communication between the
electronic key and vehicle is inter-
rupted (



P.142) or the electronic

key cannot be used because the
battery is depleted, the smart entry
& start system and wireless remote
control cannot be used. In such
cases, the doors and trunk can be
opened and the hybrid system can
be started by following the proce-
dure below.

NOTICE

■

In case of a smart entry & start system

malfunction or other key-related

problems

Take your vehicle with all the electronic

keys provided with your vehicle (includ-

ing the card key) to any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer as soon as possible.

440

7-2. Steps to take in an emergency

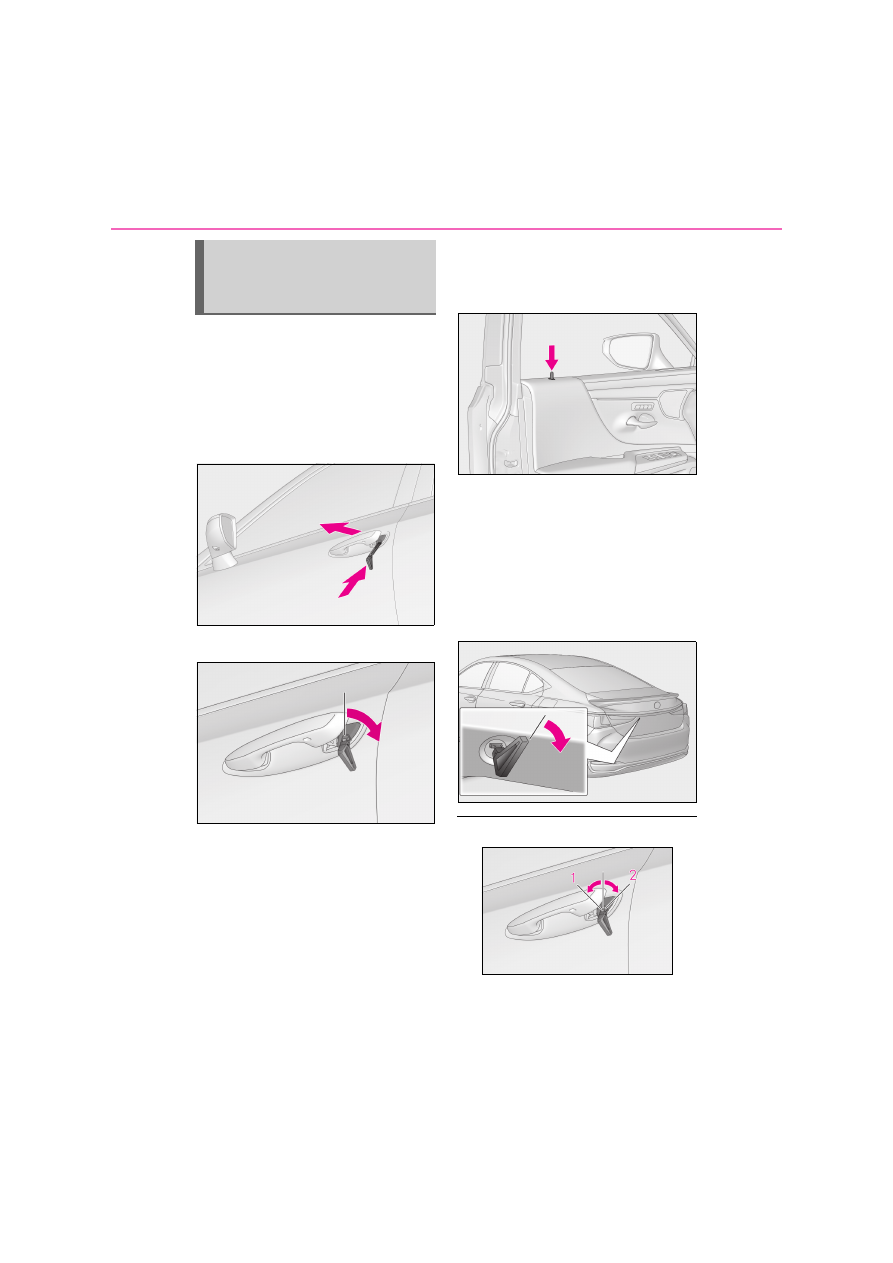

Use the mechanical key (



P.127) in

order to perform the following opera-
tions:

■

Unlocking the door

Pull the driver’s door handle and
insert the mechanical key.

Unlock the door.

Remove the key, return the handle,
and then pull the handle again.

■

Locking the door

With the door open, push down the
inside lock button.

Close the door.

For the front doors: Close the door while

pulling the door handle.
For the rear doors: Close the door.

■

Opening the trunk

Turn the mechanical key clockwise to
open.

■

Key linked functions

Closes the windows and the moon roof
(turn and hold)

Locking and unlocking the
doors, opening the trunk and
using the key linked functions

441

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

Opens the windows and the moon roof
(turn and hold)

These settings must be customized at any
authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.

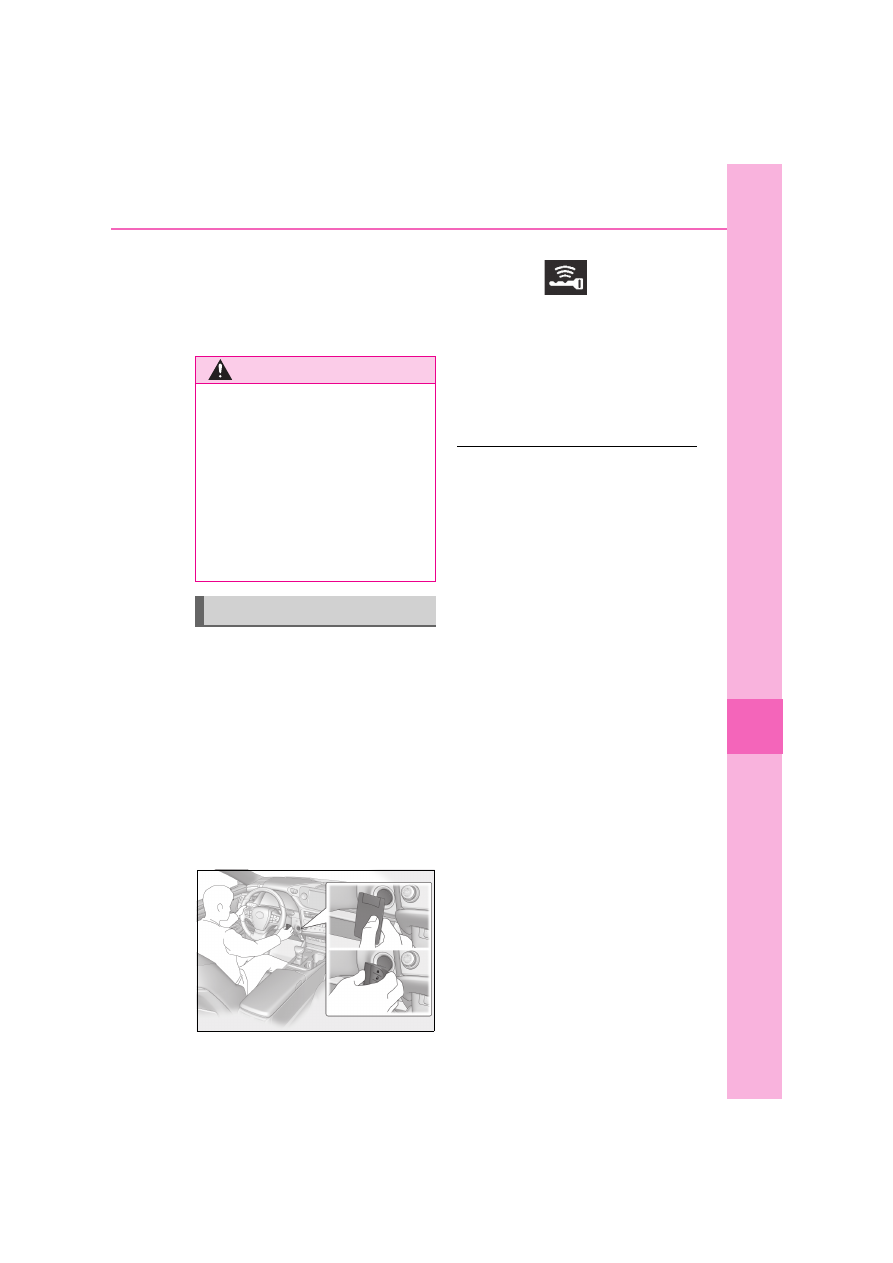

Ensure that the shift lever is in P and
depress the brake pedal.

Touch the Lexus emblem side of
the electronic key to the power
switch.

When the electronic key is detected, a

buzzer sounds and the power switch will

turn to ON mode.
When the smart entry & start system is

deactivated in customization setting, the

power switch will turn to ACCESSORY

mode.

Firmly depress the brake pedal and

check that

is shown on the

multi-information display.

Press the power switch.

In the event that the hybrid system still
cannot be started, contact any autho-
rized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.

■

Stopping the hybrid system

Set the parking brake, shift the shift lever to

P and press the power switch as you nor-

mally do when stopping the hybrid system.

■

Electronic key battery

As the above procedure is a temporary

measure, it is recommended that the elec-

tronic key battery be replaced immediately

when the battery is depleted. (



P.387)

■

Alarm (if equipped)

Using the mechanical key to lock the doors

will not set the alarm system.

If a door is unlocked using the mechanical

key when the alarm system is set, the alarm

may be triggered.

■

Changing power switch modes

Release the brake pedal and press the

power switch in step

above.

The hybrid system does not start and modes

will be changed each time the switch is

pressed. (



P.188)

WARNING

■

When using the mechanical key and

operating the power windows or

moon roof

Operate the power window or moon

roof after checking to make sure that

there is no possibility of any passenger

having any of their body parts caught in

the window or moon roof.

Also, do not allow children to operate the

mechanical key. It is possible for children

and other passengers to get caught in

the power window or moon roof.

Starting the hybrid system

442

7-2. Steps to take in an emergency

If you have a set of jumper (or booster)
cables and a second vehicle with a 12-
volt battery, you can jump start your
vehicle using the following procedure.

Confirm that the electronic key is
being carried.

When connecting the jumper (or booster)

cables, depending on the situation, the

alarm may activate and doors locked.

(



P.89)

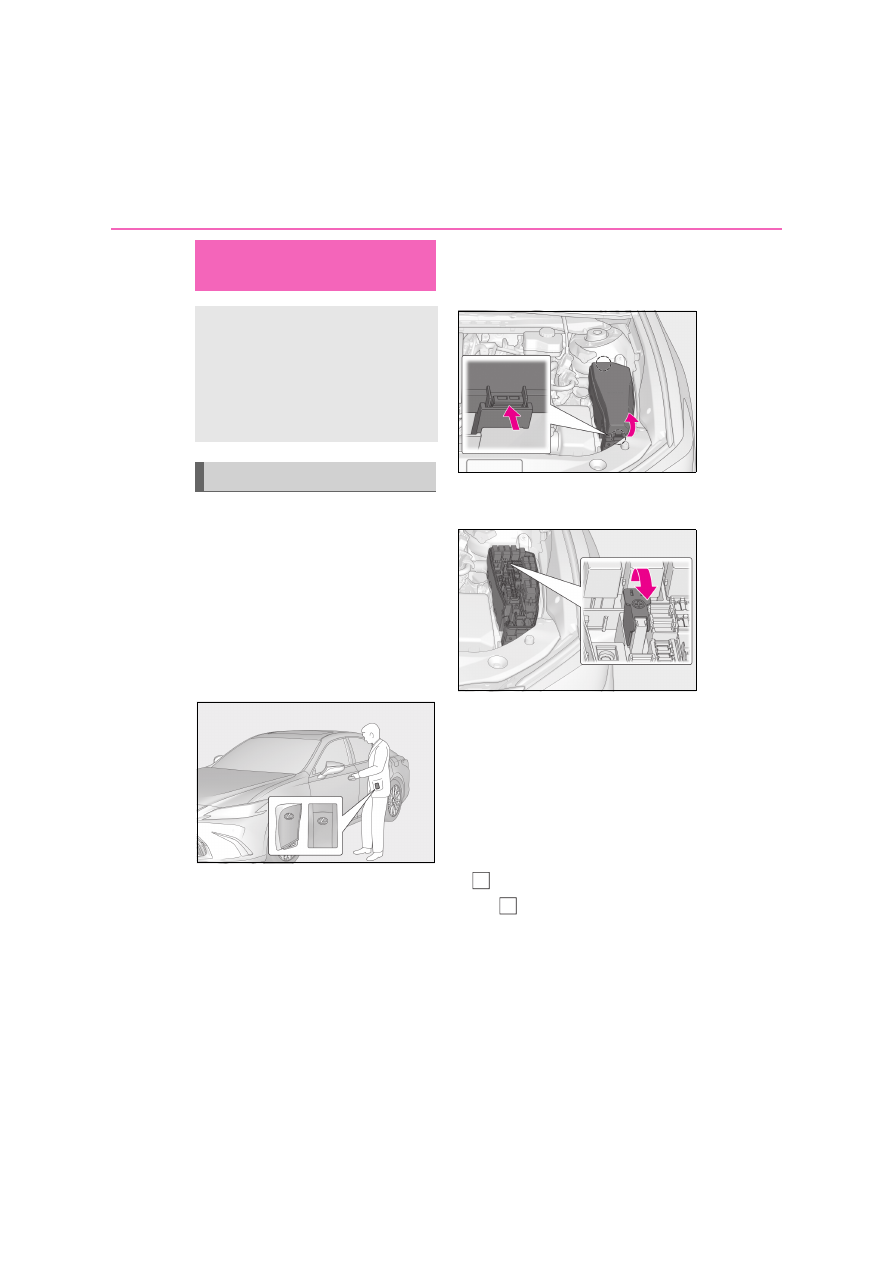

Open the hood (



P.362) and

open the fuse box cover.

Push the tab in and lift the lid off.

Open the exclusive jump starting
terminal cover.

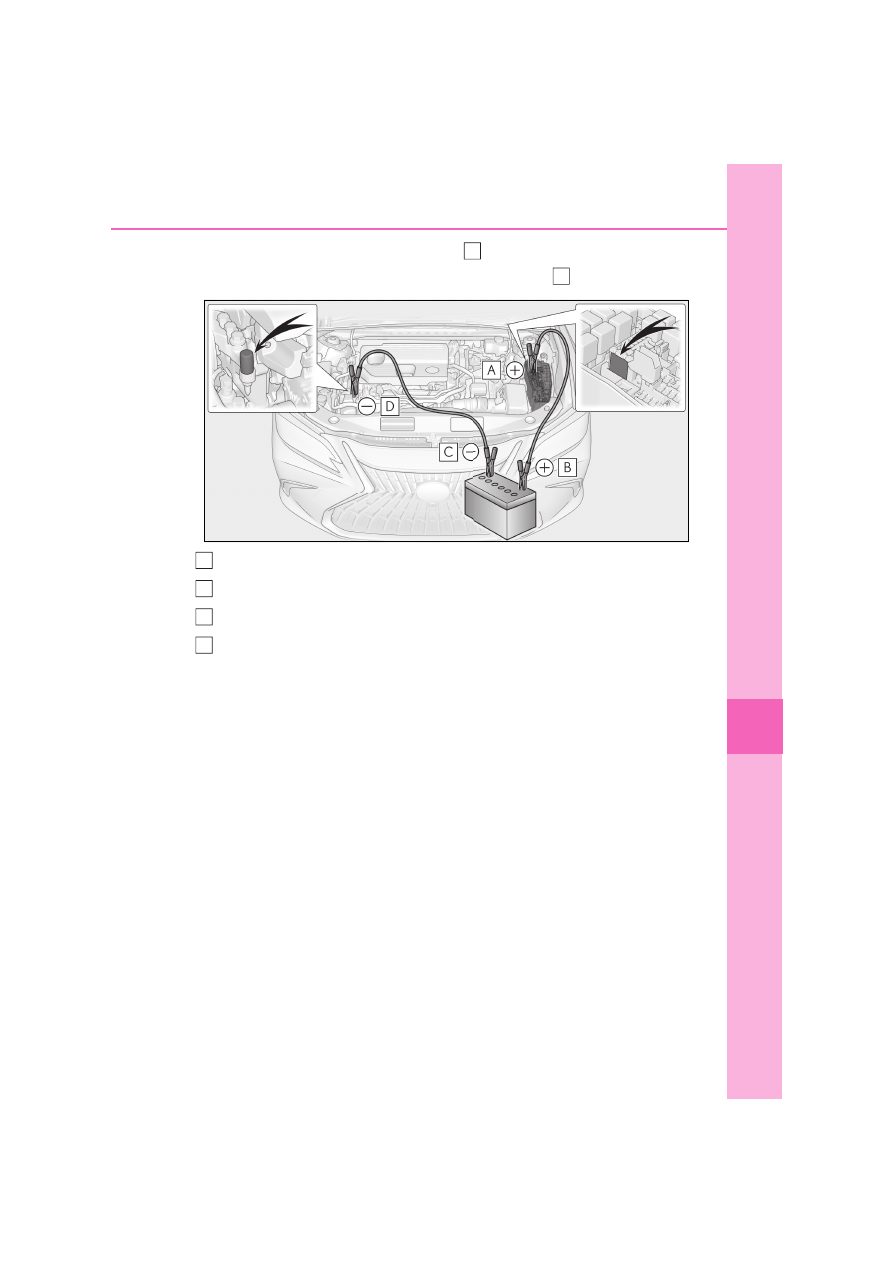

Connect a positive jumper cable clamp to

on your vehicle and connect the

clamp on the other end of the positive cable to

on the second vehicle.

If the 12-volt battery is dis-
charged

The following procedures may be
used to start the hybrid system if the
12-volt battery is discharged.
You can also call any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Restarting the hybrid system

443

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

Then, connect a negative cable clamp to

on the second vehicle and con-

nect the clamp at the other end of the negative cable to

Exclusive jump starting terminal (your vehicle)

Positive (+) battery terminal (second vehicle)

Negative (-) battery terminal (second vehicle)

Solid, stationary, unpainted metallic point away from the exclusive jump starting
terminal and any moving parts as shown in the illustration

Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the 12-volt battery of your
vehicle.

Vehicles with steering lock func-
tion: Open and close any of the
doors of your vehicle with the
power switch off.

Maintain the engine speed of the
second vehicle and start the hybrid
system of your vehicle by turning
the power switch to ON mode.

Make sure the “READY” indicator
comes on. If the indicator does not

come on, contact any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Once the vehicle’s hybrid system
has started, remove the jumper
cables in the exact reverse order
from which they were connected.

Close the exclusive jump starting
terminal cover, and reinstall the
fuse box cover to its original posi-
tion.

Once the hybrid system starts, have the

vehicle inspected at any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer as soon as possible.

A
B
C
D

444

7-2. Steps to take in an emergency

■

Starting the hybrid system when the 12-

volt battery is discharged

The hybrid system cannot be started by

push-starting.

■

To prevent 12-volt battery discharge

●

Turn off the headlights and the audio sys-

tem while the hybrid system is stopped.

●

Turn off any unnecessary electrical com-

ponents when the vehicle is running at a

low speed for an extended period, such

as in heavy traffic.

■

When the 12-volt battery is removed or

discharged

●

Information stored in the ECU is cleared.

When the 12-volt battery is depleted,

have the vehicle inspected at any autho-

rized Lexus retailer or Lexus authorized

repairer.

●

Some systems may require initialization.

(



P.474)

■

When removing the 12-volt battery ter-

minals

When the 12-volt battery terminals are

removed, the information stored in the

ECU is cleared. Before removing the 12-

volt battery terminals, contact any autho-

rized Lexus retailer or Lexus authorized

repairer.

■

Charging the 12-volt battery

The electricity stored in the 12-volt battery

will discharge gradually even when the

vehicle is not in use, due to natural dis-

charge and the draining effects of certain

electrical appliances. If the vehicle is left for

a long time, the 12-volt battery may dis-

charge, and the hybrid system may be

unable to start. (The 12-volt battery

recharges automatically while the hybrid

system is operating.)

■

When recharging or replacing the 12-

volt battery

●

In some cases, it may not be possible to

unlock the doors using the smart entry &

start system when the 12-volt battery is

discharged. Use the wireless remote

control or the mechanical key to lock or

unlock the doors.

●

The hybrid system may not start on the

first attempt after the 12-volt battery has

recharged but will start normally after the

second attempt. This is not a malfunction.

●

The power switch mode is memorized by

the vehicle. When the 12-volt battery is

reconnected, the system will return to the

mode it was in before the 12-volt battery

was discharged. Before disconnecting

the 12-volt battery, turn the power switch

off.

If you are unsure what mode the power

switch was in before the 12-volt battery

discharged, be especially careful when

reconnecting the 12-volt battery.

■

When replacing the 12-volt battery

●

Use a battery that conforms to European

regulations.

●

Use a 12-volt battery that the case size is

same as the previous one (LN2), 20 hour

rate capacity (20HR) is equivalent

(60Ah) or greater, and performance rat-

ing (CCA) is equivalent (345A) or

greater.

• If the sizes differ, the 12-volt battery can-

not be properly secured.

• If the 20 hour rate capacity is low, even if

the time period where the vehicle is not

used is a short time, the 12-volt battery

may discharge and the hybrid system

may not be able to start.

●

Use a ventilation type calcium battery.

●

Use a 12-volt battery with a handle. If a

12-volt battery without a handle is used,

removal is more difficult.

●

After exchanging, firmly attach the fol-

lowing items to the exhaust hole of the

12-volt battery.

• Use the exhaust hose that was attached

to the 12-volt battery before exchanging.

• Use the exhaust hole plug included with

the new 12-volt battery or the one

installed on the battery prior to the

replacement. (Depending on the new 12-

volt battery installed, the exhaust hole

may be plugged.)

445

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

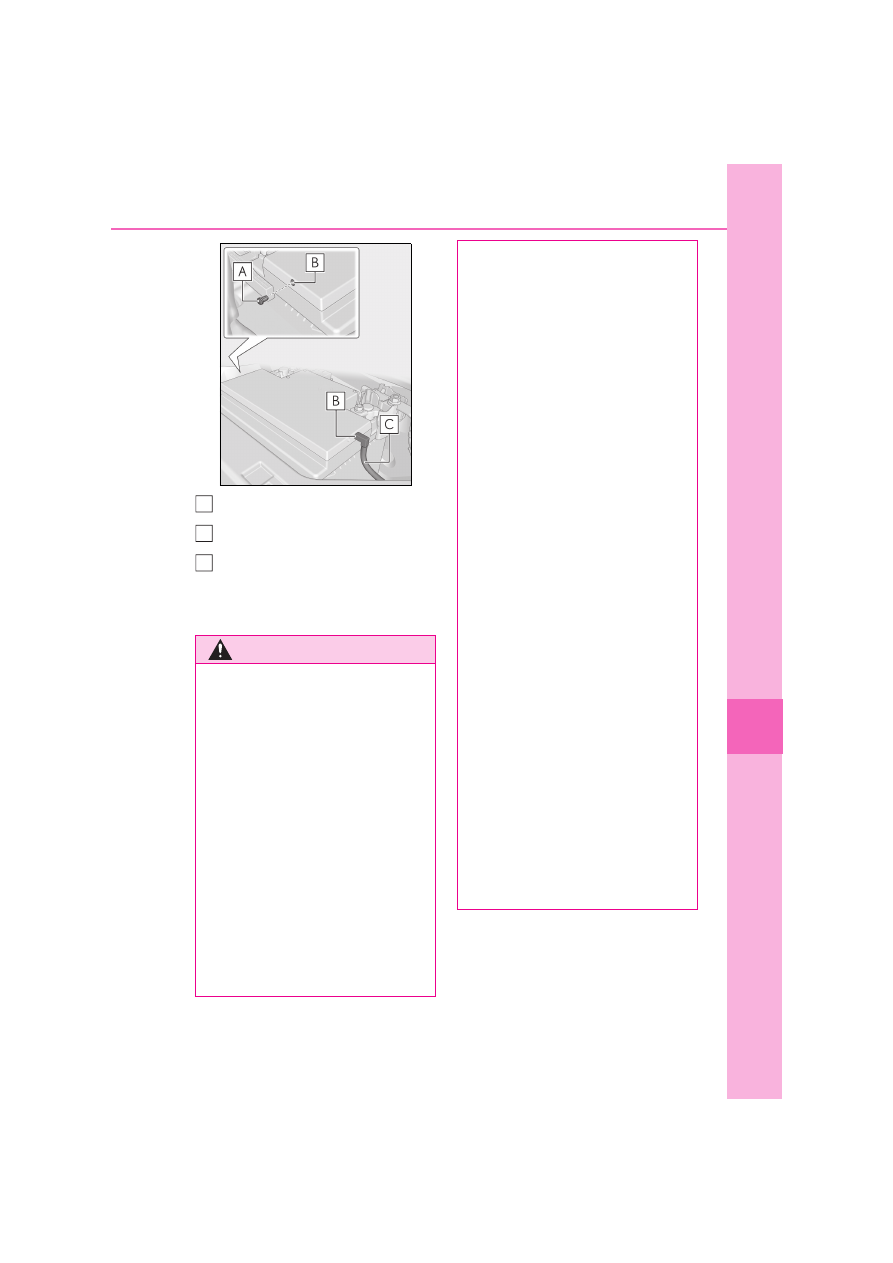

Exhaust hole plug

Exhaust hole

Exhaust hose

For details, consult any authorized Lexus
retailer or Lexus authorized repairer.

WARNING

■

When removing the 12-volt battery

terminals

Always remove the negative (-) terminal

first. If the positive (+) terminal contacts

any metal in the surrounding area when

the positive (+) terminal is removed, a

spark may occur, leading to a fire in addi-

tion to electrical shocks and death or

serious injury.

■

Avoiding 12-volt battery fires or

explosions

Observe the following precautions to

prevent accidentally igniting the flamma-

ble gas that may be emitted from the 12-

volt battery:

●

Make sure each jumper cable is con-

nected to the correct terminal and that

it is not unintentionally in contact with

any other than the intended terminal.

●

Do not allow the other end of the

jumper cable connected to the “+” ter-

minal to come into contact with any

other parts or metal surfaces in the

area, such as brackets or unpainted

metal.

●

Do not allow the + and - clamps of the

jumper cables to come into contact

with each other.

●

Do not smoke, use matches, cigarette

lighters or allow open flame near the

12-volt battery.

■

12-volt battery precautions

The 12-volt battery contains poisonous

and corrosive acidic electrolyte, while

related parts contain lead and lead com-

pounds. Observe the following precau-

tions when handling the 12-volt battery:

●

When working with the 12-volt battery,

always wear safety glasses and take

care not to allow any battery fluids

(acid) to come into contact with skin,

clothing or the vehicle body.

●

Do not lean over the 12-volt battery.

●

In the event that battery fluid comes

into contact with the skin or eyes,

immediately wash the affected area

with water and seek medical attention.

Place a wet sponge or cloth over the

affected area until medical attention

can be received.

●

Always wash your hands after han-

dling the 12-volt battery support, ter-

minals, and other battery-related

parts.

●

Do not allow children near the 12-volt

battery.

446

7-2. Steps to take in an emergency



If the engine coolant temperature
gauge enters the red zone or
“Engine Coolant Temp High Stop in
a Safe Place See Owner’s Manual”
is shown on the multi-information
display

Stop the vehicle in a safe place and
turn off the air conditioning system,
and then stop the hybrid system.

If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.

WARNING

■

After recharging the 12-volt battery

Have the 12-volt battery inspected at any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer as soon as possible. If the 12-volt

battery is deteriorating, continued use

may cause the 12-volt battery to emit a

malodorous gas, which may be detri-

mental to the health of passengers.

■

When replacing the 12-volt battery

After replacing, securely attach the

exhaust hose and exhaust hole plug to

the exhaust hole of the replaced 12-volt

battery. If not properly installed, gases

(hydrogen) may leak into the vehicle

interior, and there is the possible danger

of the gas igniting and exploding.

NOTICE

■

When handling jumper cables

When connecting the jumper cables,

ensure that they do not become entan-

gled in the cooling fan or engine drive

belt.

■

To prevent damaging the vehicle

The exclusive jump starting terminal is to

be used when charging the 12-volt bat-

tery from another vehicle in an emer-

gency. It cannot be used to jump start

another vehicle.

If your vehicle overheats

The following may indicate that
your vehicle is overheating.



The engine coolant temperature
gauge (



P.99, 103) enters the

red zone or a loss of hybrid sys-
tem power is experienced. (For
example, the vehicle speed does
not increase.)



“Engine Coolant Temp High Stop
in a Safe Place See Owner’s
Manual” or “Hybrid System
Overheated Reduced Output
Power” is shown on the multi-
information display.



Steam comes out from under the
hood.

Correction procedures

447

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

After the hybrid system has cooled
down sufficiently, inspect the hoses
and cooling system for leaks.

If a large amount of coolant leaks, immedi-

ately contact any authorized Lexus retailer

or Lexus authorized repairer, or any reli-

able repairer.

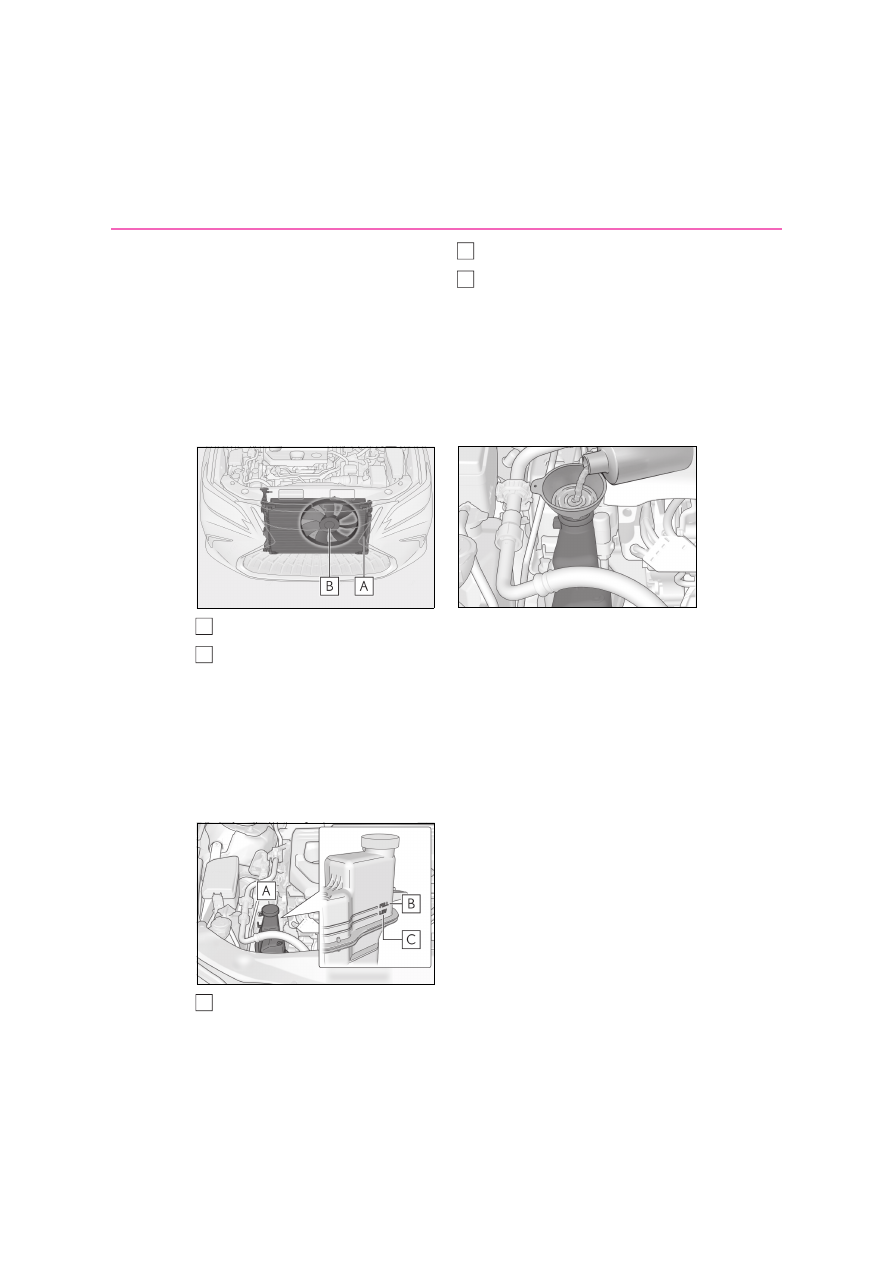

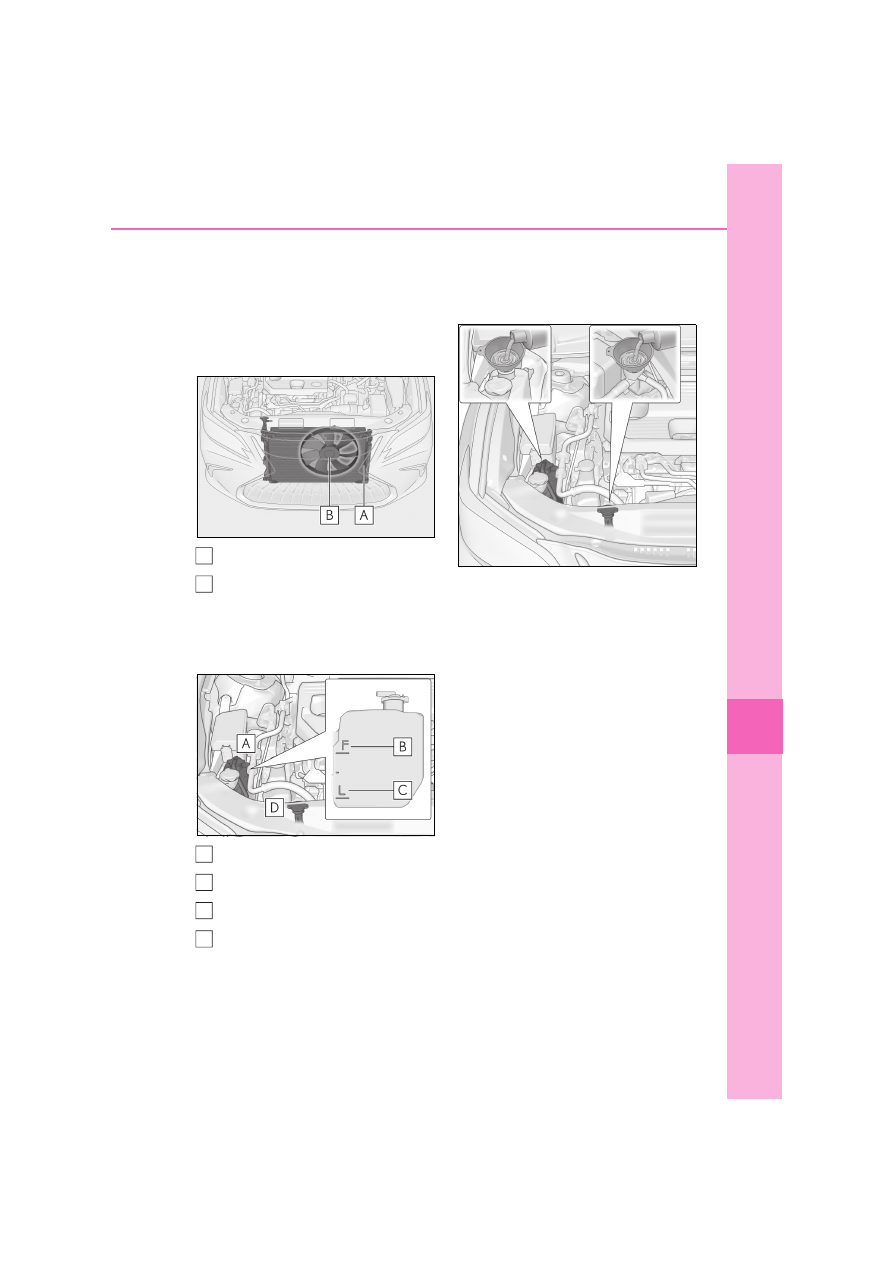

Radiator

Cooling fan

The coolant level is satisfactory if it
is between the “F” and “L” lines on
the reservoir.

Reservoir

“F” line

“L” line

Coolant inlet cap

Add coolant if necessary.

Water can be used in an emergency if

engine coolant is unavailable.

If water was added in an emergency, have

the vehicle inspected at any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer as soon as

possible.

Start the hybrid system and turn the
air conditioning system on to check
that the radiator cooling fan oper-
ates and to check for coolant leaks
from the radiator or hoses.

The fan operates when the air conditioning

system is turned on immediately after a

cold start. Confirm that the fan is operating

by checking the fan sound and air flow. If it

is difficult to check these, turn the air con-

ditioning system on and off repeatedly.

(The fan may not operate in freezing tem-

peratures.)

If the fan is not operating:
Stop the hybrid system immediately
and contact any authorized Lexus
retailer or Lexus authorized
repairer, or any reliable repairer.
If the fan is operating:
Have the vehicle inspected at the
nearest any authorized Lexus
retailer or Lexus authorized
repairer, or any reliable repairer.

A
B

A
B
C
D

448

7-2. Steps to take in an emergency



If “Hybrid System Overheated
Reduced Output Power” is shown
on the multi-information display

Stop the vehicle in a safe place.

Stop the hybrid system and care-
fully lift the hood.

After the hybrid system has cooled
down, inspect the hoses and radia-
tor core (radiator) for any leaks.

Radiator

Cooling fan

If a large amount of coolant leaks, immedi-
ately contact any authorized Lexus retailer
or Lexus authorized repairer, or any reli-
able repairer.

The coolant level is satisfactory if it
is between the “FULL” and “LOW”
lines on the reservoir.

Reservoir

“FULL” line

“LOW” line

Add coolant if necessary.

Water can be used in an emergency if

power control unit coolant is unavailable.
If water was added in an emergency, have

the vehicle inspected at any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer as soon as

possible.

After stopping the hybrid system
and waiting for 5 minutes or more,
start the hybrid system again and
check if “Hybrid System Over-
heated Reduced Output Power” is
shown on the multi-information dis-
play.

If the message does not disappear:
Stop the hybrid system and contact any

authorized Lexus retailer or Lexus autho-

rized repairer, or any reliable repairer.
If the message is not displayed:
The hybrid system temperature has

dropped and the vehicle may be driven

normally.
However, if the message appears again

frequently, contact any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer.

A
B

B
C

449

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

Stop the hybrid system. Set the
parking brake and shift the shift
lever to P.

Remove the mud, snow or sand
from around the front wheels.

Place wood, stones or some other
material under the front wheels to
help provide traction.

Restart the hybrid system.

Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

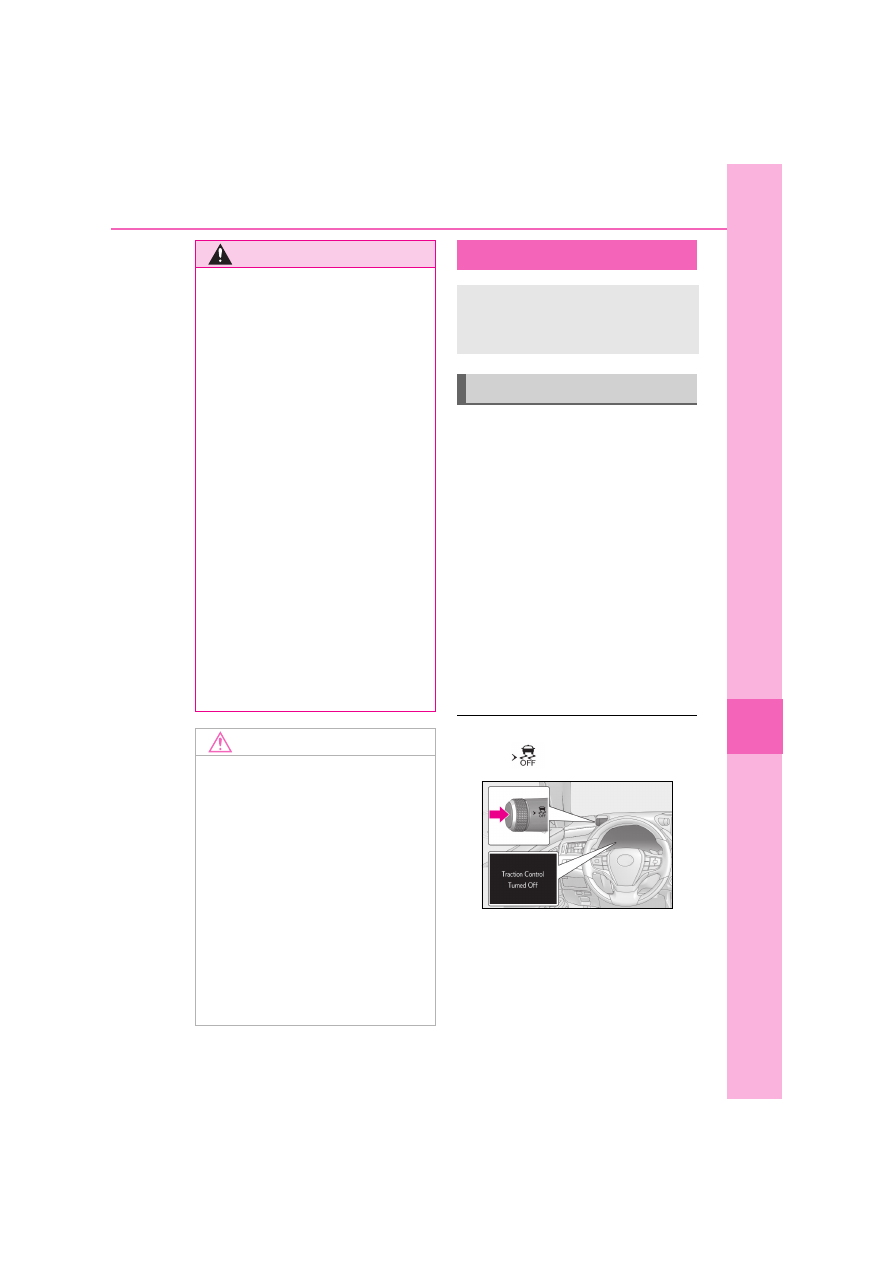

When it is difficult to free the vehicle

Press the

switch to turn off TRC.

WARNING

■

When inspecting under the hood of

your vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

●

After the hybrid system has been

turned off, check that the “READY”

indicator is off.

When the hybrid system is operating,

the gasoline engine may automatically

start, or the cooling fan may suddenly

operate even if the gasoline engine

stops. Do not touch or approach rotat-

ing parts such as the fan, which may

lead to fingers or clothing (especially a

tie, a scarf or a muffler) getting caught,

resulting in serious injury.

●

Do not loosen the coolant inlet cap or

coolant reservoir caps while the hybrid

system and radiator are hot.

High temperature steam or coolant

could spray out.

NOTICE

■

When adding engine/power control

unit coolant

Add coolant slowly after the hybrid sys-

tem has cooled down sufficiently. Adding

cool coolant to a hot hybrid system too

quickly can cause damage to the hybrid

system.

■

To prevent damage to the cooling

system

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust

etc.).

●

Do not use any coolant additive.

If the vehicle becomes stuck

Carry out the following procedures
if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

450

7-2. Steps to take in an emergency

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift lever with

the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damaging the transmission

and other components

●

Avoid spinning the front wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be

freed.

451

Vehic

le spe

cif

ion
s

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

452

Fuel information.........................

460

8-2. Customization

Customizable features ............

461

8-3. Items to initialize

Items to initialize ........................

474

452

8-1. Specifications

8-1.Specifications

: Unladen vehicle

■

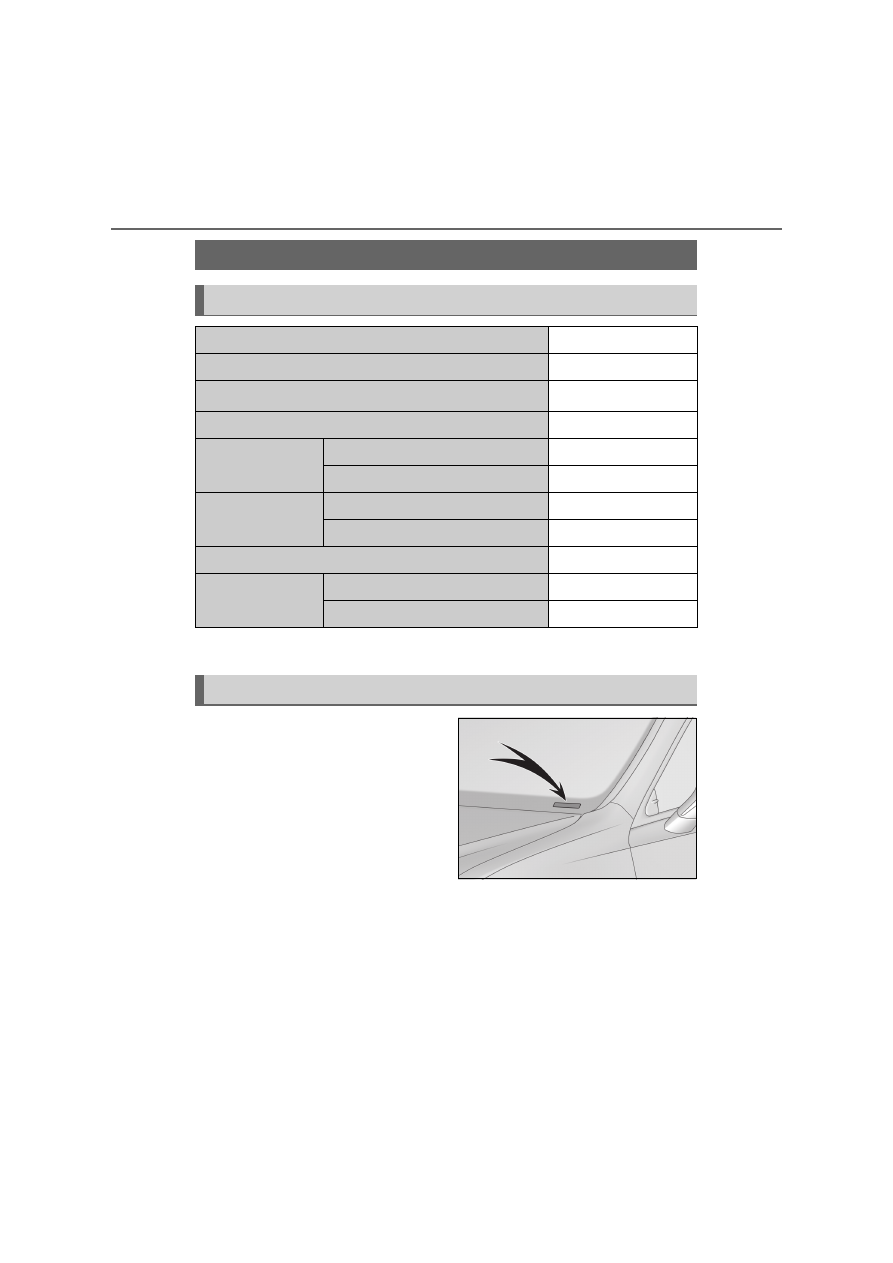

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is on the top left of the
instrument panel.

This number is also stamped under the
right-hand front seat.

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

4975 mm (195.9 in.)

Overall width

1865 mm (73.4 in.)

Overall height

1445 mm (56.9 in.)

Wheelbase

2870 mm (113.0 in.)

Front tread

With 17-inch tires

1600 mm (63.0 in.)

With 18-inch tires/19-inch tires

1590 mm (62.6 in.)

Rear tread

With 17-inch tires

1610 mm (63.4 in.)

With 18-inch tires/19-inch tires

1600 mm (63.0 in.)

Gross vehicle mass

2150 kg (4740 lb.)

Maximum permissi-
ble axle capacity

Front

1190 kg (2624 lb.)

Rear

1100 kg (2425 lb.)

Vehicle identification

453

8-1. Specifications

Vehic

le spe

cif

ion
s

This number is also on the manufac-
turer’s label.

■

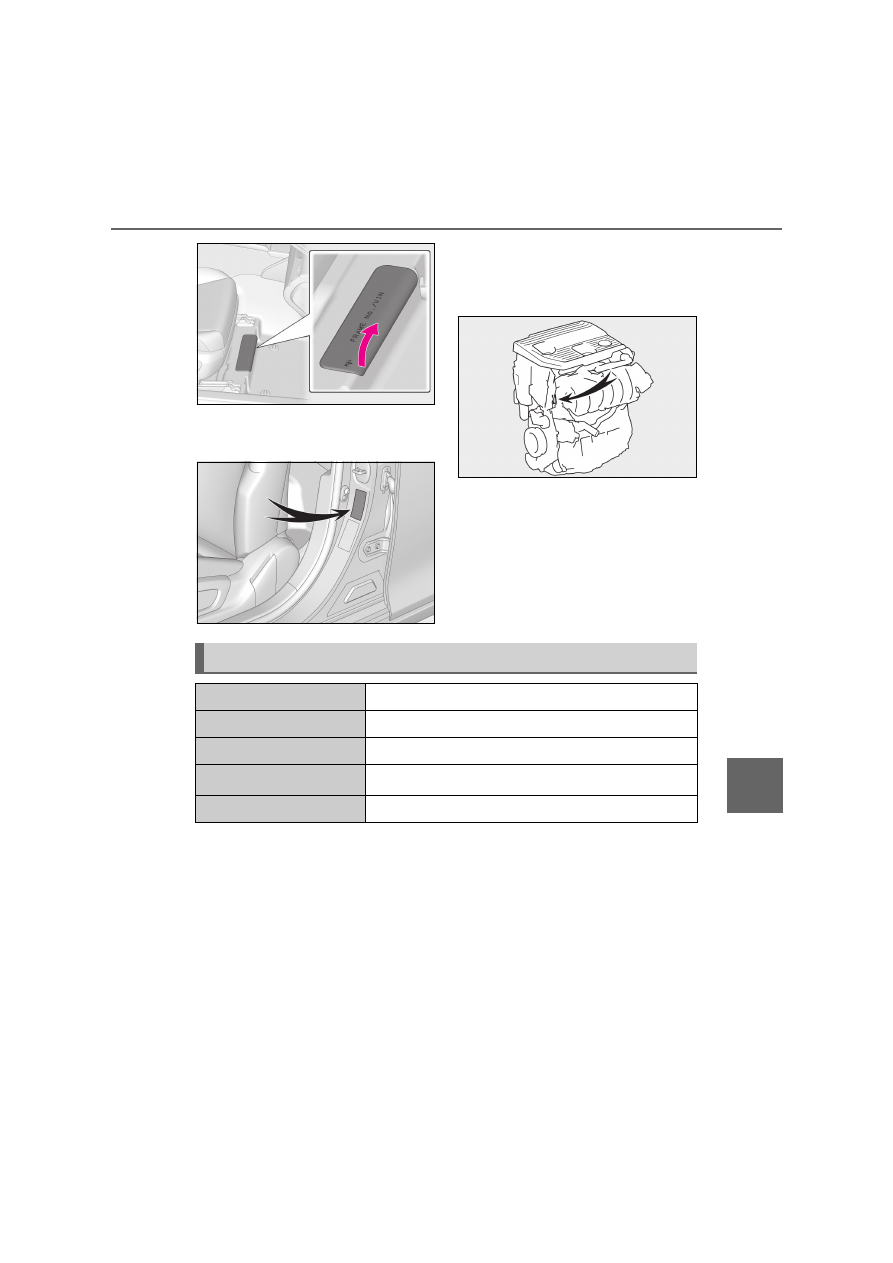

Engine number

The engine number is located as
shown.

Engine

Model

A25A-FXS

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

87.5



103.4 mm (3.44



4.07 in.)

Displacement

2487 cm

(151.8 cu.in.)

Valve clearance

Automatic adjustment

Content .. 26 27 28 29 ..
