Lexus RX300 (MCU15). Service manual - part 589
D03836
A
B
C
D
E
–
AUTOMATIC TRANSAXLE

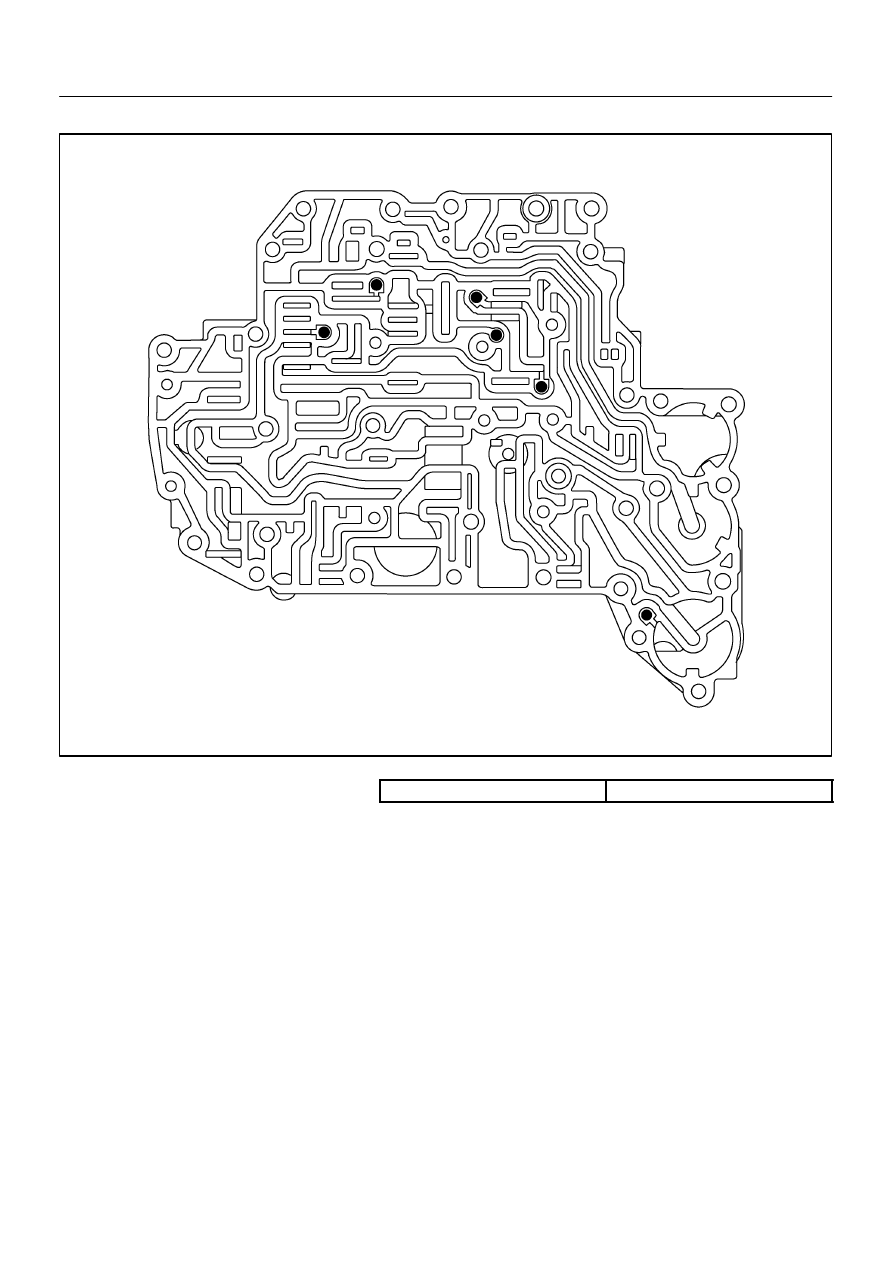

LOWER VALVE BODY
AX–99
U140F AX (RM848E)

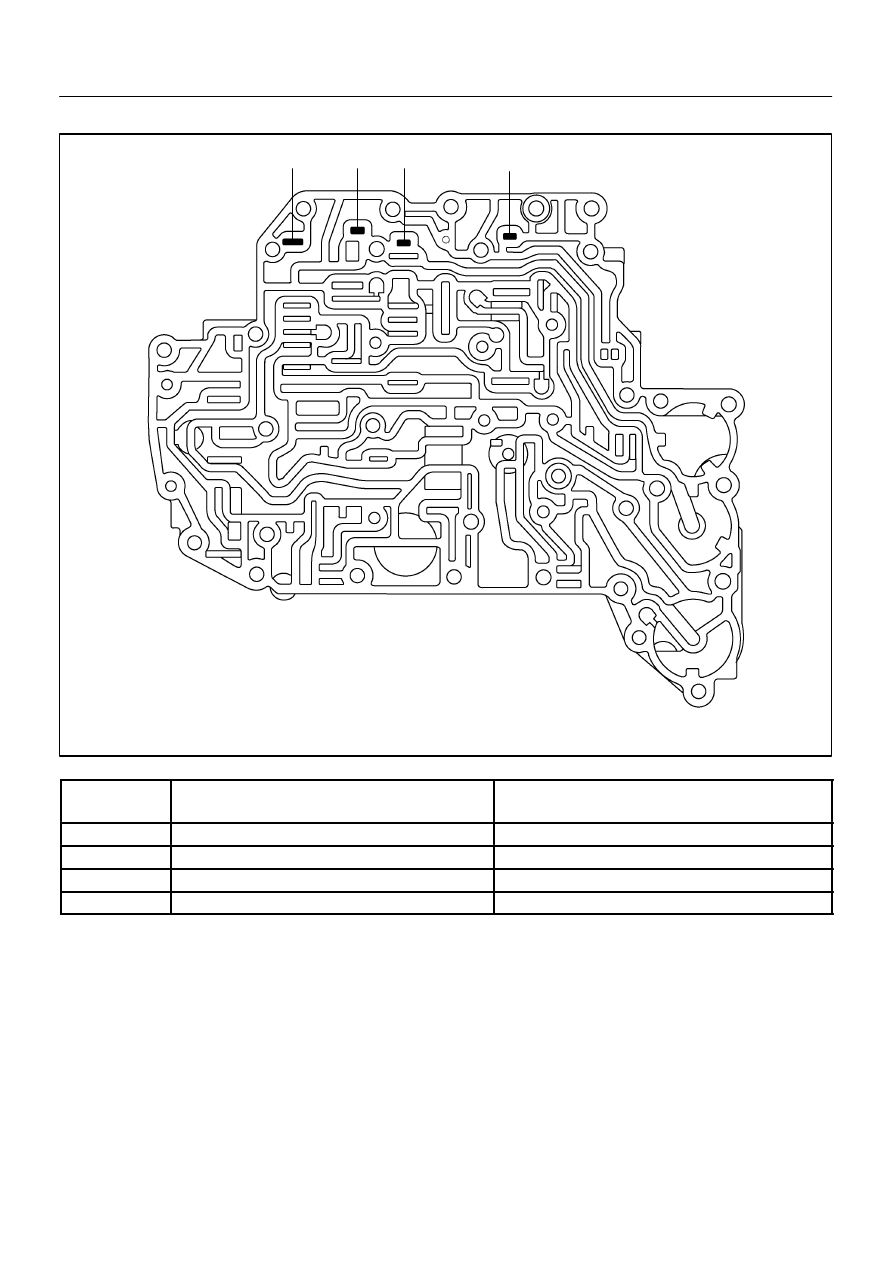

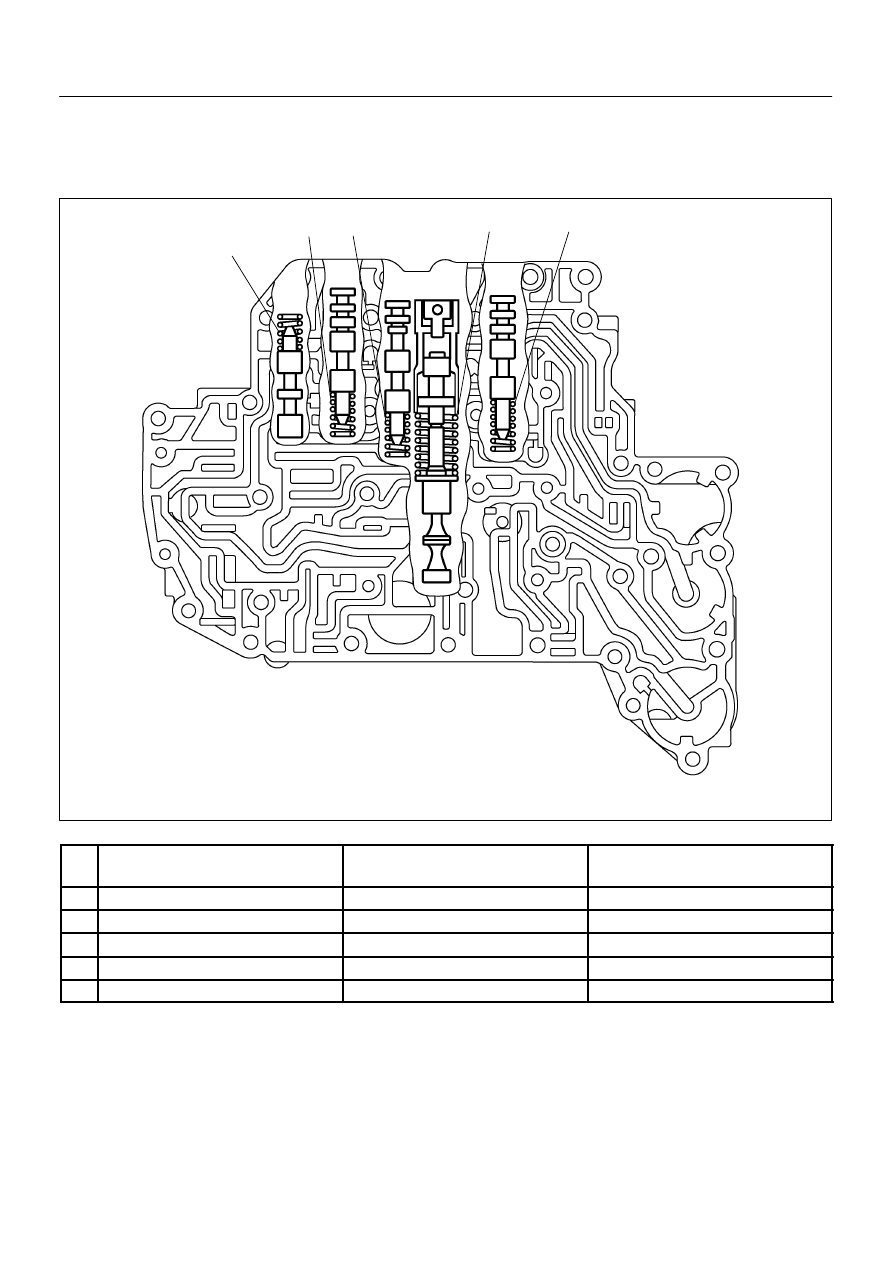

2.
SPRING
HINT:
During re–assembly please refer to the spring specifications below to help you to discriminate between the
different springs:
Mark
Name (Color)
Free length / Outer diameter
mm (in.)
Total number of coils
A
3–4 shift valve (None)
29.25 (1.1516) / 9.7 (0.382)
10.5
B
B–1 control valve (Green)
48.55 (1.9114) / 9.8 (0.386)
13.43
C
B–2 control valve (Pink)
57.05 (2.2461) / 9.8 (0.386)
15.34
D
Primary regulator valve (Orange)
57.55 (2.2657) / 19.9 (0.783)
7.87
E
C–2 control valve (Brown)
34.20 (1.3465) / 9.9 (0.390)
8.79
