AUTOMATIC TRANSAXLE

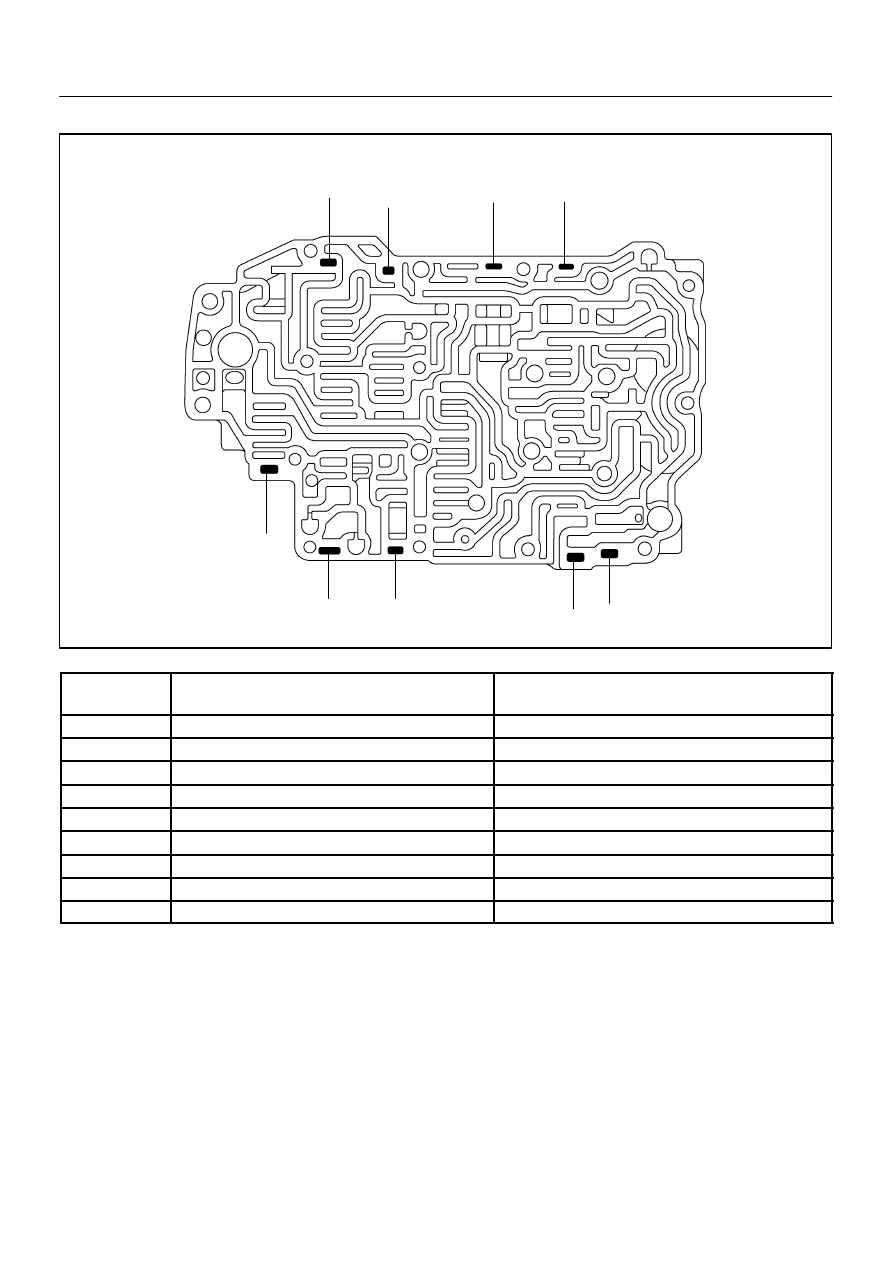

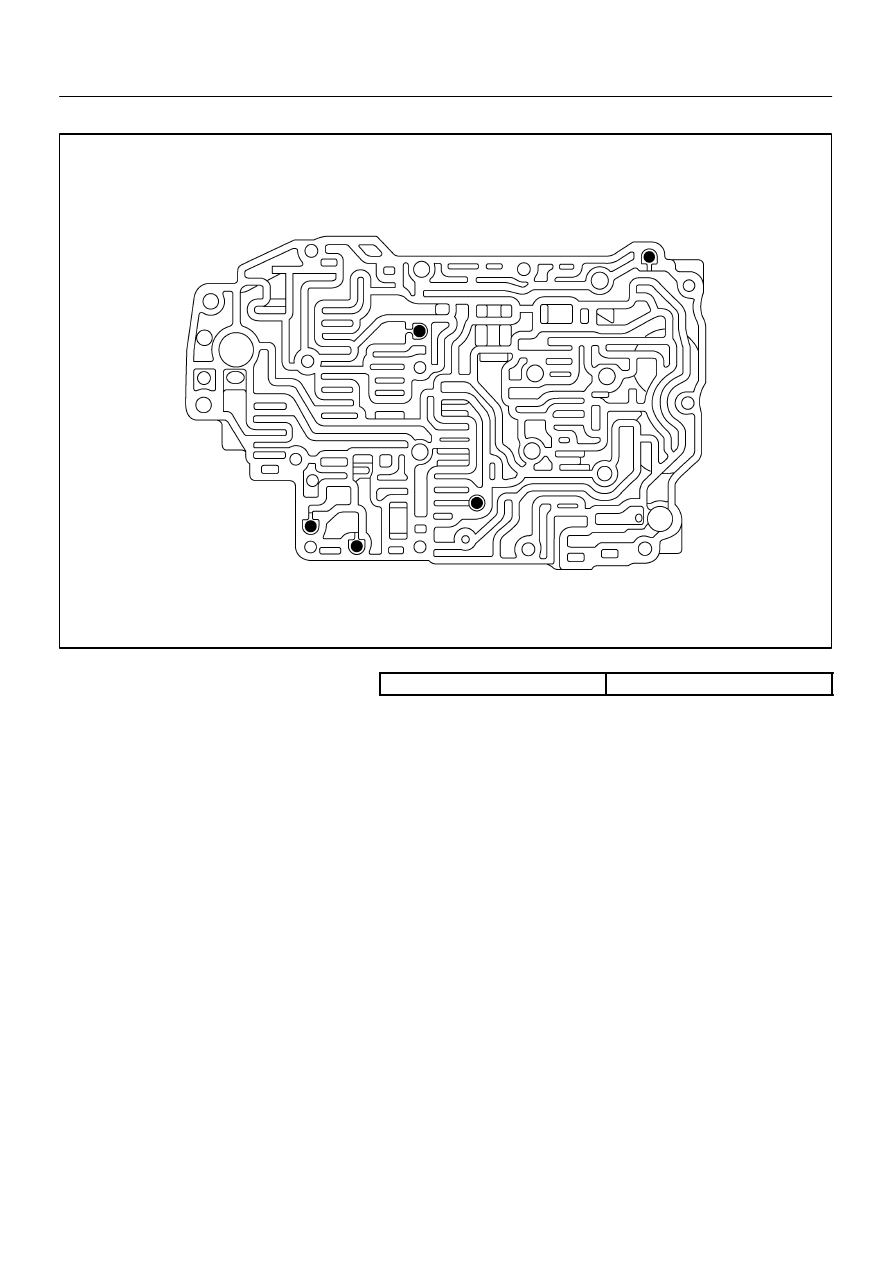

UPPER VALVE BODY
AX–95
U140F AX (RM848E)

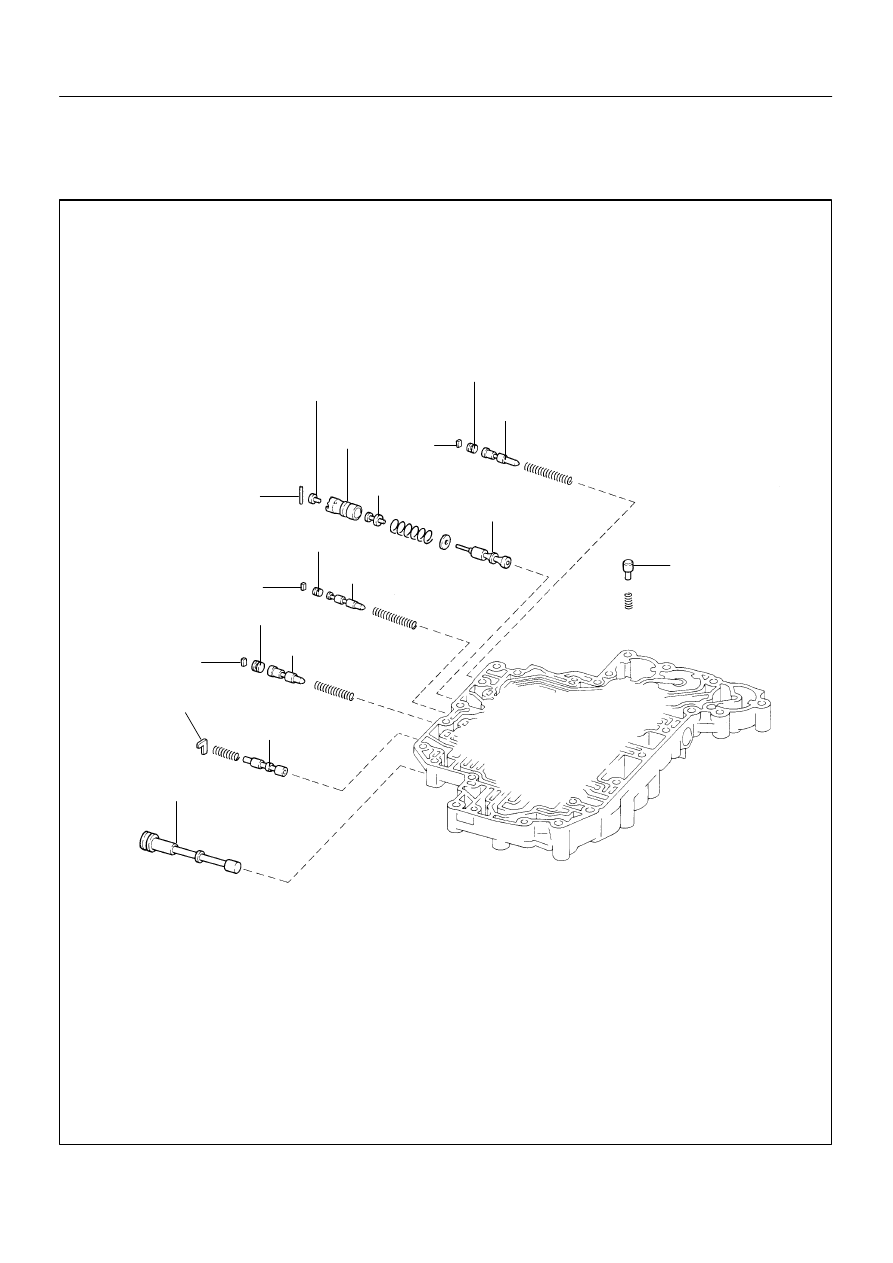

2.

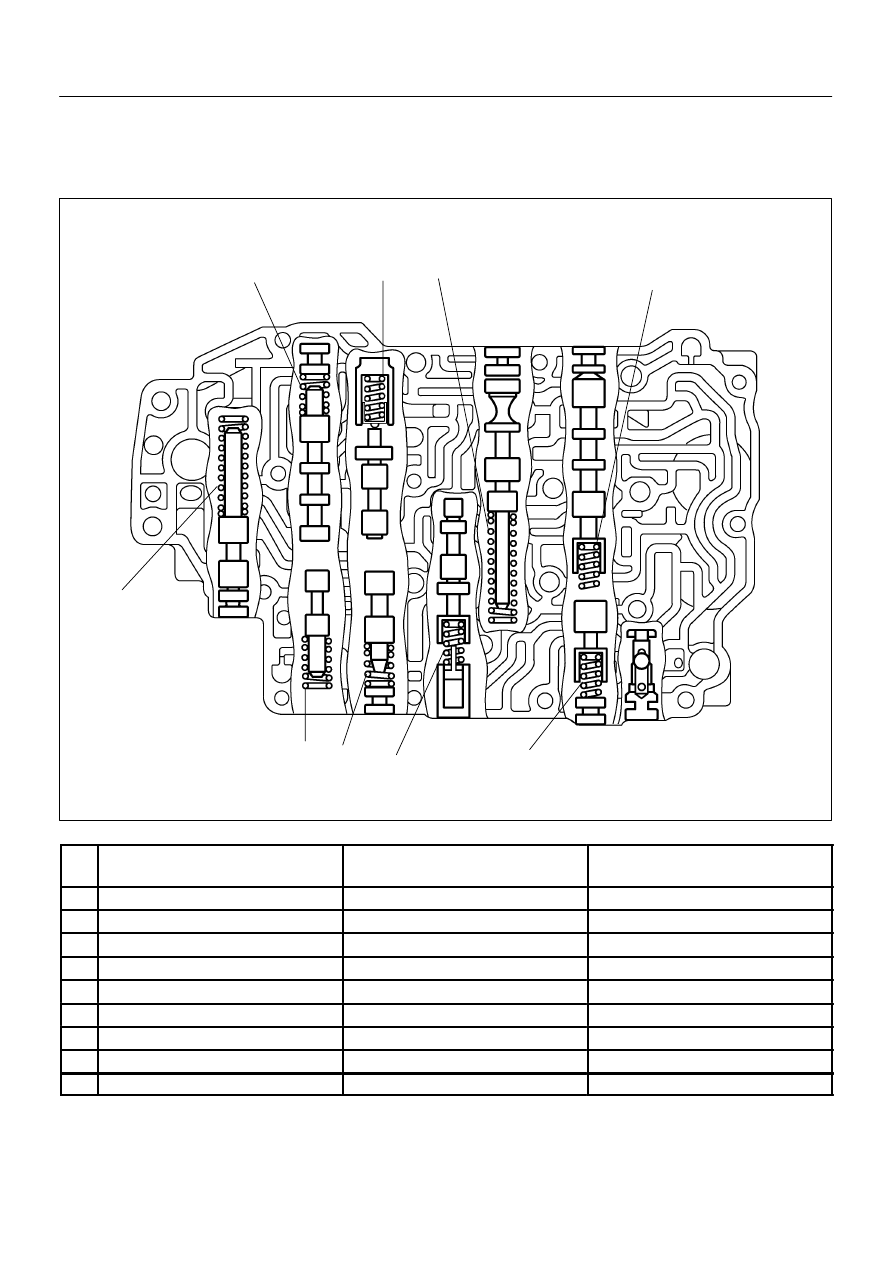

SPRING
HINT:
During reassembly please refer to the spring specifications below to help you to discriminate between the
different springs.
Mark
Name (Color)
Free length / Outer diameter
mm (in.)
Total number of coils
A
Lock–up relay valve (None)
29.25 (1.1516) / 9.7 0.382)
10.50
B
Lock–up control valve (Green)
23.95 (0.9429) / 5.4 (0.213)
14.94
C
Secondary regulator valve (Blue)
58.35 (2.2972) / 8.7 (0.343)
20.58
D
C–2 lock valve (Yellow)
33.65 (1.3247) / 7.4 (0.291)
11.82
E
Solenoid modulator valve (Red)
62.40 (2.4567) / 9.8 (0.386)
22.31
F
B–3 orifice control valve (Grey)
62.65 (2.4665) / 7.8 (0.307)
19.60
G
B–1 lock valve (White)
37.40 (1.4724) / 9.8 (0.386)
8.84
H
Clutch apply control valve (Purple)
40.25 (1.5816) / 9.0 (0.354)
13.00
I
C–2 exhaust check valve (Orange)
40.25 (1.5816) / 7.4 (0.291)
17.10
