Lexus RX300 (MCU15). Service manual - part 569

D03802

D03587

D03791

D03908

D03588

–

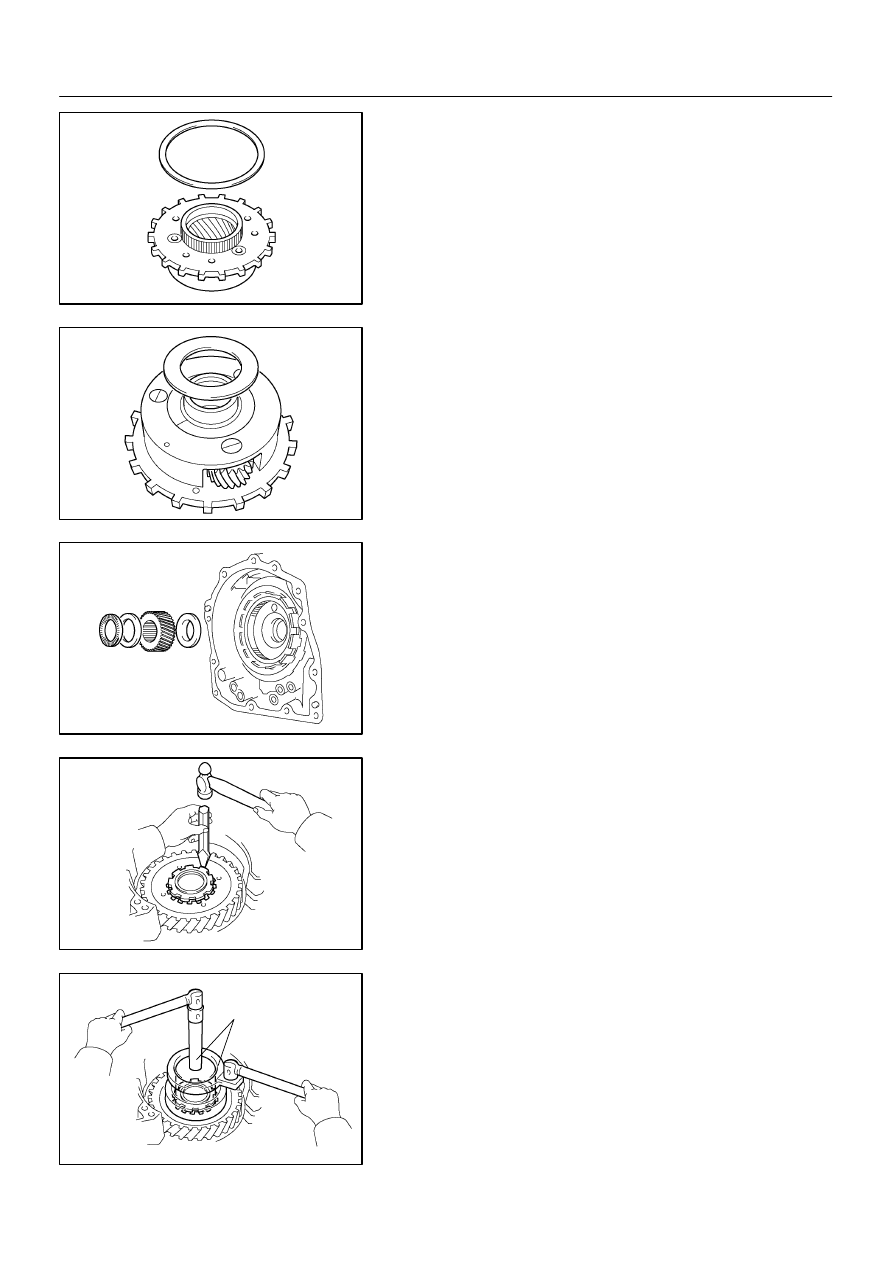

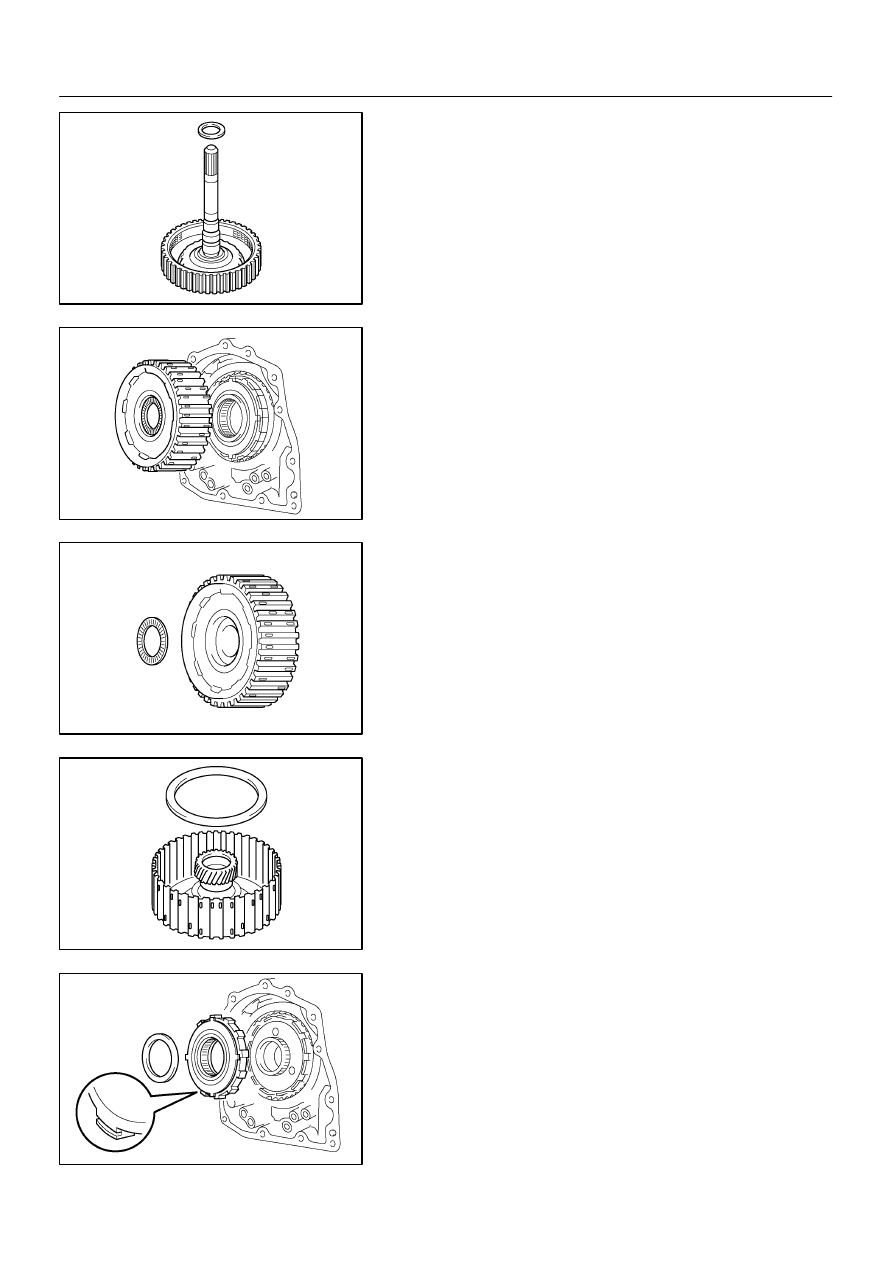

AUTOMATIC TRANSAXLE

COMPONENT PARTS

AX–19

U140F AX   (RM848E)

(b)

Remove the bearing race from the direct clutch.

34.

REMOVE REAR PLANETARY SUN GEAR ASSEMBLY

(a)

Remove the rear planetary sun gear assembly from the
transaxle case.

(b)

Remove the thrust bearing from the rear planetary sun
gear.

(c)

Remove the thrust washer No.1 from the rear planetary
sun gear.

35.

REMOVE ONE–WAY CLUTCH NO.1

(a)

Remove the one–way clutch No.1 and thrust bearing from
the transaxle case.

D03909

D03589

D03590

D03616

D03592

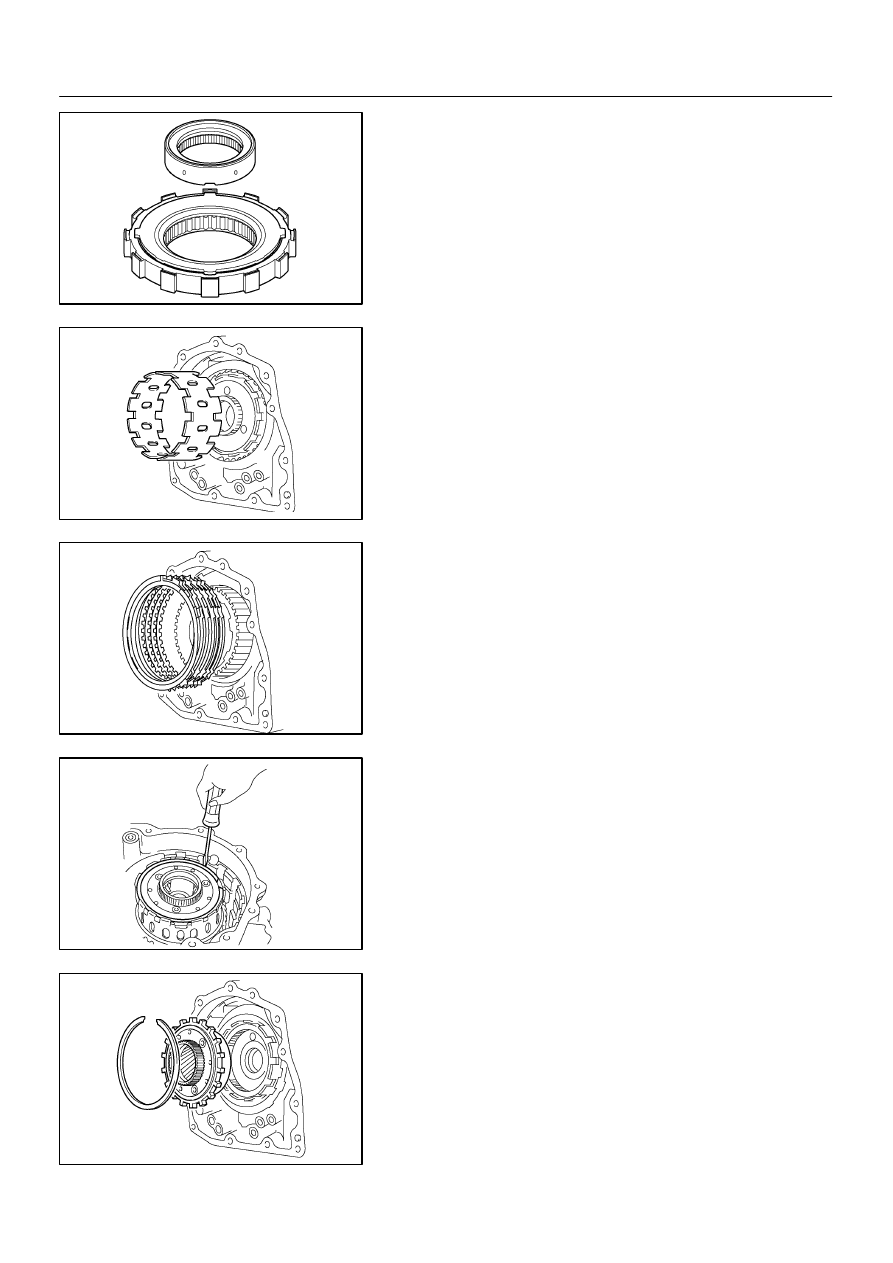

AX–20

–

AUTOMATIC TRANSAXLE

COMPONENT PARTS

U140F AX   (RM848E)

(b)

Remove the inner race from the one–way clutch No.1.

36.

REMOVE ONE–WAY CLUTCH OUTER SLEEVE

37.

REMOVE 2ND BRAKE

(a)

Using a screwdriver, remove the snap ring.

(b)

Remove the flange, 4 discs and 4 plates from the trans-
axle case.

38.

REMOVE REAR PLANETARY GEAR

(a)

Using a screwdriver, remove the snap ring.

(b)

Remove the rear planetary gear from the transaxle case.

D03910

D03593

D03873

D03595

D03596

SST

–

AUTOMATIC TRANSAXLE

COMPONENT PARTS

AX–21

U140F AX   (RM848E)

(c)

Remove the thrust washer No.2 from the rear planetary
gear.

(d)

Remove the bearing race from the rear planetary gear.

39.

REMOVE FRONT PLANETARY SUN GEAR

(a)

Remove the 2 thrust bearings, bearing race and front
planetary sun gear from the transaxle case.

40.

REMOVE FRONT PLANETARY GEAR ASSEMBLY
AND BRAKE HUB

(a)

Using a chisel and hammer, unstake the lock washer.

NOTICE:
Push down all claws of the washer. Otherwise SST can not
be fully pressed again the nut and can not loosen the nut.

(b)

Using SST, remove the nut.
SST

09387–00030, 09387–00080

D03597

SST

D03598

D03911

D03615

D03599

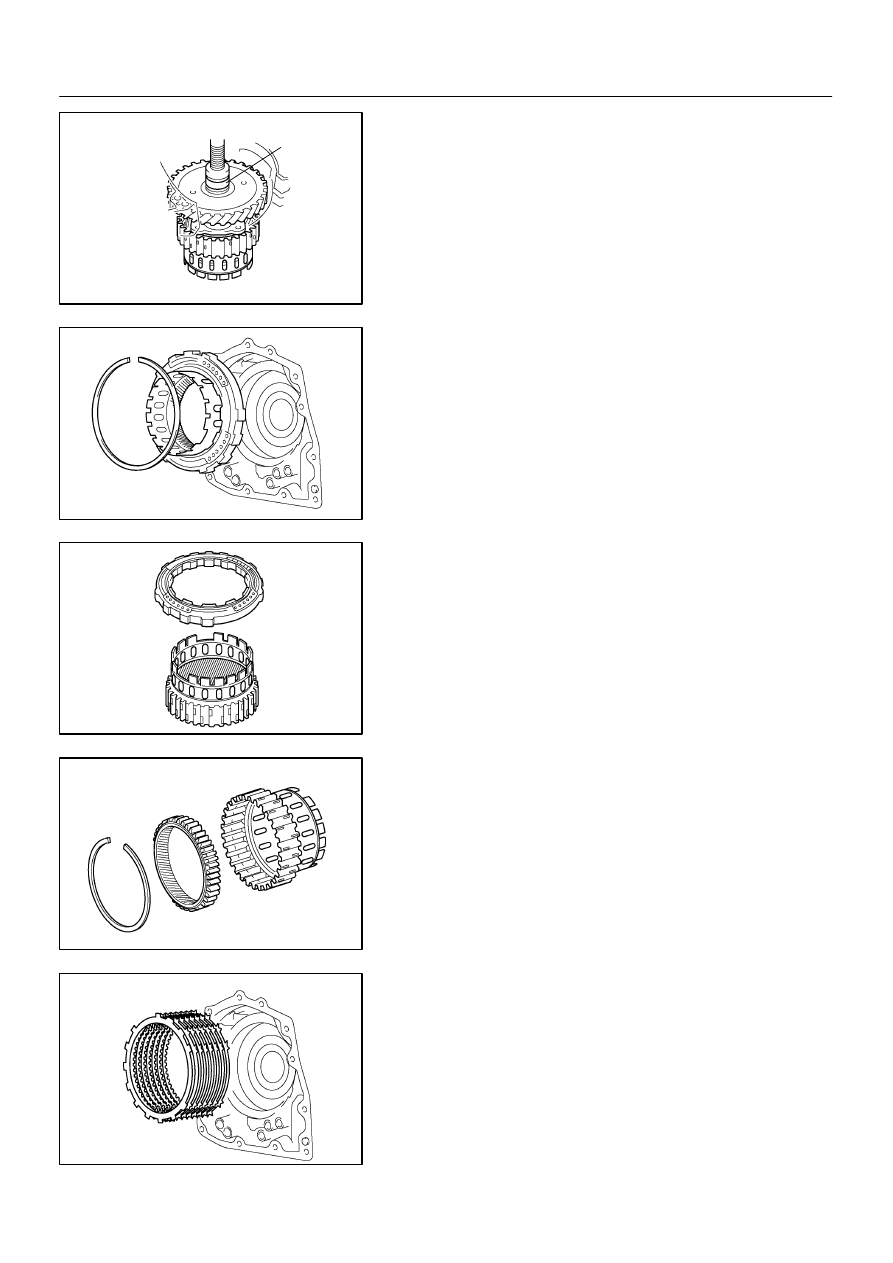

AX–22

–

AUTOMATIC TRANSAXLE

COMPONENT PARTS

U140F AX   (RM848E)

(c)

Using SST and a press, remove the front planetary gear
assembly from the counter drive gear.
SST

09950–60010 (09951–00450)

41.

REMOVE 2ND BRAKE ASSEMBLY AND FRONT
PLANETARY RING GEAR

(a)

Using a screwdriver, remove the snap ring and brake hub
with 2nd brake cylinder assembly.

(b)

Remove the brake hub from the 2nd brake cylinder as-
sembly.

42.

REMOVE FRONT PLANETARY RING GEAR

Using a screwdriver, remove the snap ring and front planetary
ring gear from the brake hub.

43.

REMOVE 1ST & REVERSE BRAKE

(a)

Remove the flange, 7 discs and 7 plates from the trans-
axle case.
