AUTOMATIC TRANSAXLE

COMPONENT PARTS

AX–11

U140F AX   (RM848E)

(c)

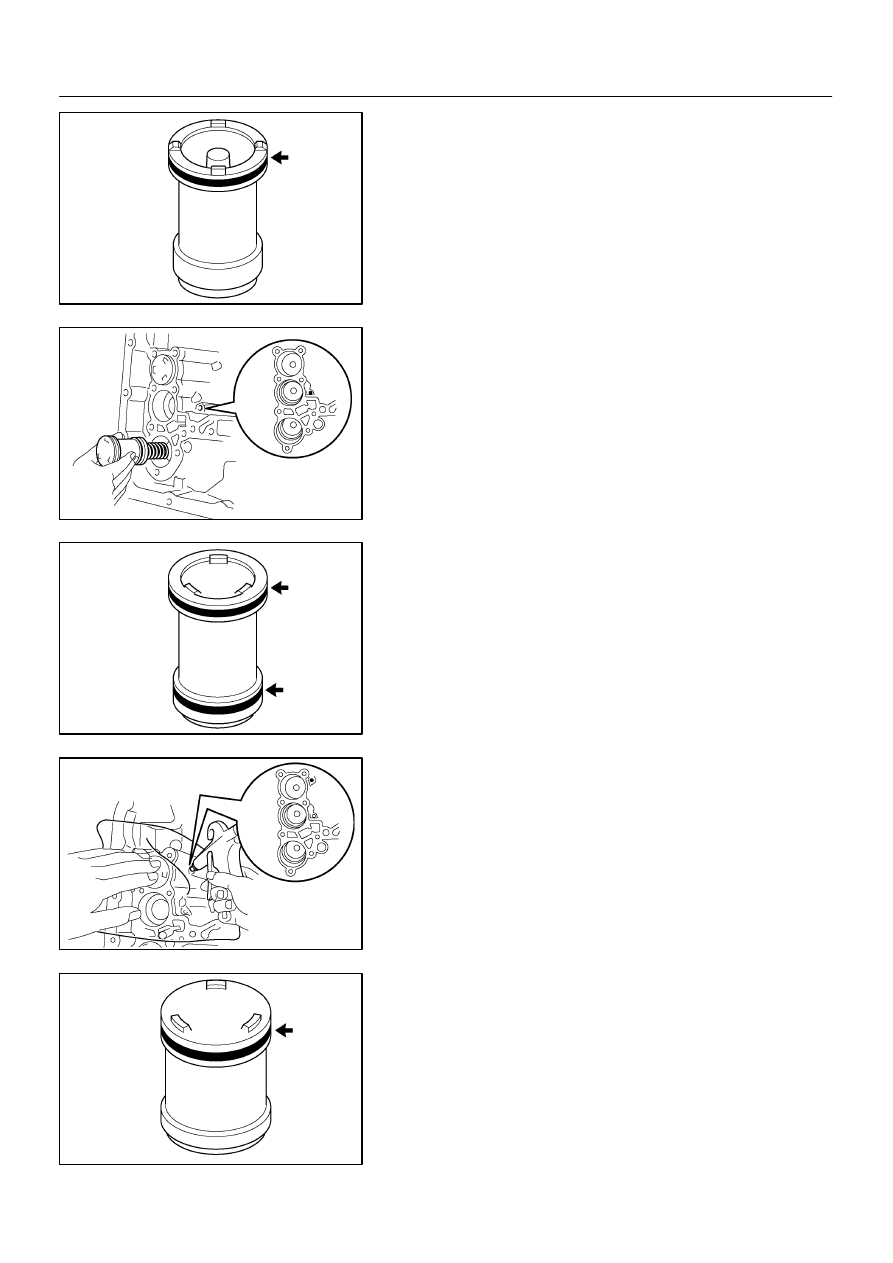

Remove the O–ring from the piston.

(d)

Apply compressed air (392 kPa, 4.0 kgf/cm

2

, 57 psi) to the

oil hole and remove the C

1

accumulator piston and spring.

NOTICE:

S

Blowing off the air may cause the piston’s jump–out.
When removing the piston, hold it with your hand us-
ing a waste cloth.

S

Take care not to splash ATF when air–blowing.

(e)

Remove the 2 O–rings from the piston.

(f)

Apply compressed air (392 kPa, 4.0 kgf/cm

2

, 57 psi) to the

oil hole and remove the B

3

accumulator piston and 2

springs.

NOTICE:

S

Blowing off the air may cause the piston’s jump–out.
When removing the piston, hold it with your hand us-
ing a waste cloth.

S

Take care not to splash ATF when air–blowing.

(g)

Remove the O–ring from the piston.

D03559

D03560

D03561

D03563

D03564

AX–12

–

AUTOMATIC TRANSAXLE

COMPONENT PARTS

U140F AX   (RM848E)

17.

REMOVE MANUAL VALVE LEVER SHAFT

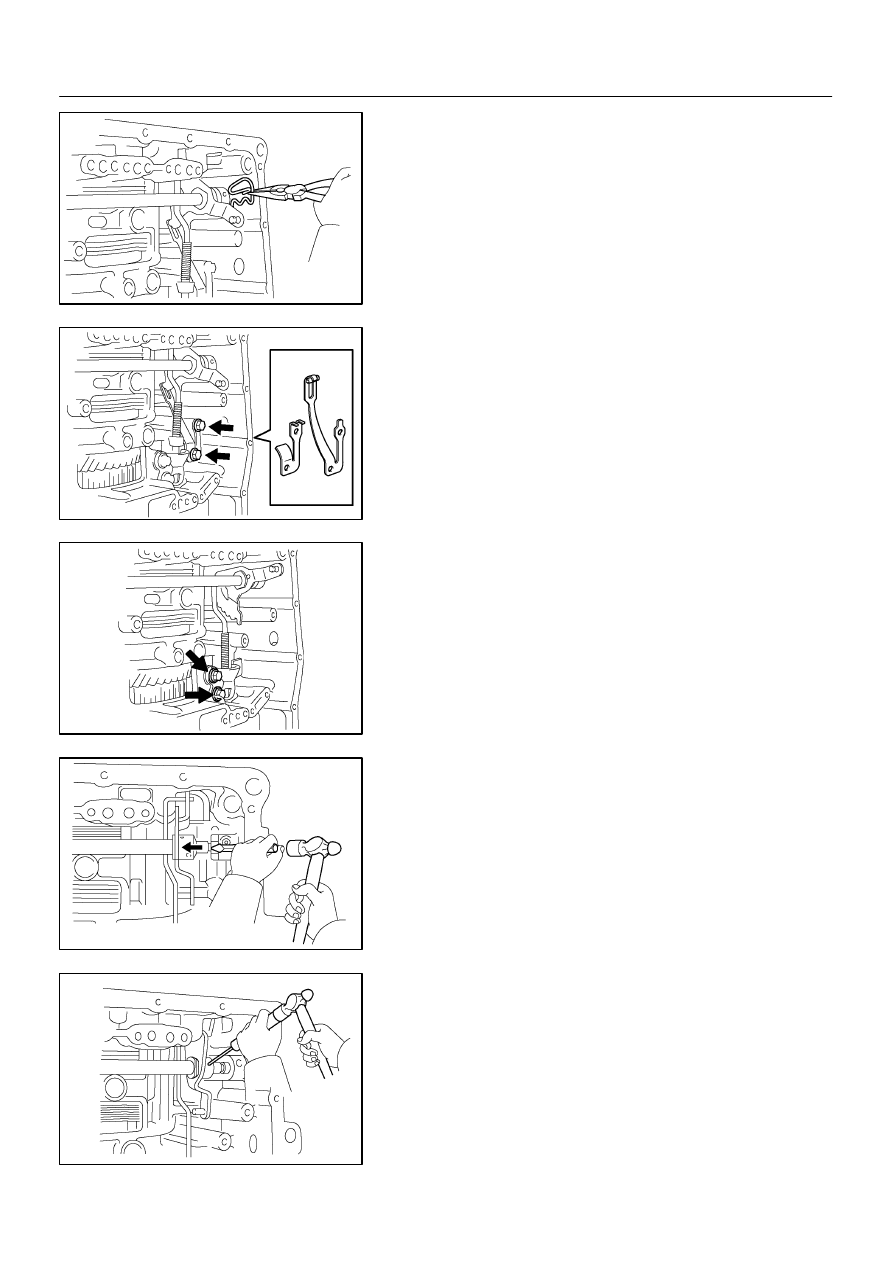

(a)

Using needle–nose pliers, remove the retainer spring.

(b)

Remove the 2 bolts, manual detent spring and cover.

(c)

Remove the 2 bolts and parking lock pawl bracket.

(d)

Using a chisel and hammer, unstake and remove the
spacer.

(e)

Using a pin punch and hammer, drive out the pin.

HINT:
Slowly drive out the pin so that it will not fall into the transaxle
case.

D03565

D03905

D03566

D03567

D03568

–

AUTOMATIC TRANSAXLE

COMPONENT PARTS

AX–13

U140F AX   (RM848E)

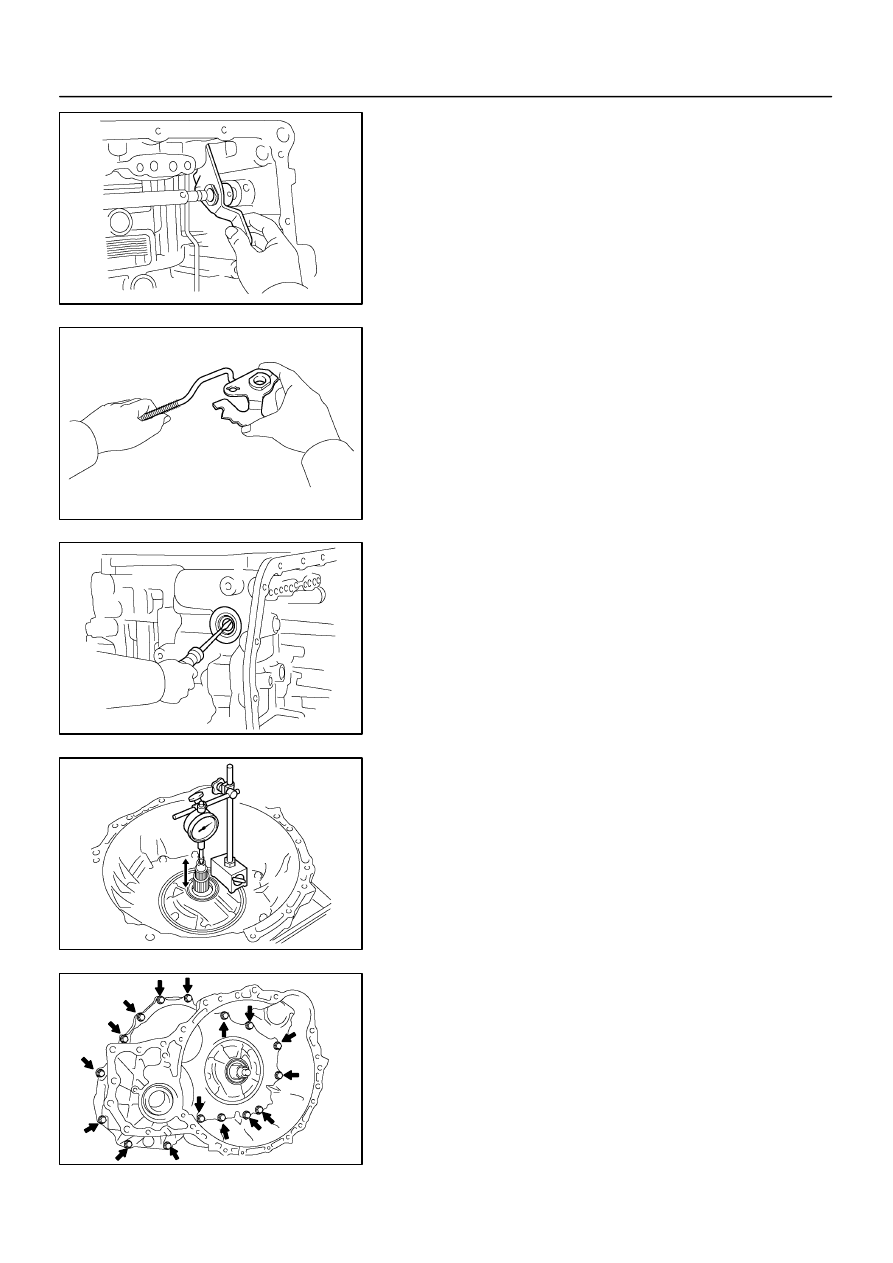

(f)

Remove the manual valve lever shaft and manual valve
lever.

(g)

Remove the parking lock rod from the manual valve lever
shaft.

(h)

Using a screwdriver, remove the oil seal.

18.

PLACE TRANSAXLE CASE

Fix the transaxle case with the oil pump side facing up.

19.

INSPECT INPUT SHAFT END PLAY

Using a dial indicator, measure the input shaft end play.

End play: 0.27 – 1.24 mm (0.0106 – 0.0488 in.)

20.

REMOVE TRANSAXLE HOUSING

(a)

Remove the 16 bolts.

(b)

Tap on the circumference of the transaxle housing with a
plastic hammer to remove the transaxle housing from the
transaxle case.

NOTICE:
Differential may be accidentally removed when the trans-
axle housing is removed.

D03569

D03570

D03571

D03572

D03573

AX–14

–

AUTOMATIC TRANSAXLE

COMPONENT PARTS

U140F AX   (RM848E)

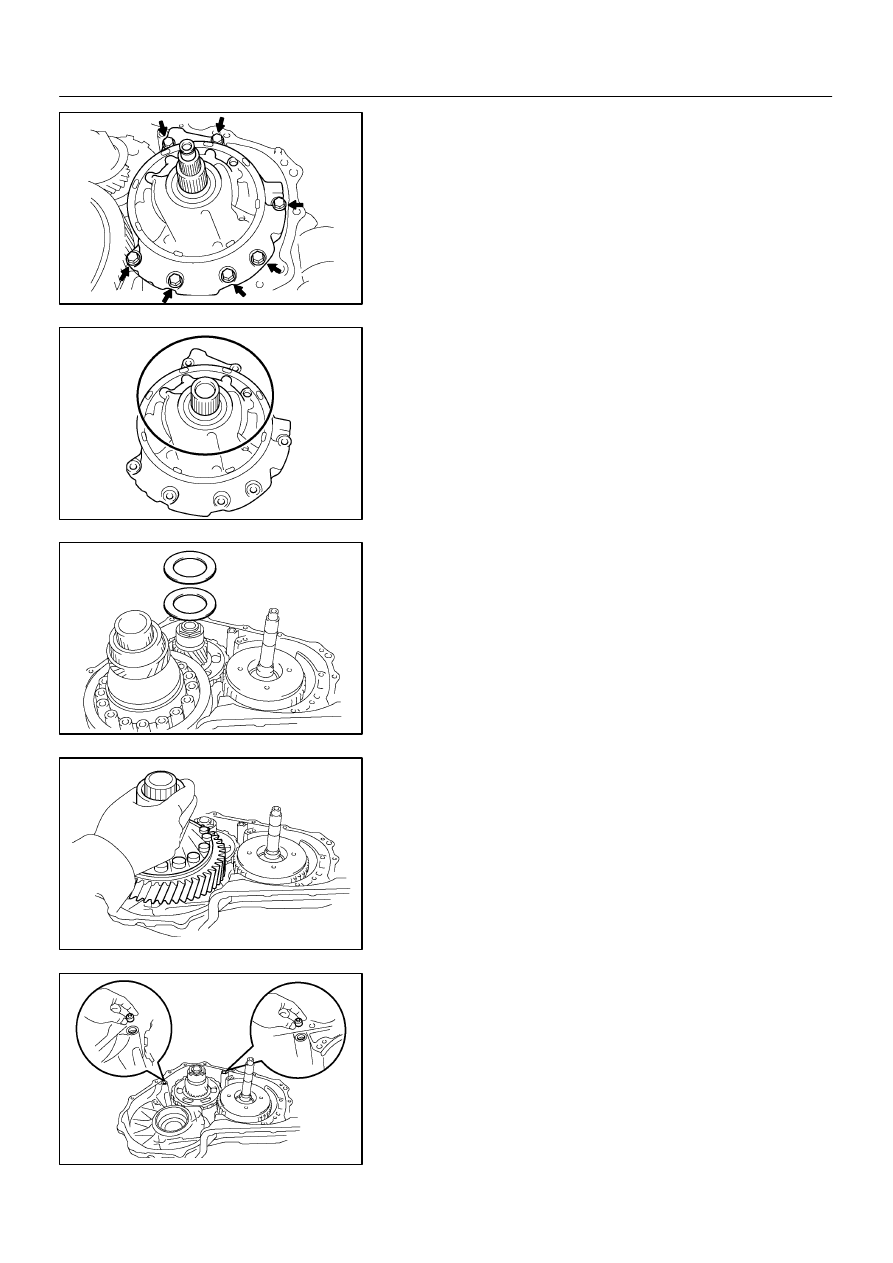

21.

REMOVE OIL PUMP

(a)

Remove the 7 bolts and oil pump.

(b)

Remove the O–ring from the oil pump.

22.

REMOVE THRUST BEARING AND BEARING RACE

Remove the thrust bearing and bearing race from the U/D plan-
etary gear assembly.

23.

REMOVE DIFFERENTIAL ASSEMBLY

24.

REMOVE 2 APPLY GASKETS
