Lexus RX300 (MCU15). Service manual - part 480

PP04R–01

PP–40

–

PREPARATION

PROPELLER SHAFT

LEXUS RX300   (RM785E)

EQUIPMENT

Torque wrench

Dial indicator

PP3DJ–01

–

PREPARATION

SUSPENSION AND AXLE

PP–41

LEXUS RX300   (RM785E)

SUSPENSION AND AXLE

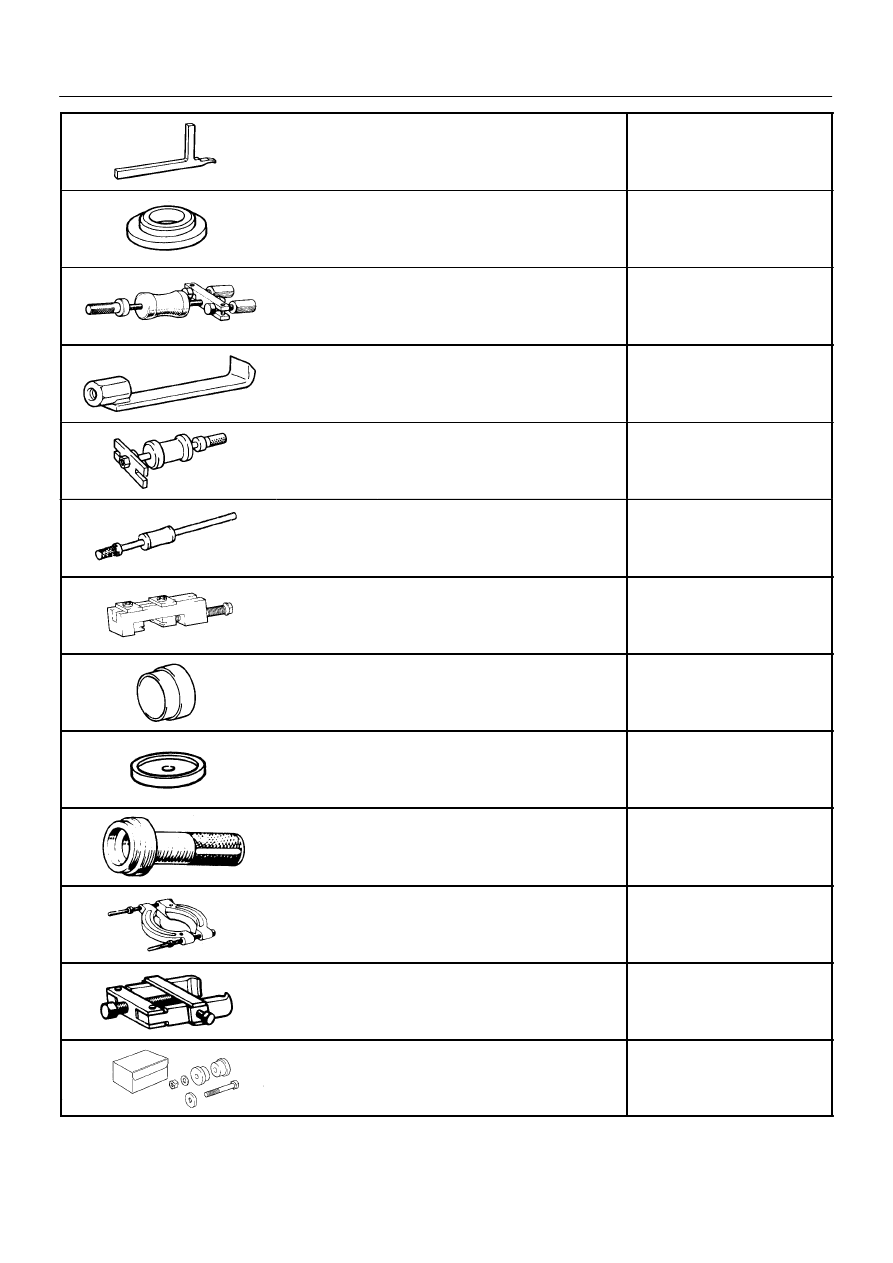

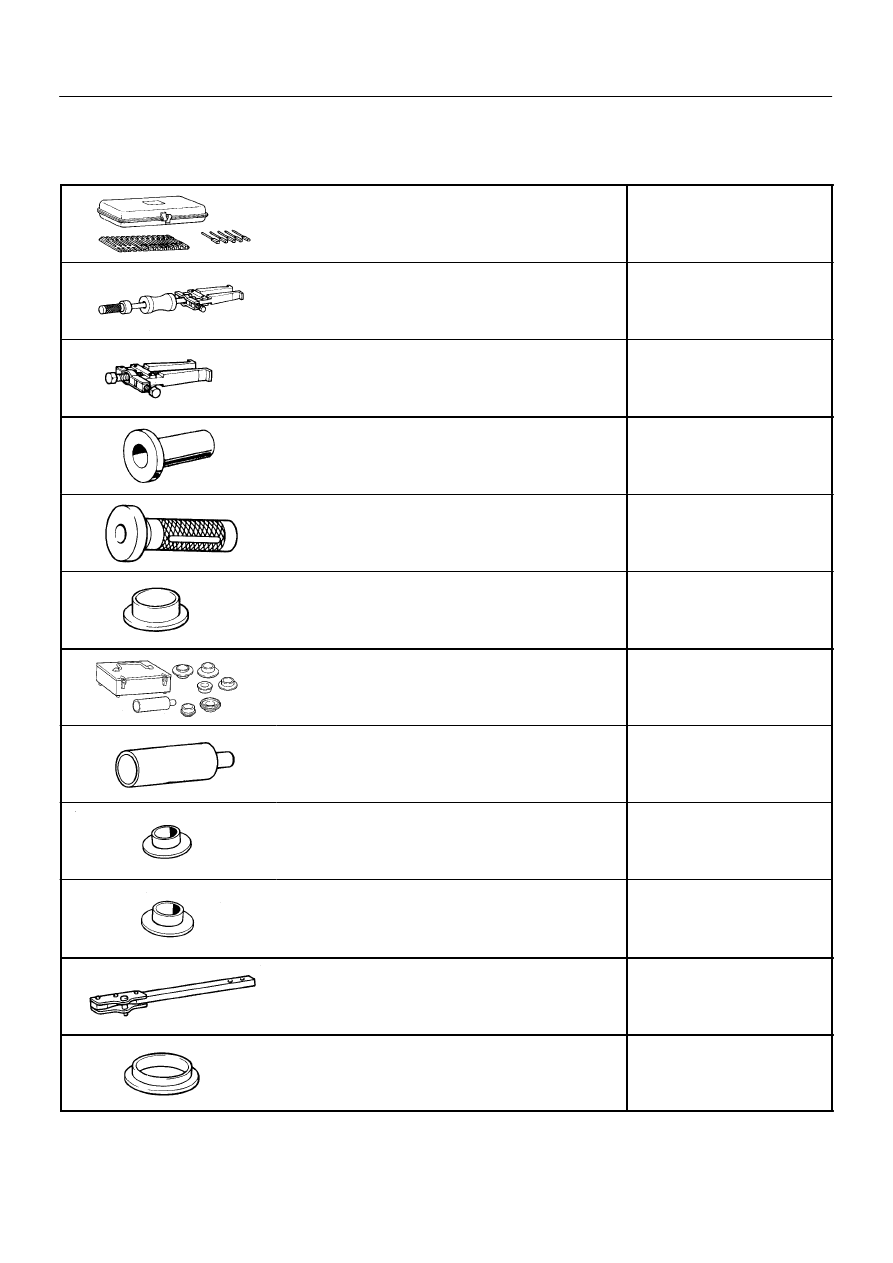

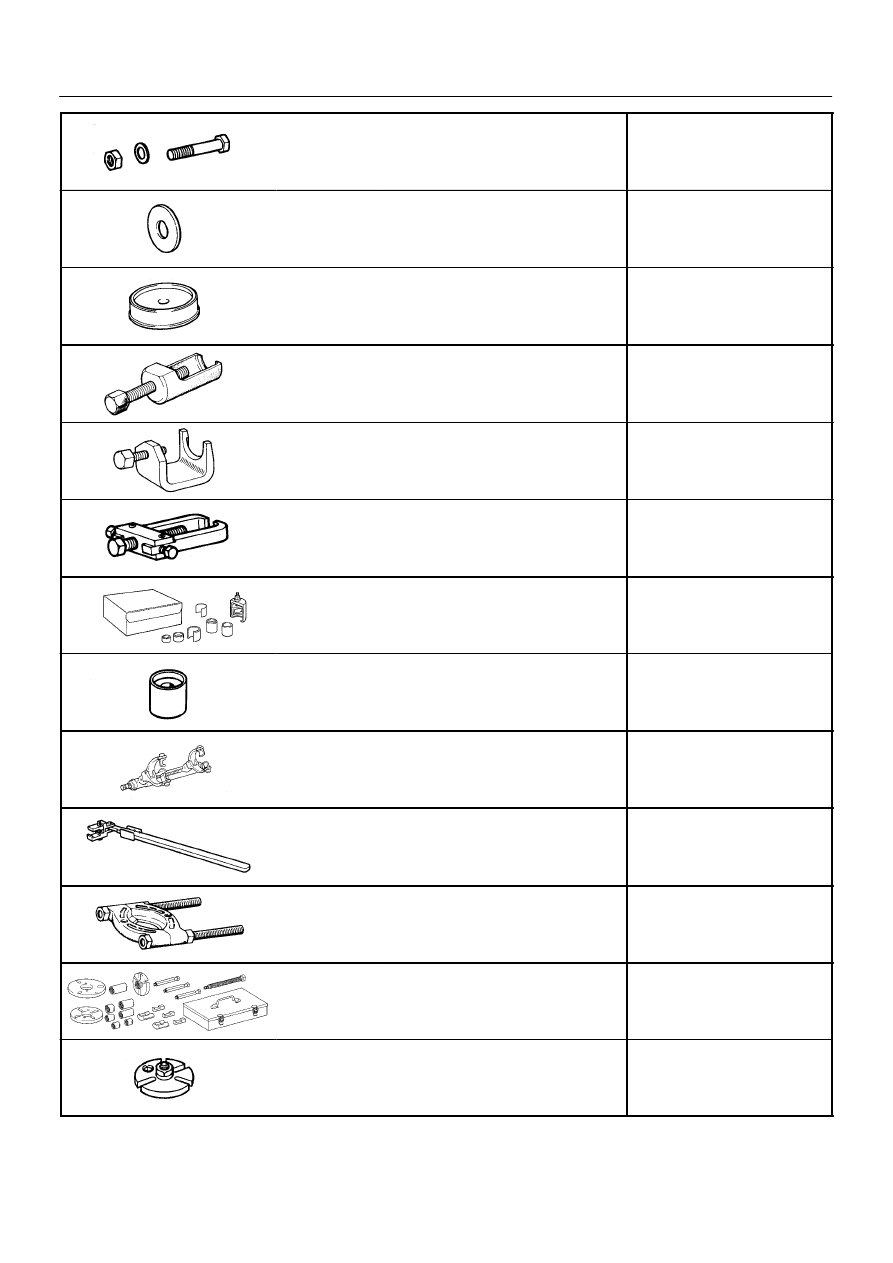

SST (Special Service Tools)

09240–00020

Wire Gauge Set

Front drive shaft

09308–00010

Oil Seal Puller

Rear axle

Rear differential

09308–10010

Oil Seal Puller

Rear differential

09309–36010

Transmission Rear Bearing

Replacer

Front drive shaft

Rear drive shaft

09310–35010

Countershaft Bearing Replacer

Front axle

Rear axle

09316–20011

Transfer Bearing Replacer

Front drive shaft

Rear drive shaft

09316–60011

Transmission & Transfer Bearing

Replacer

(09316–00011)

Replacer Pipe

Front axle

Front suspension

Rear axke

(09316–00031)

Replacer ”B”

Rear axle

(09316–00041)

Replacer ”C”

Front axle

Front suspension

09330–00021

Companion Flange Holding Tool

Rear differential

09502–12010

Differential Bearing Replacer

Rear axle

PP–42

–

PREPARATION

SUSPENSION AND AXLE

LEXUS RX300   (RM785E)

09504–22011

Differential Side Bearing

Replacer

Rear differential

09506–30012

Differential Drive Pinion Rear

Bearing Cone Replacer

Rear differential

09520–00031

Rear Axle Shaft Puller

Front axle

Rear axle

09520–01010

Drive Shaft Remover Attachment

Front drive shaft

09520–24010

Differential Side Gear Shaft

Puller

(09520–32040)

Shocker Set

Front drive shaft

09521–24010

Drive Shaft Boot Clamping Tool

Front drive shaft

09527–17011

Rear Axle Shaft Bearing Remover

Front axle

Rear axle

09550–00032

Replacer

Rear differential

09554–22010

Differential Oil Seal Replacer

Rear differential

09555–55010

Differential Drive Pinion

Bearing Replacer

Rear axle

09556–22010

Drive Pinion Front Bearing

Remover

Rear differential

09608–16042

Front Hub Bearing Adjusting Tool

Front drive shaft

Rear drive shaft

–

PREPARATION

SUSPENSION AND AXLE

PP–43

LEXUS RX300   (RM785E)

(09608–02021)

Bolt & Nut

(09608–02041)

Retainer

09608–32010

Steering Knuckle Oil Seal

Replacer

Front axle

Front suspension

Rear axle

09610–20012

Pitman Arm Puller

Front axle

09628–10011

Ball Joint Puller

Front axle

Rear axle

09628–62011

Ball Joint Puller

Front axle

Front suspension

09710–22021

Front Suspension Bushing Tool

Set

Rear differential

(09710–01031)

Upper Arm Bushing Replacer

09727–30021

Coil Spring Compressor

Front suspension

Rear suspension

09729–22031

Front Spring Upper Seat Holder

Front suspension

09950–00020

Bearing Remover

Front axle

Front drive shaft

Rear differential

09950–30011

Puller A Set

Rear differential

(09951–03010)

Upper Plate
