Lexus RX300 (MCU15). Service manual - part 465

B04134

N·m (kgf·cm, ft·lbf) : Specified torque

z

 Non–reusable part

x 10

49.1 (500, 36)

z

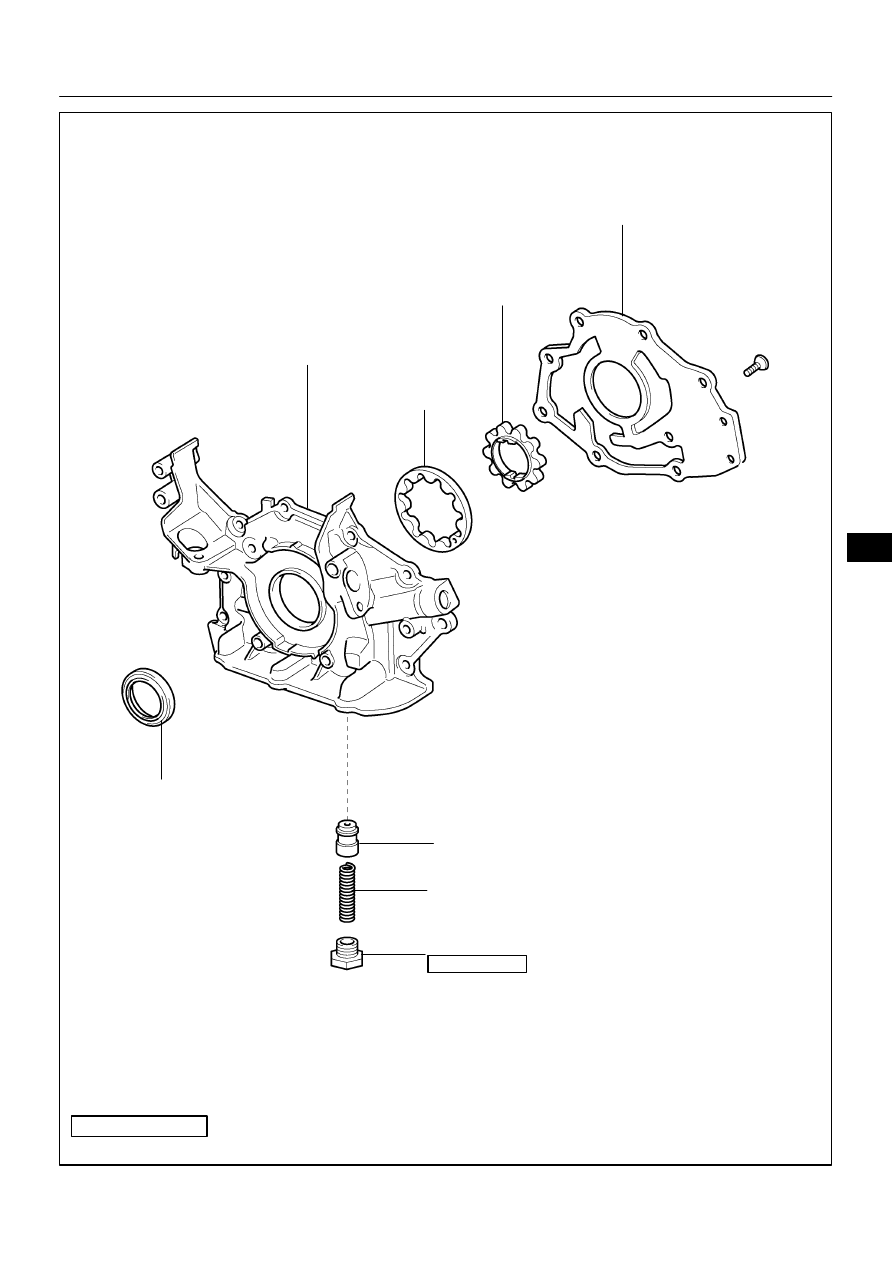

 Crankshaft Front

    Oil Seal

Relief Valve

Spring

Plug

Oil Pump Body

Driven Rotor

Drive Rotor

Oil Pump Body Cover

–

LUBRICATION

OIL PUMP

LU–9

LEXUS RX300   (RM785E)

LU08L–02

A05607

P18778

Pivot
Bolt

Adjusting
Strut

Adjusting Bolt

B04135

P18801

LU–10

–

LUBRICATION

OIL PUMP

LEXUS RX300   (RM785E)

REMOVAL

HINT:
When repairing the oil pump, the oil pan and strainer should be
removed and cleaned.
1.

REMOVE OUTER COWL TOP PANEL
(See page EM–75)

2.

REMOVE FRONT UPPER SUSPENSION BRACE
(See page EM–75)

3.

DRAIN ENGINE OIL

4.

REMOVE RH FRONT WHEEL

5.

REMOVE RH FENDER APRON SEAL

6.

REMOVE ALTERNATOR FROM ENGINE
(See page CH–6)

7.

REMOVE A/C COMPRESSOR FROM ENGINE
(See page EM–75)

8.

REMOVE NO.2 FRONT EXHAUST PIPE
(See page EM–75)

9.

REMOVE WU–TWC

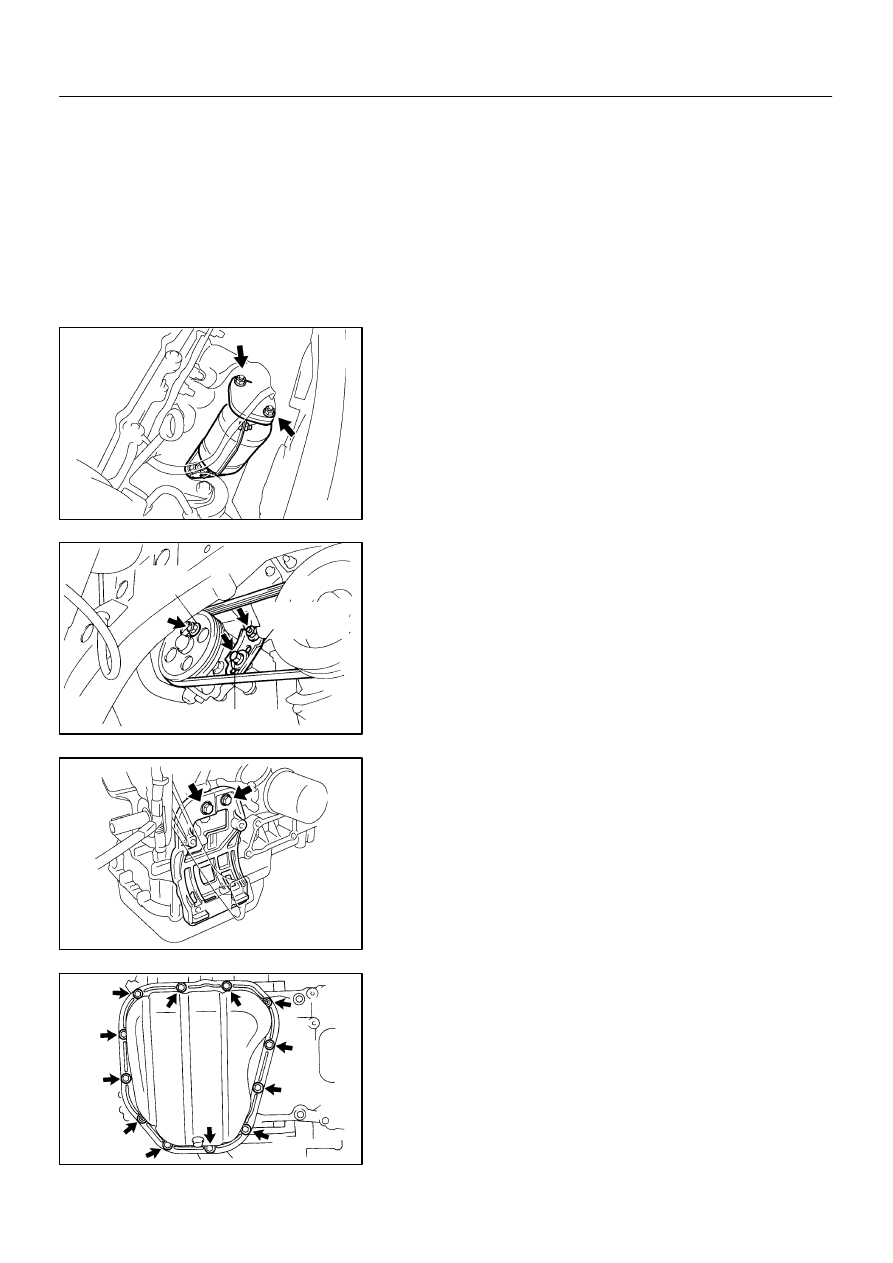

Remove the 2 nuts, WU–TWC and gasket.

10.

REMOVE PS PUMP DRIVE BELT AND ADJUSTING
STRUT

(a)

Loosen the pivot and adjusting bolts, and remove the
drive belt.

(b)

Remove the bolt, nut and adjusting strut.

11.

REMOVE TIMING BELT
(See page EM–16)

12.

REMOVE TIMING PULLEYS
(See page EM–16)

13.

REMOVE NO.3 TIMING BELT COVER
(See page EM–33)

14.

REMOVE A/C COMPRESSOR HOUSING
BRACKET

Remove the 2 bolts and housing bracket.

15.

REMOVE NO.2 OIL PAN

(a)

Remove the 10 bolts and 2 nuts.

P12716

SST

SST

P18802

B04136

B04137

P20050

Pry

–

LUBRICATION

OIL PUMP

LU–11

LEXUS RX300   (RM785E)

(b)

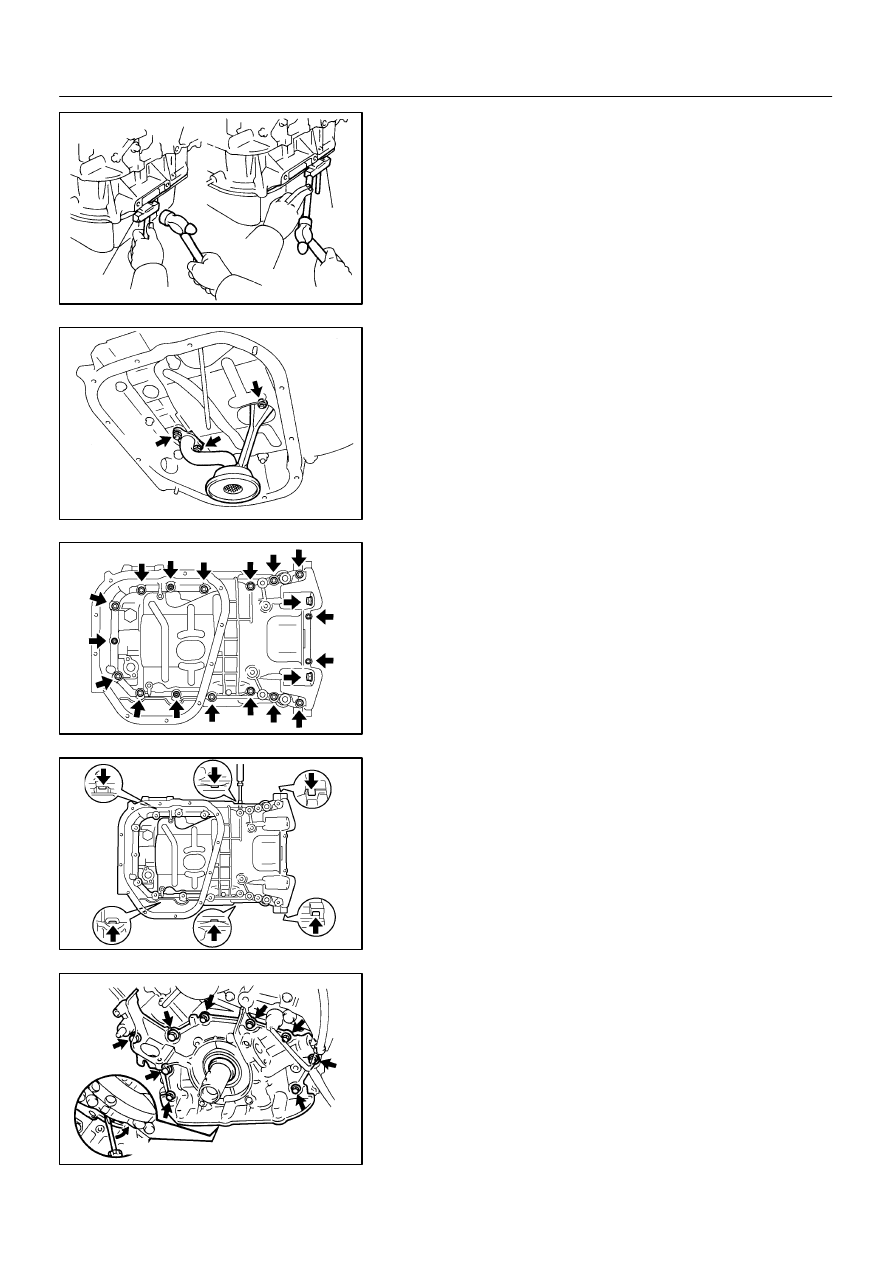

Insert the blade of SST between the No.1 and No.2 oil
pans, and cut off applied sealer and remove the No.1 oil
pan.
SST

09032–00100

NOTICE:

S

Be careful not to the damage the No.2 oil pan contact
surface of the No.1 oil pan.

S

Be careful not to damage the No.2 oil pan flange.

16.

REMOVE OIL STRAINER

Remove the bolt, 2 nuts, oil strainer and gasket.

17.

REMOVE NO.1 OIL PAN

(a)

Remove the 2 bolts and flywheel housing under cover.

(b)

Remove the 19 bolts.

(c)

Using a screwdriver, remove the oil pan by prying the por-
tions between the cylinder block and oil pan.

NOTICE:
Be careful not to damage the contact surfaces of the cylin-
der block and oil pan.
18.

REMOVE BAFFLE PLATE FROM NO.1 OIL PAN

19.

REMOVE CRANKSHAFT POSITION SENSOR

20.

REMOVE OIL PUMP

(a)

Remove the 9 bolts.

(b)

Remove the oil pump by prying a screwdriver between the
oil pump and main bearing cap.

(c)

Remove the O–ring.

LU04I–02

B04138

B04139

LU–12

–

LUBRICATION

OIL PUMP

LEXUS RX300   (RM785E)

DISASSEMBLY

1.

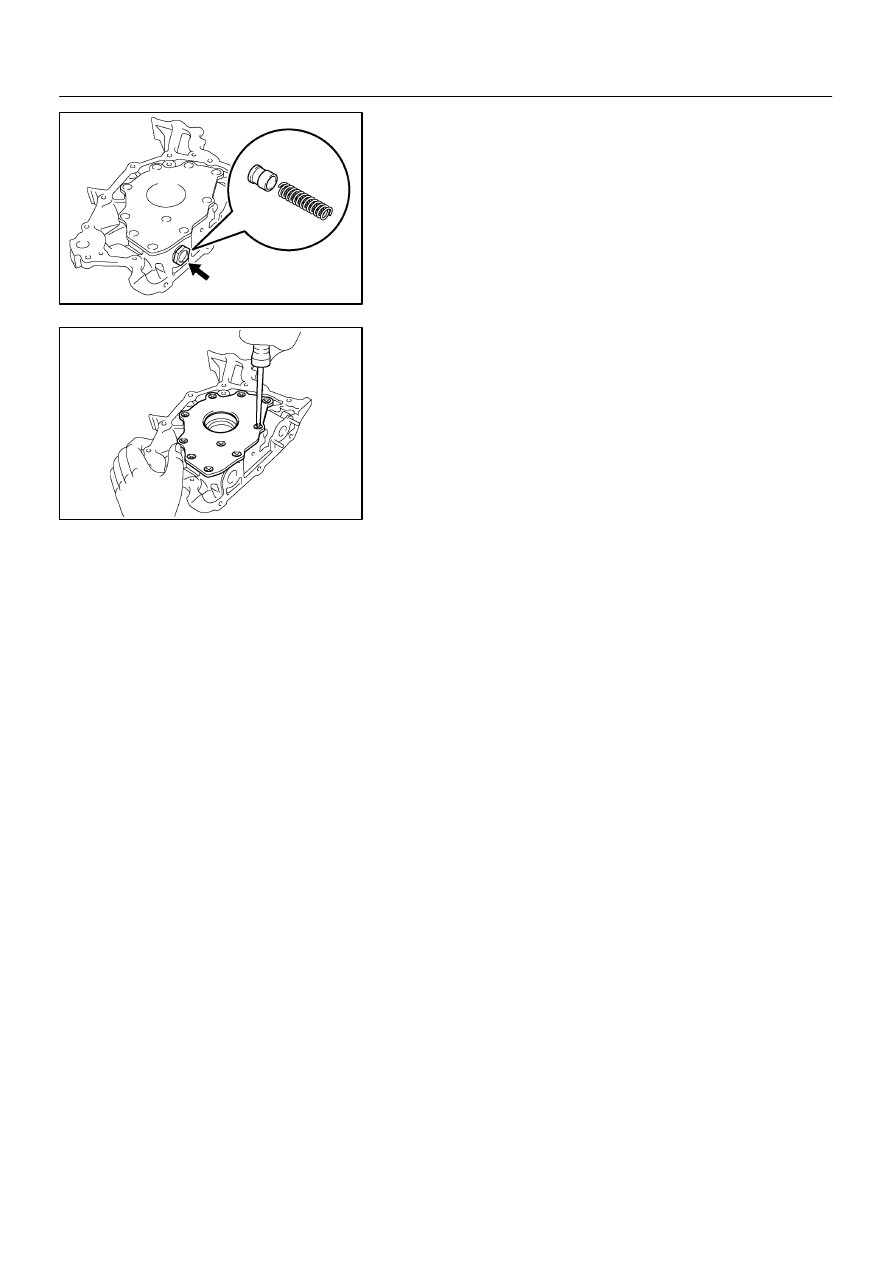

REMOVE RELIEF VALVE

Remove the plug, spring and relief valve.

2.

REMOVE DRIVE AND DRIVEN ROTORS

Remove the 10 screws, pump body cover, drive and driven ro-
tors.
