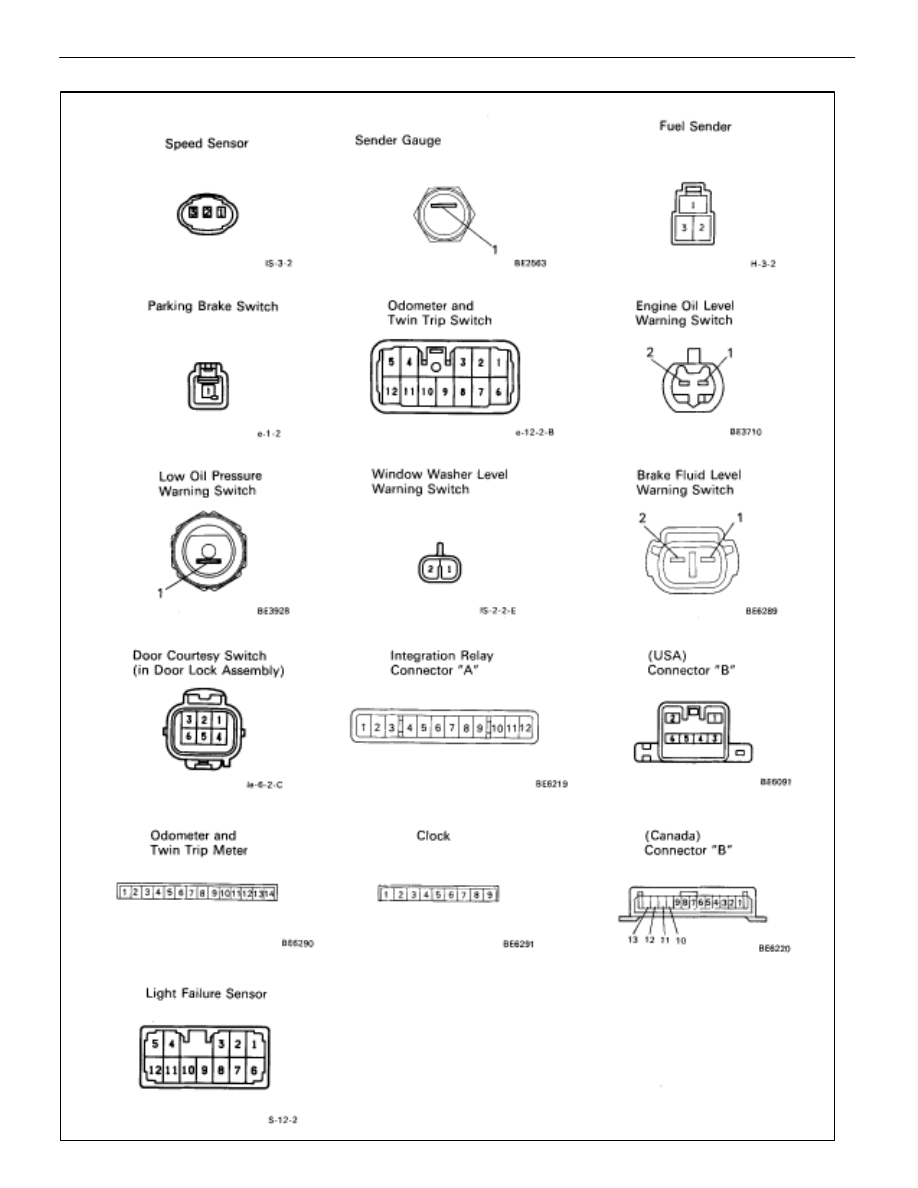

Connector Diagrams (Cont’d)

BE–102

–

BODY ELECTRICAL SYSTEM

Combination Meter

Parts Inspection
(Combination Meter Assembly)

REMOVAL AND INSTALLATION OF
COMBINATION METER ASSEMBLY

1.

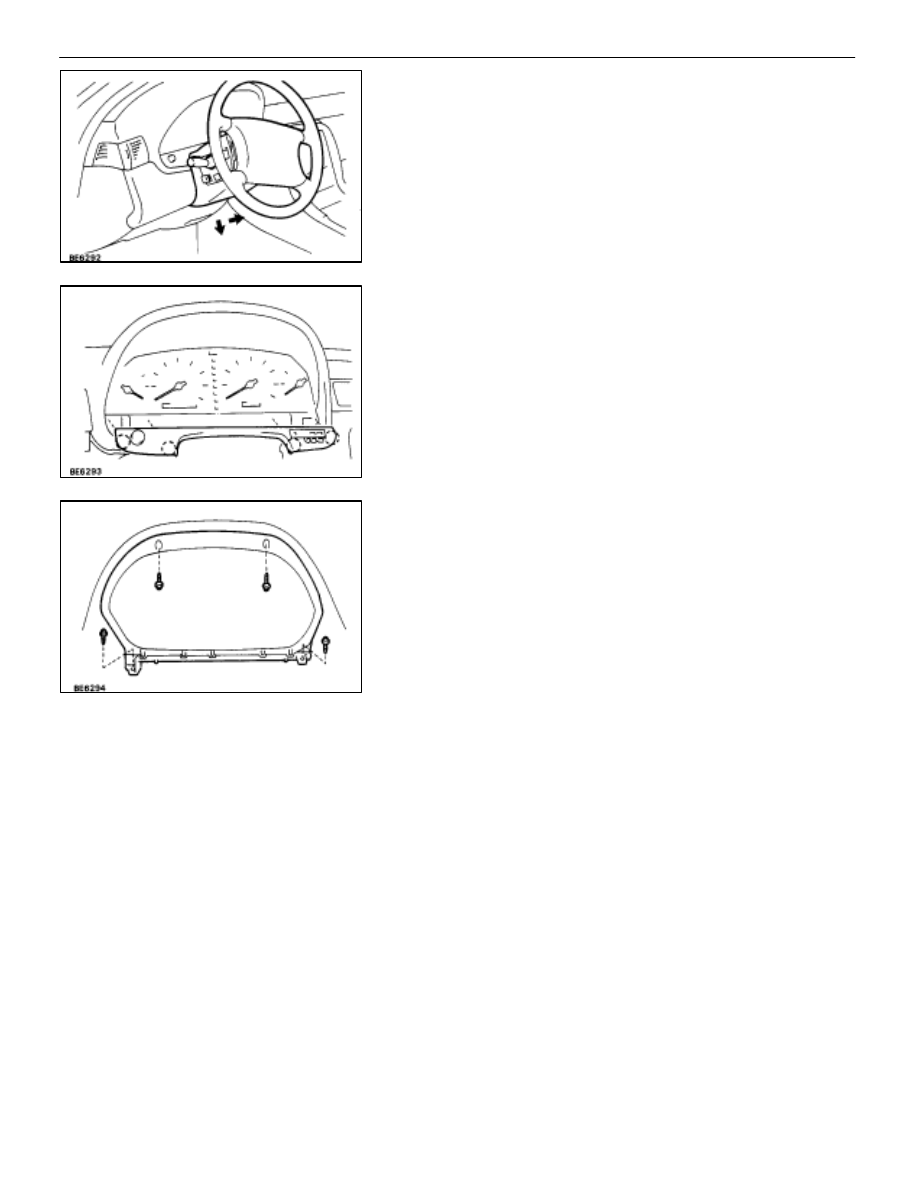

REMOVE COMBINATION METER ASSEMBLY

(a) Lower

the steering wheel fully and set it in the far position.

(b)  Turn the ignition switch to LOCK and disconnect battery

terminals.

CAUTION: Work must be started after approx. 20 se-
conds or longer from the time the ignition switch is
turned to the ”LOCK” position and negative (–) terminal
cable is disconnected from the battery.

(c)  Remove instrument cluster finish panel.

(d)  Remove four screws and disconnect three connectors.
(e)  Remove combination meter assembly.

2.

INSTALL COMBINATION METER ASSEMBLY
For installation, follow the removal procedure in reverse.

–

BODY ELECTRICAL SYSTEM

Combination Meter

BE–103

DISASSEMBLY OF COMBINATION
METER ASSEMBLY

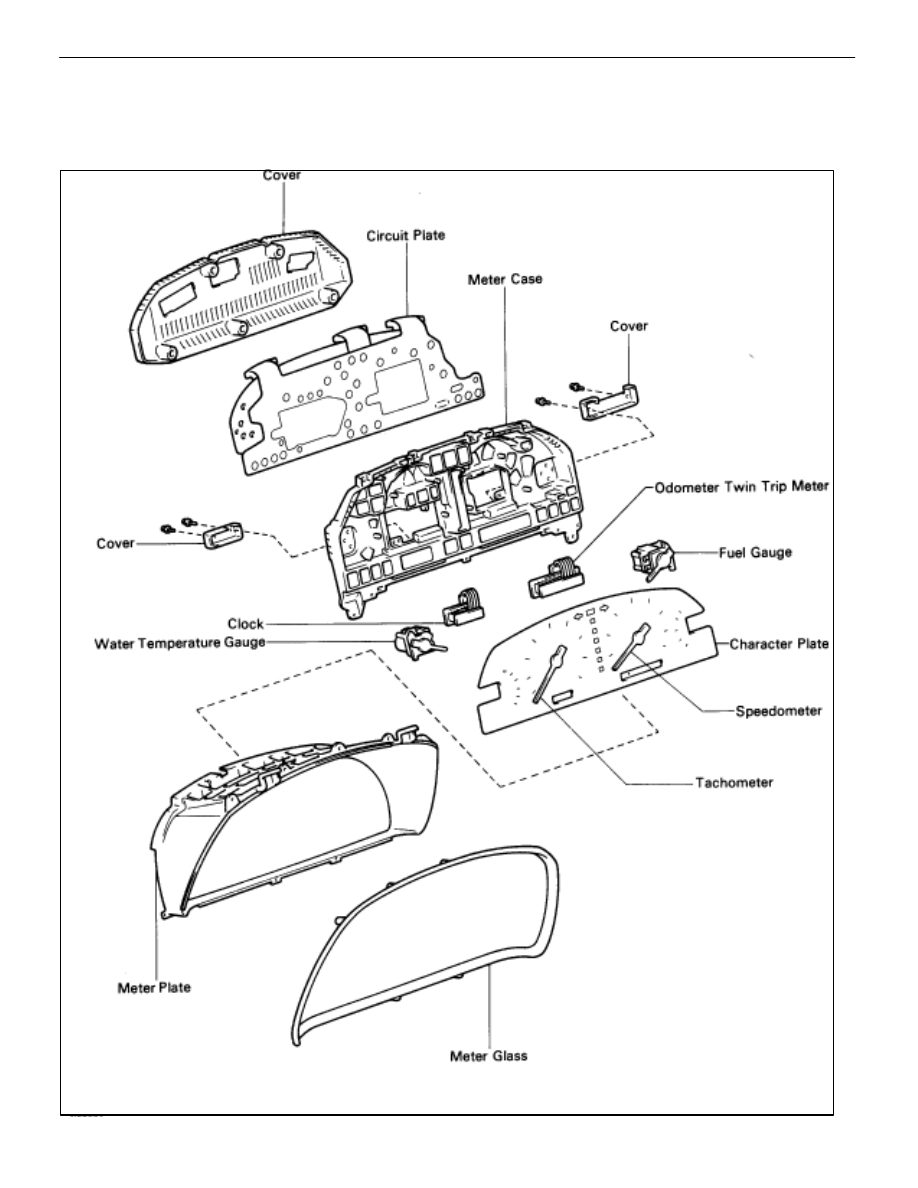

(Components)

BE–104

–

BODY ELECTRICAL SYSTEM

Combination Meter

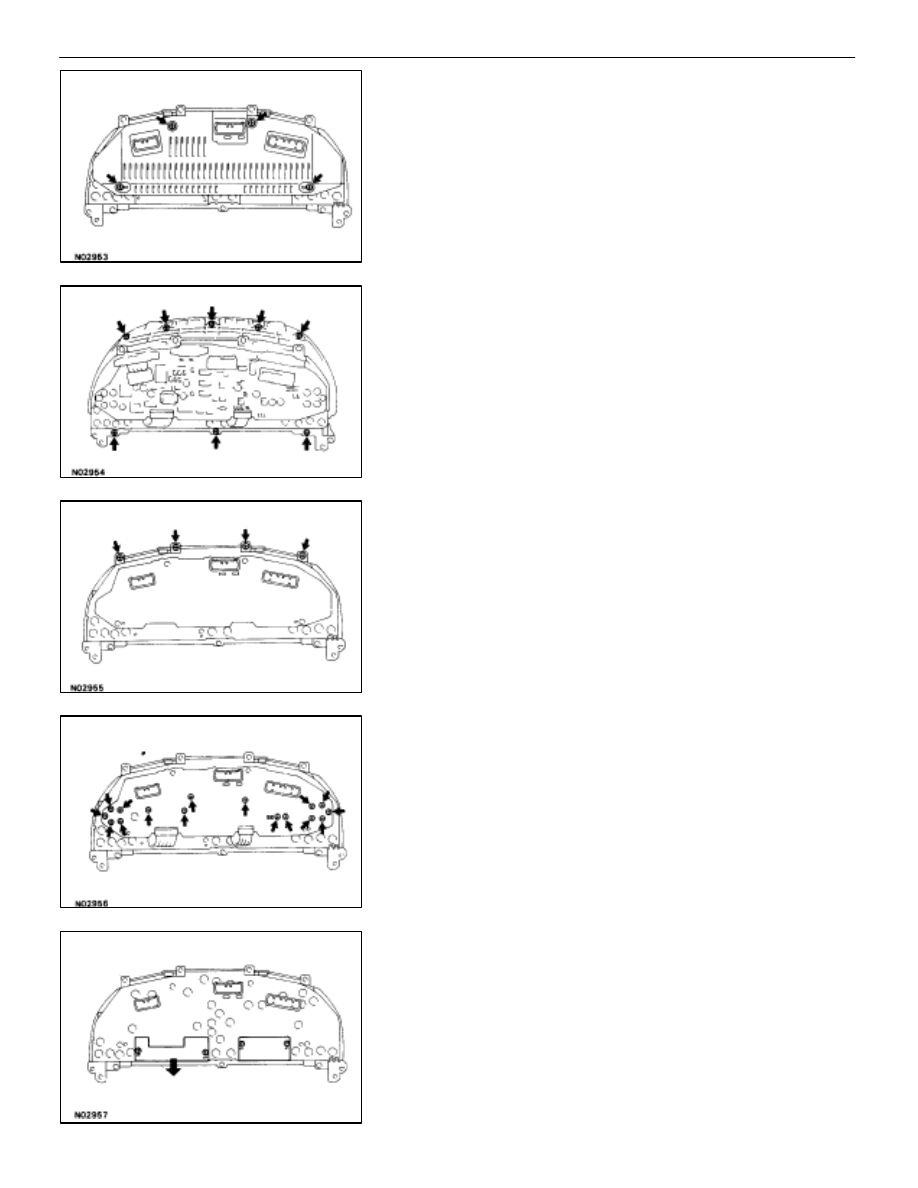

1. REMOVE
