Lexus SC300 / Lexus SC400. Service manual - part 225

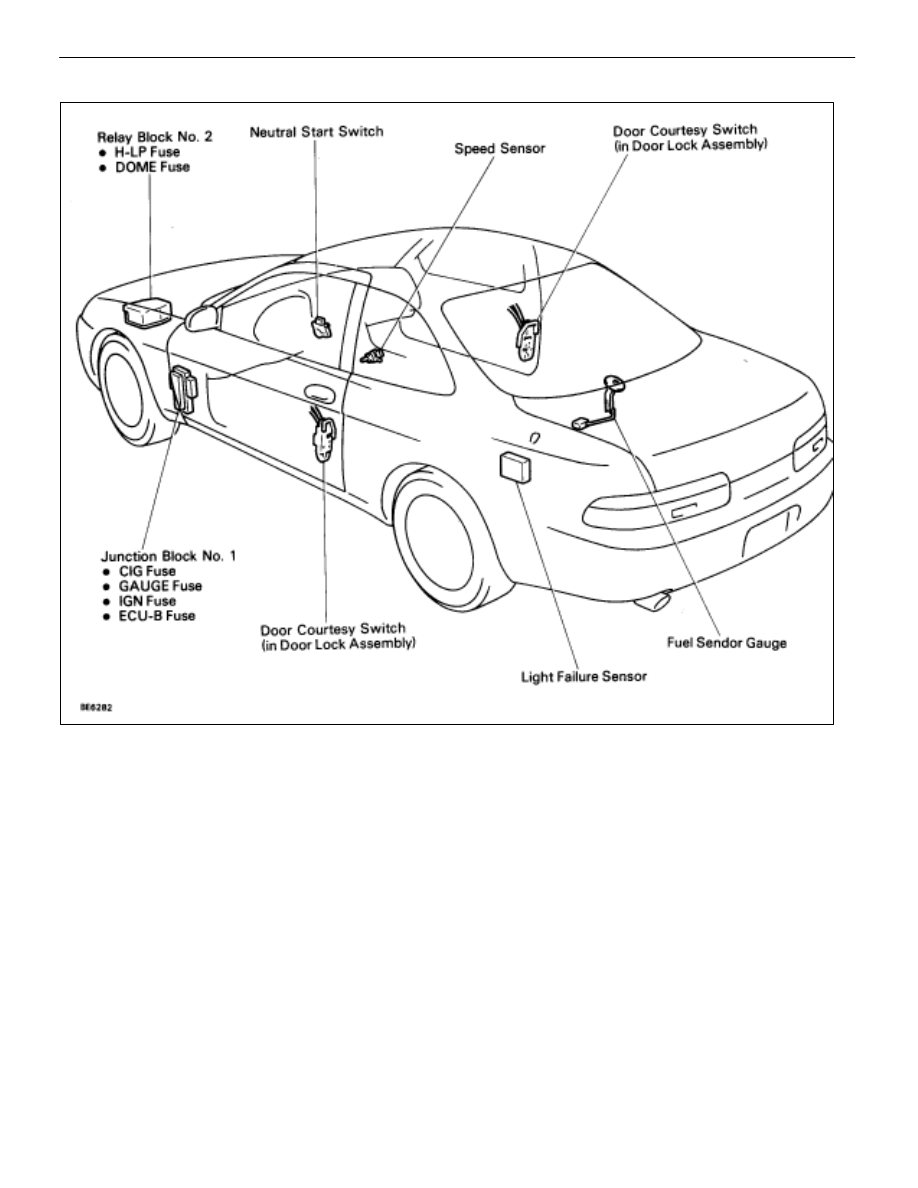

Parts Location

BE–98

–

BODY ELECTRICAL SYSTEM

Combination Meter

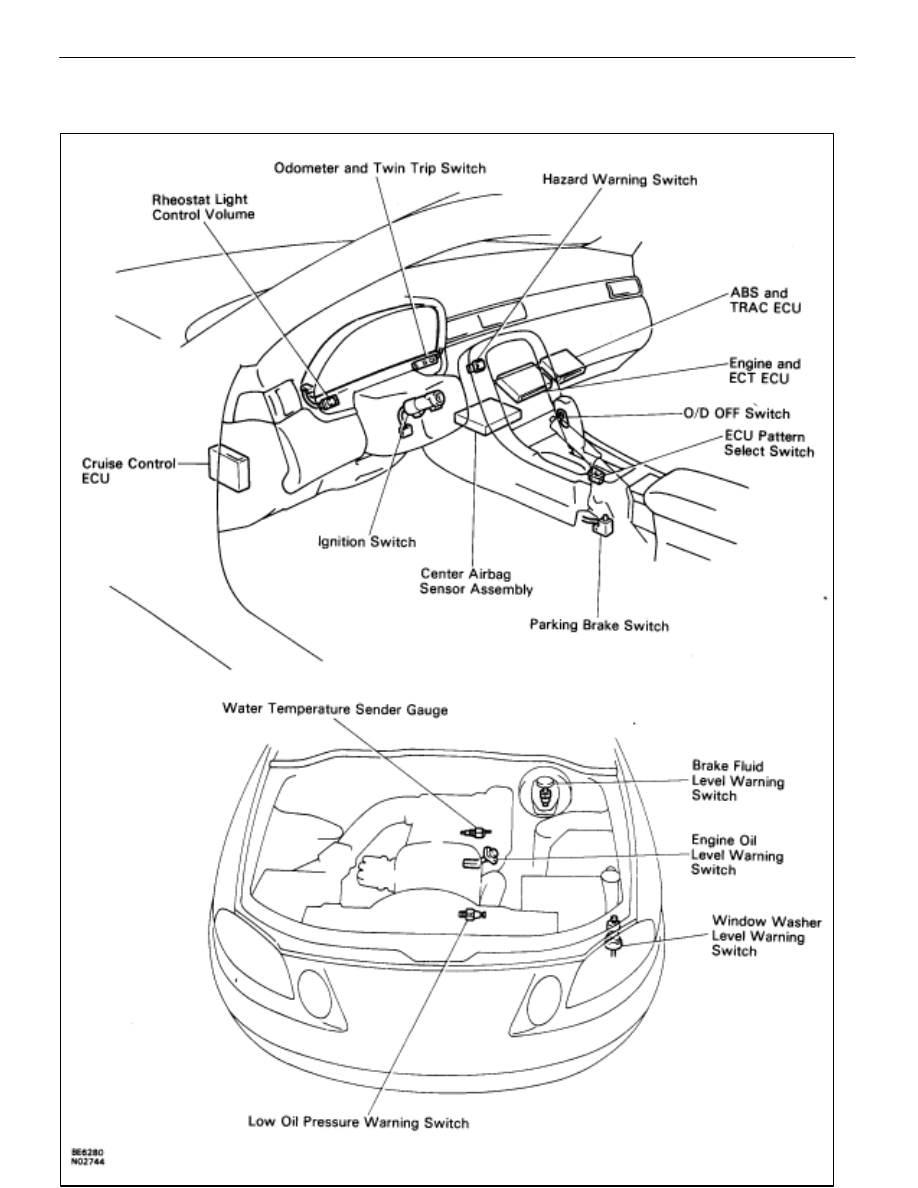

Parts Location (Cont’d)

–

BODY ELECTRICAL SYSTEM

Combination Meter

BE–99

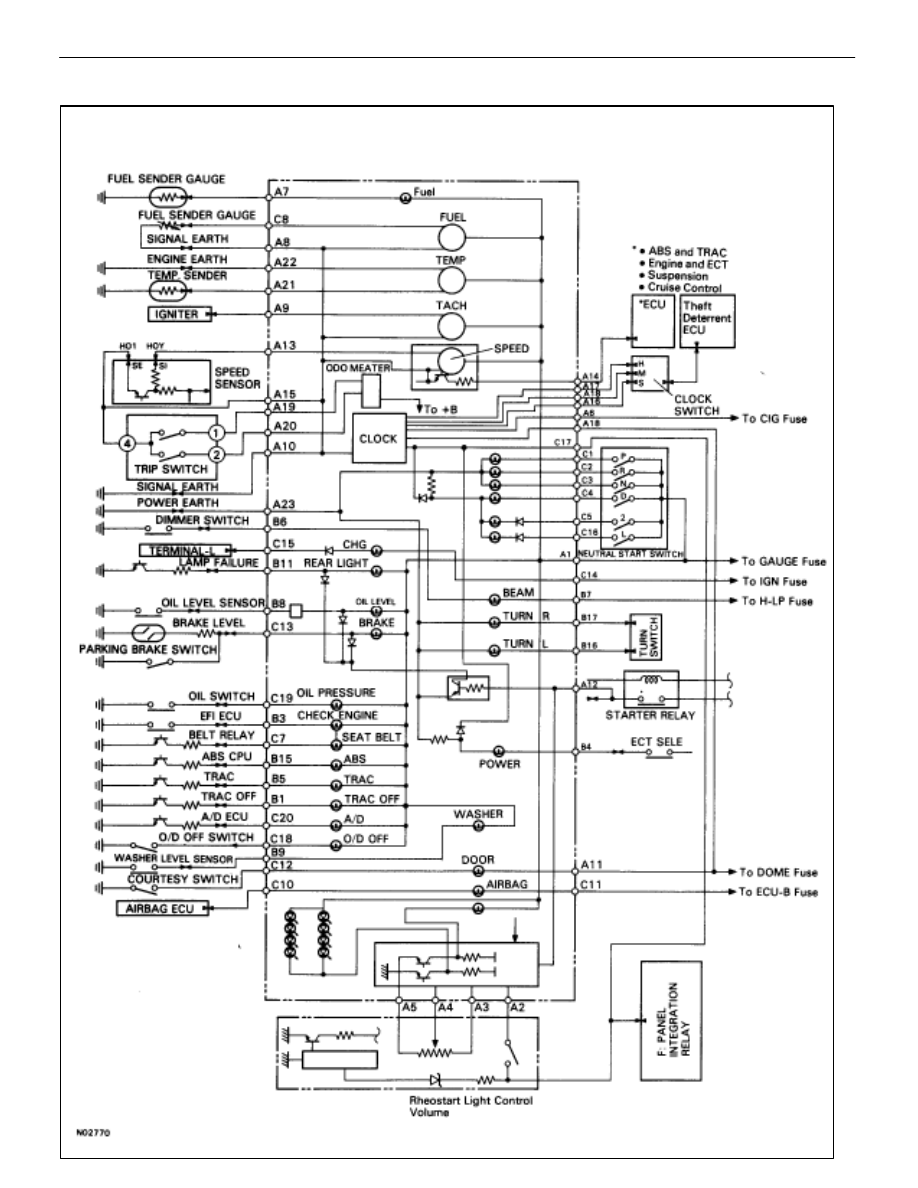

Wiring Diagram

BE–100

–

BODY ELECTRICAL SYSTEM

Combination Meter

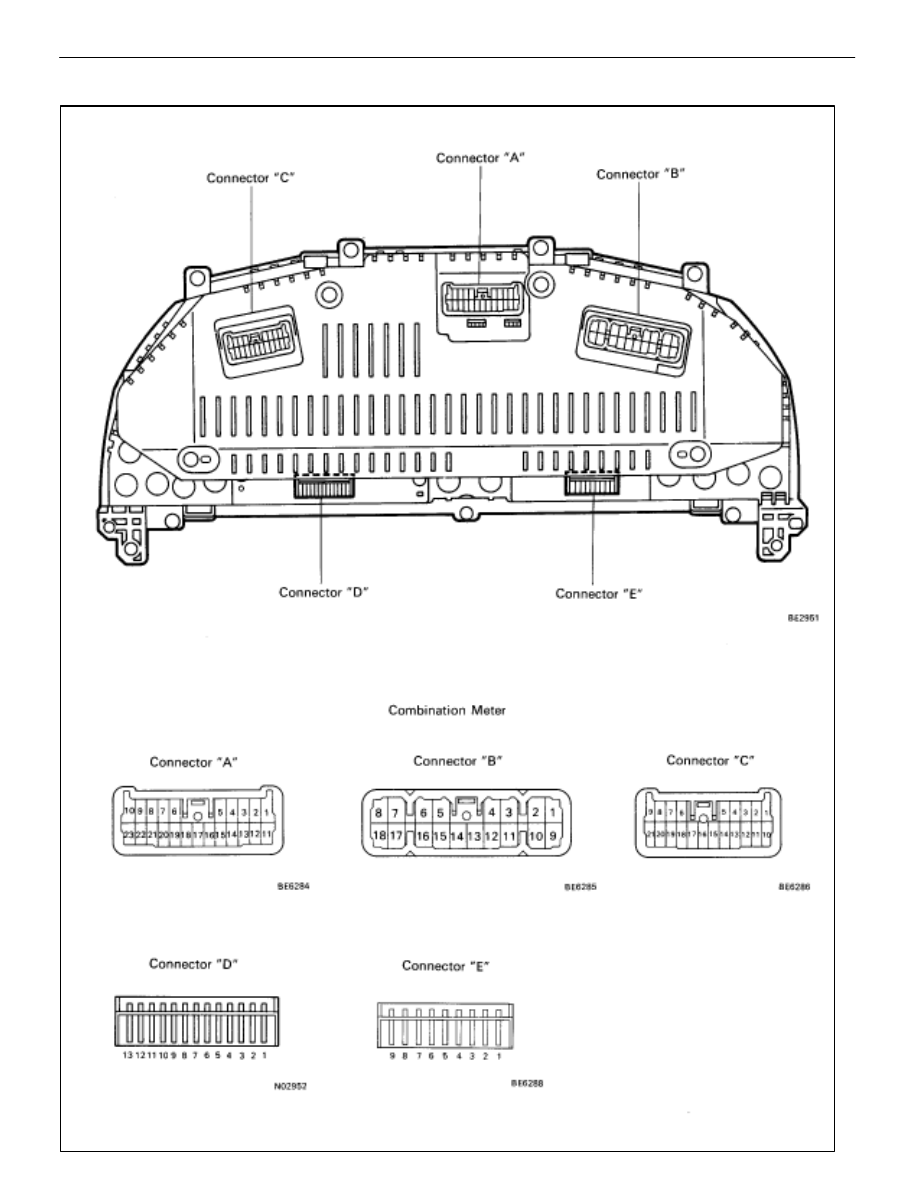

Connector Diagrams

–

BODY ELECTRICAL SYSTEM

Combination Meter

BE–101
