Lexus ES300 (1997 year). Service manual - part 509

PP0AQ–01

–

PREPARATION

SUSPENSION AND AXLE

PP–37

82

1997 LEXUS ES300   (RM511U)

EQUIPMENT

Dial indicator

Torque wrench

Drill

PP0AR–01

PP–38

–

PREPARATION

SUSPENSION AND AXLE

83

1997 LEXUS ES300   (RM511U)

LUBRICANT

Item

Capacity

Application

Outboard joint grease

Color  = Black

Inboard joint grease

Color  = Gray

Joint side

Boot side

105 – 125 g (3.7 – 4.4 oz.)

142.5 – 157.5 g (5.0 – 5.6 oz.)

52.5 – 57.5 g (2.1 – 2.3 oz.)

Outboard joint

Inboard joint

PP0CH–03

–

PREPARATION

BRAKE

PP–39

84

1997 LEXUS ES300   (RM511U)

BRAKE

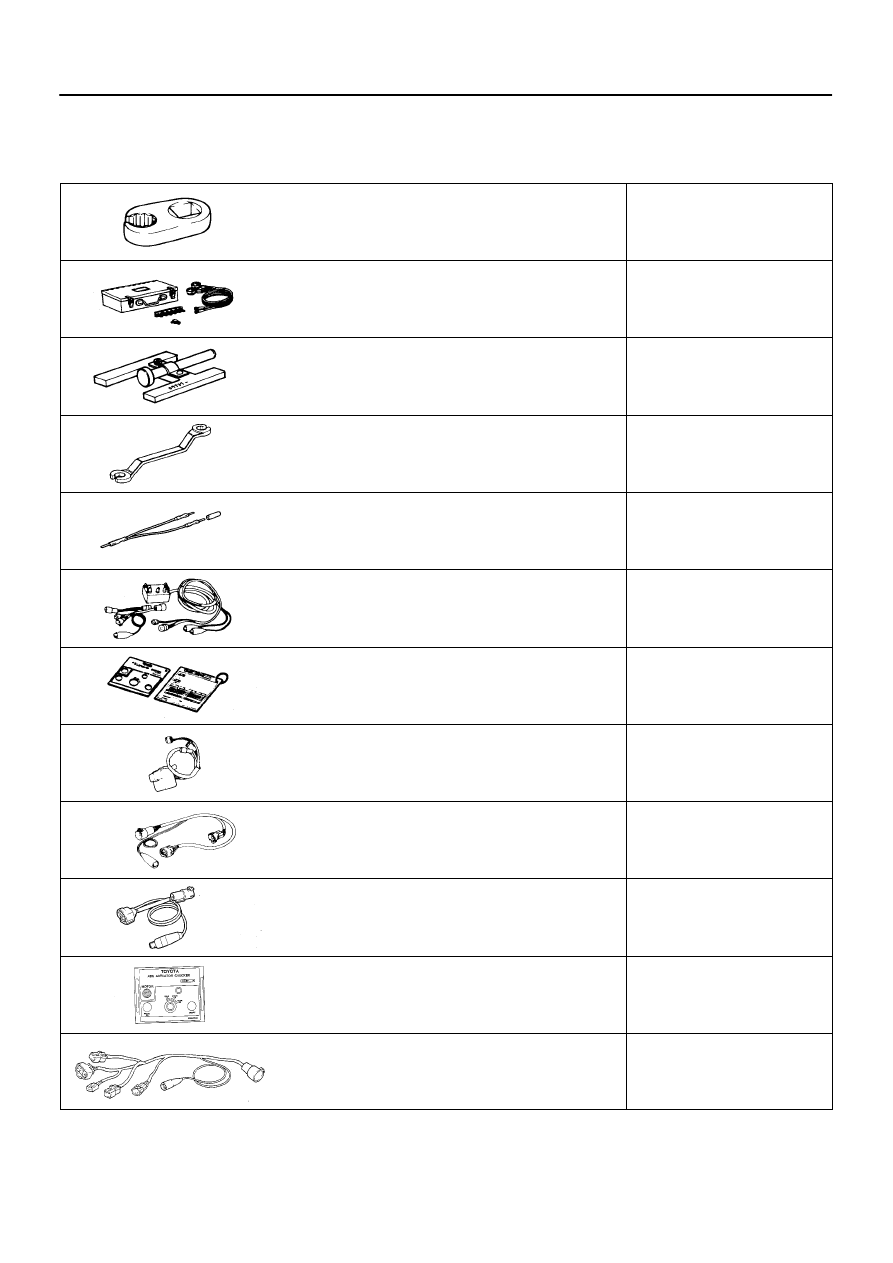

SST (Special Service Tools)

09023–00100

Union Nut Wrench 10 mm

09709–29018

LSPV Gauge Set

09737–00010

Brake Booster Push Rod Gauge

09751–36011

Brake Line Union Nut 10 x 12 mm

Wrench

09843–18020

Diagnosis Check Wire

09990–00150

ABS Actuator Checker and

Sub–harness

09990–00163

ABS Actuator Checker Sheet ”A”

w/ ABS & TRAC only

09990–00250

ABS Actuator Checker Sub–harness

”G”

09990–00300

ABS Actuator Checker Sub–harness

”I”

w/ ABS only

09990–00360

ABS Actuator Checker Sub–harness

”L”

09990–00430

ABS Actuator Checker Sheet ”P”

w/ ABS only

09990–00450

ABS Actuator Checker Sub–harness

”P”

w/ ABS & TRAC only

PP0CI–07

PP–40

–

PREPARATION

BRAKE

85

1997 LEXUS ES300   (RM511U)

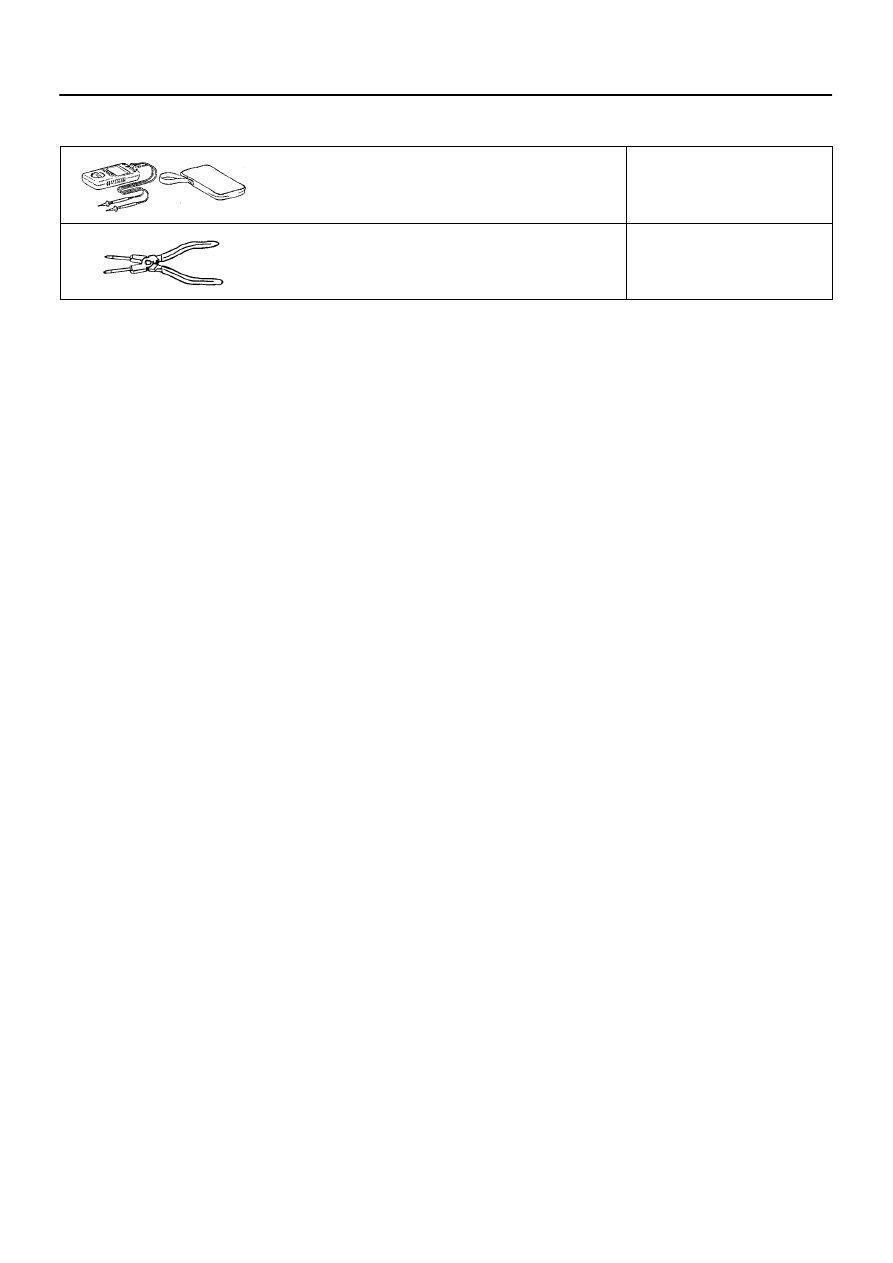

RECOMMENDED TOOLS

09082–00040

TOYOTA Electrical Tester.

09905–00013

Snap Ring Pliers .
