Jaguar 5HP24 transmission. Service manual - part 11

Order No. / Application

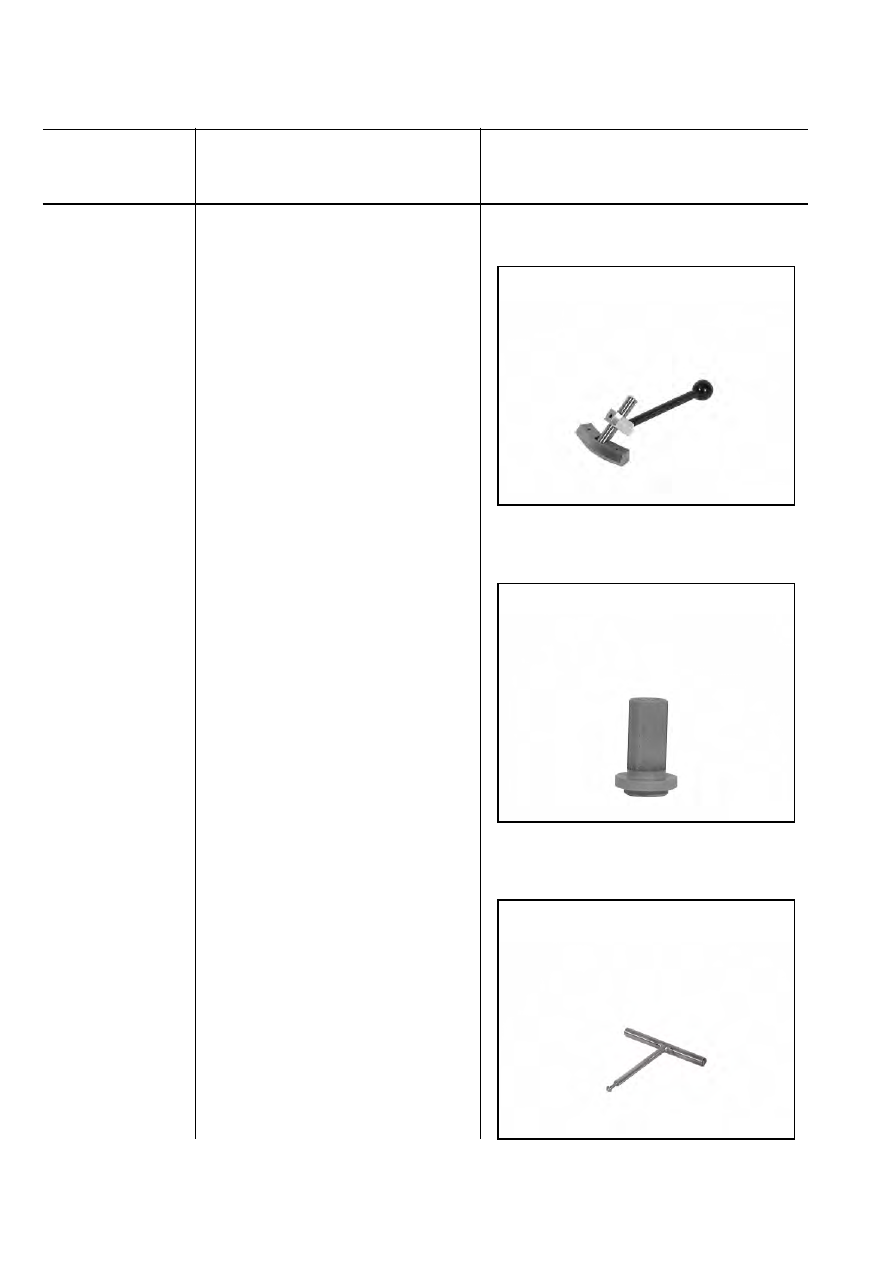

OBJECT

5x46 001 930
- Driving tool for snap ring

in the groove of the housing

5x46 001 949
- Drift, shaft seal for transmission

extension

5p95 000 410
- Extracting handle for sealing

sleeves

1.7/12

97315

97320

97321

Remarks

34

35

36

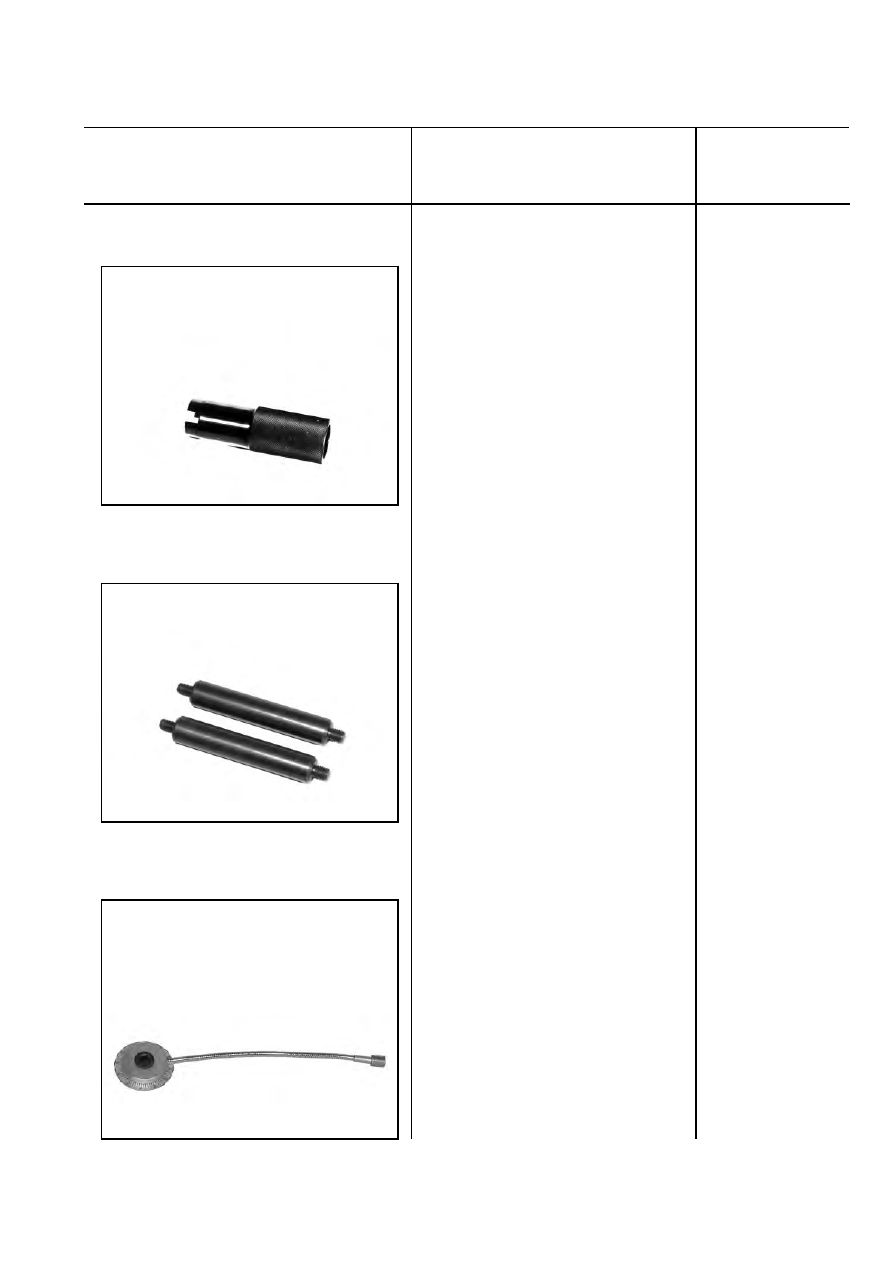

OBJECT

Remarks

Order No. / Application

5x56 000 021
- Sleeve for pump test

5x56 000 090
- Extracting handles for

converter (2 items)

5w04 000 583
- Torsion measuring unit

(Stahlwille 7380)

1.7/13

76047

76046

98002

Identical

3 HP 22
4 HP 22
5 HP 18
5 HP 30

Identical

3 HP 22
4 HP 22
5 HP 18
5 HP 30

37

38

39

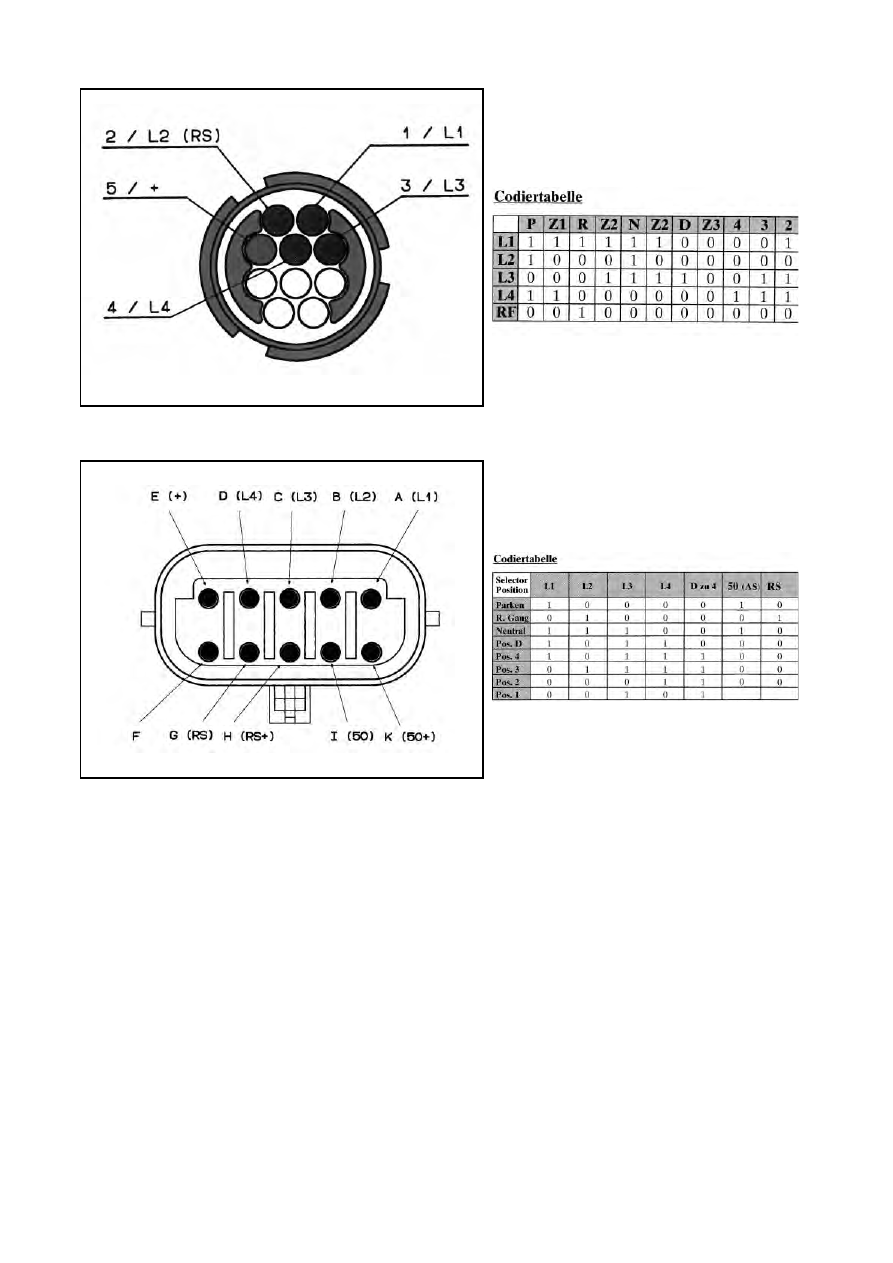

1.8.1.1 Typ JAGUAR

Use a multimeter to make a resistance
test of the position switch according to
the function table.

Use a multimeter to make a resistance
test of the position switch according to
the function table.

1.8/1

1.8

Funktion tests

1.8.1 Position switch
1.8.1.1 Typ BMW
