Jaguar XJ (X350). Service manual - part 735

Supercharger Belt - VIN Range: G00442-
>G45703 (18.50.08)

Removal

1 . Disconnect the battery ground cable.

For additional information, refer to

2 . Remove the air cleaner outlet pipe.

For additional information, refer to Air Cleaner Outlet Pipe (19.10.31)

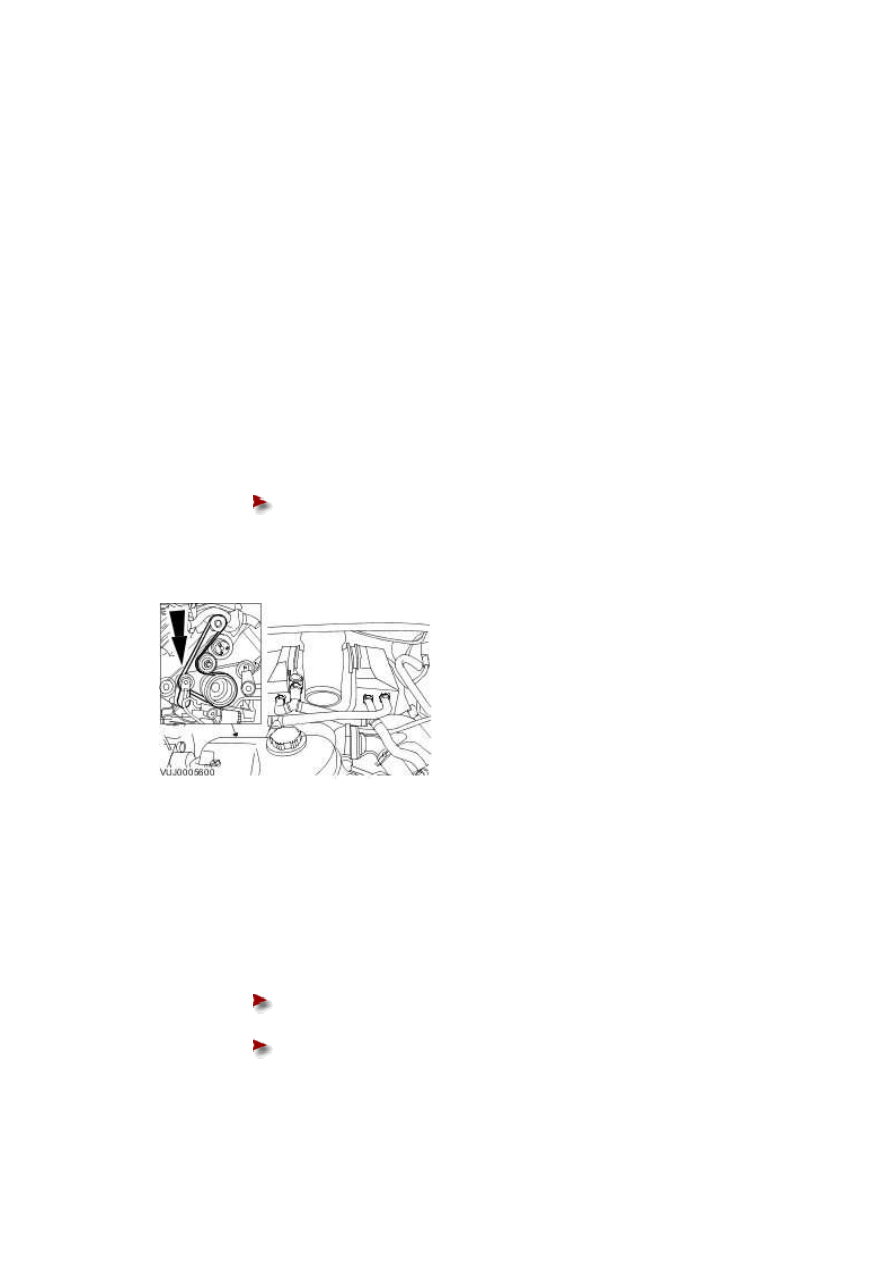

3 . Detach the supercharger belt.

Use a 1/2 inch square drive bar to rotate the supercharger belt tensioner.

2) Detach the supercharger belt.

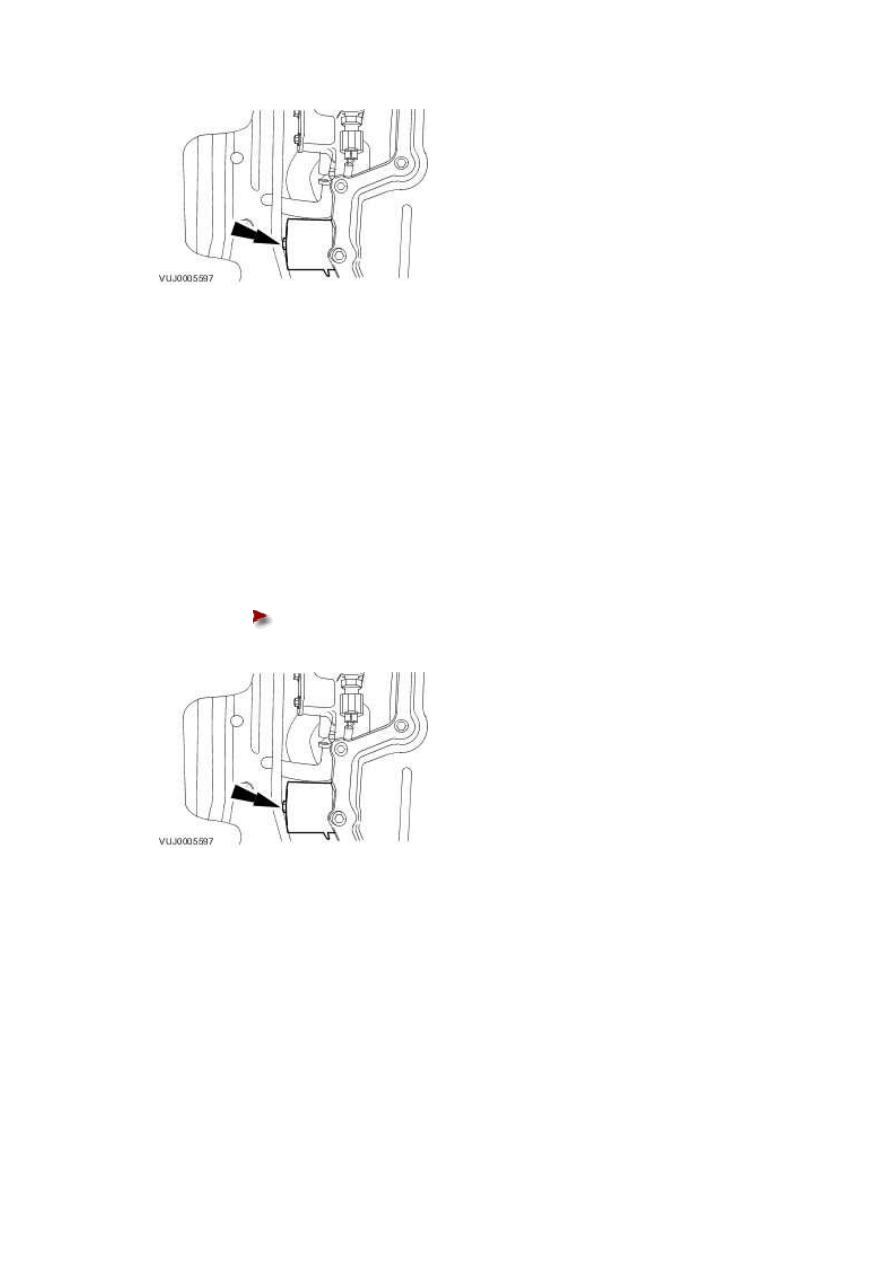

4 . Remove the air deflector.

For additional information, refer to

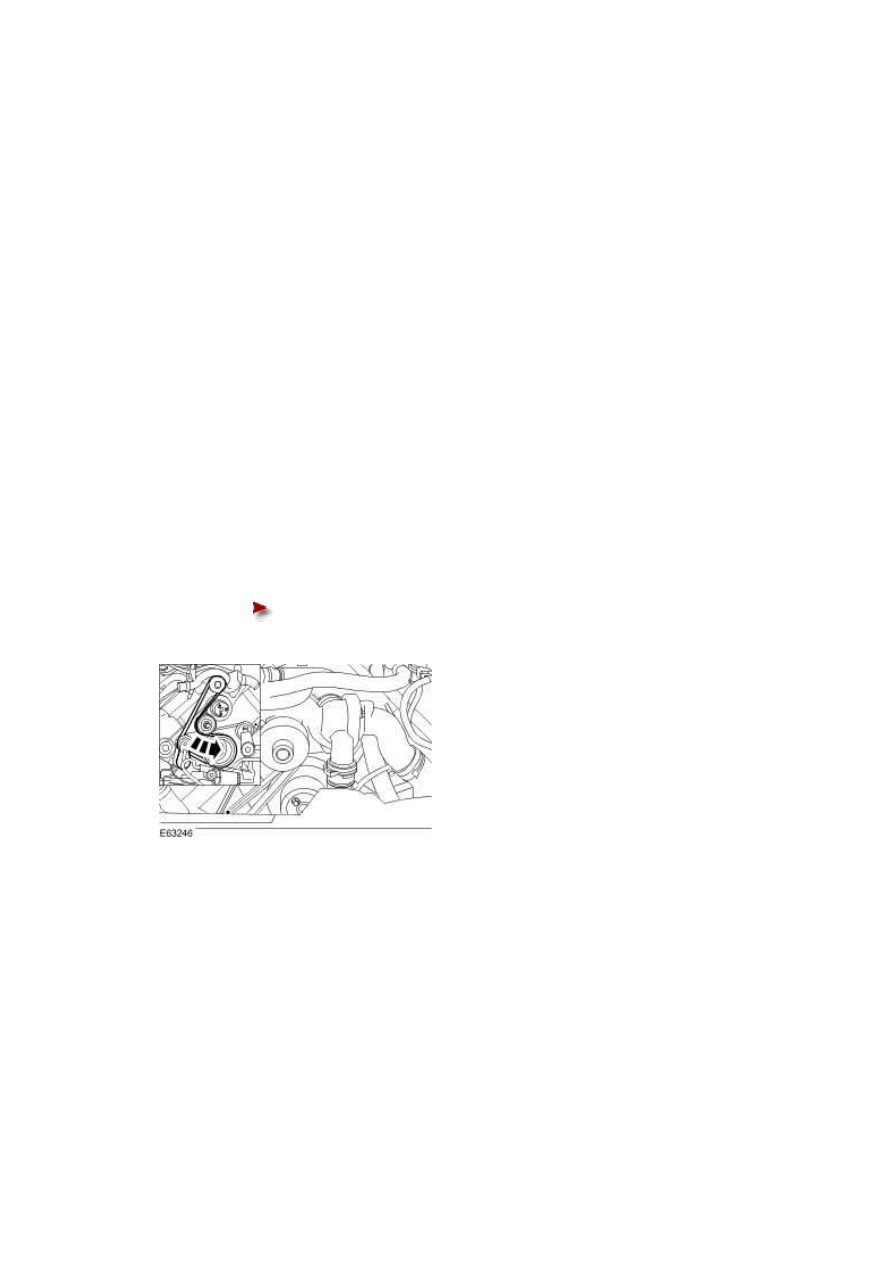

5 . Reposition the supercharger belt tensioner.

Loosen the supercharger belt tensioner retaining bolt.

Reposition the supercharger belt tensioner.

6 . Lower the vehicle.

7 . Remove the supercharger belt.

Installation

1 . To install, reverse the removal procedure.

Tighten to 40 Nm.

www.

Supercharger Belt - VIN Range: G45704-
>G99999 (18.50.08)

Removal

1 . Disconnect the battery ground cable.

For additional information, refer to Battery Disconnect and Connect

2 . Remove the air cleaner outlet pipe.

For additional information, refer to Air Cleaner Outlet Pipe (19.10.31)

3 . Remove the coolant expansion tank.

For additional information, refer to Coolant Expansion Tank (26.15.01)

4 . Remove the supercharger belt.

Use a 1/2 inch square drive bar to rotate the supercharger belt tensioner.

Installation

1 . To install, reverse the removal procedure.

Supercharger Belt Idler Pulley - VIN
Range: G04422->G45703 (18.50.09)

Removal

1 . Disconnect the battery ground cable.

For additional information, refer to

2 . Remove the air cleaner outlet pipe.

For additional information, refer to Air Cleaner Outlet Pipe (19.10.31)

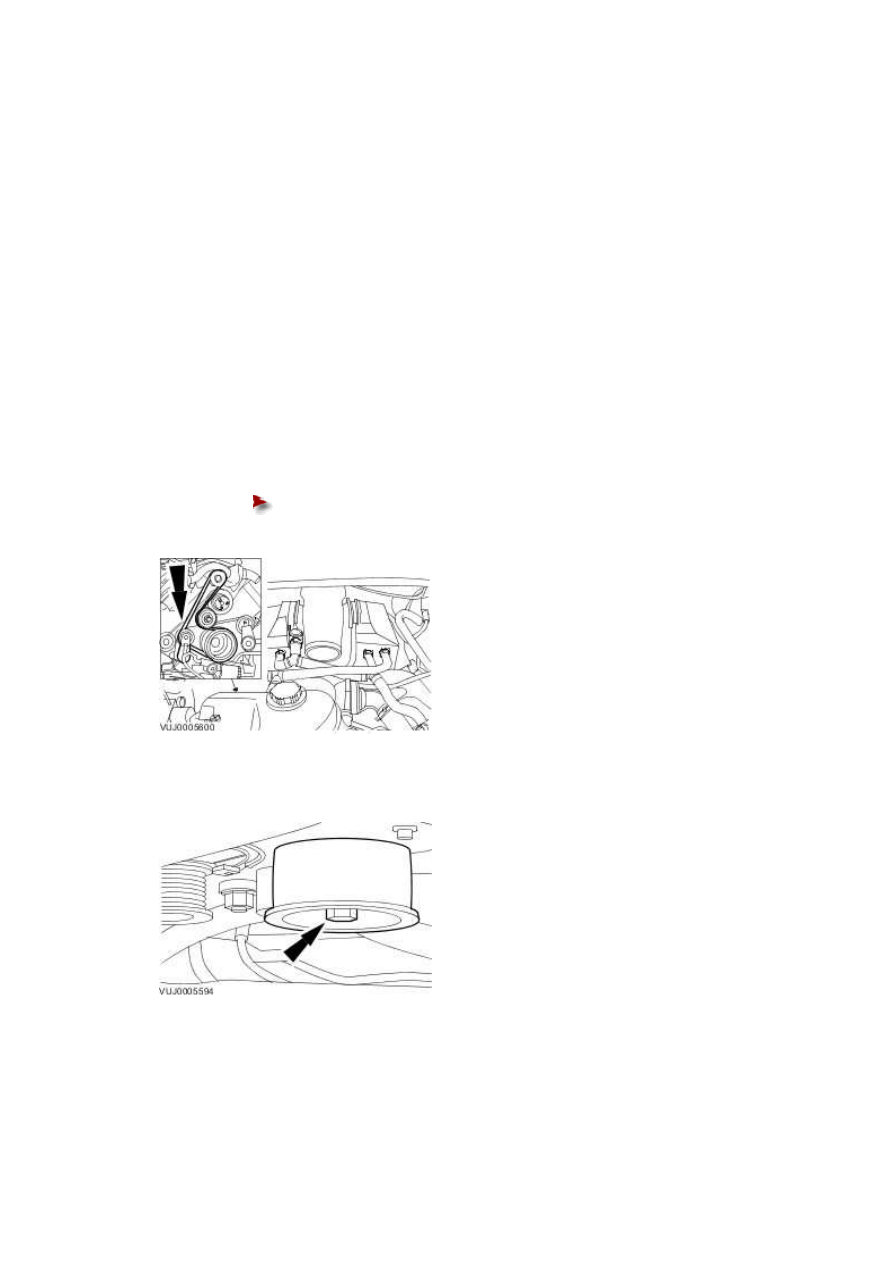

3 . Detach the supercharger belt.

Use a 1/2 inch square drive bar to rotate the supercharger belt tensioner.

4 . Remove the supercharger belt idler pulley.

Installation

1 . To install, reverse the removal procedure.
