Jaguar XJ (X350). Service manual - part 196







2

.



  WARNING: Do not use compressed air to disperse brake dust into the atmosphere.





  CAUTION: Make sure the brake disc faces are clean before installation.





  CAUTION: Brake pads must always be replaced in axle sets.





NOTE:





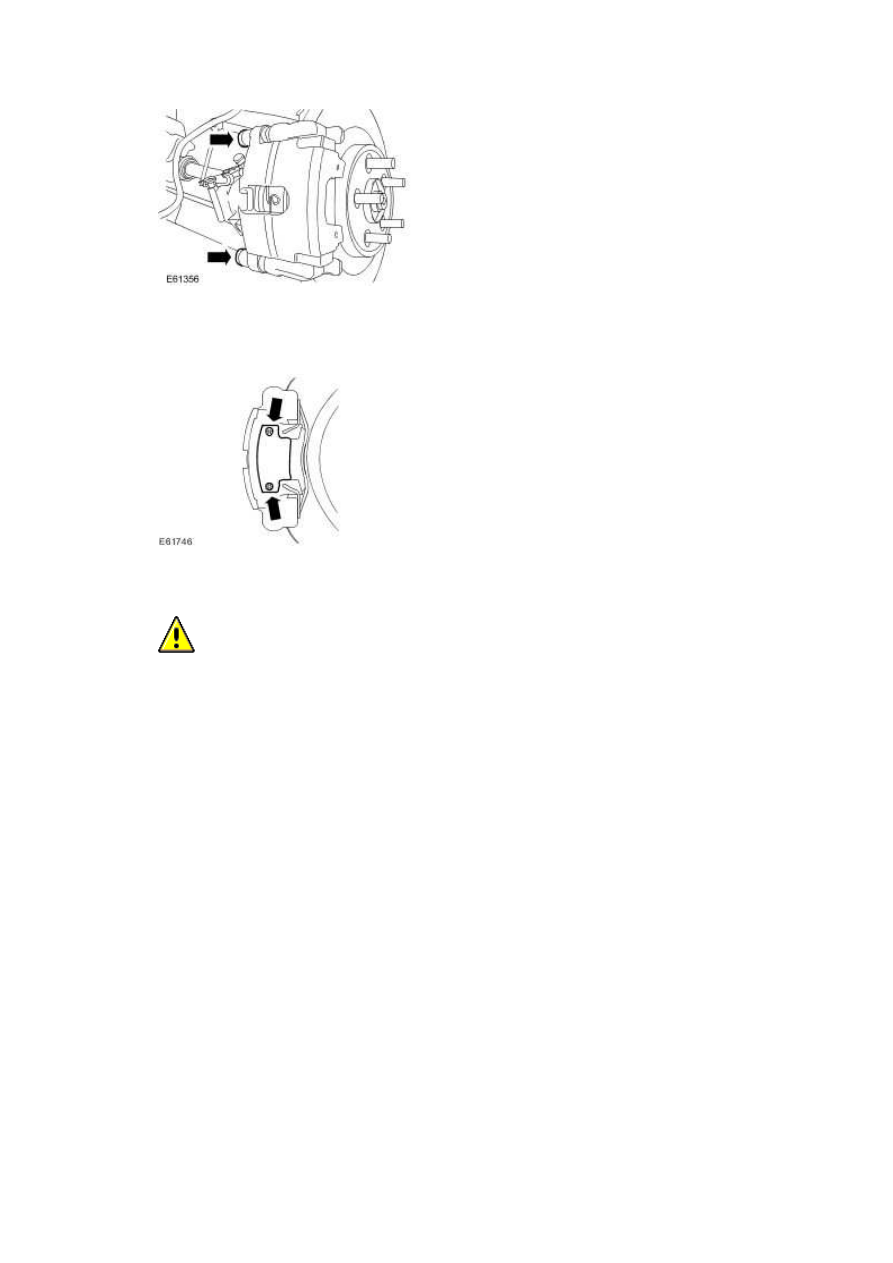

Make sure that the brake pad with the anti-rattle spring is installed to the inboard side

of the brake disc.





NOTE:





Left-hand shown, right-hand similar.



To install, reverse the removal procedure.





Tighten to 28 Nm.











3 . Tighten to 5 Nm.







4

.



  CAUTION: Calibrate the electric park brake using Jaguar approved diagnostic system.

If the Jaguar approved diagnostic system is not available disconnect the battery for

approximately 30 seconds, the vehicle will then prompt the driver to carry out the

calibration procedure as per the vehicle hand book on re-connection.





Calibrate the electric parking brake module using the Jaguar approved diagnostic system.







5

.



NOTE:





Do not start the engine or operate the electronic park brake before depressing the

brake pedal.





Repeatedly depress the brake pedal until brake pressure is evident.









www.





Brake Pads (70.40.03) – Armoured

Removal

 WARNING: BRAKE DUST, IF INHALED CAN DAMAGE YOUR HEALTH. ALWAYS REMOVE BRAKE DUST USING A

VACUUM BRUSH. DO NOT USE A COMPRESSED-AIR LINE TO DISPERSE BRAKE DUST INTO THE ATMOSPHERE.
Failure to follow this instruction may result in personal injury.



 CAUTION: Brake pads must always be replaced in axle sets. Failure to follow this instruction may result in damage

to the vehicle.



 CAUTION: The brake caliper is aligned / centralized to the brake disc when the vehicle is built. The vehicle may

have shims fitted between the brake caliper anchor plate and the wheel knuckle. Care must be taken not to disturb this
alignment. When removing caliper; remove only the bolts that secure the brake caliper to the brake caliper anchor plate.
DO NOT loosen any other caliper bolts. This alignment / centralization MUST be checked / set when the wheel knuckle is
replaced. Failure to follow this instruction may result in damage to the vehicle.





1 . Remove both rear wheel and tires.

For additional information, refer to





2
.

 CAUTION: Remove brake fluid spillage immediately from paint work, with clean water. Failure to follow

this instruction may result in damage to the vehicle.


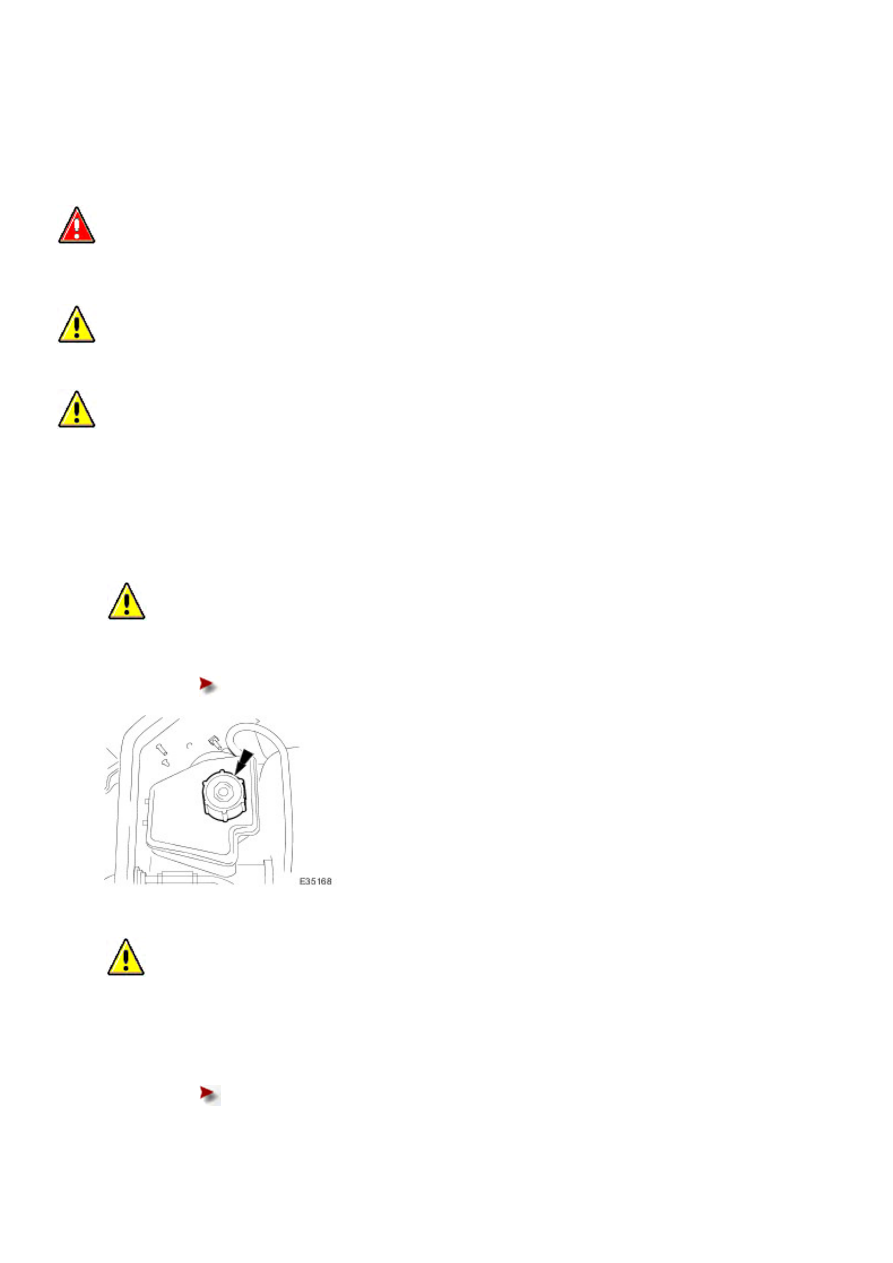

Loosen brake fluid reservoir cap.





Position a cloth around the reservoir to collect any fluid spillage.









3
.

 CAUTION: Do not allow the brake caliper to hang on the hydraulic hose, as this will damage the hose.

Failure to follow this instruction will result in damage to the hose.


NOTE:



Left-hand shown, right-hand similar.


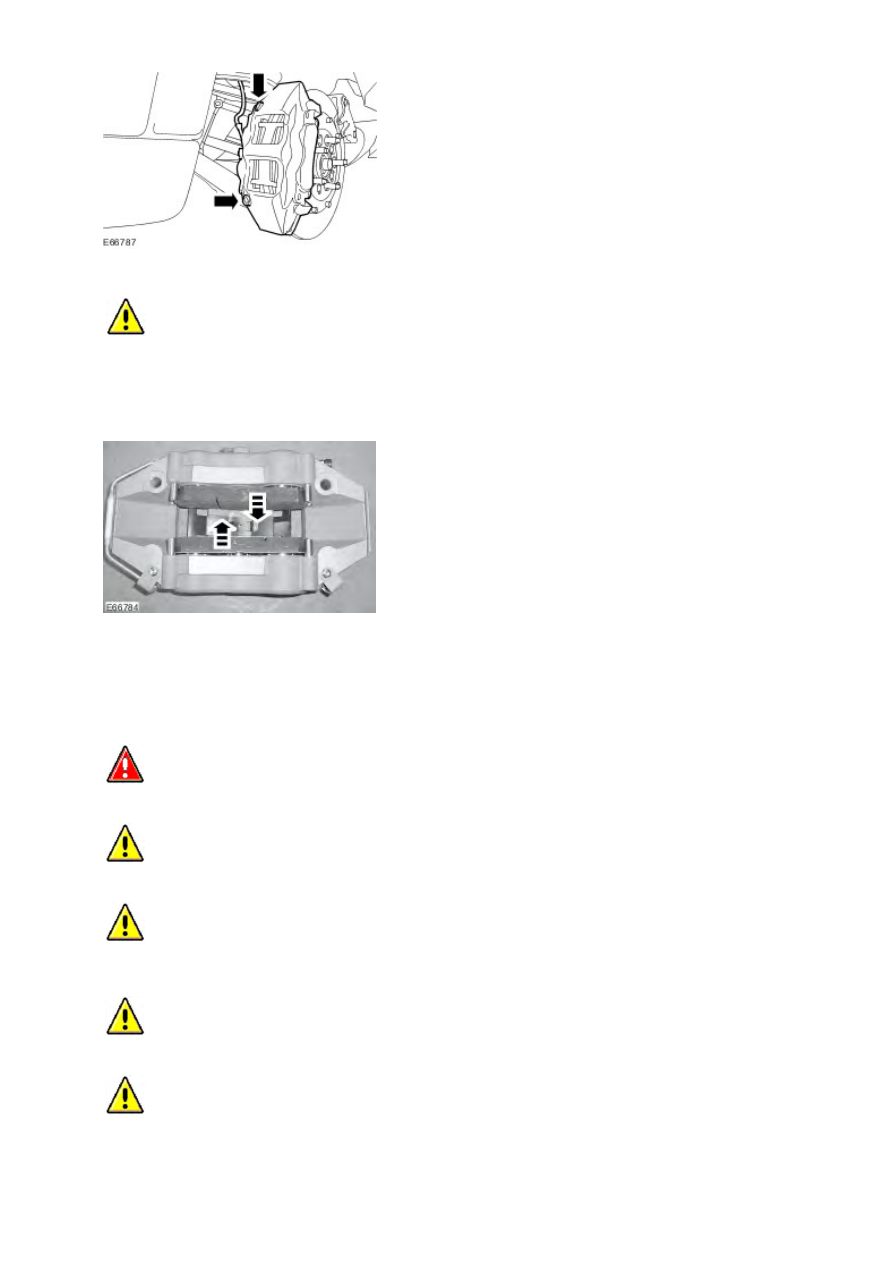

Detach the brake caliper.





Remove the brake caliper retaining bolts.

Published: Mar 12, 2014

Vehicles









4
.

 CAUTION: Do not allow the brake caliper to hang on the hydraulic hose, as this will damage the hose.

Failure to follow this instruction will result in damage to the hose.


NOTE:



Left-hand shown, right-hand similar.


Remove the brake pads from the brake caliper.






Installation



1
.

 WARNING: Do not use compressed air to disperse brake dust into the atmosphere. Failure to follow this

instruction may result in personal injury.



 CAUTION: Make sure that the anti-rattle spring is correctly installed. Failure to follow this instruction may

result in damage to the vehicle.

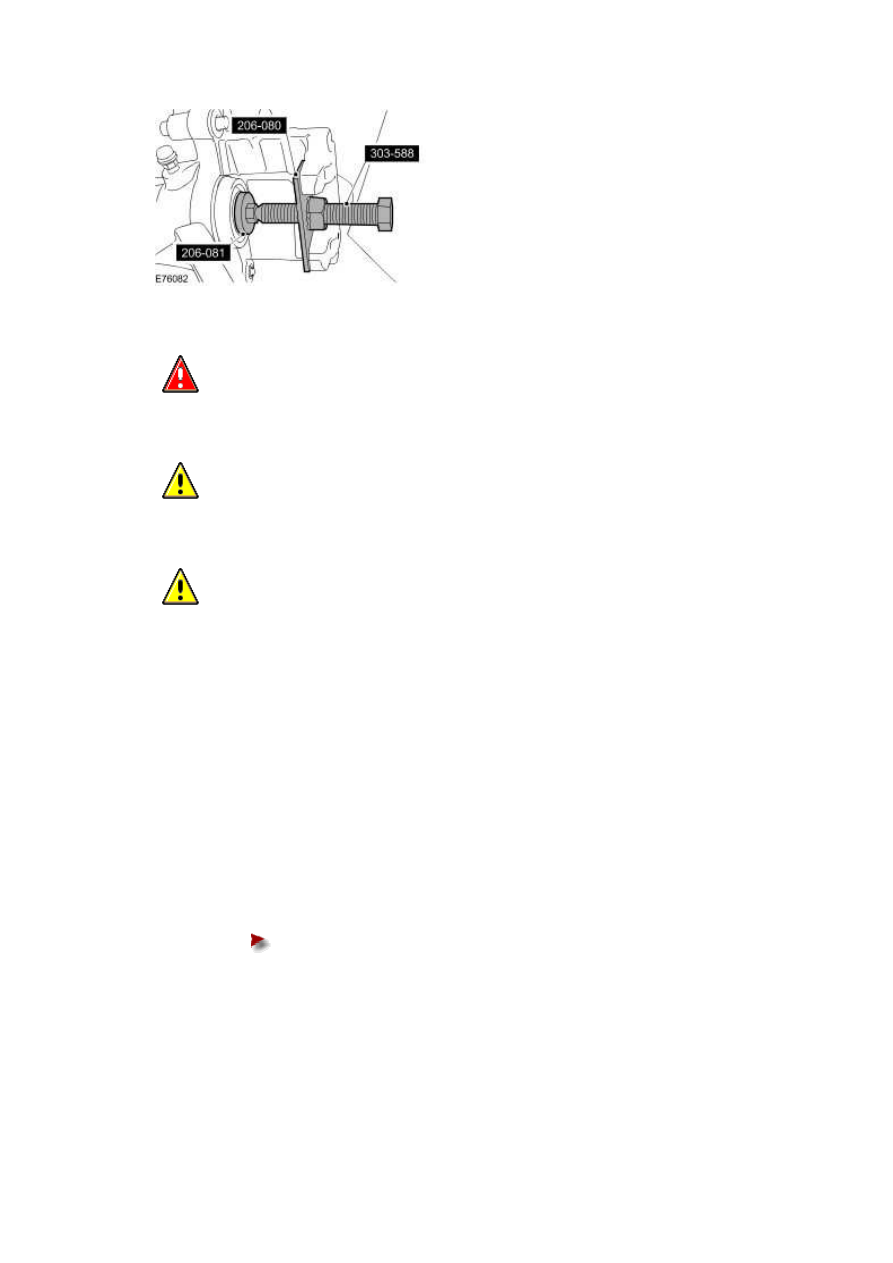

 CAUTION: If the brake caliper pistons are pushed back into the housing, brake fluid will be forced back

into the brake fluid reservoir. Remove brake fluid spillage immediately from paint work, with clean water. Failure
to follow this instruction may result in personal injury.



 CAUTION: Make sure the brake disc faces are clean before installation. Failure to follow this instruction

may result in damage to the vehicle.



 CAUTION: Brake pads must always be replaced in axle sets. Failure to follow this instruction may result in

damage to the vehicle.


NOTE:



Left-hand shown, right-hand similar.
