8D–6

WIRING SYSTEM

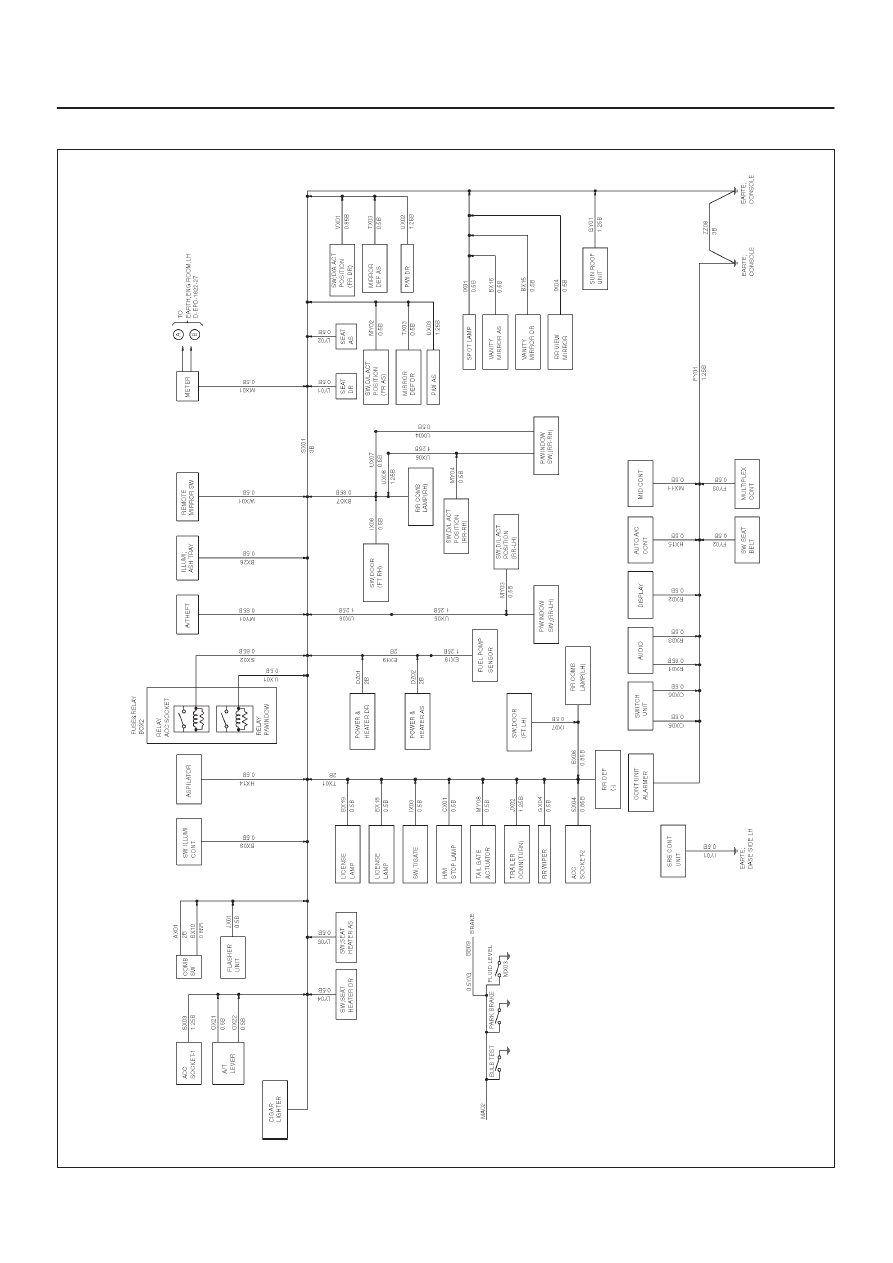

Ground Location (Engine Room)

D08R200015

8D–7

WIRING SYSTEM

Ground Location (Cabin)

D08R200016

8D–8

WIRING SYSTEM

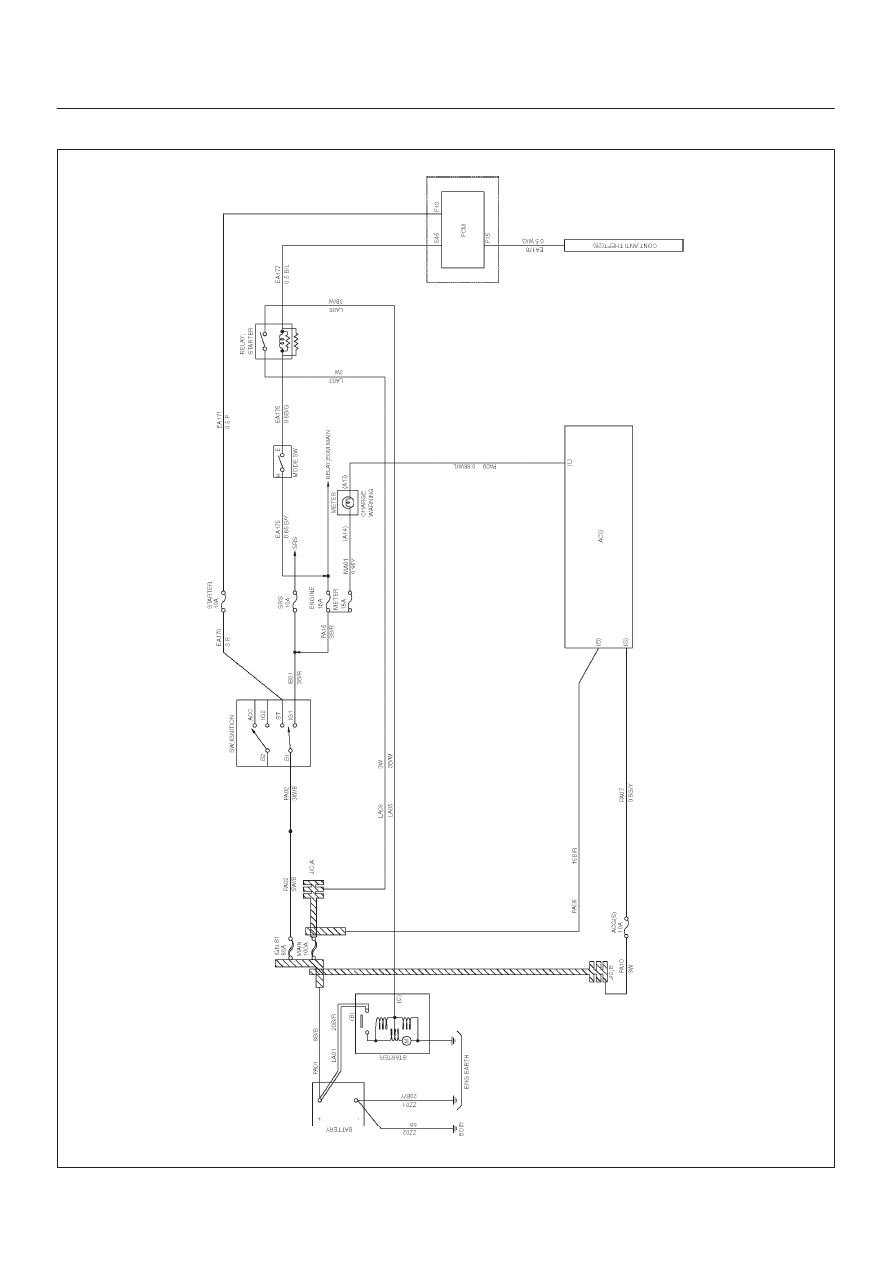

Starter and Generator

D08R200019

8D–9

WIRING SYSTEM

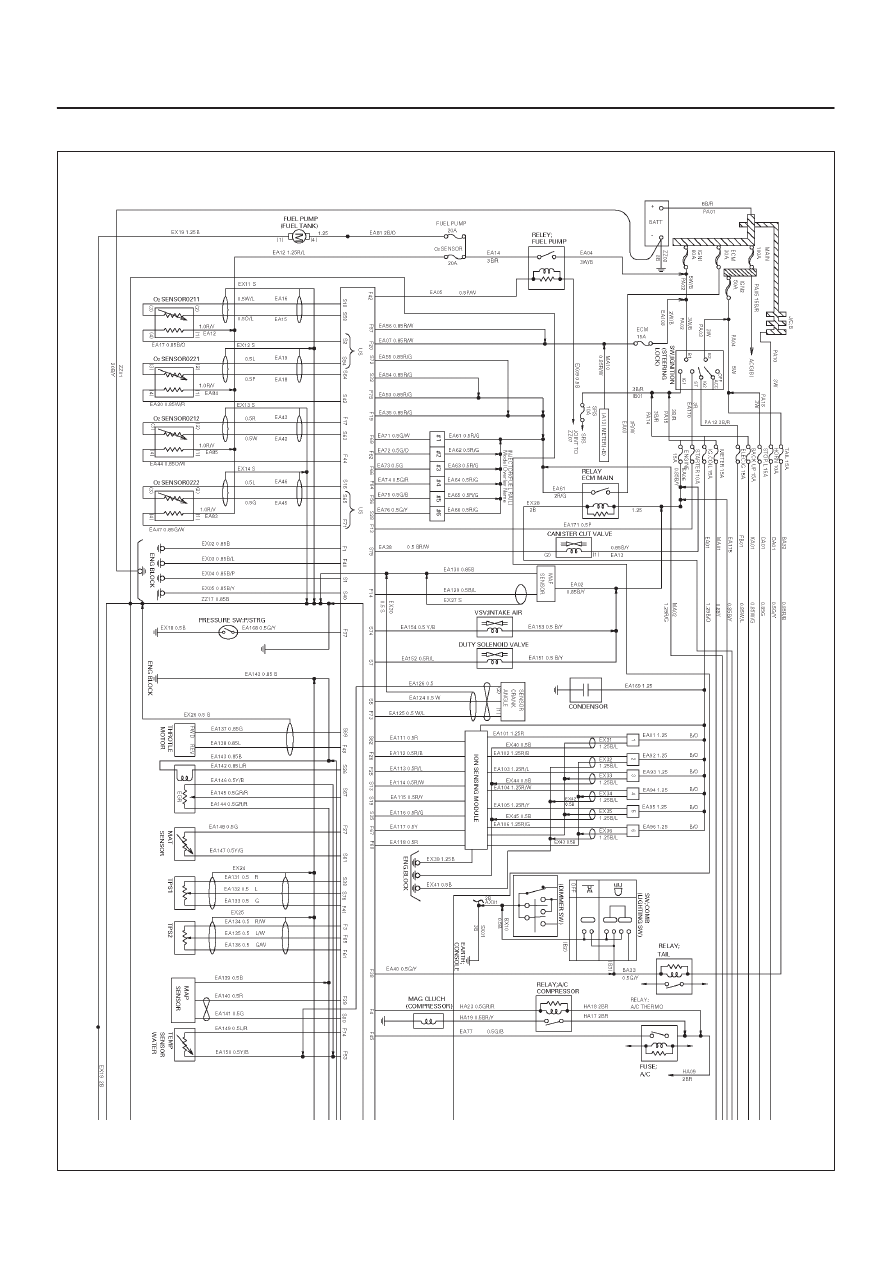

PCM–1

D08R200038
