8D–2

WIRING SYSTEM

Fuse, Relay and Diode

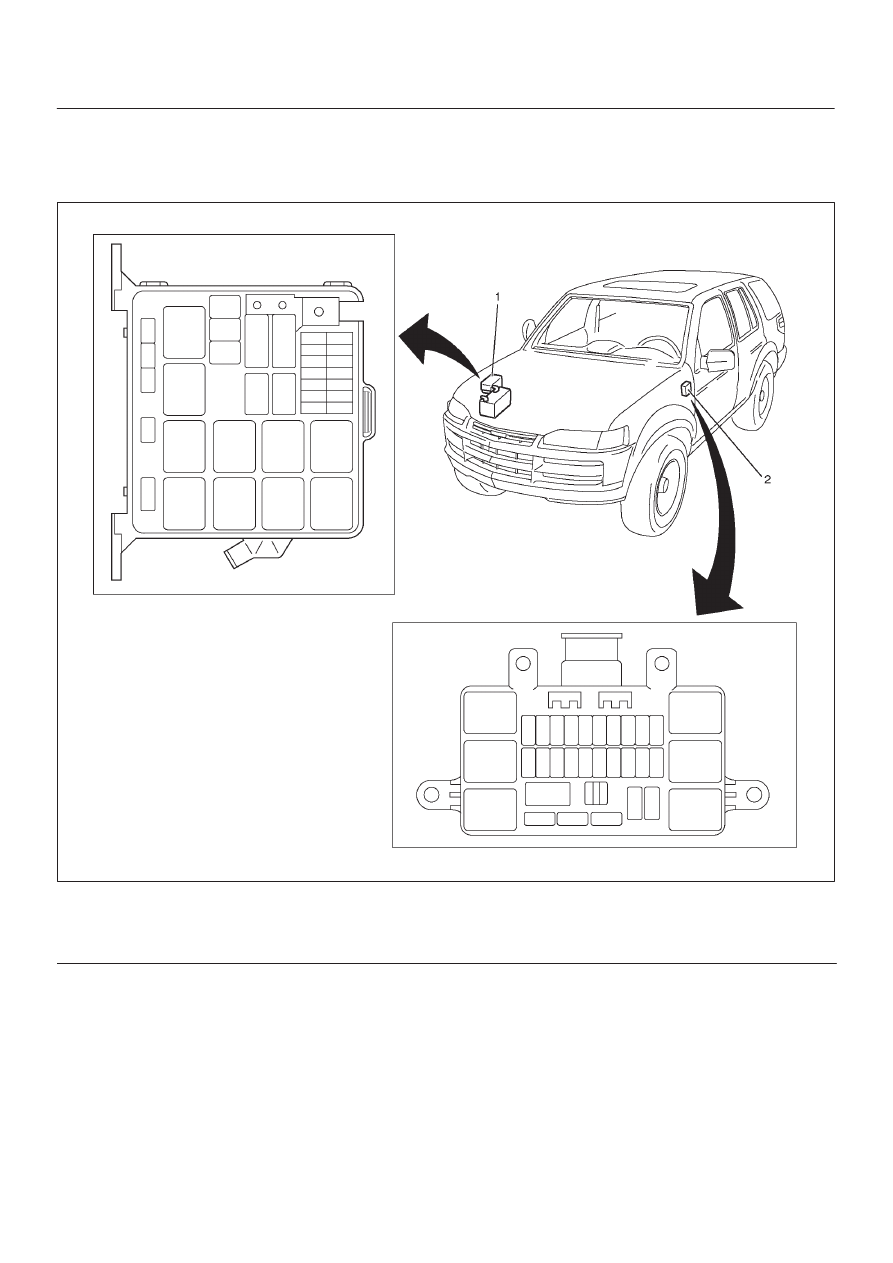

Relay / Fuse Box Location

810R200003

Legend

(1) Relay/Fuse Box (Engine Room)
(2) Relay/Fuse Box (Instrument Panel)

8D–3

WIRING SYSTEM

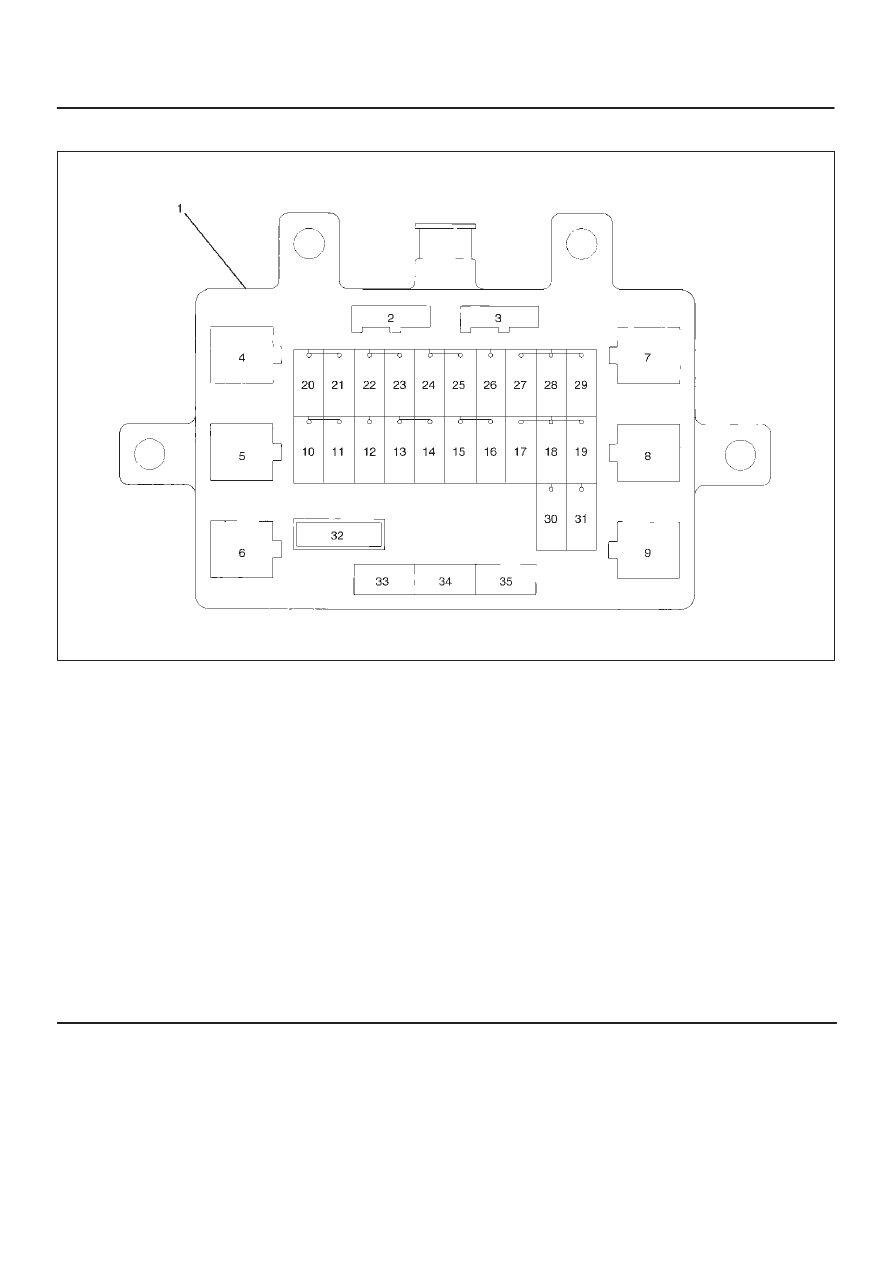

Relay / Fuse Box (Instrument Panel)

D08RY00529

Legend

(1) Fuse/Relay Box
(2) Diode
(3) Diode
(4) Tail Relay
(5) Not Used
(6) ACC Socket Relay
(7) Power Window Relay
(8) Not Used
(9) Rear Defogger Relay

(10) Fuse ACC Socket (15A)

(11) Fuse Audio (+B) (15A)

(12) Fuse Starter (10A)
(13) Fuse Tail (15A)
(14) Fuse Room Lamp (10A)
(15) Fuse Stop Lamp (15A)
(16) Fuse Door Lock (20A)
(17) Fuse Mirror Defogger (10A)

(18) Fuse Rear Defogger (15A)
(19) Fuse Rear Defogger (15A)
(20) Fuse Meter (15A)
(21) Fuse ENG. (15A)
(22) Fuse IG. Coil (15A)
(23) Fuse Back Up (15A)
(24) Fuse ELEC. IG. (15A)
(25) Fuse RR Wiper (10A)
(26) Fuse FRT Wiper (20A)
(27) Fuse Audio (ACC) (10A)
(28) Fuse Cigar Lighter (15A)
(29) Fuse Anti-theft (10A)
(30) Fuse SRS (10A)
(31) Fuse (Not Used)
(32) Circuit Breaker Power Window (30A)
(33) Spare Fuse (20A)
(34) Spare Fuse (15A)
(35) Spare Fuse (10A)

8D–4

WIRING SYSTEM

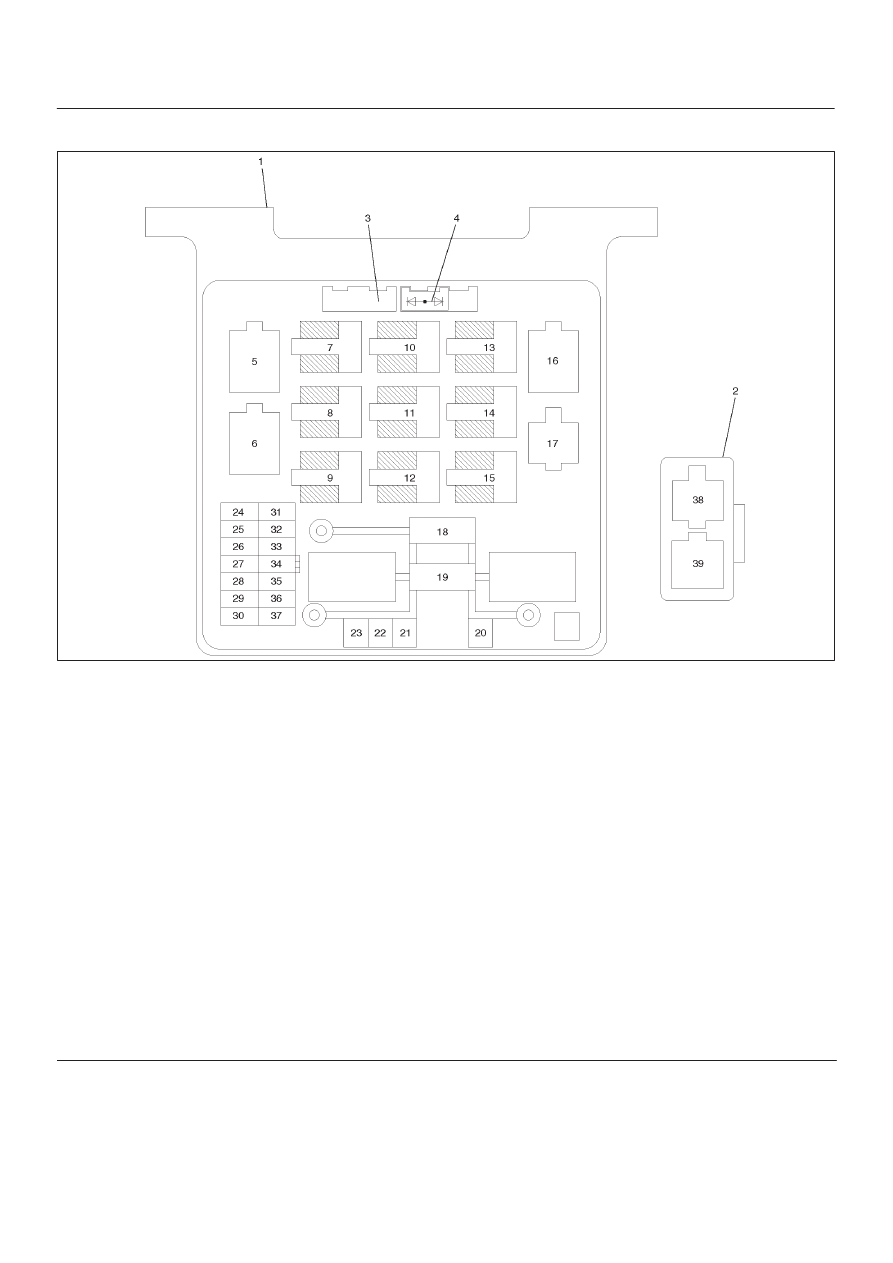

Relay / Fuse Box (Engine Room)

D08R200046

Legend

(1) Fuse/Relay Box
(2) Option Box
(3) Diode (Not Used)
(4) Diode
(5) Heater Relay
(6) A/C Compressor Relay
(7) Headlamp Relay RH
(8) Not Used
(9) Fog Lamp Relay

(10) Not Used

(11) Not Used

(12) Thermo Relay
(13) Headlamp Relay LH
(14) Starter Relay
(15) ECM Main
(16) Fuel Pump Relay
(17) Not Used
(18) IG.1 (+B.1 60A)
(19) Main (100A)

(20) ECM (30A)
(21) ABS (50A)
(22) IG.2 (+B.2 50A)
(23) Condenser Fan (30A)
(24) Hazard (15A)
(25) Horn (10A)
(26) ACG–S (10A)
(27) Seat Heater (15A)
(28) Blower (15A)
(29) Blower (15A)
(30) A/C (10A)
(31) Headlamp–LH (20A)
(32) Headlamp–RH (20A)
(33) Fog Lamp (15A)
(34) O

2

 Sensor (20A)

(35) Fuel Pump (20A)
(36) ECM (15A)
(37) TOD (15A)
(38) Intelligent Suspension Relay (30A)
(39) Condenser Fan Relay

8D–5

WIRING SYSTEM

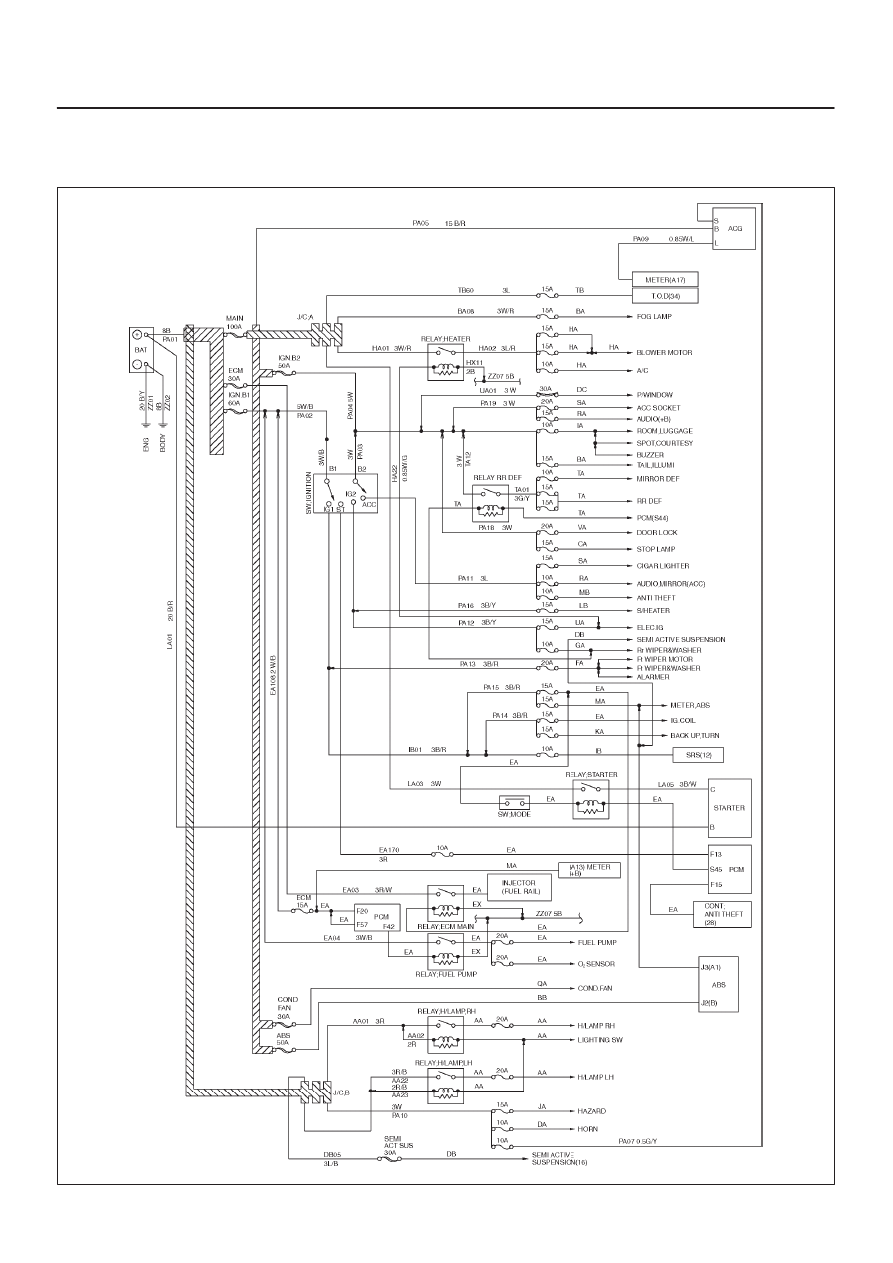

Circuit Diagram

Fuse Block Circuit

D08R200017
