5A–28

BRAKE CONTROL SYSTEM

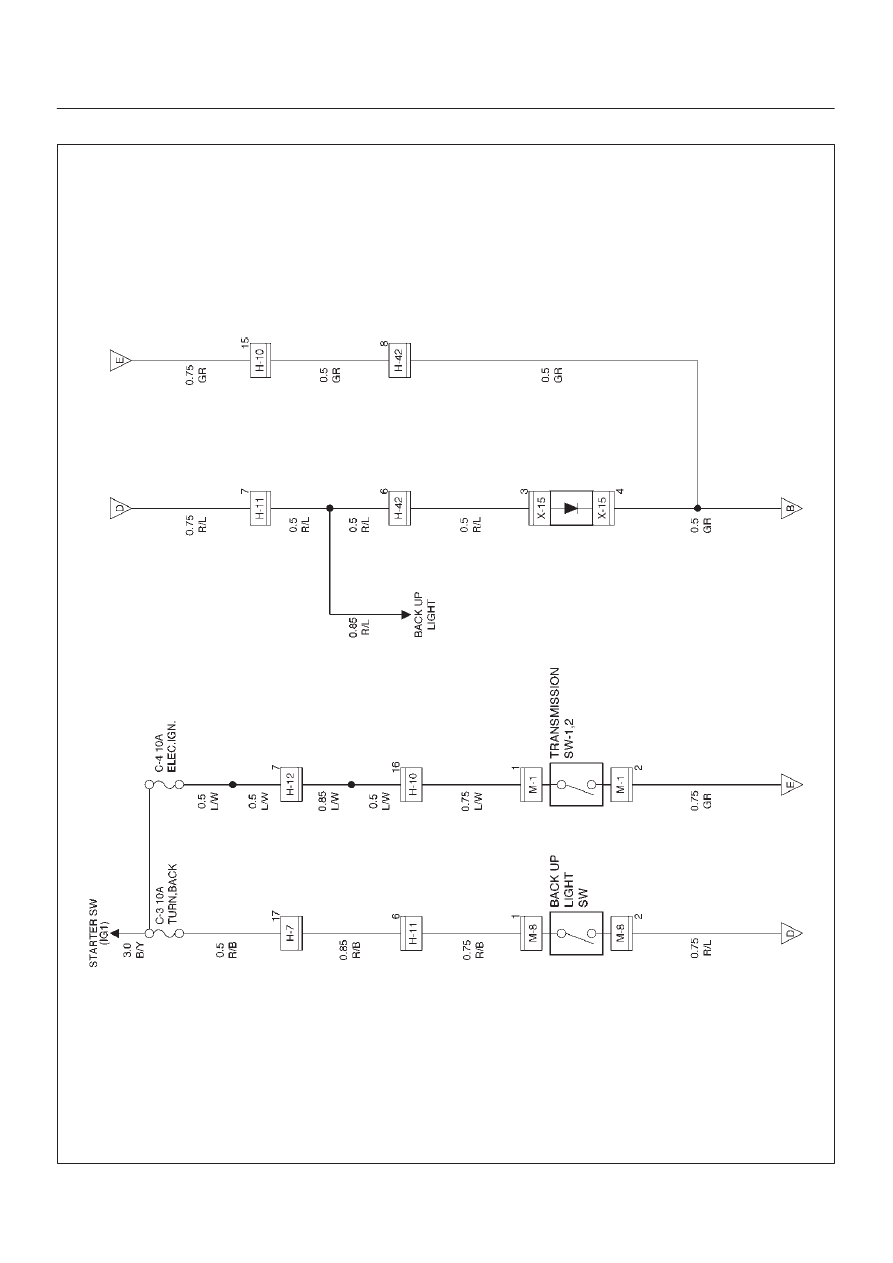

Circuit Diagram (RHD model / 4JX1)

D08RW602

5A–29

BRAKE CONTROL SYSTEM

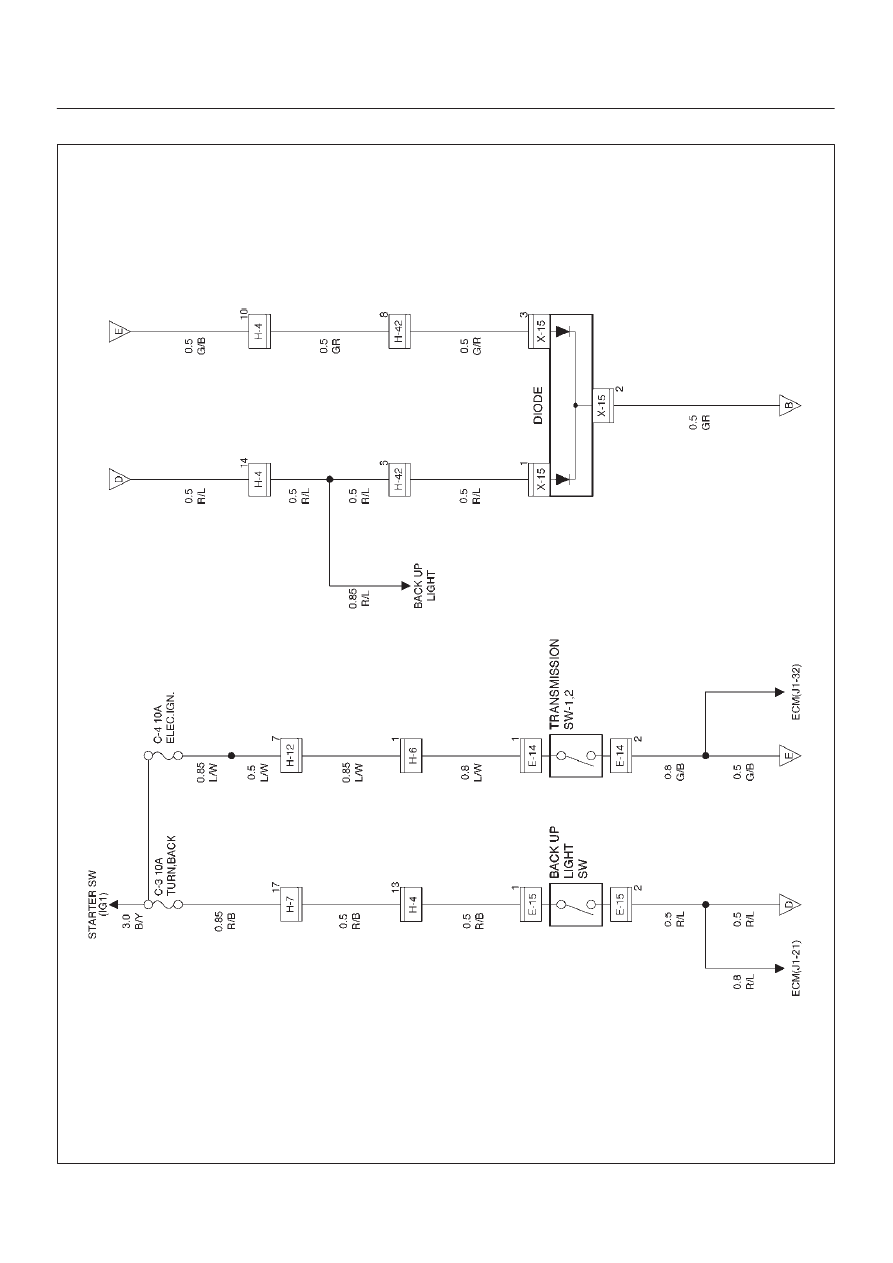

Circuit Diagram (RHD model / 6VE1)

D08RW604

5A–30

BRAKE CONTROL SYSTEM

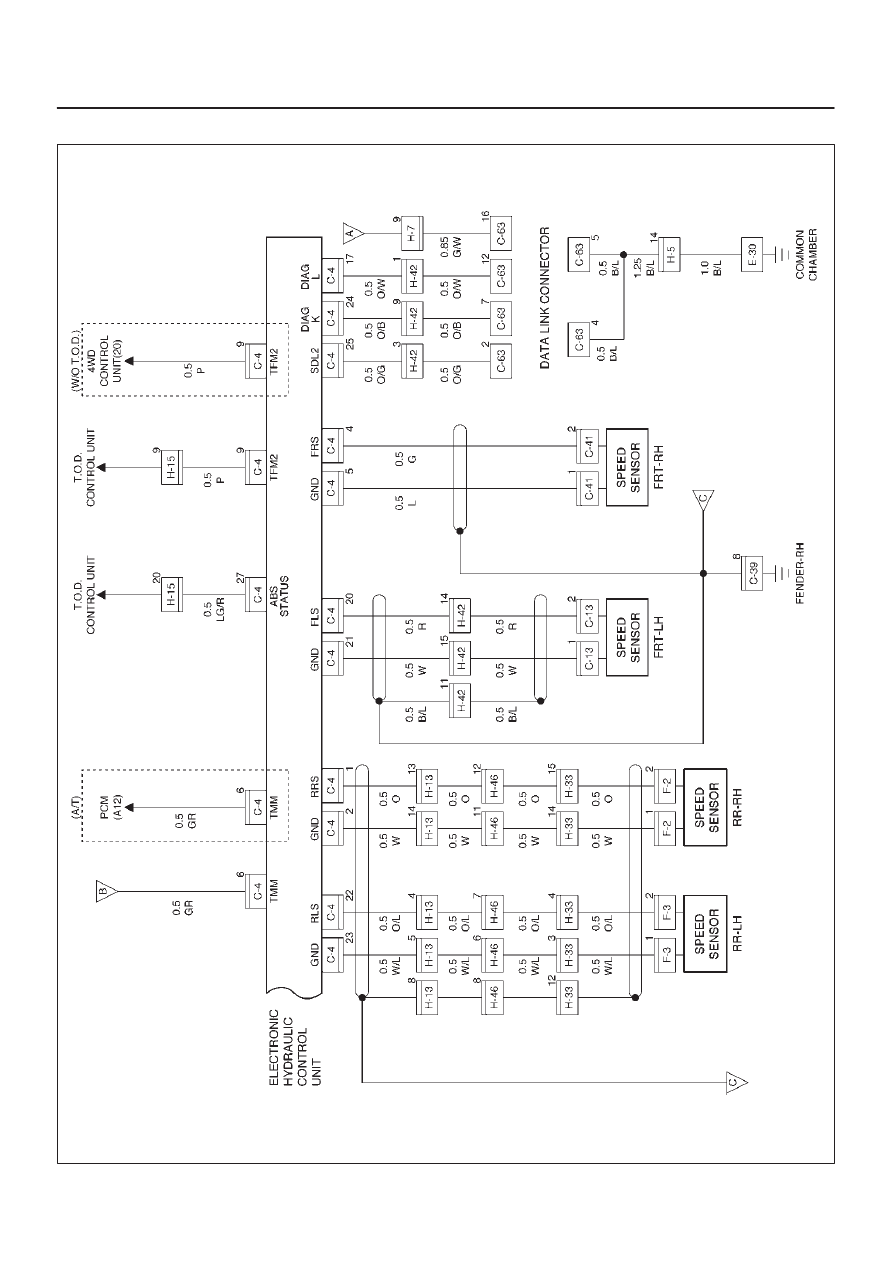

Circuit Diagram (RHD model / 6VE1)

D08RW603

5A–31

BRAKE CONTROL SYSTEM

Connector List (RHD model)
