Isuzu Trooper (1998-2002 year). Service manual - part 201





5A–24

BRAKE CONTROL SYSTEM

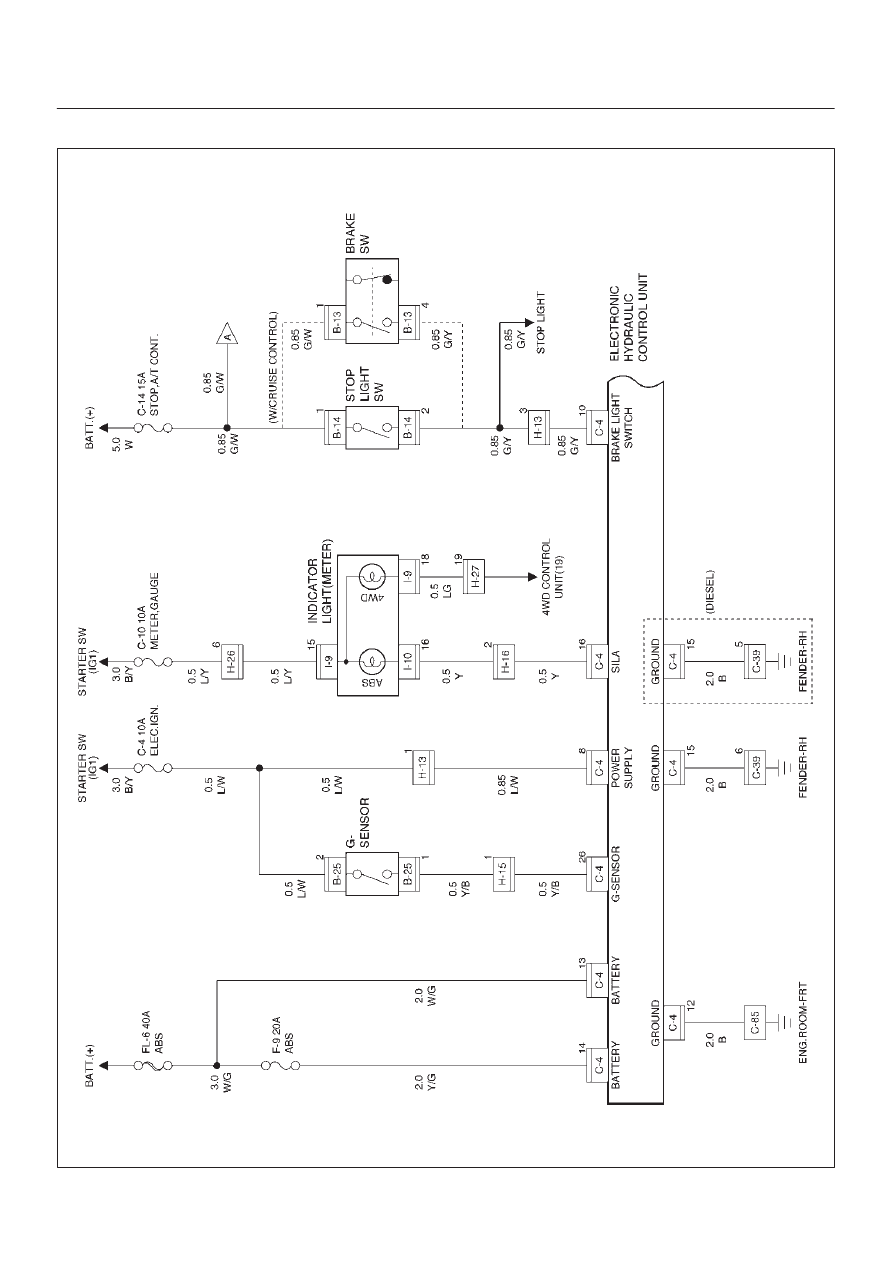

Circuit Diagram (RHD model / 6VD1)

D08RW786

5A–25

BRAKE CONTROL SYSTEM

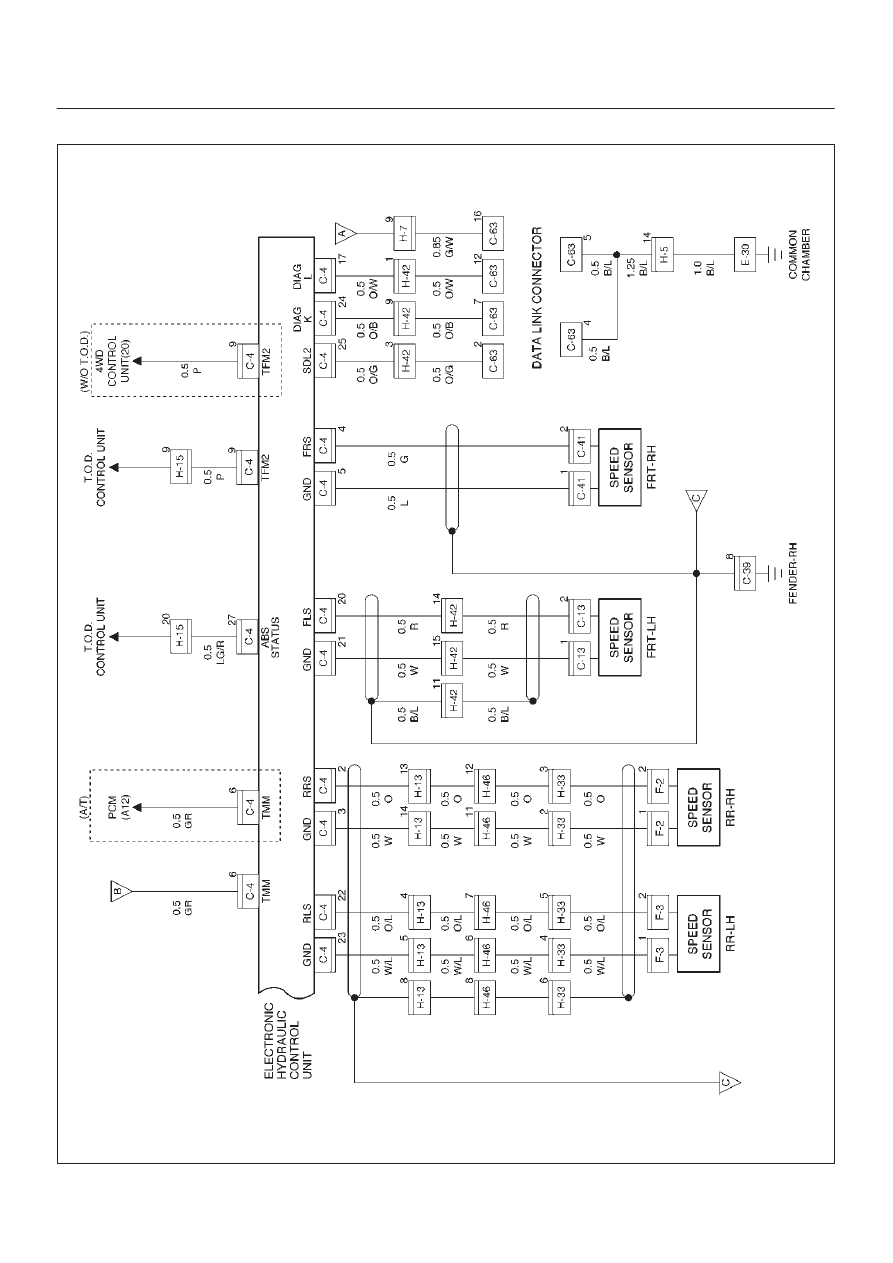

Circuit Diagram (RHD model / 6VD1)

D08RW827

5A–26

BRAKE CONTROL SYSTEM

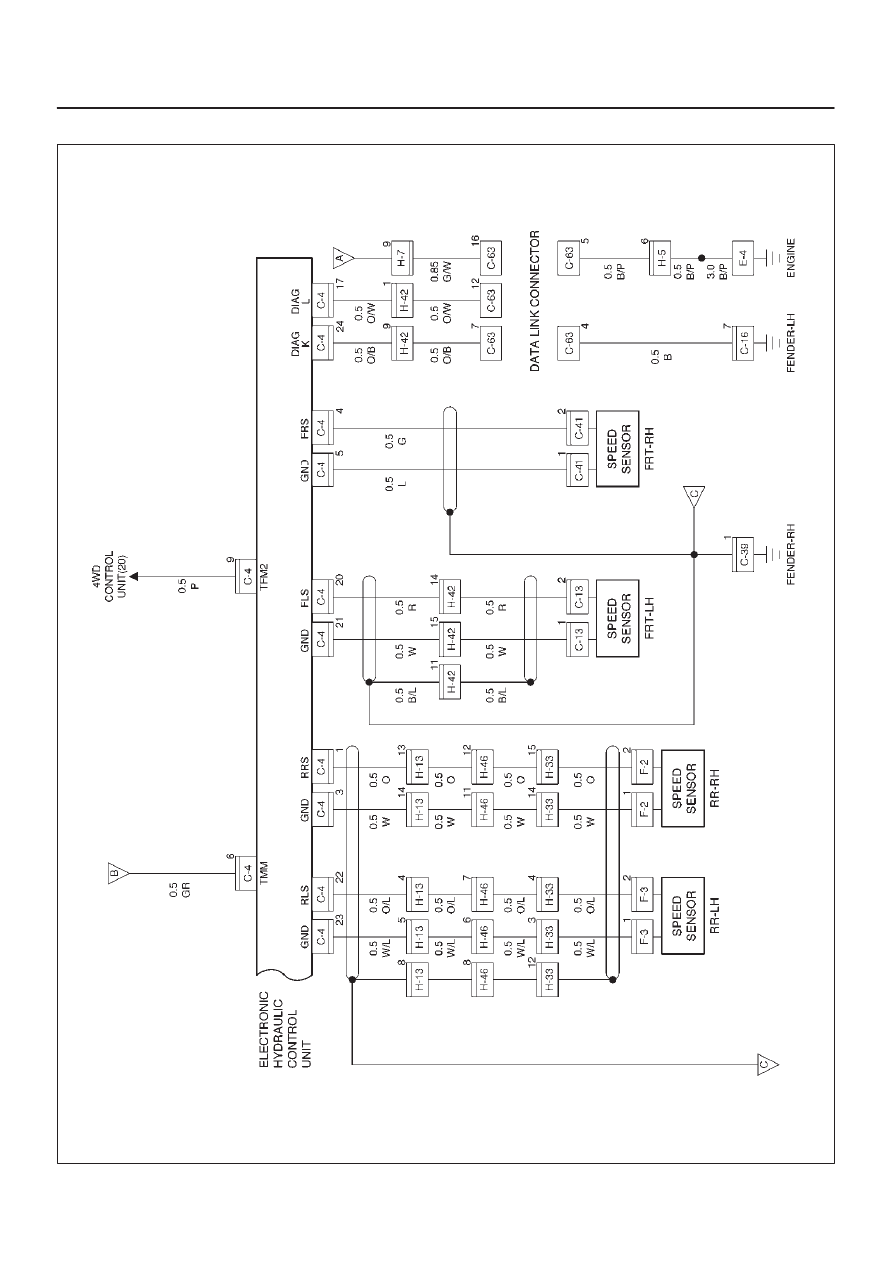

Circuit Diagram (RHD model / 6VE1 and 4JX1)

D08RW601

5A–27

BRAKE CONTROL SYSTEM

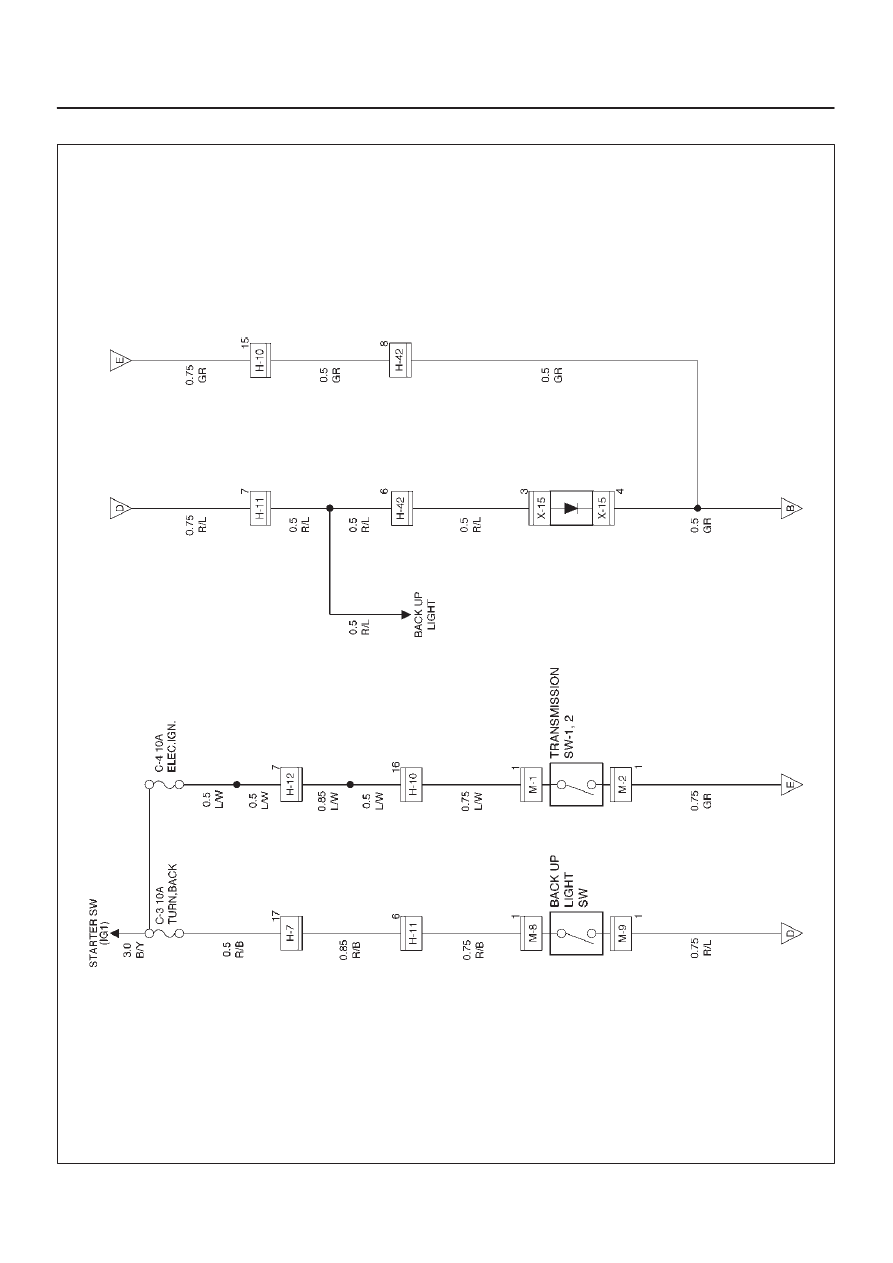

Circuit Diagram (RHD model / 4JX1)

D08RW600
