8D–40

WIRING SYSTEM

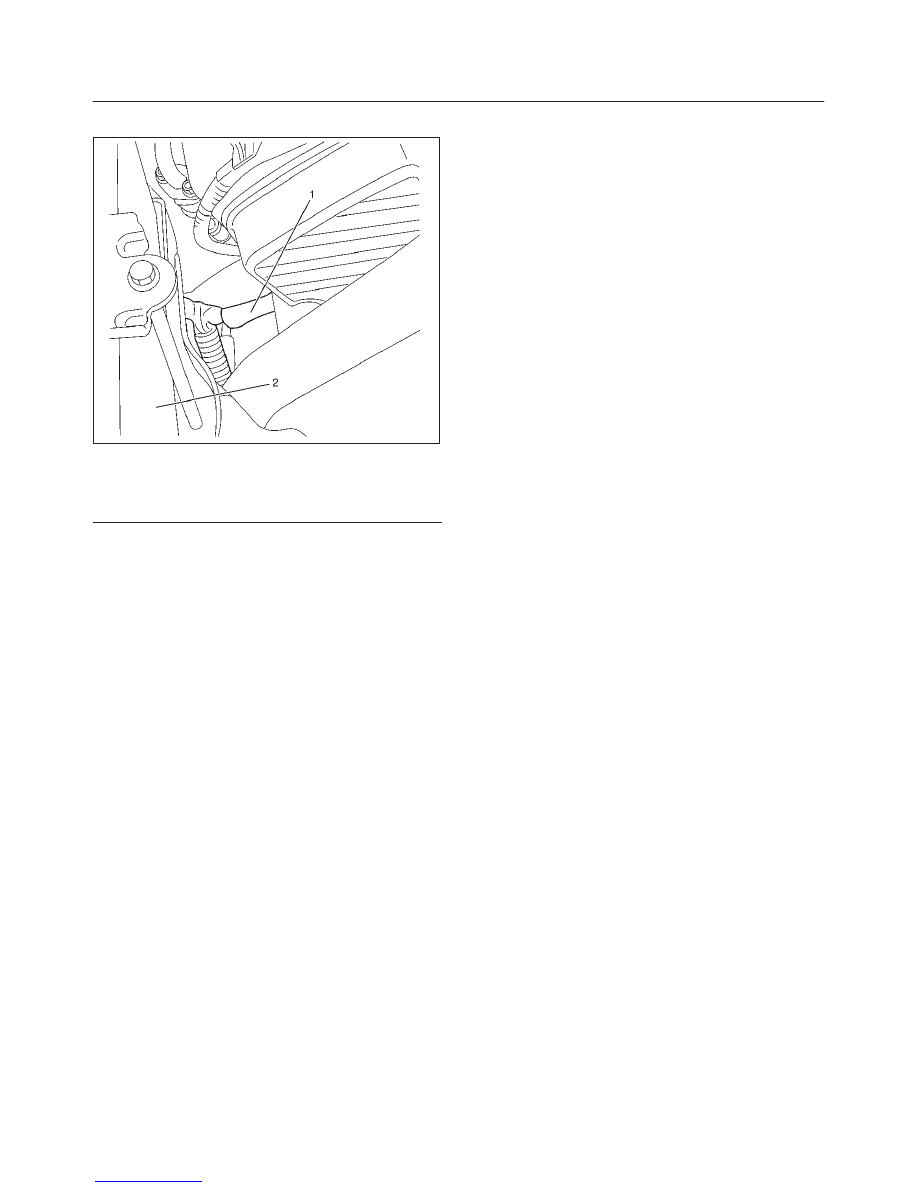

Location – 2

D08RW048

D08RX125

D08RW049

Legend

(1) E–28
(2) I–43

(3) H–32
(4) P–7
(5) Frame

8D–41

WIRING SYSTEM

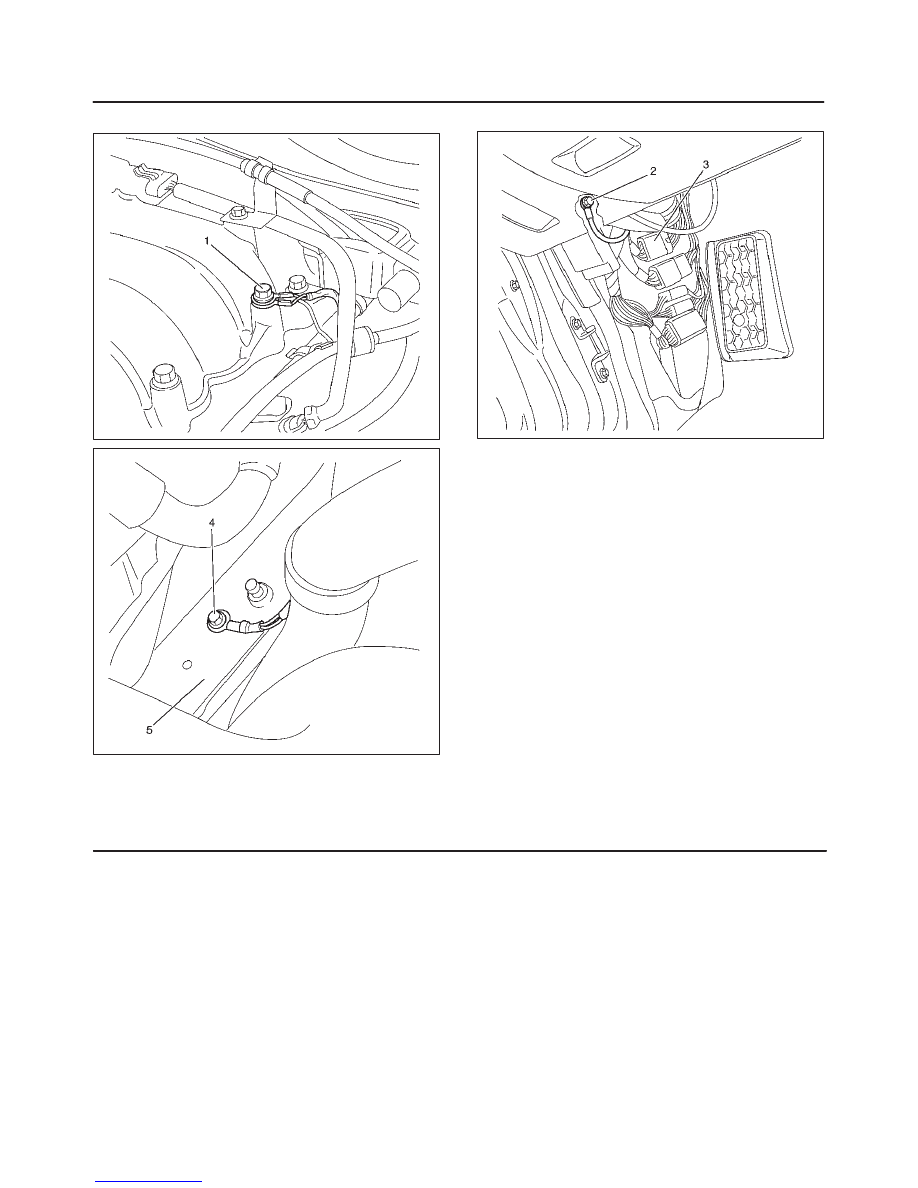

Location – 3

D08RW051

Legend

(1) P–10
(2) Battery

8D–42

WIRING SYSTEM

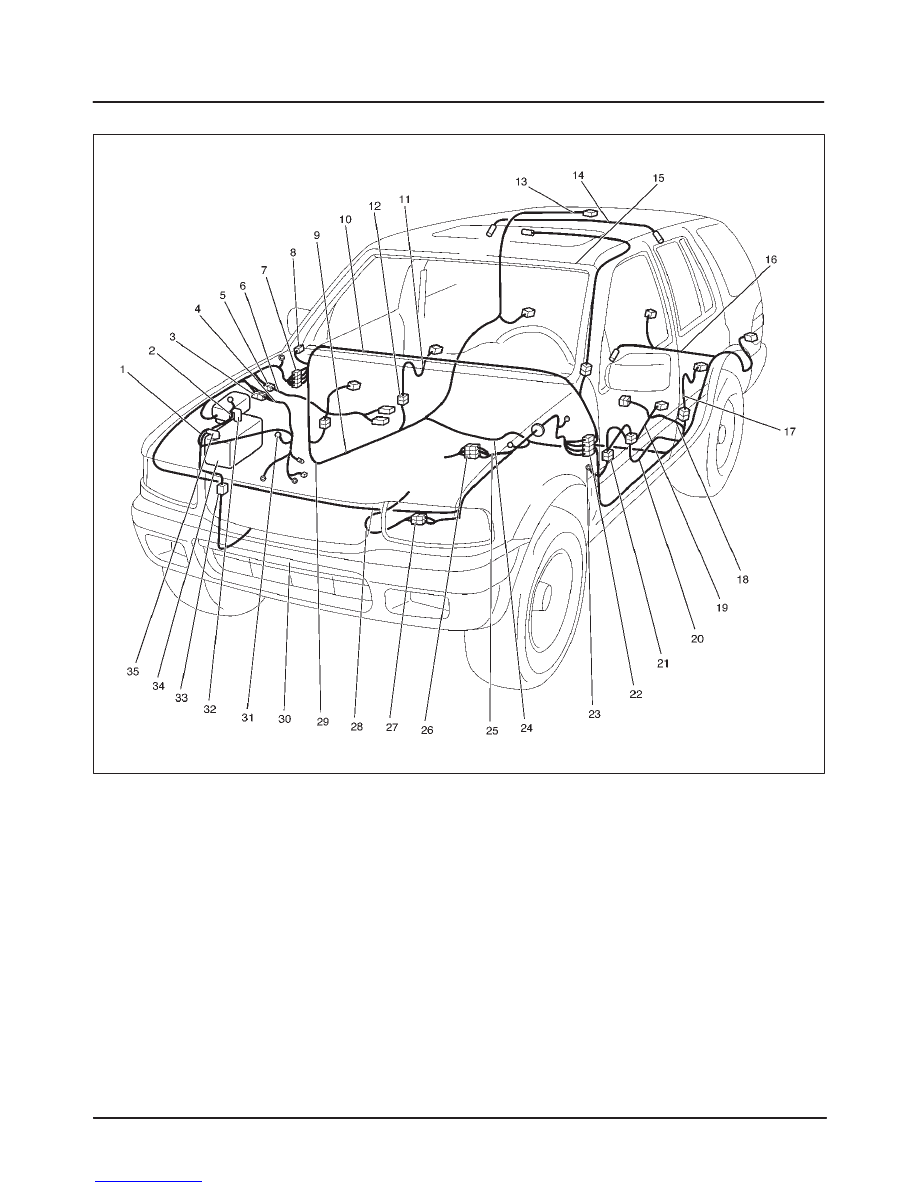

Cable Harness Routing

D08RX045

Legend

(1) Battery (–) Cable
(2) Battery (+) Cable
(3) H–2,  H–3
(4) Battery Cable Harness
(5) H–7,  H–8
(6) Transmission Harness (X22SE)
(7) H–12, H–19
(8) I–41,  I–42
(9) Body Harness

(10)  Instrument Harness

(11) Door Harness (RR RH)

(12) H–29
(13) H–20, H–21, H–22, H–34
(14) Hatch Glass Harness
(15) Roof Harness
(16) Tail Gate Harness
(17) Door Harness (RR LH)

(18) Ext. Anti–Lock Blake Harness
(19) Door Harness (FRT LH)
(20) Chassis Harness
(21) H–30
(22) H–15, H–31, H–32
(23) C–16
(24) Body Harness
(25) Engine Harness
(26) H–4, H–5, H–6
(27) H–9, H–10, H–11
(28) Transmission Harness (6VD1)
(29) C–36
(30) Engine Room Harness
(31) P–6
(32) P–1
(33) H–1
(34) Battery
(35) P–5

8D–43

WIRING SYSTEM

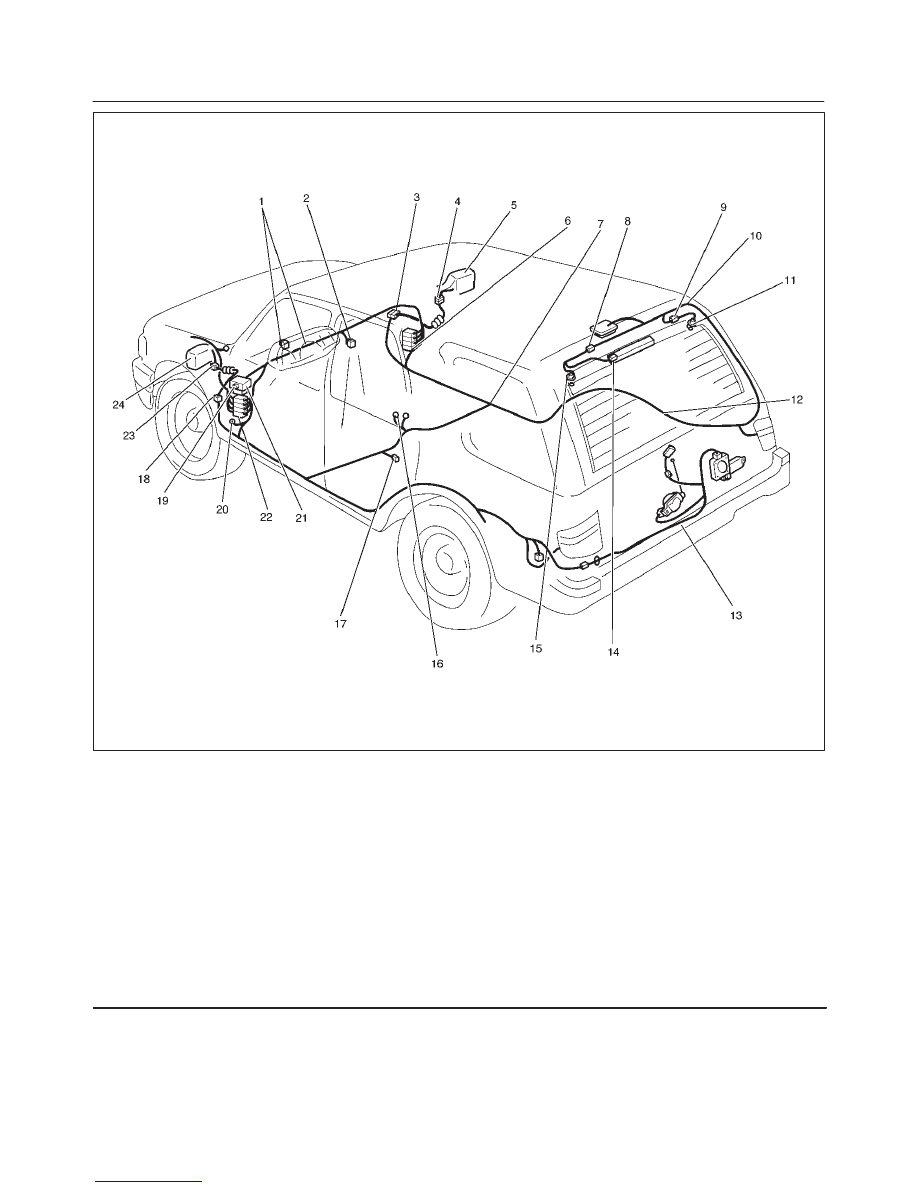

D08RX046

Legend

(1) Instrument Harness
(2) I–17
(3) H–33
(4) D–12
(5) Door Mirror (RH)
(6) H–19
(7) Body Harness
(8) H–21
(9) H–20

(10) Hatch Glass Harness

(11) G–9

(12) Body Harness

(13) Tail Gate Harness
(14) G–10, G–11
(15) G–12
(16) B–8
(17) B–23
(18) H–28
(19) I–39
(20) I–46
(21) Relay & Fuse Box
(22) H–31
(23) D–3
(24) Door Mirror (LH)
