8D–32
WIRING SYSTEM

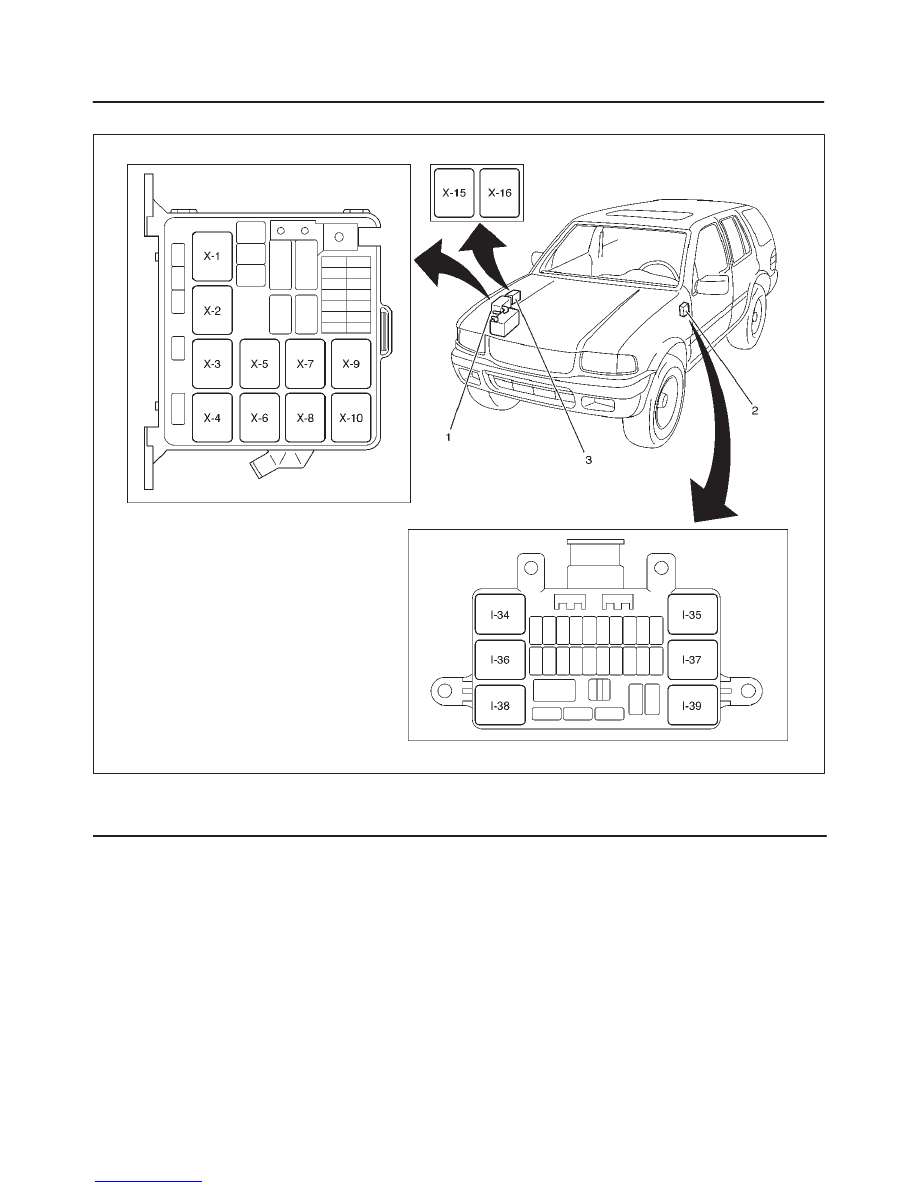

Reference Table of Fuse, Fusible Link and Circuit Breaker
Fuse (Relay and Fuse Box · Engine Room)
Fuse No.
Capacity
Indication on label
Parts (Load)
1
15A
HAZARD
Hazard warning light
2
10A
HORN
Alarm & relay control unit, Horn, Anti - theft horn
5
20A
BLOWER
Blower motor, Blower resistor
5
10A
A/C
A/C thermostat relay, Electronic thermostat,
A/C compressor relay, Magnetic clutch
8
10A
H/L LIGHT - LH
Headlight - LH, High beam indicator light, Fog light relay
9
10A
H/L LIGHT - RH
Headlight - RH
10
15A
FOG LIGHT
Fog light
11
20A
O
2
SENSOR
Oxygen sensor
12
20A
FUEL PUMP
Fuel pump
13
15A
ECM
Engine control module
14
–
–
–
15
60A
IGN.
16
100A
MAIN
17
60A
ABS
EHCU
18
30A
COND. FAN
(6VD1) Condenser fan unit
20
30A
ELEC. FAN
(X22SE) Electric fan relay, Electric fan
Fuse (Relay & Fuse Box · Instrument Panel)
Fuse No.
Capacity
Indication on label
Parts (Load)
1
20A
ACC. SOCKET
Acc socket relay, Acc socket
2
10A
(AUDIO)
Audio
3
15A
CIGAR LIGHTER
Cigarette Lighter
4
15A
TAIL/ILLUMI. LIGHT
Tail relay, Parking light & Side marker light, Tail light Li-
cense plate light, Illumination controller, Illumination light,
A/T shift indicator control unit
5
10A
DOME LIGHT
Stop light, Dome light, Courtesy light - LH, Courtesy light
- RH, Courtesy light RR - LH, Courtesy light RR - RH,
Luggage room light, Alarm & relay control unit, Digital
clock, Audio
6
15A
STOP LIGHT
Stop light switch, Rear combination light - LH, Rear com-
bination light - RH, High mounted stop light
7
20A
(POWER DOOR
LOCK)
FRT door lock & Power window SW, Door lock actuator,
Anti- theft indicator light
8
10A
(MIRROR DEFOG)
Mirror defogger
9
15A
(REAR DEFOG)
Rear defogger
10
15A
(REAR DEFOG)
Rear defogger
11
15A
METER
Indicator and warning lights (meter), Meter gauge, Ve-
hicle speed sensor
12
15A
ENGINE IG.
Generator, ECM main relay, VSV; purge solenoid, Coil
drive, PCM, EGR valve
