6E1–7

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

DIAGRAMS AND SCHEMATICS

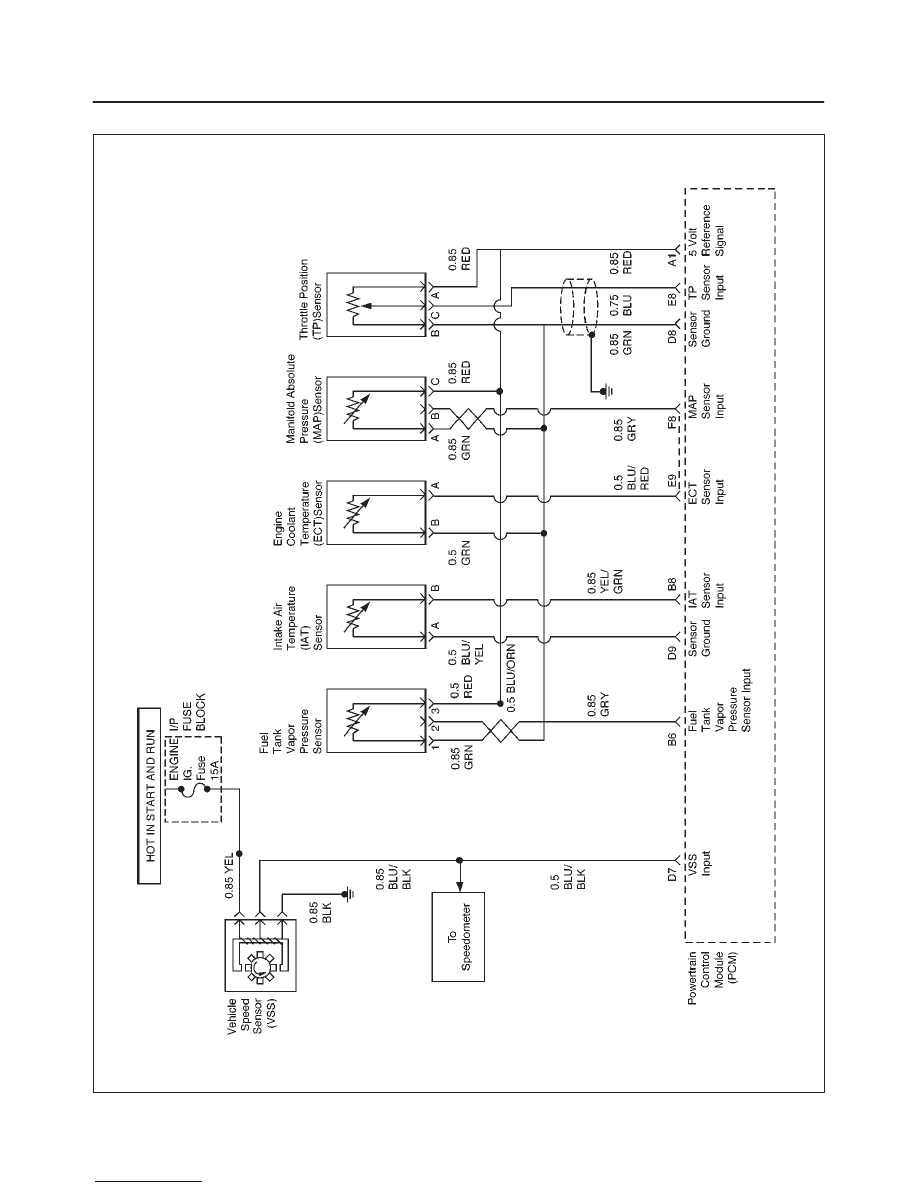

PCM WIRING DIAGRAM (1 of 10)

D06RX026

6E1–8

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

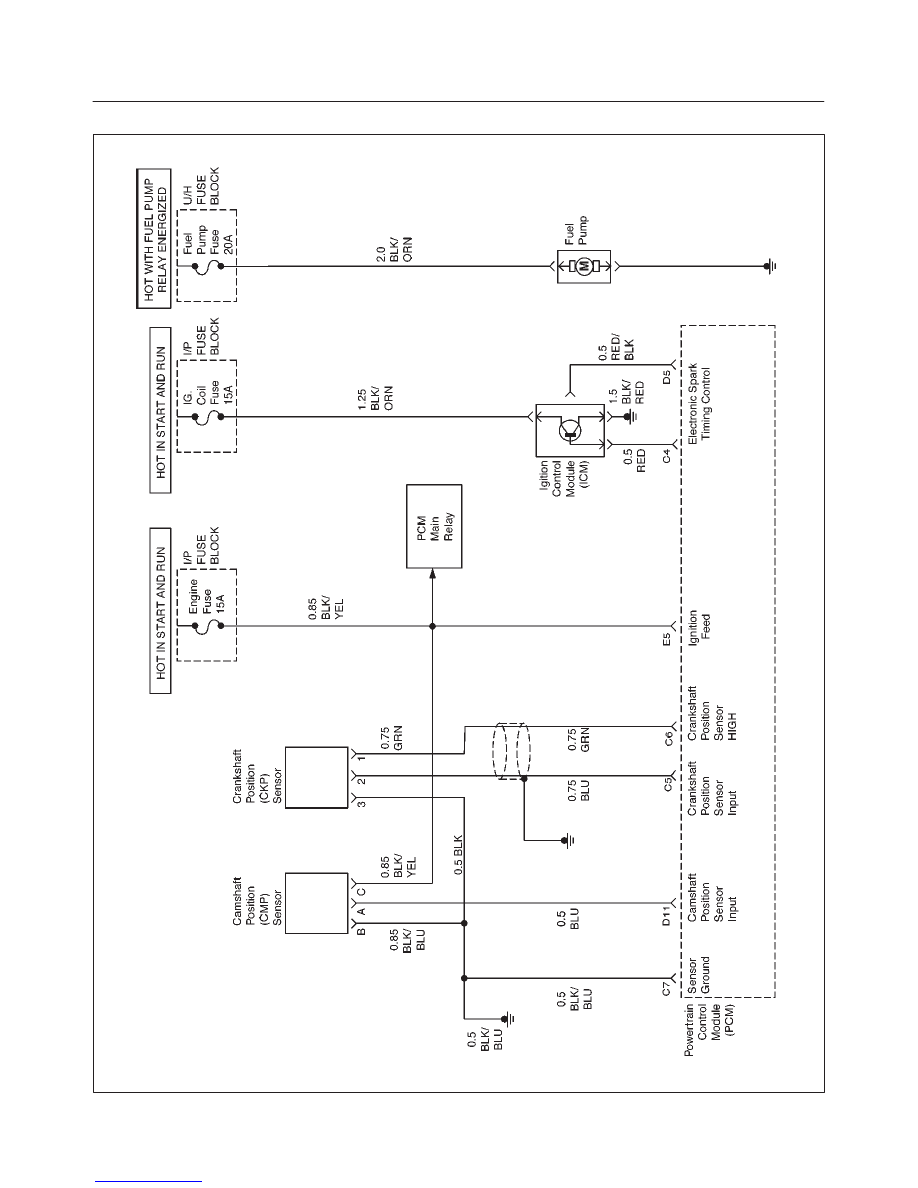

PCM WIRING DIAGRAM (2 of 10)

D06RX029

6E1–9

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

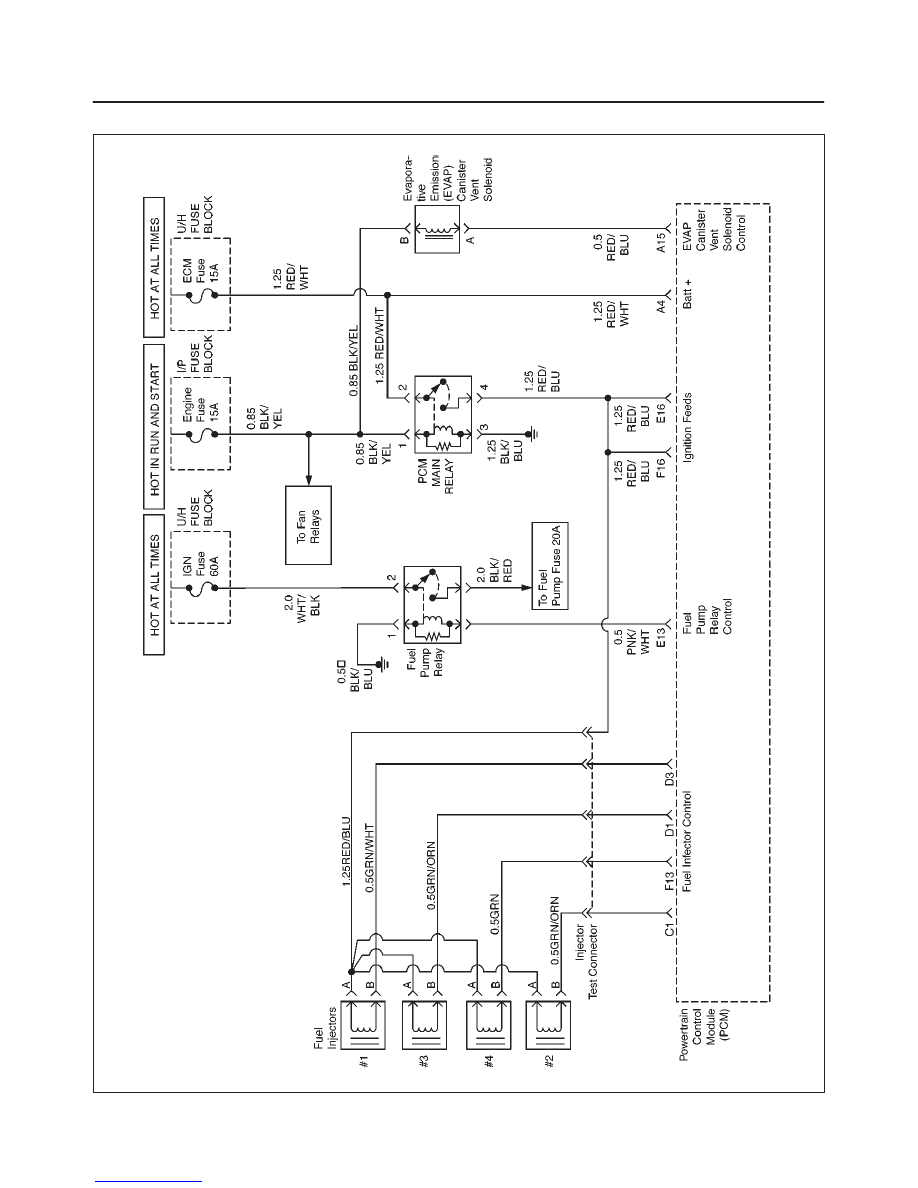

PCM WIRING DIAGRAM (3 of 10)

D06RX027

6E1–10

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

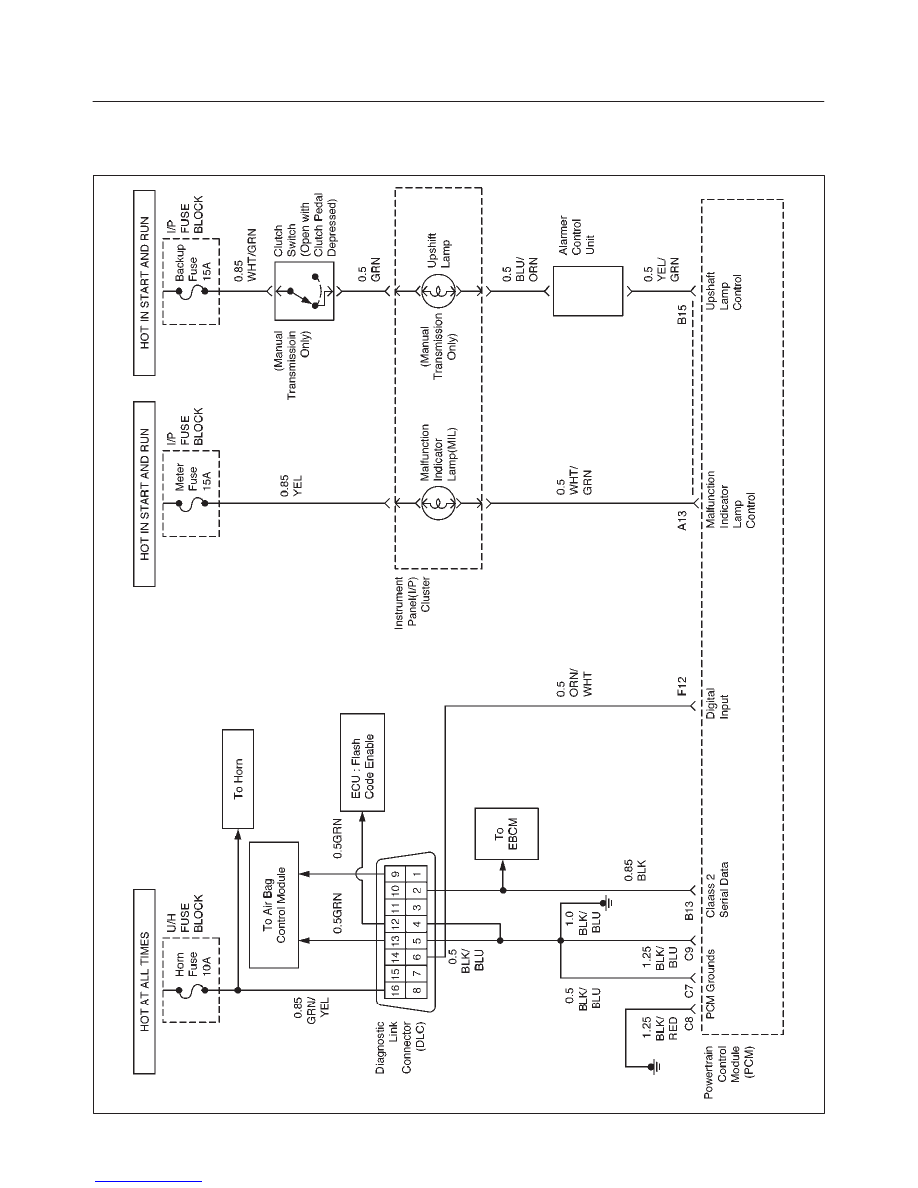

PCM WIRING DIAGRAM (4 of 10)

D06RX030
