6D3–13

STARTING AND CHARGING SYSTEM (X22SE 2.2L)

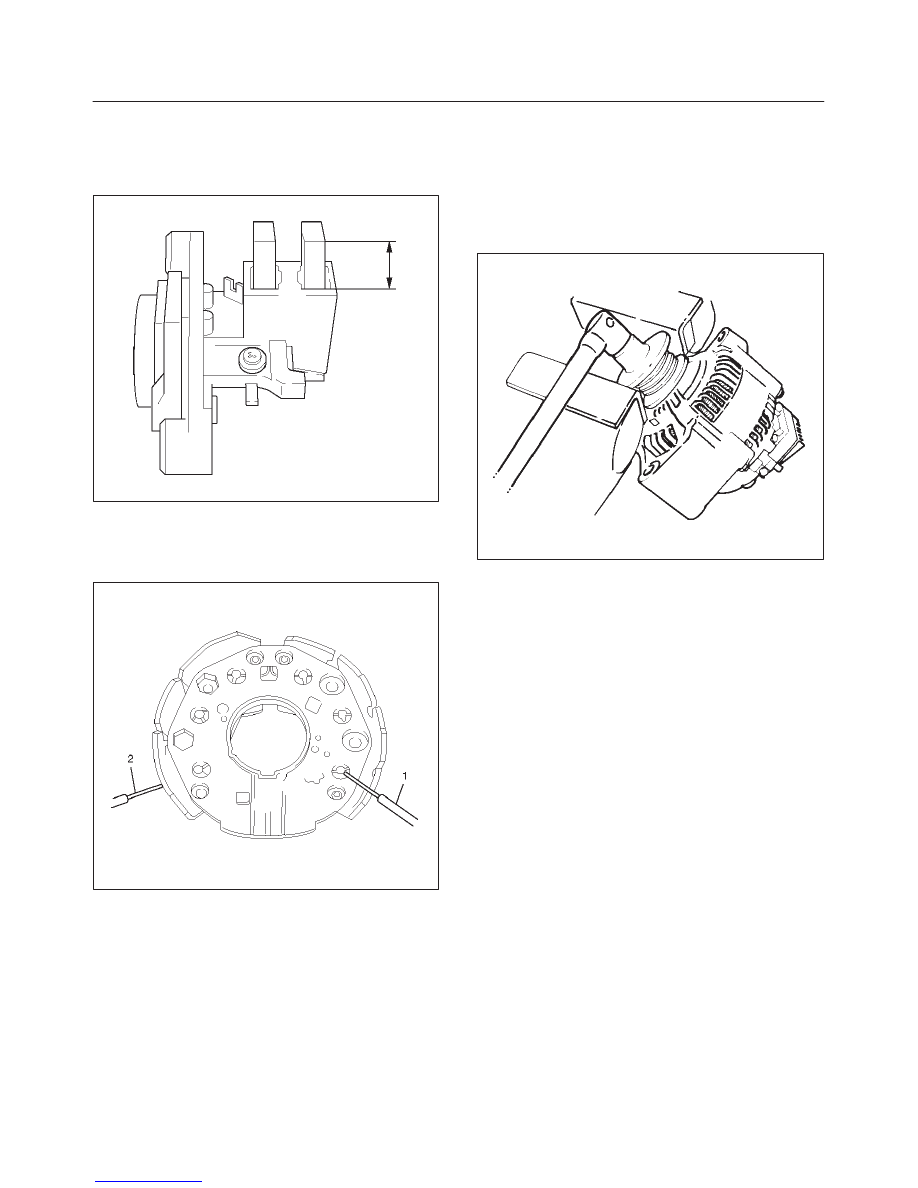

Brush

Measure the brush length.
If more than limit, replace the brush.

Standard: 5 mm (0.20 in)

066RW009

Rectifier Assembly

Check for continuity across “1” and “2” in the

×

 100W

range of multimeter.

066RW011

Change polarity, and make sure that there is continuity in
one direction, and not in the reverse direction.  In case of
continuity in both directions, replace the rectifier
assembly.

Reassembly

To reassemble, follow the disassembly steps in the
reverse order, noting the following points:

1. Install pulley on the rotor.

Clamp pulley to the vise, and tighten nut to the
specified torque.

Torque: 40 N·m (30 lb ft)

066RS010

6D3–14 STARTING AND CHARGING SYSTEM (X22SE 2.2L)

Main Data and Specifications

General Specifications

Battery voltage

V

12

Rated output

A

100

Direction of rotation

(as viewed from pulley side)

Clockwise

Maximum speed

rpm

18000
