8A-154  ELECTRICAL-BODY AND CHASSIS

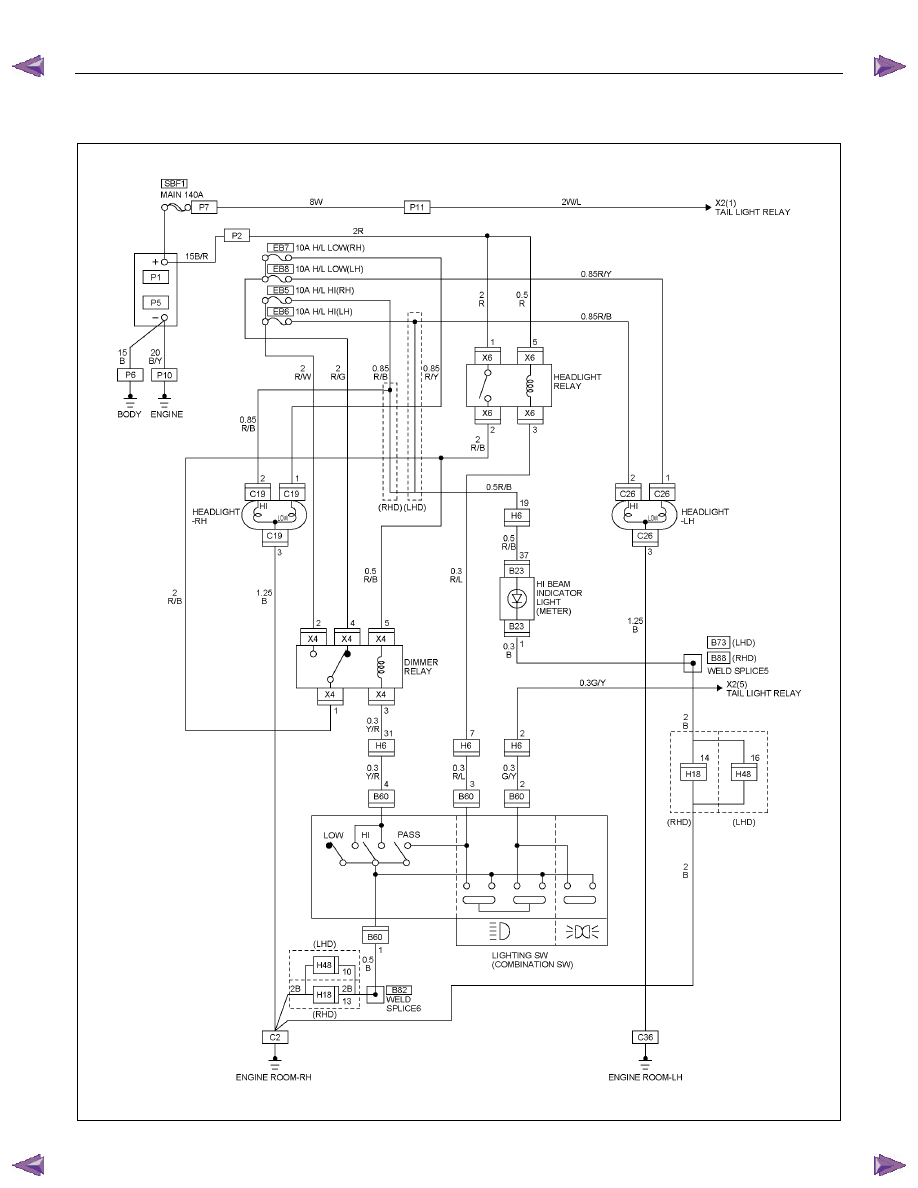

CIRCUIT DIAGRAM HFV6 (HALOGEN STD TYPE)












RTW78AXF009401

ELECTRICAL-BODY AND CHASSIS  8A-155

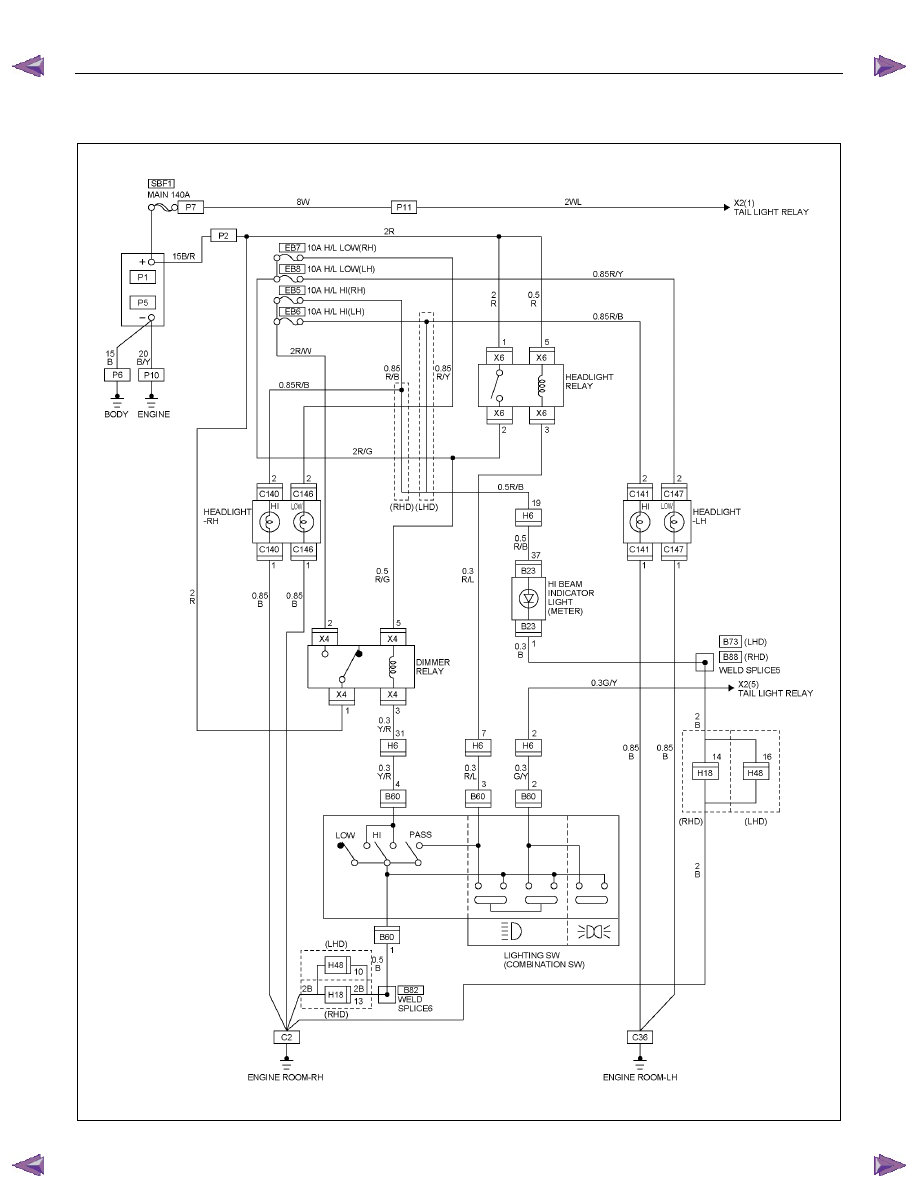

CIRCUIT DIAGRAM HFV6 (HALOGEN PROJECTOR TYPE)












RTW78AXF009501



8A-156  ELECTRICAL-BODY AND CHASSIS

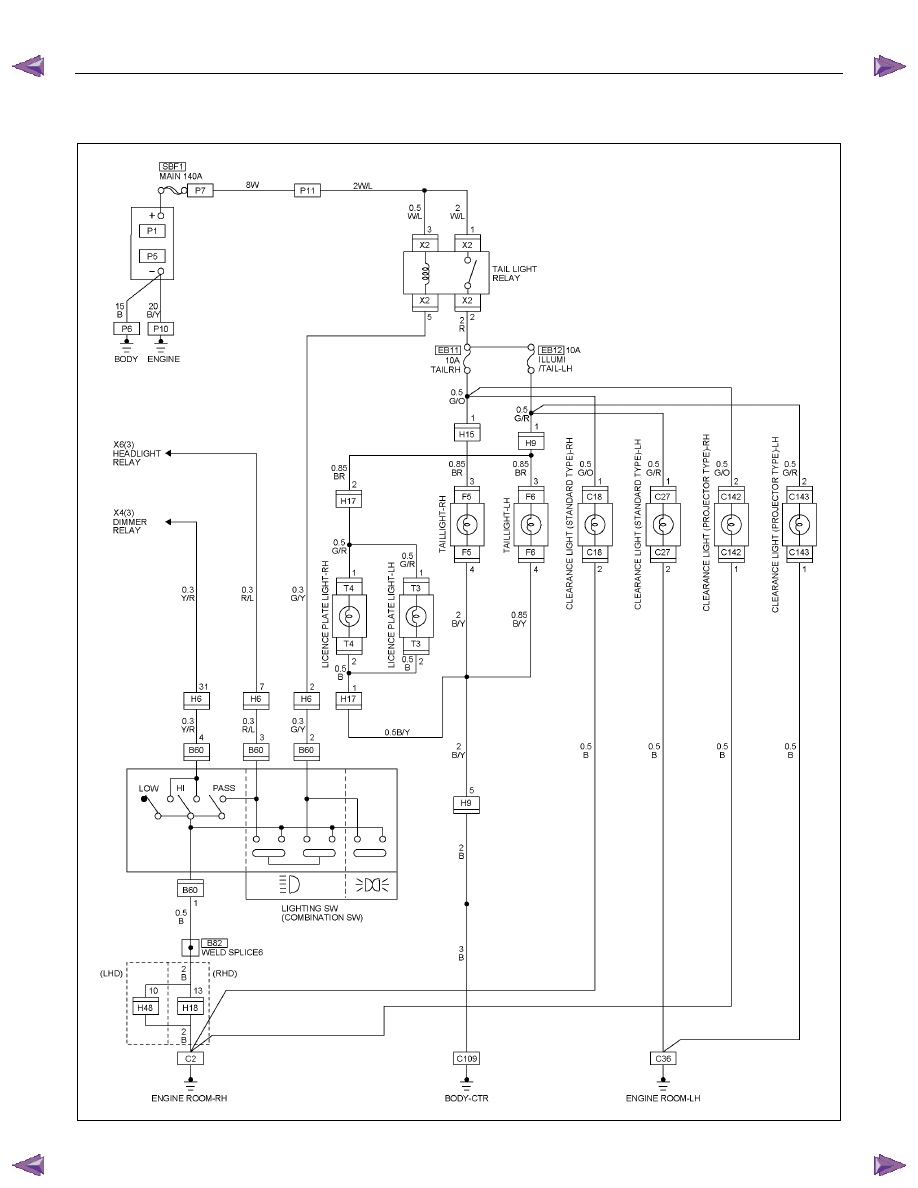

CIRCUIT DIAGRAM HFV6 (CLEARANCE LIGHT, LICENSE PLATE LIGHT, TAIL LIGHT)









RTW78AXF009601



ELECTRICAL-BODY AND CHASSIS  8A-157

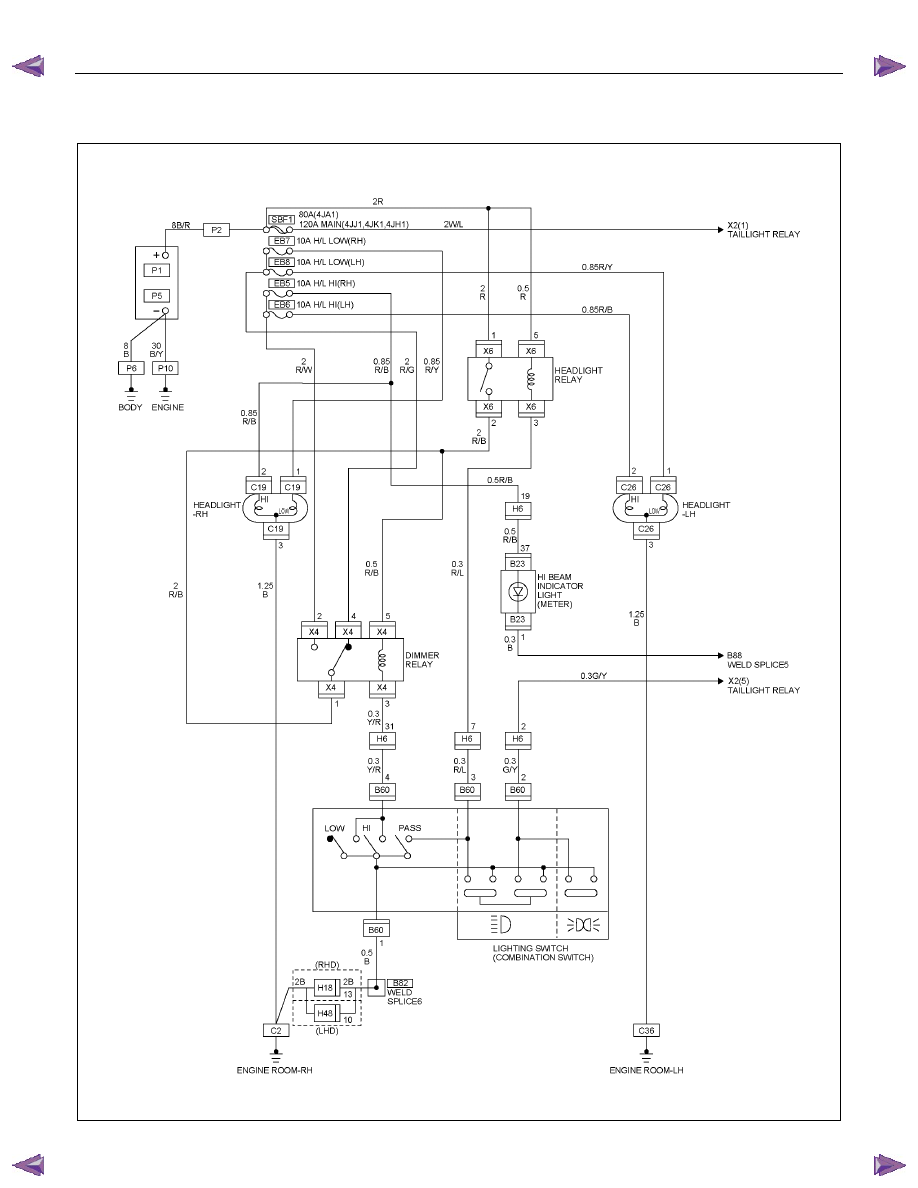

CIRCUIT DIAGRAM 4JA1T (L), 4JH1-TC, 4JJ1-TC, 4JK1-TC (HALOGEN STD TYPE)













RTW78AXF004201
