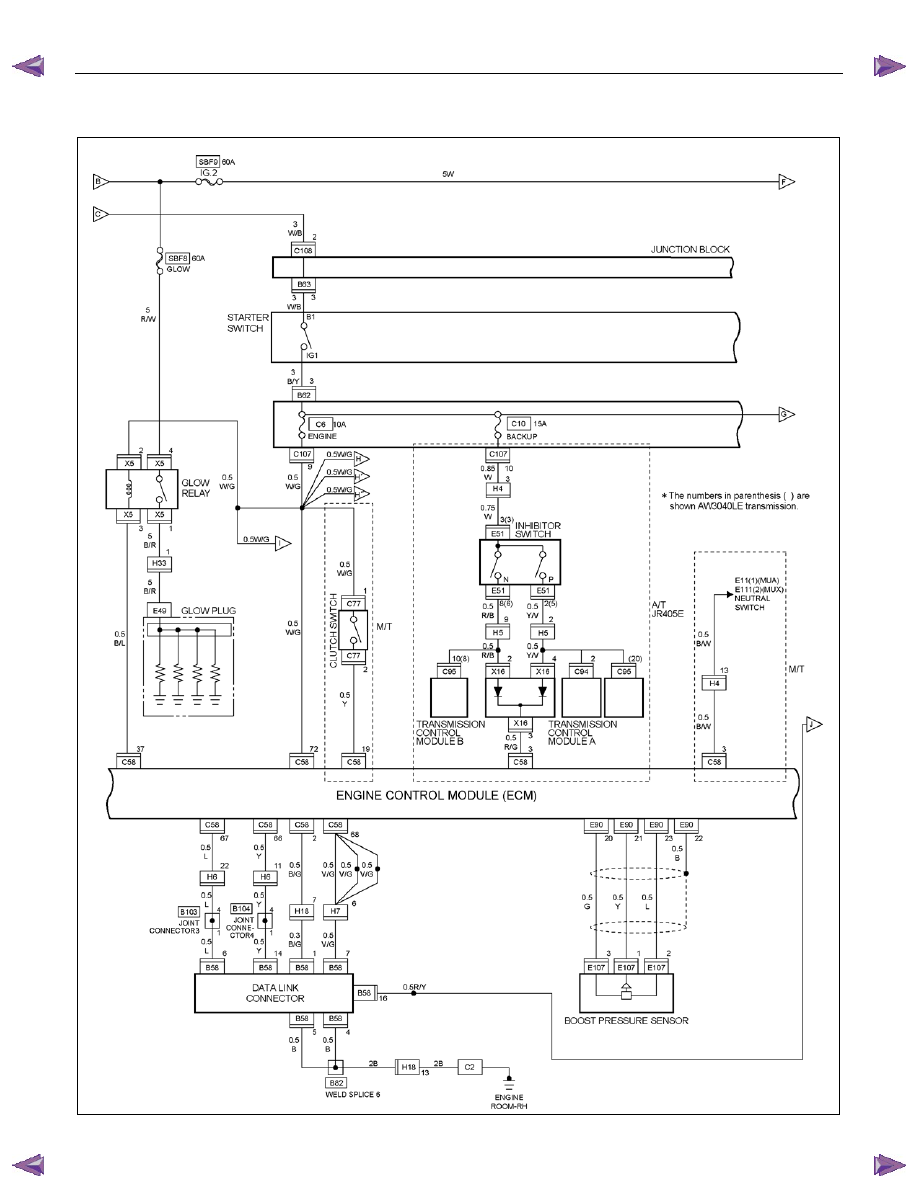

8A-122  ELECTRICAL-BODY AND CHASSIS



CIRCUIT DIAGRAM HFV6

Sheet 3/3











RTW78AXF024101

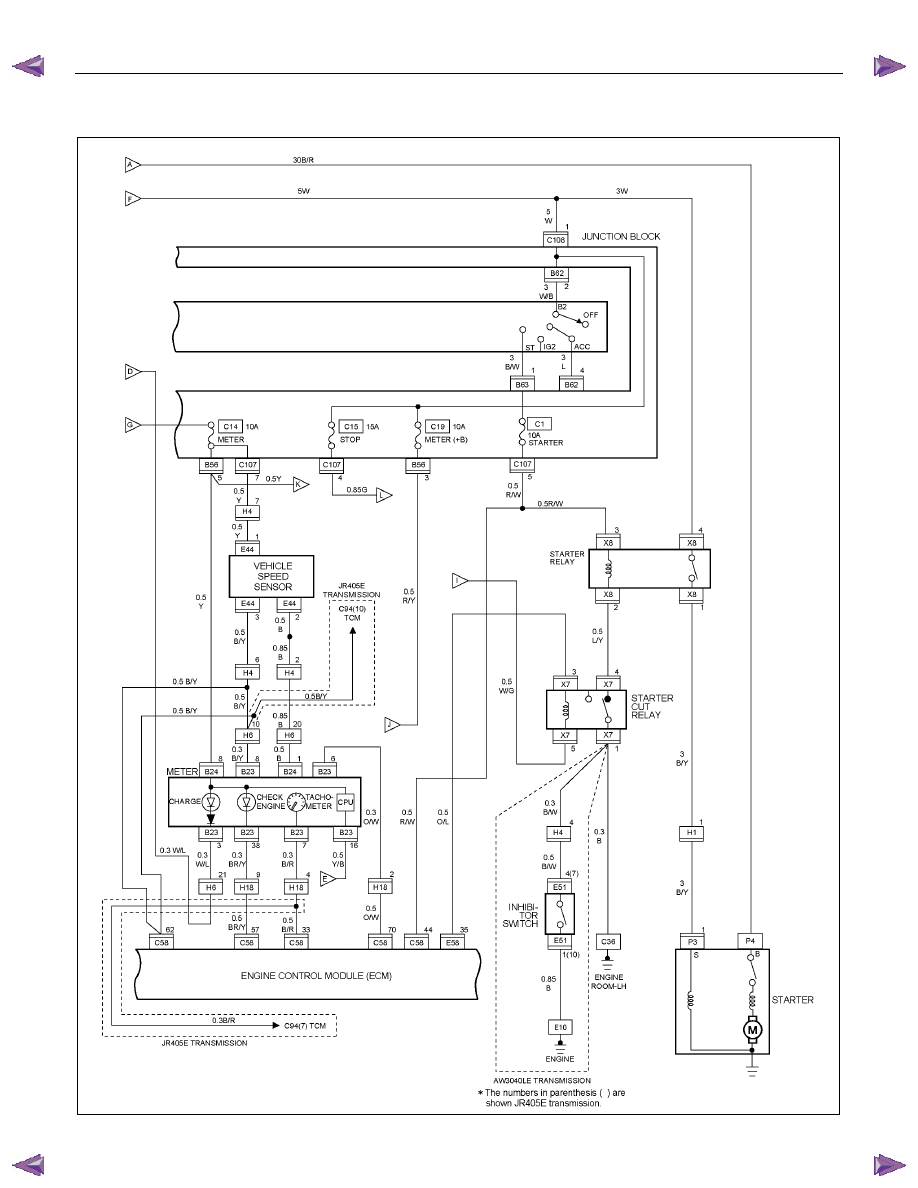

ELECTRICAL-BODY AND CHASSIS  8A-123



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA

Sheet 1/5











RTW78AXF010601

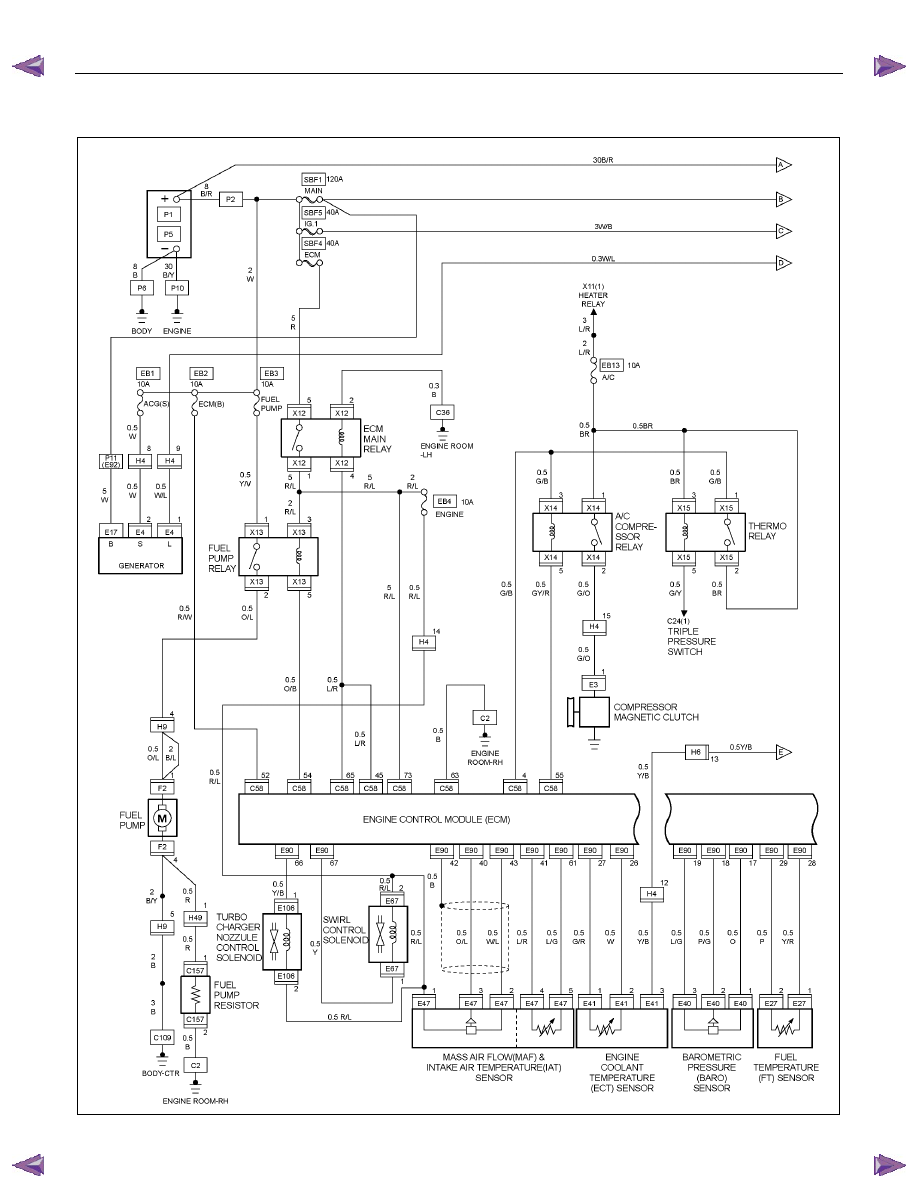

8A-124  ELECTRICAL-BODY AND CHASSIS



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA

Sheet 2/5











RTW78AXF050401

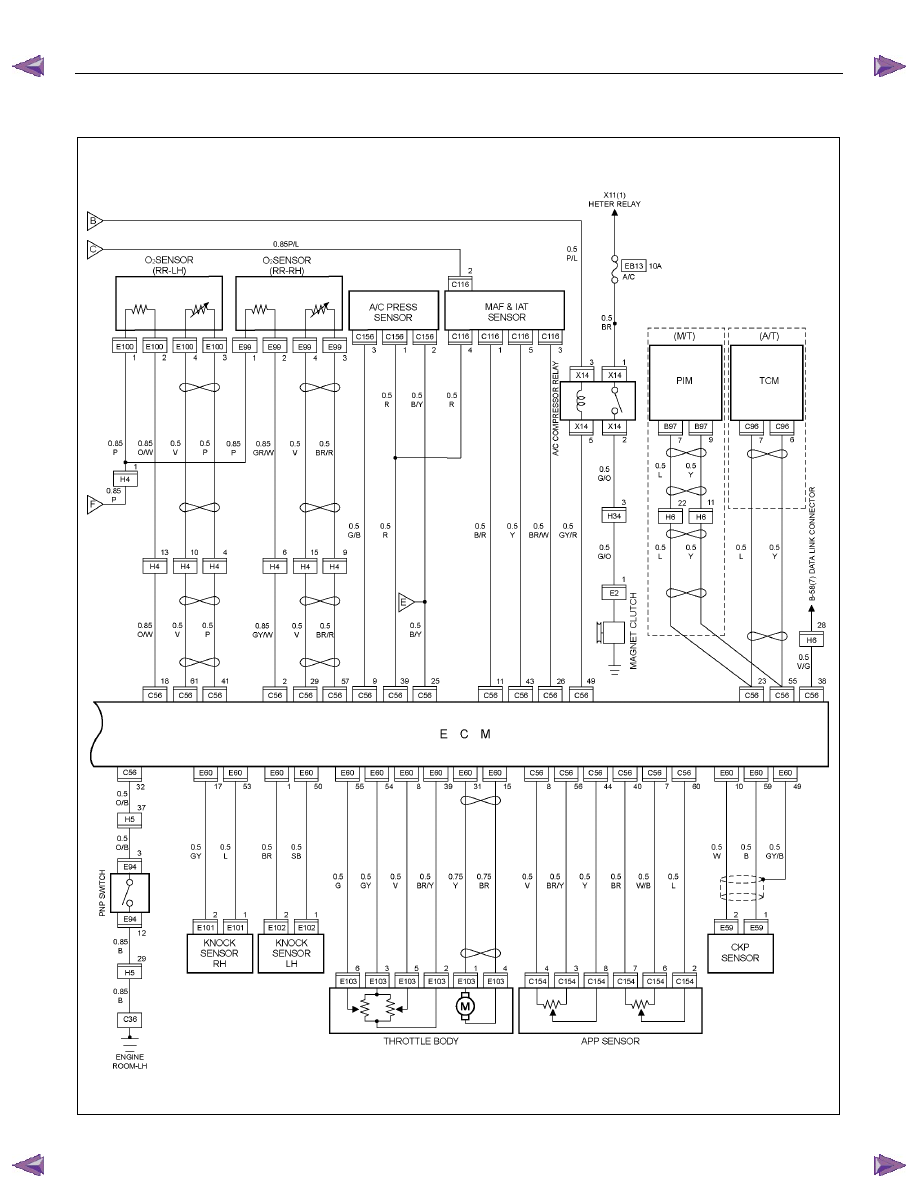

ELECTRICAL-BODY AND CHASSIS  8A-125



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA

Sheet 3/5











RTW78AXF010801
