8A-118  ELECTRICAL-BODY AND CHASSIS

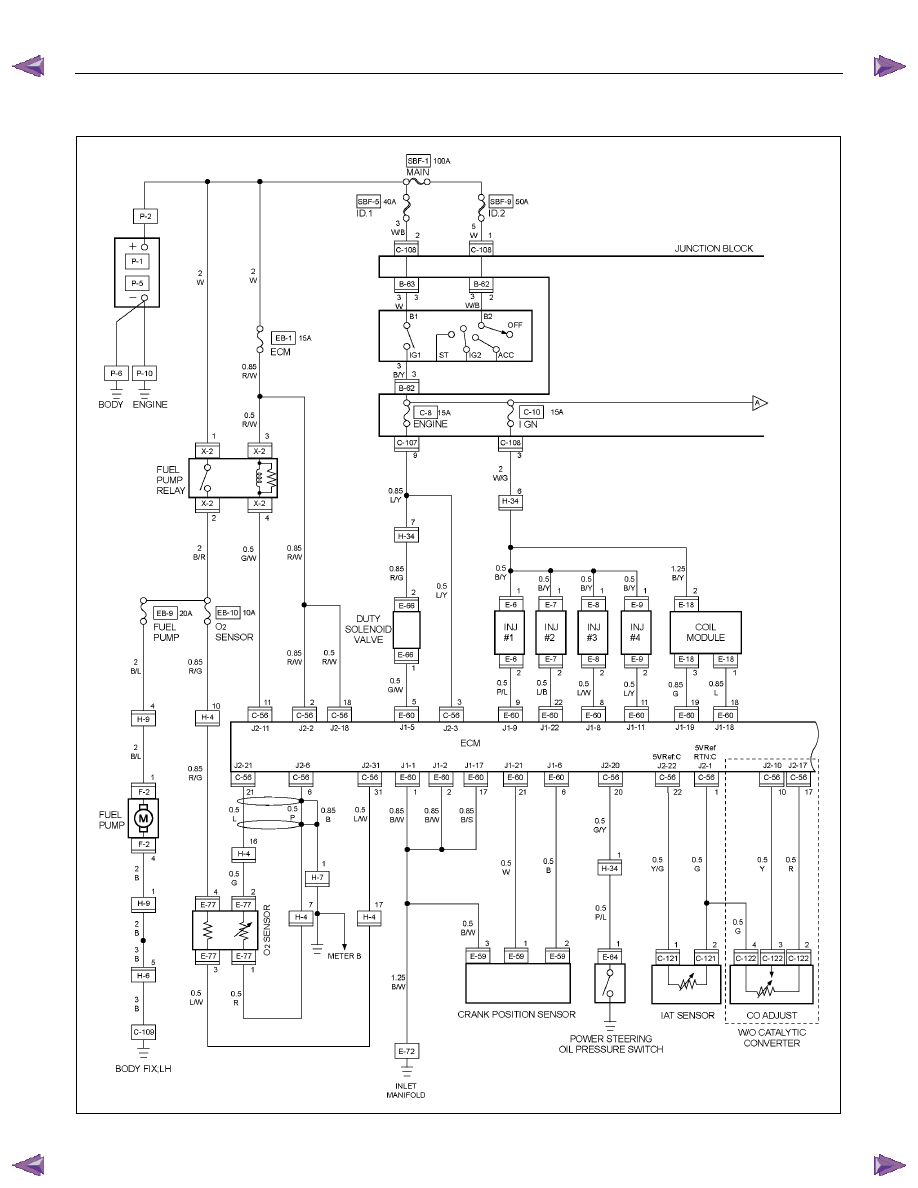

CIRCUIT DIAGRAM C24SE

Sheet 1/2











RTW680XF005501

ELECTRICAL-BODY AND CHASSIS  8A-119

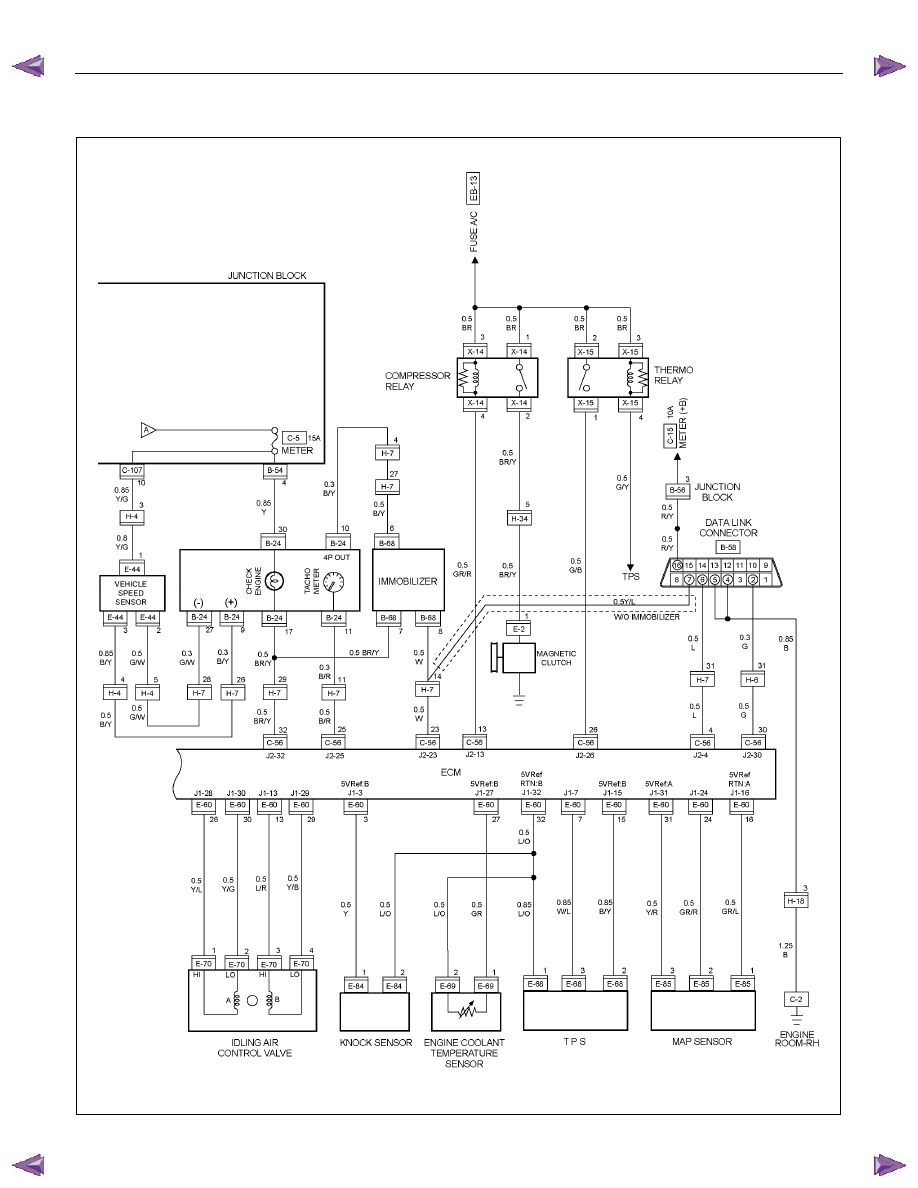

CIRCUIT DIAGRAM C24SE

Sheet 2/2












RTW680XF005601



8A-120  ELECTRICAL-BODY AND CHASSIS

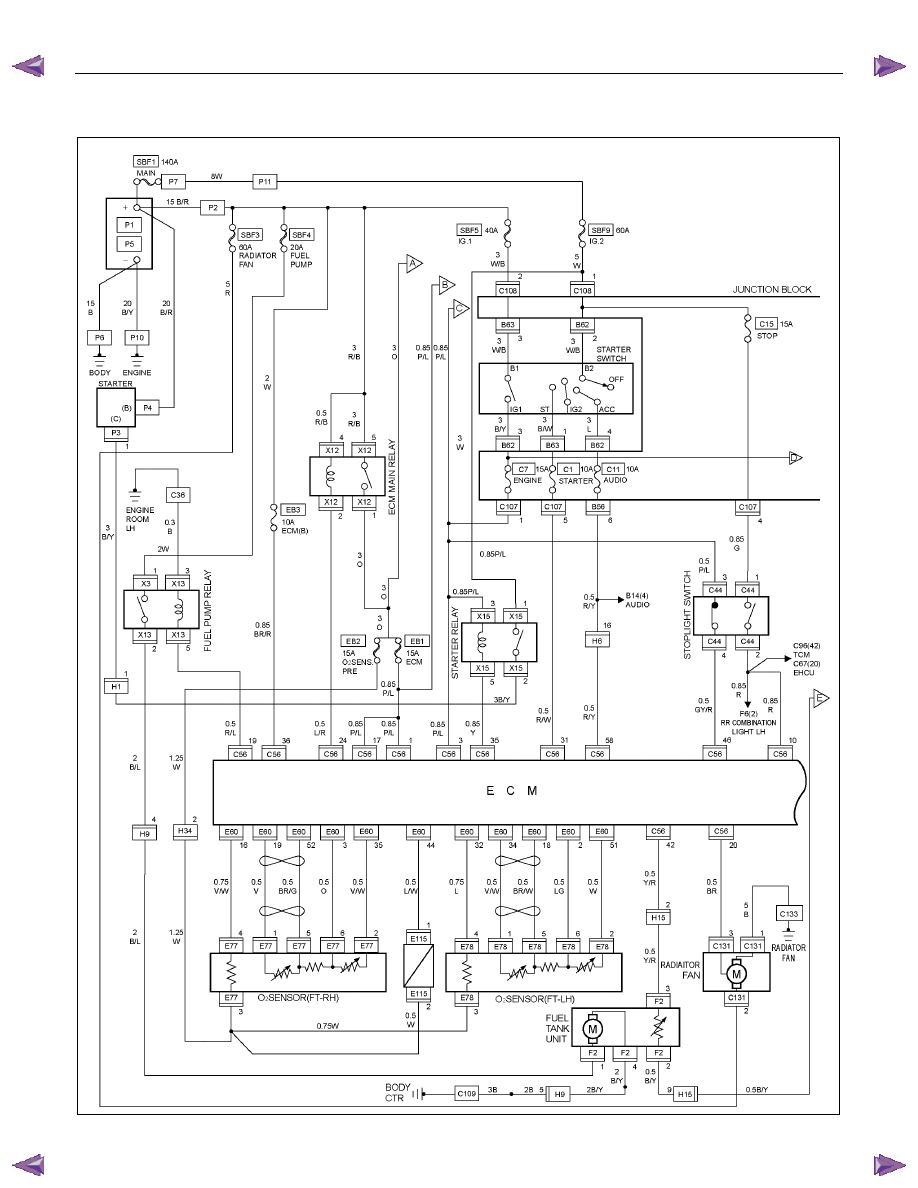

CIRCUIT DIAGRAM HFV6

Sheet 1/3









RTW78AXF023901

ELECTRICAL-BODY AND CHASSIS  8A-121

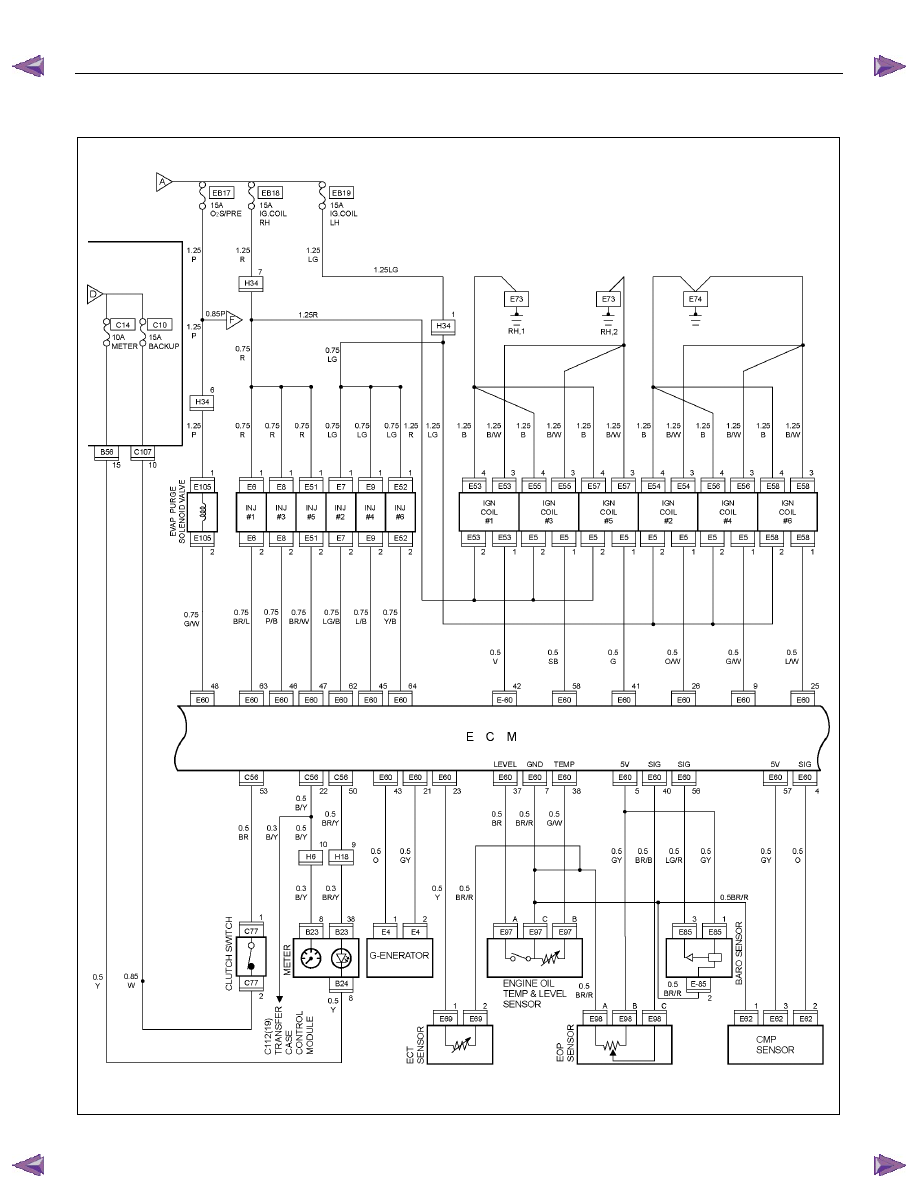

CIRCUIT DIAGRAM HFV6

Sheet 2/3










RTW78AXF024001
