Isuzu KB P190. Service manual - part 1261

8A-106  ELECTRICAL-BODY AND CHASSIS

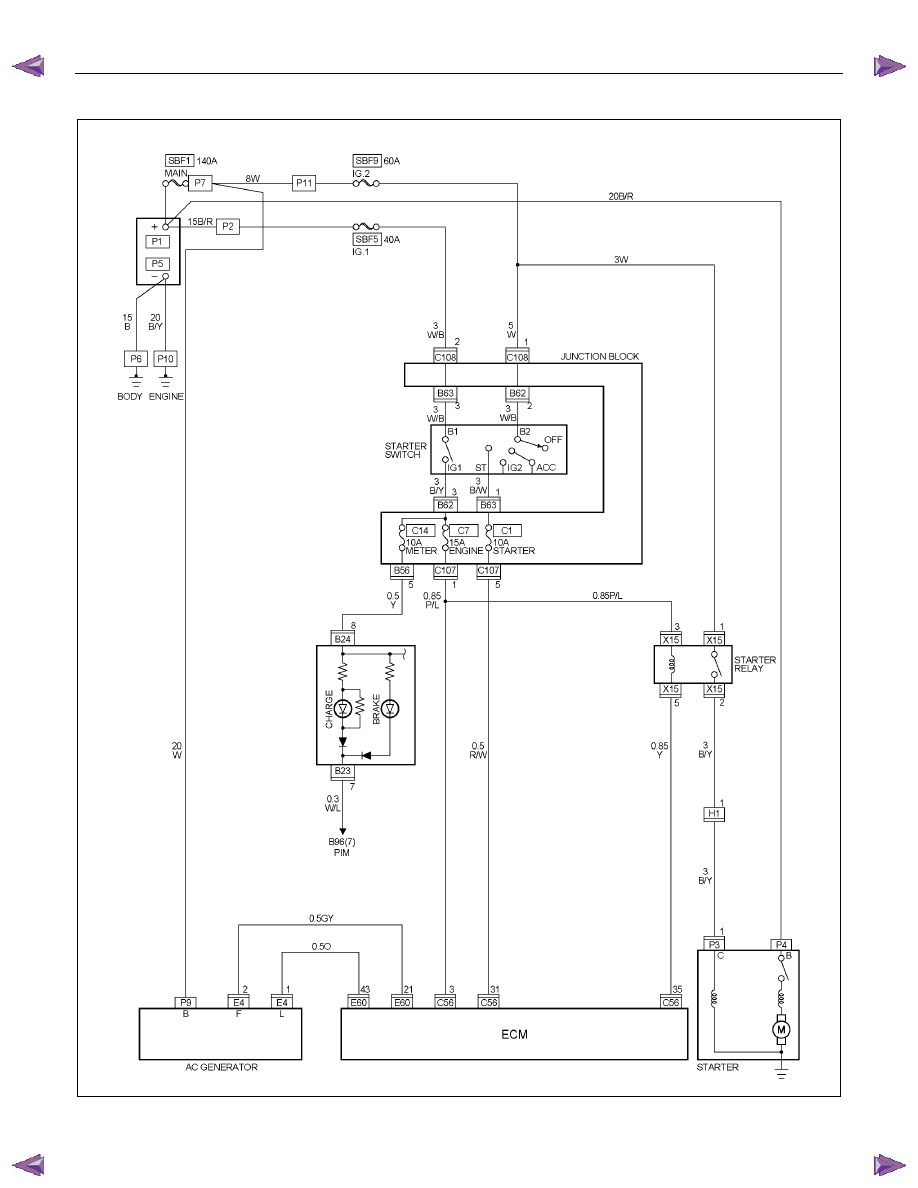

CIRCUIT DIAGRAM HFV6










RTW78AXF018201



ELECTRICAL-BODY AND CHASSIS  8A-107

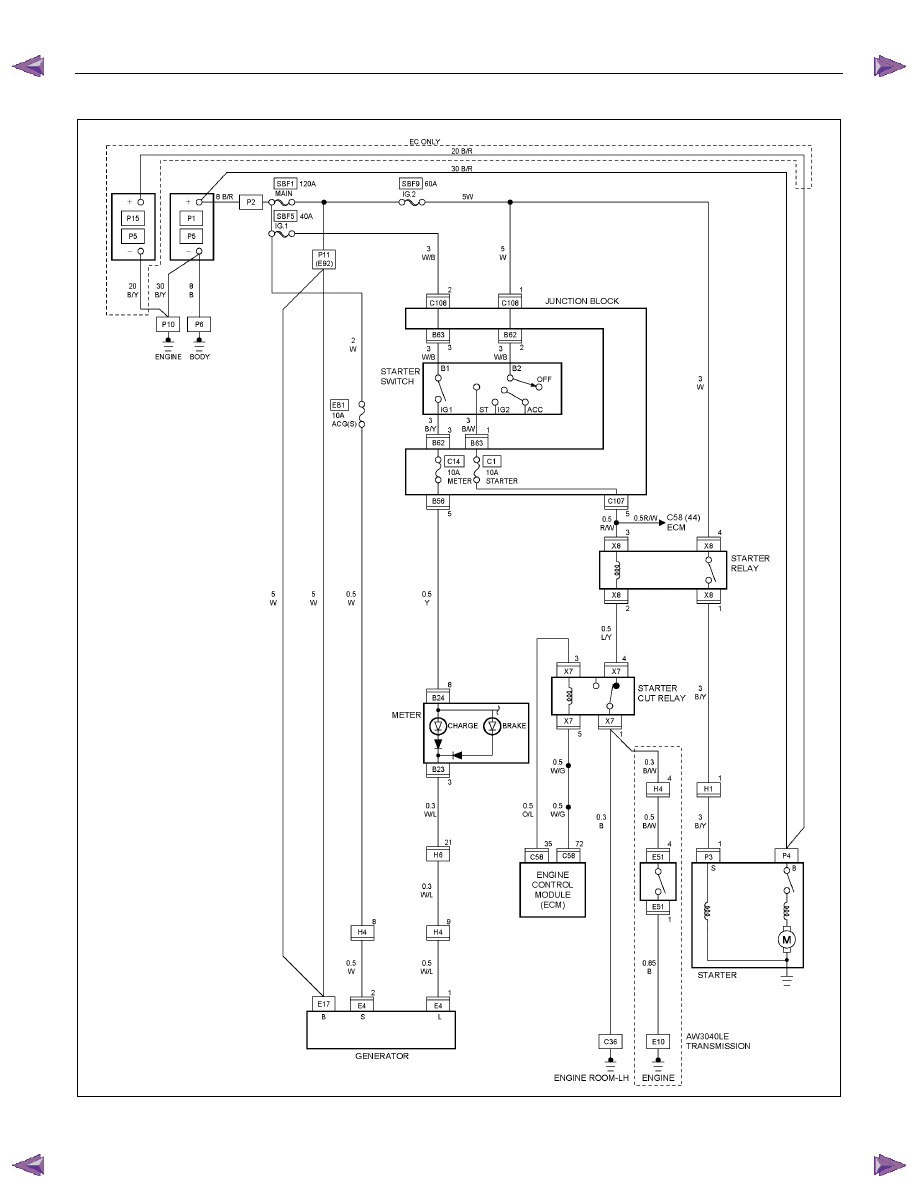

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC









RTW78AXF025901

8A-108  ELECTRICAL-BODY AND CHASSIS

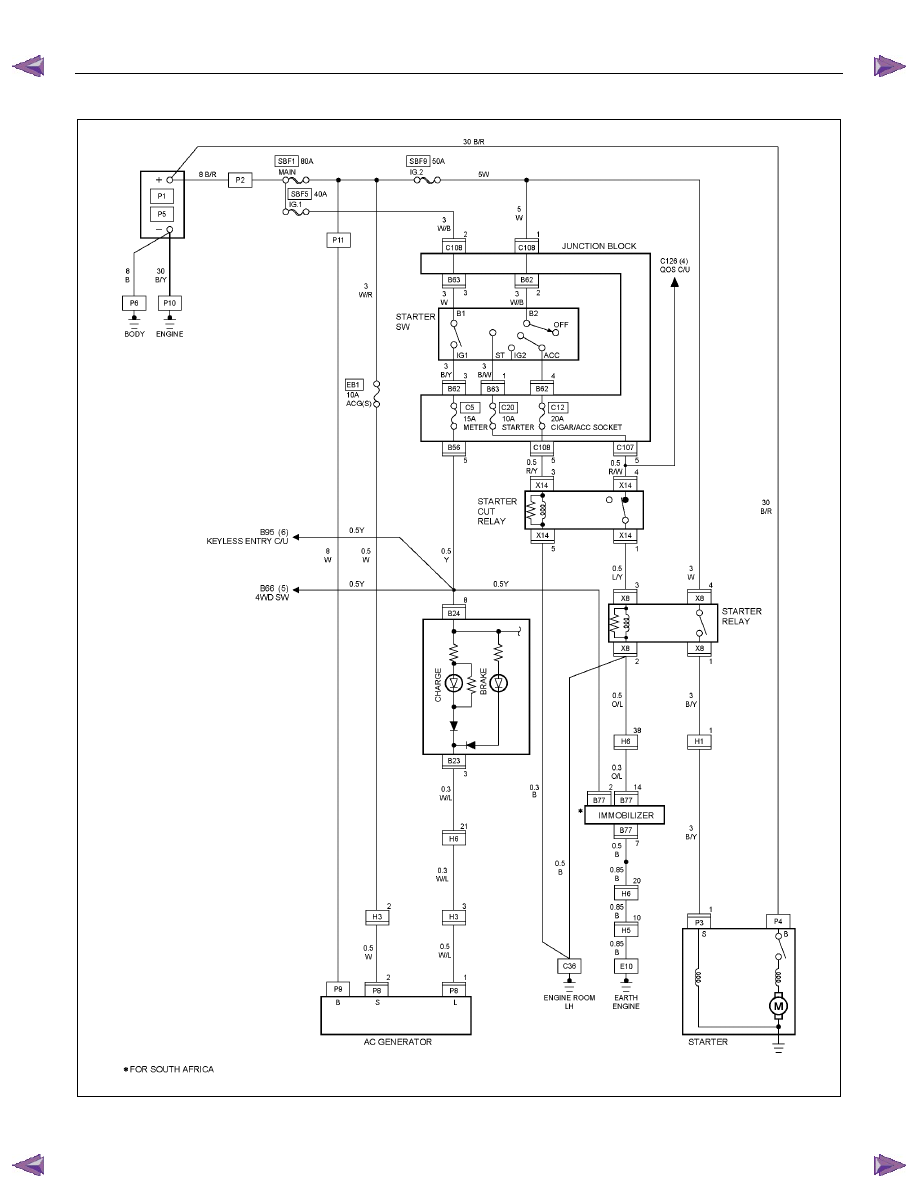

CIRCUIT DIAGRAM 4JH1-TC (LHD)










RTW78AXF005101

ELECTRICAL-BODY AND CHASSIS  8A-109

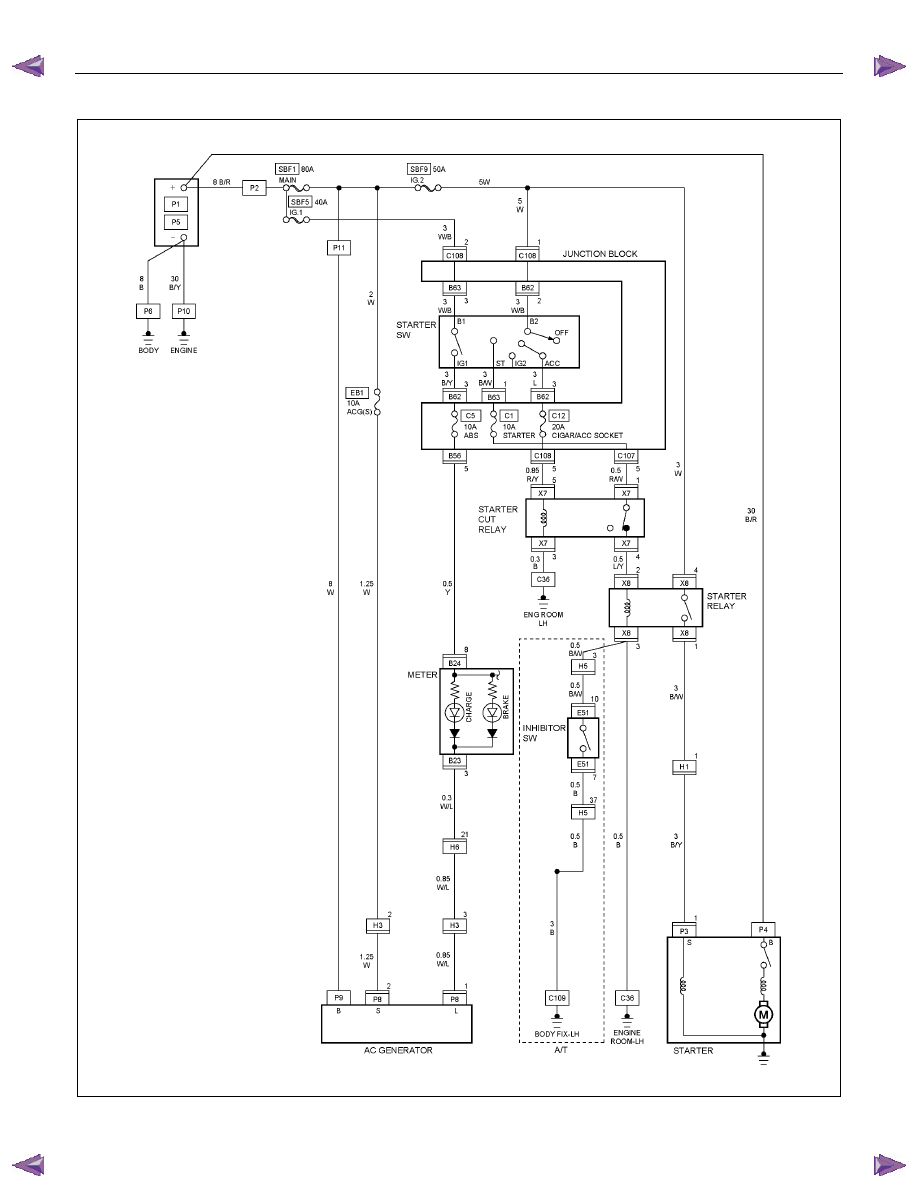

CIRCUIT DIAGRAM 4JA1T (L)









RTW78AXF005801
