Hyundai i30 / Elantra Neos. Body repair manual - part 6

BC-12

BODY CONSTRUCTION

BFDBC6132

BFDBC6134

BFDBC6133

BFDBC6130

BFDBC6129

BFDBC6131

BFDBC6128

BFDBC6127

Side outer complete panel assembly

Side outer complete panel assembly

Side outer complete
panel assembly

Side outer complete
panel assembly

Side outer complete
panel assembly

Side outer complete
panel assembly

Side outer complete
panel assembly

Side inner complete

panel assembly

Side inner complete

panel assembly

Side inner complete

panel assembly

Side inner complete
panel assembly

Side inner complete

panel assembly

Side inner complete

panel assembly

Side inner complete

panel assembly

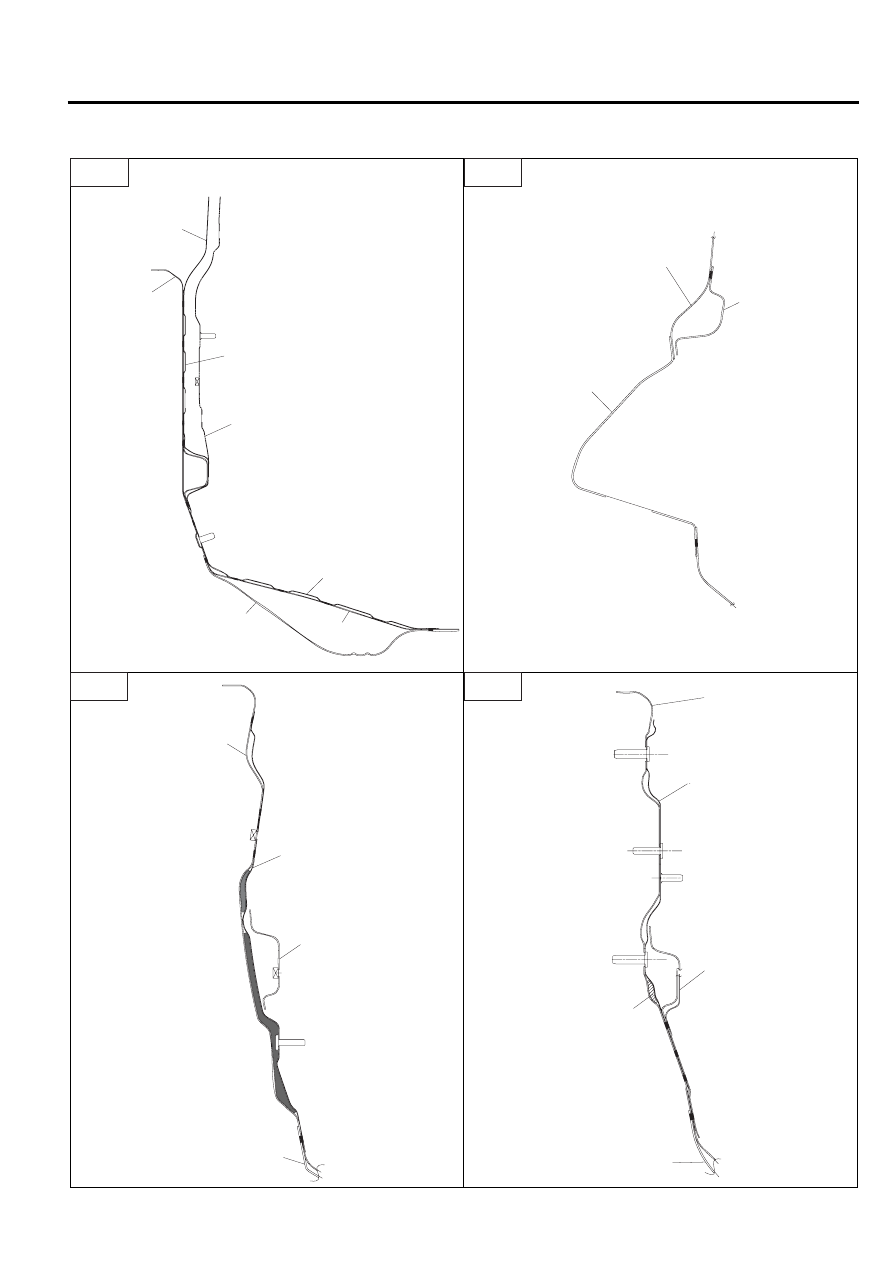

E - E

F - F

H - H

L - L

P - P

G - G

K - K

M - M

12mm

3.5mm

BODY CONSTRUCTION

BC-13

DASH PANEL

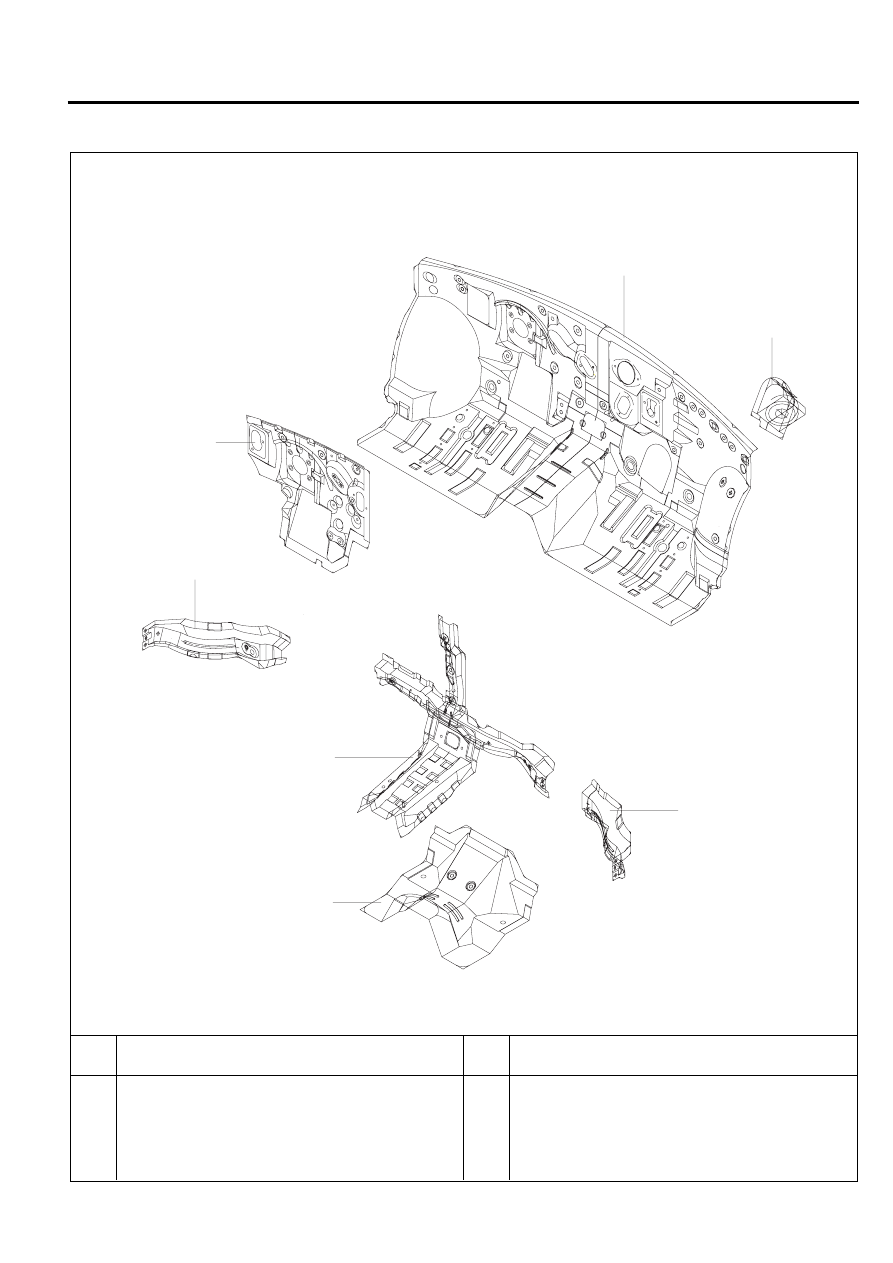

BFDBC6135

1

2

3

4

5

6

7

Dash lower member assembly

Dash cross center member assembly

Dash cross side member assembly

Dash cross side member assembly

PART NAME

No.

Dash panel reinforcement assembly

Dash panel assembly

Dust cover panel

PART NAME

No.

2

3

4

5

6

7

1

BC-14

BODY CONSTRUCTION

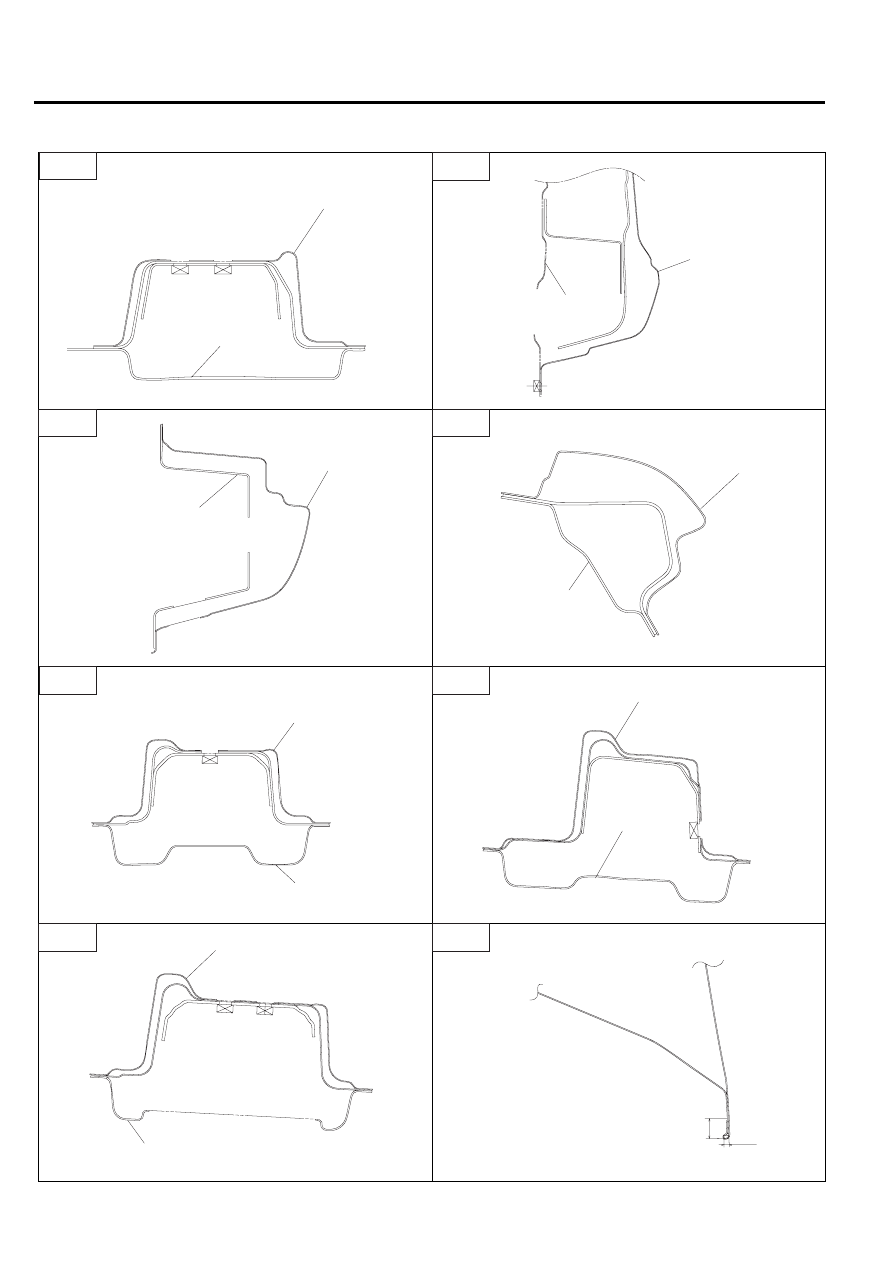

< Cross-Sectional Views >

BFDBC6138

J

J

C

C

D

D

A

A

G

G

B

B

K

K

E

E

BODY CONSTRUCTION

BC-15

BFDBC6141

BFDBC6140

BFDBC6142

BFDBC6139

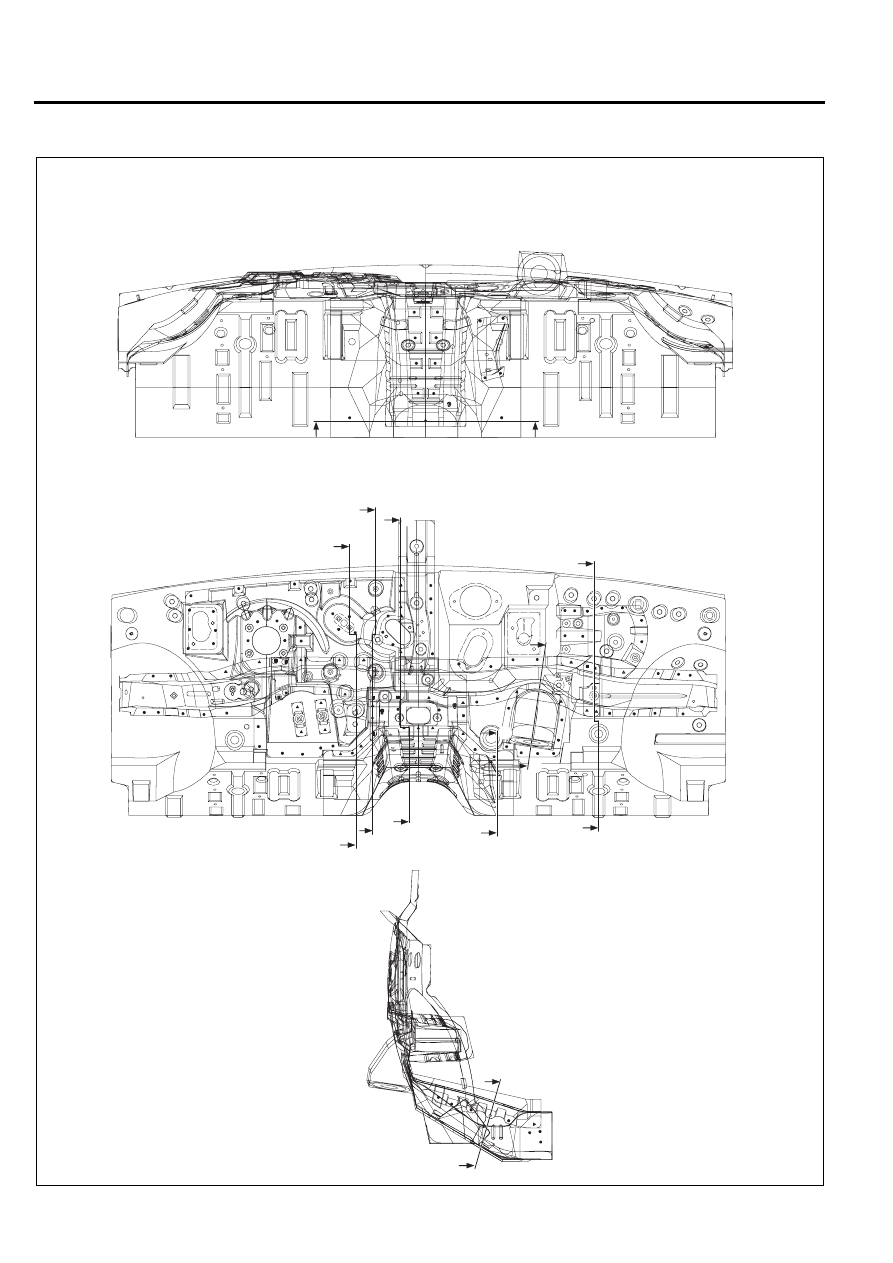

A - A

B - B

D - D

C - C

Dash cross center

member assembly

Dash panel assemby

Dash cross center
member assembly

Dust cover panel

Dash panel

assembly

Dash panel reinforcement assembly

Dash cross center member assembly

Dash cross center
member assembly

Dash lower

member assembly

Dash panel assembly

Dash panel
reinforcement assembly

Dash panel
reinforcement assembly

Dash cross center
member assembly

Dash cross center
member assembly

Dash panel assemby

Dash lower

member assembly

Dash lower

member assembly

Dash panel

assembly
