Hyundai i30 / Elantra Neos. Body repair manual - part 5

BC-8

BODY CONSTRUCTION

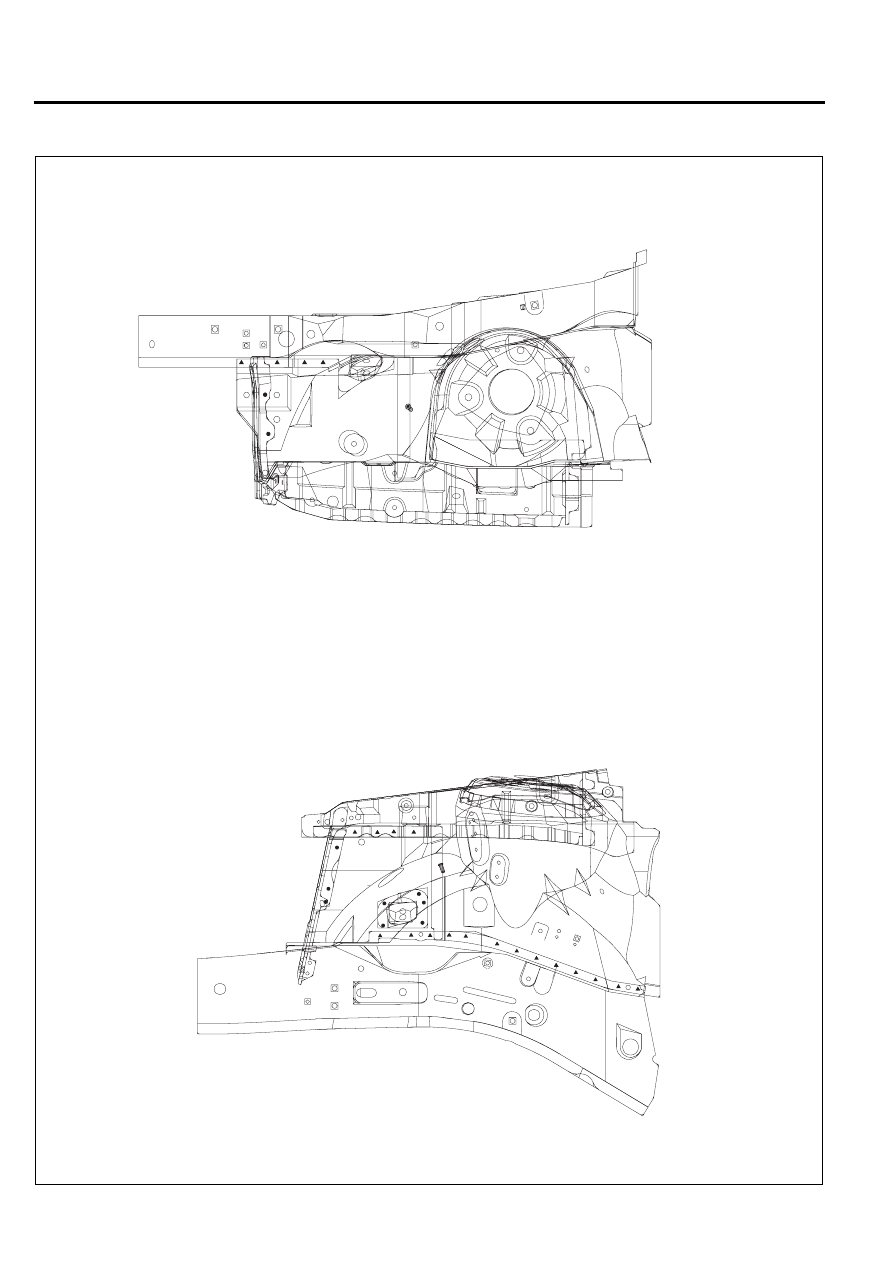

< Cross-Sectional Views >

BFDBC6117

[ TOP VIEW LH ]

[ SIDE VIEW LH ]

BODY CONSTRUCTION

BC-9

BFDBC6120

BFDBC6119

BFDBC6118

Shock absorber
housing complete

Front side complete
member assembly

Shock absorber
housing complete

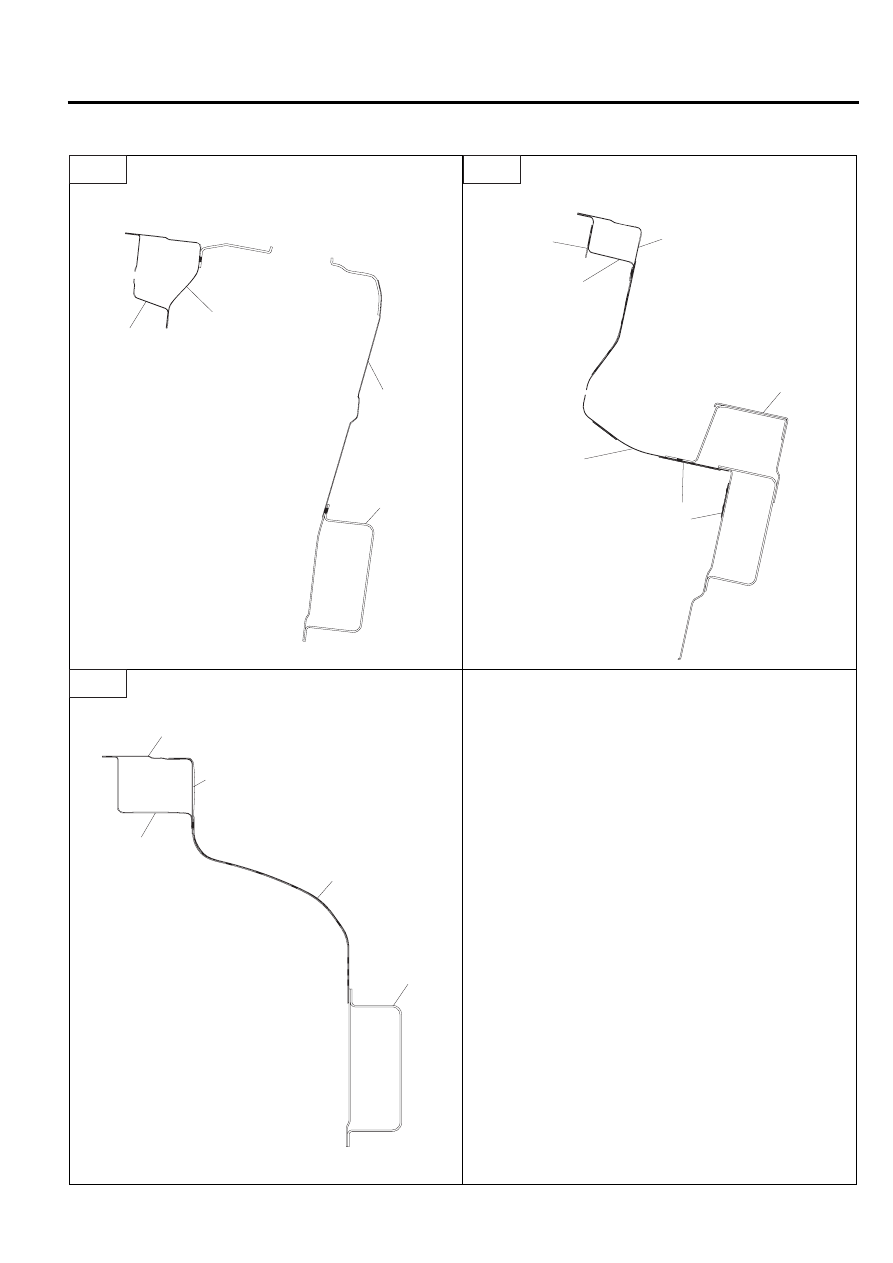

A - A

B - B

C - C

Fender apron

upper outer panel

assemlby

Fender apron inner

front reinforcement

assembly

Fender apron inner
front reinforcement
assembly

Front side complete
member assembly

Fender apron upper
outer panel assembly

Shock absorber housing
complete panel assembly

Fender apron inner

panel assembly

Fender apron upper inner panel assembly

Shock absorber housing
complete panel assembly

Fender apron inner
panel assembly

Fender apron upper
outer panel assembly

Front side complete

member assembly

BC-10

BODY CONSTRUCTION

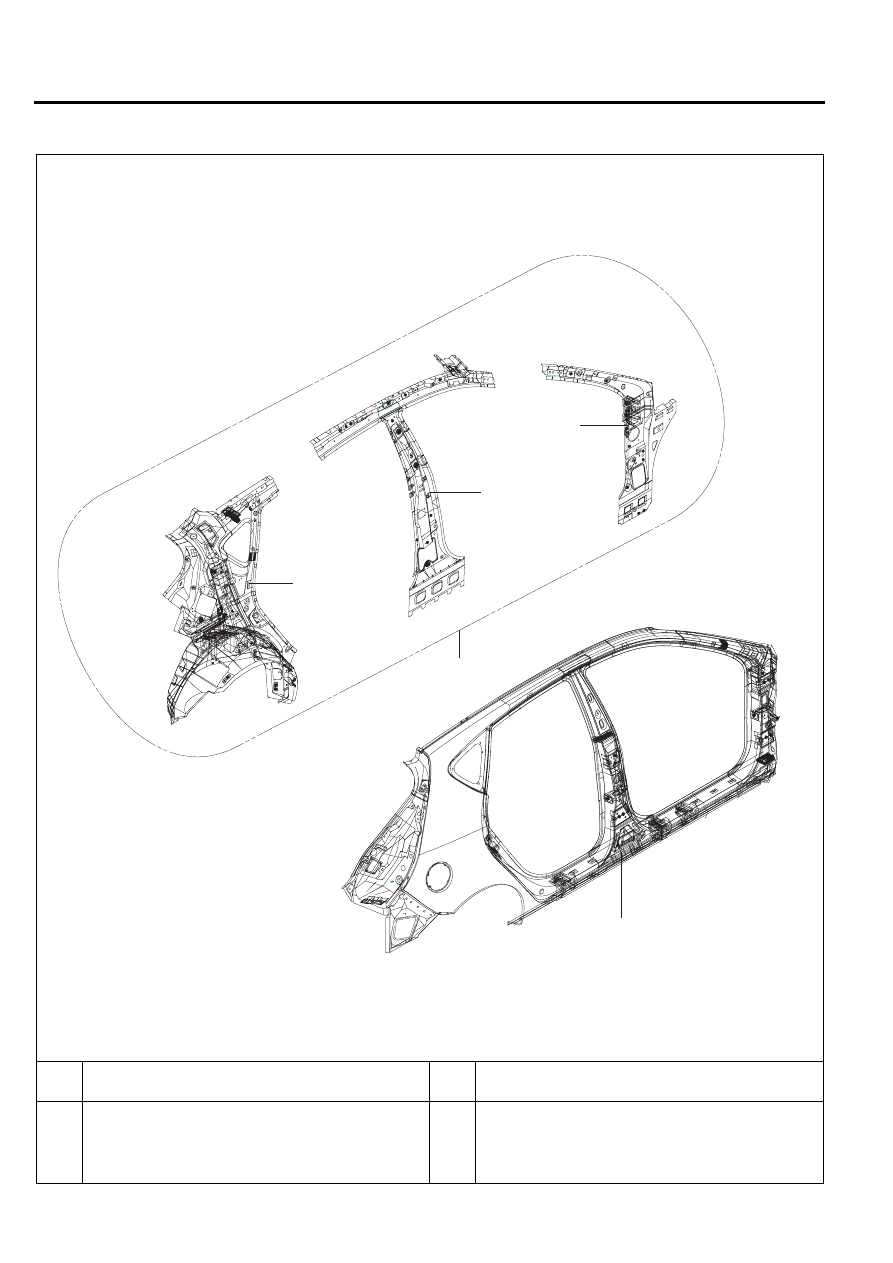

SIDE BODY PANEL

BFDBC6121

1

2

3

4

5

Side outer complete panel assembly

Side inner complete panel assembly

Quarter inner & wheel house complete panel assembly

PART NAME

No.

Center inner complete panel assembly

Front inner complete panel assembly

PART NAME

No.

2

3

4

5

1

BODY CONSTRUCTION

BC-11

BFDBC6124

BFDBC6122

BFDBC6126

BFDBC6125

BFDBC6123

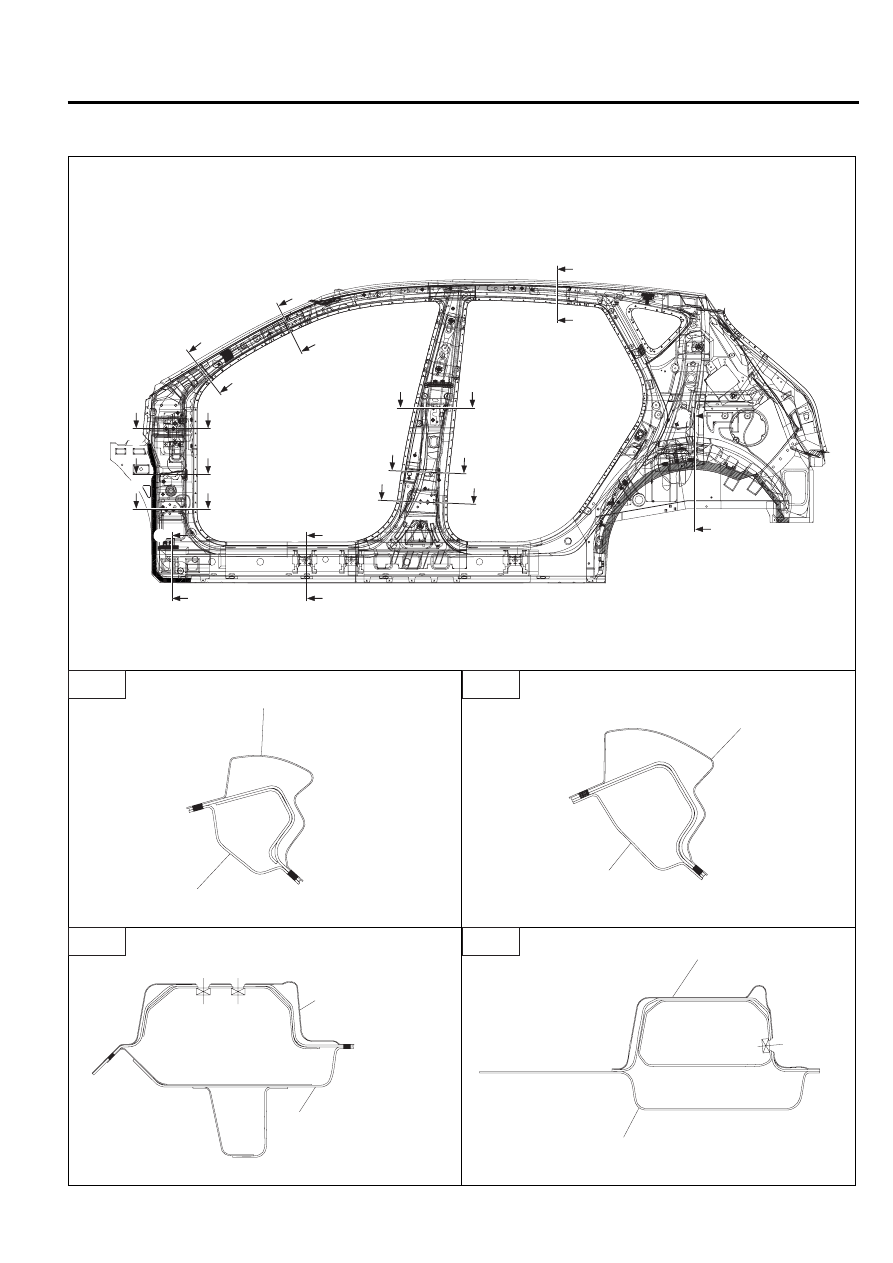

B - B

D - D

A - A

C - C

Side outer complete panel assembly

Side outer complete panel assembly

Side inner complete panel assembly

Side inner complete panel assembly

Side outer complete panel assembly

Side inner complete panel assembly

Side outer complete
panel assembly

Side inner complete
panel assembly

< Cross-Sectional Views >

C

C

D

D

E

E

K

K

L

L

M

M

F

F

G

G

H

H

A

A

B

B

P

P
