238

Technical Data

Front Suspension

Independent wishbone arms, torsion bar springs with
stabilizer bar.

Front Wheel Alignment

Toe-in



 2 mm (0.08 in.)

Camber

0

°



30

i

No more than 30

i

side-to-side variation

Caster

2

_

30

i



45

i

No more than 30

i

side-to-side variation

Rear Suspension

5-link, coil spring type with stabilizer bar and direct
double-acting shock absorbers.

Rear Wheel Alignment

Toe-in



 5 mm (0.2 in.)

Camber

0

°



1

°

Toe-Axis

1

_

Steering

Rack and pinion.

Service Brake

Hydraulic Front: Disc brake.

Rear: Self-adjusting drum brake,

leading-trailing (2

WD

 model).

Disc brake (4

WD

 model).

Parking Brake

Mechanical, operating on rear wheels (2

WD

 model).

Mechanical, drum in disc, duo-servo, manual-adjusting,
operating on rear wheels (4

WD

 model).

Battery

Voltage

(V)

12

Cold-cranking performance

(Amp)

600

Reserve capacity

(Min.)

125

BCI group no.

24

Main Menu

Table of Contents

Technical Data

239

Rear Axle

Models

2WD

4WD

Models

2WD

4WD

Gear ratio

4 300

4 300

Gear ratio

4.300

4.300

Lubricant capacity

1.87 U.S. quarts

(1.77 liters)

Front Axle (4WD Model)

Gear ratio

4.300

Lubricant capacity

1.6 U.S. quarts (1.5 liters)

Shift-on-the-Fly System

Lubricant capacity

0.13 U.S. quarts (0.12 liters)

Wheels and Tires

Tire size

225/75R16

245/70R16

Wheel size

16 x 7 JJ

16 x 7 JJ

Tire pressure

29 psi (200 kPa)

26 psi (180 kPa)

Wheel nut
tightening torque

87 lb

.

ft (118 N

.

m )

Main Menu

Table of Contents

240

Technical Data

Fuses

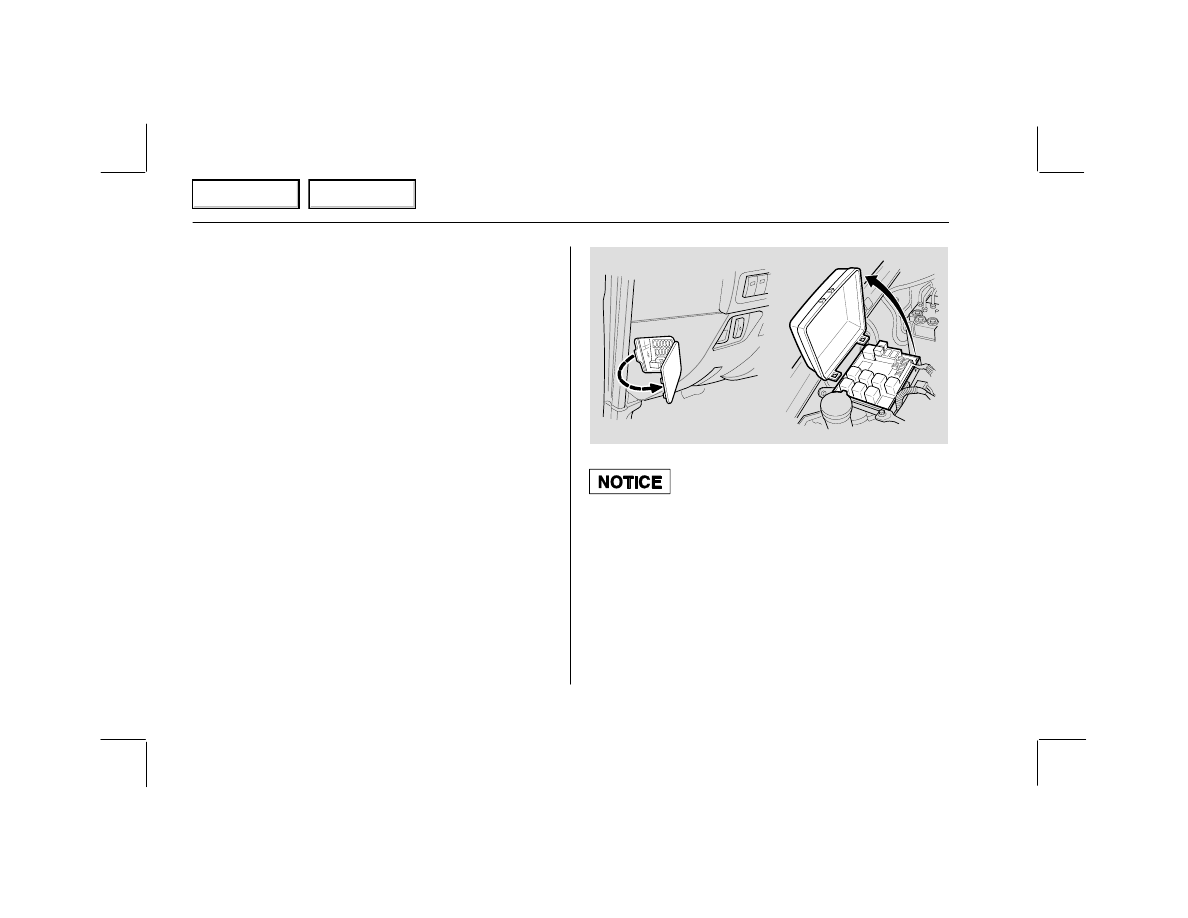

Fuse boxes are installed on the left side of the
instrument panel and the right side of the engine
compartment. Each fuse box contains spare fuse
cartridges.

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system. If you do not have a replacement
fuse with the proper rating for the circuit, install one
with a lower rating.

Main Menu

Table of Contents

Technical Data

241

Fuse Box: Instrument Panel

Amperage

Applicability

1

20A

Accessory power sockets

2

–––

3

15A

Cigarette lighter

4

15A

Dash/parking lights

5

10A

Interior lights

6

15A

Brake lights, cruise control

7

20A

Power door locks

8

10A

Mirror defoggers

9

15A

Rear window defogger

10

15A

Rear window defogger

11

15A

Gauges, indicators

12

15A

Charging system, fuel injection

13

15A

Ignition system

14

15A

Turn signals, backup lights

15

15A

ABS, 4WD, cruise control

16

20A

Windshield wiper/washer

17

10A

Rear wiper/washer

18

10A

Security & keyless entry

19

15A

Audio system

20

20A

Starter

21

30A

Power windows, moonroof

22

10A

SRS

23

–––

Main Menu

Table of Contents

242

Technical Data

Fuse Box: Engine Compartment

Amperage

Applicability

1

15A

Hazard Warning Light

2

10A

Horn

3

–––

4

20A

Blower

5

10A

Air conditioner

6

–––

7

–––

8

10A

Headlight; left

9

10A

Headlight; right

10

15A

Fog lights

11

10A

O

Sensor

12

20A

Fuel pump

13

15A

ECM

14

–––

15

60A

Power distribution

16

100A

Main

17

60A

ABS

18

30A

Condenser fan

19

–––

Main Menu

Table of Contents

Technical Data

243

Light Bulbs

Application

Bulb No.

Quantity

Rating

Candlepower

Front Lights

Headlight –

Halogen

Fog
Turn signal &

Parking light

Sidemarker

9004

1034

2

2
2

65/45 watts

55 watts

21/5

Rear Lights

Back-up
License
Tail, Stop &

Sidemarker

Turn signal
High-mounted

stop light

1156

1157

1156

2
2
2

2
4

27 watts

5 watts

27/8 watts

27

5 watts

Interior Illumination

A/C-heater cont.
Dome light
Instrument cluster
Stop light
Luggage light
Step light

74

158/74



1
1

3/6 or 2

2
1
4

1.4

7 watts

2/1.4

5 watts
5 watts
5 watts

Dimensions and Weights

Model

2WD

4WD

Wheelbase

106.4 in. (2,702 mm)

Overall

Spare tire:

under floor

178.2 in. (4,525 mm)

Overall

Length

Spare tire:

tailgate

184.2 in. (4,678 mm)

Overall

LX, EX

70.4 in. (1,784 mm)

Overall

Width

EX-L

71.1 in. (1, 805 mm)

Overall

Height

P225/75R16

68.6 in. (1,743 mm)

Height

(At curb Wt.)

P245/70R16

68.8 in. (1,748 mm)

Tread Front

59 6 in (1 515 mm)

Tread Front

59.6 in. (1,515 mm)

Tread Rear

59 8 in (1 520 mm)

Tread Rear

59.8 in. (1,520 mm)

GVWR

4,950 lb

(2,250 kg)

5,200 lb

(2,360 kg)

Note:  GVWR—Gross Vehicle Weight Rating

Main Menu

Table of Contents

Main Menu

245

Owner Assistance
