Honda Fit (2019 year). Manual - part 33





511

Continued

Main

tenan

ce

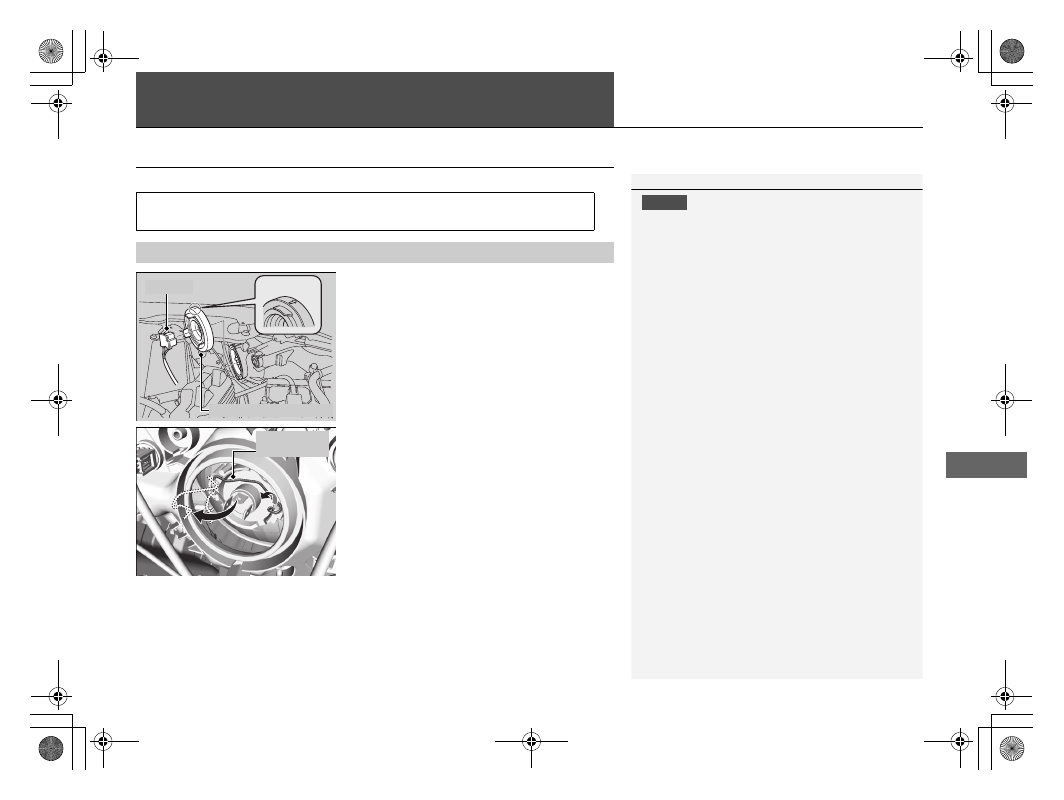

Replacing Light Bulbs

Headlight Bulbs

When replacing, use the following bulbs.

1. Remove the coupler.
2. Remove the rubber weather seal.

3. Remove the hold-down wire, then remove

the bulb.

4. Insert a new bulb.

High/Low beam headlight: 60/55 W (H4LL/HB2LL

*

, H4/HB2

*

 for halogen

bulb type)

High/Low Beam Headlight

1

Headlight Bulbs

NOTICE

Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overheat and shatter.

The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the cargo area, have the aiming
readjusted at a dealer or by a qualified technician.

When replacing a halogen bulb, handle it by its base,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.

Rubber Weather Seal

Coupler

Hold-Down
Wire

* Not available on all models

512

uu

Replacing Light Bulbs

u

Front Turn Signal/Parking Light Bulbs

Main

tenan

ce

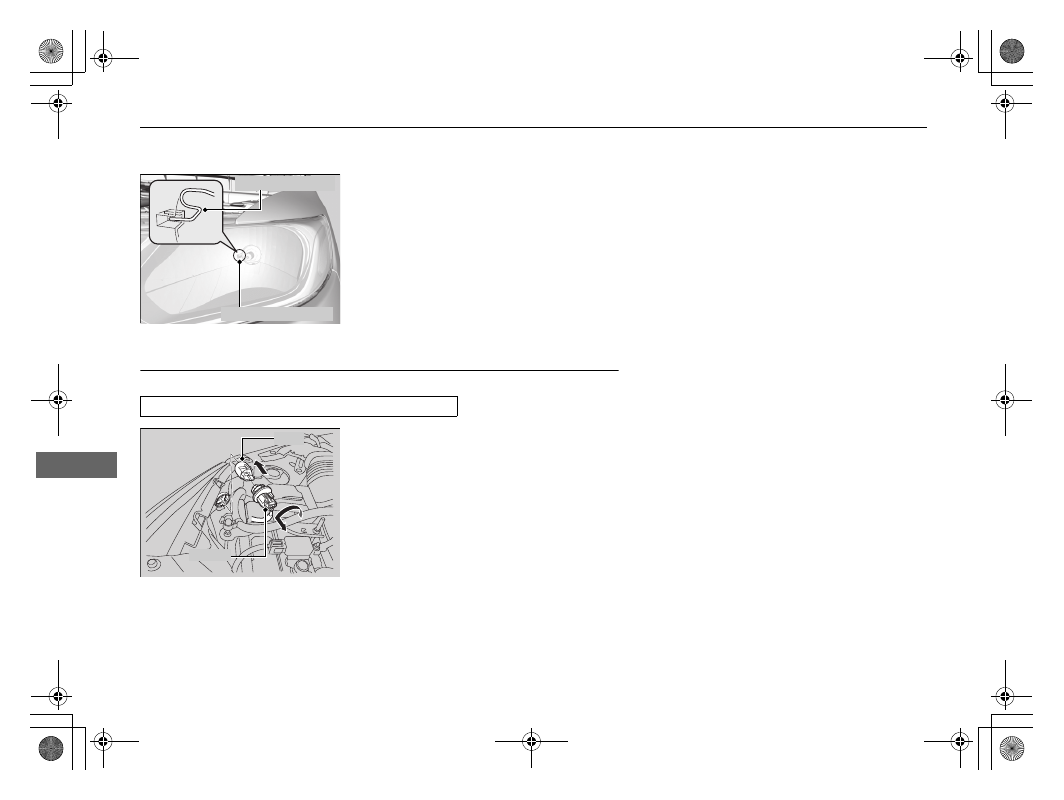

5. Reinstall the hold-down wire. Hook the end

of the wire on the knob in the slot.

u

You can see if the hold-down wire is in
the right place from the inspection
window.

6. Reinstall the rubber weather seal.
7. Insert the coupler into the connector of the

bulb.

Front Turn Signal/Parking Light Bulbs

When replacing, use the following bulbs.

1. Turn the socket counter-clockwise and

remove it.

2. Remove the old bulb and insert a new bulb.

Hold-Down Wire

Inspection Window

Front Turn Signal/Parking Light: 28/8 W (Amber)

Bulb

Socket

513

uu

Replacing Light Bulbs

u

Side Marker Light Bulbs

Continued

Main

tenan

ce

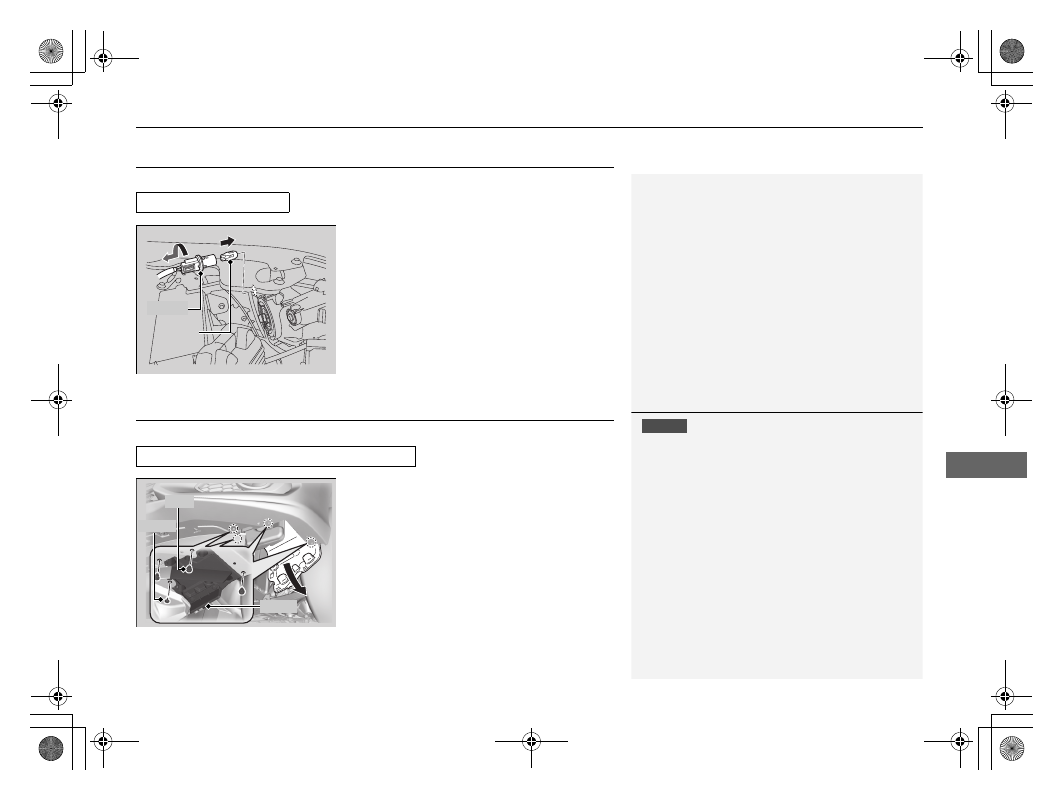

Side Marker Light Bulbs

When replacing, use the following bulbs.

1. Turn the socket counter-clockwise and

remove it.

2. Remove the old bulb and insert a new bulb.

Fog Light Bulbs

*

When replacing, use the following bulbs.

1. Remove the screws using a Phillips-head

screwdriver and remove the holding clips
using a flat-tip screwdriver.

2. Pull the under part of the inner fender cover

down.

Side Marker Light: 3CP

Bulb

Socket

Fog Light: 35W (H8 for halogen bulb type)

1

Fog Light Bulbs

*

NOTICE

Halogen bulbs get very hot when lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.

When replacing a halogen bulb, handle it by its
plastic case, and protect the glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alcohol and a clean cloth.

Cover

Screw

Clip

* Not available on all models

uu

Replacing Light Bulbs

u

Side Turn Signal/Emergency Indicator Lights

*

514

Main

tenan

ce

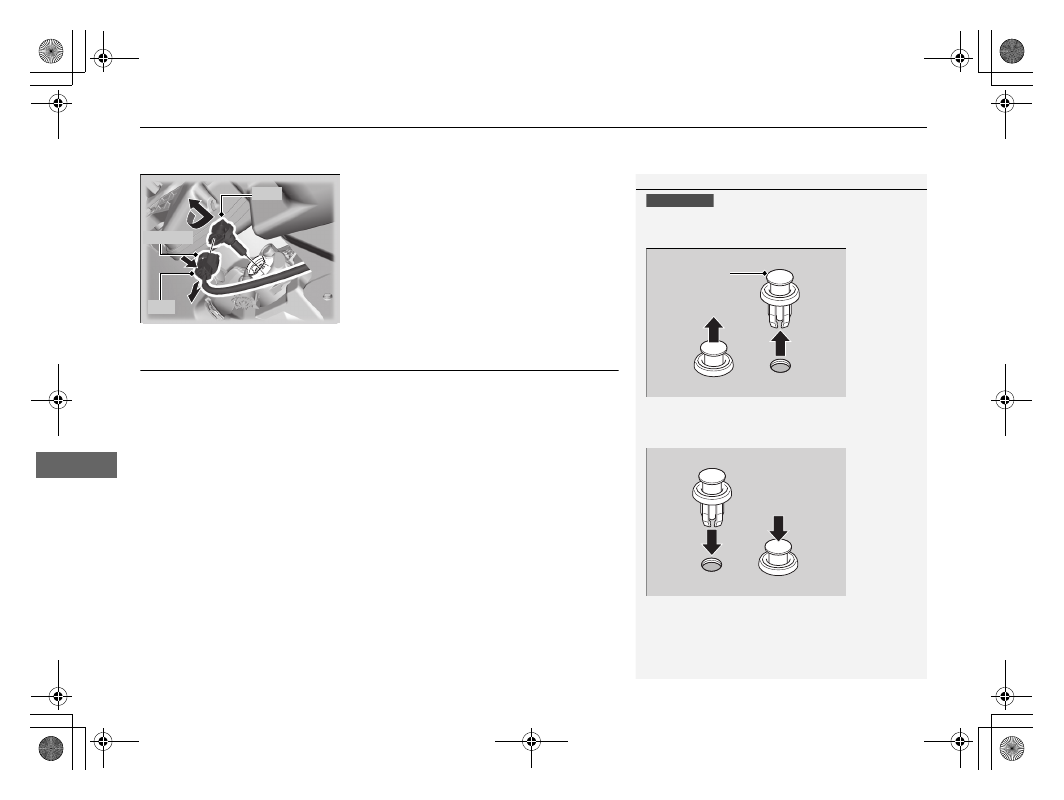

3. Push the tab to remove the coupler.
4. Rotate the old bulb counter-clockwise to

remove.

5. Insert a new bulb into the fog light

assembly and turn it clockwise.

6. Insert the coupler into the connector of the

bulb.

Side Turn Signal/Emergency Indicator Lights

*

Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.

1

Fog Light Bulbs

*

Insert a flat-tip screwdriver, lift and remove the
central pin to remove the clip.

Insert the clip with the central pin raised, and push
until it is flat.

Holding clip

Central Pin

Push until the
pin is flat.

Tab

Bulb

Coupler

* Not available on all models

515

uu

Replacing Light Bulbs

u

Back-Up Light and Rear Turn Signal Light Bulbs

Main

tenan

ce

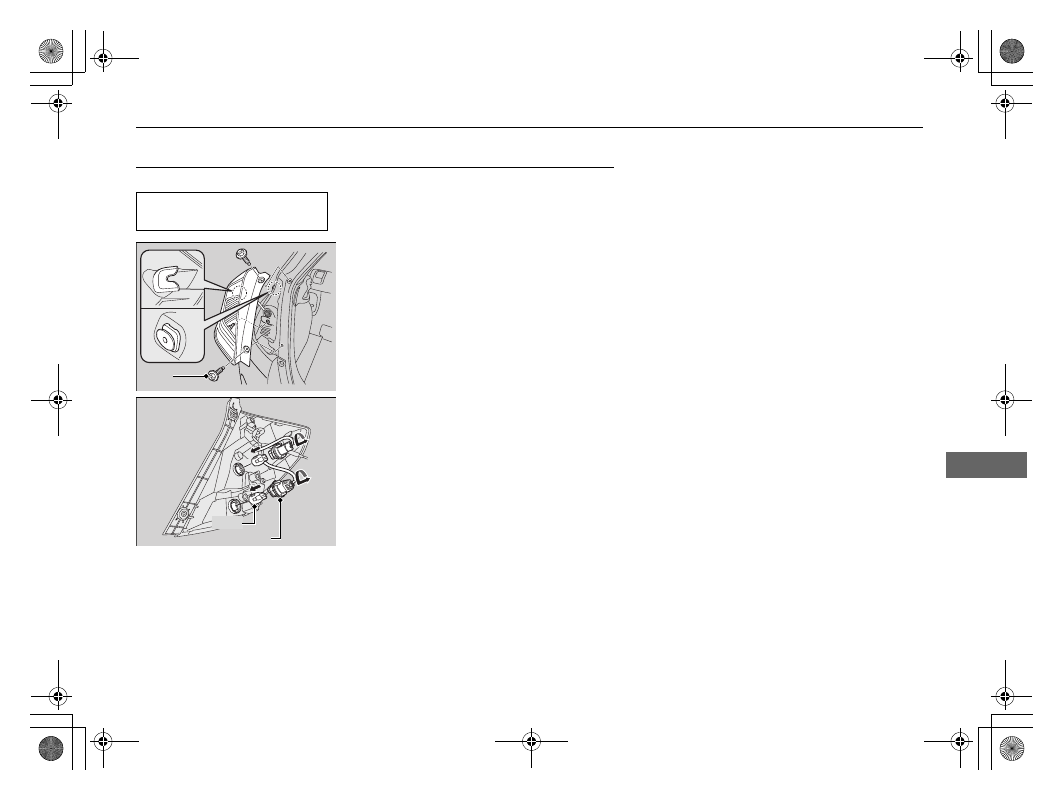

Back-Up Light and Rear Turn Signal Light Bulbs

When replacing, use the following bulbs.

1. Use a Phillips-head screwdriver to remove

the bolts.

2. Pull the light assembly out of the rear pillar.

3. Turn the socket counter-clockwise and

remove it. Remove the old bulb.

4. Insert a new bulb.
5. Slide the light assembly onto the guide on

the body.

Back-Up Light: 21 W
Rear Turn Signal Light: 21 W

Bolt

Bulb

Socket

516

uu

Replacing Light Bulbs

u

Brake/Tail/Rear Side Marker Lights

Main

tenan

ce

Brake/Tail/Rear Side Marker Lights

Brake/tail/rear side marker lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.

High-Mount Brake Light

High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

517

uu

Replacing Light Bulbs

u

Rear License Plate Light Bulbs

Main

tenan

ce

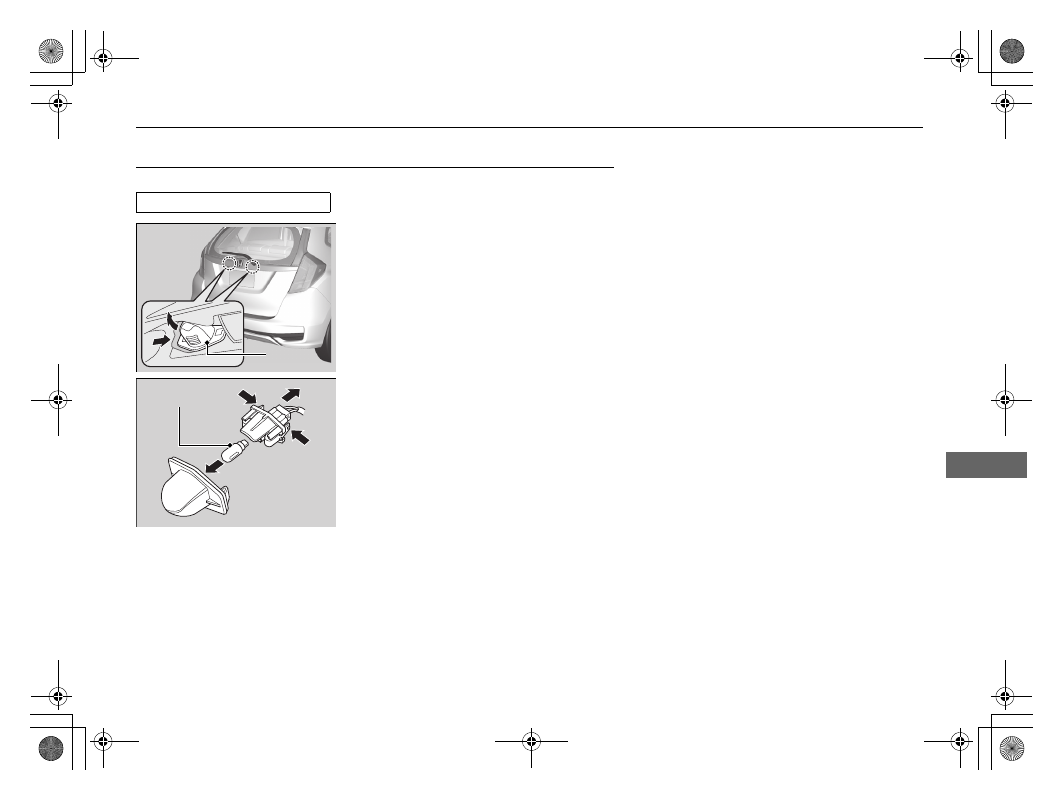

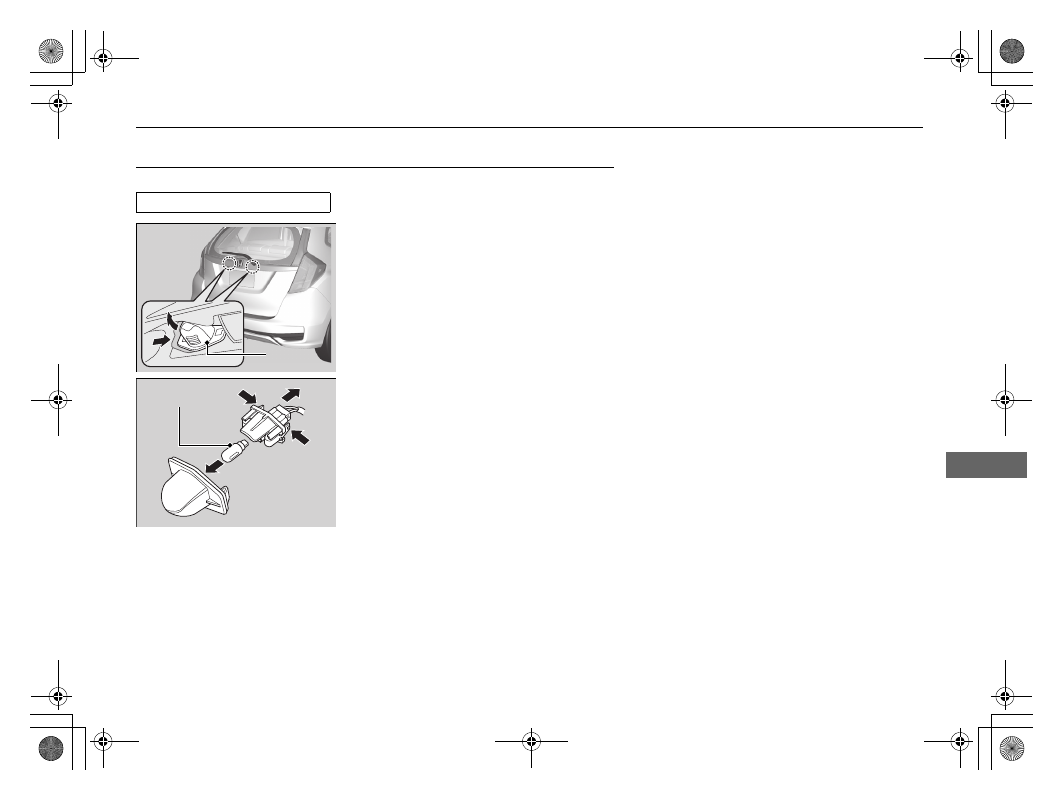

Rear License Plate Light Bulbs

When replacing, use the following bulb.

1. Push the lens on the left and pull out the

lens and the socket attached to it.

2. Remove the license plate light assembly by

squeezing the tabs on both sides of the
socket.

3. Remove the old bulb and insert a new bulb.

Rear License Plate Light: 5 W

Lens

Bulb

518

Main

tenan

ce

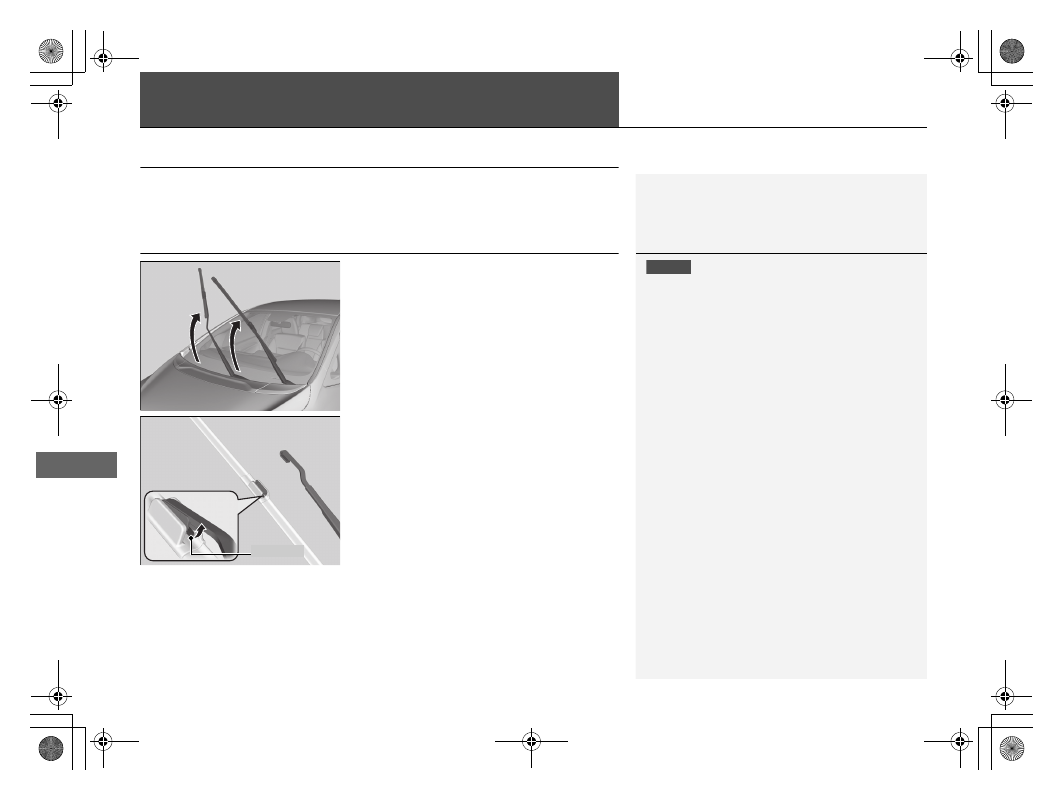

Checking and Maintaining Wiper Blades

Checking Wiper Blades

If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.

Changing the Front Wiper Blade Rubber

1. Lift the driver side wiper arm first, then the

passenger side.

2. Press and hold the tab, then slide the holder

off the wiper arm.

1

Changing the Front Wiper Blade Rubber

NOTICE

Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.

Lock Tab

519

uu

Checking and Maintaining Wiper Blades

u

Changing the Front Wiper Blade Rubber

Main

tenan

ce

3. Slide the wiper blade out of the holder by

pulling the tabbed end out.

4. Slide the new wiper blade onto the holder

from the bottom end.

u

The tab on the blade should fit in the
indent of the top of the wiper holder.

5. Slide the holder onto the wiper arm

securely.

6. Lower the passenger side wiper arm first,

then the driver side.

Blade

Tab

Blade

520

uu

Checking and Maintaining Wiper Blades

u

Changing the Rear Wiper Blade Rubber

Main

tenan

ce

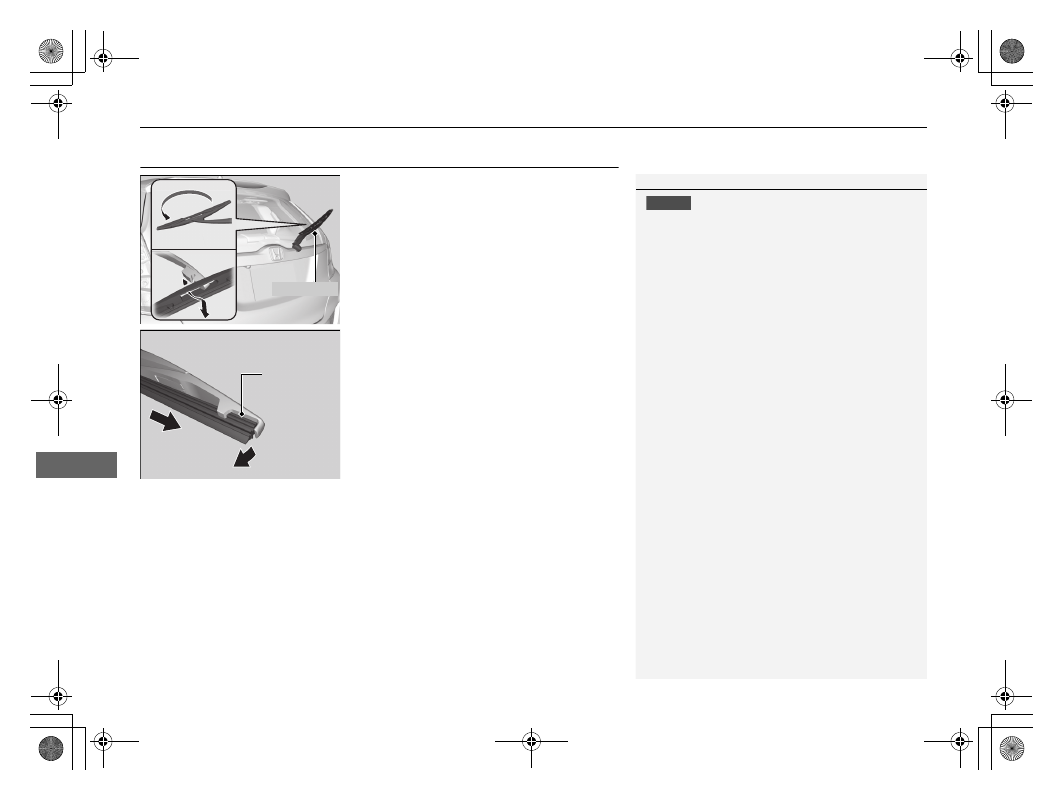

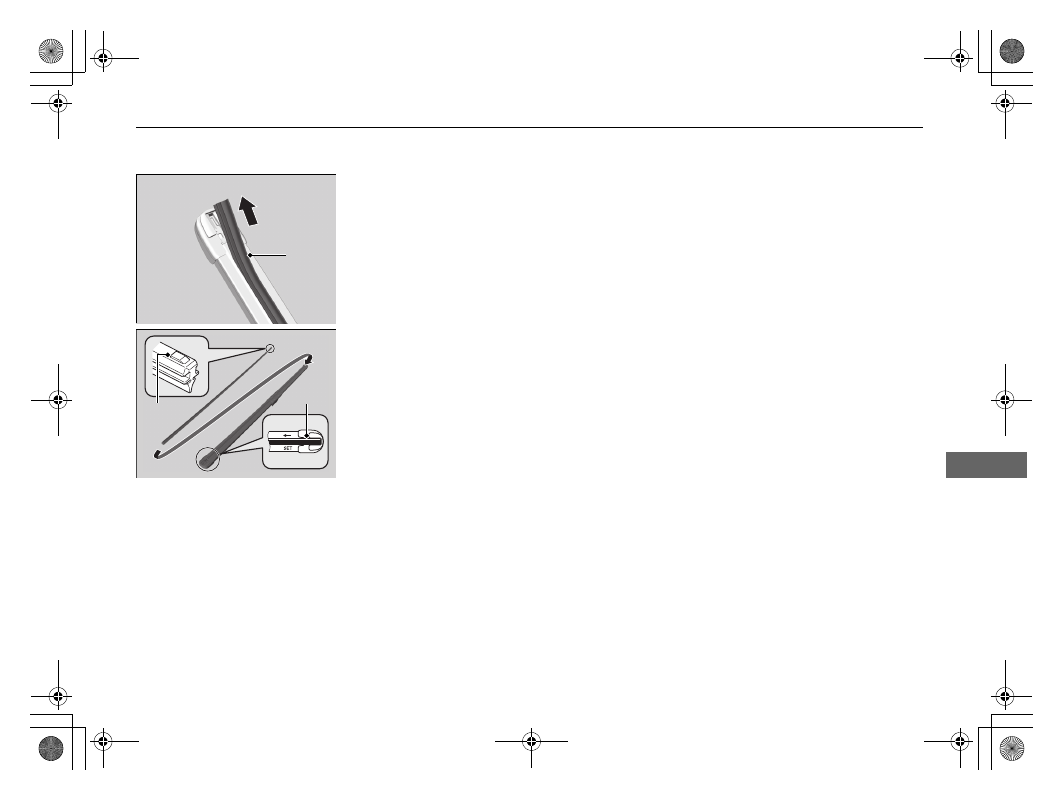

Changing the Rear Wiper Blade Rubber

1. Raise the wiper arm off.
2. Pivot the bottom end of the wiper blade up

until it comes off from the wiper arm.

3. Slide the wiper blade out from the end with

the indent.

1

Changing the Rear Wiper Blade Rubber

NOTICE

Avoid dropping the wiper arm; it may damage the
rear window.

Wiper Arm

Blade

521

uu

Checking and Maintaining Wiper Blades

u

Changing the Rear Wiper Blade Rubber

Main

tenan

ce

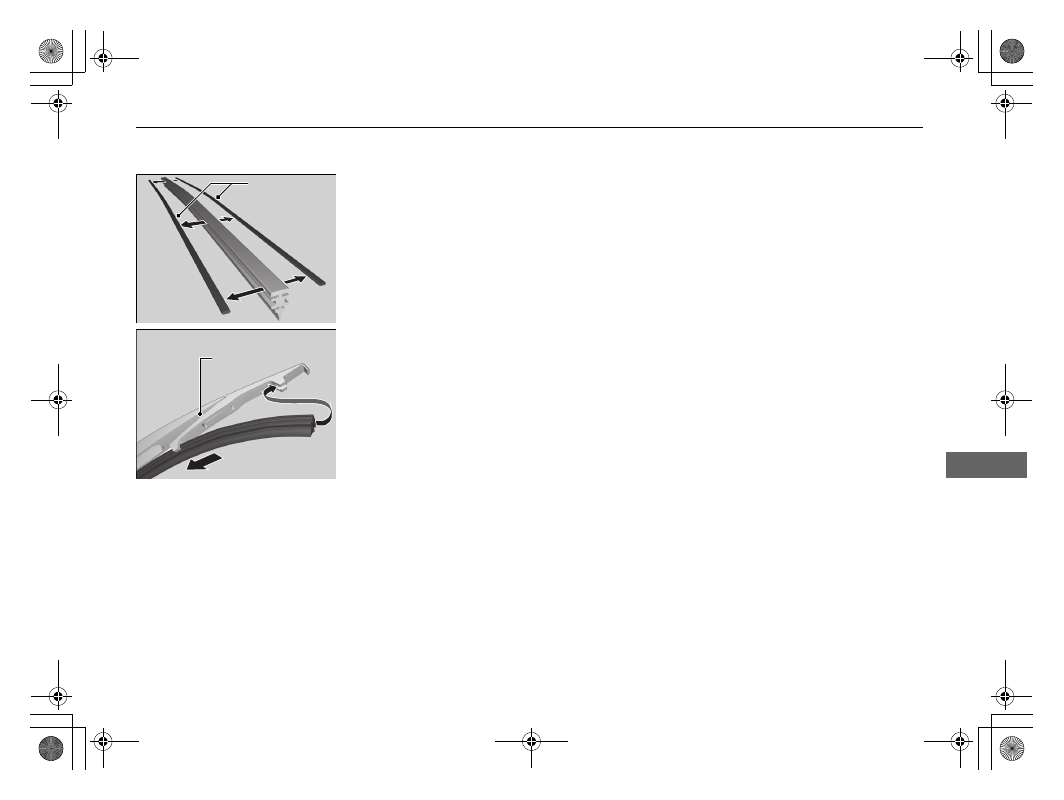

4. Remove the retainers from the wiper blade

and mount to a new rubber blade.

5. Slide the wiper blade onto the holder.

u

Make sure it is engaged correctly, then
install the wiper blade assembly onto the
wiper arm.

Retainers

Holder

522

Main

tenan

ce

Checking and Maintaining Tires

Checking Tires

To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.

Inflation guidelines

Properly inflated tires provide the best combination of handling, tread life, and comfort.
Refer to the driver’s doorjamb label or specification’s page for the specified pressure.

Underinflated tires wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.

Overinflated tires make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.

Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.

At least once a month or before long trips, use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1-2 psi (10-20 kPa,
0.1-0.2 kgf/cm

2

) per month.

1

Checking Tires

Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or release air until the specified
pressure is reached.

If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm

2

) higher than if

checked when cold.

Have a dealer check the tires if you feel a consistent
vibration while driving. New tires and any that have
been removed and reinstalled should be properly
balanced.

Whenever tire pressure is adjusted, you must
calibrate the TPMS.

TPMS Calibration P. 463

Check the spare tire pressure once a month or before
long trips.

3

WARNING

Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.

Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.

U.S. models

523

uu

Checking and Maintaining Tires

u

Checking Tires

Main

tenan

ce

Inspection guidelines

Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,

splits, or cracks in the side of the tire. Replace it if you see fabric or cord.

• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a dealer check the wheel alignment.
• Excessive tread wear.

Wear Indicators P. 528

• Cracks or other damage around valve stem.

1

Checking Tires

High speed driving
We recommend that you do not drive faster than the
posted speed limits and conditions allow. If you drive
at sustained high speeds (over 99 mph or 160 km/h),
adjust the cold tire pressures as shown below to
avoid excessive heat build up and sudden tire failure.

Tire Size

185/55R16 83H

Pressure Front

35 psi (240 kPa, 2.4 kgf/cm

2

)

Rear

33 psi (230 kPa, 2.3 kgf/cm

2

)

524

uu

Checking and Maintaining Tires

u

Tire and Loading Information Label

Main

tenan

ce

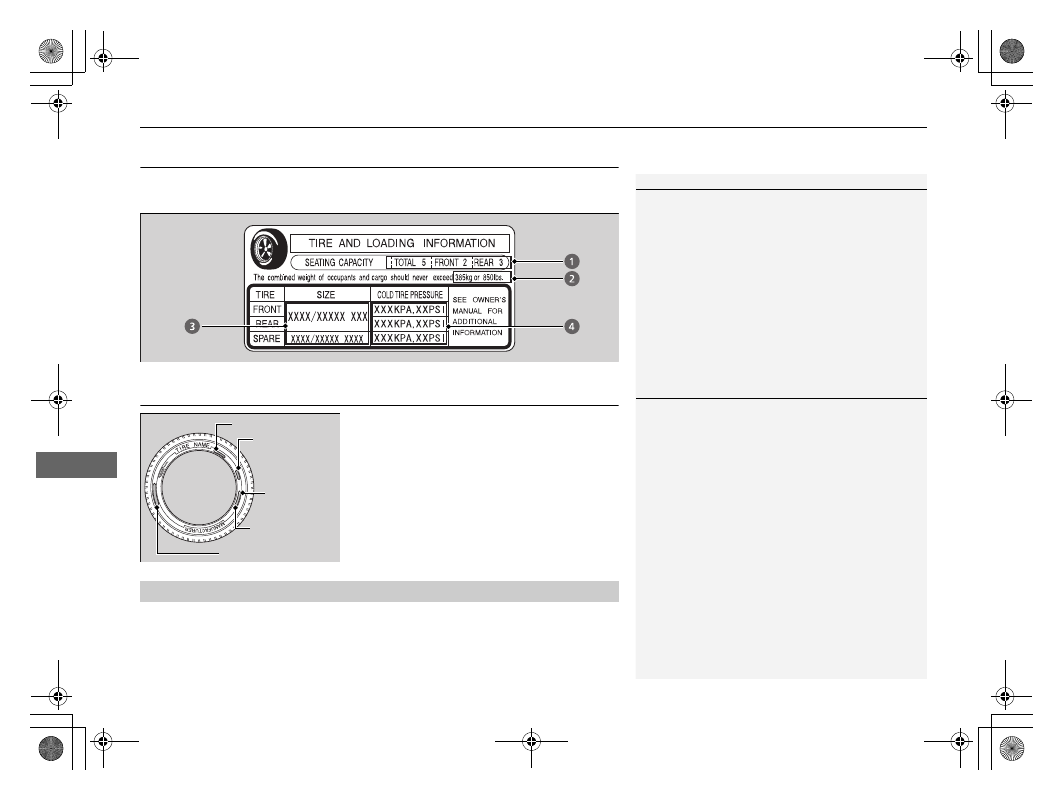

Tire and Loading Information Label

The label attached to the driver’s doorjamb provides necessary tire and loading
information.

Tire Labeling

The tires that came on your vehicle have a
number of markings. Those you should be
aware of are described below.

Whenever tires are replaced, they should be replaced with tires of the same size.

1

Tire and Loading Information Label

The tire and loading information label attached to the
driver’s doorjamb contains:

a

The number of people your vehicle can carry.

b

The total weight your vehicle can carry. Do not
exceed this weight.

c

The original tire sizes for front, rear, and spare.

d

The proper cold tire pressure for front, rear, and
spare.

Label
Example

Example

Tire Size

Tire
Identification
Number (TIN)

Maximum
Tire Load

Maximum
Tire Pressure

Tire Size

Tire Sizes

1

Tire Sizes

Following is an example of tire size with an
explanation of what each component means.
185/55R16 83H
185: Tire width in millimeters.
55: Aspect ratio (the tire’s section height as a
percentage of its width).
R: Tire construction code (R indicates radial).
16: Rim diameter in inches.
83: Load index (a numerical code associated with the
maximum load the tire can carry).
H: Speed symbol (an alphabetical code indicating the
maximum speed rating).

525

uu

Checking and Maintaining Tires

u

Tire Labeling

Main

tenan

ce

The tire identification number (TIN) is a group of numbers and letters that look like
the example in the side column. TIN is located on the sidewall of the tire.

Cold Tire Pressure – The tire air pressure when the vehicle has been parked for at
least three hours or driven less than 1 mile (1.6 km).
Load Rating – Means the maximum load that a tire is rated to carry for a given
inflation pressure.
Maximum Inflation Pressure – The maximum tire air pressure that the tire can
hold.
Maximum Load Rating – Means the load rating for a tire at the maximum
permissible inflation pressure for that tire.
Recommended Inflation Pressure – The cold tire inflation pressure recommended
by the manufacturer.
Treadwear Indicators (TWI) – Means the projections within the principal grooves
designed to give a visual indication of the degrees of wear of the tread.

Tire Identification Number (TIN)

Glossary of Tire Terminology

1

Tire Identification Number (TIN)

DOT B97R FW6X 2209
DOT: This indicates that the tire meets all
requirements of the U.S. Department of
Transportation.
B97R: Manufacturer’s identification mark.
FW6X: Tire type code.
22 09: Date of manufacture.

Year
Week

526

uu

Checking and Maintaining Tires

u

DOT Tire Quality Grading (U.S. Vehicles)

Main

tenan

ce

DOT Tire Quality Grading (U.S. Vehicles)

The tires on your vehicle meet all U.S. Federal Safety
Requirements. All tires are also graded for treadwear, traction,
and temperature performance according to Department of
Transportation (DOT) standards. The following explains these
gradings.

Quality grades can be found where applicable on the tire sidewall
between tread shoulder and maximum section width.

The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative performance
of tires depends upon the actual conditions of their use, however,
and may depart significantly from the norm due to variations in
driving habits, service practices and differences in road
characteristics and climate.

Uniform Tire Quality Grading

Treadwear

1

Uniform Tire Quality Grading

For example:
Treadwear 200
Traction AA
Temperature A

All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.















Content   ..  31  32  33  34   ..
