Honda CR-V (2018 year). Manual - part 25





384

Features

HomeLink® Universal Transceiver

*

The HomeLink® Universal Transceiver can be programmed to operate up to three
remote controlled devices around your home, such as garage doors, lighting, or
home security systems.

Refer to the safety information that came with your garage door opener to test that
the safety features are functioning properly. If you do not have the safety
information, contact the manufacturer.

Before programming HomeLink, make sure that people and objects are out of the
way of the garage or gate to prevent potential injury or damage.

When programming a garage door opener, park just outside the garage door’s path.

Important Safety Precautions

1

HomeLink® Universal Transceiver

*

Before programming HomeLink to operate a garage
door opener, confirm that the opener has an external
entrapment protection system, such as an “electronic
eye,” or other safety and reverse stop features. If it
does not, HomeLink may not be able to operate it.

* Not available on all models

385

uu

HomeLink® Universal Transceiver

*

u

Training HomeLink

Continued

Features

Training HomeLink

If it is necessary to erase a previously entered
learned code:
• Press and hold the two outside buttons for

about 20 seconds, until the red indicator
blinks. Release the buttons, and proceed to
step 1.

• If you are training the second or third

button, go directly to step 1.

The instructions on the next page should work for most gate or garage openers, but
may not work for all. For detailed instructions about your specific remote opener,
visit http://www.homelink.com or call (800)355-3515.

Red Indicator

Models without panoramic roof

Red Indicator

Models with panoramic roof

uu

HomeLink® Universal Transceiver

*

u

Training HomeLink

386

Features

Training a Button

1

Training HomeLink

Retraining a Button
If you want to retrain a programmed button for a
new device, you do not have to erase all button
memory. You can replace the existing memory code
using this procedure:

1. Press and hold the desired HomeLink button

until the HomeLink indicator begins to blink.

2. Quickly release the HomeLink button and follow

steps 1 - 3 under “Training a Button.” You do not
need to press and release the HomeLink button
again in step 2.

Indicator remains on
for about 25 secs.

Standard transmitter

Indicator remains on for
about 25 secs.

Rolling code transmitter

Erasing Codes
To erase all the codes, press and hold the two outside
buttons until the HomeLink indicator begins to blink
(about 10 to 20 secs). You should erase all codes
before selling the vehicle.

If you have any problems, see the device’s
instructions, visit www.homelink.com, or call
HomeLink at (800) 355-3515.

HomeLink® is a registered trademark of Gentex
Corporation.

4.

3.

2.

5.

A.

B.

1. Position the remote transmitter you wish to link 1 to 3 inches (3 - 8 cm) from the

HomeLink button you want to program.

Press and hold the desired HomeLink button. Hold the button on the remote
transmitter. Does the HomeLink indicator (LED) change from slowly blinking to
constantly on or rapidly blinking? The process should take less than 60 seconds.

Press and hold the
programmed HomeLink
button for about a sec.
Does the device (garage
door opener) work?

Press and release the HomeLink button. Press
and release the button on the remote every 2
secs.
Does the HomeLink indicator (LED) change from
slowly blinking to constantly on or rapidly
blinking
? The process should take less than 60
seconds.

Training
Complete

Press and hold the HomeLink button again.

Press and hold the HomeLink
button again.
The remote-controlled device
should operate.

Training Complete

The remote has a rolling code. Press the
“learn” button on the remote-controlled
device (e.g. garage door opener).

Within 30 secs, press and hold the
programmed HomeLink button for 2 secs.

HomeLink indicator rapidly blinks.

HomeLink LED is

constantly on.

YES

NO

YES

YES

NO

NO

387

Continued

Features

Bluetooth® HandsFreeLink®

Bluetooth® HandsFreeLink® (HFL) allows you to place and receive phone calls using
your vehicle's audio system, without handling your cell phone.

Using HFL

 (Pick-up) button: Press to go directly to the phone screen or to answer an

incoming call.

 (Hang-up/back) button: Press to end a call or to cancel a command.

 (Talk) button: Press to call a number with a stored voice tag.

 (Phone) button: Press to go directly to the phone screen.

Selector knob: Rotate

 to select an item on the screen, then press

.

HFL Buttons

1

Bluetooth® HandsFreeLink®

Place your phone where you can get good reception.

To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:

U.S.: Visit automobiles.honda.com/handsfreelink/
or call 1-888-528 -7876.

Canada: For more information on smartphone
compatibility, call 1-888-528 -7876.

Voice control tips

Aim the vents away from the ceiling and close the
windows, as noise coming from them may interfere
with the microphone.

Press and release the

 button when you want to

call a number using a stored voice tag. Speak
clearly and naturally after a beep.

If the microphone picks up voices other than yours,
the command may be misinterpreted.

To change the volume level, use the audio system’s
volume knob or the remote audio controls on the
steering wheel.

State or local laws may prohibit the operation of
handheld electronic devices while operating a vehicle.

If you receive a call while using the audio system, the
system resumes its operation after ending the call.

Up to 20 speed dial entries can be stored. If there is
no entry in the system, Speed Dial is disabled.

Speed Dial P. 401

Up to 20 call histories can be stored. If there is no call
history, Call History is disabled.

Models with color audio system

 (Talk) Button

Volume up

Microphone

 (Hang-up/Back) Button

 (Pick-up) Button

Volume down

Selector Knob

 (Phone) Button

uu

Bluetooth® HandsFreeLink®

u

Using HFL

388

Features

The audio/information screen notifies you
when there is an incoming call.

Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.

Only previously stored speed dial entries can be called using voice commands while
the vehicle is in motion.

Speed Dial P. 401

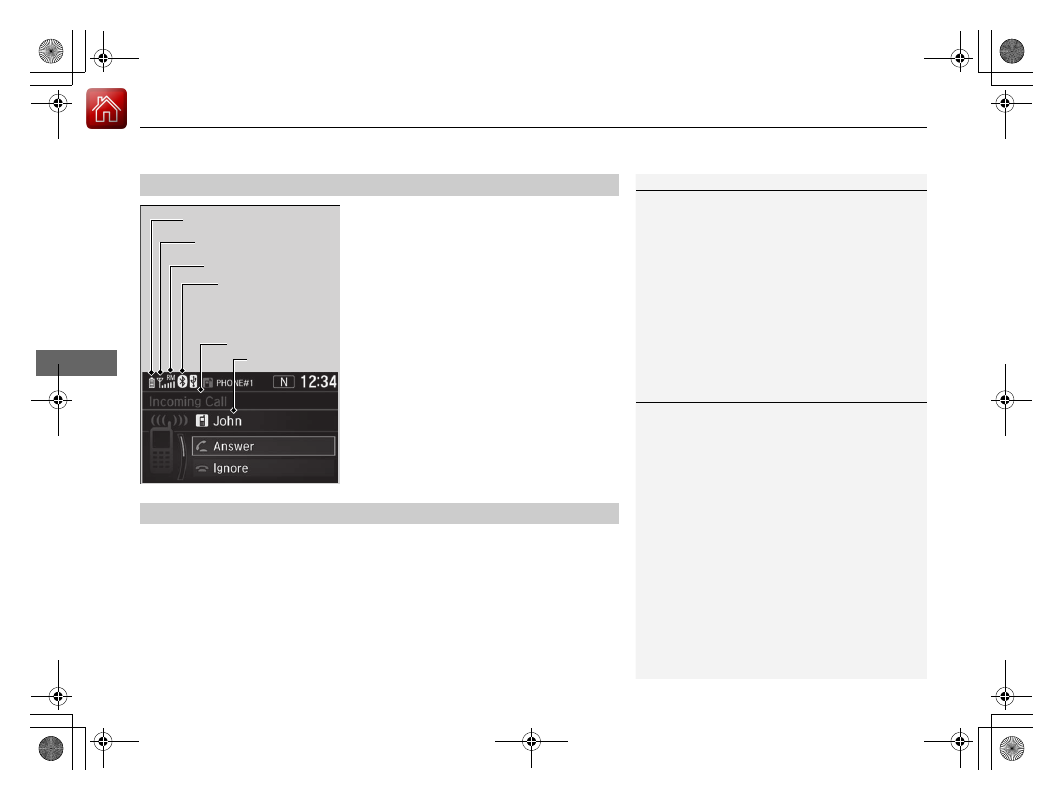

HFL Status Display

1

Bluetooth® HandsFreeLink®

Bluetooth® Wireless Technology
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.

HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call
is ended.

HFL Mode

Battery Level Status

Signal Strength

Bluetooth Indicator
Appears when your
phone is connected
to HFL.

Roam Status

Call Name

Limitations for Manual Operation

1

HFL Status Display

The information that appears on the audio/
information screen varies between phone models.

You can change the system language to English,
French, or Spanish.

Customized Features P. 351

389

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Continued

Features

HFL Menus

The ignition switch must be in ACCESSORY

(

q or ON

(

w to use HFL.

1

HFL Menus

To use HFL, you must first pair your Bluetooth-
compatible cell phone to the system while the vehicle
is parked.

Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.

 or

Display the last 20 outgoing calls.

Display the last 20 incoming calls.

Display the last 20 missed calls.

*1 : Appears only when a phone is connected to HFL.

Speed Dial

*1

Add New

Select a phone number from the call history to
store as a speed dial number.

Call History

Phonebook

Select a phone number from the phonebook to
store as a speed dial number.

Phone Number

Enter a phone number to store as a speed dial
number.

Dialed Calls

Received Calls

Missed Calls

Phonebook

*1

Dial

*1

Call History

*1

Display the paired phones’s phonebook.

Enter a phone number to dial.

(Existing entry list)

390

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Features

*1 : Appears only when a phone is connected to HFL.

Redial the last number dialed in the phone’s history.

Add New Device

Connect a Phone

Connect an Audio Device

Bluetooth Setup

Phone Setup

Redial

*1

Pair a phone to the system.

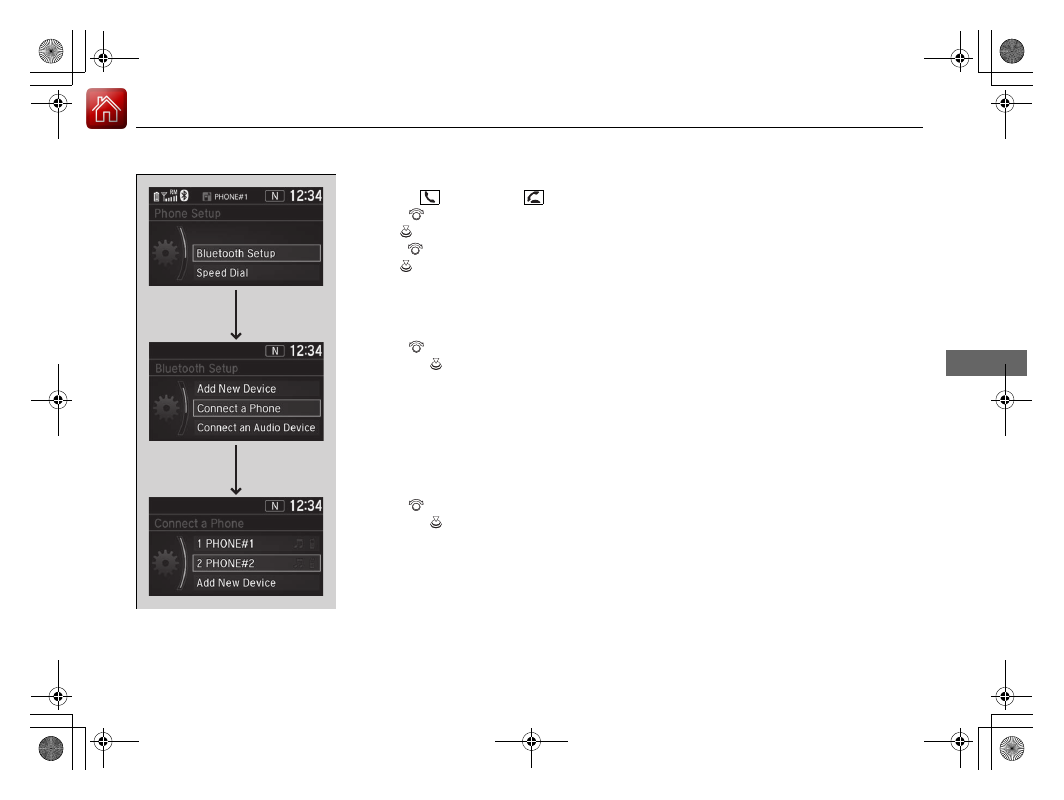

Connect a phone to the system.

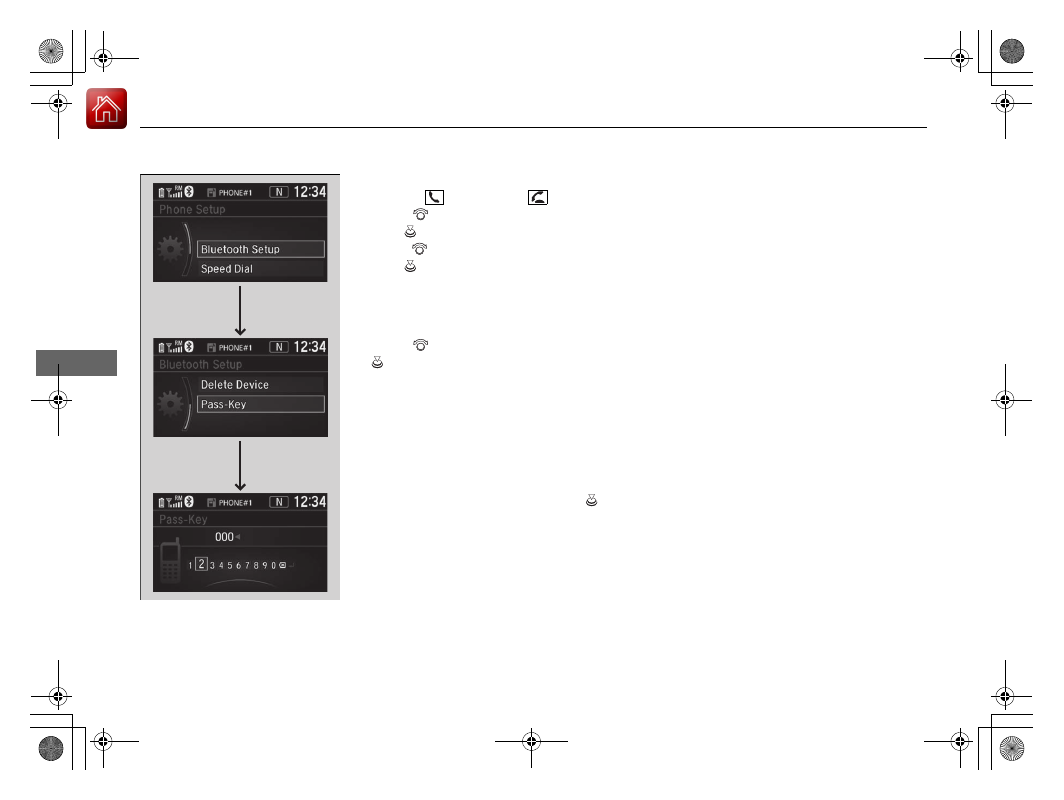

Create a code for a paired phone.

Disconnect All Devices

Delete Device

Pass-key

Disconnect a paired phone from the system.

Delete a previously paired phone.

Connect a Bluetooth® Audio device to the
system.

391

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Continued

Features

*1 : Appears only when a phone is connected to HFL.

Call History

Phonebook

Phone Number

Speed Dial

*1

Select a phone number from the phonebook
to store as a speed dial number.

Select a phone number from the call history
to store as a speed dial number.

Create a voice tag for a speed dial number.

Change Speed Dial

Delete Speed Dial

Store Voice Tag

Enter a phone number to store as a speed dial
number.

Delete a previously stored speed dial number.

Change Voice Tag

Delete Voice Tag

Change a previously stored speed dial
number.

Change a voice tag for a speed dial number.

Delete a voice tag for a speed dial number.

Add New

Existing entry list

392

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Features

Fixed

Mobile Phone

System Clear

Ringtone

Select the ring tone stored in the connected
cell phone.

Name Priority

Number Priority

Caller ID Info

Prioritize the caller’s name as the caller ID.

Clear the system of all paired phones, phonebook entries,
and security codes.

Prioritize the caller’s phone number as the
caller ID.

Select the ring tone stored in HFL.

Continued

393

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Features

To pair a cell phone (No phone has
been paired to the system)

1. Press the

 button or the

 button.

2. Rotate

 to select Yes, then press

.

3. Press

 to select OK.

4. Make sure your phone is in search or

discoverable mode.

u

HFL automatically searches for a
Bluetooth® device.

5. When your phone appears on the list, select

it by pressing

.

u

If your phone doesn’t appear, select
Phone Not Found? and search for
Bluetooth® devices using your phone.
From your phone, select
HandsFreeLink®.

6. The system gives you a pairing code on the

audio/information screen.

u

Confirm if the pairing code on the screen
and your phone match.
This may vary by phone.

7. A notification appears on the screen if

pairing is successful.

Phone Setup

1

Phone Setup

Your Bluetooth-compatible phone must be paired to
HFL before you can make and receive hands-free
calls.

Phone Pairing Tips:

You cannot pair your phone while the vehicle is
moving.

Up to six phones can be paired.

Your phone’s battery may drain faster when it is
paired to HFL.

If your phone is not ready for pairing or not found
by the system within 30 seconds, the system will
time out and return to idle.

Once you have paired a phone, you can see it
displayed on the screen with one or two icons on the
right side.
These icons indicate the following:

: The phone can be used with HFL.
: The phone is compatible with Bluetooth® Audio.

394

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Features

To pair a cell phone (when a phone has already been paired to the system)

1. Press the

 button or the

 button.

2. Rotate

to

select

Yes, then press

.

3. Rotate

to

select

Add New Device

then press

.

4. Press

 to select OK.

u

The screen changes to device list.

5. Make sure your phone is in search or

discoverable mode, then press

.

u

HFL automatically searches for a
Bluetooth® device.

6. When your phone appears on the list, select

it by pressing

.

u

If your phone does not appear, select
Phone Not Found? and search for
Bluetooth® devices using your phone.
From your phone, select
HandsFreeLink®.

7. The system gives you a pairing code on the

audio/information screen.

u

Confirm if the pairing code on the screen
and your phone match.
This may vary by a phone.

395

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Continued

Features

To change the currently paired phone

1. Press the

 button or the

 button.

2. Rotate

 to select Phone Setup, then

press .

3. Rotate

 to select Bluetooth Setup, then

press .

4. Rotate

 to select Connect a Phone

then press

.

u

The screen changes to a device list.

5. Rotate

 to select a desired device name,

then press

.

u

HFL disconnects the connected phone
and starts searching for another paired
phone.

396

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Features

To change the pairing code setting

1. Press the

 button or the

 button.

2. Rotate

to

select

Phone Setup, then

press .

3. Rotate

 to select Bluetooth Setup, then

press .

4. Rotate

to

select

Pass-Key, then press

.

5. Input a new pairing code, then press

.

397

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Continued

Features

To delete a paired phone

1. Press the

 button or the

 button.

2. Rotate

 to select Phone Setup, then

press .

3. Rotate

 to select Bluetooth Setup, then

press .

4. Rotate

 to select Delete Device, then

press .

u

The screen changes to a device list.

5. Rotate

 to select a phone you want to

delete, then press

.

6. A confirmation message appears on the

screen. Rotate

 to select Yes, then press

.

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

398

Features

You can change the ring tone setting.

1. Press the

 button or the

 button.

2. Rotate

to

select

Phone Setup, then

press .

3. Rotate

to

select

Ringtone, then press

.

4. Rotate

to

select

Fixed or Mobile

Phone, then press

.

You can select a caller’s information to be displayed when you have an incoming
call.

1. Press the

 button or the

 button.

2. Rotate

to

select

Phone Setup, then

press .

3. Rotate

to

select

Caller ID Info, then

press .

4. Rotate

 to select a mode you want, then

press .

Ring Tone

1

Ring Tone

Fixed: The fixed ring tone sounds from the speakers.
Mobile Phone: For certain connected phones, the
ring tone stored in the phone sounds from the
speakers.

Caller’s ID Information

1

Caller’s ID Information

Name Priority: A caller’s name is displayed if it is
stored in the phonebook.
Number Priority: A caller’s phone number is
displayed.

399

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Continued

Features

Pairing codes, paired phones, all stored voice tags, all speed dial entries, all call
history data, and all imported phonebook data are erased.

1. Press the

 button or the

 button.

2. Rotate

 to select Phone Setup, then

press .

3. Rotate

 to select System Clear, then

press .

4. Rotate

 to select Yes, then press

.

5. A confirmation message appears on the

screen. Rotate

 to select Yes, then press

.

6. A notification appears on the screen. Press

.

To Clear the System















Content   ..  23  24  25  26   ..
