Tools

Types of Tools

1

Types of Tools

The tools are stored in the trunk.

Tire Repair Kit

Funnel

625

Continued

Han

d

lin
g the U

n

expected

If a Tire Goes Flat

Temporarily Repairing a Flat Tire

If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.

If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.

1. Park the vehicle on a firm, level, and non-slippery surface and apply the parking

brake.

2. Put the transmission into

(

P.

3. Turn on the hazard warning lights and set the power mode to VEHICLE OFF.

1

Temporarily Repairing a Flat Tire

The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.

•

The tire sealant has expired.

•

More than one tire is punctured.

•

The puncture or cut is larger than 3/16 inch (4 mm).

•

The tire side wall is damaged or the puncture is
outside the contact area.

•

Damage has been caused by driving with the tire
extremely under inflated.

•

The tire bead is no longer seated.

•

The rim is damaged.

Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.

When the puncture is:

Kit Use

Smaller than 3/16 inch

(4 mm)

Yes

Larger than 3/16 inch

(4 mm)

No

Contact
Area

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

626

Han

d

lin
g the U

n

expected

■

Getting Ready to Temporarily Repair the Flat Tire

1

Getting Ready to Temporarily Repair the Flat Tire

Repair notification label and speed restriction label
are applied to the side of temporary tire repair kit.

When making a temporary repair, carefully read the
instruction manual provided with the kit.

Selector Knob

Speed Restriction Label

Repair Notification Label

Pressure Relief Button

Inflator Switch

Instruction Manual

REPAIR Side

Sealant/Air Hose

AIR Side

Power Plug

Pressure Gauge

Tire Sealant
Expiration Date

U.S.

Canada

U.S.

Canada

627

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Continued

Han

d

lin
g the U

n

expected

1. Open the trunk floor lid.

2. Take the kit out of the case.
3. Place the kit face up, on flat ground near

the flat tire, and away from traffic. Do not
place the kit on its side.

Floor Lid

Tire Repair Kit

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

628

Han

d

lin
g the U

n

expected

1. Remove the valve cap from the tire valve

stem.

2. Remove the sealant/air hose from the

packaging.

3. Attach the sealant/air hose onto the tire

valve stem. Screw it until it is tight.

■

Injecting Sealant and Air

1

Injecting Sealant and Air

In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.

The sealant can permanently stain clothing and other
materials. Be careful during handling and wipe away
any spills immediately.

3

WARNING

Tire sealant contains substances that are
harmful and can be fatal if swallowed.

If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.

For skin or eye contact, flush with cool
water and get medical attention if
necessary.

Tire Valve Stem

Valve Cap

Sealant/
Air Hose

Tire Valve Stem

Sealant/Air Hose

Continued

629

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Han

d

lin
g the U

n

expected

4. Plug in the compressor to the accessory

power socket.

u

Be careful not to pinch the cord in a
door or window.

u

Do not plug any other electric devices
into other accessory power sockets.

2 Accessory Power Sockets P. 223

5. Turn the power system on.

2 Turning on the Power P. 458

u

Keep the power system on while
injecting sealant and air.

2 Carbon Monoxide Gas P. 78

6. Turn the selector knob to REPAIR.

1

Injecting Sealant and Air

NOTICE

Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.

There are two accessory power sockets:

•

In the console compartment

•

In the center pocket

Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure using the gauge, turn the air
compressor off only after the sealant injection is
complete.

3

WARNING

Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.

Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.

Center Pocket

Console Compartment

REPAIR Side

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

630

Han

d

lin
g the U

n

expected

7. Press the inflator switch to turn on the kit.

u

The compressor starts injecting sealant
and air into the tire.

u

When the sealant injection is complete,
continue to add air.

8. After the air pressure reaches to specified

pressure, turn off the kit.

u

To check the pressure, occasionally turn
off the compressor and read the gauge.

u

Refer to the driver’s doorjamb label for
the specified pressure.

9. Unplug the power plug from the accessory

power socket.

10. Unscrew the sealant/air hose from the tire

valve stem. Reinstall the valve cap.

11. Press the pressure relief button until the

gauge returns to 0 psi (0 kPa).

12. Apply the repair notification label to the

flat surface of the wheel.

u

The wheel surface must be clean to
ensure the label adheres properly.

1

Injecting Sealant and Air

If the required air pressure is not reached within 10
minutes, the tire may be too severely damaged for
the kit to provide the necessary seal, and your vehicle
will need to be towed.

See a dealer for a replacement sealant bottle and
proper disposal of an empty bottle.

Pressure Gauge

ON

OFF

Sealant/Air Hose

Tire Valve Stem

Pressure Relief
Button

Repair Notification Label

U.S.

Canada

631

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Continued

Han

d

lin
g the U

n

expected

1. Apply the speed restriction label to the

location as shown.

2. Drive the vehicle for about 10 minutes.

u

Do not exceed 50 mph (80 km/h).

3. Stop the vehicle in a safe place.

4. Recheck the air pressure using the sealant/

air hose on the compressor.

■

Distributing the Sealant in the Tire

Speed Restriction Label

U.S.

Canada

Sealant/Air Hose

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

632

Han

d

lin
g the U

n

expected

5. Turn the selector knob to AIR.

u

Do not turn the air compressor on to
check the pressure.

2 Inflating an Under-inflated Tire

P. 634

1

Distributing the Sealant in the Tire

3

WARNING

Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.

Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.

AIR Side

ON

Center Pocket

Console Compartment

633

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Continued

Han

d

lin
g the U

n

expected

6. If the air pressure is

• Less than 25 psi (175 kPa):

Do not add air or continue driving. The leak is too severe. Call for help and have
your vehicle towed.

2 Emergency Towing P. 657

• Front: 33 psi (230 kPa)/rear: 33 psi (225 kPa) or more:

Continue driving for another 10 minutes or until you reach the nearest service
station, whichever is sooner. Do not exceed 50 mph (80 km/h). If you have not
reached a service station, stop and check the tire pressure.

u

If the air pressure does not go down after the 10 minute drive, you do not
need to check the pressure any more. Drive to the nearest service station to
fix or replace the tire.

• Greater than 25 psi (175 kPa), but less than specified pressure:

Turn the air compressor on to inflate the tire until the tire pressure reaches
specified pressure.

2 Inflating an Under-inflated Tire P. 634

Then drive carefully for 10 more minutes or until you reach the nearest service
station, whichever is sooner. Do not exceed 50 mph (80 km/h). If you have not
reached a service station, stop and check the tire pressure.

u

You should repeat this procedure as long as the air pressure is within this
range.

7. Unplug the kit from the accessory power

socket.

8. Unscrew the sealant/air hose from the tire

valve stem. Reinstall the valve cap.

9. Press the pressure relief button until the

gauge returns to 0 psi (0 kPa).

10. Repackage and properly stow the kit.

Pressure Relief Button

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

634

Han

d

lin
g the U

n

expected

You can use the kit to inflate a non-punctured under-inflated tire.

1. Open the trunk floor lid.

2 Getting Ready to Temporarily Repair

the Flat Tire P. 626

2. Remove the kit from the case.
3. Place the kit, face up, on flat ground near

the flat tire, away from traffic. Do not
place the kit on its side.

4. Remove the sealant/air hose from the kit.

5. Remove the valve cap.

6. Attach the sealant/air hose onto the tire

valve stem. Screw it until it is tight.

■

Inflating an Under-inflated Tire

1

Inflating an Under-inflated Tire

NOTICE

Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.

Sealant/
Air Hose

Valve Cap

Tire Valve Stem

Sealant/Air Hose

Continued

635

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Han

d

lin
g the U

n

expected

7. Plug in the kit to the accessory power

socket.

u

Be careful not to pinch the cord in a
door or window.

u

Do not plug any other electronic
devices into other accessory power
sockets.

2 Accessory Power Sockets P. 223

8. Turn the power system on.

2 Turning on the Power P. 458

u

Keep the power system on while
injecting air.

2 Carbon Monoxide Gas P. 78

9. Turn the selector knob to AIR.

10. Press the inflator switch to turn on the kit.

u

The compressor starts to inject air into
the tire.

11. Inflate the tire to the specified air pressure.

1

Inflating an Under-inflated Tire

3

WARNING

Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.

Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.

Center Pocket

Console Compartment

AIR Side

ON

636

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Han

d

lin
g the U

n

expected

12. Turn off the kit.

u

Check the pressure gauge on the air
compressor.

u

If overinflated, press the pressure relief
button.

13. Unplug the kit from the accessory power

socket.

14. Unscrew the sealant/air hose from the tire

valve stem. Reinstall the valve cap.

15. Press the pressure relief button until the

gauge returns to 0 psi (0 kPa).

16. Repackage and properly stow the kit.

Pressure Relief Button

637

Han

d

lin
g the U

n

expected

Handling of the Jack

Your vehicle has jacking points as shown.
When replacing your tires, consult a dealer.

Jacking Points

638

Han

d

lin
g the U

n

expected

Power System Won’t Start

Checking the Procedure

When the READY indicator does not come on and the Ready To Drive message
does not appear on the driver information interface, check the following items and
take appropriate action.

Checklist

Condition

What to Do

Check if the related
indicator or driver
information interface
messages come on.

The Temperature Is Too Cold For Vehicle To Operate
message appears.

2 Driver Information Interface Warning and

Information Messages P. 108

The To Start, Hold Remote Near Start Button message
appears.

u

Make sure the smart entry remote is in its operating range.

2 POWER Button Operating Range P. 188

2 If the Smart Entry Remote Battery is Weak

P. 639

The POWER SYSTEM indicator comes on.

Have your vehicle checked by a dealer.

The transmission system indicator blinks and Transmission
System Problem. Apply Parking Brake When Parked. See
Your Dealer. message appears.

2 If the Transmission System Indicator Blinks

along with the Warning Message P. 652

Check the brightness
of the interior lights.

The interior lights are dim or do not come on at all.

Have the 12-volt battery checked by a dealer.

The interior lights come on normally.

Check all fuses, or have your vehicle checked by
a dealer.

2 Inspecting and Changing Fuses P. 656

Check the shift
position.

The transmission is not in

(

P.

Put the transmission into

(

P.

Check the
immobilizer system
indicator.

When the immobilizer system indicator is blinking, the power
system cannot be turned on.

2 Immobilizer System Indicator P. 98

1

Checking the Procedure

If you must start the vehicle immediately, use an
assisting vehicle or booster battery to jump start it.

2 Jump Starting P. 641

639

uu

Power System Won’t Start

u

If the Smart Entry Remote Battery is Weak

Han

d

lin
g the U

n

expected

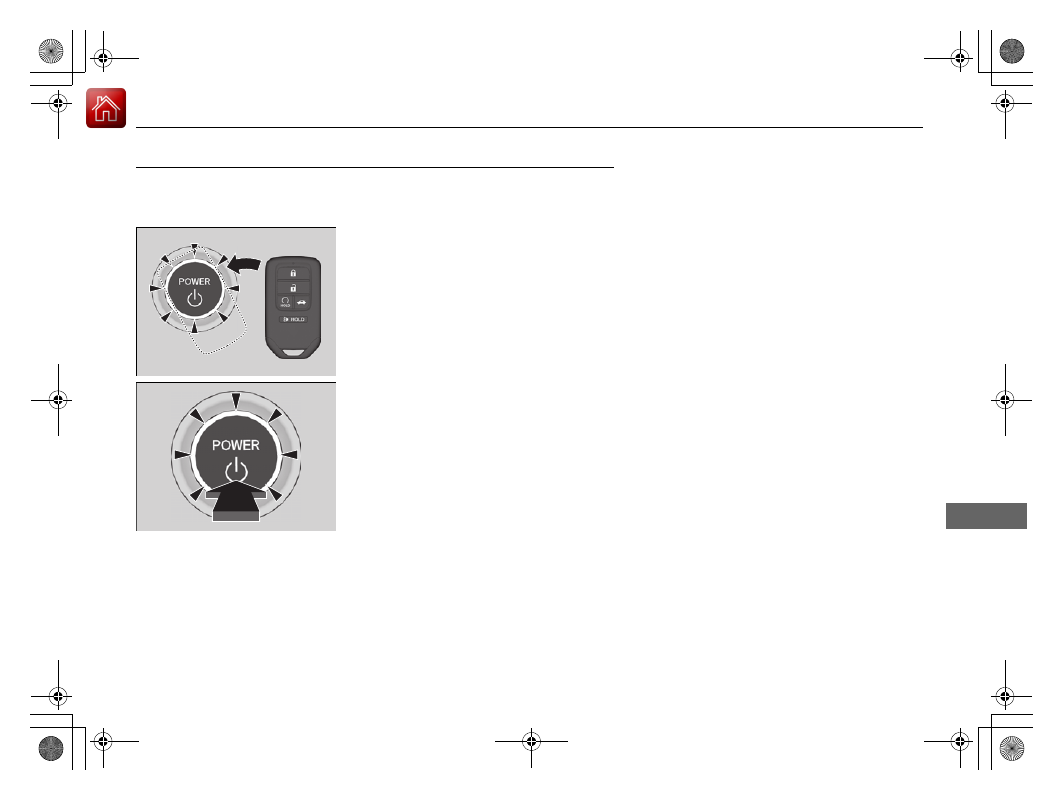

If the Smart Entry Remote Battery is Weak

If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, and the POWER button flashes, the
READY indicator does not come on. Turn on the power system as follows:

1. Touch the center of the POWER button

with the H logo on the smart entry remote
while the POWER button is flashing. The
buttons on the smart entry remote should
be facing you.

u

The POWER button flashes for about 30
seconds.

2. Depress the brake pedal and press the

POWER button within 10 seconds after the
beeper sounds and the POWER button
changes from flashing to on.

u

The READY indicator comes on.

u

If you don’t depress the pedal, the mode
will change to ACCESSORY.
