Harley Davidson Parts Catalog 2019: touring models - page 14
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201119A
MAIN WIRING HARNESS
FLHTK, FLHTK SHRINE,
- ABS
FLHTKL
NOTE: Includes the following parts.
1
6990
PLUG, weather, six-way
FLHTK, FLHTK SHRINE,
pin
FLHTKL
2
10006
CABLE STRAP (2)
FLHTK, FLHTK SHRINE,
FLHTKL
3
10065
CABLE STRAP (2)
FLHTK, FLHTK SHRINE,
FLHTKL
4
31586-07
RELAY (2)
FLHTK, FLHTK SHRINE,
FLHTKL
5
72064-06
HOUSING, three-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
6
72081-11
HOUSING, 48-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
7
72106-94BK
HOUSING, six-way pin
FLHTK, FLHTK SHRINE,
(black) (replaces gray
FLHTKL
connector)
8
72146-94
SECONDARY LOCK, six-
FLHTK, FLHTK SHRINE,
way pin
FLHTKL
9
72169-07
TERMINAL, pin, 16-20
FLHTK, FLHTK SHRINE,
AWG (10)
FLHTKL
10
72175-07BK
HOUSING, four-way pin
FLHTK, FLHTK SHRINE,
(black)
FLHTKL
11
72188-07BK
HOUSING, six-way pin
FLHTK, FLHTK SHRINE,
(black)
FLHTKL
12
72190-94
TERMINAL, pin, 16-18
FLHTK, FLHTK SHRINE,
AWG (2)
FLHTKL
13
72194-94
TERMINAL, pin, 20 AWG
FLHTK, FLHTK SHRINE,
(3)
FLHTKL
14
72195-94
SEAL PIN
FLHTK, FLHTK SHRINE,
FLHTKL
15
72209-11
COVER, wire
FLHTK, FLHTK SHRINE,
FLHTKL
16
72222-11
TERMINAL, socket, 18-
FLHTK, FLHTK SHRINE,
20 AWG (21)
FLHTKL
390/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
72226-11
TERMINAL, socket, 14-
FLHTK, FLHTK SHRINE,
16 AWG
FLHTKL
18
72227-11
TERMINAL, socket, 18-
FLHTK, FLHTK SHRINE,
20 AWG (5)
FLHTKL
19
72256-11
SEAL PIN, 0.6 mm (white)
FLHTK, FLHTK SHRINE,
(9)
FLHTKL
20
72296-95
TERMINAL, socket, 14-
FLHTK, FLHTK SHRINE,
16 AWG (3)
FLHTKL
21
72298-95
WIRE SEAL, 14-18 AWG
FLHTK, FLHTK SHRINE,
(green) (3)
FLHTKL
22
72299-95
SEAL PIN, green (2)
FLHTK, FLHTK SHRINE,
FLHTKL
23
72308-97
TERMINAL, socket, 12-
FLHTK, FLHTK SHRINE,
14 AWG (5)
FLHTKL

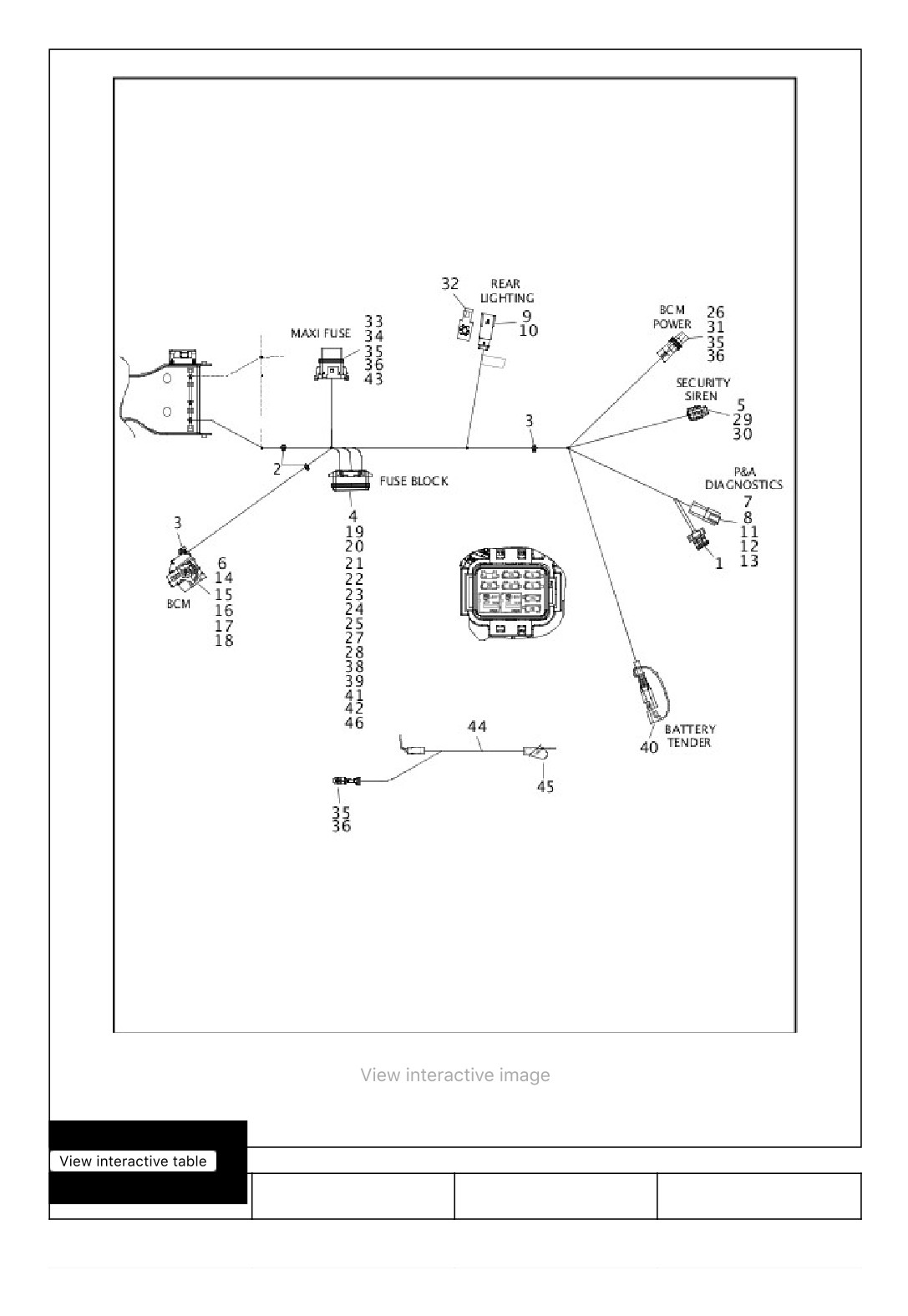

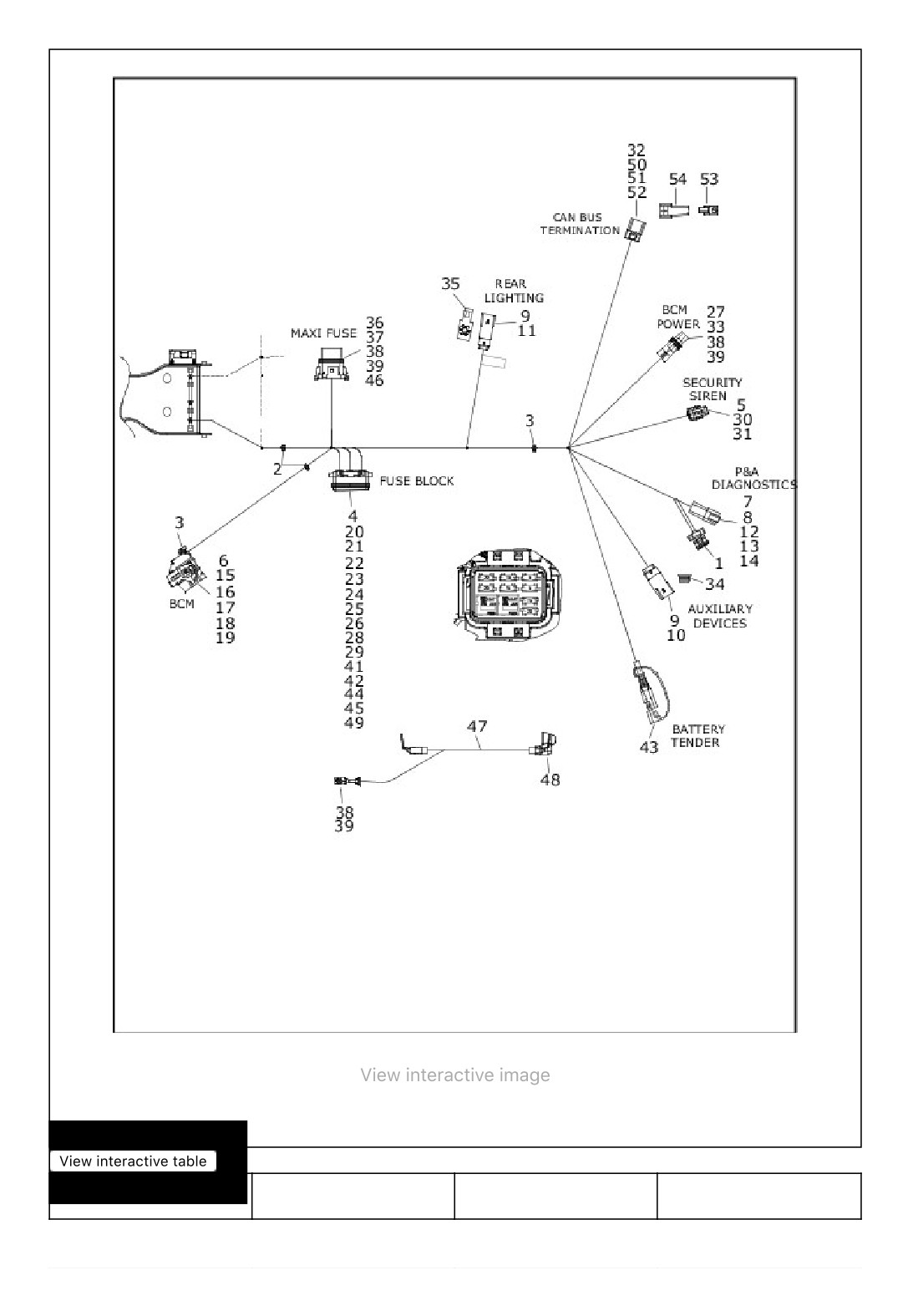

WIRING HARNESS, MAIN, ABS - FLHTK AND FLHTKL (10 OF 10)
391/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
392/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201119A
MAIN WIRING HARNESS
FLHTK, FLHTK SHRINE,
- ABS
FLHTKL
NOTE: Includes the following parts.
24
72330-95
FUSE, 15 A (blue)
FLHTK, FLHTK SHRINE,
FLHTKL
25
72331-95
FUSE, 5 A (tan) (2)
FLHTK, FLHTK SHRINE,
FLHTKL
26
72345-02
FUSE, 20 A (yellow) (3)
FLHTK, FLHTK SHRINE,
FLHTKL
27
72350-11
HOUSING, one-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
28
72356-95
TERMINAL, socket, 18-
FLHTK, FLHTK SHRINE,
20 AWG (14)
FLHTKL
29
72412-97
WIRE SEAL, 12-14 AWG
FLHTK, FLHTK SHRINE,
(gray) (5)
FLHTKL
30
72484-08
TERMINAL, socket, 20
FLHTK, FLHTK SHRINE,
AWG (3)
FLHTKL
31
72486-08
WIRE SEAL, 20 AWG
FLHTK, FLHTK SHRINE,
(green) (3)
FLHTKL
32
72575-11
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
one-way socket
FLHTKL
33
72632-10
PLUG, weather, four-way
FLHTK, FLHTK SHRINE,
pin
FLHTKL
34
73213-07
RETAINER, anchored
FLHTK, FLHTK SHRINE,
FLHTKL
35
73301-04
HOUSING, two-way pin
FLHTK, FLHTK SHRINE,
(black)
FLHTKL
36
73303-04
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
two-way socket
FLHTKL
37
73304-04
TERMINAL, socket, 10
FLHTK, FLHTK SHRINE,
AWG (2)
FLHTKL
38
73305-04
WIRE SEAL, 10 AWG
FLHTK, FLHTK SHRINE,
(blue) (2)
FLHTKL
39
11100115
CLOTH, HARNESS
FLHTK, FLHTK SHRINE,
WRAP, 50 m (not shown)
FLHTKL
393/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
40
69200194
FUSE BLOCK, 24-way
FLHTK, FLHTK SHRINE,
FLHTKL
41
69200199
WIRE SEAL, 18-20 AWG
FLHTK, FLHTK SHRINE,
(purple) (14)
FLHTKL
42
69200212
HARNESS, battery
FLHTK, FLHTK SHRINE,
tender
FLHTKL
43
69200293
FUSE, 7.5 A (brown) (2)
FLHTK, FLHTK SHRINE,
FLHTKL
44
69200312
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
fuse block (3)
FLHTKL
45
69200336
MAIN FUSE, 50 A (red),
FLHTK, FLHTK SHRINE,
NOTE: Fuse is sold
FLHTKL
separately and is not part
of main harness
46
69201130
WIRE HARNESS, battery
FLHTK, FLHTK SHRINE,
positive to starter, with
FLHTKL
73304-04, 73305-04 and
69201307
47
69201307
BOOT, battery positive
FLHTK, FLHTK SHRINE,
FLHTKL
48
69201411
COVER, fuse block
FLHTK, FLHTK SHRINE,
FLHTKL
WIRING HARNESS, MAIN, NON-ABS - FLHR (1 OF 8)
394/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
395/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201126
MAIN WIRING HARNESS
FLHR
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (6)
FLHR
2
70291-89
HOUSING, four-way pin
FLHR
3
72039-71A
TERMINAL, pin (3)
FLHR
4
72364-06
TERMINAL, socket 10-14
FLHR
AWG
5
72907-11
HOUSING, four-way pin
FLHR
(black)
6
72909-11
TERMINAL, pin, 20-22
FLHR
AWG (4)
7
72914-01BK
HOUSING, four-way
FLHR
socket (black)
8
72991-01
TERMINAL, socket 18-22
FLHR
AWG (3)
9
73104-96BK
HOUSING, four-way pin
FLHR
(black)
10
73106-96BK
HOUSING, six-way pin
FLHR
(black)
11
73190-96
TERMINAL, pin, 16-20
FLHR
AWG (8)
12
69200202A
WIRE TROUGH
FLHR
13
69200203A
COVER, wire trough, with
FLHR
15368-01A and
69201459
14
69200284A
BRACKET, mounting
FLHR
15
69201163
HOUSING, six-way pin
FLHR
(black)
16
69201164
TERMINAL, pin, 22 AWG
FLHR
(6)
17
69201287
BRACKET, mounting,
FLHR
electrical connector
18
69201459
BRACKET
FLHR
396/956
4/5/2019

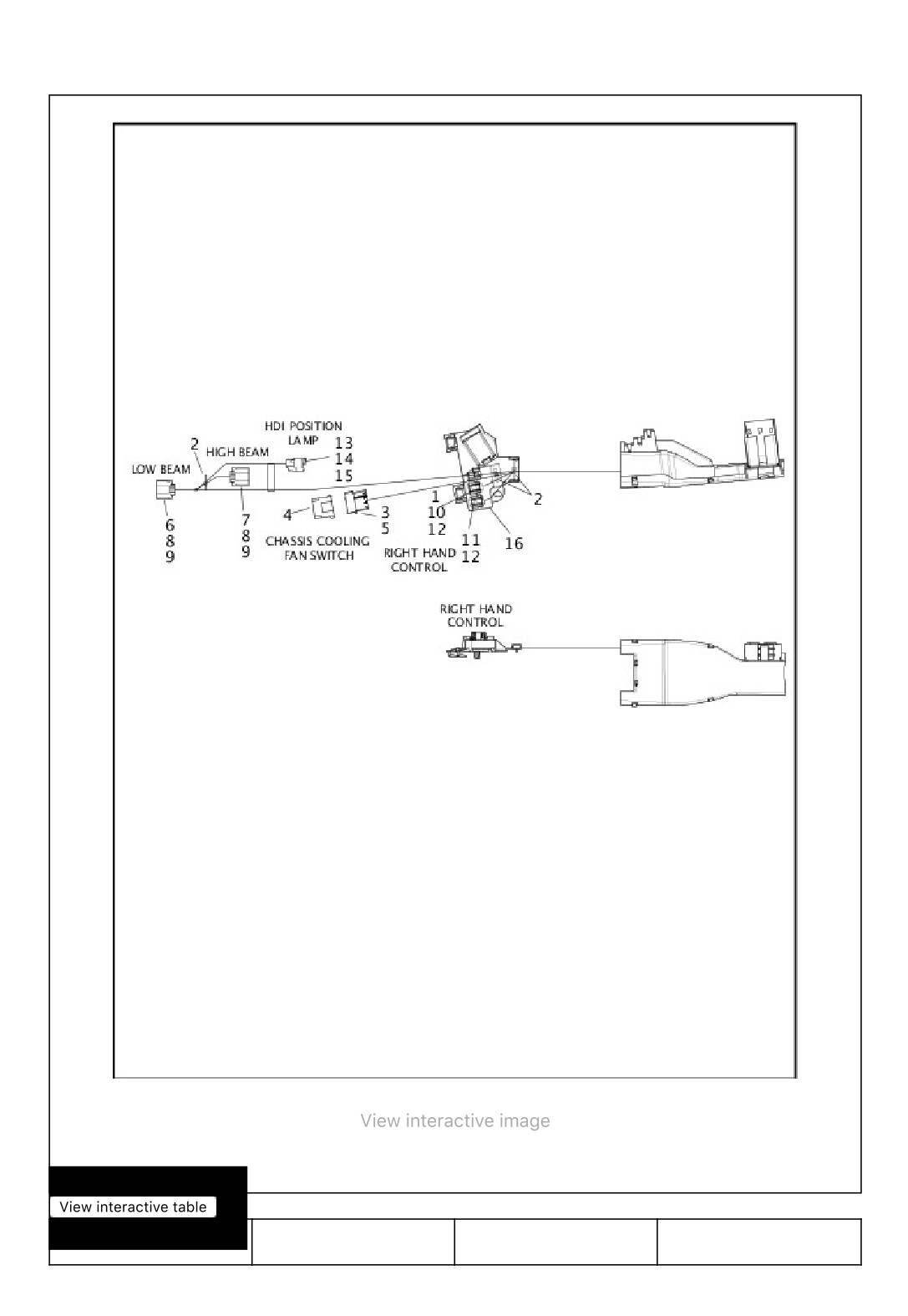

WIRING HARNESS, MAIN, NON-ABS - FLHR (2 OF 8)
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
397/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201126
MAIN WIRING HARNESS
FLHR
- NON-ABS
NOTE: Includes the following parts.
1
5118
SEAL PIN
FLHR
2
10065
CABLE STRAP (3)
FLHR
3
70291-89
HOUSING, four-way pin
FLHR
4
70292-89
HOUSING, four-way
FLHR
socket
5
72039-71A
TERMINAL, pin (2)
FLHR
6
72449-01
HOUSING, two-way
FLHR
socket (black)
7
72450-01
HOUSING, two-way
FLHR
socket (gray)
8
72527-01
TERMINAL, socket, 18-
FLHR
20 AWG (4)
9
72633-02
WIRE SEAL, 14-16 AWG
FLHR
(white) (4)
10
72905-11
HOUSING, two-way pin
FLHR
(black)
11
72907-11
HOUSING, four-way pin
FLHR
(black)
12
72909-11
TERMINAL, pin, 20-22
FLHR
AWG (5)
13
69200220
HOUSING, two-way
FLHR
socket (black)
14
69200221
TERMINAL, socket, 18-
FLHR
20 AWG (2)
15
69200222
WIRE SEAL, 16 AWG
FLHR
(green) (2)
16
69200285
BRACKET, mounting
FLHR

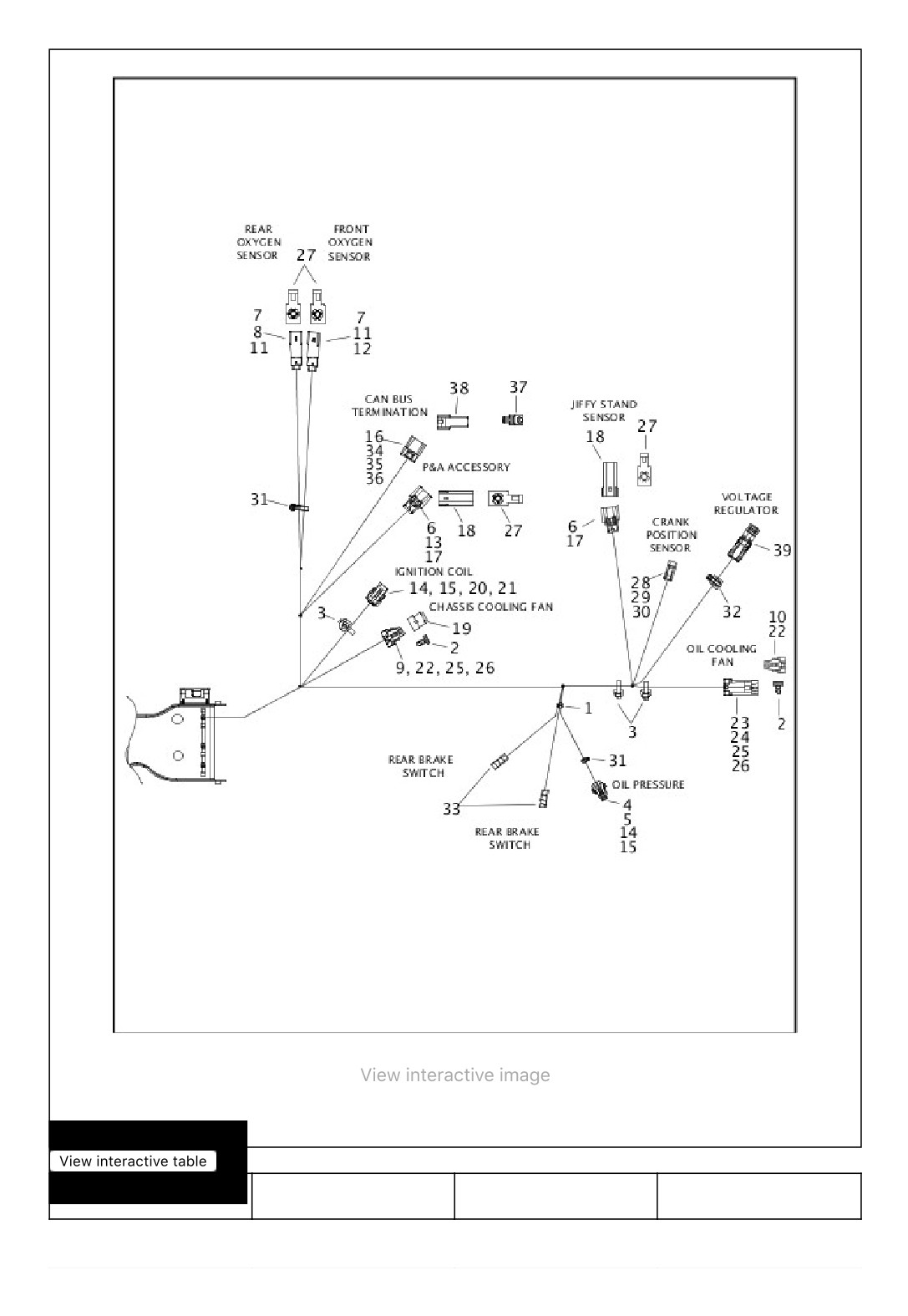

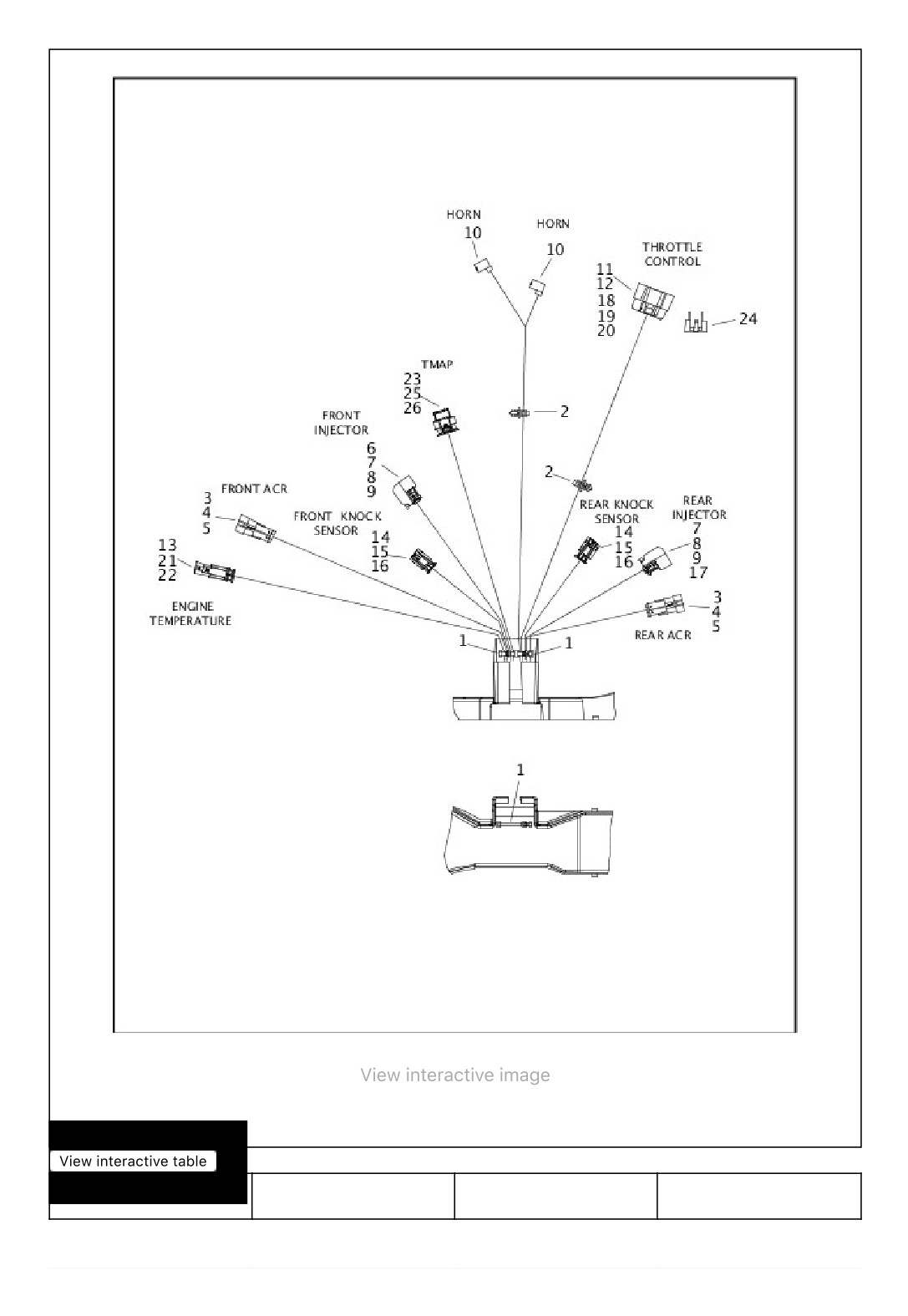

WIRING HARNESS, MAIN, NON-ABS - FLHR (3 OF 8)
398/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
399/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201126
MAIN WIRING HARNESS
FLHR
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHR
2
10177
CABLE STRAP, anchored
FLHR
(2)
3
72008-05
TERMINAL, pin, 20-22
FLHR
AWG (4)
4
72009-05
HOUSING, two-way pin
FLHR
(black) (2)
5
72010-05
WIRE SEAL, 22-26 AWG
FLHR
(green) (4)
6
72098-06
HOUSING, two-way
FLHR
socket (gray)
7
72099-06
WIRE SEAL, 16-18 AWG
FLHR
(blue) (4)
8
72110-06
TERMINAL, socket, 16-
FLHR
18 AWG (4)
9
72145-06
SECONDARY LOCK,
FLHR
two-way socket (2)
10
72283-09
TERMINAL, socket, 14-
FLHR
16 AWG, 90 degree (2)
11
72499-07
WIRE SEAL, 20-22 AWG
FLHR
(green) (6)
12
72569-08
TERMINAL, socket, 20-
FLHR
22 AWG (2)
13
69201301
WIRE SEAL, 20-22 AWG
FLHR
(green) (2)
14
69201390
HOUSING, two-way
FLHR
socket (2)
15
69201391
TERMINAL, socket, 20
FLHR
AWG (4)
16
69201392
WIRE SEAL, 20 AWG
FLHR
(yellow) (4)
400/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
69201393
HOUSING, two-way
FLHR
socket (black)
18
69201394
HOUSING, six-way
FLHR
socket (black)
19
69201395
SECONDARY LOCK, six-
FLHR
way socket
20
69201396
TERMINAL, socket, 20
FLHR
AWG (4)
21
69201397
HOUSING, two-way pin
FLHR
(gray)
22
69201398
TERMINAL, pin, 20 AWG
FLHR
(2)
23
69201301
WIRE SEAL, 20-22 AWG
FLHR
(green) (4)
24
69201416
SECONDARY LOCK, six-
FLHR
way socket
25
69201441
HOUSING, four-way
FLHR
socket
26
69201442
TERMINAL, socket, 18
FLHR
AWG (4)

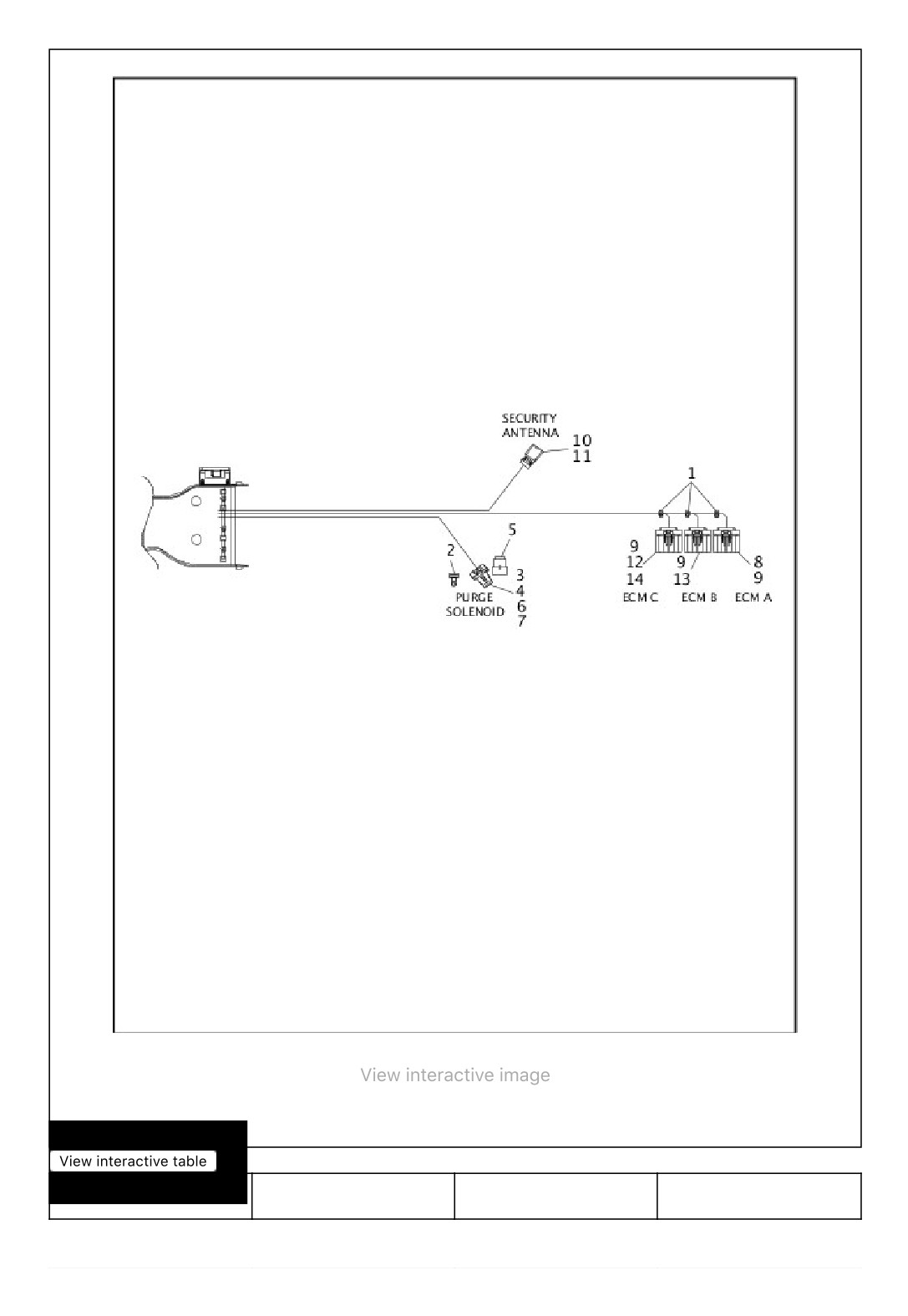

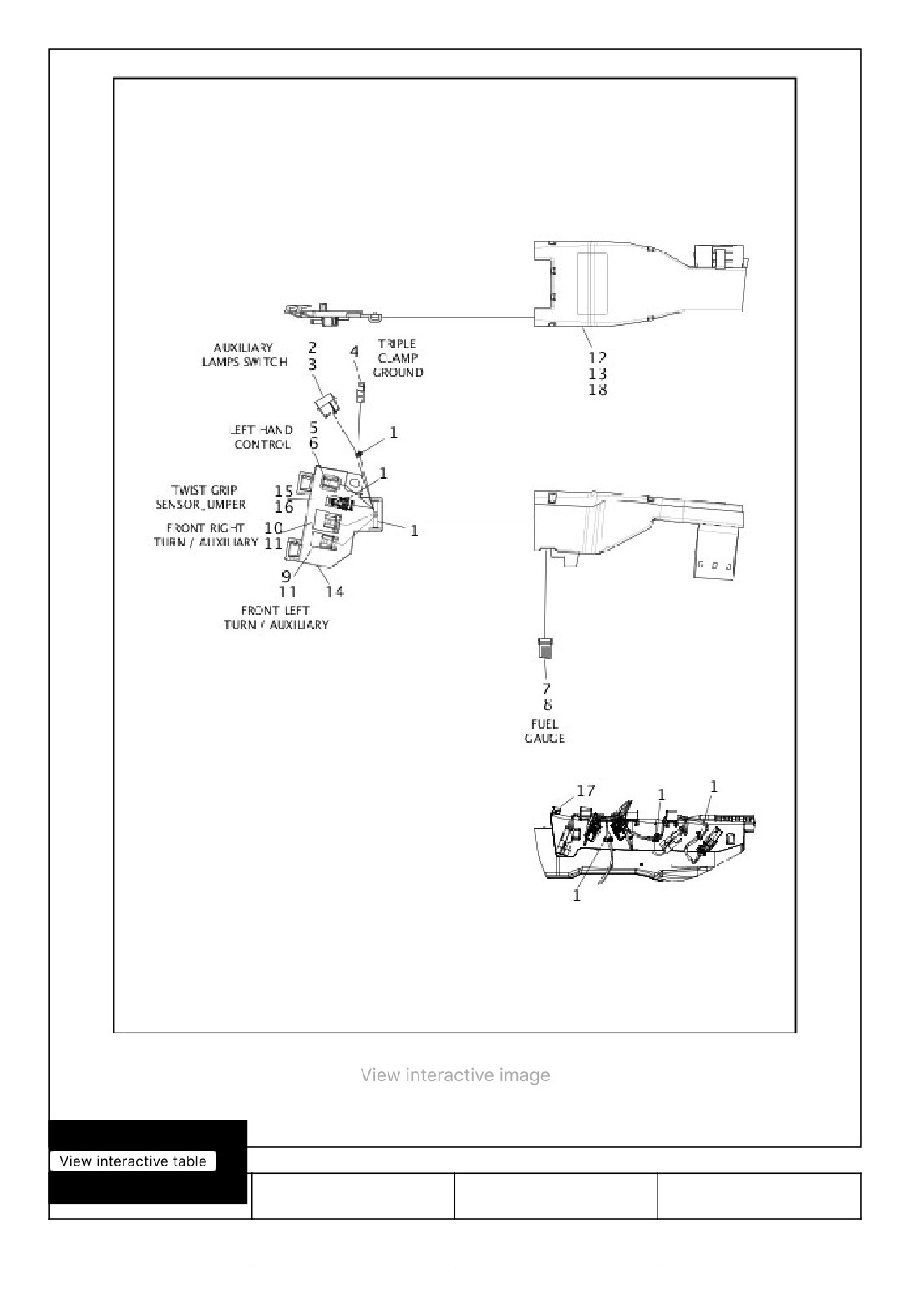

WIRING HARNESS, MAIN, NON-ABS - FLHR (4 OF 8)
401/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
402/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201126
MAIN WIRING HARNESS
FLHR
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHR
2
10147
CLIP, connector
FLHR
3
72213-94
TERMINAL, socket,16-20
FLHR
AWG (2)
4
72518-01
HOUSING, two-way
FLHR
socket (red)
5
72533-06
PLUG, weather, two-way
FLHR
pin
6
72609-08
SECONDARY LOCK,
FLHR
two-way socket
7
72610-08
WIRE SEAL, 18-20 AWG
FLHR
(white) (2)
8
72664-12A
HOUSING, 18-way
FLHR
socket (black)
9
72666-12
TERMINAL, socket, 18-
FLHR
20 AWG (43)
10
72720-07
HOUSING, two-way
FLHR
socket (black)
11
72721-07
TERMINAL, socket, 18-
FLHR
20 AWG (2)
12
69201415
HOUSING, 18-way
FLHR
socket (brown)
13
69201440
HOUSING, 18-way
FLHR
socket (gray)
14
69201168
TERMINAL, socket, 22
FLHR
AWG (2)
WIRING HARNESS, MAIN, NON-ABS - FLHR (5 OF 8)
403/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
404/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201126
MAIN WIRING HARNESS
FLHR
- NON-ABS
NOTE: Includes the following parts.
1
9819
TERMINAL, ring, 12 AWG
FLHR
(2)
2
72169-07
TERMINAL, pin, 16-20
FLHR
AWG (8)
3
72249-94
HEAT SHRINK TUBE,
FLHR
.415 x 1 in (black)
4
72478-07BK
HOUSING, eight-way pin
FLHR
(black)
5
73213-07
RETAINER, anchored
FLHR
6
69201596
TERMINAL, ring, 8-10
FLHR
AWG

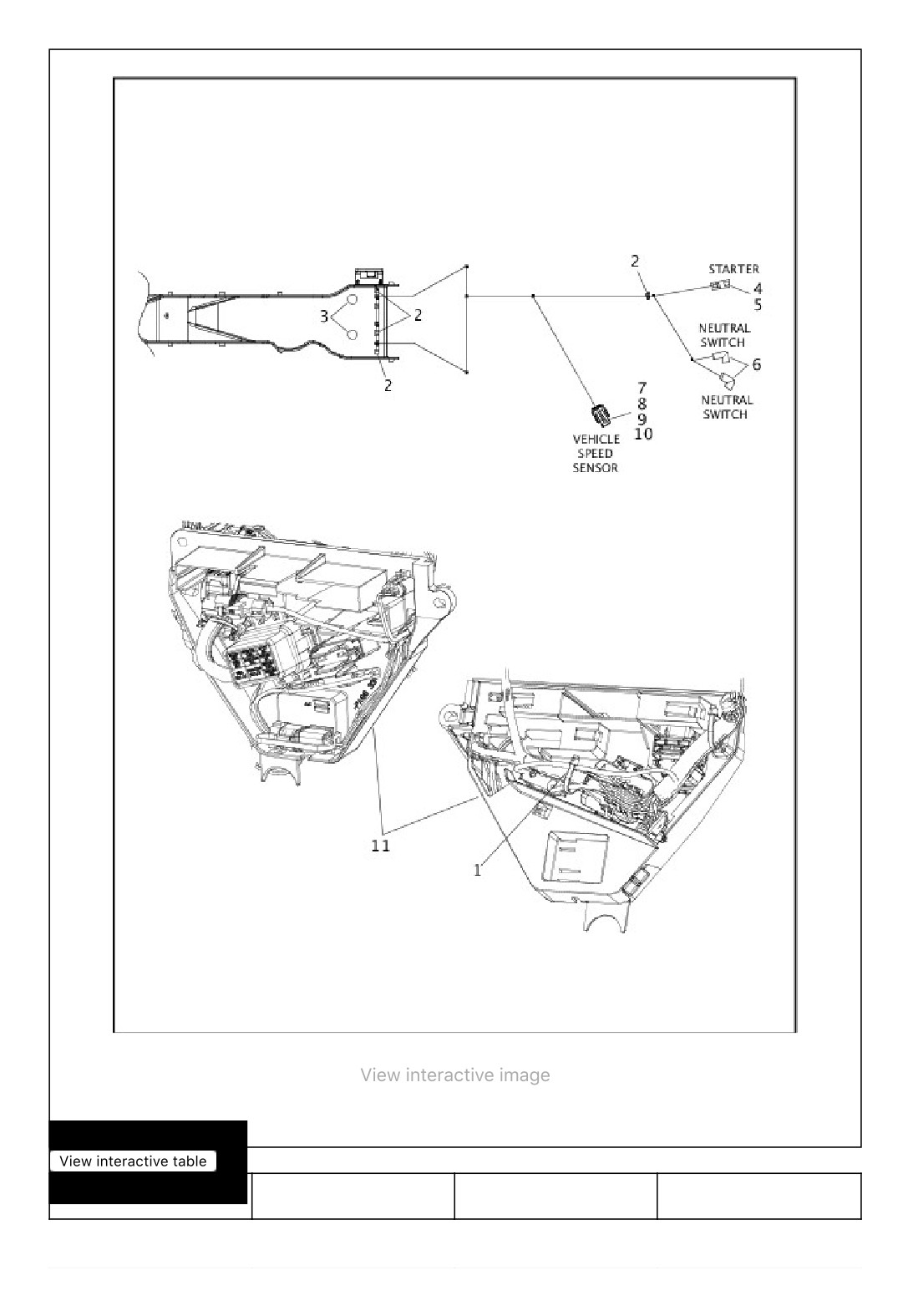

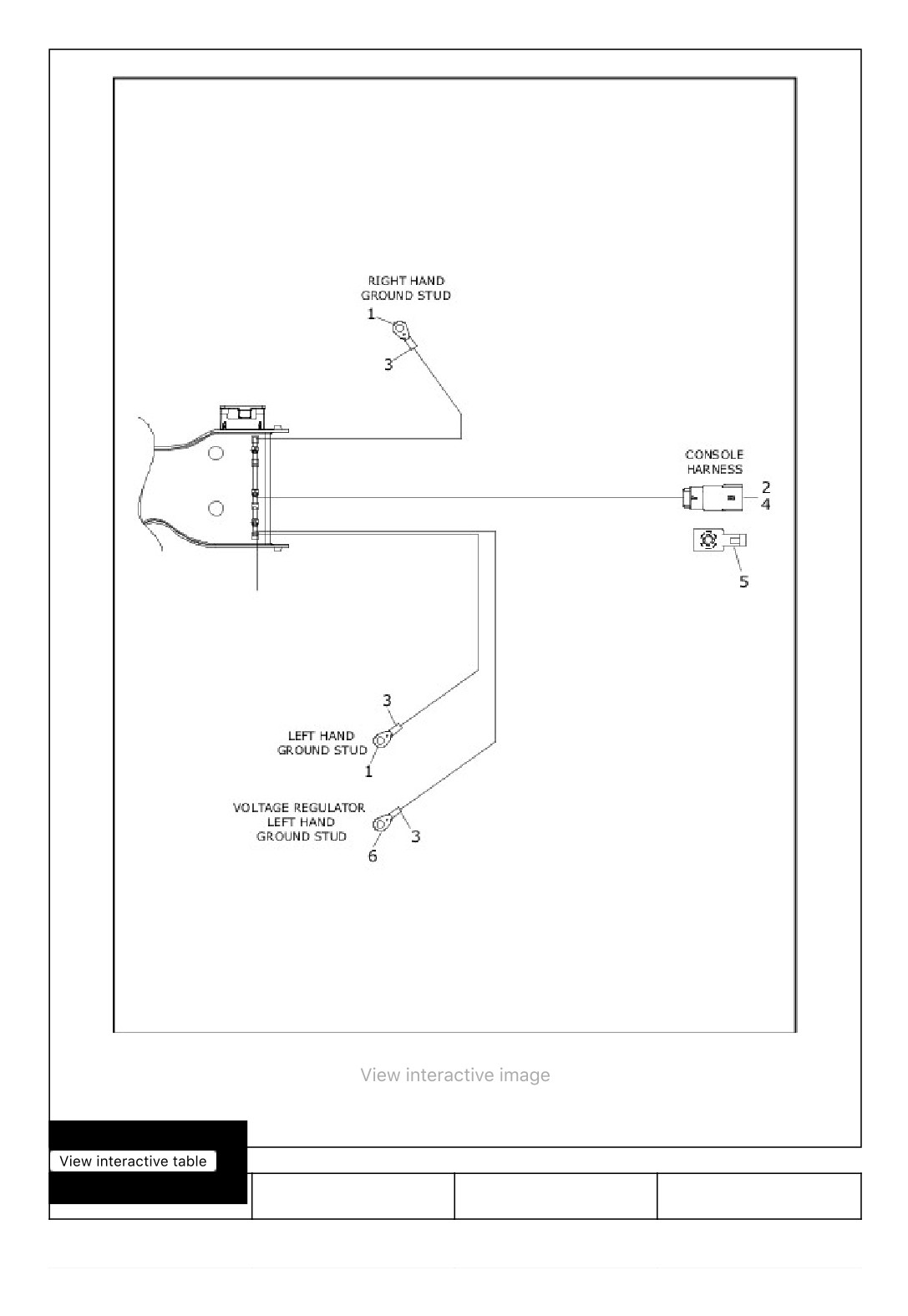

WIRING HARNESS, MAIN, NON-ABS - FLHR (6 OF 8)
405/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
406/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201126
MAIN WIRING HARNESS
FLHR
- NON-ABS
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLHR
2
10065
CABLE STRAP (4)
FLHR
3
11779
FASTENER, push-in
FLHR
(black) (2)
4
72291-94
TERMINAL, socket, 14-
FLHR
16 AWG
5
72295-94
CONNECTOR, starter
FLHR
housing
6
72405-98BK
WIRE ASSEMBLY, push-
FLHR
on, right angle molded,
65-1/2 in length (2)
7
72484-08
TERMINAL, socket, 20
FLHR
AWG (3)
8
72486-08
WIRE SEAL, 20 AWG
FLHR
(green) (3)
9
72543-07BK
HOUSING, three-way
FLHR
socket (black)
10
72544-07
SECONDARY LOCK,
FLHR
three-way socket
11
69200175
CADDY, fuse block,
FLHR
electrical panel
WIRING HARNESS, MAIN, NON-ABS - FLHR (7 OF 8)
407/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
408/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201126
MAIN WIRING HARNESS
FLHR
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP
FLHR
2
10147
CLIP, connector (2)
FLHR
3
10177
CABLE STRAP, anchored
FLHR
(3)
4
72065-06A
HOUSING, three-way
FLHR
socket (black)
5
72127-06
SECONDARY LOCK,
FLHR
three-way socket
6
72168-07
TERMINAL, socket, 18-
FLHR
20 AWG (5)
7
72169-07
TERMINAL, pin, 16-20
FLHR
AWG (4)
8
72175-07BK
HOUSING, four-way pin
FLHR
(black)
9
72213-94
TERMINAL, socket, 16-
FLHR
20 AWG (2)
10
72232-96
SEAL PIN (red) (2)
FLHR
11
72343-10
TERMINAL, pin, 16-20
FLHR
AWG (4)
12
72415-07GY
HOUSING, four-way pin
FLHR
(gray)
13
72473-07
SEAL PIN, natural
FLHR
14
72484-08
TERMINAL, socket, 20
FLHR
AWG (6)
15
72486-08
WIRE SEAL, 20 AWG
FLHR
(green) (6)
16
72499-07
WIRE SEAL, 20-22 AWG
FLHR
(green) (2)
17
72512-07BK
HOUSING, three-way
FLHR
socket (black) (2)
409/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72519-09BK
PLUG, weather, three-
FLHR
way socket (2)
19
72533-06
PLUG, weather, two-way
FLHR
pin
20
72544-07
SECONDARY LOCK,
FLHR
three-way socket
21
72589-09
HOUSING, three-way
FLHR
socket (black)
22
72606-08
HOUSING, two-way
FLHR
socket (black) (2)
23
72607-08
HOUSING, two-way pin
FLHR
(black)
24
72608-08
TERMINAL, pin, 16-20
FLHR
AWG (2)
25
72609-08
SECONDARY LOCK,
FLHR
two-way socket (2)
26
72610-08
WIRE SEAL, 18-20 AWG
FLHR
(white) (4)
27
73213-07
RETAINER, anchored (4)
FLHR
28
74112-98BK
HOUSING, two-way
FLHR
socket (black)
29
74152-98
SECONDARY LOCK,
FLHR
two-way socket
30
74191-98
TERMINAL, socket 16-20
FLHR
AWG (2)
31
12500014
CABLE STRAP (2)
FLHR
32
12500018
CABLE STRAP
FLHR
33
69200238
TERMINAL, socket, 20
FLHR
AWG (2)
34
69201396
TERMINAL, socket, 20
FLHR
AWG (2)
35
69201400
HOUSING, two-way
FLHR
socket, (black)
36
69201401
SECONDARY LOCK,
FLHR
two-way socket
410/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
69201404
RETAINER, anchored
FLHR
38
69201405
RESISTOR PACK
FLHR
39
69201423
DC LEAD ASSEMBLY,
FLHR
two-way socket
WIRING HARNESS, MAIN, NON-ABS - FLHR (8 OF 8)
411/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
412/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201126
MAIN WIRING HARNESS
FLHR
- NON-ABS
NOTE: Includes the following parts.
1
6990
WEATHER PLUG, six-
FLHR
way pin
2
10006
CABLE STRAP (2)
FLHR
3
10065
CABLE STRAP (2)
FLHR
4
31586-07
RELAY (2)
FLHR
5
72064-06
HOUSING, three-way
FLHR
socket (black)
6
72081-11
HOUSING, 48-way
FLHR
socket (black)
7
72106-94BK
HOUSING, six-way pin
FLHR
(black) (replaces gray
connector)
8
72146-94
SECONDARY LOCK, six-
FLHR
way pin
9
72169-07
TERMINAL, pin, 16-20
FLHR
AWG (6)
10
72188-07BK
HOUSING, six-way pin
FLHR
(black)
11
72190-94
TERMINAL, pin, 16-18
FLHR
AWG (2)
12
72194-94
TERMINAL, pin, 20 AWG
FLHR
(3)
13
72195-94
SEAL PIN
FLHR
14
72209-11
COVER, wire
FLHR
15
72222-11
TERMINAL, socket, 18-
FLHR
20 AWG (21)
16
72226-11
TERMINAL, socket, 14-
FLHR
16 AWG (3)
17
72227-11
TERMINAL, socket, 18-
FLHR
20 AWG (3)
413/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72256-11
SEAL PIN, 0.6 mm (white)
FLHR
(9)
19
72296-95
TERMINAL, socket, 14-
FLHR
16 AWG (2)
20
72298-95
WIRE SEAL, 14-18 AWG
FLHR
(green) (2)
21
72299-95
SEAL PIN, green (4)
FLHR
22
72308-97
TERMINAL, socket, 12-
FLHR
14 AWG (3)
23
72330-95
FUSE, 15 A (blue)
FLHR
24
72331-95
FUSE, 5 A (tan) (2)
FLHR
25
72345-02
FUSE, 20 A (yellow) (2)
FLHR
26
72350-11
HOUSING, one-way
FLHR
socket (black)
27
72356-95
TERMINAL, socket, 18-
FLHR
20 AWG (15)
28
72412-97
WIRE SEAL, 12-14 AWG
FLHR
(gray) (3)
29
72484-08
TERMINAL, socket, 20
FLHR
AWG (3)
30
72486-08
WIRE SEAL, 20 AWG
FLHR
(green) (3)
31
72575-11
SECONDARY LOCK,
FLHR
one-way socket
32
73213-07
RETAINER, anchored
FLHR
33
73301-04
HOUSING, two-way pin
FLHR
(black)
34
73303-04
SECONDARY LOCK,
FLHR
two-way socket
35
73304-04
TERMINAL, socket, 10
FLHR
AWG (3)
36
73305-04
WIRE SEAL, 10 AWG
FLHR
(blue) (3)
414/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
11100115
CLOTH, HARNESS
FLHR
WRAP, 50 m (not shown)
38
69200194
FUSE BLOCK, 24-way
FLHR
39
69200199
WIRE SEAL, 18-20 AWG
FLHR
(purple) (15)
40
69200212
HARNESS, battery
FLHR
tender
41
69200293
FUSE, 7.5 A (brown) (2)
FLHR
42
69200312
SECONDARY LOCK,
FLHR
fuse block (3)
43
69200336
MAIN FUSE, 50 A (red),
FLHR
NOTE: Fuse is sold
separately and is not part
of main harness
44
69201130
WIRE HARNESS, battery
FLHR
positive to starter, with
73304-04, 73305-04 and
69201307
45
69201307
BOOT, battery positive
FLHR
46
69201411
COVER, fuse block
FLHR
WIRING HARNESS, MAIN, ABS - FLHR, FLHRC AND FLHRXS (1 OF 8)
415/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
416/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201122
MAIN WIRING HARNESS
FLHR, FLHRC, FLHRXS
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (6)
FLHR, FLHRC, FLHRXS
2
70291-89
HOUSING, four-way pin
FLHR, FLHRC, FLHRXS
3
72039-71A
TERMINAL, pin (3)
FLHR, FLHRC, FLHRXS
4
72364-06
TERMINAL, socket 10-14
FLHR, FLHRC, FLHRXS
AWG
5
72907-11
HOUSING, four-way pin
FLHR, FLHRC, FLHRXS
(black)
6
72909-11
TERMINAL, pin, 20-22
FLHR, FLHRC, FLHRXS
AWG (4)
7
72914-01BK
HOUSING, four-way
FLHR, FLHRC, FLHRXS
socket (black)
8
72991-01
TERMINAL, socket 18-22
FLHR, FLHRC, FLHRXS
AWG (3)
9
73104-96BK
HOUSING, four-way pin
FLHR, FLHRC, FLHRXS
(black)
10
73106-96BK
HOUSING, six-way pin
FLHR, FLHRC, FLHRXS
(black)
11
73190-96
TERMINAL, pin, 16-20
FLHR, FLHRC, FLHRXS
AWG (8)
12
69200202A
WIRE TROUGH
FLHR, FLHRC, FLHRXS
13
69200203A
COVER, wire trough, with
FLHR, FLHRC, FLHRXS
15368-01A and
69201459
14
69200284A
BRACKET, mounting
FLHR, FLHRC, FLHRXS
15
69201163
HOUSING, six-way pin
FLHR, FLHRC, FLHRXS
(black)
16
69201164
TERMINAL, pin, 22 AWG
FLHR, FLHRC, FLHRXS
(6)
17
69201287
BRACKET, mounting,
FLHR, FLHRC, FLHRXS
electrical connector
18
69201459
BRACKET
FLHR, FLHRC, FLHRXS
417/956
4/5/2019

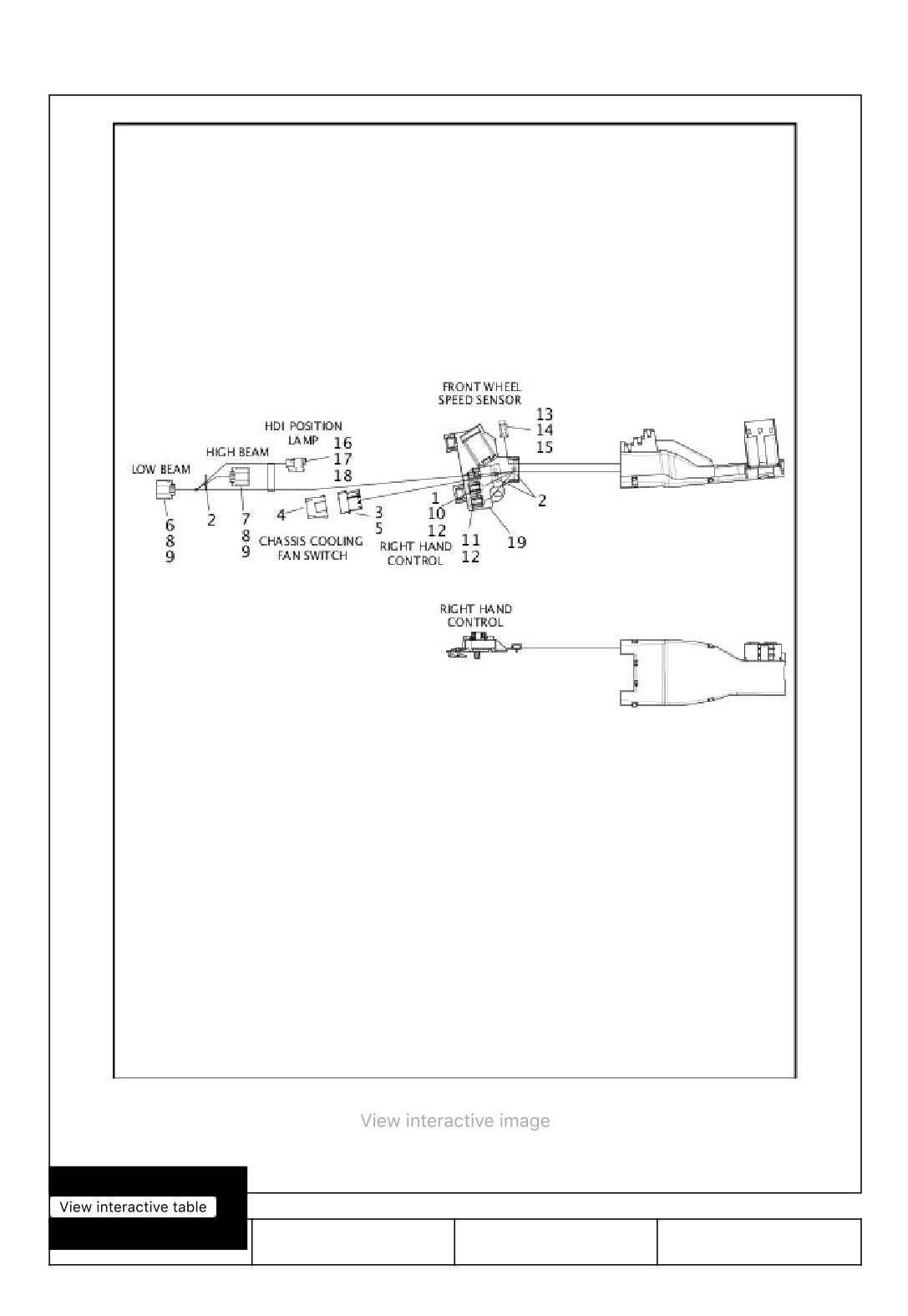

WIRING HARNESS, MAIN, ABS - FLHR, FLHRC AND FLHRXS (2 OF 8)
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
418/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201122
MAIN WIRING HARNESS
FLHR, FLHRC, FLHRXS
- ABS
NOTE: Includes the following parts.
1
5118
SEAL PIN
FLHR, FLHRC, FLHRXS
2
10065
CABLE STRAP (3)
FLHR, FLHRC, FLHRXS
3
70291-89
HOUSING, four-way pin
FLHR, FLHRC, FLHRXS
4
70292-89
HOUSING, four-way
FLHR, FLHRC, FLHRXS
socket
5
72039-71A
TERMINAL, pin (2)
FLHR, FLHRC, FLHRXS
6
72449-01
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (black)
7
72450-01
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (gray)
8
72527-01
TERMINAL, socket, 18-
FLHR, FLHRC, FLHRXS
20 AWG (4)
9
72633-02
WIRE SEAL, 14-16 AWG
FLHR, FLHRC, FLHRXS
(white) (4)
10
72905-11
HOUSING, two-way pin
FLHR, FLHRC, FLHRXS
(black)
11
72907-11
HOUSING, four-way pin
FLHR, FLHRC, FLHRXS
(black)
12
72909-11
TERMINAL, pin, 20-22
FLHR, FLHRC, FLHRXS
AWG (5)
13
74112-98BK
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (black)
14
74152-98
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
two-way socket
15
74191-98
TERMINAL, socket 16-20
FLHR, FLHRC, FLHRXS
AWG (2)
16
69200220
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (black)
17
69200221
TERMINAL, socket, 18-
FLHR, FLHRC, FLHRXS
20 AWG (2)
419/956
