69201120A
MAIN WIRING HARNESS
FLHTCU
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHTCU
2
10147
CLIP, connector (2)
FLHTCU
3
10177
CABLE STRAP, anchored
FLHTCU
(3)
4
72065-06A
HOUSING, three-way
FLHTCU
socket (black)
5
72127-06
SECONDARY LOCK,
FLHTCU
three-way
6
72168-07
TERMINAL, socket, 18-
FLHTCU
20 AWG (5)
7
72169-07
TERMINAL, pin, 16-20
FLHTCU
AWG (4)
8
72175-07BK
HOUSING, four-way pin
FLHTCU
(black)
9
72213-94
TERMINAL, socket, 16-
FLHTCU
20 AWG (4)
10
72232-96
SEAL PIN (red) (2)
FLHTCU
11
72343-10
TERMINAL, pin, 16-20
FLHTCU
AWG (4)
12
72415-07GY
HOUSING, four-way pin
FLHTCU
(gray)
13
72473-07
SEAL PIN, natural
FLHTCU
14
72484-08
TERMINAL, socket, 20
FLHTCU
AWG (6)
15
72486-08
WIRE SEAL, 20 AWG
FLHTCU
(green) (6)
16
72499-07
WIRE SEAL, 20-22 AWG
FLHTCU
(green) (2)
17
72512-07BK
HOUSING, three-way
FLHTCU
socket (black) (2)
361/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72519-09BK
PLUG, weather, three-
FLHTCU
way socket (2)
19
72533-06
PLUG, weather, two-way
FLHTCU
pin
20
72544-07
SECONDARY LOCK,
FLHTCU
three-way socket
21
72589-09
HOUSING, three-way
FLHTCU
socket (black)
22
72606-08
HOUSING, two-way
FLHTCU
socket (black) (3)
23
72607-08
HOUSING, two-way pin
FLHTCU
(black)
24
72608-08
TERMINAL, pin, 16-20
FLHTCU
AWG (2)
25
72609-08
SECONDARY LOCK,
FLHTCU
two-way socket (3)
26
72610-08
WIRE SEAL, 18-20 AWG
FLHTCU
(white) (6)
27
73213-07
RETAINER, anchored (4)
FLHTCU
28
74112-98BK
HOUSING, two-way
FLHTCU
socket (black)
29
74152-98
SECONDARY LOCK,
FLHTCU
two-way socket
30
74191-98
TERMINAL, socket 16-20
FLHTCU
AWG (2)
31
12500014
CABLE STRAP
FLHTCU
32
12500018
CABLE STRAP
FLHTCU
33
69200183
HOUSING, 26-way
FLHTCU
socket
34
69200184
COVER, wire
FLHTCU
35
69200185
TERMINAL, socket, 20
FLHTCU
AWG (6)
36
69200186
TERMINAL, socket, 14-
FLHTCU
16 AWG (2)
362/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
69200187
TERMINAL, socket, 12
FLHTCU
AWG (2)
38
69200188
WIRE SEAL, 20 AWG (6)
FLHTCU
39
69200189
WIRE SEAL, 14-16 AWG
FLHTCU
(2)
40
69200190
WIRE SEAL, 12 AWG (2)
FLHTCU
41
69200191
SEAL PIN (16)
FLHTCU
42
69200238
TERMINAL, socket, 20
FLHTCU
AWG (black) (2)
43
69201396
TERMINAL, socket, 20
FLHTCU
AWG (2)
44
69201400
HOUSING, two-way
FLHTCU
socket, (black)
45
69201401
SECONDARY LOCK,
FLHTCU
two-way socket
46
69201404
RETAINER, anchored
FLHTCU
47
69201405
RESISTOR PACK
FLHTCU
48
69201423
DC LEAD ASSEMBLY,
FLHTCU
two-way socket

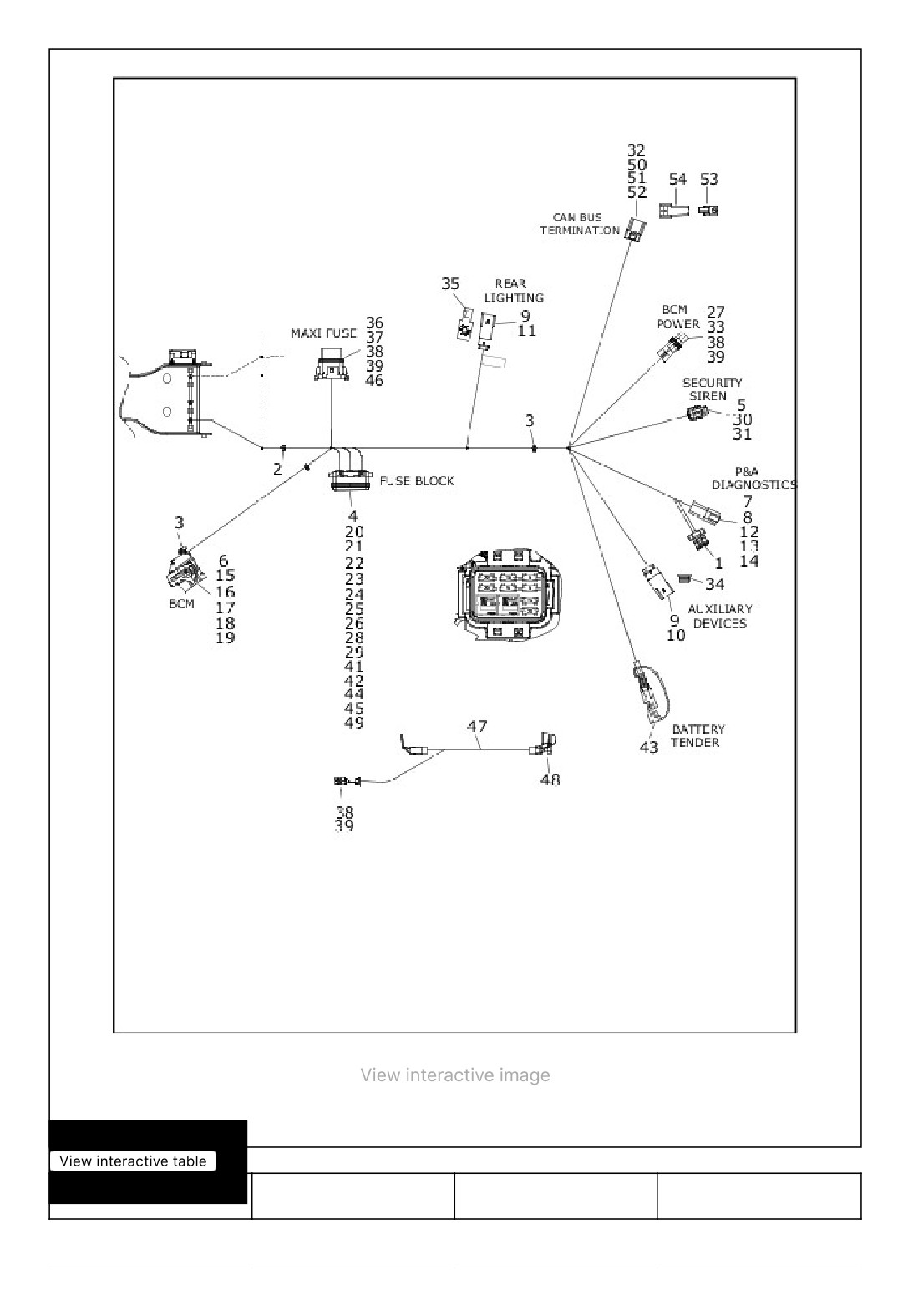

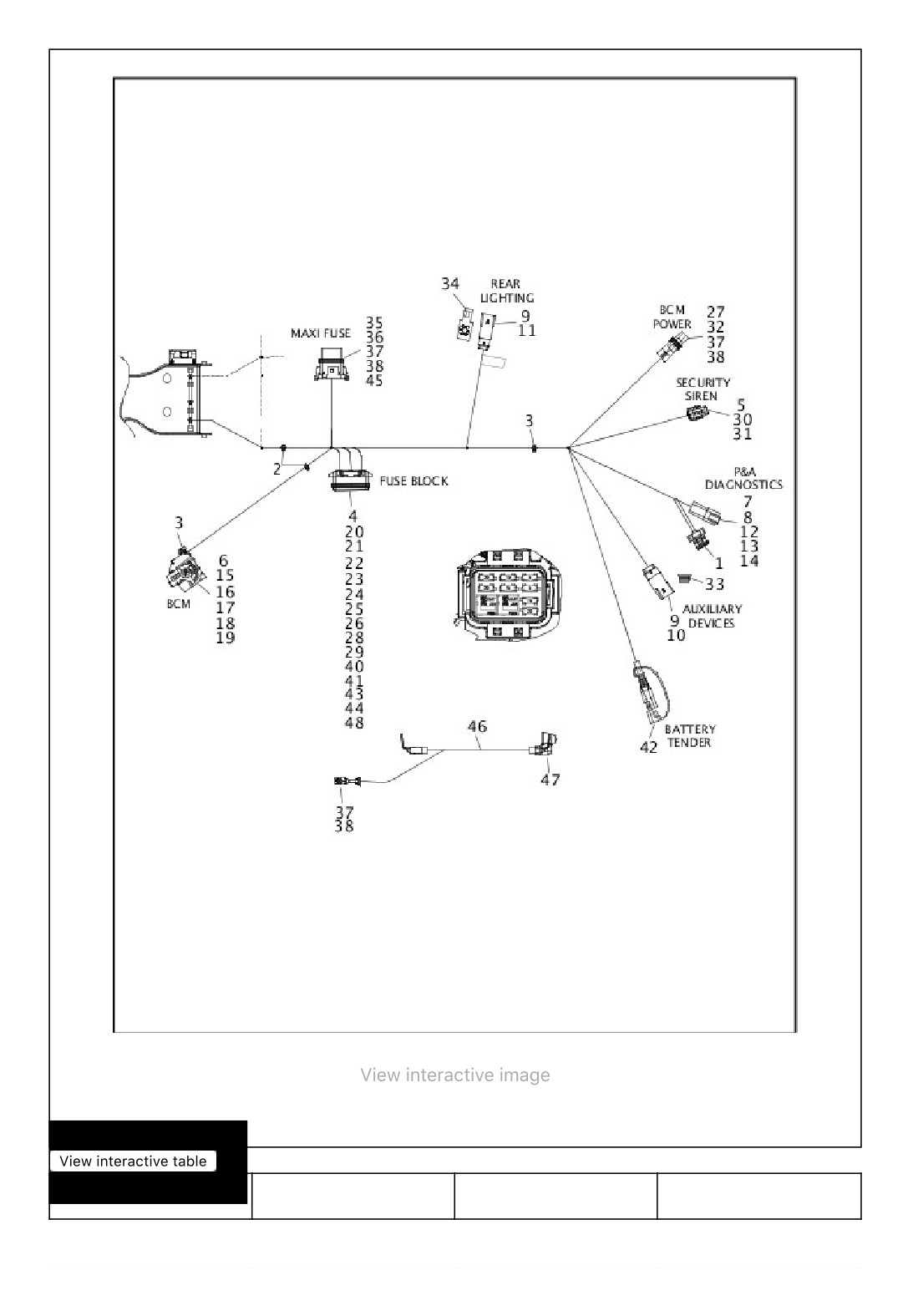

WIRING HARNESS, MAIN, ABS - FLHTCU (8 OF 8)
363/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
364/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201120A
MAIN WIRING HARNESS
FLHTCU
- ABS
NOTE: Includes the following parts.
1
6990
PLUG, weather, six-way
FLHTCU
pin
2
10006
CABLE STRAP (2)
FLHTCU
3
10065
CABLE STRAP (2)
FLHTCU
4
31586-07
RELAY (2)
FLHTCU
5
72064-06
HOUSING, three-way
FLHTCU
socket (black)
6
72081-11
HOUSING, 48-way
FLHTCU
socket (black)
7
72106-94BK
HOUSING, six-way pin
FLHTCU
(black) (replaces gray
connector)
8
72146-94
SECONDARY LOCK, six-
FLHTCU
way pin
9
72169-07
TERMINAL, pin, 16-20
FLHTCU
AWG (10)
10
72175-07BK
HOUSING, four-way pin
FLHTCU
(black)
11
72188-07BK
HOUSING, six-way pin
FLHTCU
(black)
12
72190-94
TERMINAL, pin, 16-18
FLHTCU
AWG (2)
13
72194-94
TERMINAL, pin, 20 AWG
FLHTCU
(3)
14
72195-94
SEAL PIN
FLHTCU
15
72209-11
COVER, wire
FLHTCU
16
72222-11
TERMINAL, socket, 18-
FLHTCU
20 AWG (21)
17
72226-11
TERMINAL, socket, 14-
FLHTCU
16 AWG
365/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72227-11
TERMINAL, socket, 18-
FLHTCU
20 AWG (5)
19
72256-11
SEAL PIN, 0.6 mm (white)
FLHTCU
(9)
20
72296-95
TERMINAL, socket, 14-
FLHTCU
16 AWG (3)
21
72298-95
WIRE SEAL, 14-18 AWG
FLHTCU
(green) (3)
22
72299-95
SEAL PIN, green (2)
FLHTCU
23
72308-97
TERMINAL, socket, 12-
FLHTCU
14 AWG (5)
24
72330-95
FUSE, 15 A (blue)
FLHTCU
25
72331-95
FUSE, 5 A (tan) (2)
FLHTCU
26
72345-02
FUSE, 20 A (yellow) (3)
FLHTCU
27
72350-11
HOUSING, one-way
FLHTCU
socket (black)
28
72356-95
TERMINAL, socket, 18-
FLHTCU
20 AWG (14)
29
72412-97
WIRE SEAL, 12-14 AWG
FLHTCU
(gray) (5)
30
72484-08
TERMINAL, socket, 20
FLHTCU
AWG (3)
31
72486-08
WIRE SEAL, 20 AWG
FLHTCU
(green) (3)
32
72575-11
SECONDARY LOCK,
FLHTCU
one-way socket
33
72632-10
PLUG, weather, four-way
FLHTCU
pin
34
73213-07
RETAINER, anchored
FLHTCU
35
73301-04
HOUSING, two-way pin
FLHTCU
(black)
36
73303-04
SECONDARY LOCK,
FLHTCU
two-way socket
366/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
73304-04
TERMINAL, socket, 10
FLHTCU
AWG (3)
38
73305-04
WIRE SEAL, 10 AWG
FLHTCU
(blue) (3)
39
11100115
CLOTH, HARNESS
FLHTCU
WRAP, 50 m (not shown)
40
69200194
FUSE BLOCK, 24-way
FLHTCU
41
69200199
WIRE SEAL, 18-20 AWG
FLHTCU
(purple) (14)
42
69200212
HARNESS, battery
FLHTCU
tender
43
69200293
FUSE, 7.5 A (brown) (2)
FLHTCU
44
69200312
SECONDARY LOCK,
FLHTCU
fuse block (3)
45
69200336
FUSE, main, 50 A (red),
FLHTCU
NOTE: Fuse is sold
separately and is not part
of main harness
46
69201130
WIRE HARNESS, battery
FLHTCU
positive to starter, with
73304-04, 73305-04 and
69201307
47
69201307
BOOT, battery positive
FLHTCU
48
69201411
COVER, fuse block
FLHTCU
WIRING HARNESS, MAIN, ABS - FLHTK AND FLHTKL (1 OF 10)
367/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
368/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201119A
MAIN WIRING HARNESS
FLHTK, FLHTK SHRINE,
- ABS
FLHTKL
NOTE: Includes the following parts.
1
10065
CABLE STRAP (7)
FLHTK, FLHTK SHRINE,
FLHTKL
2
10177
CABLE STRAP, anchored
FLHTK, FLHTK SHRINE,
FLHTKL
3
72168-07
TERMINAL, socket, 18-
FLHTK, FLHTK SHRINE,
20 AWG (7)
FLHTKL
4
72272-07
TERMINAL, socket, 14-
FLHTK, FLHTK SHRINE,
16 AWG (4)
FLHTKL
5
72364-06
TERMINAL, socket, 10-
FLHTK, FLHTK SHRINE,
14 AWG
FLHTKL
6
72414-07BK
HOUSING, six-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
7
72473-07
SEAL PIN, natural (7)
FLHTK, FLHTK SHRINE,
FLHTKL
8
72489-07GY
HOUSING, 12-way
FLHTK, FLHTK SHRINE,
socket (gray)
FLHTKL
9
72721-07
TERMINAL, socket, 18-
FLHTK, FLHTK SHRINE,
20 AWG (2)
FLHTKL
10
69200032
WIRE HARNESS, AM/FM
FLHTK, FLHTK SHRINE,
antenna
FLHTKL
11
69200136
WIRE HARNESS, CB
FLHTK, FLHTK SHRINE,
antenna
FLHTKL
12
69200201
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
13
69200202A
WIRE TROUGH
FLHTK, FLHTK SHRINE,
FLHTKL
14
69200203A
COVER, wire trough, with
FLHTK, FLHTK SHRINE,
15368-01A and
FLHTKL
69201459
15
69200214
CADDY, left steer head
FLHTK, FLHTK SHRINE,
FLHTKL
16
69201287
BRACKET, mounting,
FLHTK, FLHTK SHRINE,
electrical connector
FLHTKL
369/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
69201459
BRACKET
FLHTK, FLHTK SHRINE,
FLHTKL

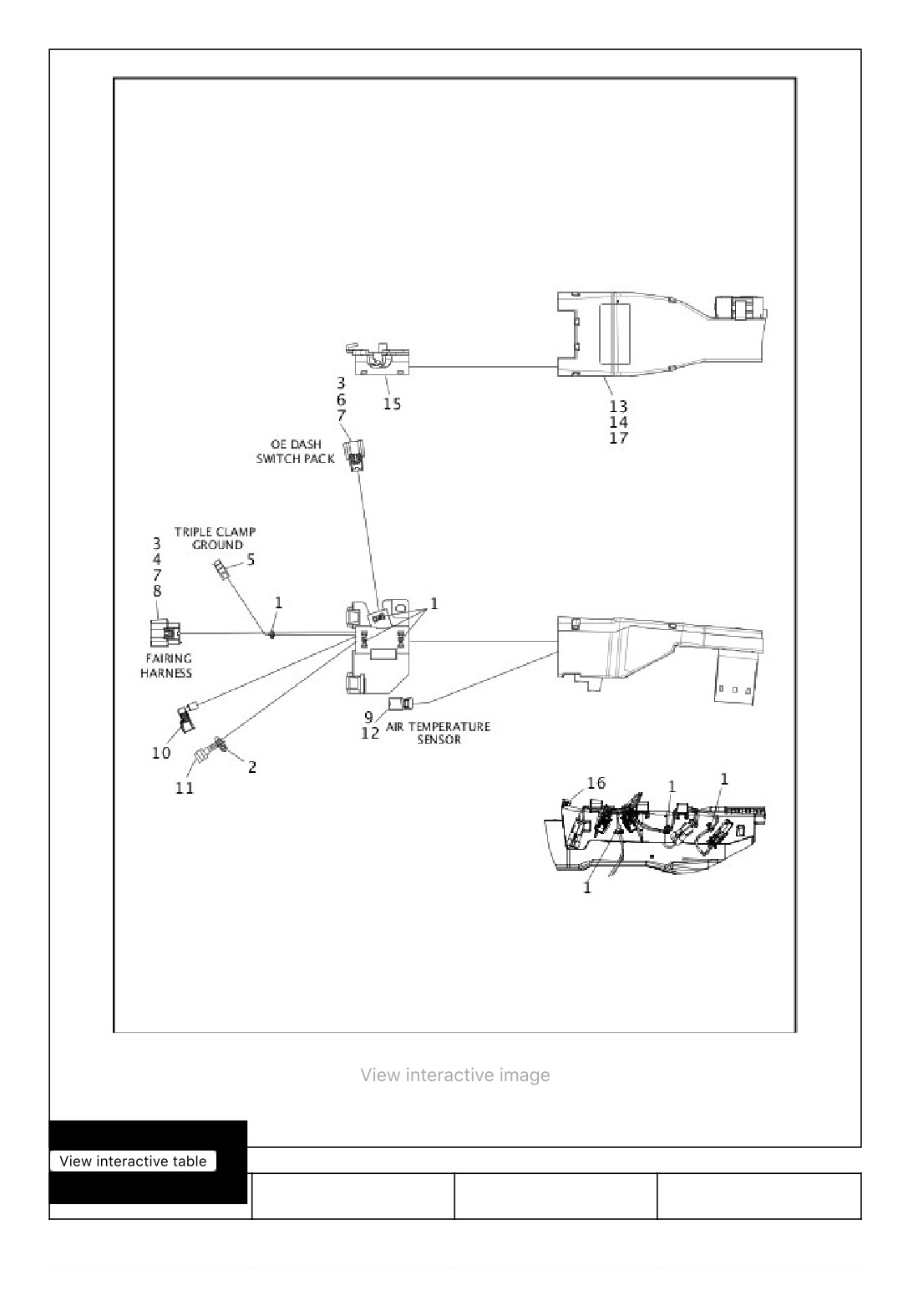

WIRING HARNESS, MAIN, ABS - FLHTK AND FLHTKL (2 OF 10)
370/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
371/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201119A
MAIN WIRING HARNESS
FLHTK, FLHTK SHRINE,
- ABS
FLHTKL
NOTE: Includes the following parts.
1
10006
CABLE STRAP (2)
FLHTK, FLHTK SHRINE,
FLHTKL
2
10065
CABLE STRAP (5)
FLHTK, FLHTK SHRINE,
FLHTKL
3
10177
CABLE STRAP, anchored
FLHTK, FLHTK SHRINE,
(2)
FLHTKL
4
72062-06
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (gray)
FLHTKL
5
72166-07BK
HOUSING, 16-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
6
72168-07
TERMINAL, socket, 18-
FLHTK, FLHTK SHRINE,
20 AWG (16)
FLHTKL
7
72169-07
TERMINAL, pin, 16-20
FLHTK, FLHTK SHRINE,
AWG (23)
FLHTKL
8
72209-11
COVER, wire
FLHTK, FLHTK SHRINE,
FLHTKL
9
72213-94
TERMINAL, socket, 16-
FLHTK, FLHTK SHRINE,
20 AWG (2)
FLHTKL
10
72222-11
TERMINAL, socket, 18-
FLHTK, FLHTK SHRINE,
20 AWG (28)
FLHTKL
11
72226-11
TERMINAL, socket, 14-
FLHTK, FLHTK SHRINE,
16 AWG (8)
FLHTKL
12
72256-11
SEAL PIN, 0.6 mm (white)
FLHTK, FLHTK SHRINE,
(12)
FLHTKL
13
72414-07BK
HOUSING, six-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
14
72473-07
SEAL PIN, natural (6)
FLHTK, FLHTK SHRINE,
FLHTKL
15
72484-08
TERMINAL, socket, 20
FLHTK, FLHTK SHRINE,
AWG (2)
FLHTKL
16
72486-08
WIRE SEAL, 20 AWG
FLHTK, FLHTK SHRINE,
(green) (2)
FLHTKL
372/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
72488-07BK
HOUSING, 12-way pin
FLHTK, FLHTK SHRINE,
(black)
FLHTKL
18
72490-07GY
HOUSING, 12-way pin
FLHTK, FLHTK SHRINE,
(gray)
FLHTKL
19
72606-08
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
20
72639-10
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
two-way socket
FLHTKL
21
72610-08
WIRE SEAL, 18-20 AWG
FLHTK, FLHTK SHRINE,
(white) (2)
FLHTKL
22
73213-07
RETAINER, anchored (2)
FLHTK, FLHTK SHRINE,
FLHTKL
23
69200193
HOUSING, 48-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
24
69200205
PLUG, weather, 12-way
FLHTK, FLHTK SHRINE,
pin (2)
FLHTKL
25
69200215
CADDY, right steer head
FLHTK, FLHTK SHRINE,
FLHTKL
26
69201163
HOUSING, six-way pin
FLHTK, FLHTK SHRINE,
(black)
FLHTKL
27
69201164
TERMINAL, pin, 22 AWG
FLHTK, FLHTK SHRINE,

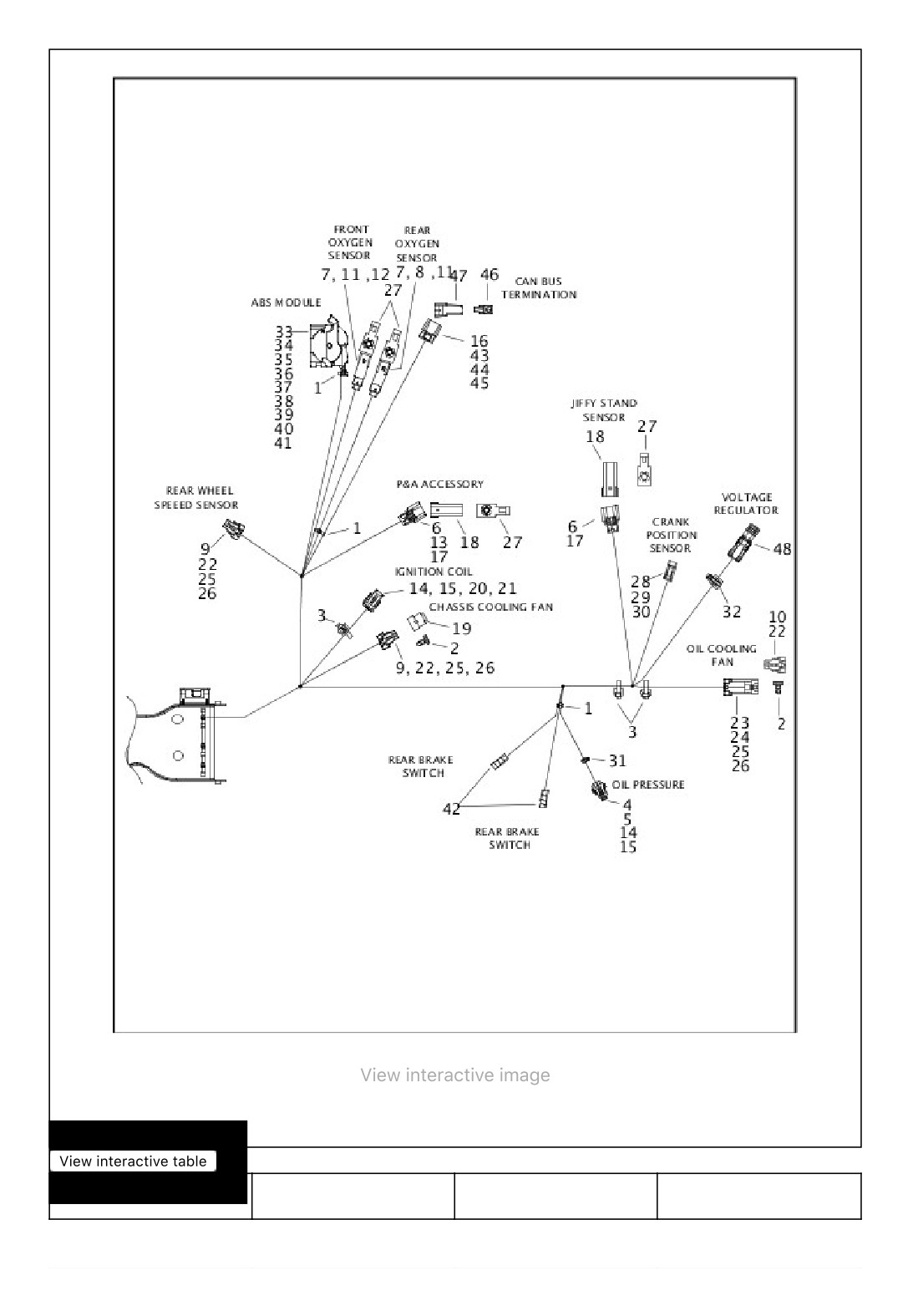

(6)
FLHTKL
WIRING HARNESS, MAIN, ABS - FLHTK AND FLHTKL (3 OF 10)
373/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
374/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201119A
MAIN WIRING HARNESS
FLHTK, FLHTK SHRINE,
- ABS
FLHTKL
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHTK, FLHTK SHRINE,
FLHTKL
2
10177
CABLE STRAP, anchored
FLHTK, FLHTK SHRINE,
(2)
FLHTKL
3
72008-05
TERMINAL, pin, 20-22
FLHTK, FLHTK SHRINE,
AWG (4)
FLHTKL
4
72009-05
HOUSING, two-way pin
FLHTK, FLHTK SHRINE,
(black) (2)
FLHTKL
5
72010-05
WIRE SEAL, 22-26 AWG
FLHTK, FLHTK SHRINE,
(green) (4)
FLHTKL
6
72098-06
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (gray)
FLHTKL
7
72099-06
WIRE SEAL, 16-18 AWG
FLHTK, FLHTK SHRINE,
(blue) (4)
FLHTKL
8
72110-06
TERMINAL, socket, 16-
FLHTK, FLHTK SHRINE,
18 AWG (4)
FLHTKL
9
72145-06
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
two-way socket (blue) (2)
FLHTKL
10
72283-09
TERMINAL, socket, 14-
FLHTK, FLHTK SHRINE,
16 AWG, 90 degree (2)
FLHTKL
11
72499-07
WIRE SEAL, 20-22 AWG
FLHTK, FLHTK SHRINE,
(green) (6)
FLHTKL
12
72569-08
TERMINAL, socket, 20-
FLHTK, FLHTK SHRINE,
22 AWG (2)
FLHTKL
13
69201301
WIRE SEAL, 20-22 AWG
FLHTK, FLHTK SHRINE,
(green) (6)
FLHTKL
14
69201390
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (black) (2)
FLHTKL
15
69201391
TERMINAL, socket, 20
FLHTK, FLHTK SHRINE,
AWG (4)
FLHTKL
16
69201392
WIRE SEAL, 20 AWG
FLHTK, FLHTK SHRINE,
(yellow) (4)
FLHTKL
375/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
69201393
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
18
69201394
HOUSING, six-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
19
69201395
SECONDARY LOCK, six-
FLHTK, FLHTK SHRINE,
way socket
FLHTKL
20
69201396
TERMINAL, socket, 20
FLHTK, FLHTK SHRINE,
AWG (4)
FLHTKL
21
69201397
HOUSING, two-way pin
FLHTK, FLHTK SHRINE,
(black)
FLHTKL
22
69201398
TERMINAL, pin, 20 AWG
FLHTK, FLHTK SHRINE,
(2)
FLHTKL
23
69201416
SECONDARY LOCK, six-
FLHTK, FLHTK SHRINE,
way socket
FLHTKL
24
69201441
HOUSING, four-way
FLHTK, FLHTK SHRINE,
socket
FLHTKL
25
69201442
TERMINAL, socket, 18
FLHTK, FLHTK SHRINE,
AWG (4)
FLHTKL

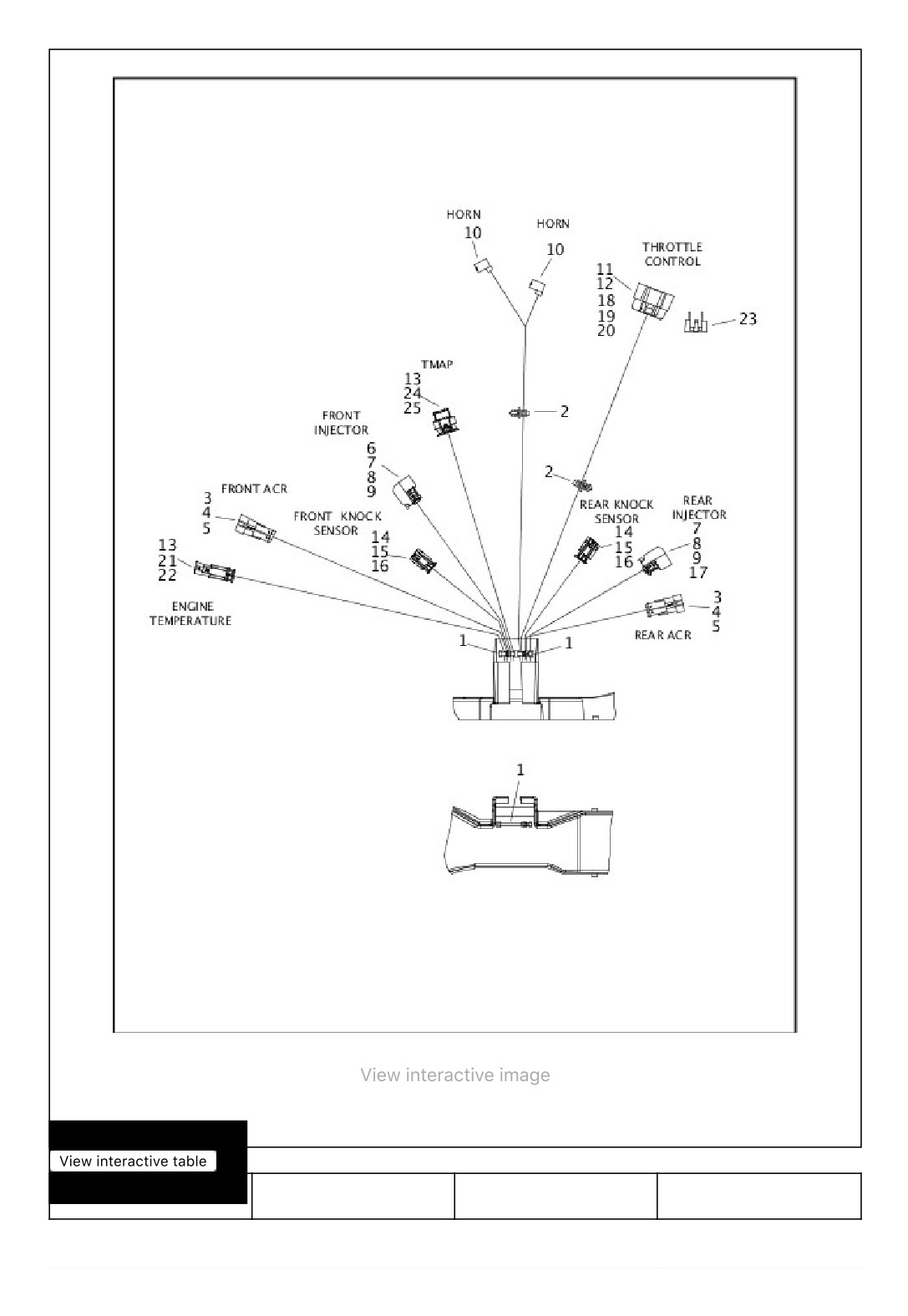

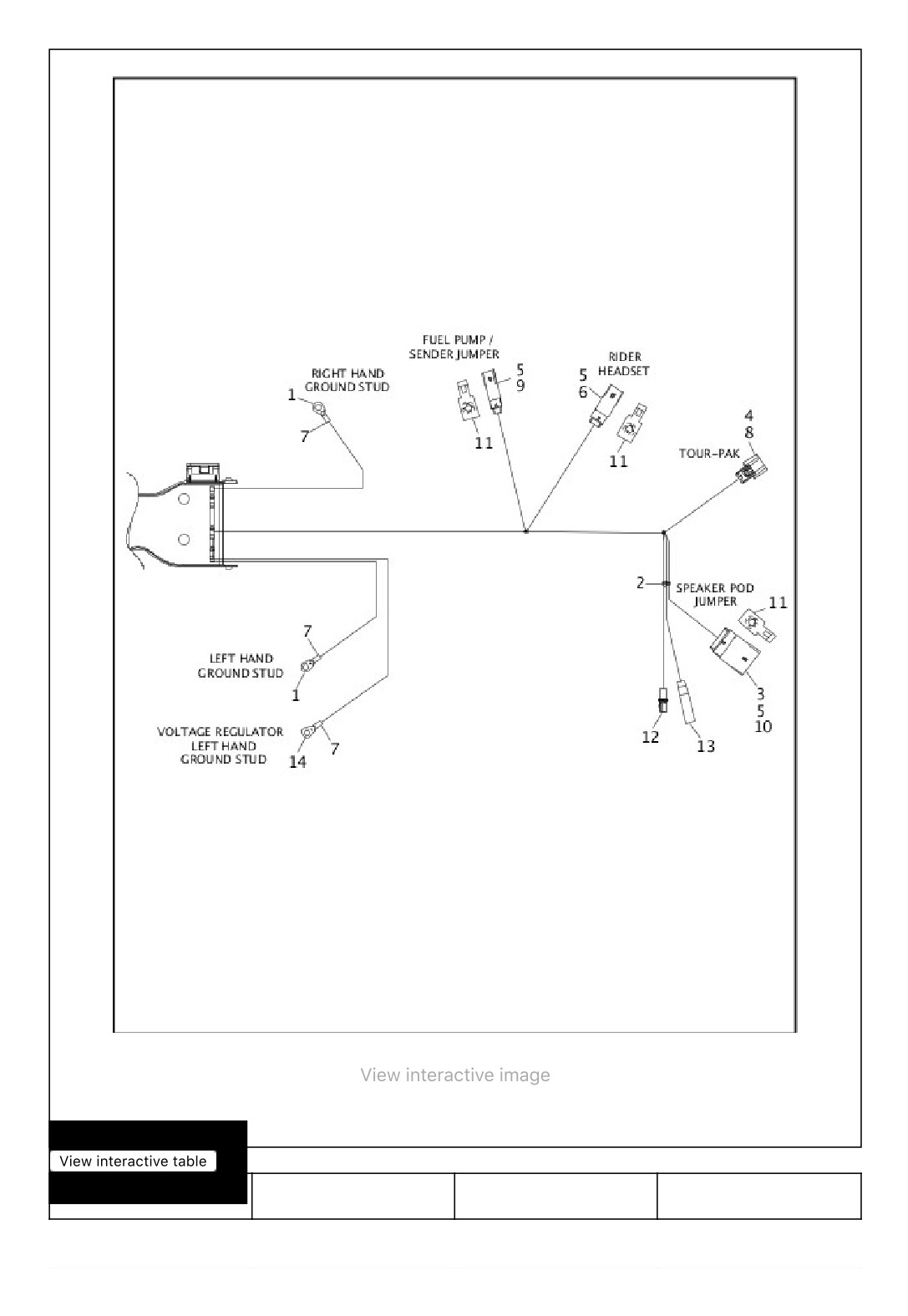

WIRING HARNESS, MAIN, ABS - FLHTK AND FLHTKL (4 OF 10)
376/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
377/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201119A
MAIN WIRING HARNESS
FLHTK, FLHTK SHRINE,
- ABS
FLHTKL
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHTK, FLHTK SHRINE,
FLHTKL
2
10147
CLIP, connector
FLHTK, FLHTK SHRINE,
FLHTKL
3
72213-94
TERMINAL, socket, 16-
FLHTK, FLHTK SHRINE,
20 AWG (2)
FLHTKL
4
72518-01
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (red)
FLHTKL
5
72533-06
PLUG, weather, two-way
FLHTK, FLHTK SHRINE,
pin
FLHTKL
6
72609-08
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
two-way socket
FLHTKL
7
72610-08
WIRE SEAL, 18-20 AWG
FLHTK, FLHTK SHRINE,
(white) (2)
FLHTKL
8
72664-12A
HOUSING, 18-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
9
72666-12
TERMINAL, socket, 18-
FLHTK, FLHTK SHRINE,
20 AWG (46)
FLHTKL
10
72720-07
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
11
72721-07
TERMINAL, socket, 18-
FLHTK, FLHTK SHRINE,
20 AWG (2)
FLHTKL
12
69201168
TERMINAL, socket, 22
FLHTK, FLHTK SHRINE,
AWG (silver) (2)
FLHTKL
13
69201410
HOUSING, 18-way
FLHTK, FLHTK SHRINE,
socket (brown)
FLHTKL
14
69201414
HOUSING, 18-way
FLHTK, FLHTK SHRINE,
socket (gray)
FLHTKL

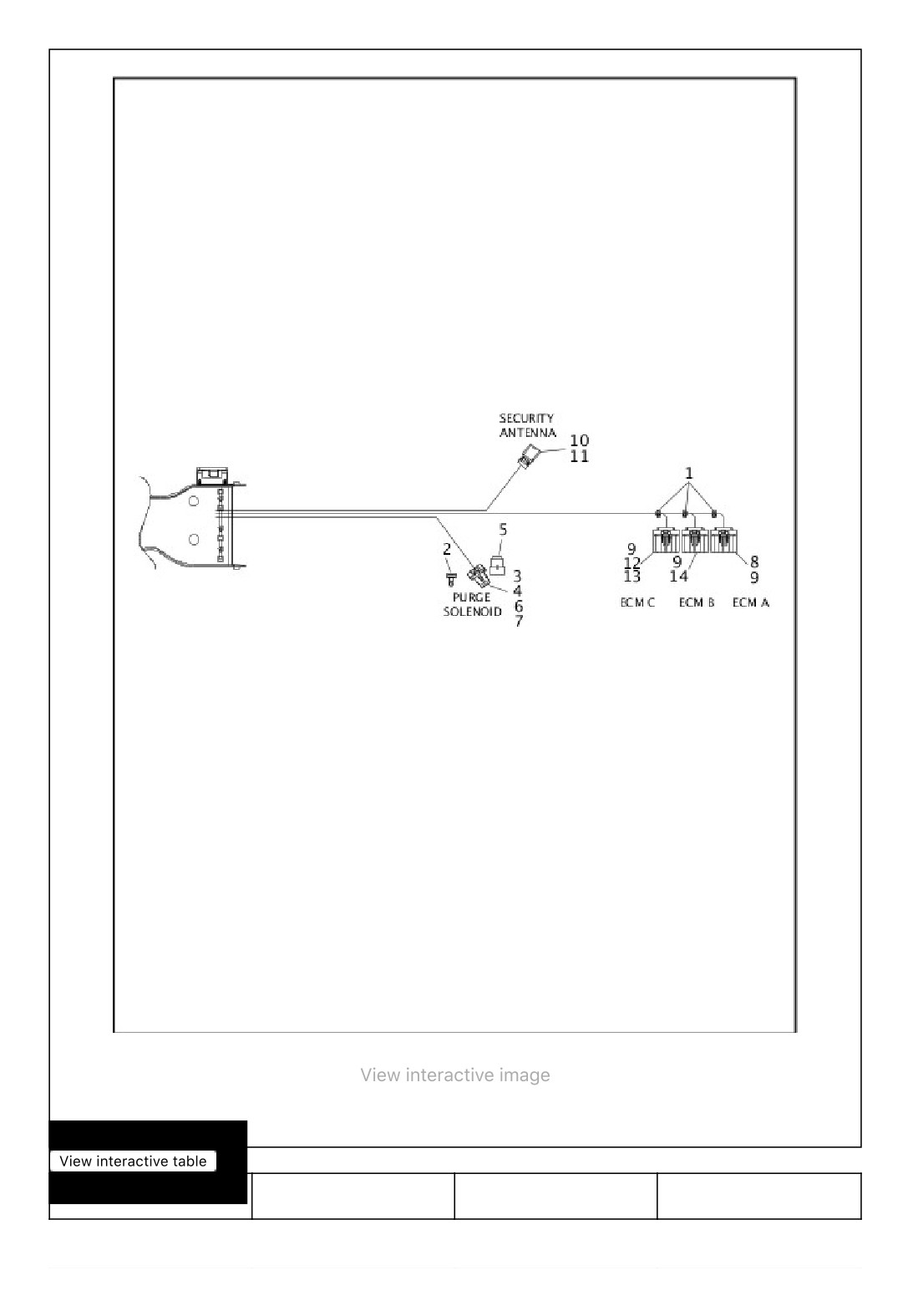

WIRING HARNESS, MAIN, ABS - FLHTK AND FLHTKL (5 OF 10)
378/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
379/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201119A
MAIN WIRING HARNESS
FLHTK, FLHTK SHRINE,
- ABS
FLHTKL
NOTE: Includes the following parts.
1
9819
TERMINAL, ring, 12 AWG
FLHTK, FLHTK SHRINE,
(2)
FLHTKL
2
10065
CABLE STRAP
FLHTK, FLHTK SHRINE,
FLHTKL
3
72167-07BK
HOUSING, 16-way pin
FLHTK, FLHTK SHRINE,
(black)
FLHTKL
4
72168-07
TERMINAL, socket, 18-
FLHTK, FLHTK SHRINE,
20 AWG (6)
FLHTKL
5
72169-07
TERMINAL, pin, 16-20
FLHTK, FLHTK SHRINE,
AWG (23)
FLHTKL
6
72188-07BK
HOUSING, six-way pin
FLHTK, FLHTK SHRINE,
(black)
FLHTKL
7
72249-94
HEAT SHRINK TUBE,
FLHTK, FLHTK SHRINE,
.415 x 1 in (black)
FLHTKL
8
72414-07BK
HOUSING, six-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
9
72415-07GY
HOUSING, four-way pin
FLHTK, FLHTK SHRINE,
(gray)
FLHTKL
10
72473-07
SEAL PIN, natural (3)
FLHTK, FLHTK SHRINE,
FLHTKL
11
73213-07
RETAINER, anchored (3)
FLHTK, FLHTK SHRINE,
FLHTKL
12
69200032
WIRE HARNESS, AM/FM
FLHTK, FLHTK SHRINE,
antenna
FLHTKL
13
69200136
WIRE HARNESS, CB
FLHTK, FLHTK SHRINE,
antenna
FLHTKL
14
69201596
TERMINAL, ring, 8-10
FLHTK, FLHTK SHRINE,
AWG
FLHTKL
WIRING HARNESS, MAIN, ABS - FLHTK AND FLHTKL (6 OF 10)
380/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
381/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201119A
MAIN WIRING HARNESS
FLHTK, FLHTK SHRINE,
- ABS
FLHTKL
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLHTK, FLHTK SHRINE,
FLHTKL
2
10065
CABLE STRAP (4)
FLHTK, FLHTK SHRINE,
FLHTKL
3
11779
FASTENER, push-in
FLHTK, FLHTK SHRINE,
(black) (2)
FLHTKL
4
72291-94
TERMINAL, socket, 14-
FLHTK, FLHTK SHRINE,
16 AWG
FLHTKL
5
72295-94
CONNECTOR, starter
FLHTK, FLHTK SHRINE,
housing
FLHTKL
6
72405-98BK
WIRE ASSEMBLY, push-
FLHTK, FLHTK SHRINE,
on, right angle molded,
FLHTKL
65-1/2 in length (2)
7
72484-08
TERMINAL, socket, 20
FLHTK, FLHTK SHRINE,
AWG (3)
FLHTKL
8
72486-08
WIRE SEAL, 20 AWG
FLHTK, FLHTK SHRINE,
(green) (3)
FLHTKL
9
72543-07BK
HOUSING, three-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
10
72544-07
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
three-way socket
FLHTKL
11
69200175
CADDY, fuse block,
FLHTK, FLHTK SHRINE,
electrical panel
FLHTKL

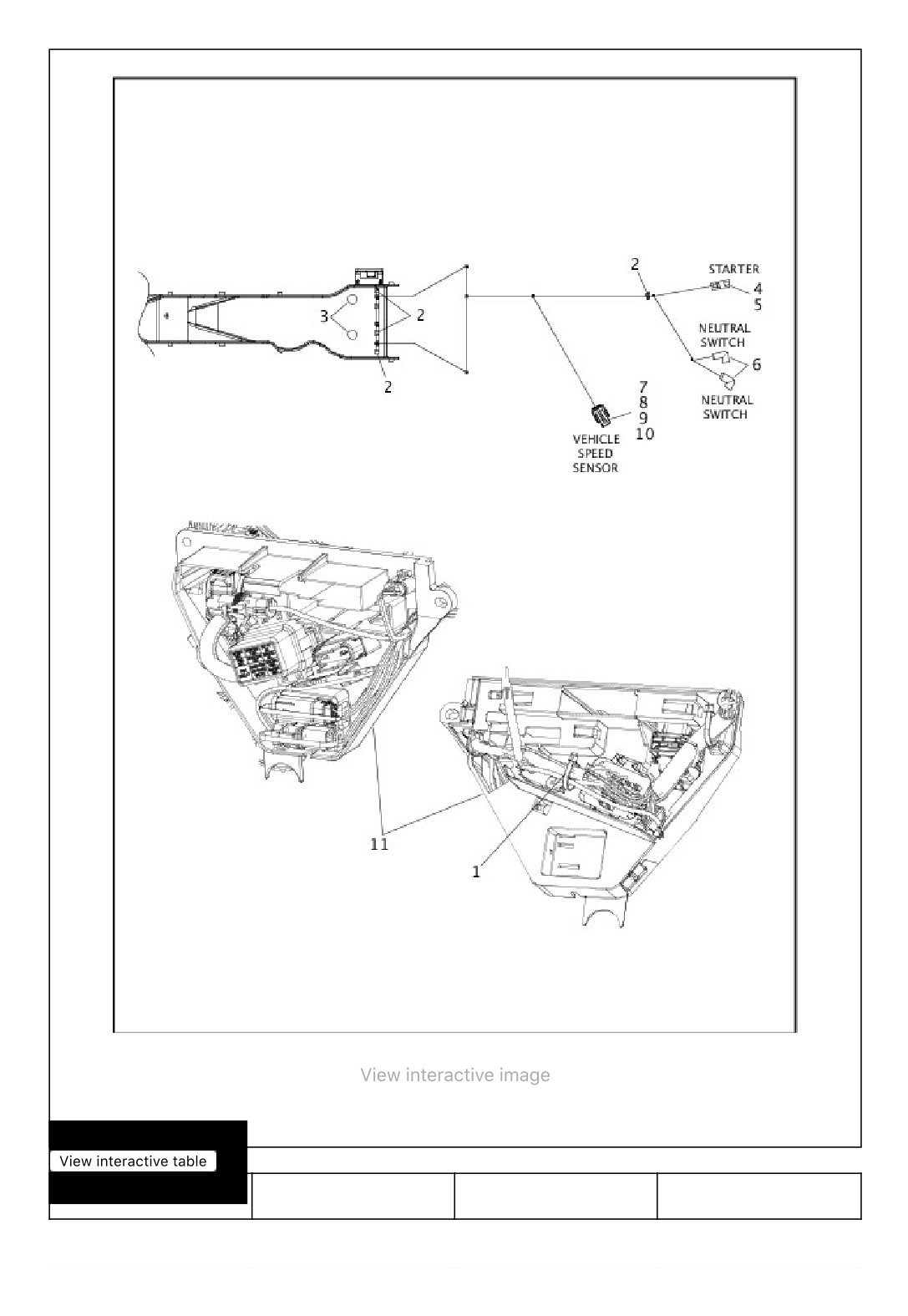

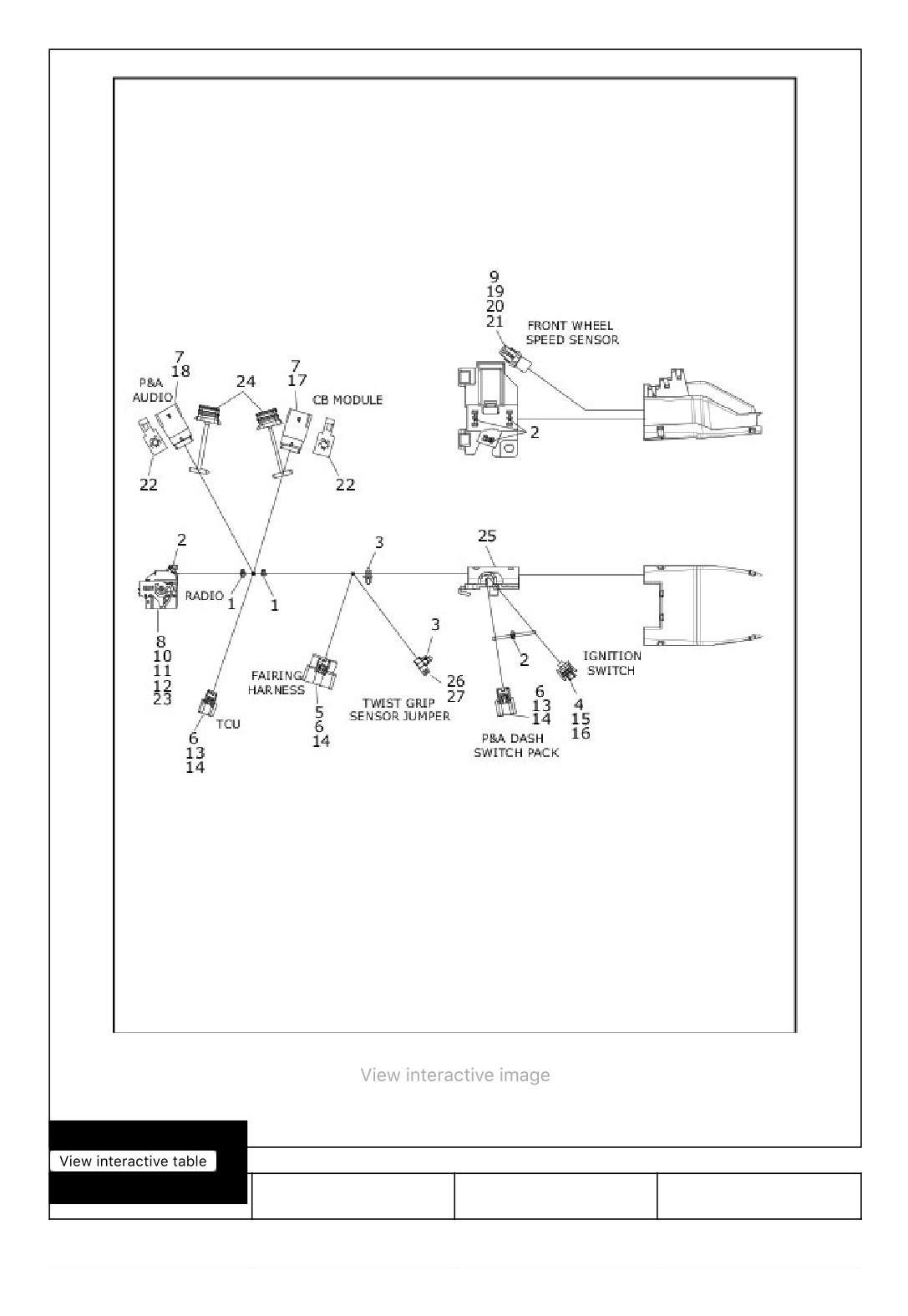

WIRING HARNESS, MAIN, ABS - FLHTK AND FLHTKL (7 OF 10)
382/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
383/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201119A
MAIN WIRING HARNESS
FLHTK, FLHTK SHRINE,
- ABS
FLHTKL
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHTK, FLHTK SHRINE,
FLHTKL
2
10147
CLIP, connector
FLHTK, FLHTK SHRINE,
FLHTKL
3
10177
CABLE STRAP, anchored
FLHTK, FLHTK SHRINE,
(3)
FLHTKL
4
72065-06A
HOUSING, three-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
5
72127-06
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
three-way
FLHTKL
6
72168-07
TERMINAL, socket, 18-
FLHTK, FLHTK SHRINE,
20 AWG (5)
FLHTKL
7
72169-07
TERMINAL, pin, 16-20
FLHTK, FLHTK SHRINE,
AWG (10)
FLHTKL
8
72175-07BK
HOUSING, four-way pin
FLHTK, FLHTK SHRINE,
(black) (2)
FLHTKL
9
72213-94
TERMINAL, socket, 16-
FLHTK, FLHTK SHRINE,
20 AWG (4)
FLHTKL
10
72343-10
TERMINAL, pin, 16-20
FLHTK, FLHTK SHRINE,
AWG (gold) (4)
FLHTKL
11
72415-07GY
HOUSING, four-way pin
FLHTK, FLHTK SHRINE,
(gray)
FLHTKL
12
72473-07
SEAL PIN, natural
FLHTK, FLHTK SHRINE,
FLHTKL
13
72484-08
TERMINAL, socket, 20
FLHTK, FLHTK SHRINE,
AWG (6)
FLHTKL
14
72486-08
WIRE SEAL, 20 AWG
FLHTK, FLHTK SHRINE,
(green) (6)
FLHTKL
15
72499-07
WIRE SEAL, 20-22 AWG
FLHTK, FLHTK SHRINE,
(green) (2)
FLHTKL
16
72512-07BK
HOUSING, three-way
FLHTK, FLHTK SHRINE,
socket (black) (2)
FLHTKL
384/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
72519-09BK
PLUG, weather, three-
FLHTK, FLHTK SHRINE,
way socket (2)
FLHTKL
18
72533-06
PLUG, weather, two-way
FLHTK, FLHTK SHRINE,
pin
FLHTKL
19
72544-07
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
three-way socket
FLHTKL
20
72589-09
HOUSING, three-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
21
72606-08
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (black) (2)
FLHTKL
22
72609-08
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
two-way socket (2)
FLHTKL
23
72610-08
WIRE SEAL, 18-20 AWG
FLHTK, FLHTK SHRINE,
(white) (4)
FLHTKL
24
73213-07
RETAINER, anchored (6)
FLHTK, FLHTK SHRINE,
FLHTKL
WIRING HARNESS, MAIN, ABS - FLHTK AND FLHTKL (8 OF 10)
385/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
386/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201119A
MAIN WIRING HARNESS
FLHTK, FLHTK SHRINE,
- ABS
FLHTKL
NOTE: Includes the following parts.
25
74112-98BK
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
26
74152-98
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
two-way socket
FLHTKL
27
74191-98
TERMINAL, socket 16-20
FLHTK, FLHTK SHRINE,
AWG (2)
FLHTKL
28
12500014
CABLE STRAP
FLHTK, FLHTK SHRINE,
FLHTKL
29
12500018
CABLE STRAP
FLHTK, FLHTK SHRINE,
FLHTKL
30
69200183
HOUSING, 26-way
FLHTK, FLHTK SHRINE,
socket
FLHTKL
31
69200184
COVER, wire
FLHTK, FLHTK SHRINE,
FLHTKL
32
69200185
TERMINAL, socket, 20
FLHTK, FLHTK SHRINE,
AWG (6)
FLHTKL
33
69200186
TERMINAL, socket, 14-
FLHTK, FLHTK SHRINE,
16 AWG (2)
FLHTKL
34
69200187
TERMINAL, socket, 12
FLHTK, FLHTK SHRINE,
AWG (2)
FLHTKL
35
69200188
WIRE SEAL, 20 AWG (6)
FLHTK, FLHTK SHRINE,
FLHTKL
36
69200189
WIRE SEAL, 14-16 AWG
FLHTK, FLHTK SHRINE,
(2)
FLHTKL
37
69200190
WIRE SEAL, 12 AWG (2)
FLHTK, FLHTK SHRINE,
FLHTKL
38
69200191
SEAL PIN (16)
FLHTK, FLHTK SHRINE,
FLHTKL
39
69200238
TERMINAL, 20 AWG
FLHTK, FLHTK SHRINE,
(black) (2)
FLHTKL
40
69200272
HOUSING, two-way pin
FLHTK, FLHTK SHRINE,
(black)
FLHTKL
387/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
41
69201301
WIRE SEAL, 20-22 AWG
FLHTK, FLHTK SHRINE,
(green) (3)
FLHTKL
42
69201396
TERMINAL, socket, 20
FLHTK, FLHTK SHRINE,
AWG (2)
FLHTKL
43
69201400
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket,(black)
FLHTKL
44
69201401
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
two-way socket
FLHTKL
45
69201404
RETAINER, anchored
FLHTK, FLHTK SHRINE,
FLHTKL
46
69201405
RESISTOR PACK
FLHTK, FLHTK SHRINE,
FLHTKL
47
69201406
HOUSING, three-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
48
69201407
TERMINAL, socket, 20
FLHTK, FLHTK SHRINE,
AWG (3)
FLHTKL
49
69201423
DC LEAD ASSEMBLY,
FLHTK, FLHTK SHRINE,
two-way socket
FLHTKL

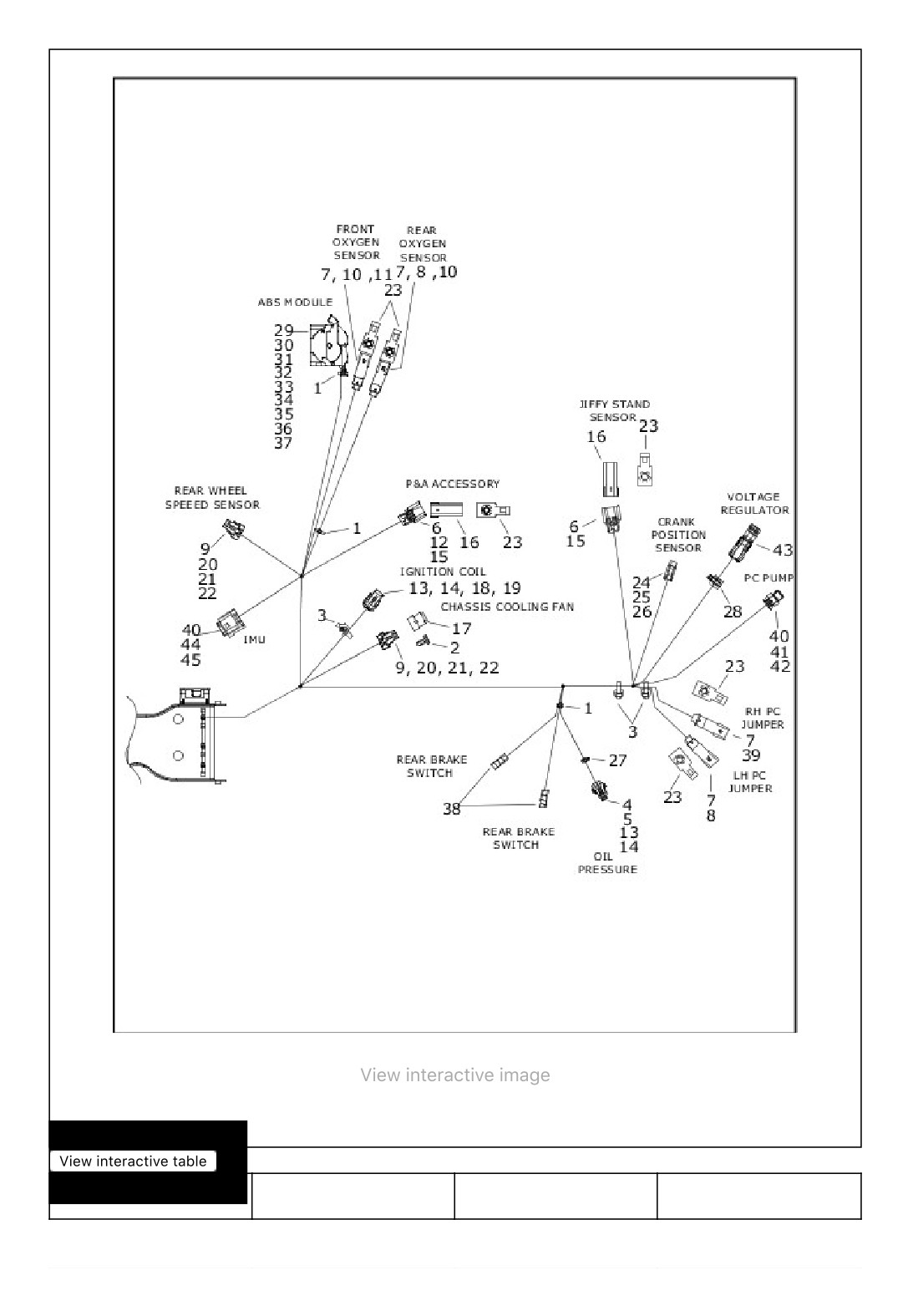

WIRING HARNESS, MAIN, ABS - FLHTK AND FLHTKL (9 OF 10)
388/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
389/956
