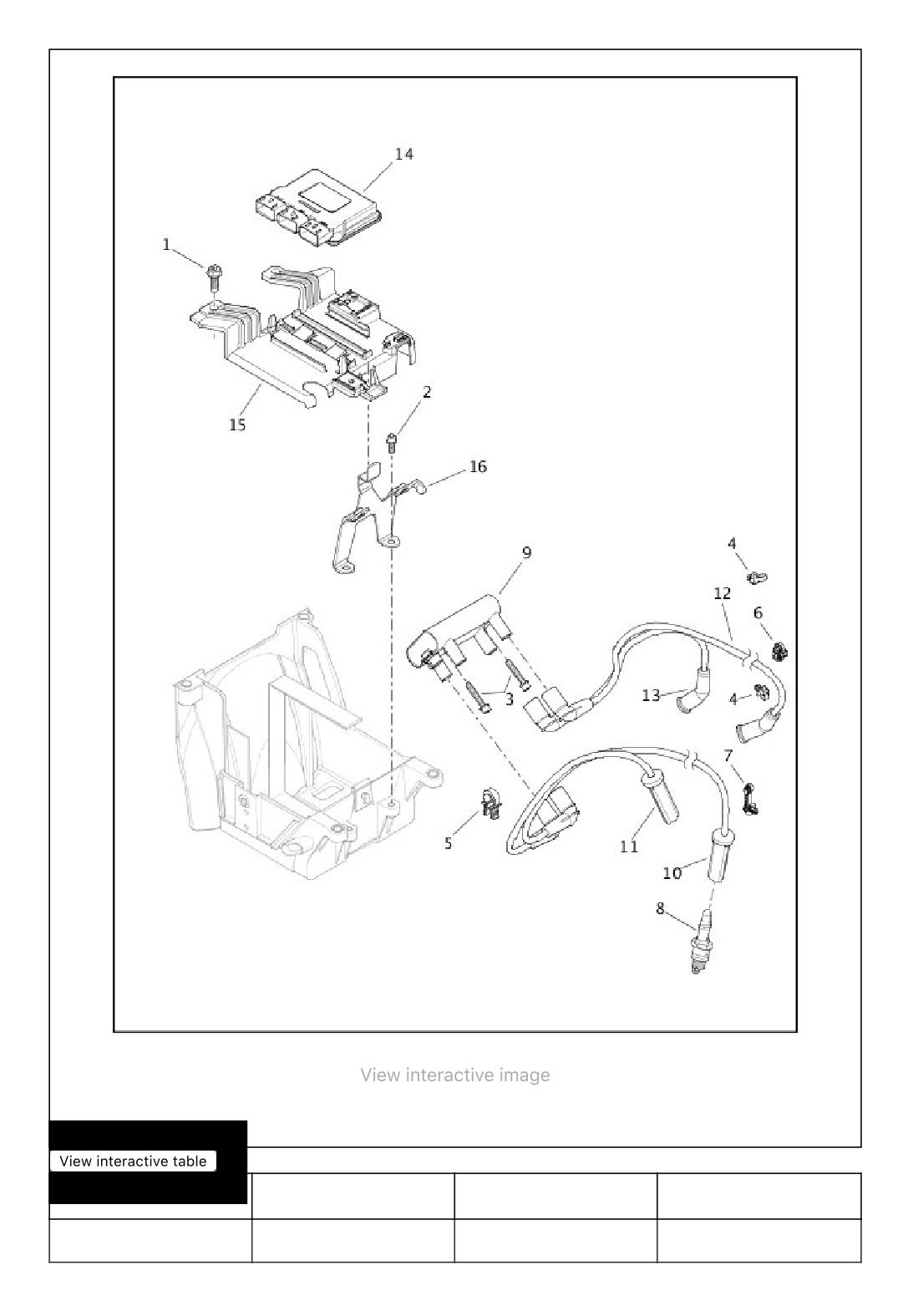

Harley Davidson Parts Catalog 2019: touring models

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

4705

SCREW (2)

ALL

4813A

SCREW (2)

ALL

10177

CABLE STRAP, anchored

ALL

(6)

70681-09

RETAINER, wire harness

ALL

12200170

CLIP, retaining, anchored

ALL

12200172

CABLE STRAP, anchored

ALL

31600012

SPARK PLUG, M10 (4)

ALL

31600017

IGNITION COIL

ALL

31600018B

SPARK PLUG CABLE,

ALL

right front cylinder, with

10177 and 12200172

31600023A

SPARK PLUG CABLE,

ALL

right rear cylinder, with

10177

31600078A

SPARK PLUG CABLE,

ALL

left front cylinder, with

10177 and 12200170

31600079

SPARK PLUG CABLE,

ALL

left rear cylinder, with

10177

41000599

ELECTRONIC CONTROL

FLHRXS, FLHTK, FLHTK

MODULE (ECM),

SHRINE, FLHTKL,

Requires Digital

FLHXS, FLTRU, FLTRXS

Technician II

programming.

41000668

ELECTRONIC CONTROL

FLHR, FLHRC, FLHT,

MODULE (ECM),

FLHTCU, FLHX, FLTRX

Requires Digital

Technician II

programming.

69200174

CADDY, electronic

ALL

control module (ECM)

69201178

BRACKET, battery hold

ALL

down

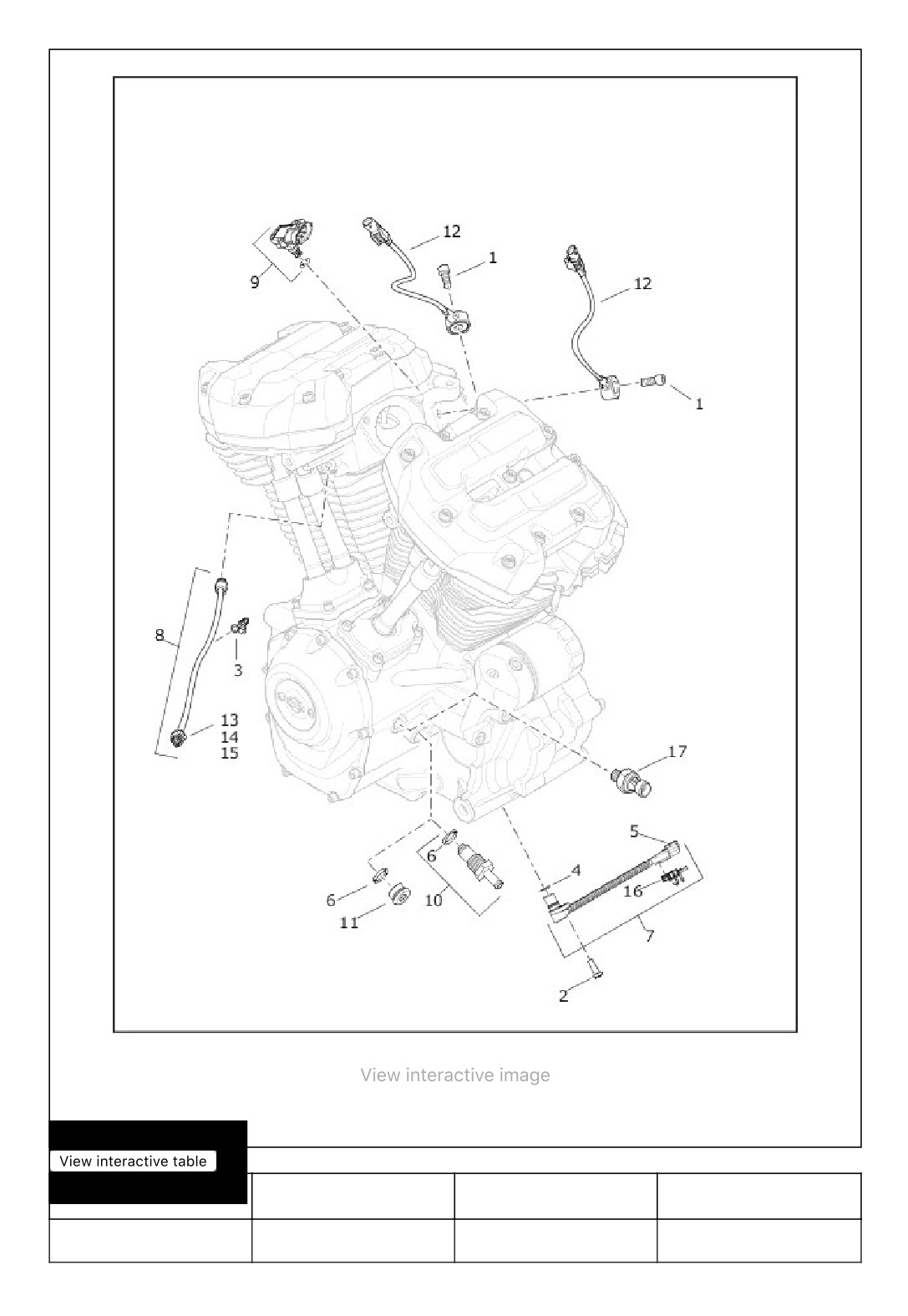

SENSORS AND SWITCHES, ENGINE

61/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

942

SCREW

ALL

10177

CABLE STRAP, anchored

ALL

11289A

O-RING, crankshaft

ALL

position sensor

74194-98

TERMINAL, pin, 20-24

ALL

AWG (2)

11900010

O-RING

ALL

32700048

SENSOR, crankshaft

ALL

position, with 11289A,

74194-98 and 69201302

32700054

SENSOR, engine

ALL

temperature, with 10177,

69201299, 69201300 and

69201301

32700065

SENSOR, temperature

ALL

manifold absolute

pressure (TMAP), with O-

ring

62700141

CHECK VALVE, oil

FLHR, FLHRC, FLHRXS,

pressure, with 11900010

FLHT, FLHTCU, FLHX,

(Air-Cooled)

FLHXS, FLTRX, FLTRXS

62800013

PLUG ASSEMBLY, with

FLHTK, FLHTK SHRINE,

11900010 (Twin-Cooled)

FLHTKL, FLTRU

69200840

SENSOR, knock (2)

ALL

69201299

HOUSING, two-way

ALL

socket

69201300

TERMINAL, socket, 20

ALL

AWG (2)

69201301

WIRE SEAL, 20-22 AWG

ALL

(green) (2)

69201302

CONNECTOR ANCHOR

ALL

71400112

OIL PRESSURE SWITCH

ALL

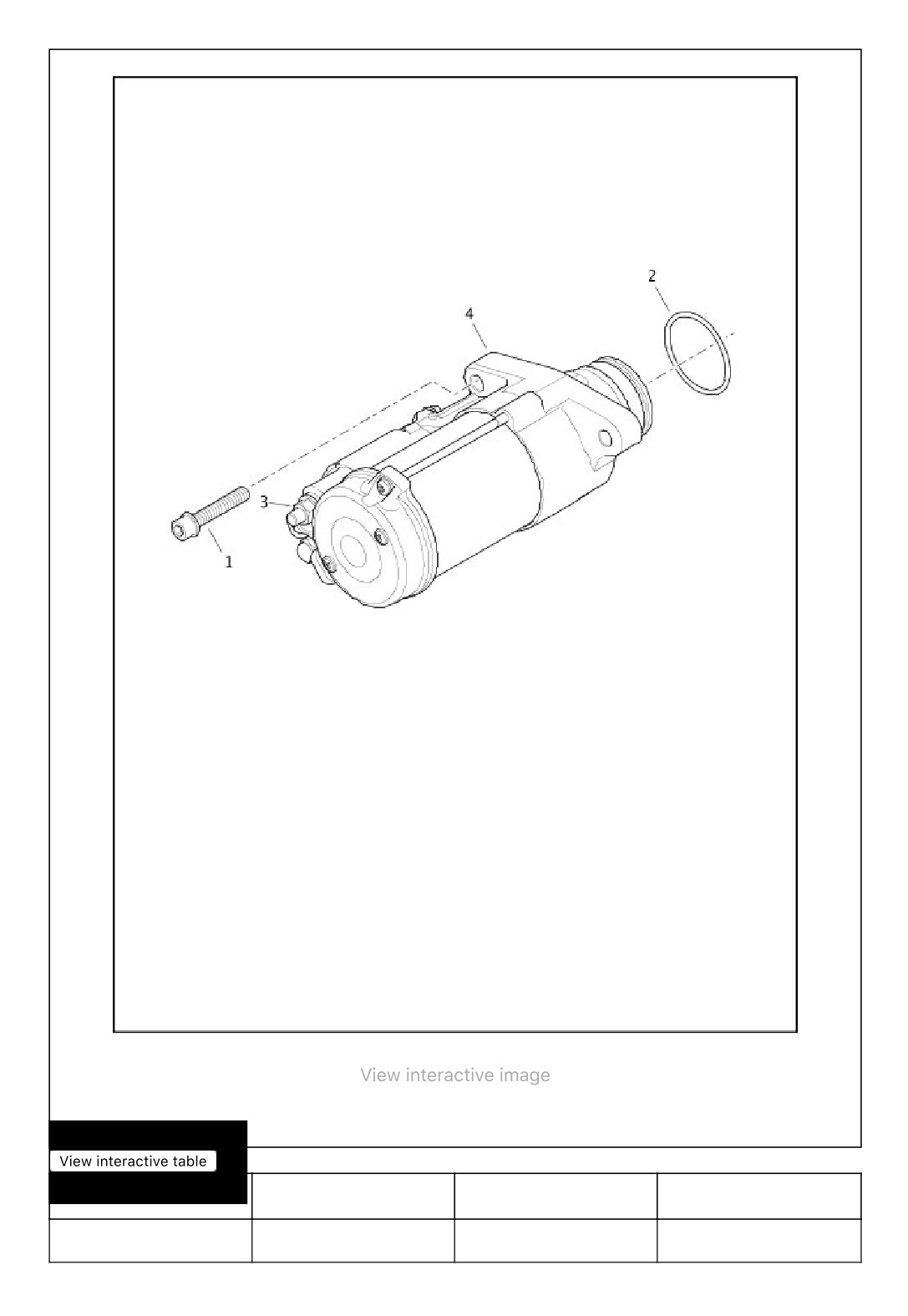

STARTER MOTOR

63/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

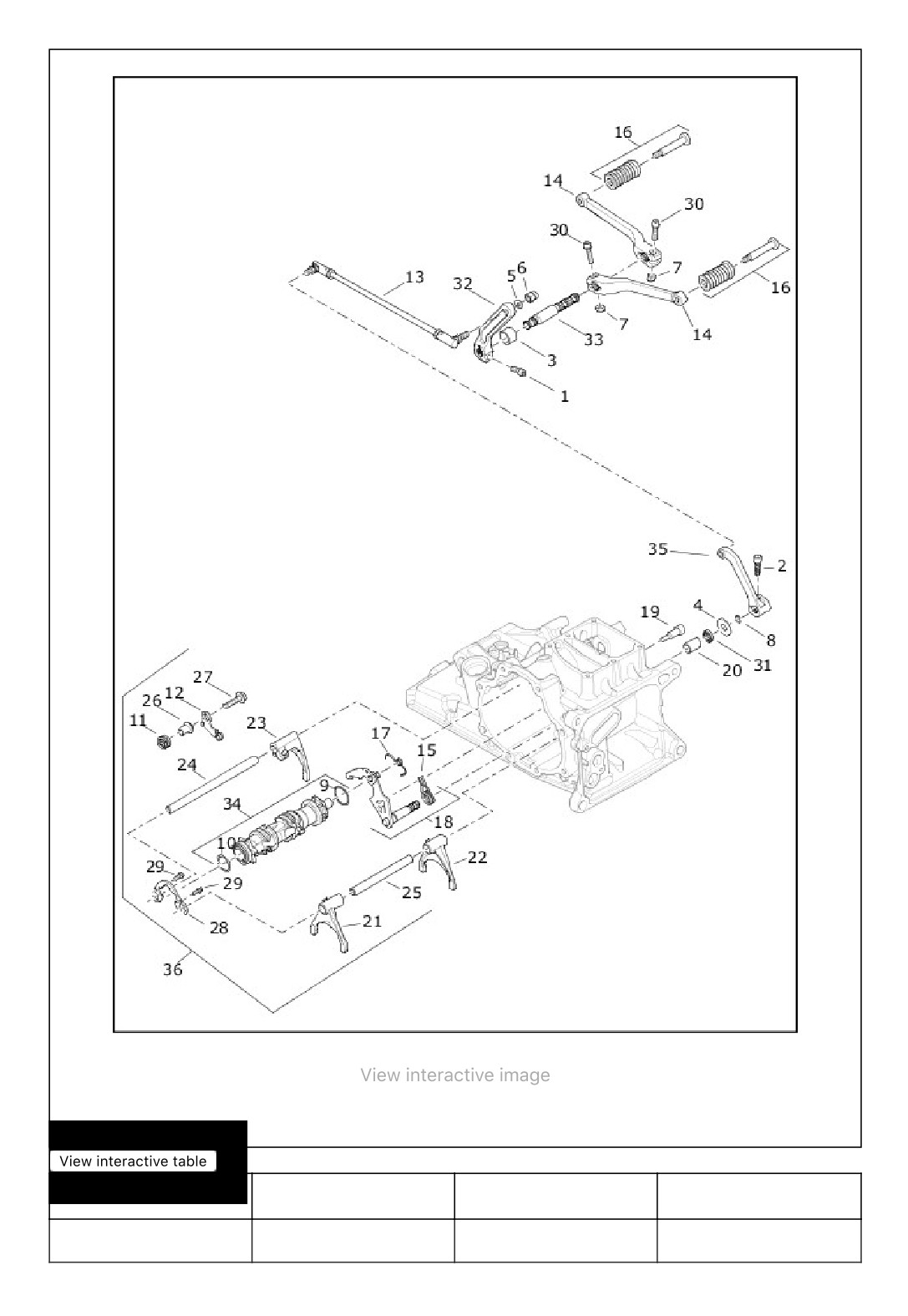

856A

SCREW

ALL

5817

SPACER

FLHR, FLHRC, FLHRXS,

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX,

FLHXS, FLTRU, FLTRX,

FLTRXS

33600304

SPACER

FLHT

6497HW

WASHER

ALL

6702

WASHER

ALL

7330

ACORN NUT

ALL

7686

LOCKNUT

ALL

11150

RETAINING RING

ALL

11389

RING, shift camshaft

ALL

retaining

11575

RING, shift camshaft

ALL

retaining

33389-07

SPRING, detent

ALL

33409-06B

DETENT ARM

ALL

ASSEMBLY, with 33389-

33719-79B

SHIFTER ROD

ALL

33895-82E

SHIFT LEVER KIT, with

FLHR, FLHRC, FLHT,

7686, 10200350 and

FLHTCU, FLHTK, FLHTK

shifter lever (chrome) (2)

SHRINE, FLHTKL, FLHX,

FLTRU, FLTRX

33600243

SHIFT LEVER KIT, with

FLHRXS, FLHXS, FLTRXS

7686, 10200350 and

shifter lever (gloss black)

(2)

34064-00C

SPRING, shift lever

ALL

centering

34611-65A

TOE SHIFTER PEG KIT

ALL

(2)

34987-06

SPRING, ratchet lever

ALL

67/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

35081-06

SHIFT MECHANISM,

ALL

with 34064-00C and

34987-06

35082-07

CENTERING SCREW,

ALL

shift lever

35186-06

SLEEVE

ALL

35187-06

FORK, shift 1 - 2

ALL

35210-06

FORK, shift 3 - 4

ALL

35217-06

FORK, shift 5 - 6

ALL

35222-06

SHAFT, 5 - 6 shift fork

ALL

35223-06

SHAFT, 1 - 2 and 3 - 4

ALL

shift fork

35243-06

SLEEVE

ALL

35244-06

SCREW

ALL

35249-06A

LOCK PLATE, shift

ALL

camshaft

35259-06

SCREW (2)

ALL

10200350

SCREW (2)

ALL

11000101

OIL SEAL

ALL

33600088

LEVER, gear shifter

FLHR, FLHRC, FLHT,

(chrome)

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX,

FLTRU, FLTRX

33600188

LEVER, gear shifter

FLHRXS, FLHXS, FLTRXS

(gloss black)

33600091

SHAFT

ALL

33900172

SHIFTER CAMSHAFT

ALL

ASSEMBLY, with 11389,

11575 and bearing

33900175

LEVER, shifter rod

ALL

68/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

35000198A

GEAR PACK, FORKS

ALL

AND DRUM

SUBASSEMBLY, with 9,

10, 11, 12, 21, 22, 23, 24,

25, 26, 27, 28, 29, 34,

7340, 35260-06B, input

shaft, countershaft and

gears (black)

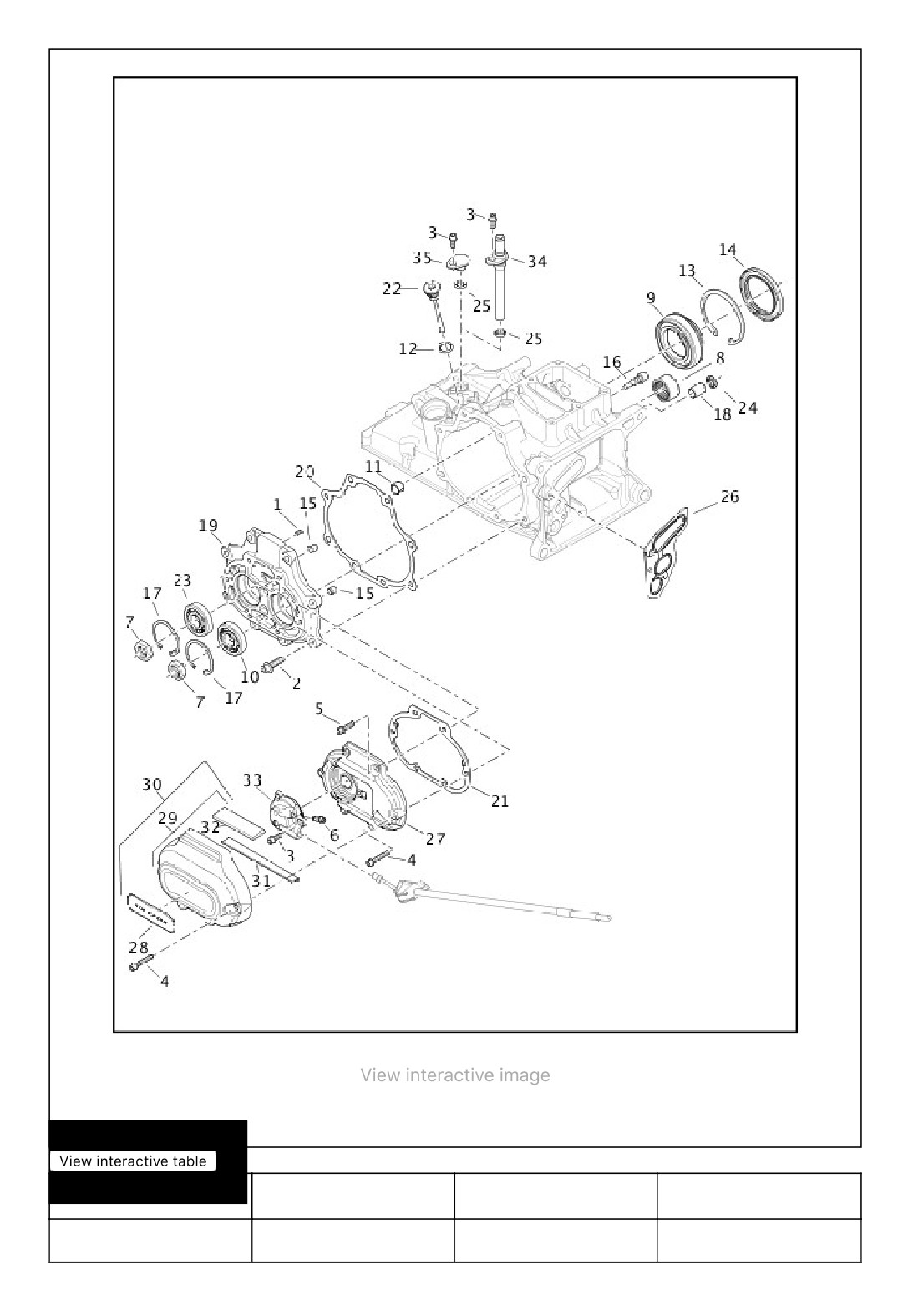

TRANSMISSION BEARINGS AND COVERS

69/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

3249

SCREW (8)

ALL

4705

SCREW (4)

ALL

4718A

SCREW (4)

ALL

4741A

SCREW (2)

ALL

4890

BLEEDER SCREW

ALL

7340

NUT, mainshaft and

ALL

countershaft (2)

8963

BEARING, needle

ALL

8967A

BEARING

ALL

8970A

BEARING

ALL

9701A

BUSHING

ALL

11132A

O-RING, dipstick

ALL

11161

RETAINING RING

ALL

12074

SEAL

ALL

16583-00A

BUSHING, dowel (2)

ALL

35082-07

CENTERING SCREW,

ALL

shift lever

35087-99A

RETAINING RING (2)

ALL

35186-06

SLEEVE

ALL

35260-06B

BEARING HOUSING

ALL

ASSEMBLY, with 221,

8970A, 16583-00A,

35087-99A and

11000010 (black)

35654-06

GASKET, bearing

ALL

housing

36805-06

GASKET, cover

ALL

37065-06A

DIPSTICK (chrome)

ALL

11000010

BEARING

ALL

11000101

OIL SEAL

ALL

71/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

11900092

O-RING

ALL

24400215

GASKET

ALL

25700178

INNER SIDE COVER,

ALL

transmission

25800048

INSERT, side cover, six

FLHTK, FLHTK SHRINE,

speed

FLHTKL

25800049

INSERT, side cover, six

FLHR, FLHRC, FLHT,

speed

FLHTCU, FLHX, FLHXS,

FLTRU, FLTRX, FLTRXS

25800054

SIDE COVER,

FLHR, FLHRC, FLHT,

transmission, with

FLHTCU, FLHTK, FLHTK

25800109 and 25800110

SHRINE, FLHTKL, FLHX,

(chrome)

FLHXS, FLTRU, FLTRX,

FLTRXS

25800055

SIDE COVER,

FLHRXS, FLHXS, FLTRXS

transmission, with

25800109 and 25800110

(gloss black)

25800056

SIDE COVER

FLHTK, FLHTK SHRINE,

ASSEMBLY,

FLHTKL

transmission, with

25800048 and 25800054

(chrome)

25800057

SIDE COVER

FLHR, FLHRC, FLHRXS,

ASSEMBLY,

FLHT, FLHTCU, FLHX,

transmission, with

FLTRU, FLTRX

25800049 and 25800054

(chrome)

25800109

TRIM, rubber

ALL

25800110

TAPE, foam

ALL

37200131B

SECONDARY CLUTCH

ALL

ACTUATOR, with 4890

62700146

FITTING ASSEMBLY,

FLHR, FLHRC, FLHRXS,

transmission oil return,

FLHT, FLHTCU, FLHX,

with 11900092 (Air-

FLHXS, FLTRX, FLTRXS

Cooled)

62700150

PLUG, transmission, with

FLHTK, FLHTK SHRINE,

11900092 (Twin-Cooled)

FLHTKL, FLTRU

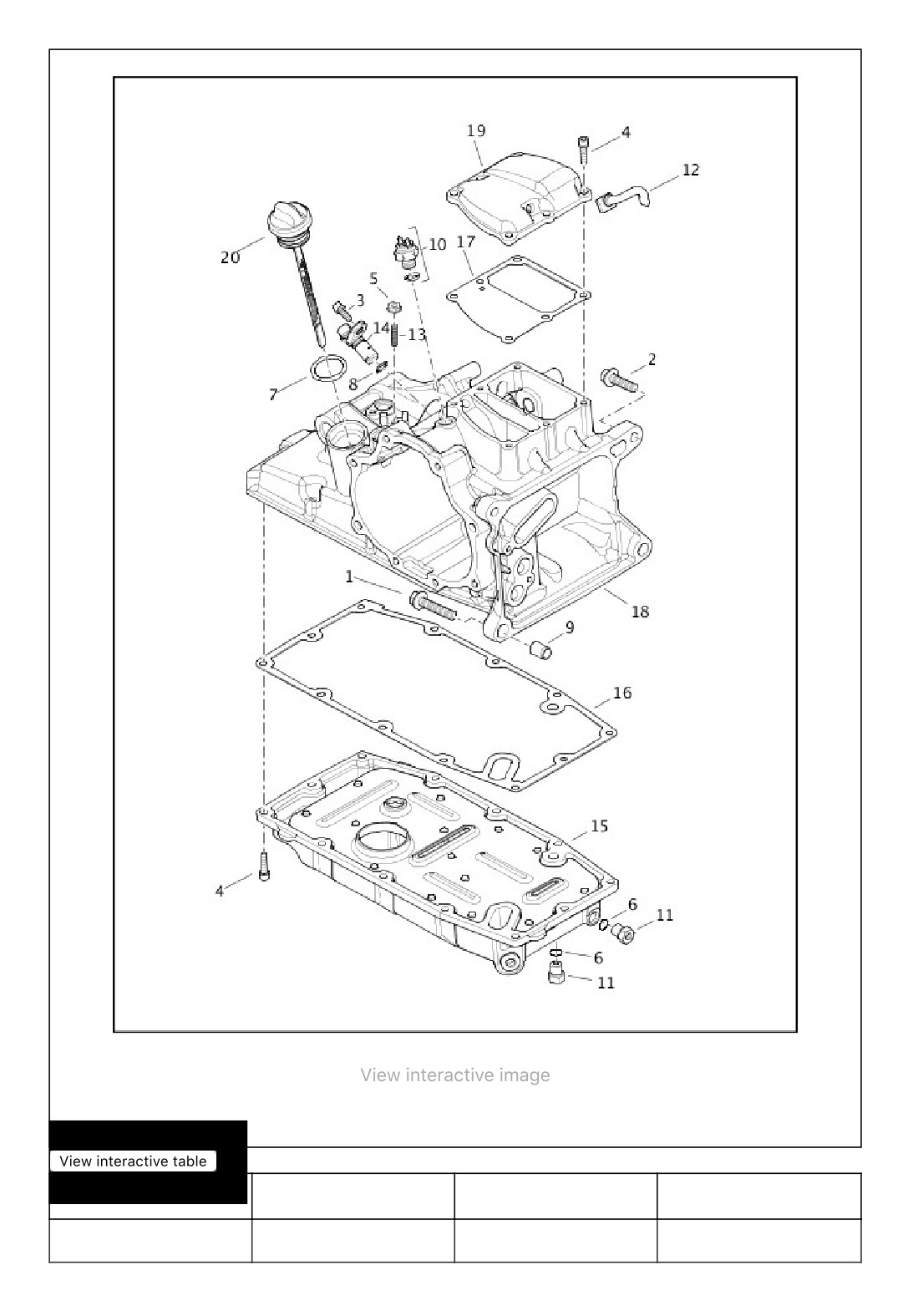

TRANSMISSION HOUSING, COVER AND OIL PAN

72/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

3983

SCREW (2)

ALL

4705

SCREW

ALL

4741A

SCREW (18)

ALL

7792

NUT

ALL

11105

O-RING (2)

ALL

11120

O-RING

ALL

11289A

O-RING

ALL

16574-99A

DOWEL PIN (2)

ALL

33926-06B

SWITCH, neutral

ALL

indicator, with O-ring

60328-98B

PLUG, magnetic, with

ALL

11105 (2)

62372-09

VENT HOSE,

ALL

transmission

66290-06

STUD, ground

ALL

74402-05B

SPEED SENSOR, with

ALL

11289A

24400180

OIL PAN ASSEMBLY,

ALL

with 60328-98B (black)

25700452

GASKET, oil pan

ALL

25700453

GASKET, upper cover

ALL

34700084

TRANSMISSION CASE

ALL

SUBASSEMBLY, with

3594, 8963, 8967A,

9701A, 11161, 12074,

16574-99A, 35082-07,

35122-06, 35186-06,

35241-06, 35242-06,

66290-06, 11000101 and

35000152 (black)

34800025

TRANSMISSION COVER,

FLHR, FLHRC, FLHTCU,

top, with 62372-09

FLHTK, FLHTK SHRINE,

(chrome)

FLHTKL, FLTRU

74/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

34800031

TRANSMISSION COVER,

FLHRXS, FLHXS, FLTRXS

top, with 62372-09 (gloss

black)

34800038

TRANSMISSION COVER,

FLHT, FLHX, FLTRX

top, with 62372-09

(black)

62700136

DIPSTICK ASSEMBLY,

ALL

with 11120 (black cap)

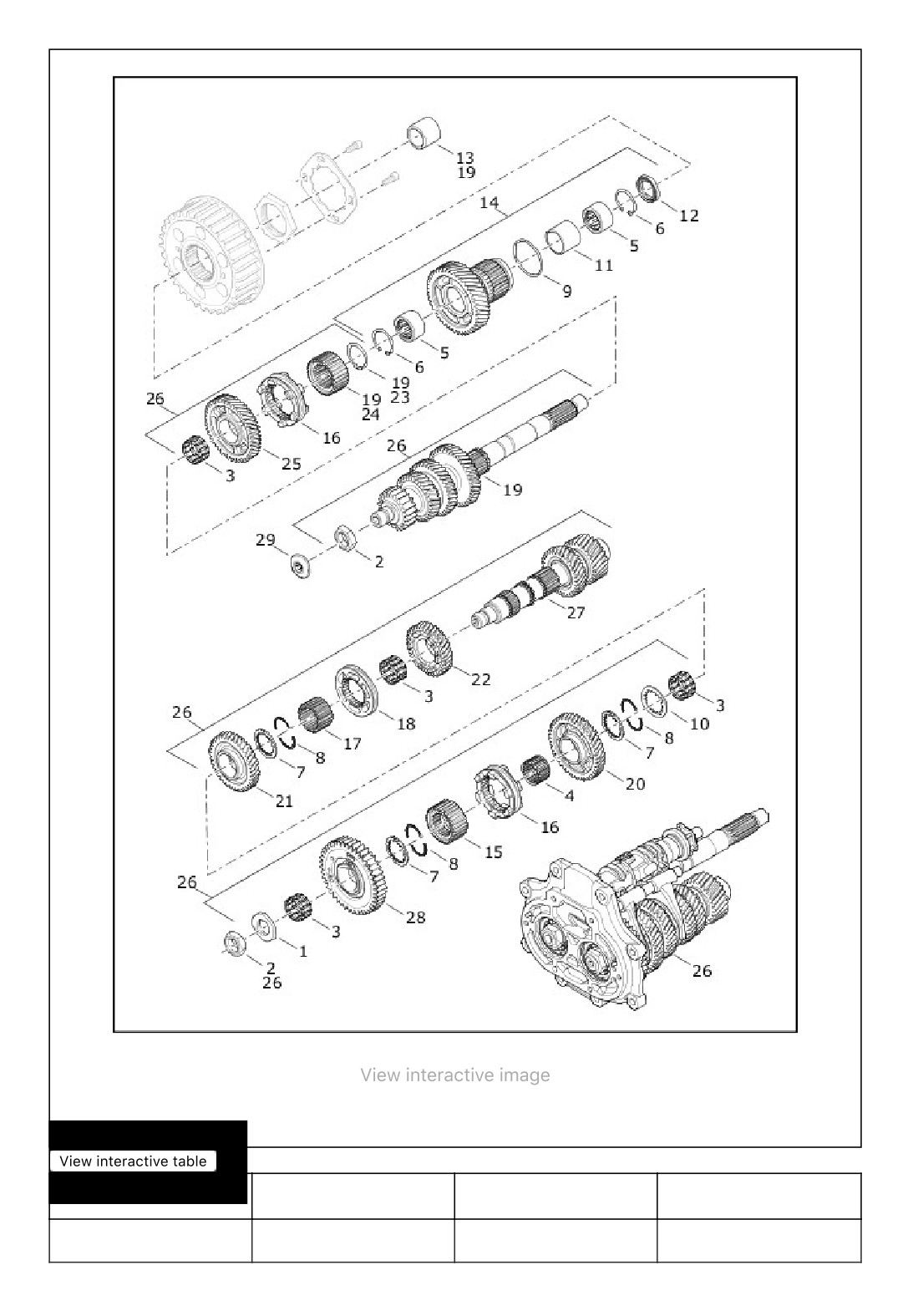

TRANSMISSION GEARS

75/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

7340

NUT (2)

ALL

8026K

BEARING, needle (4)

ALL

8041

BEARING, needle

ALL

8042A

BEARING, needle (2)

ALL

10991A

RETAINING RING (2)

ALL

11081A

RING, lock (3)

ALL

11082A

SECURING SEGMENT

ALL

(6)

11201

O-RING

ALL

11207A

WASHER, internal spline

ALL

11599A

SPACER, bearing

ALL

12077

OIL SEAL

ALL

34091-08

BEARING, inner race

ALL

35122-06A

GEAR ASSEMBLY, driven

ALL

output, with 8042,

10991A, 11201, 11599A

and 12077

35124-06

GUIDE HUB, dog ring

ALL

35126-06

DOG RING, lugged (2)

ALL

35202-06

GUIDE HUB, dog ring

ALL

35204-06

DOG RING, pocketed

ALL

35467-06C

INPUT SHAFT KIT, with

ALL

34091-08, 12200144 and

35000178

35807-06

GEAR, countershaft-

ALL

second

35811-06

GEAR, countershaft-third

ALL

35814-06

GEAR, countershaft-

ALL

fourth

12200144

RETAINING RING

ALL

35000178

GUIDE HUB, dog ring

ALL

77/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

35000179

GEAR, fifth input

ALL

35000198A

GEAR PACK, FORKS

ALL

AND DRUM

SUBASSEMBLY, with 1,

2, 3, 4, 7, 8, 10, 15, 16,

17, 18, 19, 20, 21, 22, 23,

24, 25, 27, 28, 35260-

06B, shifter camshaft and

forks (black)

35600094

COUNTERSHAFT

ALL

ASSEMBLY

35600103

GEAR ASSEMBLY,

ALL

countershaft-first

36300026

OIL DEFLECTOR

ALL

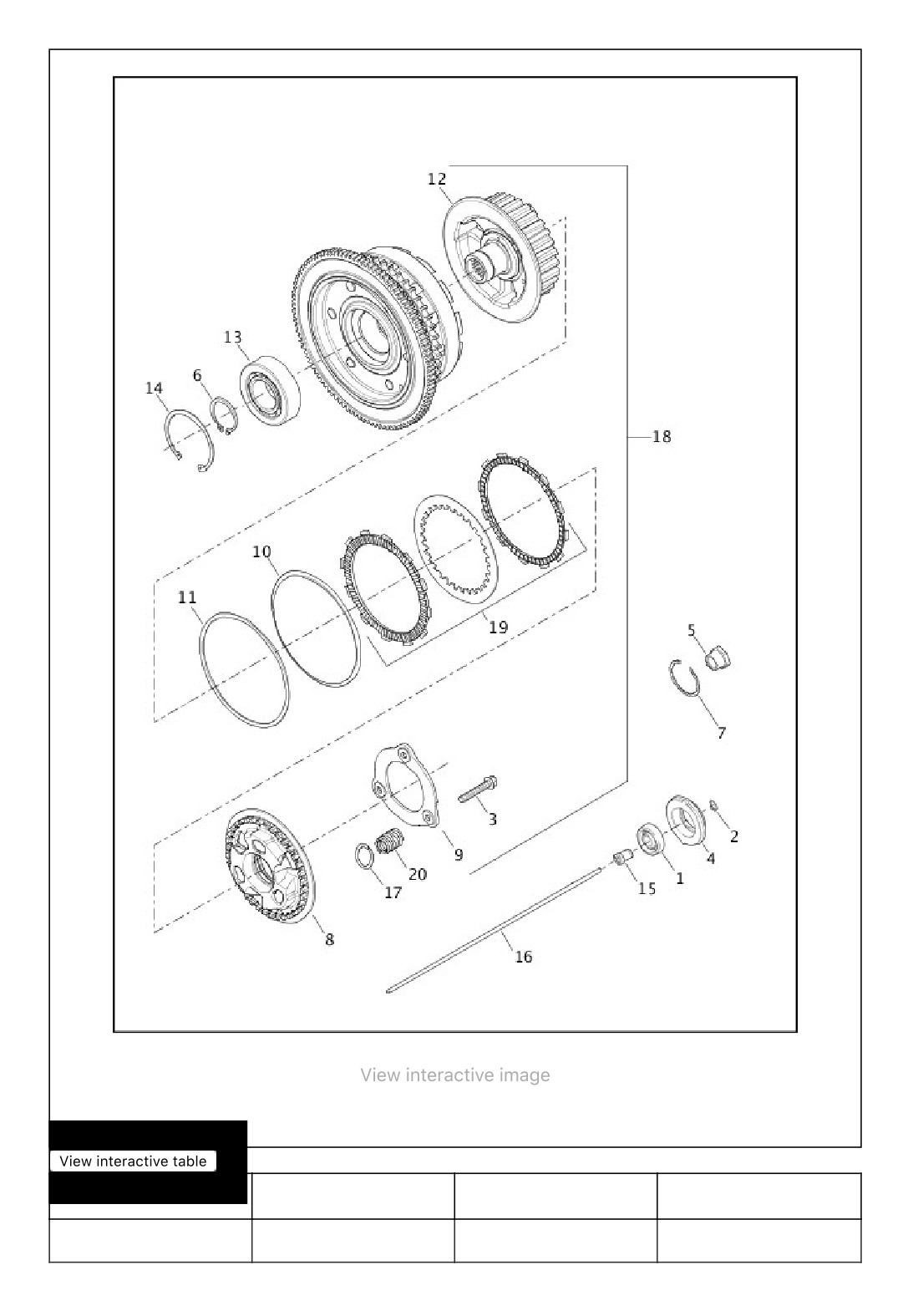

CLUTCH

78/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

11143

RETAINING RING,

ALL

external

36706-01K

BOLT (3)

ALL

36731-91

PLATE, release, with

ALL

8885

37496-90A

NUT, mainshaft

ALL

37904-90

RETAINING RING,

ALL

external

37909-90

RING, retaining, internal

ALL

37000032A

PRESSURE PLATE,

ALL

clutch

37000033

STOPPER PLATE

ALL

37000034

SPRING, damper

ALL

37000295

SEAT, damper-spring

ALL

37000083

HUB ASSEMBLY

ALL

37000168

BEARING, ball, double-

ALL

row

37000169

RETAINING RING,

ALL

internal

37000217

RELEASE ROD, clutch

ALL

37000218

PUSHROD, clutch

ALL

release

37000219

SEAT (3)

ALL

37000254A

CLUTCH ASSEMBLY,

ALL

complete, with 3, 6, 8, 9,

10, 11, 12, 13, 14, 17, 19

and 20

37000258

CLUTCH DISKS KIT

ALL

37000270A

COIL SPRING (3)

ALL

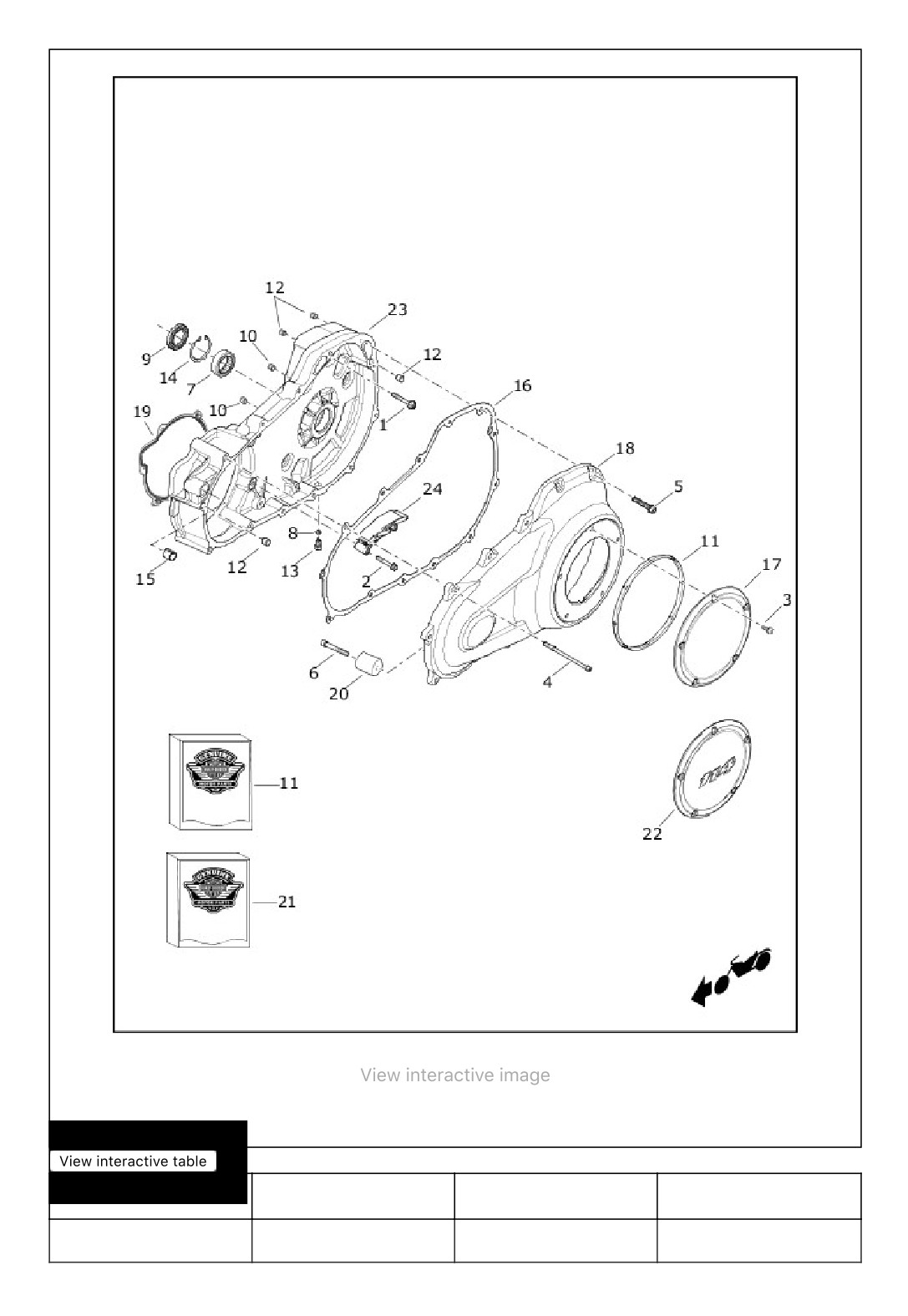

PRIMARY HOUSING

80/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

791A

SCREW (2)

ALL

1062

SCREW (5)

ALL

1775

SCREW (4)

ALL

4813A

SCREW (9)

ALL

4820A

SCREW

ALL

9231

BEARING

ALL

11105

O-RING

ALL

12052A

SEAL

ALL

16583-00A

BUSHING, dowel (2)

ALL

17369-06

GASKET SERVICE KIT,

ALL

1000 mi (1600 km), 5000

mi (8000 km), 10,000 mi

(16,000 km), with 11105

and clutch cover seal

24754-75A

DOWEL BUSHING (4)

ALL

60328-98B

PLUG, magnetic drain,

ALL

with 11105

60678-85

RETAINING RING

ALL

11000139

BUSHING

ALL

25700378

GASKET, primary cover

ALL

25700388

COVER, clutch (chrome)

FLHR, FLHRC, FLHTCU,

FLHX, FLTRX

25701145

COVER, clutch (polished)

FLHT

25700418

COVER, primary (chrome)

FLHR, FLHRC, FLHTCU,

FLHTK, FLHTK SHRINE,

FLHTKL, FLHX, FLTRU,

FLTRX

25700491

COVER, primary (gloss

FLHRXS, FLHXS, FLTRXS

black)

25701144

COVER, primary

FLHT

(polished)

82/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

25700455

GASKET, primary

FLHR, FLHRC, FLHT,

housing to case

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX,

FLTRU, FLTRX

25700679

GASKET, primary

FLHRXS, FLHXS, FLTRXS

housing to case (black)

25700650

SLEEVE, damper

ALL

25700746

GASKET KIT, inner

FLHR, FLHRC, FLHT,

primary, with 1, 8, 9, 11,

FLHTCU, FLHTK, FLHTK

16 and 19

SHRINE, FLHTKL, FLHX,

FLTRU, FLTRX

25700830

GASKET KIT, inner

FLHRXS, FLHXS, FLTRXS

primary, with 1, 8, 9, 11,

16 and 19

25700902

COVER, clutch (chrome)

FLHTK, FLHTK SHRINE,

FLHTKL, FLTRU

25700904

COVER, clutch (gloss

FLHRXS, FLHXS, FLTRXS

black)

36500052

INNER PRIMARY

ALL

HOUSING, with 9231,

12052A, 16583-00A,

60328-98B, 60678-85

and 11000139 (black)

36500075

CHAIN TENSIONER

ALL

ASSEMBLY

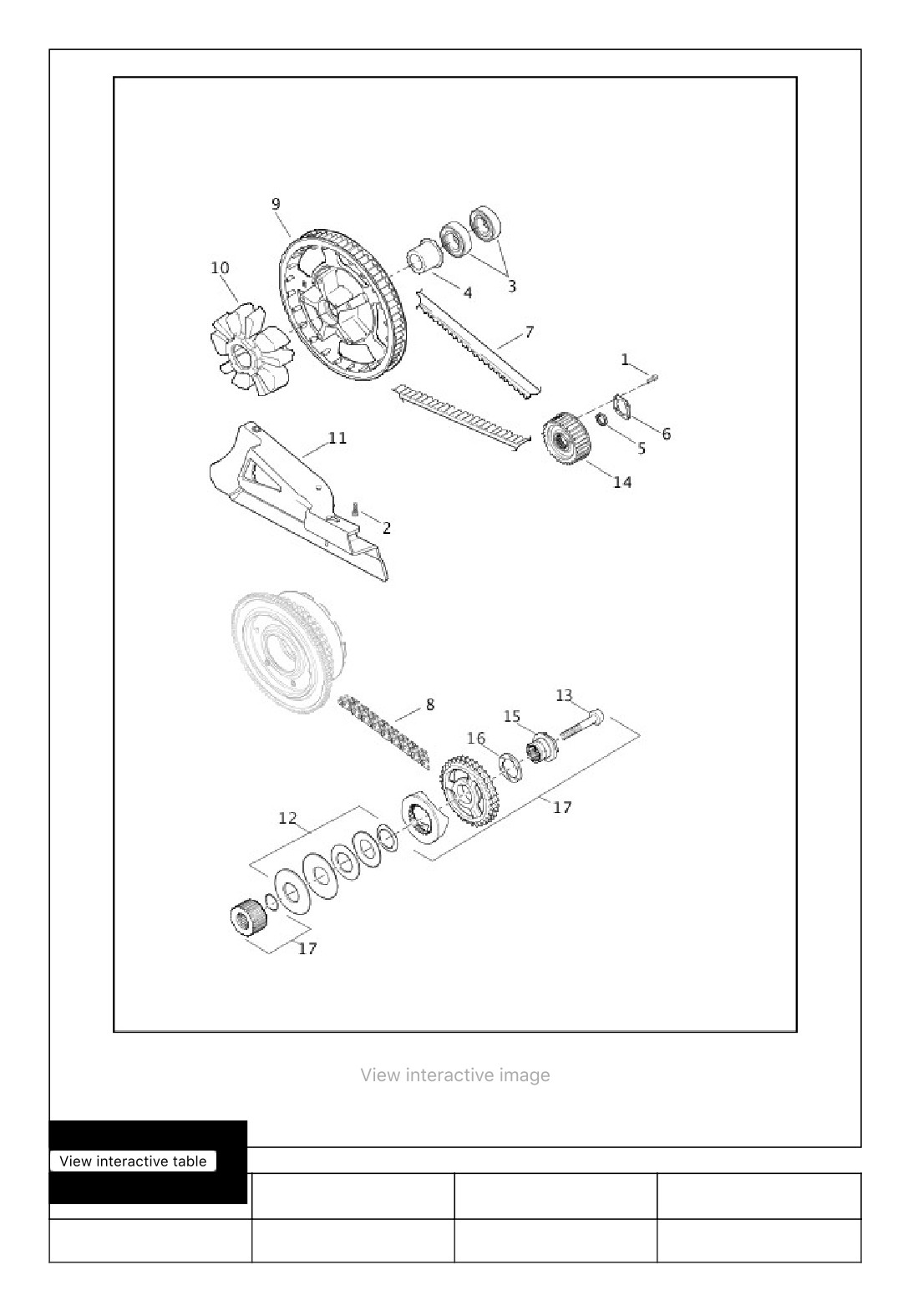

BELT, CHAIN AND SPROCKETS

83/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

3892

SCREW (3)

ALL

9276B

BALL BEARING (2)

ALL

11843

SPACER, compensator

ALL

35241-06

NUT

ALL

35242-06

LOCKPLATE

ALL

40024-09A

REAR BELT, 140 teeth,

ALL

24 mm

40037-07

PRIMARY CHAIN

ALL

40217-09

SPROCKET AND

ALL

BEARING ASSEMBLY,

rear, 68 teeth, with 9276A

and 11843 (black)

40278-09

ISOLATOR, rubber

ALL

60386-09

DEBRIS DEFLECTOR

ALL

83936-09A

SPRING PACK

ALL

10500031

SCREW, compensator

ALL

35000152

SPROCKET,

ALL

transmission, 32 teeth

40100041

RETAINER, sprocket

ALL

40100064

THRUST WASHER

ALL

40100076

ENGINE SPROCKET KIT,

ALL

compensator assembly

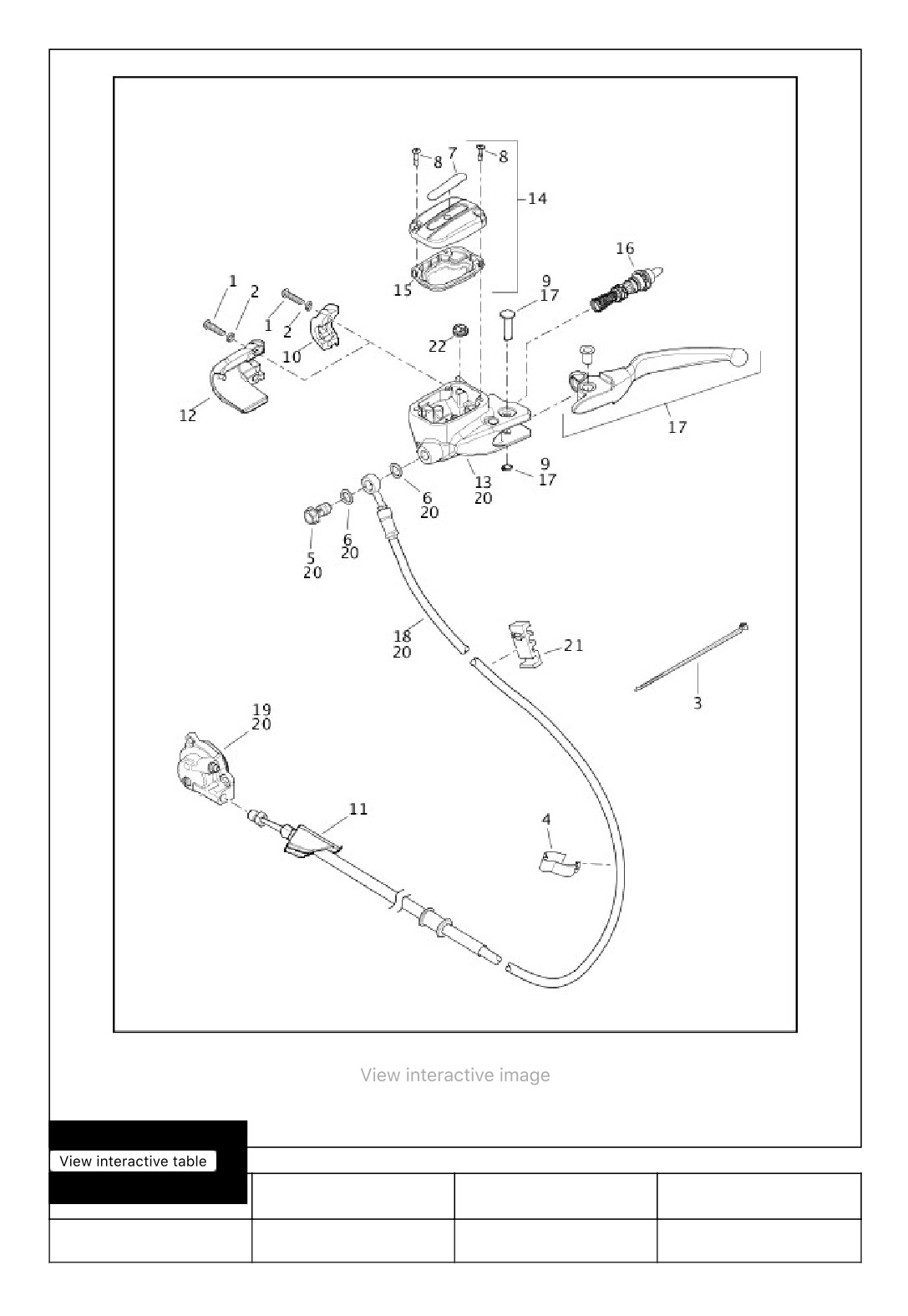

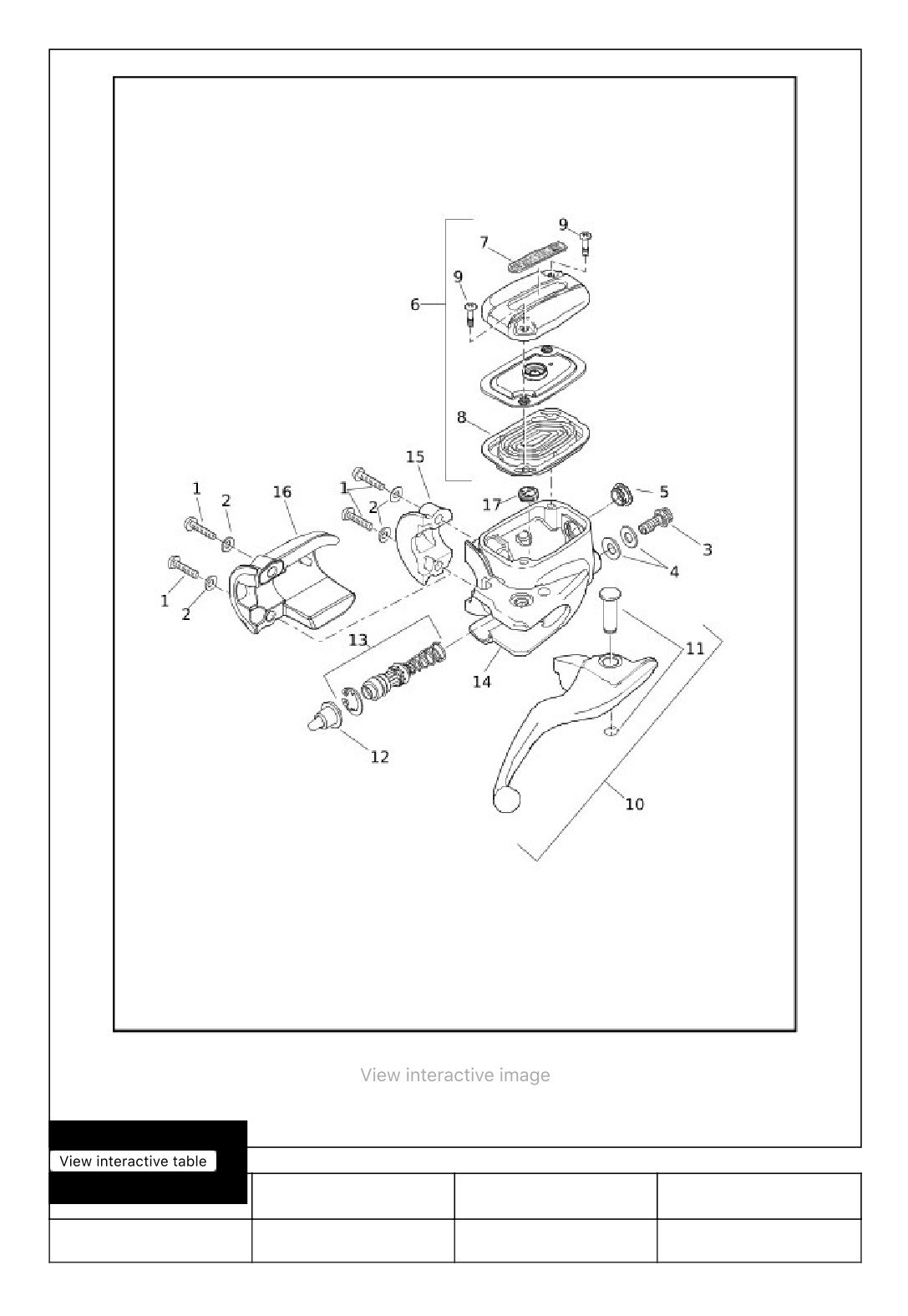

CLUTCH CONTROL

85/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

6101

WASHER (2)

ALL

10039

CABLE STRAP (3)

ALL

10264

CLIP, clutch line (2)

ALL

41750-06B

BOLT, BANJO

ALL

41751-06A

GASKET, banjo-bolt (2)

ALL

42856-06

DECAL, reservoir cover

ALL

42858-06A

SCREW KIT (set of 2)

ALL

42860-06B

PIVOT PIN KIT, with

ALL

retaining ring

45138-08A

CLAMP, master cylinder

FLHR, FLHRC, FLHRXS,

and clutch (black)

FLHT, FLHTCU, FLHTK,

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

12100077

GROMMET

ALL

36700113

CLAMP, master cylinder

FLTRU, FLTRX, FLTRXS

and clutch (black)

36700128A

MASTER CYLINDER

FLHR, FLHRC, FLHT,

ASSEMBLY, clutch, with

FLHTCU, FLHTK, FLHTK

36700130, 36700132,

SHRINE, FLHTKL, FLHX,

36700133 and 41700367

FLTRU, FLTRX

(black)

36700169A

MASTER CYLINDER

FLHRXS, FLHXS, FLTRXS

ASSEMBLY, clutch, with

36700130, 36700132,

36700171 and 41700367

(black)

36700130

MASTER CYLINDER

ALL

COVER KIT, with 42856-

06, 42858-06A and

36700131

GASKET, cover, master

ALL

cylinder

36700132

REBUILD KIT, master

ALL

cylinder

36700133A

LEVER ASSEMBLY, hand,

FLHR, FLHRC, FLHT,

with 42860-06B and

FLHTCU, FLHTK, FLHTK

bushing (polished)

SHRINE, FLHTKL, FLHX,

FLTRU, FLTRX

87/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

36700171A

LEVER ASSEMBLY, hand,

FLHRXS, FLHXS, FLTRXS

with 42860-06B and

bushing (black)

37200128

LINE ASSEMBLY,

FLTRX, FLTRXS

hydraulic clutch, with

12100077

37200129

LINE ASSEMBLY,

FLHR, FLHRC, FLHRXS,

hydraulic clutch, with

FLHT, FLHTCU, FLHTK,

12100077

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

37200146

LINE ASSEMBLY,

FLTRU

hydraulic clutch, with

12100077

37200131B

SECONDARY CLUTCH

ALL

ACTUATOR

37200347B

CLUTCH ACTUATION

FLTRX, FLTRXS

KIT, with 5, 6, 13, 18 and

37200348B

CLUTCH ACTUATION

FLHR, FLHRC, FLHT,

KIT, with 5, 6, 13, 18 and

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX

37200349B

CLUTCH ACTUATION

FLTRU

KIT, with 5, 6, 13, 18 and

37200352B

CLUTCH ACTUATION

FLHRXS, FLHXS

KIT, with 5, 6, 13, 18 and

41600031

BRACKET, brake line

ALL

41700367

BUTTON, anti-bubble

ALL

BRAKE CONTROL, FRONT

88/956

Harley Davidson Parts Catalog 2019: touring models - page 3
