Harley Davidson Parts Catalog 2019: touring models - page 2
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
4705
SCREW
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
2
10200446
SCREW (4)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
3
10800052
CLAMP (3)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
4
11900090
O-RING, coolant
FLHR, FLHRC, FLHRXS,
manifold (4)
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
5
11900092
O-RING, transmission oil
FLHR, FLHRC, FLHRXS,
return
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
6
26900117
BRACKET, coolant tube
FLHR, FLHRC, FLHRXS,
(2)
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
7
62700146
FITTING ASSEMBLY,
FLHR, FLHRC, FLHRXS,
transmission oil return,
FLHT, FLHTCU, FLHX,
with 11900092
FLHXS, FLTRX, FLTRXS
8
62800028
COOLANT LINE
FLHR, FLHRC, FLHRXS,
ASSEMBLY, oil, with 3, 4,
FLHT, FLHTCU, FLHX,
6, 9, 10, 11, 12
FLHXS, FLTRX, FLTRXS
9
26900144
HOSE
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
10
62700161
HOSE
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
11
10800109
CLAMP
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
12
10800111
SLEEVE
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS

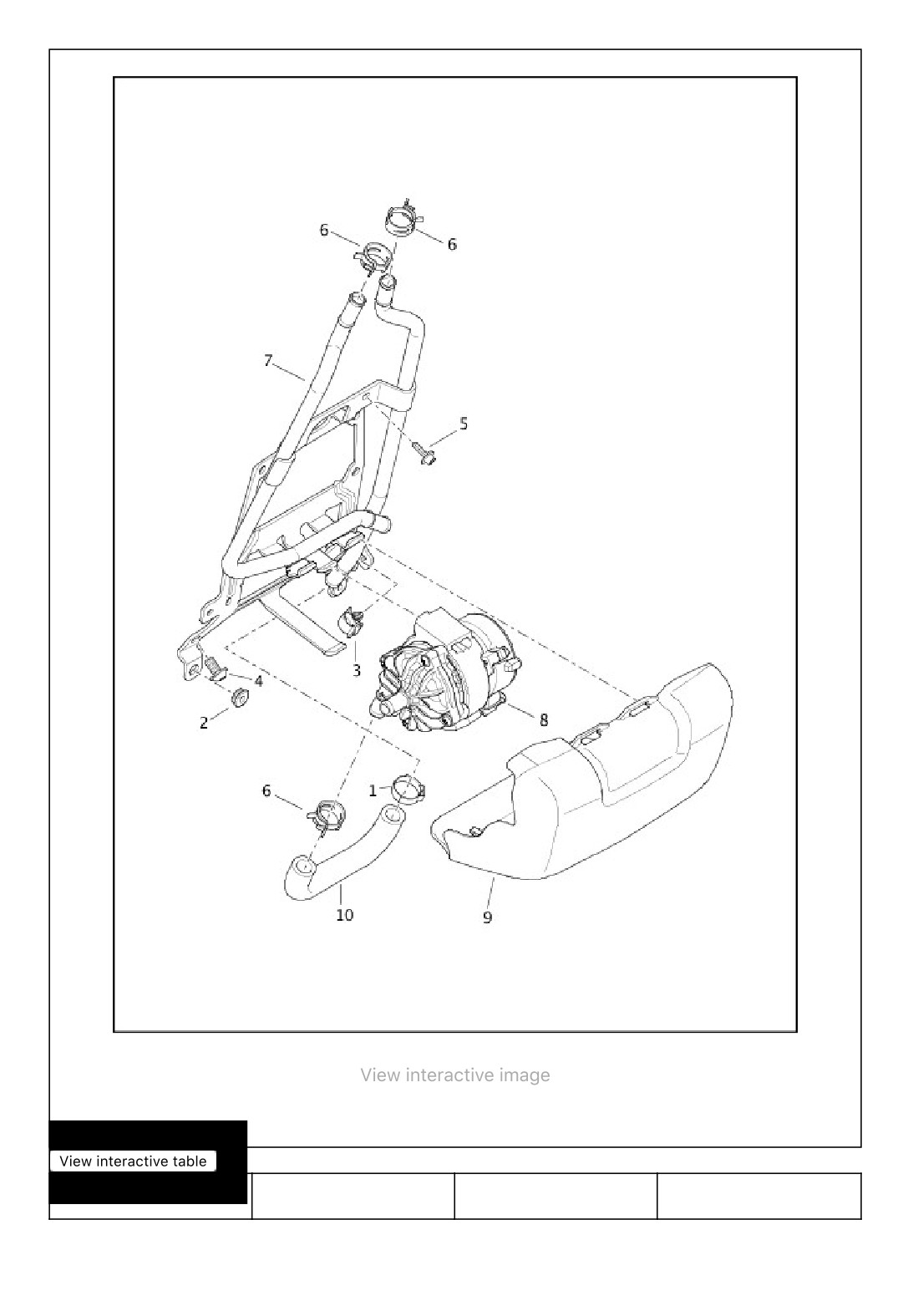

COOLANT DISTRIBUTION - TWIN-COOLED™
30/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
31/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
10344
CLAMP
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
2
11692
GROMMET (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
3
70681-09
CLIP, wire retention
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
4
10200414
SCREW (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
5
882
SCREW (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
6
10800052
CLAMP (3)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
7
12700091
BRACKET, voltage
FLHTK, FLHTK SHRINE,
regulator
FLHTKL, FLTRU
8
26600048
PUMP, coolant
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
9
26800077
COVER, coolant pump
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
10
26900088
HOSE, outlet, water
FLHTK, FLHTK SHRINE,
pump
FLHTKL, FLTRU
COOLANT DISTRIBUTION - AIR-COOLED
32/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
33/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
882
SCREW (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
2
10080
CLAMP (zinc) (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
3
69201286A
COVER, electrical
FLHR, FLHRC, FLHRXS,
connector, with
FLHT, FLHTCU, FLHX,
12600016
FLHXS, FLTRX, FLTRXS
4
10344
CLAMP (black) (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
5
11692
GROMMET (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
6
70681-09
CLIP, wire retention
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
7
10200414
SCREW (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
8
10200422
SCREW (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
9
10800052
CLAMP
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
10
12100113
GROMMET
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
11
12600016
CLIP, push-in (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
12
12700090
BRACKET, voltage
FLHR, FLHRC, FLHRXS,
regulator
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
13
26800092
COVER, oil cooler
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
34/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
14
62700143
HOSE, inlet, oil cooler
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
15
62700144
HOSE, outlet, oil cooler
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
16
62700196
OIL COOLER, with
FLHR, FLHRC, FLHRXS,
12100113
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS

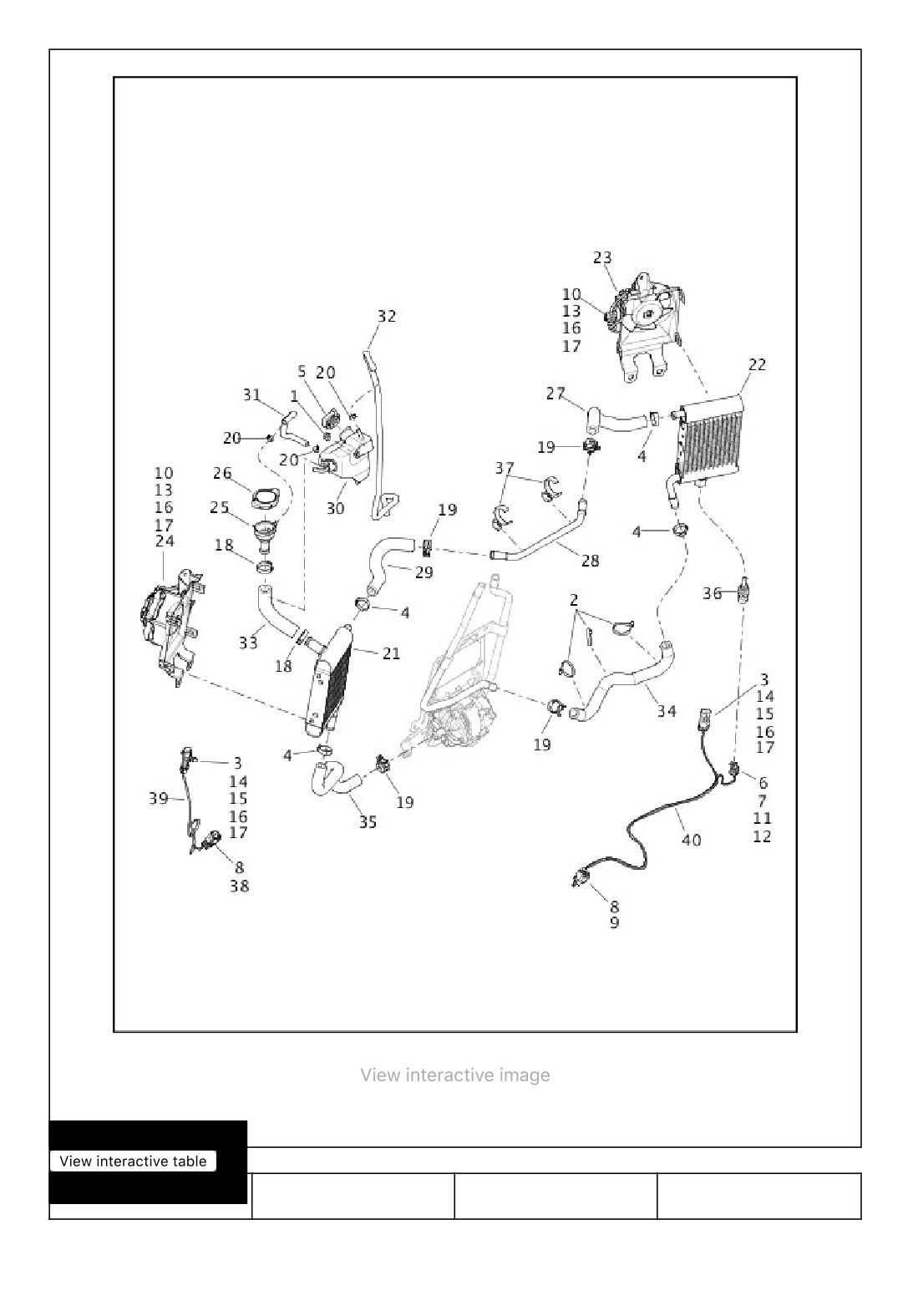

RADIATOR, COOLANT HOSES AND BOTTLE - TWIN-COOLED™
35/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
36/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
7716
LOCKNUT
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
2
10006
CABLE STRAP (6)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
3
10147
CLIP, connector (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
4
10344
CLAMP (4)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
5
26780-05A
CAP ASSEMBLY, coolant
FLHTK, FLHTK SHRINE,
bottle
FLHTKL, FLTRU
6
72063-06
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL, FLTRU
7
72111-06
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
two-way socket
FLHTKL, FLTRU
8
72168-07
TERMINAL, socket, 18-
FLHTK, FLHTK SHRINE,
20 AWG (6)
FLHTKL, FLTRU
9
72177-07BK
HOUSING, four-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL, FLTRU
10
72213-94
TERMINAL, socket, 16-
FLHTK, FLHTK SHRINE,
20 AWG (4)
FLHTKL, FLTRU
11
72484-08
TERMINAL, socket, 20
FLHTK, FLHTK SHRINE,
AWG (2)
FLHTKL, FLTRU
12
72486-08
WIRE SEAL, 20 AWG
FLHTK, FLHTK SHRINE,
(green) (2)
FLHTKL, FLTRU
13
72606-08
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (black) (2)
FLHTKL, FLTRU
14
72607-08
HOUSING, two-way pin
FLHTK, FLHTK SHRINE,
(black) (2)
FLHTKL, FLTRU
15
72608-08
TERMINAL, pin, 16-20
FLHTK, FLHTK SHRINE,
AWG (4)
FLHTKL, FLTRU
16
72609-08
SECONDARY LOCK,
FLHTK, FLHTK SHRINE,
two-way (4)
FLHTKL, FLTRU
17
72610-08
WIRE SEAL, 18-20 AWG
FLHTK, FLHTK SHRINE,
(white) (8)
FLHTKL, FLTRU
18
10800023
CLAMP (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
37/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
19
10800052
CLAMP (4)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
20
10800078
CLAMP (3)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
21
26800005
CORE, radiator (right)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
22
26800006
CORE, radiator (left)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
23
26800007A
FAN ASSEMBLY, with
FLHTK, FLHTK SHRINE,
72213-94, 72606-08,
FLHTKL, FLTRU
72609-08 and 72610-08
(left)
24
26800019A
FAN ASSEMBLY, with
FLHTK, FLHTK SHRINE,
72213-94, 72606-08,
FLHTKL, FLTRU
72609-08 and 72610-08
(right)
25
26800020A
FILL NECK, coolant
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
26
26800021
CAP, pressure
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
27
26900008
HOSE, coolant, left cross
FLHTK, FLHTK SHRINE,
tube
FLHTKL, FLTRU
28
26900009
LINE, coolant, right to left
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
29
26900010
HOSE, coolant, right
FLHTK, FLHTK SHRINE,
cross tube
FLHTKL, FLTRU
30
26900014
BOTTLE ASSEMBLY,
FLHTK, FLHTK SHRINE,
coolant, with 26780-05A
FLHTKL, FLTRU
31
26900016
HOSE, coolant vent
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
32
26900017
HOSE, coolant overflow
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
33
26900018
HOSE, coolant fill
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
34
26900114
HOSE, radiator to engine
FLHTK, FLHTK SHRINE,
outlet
FLHTKL, FLTRU
35
26900115
HOSE, radiator to pump
FLHTK, FLHTK SHRINE,
inlet
FLHTKL, FLTRU
38/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
36
32700066
SENSOR, coolant
FLHTK, FLHTK SHRINE,
temperature
FLHTKL, FLTRU
37
62800004
CLIP, coolant line to
FLHTK, FLHTK SHRINE,
frame (2)
FLHTKL, FLTRU
38
69200271
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL, FLTRU
39
69200311
WIRE HARNESS, twin
FLHTK, FLHTK SHRINE,
cooling jumper, with
FLHTKL, FLTRU
10147, 72168-07, 72607-
08, 72608-08, 72609-08,
72610-08 and 69200271
(right)
40
69201548
WIRE HARNESS, twin
FLHTK, FLHTK SHRINE,
cooling jumper, with
FLHTKL, FLTRU
10147, 72063-06, 72111-
06, 72168-07, 72177-
07BK, 72484-08, 72486-
08, 72607-08, 72608-08,
72609-08 and 72610-08
(left)

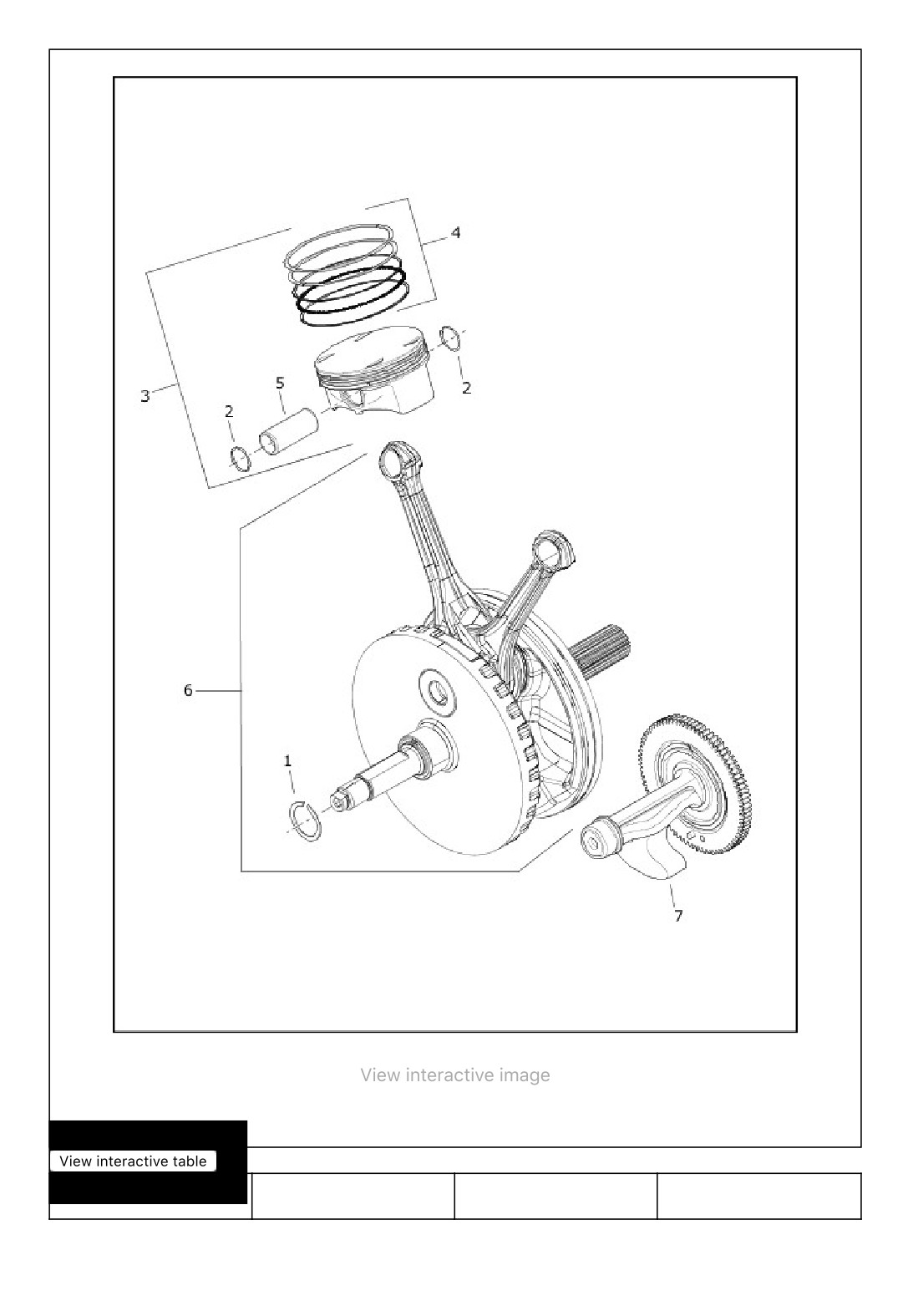

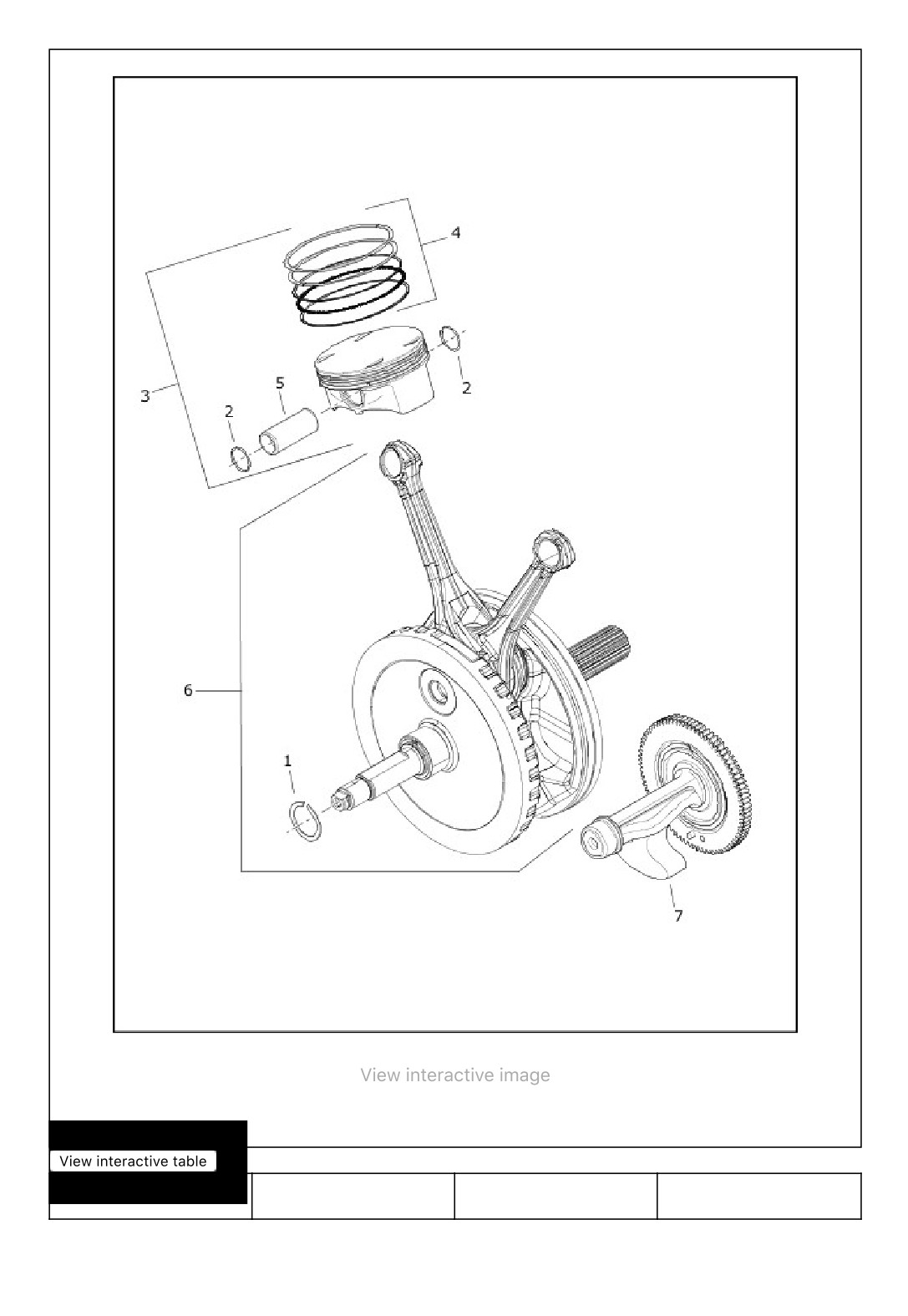

PISTONS AND FLYWHEEL ASSEMBLY - Milwaukee-eight™ 107
39/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
40/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
11177A
RETAINING RING
FLHR, FLHRC, FLHT,
FLHTCU, FLHX, FLTRX
2
22097-99
LOCK RING, piston pin
FLHR, FLHRC, FLHT,
(4)
FLHTCU, FLHX, FLTRX
3
21900049
PISTON AND RINGS
FLHR, FLHRC, FLHT,
ASSEMBLY, with 22097-
FLHTCU, FLHX, FLTRX
99, 22000060 and
22100006 (3.937 in) (2)
4
22000060
PISTON RING SET (3.937
FLHR, FLHRC, FLHT,
in) (2)
FLHTCU, FLHX, FLTRX
5
22100006
PISTON PIN (2)
FLHR, FLHRC, FLHT,
FLHTCU, FLHX, FLTRX
6
24100057A
FLYWHEEL ASSEMBLY
FLHR, FLHRC, FLHT,
KIT, with 11177A
FLHTCU, FLHX, FLTRX
7
35200057
BALANCER ASSEMBLY
FLHR, FLHRC, FLHT,
FLHTCU, FLHX, FLTRX
PISTONS AND FLYWHEEL ASSEMBLY - Milwaukee-eight™ 114
41/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
42/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
11177A
RETAINING RING
FLHRXS, FLHTK, FLHTK
SHRINE, FLHTKL,
FLHXS, FLTRU, FLTRXS
2
22097-99
LOCK RING, piston pin
FLHRXS, FLHTK, FLHTK
(4)
SHRINE, FLHTKL,
FLHXS, FLTRU, FLTRXS
3
21900048
PISTON AND RINGS
FLHRXS, FLHTK, FLHTK
ASSEMBLY, with 22097-
SHRINE, FLHTKL,
99, 22000061 and
FLHXS, FLTRU, FLTRXS
22100006 (4.016 in) (2)
4
22000061
PISTON RING SET (4.016
FLHRXS, FLHTK, FLHTK
in) (2)
SHRINE, FLHTKL,
FLHXS, FLTRU, FLTRXS
5
22100006
PISTON PIN (2)
FLHRXS, FLHTK, FLHTK
SHRINE, FLHTKL,
FLHXS, FLTRU, FLTRXS
6
24100045A
FLYWHEEL ASSEMBLY
FLHRXS, FLHTK, FLHTK
KIT, with 11177A
SHRINE, FLHTKL,
FLHXS, FLTRU, FLTRXS
7
35200057
BALANCER ASSEMBLY
FLHRXS, FLHTK, FLHTK
SHRINE, FLHTKL,
FLHXS, FLTRU, FLTRXS

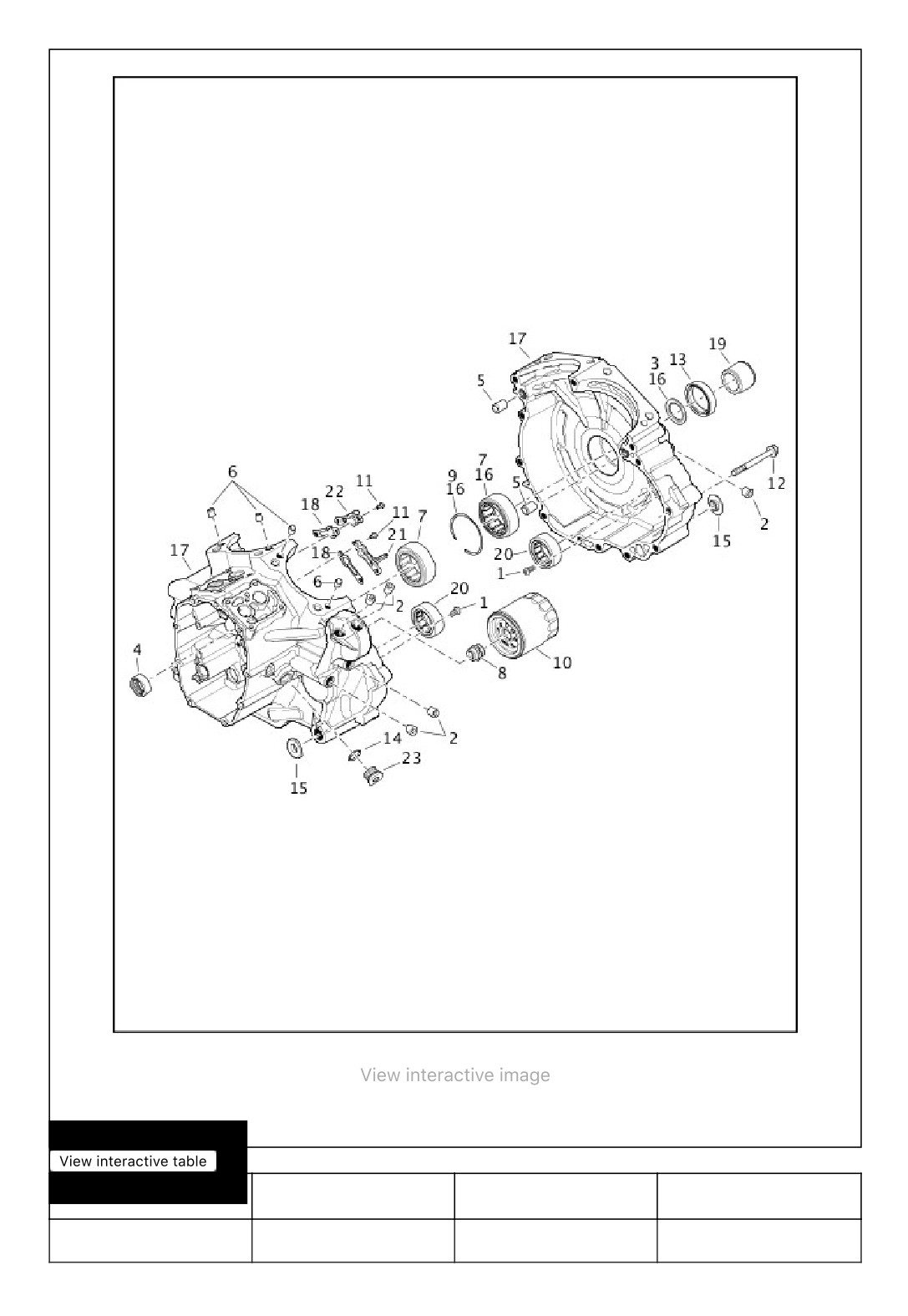

CRANKCASE
43/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
703B
SCREW (2)
ALL
44/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
765
PLUG (5)
ALL
3
8972
WASHER
ALL
4
9215
NEEDLE BEARING, left
ALL
side, camshaft
5
16574-99A
DOWEL PIN (2)
ALL
6
16589-99A
DOWEL PIN (4)
ALL
7
24605-07
BEARING, main (2)
ALL
8
26352-95A
ADAPTER
ALL
9
35114-02
RING, retaining, internal
ALL
10
63731-99A
OIL FILTER (black)
ALL
11
68042-99
SCREW (4)
ALL
12
10200343
SCREW (12)
ALL
13
11000134
SEAL, oil
ALL
14
11900010
O-RING (Twin-Cooled)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
15
12400099
SPACER, front mount (2)
ALL
16
24100080
BEARING KIT, with 8972,
ALL
24605-07, 35114-02 and
inner race
17
24400120
CRANKCASE SET, with
ALL
2, 5, 6, 7, 9, 11, 12, 15,
18, 20, 21 and 22 (black)
18
25700433
GASKET, piston jet (2)
ALL
19
29900041
SPACER, sprocket shaft
ALL
20
35200021
BEARING, balancer (2)
ALL
21
62700089
PISTON JET ASSEMBLY,
ALL
front, with 25700433
22
62700117
PISTON JET ASSEMBLY,
ALL
rear, with 25700433
23
62800013
PLUG, with 11900010
FLHTK, FLHTK SHRINE,
(Twin-Cooled)
FLHTKL, FLTRU
45/956
4/5/2019

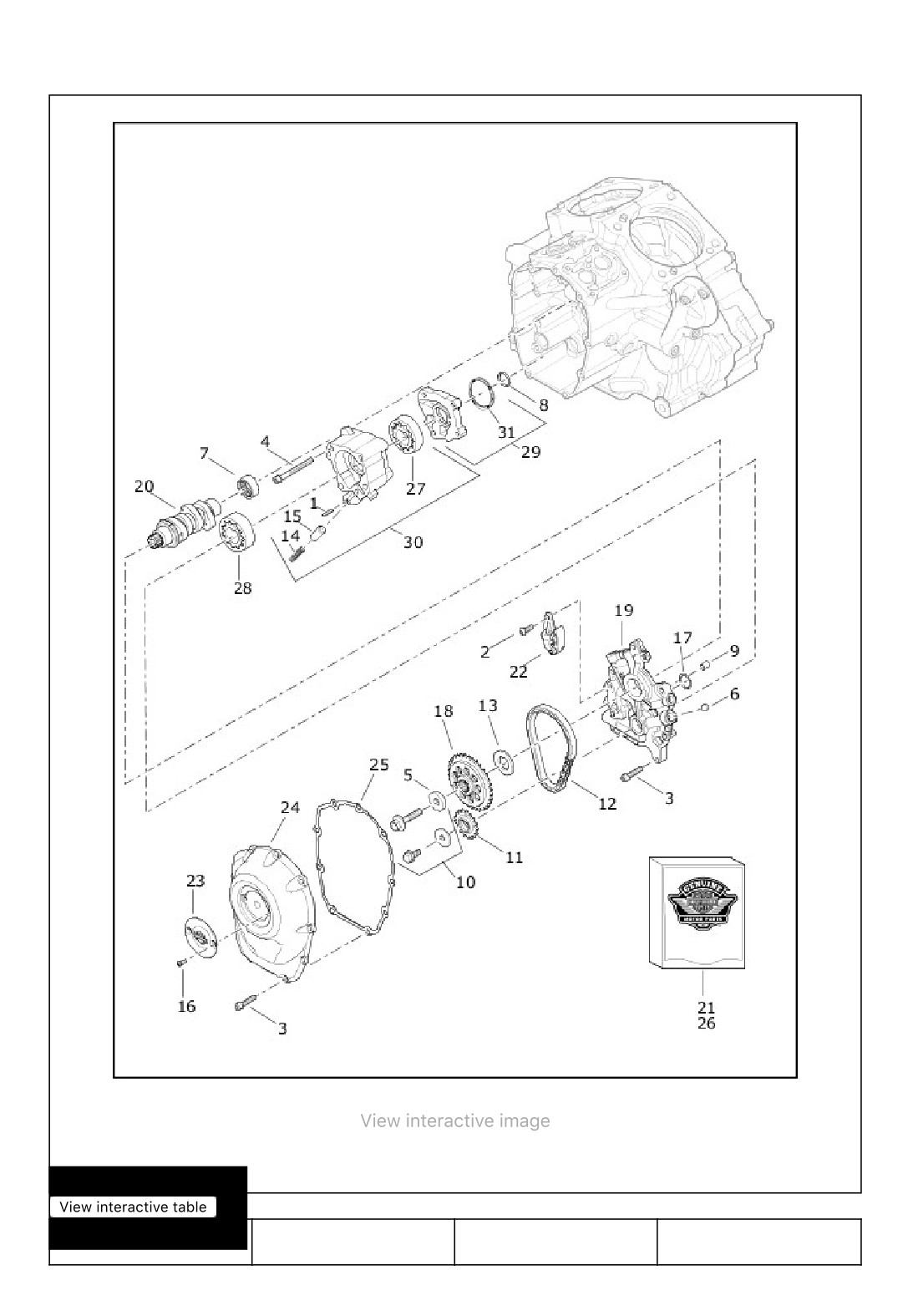

CAMSHAFTS AND CAMSHAFT COVER (1 OF 2)
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
46/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
601
ROLL PIN
ALL
2
942
SCREW (2)
ALL
3
4740A
SCREW (15)
ALL
4
4822A
SCREW (4)
ALL
5
6294
WASHER
ALL
6
8873
BALL (7)
ALL
7
9215
NEEDLE BEARING,
ALL
camshaft
8
11293
O-RING
ALL
9
16589-99A
DOWEL PIN
ALL
10
25566-06
CAMSHAFT DRIVE
ALL
SPROCKET RETENTION
KIT, with 6294, screws
and washer
11
25673-06
SPROCKET, camshaft
ALL
drive on crankshaft, 17 T
12
25675-06
CHAIN, primary camshaft
ALL
drive
13
25729-06
SPACER, camshaft drive
ALL
sprocket alignment 0.100
in thick (use as required)
13
25731-06
SPACER, camshaft drive
ALL
sprocket alignment 0.110
in thick (use as required)
13
25734-06
SPACER, camshaft drive
ALL
sprocket alignment 0.120
in thick (use as required)
13
25736-06
SPACER, camshaft drive
ALL
sprocket alignment 0.130
in thick (use as required)
13
25737-06
SPACER, camshaft drive
ALL
sprocket alignment 0.140
in thick (use as required)
13
25738-06
SPACER, camshaft drive
ALL
sprocket alignment 0.150
in thick (use as required)
47/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
14
26210-99
SPRING, relief valve
ALL
15
26400-82B
RELIEF VALVE, oil pump
ALL
bypass
16
68120-00
SCREW (2)
ALL
17
11900103
O-RING
ALL
18
25400103
SPROCKET, camshaft
ALL
drive, 34 teeth
19
25400133
CAMSHAFT SUPPORT
ALL
PLATE, with 8873 and
16589-99A
20
25400190
CAMSHAFT
ALL
21
25400257
CAMSHAFT CHAIN AND
ALL
FASTENER KIT, with
25566-06, 25673-06,
25675-06 and 25400103
22
25500013
CHAIN TENSIONER,
ALL
camshaft drive chain

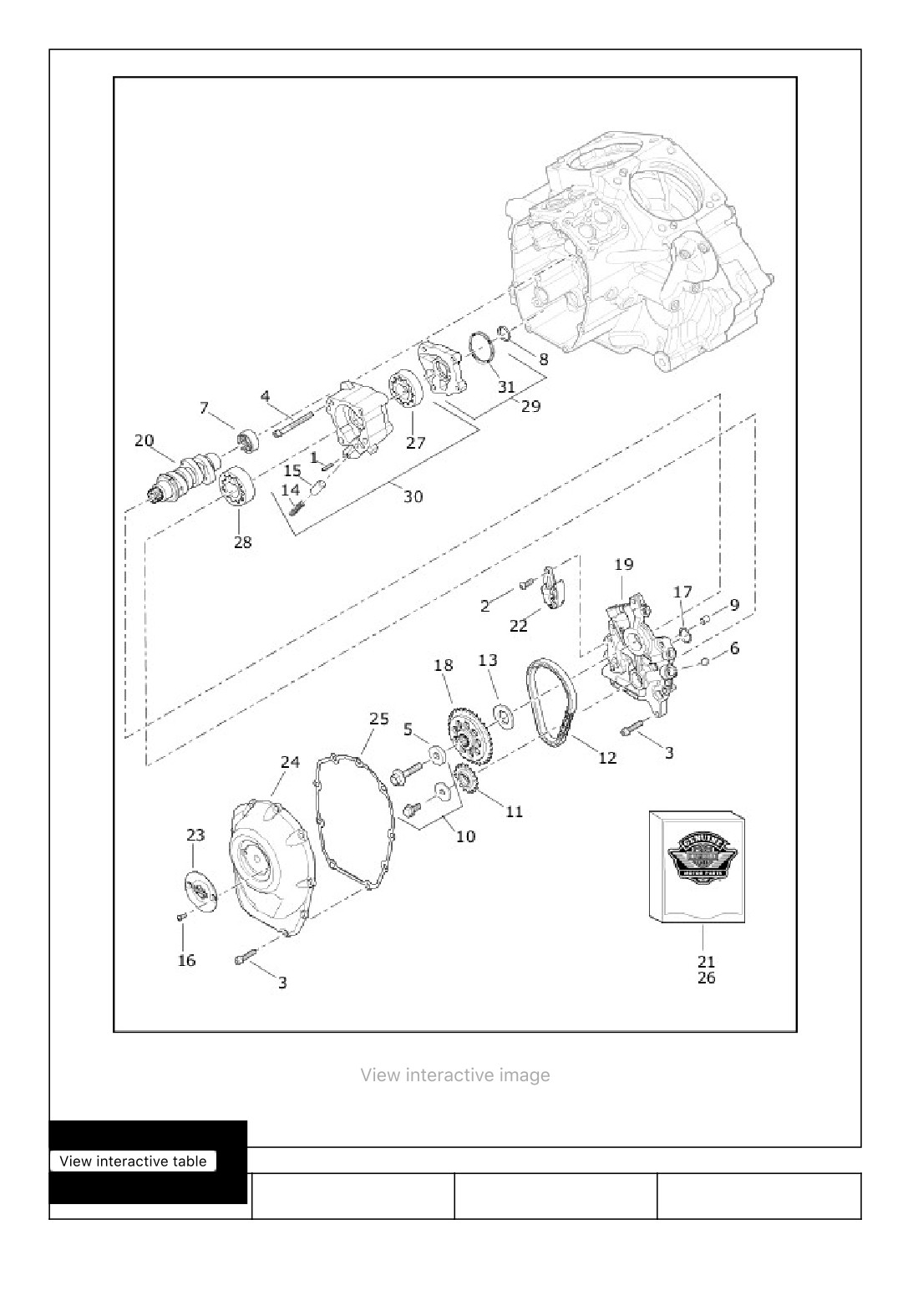

CAMSHAFTS AND CAMSHAFT COVER (2 OF 2)
48/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
49/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
23
25600078
COVER, timer cover
FLHR, FLHRC, FLHRXS,
(black)
FLHT, FLHTCU, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
23
25600110
COVER, timer cover
FLHTK, FLHTK SHRINE,
FLHTKL
24
25700367
CAMSHAFT COVER
FLHR, FLHRC, FLHTCU,
(chrome)
FLHTK, FLHTK SHRINE,
FLHTKL, FLHX, FLTRU,
FLTRX
24
25700467
CAMSHAFT COVER
FLHRXS, FLHXS, FLTRXS
(gloss black)
24
25700698
CAMSHAFT COVER
FLHT
(polished)
25
25700370
GASKET, camshaft cover
ALL
26
25700731
GASKET KIT, camshaft
ALL
service
27
62400052
GEROTOR ASSEMBLY
ALL
28
62400055
GEROTOR ASSEMBLY,
FLHTK, FLHTK SHRINE,
feed (Twin-Cooled)
FLHTKL, FLTRU
28
62400126
GEROTOR ASSEMBLY,
FLHR, FLHRC, FLHRXS,
feed (Air-Cooled)
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
29
62400206
COVER, oil pump
ALL
assembly, with 62400205
30
62400178
OIL PUMP ASSEMBLY,
FLHR, FLHRC, FLHRXS,
with 601, 8873, 26210-
FLHT, FLHTCU, FLHX,
99, 26400-82B,
FLHXS, FLTRX, FLTRXS
62400052 and body (Air-
Cooled) Also order
62400126
30
62400182
OIL PUMP ASSEMBLY,
FLHTK, FLHTK SHRINE,
with 601, 8873, 26210-
FLHTKL, FLTRU
99, 26400-82B,
62400052 and body
(Twin-Cooled) Also order
62400055
31
62400205
OIL SEAL
ALL

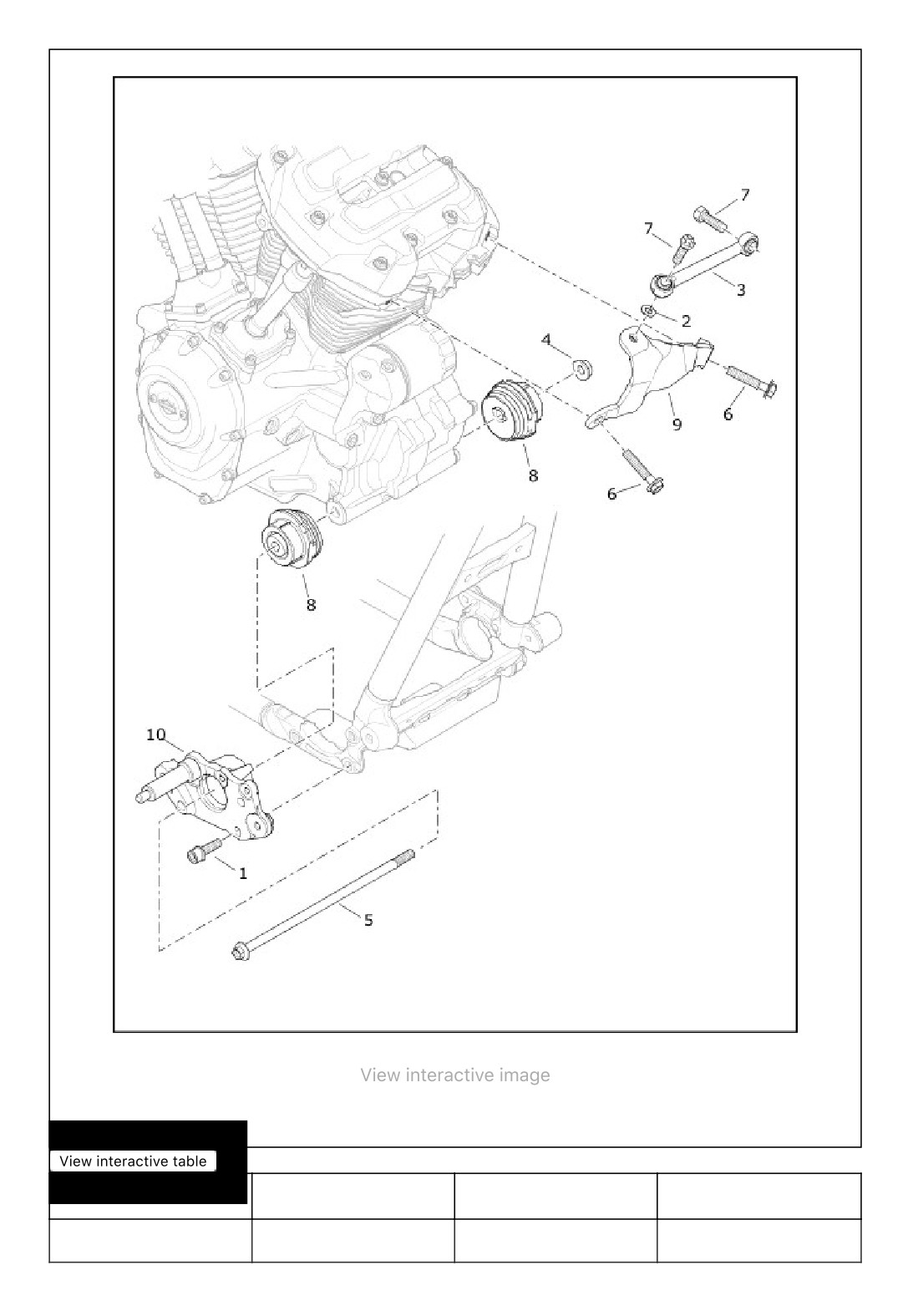

ENGINE MOUNTS AND STABILIZER LINK
50/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
4688
SCREW (3)
ALL
51/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
6127
WASHER
ALL
3
16219-09
STABLIZER LINK
ALL
4
10100062
LOCKNUT
ALL
5
10200393
SCREW
ALL
6
10200408A
SCREW (2)
ALL
7
10200463
SCREW (2)
ALL
8
16300005
ENGINE MOUNT, front (2)
ALL
9
16400041
BRACKET, tie link
ALL
10
16400042
END CAP, front mount
ALL

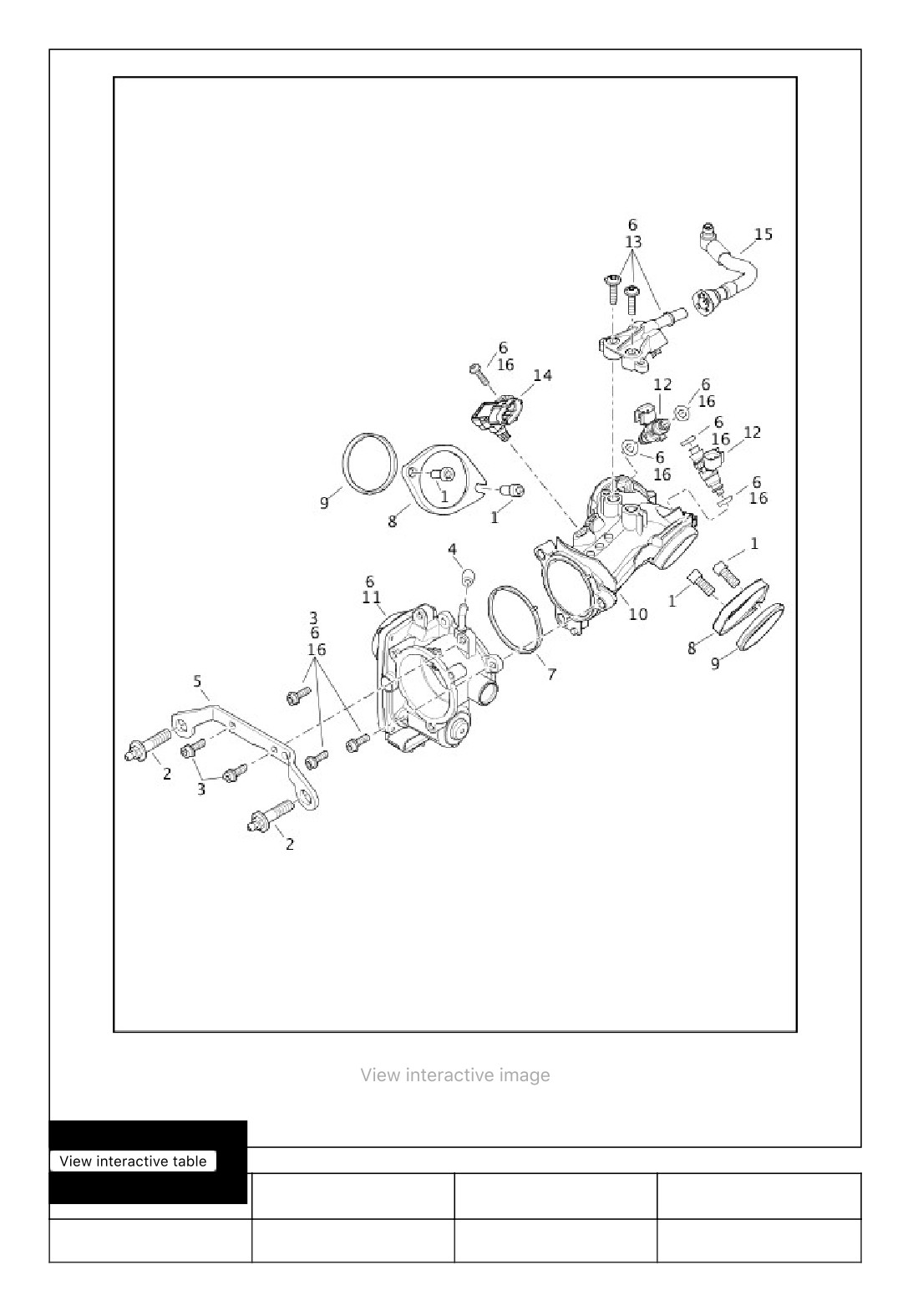

INDUCTION MODULE, FUEL
52/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
3275
SCREW (4)
ALL
53/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
29465-08B
BREATHER BOLT (2)
ALL
3
10200373
SCREW (5)
ALL
4
12100069
PLUG, purge tube cap
ALL
5
16400049
BRACKET, induction
ALL
module
6
27200025
MANIFOLD THROTTLE
ALL
BODY INTAKE KIT, with
27300122, 27400019 and
91800058
7
27300082
GASKET, throttle body to
ALL
manifold
8
27300086
FLANGE, intake (2)
ALL
9
27300087
SEAL, intake (2)
ALL
10
27300121
INTAKE MANIFOLD
ALL
ASSEMBLY, with
27300082
11
27300122
THROTTLE BODY
ALL
ASSEMBLY, with
12100069
12
27400015
FUEL INJECTOR
ALL
ASSEMBLY, with O-rings
(2)
13
27400019
FUEL RAIL KIT
ALL
14
32700065
SENSOR, temperature
ALL
manifold absolute
pressure (TMAP), with O-
ring
15
61200022
FUEL LINE
ALL
16
91800058
HARDWARE KIT,
ALL
induction module

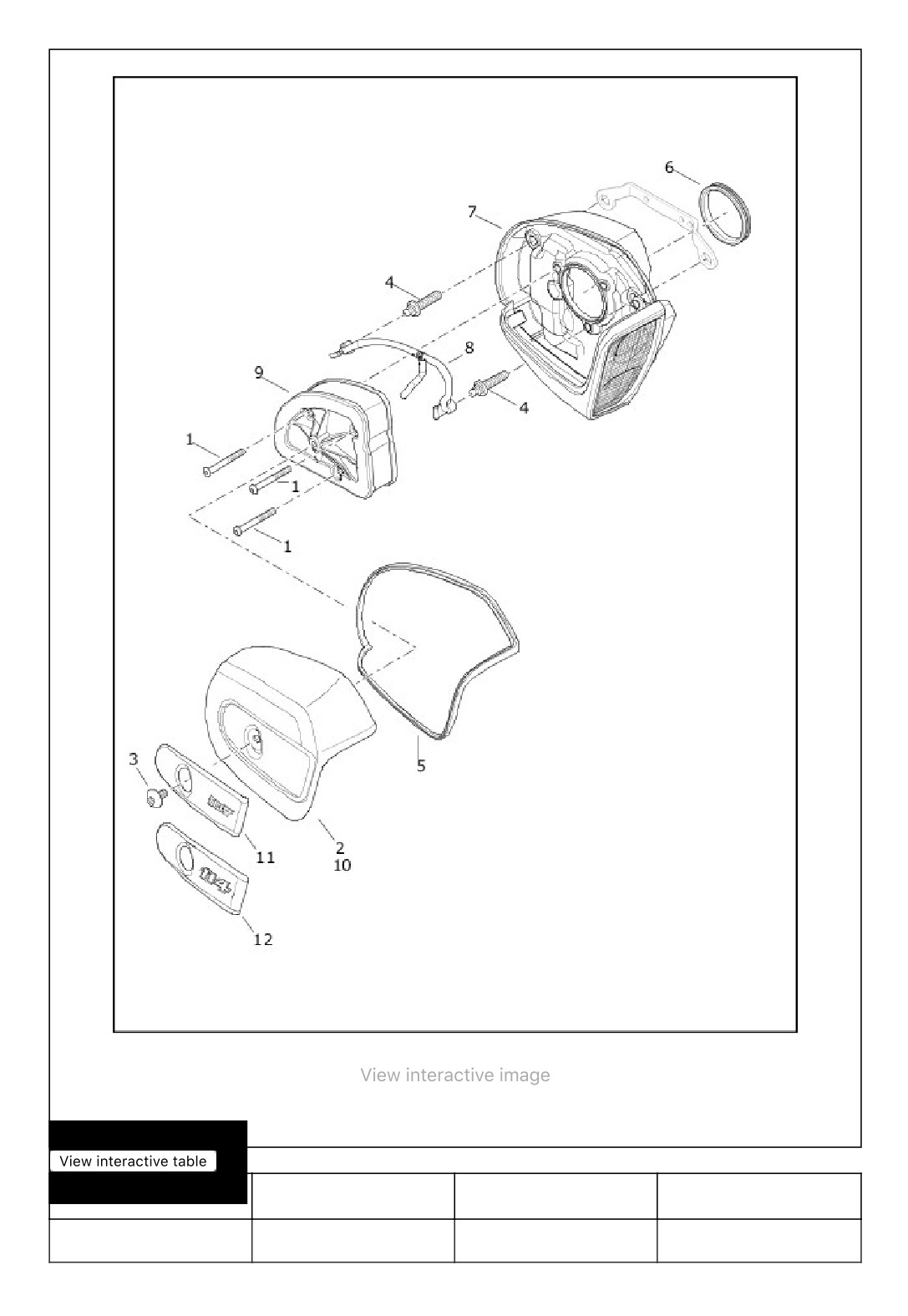

AIR CLEANER
54/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
946
SCREW (3)
ALL
55/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
29108-08
LABEL, air cleaner
ALL
warning (Domestic,
California)
2
14001799
LABEL, air cleaner
FLHR, FLHRXS, FLHTK,
warning (China)
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
3
29269-83A
SCREW
ALL
4
29465-08B
BREATHER BOLT (2)
ALL
5
29000106
SEAL, air cleaner cover
ALL
6
29000108
GASKET, induction
ALL
module to backplate
7
29000120
BACKPLATE ASSEMBLY
FLHR, FLHRXS, FLHT,
(Domestic)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
7
29000121
BACKPLATE ASSEMBLY
FLHR, FLHRC, FLHRXS,
(HDI)
FLHT, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
8
29400211
BREATHER HOSE
ALL
9
29400212
FILTER ELEMENT
ALL
10
29000216
COVER KIT, with 29108-
FLHR, FLHRC, FLHT,
08 (chrome)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
10
61300922
COVER KIT, with 29108-
FLHRXS, FLHXS, FLTRXS
08 (gloss black)
10
29000301
COVER KIT, with
FLHR, FLHRC, FLHTCU,
14001799 (chrome)
FLHTK, FLHTK SHRINE,
(China)
FLHTKL, FLHX, FLTRU,
FLTRX
10
29000302
COVER KIT, with
FLHRXS, FLHXS, FLTRXS
14001799 (gloss black)
(China)
11
61300467
INSERT, cover
FLHR, FLHRC, FLHT,
FLHTCU, FLHX, FLTRX
12
61300934
INSERT, cover
FLTRU
56/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
12
61300935
INSERT, cover
FLHTK, FLHTK SHRINE,
FLHTKL
12
61300936
INSERT, cover
FLHRXS, FLHXS, FLTRXS

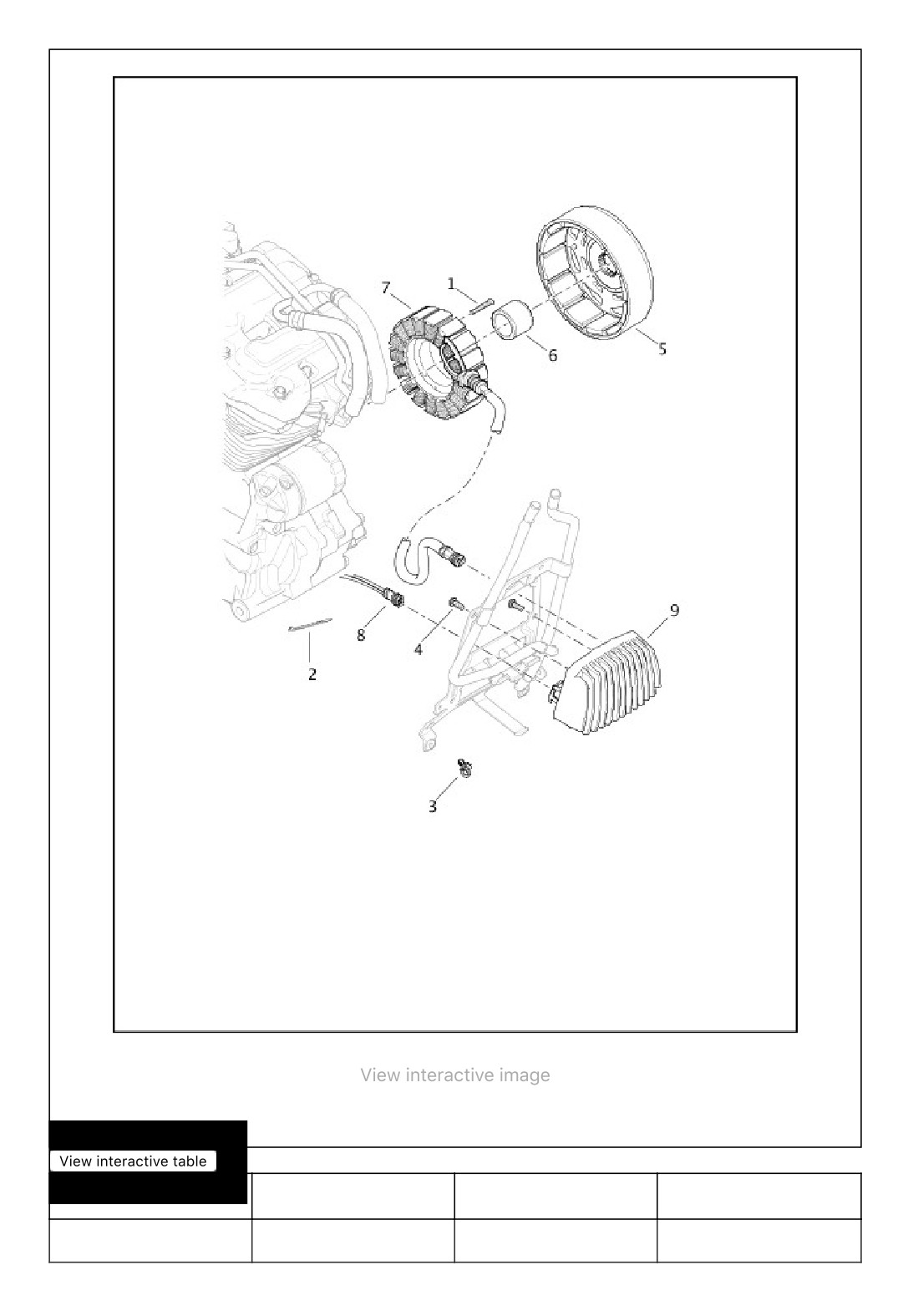

ALTERNATOR AND REGULATOR
57/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
3050
SCREW (3)
ALL
58/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
10039
CABLE STRAP (3)
ALL
3
10177
CABLE STRAP, anchored
ALL
4
10200422
SCREW (4)
ALL
5
29900038
ROTOR ASSEMBLY
ALL
6
29900041
SPACER, sprocket shaft
ALL
7
29900042A
STATOR ASSEMBLY, 3-
ALL
phase, 48 A
8
69201423
DC LEAD ASSEMBLY,
ALL
voltage regulator (from
main wiring harness)
9
74700025
VOLTAGE REGULATOR
ALL
ASSEMBLY
ELECTRONIC CONTROL MODULE (ECM) AND COIL
59/956
