Harley Davidson SIP Parts Catalog 4/5/2019: touring models - page 13
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)

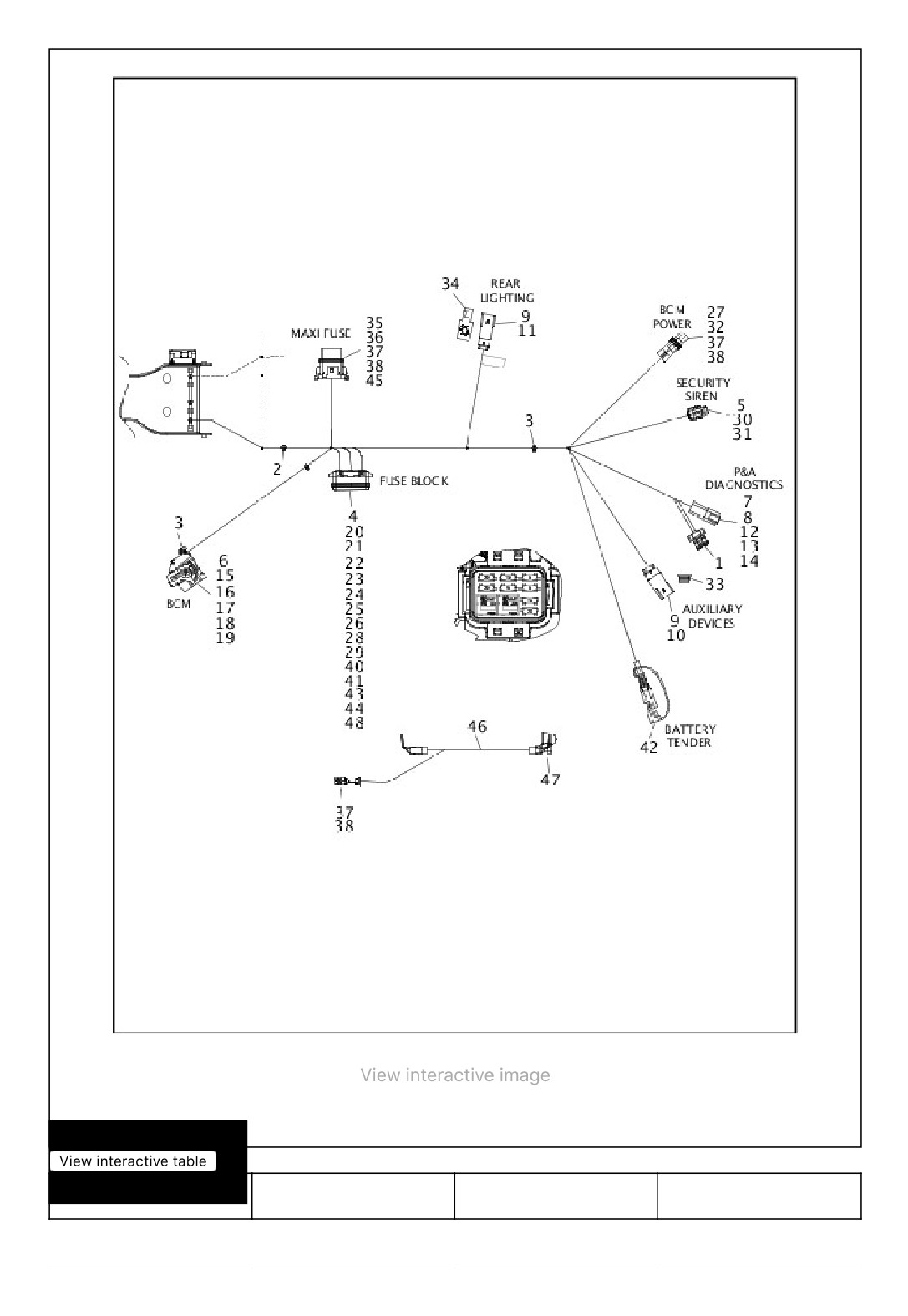

18
72227-11
TERMINAL, socket, 18-
FLTRX, FLTRXS
20 AWG (5)
19
72256-11
SEAL PIN, 0.6 mm (white)
FLTRX, FLTRXS
(9)
20
72296-95
TERMINAL, socket, 14-
FLTRX, FLTRXS
16 AWG (3)
21
72298-95
WIRE SEAL, 14-18 AWG
FLTRX, FLTRXS
(green) (3)
22
72299-95
SEAL PIN, green (2)
FLTRX, FLTRXS
23
72308-97
TERMINAL, socket, 12-
FLTRX, FLTRXS
14 AWG (5)
24
72330-95
FUSE, 15 A (blue)
FLTRX, FLTRXS
25
72331-95
FUSE, 5 A (tan) (2)
FLTRX, FLTRXS
26
72345-02
FUSE, 20 A (yellow) (3)
FLTRX, FLTRXS
27
72350-11
HOUSING, one-way
FLTRX, FLTRXS
socket (black)
28
72356-95
TERMINAL, socket, 18-
FLTRX, FLTRXS
20 AWG (14)
29
72412-97
WIRE SEAL, 12-14 AWG
FLTRX, FLTRXS
(gray) (5)
30
72484-08
TERMINAL, socket, 20
FLTRX, FLTRXS
AWG (3)
31
72486-08
WIRE SEAL, 20 AWG
FLTRX, FLTRXS
(green) (3)
32
72575-11
SECONDARY LOCK,
FLTRX, FLTRXS
one-way socket
33
72632-10
PLUG, weather, four-way
FLTRX, FLTRXS
pin
34
73213-07
RETAINER, anchored
FLTRX, FLTRXS
35
73301-04
HOUSING, two-way pin
FLTRX, FLTRXS
(black)
36
73303-04
SECONDARY LOCK,
FLTRX, FLTRXS
two-way socket
482/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
73304-04
TERMINAL, socket, 10
FLTRX, FLTRXS
AWG (3)
38
73305-04
WIRE SEAL, 10 AWG
FLTRX, FLTRXS
(blue) (3)
39
11100115
CLOTH, HARNESS
FLTRX, FLTRXS
WRAP, 50 m (not shown)
40
69200194
FUSE BLOCK, 24-way
FLTRX, FLTRXS
41
69200199
WIRE SEAL, 18-20 AWG
FLTRX, FLTRXS
(purple) (14)
42
69200212
HARNESS, battery
FLTRX, FLTRXS
tender
43
69200293
FUSE, 7.5 A (brown) (2)
FLTRX, FLTRXS
44
69200312
SECONDARY LOCK,
FLTRX, FLTRXS
fuse block (3)
45
69200336
MAIN FUSE, 50 A (red),
FLTRX, FLTRXS
NOTE: Fuse is sold
separately and is not part
of main harness
46
69201130
WIRE HARNESS, battery
FLTRX, FLTRXS
positive to starter, with
73304-04, 73305-04 and
69201307
47
69201307
BOOT, battery positive
FLTRX, FLTRXS
48
69201411
COVER, fuse block
FLTRX, FLTRXS

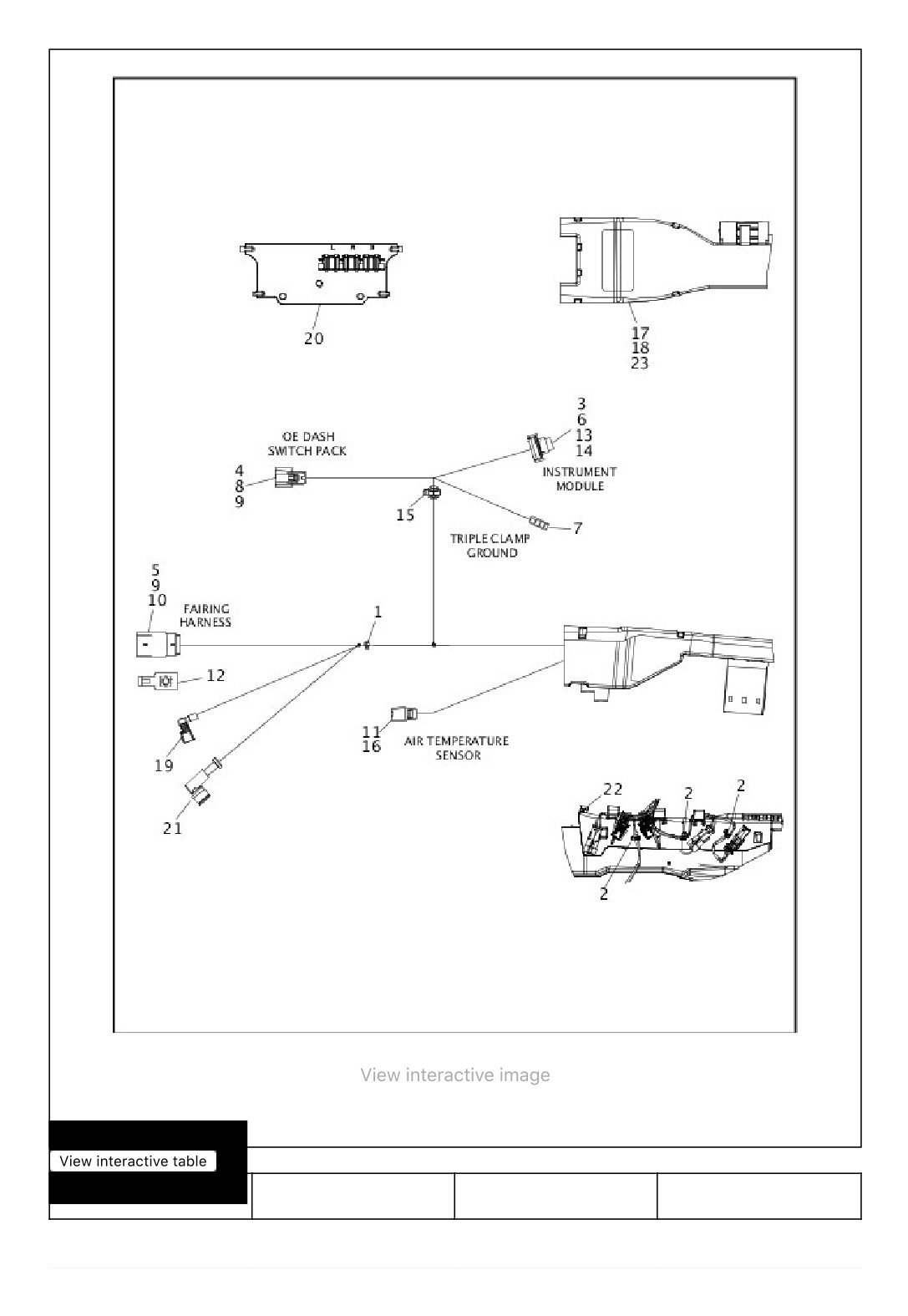

WIRING HARNESS, MAIN, ABS - FLTRU (1 OF 8)
483/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
484/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLTRU
2
10065
CABLE STRAP (3)
FLTRU
3
72130-04
HOUSING, 12-way
FLTRU
socket (black)
4
72168-07
TERMINAL, socket, 18-
FLTRU
20 AWG (5)
5
72169-07
TERMINAL, pin, 16-20
FLTRU
AWG (8)
6
72189-04
SEAL PIN (6)
FLTRU
7
72364-06
TERMINAL, socket, 10-
FLTRU
14 AWG
8
72414-07BK
HOUSING, six-way
FLTRU
socket (black)
9
72473-07
SEAL PIN, natural (5)
FLTRU
10
72490-07GY
HOUSING, 12-way pin
FLTRU
(gray)
11
72721-07
TERMINAL, socket, 18-
FLTRU
20 AWG (2)
12
73213-07
RETAINER, anchored
FLTRU
13
74196-04
TERMINAL, socket, 20
FLTRU
AWG (6)
14
74197-04
SECONDARY LOCK, 12-
FLTRU
way socket
15
12500002
CABLE STRAP
FLTRU
16
69200201
HOUSING, two-way
FLTRU
socket (black)
17
69200202A
WIRE TROUGH
FLTRU
18
69200203A
COVER, wire trough, with
FLTRU
15368-01A and
69201459
485/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
19
69201017
WIRE HARNESS, AM/FM
FLTRU
antenna
20
69200700
CADDY
FLTRU
21
69201018A
WIRE HARNESS, CB
FLTRU
antenna
22
69201287
BRACKET, mounting,
FLTRU
electrical connector
23
69201459
BRACKET
FLTRU

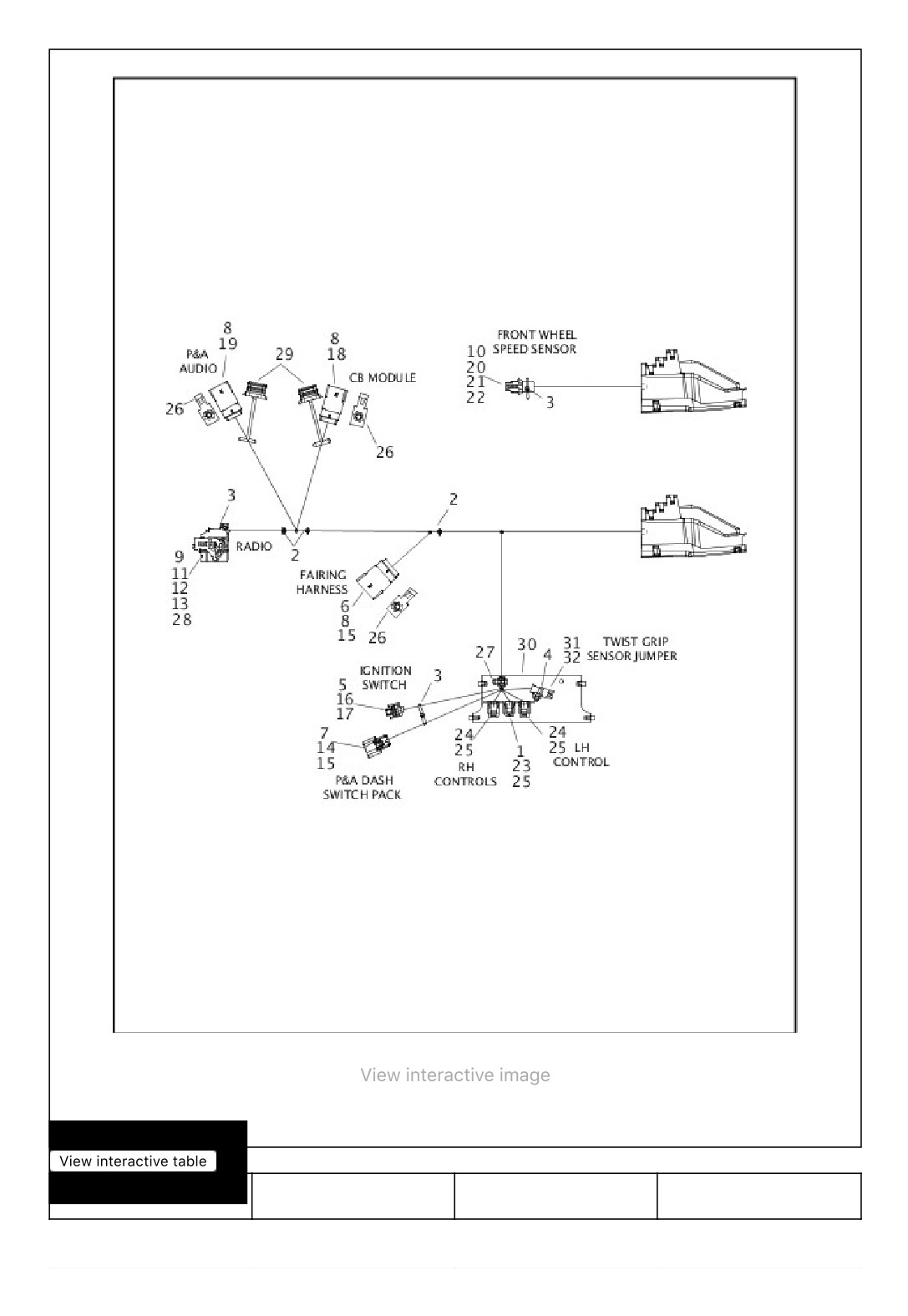

WIRING HARNESS, MAIN, ABS - FLTRU (2 OF 8)
486/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
487/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
5118
SEAL PIN
FLTRU
2
10006
CABLE STRAP (3)
FLTRU
3
10065
CABLE STRAP (3)
FLTRU
4
10177
CABLE STRAP, anchored
FLTRU
5
72062-06
HOUSING, two-way
FLTRU
socket (gray)
6
72167-07BK
HOUSING, 16-way pin
FLTRU
(black)
7
72168-07
TERMINAL, socket, 18-
FLTRU
20 AWG (4)
8
72169-07
TERMINAL, pin, 16-20
FLTRU
AWG (36)
9
72209-11
COVER, wire
FLTRU
10
72213-94
TERMINAL, socket, 16-
FLTRU
20 AWG (2)
11
72222-11
TERMINAL, socket, 18-
FLTRU
20 AWG (27)
12
72226-11
TERMINAL, socket, 14-
FLTRU
16 AWG (8)
13
72256-11
SEAL PIN, 0.6 mm (white)
FLTRU
(13)
14
72414-07BK
HOUSING, six-way
FLTRU
socket (black)
15
72473-07
SEAL PIN, natural (6)
FLTRU
16
72484-08
TERMINAL, socket, 20
FLTRU
AWG (2)
17
72486-08
WIRE SEAL, 20 AWG
FLTRU
(green) (2)
18
72488-07BK
HOUSING, 12-way pin
FLTRU
(black)
488/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
19
72490-07GY
HOUSING, 12-way pin
FLTRU
(gray)
20
72606-08
HOUSING, two-way
FLTRU
socket (black)
21
72610-08
WIRE SEAL, 18-20 AWG
FLTRU
(white) (2)
22
72639-10
SECONDARY LOCK,
FLTRU
two-way socket
23
72905-11
HOUSING, two-way pin
FLTRU
(black)
24
72907-11
HOUSING, four-way pin
FLTRU
(black) (2)
25
72909-11
TERMINAL, pin, 20-22
FLTRU
AWG (9)
26
73213-07
RETAINER, anchored (3)
FLTRU
27
12500002
CABLE STRAP
FLTRU
28
69200193
HOUSING, 48-way
FLTRU
socket (black)
29
69200205
PLUG, weather, 12-way
FLTRU
pin (2)
30
69200700
CADDY
FLTRU
31
69201163
HOUSING, six-way pin
FLTRU
(black)
32
69201164
TERMINAL, pin, 22 AWG
FLTRU
(6)

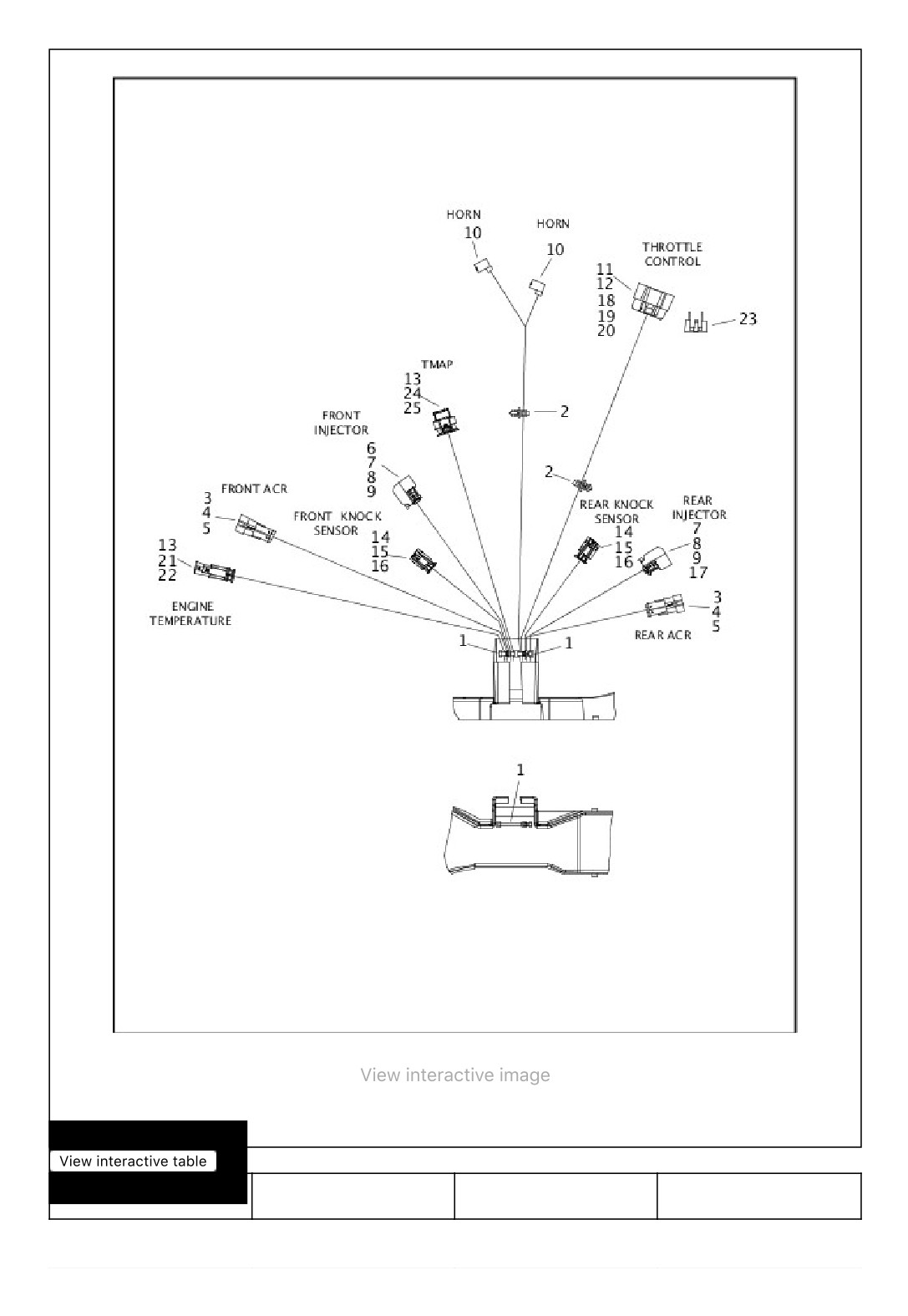

WIRING HARNESS, MAIN, ABS - FLTRU (3 OF 8)
489/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
490/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLTRU
2
10177
CABLE STRAP, anchored
FLTRU
(2)
3
72008-05
TERMINAL, socket, 20-
FLTRU
22 AWG (4)
4
72009-05
HOUSING, two-way pin
FLTRU
(black) (2)
5
72010-05
WIRE SEAL, 22-26 AWG
FLTRU
(green) (4)
6
72098-06
HOUSING, two-way
FLTRU
socket (gray)
7
72099-06
WIRE SEAL, 16-18 AWG
FLTRU
(blue) (4)
8
72110-06
TERMINAL, socket, 16-
FLTRU
18 AWG (4)
9
72145-06
SECONDARY LOCK,
FLTRU
two-way socket (2)
10
72283-09
TERMINAL, socket, 14-
FLTRU
16 AWG, 90 degree (2)
11
72499-07
WIRE SEAL, 20-22 AWG
FLTRU
(green) (6)
12
72569-08
TERMINAL, socket, 20-
FLTRU
22 AWG (2)
13
69201301
WIRE SEAL, 20-22 AWG
FLTRU
(green) (6)
14
69201390
HOUSING, two-way
FLTRU
socket (black) (2)
15
69201391
TERMINAL, socket, 20
FLTRU
AWG (4)
16
69201392
WIRE SEAL, 20 AWG
FLTRU
(yellow) (4)
491/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
69201393
HOUSING, two-way
FLTRU
socket (black)
18
69201394
HOUSING, six-way
FLTRU
socket (black)
19
69201395
SECONDARY LOCK, six-
FLTRU
way socket
20
69201396
TERMINAL, socket, 20
FLTRU
AWG (4)
21
69201397
HOUSING, two-way pin
FLTRU
(gray)
22
69201398
TERMINAL, pin, 20 AWG
FLTRU
(2)
23
69201416
SECONDARY LOCK, six-
FLTRU
way socket
24
69201441
HOUSING, four-way
FLTRU
socket
25
69201442
TERMINAL, socket, 18
FLTRU
AWG (4)

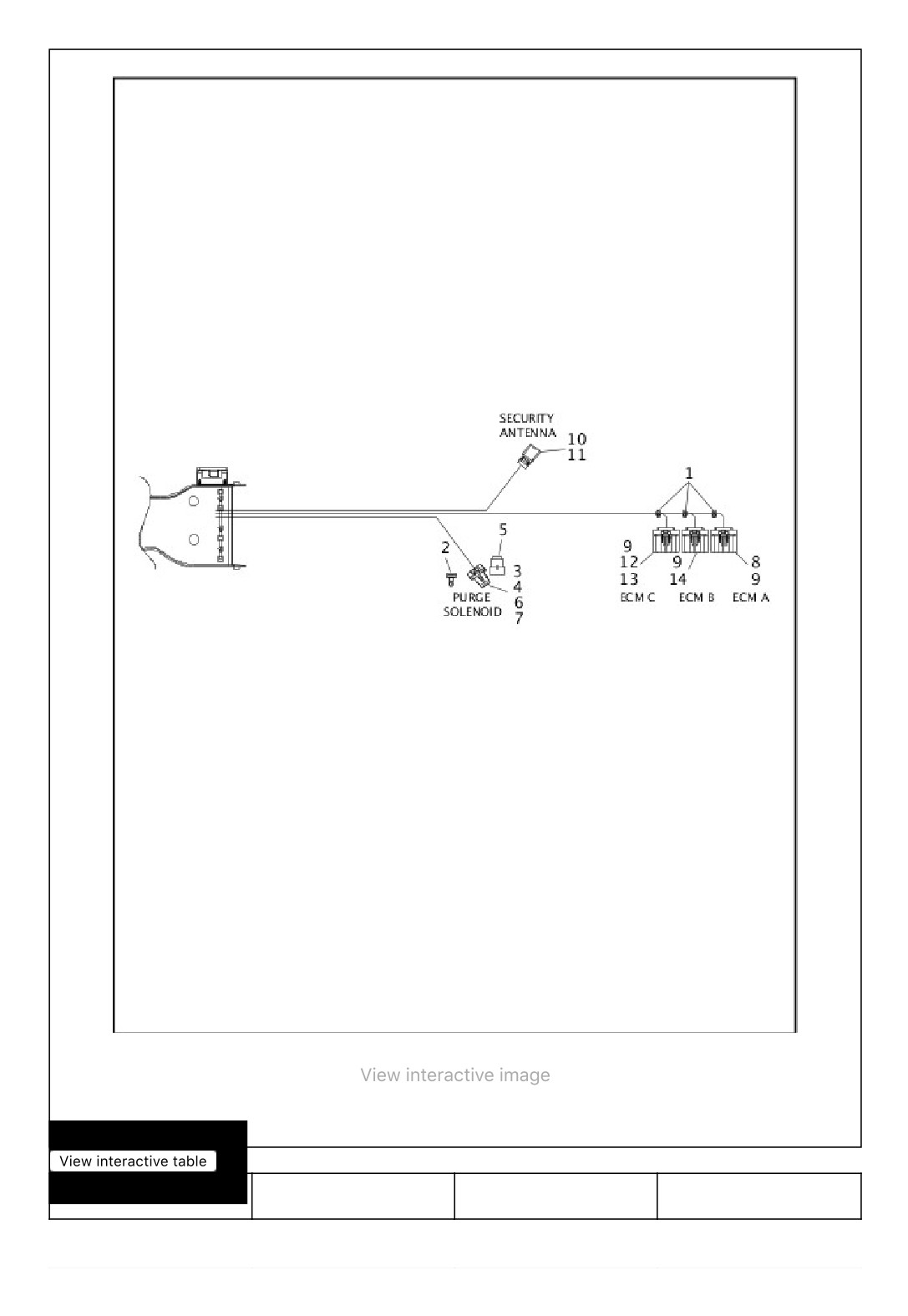

WIRING HARNESS, MAIN, ABS - FLTRU (4 OF 8)
492/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
493/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLTRU
2
10147
CLIP, connector
FLTRU
3
72213-94
TERMINAL, socket, 16-
FLTRU
20 AWG (2)
4
72518-01
HOUSING, two-way
FLTRU
socket (red)
5
72533-06
PLUG, weather, two-way
FLTRU
pin
6
72609-08
SECONDARY LOCK,
FLTRU
two-way socket
7
72610-08
WIRE SEAL, 18-20 AWG
FLTRU
(white) (2)
8
72664-12A
HOUSING, 18-way
FLTRU
socket (black)
9
72666-12
TERMINAL, socket, 18-
FLTRU
20 AWG (46)
10
72720-07
HOUSING, two-way
FLTRU
socket (black)
11
72721-07
TERMINAL, socket, 18-
FLTRU
20 AWG (2)
12
69201168
TERMINAL, socket, 22
FLTRU
AWG (2)
13
69201410
HOUSING, 18-way
FLTRU
socket (brown)
14
69201414
HOUSING, 18-way
FLTRU
socket (gray)
WIRING HARNESS, MAIN, ABS - FLTRU (5 OF 8)
494/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
495/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
9819
TERMINAL, ring, 12 AWG
FLTRU
(2)
2
10065
CABLE STRAP (3)
FLTRU
3
72167-07BK
HOUSING, 16-way pin
FLTRU
(black)
4
72168-07
TERMINAL, socket, 18-
FLTRU
20 AWG (6)
5
72169-07
TERMINAL, pin, 16-20
FLTRU
AWG (23)
6
72188-07BK
HOUSING, six-way pin
FLTRU
(black)
7
72249-94
HEAT SHRINK TUBE,
FLTRU
.415 x 1 in (black)
8
72414-07BK
HOUSING, six-way
FLTRU
socket (black)
9
72415-07GY
HOUSING, four-way pin
FLTRU
(gray)
10
72473-07
SEAL PIN, natural (3)
FLTRU
11
73213-07
RETAINER, anchored (3)
FLTRU
12
69201017
WIRE HARNESS, AM/FM
FLTRU
antenna
13
69201018A
WIRE HARNESS, CB
FLTRU
antenna
14
69201596
TERMINAL, ring, 8-10
FLTRU
AWG (3)

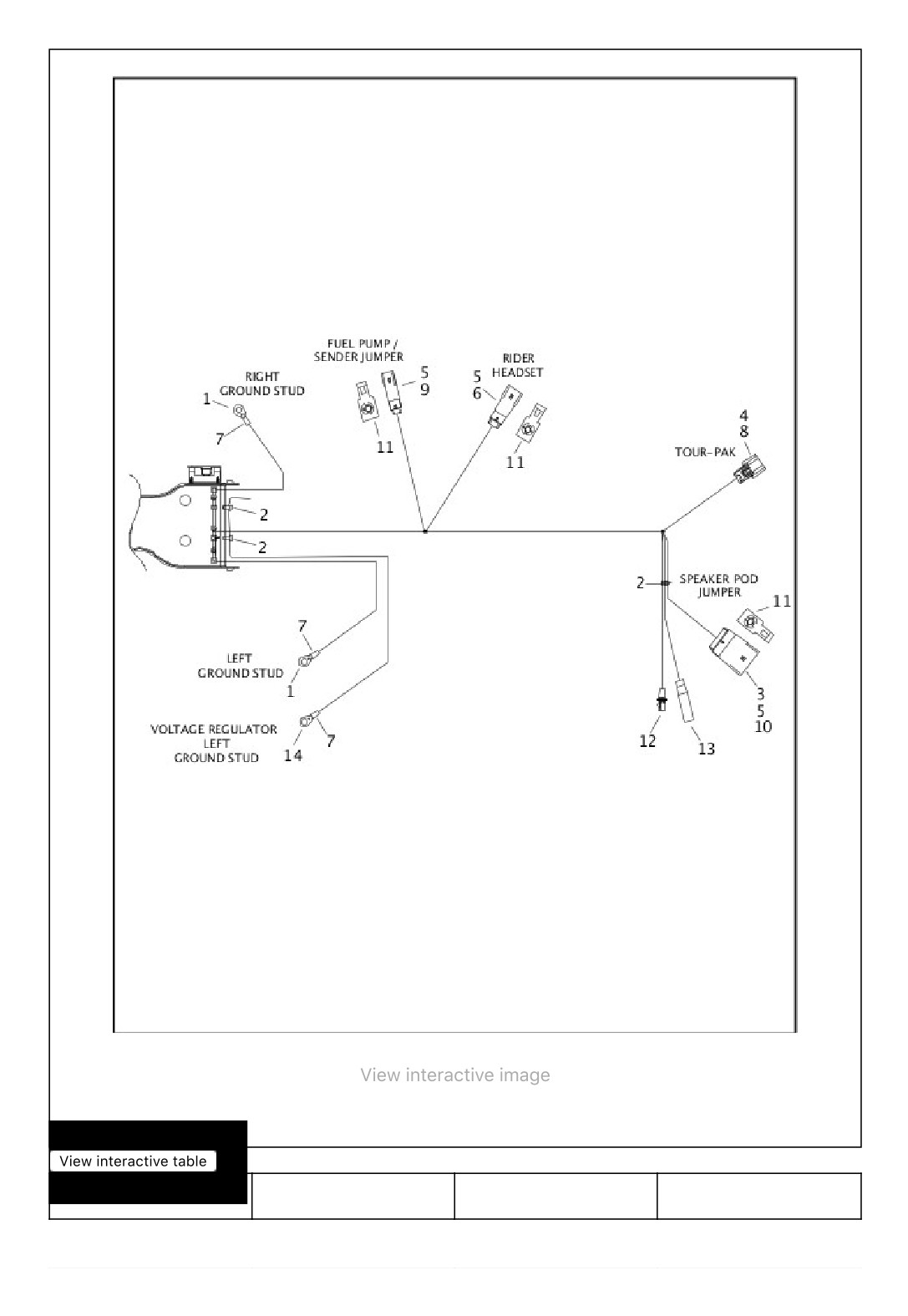

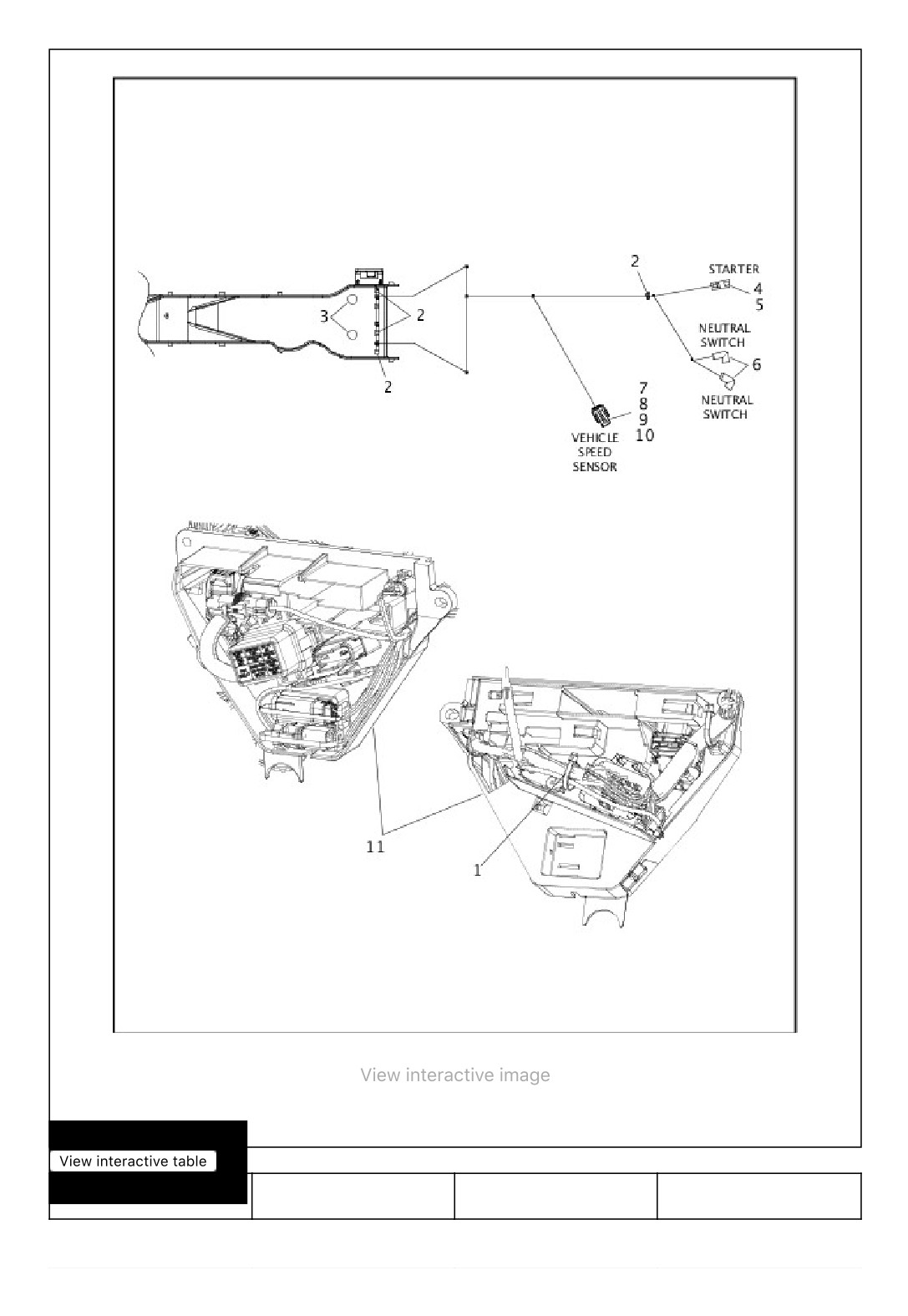

WIRING HARNESS, MAIN, ABS - FLTRU (6 OF 8)
496/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
497/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLTRU
2
10065
CABLE STRAP (4)
FLTRU
3
11779
FASTENER, push-in
FLTRU
(black) (2)
4
72291-94
TERMINAL, socket, 14-
FLTRU
16 AWG
5
72295-94
CONNECTOR, starter
FLTRU
housing
6
72405-98BK
WIRE ASSEMBLY, push-
FLTRU
on, right angle molded,
65-1/2 in length (black)
(2)
7
72484-08
TERMINAL, socket, 20
FLTRU
AWG (3)
8
72486-08
WIRE SEAL, 20 AWG
FLTRU
(green) (3)
9
72543-07BK
HOUSING, three-way
FLTRU
socket (black)
10
72544-07
SECONDARY LOCK,
FLTRU
three-way socket
11
69200175
CADDY, fuse block,
FLTRU
electrical panel
WIRING HARNESS, MAIN, ABS - FLTRU (7 OF 8)
498/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
499/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLTRU
2
10147
CLIP, connector
FLTRU
3
10177
CABLE STRAP, anchored
FLTRU
(3)
4
72065-06A
HOUSING, three-way
FLTRU
socket (black)
5
72127-06
SECONDARY LOCK,
FLTRU
three-way socket
6
72168-07
TERMINAL, socket, 18-
FLTRU
20 AWG (5)
7
72169-07
TERMINAL, pin, 16-20
FLTRU
AWG (10)
8
72175-07BK
HOUSING, four-way pin
FLTRU
(black) (2)
9
72213-94
TERMINAL, socket, 16-
FLTRU
20 AWG (4)
10
72343-10
TERMINAL, pin, 16-20
FLTRU
AWG (4)
11
72415-07GY
HOUSING, four-way pin
FLTRU
(gray)
12
72473-07
SEAL PIN (natural)
FLTRU
13
72484-08
TERMINAL, socket, 20
FLTRU
AWG (6)
14
72486-08
WIRE SEAL, 20 AWG
FLTRU
(green) (6)
15
72499-07
WIRE SEAL, 20-22 AWG
FLTRU
(green) (2)
16
72512-07BK
HOUSING, three-way
FLTRU
socket (black) (2)
17
72519-09BK
PLUG, weather, three-
FLTRU
way socket (2)
500/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72533-06
PLUG, weather, two-way
FLTRU
pin
19
72544-07
SECONDARY LOCK,
FLTRU
three-way socket
20
72589-09
HOUSING, three-way
FLTRU
socket (black)
21
72606-08
HOUSING, two-way
FLTRU
socket (black) (2)
22
72609-08
SECONDARY LOCK,
FLTRU
two-way socket (2)
23
72610-08
WIRE SEAL, 18-20 AWG
FLTRU
(white) (4)
24
73213-07
RETAINER, anchored (6)
FLTRU
25
74112-98BK
HOUSING, two-way
FLTRU
socket (black)
26
74152-98
SECONDARY LOCK,
FLTRU
two-way socket
27
74191-98
TERMINAL, socket, 16-
FLTRU
20 AWG (2)
28
12500014
CABLE STRAP (2)
FLTRU
29
12500018
CABLE STRAP
FLHX
30
69200183
HOUSING, 26-way
FLTRU
socket
31
69200184
COVER, wire
FLTRU
32
69200185
TERMINAL, socket, 20
FLTRU
AWG (6)
33
69200186
TERMINAL, socket, 14-
FLTRU
16 AWG (2)
34
69200187
TERMINAL, socket, 12
FLTRU
AWG (2)
35
69200188
WIRE SEAL, 20 AWG (6)
FLTRU
36
69200189
WIRE SEAL, 14-16 AWG
FLTRU
(2)
37
69200190
WIRE SEAL, 12 AWG (2)
FLTRU
501/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
38
69200191
SEAL PIN (16)
FLTRU
39
69200238
TERMINAL, socket, 20
FLTRU
AWG (2)
40
69200272
HOUSING, two-way pin
FLTRU
(black)
41
69201301
WIRE SEAL, 20-22 AWG
FLHX
(green) (3)
42
69201396
TERMINAL, socket, 20
FLTRU
AWG (2)
43
69201400
HOUSING, two-way
FLTRU
socket, (black)
44
69201401
SECONDARY LOCK,
FLTRU
two-way socket
45
69201404
RETAINER, anchored
FLTRU
46
69201405
RESISTOR PACK
FLTRU
47
69201406
HOUSING, three-way
FLTRU
socket
48
69201407
TERMINAL, socket, 20
FLTRU
AWG (3)
49
69201423
DC LEAD ASSEMBLY,
FLTRU
two-way socket

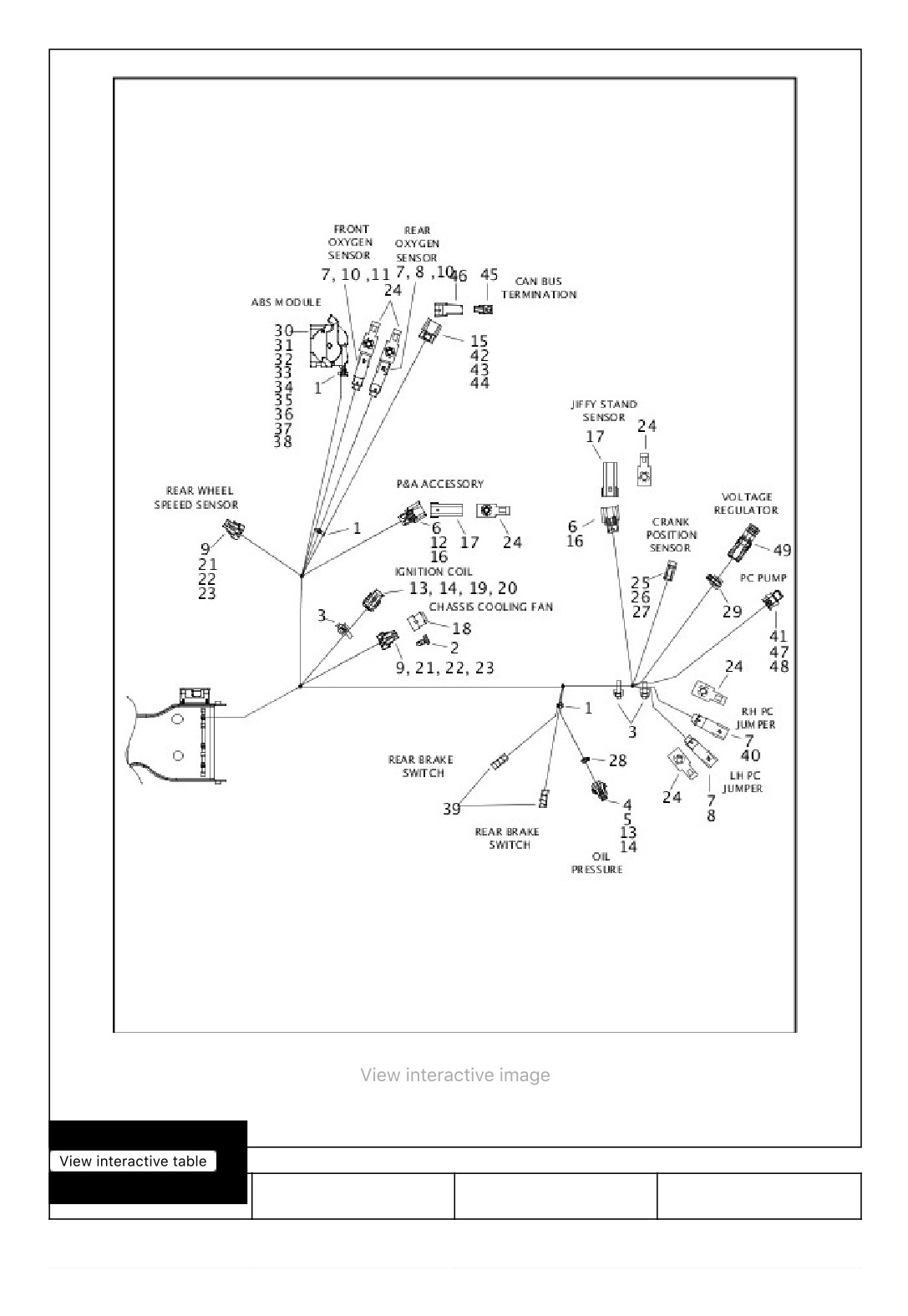

WIRING HARNESS, MAIN, ABS - FLTRU (8 OF 8)
502/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
503/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
6990
PLUG, weather, six-way
FLTRU
pin
2
10006
CABLE STRAP (2)
FLTRU
3
10065
CABLE STRAP (2)
FLTRU
4
31586-07
RELAY (2)
FLTRU
5
72064-06
HOUSING, three-way
FLTRU
socket (black)
6
72081-11
HOUSING, 48-way
FLTRU
socket (black)
7
72106-94BK
HOUSING, six-way pin
FLTRU
(black) (replaces gray
connector)
8
72146-94
SECONDARY LOCK, six-
FLTRU
way pin
9
72169-07
TERMINAL, pin, 16-20
FLTRU
AWG (10)
10
72175-07BK
HOUSING, four-way pin
FLTRU
(black)
11
72188-07BK
HOUSING, six-way pin
FLTRU
(black)
12
72190-94
TERMINAL, pin, 16-18
FLTRU
AWG (2)
13
72194-94
TERMINAL, pin, 20 AWG
FLTRU
(3)
14
72195-94
SEAL PIN
FLTRU
15
72209-11
COVER, wire
FLTRU
16
72222-11
TERMINAL, socket, 18-
FLTRU
20 AWG (21)
17
72226-11
TERMINAL, socket, 14-
FLTRU
16 AWG
504/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72227-11
TERMINAL, socket, 18-
FLTRU
20 AWG (5)
19
72256-11
SEAL PIN, 0.6 mm (white)
FLTRU
(9)
20
72296-95
TERMINAL, socket, 14-
FLTRU
16 AWG (3)
21
72298-95
WIRE SEAL, 14-18 AWG
FLTRU
(green) (3)
22
72299-95
SEAL PIN, green (2)
FLTRU
23
72308-97
TERMINAL, socket, 12-
FLTRU
14 AWG (5)
24
72330-95
FUSE, 15 A (blue)
FLTRU
25
72331-95
FUSE, 5 A (tan) (2)
FLTRU
26
72345-02
FUSE, 20 A (yellow) (3)
FLTRU
27
72350-11
HOUSING, one-way
FLTRU
socket (black)
28
72356-95
TERMINAL, socket, 18-
FLTRU
20 AWG (14)
29
72412-97
WIRE SEAL, 12-14 AWG
FLTRU
(gray) (5)
30
72484-08
TERMINAL, socket, 20
FLTRU
AWG (3)
31
72486-08
WIRE SEAL, 20 AWG
FLTRU
(green) (3)
32
72575-11
SECONDARY LOCK,
FLTRU
one-way socket
33
72632-10
PLUG, weather, four-way
FLTRU
pin
34
73213-07
RETAINER, anchored
FLTRU
35
73301-04
HOUSING, two-way pin
FLTRU
(black)
36
73303-04
SECONDARY LOCK,
FLTRU
two-way socket
505/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
73304-04
TERMINAL, socket, 10
FLTRU
AWG (3)
38
73305-04
WIRE SEAL, 10 AWG
FLTRU
(blue) (3)
39
11100115
CLOTH, HARNESS
FLTRU
WRAP, 50 m (not shown)
40
69200194
FUSE BLOCK, 24-way
FLTRU
41
69200199
WIRE SEAL, 18-20 AWG
FLTRU
(purple) (14)
42
69200212
HARNESS, battery
FLTRU
tender
43
69200293
FUSE, 7.5 A (brown) (2)
FLTRU
44
69200312
SECONDARY LOCK,
FLTRU
fuse block (3)
45
69200336
MAIN FUSE, 50 A (red),
FLTRU
NOTE: Fuse is sold
separately and is not part
of main harness
46
69201130
WIRE HARNESS, battery
FLTRU
positive to starter, with
73304-04, 73305-04 and
69201307
47
69201307
BOOT, battery positive
FLTRU
48
69201411
COVER, fuse block
FLTRU

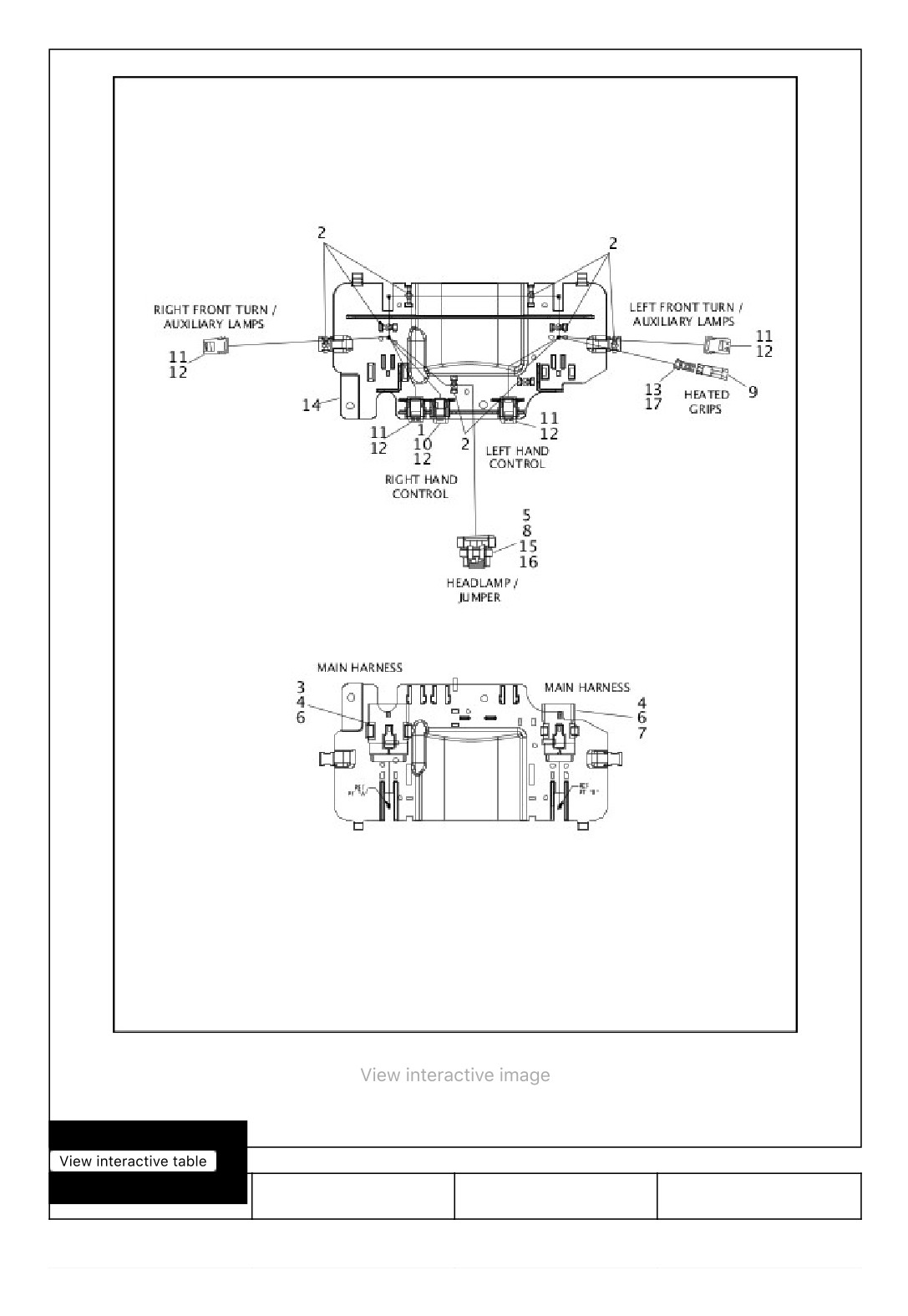

WIRING HARNESS, FAIRING - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX AND
FLHXS (1 OF 2)
506/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
507/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69200121
WIRING HARNESS,
FLHT, FLHTCU, FLHTK,
fairing
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
NOTE: Includes the following parts.
1
5118
SEAL PIN
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
2
10065
CABLE STRAP (8)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
3
72167-07BK
HOUSING, 16-way pin
FLHT, FLHTCU, FLHTK,
(black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
4
72169-07
TERMINAL, pin, 16-20
FLHT, FLHTCU, FLHTK,
AWG (19)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
5
72213-94
TERMINAL, socket, 16-
FLHT, FLHTCU, FLHTK,
20 AWG (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
6
72473-07
SEAL PIN, natural (9)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
7
72490-07GY
HOUSING, 12-way pin
FLHT, FLHTCU, FLHTK,
(gray)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
8
72610-08
WIRE SEAL, 18-20 AWG
FLHT, FLHTCU, FLHTK,
(white) (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
9
72902-01BK
HOUSING, two-way pin
FLHT, FLHTCU, FLHTK,
(black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
10
72905-11
HOUSING, two-way pin
FLHT, FLHTCU, FLHTK,
(black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
11
72907-11
HOUSING, four-way pin
FLHT, FLHTCU, FLHTK,
(black) (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
12
72909-11
TERMINAL, pin, 20-22
FLHT, FLHTCU, FLHTK,
AWG (17)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
508/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
13
72912-01BK
HOUSING, two-way
FLHT, FLHTCU, FLHTK,
socket (black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
14
69200109
CADDY, fairing harness
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
15
69200254
HOUSING, four-way
FLHT, FLHTCU, FLHTK,
socket
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
16
69200256
SECONDARY LOCK,
FLHT, FLHTCU, FLHTK,
four-way socket
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
17
69201240
TERMINAL, socket,18
FLHT, FLHTCU, FLHTK,
AWG (2)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS

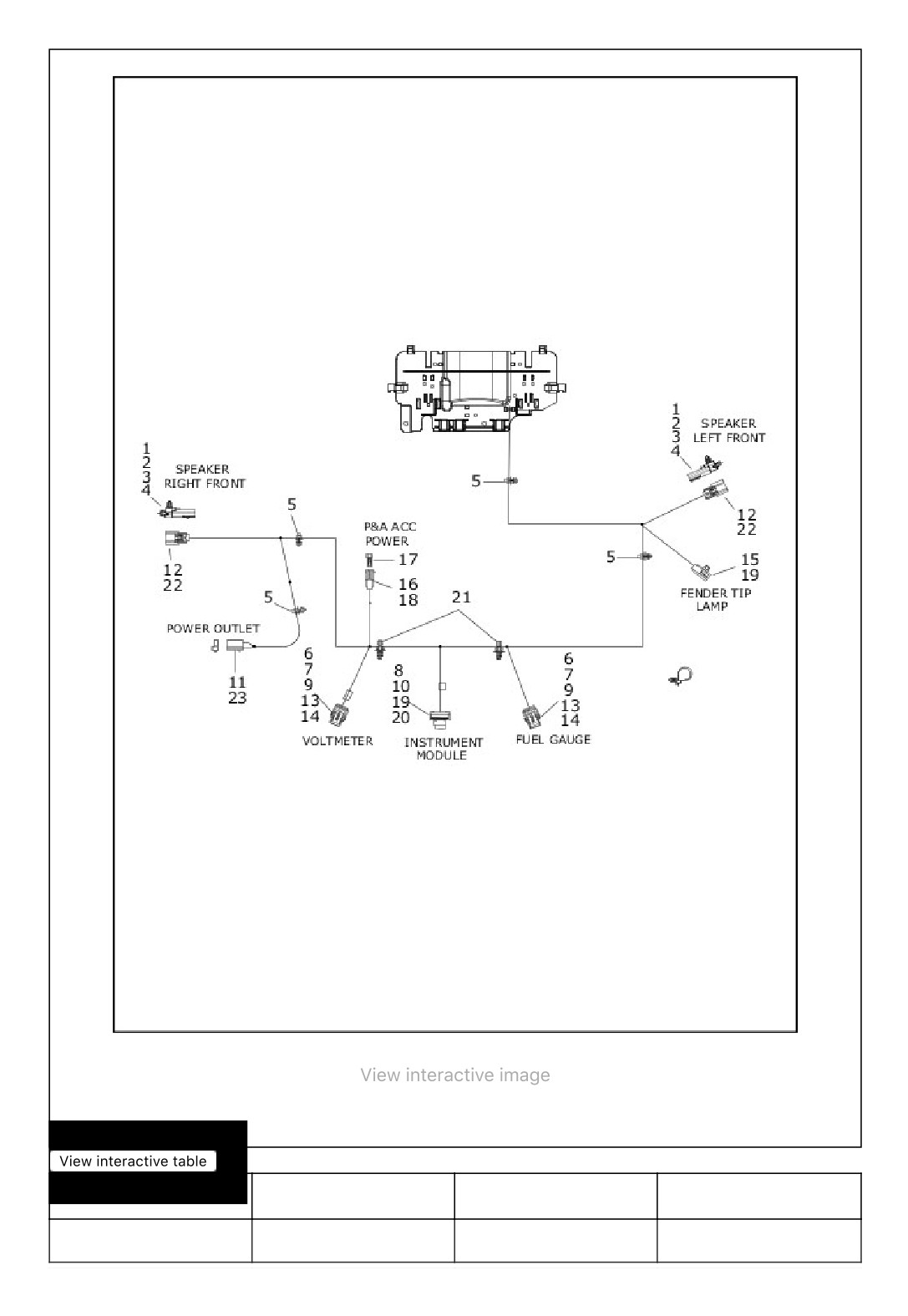

WIRING HARNESS, FAIRING - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX AND
FLHXS (2 OF 2)
509/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
72473-07
SEAL PIN (natural) (2)
FLHT
510/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
73213-07
RETAINER, anchored
FLHT
3
69200272
HOUSING, two-way pin
FLHT
(black)
4
69202385
PLUG, weather, two-way
FLHT
pin
69200121
WIRING HARNESS,
FLHT, FLHTCU, FLHTK,
fairing
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
NOTE: Includes the following parts.
5
10177
CABLE STRAP, anchored
FLHT, FLHTCU, FLHTK,
(4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
6
72066-06A
HOUSING, four-way
FLHT, FLHTCU, FLHTK,
socket (black) (2)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
7
72097-06
SEAL PIN, orange (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
8
72130-04
HOUSING, 12-way
FLHT, FLHTCU, FLHTK,
socket (black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
9
72135-06
SECONDARY LOCK,
FLHT, FLHTCU, FLHTK,
four-way socket (2)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
10
72189-04
SEAL PIN (5)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
11
72264-94
TERMINAL, socket, 18-
FLHT, FLHTCU, FLHTK,
20 AWG (2)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
12
72272-07
TERMINAL, socket, 14-
FLHT, FLHTCU, FLHTK,
16 AWG (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
13
72484-08
TERMINAL, socket, 20
FLHT, FLHTCU, FLHTK,
AWG (6)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
14
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHTCU, FLHTK,
(green) (6)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
511/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
15
73101-96BK
HOUSING, two-way pin
FLHT, FLHTCU, FLHTK,
(black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
16
73102-96BK
HOUSING, two-way pin
FLHT, FLHTCU, FLHTK,
(black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
17
73152-96BK
HOUSING, two-way
FLHT, FLHTCU, FLHTK,
socket (black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
18
73190-96
TERMINAL, pin, 16-20
FLHT, FLHTCU, FLHTK,
AWG (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
19
74196-04
TERMINAL, socket, 20
FLHT, FLHTCU, FLHTK,
AWG (7)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
20
74197-04
SECONDARY LOCK, 12-
FLHT, FLHTCU, FLHTK,
way socket
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
21
12500002
CABLE STRAP (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
22
69200271
HOUSING, two-way
FLHT, FLHTCU, FLHTK,
socket (black) (2)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
23
69200337
HOUSING, two-way
FLHT, FLHTCU, FLHTK,
socket (gray)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS

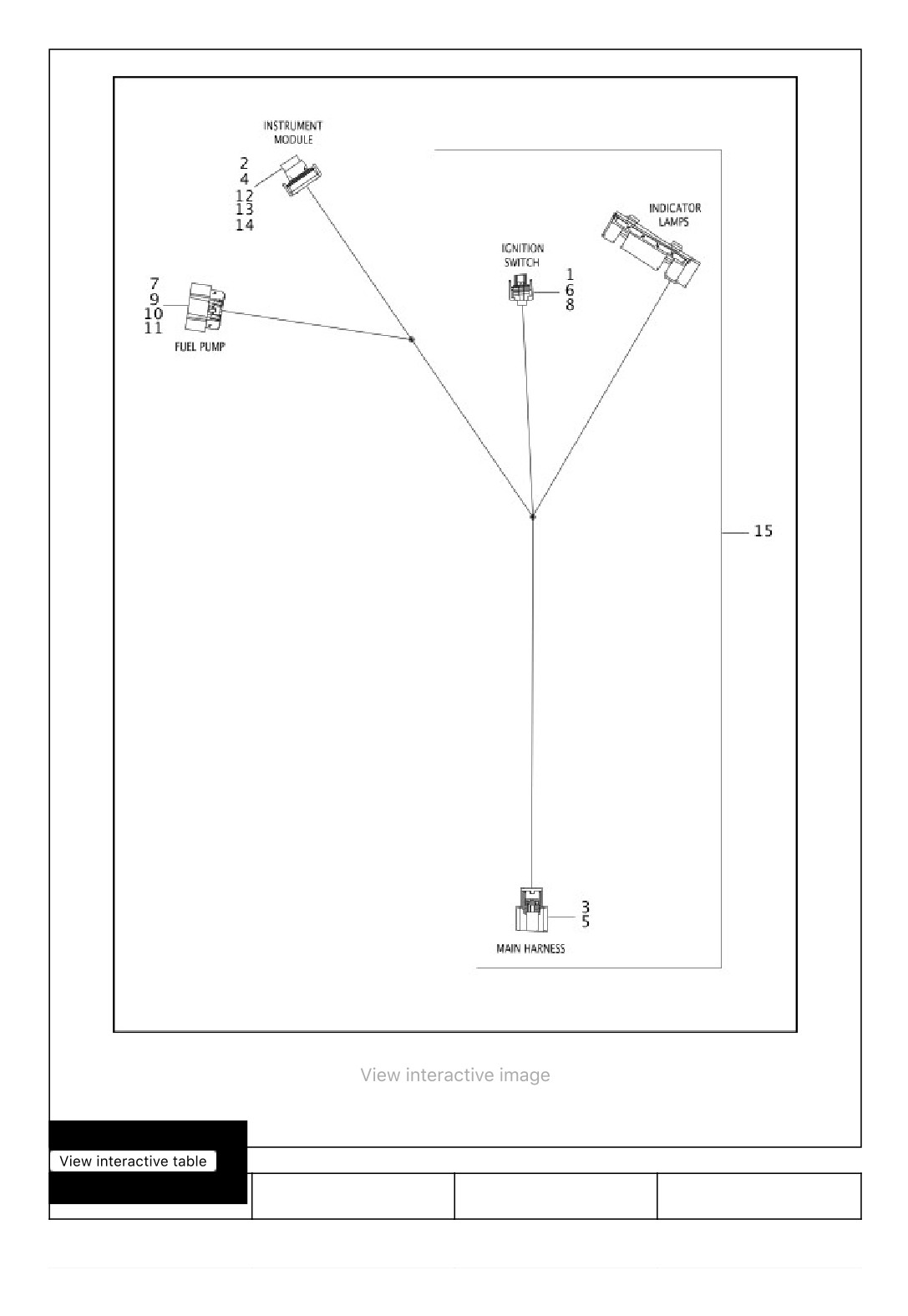

WIRING HARNESS, CONSOLE - FLHR, FLHRC AND FLHRXS
512/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
513/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
72062-06
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (gray)
2
72130-04
HOUSING, 12-way
FLHR, FLHRC, FLHRXS
socket (black)
3
72168-07
TERMINAL, socket 18-20
FLHR, FLHRC, FLHRXS
AWG (8)
4
72189-04
SEAL PIN (2)
FLHR, FLHRC, FLHRXS
5
72479-07BK
HOUSING, eight-way
FLHR, FLHRC, FLHRXS
socket (black)
6
72484-08
TERMINAL, socket, 20
FLHR, FLHRC, FLHRXS
AWG (2)
7
72485-07
HOUSING, four-way
FLHR, FLHRC, FLHRXS
socket (black)
8
72486-08
WIRE SEAL, 20 AWG
FLHR, FLHRC, FLHRXS
(green) (2)
9
72493-07
TERMINAL, socket, 16-
FLHR, FLHRC, FLHRXS
18 AWG (4)
10
72494-07
WIRE SEAL, 16-18 AWG
FLHR, FLHRC, FLHRXS
(yellow) (4)
11
72557-07
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
four-way socket
12
72662-11
TERMINAL, socket, 22
FLHR, FLHRC, FLHRXS
AWG (5)
13
74196-04
TERMINAL, socket, 20
FLHR, FLHRC, FLHRXS
AWG (5)
14
74197-04
SECONDARY LOCK, 12-
FLHR, FLHRC, FLHRXS
way socket
15
69200124
WIRE HARNESS, console
FLHR, FLHRC, FLHRXS

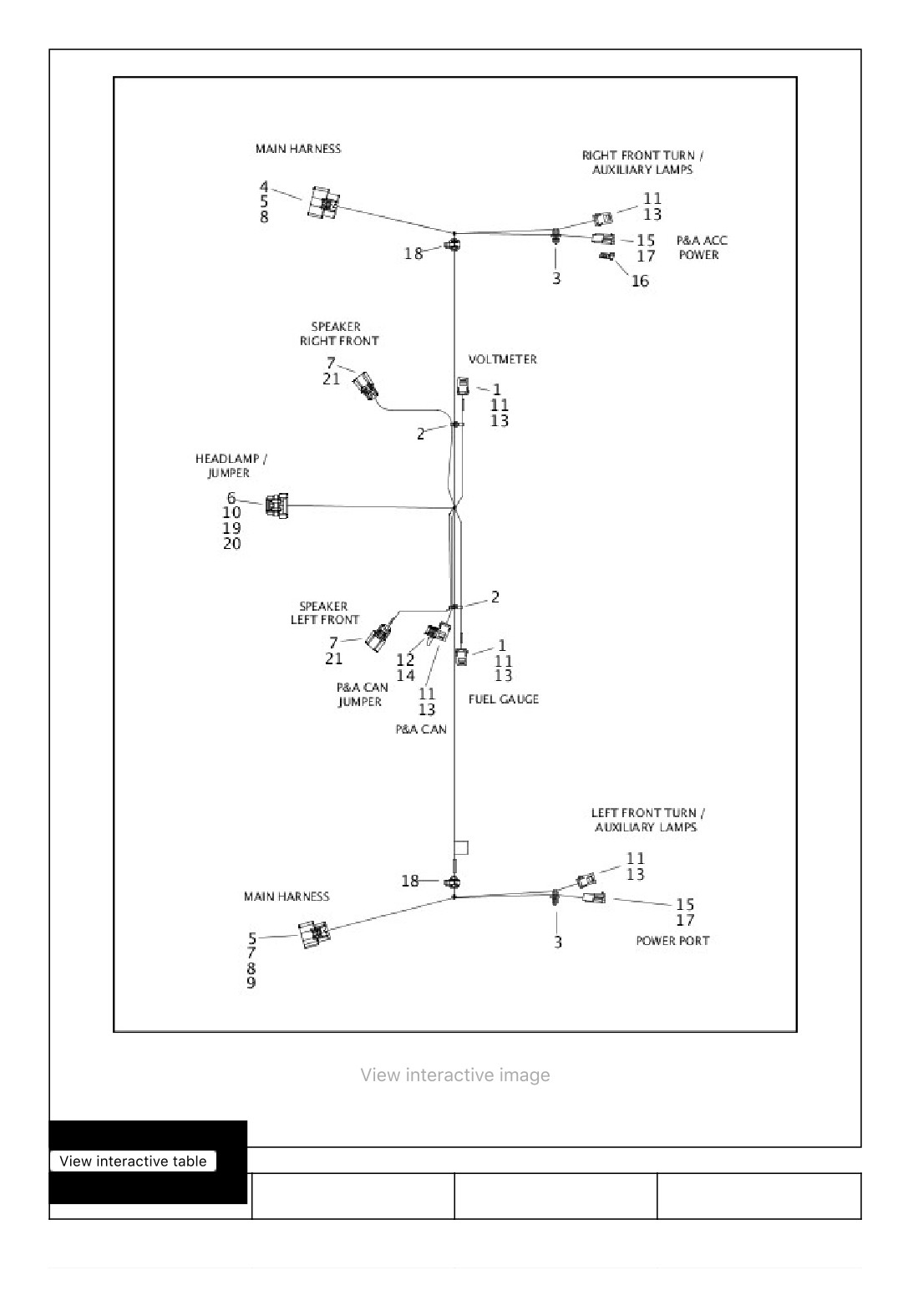

WIRING HARNESS, FAIRING - FLTRU, FLTRX AND FLTRXS
514/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
515/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69200122
WIRING HARNESS -
FLTRU, FLTRX, FLTRXS
FAIRING
NOTE: Includes the following parts.
1
5118
SEAL PIN (2)
FLTRU, FLTRX, FLTRXS
2
10006
CABLE STRAP (2)
FLTRU, FLTRX, FLTRXS
3
10177
CABLE STRAP, anchored
FLTRU, FLTRX, FLTRXS
(2)
4
72166-07BK
HOUSING, 16-way
FLTRU, FLTRX, FLTRXS
socket (black)
5
72168-07
TERMINAL, socket, 18-
FLTRU, FLTRX, FLTRXS
20 AWG (16)
6
72213-94
TERMINAL, socket, 16-
FLTRU, FLTRX, FLTRXS
20 AWG (4)
7
72272-07
TERMINAL, socket, 14-
FLTRU, FLTRX, FLTRXS
16 AWG (8)
8
72473-07
SEAL PIN, natural (8)
FLTRU, FLTRX, FLTRXS
9
72489-07GY
HOUSING, 12-way
FLTRU, FLTRX, FLTRXS
socket (gray)
10
72610-08
WIRE SEAL, 18-20 AWG
FLTRU, FLTRX, FLTRXS
(white) (4)
11
72907-11
HOUSING, four-way pin
FLTRU, FLTRX, FLTRXS
(black) (5)
12
72908-11
HOUSING, four-way
FLTRU, FLTRX, FLTRXS
socket (black)
13
72909-11
TERMINAL, pin, 20-22
FLTRU, FLTRX, FLTRXS
AWG (18)
14
72910-11
TERMINAL, socket, 20-
FLTRU, FLTRX, FLTRXS
22 AWG (4)
15
73102-96BK
HOUSING, two-way pin
FLTRU, FLTRX, FLTRXS
(black) (2)
16
73152-96BK
HOUSING, two-way
FLTRU, FLTRX, FLTRXS
socket (black)
17
73190-96
TERMINAL, pin, 16-20
FLTRU, FLTRX, FLTRXS
AWG (4)
516/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
12500002
CABLE STRAP (2)
FLTRU, FLTRX, FLTRXS
19
69200254
HOUSING, four-way
FLTRU, FLTRX, FLTRXS
socket
20
69200256
SECONDARY LOCK,
FLTRU, FLTRX, FLTRXS
four-way socket
21
69200271
HOUSING, two-way
FLTRU, FLTRX, FLTRXS
socket (black) (2)

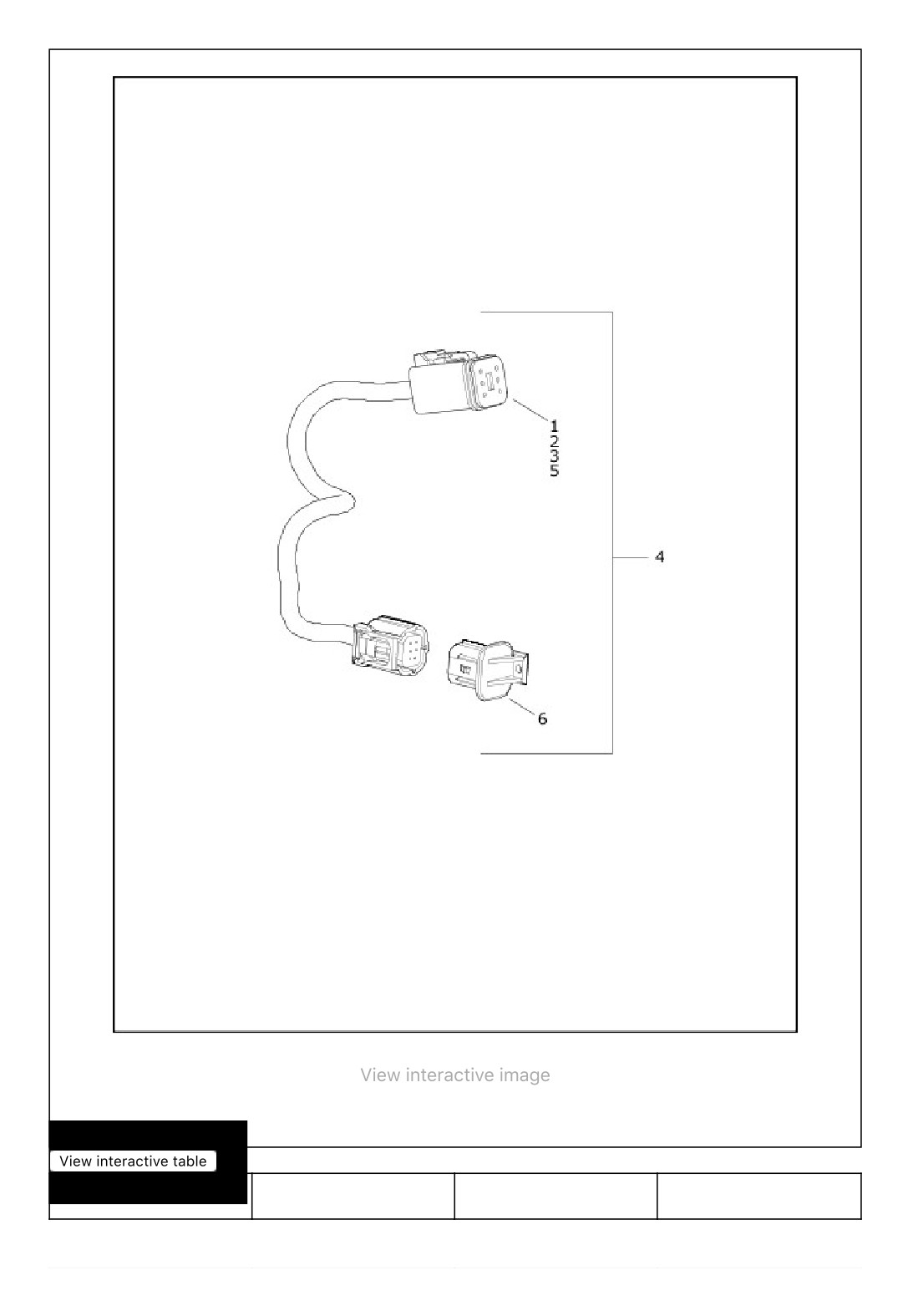

WIRING HARNESS, ON BOARD DIAGNOSTICS (OBD) JUMPER (CHINA ONLY)
517/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
518/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
72116-94BK
HOUSING, six-way
FLHR, FLHRXS, FLHTK,
socket (black) (replaces
FLHTKL, FLHX, FLHXS,
gray connector)
FLTRU, FLTRX, FLTRXS
2
72156-94
SECONDARY LOCK, six-
FLHR, FLHRXS, FLHTK,
way socket
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
3
72195-94
SEAL PIN (2)
FLHR, FLHRXS, FLHTK,
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
4
69202097
WIRING HARNESS, OBD
FLHR, FLHRXS, FLHTK,
JUMPER
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
5
69202102
TERMINAL, socket, 22
FLHR, FLHRXS, FLHTK,
AWG (4)
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
6
69202108
CAP (2)
FLHR, FLHRXS, FLHTK,
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS

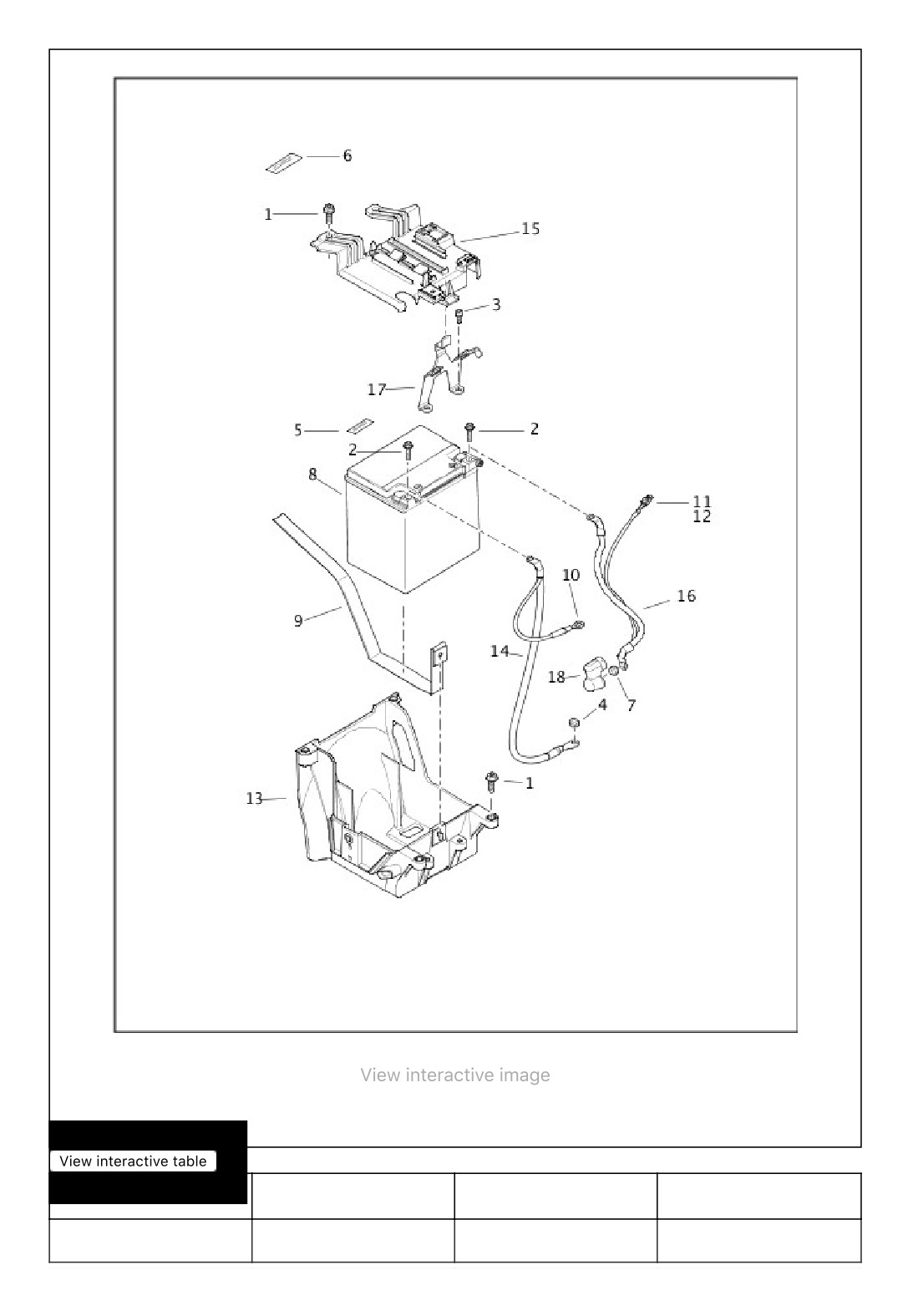

BATTERY
519/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
3634
SCREW (6)
ALL
520/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
4312C
SCREW (2)
ALL
3
4705
SCREW (2)
ALL
4
7792
NUT
ALL
5
14001739
LABEL, battery warning
FLHRC, FLHRXS, FLHTK,
(Brazil)
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRXS
6
15368-01A
LABEL, battery warning
ALL
7
31694-90
NUT
ALL
8
66010-97D
BATTERY, with 4312C
ALL
(except Brazil)
8
66000066
BATTERY, with 4312C
FLHRC, FLHRXS, FLHTK,
(Brazil)
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRXS
9
66051-08
STRAP, battery removal
ALL
10
9819
TERMINAL, ring, 12 AWG
ALL
11
73304-04
TERMINAL, socket, 10
ALL
AWG
12
73305-04
SEAL WIRE, 10 AWG
ALL
(blue)
13
66000010A
BATTERY TRAY
ALL
14
66000116
CABLE ASSEMBLY,
ALL
starter to ground, with
9819
15
69200174
CADDY, electronic
ALL
control module (ECM)
16
69201130
WIRE HARNESS, battery
ALL
positive to starter, with
73304-04, 73305-04 and
69201307
17
69201178
BRACKET, battery hold
ALL
down
18
69201307
BOOT, battery positive
ALL
HORN
521/956
