Harley Davidson SIP Parts Catalog 4/5/2019: touring models - page 11
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
402/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)

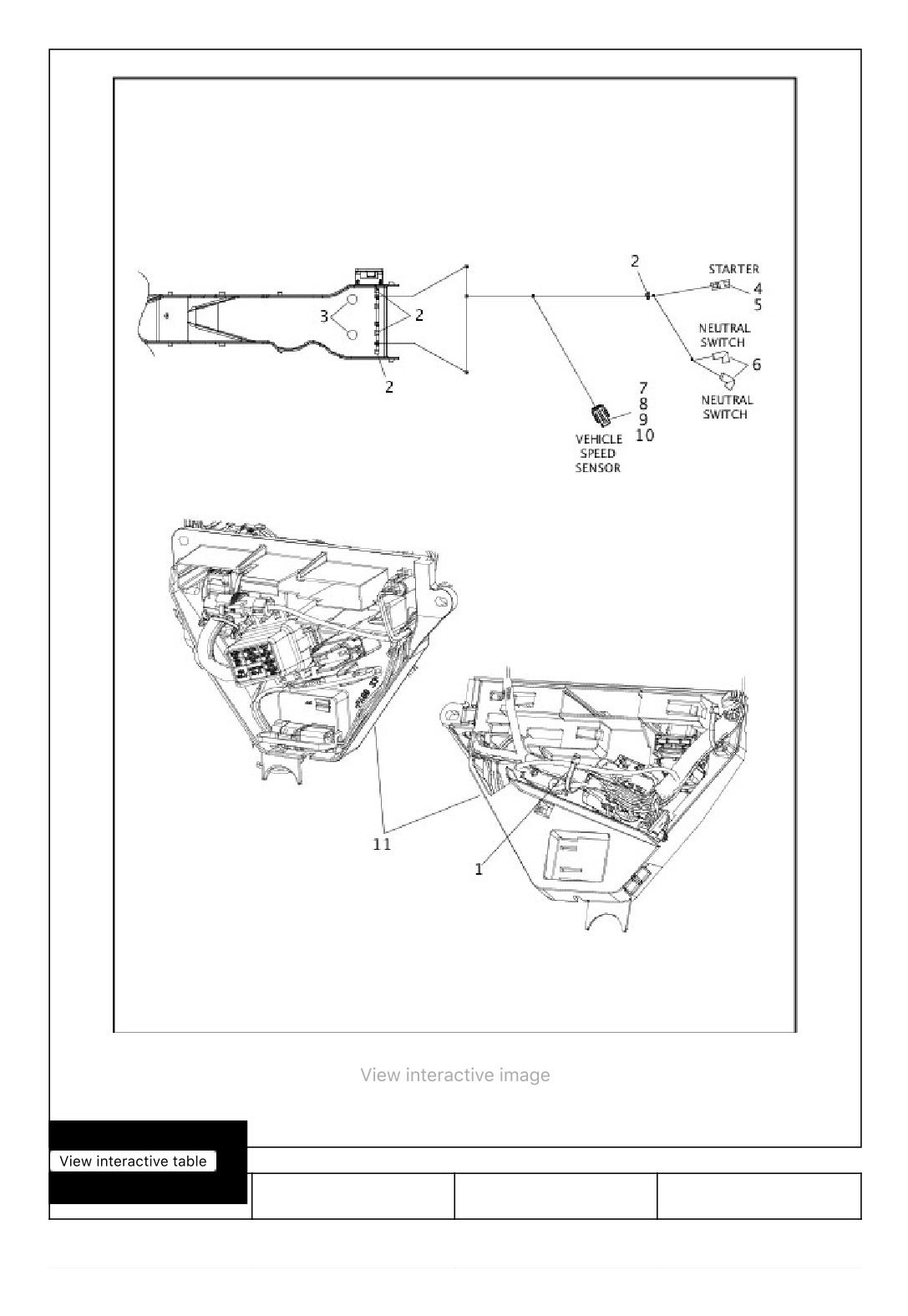

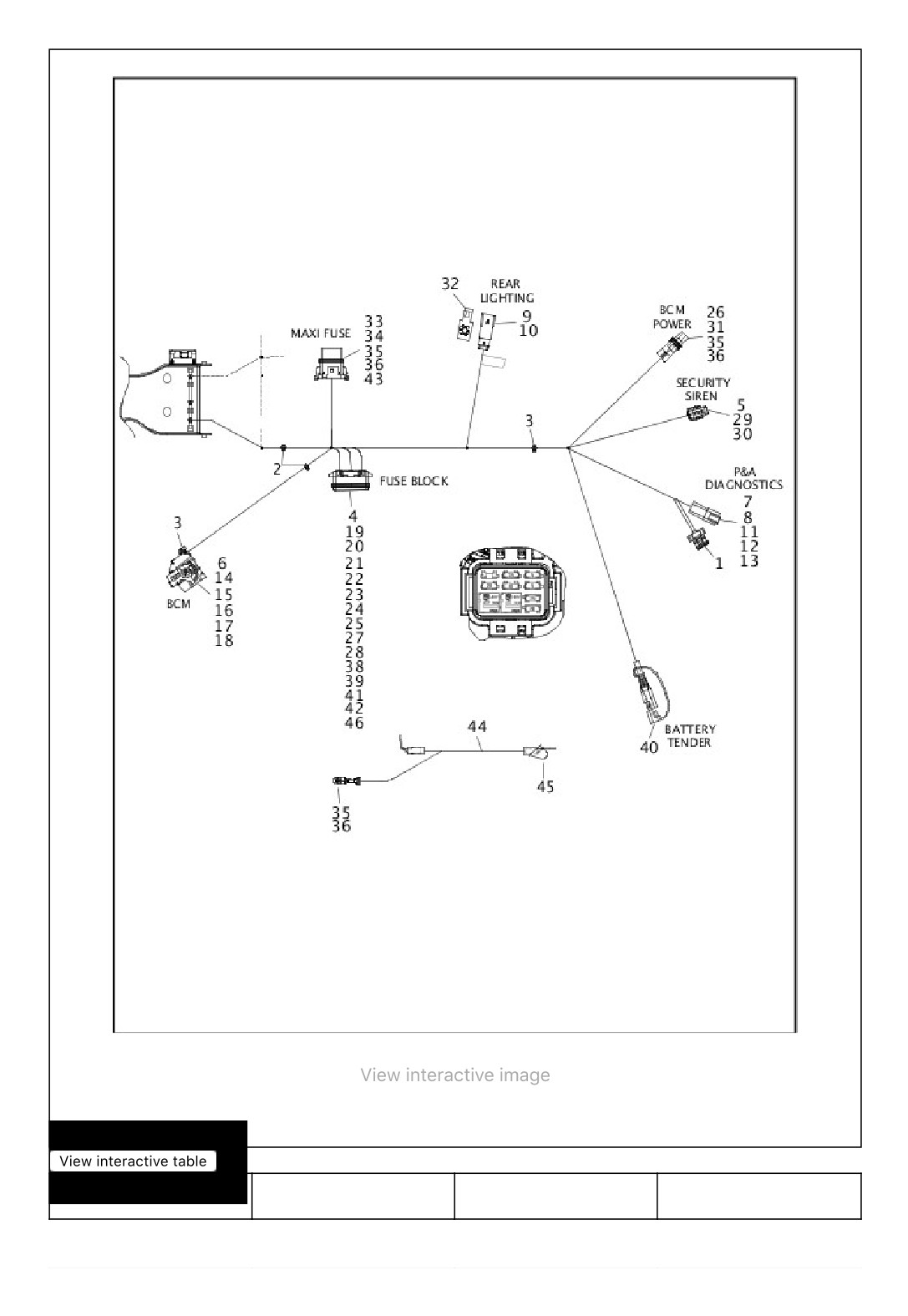

69201126
MAIN WIRING HARNESS
FLHR
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHR
2
10147
CLIP, connector
FLHR
3
72213-94
TERMINAL, socket,16-20
FLHR
AWG (2)
4
72518-01
HOUSING, two-way
FLHR
socket (red)
5
72533-06
PLUG, weather, two-way
FLHR
pin
6
72609-08
SECONDARY LOCK,
FLHR
two-way socket
7
72610-08
WIRE SEAL, 18-20 AWG
FLHR
(white) (2)
8
72664-12A
HOUSING, 18-way
FLHR
socket (black)
9
72666-12
TERMINAL, socket, 18-
FLHR
20 AWG (43)
10
72720-07
HOUSING, two-way
FLHR
socket (black)
11
72721-07
TERMINAL, socket, 18-
FLHR
20 AWG (2)
12
69201415
HOUSING, 18-way
FLHR
socket (brown)
13
69201440
HOUSING, 18-way
FLHR
socket (gray)
14
69201168
TERMINAL, socket, 22
FLHR
AWG (2)

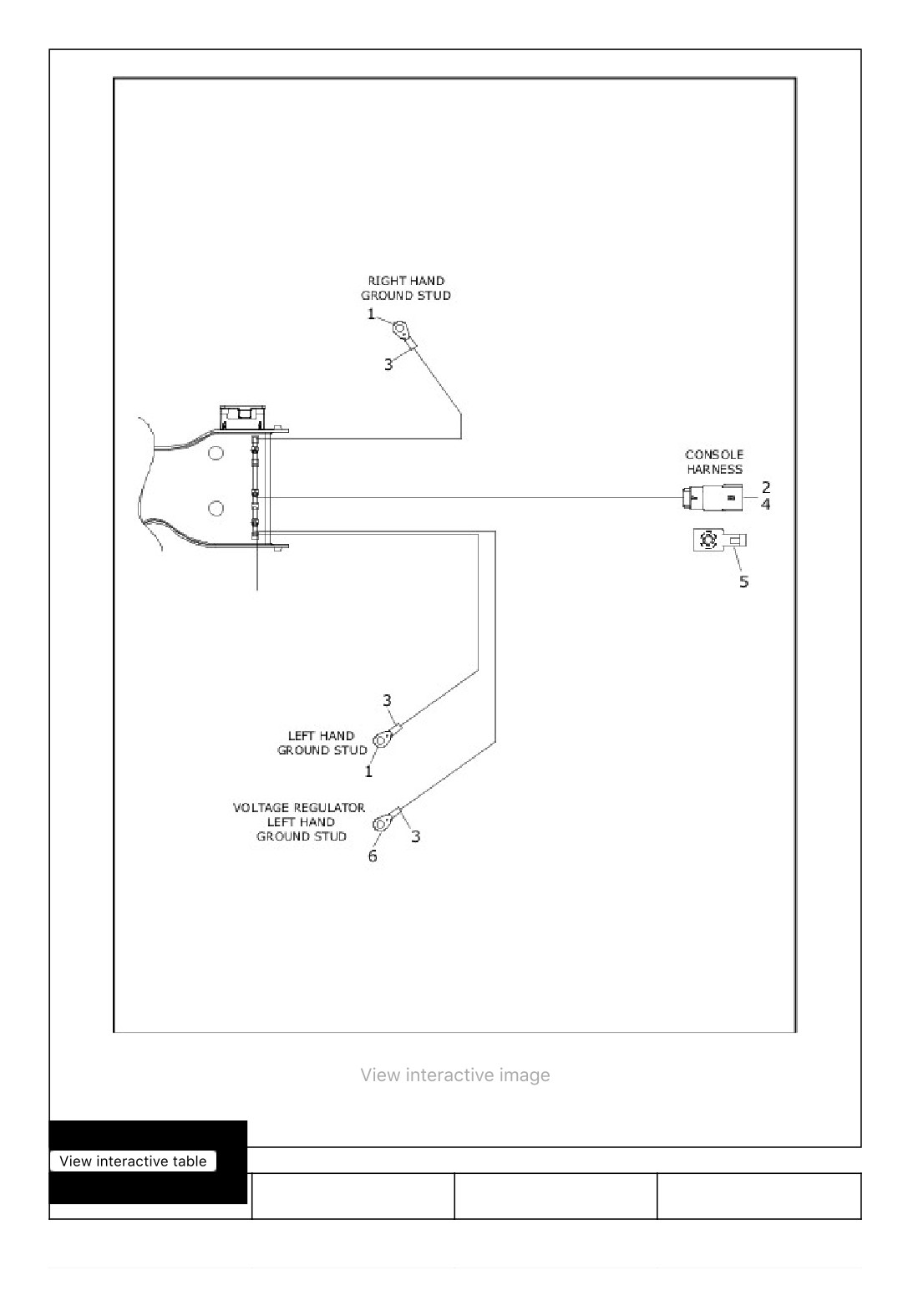

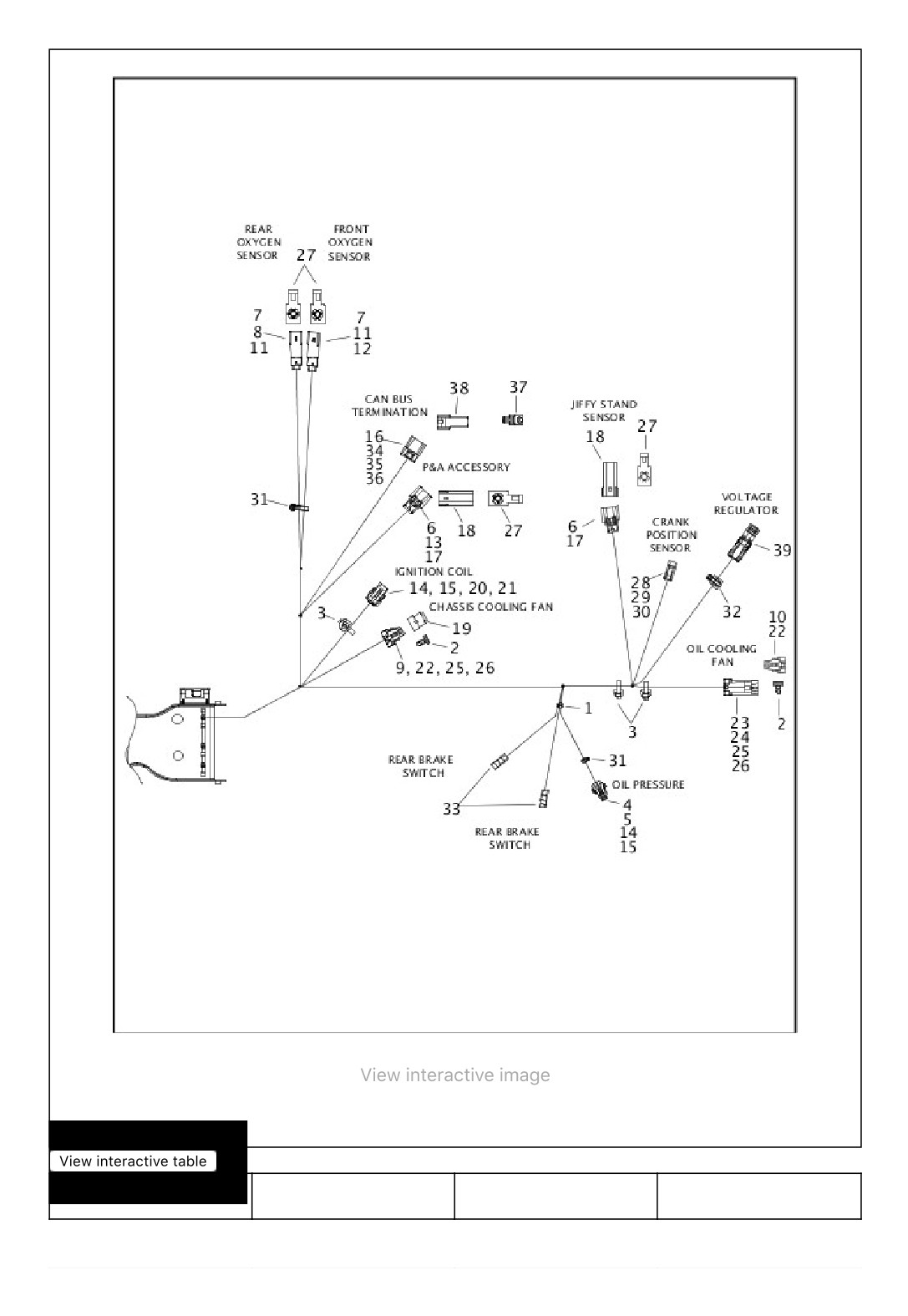

WIRING HARNESS, MAIN, NON-ABS - FLHR (5 OF 8)
403/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
404/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201126
MAIN WIRING HARNESS
FLHR
- NON-ABS
NOTE: Includes the following parts.
1
9819
TERMINAL, ring, 12 AWG
FLHR
(2)
2
72169-07
TERMINAL, pin, 16-20
FLHR
AWG (8)
3
72249-94
HEAT SHRINK TUBE,
FLHR
.415 x 1 in (black)
4
72478-07BK
HOUSING, eight-way pin
FLHR
(black)
5
73213-07
RETAINER, anchored
FLHR
6
69201596
TERMINAL, ring, 8-10
FLHR
AWG
WIRING HARNESS, MAIN, NON-ABS - FLHR (6 OF 8)
405/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
406/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201126
MAIN WIRING HARNESS
FLHR
- NON-ABS
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLHR
2
10065
CABLE STRAP (4)
FLHR
3
11779
FASTENER, push-in
FLHR
(black) (2)
4
72291-94
TERMINAL, socket, 14-
FLHR
16 AWG
5
72295-94
CONNECTOR, starter
FLHR
housing
6
72405-98BK
WIRE ASSEMBLY, push-
FLHR
on, right angle molded,
65-1/2 in length (2)
7
72484-08
TERMINAL, socket, 20
FLHR
AWG (3)
8
72486-08
WIRE SEAL, 20 AWG
FLHR
(green) (3)
9
72543-07BK
HOUSING, three-way
FLHR
socket (black)
10
72544-07
SECONDARY LOCK,
FLHR
three-way socket
11
69200175
CADDY, fuse block,
FLHR
electrical panel

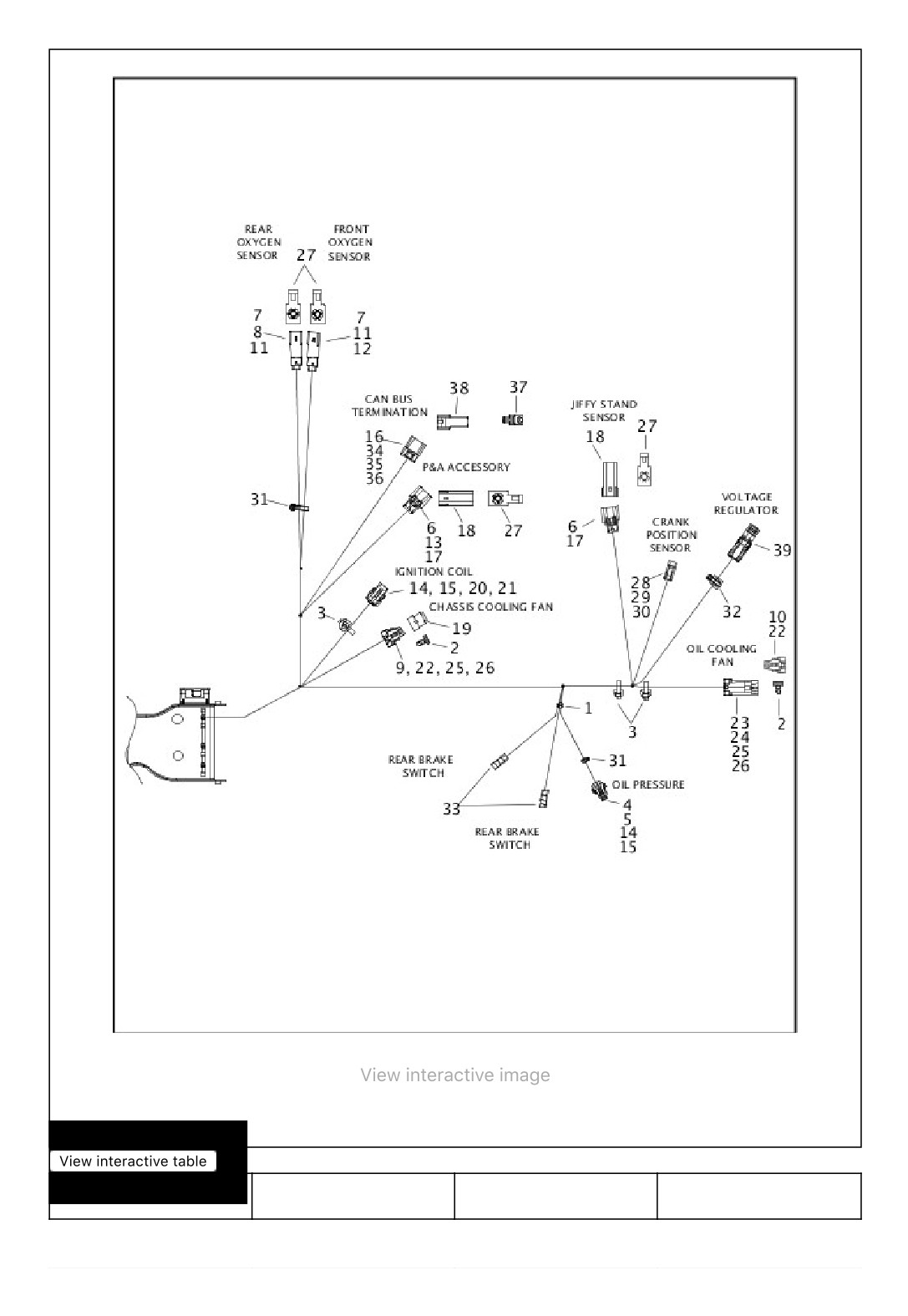

WIRING HARNESS, MAIN, NON-ABS - FLHR (7 OF 8)
407/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
408/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201126
MAIN WIRING HARNESS
FLHR
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP
FLHR
2
10147
CLIP, connector (2)
FLHR
3
10177
CABLE STRAP, anchored
FLHR
(3)
4
72065-06A
HOUSING, three-way
FLHR
socket (black)
5
72127-06
SECONDARY LOCK,
FLHR
three-way socket
6
72168-07
TERMINAL, socket, 18-
FLHR
20 AWG (5)
7
72169-07
TERMINAL, pin, 16-20
FLHR
AWG (4)
8
72175-07BK
HOUSING, four-way pin
FLHR
(black)
9
72213-94
TERMINAL, socket, 16-
FLHR
20 AWG (2)
10
72232-96
SEAL PIN (red) (2)
FLHR
11
72343-10
TERMINAL, pin, 16-20
FLHR
AWG (4)
12
72415-07GY
HOUSING, four-way pin
FLHR
(gray)
13
72473-07
SEAL PIN, natural
FLHR
14
72484-08
TERMINAL, socket, 20
FLHR
AWG (6)
15
72486-08
WIRE SEAL, 20 AWG
FLHR
(green) (6)
16
72499-07
WIRE SEAL, 20-22 AWG
FLHR
(green) (2)
17
72512-07BK
HOUSING, three-way
FLHR
socket (black) (2)
409/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72519-09BK
PLUG, weather, three-
FLHR
way socket (2)
19
72533-06
PLUG, weather, two-way
FLHR
pin
20
72544-07
SECONDARY LOCK,
FLHR
three-way socket
21
72589-09
HOUSING, three-way
FLHR
socket (black)
22
72606-08
HOUSING, two-way
FLHR
socket (black) (2)
23
72607-08
HOUSING, two-way pin
FLHR
(black)
24
72608-08
TERMINAL, pin, 16-20
FLHR
AWG (2)
25
72609-08
SECONDARY LOCK,
FLHR
two-way socket (2)
26
72610-08
WIRE SEAL, 18-20 AWG
FLHR
(white) (4)
27
73213-07
RETAINER, anchored (4)
FLHR
28
74112-98BK
HOUSING, two-way
FLHR
socket (black)
29
74152-98
SECONDARY LOCK,
FLHR
two-way socket
30
74191-98
TERMINAL, socket 16-20
FLHR
AWG (2)
31
12500014
CABLE STRAP (2)
FLHR
32
12500018
CABLE STRAP
FLHR
33
69200238
TERMINAL, socket, 20
FLHR
AWG (2)
34
69201396
TERMINAL, socket, 20
FLHR
AWG (2)
35
69201400
HOUSING, two-way
FLHR
socket, (black)
36
69201401
SECONDARY LOCK,
FLHR
two-way socket
410/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
69201404
RETAINER, anchored
FLHR
38
69201405
RESISTOR PACK
FLHR
39
69201423
DC LEAD ASSEMBLY,
FLHR
two-way socket
WIRING HARNESS, MAIN, NON-ABS - FLHR (8 OF 8)
411/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
412/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201126
MAIN WIRING HARNESS
FLHR
- NON-ABS
NOTE: Includes the following parts.
1
6990
WEATHER PLUG, six-
FLHR
way pin
2
10006
CABLE STRAP (2)
FLHR
3
10065
CABLE STRAP (2)
FLHR
4
31586-07
RELAY (2)
FLHR
5
72064-06
HOUSING, three-way
FLHR
socket (black)
6
72081-11
HOUSING, 48-way
FLHR
socket (black)
7
72106-94BK
HOUSING, six-way pin
FLHR
(black) (replaces gray
connector)
8
72146-94
SECONDARY LOCK, six-
FLHR
way pin
9
72169-07
TERMINAL, pin, 16-20
FLHR
AWG (6)
10
72188-07BK
HOUSING, six-way pin
FLHR
(black)
11
72190-94
TERMINAL, pin, 16-18
FLHR
AWG (2)
12
72194-94
TERMINAL, pin, 20 AWG
FLHR
(3)
13
72195-94
SEAL PIN
FLHR
14
72209-11
COVER, wire
FLHR
15
72222-11
TERMINAL, socket, 18-
FLHR
20 AWG (21)
16
72226-11
TERMINAL, socket, 14-
FLHR
16 AWG (3)
17
72227-11
TERMINAL, socket, 18-
FLHR
20 AWG (3)
413/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72256-11
SEAL PIN, 0.6 mm (white)
FLHR
(9)
19
72296-95
TERMINAL, socket, 14-
FLHR
16 AWG (2)
20
72298-95
WIRE SEAL, 14-18 AWG
FLHR
(green) (2)
21
72299-95
SEAL PIN, green (4)
FLHR
22
72308-97
TERMINAL, socket, 12-
FLHR
14 AWG (3)
23
72330-95
FUSE, 15 A (blue)
FLHR
24
72331-95
FUSE, 5 A (tan) (2)
FLHR
25
72345-02
FUSE, 20 A (yellow) (2)
FLHR
26
72350-11
HOUSING, one-way
FLHR
socket (black)
27
72356-95
TERMINAL, socket, 18-
FLHR
20 AWG (15)
28
72412-97
WIRE SEAL, 12-14 AWG
FLHR
(gray) (3)
29
72484-08
TERMINAL, socket, 20
FLHR
AWG (3)
30
72486-08
WIRE SEAL, 20 AWG
FLHR
(green) (3)
31
72575-11
SECONDARY LOCK,
FLHR
one-way socket
32
73213-07
RETAINER, anchored
FLHR
33
73301-04
HOUSING, two-way pin
FLHR
(black)
34
73303-04
SECONDARY LOCK,
FLHR
two-way socket
35
73304-04
TERMINAL, socket, 10
FLHR
AWG (3)
36
73305-04
WIRE SEAL, 10 AWG
FLHR
(blue) (3)
414/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
11100115
CLOTH, HARNESS
FLHR
WRAP, 50 m (not shown)
38
69200194
FUSE BLOCK, 24-way
FLHR
39
69200199
WIRE SEAL, 18-20 AWG
FLHR
(purple) (15)
40
69200212
HARNESS, battery
FLHR
tender
41
69200293
FUSE, 7.5 A (brown) (2)
FLHR
42
69200312
SECONDARY LOCK,
FLHR
fuse block (3)
43
69200336
MAIN FUSE, 50 A (red),
FLHR
NOTE: Fuse is sold
separately and is not part
of main harness
44
69201130
WIRE HARNESS, battery
FLHR
positive to starter, with
73304-04, 73305-04 and
69201307
45
69201307
BOOT, battery positive
FLHR
46
69201411
COVER, fuse block
FLHR

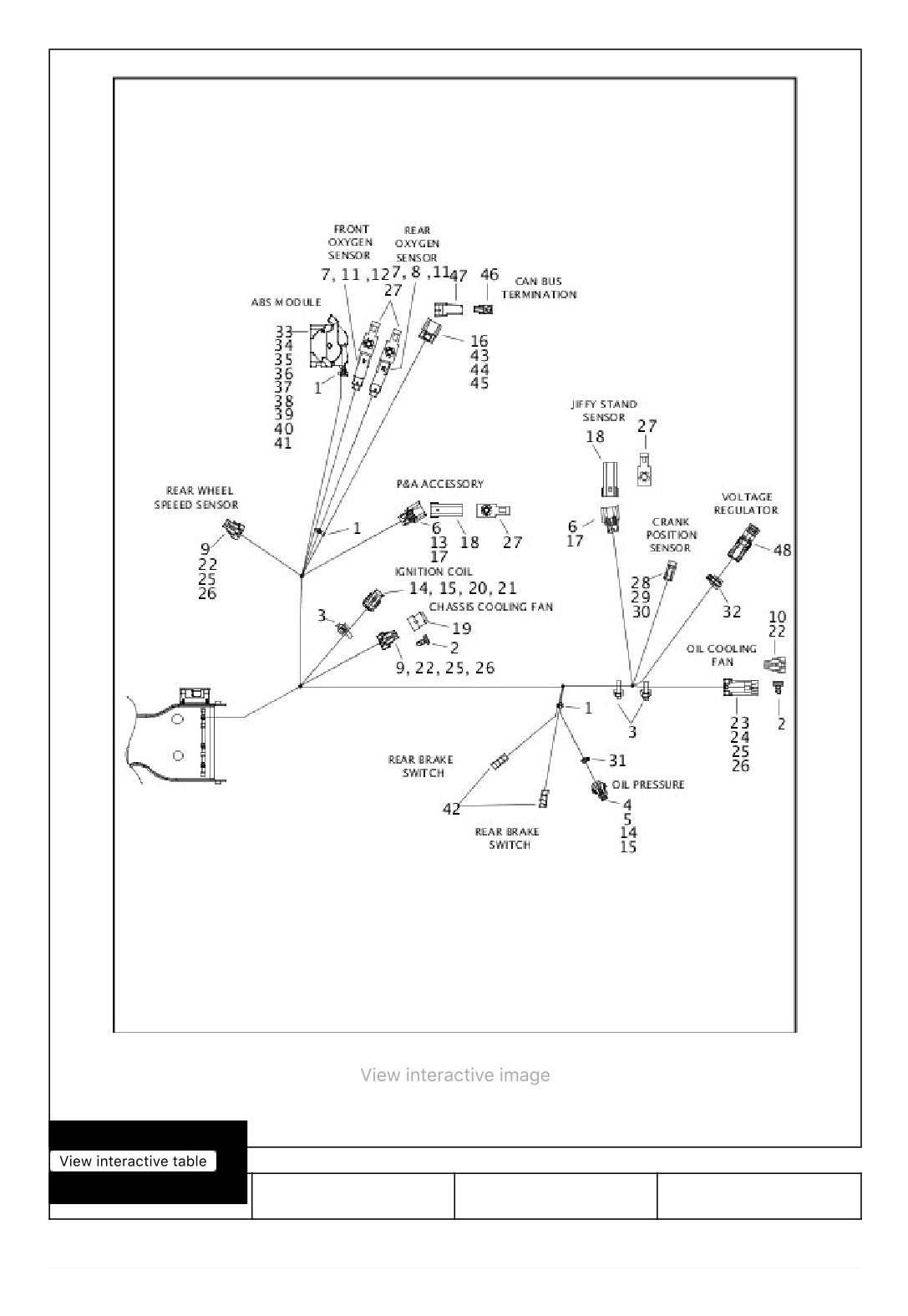

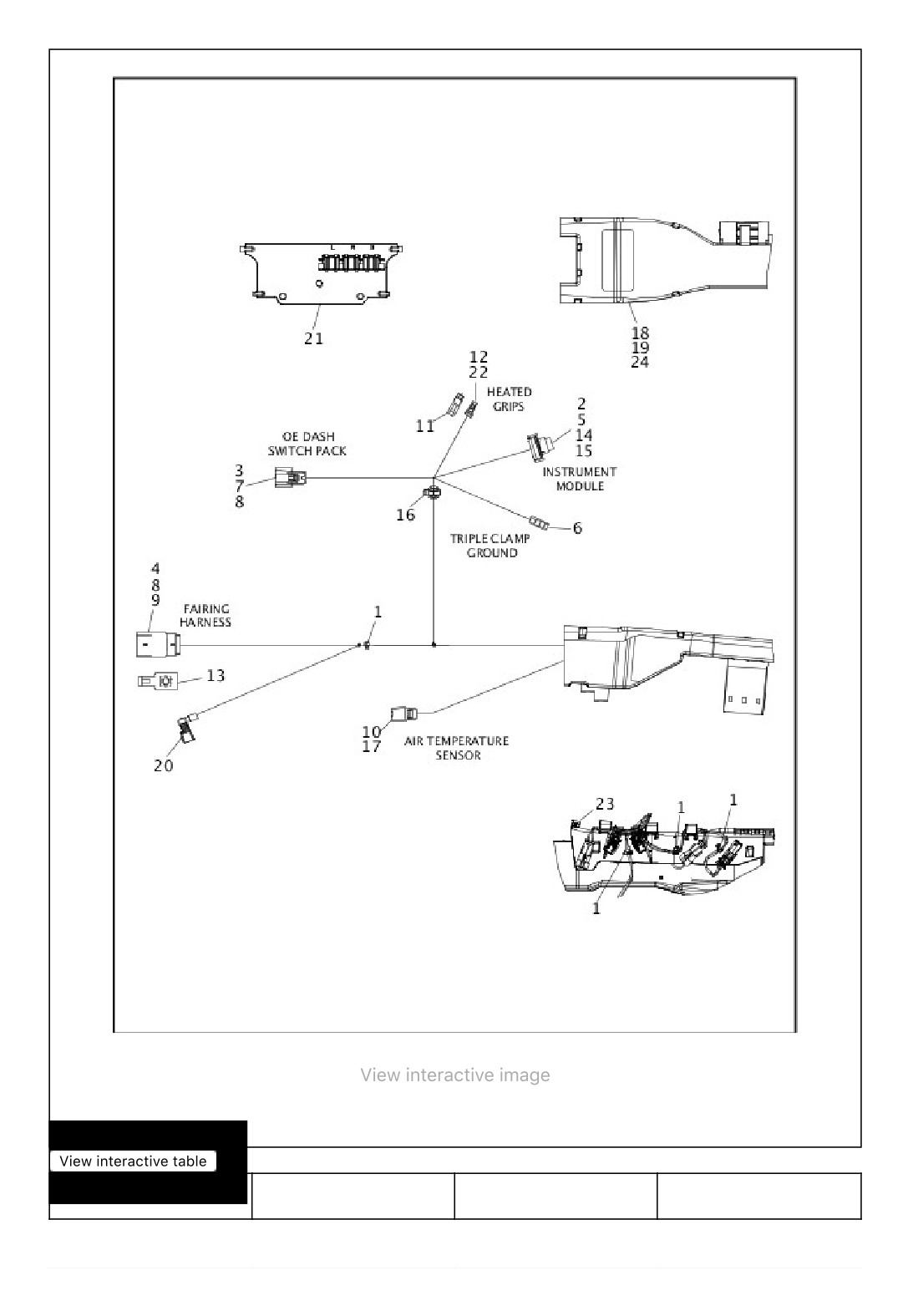

WIRING HARNESS, MAIN, ABS - FLHR, FLHRC AND FLHRXS (1 OF 8)
415/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
416/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201122
MAIN WIRING HARNESS
FLHR, FLHRC, FLHRXS
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (6)
FLHR, FLHRC, FLHRXS
2
70291-89
HOUSING, four-way pin
FLHR, FLHRC, FLHRXS
3
72039-71A
TERMINAL, pin (3)
FLHR, FLHRC, FLHRXS
4
72364-06
TERMINAL, socket 10-14
FLHR, FLHRC, FLHRXS
AWG
5
72907-11
HOUSING, four-way pin
FLHR, FLHRC, FLHRXS
(black)
6
72909-11
TERMINAL, pin, 20-22
FLHR, FLHRC, FLHRXS
AWG (4)
7
72914-01BK
HOUSING, four-way
FLHR, FLHRC, FLHRXS
socket (black)
8
72991-01
TERMINAL, socket 18-22
FLHR, FLHRC, FLHRXS
AWG (3)
9
73104-96BK
HOUSING, four-way pin
FLHR, FLHRC, FLHRXS
(black)
10
73106-96BK
HOUSING, six-way pin
FLHR, FLHRC, FLHRXS
(black)
11
73190-96
TERMINAL, pin, 16-20
FLHR, FLHRC, FLHRXS
AWG (8)
12
69200202A
WIRE TROUGH
FLHR, FLHRC, FLHRXS
13
69200203A
COVER, wire trough, with
FLHR, FLHRC, FLHRXS
15368-01A and
69201459
14
69200284A
BRACKET, mounting
FLHR, FLHRC, FLHRXS
15
69201163
HOUSING, six-way pin
FLHR, FLHRC, FLHRXS
(black)
16
69201164
TERMINAL, pin, 22 AWG
FLHR, FLHRC, FLHRXS
(6)
17
69201287
BRACKET, mounting,
FLHR, FLHRC, FLHRXS
electrical connector
18
69201459
BRACKET
FLHR, FLHRC, FLHRXS
417/956

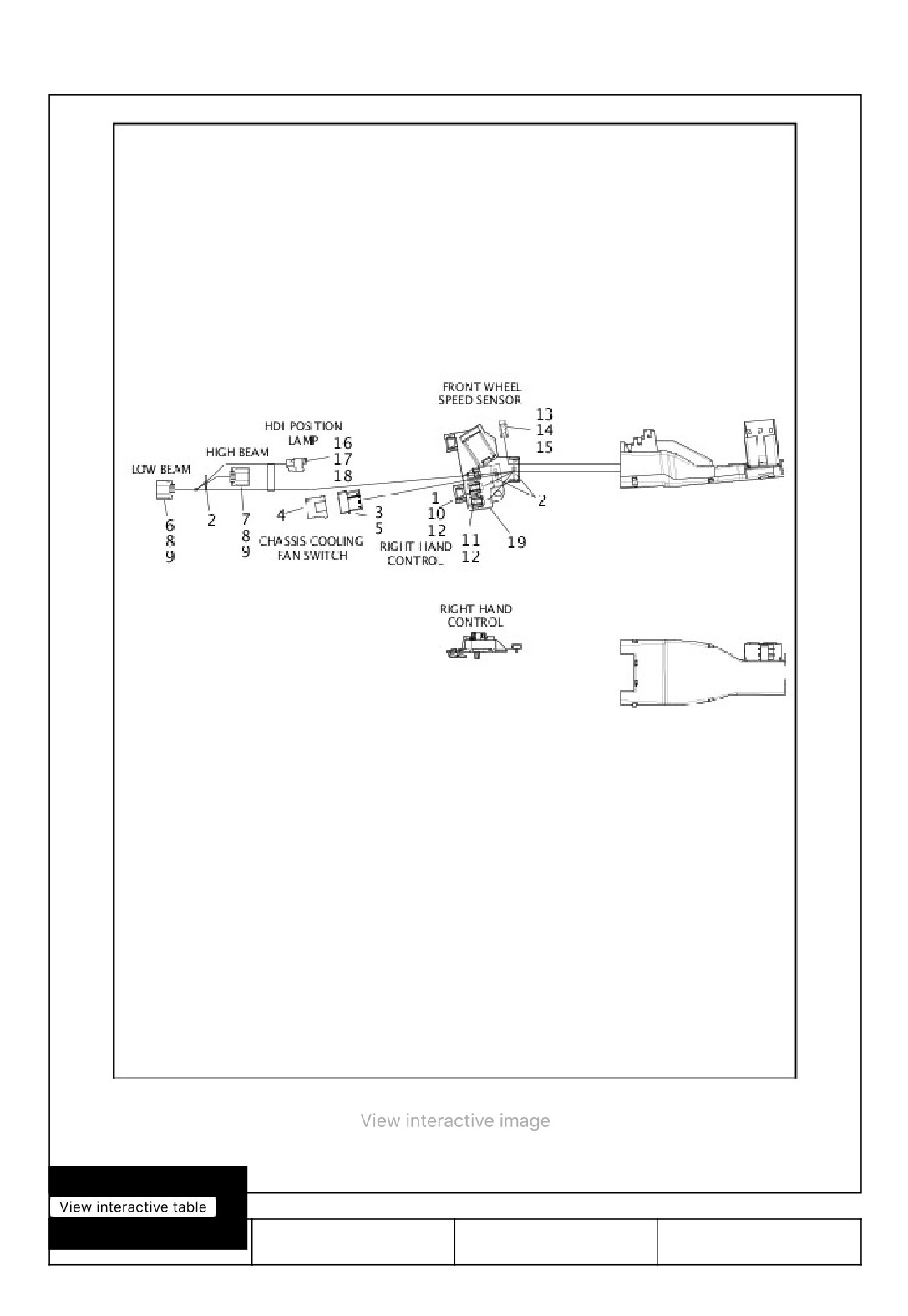

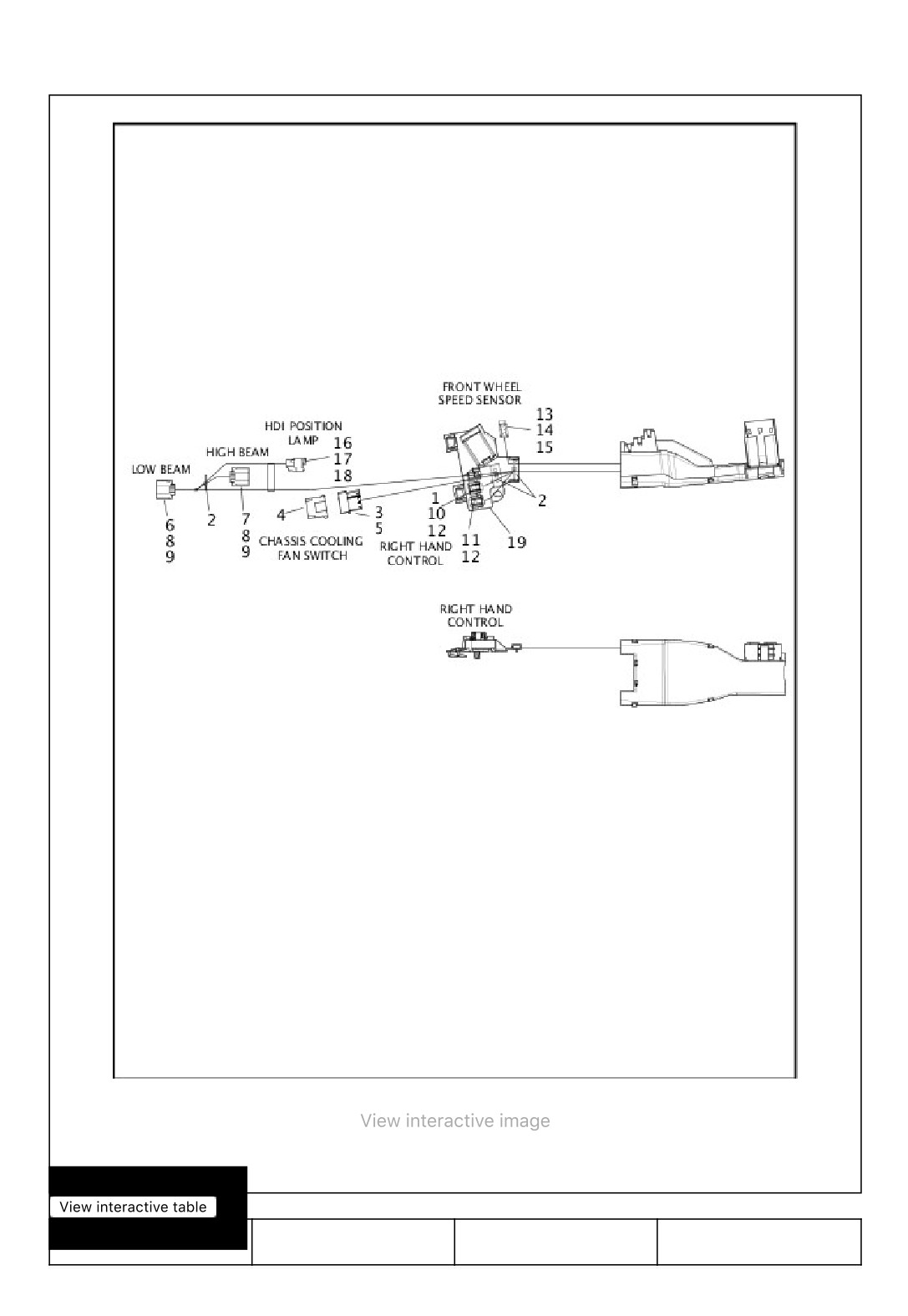

WIRING HARNESS, MAIN, ABS - FLHR, FLHRC AND FLHRXS (2 OF 8)
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
418/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201122
MAIN WIRING HARNESS
FLHR, FLHRC, FLHRXS
- ABS
NOTE: Includes the following parts.
1
5118
SEAL PIN
FLHR, FLHRC, FLHRXS
2
10065
CABLE STRAP (3)
FLHR, FLHRC, FLHRXS
3
70291-89
HOUSING, four-way pin
FLHR, FLHRC, FLHRXS
4
70292-89
HOUSING, four-way
FLHR, FLHRC, FLHRXS
socket
5
72039-71A
TERMINAL, pin (2)
FLHR, FLHRC, FLHRXS
6
72449-01
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (black)
7
72450-01
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (gray)
8
72527-01
TERMINAL, socket, 18-
FLHR, FLHRC, FLHRXS
20 AWG (4)
9
72633-02
WIRE SEAL, 14-16 AWG
FLHR, FLHRC, FLHRXS
(white) (4)
10
72905-11
HOUSING, two-way pin
FLHR, FLHRC, FLHRXS
(black)
11
72907-11
HOUSING, four-way pin
FLHR, FLHRC, FLHRXS
(black)
12
72909-11
TERMINAL, pin, 20-22
FLHR, FLHRC, FLHRXS
AWG (5)
13
74112-98BK
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (black)
14
74152-98
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
two-way socket
15
74191-98
TERMINAL, socket 16-20
FLHR, FLHRC, FLHRXS
AWG (2)
16
69200220
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (black)
17
69200221
TERMINAL, socket, 18-
FLHR, FLHRC, FLHRXS
20 AWG (2)
419/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
69200222
WIRE SEAL, 16 AWG
FLHR, FLHRC, FLHRXS
(green) (2)
19
69200285
BRACKET, mounting
FLHR, FLHRC, FLHRXS

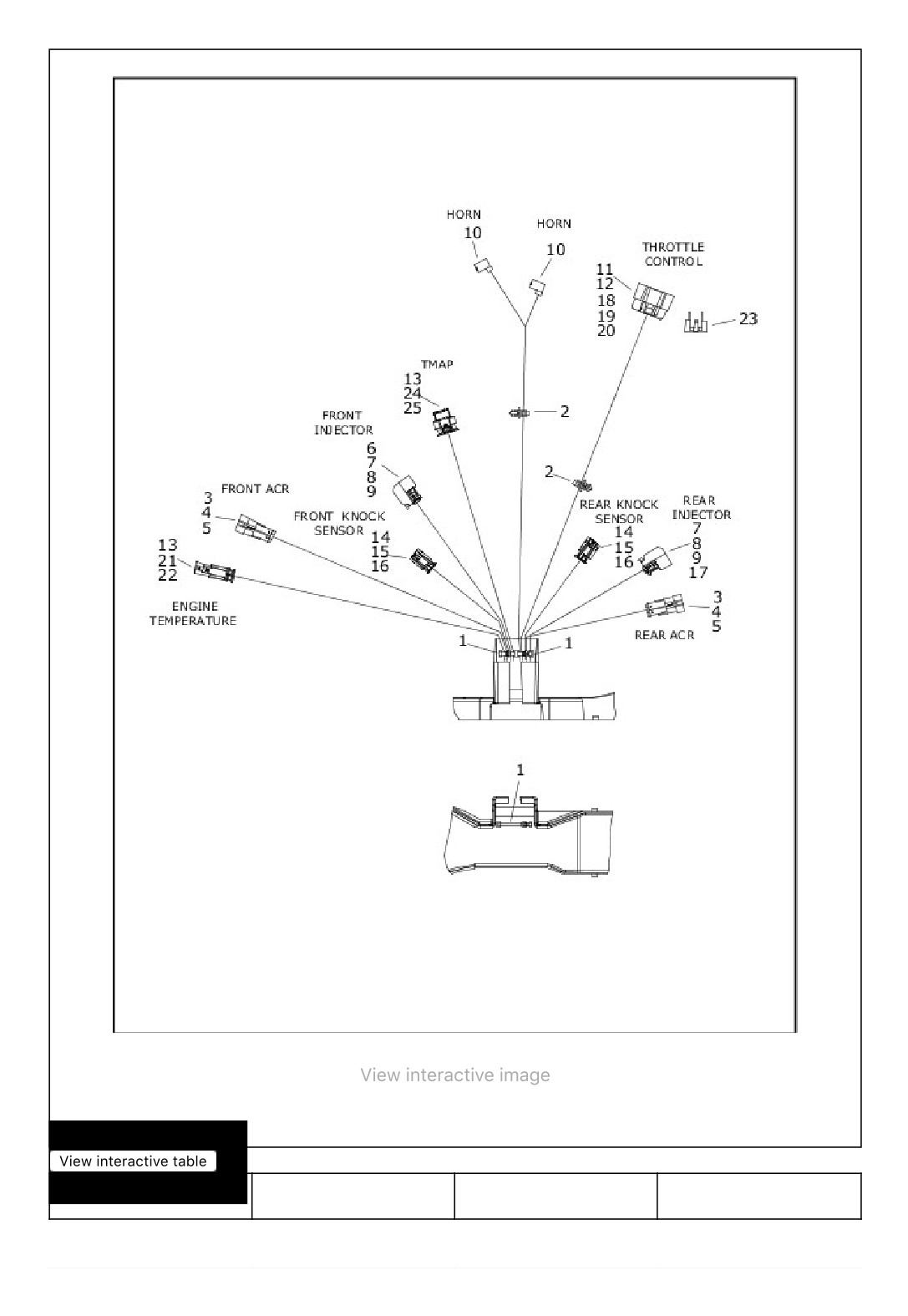

WIRING HARNESS, MAIN, ABS - FLHR, FLHRC AND FLHRXS (3 OF 8)
420/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
421/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201122
MAIN WIRING HARNESS
FLHR, FLHRC, FLHRXS
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHR, FLHRC, FLHRXS
2
10177
CABLE STRAP, anchored
FLHR, FLHRC, FLHRXS
(2)
3
72008-05
TERMINAL, pin, 20-22
FLHR, FLHRC, FLHRXS
AWG (4)
4
72009-05
HOUSING, two-way pin
FLHR, FLHRC, FLHRXS
(black) (2)
5
72010-05
WIRE SEAL, 22-26 AWG
FLHR, FLHRC, FLHRXS
(green) (4)
6
72098-06
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (gray)
7
72099-06
WIRE SEAL, 16-18 AWG
FLHR, FLHRC, FLHRXS
(blue) (4)
8
72110-06
TERMINAL, socket, 16-
FLHR, FLHRC, FLHRXS
18 AWG (4)
9
72145-06
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
two-way socket (2)
10
72283-09
TERMINAL, socket, 14-
FLHR, FLHRC, FLHRXS
16 AWG, 90 degree (2)
11
72499-07
WIRE SEAL, 20-22 AWG
FLHR, FLHRC, FLHRXS
(green) (6)
12
72569-08
TERMINAL, socket, 20-
FLHR, FLHRC, FLHRXS
22 AWG (2)
13
69201301
WIRE SEAL, 20-22 AWG
FLHR, FLHRC, FLHRXS
(green) (6)
14
69201390
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (black) (2)
15
69201391
TERMINAL, socket, 20
FLHR, FLHRC, FLHRXS
AWG (4)
16
69201392
WIRE SEAL, 20 AWG
FLHR, FLHRC, FLHRXS
(yellow) (4)
422/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
69201393
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (black)
18
69201394
HOUSING, six-way
FLHR, FLHRC, FLHRXS
socket (black)
19
69201395
SECONDARY LOCK, six-
FLHR, FLHRC, FLHRXS
way socket
20
69201396
TERMINAL, socket, 20
FLHR, FLHRC, FLHRXS
AWG (4)
21
69201397
HOUSING, two-way pin
FLHR, FLHRC, FLHRXS
(gray)
22
69201398
TERMINAL, pin, 20 AWG
FLHR, FLHRC, FLHRXS
(2)
23
69201416
SECONDARY LOCK, six-
FLHR, FLHRC, FLHRXS
way socket
24
69201441
HOUSING, four-way
FLHR, FLHRC, FLHRXS
socket
25
69201442
TERMINAL, socket, 18
FLHR, FLHRC, FLHRXS
AWG (4)
WIRING HARNESS, MAIN, ABS - FLHR, FLHRC AND FLHRXS (4 OF 8)
423/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
424/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201122
MAIN WIRING HARNESS
FLHR, FLHRC, FLHRXS
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHR, FLHRC, FLHRXS
2
10147
CLIP, connector
FLHR, FLHRC, FLHRXS
3
72213-94
TERMINAL, socket, 16-
FLHR, FLHRC, FLHRXS
20 AWG (2)
4
72518-01
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (red)
5
72533-06
PLUG, weather, two-way
FLHR, FLHRC, FLHRXS
pin
6
72609-08
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
two-way socket
7
72610-08
WIRE SEAL, 18-20 AWG
FLHR, FLHRC, FLHRXS
(white) (2)
8
72664-12A
HOUSING, 18-way
FLHR, FLHRC, FLHRXS
socket (black)
9
72666-12
TERMINAL, socket, 18-
FLHR, FLHRC, FLHRXS
20 AWG (43)
10
72720-07
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (black)
11
72721-07
TERMINAL, socket, 18-
FLHR, FLHRC, FLHRXS
20 AWG (2)
12
69201168
TERMINAL, socket, 22
FLHR, FLHRC, FLHRXS
AWG (2)
13
69201415
HOUSING, 18-way
FLHR, FLHRC, FLHRXS
socket (brown)
14
69201440
HOUSING, 18-way
FLHR, FLHRC, FLHRXS
socket (gray)

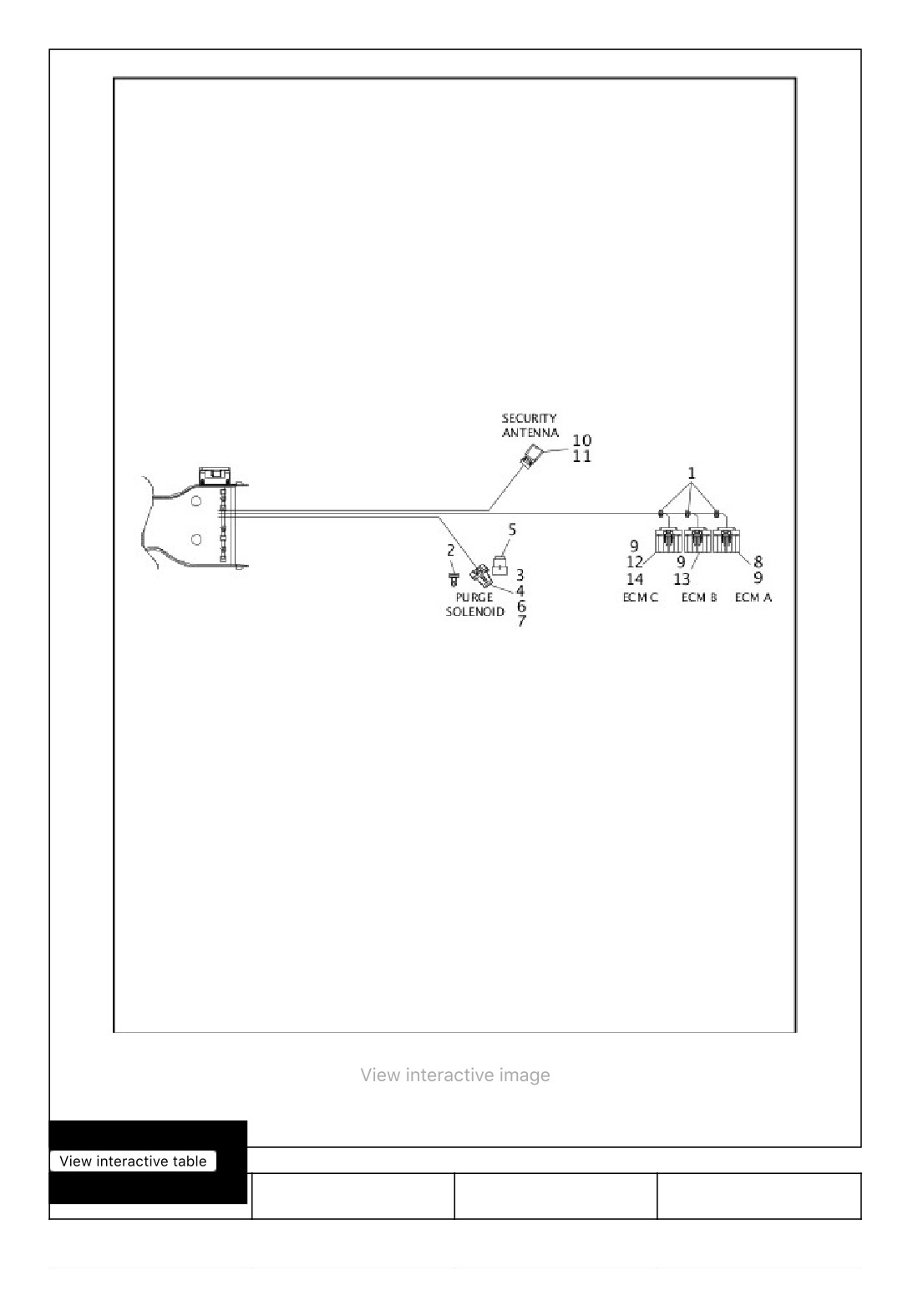

WIRING HARNESS, MAIN, ABS - FLHR, FLHRC AND FLHRXS (5 OF 8)
425/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
426/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201122
MAIN WIRING HARNESS
FLHR, FLHRC, FLHRXS
- ABS
NOTE: Includes the following parts.
1
9819
TERMINAL, ring, 12 AWG
FLHR, FLHRC, FLHRXS
(2)
2
72169-07
TERMINAL, pin, 16-20
FLHR, FLHRC, FLHRXS
AWG (8)
3
72249-94
HEAT SHRINK TUBE,
FLHR, FLHRC, FLHRXS
.415 x 1 in (black)
4
72478-07BK
HOUSING, eight-way pin
FLHR, FLHRC, FLHRXS
(black)
5
73213-07
RETAINER, anchored
FLHR, FLHRC, FLHRXS
6
73213-07
TERMINAL, ring, 8-10
FLHR, FLHRC, FLHRXS
AWG

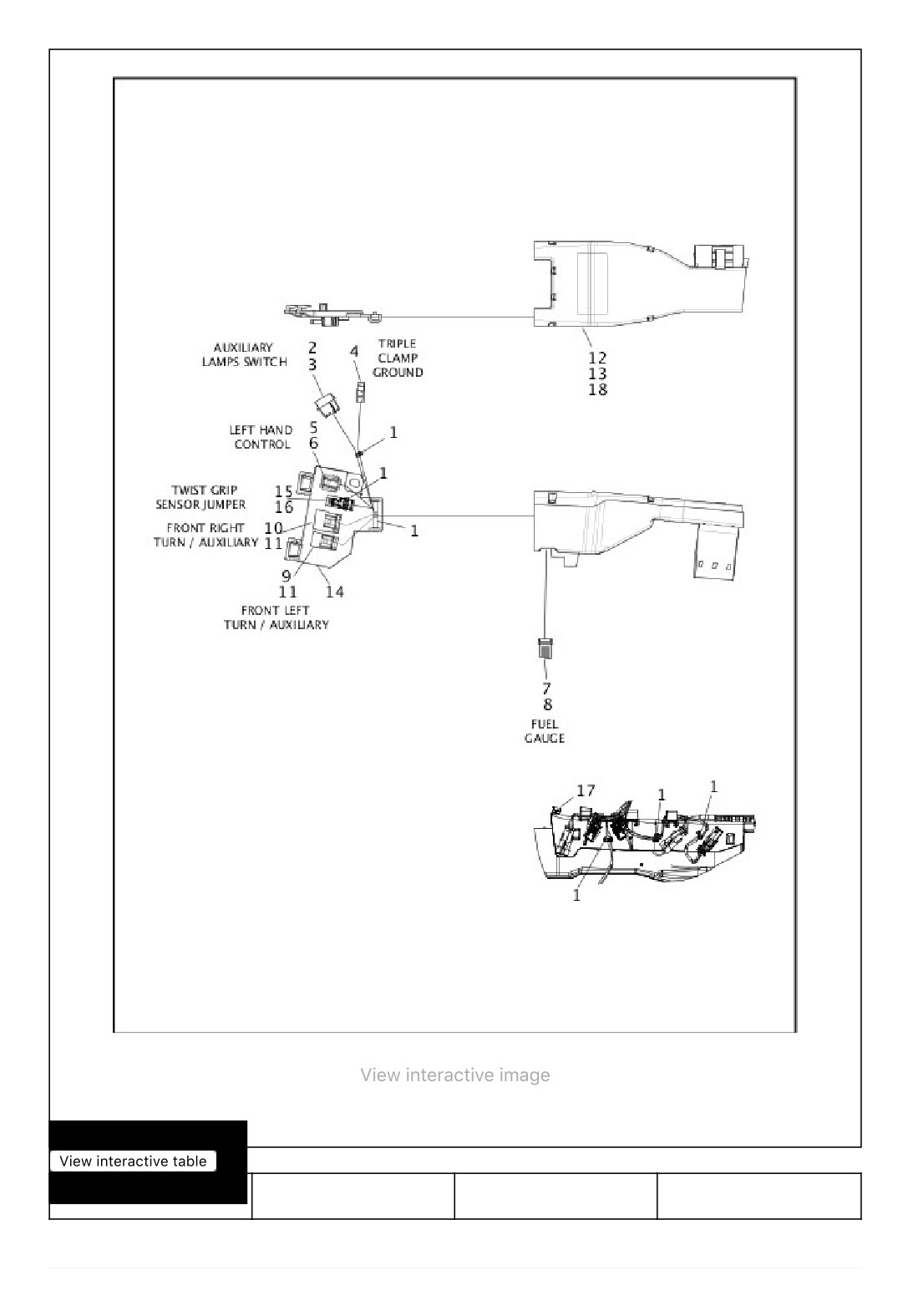

WIRING HARNESS, MAIN, ABS - FLHR, FLHRC AND FLHRXS (6 OF 8)
427/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
428/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201122
MAIN WIRING HARNESS
FLHR, FLHRC, FLHRXS
- ABS
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLHR, FLHRC, FLHRXS
2
10065
CABLE STRAP (4)
FLHR, FLHRC, FLHRXS
3
11779
FASTENER, push-in
FLHR, FLHRC, FLHRXS
(black) (2)
4
72291-94
TERMINAL, socket, 14-
FLHR, FLHRC, FLHRXS
16 AWG
5
72295-94
CONNECTOR, starter
FLHR, FLHRC, FLHRXS
housing
6
72405-98BK
WIRE ASSEMBLY, push-
FLHR, FLHRC, FLHRXS
on, right angle molded,
65-1/2 in length (black)
(3)
7
72484-08
TERMINAL, socket, 20
FLHR, FLHRC, FLHRXS
AWG (3)
8
72486-08
WIRE SEAL, 20 AWG
FLHR, FLHRC, FLHRXS
(green) (3)
9
72543-07BK
HOUSING, three-way
FLHR, FLHRC, FLHRXS
socket (black)
10
72544-07
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
three-way socket
11
69200175
CADDY, fuse block,
FLHR, FLHRC, FLHRXS
electrical panel

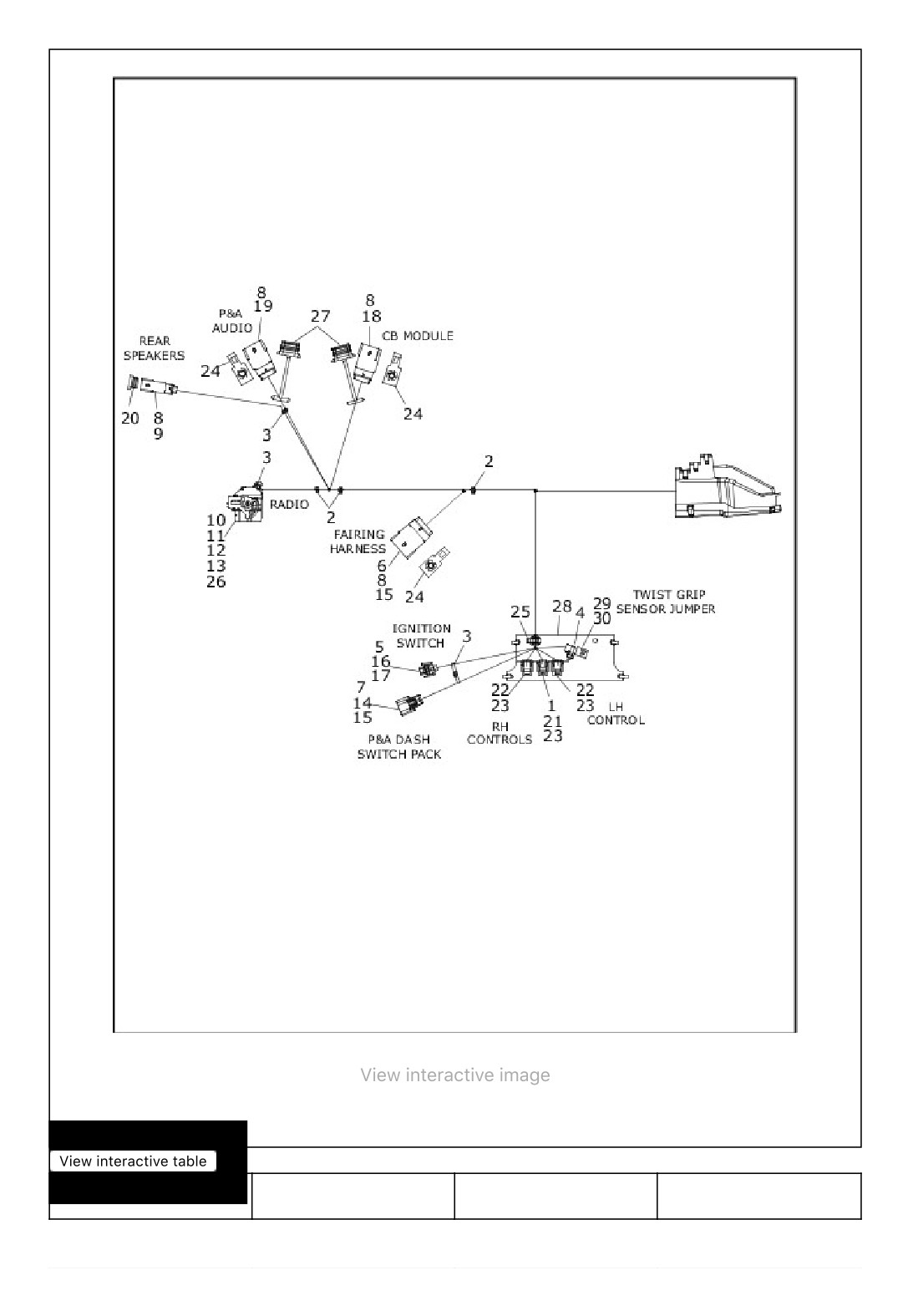

WIRING HARNESS, MAIN, ABS - FLHR, FLHRC AND FLHRXS (7 OF 8)
429/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
430/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201122
MAIN WIRING HARNESS
FLHR, FLHRC, FLHRXS
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHR, FLHRC, FLHRXS
2
10147
CLIP, connector (2)
FLHR, FLHRC, FLHRXS
3
10177
CABLE STRAP, anchored
FLHR, FLHRC, FLHRXS
(3)
4
72065-06A
HOUSING, three-way
FLHR, FLHRC, FLHRXS
socket (black)
5
72127-06
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
three-way socket
6
72168-07
TERMINAL, socket, 18-
FLHR, FLHRC, FLHRXS
20 AWG (5)
7
72169-07
TERMINAL, pin, 16-20
FLHR, FLHRC, FLHRXS
AWG (4)
8
72175-07BK
HOUSING, four-way pin
FLHR, FLHRC, FLHRXS
(black)
9
72213-94
TERMINAL, socket, 16-
FLHR, FLHRC, FLHRXS
20 AWG (4)
10
72232-96
SEAL PIN (red) (2)
FLHR, FLHRC, FLHRXS
11
72343-10
TERMINAL, pin, 16-20
FLHR, FLHRC, FLHRXS
AWG (4)
12
72415-07GY
HOUSING, four-way pin
FLHR, FLHRC, FLHRXS
(gray)
13
72473-07
SEAL PIN, natural
FLHR, FLHRC, FLHRXS
14
72484-08
TERMINAL, socket, 20
FLHR, FLHRC, FLHRXS
AWG (6)
15
72486-08
WIRE SEAL, 20 AWG
FLHR, FLHRC, FLHRXS
(green) (6)
16
72499-07
WIRE SEAL, 20-22 AWG
FLHR, FLHRC, FLHRXS
(green) (2)
17
72512-07BK
HOUSING, three-way
FLHR, FLHRC, FLHRXS
socket (black) (2)
431/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72519-09BK
PLUG, weather, three-
FLHR, FLHRC, FLHRXS
way socket (2)
19
72533-06
PLUG, weather, two-way
FLHR, FLHRC, FLHRXS
pin
20
72544-07
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
three-way socket
21
72589-09
HOUSING, three-way
FLHR, FLHRC, FLHRXS
socket (black)
22
72606-08
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (black) (3)
23
72607-08
HOUSING, two-way pin
FLHR, FLHRC, FLHRXS
(black)
24
72608-08
TERMINAL, pin, 16-20
FLHR, FLHRC, FLHRXS
AWG (2)
25
72609-08
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
two-way socket (3)
26
72610-08
WIRE SEAL, 18-20 AWG
FLHR, FLHRC, FLHRXS
(white) (6)
27
73213-07
RETAINER, anchored (4)
FLHR, FLHRC, FLHRXS
28
74112-98BK
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket (black)
29
74152-98
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
two-way socket
30
74191-98
TERMINAL, socket 16-20
FLHR, FLHRC, FLHRXS
AWG (2)
31
12500014
CABLE STRAP
FLHR, FLHRC, FLHRXS
32
12500018
CABLE STRAP
FLHR, FLHRC, FLHRXS
33
69200183
HOUSING, 26-way
FLHR, FLHRC, FLHRXS
socket
34
69200184
COVER, wire
FLHR, FLHRC, FLHRXS
35
69200185
TERMINAL, socket, 20
FLHR, FLHRC, FLHRXS
AWG (6)
36
69200186
TERMINAL, socket, 14-
FLHR, FLHRC, FLHRXS
16 AWG (2)
432/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
69200187
TERMINAL, socket, 12
FLHR, FLHRC, FLHRXS
AWG (2)
38
69200188
WIRE SEAL, 20 AWG (6)
FLHR, FLHRC, FLHRXS
39
69200189
WIRE SEAL, 14-16 AWG
FLHR, FLHRC, FLHRXS
(2)
40
69200190
WIRE SEAL, 12 AWG (2)
FLHR, FLHRC, FLHRXS
41
69200191
SEAL PIN (16)
FLHR, FLHRC, FLHRXS
42
69200238
TERMINAL, socket, 20
FLHR, FLHRC, FLHRXS
AWG (2)
43
69201396
TERMINAL, socket, 20
FLHR, FLHRC, FLHRXS
AWG (2)
44
69201400
HOUSING, two-way
FLHR, FLHRC, FLHRXS
socket, (black)
45
69201401
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
two-way socket
46
69201404
CONNECTOR, anchored
FLHR, FLHRC, FLHRXS
47
69201405
RESISTOR PACK
FLHR, FLHRC, FLHRXS
48
69201423
DC LEAD ASSEMBLY,
FLHR, FLHRC, FLHRXS
two-way socket
WIRING HARNESS, MAIN, ABS - FLHR, FLHRC AND FLHRXS (8 OF 8)
433/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
434/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201122
MAIN WIRING HARNESS
FLHR, FLHRC, FLHRXS
- ABS
NOTE: Includes the following parts.
1
6990
PLUG, weather, six-way
FLHR, FLHRC, FLHRXS
pin
2
10006
CABLE STRAP (2)
FLHR, FLHRC, FLHRXS
3
10065
CABLE STRAP (2)
FLHR, FLHRC, FLHRXS
4
31586-07
RELAY (2)
FLHR, FLHRC, FLHRXS
5
72064-06
HOUSING, three-way
FLHR, FLHRC, FLHRXS
socket (black)
6
72081-11
HOUSING, 48-way
FLHR, FLHRC, FLHRXS
socket (black)
7
72106-94BK
HOUSING, six-way pin
FLHR, FLHRC, FLHRXS
(black) (replaces gray
connector)
8
72146-94
SECONDARY LOCK, six-
FLHR, FLHRC, FLHRXS
way pin
9
72169-07
TERMINAL, pin, 16-20
FLHR, FLHRC, FLHRXS
AWG (6)
10
72188-07BK
HOUSING, six-way pin
FLHR, FLHRC, FLHRXS
(black)
11
72190-94
TERMINAL, pin, 16-18
FLHR, FLHRC, FLHRXS
AWG (2)
12
72194-94
TERMINAL, pin, 20 AWG
FLHR, FLHRC, FLHRXS
(3)
13
72195-94
SEAL PIN
FLHR, FLHRC, FLHRXS
14
72209-11
COVER, wire
FLHR, FLHRC, FLHRXS
15
72222-11
TERMINAL, socket, 18-
FLHR, FLHRC, FLHRXS
20 AWG (21)
16
72226-11
TERMINAL, socket, 14-
FLHR, FLHRC, FLHRXS
16 AWG (3)
17
72227-11
TERMINAL, socket, 18-
FLHR, FLHRC, FLHRXS
20 AWG (3)
435/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72256-11
SEAL PIN, 0.6 mm (white)
FLHR, FLHRC, FLHRXS
(9)
19
72296-95
TERMINAL, socket, 14-
FLHR, FLHRC, FLHRXS
16 AWG (2)
20
72298-95
WIRE SEAL, 14-18 AWG
FLHR, FLHRC, FLHRXS
(green) (2)
21
72299-95
SEAL PIN (green) (4)
FLHR, FLHRC, FLHRXS
22
72308-97
TERMINAL, socket, 12-
FLHR, FLHRC, FLHRXS
14 AWG (3)
23
72330-95
FUSE, 15 A (blue)
FLHR, FLHRC, FLHRXS
24
72331-95
FUSE, 5 A (tan) (2)
FLHR, FLHRC, FLHRXS
25
72345-02
FUSE, 20 A (yellow) (2)
FLHR, FLHRC, FLHRXS
26
72350-11
HOUSING, one-way
FLHR, FLHRC, FLHRXS
socket (black)
27
72356-95
TERMINAL, socket, 18-
FLHR, FLHRC, FLHRXS
20 AWG (15)
28
72412-97
WIRE SEAL, 12-14 AWG
FLHR, FLHRC, FLHRXS
(gray) (3)
29
72484-08
TERMINAL, socket, 20
FLHR, FLHRC, FLHRXS
AWG (3)
30
72486-08
WIRE SEAL, 20 AWG
FLHR, FLHRC, FLHRXS
(green) (3)
31
72575-11
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
one-way socket
32
73213-07
RETAINER, anchored
FLHR, FLHRC, FLHRXS
33
73301-04
HOUSING, two-way pin
FLHR, FLHRC, FLHRXS
(black)
34
73303-04
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
two-way socket
35
73304-04
TERMINAL, socket, 10
FLHR, FLHRXS
AWG (3)
36
73305-04
WIRE SEAL, 10 AWG
FLHR, FLHRC, FLHRXS
(blue) (3)
436/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
11100115
CLOTH, HARNESS
FLHR, FLHRC, FLHRXS
WRAP, 50 m (not shown)
38
69200194
FUSE BLOCK, 24-way
FLHR, FLHRC, FLHRXS
39
69200199
WIRE SEAL, 18-20 AWG
FLHR, FLHRC, FLHRXS
(purple) (15)
40
69200212
HARNESS, battery
FLHR, FLHRC, FLHRXS
tender
41
69200293
FUSE, 7.5 A (brown) (2)
FLHR, FLHRC, FLHRXS
42
69200312
SECONDARY LOCK,
FLHR, FLHRC, FLHRXS
fuse block (3)
43
69200336
MAIN FUSE, 50 A (red),
FLHR, FLHRC, FLHRXS
NOTE: Fuse is sold
separately and is not part
of main harness
44
69201130
WIRE HARNESS, battery
FLHR, FLHRC, FLHRXS
positive to starter, with
73304-04, 73305-04 and
69201307
45
69201307
BOOT, battery positive
FLHR, FLHRC, FLHRXS
46
69201411
COVER, fuse block
FLHR, FLHRC, FLHRXS
WIRING HARNESS, MAIN, NON-ABS - FLTRX (1 OF 8)
437/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
438/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201127A
MAIN WIRING HARNESS
FLTRX
- NON-ABS
NOTE: Includes the following parts.
1
10006
CABLE STRAP (4)
FLTRX
2
72130-04
HOUSING, 12-way
FLTRX
socket (black)
3
72168-07
TERMINAL, socket, 18-
FLTRX
20 AWG (5)
4
72169-07
TERMINAL, pin, 16-20
FLTRX
AWG (8)
5
72189-04
SEAL PIN (6)
FLTRX
6
72364-06
TERMINAL, socket, 10-
FLTRX
14 AWG
7
72414-07BK
HOUSING, six-way
FLTRX
socket (black)
8
72473-07
SEAL PIN, natural (5)
FLTRX
9
72490-07GY
HOUSING, 12-way pin
FLTRX
(gray)
10
72721-07
TERMINAL, socket, 18-
FLTRX
20 AWG (2)
11
72902-01BK
HOUSING, two-way pin
FLTRX
(black)
12
72912-01BK
HOUSING, two-way
FLTRX
socket (black)
13
73213-07
RETAINER, anchored
FLTRX
14
74196-04
TERMINAL, socket, 20
FLTRX
AWG (6)
15
74197-04
SECONDARY LOCK, 12-
FLTRX
way socket
16
12500002
CABLE STRAP
FLTRX
17
69200201
HOUSING, two-way
FLTRX
socket (black)
18
69200202A
WIRE TROUGH
FLTRX
439/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
19
69200203A
COVER, wire trough, with
FLTRX
15368-01A and
69201459
20
69200629
WIRE HARNESS, AM/FM
FLTRX
antenna
21
69200700
CADDY
FLTRX
22
69201240
TERMINAL, socket, 18
FLTRX
AWG (2)
23
69201287
BRACKET, mounting,
FLTRX
electrical connector
24
69201459
BRACKET
FLTRX
WIRING HARNESS, MAIN, NON-ABS - FLTRX (2 OF 8)
440/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
441/956
