Harley Davidson SIP Parts Catalog 4/5/2019: touring models - page 9
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72227-11
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (5)
19
72256-11
SEAL PIN, 0.6 MM
FLHT, FLHX
(white) (9)
20
72296-95
TERMINAL, socket, 14-
FLHT, FLHX
16 AWG (3)
21
72298-95
WIRE SEAL, 14-18 AWG
FLHT, FLHX
(green) (3)
22
72299-95
SEAL PIN, green (2)
FLHT, FLHX
23
72308-97
TERMINAL, socket, 12-
FLHT, FLHX
14 AWG (5)
24
72330-95
FUSE, 15 A (blue)
FLHT, FLHX
25
72331-95
FUSE, 5 A (tan) (2)
FLHT, FLHX
26
72345-02
FUSE, 20 A (yellow) (3)
FLHT, FLHX
27
72350-11
HOUSING, one-way
FLHT, FLHX
socket (black)
28
72356-95
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (14)
29
72412-97
WIRE SEAL, 12-14 AWG
FLHT, FLHX
(gray) (5)
30
72484-08
TERMINAL, socket, 20
FLHT, FLHX
AWG (3)
31
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHX
(green) (3)
32
72575-11
SECONDARY LOCK,
FLHT, FLHX
one-way socket
33
72632-10
PLUG, weather, four-way
FLHT, FLHX
pin
34
73213-07
RETAINER, anchored
FLHT, FLHX
35
73301-04
HOUSING, two-way pin
FLHT, FLHX
(black)
36
73303-04
SECONDARY LOCK,
FLHT, FLHX
two-way socket
322/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
73304-04
TERMINAL, socket, 10
FLHT, FLHX
AWG (3)
38
73305-04
WIRE SEAL, 10 AWG
FLHT, FLHX
(blue) (3)
39
11100115
CLOTH, HARNESS
FLHT, FLHX
WRAP, 50 m (not shown)
40
69200194
FUSE BLOCK, 24-way
FLHT, FLHX
41
69200199
WIRE SEAL, 18-20 AWG
FLHT, FLHX
(purple) (14)
42
69200212
HARNESS, battery
FLHT, FLHX
tender
43
69200293
FUSE, 7.5 A (brown) (2)
FLHT, FLHX
44
69200312
SECONDARY LOCK,
FLHT, FLHX
fuse block (3)
45
69200336
MAIN FUSE, 50 A (red),
FLHT, FLHX
NOTE: Fuse is sold
separately and is not part
of main harness
46
69201130
WIRE HARNESS, battery
FLHT, FLHX
positive to starter, with
73304-04, 73305-04 and
69201307
47
69201307
BOOT, battery positive
FLHT, FLHX
48
69201411
COVER, fuse block
FLHT, FLHX

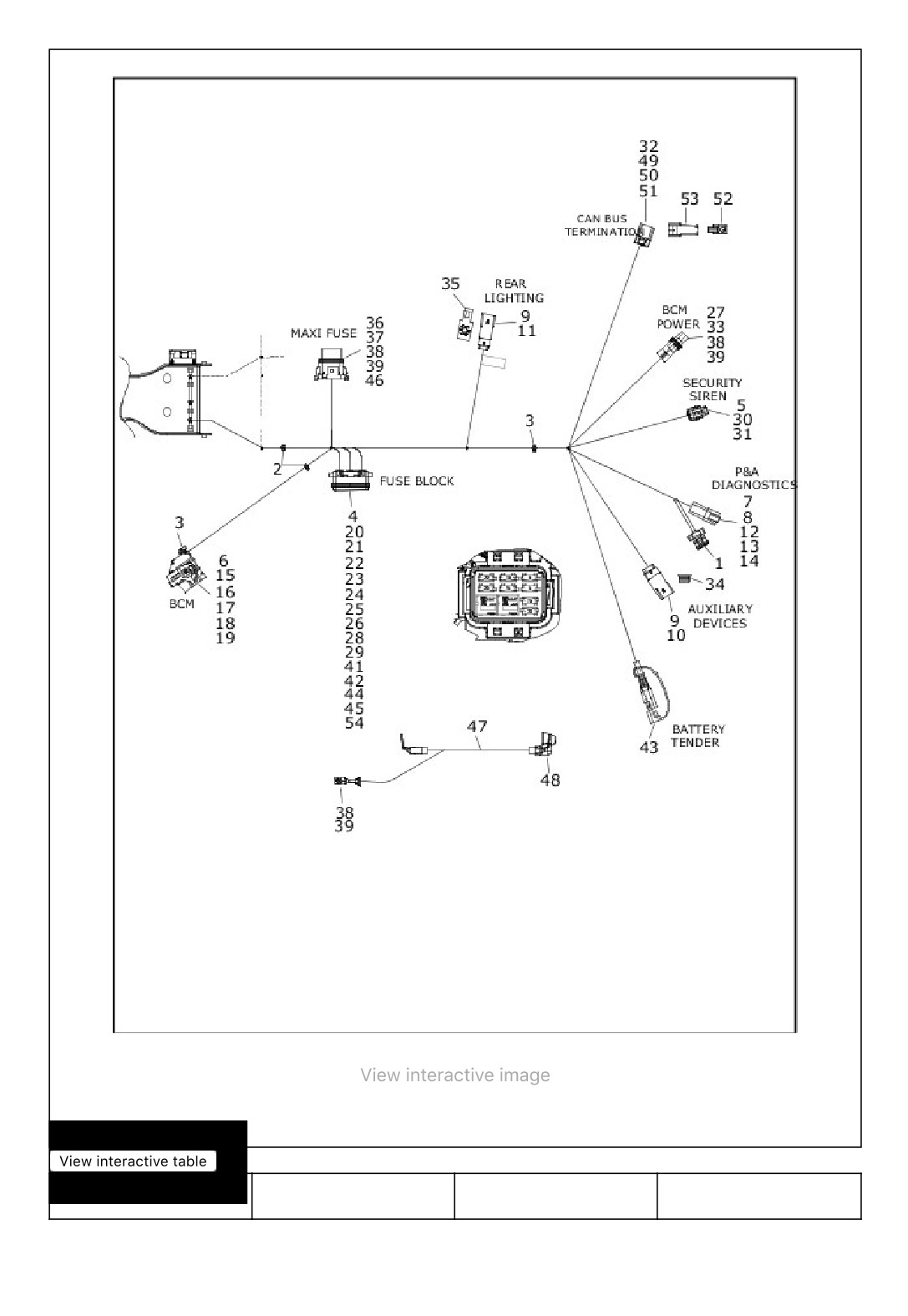

WIRING HARNESS, MAIN, ABS - FLHT, FLHX, FLHXS (1 OF 8)
323/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
324/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201121A
MAIN WIRING HARNESS
FLHT, FLHX, FLHXS
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (7)
FLHT, FLHX, FLHXS
2
72168-07
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (7)
3
72272-07
TERMINAL, socket, 14-
FLHT, FLHX, FLHXS
16 AWG (4)
4
72364-06
TERMINAL, socket, 10-
FLHT, FLHX, FLHXS
14 AWG
5
72414-07BK
HOUSING, six-way
FLHT, FLHX, FLHXS
socket (black)
6
72473-07
SEAL PIN, natural (7)
FLHT, FLHX, FLHXS
7
72489-07GY
HOUSING, 12-way
FLHT, FLHX, FLHXS
socket (gray)
8
72721-07
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (2)
9
69200201
HOUSING, two-way
FLHT, FLHX, FLHXS
socket (black)
10
69200202A
WIRE TROUGH
FLHT, FLHX, FLHXS
11
69200203A
COVER, wire trough, with
FLHT, FLHX, FLHXS
15368-01A and
69201459
12
69200214
CADDY, left steer head
FLHT, FLHX, FLHXS
13
69200294
CABLE, AM/FM antenna
FLHT, FLHX, FLHXS
14
69201287
BRACKET, mounting,
FLHT, FLHX, FLHXS
electrical connector
15
69201459
BRACKET
FLHT, FLHX, FLHXS
WIRING HARNESS, MAIN, ABS - FLHT, FLHX, FLHXS (2 OF 8)
325/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
69202354
PLUG, weather
FLHT
326/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201121A
MAIN WIRING HARNESS
FLHT, FLHX, FLHXS
- ABS
NOTE: Includes the following parts.
2
10006
CABLE STRAP (2)
FLHT, FLHX, FLHXS
3
10065
CABLE STRAP (6)
FLHT, FLHX, FLHXS
4
10177
CABLE STRAP, anchored
FLHT, FLHX, FLHXS
(2)
5
72062-06
HOUSING, two-way
FLHT, FLHX, FLHXS
socket (gray)
6
72166-07BK
HOUSING, 16-way
FLHT, FLHX, FLHXS
socket (black)
7
72168-07
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (16)
8
72169-07
TERMINAL, pin, 16-20
FLHT, FLHX, FLHXS
AWG (28)
9
72175-07BK
HOUSING, four-way pin
FLHT, FLHX, FLHXS
(black)
10
72209-11
COVER, wire
FLHT, FLHX, FLHXS
11
72213-94
TERMINAL, socket, 16-
FLHT, FLHX, FLHXS
20 AWG (2)
12
72222-11
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (26)
13
72226-11
TERMINAL, socket, 14-
FLHT, FLHX, FLHXS
16 AWG (8)
14
72256-11
SEAL PIN, 0.6 mm (white)
FLHT, FLHX, FLHXS
(14)
15
72414-07BK
HOUSING, six-way
FLHT, FLHX, FLHXS
socket (black)
16
72473-07
SEAL PIN, natural (6)
FLHT, FLHX, FLHXS
17
72484-08
TERMINAL, socket, 20
FLHT, FLHX, FLHXS
AWG (2)
18
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHX, FLHXS
(green) (2)
327/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
19
72488-07BK
HOUSING, 12-way pin
FLHT, FLHX, FLHXS
(black)
20
72490-07GY
HOUSING, 12-way pin
FLHT, FLHX, FLHXS
(gray)
21
72606-08
HOUSING, two-way
FLHT, FLHX, FLHXS
socket (black)
22
72610-08
WIRE SEAL, 18-20 AWG
FLHT, FLHX, FLHXS
(white) (2)
23
72632-10
PLUG, weather, four-way
FLHT, FLHX, FLHXS
pin
24
72639-10
SECONDARY LOCK,
FLHT, FLHX, FLHXS
two-way socket
25
73213-07
RETAINER, anchored (2)
FLHT, FLHX, FLHXS
26
69200193
HOUSING, 48-way
FLHT, FLHX, FLHXS
socket (black)
27
69200205
PLUG, weather, 12-way
FLHT, FLHX, FLHXS
pin (2)
28
69200215
CADDY, right steer head
FLHT, FLHX, FLHXS
29
69201163
HOUSING, six-way pin
FLHT, FLHX, FLHXS
(black)
30
69201164
TERMINAL, pin, 22 AWG
FLHT, FLHX, FLHXS
(6)
WIRING HARNESS, MAIN, ABS - FLHT, FLHX, FLHXS (3 OF 8)
328/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
329/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201121A
MAIN WIRING HARNESS
FLHT, FLHX, FLHXS
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHT, FLHX, FLHXS
2
10177
CABLE STRAP, anchored
FLHT, FLHX, FLHXS
(2)
3
72008-05
TERMINAL, pin, 20-22
FLHT, FLHX, FLHXS
AWG (4)
4
72009-05
HOUSING, two-way pin
FLHT, FLHX, FLHXS
(black) (2)
5
72010-05
WIRE SEAL, 22-26 AWG
FLHT, FLHX, FLHXS
(green) (4)
6
72098-06
HOUSING, two-way
FLHT, FLHX, FLHXS
socket (gray)
7
72099-06
WIRE SEAL, 16-18 AWG
FLHT, FLHX, FLHXS
(blue) (4)
8
72110-06
TERMINAL, socket, 16-
FLHT, FLHX, FLHXS
18 AWG (4)
9
72145-06
SECONDARY LOCK,
FLHT, FLHX, FLHXS
two-way socket (2)
10
72283-09
TERMINAL, socket, 14-
FLHT, FLHX, FLHXS
16 AWG, 90 degree (2)
11
72499-07
WIRE SEAL, 20-22 AWG
FLHT, FLHX, FLHXS
(green) (6)
12
72569-08
TERMINAL, socket, 20-
FLHT, FLHX, FLHXS
22 AWG (2)
13
69201301
WIRE SEAL, 20-22 AWG
FLHT, FLHX, FLHXS
(green) (6)
14
69201390
HOUSING, two-way
FLHT, FLHX, FLHXS
socket (black) (2)
15
69201391
TERMINAL, socket, 20
FLHT, FLHX, FLHXS
AWG (4)
16
69201392
WIRE SEAL, 20 AWG
FLHT, FLHX, FLHXS
(blue) (4)
330/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
69201393
HOUSING, two-way
FLHT, FLHX, FLHXS
socket (black)
18
69201394
HOUSING, six-way
FLHT, FLHX, FLHXS
socket (black)
19
69201395
SECONDARY LOCK, six-
FLHT, FLHX, FLHXS
way socket
20
69201396
TERMINAL, socket, 20
FLHT, FLHX, FLHXS
AWG (4)
21
69201397
HOUSING, two-way pin
FLHT, FLHX, FLHXS
(gray)
22
69201398
TERMINAL, pin, 20 AWG
FLHT, FLHX, FLHXS
(2)
23
69201416
SECONDART LOCK, six-
FLHT, FLHX, FLHXS
way socket
24
69201441
HOUSING, four-way
FLHT, FLHX, FLHXS
socket
25
69201442
TERMINAL, socket, 18
FLHT, FLHX, FLHXS
AWG (4)

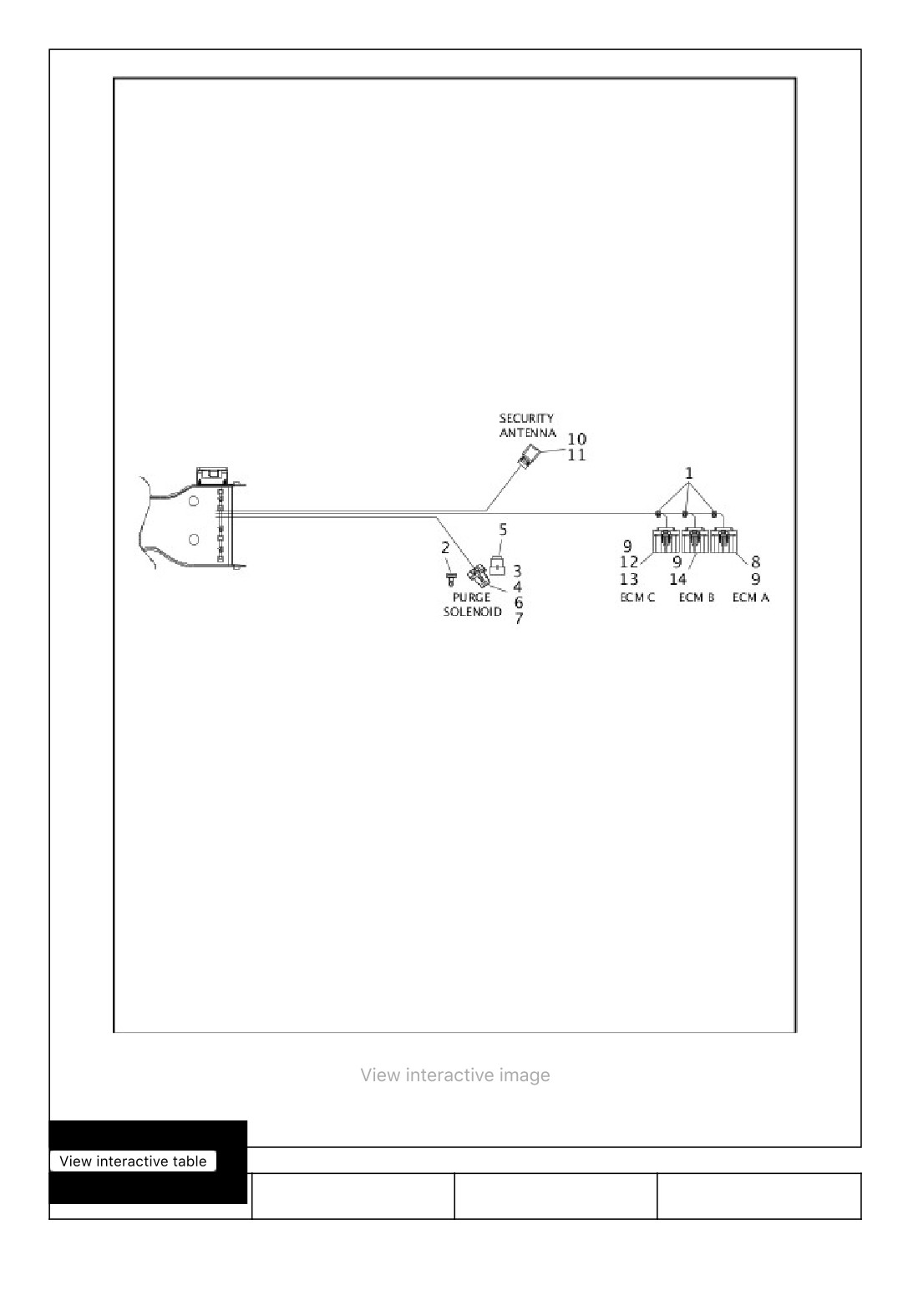

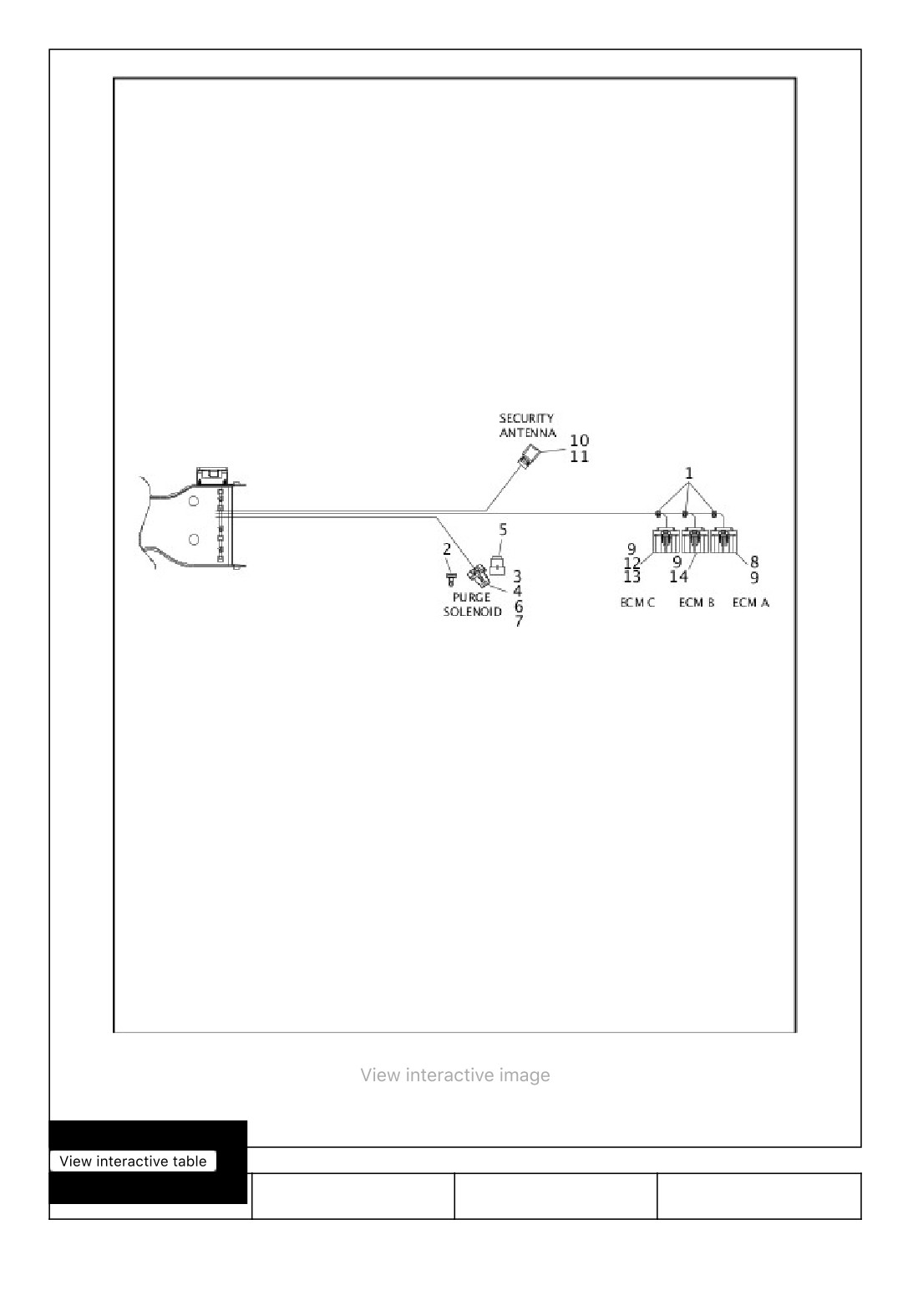

WIRING HARNESS, MAIN, ABS - FLHT, FLHX, FLHXS (4 OF 8)
331/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
332/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201121A
MAIN WIRING HARNESS
FLHT, FLHX, FLHXS
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHT, FLHX, FLHXS
2
10147
CLIP, connector
FLHT, FLHX, FLHXS
3
72213-94
TERMINAL, socket, 16-
FLHT, FLHX, FLHXS
20 AWG (2)
4
72518-01
HOUSING, two-way
FLHT, FLHX, FLHXS
socket (red)
5
72533-06
PLUG, weather, two-way
FLHT, FLHX, FLHXS
pin
6
72609-08
SECONDARY LOCK,
FLHT, FLHX, FLHXS
two-way socket
7
72610-08
WIRE SEAL, 18-20 AWG
FLHT, FLHX, FLHXS
(white) (2)
8
72664-12A
HOUSING, 18-way
FLHT, FLHX, FLHXS
socket (black)
9
72666-12
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (43)
10
72720-07
HOUSING, two-way
FLHT, FLHX, FLHXS
socket (black)
11
72721-07
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (2)
12
69201168
TERMINAL, socket, 22
FLHT, FLHX, FLHXS
AWG (2)
13
69201415
HOUSING, 18-way
FLHT, FLHX, FLHXS
socket (brown)
14
69201440
HOUSING, 18-way
FLHT, FLHX, FLHXS
socket (gray)

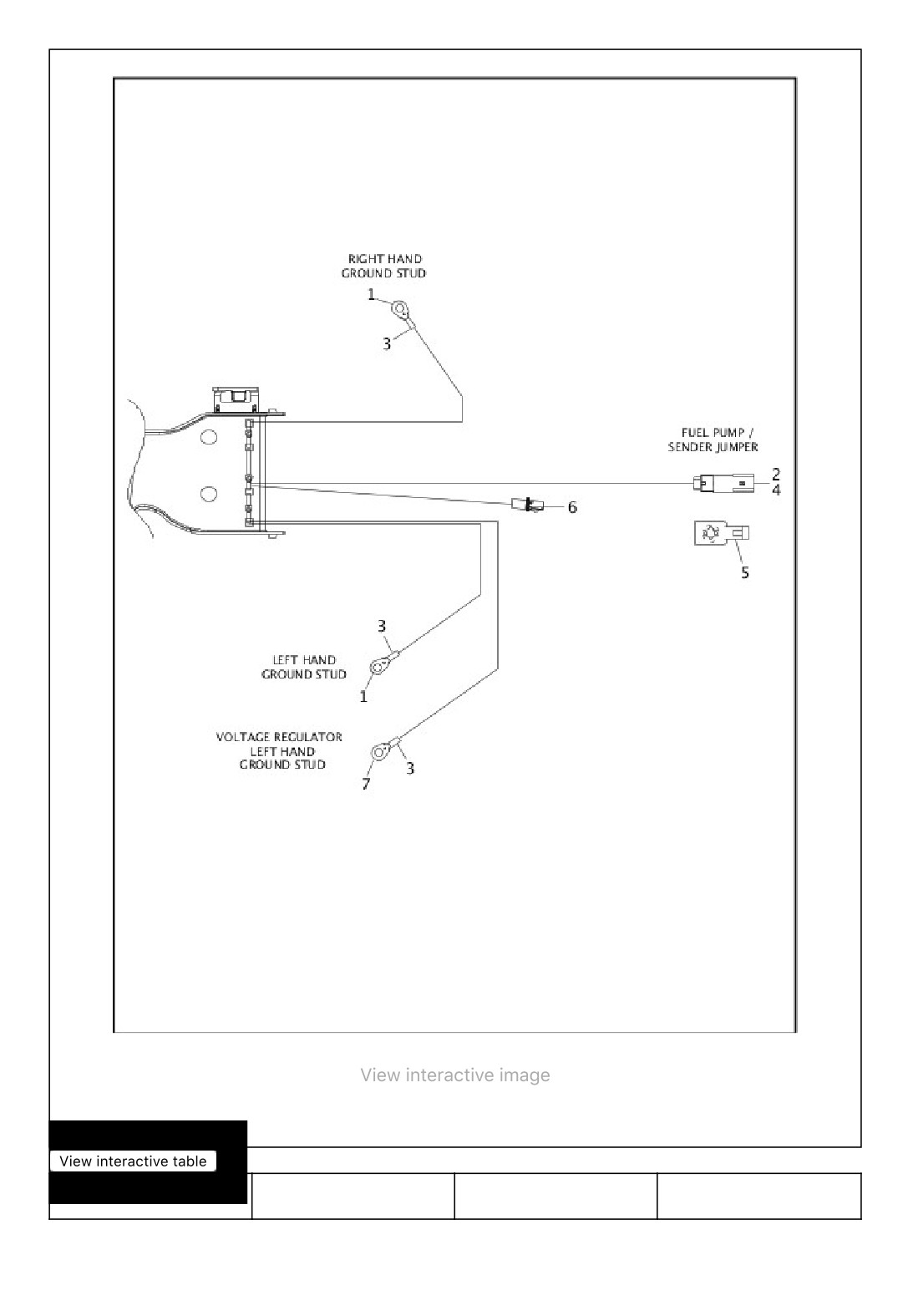

WIRING HARNESS, MAIN, ABS - FLHT, FLHX, FLHXS (5 OF 8)
333/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
334/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201121A
MAIN WIRING HARNESS
FLHT, FLHX, FLHXS
- ABS
NOTE: Includes the following parts.
1
9819
TERMINAL, ring, 12 AWG
FLHT, FLHX, FLHXS
(2)
2
72169-07
TERMINAL, pin, 16-20
FLHT, FLHX, FLHXS
AWG (4)
3
72249-94
HEAT SHRINK TUBE,
FLHT, FLHX, FLHXS
.415 x 1 in (black)
4
72415-07GY
HOUSING, four-way pin
FLHT, FLHX, FLHXS
(gray)
5
73213-07
RETAINER, anchored
FLHT, FLHX, FLHXS
6
69200294
CABLE, AM/FM antenna
FLHT, FLHX, FLHXS
7
69201596
TERMINAL, ring, 8-10
FLHT, FLHX, FLHXS
AWG
WIRING HARNESS, MAIN, ABS - FLHT, FLHX, FLHXS (6 OF 8)
335/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
336/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201121A
MAIN WIRING HARNESS
FLHT, FLHX, FLHXS
- ABS
NOTE: Includes the following parts.
1
3634
SCREW (2)
FLHT, FLHX, FLHXS
2
10006
CABLE STRAP
FLHT, FLHX, FLHXS
3
10065
CABLE STRAP (4)
FLHT, FLHX, FLHXS
4
11779
FASTENER, push-in
FLHT, FLHX, FLHXS
(black) (2)
5
72291-94
TERMINAL, socket, 14-
FLHT, FLHX, FLHXS
16 AWG
6
72295-94
HOUSING, one-way
FLHT, FLHX, FLHXS
socket (white)
7
72405-98BK
WIRE ASSEMBLY, push-
FLHT, FLHX, FLHXS
on, right angle molded,
65-1/2 in length (2)
8
72484-08
TERMINAL, socket, 20
FLHT, FLHX, FLHXS
AWG (3)
9
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHX, FLHXS
(green) (3)
10
72543-07BK
HOUSING, three-way
FLHT, FLHX, FLHXS
socket (black)
11
72544-07
SECONDARY LOCK,
FLHT, FLHX, FLHXS
three-way socket
12
69200175
CADDY, fuse block,
FLHT, FLHX, FLHXS
electrical panel

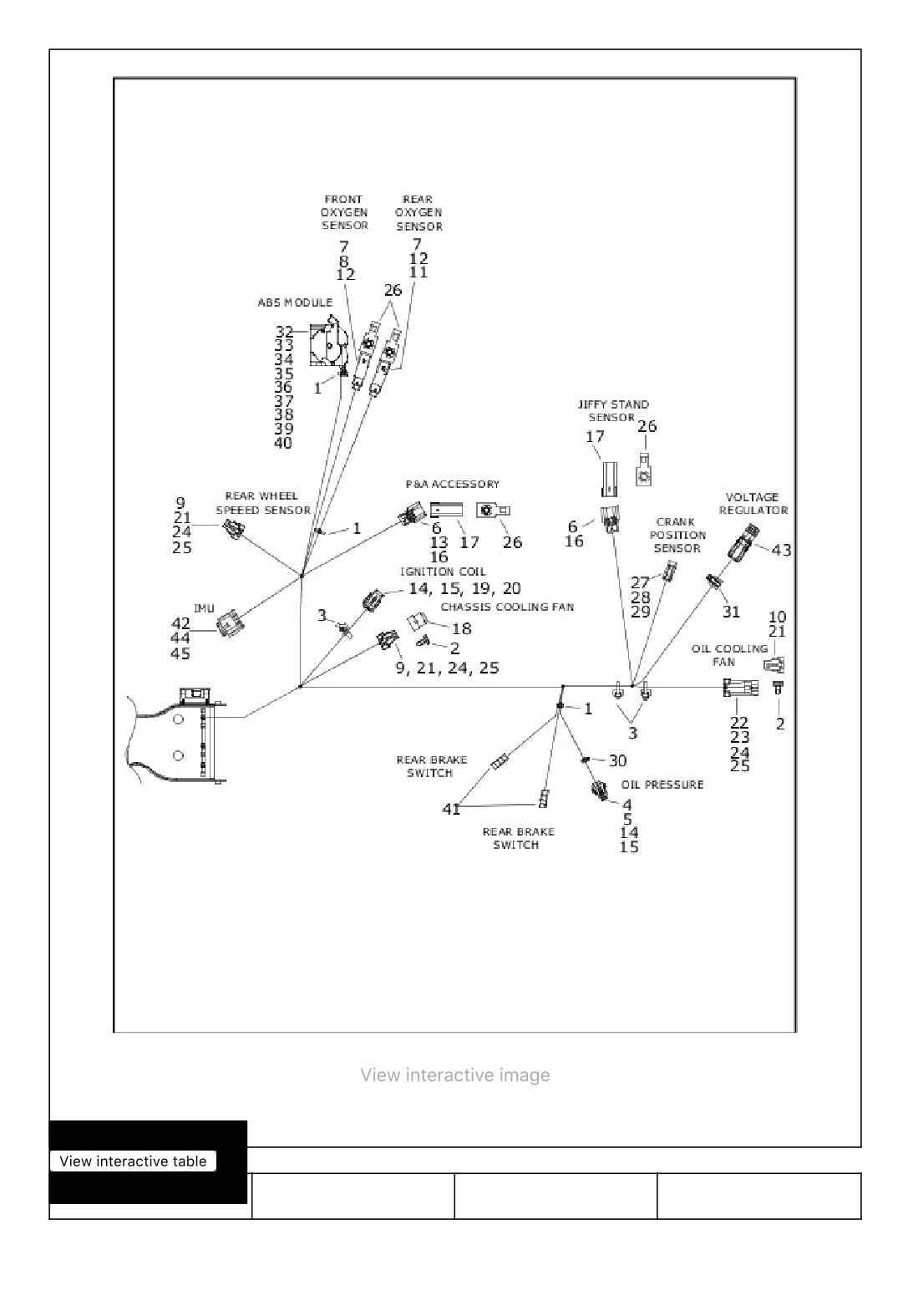

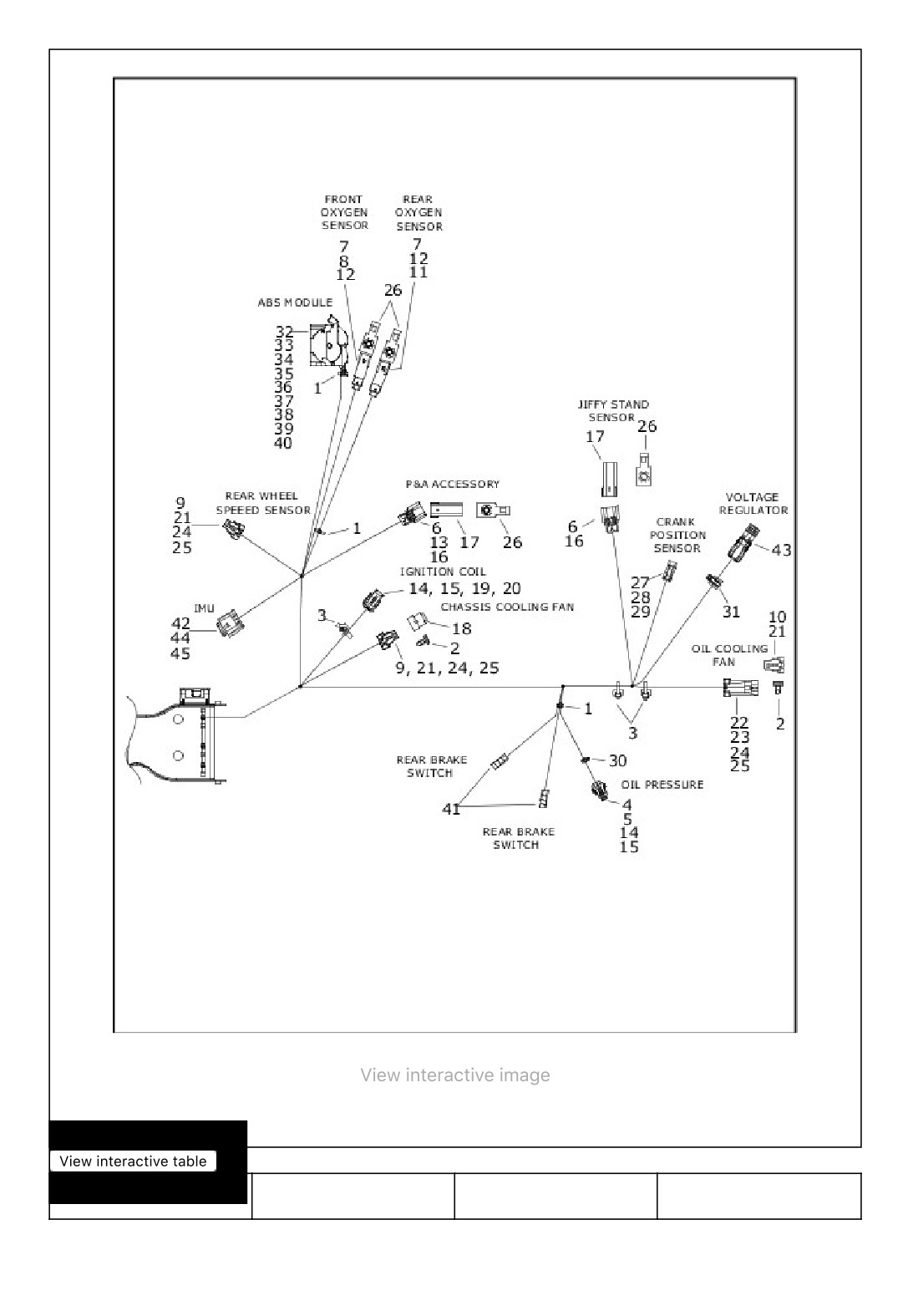

WIRING HARNESS, MAIN, ABS - FLHT, FLHX, FLHXS (7 OF 8)
337/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
338/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201121A
MAIN WIRING HARNESS
FLHT, FLHX, FLHXS
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHT, FLHX, FLHXS
2
10147
CLIP, connector (2)
FLHT, FLHX, FLHXS
3
10177
CABLE STRAP, anchored
FLHT, FLHX, FLHXS
(3)
4
72065-06A
HOUSING, three-way
FLHT, FLHX, FLHXS
socket (black)
5
72127-06
SECONDARY LOCK,
FLHT, FLHX, FLHXS
three-way socket
6
72168-07
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (5)
7
72169-07
TERMINAL, pin, 16-20
FLHT, FLHX, FLHXS
AWG (4)
8
72175-07BK
HOUSING, four-way pin
FLHT, FLHX, FLHXS
(black)
9
72213-94
TERMINAL, socket, 16-
FLHT, FLHX, FLHXS
20 AWG (4)
10
72232-96
SEAL PIN (red) (2)
FLHT, FLHX, FLHXS
11
72343-10
TERMINAL, pin, 16-20
FLHT, FLHX, FLHXS
AWG (4)
12
72415-07GY
HOUSING, four-way pin
FLHT, FLHX, FLHXS
(gray)
13
72473-07
SEAL PIN, natural
FLHT, FLHX, FLHXS
14
72484-08
TERMINAL, socket, 20
FLHT, FLHX, FLHXS
AWG (6)
15
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHX, FLHXS
(green) (6)
16
72499-07
WIRE SEAL, 20-22 AWG
FLHT, FLHX, FLHXS
(green) (2)
17
72512-07BK
HOUSING, three-way
FLHT, FLHX, FLHXS
socket (black) (2)
339/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72519-09BK
PLUG, weather, three-
FLHT, FLHX, FLHXS
way socket (2)
19
72533-06
PLUG, weather, two-way
FLHT, FLHX, FLHXS
pin
20
72544-07
SECONDARY LOCK,
FLHT, FLHX, FLHXS
three-way socket
21
72589-09
HOUSING, three-way
FLHT, FLHX, FLHXS
socket (black)
22
72606-08
HOUSING, two-way
FLHT, FLHX, FLHXS
socket (black) (3)
23
72607-08
HOUSING, two-way pin
FLHT, FLHX, FLHXS
(black)
24
72608-08
TERMINAL, pin, 16-20
FLHT, FLHX, FLHXS
AWG (2)
25
72609-08
SECONDARY LOCK,
FLHT, FLHX, FLHXS
two-way socket (3)
26
72610-08
WIRE SEAL, 18-20 AWG
FLHT, FLHX, FLHXS
(white) (6)
27
73213-07
RETAINER, anchored (4)
FLHT, FLHX, FLHXS
28
74112-98BK
HOUSING, two-way
FLHT, FLHX, FLHXS
socket (black)
29
74152-98
SECONDARY LOCK,
FLHT, FLHX, FLHXS
two-way socket
30
74191-98
TERMINAL, socket 16-20
FLHT, FLHX, FLHXS
AWG (2)
31
12500014
CABLE STRAP
FLHT, FLHX, FLHXS
32
12500018
CABLE STRAP
FLHT, FLHX, FLHXS
33
69200183
HOUSING, 26-way
FLHT, FLHX, FLHXS
socket
34
69200184
COVER, wire
FLHT, FLHX, FLHXS
35
69200185
TERMINAL, socket, 20
FLHT, FLHX, FLHXS
AWG (6)
36
69200186
TERMINAL, socket, 14-
FLHT, FLHX, FLHXS
16 AWG (2)
340/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
69200187
TERMINAL, socket, 12
FLHT, FLHX, FLHXS
AWG (2)
38
69200188
WIRE SEAL, 20 AWG (6)
FLHT, FLHX, FLHXS
39
69200189
WIRE SEAL, 14-16 AWG
FLHT, FLHX, FLHXS
(2)
40
69200190
WIRE SEAL, 12 AWG (2)
FLHT, FLHX, FLHXS
41
69200191
SEAL PIN (16)
FLHT, FLHX, FLHXS
42
69200238
TERMINAL, socket, 20
FLHT, FLHX, FLHXS
AWG (2)
43
69201396
TERMINAL, socket, 20
FLHT, FLHX, FLHXS
AWG (2)
44
69201400
HOUSING, two-way
FLHT, FLHX, FLHXS
socket, (black)
45
69201401
SECONDARY LOCK,
FLHT, FLHX, FLHXS
two-way socket
46
69201404
CONNECTOR, anchored
FLHT, FLHX, FLHXS
47
69201405
RESISTOR PACK
FLHT, FLHX, FLHXS
48
69201423
DC LEAD ASSEMBLY,
FLHT, FLHX, FLHXS
two-way socket
WIRING HARNESS, MAIN, ABS - FLHT, FLHX, FLHXS (8 OF 8)
341/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
342/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201121A
MAIN WIRING HARNESS
FLHT, FLHX, FLHXS
- ABS
NOTE: Includes the following parts.
1
6990
PLUG WEATHER, six-
FLHT, FLHX, FLHXS
way pin
2
10006
CABLE STRAP (2)
FLHT, FLHX, FLHXS
3
10065
CABLE STRAP (2)
FLHT, FLHX, FLHXS
4
31586-07
RELAY (2)
FLHT, FLHX, FLHXS
5
72064-06
HOUSING, three-way
FLHT, FLHX, FLHXS
socket (black)
6
72081-11
HOUSING, 48-way
FLHT, FLHX, FLHXS
socket (black)
7
72106-94BK
HOUSING, six-way pin
FLHT, FLHX, FLHXS
(black) (replaces gray
connector)
8
72146-94
SECONDARY LOCK, six-
FLHT, FLHX, FLHXS
way pin
9
72169-07
TERMINAL, pin, 16-20
FLHT, FLHX, FLHXS
AWG (10)
10
72175-07BK
HOUSING, four-way pin
FLHT, FLHX, FLHXS
(black)
11
72188-07BK
HOUSING, six-way pin
FLHT, FLHX, FLHXS
(black)
12
72190-94
TERMINAL, pin, 16-18
FLHT, FLHX, FLHXS
AWG (2)
13
72194-94
TERMINAL, pin, 20 AWG
FLHT, FLHX, FLHXS
(3)
14
72195-94
SEAL PIN
FLHT, FLHX, FLHXS
15
72209-11
COVER, wire
FLHT, FLHX, FLHXS
16
72222-11
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (21)
17
72226-11
TERMINAL, socket, 14-
FLHT, FLHX, FLHXS
16 AWG
343/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72227-11
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (5)
19
72256-11
SEAL PIN, 0.6 mm (white)
FLHT, FLHX, FLHXS
(9)
20
72296-95
TERMINAL, socket, 14-
FLHT, FLHX, FLHXS
16 AWG (3)
21
72298-95
WIRE SEAL, 14-18 AWG
FLHT, FLHX, FLHXS
(green) (3)
22
72299-95
SEAL PIN, green (2)
FLHT, FLHX, FLHXS
23
72308-97
TERMINAL, socket, 12-
FLHT, FLHX, FLHXS
14 AWG (5)
24
72330-95
FUSE, 15 A (blue)
FLHT, FLHX, FLHXS
25
72331-95
FUSE, 5 A (tan) (2)
FLHT, FLHX, FLHXS
26
72345-02
FUSE, 20 A (yellow) (3)
FLHT, FLHX, FLHXS
27
72350-11
HOUSING, one-way
FLHT, FLHX, FLHXS
socket (black)
28
72356-95
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (14)
29
72412-97
WIRE SEAL, 12-14 AWG
FLHT, FLHX, FLHXS
(gray) (5)
30
72484-08
TERMINAL, socket, 20
FLHT, FLHX, FLHXS
AWG (3)
31
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHX, FLHXS
(green) (3)
32
72575-11
SECONDARY LOCK,
FLHT, FLHX, FLHXS
one-way socket
33
72632-10
PLUG, weather, four-way
FLHT, FLHX, FLHXS
pin
34
73213-07
RETAINER, anchored
FLHT, FLHX, FLHXS
35
73301-04
HOUSING, two-way pin
FLHT, FLHX, FLHXS
(black)
36
73303-04
SECONDARY LOCK,
FLHT, FLHX, FLHXS
two-way socket
344/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
73304-04
TERMINAL, socket, 10
FLHT, FLHX, FLHXS
AWG (3)
38
73305-04
WIRE SEAL, 10 AWG
FLHT, FLHX, FLHXS
(blue) (3)
39
11100115
CLOTH, HARNESS
FLHT, FLHX, FLHXS
WRAP, 50 m (not shown)
40
69200194
FUSE BLOCK, 24-way
FLHT, FLHX, FLHXS
41
69200199
WIRE SEAL, 18-20 AWG
FLHT, FLHX, FLHXS
(purple) (14)
42
69200212
HARNESS, battery
FLHT, FLHX, FLHXS
tender
43
69200293
FUSE, 7.5 A (brown) (2)
FLHT, FLHX, FLHXS
44
69200312
SECONDARY LOCK,
FLHT, FLHX, FLHXS
fuse block (3)
45
69200336
MAIN FUSE, 50 A (red),
FLHT, FLHX, FLHXS
NOTE: Fuse is sold
separately and is not part
of main harness
46
69201130
WIRE HARNESS, battery
FLHT, FLHX, FLHXS
positive to starter, with
73304-04, 73305-04 and
69201307
47
69201307
BOOT, battery positive
FLHT, FLHX, FLHXS
48
69201411
COVER, fuse block
FLHT, FLHX, FLHXS
WIRING HARNESS, MAIN, ABS - FLHTCU (1 OF 8)
345/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
346/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201120A
MAIN WIRING HARNESS
FLHTCU
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (7)
FLHTCU
2
10177
CABLE STRAP, anchored
FLHTCU
3
72168-07
TERMINAL, socket, 18-
FLHTCU
20 AWG (7)
4
72272-07
TERMINAL, socket, 14-
FLHTCU
16 AWG (4)
5
72364-06
TERMINAL, socket 10-14
FLHTCU
AWG
6
72414-07BK
HOUSING, six-way
FLHTCU
socket (black)
7
72473-07
SEAL PIN, natural (7)
FLHTCU
8
72489-07GY
HOUSING, 12-way
FLHTCU
socket (gray)
9
72721-07
TERMINAL, socket, 18-
FLHTCU
20 AWG (2)
10
69200032
WIRE HARNESS, AM/FM
FLHTCU
antenna
11
69200136
WIRE HARNESS, CB
FLHTCU
antenna
12
69200201
HOUSING, two-way
FLHTCU
socket (black)
13
69200202A
WIRE TROUGH
FLHTCU
14
69200203A
COVER, wire trough, with
FLHTCU
15368-01A and
69201459
15
69200214
CADDY, left steer head
FLHTCU
16
69201287
BRACKET, mounting,
FLHTCU
electrical connector
17
69201459
BRACKET
FLHTCU
WIRING HARNESS, MAIN, ABS - FLHTCU (2 OF 8)
347/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
348/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201120A
MAIN WIRING HARNESS
FLHTCU
- ABS
NOTE: Includes the following parts.
1
10006
CABLE STRAP (2)
FLHTCU
2
10065
CABLE STRAP (5)
FLHTCU
3
10177
CABLE STRAP, anchored
FLHTCU
(2)
4
72062-06
HOUSING, two-way
FLHTCU
socket (gray)
5
72166-07BK
HOUSING, 16-way
FLHTCU
socket (black)
6
72168-07
TERMINAL, socket, 18-
FLHTCU
20 AWG (16)
7
72169-07
TERMINAL, pin, 16-20
FLHTCU
AWG (24)
8
72209-11
COVER, wire
FLHTCU
9
72213-94
TERMINAL, socket, 16-
FLHTCU
20 AWG (2)
10
72222-11
TERMINAL, socket, 18-
FLHTCU
20 AWG (27)
11
72226-11
TERMINAL, socket, 14-
FLHTCU
16 AWG (8)
12
72256-11
SEAL PIN 0.6 mm (white)
FLHTCU
(13)
13
72414-07BK
HOUSING, six-way
FLHTCU
socket (black)
14
72473-07
SEAL PIN, natural (6)
FLHTCU
15
72484-08
TERMINAL, socket, 20
FLHTCU
AWG (2)
16
72486-08
WIRE SEAL, 20 AWG
FLHTCU
(green) (2)
17
72488-07BK
HOUSING, 12-way pin
FLHTCU
(black)
349/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72490-07GY
HOUSING, 12-way pin
FLHTCU
(gray)
19
72606-08
HOUSING, two-way
FLHTCU
socket (black)
20
72639-10
SECONDARY LOCK,
FLHTCU
two-way socket
21
72610-08
WIRE SEAL, 18-20 AWG
FLHTCU
(white) (2)
22
73213-07
RETAINER, anchored (2)
FLHTCU
23
69200193
HOUSING, 48-way
FLHTCU
socket
24
69200205
PLUG, weather, 12-way
FLHTCU
pin (2)
25
69200215
CADDY, right steer head
FLHTCU
26
69201163
HOUSING, six-way pin
FLHTCU
(black)
27
69201164
TERMINAL, pin, 22 AWG
FLHTCU
(6)

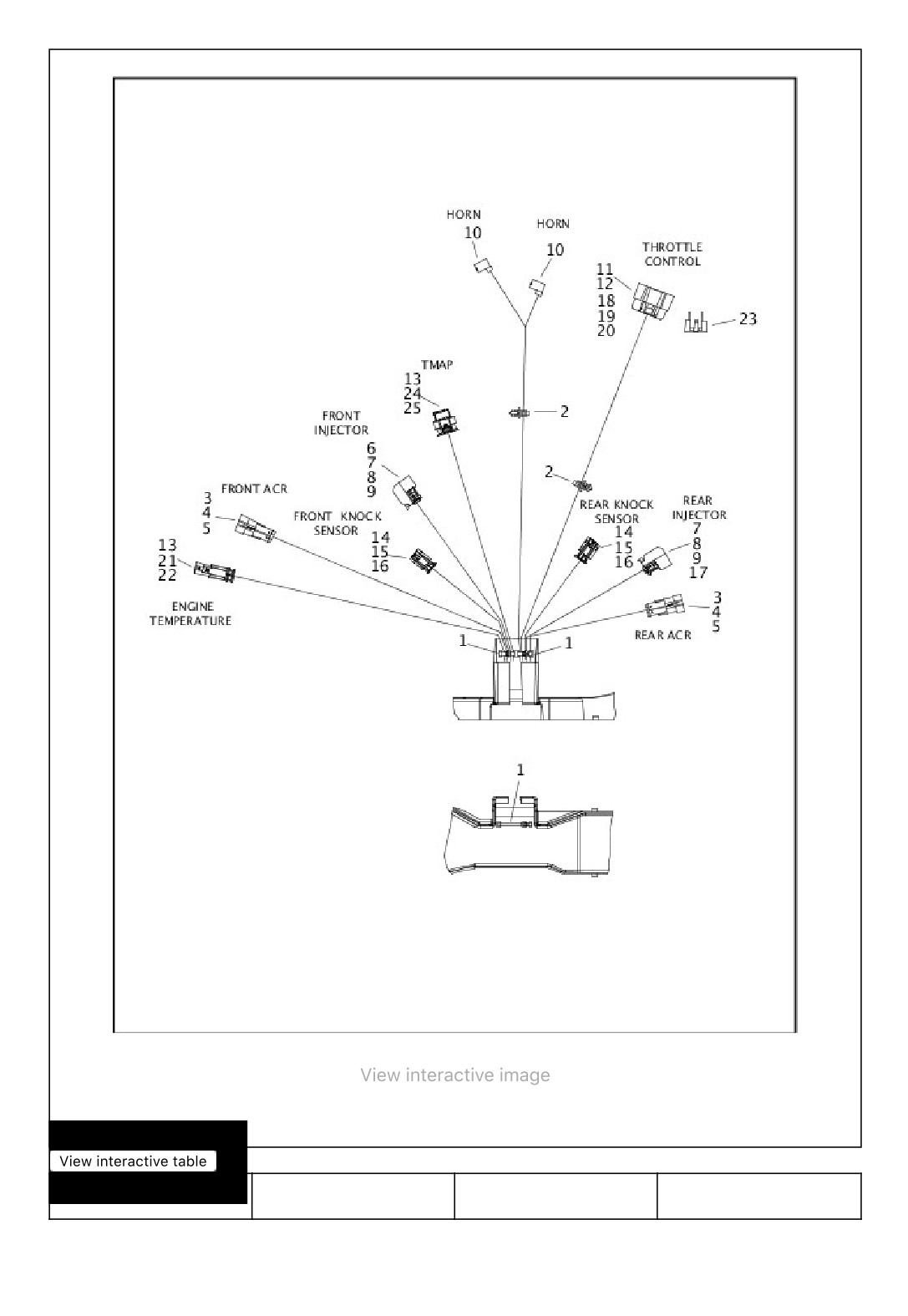

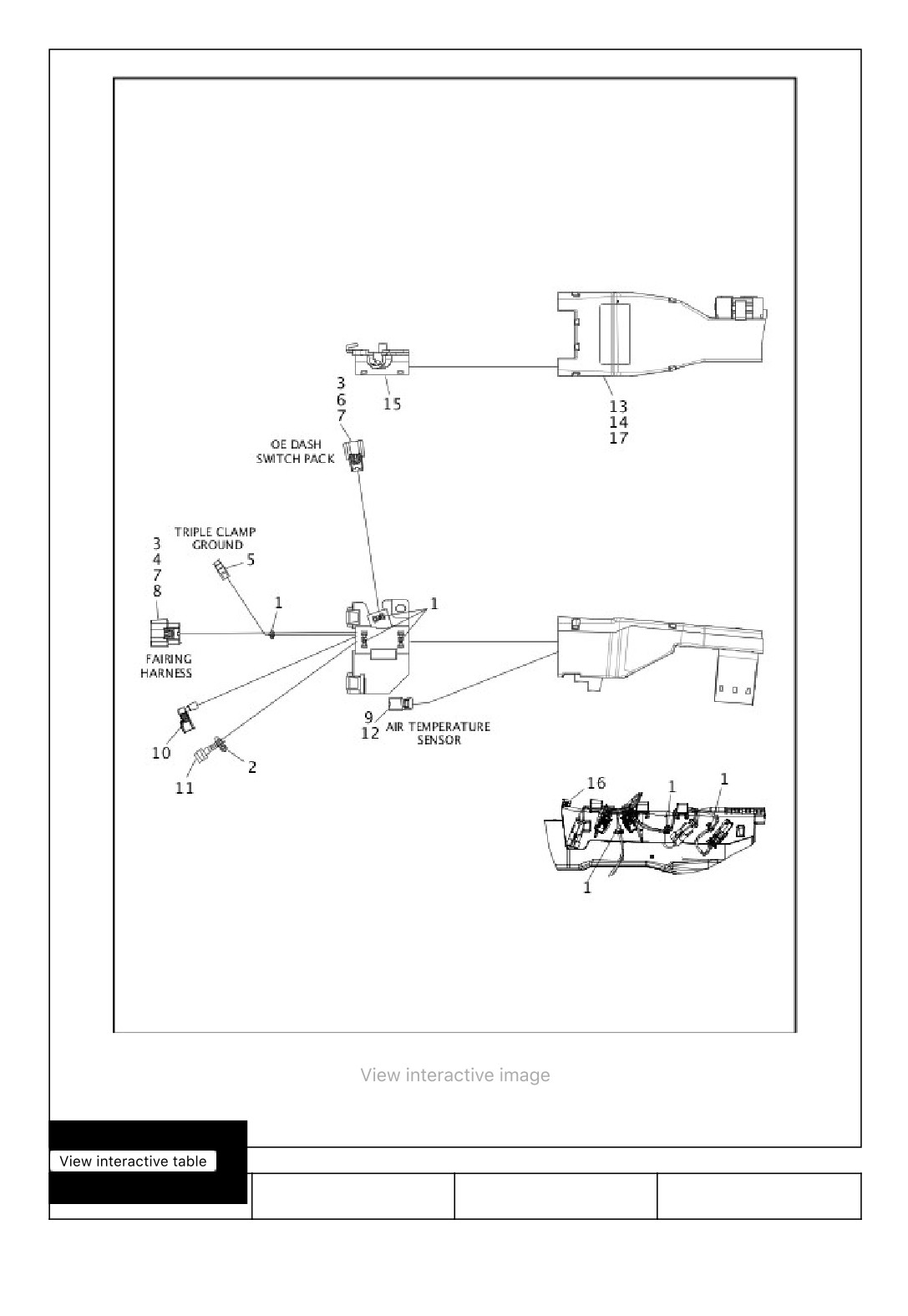

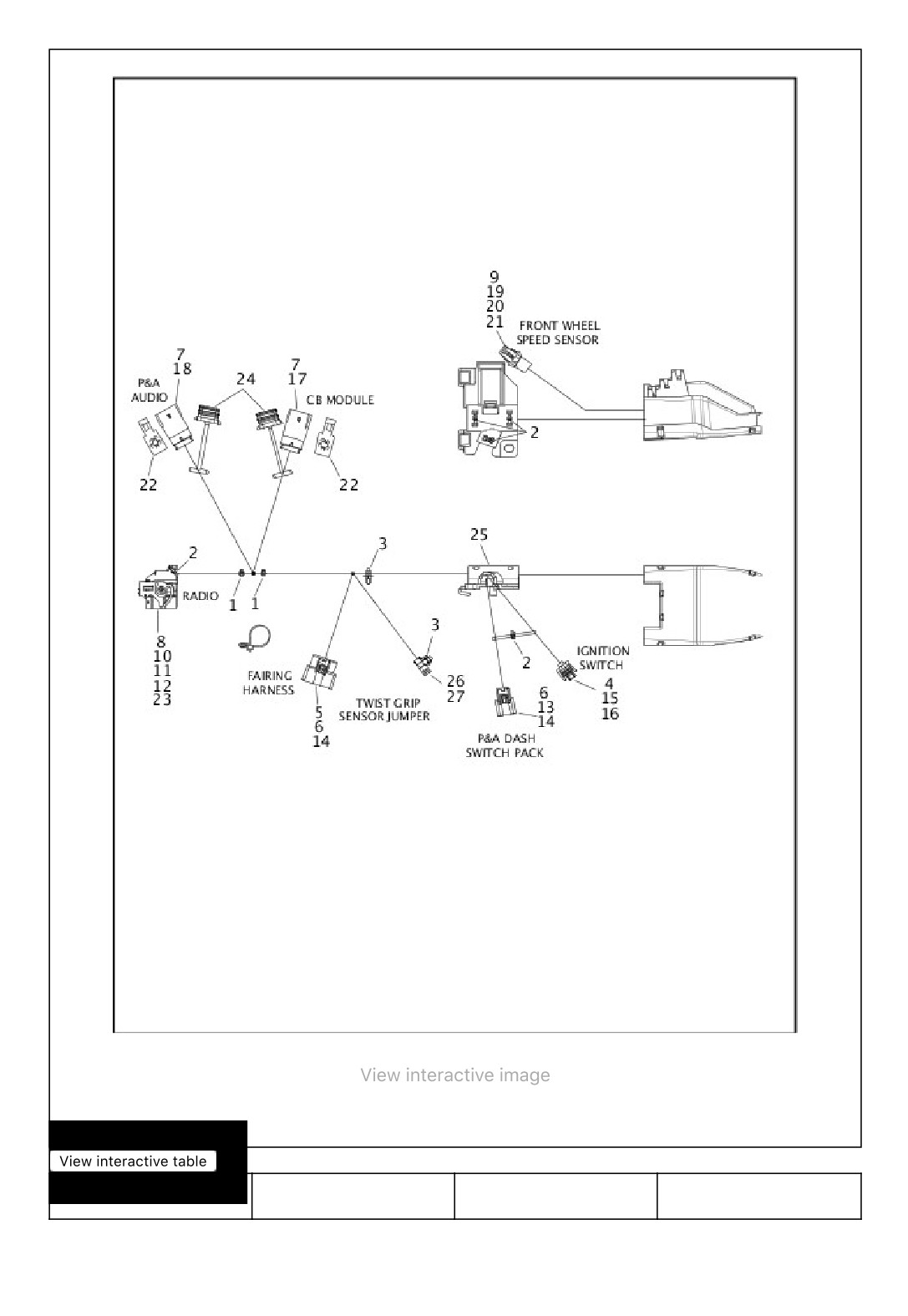

WIRING HARNESS, MAIN, ABS - FLHTCU (3 OF 8)
350/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
351/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201120A
MAIN WIRING HARNESS
FLHTCU
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHTCU
2
10177
CABLE STRAP, anchored
FLHTCU
(2)
3
72008-05
TERMINAL, socket, 20-
FLHTCU
22 AWG (4)
4
72009-05
HOUSING, two-way pin
FLHTCU
(black) (2)
5
72010-05
WIRE SEAL, 22-26 AWG
FLHTCU
(green) (4)
6
72098-06
HOUSING, two-way
FLHTCU
socket (gray)
7
72099-06
WIRE SEAL, 16-18 AWG
FLHTCU
(blue) (4)
8
72110-06
TERMINAL, socket, 16-
FLHTCU
18 AWG (4)
9
72145-06
SECONDARY LOCK,
FLHTCU
two-way socket (2)
10
72283-09
TERMINAL, socket, 14-
FLHTCU
16 AWG, 90 degree (2)
11
72499-07
WIRE SEAL, 20-22 AWG
FLHTCU
(green) (6)
12
72569-08
TERMINAL, socket, 20-
FLHTCU
22 AWG (2)
13
69201301
WIRE SEAL, 20-22 AWG
FLHTCU
(green) (6)
14
69201390
HOUSING, two-way
FLHTCU
socket (2)
15
69201391
TERMINAL, socket, 20
FLHTCU
AWG (4)
16
69201392
WIRE SEAL, 20 AWG
FLHTCU
(yellow) (4)
352/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
69201393
HOUSING, two-way
FLHTCU
socket (black)
18
69201394
HOUSING, six-way
FLHTCU
socket (black)
19
69201395
SECONDARY LOCK, six-
FLHTCU
way socket
20
69201396
TERMINAL, socket, 20
FLHTCU
AWG (4)
21
69201397
HOUSING, two-way pin
FLHTCU
(gray)
22
69201398
TERMINAL, pin, 20 AWG
FLHTCU
(2)
23
69201416
CPA, six-way socket
FLHTCU
24
69201441
HOUSING, four-way
FLHTCU
socket
25
69201442
TERMINAL, socket, 18
FLHTCU
AWG (4)

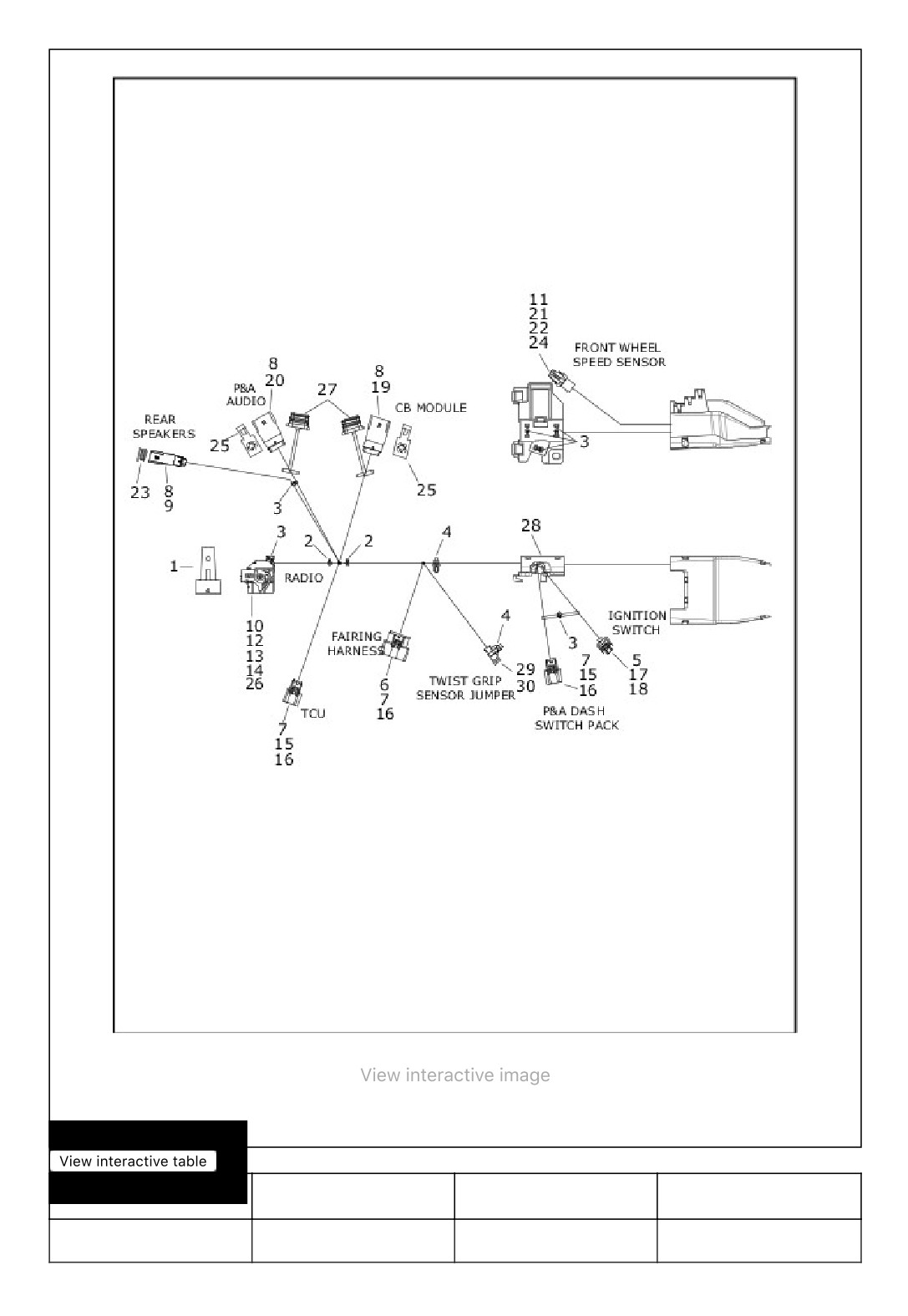

WIRING HARNESS, MAIN, ABS - FLHTCU (4 OF 8)
353/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
354/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201120A
MAIN WIRING HARNESS
FLHTCU
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHTCU
2
10147
CLIP, connector
FLHTCU
3
72213-94
TERMINAL, socket, 16-
FLHTCU
20 AWG (2)
4
72518-01
HOUSING, two-way
FLHTCU
socket (red)
5
72533-06
PLUG, weather, two-way
FLHTCU
pin
6
72609-08
SECONDARY LOCK,
FLHTCU
two-way socket
7
72610-08
WIRE SEAL, 18-20 AWG
FLHTCU
(white) (2)
8
72664-12A
HOUSING, 18-way
FLHTCU
socket (black)
9
72666-12
TERMINAL, socket, 18-
FLHTCU
20 AWG (43)
10
72720-07
HOUSING, two-way
FLHTCU
socket (black)
11
72721-07
TERMINAL, socket, 18-
FLHTCU
20 AWG (2)
12
69201168
TERMINAL, socket, 22
FLHTCU
AWG (2)
13
69201415
HOUSING, 18-way
FLHTCU
socket (brown)
14
69201440
HOUSING, 18-way
FLHTCU
socket (gray)

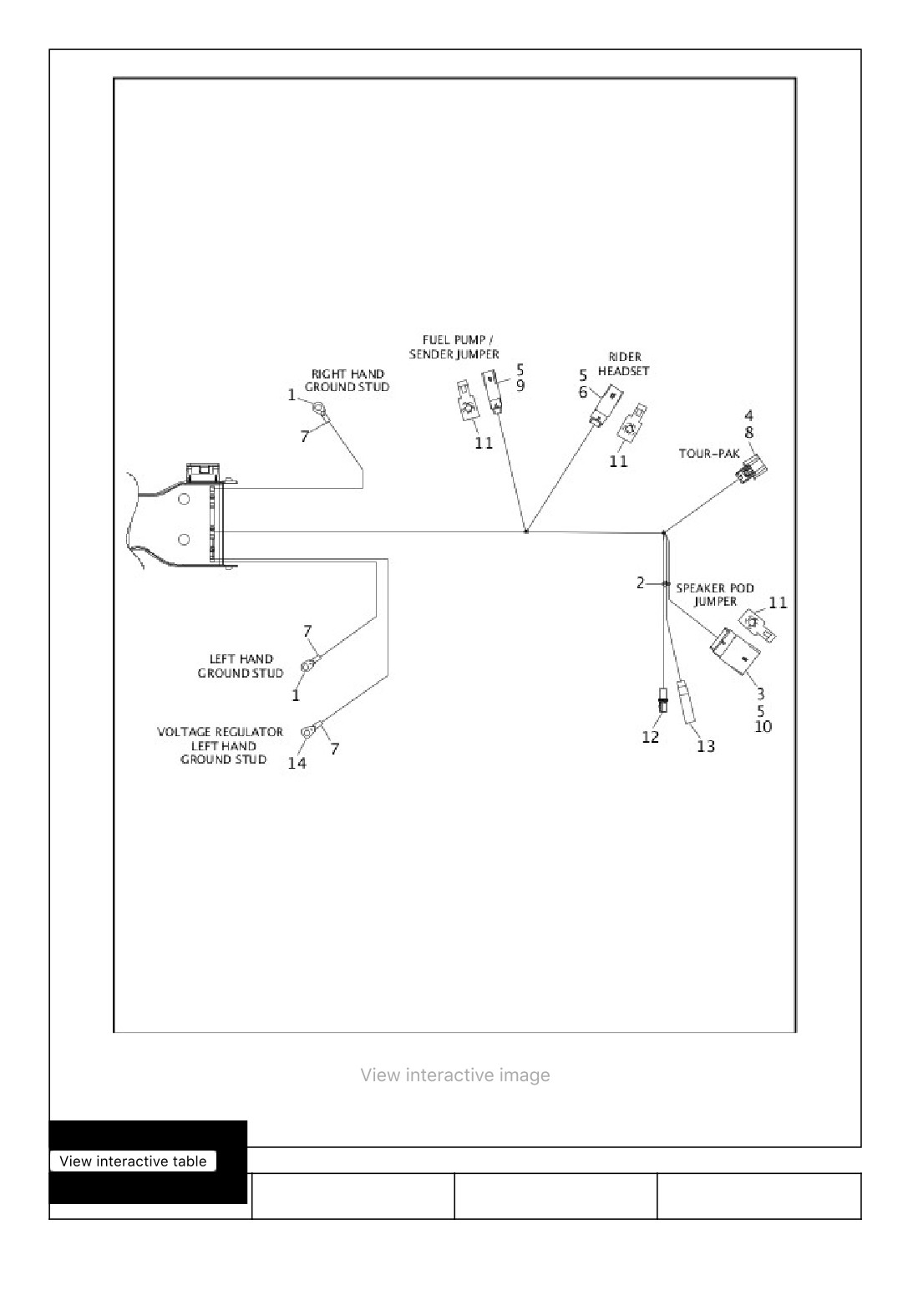

WIRING HARNESS, MAIN, ABS - FLHTCU (5 OF 8)
355/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
356/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201120A
MAIN WIRING HARNESS
FLHTCU
- ABS
NOTE: Includes the following parts.
1
9819
TERMINAL, ring, 12 AWG
FLHTCU
(2)
2
10065
CABLE STRAP
FLHTCU
3
72167-07BK
HOUSING, 16-way pin
FLHTCU
(black)
4
72168-07
TERMINAL, socket, 18-
FLHTCU
20 AWG (6)
5
72169-07
TERMINAL, pin, 16-20
FLHTCU
AWG (23)
6
72188-07BK
HOUSING, six-way pin
FLHTCU
(black)
7
72249-94
HEAT SHRINK TUBE,
FLHTCU
.415 x 1 in (black)
8
72414-07BK
HOUSING, six-way
FLHTCU
socket (black)
9
72415-07GY
HOUSING, four-way pin
FLHTCU
(gray)
10
72473-07
SEAL PIN, natural (3)
FLHTCU
11
73213-07
RETAINER, anchored (3)
FLHTCU
12
69200032
WIRE HARNESS, AM/FM
FLHTCU
antenna
13
69200136
WIRE HARNESS, CB
FLHTCU
antenna
14
69201596
TERMINAL, ring, 8-10
FLHTCU
AWG

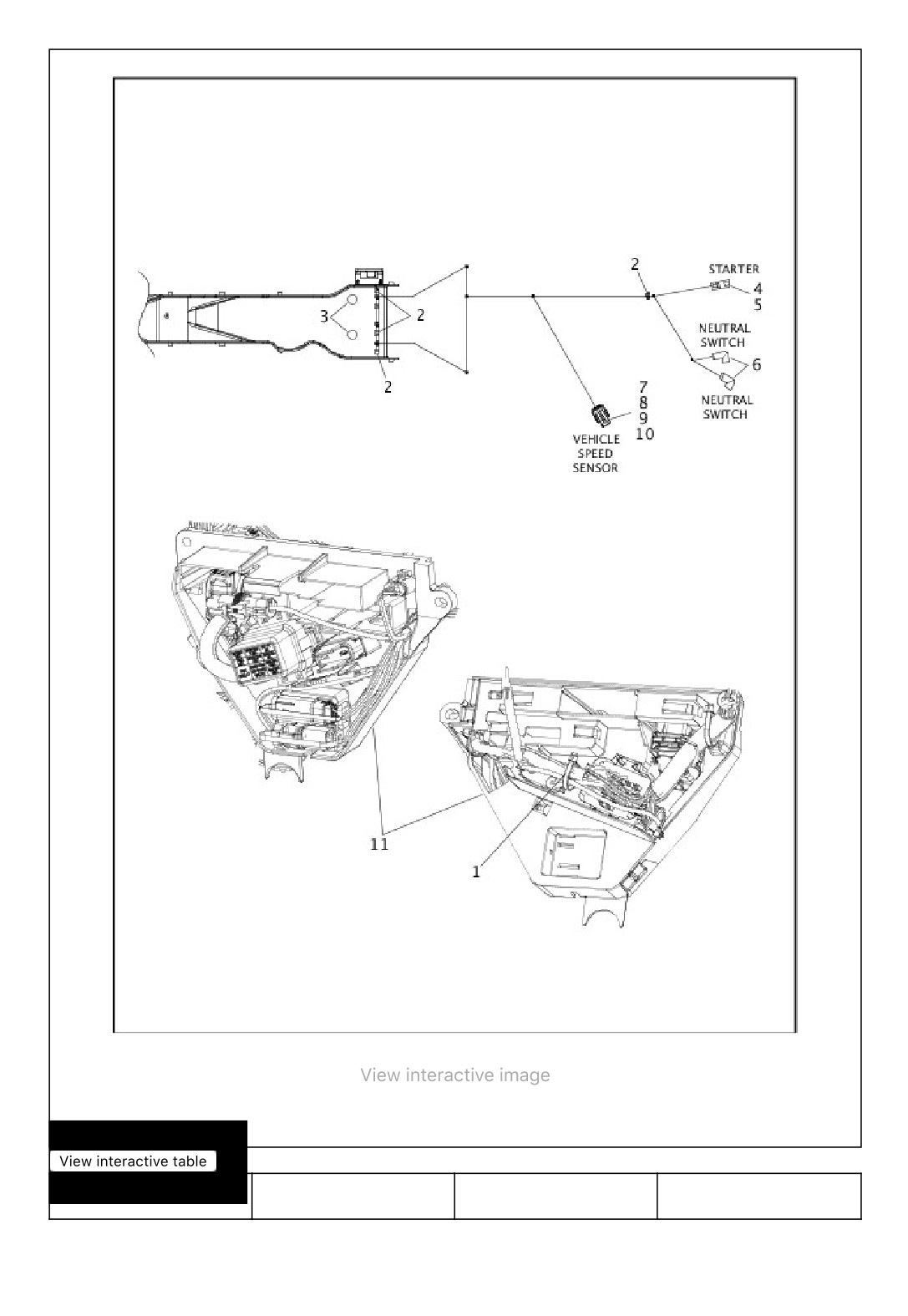

WIRING HARNESS, MAIN, ABS - FLHTCU (6 OF 8)
357/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
358/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201120A
MAIN WIRING HARNESS
FLHTCU
- ABS
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLHTCU
2
10065
CABLE STRAP (4)
FLHTCU
3
11779
FASTENER, push-in
FLHTCU
(black) (2)
4
72291-94
TERMINAL, socket, 14-
FLHTCU
16 AWG
5
72295-94
CONNECTOR, starter
FLHTCU
housing
6
72405-98BK
WIRE ASSEMBLY, push-
FLHTCU
on, right angle molded,
65-1/2 in length (black)
(2)
7
72484-08
TERMINAL, socket, 20
FLHTCU
AWG (3)
8
72486-08
WIRE SEAL, 20 AWG
FLHTCU
(green) (3)
9
72543-07BK
HOUSING, three-way
FLHTCU
socket (black)
10
72544-07
SECONDARY LOCK,
FLHTCU
three-way socket
11
69200175
CADDY, fuse block,
FLHTCU
electrical panel

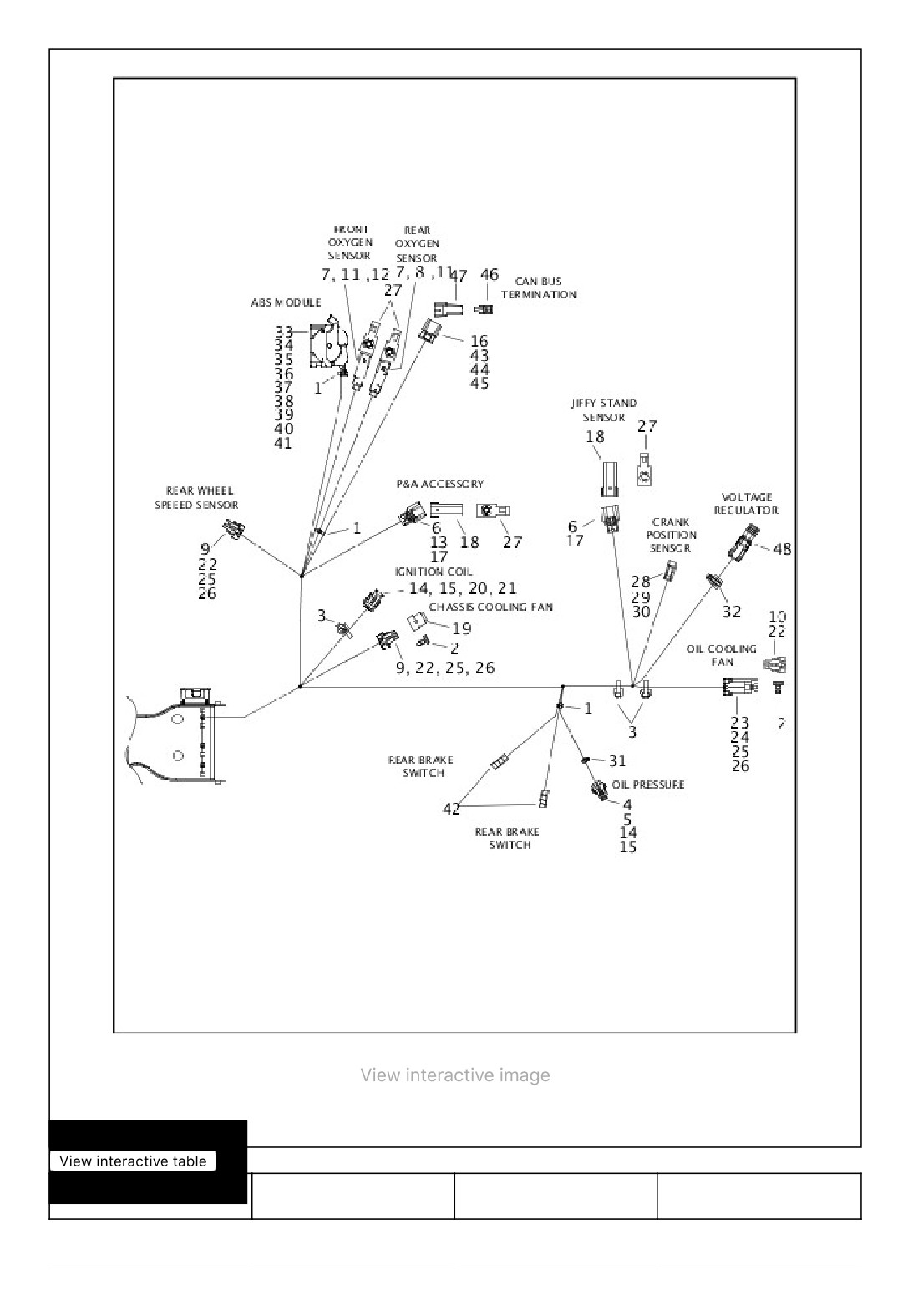

WIRING HARNESS, MAIN, ABS - FLHTCU (7 OF 8)
359/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
360/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201120A
MAIN WIRING HARNESS
FLHTCU
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHTCU
2
10147
CLIP, connector (2)
FLHTCU
3
10177
CABLE STRAP, anchored
FLHTCU
(3)
4
72065-06A
HOUSING, three-way
FLHTCU
socket (black)
5
72127-06
SECONDARY LOCK,
FLHTCU
three-way
6
72168-07
TERMINAL, socket, 18-
FLHTCU
20 AWG (5)
7
72169-07
TERMINAL, pin, 16-20
FLHTCU
AWG (4)
8
72175-07BK
HOUSING, four-way pin
FLHTCU
(black)
9
72213-94
TERMINAL, socket, 16-
FLHTCU
20 AWG (4)
10
72232-96
SEAL PIN (red) (2)
FLHTCU
11
72343-10
TERMINAL, pin, 16-20
FLHTCU
AWG (4)
12
72415-07GY
HOUSING, four-way pin
FLHTCU
(gray)
13
72473-07
SEAL PIN, natural
FLHTCU
14
72484-08
TERMINAL, socket, 20
FLHTCU
AWG (6)
15
72486-08
WIRE SEAL, 20 AWG
FLHTCU
(green) (6)
16
72499-07
WIRE SEAL, 20-22 AWG
FLHTCU
(green) (2)
17
72512-07BK
HOUSING, three-way
FLHTCU
socket (black) (2)
361/956
