Harley Davidson SIP Parts Catalog 4/5/2019: touring models - page 8
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
2482
SCREW (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
2
3576
SCREW (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
3
52441-95
BULB, backlite (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
4
67266-94
BUSHING, nylon (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
5
68168-89A
BULB (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
6
68497-07
SOCKET ASSEMBLY,
FLHRXS, FLHX, FLHXS,
with mount (2)
FLTRX, FLTRXS
7
68559-07
LENS (red) (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
8
68572-64B
BULB (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
9
68629-05
LIGHTBAR, turn signal
FLHX, FLTRX
(chrome)
9
67800900
LIGHTBAR, turn signal
FLHRXS, FLHXS, FLTRXS
(black)
10
68905-00
SOCKET ASSEMBLY (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
11
68973-00
LENS (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
12
69353-05
LAMP ASSEMBLY, with
FLHRXS, FLHX, FLHXS,
52441-95 and 73191-96
FLTRX, FLTRXS
13
72130-04
HOUSING, 12-way
FLHRXS, FLHX, FLHXS,
socket (black) (except
FLTRX, FLTRXS
Canada) (2)
13
72130-04
HOUSING, 12-way
FLHRXS, FLHX, FLHXS,
socket (black) (Canada)
FLTRX, FLTRXS
14
72168-07
TERMINAL, socket, 18-
FLHRXS, FLHX, FLHXS,
20 AWG (6)
FLTRX, FLTRXS
15
72189-04
SEAL PIN (except
FLHRXS, FLHX, FLHXS,
Canada) (9)
FLTRX, FLTRXS
15
72189-04
SEAL PIN (Canada) (5)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
282/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
16
72414-07BK
HOUSING, six-way
FLHRXS, FLHX, FLHXS,
socket (black)
FLTRX, FLTRXS
17
73152-96BK
HOUSING, two-way
FLHRXS, FLHX, FLHXS,
socket (black) (2)
FLTRX, FLTRXS
18
73153-96BK
HOUSING, three-way
FLHRXS, FLHX, FLHXS,
socket (black)
FLTRX, FLTRXS
19
73156-96BK
HOUSING, six-way
FLHRXS, FLHX, FLHXS,
socket (black)
FLTRX, FLTRXS
20
73191-96
TERMINAL, socket, 16-
FLHRXS, FLHX, FLHXS,
20 AWG (10)
FLTRX, FLTRXS
21
73254-10
LIGHT ASSEMBLY, with
FLHRXS, FLHX, FLHXS,
74196-04 and lens
FLTRX, FLTRXS
22
73309-10
BRACKET (chrome)
FLHX, FLTRX
22
67800485
BRACKET (black)
FLHRXS, FLHXS, FLTRXS
23
74196-04
TERMINAL, socket, 20
FLHRXS, FLHX, FLHXS,
AWG (except Canada)
FLTRX, FLTRXS
(15)
23
74196-04
TERMINAL, socket, 20
FLHRXS, FLHX, FLHXS,
AWG (Canada) (7)
FLTRX, FLTRXS
24
74197-04
SECONDARY LOCK, 12-
FLHRXS, FLHX, FLHXS,
way socket (except
FLTRX, FLTRXS
Canada) (2)
24
74197-04
SECONDARY LOCK, 12-
FLHRXS, FLHX, FLHXS,
way socket (Canada)
FLTRX, FLTRXS
25
73314-10
DIRECTIONAL LAMP
FLHX, FLTRX
ASSEMBLY, rear, with 1,
5, 6, 7, 13, 15, 21, 22, 23
and 24 (chrome)
26
67800483
DIRECTIONAL LAMP
FLHRXS, FLHXS, FLTRXS
ASSEMBLY, rear, with 1,
5, 13, 15, 21, 22, 23 and
24 (black)
27
67800132
DIRECTIONAL LAMP
FLHX, FLTRX
ASSEMBLY, rear, with 1,
13, 15, 21, 23 and 24
(chrome)
283/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
27
67800484
DIRECTIONAL LAMP
FLHRXS, FLHXS, FLTRXS
ASSEMBLY, rear, with 1,
13, 15, 21, 23 and 24
(black)
28
69200129
HARNESS, rear lighting
FLHRXS, FLHX, FLHXS,
jumper, with 13, 14, 15,
FLTRX, FLTRXS
16, 23 and 24 (except
Canada)
29
69200130
HARNESS, rear lighting,
FLHRXS, FLHX, FLHXS,
jumper, with 13, 15, 19,
FLTRX, FLTRXS
20, 23 and 24 (Canada)

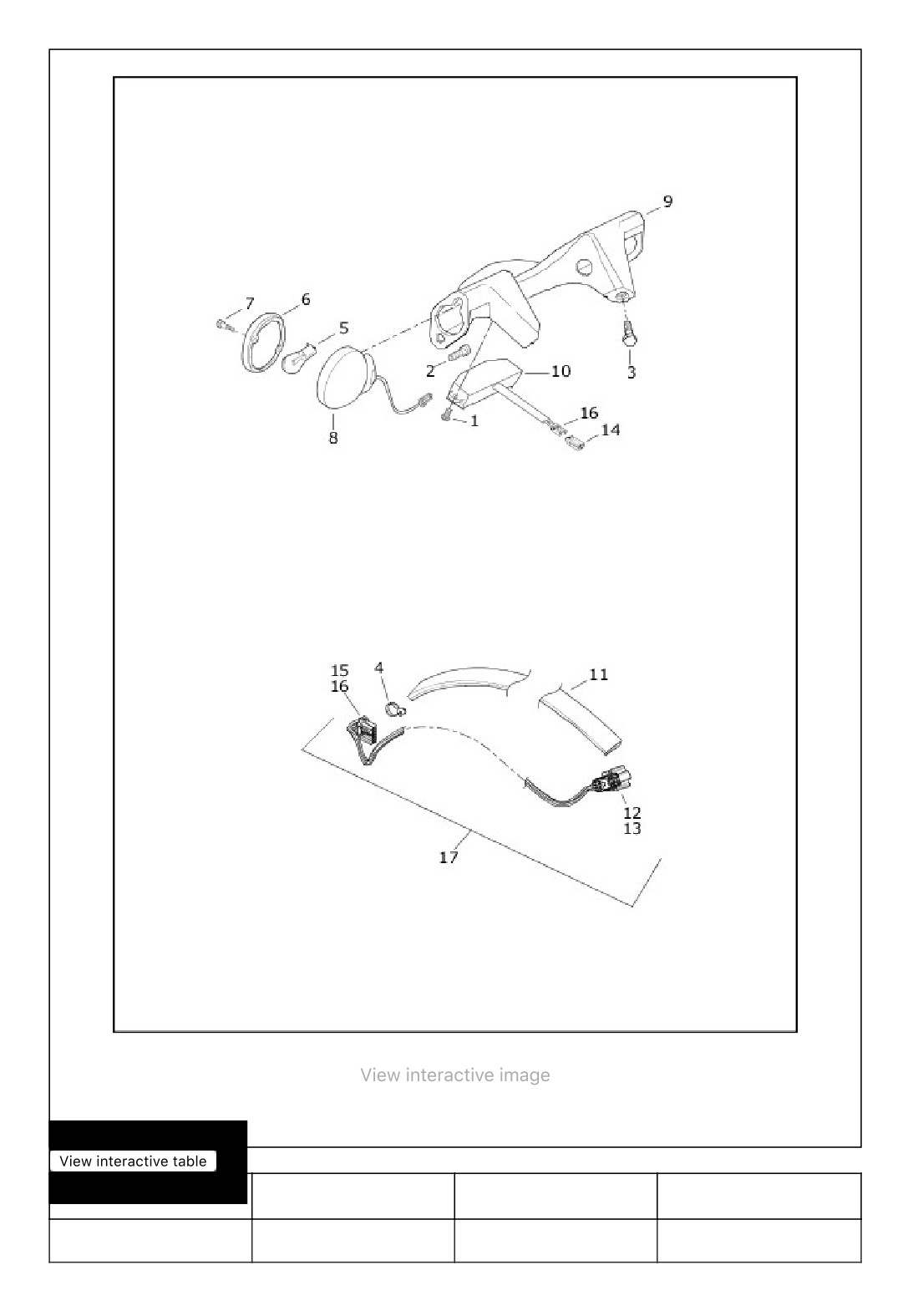

TAIL LAMP AND TURN SIGNALS, REAR - FLHR, FLHRC
284/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
2482
SCREW (2)
FLHR, FLHRC
285/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
2692WB
SCREW (4)
FLHR, FLHRC
3
3576
SCREW (2)
FLHR, FLHRC
4
10006
CABLE STRAP
FLHR, FLHRC
5
68572-64B
BULB (Domestic) (2)
FLHR
5
68163-84
BULB (HDI) (2)
FLHR, FLHRC
6
68440-86
LENS (amber) (Domestic)
FLHR
(2)
6
68506-92
LENS (amber) (HDI) (2)
FLHR, FLHRC
7
68452-86
SCREW (4)
FLHR, FLHRC
8
68713-94A
LAMP ASSEMBLY, with
FLHR
5, 6 and 7 (Domestic) (2)
8
68765-94A
LAMP ASSEMBLY, with
FLHR, FLHRC
5, 6 and 7 (HDI) (2)
9
68742-09
BRACKET, rear turn
FLHR, FLHRC
signal
10
69378-09
LIGHT ASSEMBLY, with
FLHR, FLHRC
73191-96 and lens
11
70522-06B
CONDUIT, self-adhesive
FLHR, FLHRC
12
72168-07
TERMINAL, socket, 18-
FLHR, FLHRC
20 AWG (6)
13
72414-07BK
HOUSING, six-way
FLHR, FLHRC
socket (black)
14
73153-96BK
HOUSING, three-way
FLHR, FLHRC
socket (black)
15
73156-96BK
HOUSING, six-way
FLHR, FLHRC
socket (black)
16
73191-96
TERMINAL, socket, 16-
FLHR, FLHRC
20 AWG (12)
17
69200128
HARNESS, tail lamps,
FLHR, FLHRC
with 4, 11, 12, 13, 15 and
16

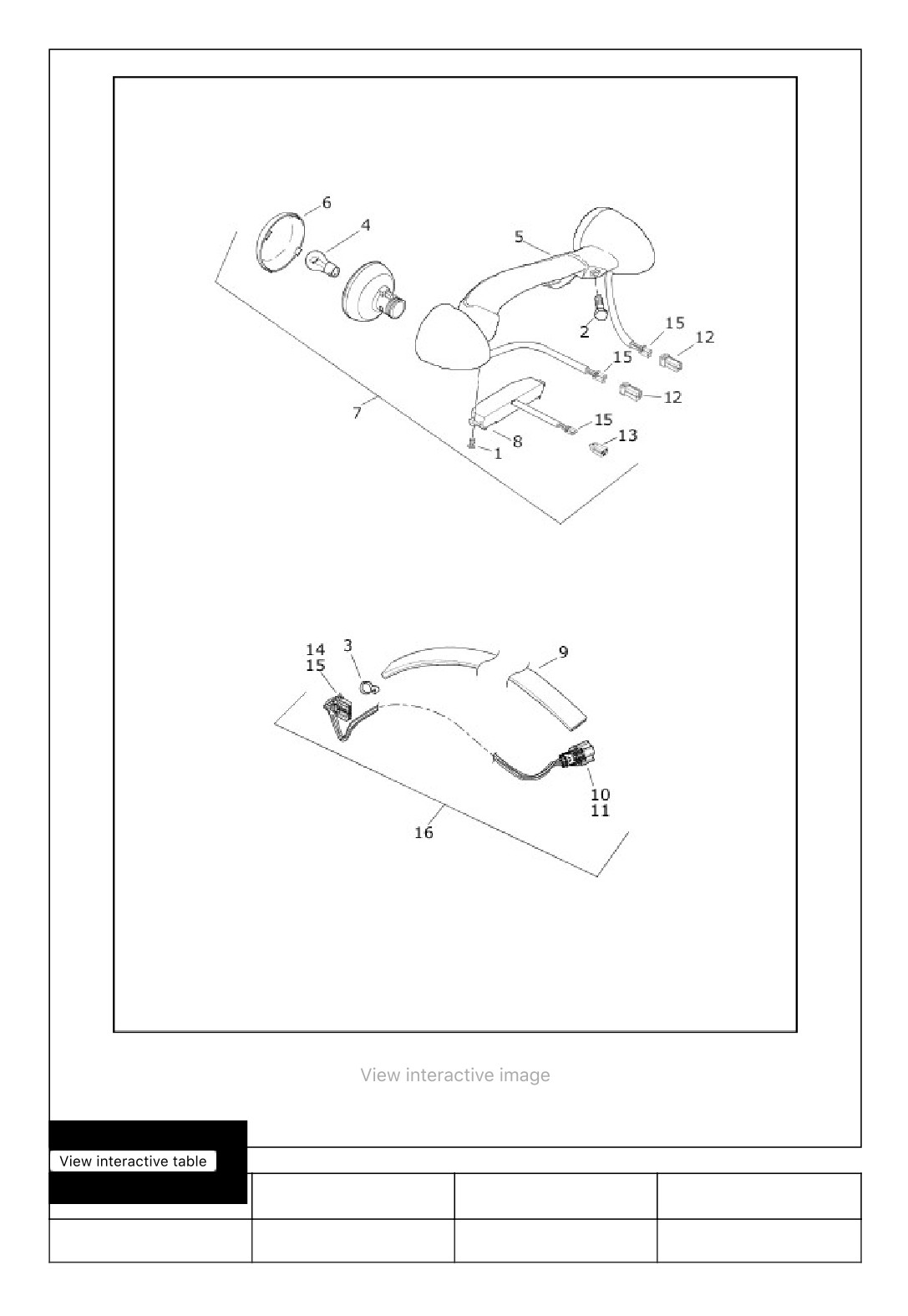

TAIL LAMP AND TURN SIGNALS, REAR - FLHTK, FLHTKL, FLTRU (HDI)
286/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
2482
SCREW (2)
FLHTK, FLHTKL, FLTRU
287/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
3576
SCREW (2)
FLHTK, FLHTKL, FLTRU
3
10006
CABLE STRAP
FLHTK, FLHTKL, FLTRU
4
68163-84
BULB (2)
FLHTK, FLHTKL, FLTRU
5
68550-09
BRACKET
FLHTK, FLHTKL, FLTRU
6
68973-00
LENS (2)
FLHTK, FLHTKL, FLTRU
7
68997-09
LAMP ASSEMBLY, rear
FLHTK, FLHTKL, FLTRU
turn signal, with 1, 4, 5,
6, 8, 12 and 15
8
69378-09
LIGHT ASSEMBLY, with
FLHTK, FLHTKL, FLTRU
73191-96 and lens
9
70522-06B
CONDUIT, self-adhesive
FLHTK, FLHTKL, FLTRU
10
72168-07
TERMINAL, socket, 18-
FLHTK, FLHTKL, FLTRU
20 AWG (6)
11
72414-07BK
HOUSING, six-way
FLHTK, FLHTKL, FLTRU
socket (black)
12
73152-96BK
HOUSING, two-way
FLHTK, FLHTKL, FLTRU
socket (black) (2)
13
73153-96BK
HOUSING, three-way
FLHTK, FLHTKL, FLTRU
socket
14
73156-96BK
HOUSING, six-way
FLHTK, FLHTKL, FLTRU
socket (black)
15
73191-96
TERMINAL, socket, 16-
FLHTK, FLHTKL, FLTRU
20 AWG (12)
16
69200128
HARNESS, rear lamps,
FLHTK, FLHTKL, FLTRU
with 3, 9, 10, 11, 14 and
15

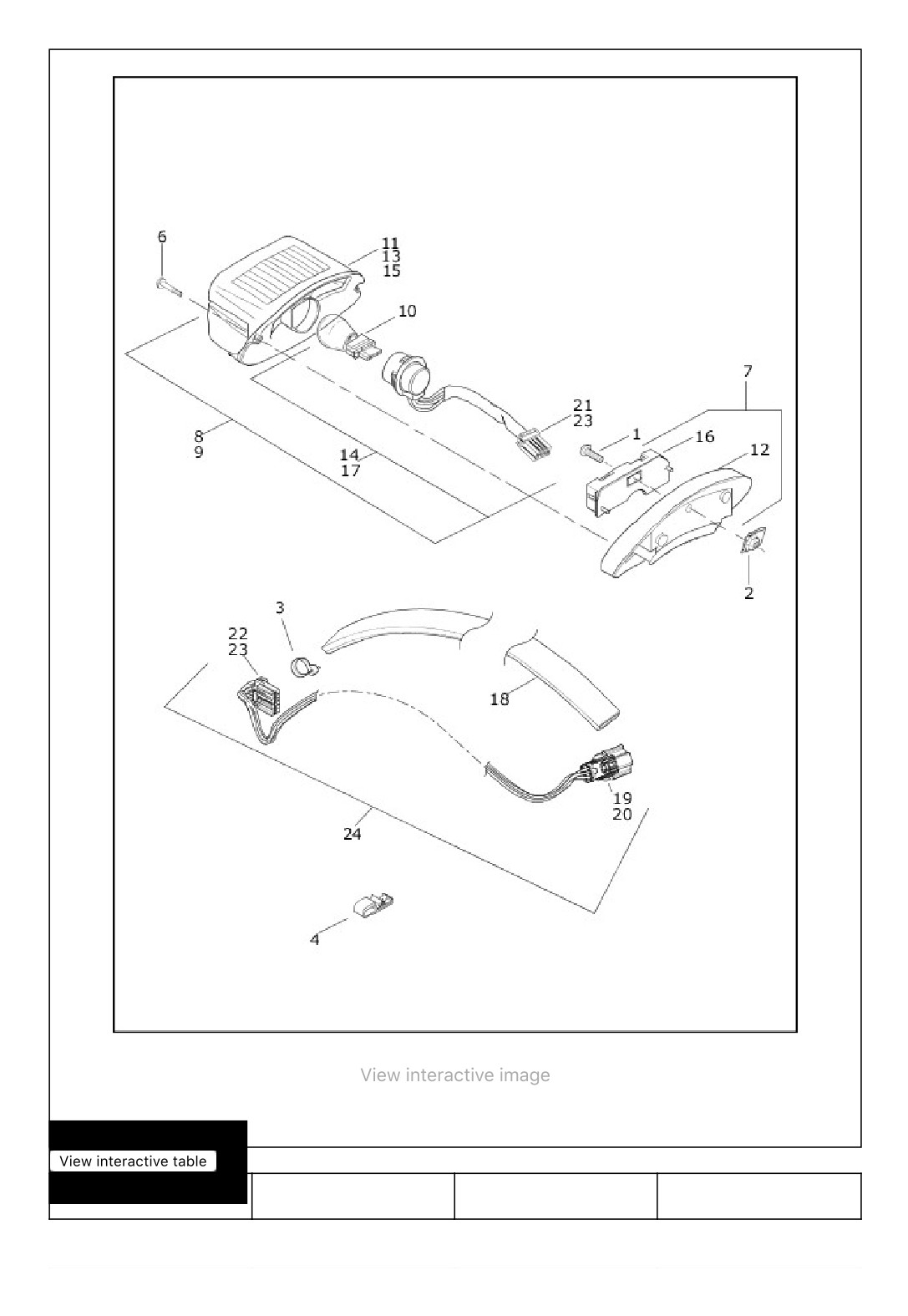

TAIL LAMP (1 OF 2)
288/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
Index number 5 is not used in this illustration
289/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
3022A
SCREW
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
1
3022A
SCREW (Canada only)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
2
7964
J-NUT
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
2
7964
J-NUT (Canada only)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
3
10006
CABLE STRAP
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
4
10183
CLIP, T-stud (2)
FLHRXS, FLHT, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
6
68026-99
SCREW (2)
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
6
68026-99
SCREW (Canada only) (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
7
68066-99A
TAIL LAMP BASE
FLHR, FLHRC, FLHT,
ASSEMBLY, with 68296-
FLHTCU, FLHTK, FLHTK
99A and 68830-99A
SHRINE, FLHTKL, FLTRU
(chrome)
7
68066-99A
TAIL LAMP BASE
FLHRXS, FLHX, FLTRX
ASSEMBLY, with 68296-
99A and 68830-99A
(Canada only) (chrome)
7
67800847
TAIL LIGHT BASE (black)
FLHXS, FLTRXS
(Canada only)
8
68140-04
LAMP ASSEMBLY, tail
FLHTCU, FLHTK, FLHTK
lamp, with 68369-03 and
SHRINE, FLHTKL, FLTRU
68370-03A (Domestic)
9
68142-04
LAMP ASSEMBLY, tail
FLHR, FLHRC, FLHT,
lamp, with 68558-03 and
FLHTK, FLHTK SHRINE,
69187-03A (HDI)
FLHTKL, FLTRU
Index number 5 is not used in this illustration
290/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
10
68167-04
BULB, tail lamp, wedge
FLHR, FLHRC, FLHT,
mount
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
10
68167-04
BULB, tail lamp, wedge
FLHRXS, FLHX, FLHXS,
mount (Canada only)
FLTRX, FLTRXS
11
68245-03
LENS, tail lamp (red),
FLHR, FLHT
with 68026-99 (Domestic)
11
68245-03
LENS, tail lamp (red),
FLHRXS, FLHX, FLHXS,
with 68026-99 (Canada
FLTRX, FLTRXS
only)
Index number 5 is not used in this illustration
TAIL LAMP (2 OF 2)
291/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
292/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
12
68296-99A
TAIL LIGHT BASE
FLHR, FLHRC, FLHT,
(chrome)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
12
68296-99A
TAIL LIGHT BASE
FLHRXS, FLHX, FLTRX
(chrome) (Canada only)
13
68369-03
LENS, tail lamp, with
FLHTCU, FLHTK, FLHTK
68026-99
SHRINE, FLHTKL, FLTRU
14
68370-03A
SOCKET ASSEMBLY, tail
FLHR, FLHT
lamp, with 68167-04,
73154-96BK and 73191-
96 (Domestic)
14
68370-03A
SOCKET ASSEMBLY, tail
FLHTCU, FLHTK, FLHTK
lamp, with 68167-04,
SHRINE, FLHTKL, FLTRU
73154-96BK and 73191-
96
14
68370-03A
SOCKET ASSEMBLY, tail
FLHRXS, FLHX, FLHXS,
lamp, with 68167-04,
FLTRX, FLTRXS
73154-96BK and 73191-
96 (Canada only)
15
68558-03
LENS, tail lamp, with
FLHR, FLHRC, FLHT,
68026-99 (HDI)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
16
68830-99A
CIRCUIT BOARD AND
FLHR, FLHRC, FLHT,
COVER
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
16
68830-99A
CIRCUIT BOARD AND
FLHRXS, FLHX, FLHXS,
COVER (Canada only)
FLTRX, FLTRXS
17
69187-03A
BULB SOCKET
FLHR, FLHRC, FLHT,
ASSEMBLY, tail lamp,
FLHTK, FLHTK SHRINE,
with 68167-04, 73154-
FLHTKL, FLTRU
96BK and 73191-96 (HDI)
18
70522-06B
CONDUIT, self-adhesive
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
19
72168-07
TERMINAL, socket, 18-
FLHR, FLHRC, FLHT,
20 AWG (6)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
20
72414-07BK
HOUSING, six-way
FLHR, FLHRC, FLHT,
socket (black)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
293/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
21
73154-96BK
SOCKET HOUSING, four-
ALL
way
22
73156-96BK
SOCKET HOUSING, six-
FLHR, FLHRC, FLHT,
way
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
23
73191-96
TERMINAL, socket, 16-
FLHRXS, FLHX, FLHXS,
20 AWG (3)
FLTRX, FLTRXS
23
73191-96
TERMINAL, socket, 16-
FLHR, FLHRC, FLHT,
20 AWG (9)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
24
69200128
HARNESS, rear lamps,
FLHR, FLHRC, FLHT,
with 10006, 70522-06B,
FLHTCU, FLHTK, FLHTK
72168-07, 72414-07BK,
SHRINE, FLHTKL, FLTRU
73156-96BK and 73191-
96

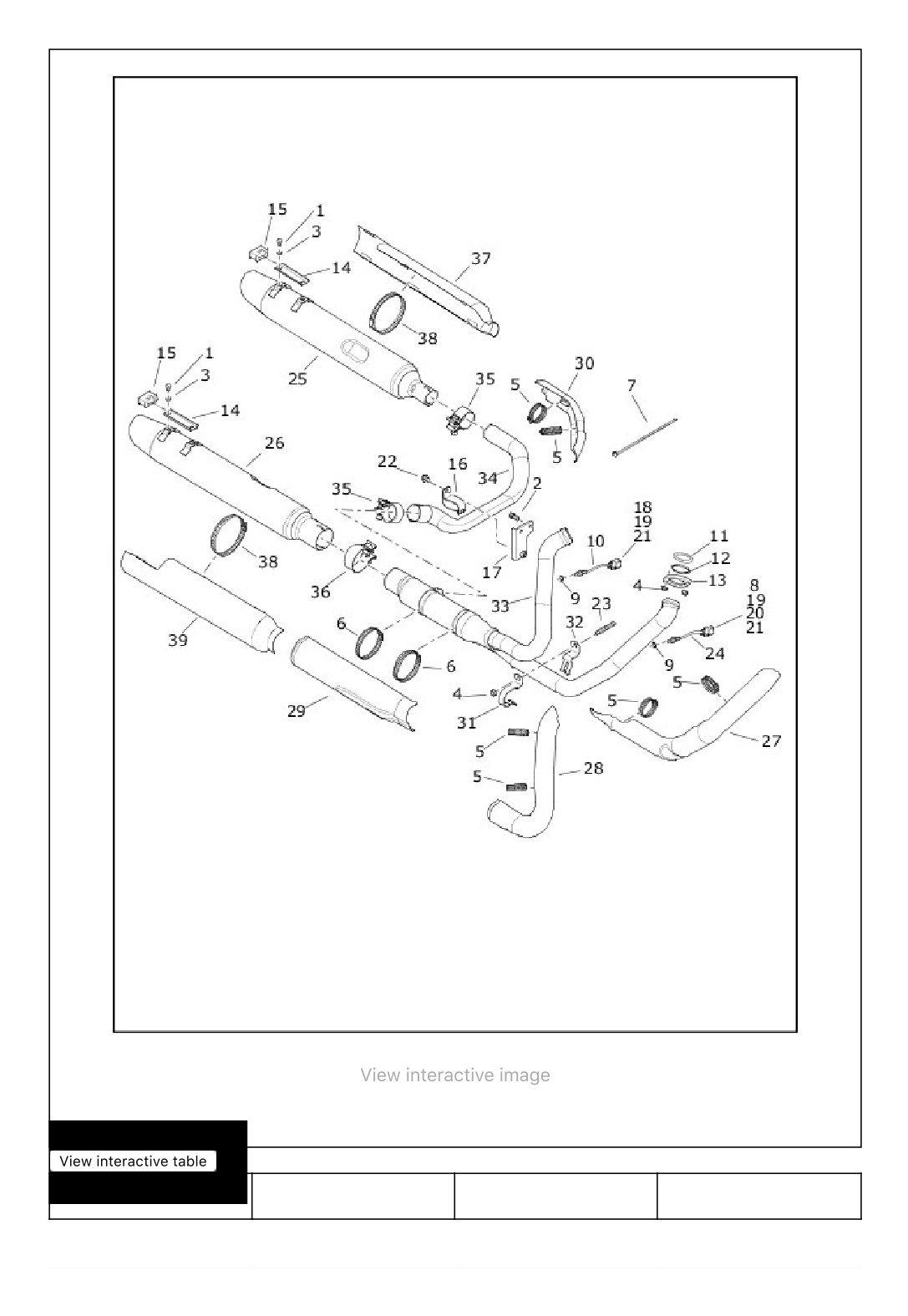

EXHAUST SYSTEM (1 OF 2)
294/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
3929
SCREW (4)
ALL
295/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
4705
SCREW (2)
ALL
3
7041
LOCKWASHER (4)
ALL
4
7593
NUT (5)
ALL
5
9955
CLAMP, worm drive #24
ALL
(6)
6
9956
CLAMP, worm drive #40
ALL
(2)
7
10039
CABLE STRAP
ALL
8
10177
CABLE STRAP, anchored
ALL
9
11936
GASKET, oxygen (O2)
ALL
sensor (2)
10
27809-10
SENSOR, oxygen (O2),
ALL
rear, with 11936, 72177-
07BK, 72344-10 and
73307-10
11
65324-83B
GASKET, exhaust port (2)
ALL
12
65325-83A
RETAINING RING,
ALL
exhaust gasket (2)
13
65328-83A
CLAMP, exhaust manifold
ALL
(2)
14
65723-85
MOUNTING BRACKET
ALL
(2)
15
65724-85A
MOUNT, rubber (2)
ALL
16
66861-09B
CLAMP, exhaust pipe,
ALL
hinged
17
66881-09
BRACKET, exhaust pipe
ALL
hanger
18
72177-07BK
HOUSING, four-way
ALL
socket (black)
19
72344-10
TERMINAL, socket, 22
ALL
AWG (gold) (4)
20
72444-07GY
HOUSING, four-way,
ALL
socket (gray)
296/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
21
73307-10
TERMINAL, socket, 22
ALL
AWG (4)
22
10200569
SCREW
ALL
23
10900015A
STUD, exhaust
ALL
24
32700046
SENSOR, oxygen (O2),
ALL
front, with 10177, 11936,
72344-10, 72444-07GY
and 73307-10
25
64900235A
MUFFLER (left) (chrome)
FLHR, FLHT, FLHTCU,
(Domestic, Canada,
FLHTK, FLHTK SHRINE,
California)
FLHTKL, FLHX, FLTRU,
FLTRX
25
64900765A
MUFFLER (left) (black)
FLHRXS, FLHXS, FLTRXS
(Domestic, Canada,
California)
25
64900239
MUFFLER (left) (chrome)
FLHR, FLHRC, FLHT,
(Australia, England, HDI,
FLHTK, FLHTK SHRINE,
Japan)
FLHTKL, FLHX, FLTRU,
FLTRX
25
64900769
MUFFLER (left) (black)
FLHRXS, FLHXS, FLTRXS
(Australia, England, HDI,
Japan)
25
64900767
MUFFLER (left) (black)
FLHRXS, FLHXS, FLTRXS
(Asia-Pacific, Brazil)
25
64900237
MUFFLER (left) (chrome)
FLHR, FLHTK, FLHTKL,
(Asia-Pacific)
FLHX, FLTRU, FLTRX
25
64900237
MUFFLER (left) (chrome)
FLHRC, FLHTK, FLHX,
(Brazil)
FLTRU
25
64900815
MUFFLER (left) (chrome)
FLHR, FLHTK, FLHTK
(China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
25
64900817
MUFFLER (left) (black)
FLHRXS, FLHXS, FLTRXS
(China)
EXHAUST SYSTEM (2 OF 2)
297/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
298/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
26
64900236A
MUFFLER (right)
FLHR, FLHT, FLHTCU,
(chrome) (Domestic,
FLHTK, FLHTK SHRINE,
Canada, California)
FLHTKL, FLHX, FLTRU,
FLTRX
26
64900766A
MUFFLER (right) (black)
FLHRXS, FLHXS, FLTRXS
(Domestic, Canada,
California)
26
64900240
MUFFLER (right)
FLHR, FLHRC, FLHT,
(chrome) (Australia,
FLHTK, FLHTK SHRINE,
England, HDI, Japan)
FLHTKL, FLHX, FLTRU,
FLTRX
26
64900770
MUFFLER (right) (black)
FLHRXS, FLHXS, FLTRXS
(Australia, England, HDI,
Japan)
26
64900768
MUFFLER (right) (black)
FLHRXS, FLHXS, FLTRXS
(Asia-Pacific, Brazil)
26
64900238
MUFFLER (right)
FLHR, FLHTK, FLHTKL,
(chrome) (Asia-Pacific)
FLHX, FLTRU, FLTRX
26
64900238
MUFFLER (right)
FLHRC, FLHTK, FLHX,
(chrome) (Brazil)
FLTRU
26
64900814
MUFFLER (right)
FLHR, FLHTK, FLHTK
(chrome) (China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
26
64900816
MUFFLER (right) (black)
FLHRXS, FLHXS, FLTRXS
(China)
27
65400176
SHIELD, exhaust pipe,
FLHR, FLHRC, FLHT,
front
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
27
65400483
SHIELD, exhaust pipe,
FLHRXS, FLHXS, FLTRXS
front (black)
28
65400177
EXHAUST SHIELD
FLHR, FLHRC, FLHT,
ASSEMBLY, rear header
FLHTCU, FLHTK, FLHTK
pipe
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
28
65400484
EXHAUST SHIELD
FLHRXS, FLHXS, FLTRXS
ASSEMBLY, rear header
pipe (black)
299/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
29
65400178
EXHAUST SHIELD
FLHR, FLHRC, FLHT,
ASSEMBLY, catalytic
FLHTCU, FLHTK, FLHTK
converter
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
29
65400485
EXHAUST SHIELD
FLHRXS, FLHXS, FLTRXS
ASSEMBLY, catalytic
converter (black)
30
65400179
SHIELD, left exhaust
FLHR, FLHRC, FLHT,
pipe, rear
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
30
65400486
SHIELD, left exhaust
FLHRXS, FLHXS, FLTRXS
pipe, rear (black)
31
65500042
BRACKET, muffler strap,
ALL
male
32
65500043
BRACKET, muffler strap,
ALL
female
33
65600176
HEADER ASSEMBLY,
FLHR, FLHRXS, FLHT,
catalytic (Domestic,
FLHTCU, FLHTK, FLHTK
Canada, California)
SHRINE, FLHTKL, FLHX,
(chrome)
FLHXS, FLTRU, FLTRX,
FLTRXS
33
65600177
HEADER ASSEMBLY,
FLHR, FLHRC, FLHRXS,
catalytic (Australia,
FLHT, FLHTK, FLHTK
England, Japan, HDI,
SHRINE, FLHTKL, FLHX,
Asia-Pacific, Brazil)
FLHXS, FLTRU, FLTRX,
(chrome)
FLTRXS
34
65600178
CROSSOVER PIPE
ALL
ASSEMBLY (chrome)
35
65900012
CLAMP, muffler (2)
ALL
36
65900015
CLAMP, muffler
ALL
37
65400545
SHIELD, muffler (left)
FLHR, FLHTK, FLHTK
(chrome) (China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
37
65400546
SHIELD, muffler (left)
FLHRXS, FLHXS, FLTRXS
(black) (China)
38
66047-05
CLAMP (China) (6)
ALL
39
65400547
SHIELD, muffler (right)
FLHR, FLHTK, FLHTK
(chrome) (China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
300/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
39
65400548
SHIELD, muffler (right)
FLHRXS, FLHXS, FLTRXS
(black) (China)
WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (1 OF 8)
301/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
302/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (7)
FLHT, FLHX
2
72168-07
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (7)
3
72272-07
TERMINAL, socket, 14-
FLHT, FLHX
16 AWG (4)
4
72364-06
TERMINAL, socket, 10-
FLHT, FLHX
14 AWG
5
72414-07BK
HOUSING, six-way
FLHT, FLHX
socket (black)
6
72473-07
SEAL PIN, natural (7)
FLHT, FLHX
7
72489-07GY
HOUSING, 12-way
FLHT, FLHX
socket (gray)
8
72721-07
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (2)
9
69200201
HOUSING, two-way
FLHT, FLHX
socket (black)
10
69200202A
WIRE TROUGH
FLHT, FLHX
11
69200203A
COVER, wire trough, with
FLHT, FLHX
15368-01A and
69201459
12
69200214
CADDY, left steer head
FLHT, FLHX
13
69200294
CABLE, AM/FM antenna
FLHT, FLHX
14
69201287
BRACKET, mounting,
FLHT, FLHX
electrical connector
15
69201459
BRACKET
FLHT, FLHX

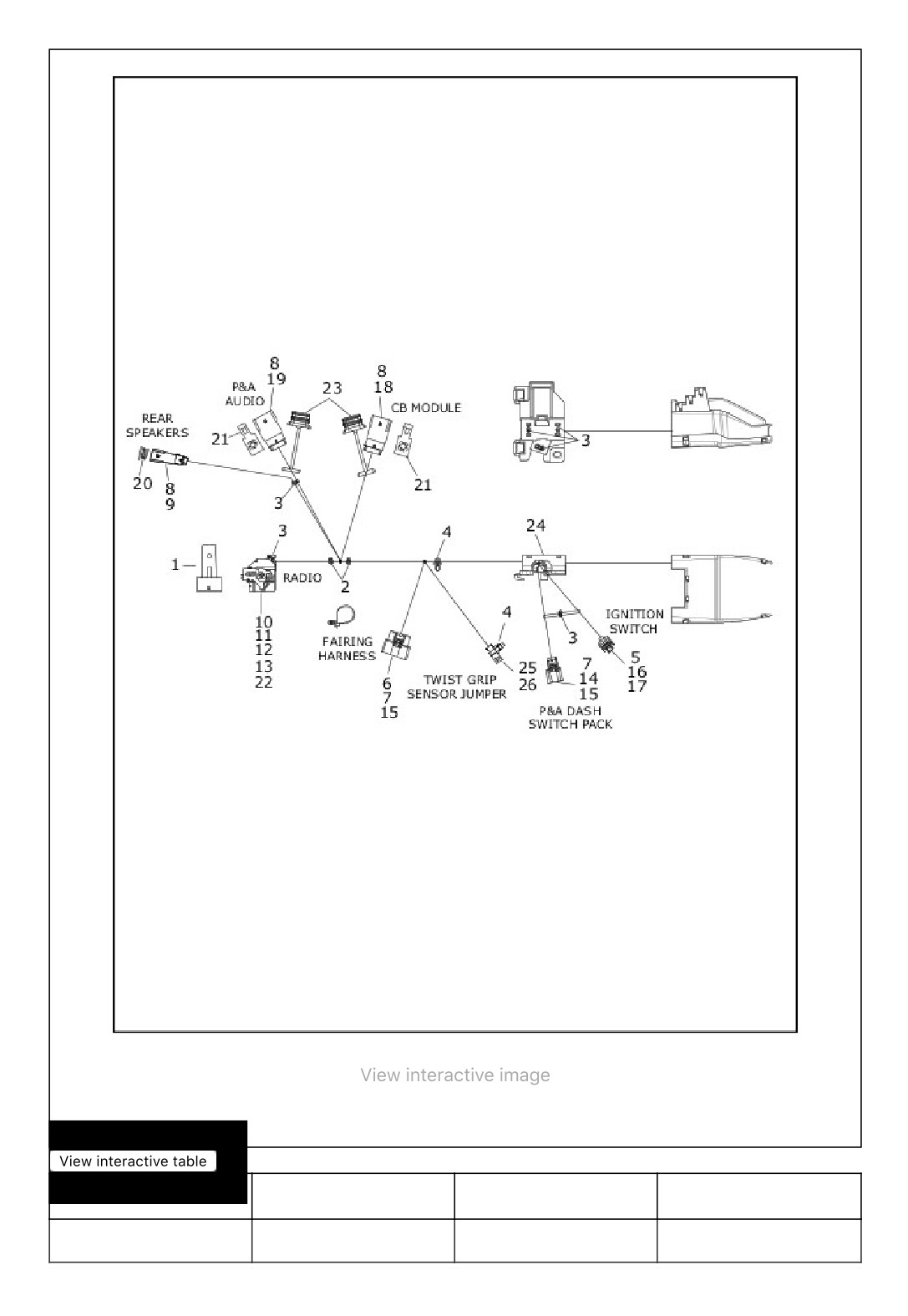

WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (2 OF 8)
303/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
69202354
PLUG, weather
FLHT
304/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
2
10006
CABLE STRAP (2)
FLHT, FLHX
3
10065
CABLE STRAP (6)
FLHT, FLHX
4
10177
CABLE STRAP, anchored
FLHT, FLHX
(2)
5
72062-06
HOUSING, two-way
FLHT, FLHX
socket (gray)
6
72166-07BK
HOUSING, 16-way
FLHT, FLHX
socket (black)
7
72168-07
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (16)
8
72169-07
TERMINAL, pin, 16-20
FLHT, FLHX
AWG (28)
9
72175-07BK
HOUSING, four-way pin
FLHT, FLHX
(black)
10
72209-11
COVER, wire
FLHT, FLHX
11
72222-11
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (26)
12
72226-11
TERMINAL, socket, 14-
FLHT, FLHX
16 AWG (8)
13
72256-11
SEAL PIN (14)
FLHT, FLHX
14
72414-07BK
HOUSING, six-way
FLHT, FLHX
socket (black)
15
72473-07
SEAL PIN, natural (6)
FLHT, FLHX
16
72484-08
TERMINAL, socket, 20
FLHT, FLHX
AWG (2)
17
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHX
(green) (2)
18
72488-07BK
HOUSING, 12-way pin
FLHT, FLHX
(black)
19
72490-07GY
HOUSING, 12-way pin
FLHT, FLHX
(gray)
305/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
20
72632-10
PLUG, weather, four-way
FLHT, FLHX
pin
21
73213-07
RETAINER, anchored (2)
FLHT, FLHX
22
69200193
HOUSING, 48-way
FLHT, FLHX
socket (black)
23
69200205
PLUG, weather, 12-way
FLHT, FLHX
pin (2)
24
69200215
CADDY, right steer head
FLHT, FLHX
25
69201163
HOUSING, six-way pin
FLHT, FLHX
(black)
26
69201164
TERMINAL, pin, 22 AWG
FLHT, FLHX
(6)

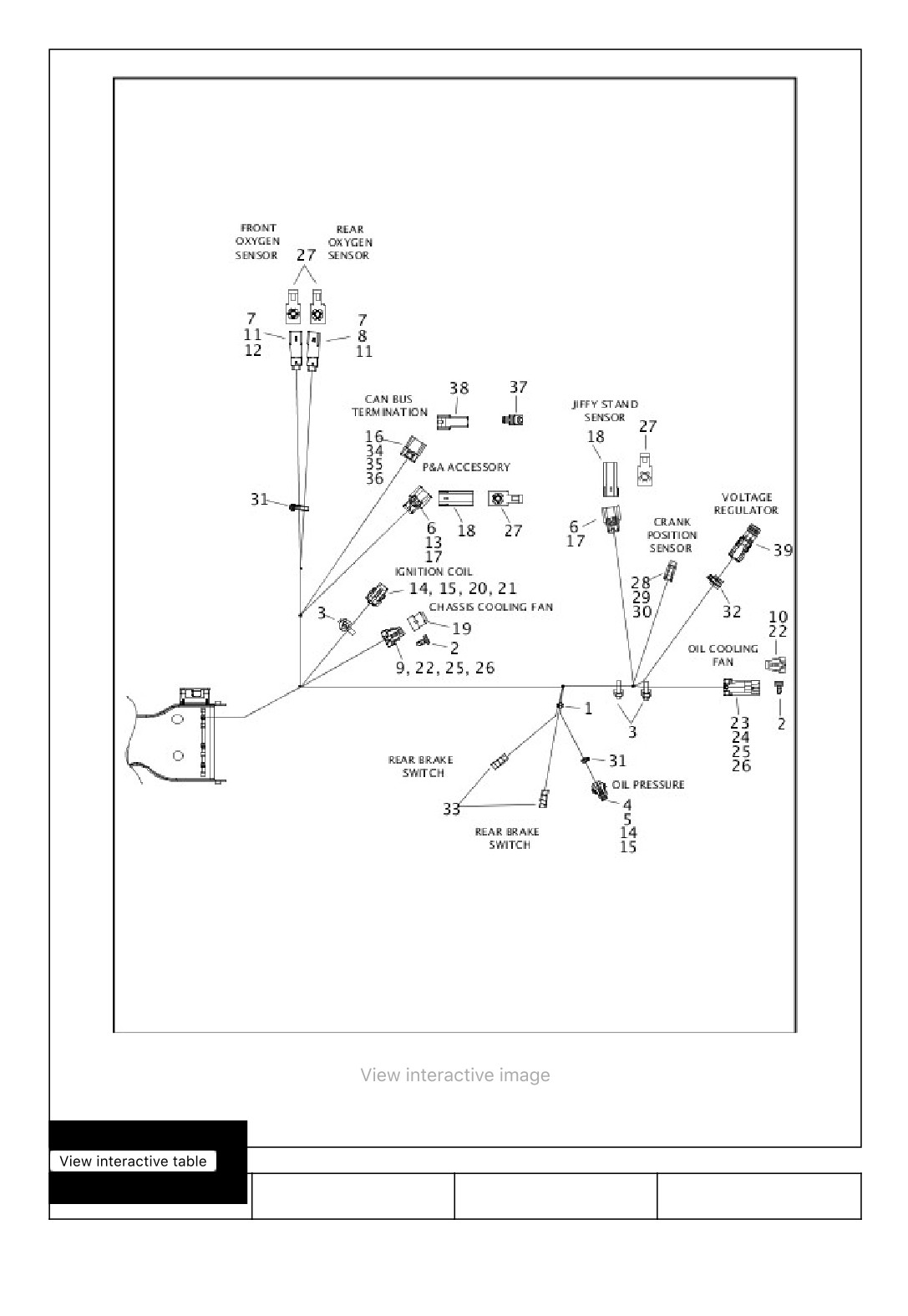

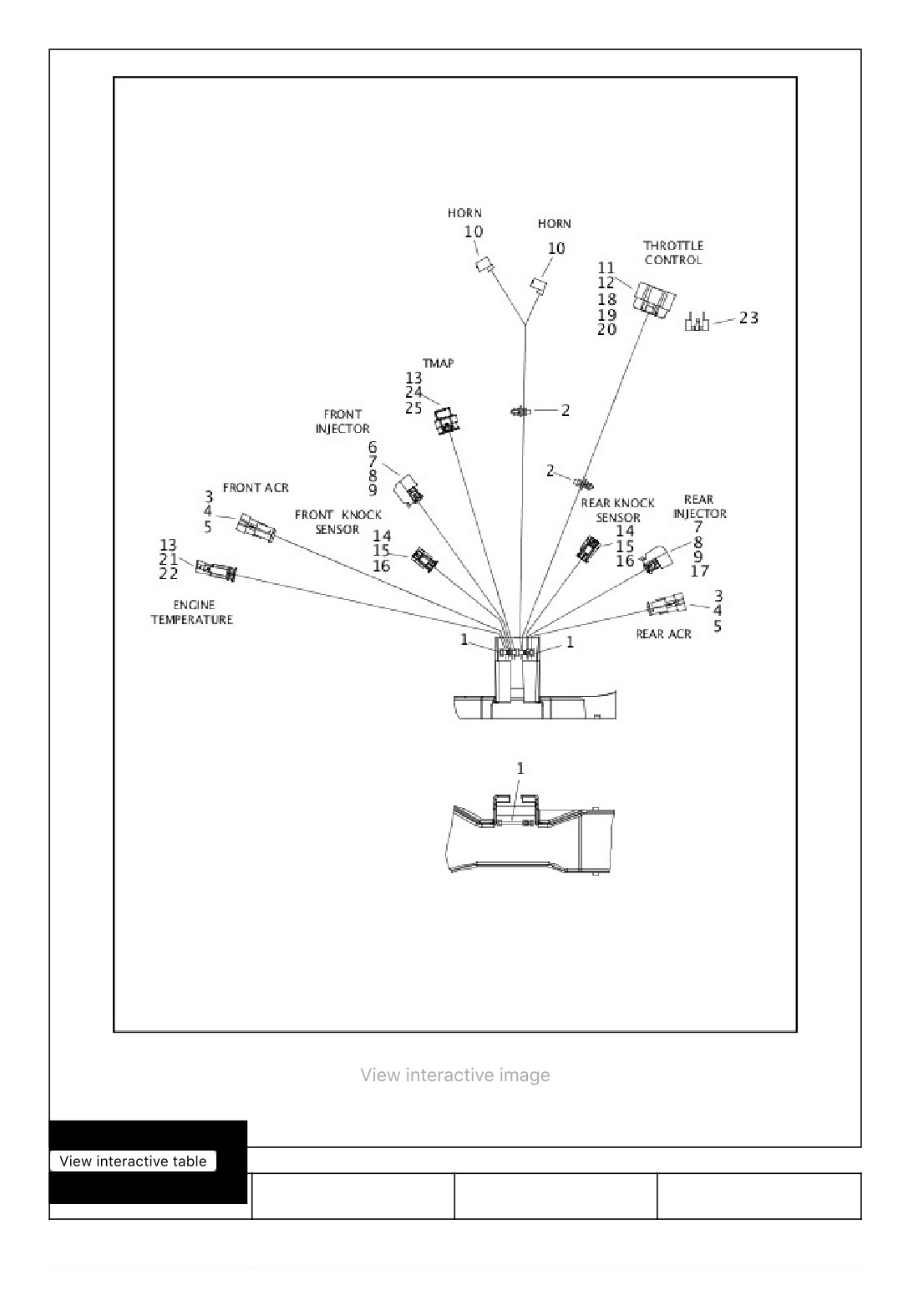

WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (3 OF 8)
306/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
307/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHT, FLHX
2
10177
CABLE STRAP, anchored
FLHT, FLHX
(2)
3
72008-05
TERMINAL, pin, 20-22
FLHT, FLHX
AWG (4)
4
72009-05
HOUSING, two-way pin
FLHT, FLHX
(black) (2)
5
72010-05
WIRE SEAL, 22-26 AWG
FLHT, FLHX
(green) (4)
6
72098-06
HOUSING, two-way
FLHT, FLHX
socket (gray)
7
72099-06
WIRE SEAL, 16-18 AWG
FLHT, FLHX
(blue) (4)
8
72110-06
TERMINAL, socket, 16-
FLHT, FLHX
18 AWG (4)
9
72145-06
SECONDARY LOCK,
FLHT, FLHX
two-way socket (2)
10
72283-09
TERMINAL, socket, 14-
FLHT, FLHX
16 AWG, 90 degree (2)
11
72499-07
WIRE SEAL, 20-22 AWG
FLHT, FLHX
(green) (6)
12
72569-08
TERMINAL, socket, 20-
FLHT, FLHX
22 AWG (2)
13
69201301
WIRE SEAL, 20-22 AWG
FLHT, FLHX
(green) (6)
14
69201390
HOUSING, two-way
FLHT, FLHX
socket (black) (2)
15
69201391
TERMINAL, socket, 20
FLHT, FLHX
AWG (4)
16
69201392
WIRE SEAL, 20 AWG
FLHT, FLHX
(yellow) (4)
308/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
69201393
HOUSING, two-way
FLHT, FLHX
socket (black)
18
69201394
HOUSING, six-way
FLHT, FLHX
socket (black)
19
69201395
SECONDARY LOCK, six-
FLHT, FLHX
way socket
20
69201396
TERMINAL, socket, 20
FLHT, FLHX
AWG (4)
21
69201397
HOUSING, two-way pin
FLHT, FLHX
(gray)
22
69201398
TERMINAL, pin, 20 AWG
FLHT, FLHX
(2)
23
69201416
CPA, six-way socket
FLHT, FLHX
24
69201441
HOUSING, four-way
FLHT, FLHX
socket
25
69201442
TERMINAL, socket, 18
FLHT, FLHX
AWG (4)

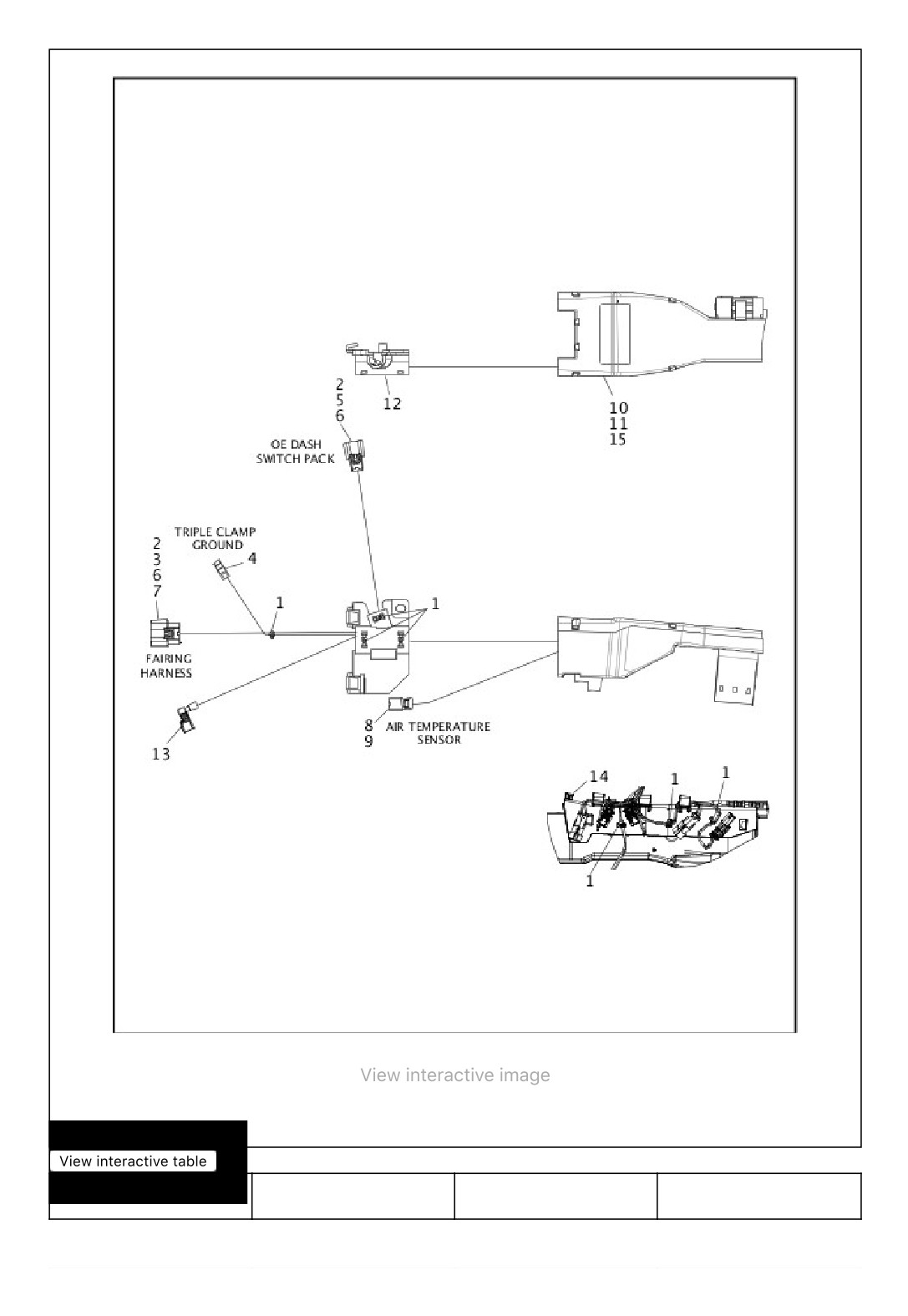

WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (4 OF 8)
309/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
310/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHT, FLHX
2
10147
CLIP, connector
FLHT, FLHX
3
72213-94
TERMINAL, socket, 16-
FLHT, FLHX
20 AWG (2)
4
72518-01
HOUSING, two-way
FLHT, FLHX
socket (red)
5
72533-06
PLUG, weather, two-way
FLHT, FLHX
pin
6
72609-08
SECONDARY LOCK,
FLHT, FLHX
two-way socket
7
72610-08
WIRE SEAL, 18-20 AWG
FLHT, FLHX
(white) (2)
8
72664-12A
HOUSING, 18-way
FLHT, FLHX
socket (black)
9
72666-12
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (43)
10
72720-07
HOUSING, two-way
FLHT, FLHX
socket (black)
11
72721-07
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (2)
12
69201168
TERMINAL, socket, 22
FLHT, FLHX
AWG (2)
13
69201415
HOUSING, 18-way
FLHT, FLHX
socket (brown)
14
69201440
HOUSING, 18-way
FLHT, FLHX
socket (gray)

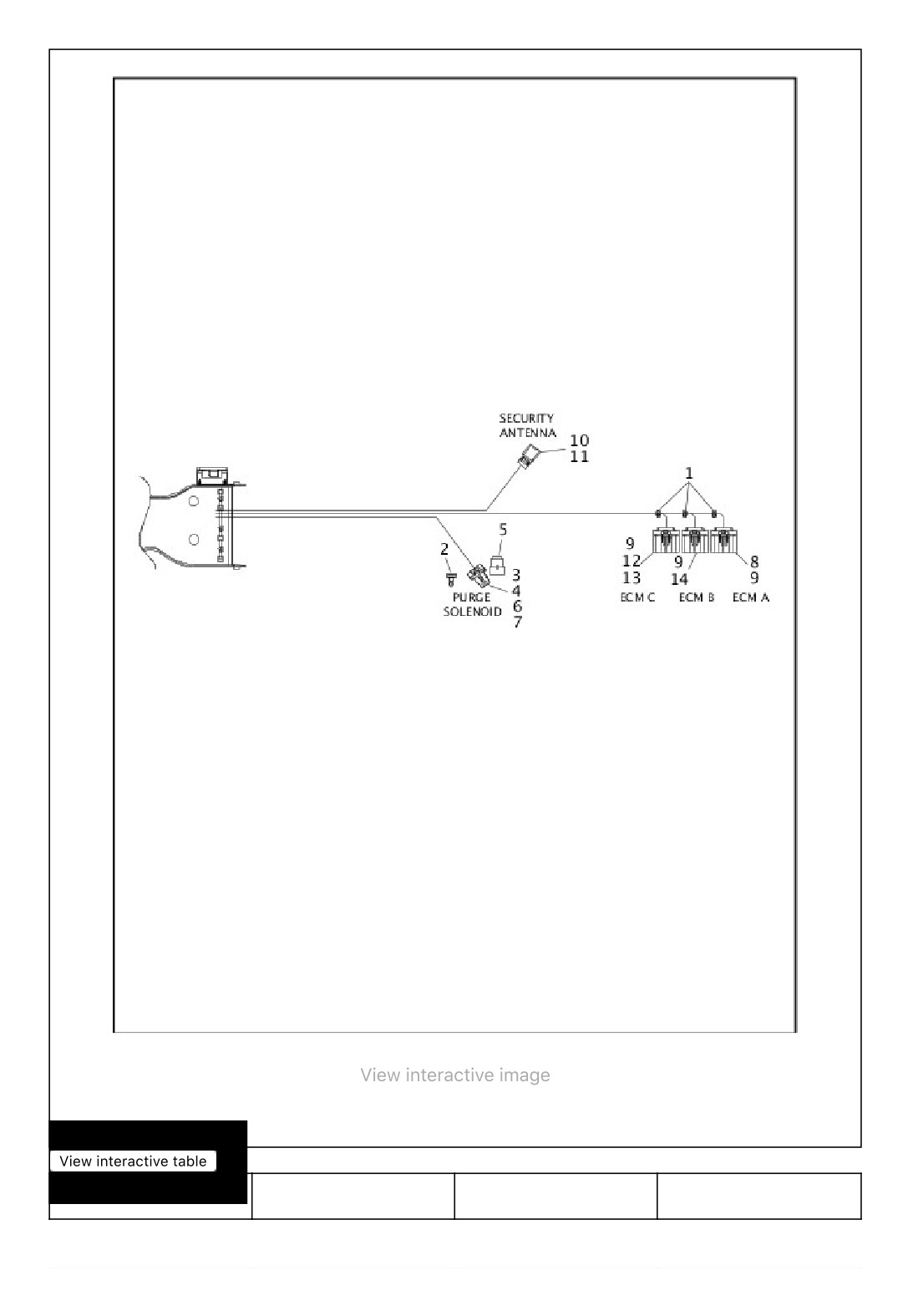

WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (5 OF 8)
311/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
312/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
9819
TERMINAL, ring, 12 AWG
FLHT, FLHX
(2)
2
72169-07
TERMINAL, pin, 16-20
FLHT, FLHX
AWG (4)
3
72249-94
HEAT SHRINK TUBE,
FLHT, FLHX
.415 x 1 in (black)
4
72415-07GY
HOUSING, four-way pin
FLHT, FLHX
(gray)
5
73213-07
RETAINER, anchored
FLHT, FLHX
6
69200294
CABLE, AM/FM antenna
FLHT, FLHX
7
69201596
TERMINAL, ring, 8-10
FLHT, FLHX
AWG

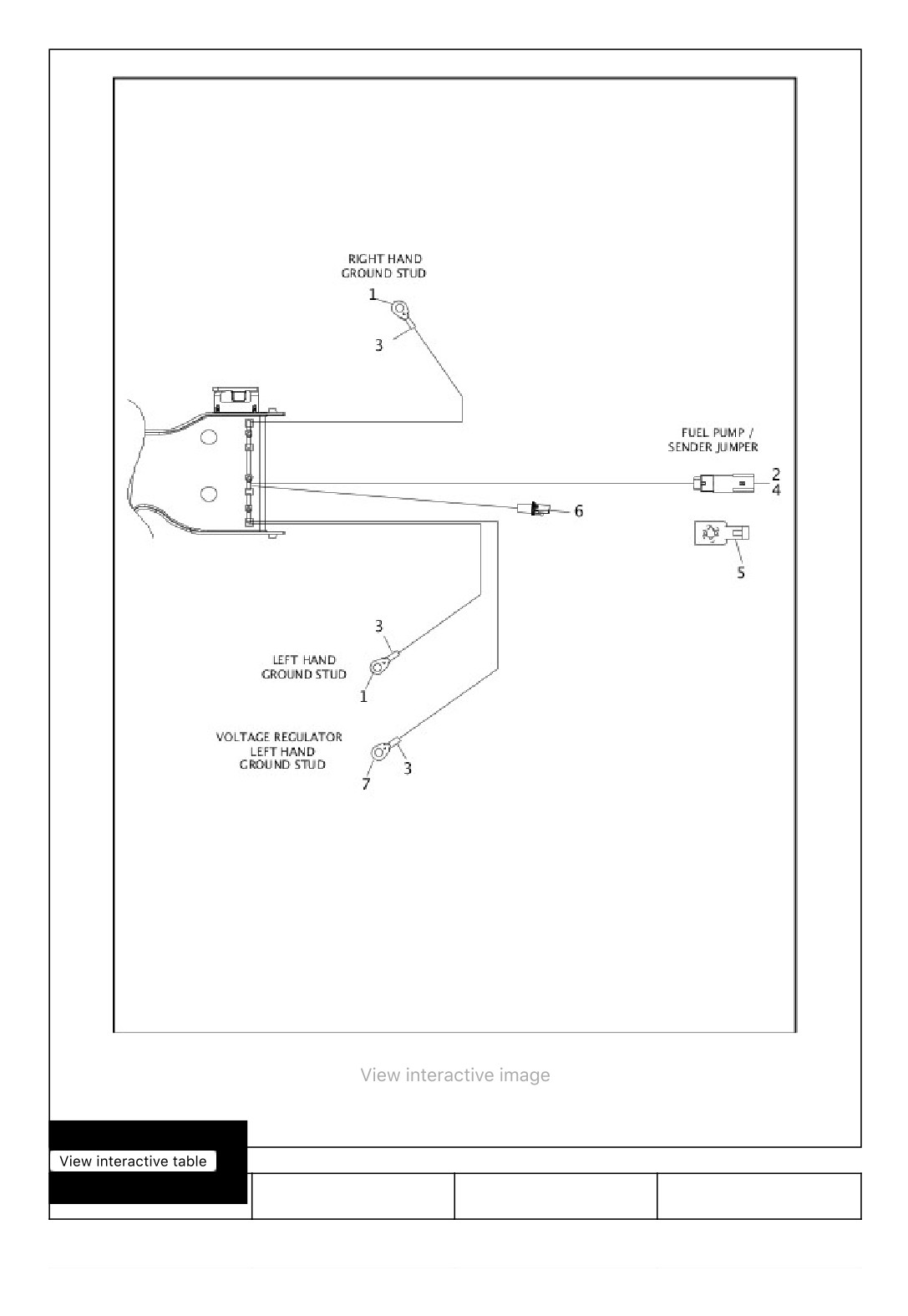

WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (6 OF 8)
313/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
314/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLHT, FLHX
2
10065
CABLE STRAP (4)
FLHT, FLHX
3
11779
FASTENER, push-in
FLHT, FLHX
(black) (2)
4
72291-94
TERMINAL, socket, 14-
FLHT, FLHX
16 AWG
5
72295-94
HOUSING, one-way
FLHT, FLHX
socket (white)
6
72405-98BK
WIRE ASSEMBLY, push-
FLHT, FLHX
on, right angle molded,
65-1/2 in length (black)
(2)
7
72484-08
TERMINAL, socket, 20
FLHT, FLHX
AWG (3)
8
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHX
(green) (3)
9
72543-07BK
HOUSING, three-way
FLHT, FLHX
socket (black)
10
72544-07
SECONDARY LOCK,
FLHT, FLHX
three-way socket
11
69200175
CADDY, fuse block,
FLHT, FLHX
electrical panel

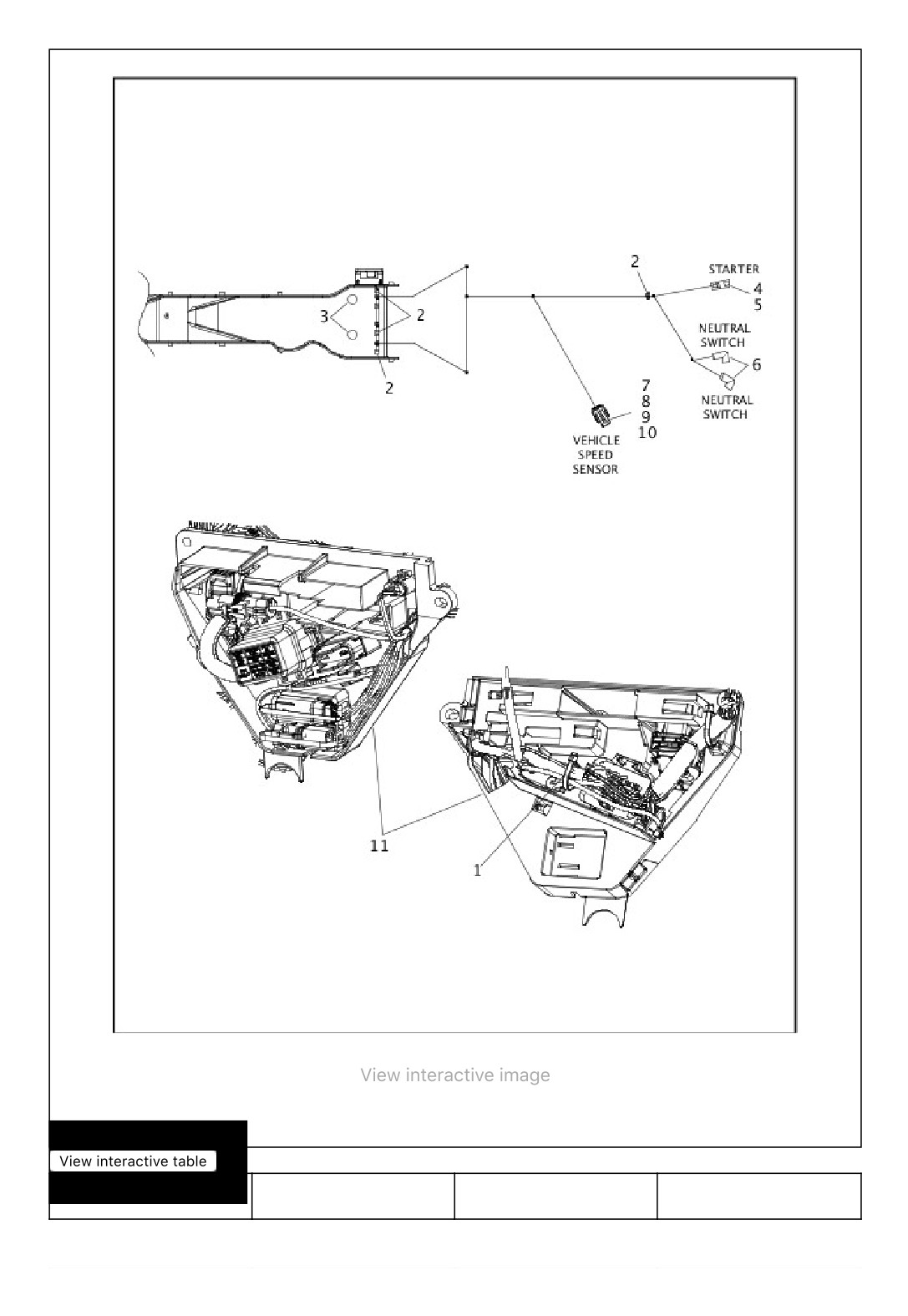

WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (7 OF 8)
315/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
316/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP
FLHT, FLHX
2
10147
CLIP, connector (2)
FLHT, FLHX
3
10177
CABLE STRAP, anchored
FLHT, FLHX
(3)
4
72065-06A
HOUSING, three-way
FLHT, FLHX
socket (black)
5
72127-06
SECONDARY LOCK,
FLHT, FLHX
three-way
6
72168-07
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (5)
7
72169-07
TERMINAL, pin, 16-20
FLHT, FLHX
AWG (4)
8
72175-07BK
HOUSING, four-way pin
FLHT, FLHX
(black)
9
72213-94
TERMINAL, socket, 16-
FLHT, FLHX
20 AWG (2)
10
72232-96
SEAL PIN (red) (2)
FLHT, FLHX
11
72343-10
TERMINAL, pin, 16-20
FLHT, FLHX
AWG (4)
12
72415-07GY
HOUSING, four-way pin
FLHT, FLHX
(gray)
13
72473-07
SEAL PIN, natural
FLHT, FLHX
14
72484-08
TERMINAL, socket, 20
FLHT, FLHX
AWG (6)
15
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHX
(green) (6)
16
72499-07
WIRE SEAL, 20-22 AWG
FLHT, FLHX
(green) (2)
17
72512-07BK
HOUSING, three-way
FLHT, FLHX
socket (black) (2)
317/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72519-09BK
PLUG, weather, three-
FLHT, FLHX
way socket (2)
19
72533-06
PLUG, weather, two-way
FLHT, FLHX
pin
20
72544-07
SECONDARY LOCK,
FLHT, FLHX
three-way socket
21
72589-09
HOUSING, three-way
FLHT, FLHX
socket (black)
22
72606-08
HOUSING, two-way
FLHT, FLHX
socket (black) (2)
23
72607-08
HOUSING, two-way pin
FLHT, FLHX
(black)
24
72608-08
TERMINAL, pin, 16-20
FLHT, FLHX
AWG (2)
25
72609-08
SECONDARY LOCK,
FLHT, FLHX
two-way socket (2)
26
72610-08
WIRE SEAL, 18-20 AWG
FLHT, FLHX
(white) (4)
27
73213-07
RETAINER, anchored (4)
FLHT, FLHX
28
74112-98BK
HOUSING, two-way
FLHT, FLHX
socket (black)
29
74152-98
SECONDARY LOCK,
FLHT, FLHX
two-way socket
30
74191-98
TERMINAL, socket 16-20
FLHT, FLHX
AWG (2)
31
12500014
CABLE STRAP (2)
FLHT, FLHX
32
12500018
CABLE STRAP
FLHT, FLHX
33
69200238
TERMINAL, socket, 20
FLHT, FLHX
AWG (2)
34
69201396
TERMINAL, socket, 20
FLHT, FLHX
AWG (2)
35
69201400
HOUSING, two-way
FLHT, FLHX
socket,(black)
36
69201401
SECONDARY LOCK,
FLHT, FLHX
two-way socket
318/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
69201404
CONNECTOR, anchored
FLHT, FLHX
38
69201405
RESISTOR PACK
FLHT, FLHX
39
69201423
DC LEAD ASSEMBLY,
FLHT, FLHX
two-way socket

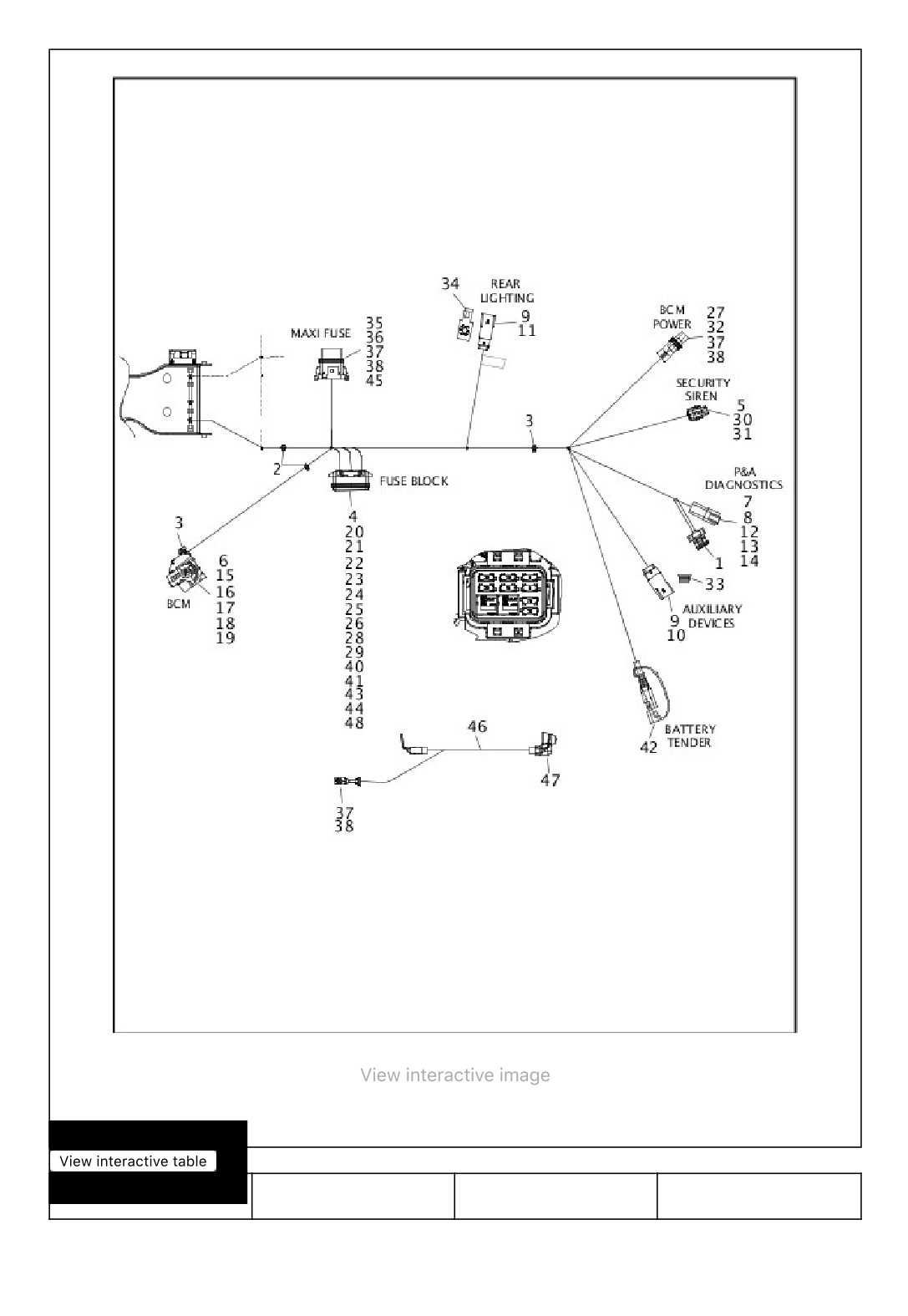

WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (8 OF 8)
319/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
320/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
6990
PLUG WEATHER, six-
FLHT, FLHX
way pin
2
10006
CABLE STRAP (2)
FLHT, FLHX
3
10065
CABLE STRAP (2)
FLHT, FLHX
4
31586-07
RELAY (2)
FLHT, FLHX
5
72064-06
HOUSING, three-way
FLHT, FLHX
socket (black)
6
72081-11
HOUSING, 48-way
FLHT, FLHX
socket (black)
7
72106-94BK
HOUSING, six-way pin
FLHT, FLHX
(black) (replaces gray
connector)
8
72146-94
SECONDARY LOCK, six-
FLHT, FLHX
way pin
9
72169-07
TERMINAL, pin, 16-20
FLHT, FLHX
AWG (10)
10
72175-07BK
HOUSING, four-way pin
FLHT, FLHX
(black)
11
72188-07BK
HOUSING, six-way pin
FLHT, FLHX
(black)
12
72190-94
TERMINAL, pin, 16-18
FLHT, FLHX
AWG (2)
13
72194-94
TERMINAL, pin, 20 AWG
FLHT, FLHX
(3)
14
72195-94
SEAL PIN
FLHT, FLHX
15
72209-11
COVER, wire
FLHT, FLHX
16
72222-11
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (21)
17
72226-11
TERMINAL, socket, 14-
FLHT, FLHX
16 AWG
321/956
