Harley Davidson SIP Parts Catalog 4/5/2019: touring models - page 5
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
NOTE: Refer to Painted Parts Book for painted part numbers.
162/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
3634
SCREW (4)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
2
10039
CABLE STRAP (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
3
10396
RETAINER, fuel line, 3/8
FLHT, FLHTCU, FLHTK,
in (natural)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
4
11323A
O-RING, check valve to
FLHT, FLHTCU, FLHTK,
tank
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
5
27291-09A
LINE, evaporative (EVAP),
FLHT, FLHTCU, FLHTK,
tank
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
6
27440-09A
LINE, evaporative (EVAP)
FLHT, FLHTCU, FLHTK,
(Domestic, Canada,
FLHTK SHRINE, FLHTKL,
Australia)
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
7
61356-08
FUEL TANK (prime)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
8
62228-08C
CHECK VALVE,
FLHT, FLHTCU, FLHTK,
assembly, with 10396
FLHTK SHRINE, FLHTKL,
and 11323A
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
9
70901-09
BOOT, tank bracket
FLHT, FLHTCU, FLHTK,
(right)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
10
70999-09
BOOT, tank bracket (left)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
11
61200022
FUEL LINE, tank to
FLHT, FLHTCU, FLHTK,
intake
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
163/956

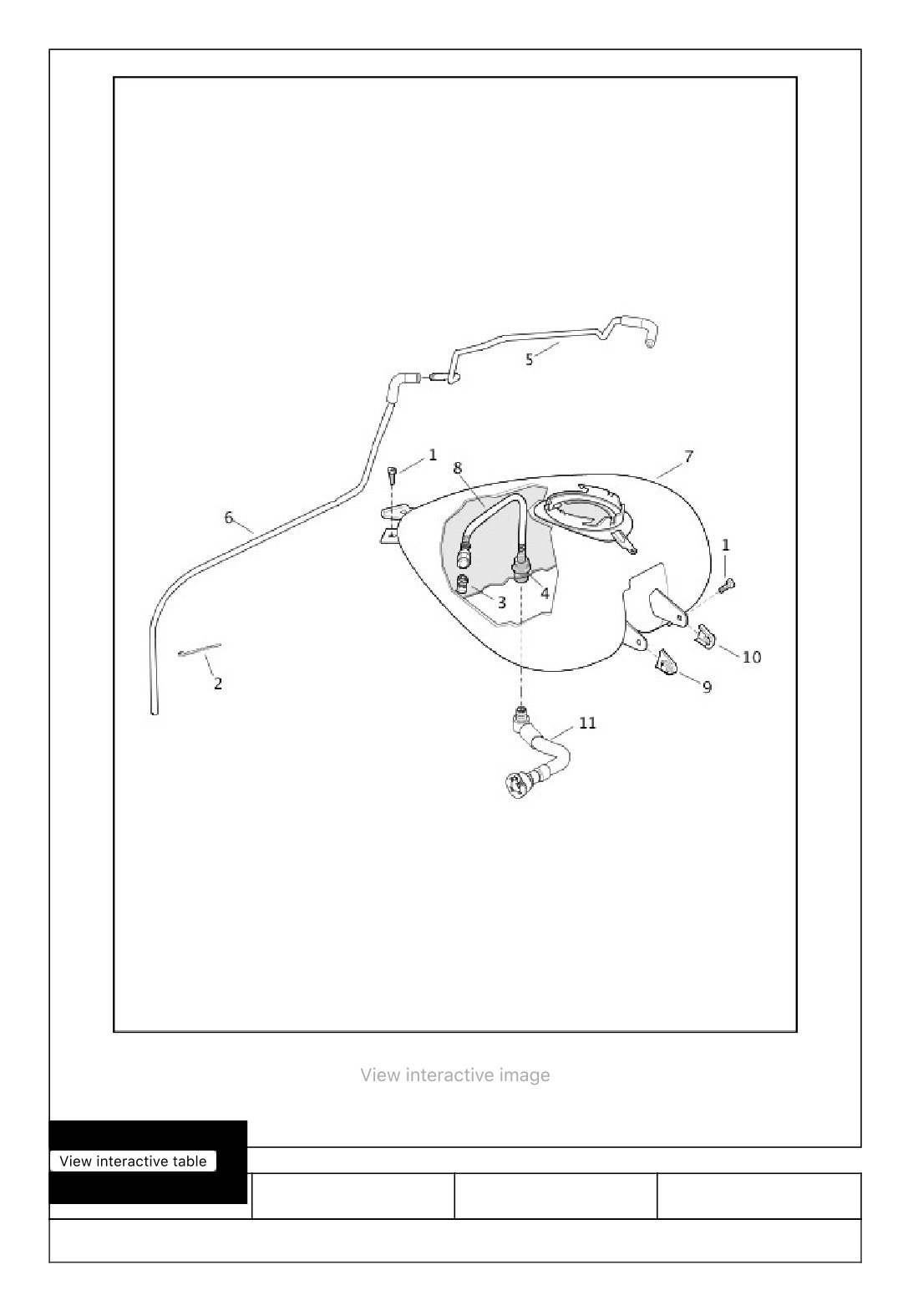

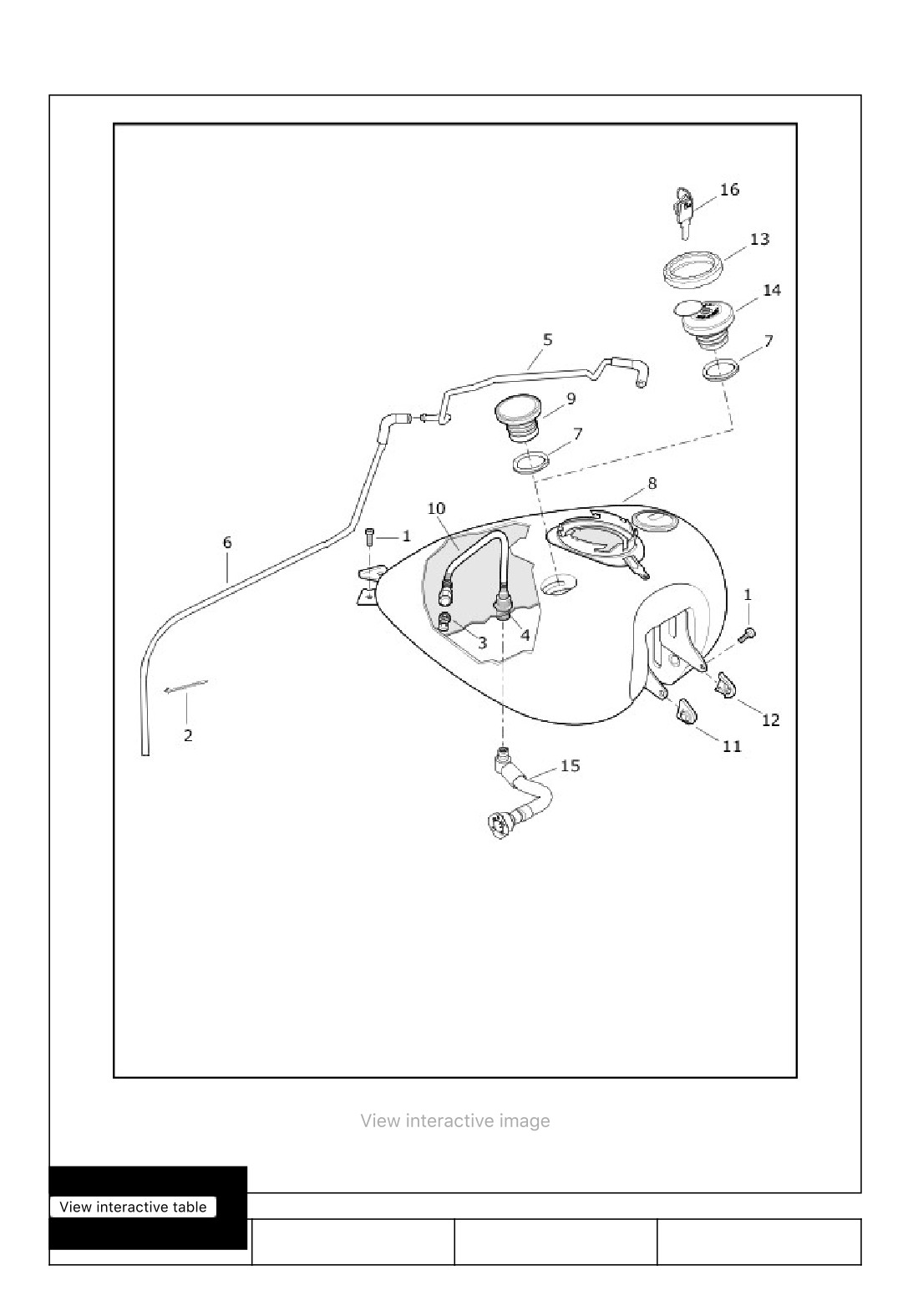

FUEL TANK - FLHR, FLHRC AND FLHRXS
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
164/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
NOTE: Refer to Painted Parts Book for painted part numbers.
1
3634
SCREW (4)
FLHR, FLHRC, FLHRXS
2
10039
CABLE STRAP (2)
FLHR, FLHRC, FLHRXS
3
10396
RETAINER, fuel line, 3/8
FLHR, FLHRC, FLHRXS
in (natural)
4
11323A
O-RING, check valve to
FLHR, FLHRC, FLHRXS
tank
5
27291-09A
LINE, evaporative (EVAP),
FLHR, FLHRC, FLHRXS
tank
6
27440-09A
LINE, evaporative (EVAP)
FLHR, FLHRC, FLHRXS
(Domestic, Canada,
Australia)
7
61109-85D
GASKET, filler cap
FLHR, FLHRC, FLHRXS
8
61268-08
FUEL TANK (prime)
FLHR, FLHRC, FLHRXS
9
61272-92C
FILLER CAP, with 61109-
FLHR, FLHRC, FLHRXS
85D (Domestic, Australia,
Japan, Brazil)
9
61100099
FILLER CAP (HDI,
FLHR, FLHRC, FLHRXS
England)
10
62228-08C
CHECK VALVE,
FLHR, FLHRC, FLHRXS
assembly, with 10396
and 11323A
11
70901-09
BOOT, tank bracket
FLHR, FLHRC, FLHRXS
(right)
12
70999-09
BOOT, tank bracket (left)
FLHR, FLHRC, FLHRXS
13
61100065
BUMPER, filler cap
FLHR, FLHRXS
(China)
14
61100120
FILLER CAP KIT, locking,
FLHR, FLHRXS
with 61109-85D and
90300093 (Asia-Pacific)
14
61100123
FILLER CAP KIT, locking,
FLHR, FLHRXS
with 61109-85D,
61100065 and 90300093
(China)
15
61200022
FUEL LINE, tank to
FLHR, FLHRC, FLHRXS
intake
165/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
16
90300093
KEY (set of 2) (Asia-
FLHR, FLHRXS
Pacific)

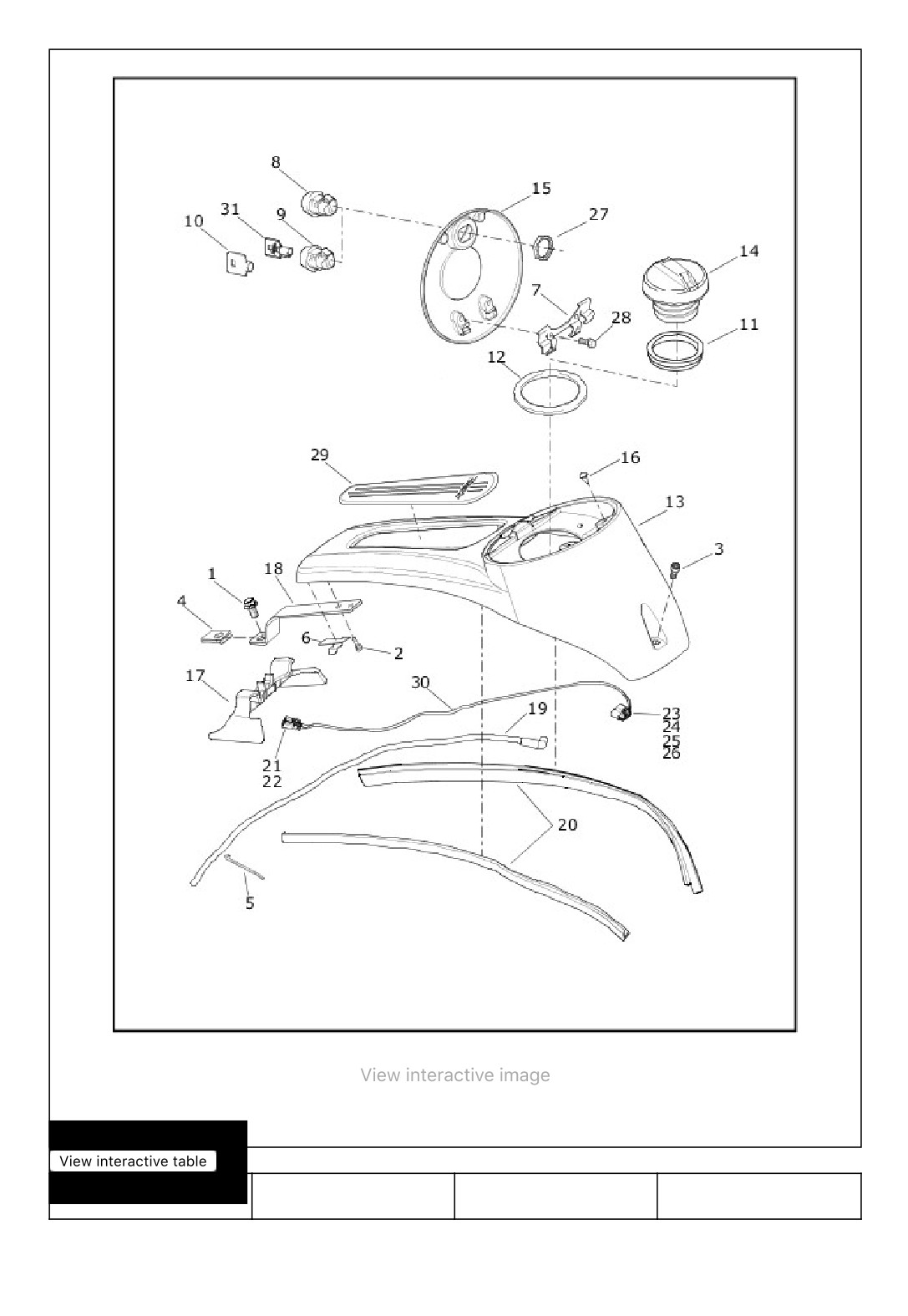

CONSOLE, FUEL TANK - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX AND FLTRXS (1 OF 3)
166/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
167/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
3588
SCREW
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
2
4194
SCREW (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
3
4856
SCREW
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
4
8142
NUT, speed
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
5
10065
CABLE STRAP
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
6
10103
CLIP, adhesive backed (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
7
10334
CLIP, hinge mounting
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
8
53919-04B
PUSH BUTTON KIT, fuel
FLHT, FLHTCU, FLHTK,
tank, with 84850-92
FLHTK SHRINE, FLHTKL,
(chrome) (Domestic)
FLHX, FLHXS, FLTRU,
FLTRX
8
90300096A
PUSH BUTTON KIT, fuel
FLHXS, FLTRXS
tank, with 84850-92
(black) (Domestic)
9
61029-92A
LOCK, fuel tank, with
FLHT, FLHTK, FLHTK
84850-92 (HDI)
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS, FLTRXS
10
61081-92
COVER, key-head (set of
FLHT, FLHTK, FLHTK
2) (HDI)
SHRINE, FLHTKL,
FLHXS, FLTRU, FLTRXS
168/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
11
61109-85D
GASKET, filler cap
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
12
61112-08
BOOT
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
CONSOLE, FUEL TANK - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX AND FLTRXS (2 OF 3)
169/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
170/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
13
61270-08
CONSOLE ASSEMBLY,
FLHTCU, FLHTK, FLHTK
with hinge pin (chrome)
SHRINE, FLHTKL, FLTRU
13
69214-08
CONSOLE ASSEMBLY,
FLHT, FLHX, FLHXS,
with hinge pin (chrome)
FLTRX
13
70900466
CONSOLE ASSEMBLY,
FLHXS, FLTRXS
with hinge pin (black)
14
61274-92
FUEL FILLER CAP,
FLHT, FLHTCU, FLHTK,
vacuum vented, with
FLHTK SHRINE, FLHTKL,
61109-85D
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
15
61278-08A
DOOR KIT, console, with
FLHT, FLHTCU, FLHTK,
10200442 (chrome)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX
15
70900465A
DOOR KIT, console, with
FLHXS, FLTRXS
screw (black)
16
61313-88
BUMPER, cover (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
17
62775-08
TRIM COVER, fuel tank
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
18
67493-08
BRACKET, console
FLHT, FLHTCU, FLHTK,
mount
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
19
69241-08
DRAIN HOSE, console
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
20
71294-08
MOLDING, rubber (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
21
72168-07
TERMINAL, socket, 18-
FLHT, FLHTCU, FLHTK,
20 AWG (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
171/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
22
72444-07GY
HOUSING, four-way,
FLHT, FLHTCU, FLHTK,
socket (gray)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
CONSOLE, FUEL TANK - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX AND FLTRXS (3 OF 3)
172/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
NOTE: See INTERCOM CONTROL POD for pod and console insert for FLHTCU, FLHTK, FLHTKL and FLTRU
models.
173/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
23
72485-07
HOUSING, four-way
FLHT, FLHTCU, FLHTK,
socket (black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
24
72493-07
TERMINAL, socket, 16-
FLHT, FLHTCU, FLHTK,
18 AWG (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
25
72494-07
WIRE SEAL, 16-18 AWG
FLHT, FLHTCU, FLHTK,
(yellow) (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
26
72557-07
SECONDARY LOCK,
FLHT, FLHTCU, FLHTK,
four-way socket
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
27
84850-92
NUT
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
28
10200442
SCREW (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
29
14100279
INSERT, console panel
FLHXS
(not illustrated) (HDI)
29
14100615
INSERT, console panel
FLTRX
29
14101018
INSERT, console panel
FLHXS
29
14101019
INSERT, console panel
FLTRXS
29
14100855
INSERT, console panel
FLHX, FLHXS
(not illustrated)
(Domestic)
29
14101371
INSERT, console panel
FLHT
(not illustrated)
30
69200125
WIRE HARNESS,
FLHT, FLHTCU, FLHTK,
console, with 72168-07,
FLHTK SHRINE, FLHTKL,
72444-07GY, 72485-07,
FLHX, FLHXS, FLTRU,
72493-07, 72494-07 and
FLTRX, FLTRXS
72557-07
NOTE: See INTERCOM CONTROL POD for pod and console insert for FLHTCU, FLHTK, FLHTKL and FLTRU
models.
174/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
31
90300043
KEY, with 61081-92 (set
FLHT, FLHTK, FLHTK
of 2) (specify key number)
SHRINE, FLHTKL,
(HDI)
FLHXS, FLTRU, FLTRXS
NOTE: See INTERCOM CONTROL POD for pod and console insert for FLHTCU, FLHTK, FLHTKL and FLTRU
models.

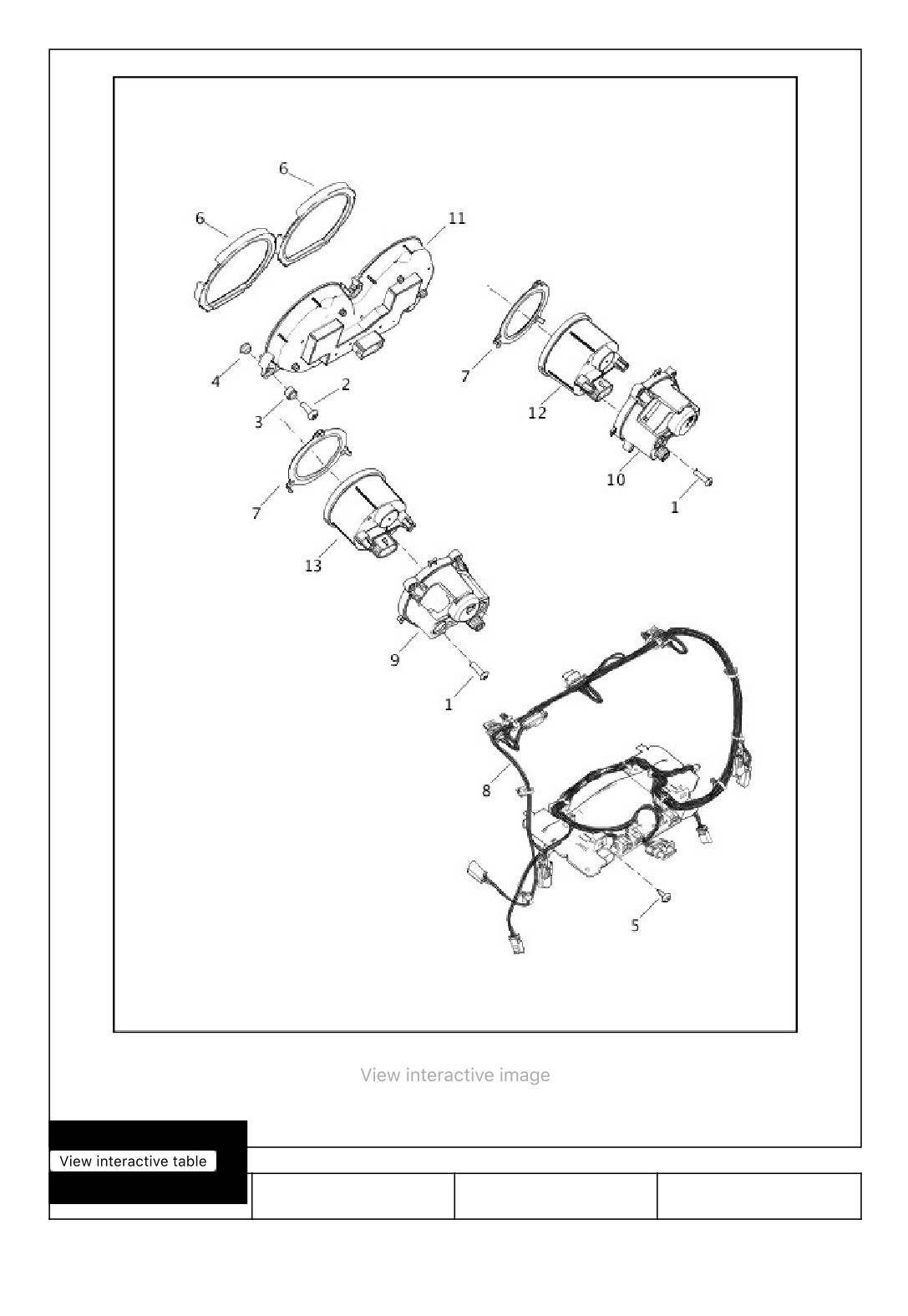

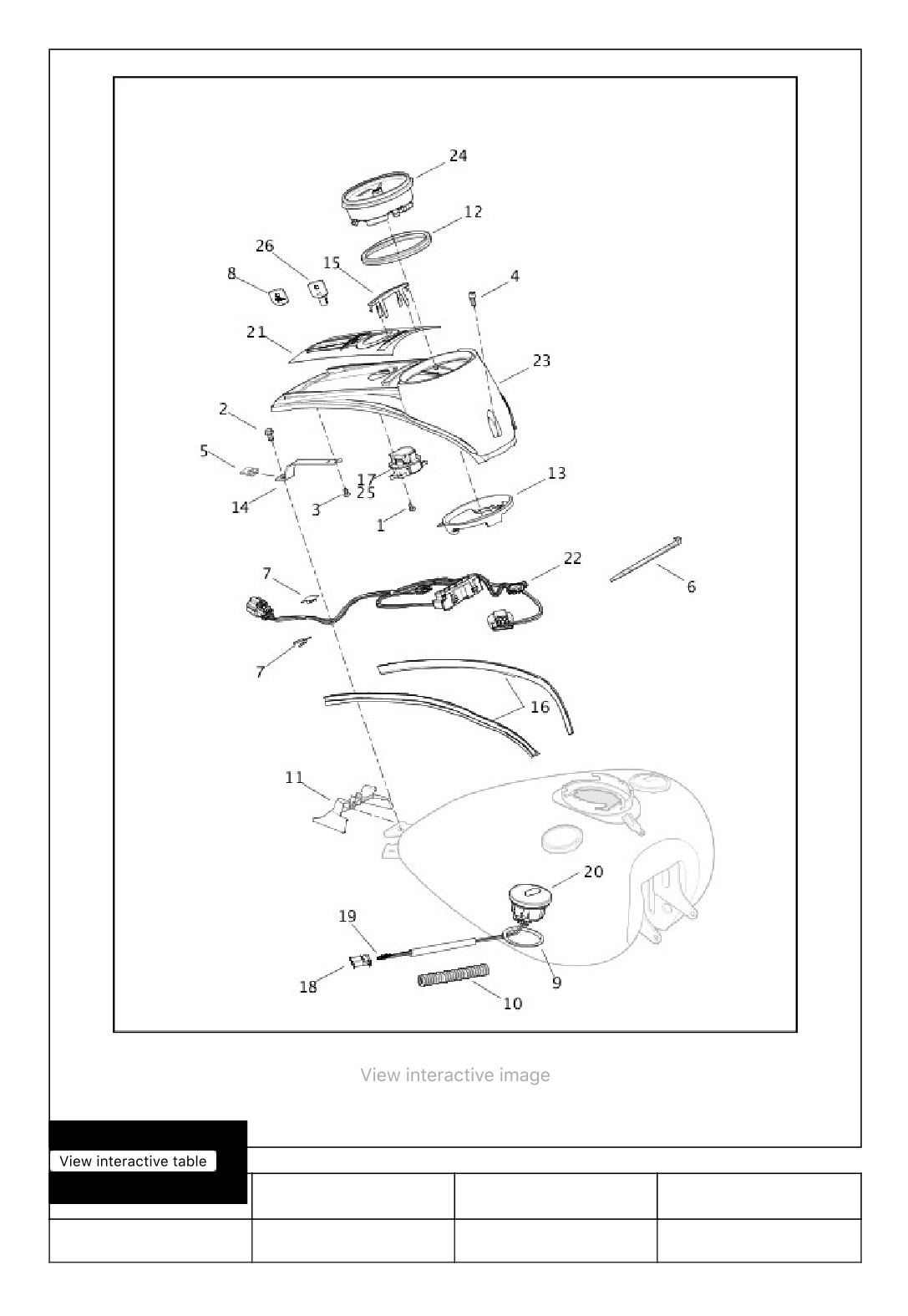

INSTRUMENTS, FUEL TANK - FLHR, FLHRC AND FLHRXS
175/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
3622
SCREW (4)
FLHR, FLHRC, FLHRXS
176/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
3588
SCREW
FLHR, FLHRC, FLHRXS
3
4194
SCREW (2)
FLHR, FLHRC, FLHRXS
4
4856
SCREW
FLHR, FLHRC, FLHRXS
5
8142
NUT, speed
FLHR, FLHRC, FLHRXS
6
10065
CABLE STRAP (2)
FLHR, FLHRC, FLHRXS
7
10103
CLIP, under instrument
FLHR, FLHRC, FLHRXS
panel (2)
8
61081-92
COVER, key-head (set of
FLHR, FLHRC, FLHRXS
2)
9
61192-96A
GASKET, fuel gauge
FLHR, FLHRC, FLHRXS
10
62519-03
HOSE, shield 1/4 in ID,
FLHR, FLHRC, FLHRXS
5.00 in long, fuel gauge
wires
11
62775-08
TRIM COVER, fuel tank
FLHR, FLHRC, FLHRXS
12
67208-08
SEAL, speedometer
FLHR, FLHRC, FLHRXS
13
67341-04B
BACK CLAMP, 5 in
FLHR, FLHRC, FLHRXS
speedo (red)
14
67493-08
BRACKET, console
FLHR, FLHRC, FLHRXS
mount
15
68253-08A
INDICATOR BEZEL
FLHR, FLHRC, FLHRXS
16
71294-08
MOLDING (2)
FLHR, FLHRC, FLHRXS
17
71517-11A
IGNITION SWITCH
FLHR, FLHRC, FLHRXS
(keyed-to-match)
18
72904-01BK
HOUSING, pin, four-way
FLHR, FLHRC, FLHRXS
19
72990-01
PIN TERMINAL (3)
FLHR, FLHRC, FLHRXS
20
75241-08
FUEL GAUGE, without
FLHR, FLHRC, FLHRXS
LED, with 72990-01
21
14100087
INSERT, console
FLHR, FLHRC
21
14101013
INSERT, console (gloss
FLHRXS
black)
22
69200124
WIRE HARNESS, console
FLHR, FLHRC, FLHRXS
177/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
23
70900117
INSTRUMENT PANEL
FLHR, FLHRC
(chrome)
23
70900744
INSTRUMENT PANEL
FLHRXS
(gloss black)
24
70900167B
INSTRUMENT MODULE,
FLHR, FLHRXS
mph (Domestic,
California)
24
70900168A
INSTRUMENT MODULE,
FLHR
km/h (Canada, HDI,
Austrailia, Japan, Asia-
Pacific)
24
70900168A
INSTRUMENT MODULE,
FLHRXS
km/h (Canada, HDI,
Austrailia, Japan)
24
70900168A
INSTRUMENT MODULE,
FLHRC
km/h (HDI, Brazil)
24
70900169A
INSTRUMENT MODULE,
FLHR, FLHRC, FLHRXS
dual, mph/km/h,
(England)
25
71400010A
LOCKSET, complete with
FLHR, FLHRXS
keys, ignition switch,
cover, fork lock and
saddle bag lock
25
71400011A
LOCKSET, complete with
FLHRC
keys, ignition switch,
cover, and fork lock
26
90300043
KEY, with 61081-92 (set
FLHR, FLHRC, FLHRXS
of 2) (specify key number)
INSTRUMENTS - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX AND FLHXS
178/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
179/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
2563
SCREW (6)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
2
10200147
SCREW (3)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
3
12100020
GROMMET, instrument
FLHT, FLHTCU, FLHTK,
cluster mount (3)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
4
12400034
INSERT, instrument
FLHT, FLHTCU, FLHTK,
cluster mount (3)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
5
12600067
FASTENER, plastic (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
6
61400080
GAUGE TRIM BEZEL
FLHT, FLHTCU, FLHTK,
ASSEMBLY, large (2)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
7
61400081
GAUGE TRIM BEZEL
FLHT, FLHTCU, FLHTK,
ASSEMBLY, small (2)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
8
69200121
WIRING HARNESS,
FLHT, FLHTCU, FLHTK,
fairing
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
9
69200257
BACK CLAMP, gauge
FLHT, FLHTCU, FLHTK,
(right)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
10
69200258
BACK CLAMP, gauge
FLHT, FLHTCU, FLHTK,
(left)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
11
70900118C
INSTRUMENT MODULE,
FLHTK, FLHTK SHRINE,
mph, with 12100020 and
FLHTKL
12400034 (Domestic,
California)
11
70900119B
INSTRUMENT MODULE,
FLHTK, FLHTK SHRINE,
km/h, with 12100020 and
FLHTKL
12400034 (Brazil,
Canada, HDI, Australia,
Japan, Asia-Pacific)
180/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
11
70900120B
INSTRUMENT MODULE,
FLHTK, FLHTK SHRINE,
dual - mph/km/h, with
FLHTKL
12100020 and 12400034
(England)
11
70900121C
INSTRUMENT MODULE,
FLHT, FLHTCU, FLHXS
mph, with 12100020 and
12400034 (Domestic,
California) (black)
11
70900122B
INSTRUMENT MODULE,
FLHT, FLHTCU, FLHXS
km/h, with 12100020 and
12400034 (Canada, HDI,
Australia, Japan, Asia-
Pacific) (black)
11
70900123B
INSTRUMENT MODULE,
FLHT, FLHXS
dual - mph/km/h, with
12100020 and 12400034
(England) (black)
11
70900124C
INSTRUMENT MODULE,
FLHX
mph, with 12100020 and
12400034 (Domestic,
California) (silver)
11
70900125B
INSTRUMENT MODULE,
FLHX
km/h, with 12100020 and
12400034 (Brazil,
Canada, HDI, Australia,
Japan, Asia-Pacific)
(silver)
11
70900126B
INSTRUMENT MODULE,
FLHX
dual - mph/km/h, with
12100020 and 12400034
(England) (silver)
12
70900161
FUEL GAUGE
FLHTK, FLHTK SHRINE,
FLHTKL
12
70900162
FUEL GAUGE (black)
FLHT, FLHTCU, FLHXS
12
70900163
FUEL GAUGE (silver)
FLHX
13
70900164
VOLTMETER
FLHTK, FLHTK SHRINE,
FLHTKL
13
70900165
VOLTMETER (black)
FLHT, FLHTCU, FLHXS
13
70900166
VOLTMETER (silver)
FLHX

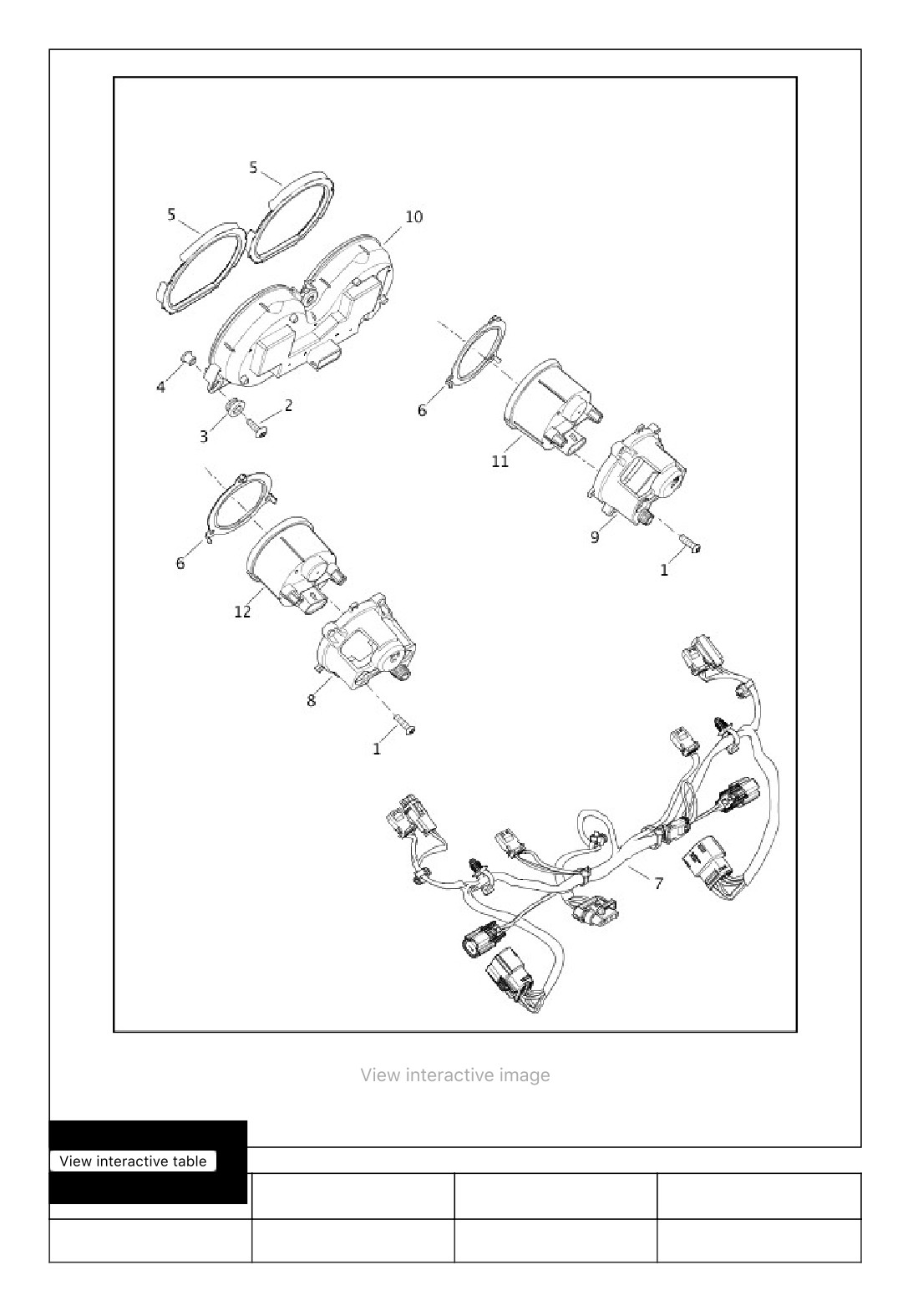

INSTRUMENTS - FLTRU, FLTRX AND FLTRXS
181/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
2563
SCREW (6)
FLTRU, FLTRX, FLTRXS
182/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
10200147
SCREW (3)
FLTRU, FLTRX, FLTRXS
3
12100020
GROMMET, instrument
FLTRU, FLTRX, FLTRXS
cluster mount (3)
4
12400034
INSERT, instrument
FLTRU, FLTRX, FLTRXS
cluster mount (3)
5
61400080
GAUGE TRIM BEZEL
FLTRU, FLTRX, FLTRXS
ASSEMBLY, large (2)
6
61400081
GAUGE TRIM BEZEL
FLTRU, FLTRX, FLTRXS
ASSEMBLY, small (2)
7
69200122
WIRING HARNESS -
FLTRU, FLTRX, FLTRXS
FAIRING
8
69200257
BACK CLAMP, gauge
FLTRU, FLTRX, FLTRXS
(right)
9
69200258
BACK CLAMP, gauge,
FLTRU, FLTRX, FLTRXS
(left)
10
70900121C
INSTRUMENT MODULE,
FLTRU, FLTRXS
mph, with 12100020 and
12400034 (Domestic,
California) (black)
10
70900122B
INSTRUMENT MODULE,
FLTRU, FLTRXS
km/h, with 12100020 and
12400034 (Canada, HDI,
Japan, Asia-Pacific)
(black)
10
70900123B
INSTRUMENT MODULE,
FLTRU, FLTRXS
dual - mph/km/h, with
12100020 and 12400034
(England) (black)
10
70900124C
INSTRUMENT MODULE,
FLTRX
mph, with 12100020 and
12400034 (Domestic,
California) (silver)
10
70900125B
INSTRUMENT MODULE,
FLTRX
km/h, with 12100020 and
12400034 (Canada, HDI,
Australia, Japan, Asia-
Pacific) (silver)
11
70900162
FUEL GAUGE (black)
FLTRU, FLTRXS
11
70900163
FUEL GAUGE (silver)
FLTRX
183/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
12
70900165
VOLTMETER (black)
FLTRU, FLTRXS
12
70900166
VOLTMETER (silver)
FLTRX

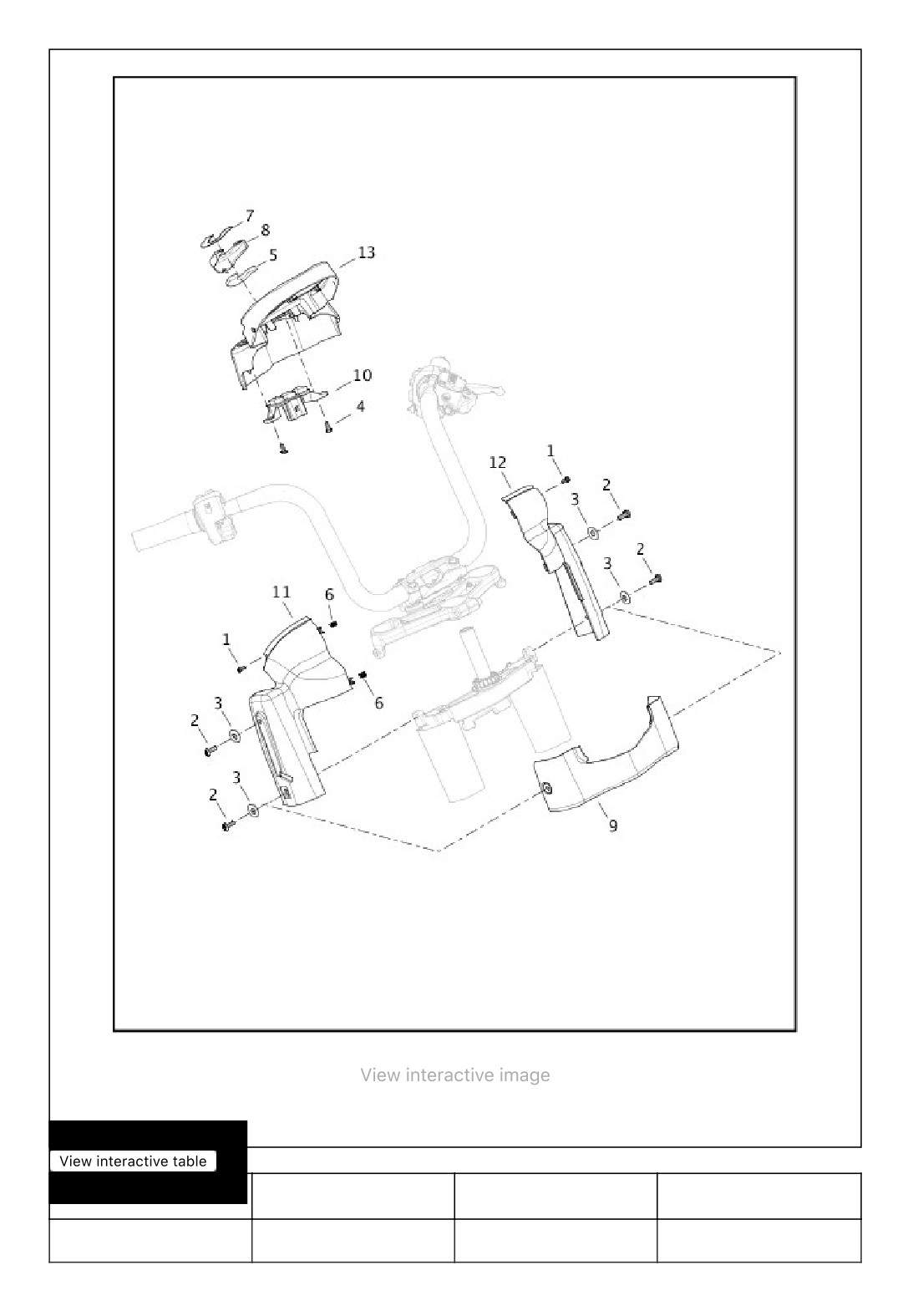

INSTRUMENT HOUSING - FLTRU, FLTRX AND FLTRXS
184/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
3152
SCREW (2)
FLTRU, FLTRX, FLTRXS
185/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
3676
SCREW (4)
FLTRU, FLTRX, FLTRXS
3
6333
WASHER (4)
FLTRU, FLTRX, FLTRXS
4
10200205
SCREW (4)
FLTRU, FLTRX, FLTRXS
5
11100152
FOAM PAD, ignition
FLTRU, FLTRX, FLTRXS
switch
6
12200025
CLIP (2)
FLTRU, FLTRX, FLTRXS
7
14101073
MEDALLION
FLTRXS
8
25700489
COVER ASSEMBLY,
FLTRU, FLTRX
ignition switch, with
11100152
8
25700870
COVER ASSEMBLY,
FLTRXS
ignition switch, with
11100152
9
57000412
SKIRT, front (chrome)
FLTRU, FLTRX
9
57000302
SKIRT, front (unpainted)
FLTRXS
(used with vivid black
and black denim paint)
9
57000508
SKIRT, front (unpainted)
FLTRXS
10
70900138
HOLE PLUG (2)
FLTRU, FLTRX, FLTRXS
11
70900372
HOUSING ASSEMBLY
FLTRU, FLTRX, FLTRXS
(right) (prime)
12
70900373
HOUSING ASSEMBLY
FLTRU, FLTRX, FLTRXS
(left) (prime)
13
70900374
HOUSING COVER
FLTRU, FLTRX, FLTRXS
(prime)

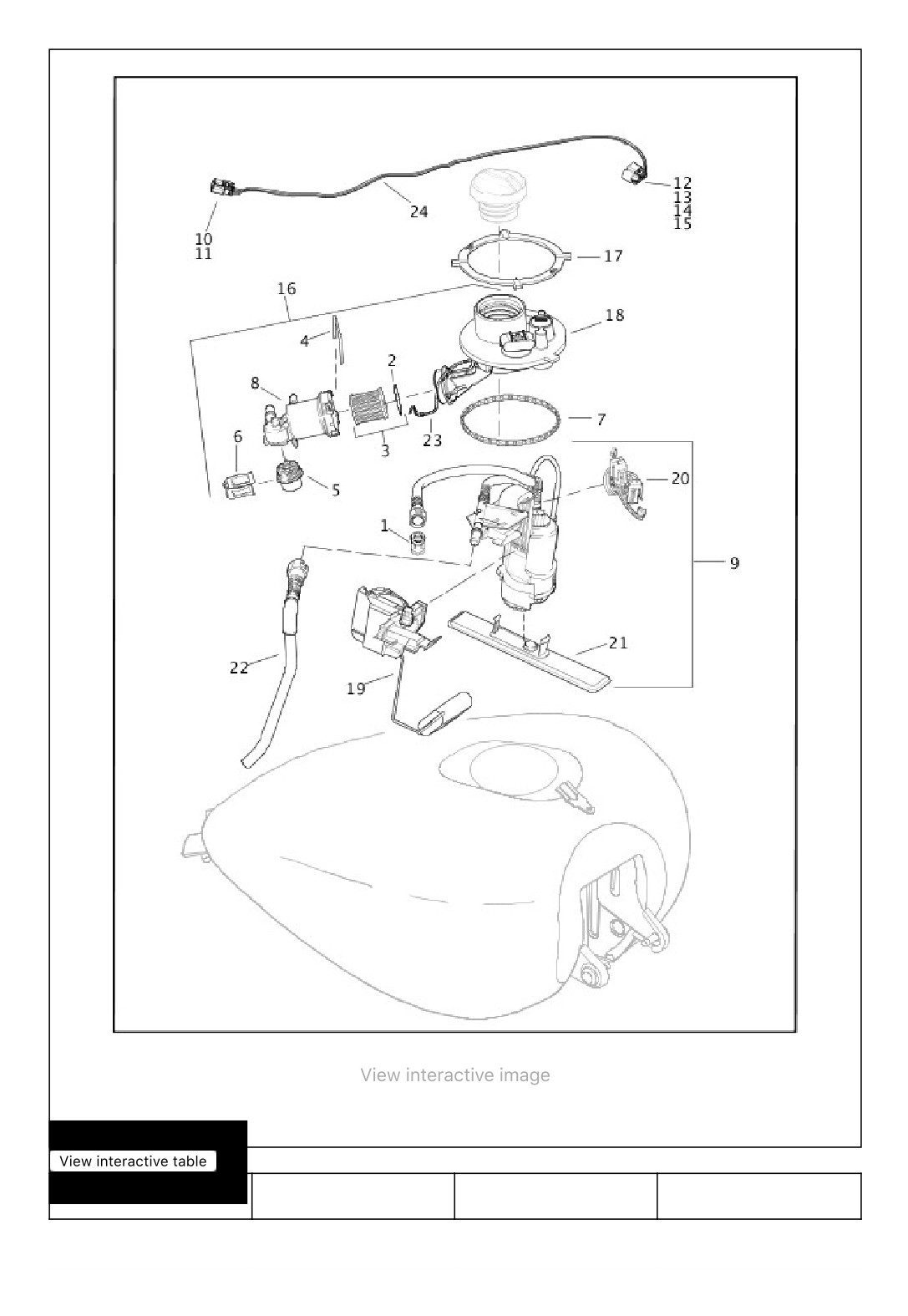

FUEL PUMP - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX, FLHXS, FLTRU, FLTRX
AND FLTRXS (1 OF 2)
186/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
187/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
10395
RETAINER, fuel line, 5/16
FLHT, FLHTCU, FLHTK,
in (black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
2
11686
O-RING
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
3
61011-04A
FUEL FILTER KIT, with
FLHT, FLHTCU, FLHTK,
11686
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
4
61012-04A
CLIP, filter retainer
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
5
61015-04A
FUEL REGULATOR
FLHT, FLHTCU, FLHTK,
ASSEMBLY KIT, with O-
FLHTK SHRINE, FLHTKL,
rings, spacer and screen
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
6
61213-04A
CLIP, regulator retainer
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
7
61402-08
GASKET, top plate
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
8
62229-08B
FILTER SHELL
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
9
62908-08
PUMP ASSEMBLY, fuel,
FLHT, FLHTCU, FLHTK,
with 10395, 75229-08
FLHTK SHRINE, FLHTKL,
and 75254-04A
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
10
72168-07
TERMINAL, socket, 18-
FLHT, FLHTCU, FLHTK,
20 AWG (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
11
72444-07GY
HOUSING, four-way,
FLHT, FLHTCU, FLHTK,
socket (gray)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
188/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
12
72485-07
HOUSING, four-way
FLHT, FLHTCU, FLHTK,
socket (black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
13
72493-07
TERMINAL, socket, 16-
FLHT, FLHTCU, FLHTK,
18 AWG (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
FUEL PUMP - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX, FLHXS, FLTRU, FLTRX
AND FLTRXS (2 OF 2)
189/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
190/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
14
72494-07
WIRE SEAL, 16-18 AWG
FLHT, FLHTCU, FLHTK,
(yellow) (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
15
72557-07
SECONDARY LOCK,
FLHT, FLHTCU, FLHTK,
four-way socket
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
16
75069-08D
TOP PLATE ASSEMBLY,
FLHT, FLHTCU, FLHTK,
with 3, 4, 5, 6, 8, 18 and
FLHTK SHRINE, FLHTKL,
23
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
17
75089-08
RING, fuel tank, cam
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
18
60900036
TOP PLATE
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
19
75205-08A
FUEL LEVEL SENDER
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
20
75229-08
HARNESS, fuel pump
FLHT, FLHTCU, FLHTK,
module
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
21
75254-04A
STRAINER, fuel pump
FLHT, FLHTCU, FLHTK,
inlet
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
22
75269-08
TRANSFER TUBE, fuel
FLHT, FLHTCU, FLHTK,
pump
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
23
75322-09
GROUND HARNESS
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
191/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
24
69200125
WIRE HARNESS,
FLHT, FLHTCU, FLHTK,
console, with 72168-07,
FLHTK SHRINE, FLHTKL,
72444-07GY, 72485-07,
FLHX, FLHXS, FLTRU,
72493-07, 72494-07 and
FLTRX, FLTRXS
72557-07

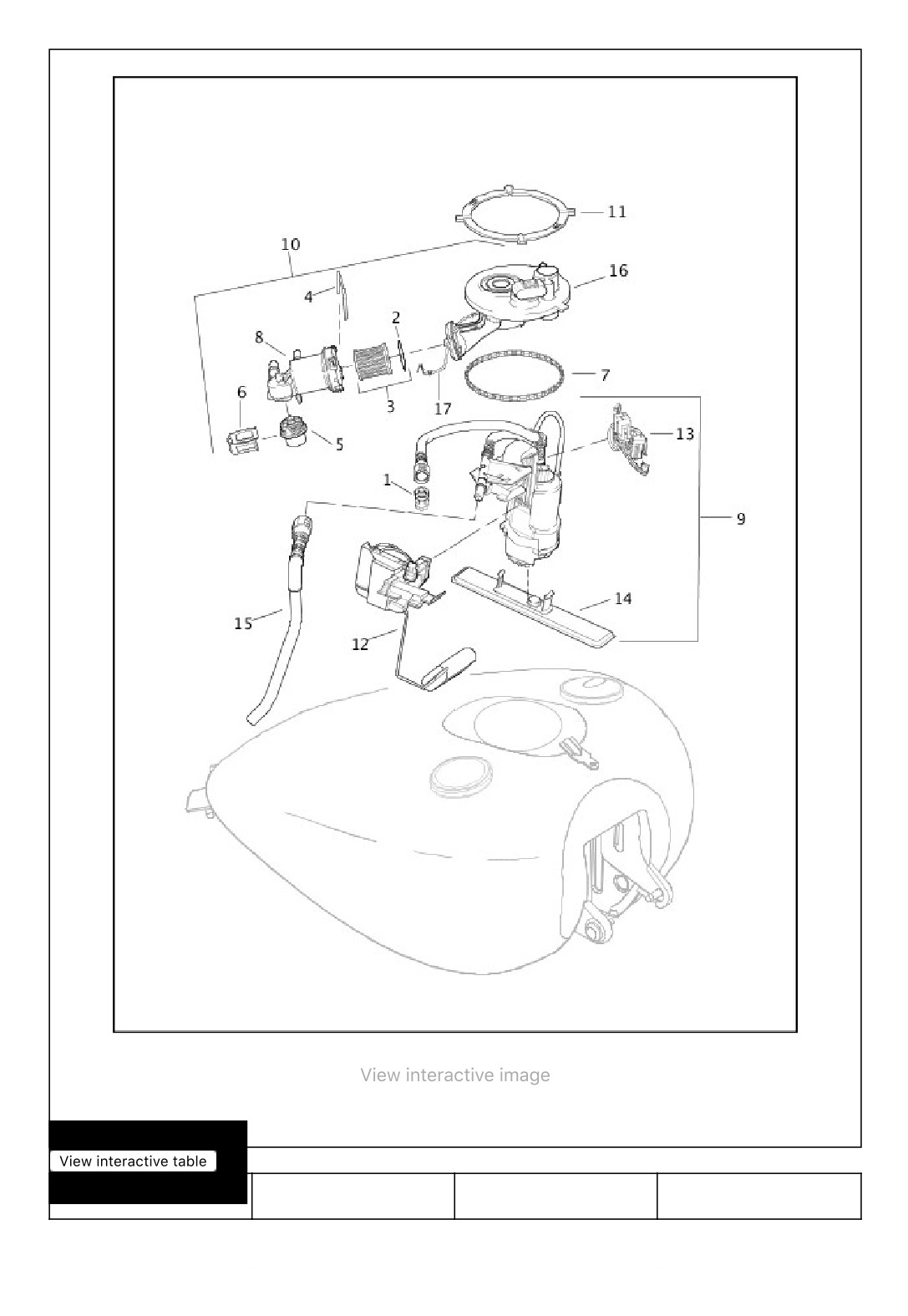

FUEL PUMP - FLHR, FLHRC AND FLHRXS
192/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
193/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
10395
RETAINER, fuel line, 5/16
FLHR, FLHRC, FLHRXS
in (black)
2
11686
O-RING
FLHR, FLHRC, FLHRXS
3
61011-04A
FUEL FILTER KIT, with
FLHR, FLHRC, FLHRXS
11686
4
61012-04A
CLIP, filter retainer
FLHR, FLHRC, FLHRXS
5
61015-04A
FUEL REGULATOR
FLHR, FLHRC, FLHRXS
ASSEMBLY KIT, with O-
rings, spacer and screen
6
61213-04A
CLIP, regulator retainer
FLHR, FLHRC, FLHRXS
7
61402-08
GASKET, top plate
FLHR, FLHRC, FLHRXS
8
62229-08B
FILTER SHELL
FLHR, FLHRC, FLHRXS
9
62908-08
PUMP ASSEMBLY, fuel,
FLHR, FLHRC, FLHRXS
with 10395, 75229-08
and 75254-04A
10
75076-08B
TOP PLATE ASSEMBLY,
FLHR, FLHRC, FLHRXS
with 3, 4, 5, 6, 8, 16 and
17
11
75089-08
RING, fuel tank, cam
FLHR, FLHRC, FLHRXS
12
75205-08A
FUEL LEVEL SENDER
FLHR, FLHRC, FLHRXS
13
75229-08
HARNESS, fuel pump
FLHR, FLHRC, FLHRXS
module
14
75254-04A
STRAINER, fuel pump
FLHR, FLHRC, FLHRXS
inlet
15
75269-08
TRANSFER TUBE, fuel
FLHR, FLHRC, FLHRXS
pump
16
75291-08A
TOP PLATE
FLHR, FLHRC, FLHRXS
17
75322-09
GROUND HARNESS
FLHR, FLHRC, FLHRXS
EVAPORATIVE EMISSIONS COMPONENTS
194/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
NOTE: These parts are required for motorcycles sold in California, Asia-Pacific, Brazil, China, England, HDI, and
Japan markets.
195/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
4612
SCREW (2)
ALL
2
27291-09A
LINE, evaporative (EVAP),
ALL
tank to canister
3
27297-09A
LINE, evaporative (EVAP),
ALL
canister
4
27298-09A
LINE, evaporative (EVAP),
ALL
purge to canister
5
27715-07
SOLENOID, purge valve
ALL
6
70681-09
RETAINER (2)
ALL
7
60800006
CARBON CANISTER
ALL
8
60800026
TUBE, solenoid to
ALL
induction module
NOTE: These parts are required for motorcycles sold in California, Asia-Pacific, Brazil, China, England, HDI, and
Japan markets.

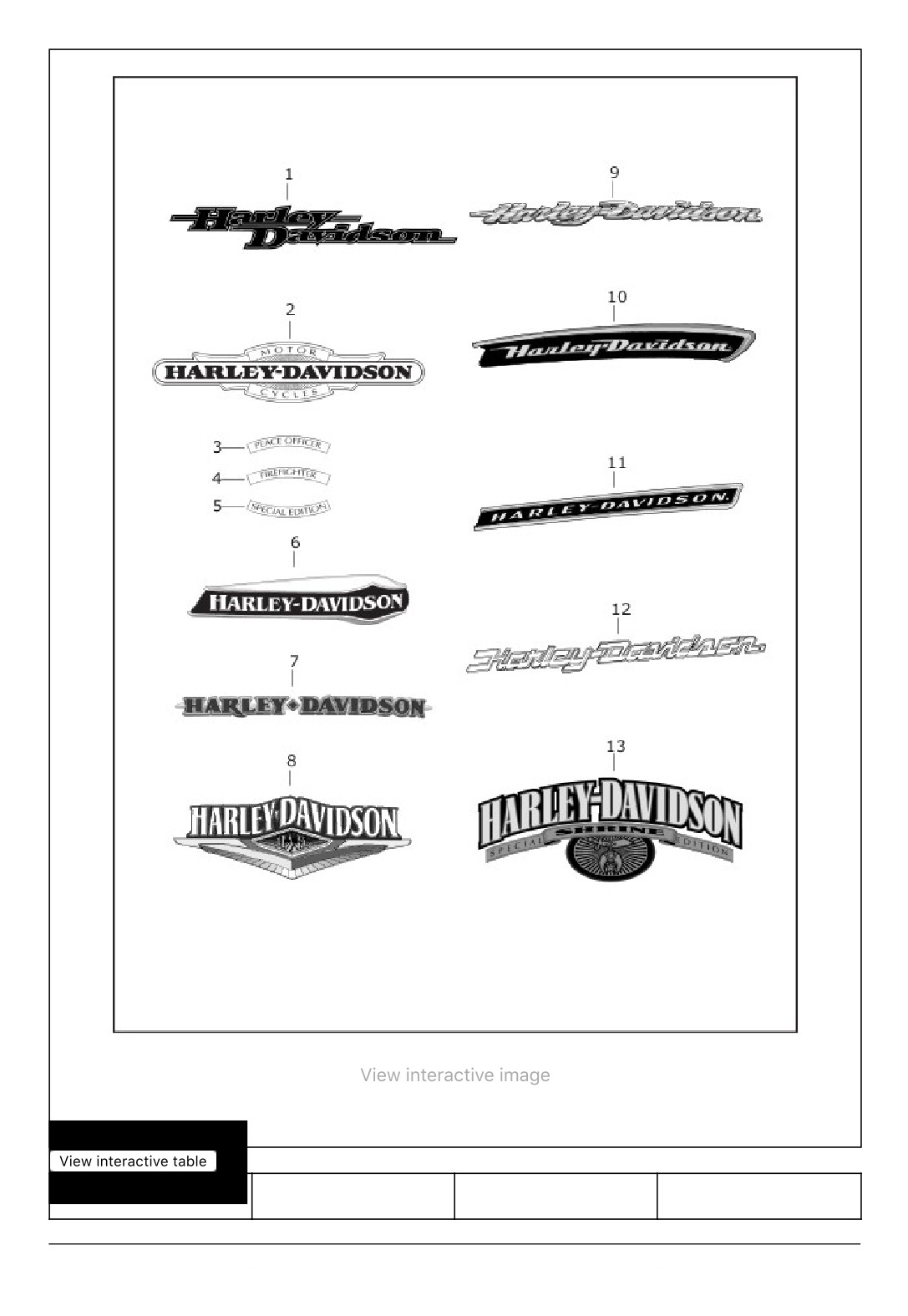

FUEL TANK TRIM (1 OF 2)
196/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
NOTE: Refer to Painted Parts Book for painted part numbers.
197/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
62435-11
MEDALLION (left) (for
FLHX
vivid black, wicked red,
midnight blue tanks)
1
62437-11
MEDALLION (right) (for
FLHX
vivid black, wicked red,
midnight blue tanks)
2
62152-08
MEDALLION, fuel tank
FLHTK
(left)
**RESTRICTED SALES
PART**
2
62153-08
MEDALLION, fuel tank
FLHTK
(right)
**RESTRICTED SALES
PART**
3
62241-08
INSERT, PEACE
FLHTK
OFFICER (2)
**RESTRICTED SALES
PART**
4
62242-08
INSERT, FIREFIGHTER
FLHTK
(2)
**RESTRICTED SALES
PART**
5
62243-08
INSERT, SPECIAL
FLHTK
EDITION (2)
**RESTRICTED SALES
PART**
6
14100073
MEDALLION (right) (for
FLHTCU
vivid black, twisted
cherry, 2-tone midnight
blue/barracuda silver, 2-
tone wicked
red/barracuda silver
tanks)
6
14100074
MEDALLION (left) (for
FLHTCU
vivid black, twisted
cherry, 2-tone midnight
blue/barracuda silver, 2-
tone wicked
red/barracuda silver
tanks)
198/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
7
14100075
MEDALLION (right) (for
FLHTK, FLHTKL
vivid black, 2-tone
wicked red/twisted
cherry, 2-tone industrial
gray denim/black denim,
2-tone midnight
blue/barracuda silver
tanks)
7
14100076
MEDALLION (left) (for
FLHTK, FLHTKL
vivid black, 2-tone
wicked red/twisted
cherry, 2-tone industrial
gray denim/black denim,
2-tone midnight
blue/barracuda silver
tanks)
8
14100079
MEDALLION (right) (for
FLHR
vivid black, barracuda
silver, 2-tone wicked
red/twisted cherry tanks)
8
14100080
MEDALLION (left) (for
FLHR
vivid black, barracuda
silver, 2-tone wicked
red/twisted cherry tanks)
FUEL TANK TRIM (2 OF 2)
199/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
Index number 13 is a decal only sold as part of FLHTK (Shrine) fuel tank assembly
200/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
NOTE: Refer to Painted Parts Book for painted part numbers.
8
14100079
MEDALLION (right) (for
FLHRC
vivid black, bonnevile salt
pearl, billiard blue, 2-tone
wicked red/twisted
cherry tanks)
8
14100080
MEDALLION (left) (for
FLHRC
vivid black, bonnevile salt
pearl, billiard blue, 2-tone
wicked red/twisted
cherry tanks)
9
14100587
MEDALLION (right) (for
FLTRX
vivid black, industrial
gray, wicked red, twisted
cherry tanks)
9
14100588
MEDALLION (left) (for
FLTRX
vivid black, industrial
gray, wicked red, twisted
cherry tanks)
10
14100765
MEDALLION (left) (for
FLTRU
vivid black, twisted
cherry, 2-tone midnight
blue/barracuda silver, 2-
tone wicked
red/barracuda silver
tanks)
10
14100766
MEDALLION (right) (for
FLTRU
vivid black, twisted
cherry, 2-tone midnight
blue/barracuda silver, 2-
tone wicked
red/barracuda silver
tanks)
11
14100835
MEDALLION (left) (for
FLHXS
vivid black, industrial
gray denim, wicked red
denim, barracuda silver,
billiard blue tanks)
11
14100836
MEDALLION (right) (for
FLHXS
vivid black, industrial
gray denim, wicked red
denim, barracuda silver,
billiard blue tanks)
Index number 13 is a decal only sold as part of FLHTK (Shrine) fuel tank assembly
201/956
