Harley Davidson SIP Parts Catalog 4/5/2019: touring models - page 4
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
122/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
46508-01
O-RING (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
2
46509-01
WASHER (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
3
46513-01
RING, stopper (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
4
46514-01A
OIL SEAL (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
5
46515-01
SPACER, seal (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
6
46615-06
PACKING SEAL (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
7
59481-00
REFLECTOR (right)
FLHR, FLHRC, FLHT,
(amber)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHX, FLTRU,
FLTRX
7
69861-07
REFLECTOR, with black
FLHRXS, FLHXS, FLTRXS
base (right) (amber)
8
59482-00
REFLECTOR (left)
FLHR, FLHRC, FLHT,
(amber)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHX, FLTRU,
FLTRX
8
69862-07
REFLECTOR, with black
FLHRXS, FLHXS, FLTRXS
base (left) (amber)
123/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
9
22000031
PISTON RING (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
10
45400102
FORK ASSEMBLY,
FLHT, FLHTCU, FLHTK,
complete (left)
FLHTK SHRINE, FLHX,
FLTRU, FLTRX
10
45400181
FORK ASSEMBLY,
FLHR, FLHRC
complete (left)
10
45400195
FORK ASSEMBLY,
FLHXS, FLTRXS
complete (left)
10
45400197
FORK ASSEMBLY,
FLHRXS
complete (left) (black)
11
45400103
FORK ASSEMBLY,
FLHT, FLHTCU, FLHTK,
complete (right)
FLHTK SHRINE, FLHX,
FLTRU, FLTRX
11
45400182
FORK ASSEMBLY,
FLHR, FLHRC
complete (right)
11
45400196
FORK ASSEMBLY,
FLHXS, FLTRXS
complete (right)
11
45400198
FORK ASSEMBLY,
FLHRXS
complete (right) (black)
12
45500109
SLIDER, fork (left)
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHX, FLTRU,
FLTRX
12
45500176B
SLIDER, fork (left) (black)
FLHRXS, FLHXS, FLTRXS
13
45500111
SLIDER, fork (right)
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHX, FLTRU,
FLTRX
13
45500175B
SLIDER, fork (right)
FLHRXS, FLHXS, FLTRXS
(black)

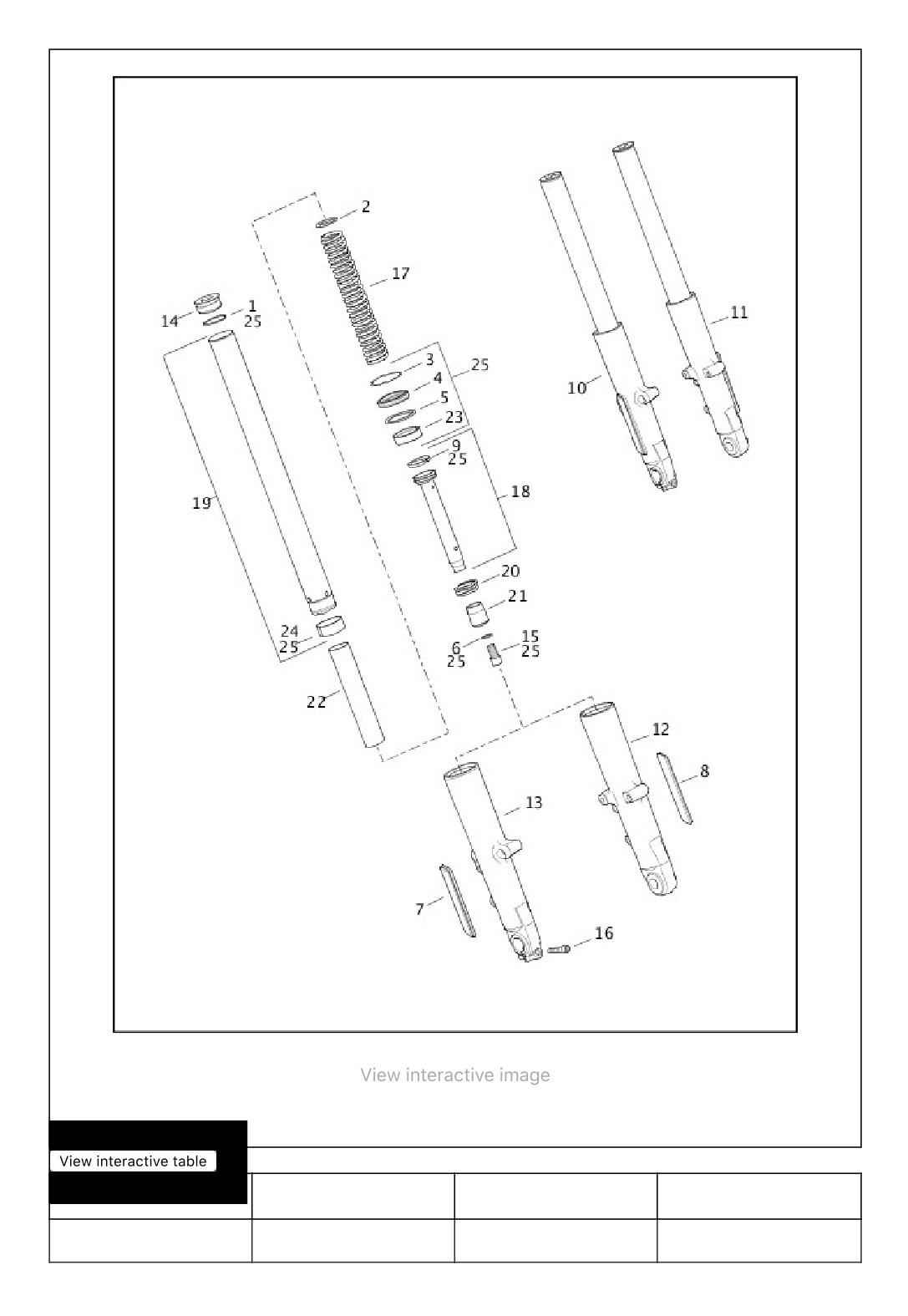

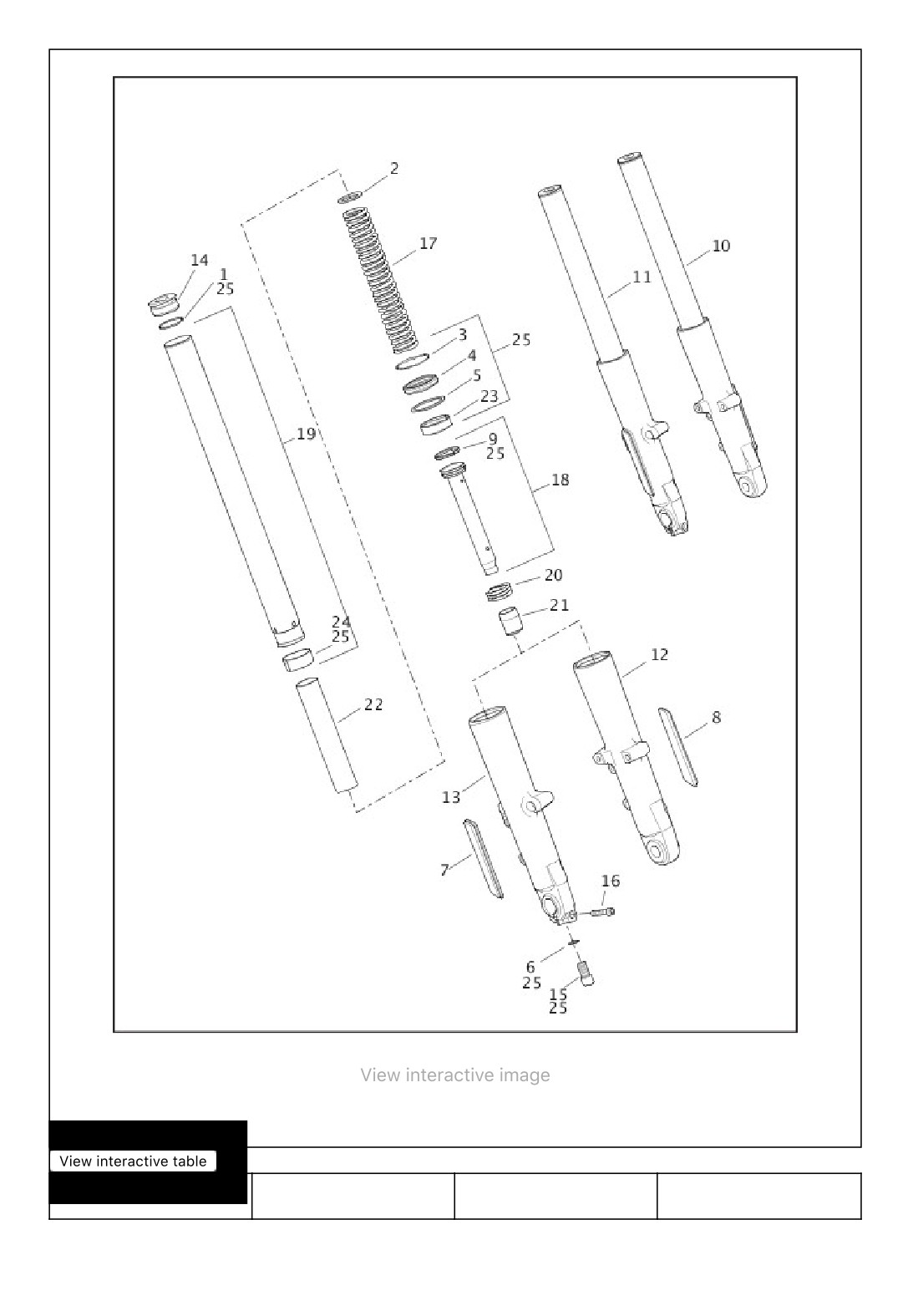

FORK, FRONT - STANDARD (2 OF 2)
124/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
125/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
14
45500117
BOLT, fork (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
15
45500118
SCREW (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
16
45500132
SCREW (right)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
17
45500337
SPRING, fork (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
17
45500456
SPRING, fork (2)
FLHR, FLHRC, FLHRXS
18
45500339
DAMPER TUBE, with
FLHR, FLHRC, FLHRXS,
22000031 (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
19
45500341
FORK PIPE ASSEMBLY,
FLHR, FLHRC, FLHRXS,
with 45500424 (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
20
45500396
SPRING, rebound (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
21
45500397
OIL LOCK PIECE (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
22
45500398
COLLAR, spring (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
126/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
23
45500421
BUSHING GUIDE (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
24
45500424
BUSHING, slider (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
25
91700025A
FORK REBUILD KIT, with
FLHR, FLHRC, FLHRXS,
1, 3, 4, 5, 6, 9, 15, 23 and
FLHT, FLHTCU, FLHTK,
24 (2)
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
FORK, FRONT - LOW
127/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
46508-01
O-RING (2)
FLHTKL
128/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
46509-01
WASHER (right)
FLHTKL
3
46513-01
RING, stopper (2)
FLHTKL
4
46514-01A
OIL SEAL (2)
FLHTKL
5
46515-01
SPACER, seal (2)
FLHTKL
6
46615-06
PACKING SEAL (2)
FLHTKL
7
59481-00
REFLECTOR (right)
FLHTKL
(amber)
8
59482-00
REFLECTOR (left)
FLHTKL
(amber)
9
22000031
PISTON RING (2)
FLHTKL
10
45400104
FORK ASSEMBLY,
FLHTKL
complete (right)
11
45400105
FORK ASSEMBLY,
FLHTKL
complete (left)
12
45500109
SLIDER, fork (left)
FLHTKL
13
45500111
SLIDER, fork (right)
FLHTKL
14
45500117
BOLT, fork (2)
FLHTKL
15
45500118
SCREW (2)
FLHTKL
16
45500132
SCREW (right)
FLHTKL
17
45500338
SPRING, fork (2)
FLHTKL
18
45500340
DAMPER TUBE, with
FLHTKL
22000031 (2)
19
45500341
FORK PIPE ASSEMBLY,
FLHTKL
with 45500424 (2)
20
45500396
SPRING, rebound (2)
FLHTKL
21
45500397
OIL LOCK PIECE (2)
FLHTKL
22
45500398
COLLAR, spring (2)
FLHTKL
23
45500421
BUSHING GUIDE (2)
FLHTKL
24
45500424
BUSHING, slider (2)
FLHTKL
129/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
25
91700025A
FORK REBUILD KIT, with
FLHTKL
1, 3, 4, 5, 6, 9, 15, 23 and
24 (2)

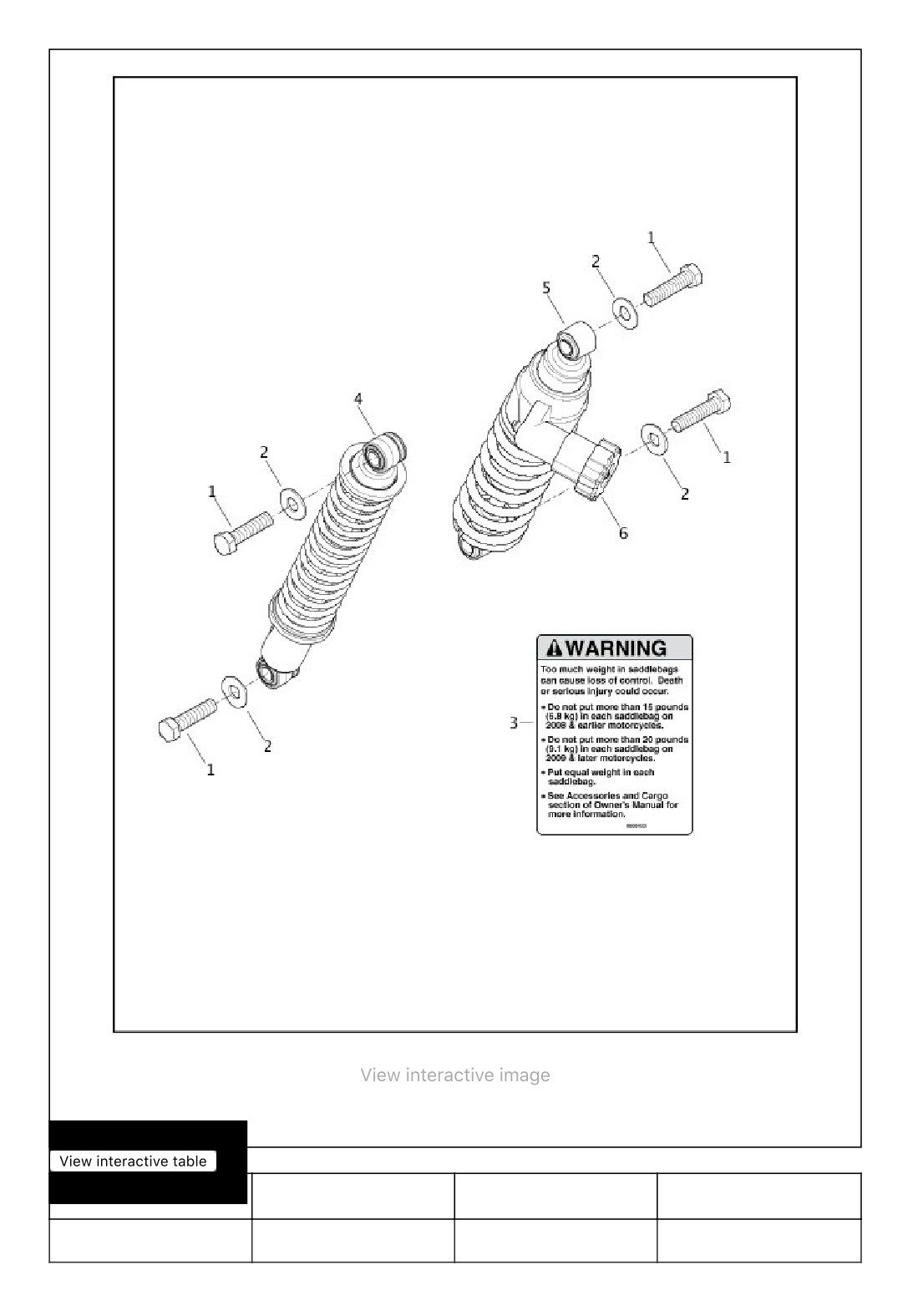

SHOCK ABSORBERS, REAR
130/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
3607
BOLT (4)
ALL
131/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
6590HW
WASHER (4)
ALL
3
90820-93D
LABEL, saddlebag load
ALL
limits, inside right
saddlebag
4
54000093
REAR SHOCK
FLHR, FLHRC, FLHTCU,
ABSORBER (right)
FLHTK, FLHTK SHRINE,
FLTRU
4
54000114
REAR SHOCK
FLHRXS, FLHT, FLHTKL,
ABSORBER (right)
FLHX, FLHXS, FLTRX,
FLTRXS
5
54000094
REAR SHOCK
FLHTCU, FLHTK, FLHTK
ABSORBER, with
SHRINE, FLTRU
54000141 (left)
5
54000095
REAR SHOCK
FLHR, FLHRC
ABSORBER, with
54000141 (left)
5
54000096
REAR SHOCK
FLHRXS, FLHT, FLHX,
ABSORBER, with
FLHXS, FLTRX, FLTRXS
54000141 (left)
5
54000113
REAR SHOCK
FLHTKL
ABSORBER, with
54000141 (left)
6
54000141
KNOB SERVICE KIT
ALL

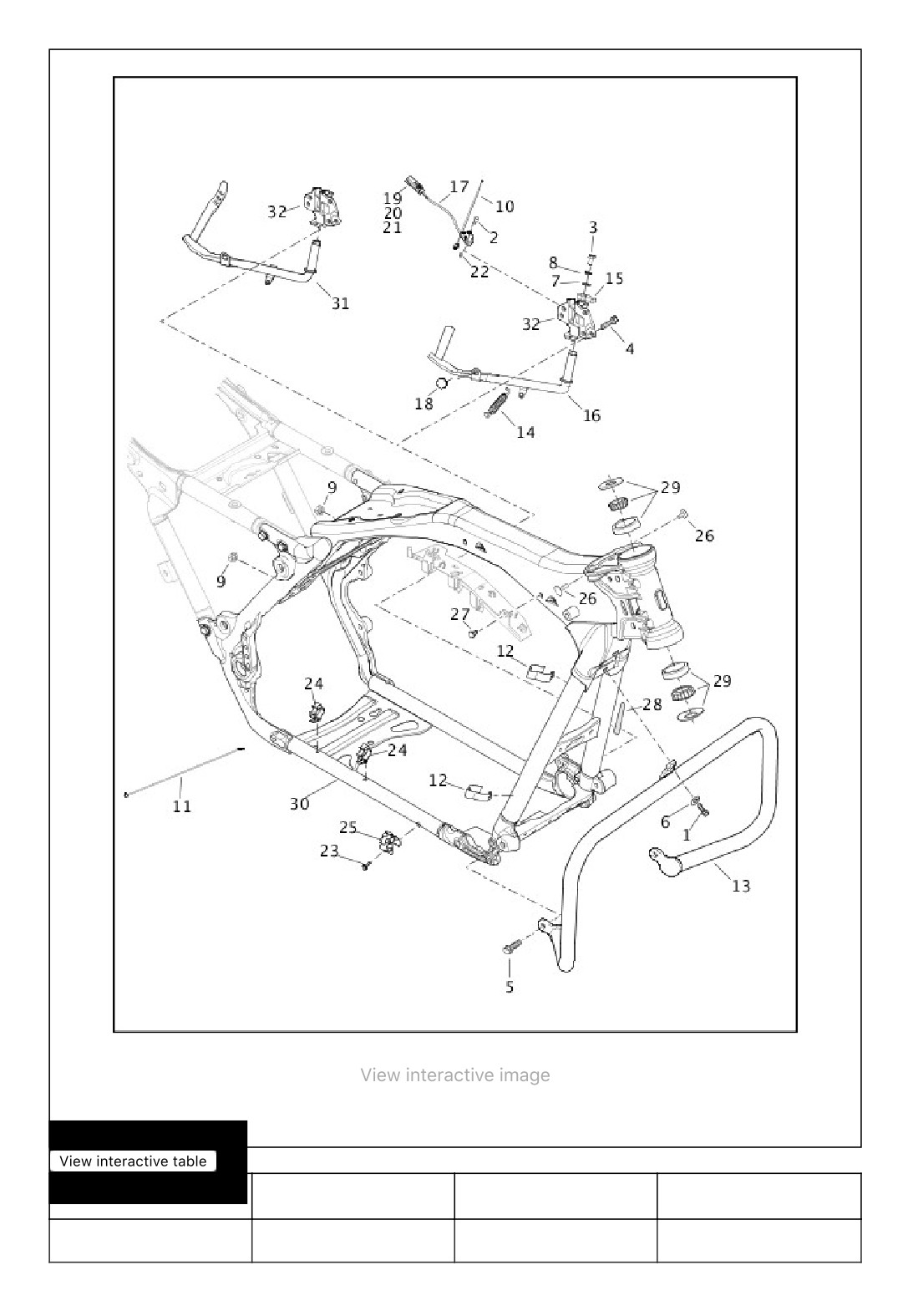

FRAME AND JIFFY STAND (1 OF 2)
132/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
2708A
SCREW
ALL
133/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
3594
SCREW (England, HDI,
FLHR, FLHRC, FLHRXS,
Brazil)
FLHT, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
3
3987
BOLT
ALL
4
4688
SCREW (2)
ALL
5
4924
SCREW (2)
ALL
6
6116
WASHER
ALL
7
6702
WASHER
ALL
8
7041
LOCKWASHER
ALL
9
7495
NUT (2)
ALL
10
10177
CABLE STRAP,
ALL
anchored, jiffy stand
(England, HDI)
11
10039
CABLE STRAP (9)
ALL
12
10264
CLIP, clutch line (2)
ALL
13
49184-09A
ENGINE GUARD, with
FLHR, FLHRC, FLHT,
2708A, 6116 and 14148-
FLHTCU, FLHTK, FLHTK
86 (chrome)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
13
49050-09A
ENGINE GUARD, with
FLHRXS, FLHXS, FLTRXS
2708A, 6116 and 14151-
02 (black)
14
49725-07A
SPRING, jiffy stand
ALL
15
50015-74A
LEG STOP
ALL
16
50075-07A
LEG, jiffy stand
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
17
50126-08B
SENSOR, jiffy stand, with
FLHR, FLHRC, FLHRXS,
72169-07, 72511-07BK
FLHT, FLHTK, FLHTK
and 73213-07 (England,
SHRINE, FLHTKL, FLHX,
HDI, Brazil)
FLHXS, FLTRU, FLTRX,
FLTRXS
18
50245-07
BUMPER, jiffy stand leg
ALL
134/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
19
72169-07
TERMINAL, pin, 16-20
FLHR, FLHRC, FLHRXS,
AWG (England, HDI,
FLHT, FLHTK, FLHTK
Brazil) (3)
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
FRAME AND JIFFY STAND (2 OF 2)
135/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
136/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
20
72511-07BK
HOUSING, three-way pin
FLHR, FLHRC, FLHRXS,
(black) (England, HDI,
FLHT, FLHTK, FLHTK
Brazil)
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
21
73213-07
RETAINER, anchored
FLHR, FLHRC, FLHRXS,
(England, HDI, Brazil)
FLHT, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
22
90520-07
HOLE PLUG, jiffy stand
ALL
(except England, HDI,
Brazil)
23
10200546
SCREW
ALL
24
10800025A
CLIP, conduit, anchored
ALL
(2)
25
12200147A
CLIP, retaining
ALL
26
12600067
FASTENER, plastic (2)
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
27
12600197
FASTENER, anchored (2)
ALL
28
14000827
CLEAR OVERLAY, VIN
FLHRC, FLHTK, FLHTK
label (Japan)
SHRINE, FLHXS, FLTRU,
FLTRXS
29
45700009
BEARING KIT, steering
ALL
head, with bearing cups,
bearing cones and dirt
guards
30
47000088BHP
FRAME, main, with
ALL
bearing cups (Also order
45700009)
31
50000083
LEG, jiffy stand
FLHTKL
32
50000097
BRACKET, jiffy stand leg
FLHR, FLHRC, FLHRXS,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
32
50000141A
BRACKET, jiffy stand leg
FLHT, FLHTKL

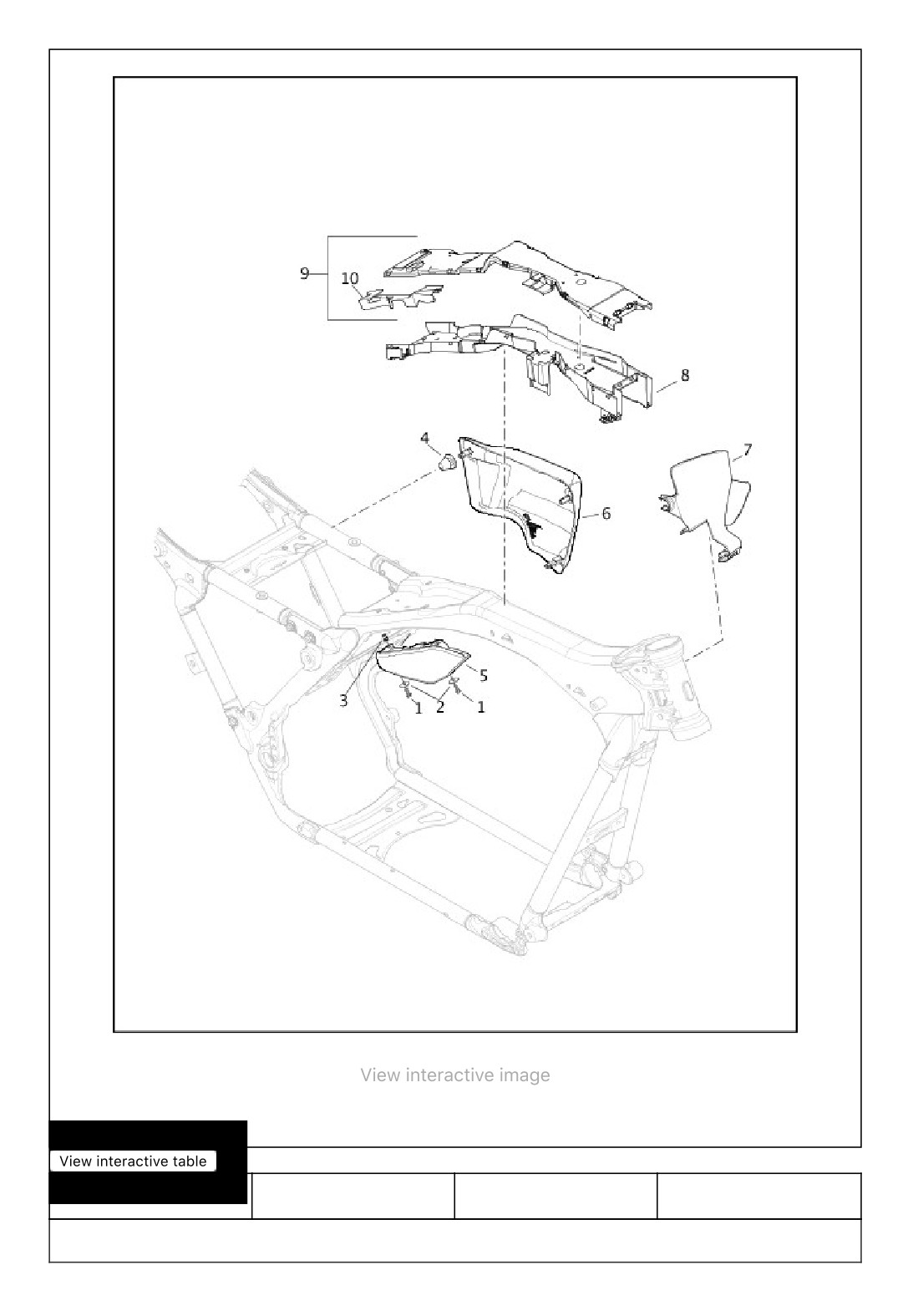

COVERS AND AIR DEFLECTORS
137/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
NOTE: Refer to Painted Parts Book for painted part numbers.
138/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
3787
BOLT (4)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
2
6036
WASHER (4)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
3
8194
NUT, special (2)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
4
11650
GROMMET, side cover
ALL
(6)
5
58167-09A
DEFLECTOR, air (right)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
5
58169-09
DEFLECTOR, air (left)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
6
66048-09A
SIDE COVER (right)
ALL
(unpainted)
6
66250-09
SIDE COVER (left)
ALL
(unpainted)
7
57200066
WIND DEFLECTOR (left)
FLTRU
7
57200065
WIND DEFLECTOR (right)
FLTRU
(not shown)
8
69200202A
WIRE TROUGH (main
ALL
harness)
9
69200203A
COVER, wire trough, with
ALL
15368-01A and
69201459 (main harness)
10
69201459
BRACKET
ALL

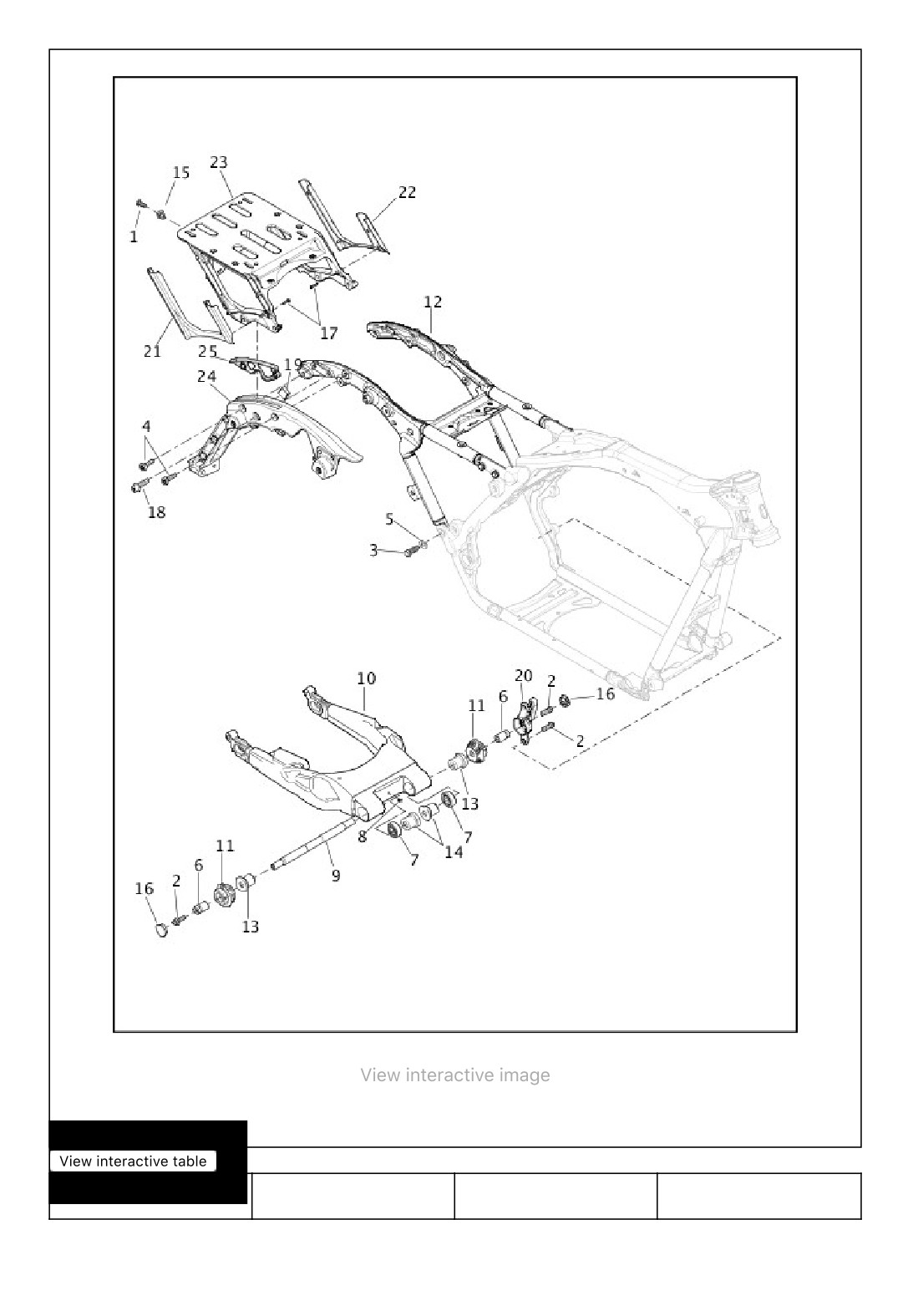

FRAME AND FORK, REAR AND TOUR-PAK SUPPORT
139/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
140/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
2731W
SCREW (2)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
2
3057
SCREW (4)
ALL
3
3536
BOLT (6)
ALL
4
3684
SCREW (4)
ALL
5
6532
WASHER (6)
ALL
6
6982
WASHER, hex cup (2)
ALL
7
9208
BEARING (2)
ALL
8
11779
FASTENER, push-in
ALL
(black)
9
47540-11
SHAFT, rear fork
ALL
10
47549-09A
REAR FORK, with 9208,
ALL
11779 and 48489-02
11
47584-09
RUBBER MOUNT (2)
ALL
12
48079-09BHP
FRAME, rear
ALL
13
48487-02
SPACER, outer (2)
ALL
14
48489-02
SPACER, inner (2)
ALL
15
59292-94
NUT, plastic (2)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
16
67875-11
CAP (2)
ALL
17
10200155
SCREW (8)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
18
10200217
SCREW (2)
ALL
19
11100068
CUSHION (2)
ALL
20
16400005
BRACKET, rear fork (left)
ALL
21
47200080
COVER, Tour-Pak
FLHTCU, FLHTK, FLHTK
support (right) (chrome)
SHRINE, FLHTKL, FLTRU
22
47200081
COVER, Tour-Pak
FLHTCU, FLHTK, FLHTK
support (left) (chrome)
SHRINE, FLHTKL, FLTRU
23
53000125
TOUR-PAK SUPPORT
FLHTCU, FLHTK, FLHTK
(black)
SHRINE, FLHTKL, FLTRU
141/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
24
90200499
SUPPORT, saddlebag,
FLHR, FLHRC, FLHT,
with 11100068 (right)
FLHTCU, FLHTK, FLHTK
(chrome)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
24
90201319
SUPPORT, saddlebag,
FLHRXS, FLHXS, FLTRXS
with 11100068 (right)
(black)
24
90200501
SUPPORT, saddlebag,
FLHR, FLHRC, FLHT,
with 11100068 (left)
FLHTCU, FLHTK, FLHTK
(chrome)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
24
90201320
SUPPORT, saddlebag,
FLHRXS, FLHXS, FLTRXS
with 11100068 (left)
(black)
25
90200547
INSERT ASSEMBLY,
FLHR, FLHRC, FLHT,
saddlebag support (2)
FLHX, FLTRX
25
90201754DH
INSERT ASSEMBLY,
FLHRXS, FLHXS, FLTRXS
saddlebag support
(black) (2)

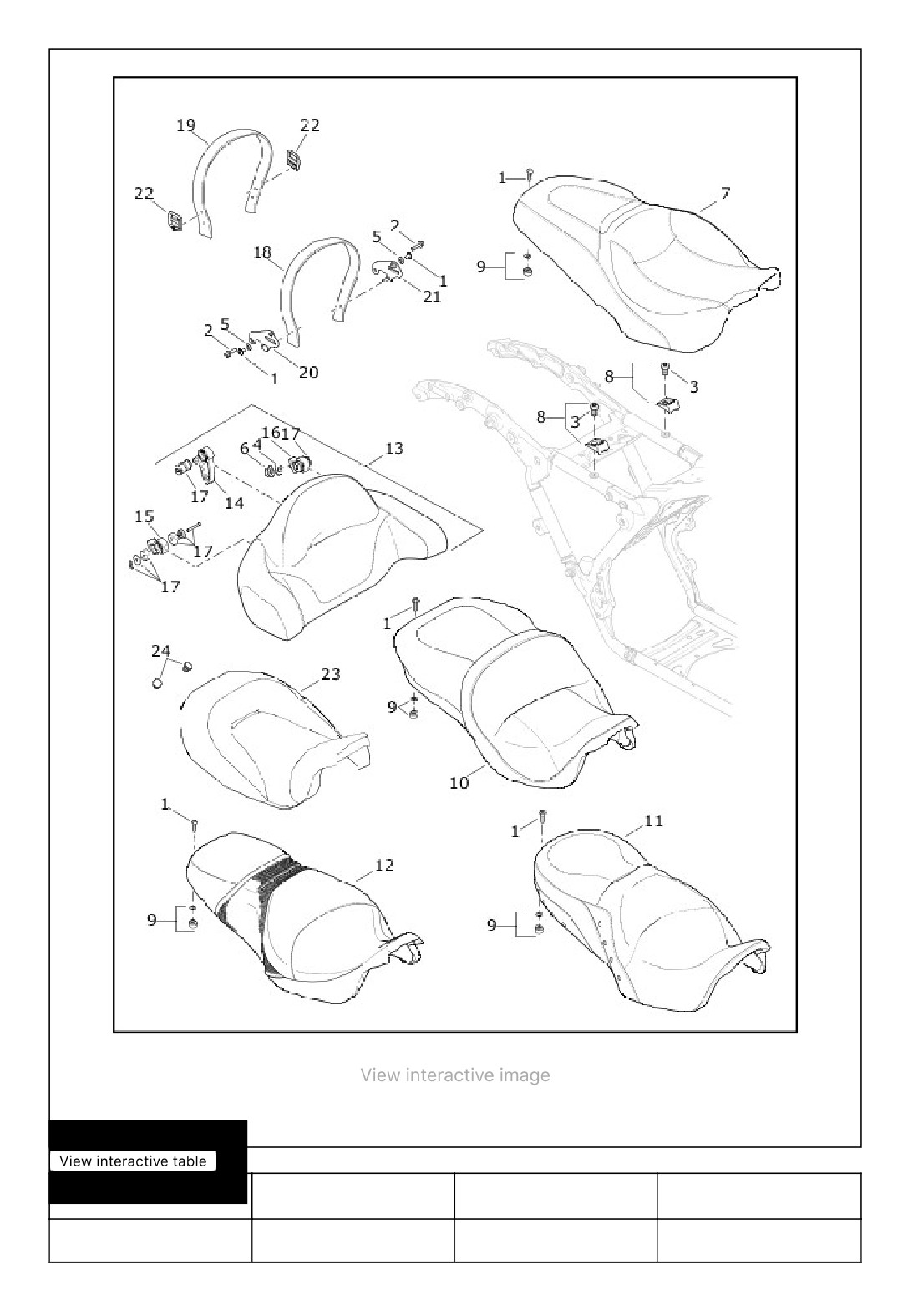

SEATS
142/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
2952A
SCREW (3)
ALL
143/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
3901
SCREW (2)
ALL
3
4924
SCREW (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
4
6026
WASHER (3)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
5
6703
WASHER (2)
ALL
6
7531
LOCKNUT (3)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
7
52320-11
SEAT
FLHX, FLTRXS
7
52000142
SEAT
FLHRXS, FLHXS, FLTRX
8
54395-10
SEAT BUMPER KIT, with
FLHRXS, FLHX, FLHXS,
4924
FLTRX, FLTRXS
9
59768-97
SEAT NUT KIT, with nut
ALL
and retention washer
10
52000033
SEAT (except Asia-
FLHTCU, FLHTK, FLHTK
Pacific)
SHRINE, FLTRU
10
52000122
SEAT (Asia-Pacific)
FLHTK, FLHTK SHRINE,
FLTRU
10
52000174
SEAT (Asia-Pacific)
FLHTKL
10
52000334
SEAT KIT, with 52400099
FLHTKL
(except Asia-Pacific)
11
52000038
SEAT
FLHR
12
52000060
SEAT
FLHRC
13
52300053
BACKREST ASSEMBLY,
FLHTCU, FLHTK, FLHTK
with 6026, 7531,
SHRINE, FLHTKL, FLTRU
52300121, 52300122,
52300123 and 52300127
(black)
14
52300121
SUPPORT BRACKET,
FLHTCU, FLHTK, FLHTK
center
SHRINE, FLHTKL, FLTRU
15
52300122
SUPPORT BRACKET
FLHTCU, FLHTK, FLHTK
(right)
SHRINE, FLHTKL, FLTRU
16
52300123
SUPPORT BRACKET
FLHTCU, FLHTK, FLHTK
(left)
SHRINE, FLHTKL, FLTRU
144/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
52300127
KIT, BACKREST
FLHTCU, FLHTK, FLHTK
ISOLATION, passenger
SHRINE, FLHTKL, FLTRU
backrest (3)
18
52400015
PASSENGER STRAP
FLHTCU, FLHTK, FLHTK
SHRINE, FLTRU
18
52400017
PASSENGER STRAP
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
18
52400018
PASSENGER STRAP
FLHR
18
52400099
PASSENGER STRAP
FLHTKL
(except Asia-Pacific)
18
52400116
PASSENGER STRAP
FLHTKL
(Asia-Pacific)
19
52400054
PASSENGER STRAP,
FLHRC
with 52400067
20
52400016
BRACKET, passenger
ALL
strap (right)
21
52400021
BRACKET, passenger
ALL
strap, (left)
22
52400067
BUCKLE, passenger
FLHRC
strap (2)
23
52000464
SEAT
FLHT
24
3633
NUT (2)
FLHT

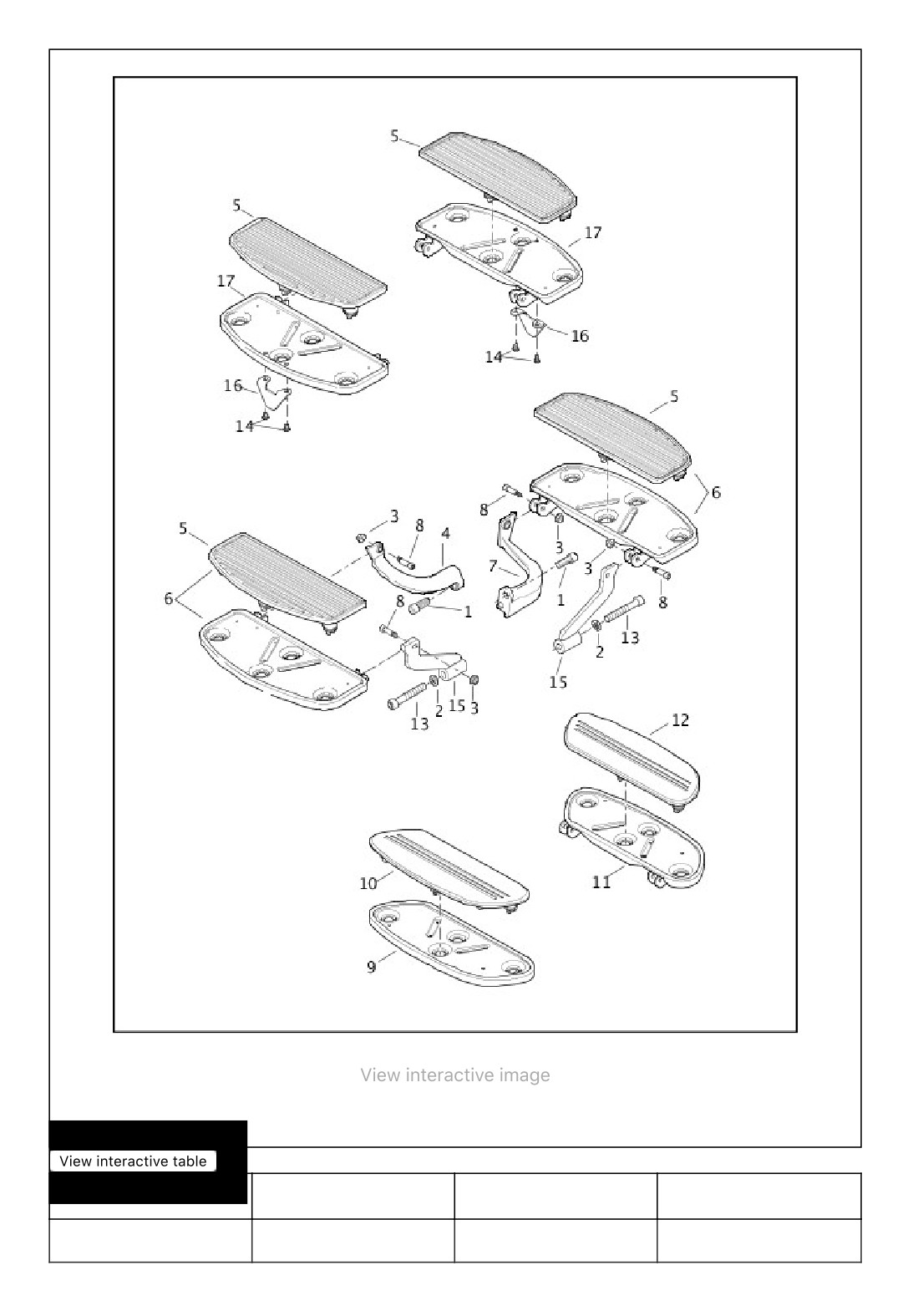

FOOTBOARDS, OPERATOR
145/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
4688
SCREW (2)
ALL
146/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
7038
LOCKWASHER (2)
ALL
3
7716
LOCKNUT (4)
ALL
4
50518-09
BRACKET, right rear
ALL
5
50614-06
PAD, footboard (2)
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
6
50621-06
FOOTBOARD
FLHR, FLHRC, FLHT,
ASSEMBLY, operator,
FLHTCU, FLHTK, FLHTK
with 50614-06 (2)
SHRINE, FLTRU
7
50622-09A
BRACKET, left rear
ALL
8
50674-05
SHOULDER BOLT,
ALL
footboard (4)
9
50683-04
FOOTBOARD BOTTOM
FLHX, FLTRX
ASSEMBLY (right)
9
51068-08
FOOTBOARD BOTTOM
FLHRXS, FLHXS, FLTRXS
ASSEMBLY (right) (gloss
black)
10
50684-11
RUBBER PAD, footboard
FLHRXS, FLHX, FLHXS,
(right)
FLTRX, FLTRXS
11
50688-04
FOOTBOARD BOTTOM
FLHX, FLTRX
ASSEMBLY (left)
11
51070-08
FOOTBOARD BOTTOM
FLHRXS, FLHXS, FLTRXS
ASSEMBLY (left) (gloss
black)
12
50689-11
RUBBER PAD, footboard
FLHRXS, FLHX, FLHXS,
(left)
FLTRX, FLTRXS
13
10200429
SCREW (2)
ALL
14
10500053
SCREW (4)
FLHTKL
15
47200302A
BRACKET, front
ALL
footboard (2)
16
50500339
FEELER, footboard (2)
FLHTKL
17
50500360
FOOTBOARD BOTTOM
FLHTKL
ASSEMBLY (2)

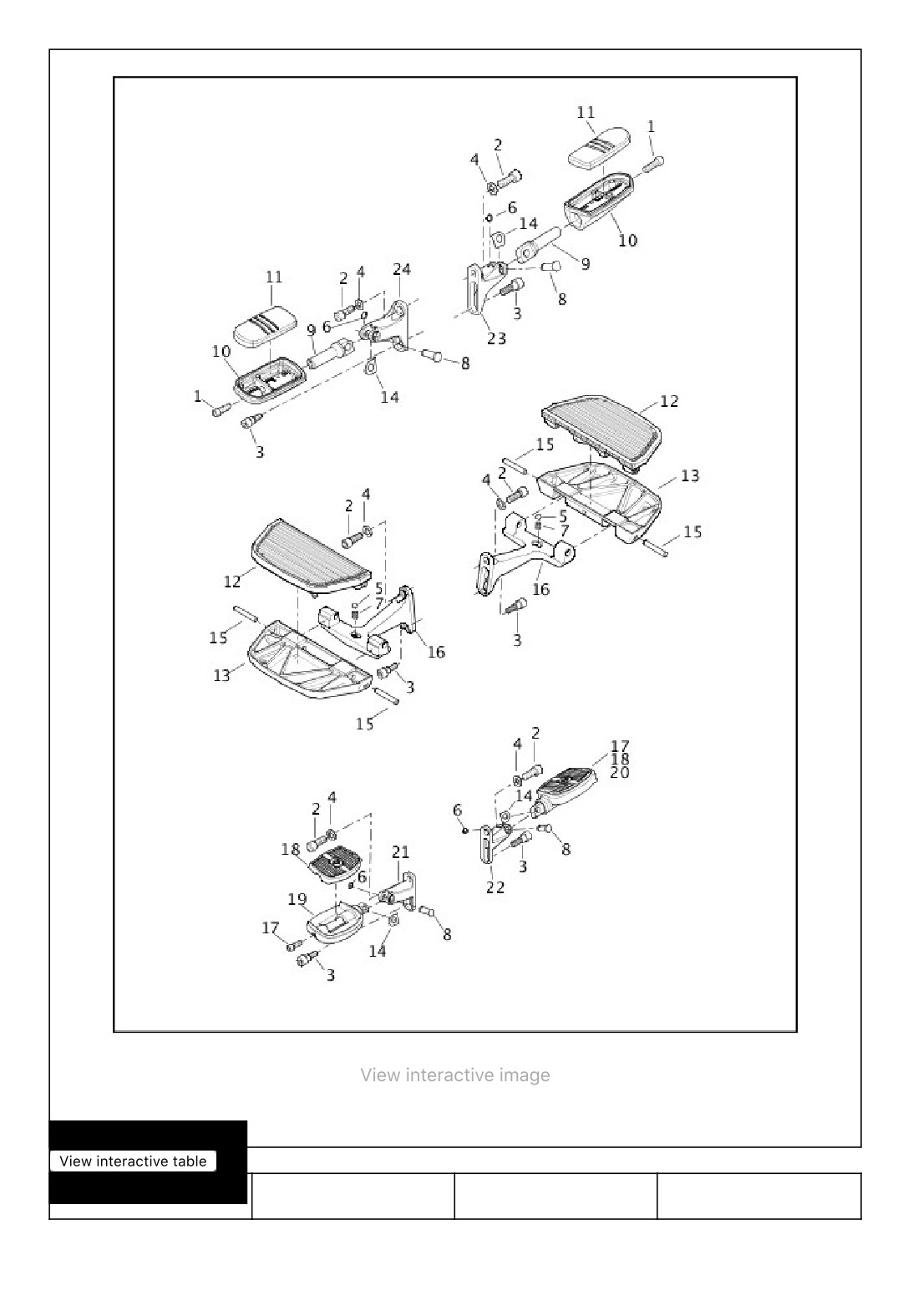

FOOTBOARDS AND FOOTPEGS, PASSENGER
147/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
148/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
2708A
SCREW (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
2
3143
SCREW (2)
ALL
3
4916
SCREW (2)
ALL
4
7038
LOCKWASHER (2)
ALL
5
8860
BALL (2)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLTRU
6
11304
RING, retaining,
FLHRXS, FLHTKL, FLHX,
passenger footpeg
FLHXS, FLTRX, FLTRXS
support (2)
7
33085-74
SPRING (2)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLTRU
8
45041-01A
CLEVIS PIN, passenger
FLHRXS, FLHTKL, FLHX,
footpeg support (2)
FLHXS, FLTRX, FLTRXS
9
50208-04
MOUNT, passenger
FLHRXS, FLHX, FLHXS,
footpeg (2)
FLTRX, FLTRXS
10
50345-04
FOOTPEG, passenger
FLHX, FLTRX
(chrome) (2)
10
50500876
FOOTPEG, passenger
FLHRXS, FLHXS, FLTRXS
(gloss black) (2)
11
50350-04
PAD, passenger footpeg
FLHRXS, FLHX, FLHXS,
(2)
FLTRX, FLTRXS
12
50606-06
PAD, passenger
FLHR, FLHRC, FLHTCU,
footboard (2)
FLHTK, FLHTK SHRINE,
FLTRU
13
50613-91A
FOOTBOARD, passenger
FLHR, FLHTCU, FLHTK,
(Domestic) (2)
FLHTK SHRINE, FLTRU
13
50899-99A
FOOTBOARD, passenger
FLHR, FLHRC, FLHTK,
(HDI) (2)
FLHTK SHRINE, FLTRU
14
50912-72
SPRING WASHER,
FLHRXS, FLHTKL, FLHX,
passenger footpeg (2)
FLHXS, FLTRX, FLTRXS
15
50933-86A
PIVOT PIN (4)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLTRU
149/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
16
52719-10
SUPPORT KIT, footboard
FLHR, FLHRC, FLHTCU,
(2)
FLHTK, FLHTK SHRINE,
FLTRU
17
12600031
SCREW (2)
FLHTKL
18
50500143
TREAD, footboard (2)
FLHTKL
19
50500145
FOOTBOARD
FLHTKL
ASSEMBLY, with
12600031 and 50500143
(right)
20
50500146
FOOTBOARD
FLHTKL
ASSEMBLY, with
12600031 and 50500143
(left)
21
50500332A
SUPPORT, right
FLHTKL
passenger floorboard
(black)
22
50500334A
SUPPORT, left passenger
FLHTKL
floorboard (black)
23
50500460A
SUPPORT, left passenger
FLHX, FLTRX
footpeg (chrome)
23
50500334A
SUPPORT, left passenger
FLHRXS, FLHXS, FLTRXS
footpeg (gloss black)
24
50500462A
SUPPORT, right
FLHX, FLTRX
passenger footpeg
(chrome)
24
50500332A
SUPPORT, right
FLHRXS, FLHXS, FLTRXS
passenger footpeg (gloss
black)

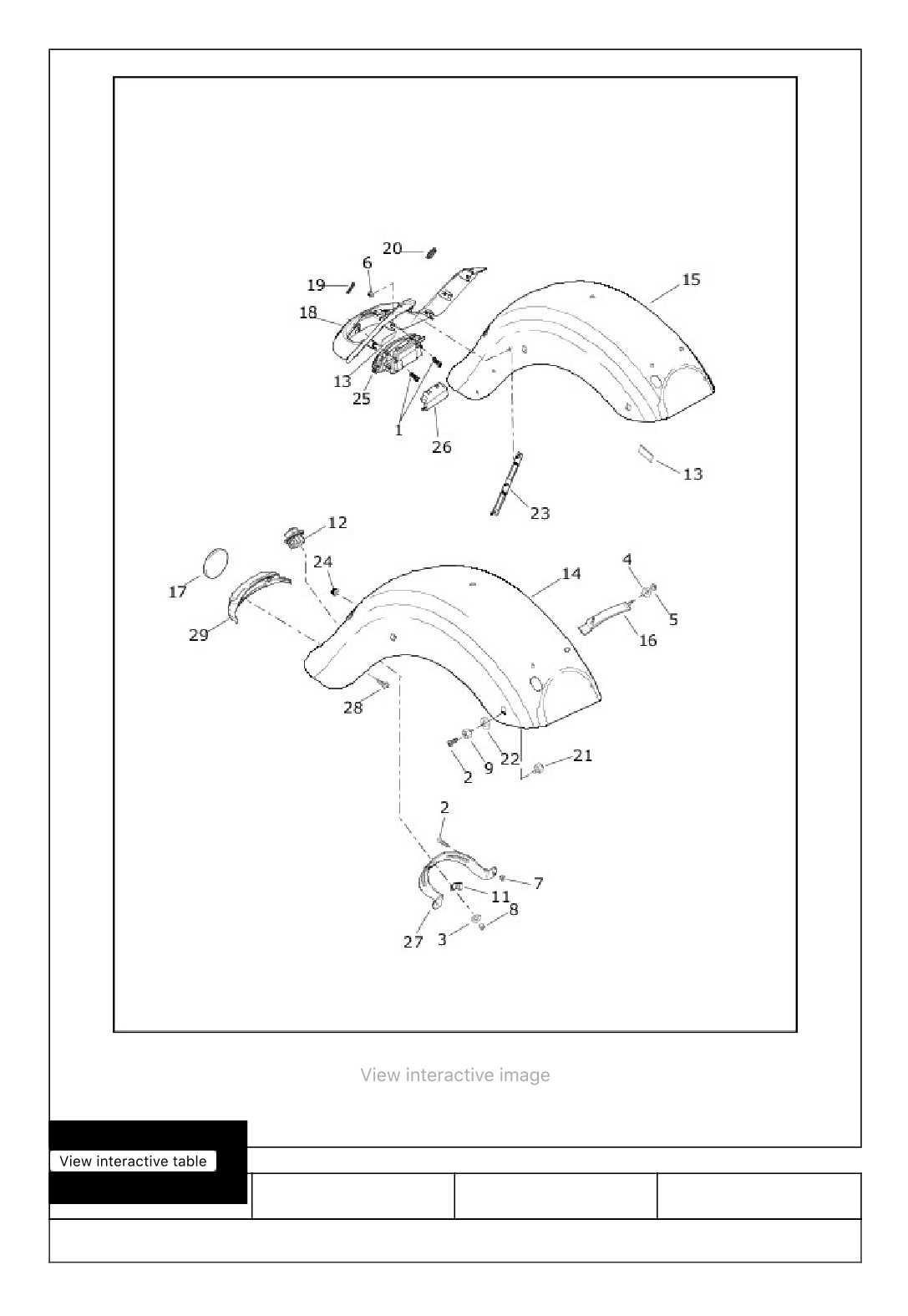

FENDERS, FRONT
150/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
NOTE: Refer to Painted Parts Book for painted part numbers.
151/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
755
HOLE PLUG
FLHR, FLHRC, FLHTCU
2
2531
SCREW (6)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL
3
3560WA
BOLT (2)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL
4
3561WC
BOLT (2)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL
5
3612
SCREW (2)
FLHR, FLHRC, FLHTCU
6
7600
NUT (6)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL
7
7624
LOCKNUT (4)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL
8
7629
NUT (2)
FLHTK, FLHTK SHRINE,
FLHTKL
9
10065
CABLE STRAP (3)
ALL
10
11437
GROMMET, wiring
FLHTK, FLHTK SHRINE,
harness
FLHTKL
11
59211-74A
TRIM, front fender (2)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL
12
73191-96
TERMINAL, socket, 16-
FLHTK, FLHTK SHRINE,
20 AWG (2)
FLHTKL
13
73152-96BK
HOUSING, two-way
FLHTK, FLHTK SHRINE,
socket (black)
FLHTKL
13
73152-96WE
HOUSING, two-way
FLHT, FLHTCU, FLHX,
socket (without fender tip
FLHXS, FLTRU, FLTRX,
light) (white)
FLTRXS
14
10500015
SCREW (4)
ALL
15
12200092
CLIP, retaining (6)
FLHR, FLHRC, FLHTCU
16
14100230
NAMEPLATE, Road King
FLHR, FLHRC
(2)
17
14100231
NAMEPLATE, Ultra (2)
FLHTCU
152/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
14100232
NAMEPLATE, Limited (2)
FLHTK, FLHTK SHRINE,
FLHTKL
19
58900009
FENDER (prime)
FLHRXS, FLHT, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
19
58900032
FENDER (prime)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL
20
59600003
FENDER LIGHT
FLHTK, FLHTK SHRINE,
ASSEMBLY, with 73191-
FLHTKL
96 (Domestic) (amber)
21
59600006
FENDER LIGHT
FLHTK, FLHTK SHRINE,
ASSEMBLY, with 73191-
FLHTKL
96 (HDI) (white)
22
59600009
FRONT FENDER TIP
FLHR, FLHRC
23
59600011
FRONT FENDER TIP
FLHTCU
24
61400057
TRIM SKIRT, front fender
FLHR, FLHRC, FLHTCU,
(lower)
FLHTK, FLHTK SHRINE,
FLHTKL

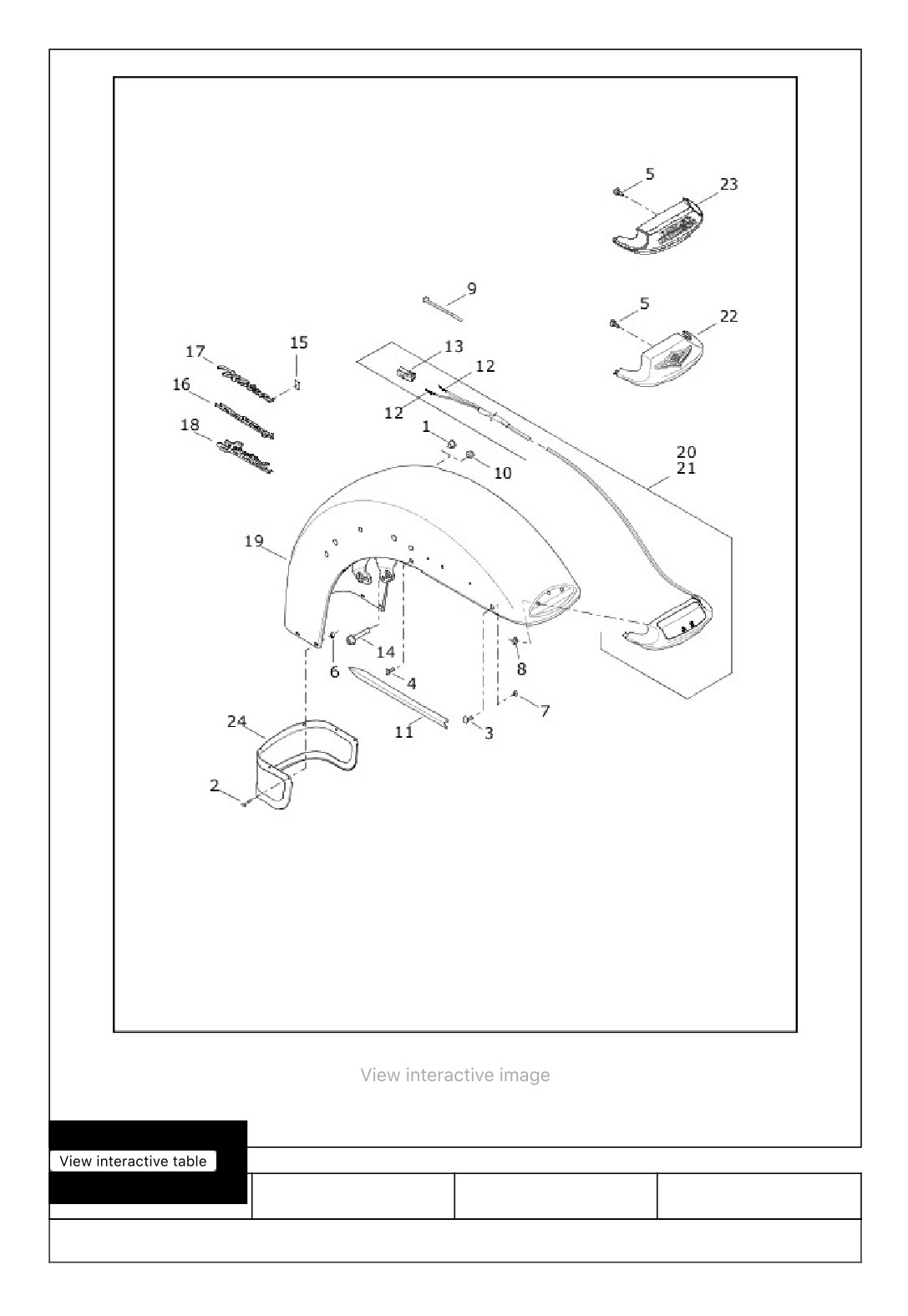

FENDERS, REAR (1 OF 2)
153/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
NOTE: Refer to Painted Parts Book for painted part numbers.
154/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
2995
SCREW (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
2
3684
SCREW (6)
ALL
3
6703
WASHER
ALL
4
7434
WASHER (2)
ALL
5
7499
NUT (2)
ALL
6
7499
NUT (6)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
7
7531
LOCKNUT (2)
ALL
8
7686
LOCKNUT
ALL
9
7880
NUT (4)
ALL
10
10006
CABLE STRAP
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
11
10053
CLAMP
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
12
11687
GROMMET, right angle
FLHRXS, FLHX, FLHXS,
(except Canada)
FLTRX, FLTRXS
13
11891
SPACER (3)
FLHRXS, FLHT, FLHX,
FLHXS, FLTRX, FLTRXS
14
58702-09A
FENDER, rear (prime)
FLHR, FLHT
14
58702-09A
FENDER, rear (prime)
FLHRC, FLHTK, FLHTK
(HDI)
SHRINE, FLHTKL, FLTRU
14
59500046
FENDER, rear (prime)
FLHTCU, FLHTK, FLHTK
(Domestic)
SHRINE, FLHTKL, FLTRU
15
59731-09A
FENDER, rear (prime)
FLHRXS, FLHX, FLHXS,
(Canada)
FLTRX, FLTRXS
15
60575-10A
FENDER, rear (prime)
FLHRXS, FLHX, FLHXS,
(Not Canada)
FLTRX, FLTRXS
FENDERS, REAR (2 OF 2)
155/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
NOTE: Refer to Painted Parts Book for painted part numbers.
156/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
16
59174-99
STUD PLATE
ALL
17
59581-05
BUMPER, rear fender
FLHR, FLHRXS, FLHT,
(black) (Domestic)
FLHX, FLHXS, FLTRX,
FLTRXS
17
59581-05
BUMPER, rear fender
FLHRC, FLHRXS, FLHTK,
(black) (HDI)
FLHTK SHRINE, FLHTKL,
FLHXS, FLTRU, FLTRXS
17
59581-05
BUMPER, rear fender
FLHRC, FLHRXS, FLHTK,
(black) (Brazil)
FLHTK SHRINE, FLHX,
FLTRU, FLTRXS
18
59739-09
FASCIA, rear fender
FLHRXS, FLHX, FLHXS,
(unpainted)
FLTRX, FLTRXS
19
59749-06
PLUG
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
20
59778-06
GROMMET
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
21
59786-01
FENDER MOUNTING
ALL
BOSS, inner (4)
22
59788-01
FENDER MOUNTING
ALL
WASHER (4)
23
59818-09
STUD PLATE (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
24
67266-94
BUSHING, nylon, turn
FLHR, FLHT
signal (2)
24
67266-94
BUSHING, nylon, turn
FLHRC, FLHTK, FLHTK
signal (HDI) (2)
SHRINE, FLHTKL, FLTRU
24
67266-94
BUSHING, nylon, turn
FLHRXS, FLHX, FLHXS,
signal (Canada) (2)
FLTRX, FLTRXS
25
69377-10
REAR FENDER LIGHT
FLHRXS, FLHX, FLHXS,
ASSEMBLY (Canada,
FLTRX, FLTRXS
HDI, Brazil)
25
59600008
REAR FENDER LIGHT
FLHRXS, FLHX, FLHXS,
ASSEMBLY (Domestic,
FLTRX, FLTRXS
California)
26
69615-10
SPLASH GUARD, fender
FLHRXS, FLHX, FLHXS,
tip lamp
FLTRX, FLTRXS
27
91140-09
BRACKET, saddlebag to
ALL
fender support
157/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
28
10500017
SCREW (Domestic) (2)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
29
59600029
FENDER TIP, rear
FLHTCU, FLHTK, FLHTK
(Domestic)
SHRINE, FLHTKL, FLTRU

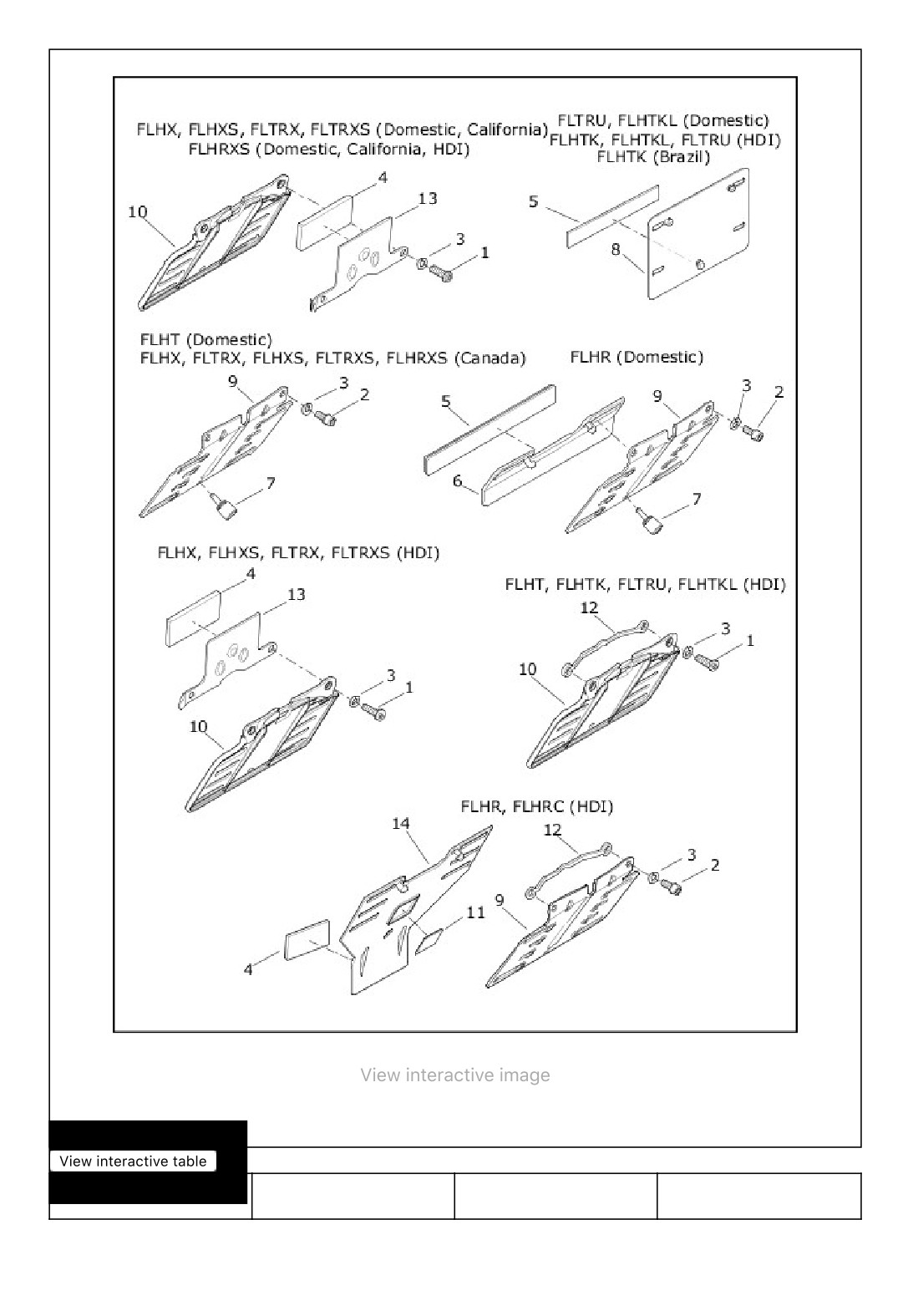

LICENSE PLATE BRACKETS
158/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
159/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
2446
SCREW (except Canada)
FLHRXS, FLHX, FLHXS,
(2)
FLTRX, FLTRXS
1
2446
SCREW (HDI) (2)
FLHT, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
2
3061
SCREW (2)
FLHR, FLHT
2
3061
SCREW (Canada) (2)
FLHRXS, FLHX, FLHXS,
FLTRX, FLTRXS
2
3061
SCREW (HDI) (2)
FLHRC
3
7036
WASHER (2)
FLHR, FLHRXS, FLHT,
FLHX, FLHXS, FLTRX,
FLTRXS
3
7036
WASHER (HDI) (2)
FLHR, FLHRC, FLHRXS,
FLHTK, FLHTK SHRINE,
FLHTKL, FLHX, FLTRU,
FLTRX
4
59259-90
REFLECTOR (red)
FLHRXS, FLHX, FLHXS,
(Domestic, California)
FLTRX, FLTRXS
4
59259-90
REFLECTOR (red) (HDI)
FLHR, FLHRC, FLHRXS,
FLHX, FLHXS, FLTRX,
FLTRXS
5
59988-72A
REFLECTOR (Domestic)
FLHR, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLTRU
5
59988-72A
REFLECTOR (HDI, Brazil)
FLHTK, FLHTK SHRINE,
FLHTKL
6
60907-09
BRACKET, reflector
FLHR
7
60909-09
BUMPER, license plate
FLHR
bracket
7
60909-09
BUMPER, license plate
FLHRXS, FLHX, FLHXS,
bracket (Canada)
FLTRX, FLTRXS
7
67900009
BUMPER, license plate
FLHT
bracket
8
60918-10A
LICENSE PLATE
FLHTCU, FLHTK, FLHTK
BRACKET (Domestic)
SHRINE, FLHTKL, FLTRU
8
60918-10A
LICENSE PLATE
FLHTK, FLHTK SHRINE,
BRACKET (HDI)
FLHTKL, FLTRU
160/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
9
69380-09BHP
BRACKET, license plate
FLHR, FLHT
(black)
9
69380-09BHP
BRACKET, license plate
FLHRXS, FLHX, FLHXS,
(Canada) (black)
FLTRX, FLTRXS
9
69380-09BHP
BRACKET, license plate
FLHR, FLHRC
(black) (HDI)
10
73255-10
BRACKET, license plate
FLHRXS, FLHX, FLHXS,
(Domestic, California)
FLTRX, FLTRXS
(black)
10
73255-10
BRACKET, license plate
FLHRXS, FLHT, FLHTK,
(HDI) (black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
11
11100195
CUSHION (HDI)
FLHR, FLHRC
12
12400100
SPACER (HDI)
FLHR, FLHRC, FLHT,
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
13
67900213A
BRACKET, reflector
FLHRXS, FLHX, FLHXS,
(Domestic, California)
FLTRX, FLTRXS
(black)
13
67900213A
BRACKET, reflector (HDI)
FLHRXS, FLHX, FLHXS,
(black)
FLTRX, FLTRXS
14
67900445
LICENSE PLATE
FLHR, FLHRC
BRACKET, with 59259-90
and 11100195 (HDI)
FUEL TANK - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX, FLHXS, FLTRU, FLTRX
AND FLTRXS
161/956
