Index
Part No.
Description
Model(s)
No.
1
2478
SCREW (2)
FLHTK, FLHTKL
2
10006
CABLE STRAP
FLHTK, FLHXS, FLHTCU, FLHTCUL,
FLHTKL
3
10065
CABLE STRAP (2)
FLHTCU, FLHX, FLHTK, FLHXS,
FLHTCU TC, FLHTCUL TC,
FLHTCUL, FLHTKL
4
72168-07
TERMINAL, socket, 18-20 AWG (8)
FLHTK, FLHTKL
5
72169-07
TERMINAL PIN, 16-20 AWG (2)
FLHTCU, FLHX, FLHTK, FLHXS,
FLHTCU TC, FLHTCUL TC,
FLHTCUL, FLHTKL
6
72290-94
TERMINAL, female 1/4 in. (black) (4)
FLHTCU, FLHX, FLHTK, FLHXS,
FLHTCU TC, FLHTCUL TC,
FLHTCUL, FLHTKL
7
72294-94
TERMINAL, female 16-20 gauge (white) (2)
FLHTCU, FLHX, FLHTK, FLHXS,
FLHTCU TC, FLHTCUL TC,
FLHTCUL, FLHTKL
8
72473-07
SEAL PIN (4)
FLHTK, FLHTKL
9
72487-
SOCKET HOUSING, 12-way
FLHTK, FLHTKL
07BK
10
73213-07
RETAINER, xmas tree clip (2)
FLHTCU, FLHX, FLHTK, FLHXS,
FLHTCU TC, FLHTCUL TC,
FLHTCUL, FLHTKL
11
77117-10
HEADSET ASSEMBLY, w/ 77126-10, 77148-10 &
FLHTK, FLHTCU, FLHTKL, FLHTCUL
76000243 (Domestic, California, Canada)
11
77117-10
HEADSET ASSEMBLY, w/ 77126-10, 77148-10 &
FLHTK, FLHTCU TC, FLHTCUL TC,
76000243 (HDI, Australia, Japan, Asia-Pacific, Brazil,
FLHTKL
England) (2)
12
77126-10
WIND SOCK, microphone (Domestic, California,
FLHTK, FLHTCU, FLHTKL, FLHTCUL
Canada)
12
77126-10
WIND SOCK, microphone (HDI, Australia, Japan, Asia-
FLHTK, FLHTCU TC, FLHTCUL TC,
Pacific, Brazil, England) (2)
FLHTKL
13
77148-10
COILED CORD, headset (Domestic, California,
FLHTK, FLHTCU, FLHTKL, FLHTCUL
Canada)
13
77148-10
COILED CORD, headset (HDI, Australia, Japan, Asia-
FLHTK, FLHTCU TC, FLHTCUL TC,
Pacific, Brazil, England) (2)
FLHTKL
14
10200205
SCREW (8)
FLHTCU, FLHX, FLHTK, FLHXS,
FLHTCU TC, FLHTCUL TC,
FLHTCUL, FLHTKL
15
10500017
SCREW (6)
FLHTCU, FLHX, FLHTK, FLHXS,
FLHTCU TC, FLHTCUL TC,
FLHTCUL, FLHTKL
16
12600070
BOLT (4)
FLHTCU, FLHX, FLHTK, FLHXS,
FLHTCU TC, FLHTCUL TC,
FLHTCUL, FLHTKL
17
12600071
RETAINER, bolt (4)
FLHTCU, FLHX, FLHTK, FLHXS,
FLHTCU TC, FLHTCUL TC,
FLHTCUL, FLHTKL
18
12600073
SCREW, accessory module (2)
FLHTCU, FLHTK, FLHXS, FLHTKL,
FLHTCUL
19
69200032
CABLE, AM/FM antenna
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL TC, FLHTCUL, FLHTKL
69200294
CABLE, AM/FM antenna
FLHX, FLHXS
69200629
CABLE, AM/FM antenna
FLTRX, FLTRXS
20
57000247
MOUNTING BRACKET, CB module (Domestic,
FLHTK, FLHTKL
California, Canada, Brazil, HDI, England)
21
69200136
CABLE, C.B. antenna
FLHTK, FLHTKL
22
69200247
WIRE HARNESS, speaker jumper, w/ 10065, 72169-
FLHTCU, FLHX, FLHTK, FLHXS,
07, 72290-94, 72294-94, 73213-07 & 69200072 (2)
FLHTCU TC, FLHTCUL TC,
FLHTCUL, FLHTKL
23
69200272
HOUSING, pin, 2-way (2)
FLHTCU, FLHX, FLHTK, FLHXS,
FLHTCU TC, FLHTCUL TC,
FLHTCUL, FLHTKL
24
76000055
SPEAKER ADAPTOR & GRILLE (2)
FLHTCU, FLHX, FLHTK, FLHXS,
FLHTCU TC, FLHTCUL TC,
FLHTCUL, FLHTKL
NOTE: For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty
Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service
and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership.

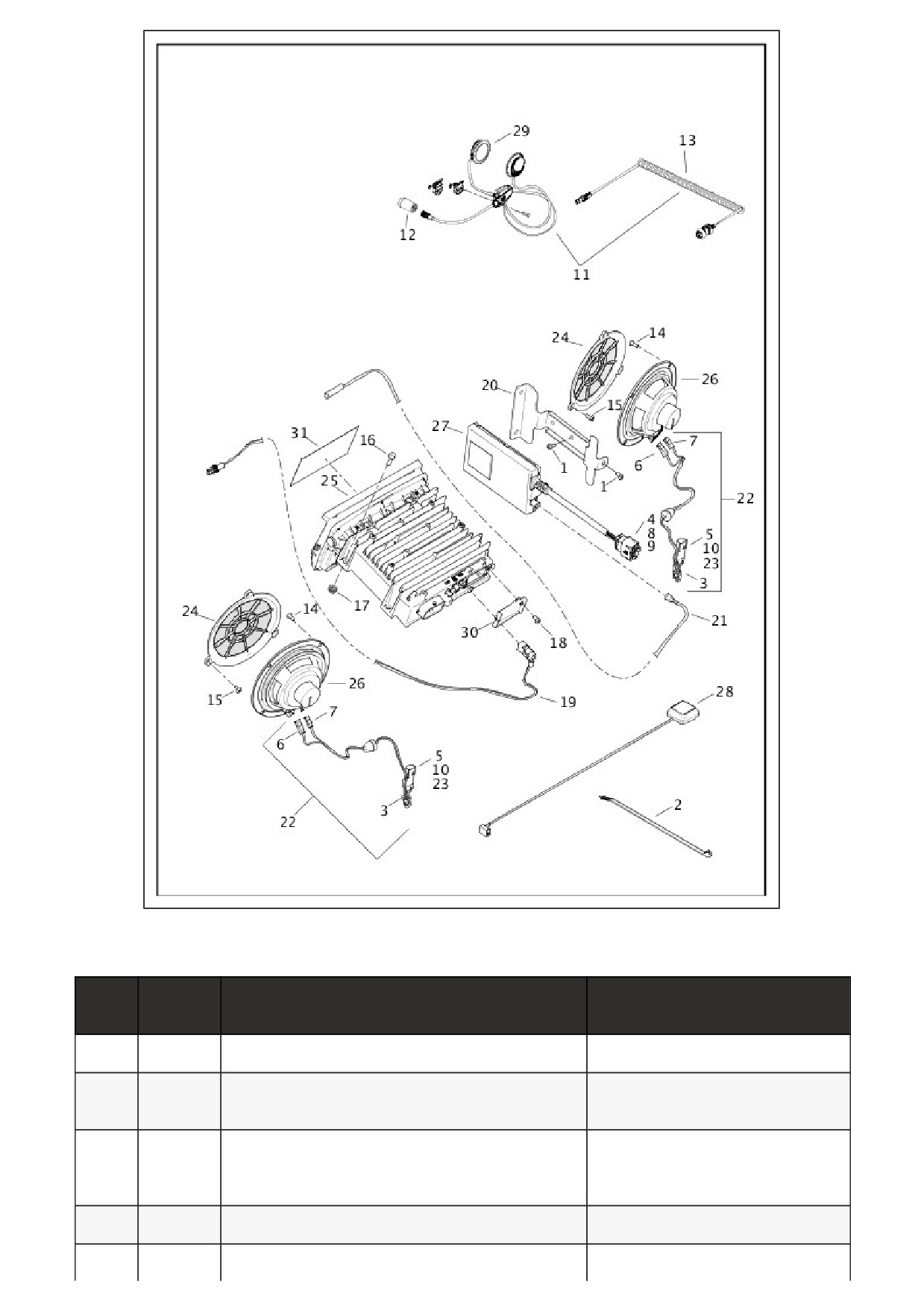

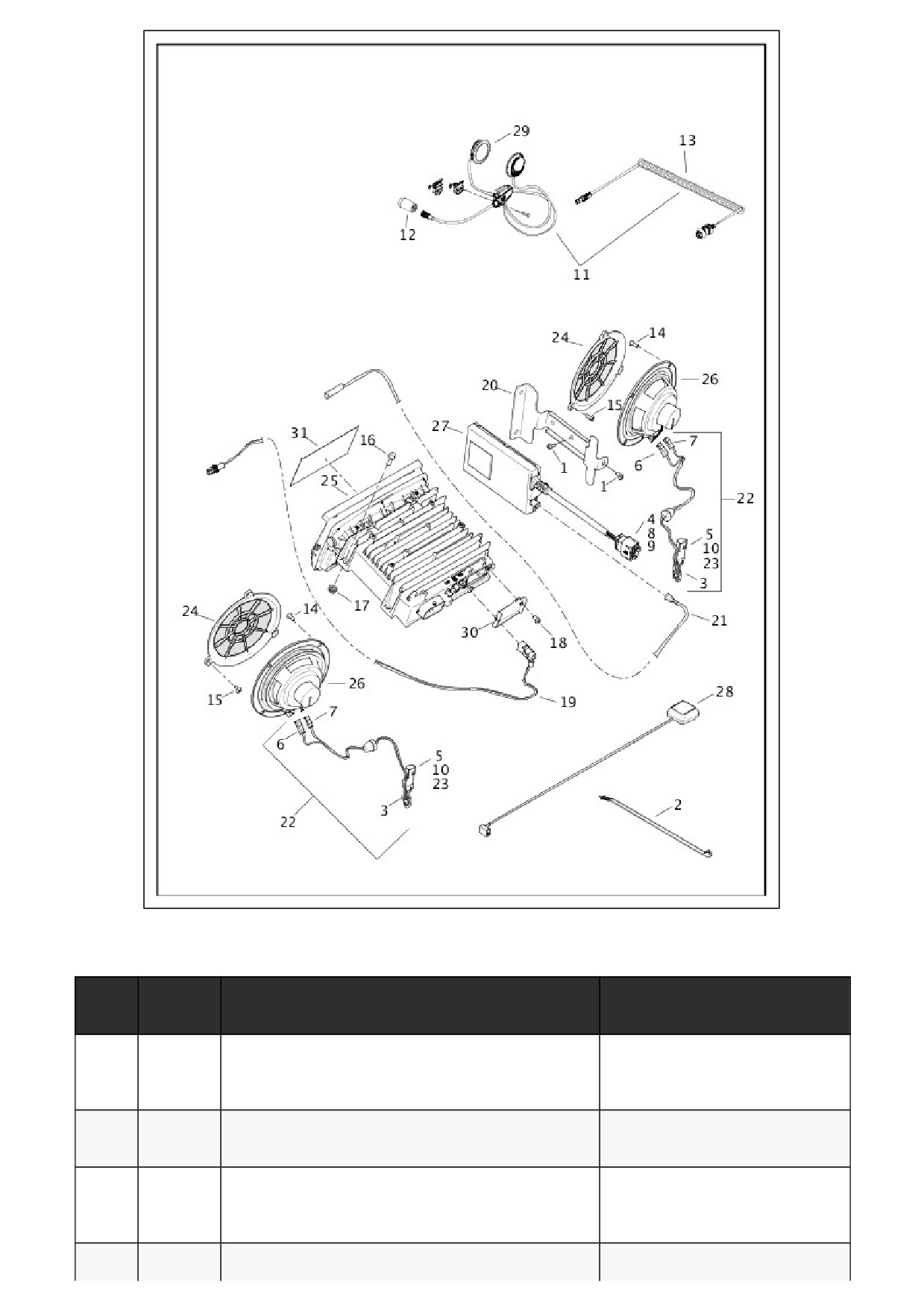

SOUND SYSTEM - FLHTCU/L, FLHTK/L, FLHX & FLHXS (2 OF 2)
Index
Part No.
Description
Model(s)
No.
25
76000076
RADIO, premium, w/ navigation, w/ 12600070, 12600071,
FLHTCU, FLHTCUL, FLHTK,
12600073 & 76000252 (Domestic, California, Canada)
FLHTKL, FLHXS
(See NOTE 1)
76000231
RADIO, premium, w/ navigation, w/ 12600070, 12600071,
FLHTK, FLHTKL, FLHXS
12600073 & 76000252 (England, HDI) (See NOTE 2)
76000232
RADIO, premium, w/ 12600070, 12600071, 12600073 &
FLHTK, FLHTKL, FLHXS
76000252 (Australia, HDI, Japan, Asia-Pacific, Brazil)
(See NOTE 3)
76000075
RADIO, standard, w/ 12600070 & 12600071 (Domestic,
FLHTCU, FLHTCUL
California, Canada)
76000075
RADIO, standard, w/ 12600070 & 12600071 (Domestic,
FLHX
California, Canada)
76000230
RADIO, standard, w/ 12600070 & 12600071 (Canada)
FLHTCU, FLHTCUL
76000230
RADIO, standard, w/ 12600070 & 12600071 (HDI,
FLHTCUL TC, FLHTCU TC
Australia, Japan, Asia-Pacific, England)
26
76000096
SPEAKER, 5-1/4 in. (2)
FLHTCU, FLHX, FLHTK, FLHXS,
FLHTCU TC, FLHTCUL TC,
FLHTCUL, FLHTKL
27
76000188
CB MODULE, w/ 72168-07, 72473-07 & 72487-07BK
FLHTK, FLHTKL
(Domestic, California, Canada, Brazil, HDI, England)
28
76000222
ANTENNA, GPS
FLHTCU, FLHTK, FLHXS,
FLHTCUL, FLHTKL
29
76000243
EAR PAD, foam (Domestic, California, Canada) (2)
FLHTCU, FLHTK, FLHTKL,
FLHTCUL
29
76000243
EAR PAD, foam (HDI, Australia, Japan, Asia-Pacific,
FLHTK, FLHTCU TC, FLHTCUL TC,
Brazil, England) (4)
FLHTKL
30
76000252
PLATE, accessory module
FLHTCU, FLHTK, FLHXS,
FLHTCUL, FLHTKL
31
91700034
KIT, RADIO TOUCH SCREEN PROTECTOR
FLHTCU, FLHTK, FLHXS,
FLHTCUL, FLHTKL
NOTE 1: 76000076 radio with the North America mapset is used in these countries/regions: Bahamas, Canada, Mexico,
Puerto Rico & United States.NOTE 2: 76000231 radio with the European mapset is used in these countries/regions:
Albania, Andorra, Austria, Belarus, Belgium, Bosnia, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Gibralter, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Latvia, Liechtenstein,
Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal,
Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Ukraine, United Kingdom & Vatican City.NOTE 3:
76000232 radio with the Rest Of World mapset is used in these countries/regions: Argentina, Australia, Bahrain, Bolivia,
Botswana, Brazil, Brunei, Chile, Columbia, Costa Rica, Egypt, Hong Kong, India, Indonesia, Jordan, Kenya, Kuwait,
Lebanon, Malaysia, Morocco, Namibia, New Zealand, Nigeria, Oman, Peru, Qatar, Reunion, Russia, Saudi Arabia,
Singapore, South Africa, Thailand, Turkey, United Arab Emirates, Uraguay, Venezuela & the Rest Of the World.NOTE:
For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin
revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and
warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership.

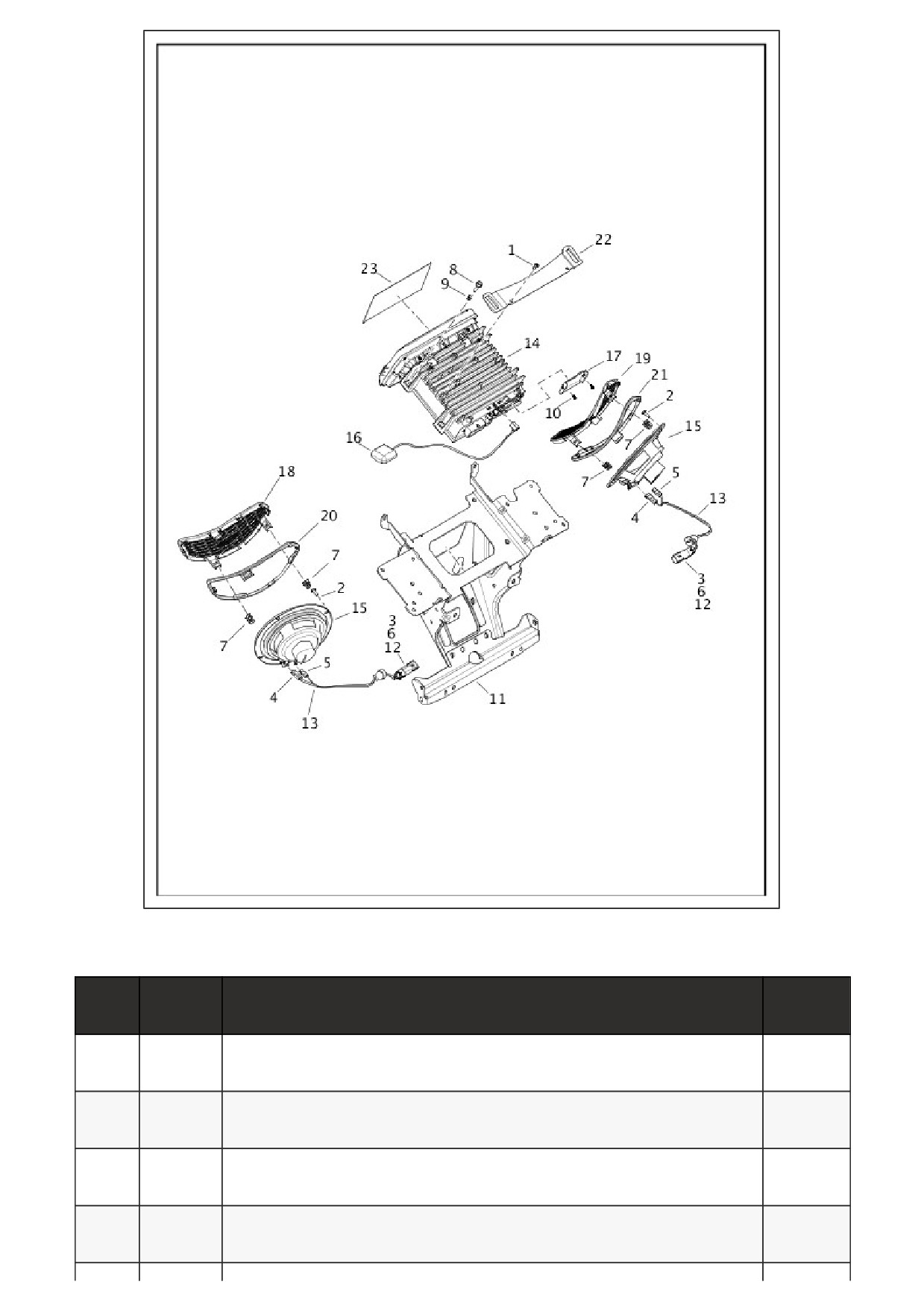

SOUND SYSTEM - FLTRX & FLTRXS
Index
Part No.
Description
Model(s)
No.
1
2478
SCREW (2)
FLTRX,
FLTRXS
2
3152
SCREW (8)
FLTRX,
FLTRXS
3
72169-07
TERMINAL, pin, 16-20 AWG (4)
FLTRX,
FLTRXS
4
72290-94
CONNECTOR, w/ terminal (black) (2)
FLTRX,
FLTRXS
5
72294-94
CONNECTOR, w/ terminal (2)
FLTRX,
FLTRXS
6
73213-07
RETAINER, x-mas tree (2)
FLTRX,
FLTRXS
7
12200025
CLIP (4)
FLTRX,
FLTRXS
8
12600070
BOLT (4)
FLTRX,
FLTRXS
9
12600071
RETAINER, bolt (4)
FLTRX,
FLTRXS
10
12600073
SCREW, accessory module (2)
FLTRX,
FLTRXS
11
47200217
BRACKET
FLTRX,
FLTRXS
12
69200272
HOUSING, pin, 2-way (2)
FLTRX,
FLTRXS
13
69200752
WIRE HARNESS, speaker jumper, w/ 72169-07, 72290-94, 72294-94, 73213-07 &
FLTRX,
69200272 (2)
FLTRXS
14
76000075
RADIO, standard, w/ 12600070 & 12600071 (Domestic, California, Canada)
FLTRX
76000076
RADIO, premium, w/ navigation, w/ 12600070, 12600071, 12600073 & 76000252
FLTRXS
(Domestic) (See NOTE 1)
76000231
RADIO, premium, w/ navigation, w/ 12600070, 12600071, 12600073 & 76000252
FLTRXS
(Domestic) (See NOTE 2)
76000232
RADIO, premium, w/ 12600070, 12600071, 12600073 & 76000252 (Canada, HDI,
FLTRXS
Australia, Japan, Asia-Pacific) (See NOTE 3)
15
76000096
SPEAKER, 5-1/4 in. (2)
FLTRX,
FLTRXS
16
76000222
ANTENNA, GPS
FLTRXS
17
76000252
PLATE
FLTRXS
18
76000453
SPEAKER GRILLE, right
FLTRX,
FLTRXS
19
76000454
SPEAKER GRILLE, left
FLTRX,
FLTRXS
20
76000455
GASKET, right
FLTRX,
FLTRXS
21
76000456
GASKET, left
FLTRX,
FLTRXS
22
76000468
BRACKET, radio
FLTRX,
FLTRXS
23
91700034
KIT, RADIO TOUCH SCREEN PROTECTOR
FLTRXS
NOTE 1: 76000076 radio with the North America mapset is used in these countries/regions: Bahamas, Canada, Mexico,
Puerto Rico & United States.NOTE 2: 76000231 radio with the European mapset is used in these countries/regions:
Albania, Andorra, Austria, Belarus, Belgium, Bosnia, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Gibralter, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Latvia, Liechtenstein,
Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal,
Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Ukraine, United Kingdom & Vatican City.NOTE 3:
76000232 radio with the Rest Of World mapset is used in these countries/regions: Argentina, Australia, Bahrain, Bolivia,
Botswana, Brazil, Brunei, Chile, Columbia, Costa Rica, Egypt, Hong Kong, India, Indonesia, Jordan, Kenya, Kuwait,
Lebanon, Malaysia, Morocco, Namibia, New Zealand, Nigeria, Oman, Peru, Qatar, Reunion, Russia, Saudi Arabia,
Singapore, South Africa, Thailand, Turkey, United Arab Emirates, Uraguay, Venezuela & the Rest Of the World.NOTE:
For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin
revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and
warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership.

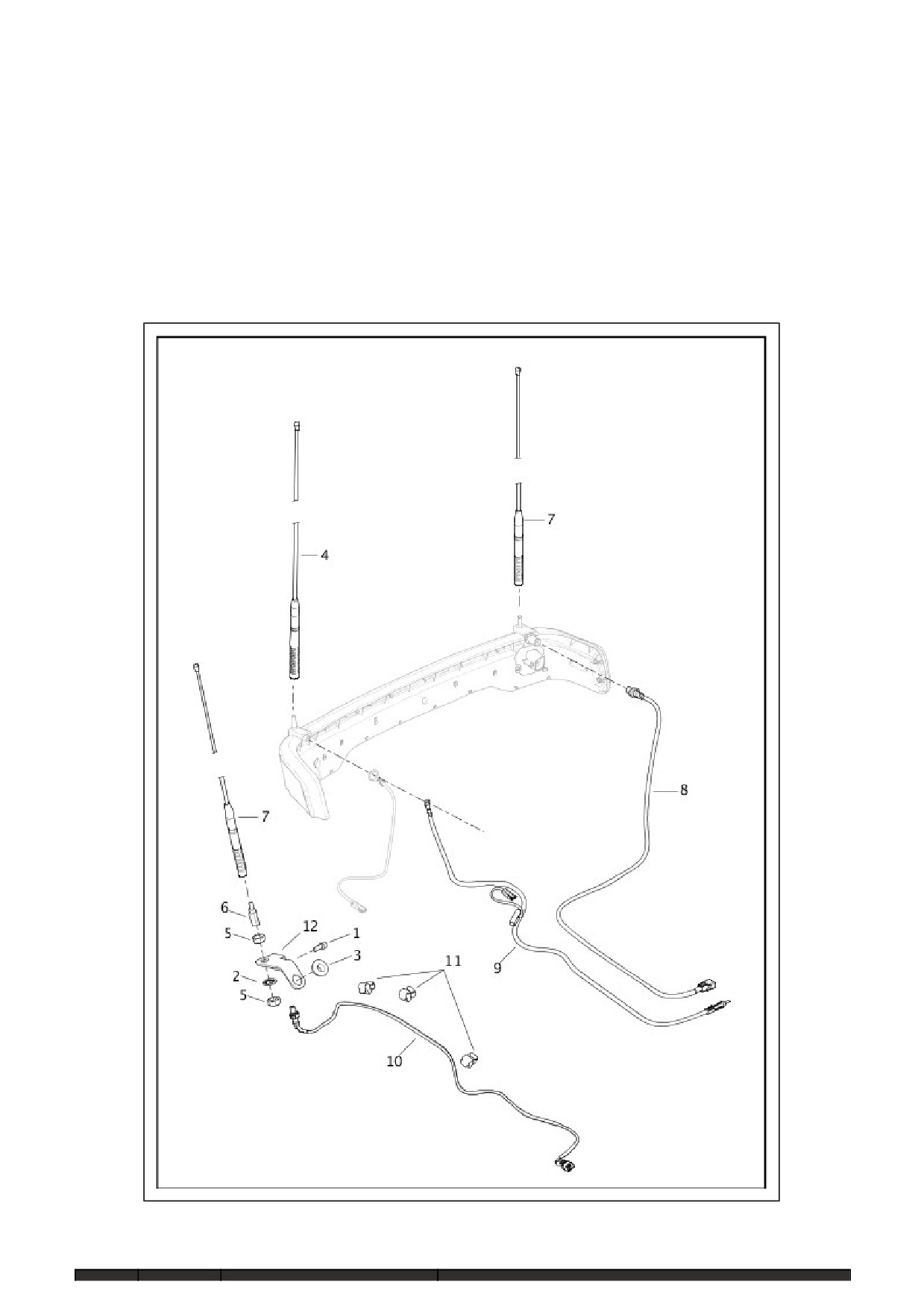

ANTENNAS
Index
Part No.
Description
Model(s)
No.
1
4867
SCREW
FLHX, FLTRX, FLHXS, FLTRXS
2
7129
LOCKWASHER
FLHX, FLTRX, FLHXS, FLTRXS
3
11543
GROMMET
FLHX, FLTRX, FLHXS, FLTRXS
4
76250-09
ANTENNA MAST, CB
FLHTK, FLHTKL
5
76259-86
NUT (2)
FLHX, FLTRX, FLHXS, FLTRXS
6
76335-87
ANTENNA BASE ASSEMBLY,
FLHX, FLTRX, FLHXS, FLTRXS
w/ 7129 & 76259-86
7
76503-08
ANTENNA MAST,
FLHTCU, FLHX, FLHTK, FLHXS, FLHTCU TC, FLHTCUL,
AM/FM/WB/LW
FLHTKL, FLHTCUL TC, FLTRX, FLTRXS
8
69200210
ANTENNA CABLE
FLHTCU, FLHTK, FLHTCU TC, FLHTCUL, FLHTKL,
EXTENSION, AM/FM
FLHTCUL TC
9
69200211
ANTENNA CABLE
FLHTK, FLHTKL
EXTENSION, CB
10
69200295
ANTENNA CABLE
FLHX, FLTRX, FLHXS, FLTRXS
EXTENSION, AM/FM
11
69200313
CLIP, harness (3)
FLHX, FLTRX, FLHXS, FLTRXS
12
76000183
BRACKET, antenna mounting
FLHX, FLTRX, FLHXS, FLTRXS

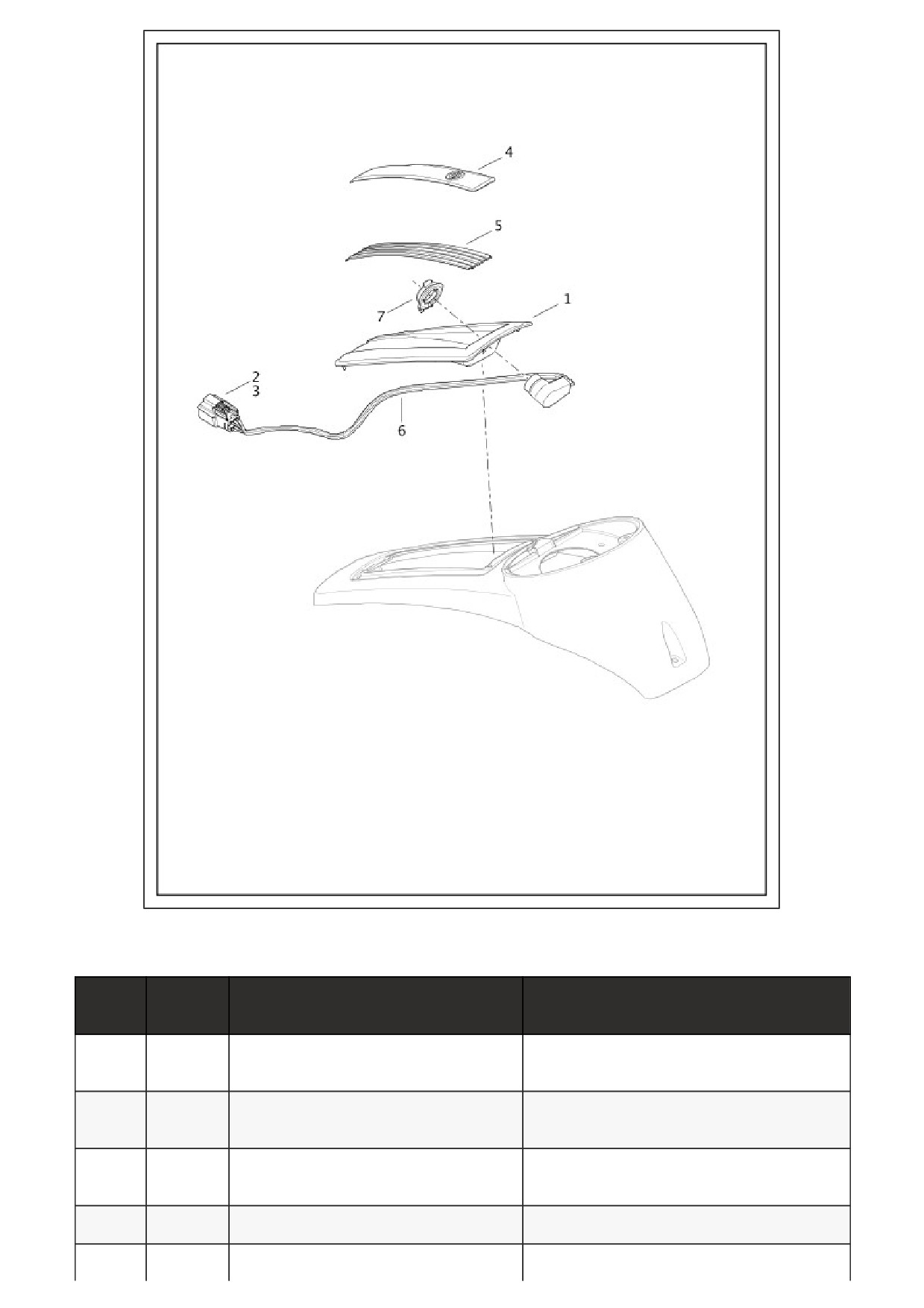

CB & INTERCOM CONTROL POD
Index
Part No.
Description
Model(s)
No.
1
15341-08
HOUSING, pod
FLHTCU, FLHTCU TC, FLHTK, FLHTCUL,
FLHTCUL TC, FLHTKL
2
72168-07
TERMINAL, socket, 18-20 AWG (6)
FLHTCU, FLHTCU TC, FLHTK, FLHTCUL,
FLHTCUL TC, FLHTKL
3
72414-
SOCKET HOUSING, 6-way
FLHTCU, FLHTCU TC, FLHTK, FLHTCUL,
07BK
FLHTCUL TC, FLHTKL
4
14100083
INSERT, console pod
FLHTCU, FLHTCU TC, FLHTCUL, FLHTCUL TC
5
14100085
INSERT, console pod
FLHTK, FLHTKL
6
69200127
HARNESS, console audio, DIN, w/ 72168-
FLHTCU, FLHTCU TC, FLHTK, FLHTCUL,
07 & 72414-07BK
FLHTCUL TC, FLHTKL
7
76266-
CAP ASSEMBLY, weather
FLHTCU, FLHTCU TC, FLHTK, FLHTCUL,
98A
FLHTCUL TC, FLHTKL

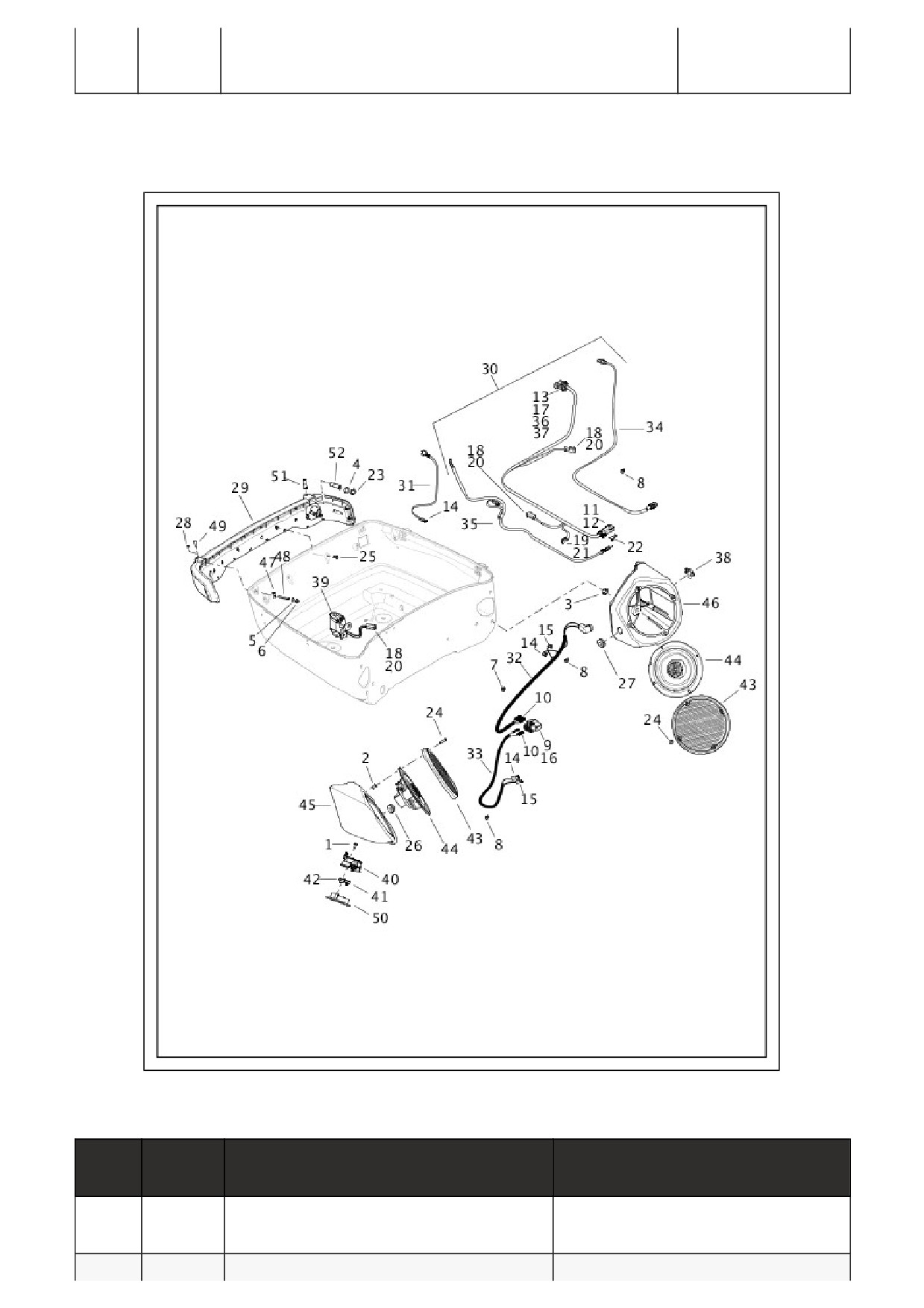

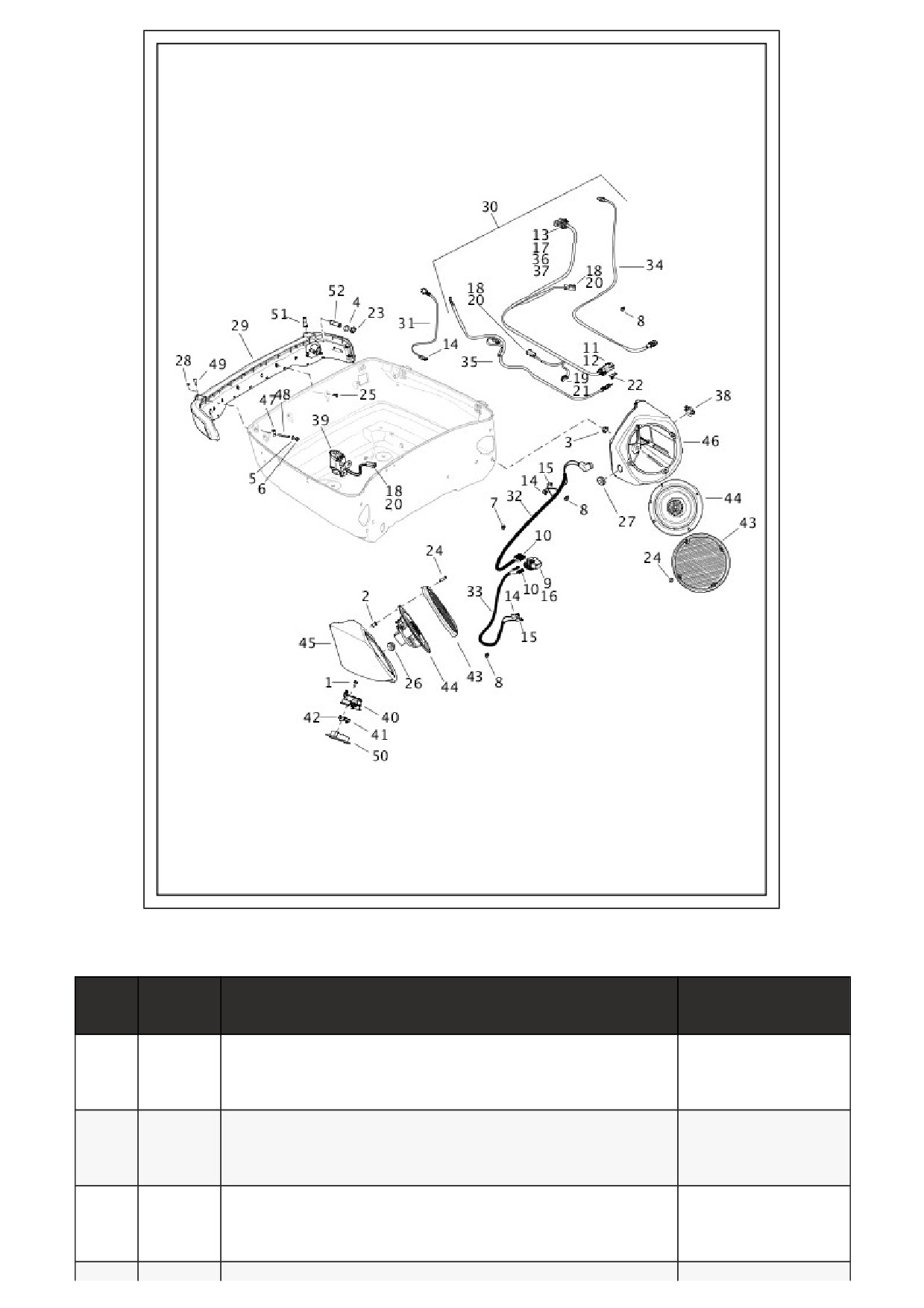

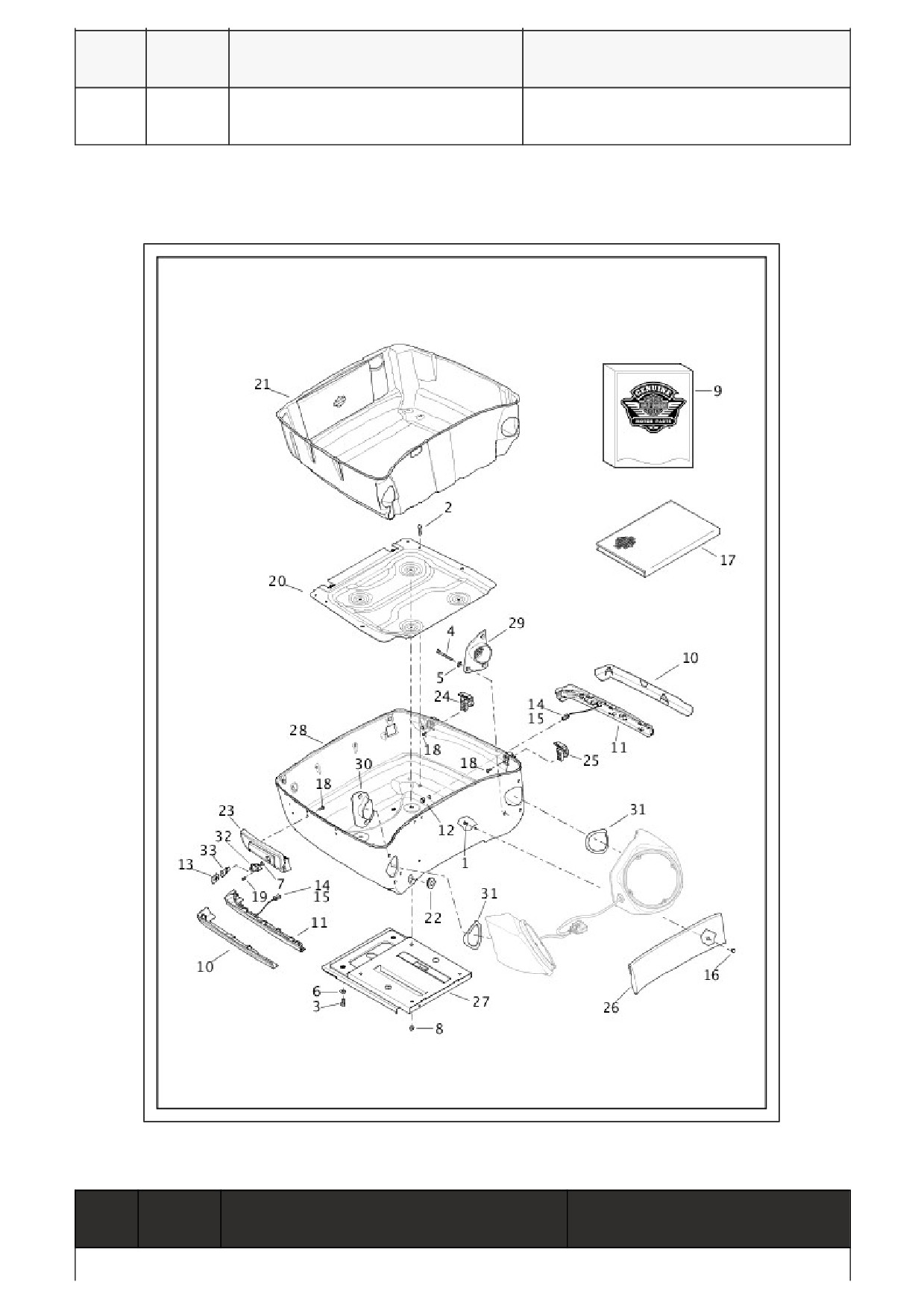

TOUR-PAK (BOTTOM)
Index
Part No.
Description
Model(s)
No.
NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.
1
2724
SCREW (2)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
2
2968
SCREW (4)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
3
3767B
BOLT, (Asia-Pacific) (4)
FLHTK, FLHTCUL TC, FLHTKL, FLHTCU
TC
4
3910
SCREW (6)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
5
6703
WASHER (6)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
6
6703
WASHER, (Asia-Pacific) (4)
FLHTK, FLHTCUL TC, FLHTKL, FLHTCU
TC
7
7586
JAMNUT
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
8
7716
LOCKNUT (4)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
9
53598-
LINER, removable
FLHTCU, FLHTCU TC, FLHTCUL,
88A
FLHTCUL TC
92038-10
LINER, removable
FLHTK, FLHTKL
10
53734-06
TRIM, left-bottom, Tour-Pak (chrome) (HDI, Japan,
FLHTCU TC, FLHTK, FLHTCUL TC,
Asia-Pacific)
FLHTKL
53735-06
TRIM, right-bottom, Tour-Pak (chrome) (HDI, Japan,
FLHTCU TC, FLHTK, FLHTCUL TC,
Asia-Pacific)
FLHTKL
11
53788-06
LIGHT, right-bottom, Tour-Pak, sidemarker, w/
FLHTCU, FLHTK, FLHTCUL, FLHTKL
73152-96BK & 73191-96 (Domestic)
53789-06
LIGHT, left-bottom, Tour-Pak, sidemarker, w/
FLHTCU, FLHTK, FLHTCUL, FLHTKL
73152-96BK & 73191-96 (Domestic)
12
57978-00
GROMMET, (Domestic) (2)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
13
61081-92
COVER, key-head (set of 2)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
14
73152-
SOCKET HOUSING, 2-place (Domestic) (2)
FLHTCU, FLHTK
96BK
15
73191-96
TERMINAL, socket, 16-20 gauge (Domestic) (4)
FLHTCU, FLHTK, FLHTCUL, FLHTKL
16
90844-80
ACORN NUT (2)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
17
99461-89
COVER, owner manual (Domestic, California,
FLHTCU, FLHTK, FLHTKL, FLHTCU TC
Canada, Australia)
18
10200061
SCREW (12)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
19
10200062
SCREW (2)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
20
53000091
PLATE, Tour-Pak reinforcing
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
21
53000123
LINER, molded, w/ pouch
FLHTCU, FLHTK, FLHTCUL, FLHTCUL
TC
53000124
LINER, molded, w/ pouch
FLHTK, FLHTKL
22
53000132
GROMMET
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
23
53000138
HASP ASSEMBLY, bottom
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
24
53000139
HINGE ASSEMBLY, rear
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
25
53000140
HINGE ASSEMBLY, front
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
26
53000308
COVER, TOUR-PAK wiring
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
27
53000311
ADAPTER PLATE, TOUR-PAK (Asia-Pacific)
FLHTCU TC, FLHTK, FLHTCUL TC,
FLHTKL
28
53000346
BOTTOM, Tour-Pak (unpainted)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
29
76000172
MOUNTING BRACKET, speaker, left
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
30
76000173
MOUNTING BRACKET, speaker, right
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
31
76000174
GASKET, speaker pod (2)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
32
90300030
LOCK, w/ 7586 (specify key number)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC
33
90300043
KEY, w/ 61081-92 (set of 2) (specify key number)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL
TC, FLHTKL, FLHTCU TC

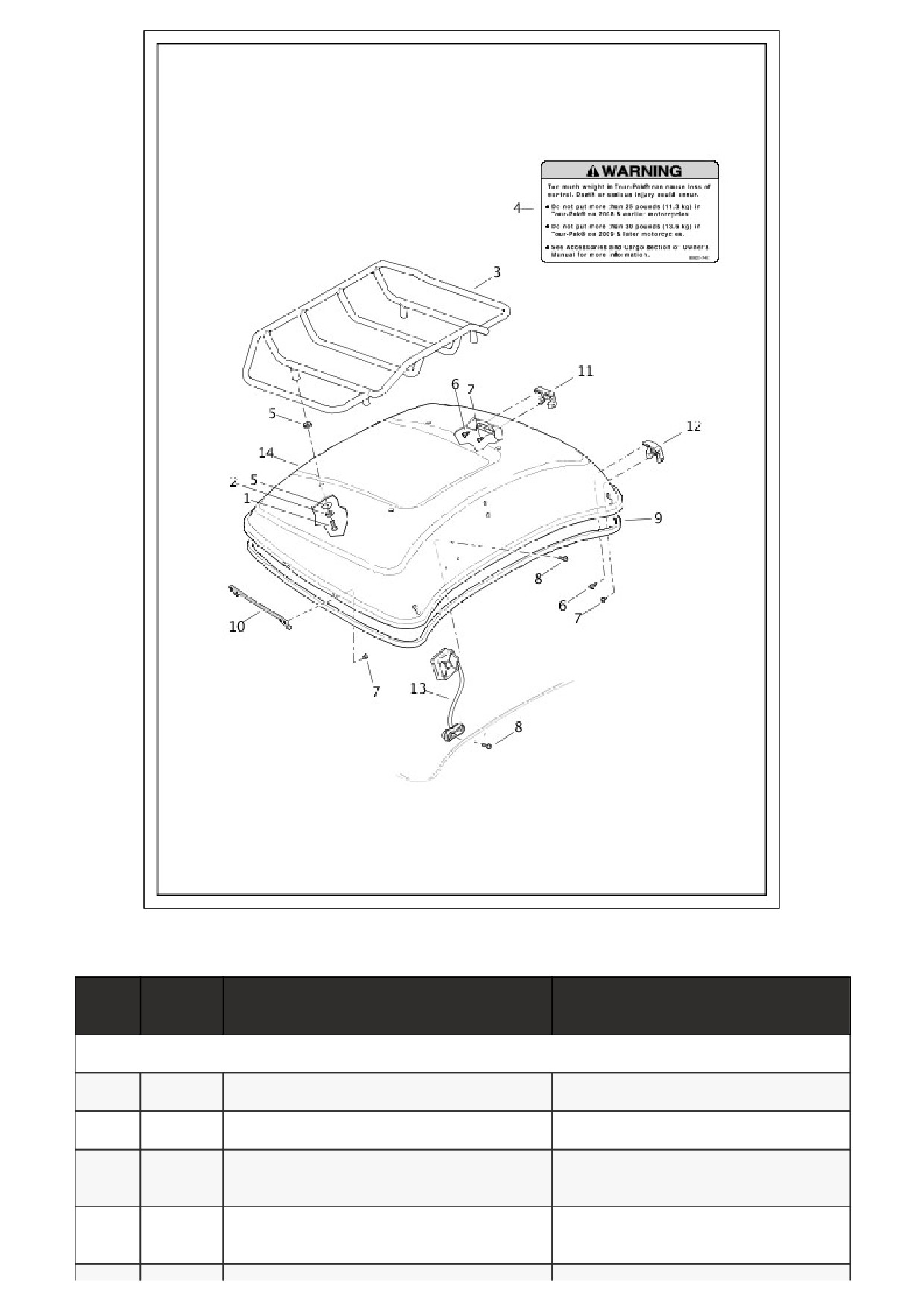

TOUR-PAK (COVER)
Index
Part No.
Description
Model(s)
No.
NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.
1
923
SCREW (4)
FLHTK, FLHTKL
2
6703
WASHER (4)
FLHTK, FLHTKL
3
53665-87
LUGGAGE RACK, Tour-Pak, w/ hardware, w/
FLHTK, FLHTKL
6703 & 90869-85A (chrome)
4
90821-
LABEL, TOUR-PAK, load limit
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
74C
FLHTKL, FLHTCU TC
5
90869-
MOUNTING PAD & WASHER SET, luggage rack
FLHTK, FLHTKL
85A
6
10200061
SCREW (4)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
7
10200062
SCREW (8)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
8
10200154
SCREW (5)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
9
53000090
GASKET, cover
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
10
53000137
HASP, Tour-Pak lid
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
11
53000139
HINGE ASSEMBLY, rear
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
12
53000140
HINGE ASSEMBLY, front
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
13
53000141
TETHER, retractable
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
14
53000347
COVER, Tour-Pak (unpainted)
FLHTCU, FLHTCU TC, FLHTCUL,
FLHTCUL TC
53000370
COVER, Tour-Pak (unpainted)
FLHTK, FLHTKL
LAMPS & SPEAKER HOUSINGS, ULTRA TOUR-PAK (1 OF 2)
Index
Part No.
Description
Model(s)
No.
1
3612
SCREW (2)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
2
5210
WELL NUT (8)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
3
5211
CRIMP NUT (6)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
4
6113
WASHER
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
5
6220W
WASHER
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
6
7492
NUT, w/ lockwasher
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
7
10006
CABLE STRAP
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
8
10065
CABLE STRAP (3)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
9
72166-
SOCKET HOUSING, 12-way (black)
FLHTCU, FLHTCUL,
07BK
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
10
72168-07
SOCKET TERMINAL, 18-20 AWG (13)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
11
72169-07
TERMINAL PIN, 16-20 AWG (6)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
12
72188-
PIN HOUSING, 6-way (black)
FLHTCU, FLHTCUL,
07BK
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
13
72213-94
TERMINAL, socket, female, 16-20 AWG (5)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
14
72290-94
TERMINAL, female 1/4 in. (3)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
15
72294-94
TERMINAL, female 16-20 gauge (2)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
16
72473-07
SEAL PIN (3)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
17
72610-08
SEAL, 18-20 awg (white) (5)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
18
73102-
PIN HOUSING, 2-place (2)
FLHTCU, FLHTCUL,
96BK
FLHTKL, FLHTCU TC
18
73102-
PIN HOUSING, 2-place (3)
FLHTK, FLHTKL
96BK
19
73152-
SOCKET HOUSING, 2-place (white)
FLHTCU, FLHTCUL,
96WE
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
20
73190-96
TERMINAL, pin, 16-20 AWG (4)
FLHTCU, FLHTCUL,
FLHTKL, FLHTCU TC
20
73190-96
TERMINAL, pin, 16-20 AWG (6)
FLHTK, FLHTKL
21
73191-96
TERMINAL, socket, 16-20 gauge (2)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
22
73213-07
RETAINER, xmas tree clip
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
23
76353-00
NUT
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
24
10200105
SCREW (8)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
25
10200133
SCREW (8)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
26
12100017
GROMMET, speaker, right
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
27
12100018
GROMMET, speaker, left
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
28
12100023
PLUG, (w/o CB radio)
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
29
67800093
LAMP, Tour-Pak, w/ 76000164, 76000165, 76000186 & 76000208
FLHTCU, FLHTK,
(Domestic)
FLHTCUL, FLHTKL
67800101
LAMP, Tour-Pak, w/ 76000164, 76000165, 76000186 & 76000208
FLHTCU TC, FLHTK,
(HDI)
FLHTCUL TC, FLHTKL
67800102
LAMP, Tour-Pak, w/ 76000164, 76000165, 76000186 & 76000208
FLHTCU TC, FLHTK,
(Japan)
FLHTCUL TC, FLHTKL
30
69200131
WIRING HARNESS, Tour-Pak, w/ 10065, 72169-07, 72188-07BK,
FLHTCU, FLHTCUL,
72213-94, 72610-08, 73102-96BK, 73152-96WE, 73190-96, 73191-
FLHTK, FLHTCUL TC,
96, 69200210, 69200211, 69200225 & 69200226
FLHTKL, FLHTCU TC
31
69200135
WIRING HARNESS, AM/FM ground jumper, w/ 72290-94
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
32
69200138
WIRING HARNESS, speaker, left, w/ 10065, 72168-07, 72290-94 &
FLHTCU, FLHTCUL,
72294-94
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
33
69200139
WIRING HARNESS, speaker, right, w/ 10065, 72168-07, 72290-94,
FLHTCU, FLHTCUL,
72294-94 & 71400005
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
34
69200210
CABLE EXTENSION, AM/FM antenna
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
35
69200211
CABLE EXTENSION, CB antenna
FLHTCU, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
LAMPS & SPEAKER HOUSINGS, ULTRA TOUR-PAK (2 OF 2)
Index
Part No.
Description
Model(s)
No.
36
69200225
SOCKET CONNECTOR, 5-way (black)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
37
69200226
SECONDARY LOCK, 5-way (black)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
38
69200237
WEATHER CAP ASSEMBLY
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
39
69200826
KIT, AUXILIARY POWER OUTLET, Tour-Pak, w/
FLHTK, FLHTKL
73102-96BK & 73190-96
40
71400005
SWITCH ASSEMBLY, rear speaker, w/ 71400006
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
& 71400007
FLHTKL, FLHTCU TC
41
71400006
KNOB, ptt vol-/vol+ rear control switch
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
42
71400007
KNOB, mode select up/down rear control switch
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
43
76000092
GRILLE, rear speaker (2)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
44
76000096
SPEAKER, 5.25 inch (2)
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
45
76000160
SPEAKER BOX ENCLOSURE, right rear
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
46
76000161
SPEAKER BOX ENCLOSURE, left rear
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
47
76000164
STUD, antenna, female
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
48
76000165
SET SCREW, antenna, M5 X 43mm
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
49
76000166
SET SCREW, antenna, M6 X 20mm, (w/ CB
FLHTK, FLHTKL
radio) (Domestic, HDI)
50
76000177
BEZEL, speaker switch
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
51
76000186
STUD, antenna
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC
52
76000208
PLUG ASSEMBLY, antenna
FLHTCU, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHTCU TC

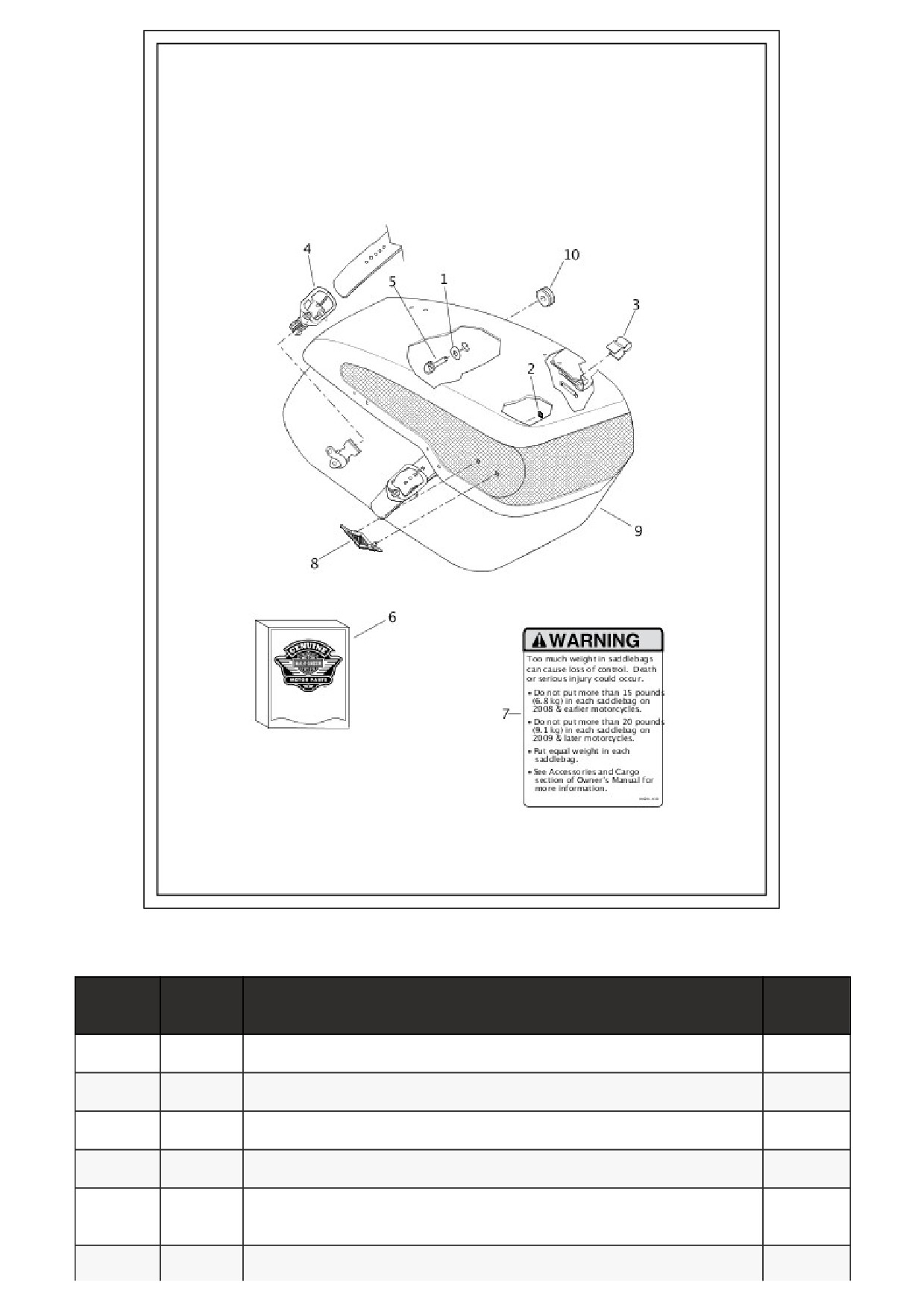

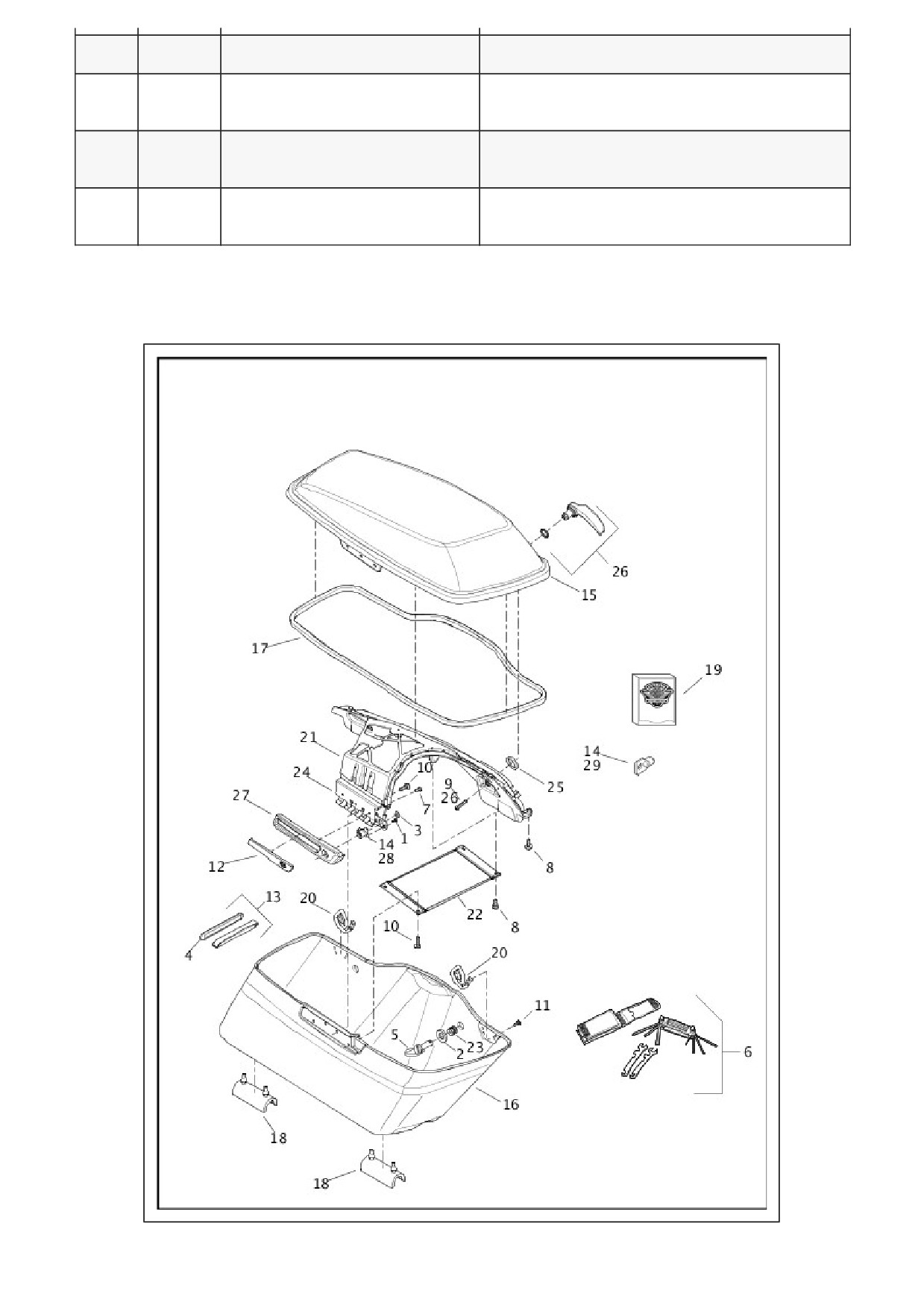

SADDLEBAGS (1 OF 2)
Index
Part No.
Description
Model(s)
No.
NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.
1
3656
SCREW (4)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
2
6229W
WASHER (4)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
3
7586
JAMNUT (2)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
4
69490-07
REFLECTOR, (red) (Canada) (2)
FLHX, FLTRX, FLHXS, FLTRXS
5
90834-
BAIL HEAD STUD, (NOTE: Remove
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
95B
Bail for HDI sale, excluding Japan)
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
(4)
6
94435-10
TOOL KIT
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
7
10200062
SCREW (6)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
8
10200063
SCREW (12)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
9
10200064
SCREW (2)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
10
10200065
SCREW (8)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
11
10200103
SCREW (16)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
12
67900065
REFLECTOR, left (red) (Domestic)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLTRX,
FLHTKL, FLHXS, FLTRXS
67900066
REFLECTOR, left (amber) (HDI)
FLHTK, FLHTCUL TC, FLHTKL, FLHXS, FLHTCU TC,
FLTRXS
67900067
REFLECTOR, right (red) (Domestic)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLTRX,
FLHTKL, FLHXS, FLTRXS
67900068
REFLECTOR, right (amber) (HDI)
FLHTK, FLHTCUL TC, FLHTKL, FLHXS, FLHTCU TC,
FLTRXS
13
67900256
REFLECTOR ASSEMBLY, w/ 69490-
FLHX, FLTRX, FLHXS, FLTRXS
07 (red) (Canada) (2)
14
71400010
LOCKSET, complete, w/ keys, ignition
FLHR
knob, fork lock & saddlebag locks
71400015
LOCKSET, complete, w/ keys, ignition
FLHTCU, FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL,
knob, saddlebag, & Tour-Pak locks
FLHTCUL
71400016
LOCKSET, complete, w/ keys, ignition
FLHX, FLHXS, FLTRX, FLTRXS
knob, & saddlebag lock
15
90200411
SADDLEBAG COVER, right
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
(unpainted)
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
90200413
SADDLEBAG COVER, left
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
(unpainted)
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
16
90200412
SADDLEBAG BOTTOM, right
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
(unpainted)
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
90200414
SADDLEBAG BOTTOM, left
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
(unpainted)
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
17
90200415
GASKET, cover (2)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
18
90200467
CUSHION, saddlebag support (4)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
19
90200488
LINER (2)
FLHTCU TC, FLHTCU, FLHTCUL, FLHTCUL TC
90200489
LINER (2)
FLHTK, FLHTKL
20
90200519
STRIKE, saddlebag (4)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
21
90200520
LATCH ASSEMBLY, right
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
90200521
LATCH ASSEMBLY, left
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL
TC, FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS

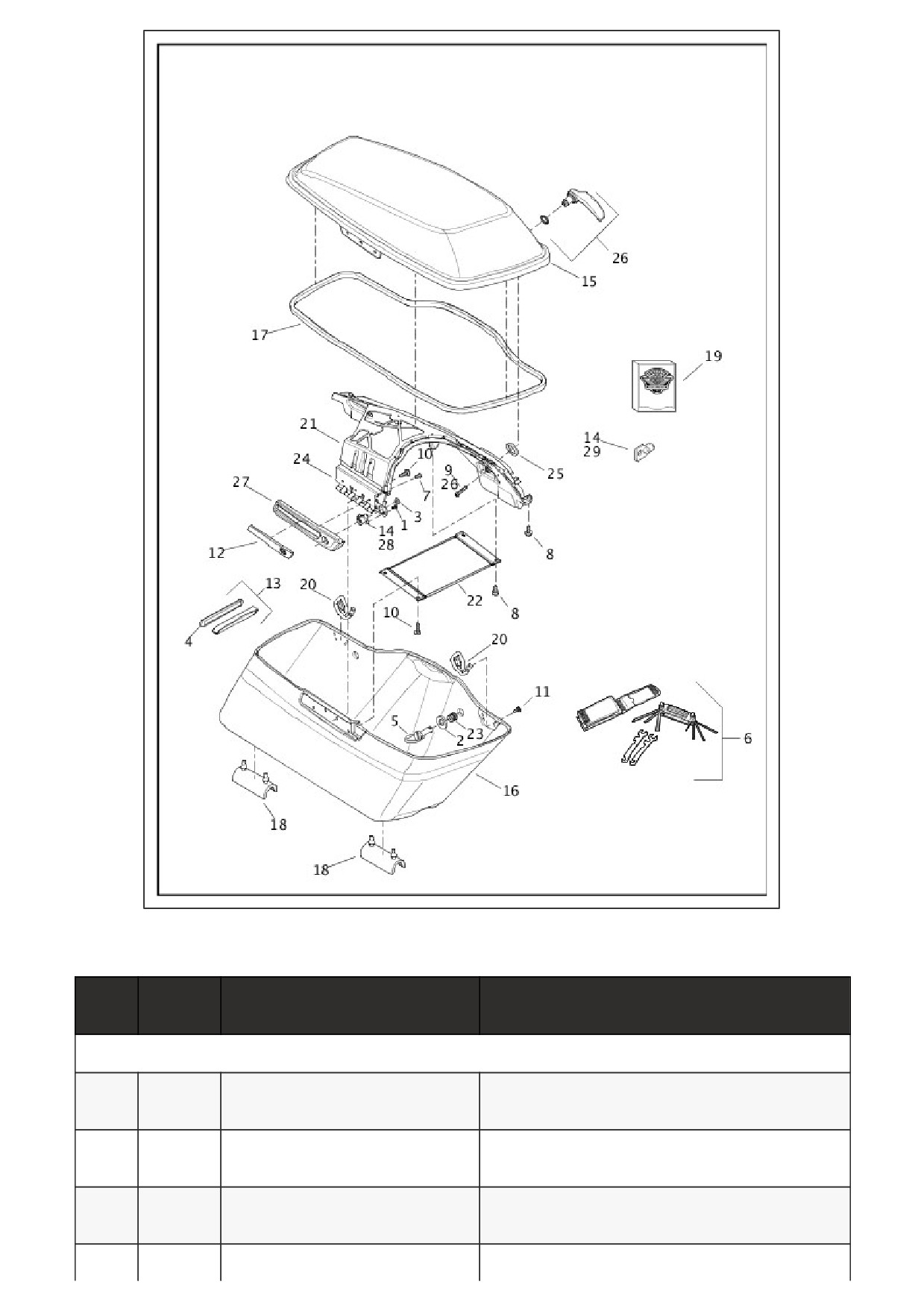

SADDLEBAGS (2 OF 2)
Index
Part No.
Description
Model(s)
No.
NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.
22
90200522
TETHER, saddlebag (2)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
23
90200611
ISOLATOR, saddlebag (4)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
24
90200899
HINGE ASSEMBLY, right
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
90200900
HINGE ASSEMBLY, left
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
25
90200901
SEAL (2)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
26
90200902
HANDLE KIT, saddlebag, w/
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
10200064 & grommet, right
FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
90200903
HANDLE KIT, saddlebag, w/
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
10200064 & grommet, left
FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
27
90201295
FACE PLATE, left (chrome)
FLHR, FLHTCU, FLHTCU TC, FLHTK, FLHTCUL,
FLHTCUL TC, FLHTKL
90200983BHT
FACE PLATE, left (brilliant
FLHXS
silver pearl)
90200983BYM
FACE PLATE, left (black
FLHXS, FLTRX, FLTRXS
denim)
90200983DH
FACE PLATE, left (vivid
FLHX, FLHXS, FLTRX, FLTRXS
black)
90200983DST
FACE PLATE, left (amber
FLHXS, FLTRX, FLTRXS
whiskey)
90200983DSW
FACE PLATE, left
FLHR, FLTRX
(mysterious red sunglo)
90200983DTC
FACE PLATE, left (morocco
FLHXS
gold pearl)
90200983DTF
FACE PLATE, left (charcoal
FLHXS
pearl)
90200983DUM
FACE PLATE, left (charcoal
FLHR
satin)
90200983DWC
FACE PLATE, left (superior
FLHR, FLTRXS
blue)
90200983DWF
FACE PLATE, left (deep jade
FLHXS
pearl)
90201296
FACE PLATE, right (chrome)
FLHR, FLHTCU, FLHTCU TC, FLHTK, FLHTCUL,
FLHTCUL TC, FLHTKL
90200984BHT
FACE PLATE, right (brilliant
FLHXS
silver pearl)
90200984BYM
FACE PLATE, right (black
FLHXS, FLTRX, FLTRXS
denim)
90200984DH
FACE PLATE, right (vivid
FLHX, FLHXS, FLTRX, FLTRXS
black)
90200984DST
FACE PLATE, right (amber
FLHXS, FLTRX, FLTRXS
whiskey)
90200984DSW
FACE PLATE, right
FLHR, FLTRX
(mysterious red sunglo)
90200984DTC
FACE PLATE, right (morocco
FLHXS
gold pearl)
90200984DTF
FACE PLATE, right (charcoal
FLHXS
pearl)
90200984DUM
FACE PLATE, right (charcoal
FLHR
satin)
90200984DWC
FACE PLATE, right (superior
FLHR, FLTRXS
blue)
90200984DWF
FACE PLATE, right (deep
FLHXS
jade pearl)
28
90300024
LOCK, w/ 7586 (specify key
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
number) (2)
FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
29
90300043
KEY, w/ 61081-92 (set of 2)
FLHR, FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
(specify key number)
FLTRX, FLHTKL, FLHXS, FLHTCU TC, FLTRXS
SADDLEBAGS - FLHRC
Index
Part No.
Description
Model(s)
No.
1
6229W
WASHER (4)
FLHRC
2
8126A
PUSH NUT, eight prong (4)
FLHRC
3
90382-98
SPRING KIT, hinge, w/ two springs (2)
FLHRC
4
90425-98
BUCKLE (4)
FLHRC
5
90834-
BAIL HEAD STUD, (NOTE: Remove Bail Head Stud for HDI sale, except in
FLHRC
95B
Japan) (4)
6
90439-10
SADDLEBAG STRAP REPAIR KIT, left side
FLHRC
90482-10
SADDLEBAG STRAP REPAIR KIT, right side
FLHRC
7
90820-
LABEL, saddle bag load limits
FLHRC
93D
8
14100254
MEDALLION, saddlebag lid (2)
FLHRC
9
90200684
SADDLEBAG, right, w/ 8126A, 90382-98, 90425-98, 90820-93D, 14100254 &
FLHRC
90200905
90200685
SADDLEBAG, left, w/ 8126A, 90382-98, 90425-98, 90820-93D,14100254 &
FLHRC
90200905
10
90200905
ISOLATOR, saddlebag (4)
FLHRC

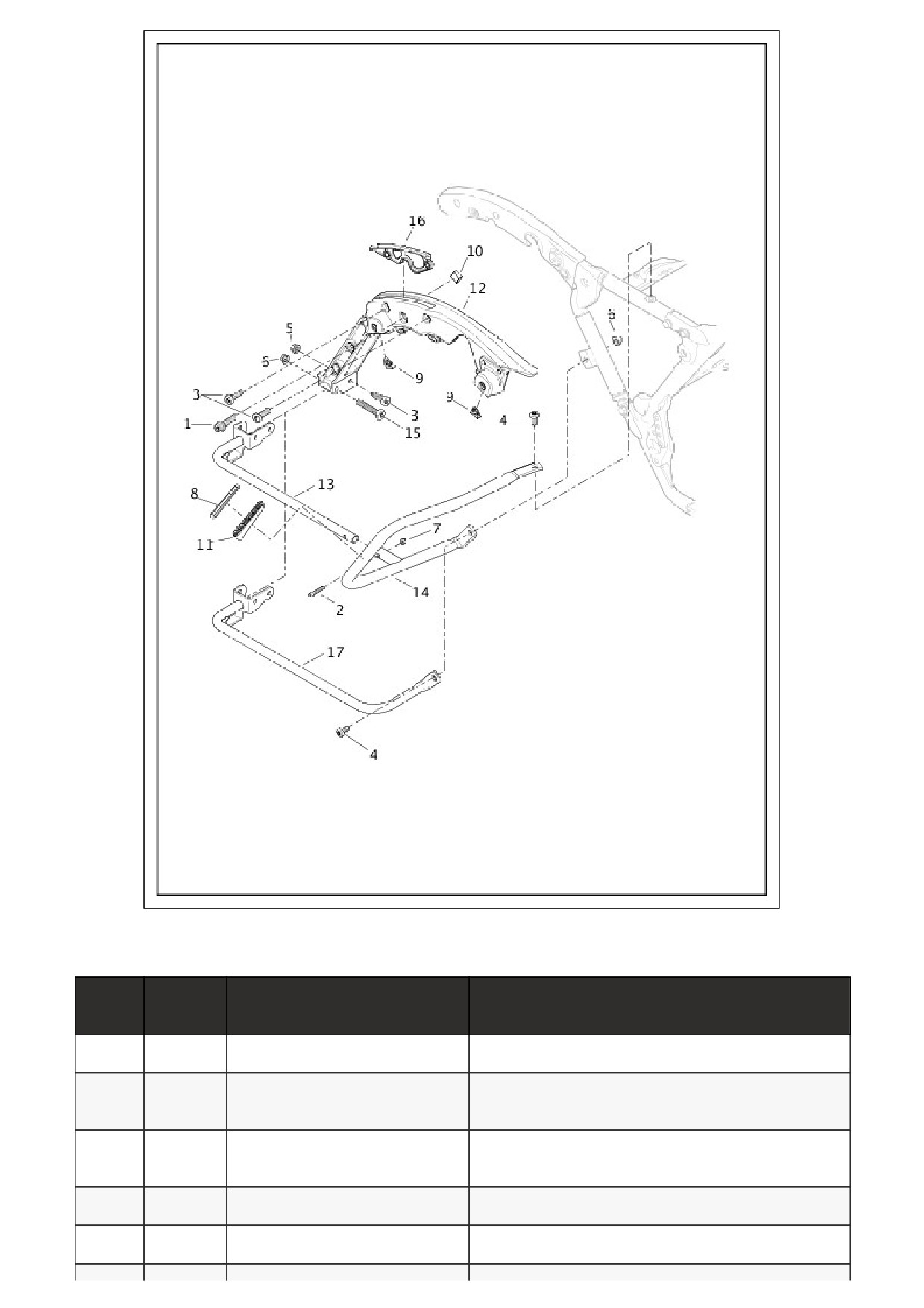

GUARDS, SADDLEBAG
Index
Part No.
Description
Model(s)
No.
1
10200217
SCREW (2)
2
3601
SCREW (2)
FLHR, FLHTCU, FLHTCU TC, FLHRC, FLHTK,
FLHTCUL, FLHTCUL TC, FLHTKL
3
3684
SCREW (2)
FLHTCU, FLHTCU TC, FLHTK, FLHTCUL, FLHTCUL TC,
FLHTKL
3
3684
SCREW (6)
FLHR, FLHRC, FLHX, FLHXS, FLTRX, FLTRXS
4
4924
SCREW (2)
FLHX, FLHXS, FLTRX, FLTRXS
4
4924
SCREW (4)
FLHR, FLHTCU, FLHTCU TC, FLHRC, FLHTK,
FLHTCUL, FLHTCUL TC, FLHTKL
5
7531
LOCKNUT (2)
6
7601
LOCKNUT (4)
7
7686
LOCKNUT (2)
FLHR, FLHTCU, FLHTCU TC, FLHRC, FLHTK,
FLHTCUL, FLHTCUL TC, FLHTKL
8
60254-07
REFLECTOR, (amber) (2)
FLHRC
9
10900009
RECEPTACLE (4)
10
11100068
CUSHION (2)
11
67900120
BRACKET, reflector (2)
FLHRC
12
90200499
SUPPORT, saddlebag, right, w/
11100068 (chrome)
90200501
SUPPORT, saddlebag, left, w/
11100068 (chrome)
13
90200504
SUPPORT, saddlebag, right (black)
FLHR, FLHTCU, FLHTCU TC, FLHRC, FLHTK,
FLHTCUL, FLHTCUL TC, FLHTKL
90200505
SUPPORT, saddlebag, left (black)
FLHR, FLHTCU, FLHTCU TC, FLHRC, FLHTK,
FLHTCUL, FLHTCUL TC, FLHTKL
14
90200506
GUARD, left (chrome)
FLHR, FLHTCU, FLHTCU TC, FLHRC, FLHTK,
FLHTCUL, FLHTCUL TC, FLHTKL
90200507
GUARD, right (chrome)
FLHR, FLHTCU, FLHTCU TC, FLHRC, FLHTK,
FLHTCUL, FLHTCUL TC, FLHTKL
15
90200543
SCREW (2)
16
90200547
INSERT ASSEMBLY, saddlebag
FLHR, FLHRC, FLHX, FLHXS, FLTRX, FLTRXS
support (2)
17
90200549
SUPPORT, left (black)
FLHX, FLHXS, FLTRX, FLTRXS
90200550
SUPPORT, right (black)
FLHX, FLHXS, FLTRX, FLTRXS

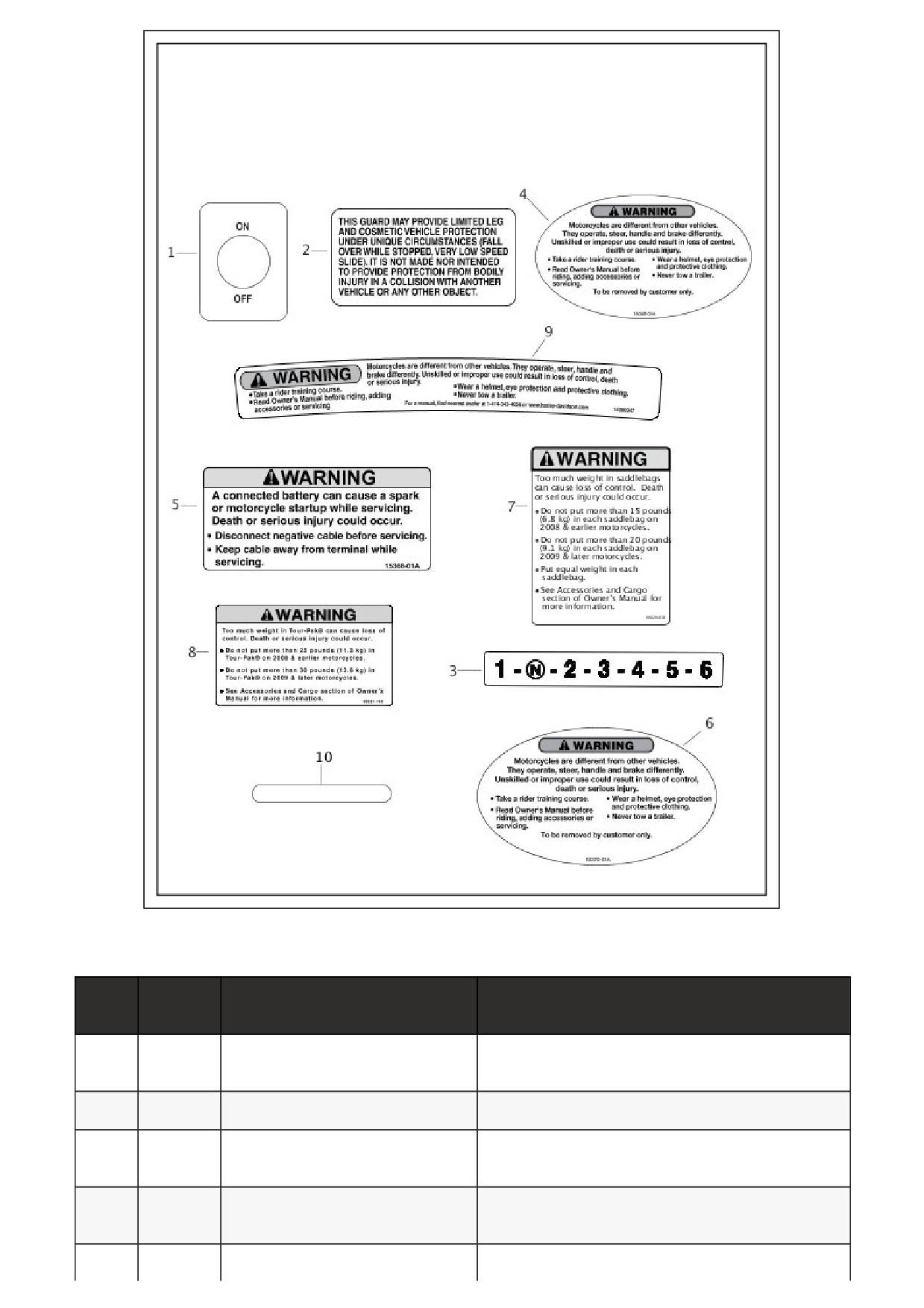

LABELS
Index
Part No.
Description
Model(s)
No.
1
14019-
LABEL ON/OFF SWITCH
FLHR, FLHRC
83A
2
14148-86
ENGINE GUARD LABEL
3
14272-06
SHIFT PATTERN LABEL, (Japan)
FLHRC, FLHTK, FLHTCU TC, FLHTCUL TC, FLHTKL,
FLHXS, FLTRXS
4
15342-
MIRROR WARNING LABEL
FLHX, FLHXS
06A
15385-08
MIRROR WARNING LABEL,
FLHRC, FLHTK, FLHXS
Portuguese (Brazil) (not shown)
5
15368-
LABEL BATTERY WARNING
01A
14263-04
LABEL BATTERY WARNING,
FLHRC, FLHTK, FLHXS, FLHTCU TC, FLHTKL,
Portuguese (Brazil) (not shown)
FLHTCUL, FLHTCUL TC, FLTRX, FLTRXS
6
15370-
MIRROR WARNING LABEL
FLHR, FLHTCU, FLHRC, FLHTK
01A
7
90820-
LABEL, saddlebag load limits
93D
8
90821-
LABEL, TOUR-PAK, load limit
FLHTCU, FLHTCU TC, FLHTK, FLHTKL, FLHTCUL,
74C
FLHTCUL TC
9
14000347
WARNING LABEL, air cleaner,
FLHR, FLHTCU, FLHX, FLHTCUL, FLTRX, FLTRXS,
(chrome) (Domestic, California)
FLHXS, FLHTK, FLHTKL
10
14000827
CLEAR OVERLAY, VIN label (Japan)
FLHRC, FLHTK, FLHXS, FLHTCU TC, FLHTCUL TC,
FLTRXS
NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N. number
and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels can only be
ordered for warranty purposes through h-dnet Service eForm.
LOOSE PARTS (1 OF 2)
Index
Part No.
Description
Model(s)
No.
1
68926-07
REMOTE CONTROL FOB, (except Japan) (2)
69995-11
REMOTE CONTROL FOB, (Japan) (2)
88002-
OWNER'S KIT CONTENT, (Domestic)
15D
99466-15
OWNER'S MANUAL, (Domestic, Australia, England)
69200336
MAIN FUSE, 50 amp (red)
90300043
KEY, (set of 2) (specify key number)
94000084
ABS DVD, (ABS models)
57668-10
WINDSHIELD ASSEMBLY, complete, low (clear) (Asia-
FLHRC
Pacific)
57994-94
WINDSHIELD ASSEMBLY, complete (FBM - Domestic,
FLHR, FLHRC
Canada, California) (FRM - Australia, Brazil)
58002-09
MID-FRAME AIR DEFLECTOR KIT, (Brazil)
FLHRC
58325-06
WINDSHIELD ASSEMBLY, complete (HDI, England,
FLHRC
Japan)
61400159
INSERT, handlebar cover
FLHR, FLHRC
58002-09
MID-FRAME AIR DEFLECTOR KIT
FLHTCU, FLHTCU TC, FLHTK,
FLHTKL, FLHTCUL, FLHTCUL TC
53598-
LINER, Tour-Pak, removable
FLHTCU, FLHTCU TC, FLHTCUL,
88A
FLHTCUL TC
62241-08
INSERT, PEACE OFFICER (2)
FLHTK, FLHTKL
62242-08
INSERT, FIREFIGHTER (2)
FLHTK, FLHTKL
62243-08
INSERT, SPECIAL EDITION (2)
FLHTK, FLHTKL
76250-09
ANTENNA MAST, CB
FLHTK, FLHTKL
76503-08
ANTENNA MAST, AM/FM/WB/LW
FLHTCU, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHTCU TC
77117-10
HEADSET ASSEMBLY, (Domestic, California, Canada)
FLHTK, FLHTCU, FLHTKL,
FLHTCUL
77117-10
HEADSET ASSEMBLY, (HDI, Australia, Japan, Asia-
FLHTK, FLHTCU TC, FLHTCUL TC,
Pacific, Brazil, England) (2)
FLHTKL
92038-10
LINER, Tour-Pak, removable
FLHTK, FLHTKL
94435-10
TOOL KIT
FLHTCU, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHTCU TC
99461-89
COVER, owner manual (Domestic, California, Canada,
FLHTCU, FLHTK, FLHTKL, FLHTCU
Australia)
TC
99517-
BOOM! OWNER'S MANUAL KIT, English (Domestic,
FLHTCU, FLHTCU TC, FLHTK,
15EN
Australia, England)
FLHTKL, FLHTCUL, FLHTCUL TC
52300053
BACKREST ASSEMBLY, passenger (black)
FLHTCU, FLHTCU TC, FLHTK,
FLHTKL, FLHTCUL, FLHTCUL TC
57400001
WINDSHIELD, (clear) (Domestic)
FLHTCU, FLHTK
57400001
WINDSHIELD, (clear) (Brazil, Australia)
FLHTK, FLHTCU TC
57400002
WINDSHIELD, (clear) (HDI, England, Japan)
FLHTK, FLHTCU TC
57400058
WIND DEFLECTOR, (clear) (Asia-Pacific)
FLHTK, FLHTCU TC, FLHTCUL TC,
FLHTKL
57400250
WINDSHIELD, (clear) (Domestic, HDI, Australia,
FLHTCUL, FLHTCUL TC, FLHTKL
England, Japan)
(2)
90200488
LINER, saddlebag, removable
FLHTCU TC, FLHTCU, FLHTCUL,
FLHTCUL TC
90200489
LINER, saddlebag, removable (2)
FLHTK, FLHTKL
J00761
CB RADIO GUIDE: I-SHEET, (Domestic) (2)
FLHTK, FLHTKL
3767B
BOLT (4)
FLHTK, FLHTCU TC
6703
WASHER (4)
FLHTK, FLHTCU TC
53000311
ADAPTER PLATE, Tour-Pak
FLHTK, FLHTCU TC
2731W
SCREW (2)
FLHTCU, FLHTCU TC, FLHTK,
FLHTKL, FLHTCUL, FLHTCUL TC
59292-94
NUT, plastic (2)
FLHTCU, FLHTCU TC, FLHTK,
FLHTKL, FLHTCUL, FLHTCUL TC
ALLTOURINGFLHR,FLHRCFLHTCU, FLHTCUL, FLHTCU TC,FLHTCUL TC, FLHTK, FLHTKLTOUR-PAK ADAPTER
KIT (Asia-Pacific)LICENSE PLATE MOUNTING KIT HARDWARE
LOOSE PARTS (2 OF 2)
Index
Part No.
Description
Model(s)
No.
1
58002-09
MID-FRAME AIR DEFLECTOR KIT, (Brazil)
FLHXS
76503-08
ANTENNA MAST, AM/FM/WB/LW
FLHX, FLHXS
94435-10
TOOL KIT
FLHX, FLHXS
99517-
BOOM! OWNER'S MANUAL KIT, English (Domestic, Australia,
FLHX, FLHXS
15EN
England)
57400003
WIND DEFLECTOR, (smoked) (Domestic)
FLHX, FLHXS
57400003
WIND DEFLECTOR, (smoked) (Brazil, Australia)
FLHXS
57400004
WIND DEFLECTOR, (smoked) (HDI, England, Japan)
FLHXS
57400058
WIND DEFLECTOR, (clear) (Asia-Pacific)
FLHXS
76503-08
ANTENNA MAST, AM/FM/WB/LW
FLTRX,
FLTRXS
94435-10
TOOL KIT
FLTRX,
FLTRXS
99517-
BOOM! OWNER'S MANUAL KIT, English (Domestic, Australia,
FLTRX,
15EN
England)
FLTRXS
57400190
WINDSHIELD KIT, (Domestic, Australia)
FLTRX,
FLTRXS
57400191
WINDSHIELD KIT, (HDI)
FLTRXS
FLHX,FLHXSFLTRX,FLTRXS
Hardware List
Part No.
Description
10100049
LOCKNUT hex, M6 X 1-6H X 5.2mm (Grade 9)
10200042
SCREW No. 10-24 X 1-5/8 hex flange hd. full thread (Grade 5) (zinc)
10200052
SCREW
1/4-20 X 39/64 TORX SEMS socket button hd. , w/ lockpatch
10200059
SCREW
1/4-20 X 1-11/16 TORX socket button hd. matpoint (Grade 5) (black)
10200060
SCREW
1/4-20 X 2-5/8 TORX socket button hd. matpoint (Grade 5) (black)
10200061
SCREW No. 8-32 X 1/2 TORX SEMS pan hd. (zinc)
10200062
SCREW No. 8-32 X 3/8 TORX pan hd. (zinc)
10200063
SCREW No. 8 X 1/2 TORX SEMS pan hd. (stainless)
10200064
SCREW No. 8-32 X 1 TORX pan hd. (zinc)
10200065
SCREW No. 8-32 X 5/8 TORX SEMS pan hd., w/ lockpatch (stainless)
10200103
SCREW No. 8-32 X 1/2 TORX SEMS pan hd., w/ lockpatch (stainless)
10200105
SCREW No. 6-32 X 3/4 TORX pan hd. (black zinc)
10200112
SCREW
1/4-20 X 2 TORX button hd. SEMS (Grade 5) (black)
10200120
SCREW
1/8 X 18 X 1.00 hex cap
10200133
SCREW No. 8-16 X 9/16 TORX pan hd. (zinc)
10200134
SCREW
1/4-20 X 3/4 hex socket hd. (Grade 8) (zinc)
10200141
SCREW
1/4-20 X 1/2 hex socket button hd. (zinc)
10200142
SCREW
5/16-18 X 3/4 hex flange w/ internal hex SEMS, hardened (zinc)
10200147
SCREW No. 10-24 X 3/4 TORX socket button hd. SEMS (black)
10200154
SCREW No. 8 X 3/4 TORX SEMS pan hd. (stainless)
10200155
SCREW No. 8-16 X 1 TORX pan hd. (zinc)
10200156
SCREW No. 8-32 X 3/8 phillips round hd. (stainless steel)
10200205
SCREW No. 10 X 1/2 pan hd. TORX, hardened (zinc)
10200217
SCREW
5/16-18 X 1-1/4 TORX SEMS, w/ lockpatch (zinc)
10200223
SCREW No. 10-24 UNRC X 3/4 TORX truss hd. (zinc)
10200257
SCREW No. 8-32 X 1/2 TORX pan hd. T-20 (zinc)
10200258
SCREW
1/4-20 X 1-1/4 SEMS hex socket hd. (Grade 8) (zinc)
10200350
SCREW
1/4-20 X 1-1/8 SEMS hex socket hd. (Grade 8) (zinc)
10200365
SCREW
1/4-20 X 1-1/16 TORX socket hd. SEMS (Grade 8) (zinc)
1039
SCREW
5/16-18 X 2-1/2 hex flange hd. (Grade 8)
10500015
SCREW
5/16-18 X 1-7/8 SEMS hex socket hd.
10500017
SCREW No. 10 X 3/8 pan hd., TORX, plastite, hardened (zinc)
10500022
SCREW
5/16-18 X 1-1/2 SEMS hex socket hd. (Grade 8) (zinc)
10500036
SCREW
3/8-16 X 2 SEMS socket hd. (Grade 8.8) (black)
10500053
SCREW
1/4-20 X 3/8 TORX button hd., w/ lockpatch (zinc)
1062
SCREW
1/4-20 X 5/8 TORX hd. (Grade 8)
12600031
SCREW
5/16-18 X 1 hex socket hd. cap (Grade 8) (black)
12600032
SCREW
1/2-13 X 2 hex hd. cap lock patch(Grade 5)
12600049
SCREW No. 10-24 X 3/4 pan hd. torx, w/ lockpatch (Grade 8) (zinc)
1332
SCREW No. 5/16 X 2-1/4 socket button hd. w/lock patch (Grade 8)
2445
SCREW
1/4-20 X 9/16 button hd.
2446
SCREW
1/4-20 X 5/8 TORX socket button hd.
2452
SCREW No. 12-24 X 13/16 pan hd., w/lockpatch
2478
SCREW No. 10-24 X 1/2 TORX button hd.
2479
SCREW
5/16-18 X 1-1/8 SEMS socket hd.
2482
SCREW
6-32 X 5/16 socket button hd. (stainless)
2531
SCREW No. 4-40 X 5/16 Pozidriv pan hd. (Grade 2)
2563
SCREW No. 10-24 X 5/8 TORX button hd.
2590
SCREW No. 8-32 X 5/8 Phillips hd.
2647B
SCREW No. 10-24 X 3/4 socket hd., self-locking
2692WB
SCREW No. 10-24 X 1/2 socket fillister hd. (Grade 8)
2708A
SCREW
5/16-18 X 1 socket hd.
2724
SCREW No. 10-16 X 1/2 (Grade 2) (chrome)
2731W
SCREW No. 10 X 3/8 Phillips truss hd., self-tapping
2921
SCREW No. 12 X 5/8 TORX pan hd.
29269-83A
SCREW 15/16-18 X 5/8 hex button hd., w/lockpatch
2933
SCREW No. 10-24 X 1/2 flat hd.
2952A
SCREW 1/4-20 X 1/2 SEMS truss hd.
2968
SCREW No. 8-32 X 3/4 TORX pan hd.
2980
SCREW M6 X 1 X 16mm hex flange hd.
2995
SCREW No. 10-16 X 3/4 pan hd.
3022A
SCREW 1/4-20 X 5/8 socket fillister hd., w/lockpatch
3050
SCREW No. 10-24 X 1-3/8 TORX hd.
3057
SCREW 7/16-14 X 1-1/4 hex head w/washer, w/lock patch
3061
SCREW 1/4-20 X 5/8 SEMS hex hd.
3088
SCREW 1/4-20 X 1-1/2 socket button hd. (chrome)
3143
SCREW 3/8-16 X 1 hex socket hd., w/lock patch
3152
SCREW #10 X 1/2 TORX pan hd
3225
BOLT No. 6 X 5/8 long phillips pan hd. (zinc)
3249
SCREW 5/16-18 X 1-3/16 socket hd. (Grade 8)
3275
SCREW 5/16-18 X 3/4 socket hd. (Grade 8)
3300
SCREW 5/16-18 X 1-1/2 socket hd., w/lockpatch (Grade 8)
3403
LOCKNUT M8-1.25 X 12mm flange (zinc)
3514
SCREW No. 8-32 X 1 fillister hd. (Grade 5)
35241-06
NUT 1-3/4-20 X .350 X 2-1/4 hex hd.
35244-06
SCREW 5/16-18 X 1-1/4 hex flange hd.
35259-06
SCREW No. 10-24 X 1/2 hex hd. (Grade 8)
3529
SCREW No. 10-32 X 1/4 hex slotted washer hd., self-tapping
3536
BOLT 3/8-16 X 1-1/4 hex hd. (Grade 8)
3560WA
BOLT No. 10-24 X 3/8
3561WC
BOLT No. 10-24 X 3/8
3563
SCREW 1/4-20 X 3/8 hex flange hd. (Grade 5)
3576
SCREW 5/16-18 X 1/2 hex hd., w/washer.
3588
SCREW 1/4-20 X 1/2 hex flange hd.
3594
SCREW 1/4-20 X 5/8 knurled hd. (Grade 8)
3601
SCREW 1/4-20 X 1-1/4 knurled hd. (Grade 8)
3607
BOLT 1/2-13 X 2 hex hd. (Grade 5)
3612
SCREW No. 10-16 X 1/2 TORX pan hd., self-tapping
3622
SCREW No. 10-16 X 3/8 pan hd., self-tapping
3634
SCREW 5/16-18 X 1.0 self-tapping
3655A
SCREW 5/16-18 X 7/8 TORX pan hd., w/lockpatch (Grade 8)
3656
SCREW No. 8-32 X 3/8 TORX pan hd. (Grade 5)
36706-01K
BOLT M6 X 1.0 X 30 hex flange hd.
3676
SCREW 5/16-18 X 5/8 TORX pan hd.
3684
SCREW 5/16-18 X 1 TORX pan hd.
3692A
SCREW 5/16-18 X 1.0 hex hd., w/lockpatch
3693A
SCREW 5/16-18 X 1-3/4 hex hd., w/lockpatch
3699D
SCREW 3/8-16 X 2.0 hex flange hd. (Grade 8)
3736B
SCREW 5/16-18 X 1-1/4 hex flange hd., w/lockpatch
3767B
BOLT 1/4-20 X 5/8 hex hd. (Grade 5)
3787
BOLT 1/4-20 X 3/4 hex hd. (Grade 5)
3892
SCREW 1/4 X 5/8 self-tapping
3901
SCREW 1/4-20 X 1.0 hex flange hd. (Grade 5)
3910
SCREW 1/2-20 X 2-1/4 hex hd. full thread (Grade 5) (zinc)
3929
SCREW 5/16-18 X 1/2 hex hd.
3983
SCREW 3/8-16 X 1-5/8 hex flange hd., w/washer (Grade 8)
3987
BOLT 5/16-18 X 3/4 hex hd. (Grade 5)
3993
BOLT 1/4-20 X 1-1/4 hex hd. (Grade 5)
4032A
SCREW 3/8-16 X 2-1/2 socket hd.
4132
SCREW 1/4-20 X 1-1/8 TORX button hd. (Grade 5) (black)
4194
SCREW No. 10-24 X 5/16 TORX pan hd. (Grade 5)
4240
SCREW No. 10-24 X 3/16 hex hd., w/washer
4266A
SCREW 3/8-16 X 7/8 button hd. (Grade 5)
4312C
SCREW M6 X 1.0 X 14mm, SEMS flange hd. (stainless)
4313
SCREW 3/8-16 X 1-1/4 socket hd.
43567-92
SCREW 3/8-16 X 1 TORX pan hd., w/lockpatch
4400
BOLT 1/4-20 X 1-11/16 hex hd. w/Scotch grip (Grade 8)
4419
SCREW 5/16-18 X 1-3/4 SEMS hex hd.
45500118
SCREW M14 X 1.25 X 25 hex socket cap (zinc)
45500132
SCREW M8 X 1.25 X 45 hex socket cap (Grade 8.8)
4597M
SCREW M10 X 1.5 X 30 hex socket hd.
4612
SCREW 10-24 X 3/4 TORX pan hd.
46509-01
WASHER 30 X 43 X 2.3
4688
SCREW 3/8-16 X 1-1/4 SEMS hex socket hd., w/ lock patch
4694
SCREW No. 8-32 X 3/8 TORX pan hd., w/lockpatch
4705
SCREW 1/4-20 X 11/16 SEMS socket hd., w/lockpatch
4706
SCREW 3/8-16 X 4 hex hd.
4718A
SCREW 1/4-20 X 1-1/2 knurled hd., w/lockpatch
4721
BOLT 3/8-16 X 1-1/2 hex hd. (Grade 5)
4740A
SCREW 1/4-20 X 1-1/4 knurled hd., w/lockpatch (Grade 8)
4741A
SCREW 1/4-20 X 1 socket hd., w/lockpatch
4775
SCREW 3/8-16 X 1-1/4 hex hd. (Grade 5)
4790
SCREW No. 10-16 X 3/4 TORX hd., self-tapping
4813A
SCREW 1/4-20 X 1-3/8 knurled hd., w/lockpatch
4816A
SCREW 5/16-18 X 1-1/2 socket hd.
4826
SCREW 1/4-20 X 2-1/2 socket hd., w/washer
4838
SCREW 7/16-14 X 2-1/2 hex socket hd., w/washer, w/lockpatch
4856
SCREW No. 10-24 X 1/2 socket head (stainless)
4867
SCREW hex hd., socket
4868
SCREW 3/8-16 X 3-3/4 hex flange hd., w/washer, w/lockpatch
4916
SCREW 5/16-18 X 1.0 hex socket head shoulder
4924
SCREW 3/8-16 X 7/8 TORX button hd. (zinc plate) (Grade 5)
5416
BOLT 3/8-16 X 1/8 carriage (Grade 5)
54321-85
NUT No. 8-32 X 1/2 X 1/8 (brass)
6012
WASHER 1/2 X 1-3/16 X 1/16
6016
WASHER 11/32 X 11/16 X 1/16
6019
WASHER 3/8 X 29/32 X 1/16
6026
WASHER 3/8 X 7/8 X 7/64
6036
WASHER 17/64 X 1 X 1/16
6054
WASHER 3/16 X 9/16 X 1/16 nylon (black)
